Treatment of fistula-in-ano with fistula plug – a review under special consideration of the technique
- 1Department of Surgery and Center for Minimally Invasive Surgery, Academic Teaching Hospital of Charité Medical School, Vivantes Hospital, Berlin, Germany
- 2Exeter Surgical Health Services Research Unit (HeSRU), Royal and Exeter Hospital, Exeter, UK
Introduction: In a recent Cochrane review, the authors concluded that there is an urgent need for well-powered, well-conducted randomized controlled trials comparing various modes of treatment of fistula-in-ano. Ten randomized controlled trials were available for analyses: There were no significant differences in recurrence rates or incontinence rates in any of the studied comparisons. The following article reviews the studies available for treatment of fistula-in-ano with a fistula plug with special attention paid to the technique.
Material and Methods: PubMed, Medline, Embase, and the Cochrane medical database were searched up to July 2015. Sixty-four articles were relevant for this review.
Results: Healing rates of 50–60% can be expected for treatment of complex anal fistula with a fistula plug, with a plug-extrusion rate of 10–20%. Such results can be achieved not only with plugs made of porcine intestinal submucosa but also those made of other biological or synthetic bioabsorbable mesh materials. Important technical steps are firm suturing of the head of the plug in the primary opening and wide drainage of the secondary opening.
Discussion: Treatment of a complex fistula-in-ano with a fistula plug is an option with a success rate of 50–60% with low complication rate. Further improvements in technique and better studies are needed.
Fistula-in-ano is a difficult problem that physicians have struggled with since the time of Hippocrates (1). Despite the long-standing history of fistula-in-ano and the multiple approaches that are utilized, there is a paucity of high quality data to guide decision (1). In a recent Cochrane review, the authors concluded that there is an urgent need for well-powered, well-conducted randomized controlled trials comparing various modes of treatment of fistula-in-ano (2).Ten randomized controlled trials were available for analyses: there were no significant differences in recurrence rates or incontinence rates in any of the studied comparisons. The American Gastroenterological Association divides the fistula-in-ano into simple and complex (1). Simple fistulas are low – i.e., they involve a small or no portion of the sphincter complex. These fistulas include superficial, low intersphincteric, or low transsphincteric fistula. In addition, communication between the anal canal end skin is only via one tract and is not associated with inflammatory bowel disease, radiation or involve any other organ (1). Complex fistulas are anatomically higher: they involve a significant portion of the sphincter musculature, may have multiple tracts, involve other organs (i.e., vagina) and may be associated with radiation or inflammatory bowel disease. Recurrent fistulas are usually included in this category as well (1).
Fistulotomy, although extremely effective in treating low anal fistulas, is not a feasible option when the fistula tract incorporates a significant amount of the internal and external anal sphincter, as is the case for many high transsphincteric fistulas (3). It is also frequently contraindicated for anterior transsphincteric fistulas in women, for most fistulas in patients with Crohn’s disease, and for fistulas in patients who have diminished continence (3).
The alternative treatment option of a transanal mucosal advancement flap for patients with high transsphincteric fistulas has reported success rates ranging from 59 to 98%. However, these procedures are technically challenging and some authors report incontinence rates of up to 20% (3).
In Crohn’s disease-related high perianal fistulas, the mucosa advancement flap was combined with platelet-rich plasma (4).
Ligation of the intersphincteric tract (LIFT) is a further alternative technique and has been associated with fistula closure rates of between 57 and 94% (3, 9). In a recent systematic review of 26 studies, including only 1 randomized controlled trial and 24 case series, 7 technical variations were used. Primary healing rates ranged from 47 to 95% (10).
Johnson et al. (11) first described the anal fistula plug, a bioabsorbable xenograft made of lyophilized porcine intestinal submucosa.
The following article reviews the studies available on treatment of fistula-in-ano with a fistula plug and calculates the success rates, while paying special attention to the fistula closure rate and the techniques used. The literature reports a success rate ranging from 24 to 88% with the mean follow up of 8 months. A possible explanation for this discrepancy could be differences in patient selection and variation of the technique (5). In a Consensus Conference, it was stated that a frequent issue affecting the plug procedure is a failure in the plug placement technique (5, 12). Therefore, each publication was carefully reviewed to identify the surgical technique employed. This sets this systematic review apart from those published hitherto.
Materials and Methods
PubMed, Medline, Embase, and the Cochrane medical databases were searched up to December 2014 using the key words: “Anal fistula” AND “Plug,” “Fistula-in-ano” AND “Plug,” “Anal fistula” AND “Fistula plug.” In addition, the references of articles retrieved were searched for relevant articles not previously identified. Sixty-four articles were relevant for this review.
The first systematic review of the efficacy of a SIS-anal-fistula plug was published in 2010 (13). All randomized/non-randomized, controlled/non-controlled clinical trials, which studied SIS-anal-fistula plug or compared SIS-anal-fistula plug with other treatment methods for anal fistula and which reported clinical healing of the fistula as the outcome, were included. Studies on patients with rectovaginal fistula who were treated by SIS-anal-fistula plug and patients undergoing additional procedure (advancement flap or fibrin glue) along with SIS-anal-fistula plug were excluded from the review. One study reporting the usage of an acellular extracellular matrix was not included because the material used was different.

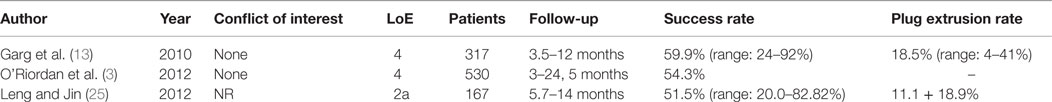

Twelve studies were analyzed in the systematic review (Table 1). These consisted of one RCT (11), seven prospective case series (14–20), and four retrospective case series (21–24). Since the majority of studies analyzed in the systematic review are prospective or retrospective case series, the level of evidence is only 4. Table 2 gives details of the surgical technique used in the studies included in the review.

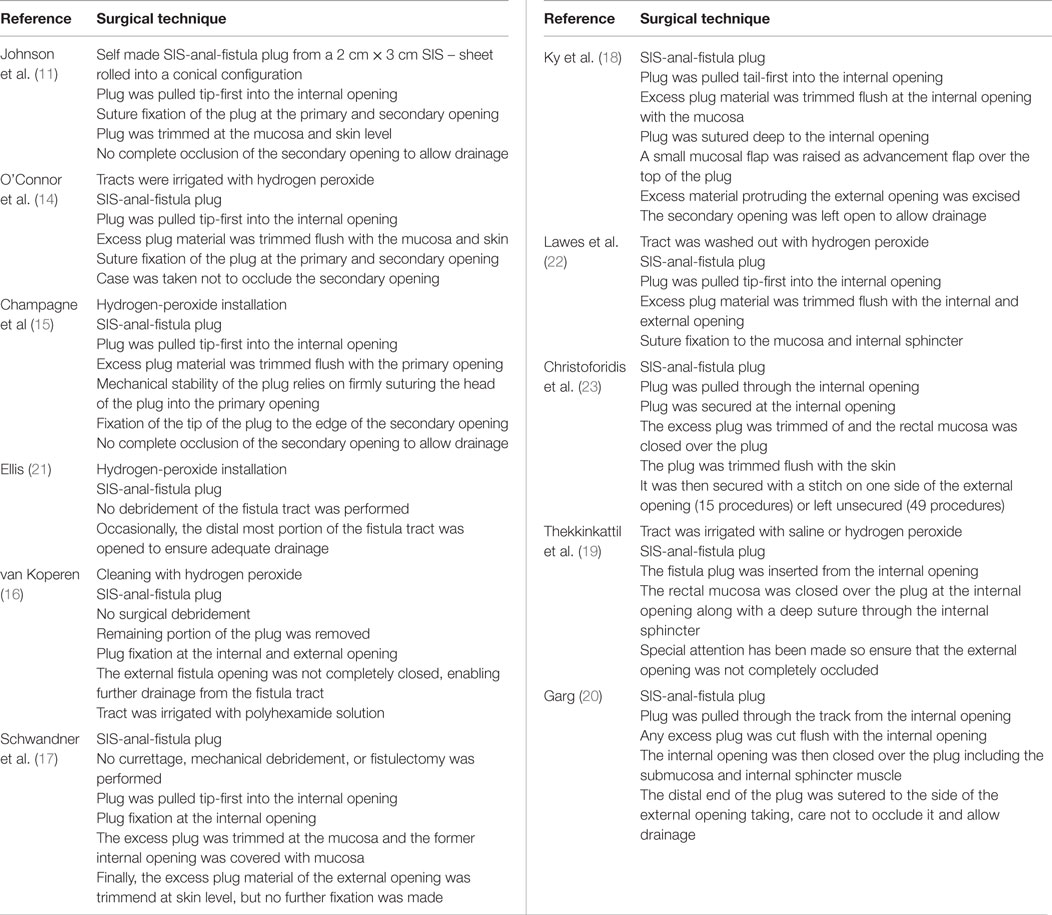

Table 2. Surgical techniques used in the studies included in the systematic review of Garg et al. (13).
A total of 317 patients were analyzed in the review by Garg (13) with a follow-up of range 3.5–12 months (Table 1). The SIS-anal-fistula plug procedure had a success rate of n = 180/317 (59.9%) ranging from 24 to 92%. The number of complex fistulae reported in 8 out of 12 studies was 186 with a success rate of n = 119/186 (64.0%) ranging from 35–87%. In patients with recurrent fistula, the success rate was n = 16/34 (47.1%) ranging from 13 to 71%. The success rate in patients with Crohn’s disease was n = 26/41 (63.4%) ranging from 29 to 86%. The success rate in patients with single tracts (n = 123/184; 66.8%, range 44–93%) seemed better than for patients with multiple tracts (n = 21/43; 48.8% range 20–71%). If the patients with plug extrusion were excluded from the analysis, the success rate was n = 121/189 (64.0%), ranging from 40 to 90%.The plug extrusion rate was n = 43/232 (18.5%), ranging from 4 to 41%.
In 2012, another systematic review was published (3). This systematic review included studies whose results for patients with and without Crohn’s disease could be differentiated. Patients with rectovaginal, anovaginal, rectouretral, or ileal-pouch vaginal fistulas were excluded as were studies where the mean or median follow-up was <3 months.
The systematic review contained 20 studies, consisting of 18 articles and 2 abstracts (26, 27). Among the 20 studies included are two RCTs (28, 29), 10 prospective case series (15, 16, 20, 26, 30–35), and 8 retrospective case series (22, 24, 27, 36–40). Only 5 out of 20 of the publications listed were also included in the review by Garg (13, 15, 16, 20, 22, 24). This systematic review, too, was supported only by level of evidence 4 in view of the predominant number of prospective and retrospective case series.
Table 3 lists the exact surgical technique employed in the studies that were included in the review by O’Riordan (3) and not already analyzed in the Garg (13) review in Ref. (15, 16, 22, 24). Details of the surgical technique are not given for studies for which only an abstract is available (26, 27).
The study sample sizes ranged from 4 to 60 patients with a pooled total of 530 patients for this review. Forty-two of these patients had Crohn’s disease, whereas 488 patients did not have Crohn’s disease. The shortest mean or median follow-up in the 20 studies was 3 months, and the longest follow-up was 24.5 months.
Closure of the fistula was successful in 288 of the 530 patients with fistula-in-ano (54.3%; 95% CI 0.50–0.59). The overall success rate for patients with Crohn’s disease was 23 of 42 patients (54.8%), whereas for patients without Crohn’s disease it was 265 of 488 patients (54.3%).
A total of 46 patients experienced plug extrusion (8.7%). Eight of the 20 included articles reported continence levels pre- and post-insertion of the SIS-anal-fistula plug (20, 23, 24, 29, 31, 34, 40). There were no reported cases of any significant change in continence after insertion of the SIS-anal-fistula plug in any of the patients in these studies (n = 196 patients).
Leng et al. (25) then published a meta-analysis comparing anal fistula plug vs. mucosa advancement flap in complex fistula-in-ano. The studies included were three RCTs (28, 29, 41), one prospective cohort study (33) and two retrospective case series (37, 38). Hence the level of evidence is 2a. Apart from the RCT by A ba-bai-Ke-re et al. (41), the other studies had also been taken into account in the systematic review by O’Riordan et al. (3) and Garg et al. (13).
The six studies encompassed 408 patients with 167 cases of SIS-anal-fistula plug treatment and 241 with mucosa advancement flap. The difference in the overall success rates and incidence of fistula recurrence was not statistically significant between SIS-anal-fistula plug and mucosa advancement flap in complex fistula-in-ano treatment (risk difference = −0.12. 95% CI: −0.39–0.14; risk difference = 0.13; 95% CI: −0.18–0.43, respectively). However, for the SIS-anal-fistula plug, the risk of postoperative impaired continence was lower (risk difference = −0.08. 95% CI: −0.15–0.02) as was the incidence of other complications (risk difference = −0.06. 95% CI: −0.11 to 0.00). Patients treated with the SIS-anal-fistula plug had less persistent pain of a shorter duration and the healing time of the fistula and hospital stay were also reduced. Another comparative study identified similar results for treatment, in addition to cost savings for the plug-in technique because of the shorter hospital stay (42).

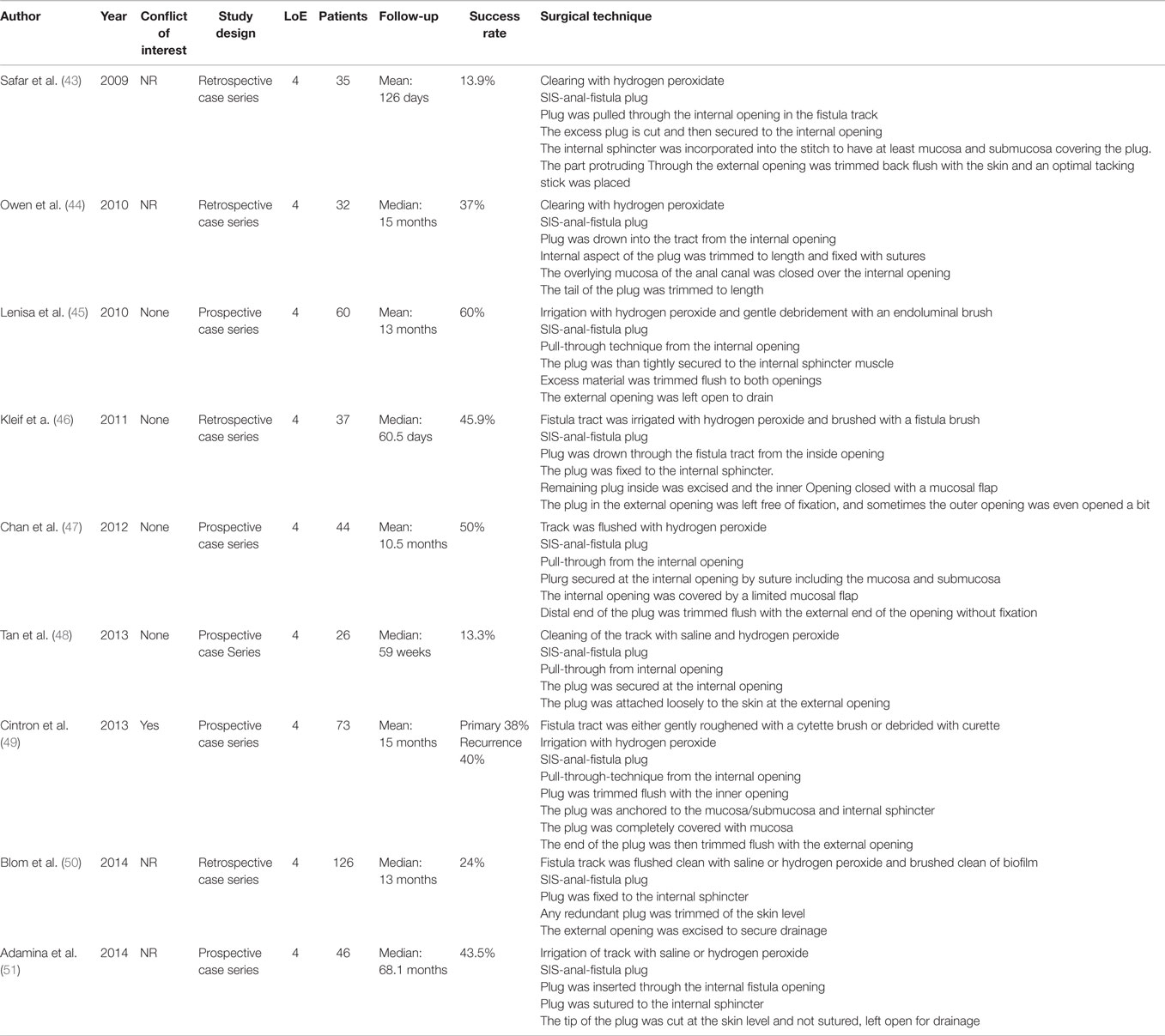

Table 4. Case series of SIS-anal-fistula plug treatment not included in the systematic reviews and meta-analyses.
It can thus be stated that treatment of complex anal fistula with SIS-anal-fistula plug is likely to be associated with a failure rate of about 50%. This result is not worse than that obtained for the mucosa advancement flap. However, the plug technique has the advantage of a lower postoperative complication rate and no negative impact on continence. More studies and technical modifications are needed to further improve the plug technique.
For example, Köckerling et al. (52) reported on a modified plug technique in which the extra-sphincteric portion of the complex anal fistula was removed by means of a limited fistulectomy and the remaining section of the fistula in the sphincter muscle was repaired using the fistula plug with fixing button. After a mean of 19.32 ± 6.9 months with a follow-up rate of 77% the success rate was 90%.

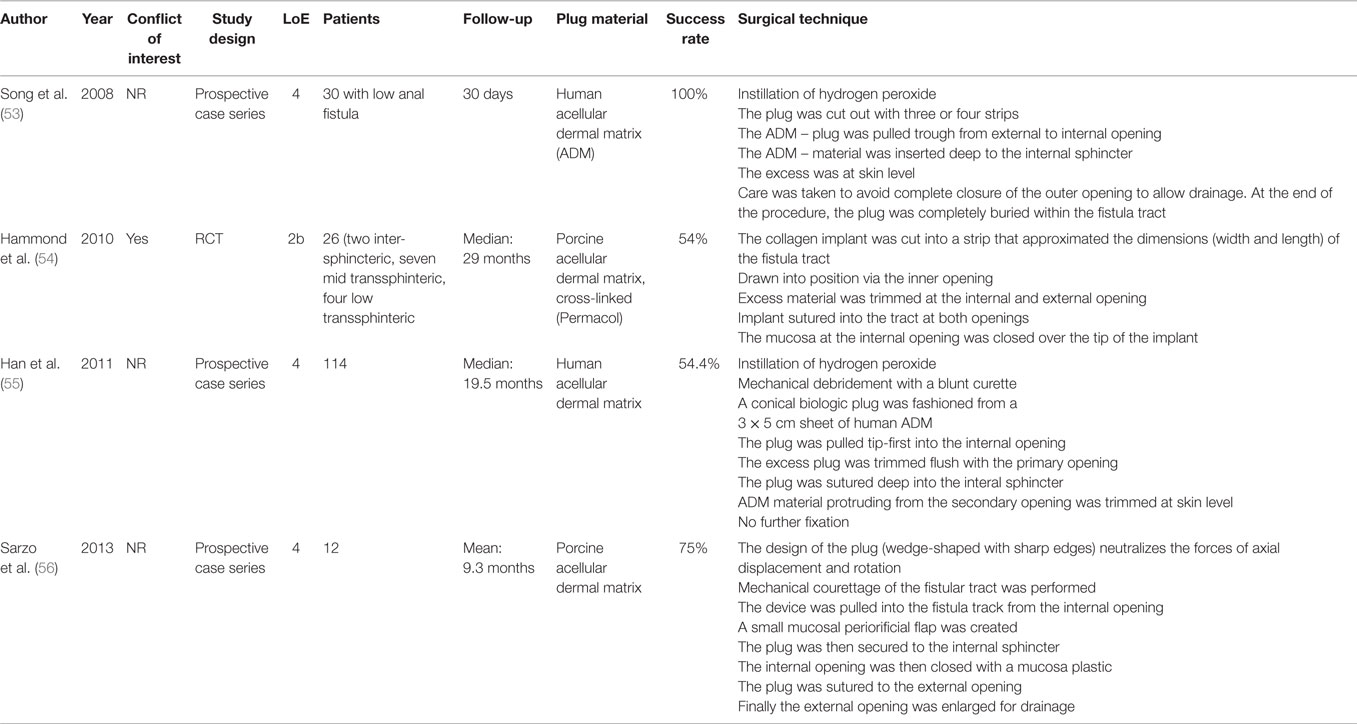

Another modification entails the use of plugs made of acellular dermal matrix instead of intestine submucosa (53–56). These are not preconfigured as a plug but are cut out from flat biological meshes. Details of the technique as well as the results are given in Table 5. The studies available show that success rates similar to those achieved with the SIS-anal-fistula plug can also be obtained with plugs made from acellular dermal matrix under similar technical conditions. In comparison to traditional surgical treatment, the fistula recurrence rate was significantly lower in the group treated with acellular dermal matrix (57).
In a pilot study, 10 patients with a median of 3 previous fistula operations were successfully operated on with an autologous cartilage plug from the nose or the ear. The treatment was initially successful in 90% of the patients, but two patients later developed a recurrence (58).

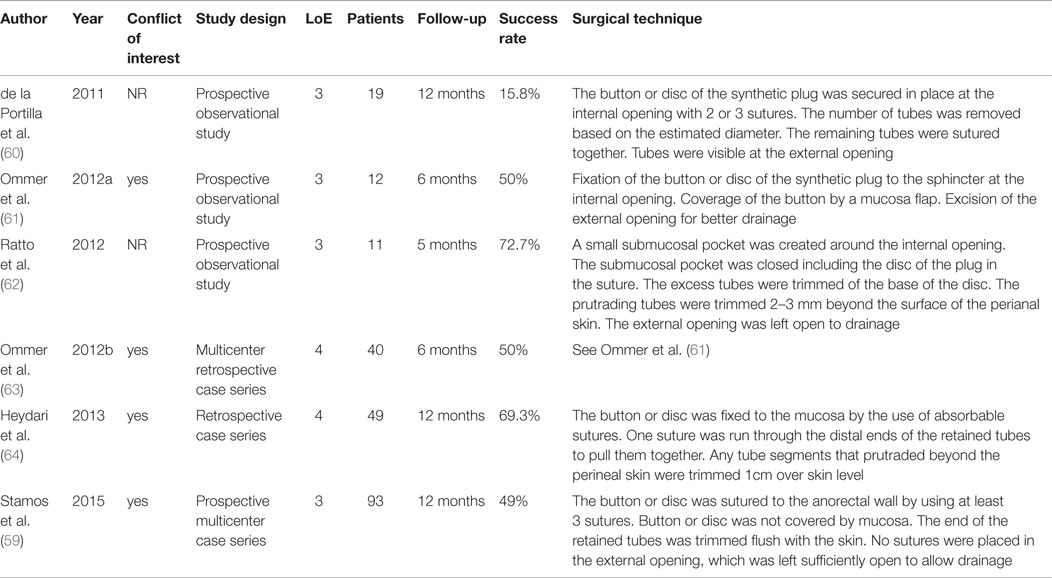

A relative new product for treatment of anal fistulas consists of a synthetic bioabsorbable anal fistula plug composed of a copolymer, from polyglycolic acid trimethylene carbonate, which is gradually absorbed by the body. This plug consists of a button or disc, with numerous tubes attached to it. Depending on the diameter of the fistula canal, several tubes are trimmed. The bioabsorption process is supposed to have been completed after 6–7 months (59). To date, there are only six prospective and retrospective cases series that report on treatment of anal fistulas with this synthetic bioabsorbable anal fistula plug (59–64). The results are illustrated in Table 6. The results obtained for the bioabsorbable fistula plug, too, are very variable, ranging from 15.8–72.7%. As in the case of the biological plug, that may be due to differences in the technical conduct of the operation (Tab. 6) or to differences in patient selection. Otherwise, the results obtained for the synthetic bioabsorbable anal fistula plug are comparable with those obtained for the plug made of biological material.
In summary, healing rates of 50–60% can be expected for treatment of complex anal fistula with a fistula plug, with a plug extrusion rate of 10–20%. That result is not worse than that achieved for the mucosa advancement flap, fibrin glue treatment or ligation of the intersphincteric tract.
The anal fistula plug poses a lower risk of postoperative impairment of sphincter muscle function and other postoperative complications than the transanal mucosal advancement flap. Such results can be achieved not only with plugs made of porcine intestinal submucosa, but also those made of other biological mesh materials, such as acellular dermal matrix, and synthetic bioabsorbable material.
It is possible that additional modifications to the technique, e.g., limited fistulectomy of the extrasphincter portion of the anal fistula, will further improve the outcome. Important technical steps in the successful performance of a complex anal fistula plug repair are a mechanical debridement of the fistula tract or partial removal of the extra sphincteric portion of the tract, pulling the plug tip-first in the internal opening, trimming excess plug material flush with the primary opening, suturing firmly the head of the plug into the primary opening, fixation of the tip of the plug to the edge of the secondary opening and no complete occlusion, but wide secondary opening to allow drainage.
There is a need for more high-quality prospective comparative studies which, in addition to the anal fistula diagnosis, give precise technical details of the operation technique, design and biological or synthetic material of the plugs employed as well as their fixation. Both RCTs and registries lend themselves to that effect.
