ORIGINAL RESEARCH article

Front. Vet. Sci., 12 October 2021
Sec.Veterinary Pharmacology and Toxicology
https://doi.org/10.3389/fvets.2021.709046

Anticoccidial Activity of Qinghao Powder Against Eimeria tenella in Broiler Chickens

Ling Wang*, Wenzhu Guo*, Shahbaz Ul Haq, Zhiting Guo, Dongan Cui, Feng Yang, Feng Cheng, Xiaojuan Wei and Jiawen Lv
  • Key Laboratory of New Animal Drug Project, Gansu Province, Key Laboratory of Veterinary Pharmaceutical Development, Ministry of Agriculture and Rural Affairs, Lanzhou Institute of Husbandry and Pharmaceutical Sciences of Chinese Academy of Agriculture Sciences, Lanzhou, China

Artemisia annua (AAH) is traditionally used as an anti-malarial, expectorant and antipyretic Chinese medicine. The aim of this study was to explore the therapeutic effect of Qinghao Powder (QHP) on chicken coccidiosis, evaluate the safe dosage of QHP, and provide test basis for clinical medication. High-performance liquid chromatography (HPLC) and thin-layer chromatography (TLC) were used to detect artemisinin in Qinghao Powder (QHP) for quality control. The level of artemisinin in QHP was 81.03 mg/g. A total of 210 chicks (14 days of age) were divided randomly into seven groups: three QHP treatments (0.15, 0.30, and 0.60 g/kg), a toltrazuril control (1.00 mL/L), a sulfachloropyrazine sodium control (SSC, 0.30 g/L), an E. tenella-infected control, and a healthy control group. All the groups were inoculated orally with 7 × 104 E. tenella oocysts except for the healthy control group. After seven days of administration, compared with the infected control group, chicks which were administered QHP, SS, and toltrazuril showed less bloody feces, oocyst output, and cecal lesions, and the protection rates were improved. The maximum rBWG and ACI were found in the SS-medicated group, followed by the groups medicated with 0.60 and 0.30 g/kg QHP. Therefore, a 0.30 g/kg dose level of QHP in the feed was selected as the recommend dose (RD) in the target animal safety test, in which 80 broiler chicks (14 days of age) were randomly divided into four major groups (I-healthy control group; II-1× RD; III-3× RD; IV-6× RD), with each group subdivided into two subgroups (A and B) consisting of 10 chicks each. After 7-day (for sub-group A) or 14-day (for sub-group B) administration, compared with the healthy control, treatment-related changes in BWG, feed conversion ratio (FCR), relative organ weight (ROW) of the liver, WBC counts, and levels of RBC, HGB, ALT, AST, and TBIL were detected in the 3× and 6× RD groups. No differences were noted in necropsy for all doses, and histopathological examinations exhibited no QHP-associated signs of toxicity or abnormalities in the liver or kidney. The findings suggest that QHP at a dose of 0.30 g/kg feed would be appropriate for therapy and intermittent treatment of E. tenella-infected chicks, the dosage in clinical applications should be set according to the recommended dose to ensure animal safety.

Introduction

Chicken coccidiosis, a disease caused by apicomplexan protozoa of the genus Eimeria, is a significant problem in the poultry industry. There are seven Eimeria species affecting chickens, including Eimeria acervulina, Eimeria brunetti, Eimeria maxima, Eimeria mitis, Eimeria necatrix, Eimeria praecox, and Eimeria tenella. The parasites multiply in the intestinal epithelia, destroying the cells and reducing digestive capacity and nutrient absorption in the bird, with Eimeria tenella being highly pathogenic and causing caecal coccidiosis (15). Coccidiosis is responsible for 6–10% of all broiler mortalities, and the annual loss caused by Eimeria infection to the poultry industry is estimated at more than $3 billion (6, 7). At present, chicken coccidiosis has largely been controlled through the use of chemoprophylaxis and anticoccidial drugs added to feed, but there are complications due to the emergence of drug resistance and the toxic side effects of such additives on animal health (810). Increasing the development of drug-resistant coccidial species has stimulated the search for alternative control methods or new drugs, and this has become a top priority for the poultry industry (1113). One alternative is the use of live virulent or attenuated vaccines or recombinant vaccines (1416). However, live vaccines, particularly virulent ones, may have short-term adverse effects on chicken growth rate. Recombinant vaccines are still in the early stages of development. Therefore, until vaccines become more sophisticated, the use of anticoccidial drugs will continue.

Artemisiae annuae herba (AAH) is the dried aerial part of Artemisia annua L. [Asteraceae], a plant that has been traditionally utilized as an antimalarial, expectorant, and antifebrile compound in Chinese medicine. Moreover, AAH has anticoccidial properties when used alone or as the main herb in a complex formulation during treatment; however, as an animal coccidiostat, the content of the artemisinin within the crude extract of AAH or AAH complex has always been low, and the clinical use of artimisinin has been restricted due to the complexity of the synthetic route and the high synthetic cost. The findings from previous studies indicated that high doses of artemisinin can have adverse side effects such as neurotoxicity, renal toxicity, and cardiotoxicity in animals; the n-hexane extract of Artemisiae annuae herba at 0.50 g/kg of dose in feed reduced food intake and weight gain in chicks, and artemisinin administered continuously for 16 days at a high dose significantly inhibited the body weight gain of chickens (1719). Qinghao Powder (QHP) prepared from the petroleum ether extract of the traditional Chinese medicine Artemisiae annuae herba has been shown to be effective against chicken coccidiosis (20, 21). As a plant-derived medicine, there are no scientific reports available concerning the content of active ingredients, anticoccidial activity, or safe dosage range. In the present study, high performance liquid chromatography (HPLC) and thin layer chromatography (TLC) were used to detect artemisinin in QHP for quality control; furthermore, a pathological model of chick coccidiosis was produced after E. tenella (Guangdong strain) was inoculated into chicks to determine the therapeutic effects and optimal recommended dose (RD) of QHP. The safe RD in target animals was further assessed for consequent clinical drug security according to the CVDE Guidelines (22). These experiments will provide a basis for the subsequent application of QHP and may assist in the approval of new animal drugs and preparations against chicken coccidiosis.

Materials and Methods

Drugs and Reagents

Petroleum ether, acetic ether, acetic acid, and n-hexane were purchased from Tianjin Chemical Reagent Company, China. Ethanol and xylene were purchased from Shanghai Chemical Reagent Company, China. Acetonitrile and methanol (HPLC grade) were purchased from Fisher Scientific (England); artemisinin was purchased from the National Institutes for Food and Drug Control (Purity of all ≥ 98%, China).

QHP (batch number: 20190520) was purchased from Heima Animal Pharmaceutical Co., Ltd., Henan Province, China. The positive control drug was toltrazuril (2.5%, w/v, batch number: 20190329, Bayer (Sichuan) Animal Health Co., Ltd., China). Sulfachloropyrazine sodium (SSC, 30%, w/w, batch number: 20190620) was purchased from Chongqing Yongjian Biotechnology Co., Ltd., China. Artemisinin from the petroleum ether extract of Artemisiae annuae herba was chosen to be a biomarker in TLC and HPLC evaluation for quality control.

Thin Layer Chromatography Analysis (TLC)

As the active ingredient of Artemisiae annuae herba, the artemisinin in QHP was assayed by TLC according to the standardized experimental protocols of the Veterinary Pharmacopoeia of P. R. China (23). Petroleum ether (60–90°C)–acetic ether (4:5) was used as the developing solvent for artemisinin in silica gel–GF254 plates (Qingdao Haiyang Chemical Reagent Factory, China); 10% sulfuric acid ethanol solution containing 2% vanillin was used as the color developing reagent, and artemisinin was used as the standard preparation.

High Performance Liquid Chromatography Analysis(HPLC)

The contents of artemisinin in QHP were determined by HPLC. Quantitative analysis of artemisinin in QHP was performed on the Agilent 1290 Infinity apparatus comprising two solvent delivery systems and a photodiode array detector (Agilent, USA). The column was an Agilent ZORBAX SB-C18 chromatographic column (4.6 mm × 250 mm, 5.0 μm). The mobile phase consisted of acetonitrile and H2O (60: 40), and the pH value was 6.8–7.2. Reagents were filtered through a Millipore 0.45 mm filter and degassed prior to use. The entire run was carried out by gradient elution at a flow rate of 1.0 mL/min; the detection wavelength was set at 210 nm; the column was maintained at 35°C, and the injection volume was 10 μL. Data collection and quantification were performed with Agilent Open LAB A.02.02 CDS ChemStation (Agilent, USA). The peak of artemisinin was identified by comparison with chemical standards.

Ethics Statement

All of the experimental procedures were performed according to the principles of the Center for Veterinary Drug Evaluation (CVDE), Ministry of Agriculture, China (22). All of the animal experiments were conducted in strict accordance with the National Institutes of Health (NIH) Guidelines for the Care and Use of Laboratory Animals (24). All of the applicable international, national, and/or institutional guidelines for the care and use of animals were followed. The study was approved by the Ethics Committee of Lanzhou Institute of Husbandry and Pharmaceutical Sciences of the Chinese Academy of Agricultural Sciences (Approval No. LZMY 2020-016).

Study Design

Eimeria tenella Oocysts (Guangdong Strain)

The oocysts were isolated from chicks that had died from E. tenella infection in 1996 in Huadu, Guangdong Province, China, as confirmed by microscopic examination and sequence analysis of the rRNA gene internal transcribed spacer regions. The strain were maintained in the State Key Laboratory of Veterinary Etiological Biology, Lanzhou Veterinary Research Institute, CAAS. The oocysts were propagated in the broiler chicks without E. tenella infection by oral infection, and the feces were collected on post-infection (PI) days 6, 7, 8, and 9. The unsporulated oocysts were sporulated by placing in 2.5% K2Cr2O7 solution at suitable humidity and temperature (28°C). Sporulated oocysts were cleaned with water and counted by the McMaster technique described by Foreyt (25). The required concentration of the sporulated oocysts (70,000/mL) was maintained with phosphate buffered saline.

Birds

A total of 290 one-day-old as-hatched Lingnan yellow-feathered broiler chicks (Lanzhou Hualong Commercial Hatchery) of both sexes were used. Chicks were reared under coccidia-free conditions and fed commercial food without coccidiostat additives for 14 days during the study (ad libitum). Chicks were reared under the following conditions: temperature (23 ± 2°C), relative humidity (55 ± 15%), and ventilation (air exchange rate of 18 cycles/h) (26).

Anticoccidial Test

At 14 days of age (the day of challenge), the broiler chicks (n = 210) free from coccidian infection were weighed individually and randomly divided into seven treatments (17) with three pens containing 10 chicks each. Each pen was allocated to a large cage with a single tray per pen to catch the fecal material. All of the groups were inoculated orally with 7.0 × 104 sporulated oocysts except for the healthy control group (1-HC). At 15 days of age, all of the chicks except for those in the healthy control (1-HC) and infected control group (2-IC) began drug treatment for 7 or 4 days (Table 1). At 22 days of age (post-inoculation day 8, PI day 8), after weighing the surviving chicks individually, all of the chicks were euthanized for the grading of cecal lesions, and the survival rate was calculated for each group. The clinical observations of bloody diarrhea and mortality for all the chicks were recorded daily throughout the experimental period. Treatments were as follows: 1-HC (healthy/negative control group; non-treated and non-infected); 2-IC (infected/positive control group; non-treated and E. tenella-infected); 3-TC (toltrazuril control, 1.00 mL/L water); 4-SSC (sulfachloropyrazine sodium control, 0.30 g/L water); 5-LG (low-dose group, 0.15 g/kg feed); 6-MG (middle-dose group, 0.30 g/kg feed); 7-HG (high-dose group, 0.60 g/kg feed).

TABLE 1
www.frontiersin.org

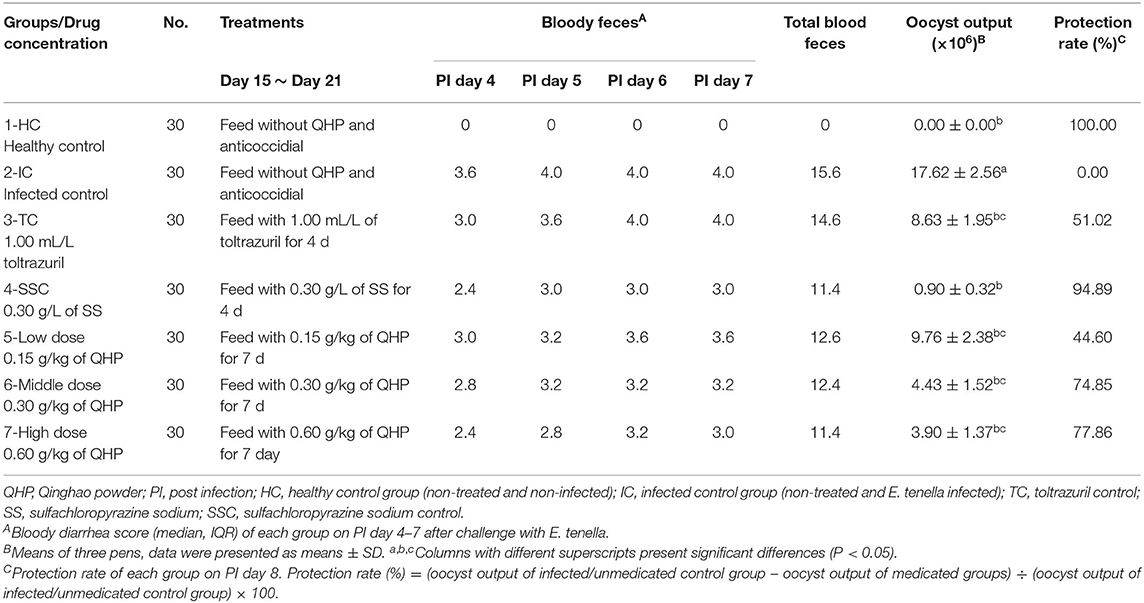

Table 1. Effects of Qinghao Powder on bloody feces, oocyst output, and protection rate of chicks inoculated with Eimeria tenella.

Body weight gain (BWG) and survival rate (%): chicks from each treatment were weighed individually on day 14 (the day of inoculation) and day 22 (PI day 8). The individual and mean body weight gains were calculated for the period of days 14–22. The relative body weight gain (rBWG) and survival rate were calculated as follows:

BWG rate (%) = (final body weight – initial body weight) ÷ initial body weight × 100.

rBWG (%) = (BWG rate of the infected/unmedicated control or drug-treated group ÷ BWG rate of healthy control group) × 100.

Survival rate (%) = (number of surviving chicks in each group ÷ number of initial chicks in each group) × 100.

Fecal score and oocyst output in the feces: fecal droppings were examined visually for bloody diarrhea during 4–7 days PI and scored on a scale of 0–4 based on the evaluation standard of Suo and Li (27). Furthermore, on days 6, 7, and 8 after inoculation, the total daily fecal output of each pen of chicks was collected, and the daily oocyst production was determined using the McMaster technique (25, 28).

Cecal lesion score and oocyst value: on PI day 8, all the surviving chicks were euthanized, and the ceca were removed and opened. The infected ceca were examined and scored (from 0 to 4) according to the method described by Johnson and Reid (29). Lesion score = the average lesion score in each group ×10.

The cecal contents were ground, and the complete cecum contents of each chick were pooled. The total number of oocysts was determined from duplicate counts of diluted samples of homogenates using a hemocytometer counting technique (30). The results were expressed as OPG based on the method of JIAO (31).

Oocyst ratio = (OPG in healthy control or drug-treated group) ÷ (OPG in infected/unmedicated control group) × 100.

The anticoccidial index (ACI) established by Merk and Dohome (32) was calculated as ACI = (rBWG + survival rate) × 100 – (lesion score + oocyst value).

The total oocyst output per bird from feces and cecum was used to calculate the protection rate by the formula Protection rate (%) = (oocyst output of infected/unmedicated control group–oocyst output of healthy control or medicated groups) ÷ (oocyst output of infected/unmedicated control group) × 100 (14, 33, 34).

Safety Test

This trial was conducted in line with the Guidelines on the Target Animal Safety Tests of Veterinary Traditional Chinese Medicines and Natural Medicines (22). Based on RD from the above-mentioned anticoccidial test, broiler chicks (n = 80, 14 days old) free from coccidian infection were selected as the target animals and were randomly divided into four major groups (I–IV) after weighing individually; each group was divided into two subgroups (A and B) consisting of 10 chicks each. At 14 days of age, chicks were fed with QHP at 1×, 3×, and 6× the recommended dose for 7 days (for the A sub-group) or 14 days (for the B sub-group). The groups were classified as I-A, I-B (healthy/negative control group, ad libitum); II-A, II-B (1× recommend dose, 1× RD); III-A, III-B (3× recommend dose, 3× RD); IV-A, IV-B (6× recommend dose, 6× RD). The behavior, feed intake, and deaths of the chicks were observed and recorded every day after administration. The weight on day 14 was considered as the initial weight. The feed conversion ratio (FCR) was calculated as grams of feed consumed to produce one gram of live weight. FCR was determined from the 3rd to 4th week of age.

On the 7th or 14th days after administration, the surviving chicks from subgroup A (only on the 7th day) or subgroup B (only on the 14th day) were individually weighted and euthanized. Blood was collected via cardiac puncture into EDTA-containing and non-heparinized tubes for hematological (automatic hematology analyzer, Sysme XT-1800i, China) and biochemical parameters assays (automatic blood biochemical detector, Olympus AU640, Japan). White blood cells (WBC), red blood cells (RBC), hemoglobin concentration (HGB), hematocrit (HCT, %), mean corpuscular hemoglobin concentration (MCHC), lymphocytes (Lym), monocytes (ML), alanine aminotransferase (ALT), aspartate aminotransferase (AST), total protein (TP), total bilirubin (TBIL), blood urea nitrogen (BUN), and creatinine (CRE) were measured.

After blood collection, all of the organs were examined and observed carefully, and macroscopic pathological changes were recorded. The selected organs (liver, kidney, spleen, heart, lung) were removed and weighed individually. The selected tissue samples (liver and kidney) were fixed with 10% buffered formalin solution and underwent routine histological processes for paraffin embedding and light microscopic examination. The relative organ weight (ROW) was calculated as organ weight (OW) as a percentage of body weight (BW).

Statistical Analysis

The data were analyzed with the SPSS software program version 19.0 (IBM-SPSS Inc., Chicago, IL, USA). The bloody diarrhea score and lesion score of each group were compared by the non-parametric Kruskal-Wallis H test, and the results were presented as median (IQR, inter-quartile range). The parameters of oocyst output, body weight for each time point, body weight gains, relative organ weights (ROW), and biochemical and hematological indexes were analyzed by one-way ANOVA, followed by least significant difference (LSD) and Student's two-tailed t-test for the comparison between the test and control group, and Dunnett's test when the data involved three or more groups. Data are expressed as the mean ± standard deviations, P-values <0.05 (P < 0.05) were considered statistically significant.

Results

The Chemical Component Analysis of Qinghao Powder (QHP)

According to TLC analysis, artemisinin was present in QHP (Figure 1). As the active compound of Artemisiae annuae herba (AAH), artemisinin was present in QHP at 81.03 mg/g as per HPLC analysis (Figure 2).

FIGURE 1
www.frontiersin.org

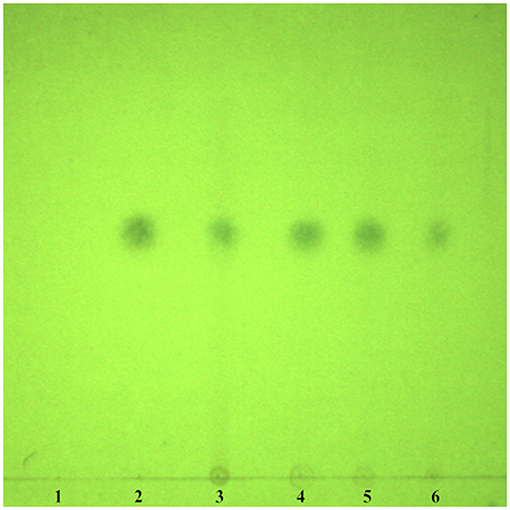

Figure 1. TLC chromatogram for detecting artemisinin in QHP. (1) Negative control. (2) Artemisinin. (3) Standard Chinese herbal medicine. (4-6) Samples of QHP.

FIGURE 2
www.frontiersin.org

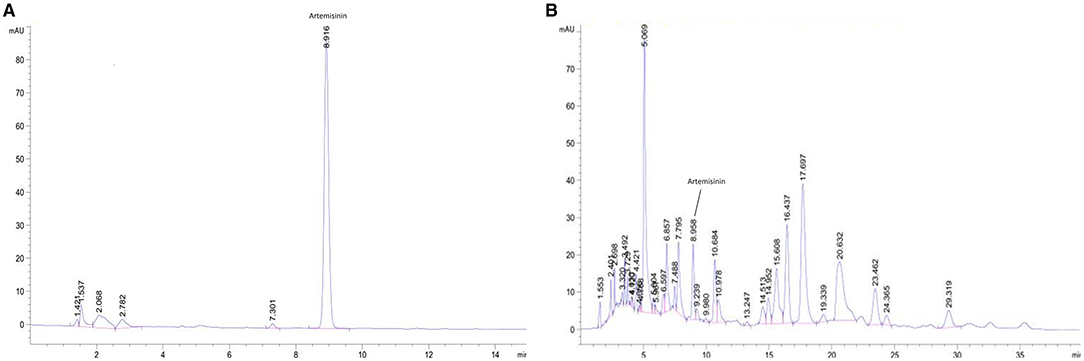

Figure 2. HPLC chromatogram for detecting artemisinin in QHP. (A) Artemisinin control. (B) Sample of QHP.

Anticoccidial Test

As shown in Tables 1, 2, bloody feces were observed in all infected groups after challenge, and 21 dead chicks were found during PI days 4–7. The oocyst output of groups administered with QHP, sulfachloropyrazine sodium, and toltrazuril were significantly less than that of infected control group (P < 0.05, P < 0.01). Furthermore, chicks treated with 0.30 g/L sulfachloropyrazine sodium and 0.60 g/kg QHP, which excreted less bloody feces and got higher protective rate among 5 infected groups. Among the drug medicated groups, the maximum rBWG was observed in the group administered with sulfachloropyrazine sodium (0.30 g/L water), followed by the groups administered with 0.30 g/kg feed QHP and 0.60 g/kg feed QHP. The lowest rBWG was observed in the group medicated with 1.00 mL/L toltrazuril.

TABLE 2
www.frontiersin.org

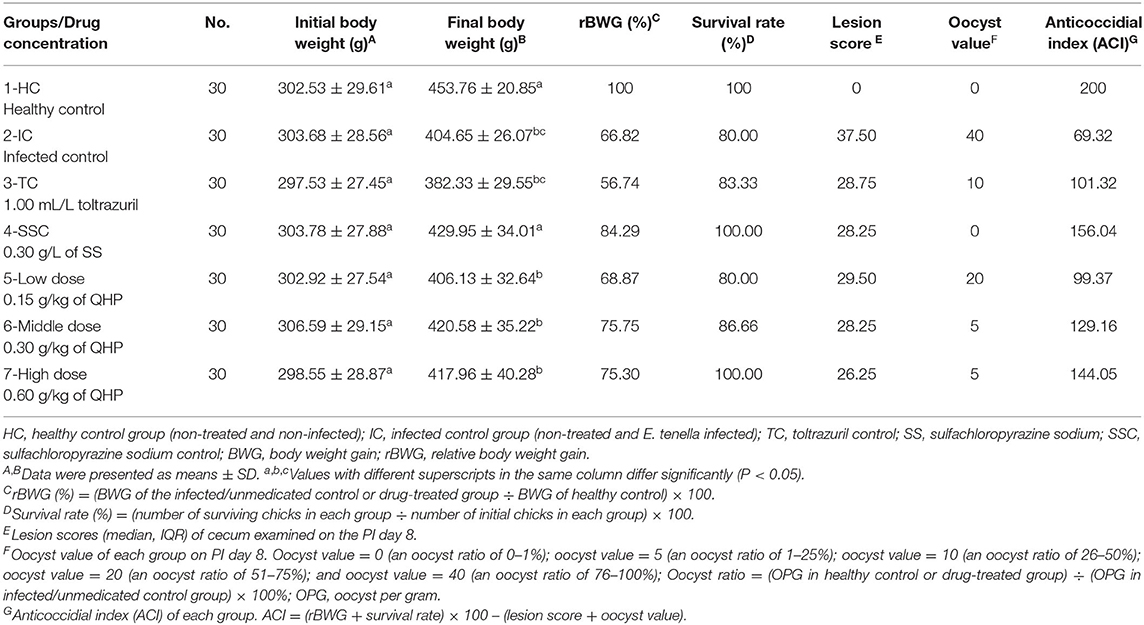

Table 2. Effects of Qinghao Powder on the rBWG, lesion score, and ACI in chicks against Eimeria tenella (n = 30).

Chicks in the infected/non-treated group (2-IC) displayed the most severe swelling in the cecum. Cecal lesions were also found in all chicks in other infected groups, and the degree of damage was lower than that of the infected control group. No obvious lesions in other organs were found in all groups. Chicks in the five drug-treated groups showed a reduction in oocyst production; the maximum reduction was found in the sulfachloropyrazine sodium medicated group followed by the groups medicated with 0.60 g/kg QHP and 0.30 g/kg QHP. The anticoccidial activity in the sulfachloropyrazine sodium and QHP (at doses of 0.60 g/kg feed and 0.30 g/kg feed) treatments were superior to toltrazuril treatment in terms of oocyst output, protection rate, rBWG, cecal damage, and ACI values.

Safety Test

No deaths or abnormal changes in behavior, clinical condition, or feed intake occurred in chicks during the experimental period. There were no visible pathological changes in the heart, liver, lung, spleen, kidney, or other organs 7 or 14 days after administration. Histopathological examination of the liver and kidney revealed no abnormal pathological lesions in the QHP-treated chicks compared with the controls, as shown in Figures 3, 4.

FIGURE 3
www.frontiersin.org

Figure 3. Histopathological analysis of organs in the control (C) and three QHP-treated groups (1× recommend dose, 1× RD; 3× recommend dose, 3× RD; 6× recommend dose, 6× RD) after 7-day administration (H&E stained); livers (L, 100×); kidney (K, 100×). Scale bar = 50 μm.

FIGURE 4
www.frontiersin.org

Figure 4. Histopathological analysis of organs in the control (C) and three QHP-treated groups (1× recommend dose, 1× RD; 3× recommend dose, 3× RD; 6× recommend dose, 6× RD) after 14-day administration (H&E stained); livers (L, 100×); kidney (K, 100×). Scale bar = 50 μm.

Compared with the control, after 7- or 14-day administration, there were significant differences in the body weight gain (BWG) of chicks in 3× or 6× RD groups (P < 0.05, P < 0.01); moreover, lower rBWG and higher feed conversion ratios (FCR) were exhibited in these two groups at 14th day after administration, but similar BWG and lower FCR were observed in the 1× RD group (Table 3). The results of ROWs showed that there were no significant differences between the chicks in three dose groups of QHP and the control group after 7 or 14 days of administration (except for ROW of liver in the 6× RD group at 14th day after administration, P < 0.05) (Table 4). Furthermore, no significant differences were observed in any of the hematological/biochemical indexes of the two QHP-treated groups (3× RD and 1× RD) after 7 days of administration; while the total counts of RBC and WBC, as well as the levels of ALT, AST, and TBIL in the 6× RD group, which was significantly different to the control at 7th or 14th day after administration (P < 0.05) (Table 5).

TABLE 3
www.frontiersin.org

Table 3. Effect of Qinghao Powder on growth performance of chicks in the safety test (n = 10).

TABLE 4
www.frontiersin.org

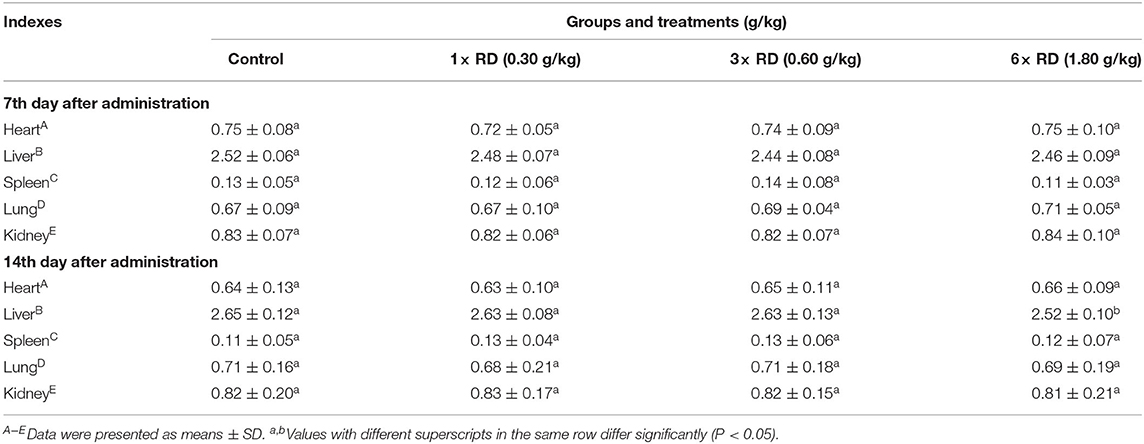

Table 4. Effect of Qinghao Powder on the relative organ weight (ROW) of chicks in the safety test (n = 10).

TABLE 5
www.frontiersin.org

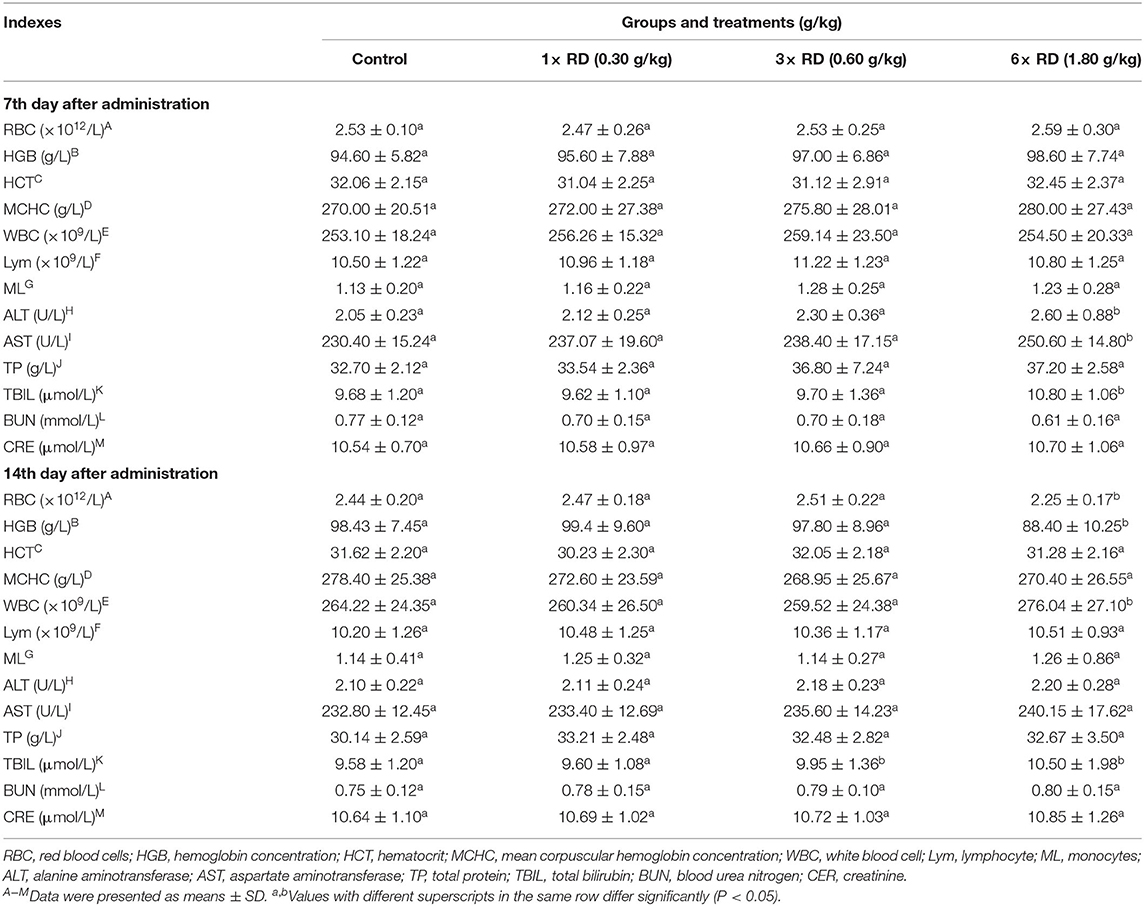

Table 5. Effects of Qinghao Powder on hematological and serum biochemical indexes of chicks in the safety test (n = 10).

Discussion

Artemisiae annuae herba (AAH) exhibits good clinical efficacy in treatments as an antimalarial, expectorant, or antifebrile agent in Chinese traditional medicine. In addition, artemisinin exerts control effects against toxoplasmosis, chicken coccidia, schistosomiasis, eperythrozoonosis, and Pneumocystis carinii infection (17, 18, 35). However, preclinical studies such as animal acute/chronic toxicity experiments revealed that high doses or long-term exposure to artemisinin can have toxic effects in multiple systems and organs (1719). Therefore, QHP prepared from the petroleum ether extract of Artemisiae annuae herba required a deeper evaluation of its efficacy and safety concerning its anticoccidial properties prior to clinical applications. Control of the quality of medicinal materials and preparations with modern analytical tools is important to ensure their efficacy. In this study, artemisinin in QHP was identified and assayed using HPLC and TLC. The results showed that artemisinin was present in QHP, and the content of artemisinin in QHP was 81.03 mg/g. We can make a preliminary conclusion that the quality of QHP in terms of artemisinin content remains acceptable.

In this study, supplementation of QHP, sulfaclopyrazine sodium (SSC), and toltrazuril in feed alleviated the signs of infection. After seven days of administration, the number of oocysts significantly decreased (P < 0.05) after treatment of the infected chicks with QHP, SS, and toltrazuril. The protection rate for groups 4-SSC (0.30 g/L of SS), 6-middle dose (0.30 g/kg of QHP), and 7-high dose (0.60 g/kg of QHP) was 94.89, 74.85, and 77.86%, respectively. QHP at different concentrations had a therapeutic effect on chicken coccidiosis, as the degree of severity of cecal lesions was significantly improved and the presence of bloody feces was reduced in groups medicated with 0.30 and 0.60 g/kg QHP, and both oocyst value and oocyst output were significantly reduced. In addition, the results for rBWG revealed a pattern relatively similar to that of lesion scores, oocyst output and oocyst values among different groups. However, according to the ACI values, the anticoccidial effects of 0.30 g/kg (ACI = 129.16) and 0.60 g/kg (ACI = 144.05) QHP were moderate, and 0.15 g/kg QHP (ACI = 99.37) was insufficient. Research by Del Cacho et al. (36) showed that adding 10 or 17 ppm of artemisinin to the feed significantly affected the formation of oocysts, inhibited the sporulation of oocysts, and reduced cecal damage, but did not affect the formation and development of gametes. Findings from Loredana et al. (19) confirmed that artemisinin supplementation at doses of 5 ppm, 50 ppm, and 500 ppm had prevention and treatment effects on single or mixed infections with Eimeria acervulina, Eimeria tenella, and Eimeria maxima. The treatments significantly lessened cecum lesions and reduced oocyst output. In this study, the content of artemisinin in QHP was 81.03 mg/g, and the recommended dose was 0.30 g/kg, equivalent to 24-ppm artemisinin. The anticoccidial effect was similar to that of the above-mentioned study.

The lesion score, oocyst value, and ACI value are commonly applied parameters used to evaluate the anticoccidial efficacy of animal drugs. In this study, the ACI values from the drug-treated groups were all <160, which may be related to the virulence of the E. tenella strain (Guangdong strain) selected or the concentration of the sporulated oocysts (7 × 104) in the test. Considering that the mortality rate in the infection control group reached 20%, a value that was beyond the optimal range (5–10%) in the experimental design, we can infer that the chicks in the five drug-treated groups were inoculated with a relatively high dose of sporulated E. tenella oocysts (37). In addition, the lower ACI value expressed in the toltrazuril control revealed that the E. tenella strain used in this study might have high resistance to toltrazuril while having greater sensitivity to SSC. Although the 0.60 g/kg dose of QHP in this experiment had a stronger anticoccidial effect in terms of the lesion score, oocyst value, and survival rate, the cost of choosing 0.60 g/kg is higher, and the research by Yin et al. (17) showed that high-dose artemisinin can have side effects such as neurotoxicity, renal toxicity, and cardiotoxicity. Engberg et al. (38) indicated that the n-hexane extract of Artemisiae annuae herba at 0.50 g/kg of dose in feed reduced the food intake and weight gain in chicks. Loredana et al. (19) also confirmed that artemisinin administered continuously for 16 days at a high dose significantly inhibited the body weight gain of chickens. From the above research results, high doses of QHP would be expected to have certain side effects on chicks. Considering that the decrease in body weight gain would also have an economic impact on the poultry breeding industry, a drug dose of QHP at 0.30 g/kg was determined as the recommended dosage and was used for the subsequent target animal safety test to evaluate the long-term effects after 7-day or 14-day continuous administration of QHP. From the results of reduced average weight gain and increased feed conversion rate in chicks in the two QHP-treated groups (0.90 g/kg, 3× RD; 1.80 g/kg, 6× RD) (Table 3) as well as the significant difference in the ROW of liver in the 6× RD group after 14-day administration (Table 4), we conclude that long-term high doses of QHP are likely to be toxic, and that such doses would have an inhibitory effect on the BWG and cause weight loss in chicks.

In this study, except for WBC counts, levels of HGB and MCHC in the 6× RD group, all of the other tested hematological parameters were within the normal range at all stages of the study, and no significant differences were observed between the control and the three treatment groups. The increase in WBC counts may be related to the inflammation induced after hepatocyte injury and to the changes in ALT and TBIL levels (17). RBCs or reticulocytes are sensitive indicators of the toxic effects of artemisinin drugs. In vivo animal experiments have found that artemisinins have an inhibitory effect on erythropoiesis. For example, after intravenous administration of artesunate at a dose of 240 mg/kg/d for 3 days, the peripheral blood reticulocytes, RBC counts, and HGB levels in rats were reversibly reduced according to the report by Xie et al. (39). Furthermore, the toxicity of dihydroartemisinin to RBCs is selective or phased, and it mainly affects primitive and young red blood cells. This may affect the cell cycle to inhibit RBC differentiation, as reported by Finaurini et al. (40). The findings of this study indicated the production of circulating white/red blood cells in chicks was not significantly affected by QHP at 3× and 1× the recommend dose levels. In this study, no significant differences in the levels of BUN or CRE in any of the drug groups were noted compared to the control groups; since BUN and CRE serve as confirmatory markers for renal dysfunction and failure (4143), the above results suggest that 14-day continuous administration of QHP had little negative impact on the kidney function of chicks. As for the biochemical parameters, ALT and AST are well-known as markers of cell damage, especially hepatocyte necrosis (4446). Moreover, TBIL (the product of hemoglobin degradation) is an important indicator and sign of liver damage and cholestasis and is also related to increased hemolysis (4749). In our assay, the levels of ALT, AST, and TBIL in the 6× RD and 3× RD groups increased significantly after seven days of administration (P < 0.05); however, at the 14th day after administration, the concentrations of ALT and AST returned to normal levels, indicating that the increase in the levels of these two enzymes may be related to the reversible damage of liver cells stimulated by high artemisinin concentrations. Moreover, this signified that QHP has moderate toxic effects on chicks after 14 days of administration at a daily dose above the 0.60 g/kg recommended dose. However, the macroscopic examinations of the organs of chicks in the three QHP-treated groups produced no apparent changes compared with the control groups, and the necropsy results were not in agreement with the hematological and serum biochemical analyses. Moreover, these findings were not confirmed or supported by the histopathological analysis of the livers and kidneys, where QHP did not show toxic effects on the vital organs, and there was no abnormal tissue damage in the three QHP-treated groups. In conclusion, the present study recommends a dose of 0.30 g/kg feed of QHP, as this is likely to be non-toxic.

Conclusion

In this study, the content of artemisinin in QHP was 81.03 mg/g, and the addition of QHP (0.30 and 0.60 g/kg feed) could increase the rBWG and survival rate of broiler chicks infected with E. tenella (Guangdong strain) while reducing bloody diarrhea, oocyst output, and lesion scores in the cecal region. The ACI values in 0.30 and 0.60 g/kg QHP-treated groups were between those of toltrazuril and SSC treatments, indicating that QHP had prevention and treatment effects in chicks. From the safety test, a dose of 0.30 g/kg feed of this plant-derived anticoccidial was recommended as it presented no QHP-related signs of toxicity or abnormalities in target animal safety tests. Findings from this study provided information for designing new plant-based drug against coccidiosis infection. Therefore, the dosage in clinical applications should be set according to the recommended dose to ensure animal safety, and QHP at a dose of 0.30 g/kg feed would be appropriate for the therapy and intermittent treatment of E. tenella-infected chicks.

Data Availability Statement

The original contributions presented in the study are included in the article/supplementary material, further inquiries can be directed to the corresponding authors.

Ethics Statement

The animal study was reviewed and approved by the Ethics Committee of Lanzhou Institute of Husbandry and Pharmaceutical Sciences of the Chinese Academy of Agricultural Sciences.

Author Contributions

LW: development of methodology, analysis and interpretation of data, and writing of the manuscript. WZG: performed the experiments and coordinated and supervised the study. SUH: acquisition of data and writing of the manuscript. ZTG: conception and design and provided background information. DAC: acquisition and analysis of data and development of methodology. FY: analyzed and interpreted the references and material support. FC: development of methodology and analysis and interpretation of data. XJW: preparation of serum samples and material support. JWL: provided background information and references amended. All authors contributed to the article and approved the submitted version.

Funding

This work was supported by Agricultural Science and Technology Innovation Program of Chinese Academy of Agricultural Sciences (grant No. CAAS-ASTIP-2014-LIHPS-04), Major Output Scientific Research Items of Chinese Academy of Agricultural Sciences (grant No. CAAS-ZDXT2018008-4), Special Fund of the Chinese Central Government for Basic Scientific Research Operations in Commonweal Research Institutes (grant No. 1610322020005), and Natural Science Foundation of Gansu Province (grant No. 18JR3RA398).

Conflict of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher's Note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

Acknowledgments

The support and cooperation of Lanzhou Veterinary Research Institute of Chinese Academy of Agricultural Sciences is gratefully acknowledged. We would like to express our thanks to Prof. Jianping Cai, Dr. Zhenxing Gong, and the staff of the State Key Laboratory of Veterinary Etiological Biology. We thank LetPub (www.letpub.com) for its linguistic assistance during the preparation of this manuscript.

Abbreviations

QHP, Qinghao Powder; HPLC, high-performance liquid chromatography; TLC, thin-layer chromatography; PI, post infection; HC, healthy control group; IC, infected control group; TC, toltrazuril control; SS, sulfachloropyrazine sodium; SSC, sulfachloropyrazine sodium control; BWG, body weight gain; rBWG, relative body weight gain; ACI, anticoccidial index; RBC, red blood cells; HGB, hemoglobin concentration; HCT, hematocrit; MCHC, mean corpuscular hemoglobin concentration; WBC, white blood cell; Lym, lymphocyte; ML, monocytes; ALT, alanine aminotransferase; AST, aspartate aminotransferase; TP, total protein; TBIL, total bilirubin; BUN, blood urea nitrogen; CER, creatinine.

References

1. Youn HJ, Noh JW. Screening of the anticoccidial effects of herb extracts against Eimeria tenella. Vet Parasitol. (2001) 96:257–63. doi: 10.1016/S0304-4017(01)00385-5

PubMed Abstract | CrossRef Full Text | Google Scholar

2. Morris GM, Gasser RB. Biotechnological advances in the diagnosis of avian coccidiosis and the analysis of genetic variation in Eimeria. Biotechnol Adv. (2006) 24:590–603. doi: 10.1016/j.biotechadv.2006.06.001

PubMed Abstract | CrossRef Full Text | Google Scholar

3. Chapman HD. Milestones in avian coccidiosis research: a review. Poult Sci. (2014) 93:501–11. doi: 10.3382/ps.2013-03634

PubMed Abstract | CrossRef Full Text | Google Scholar

4. Wang L, Guo ZT, Gong ZX, Cai JP, Yang F, Wei XJ, et al. Efficacy of an oral solution prepared from the ultrasonic extract of Radix dichroae roots against Eimeria tenella in broiler chickens. Evid Based Complement Alternat Med. (2020) 2020:3870902. doi: 10.1155/2020/3870902

PubMed Abstract | CrossRef Full Text | Google Scholar

5. Zhou BH, Yang JY, Ding HY, Chen QP, Tian EJ, Wang HW. Anticoccidial effect of toltrazuril and Radix Sophorae Flavescentis combination: reduced inflammation and promoted mucosal immunity. Vet Parasitol. (2021) 96:109477. doi: 10.1016/j.vetpar.2021.109477

PubMed Abstract | CrossRef Full Text | Google Scholar

6. Guo FC, Suo X, Zhang GZ, Shen JZ. Efficacy of decoquinate against drug sensitive laboratory strains of Eimeria tenella and field isolates of Eimeria spp. in broiler chicks in China. Vet Parasitol. (2007) 147:239–45. doi: 10.1016/j.vetpar.2007.04.002

PubMed Abstract | CrossRef Full Text | Google Scholar

7. Dalloul RA, Lillehoj HS. Poultry coccidiosis: recent advancements in control measures and vaccine development. Expert Rev Vaccines. (2006) 5:143–63. doi: 10.1586/14760584.5.1.143

PubMed Abstract | CrossRef Full Text | Google Scholar

8. Laurent F, Mancassola R, Lacroix S, Menezes R, Naciri M. Analaysis of chick mucosal immune response to Eimeria tenella and Eimeria maxima infection by quantitative reverse transcription-PCR. Infect Immun. (2001) 69:2527–34. doi: 10.1128/IAI.69.4.2527-2534.2001

PubMed Abstract | CrossRef Full Text | Google Scholar

9. McDonald V, Shirley M. Past and future: vaccination against Eimeria. Parasitology. (2009) 136:1477–89. doi: 10.1017/S0031182009006349

PubMed Abstract | CrossRef Full Text | Google Scholar

10. Abbas RZ, Iqbal Z, Sindhu ZD, Khan MN, Arshad M. Identification of cross resistance and multiple resistance in Eimeria tenella field isolates to commonly used anticoccidials in Pakistan. J Appl Poultry Res. (2008) 17:361–8. doi: 10.3382/japr.2008-00027

CrossRef Full Text | Google Scholar

11. Venkatas J, Adeleke MA. A review of Eimeria antigen identification for the development of novel anticoccidial vaccines. Parasitol Res. (2019) 118:1701–10. doi: 10.1007/s00436-019-06338-2

PubMed Abstract | CrossRef Full Text | Google Scholar

12. Yong T, Chen M, Li Y, Song X, Huang Y, Chen Y, et al. Anticoccidial effect of Fructus Meliae toosendan extract against Eimeria tenella. Pharm Biol. (2020) 58:636–45. doi: 10.1080/13880209.2020.1784234

PubMed Abstract | CrossRef Full Text | Google Scholar

13. Snyder RP, Guerin MT, Hargis BM, Page G, Barta JR. Monitoring coccidia in commercial broiler chicken flocks in Ontario: comparing oocyst cycling patterns in flocks using anticoccidial medications or live vaccination. Poult Sci. (2021) 100:110–8. doi: 10.1016/j.psj.2020.09.072

PubMed Abstract | CrossRef Full Text | Google Scholar

14. Qaid MM, Al-Mufarrej SI, Azzam MM, Al-Garadi MA. Anticoccidial effectivity of a traditional medicinal plant, Cinnamomum verum, in broiler chickens infected with Eimeria tenella. Poult Sci. (2021) 100:100902. doi: 10.1016/j.psj.2020.11.071

PubMed Abstract | CrossRef Full Text | Google Scholar

15. Williams RB. Tracing the emergence of drug-resistance in coccidia (Eimeria spp.) of commercial broiler flocks medicated with decoquinate for the first time in the United Kingdom. Vet Parasitol. (2006) 135:1–14. doi: 10.1016/j.vetpar.2005.10.012

PubMed Abstract | CrossRef Full Text | Google Scholar

16. Vermeulen AN. Progress in recombinant vaccine development against coccidiosis: a review and prospects into the next millennium. Int J Parasitol. (1998) 28:1121–30. doi: 10.1016/S0020-7519(98)00080-0

PubMed Abstract | CrossRef Full Text | Google Scholar

17. Yin JY, Wang HM, Ding RG. Artemisinin and its derivatives: progress in toxicology. Chin J Pharmacol Toxicol. (2014) 28:309–14. doi: 10.3867/j.issn.1000-3002.2014.02.028

CrossRef Full Text | Google Scholar

18. Efferth T, Kaina B. Toxicity of the antimalatial artemisinin and its dervatives. Crit Rev Toxicol. (2010) 40:405–21. doi: 10.3109/10408441003610571

PubMed Abstract | CrossRef Full Text | Google Scholar

19. Loredana P, Adriana G, Alexandru FT, Mirabela OD, Zsuzsa K, Cristian M, et al. Effects of artemisinin in broiler chickens challenged with Eimeria acervulina, E. maxima and E. tenella in battery trials. Vet Parasitol. (2015) 214:264–71. doi: 10.1016/j.vetpar.2015.10.011

PubMed Abstract | CrossRef Full Text | Google Scholar

20. Guo HB, Gong SM. Therapeutic effects of Qinghaosu and Qinghao extract against E.tenella infection in broilers. Progr Vet Med. (2011) 32:82–85. doi: 10.16437/j.cnki.1007-038.2011.03.020

CrossRef Full Text | Google Scholar

21. Song X, Li Y, Chen S, Jia R, Huang Y, Zou Y, et al. Anticoccidial effect of herbal powder “Shi Ying Zi” in chickens infected with Eimeria tenella. Animals (Basel). (2020) 10:1484. doi: 10.3390/ani10091484

PubMed Abstract | CrossRef Full Text | Google Scholar

22. The Center for Veterinary Drug Evaluation (CVDE) Ministry of Agriculture. Compilation of Guidelines of Veterinary Drug Research Technology (2006–2011). Beijing: China Chemical Industry Press (2012).

23. Chinese Veterinary Pharmacopoeia Commission. Veterinary Pharmacopoeia of the People's Republic of China, Vol. II. Beijing: China Agricultural Press (2015).

Google Scholar

24. NIH. Guidelines for Research Involving Recombinant DNA Molecules (NIH Guidelines). Bethesda, MD: National Institute of Health (2002).

Google Scholar

25. Foreyt WJ. Diagnostic parasitology. Vet Clin North Am Small Anim Pract. (1989) 19:979–1000. doi: 10.1016/S0195-5616(89)50107-4

PubMed Abstract | CrossRef Full Text | Google Scholar

26. Zheng ZH, Zhou SP, Peng SQ. Laboratory Animal Science of Practical Medicine. Beijing: Peking University Medical Press (2008).

27. Suo X, Li GQ. Coccidia and Coccidiasis of Domestic Fowl. Beijing: China Agricultural University Press (1998).

28. MAFF. Parasitological Laboratory Techniques. Technical Bulletin no.18, Manual of Veterinary. London: Her Majestey's Stationary Office, Ministry of Agriculture, Fisheries and Food (1986).

29. Johnson J, Reid WM. Anticoccidial drugs: lesion scoring techniques in battery and floor-pen experiments with chicks. Exp Parasitol. (1970) 29:30–6. doi: 10.1016/0014-4894(70)90063-9

PubMed Abstract | CrossRef Full Text | Google Scholar

30. Long PL, Millard BJ, Joyner LP, Norton CC. A guide to laboratory techniques used in the study and diagnosis of avian coccidiosis. Folia Vet Lat. (1976) 6:201–17.

PubMed Abstract | Google Scholar

31. Jiao TQ. Coccidiasis in Chick. Shanghai: Shanghai Science and Technology Press (1986).

32. Merk Sharp and Dohome Laboratory. Anticoccidial Index. Kenilworth, NJ: Merk Company (1976).

33. Kaingu F, Liu D, Wang L, Tao J, Waihenya R, Kutima H. Anticoccidial effects of Aloe secundiflora leaf extract against Eimeria tenella in broiler chicken. Trop Anim Health Prod. (2017) 49:823–8. doi: 10.1007/s11250-017-1267-y

PubMed Abstract | CrossRef Full Text | Google Scholar

34. Zhang DF, Sun BB, Yue YY, Zhou QJ, Du AF. Anticoccidial activity of traditional Chinese herbal Dichroa febrifuga Lour. extract against Eimeria tenella infection in chickens. Parasitol Res. (2012) 111:2229–33. doi: 10.1007/s00436-012-3071-y

PubMed Abstract | CrossRef Full Text | Google Scholar

35. Li WG, Chen YT, Liu CW, Yu DG. Pathological changes in lungs of rats infected with Pneumocystis carinii pneumonia after therapy with dihydroartemisinin. Chin J Zoonoses. (2004) 20:223–7.

Google Scholar

36. Del Cacho E, Gallego M, Francesch M, Quílez J, Sánchez-Acedo C. Effect of artemisinin on oocyst wall formation and sporulation during Eimeria tenella infection. Parasitol Int. (2010) 59:506–11. doi: 10.1016/j.parint.2010.04.001

PubMed Abstract | CrossRef Full Text | Google Scholar

37. Li AX, Xie MQ, Cai JP, Wu HX. A Survey of drug-resistance of isolates of Eimeria tenella in chicks from fields in Guangdong province. J Nat Sci Sunyatseni. (2000) 39:138–44.

38. Engberg RM, Grevsen K, Ivarsen E, Fretté X, Christensen LP, Højberg O, et al. The effect of Artemisia annua on broiler performance, on intestinal microbiota and on the course of a Clostridium perfringens infection applying a necrotic enteritis disease model. Avian Pathol. (2012) 41:369–76. doi: 10.1080/03079457.2012.696185

PubMed Abstract | CrossRef Full Text | Google Scholar

39. Xie LH, Johnson TO, Weina PJ, Si YZ, Haeberle A, Upadhyay R, et al. Risk assessment and therapeutic indices of artesunate and artelinate in Plasmodium gerghei-infected and uninfected rats. Int J Tocicol. (2005) 24:251–64. doi: 10.1080/10915810591007229

PubMed Abstract | CrossRef Full Text | Google Scholar

40. Finaurini S, Ronzoni L, Colancecco A, Cattaneo A, Cappellini MD, Ward SA, et al. Selective toxicity of dihydroartemisinin on human CD34+ erythroid cell differentiation. Toxicology. (2010) 276:128–34. doi: 10.1016/j.tox.2010.07.016

PubMed Abstract | CrossRef Full Text | Google Scholar

41. Shen JZ. Animal Toxicology. Beijing: China Agriculture Press (2002).

42. Adeneye AA, Ajagbonna OP, Adeleke TI, Bello SO. Preliminary toxicity and phytochemical studies of the stem bark aqueous extract of Musanga cecropioides in rats. J Ethnopharmacol. (2006) 105:374–9. doi: 10.1016/j.jep.2005.11.027

PubMed Abstract | CrossRef Full Text | Google Scholar

43. Lee SS, Tan NH, Fung SY, Pailoor J, Sim SM. Evaluation of the sub-acute toxicity of the sclerotium of Lignosus rhinocerus (Cooke), the Tiger Milk mushroom. J Ethnopharmacol. (2011) 138:192–200. doi: 10.1016/j.jep.2011.09.004

PubMed Abstract | CrossRef Full Text | Google Scholar

44. Akindele AJ, Adeneye AA, Salau OS, Sofidiya MO, Benebo AS. Dose and time-dependent sub-chronic toxicity study of hydroethanolic leaf extract of Flabellaria paniculata Cav. (Malpighiaceae) in rodents. Front Pharmacol. (2014) 5:78. doi: 10.3389/fphar.2014.00078

PubMed Abstract | CrossRef Full Text | Google Scholar

45. Tchoumtchoua J, Mouchili OR, Ateba SB, Zingue SB, Halabalaki MB, Mbanya JC. Safety assessment of the methanol extract of the stem bark of Amphimas pterocarpoides harms: acute and sub-chronic oral toxicity studies in Wistar rats. Toxicol Rep. (2014) 1:877–84. doi: 10.1016/j.toxrep.2014.10.003

PubMed Abstract | CrossRef Full Text | Google Scholar

46. Rajeh MAB, Kwan YP, Zakaria Z, Latha LY, Jothy SL, Sasidharan S. Acute toxicity impacts of Euphorbia hirta L extract on behavior, organ body weight index and histopathology of organs of the mice and Artemia salina. Pharmacol Res. (2012) 4:170–7. doi: 10.4103/0974-8490.99085

PubMed Abstract | CrossRef Full Text | Google Scholar

47. Olson H, Betton G, Robinson D, Thomas K, Monro A, Kolaja G, et al. Concordance of toxicity of pharmaceuticals in humans and in animals. Regul Toxicol Pharmacol. (2000) 32:56–67. doi: 10.1006/rtph.2000.1399

PubMed Abstract | CrossRef Full Text | Google Scholar

48. Tan PV, Mezui C, Enow-Orock G, Njikam N, Dimo T, Bitolog P. Teratogenic effects, acute and sub-chronic toxicity of the leaf aqueous extract of Ocimum suave Wild (Lamiaceae) in rats. J Ethnopharmacol. (2008) 115:232–7. doi: 10.1016/j.jep.2007.09.022

PubMed Abstract | CrossRef Full Text | Google Scholar

49. Peng KZ, Zhang SY, Zhou HL. Toxicological evaluation of the flavonoid-rich extract from Maydis stigma: sub-chronic toxicity and genotoxicity studies in mice. J Ethnopharmacol. (2016) 192:161–9. doi: 10.1016/j.jep.2016.07.012

PubMed Abstract | CrossRef Full Text | Google Scholar
