The study of memory in most behavioral paradigms, including emotional memory paradigms, has focused on the feed forward components that underlie Hebb's first postulate, associative synaptic plasticity. Hebb's second postulate argues that activated ensembles of neurons reverberate in order to provide temporal coordination of different neural signals, and thereby facilitate coincidence detection. Recent evidence from our groups has suggested that the lateral amygdala (LA) contains recurrent microcircuits and that these may reverberate. Additionally this reverberant activity is precisely timed with latencies that would facilitate coincidence detection between cortical and sub cortical afferents to the LA. Thus, recent data at the microcircuit level in the amygdala provide some physiological evidence in support of the second Hebbian postulate.
A key feature of the brain is its remarkable ability to form associations between coincident events, allowing organisms to learn from the past and thereby predict the future. When individual neurons are coincidently active they will promote a strengthening of synaptic connections. In 1949, Donald Olding Hebb (1949) proposed that if two neural signals enter the brain and simultaneously excite a post synaptic neuron, the strength of one or both of the synapses could increase such that, in the future, when only one of the signals enters the brain, that signal alone could trigger a response in the postsynaptic neuron. This proposal described a synaptic theory of associative memory (Figure 1 A). The later identification of associative long-term potentiation (LTP) has provided a cellular mechanism for Hebb’s first postulate. The conceptual reduction of learning to three neurons has proved tremendously informative, and extensive evidence suggests that Hebb’s first postulate is a likely mechanism of learning at the level of the individual neuron (Hebb, 1949 ).

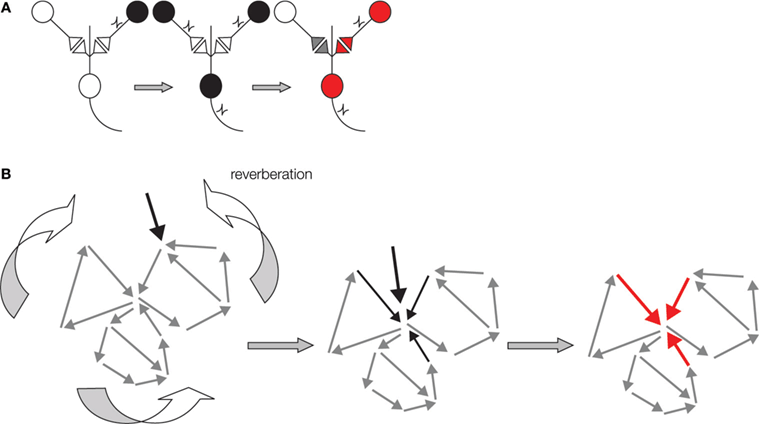

Figure 1. Schematic representations of two Hebbian postulates underlying memory formation in the brain. (A) Schematics of Hebbian associative plasticity. Cells that fire together wire together. From left to right: Presynaptic cell (black) does not activate post synaptic cell when firing on own. When two presynaptic cells fire simultaneously post synaptic cell fires action potential. This coincident firing of two presynaptic cells leads to synaptic strengthening. Now when the same presynaptic cell fire on own (red) it now activates the post synaptic cell. (B) Schematic of the second Hebbian postulate: reverberating ensemble of neurons. From left to right: The network may reverberate when a sensory signal (black arrow) enters at one node in an interconnected neurons ensemble (grey small arrows). This signal will remain active in the ensemble by moving from neuron to neuron within the network. The path of transmission will vary depending upon neurons' history of activity, current synaptic strengths and other sensory signals entering the network. Thus, reverberation may follow different paths at each iteration. This reverberant activity can become coincident with new neural signals (middle, black arrows), thereby facilitating ‘Hebbian postulate one’ plasticity at some synapses in the network (in red).
While most work has emphasized coincidence detection at the level of individual neurons, coincidence detection likely also occurs between neurons within micro circuits. Indeed, in addition to the idea that two coincidently active presynaptic neurons result in increased synaptic strength, Hebb also postulated that associations are distributed across ensembles of neurons. However, in the brain of a behaving organism variable latencies of coincident external signals will result because of different sensory signals via separate afferent paths, as well as separate regional processing of sensory signals. To accommodate the variable latencies and still make associations between the externally coincident events, the brain uses such tools as oscillations and neuronal ensemble activity within microcircuits, both of which can facilitate coincidence detection (Douglas et al., 1995 ; Johnson and LeDoux, 2004 ; Johnson et al., 2008 ; Klausberger et al., 2004 ; Pare et al., 2002 ; Pelletier and Pare, 2002 ; Seidenbecher et al., 2003 ; Sejnowski, 1999 ; Wong and Wang, 2006 ).
Hebb’s second postulate was extrapolated from Lorente de No’s original idea that reverberating networks are a fundamental organizing principle of the brain (Hebb, 1949 ; Sejnowski, 1999 ). Hebb argued that ensembles of neurons are a unit of temporary memory storage and coincidence facilitation. Thus, information can actively reverberate within the ensemble of neurons in order to maintain its activity and to coordinate additional coincidence detection of different sensory signals (Douglas et al., 1996 ; Hebb, 1949 ; Rao and Sejnowski, 2001 ; Sejnowski, 1999 ). According to Hebb, reverberant activity need not necessarily repeat in a continuous linear sequence. The ongoing neuron to neuron signaling may skip neurons and incorporate others as it cycles (Figure 1 B). Thus, according to Hebbian logic, memory formation not only involves synaptic strengthening in feedforward circuits, it also involves reverberating signals in ensembles of neurons (Hebb, 1949 ). However, experimental evidence for functional neuronal ensembles is limited. We examined the lateral amygdala (LA) a region known for associative memory formation for evidence of reverberating neuronal ensembles (Figure 2 ).

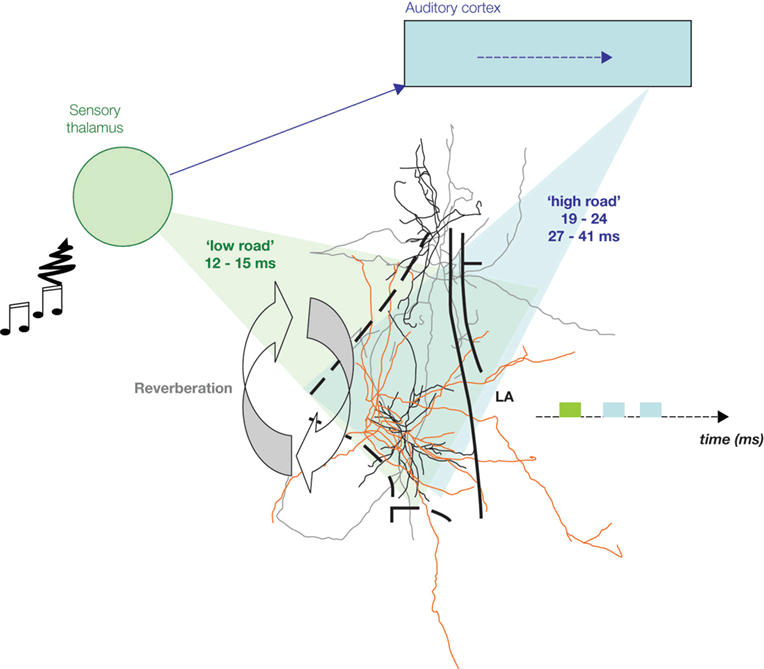

Figure 2. Auditory information convergence in the lateral amygdala (LA). An auditory signal reaches the auditory thalamus in 7–9 ms. From there, it is sent to the lateral amygdala (LA) either directly (‘low road’), or via a longer route, through the auditory cortices, for higher processing of the auditory signal, therefore providing the LA with more detailed information (‘high road’). Therefore, information processed through the high road (blue) reaches the LA later than the direct thalamic processed information (green). Cells in the LA are interconnected and provide a recurrent structure for possible reverberating activity in the LA, facilitating coincidence detection between afferent information and intra-amygdala processing, thus enabling Hebbian plasticity for storage of emotional memory traces in the LA.
Emotional memory and especially classical fear conditioning (also called Pavlovian fear conditioning), is one of the most described associative memory systems in neurobiology (Fanselow and LeDoux, 1999 ; LeDoux, 2003 ; Maren and Quirk, 2004 ; Sah et al., 2008 ). Conditioned fear has been observed in most animals from invertebrates to humans, and has been extensively studied in rodents (Fanselow and LeDoux, 1999 ; LeDoux, 2003 ; Maren and Quirk, 2004 ). Classical fear conditioning requires pairing of two sensory inputs. One input is an initially neutral stimulus, which becomes the conditioned stimulus (CS). The other input is a biologically significant event, the unconditioned stimulus (US). The pairing of these stimuli results in a conditioned response (CR) such that the initially neutral stimulus (CS) now elicits the same behavioral response as the US (Fanselow and LeDoux, 1999 ; Maren and Quirk, 2004 ). In auditory fear conditioning a neutral auditory tone is paired with an electric shock such that presentation of the auditory tone alone elicits fear responses.
Anatomically, the two auditory pathways converge in the LA (Armony et al., 1996 ; Humeau et al., 2005 ; Romanski and LeDoux, 1992 ). The acoustic signal conveying the tone CS enters the LA via the auditory thalamus and the auditory association cortex (Armony et al., 1997 ; Romanski et al., 1993 ). Both of these pathways enter the LA, where they converge with somatosensory/nociceptive US signals, coming directly through the sensory thalamic complex via the spino-thalamic tract (Figure 2 ) (LeDoux, 2003 ; Maren and Quirk, 2004 ). The two auditory routes are generally thought to provide different aspects of the CS to the LA, with the thalamic input providing a rudimentary version of the CS (‘low road’, rapid) and the cortical input (‘high road’, slow) providing more details. While either the thalamo-LA or cortico-LA pathways is sufficient for conditioning to simple auditory stimuli, the cortical pathway appears to be required for learning about more complex stimuli (LeDoux, 2000 ; Pare et al., 2004 ).
Divergent sensory information from the same event can be processed by parallel neural paths within the brain. However, parallel neural signals may not necessarily maintain parallel latencies. The two auditory pathways to the LA both synapse onto the same LA principal neurons where they contact different types of dendritic spines (Humeau et al., 2005 ). In contrast the two auditory inputs are temporally divergent (Figure 2 ). The auditory input via the auditory cortex arrives some 30 ms later (Armony et al., 1995 ,1998 ; LeDoux, 2000 ; Li et al., 1996 ; Quirk et al., 1997 ). For these two sensory signals to become rejoined in the LA one has therefore to envisage a mechanism for the brain to sustain the activity triggered by the thalamic event for sufficient time to meet the cortically processed signal. One possible mechanism that would allow for the two temporally segregated sensory inputs to converge in time as well as in space is a recurrent network within the LA. This network would allow for thalamo-LA signals to feedback to the superior parts of the LA during conditioning where they will meet incoming cortical signals (Johnson and LeDoux, 2004 ; Johnson et al., 2008 ).
Current associative plasticity models of conditioned fear rely on the concept of unidirectional information processing (Herry et al., 2008 ; LeDoux, 2003 ; Maren and Quirk, 2004 ; Pare et al., 2004 ; Sah et al., 2008 ). These models do not incorporate temporal segregation of afferent inputs (Armony et al., 1995 , 1998 ; LeDoux, 2000 ; Li et al., 1996 ; Quirk et al., 1997 ). Moreover, current models do not generally incorporate the role of Hebbian reverberation or recurrent circuits in associative plasticity during conditioned fear. In order to fully understand the contribution of the LA network to conditioned fear behavior, both the structure of the LA network and its functional behavior in relation to its sensory inputs needs to be known.
Recent work has shown the utility of field potentials in interpreting physiological data especially related to ensembles of neurons. These recent advances have included functional measures of the discrete volume of tissue recorded in the field potential (Katzner et al., 2009 ; Pesaran, 2009 ), Additionally, increasing evidence points to the potential advantages of the field potential over single unit activity in predicting both the fMRI bold signal and importantly behavior (Goense and Logothetis, 2008 ; Mazzoni et al., 2008 ; Pesaran et al., 2002 ). Field potentials have been used to study plasticity in the LA but have not been used extensively to study LA network activity (Figures 2 and 3 ).

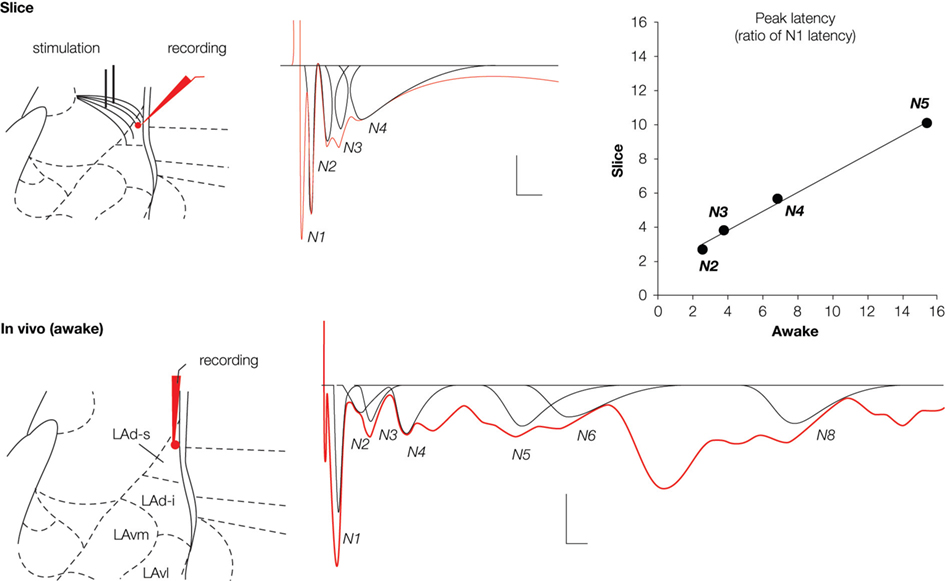

Figure 3. Field potentials (in red) evoked in the lateral amygdala (LA) by stimulation of auditory afferents (internal capsula in vitro, auditory thalamus in vivo) showed multiple negative potentials both in vitro (slice) and in vivo (awake rat). Scale: 0.1 mV, 10 ms. These waves represent a monosynaptic response (N1) followed by polysynaptic activity. We developed a method for fitting and extracting peaks that represent reliable synchronized activity (in black). Five and nine peaks were isolated in the slice and the awake preparation, respectively. Note that not all peaks are present in a given sample (e g. here N5 is missing for the in vitro example, or N7 for the in vivo example). To enable comparison between the two preparations, latencies of each of the isolated peaks were normalized with respect to the latency of the first monosynaptic peak (N1). This transformation showed a high correlation between the two preparations (r2 = 0.994; P < 0.005), suggesting similar intra-network rhythmicity in both preparations, and therefore similar network behavior.
Based on the logic that reliable activity across different animals would reflect aspects of the intrinsic LA network structure we developed a method for the identification of regularity in the polysynaptic field potential peaks (Cruikshank et al., 2002 ; Johnson et al., 2008 ; Kudoh and Shibuki, 1997 ; Mitzdorf, 1985 ). We found that different network responses can be recorded at the same time from the LAd-s and LAd-i giving some measure of the localized nature of the networks recorded from. We identified both observable and hidden peaks (Figure 3 ) (peaks summated within larger peaks, usually indicated by changes in negative slope) from the field potential waveform using automated peak fitting. Because any single stimulation may trigger events that could represent both random and reliable responses, we used a statistical method to extract temporally invariant peaks across animals. These techniques allowed us to study both the temporal structure and plasticity in localized LA network (Figures 2 –4 ).

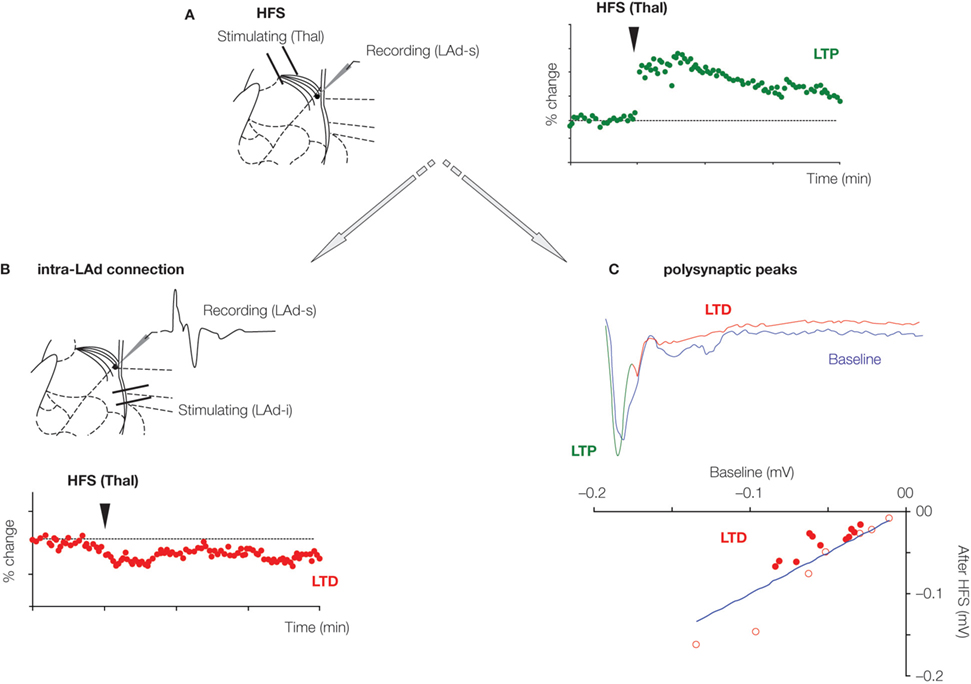

Figure 4. Plasticity of recurrent intra-amygdala network. (A) High-frequency stimulation (HFS) of thalamic afferents produces long-term potentiation (LTP) of the monosynaptic field potential response recorded in the superior part of the LAd, a potentiation that lasted at least 90 min. At the same time, long-term depression (LTD) of the intra-LA network was observed. This was evidenced by a depression of the monosynaptic field potential evoked in the superior part of LAd (LAd-s) in response to the stimulation of the inferior part of the LAd (LAd-i) (B); This was also observed as a general decrease in the amplitude of polysynaptic peaks (filled red dots), representing LTD in the network activity (C).
The LAd most likely contains a network of interconnected neurons. Thalamic afferents enter the LAd from a dorsomedial direction and then apparently course in a ventral direction through the LA (LeDoux et al., 1990 , 1991 ; Doron and Ledoux, 1999 , 2000 ;). This is the direction of neural activity and information flow considered in current models (Herry et al., 2008 ; LeDoux, 2003 ; Maren and Quirk, 2004 ; Pare et al., 2004 ; Sah et al., 2008 ). In contrast, in the network we have identified, neural activity appears to propagate in all directions throughout the LAd. Importantly this propagation also includes an apparent recurrent feed back from the inferior to superior parts of LAd (Figure 2 ). This network can reverberate when triggered by stimulation of thalamic to LA afferents. Reverberating activity can be observed to last for up to 40 ms in vitro and in the awake rat apparent polysynaptic activity can be observed to continue beyond 240 ms.
The reverberating LAd network appears to behave in a structured manner. Using a new method for extracting signatures of network activity from the extracellular field potential, we measured time-locked mono and polysynaptic activities as peaks in the field potential traces (Johnson et al., 2008 ). We named these peaks sequentially from the monosynaptic negative peak N1 to polysynaptic peaks N2 through N5 (N1 to N9 in vivo) (Figure 3 ). We localized the origin of each of these peaks to either the superior or inferior LAd (LAd-s, LAd-i). Upon stimulation of thalamic afferents in vitro, monosynaptic activity is detected first in the LAd-s and then 3 ms later in the LAd-i. After the initial monosynaptic activation of the LAd, polysynaptic activity is seen throughout. In the LAd-s the initial polysynaptic activity N2 is mediated by ‘feedback’ from the LAd-i. Following N3 and N4 peaks appear to be local to the LAd-s because trans-section of the LAd-s and LAd-i did not affect these peaks. Finally, polysynaptic peak N5, like N2, is also derived from the LAd-i because it is also lost after the mid LA trans-section. As a confirmation, correlation of latencies from polysynaptic peaks obtained from the LAd-s with and without LAd-i trans-section reveals a best fit regression when peaks N2 and N5 are considered absent.
The same pattern of polysynaptic excitatory events appears in vivo in the awake rat. Upon stimulation of the medial geniculate nucleus of the thalamus, both mono and polysynaptic peaks are observed in the extracellular field potential. The polysynaptic peaks are also negative peaks which follow the negative monosynaptic field excitatory post synaptic potential (fEPSP). The latency of the peaks is longer than that observed in the in vitro preparation. However, while the latencies are not identical the inter-peak relationship follows a matching pattern in the vivo and in vitro preparations. This is evident by the very close correlation between in vitro and in vivo patterns of peak latencies (Figure 3 ). Given the matching pattern of polysynaptic peaks in vivo and in vitro, at least for the first 93 and 39 ms respectively, one interpretation is that they may reflect the same or similar intrinsic network structures. The logic of this idea is that in vitro brain 400 μm thick slice will contain large sections of the same network that exists in vivo. Moreover, stimulating the same thalamo amygdala afferent pathways will trigger the same intrinsic network activity. Since field potentials are thought to measure network activities within a 250 μm radius (Katzner et al., 2009 ; Pesaran, 2009 ), it is plausible that the network identified in 400 μm thick slices in vitro is the same as the one identified in vivo.
The temporal organization of the recurrent LAd network is consistent with known cortico-amygdala latencies. An auditory tone, as used in conditioned fear, triggers in the LA, first a fast monosynaptic response via thalamic afferents, followed by a later monosynaptic response via cortical afferents. Therefore these auditory thalamic and cortical responses in the LA are separated by time. Our in vitro and in vivo data suggest that between the thalamic and cortical monosynaptic events, precisely timed recurrent activity reverberates within the LAd. Both the recurrent N2 and the LAd-s local N3 are active within LAd-s at the same time as the activity from the monosynaptic cortical input (Armony et al., 1995 ; Li et al., 1996 ). This provides a mechanism for convergence across time of the thalamic and cortical sensory information. This converging information will include elements of the same original sound that is processed directly to LA via the thalamus, as well as via the cortex. In addition, it is also possible that other sensory information, for example tone and light, as well as aspects of the tone and shock could also show temporal converge via the reverberating LA network. Thus, the reverberating and recurrent networks of the LAd provide a mechanism to facilitate coincident interaction between cortical and subcortical information.
The second Hebbian postulate of reverberating ensembles incorporates network plasticity. This plasticity can be in two forms. First, the temporal coordination of sensory signals in reverberating ensembles facilitates convergence dependent up-regulation of synaptic strength (seen as LTP). In contrast, reverberating ensembles may also facilitate the intra-network weakening of synaptic strength (seen as LTD). Both LTP and LTD are supposed to play a critical role in the storage of memory, by increasing contrast between strengthened and weakened synapses, Synaptic weakening likely plays a critical role in networks by preventing saturation and refining the memory trace. In addition, as some synapses within the network are strengthened, the increased activity in the network could ultimately lead to run away excitation. Therefore some mechanism of inbuilt synaptic weakening is believed necessary for network homeostasis.
Such homeostatic plasticity is identifiable in the synapses of the LAd network. LTP in the thalamic to LA pathway leads to LTD in the LAd-i to LAd-s pathway (Figures 4 A, B). If the polysynaptic network is the same recurrent network, changes in the polysynaptic peaks would also be predicted. Induction of LTP in the thalamic to LA pathway leads to LTD in the polysynaptic peaks. Peaks N2 through N5 reduced in amplitude following monosynaptic LTP (Figure 4 C). This plasticity within the reverberating LA network provides further evidence the network may contain key features of Hebbian reverberating ensembles.
Another feature of recurrent networks which has been studied more recently is that they appear to utilize NMDA receptor mediated mechanisms to promote propagation of activity (Tegner et al., 2002 ; Wang, 2001 ). Interestingly, several key behaviors have been shown to be dependent upon NMDA receptors, and therefore may be based on key aspects of recurrent reverberating network activity. For example, NMDA receptors at recurrent CA3 to CA3 synapses have been shown to underlie feedback and are essential for the CA3 mediated pattern completion of spatial cues in a water maze task (Nakazawa et al., 2002 ). In addition, blockade of NMDA receptors in the LA disrupts second order fear conditioning (Gewirtz and Davis, 1997 ), a fear learning based on the association between two different CSs, after one CS has previously been associated with a US (Debiec et al., 2006 ; Gewirtz and Davis, 1998 , 2000 ; Nader and LeDoux, 1999 ). It is conceivable that the blockade of the second order fear conditioning could be due to the disruption of LA recurrent connectivity which is mediated in part by NMDA receptors (Johnson and LeDoux, 2004 ; Johnson et al., 2008 ).
Hebb’s first postulate has been tremendously influential in the neurobiology of learning and memory. In contrast variables in the second postulate ‘reverberation’ and ‘recurrent network’ have been harder to define and measure. Nonetheless the idea of memory formation being facilitated by reverberating networks may explain how temporally divergent but behaviorally relevant neural signals become linked. Hebbian-like reverberating networks in the LAd appear to be structured to facilitate coincident associations between temporally divergent cortical and subcortical sensory afferents. In addition, transmission of activity within the network is NMDA receptor dependent and the synapses at each node in the network are plastic. These data raise important questions for future research on how network structure and behavior facilitate the encoding of conditioned fear memory traces (Johnson and LeDoux, 2004 ; Johnson et al., 2008 ).
Further studies are needed to specify the degree to which recurrent connectivity converges onto single neurons, and to characterize the precise rules that govern plasticity at network synapses. Many structural and functional questions remain. How does this reverberant activity interact with oscillatory behavior to facilitate sensory and synaptic plasticity? Recent data suggest that the amygdala stores fear memories with much more sensory detail than once supposed (Debiec et al., 2006 ; Doyère et al., 2007 ) which raises important questions about how detailed memory traces are encoded by LA networks. For example, does the reverberatory activity participate in the refinement of the LA memory trace? Does nociceptive information transmitted from the thalamus directly to the LA converge in the LA with auditory information from the auditory cortex? Does sensory information from the different senses also converge in the LA and thereby undergo associative plasticity using the thalamic and cortical routes to the LA? While more research is needed on the functional behavior of Hebbian ensembles, recent studies of LA networks have opened a door into the next level of analysis of emotional memory (Johnson et al., 2008 ).
