Abstract
Heterologous production of recombinant proteins is gaining increasing interest in biotechnology with respect to productivity, scalability, and wide applicability. The members of genus Streptomyces have been proposed as remarkable hosts for heterologous production due to their versatile nature of expressing various secondary metabolite biosynthetic gene clusters and secretory enzymes. However, there are several issues that limit their use, including low yield, difficulty in genetic manipulation, and their complex cellular features. In this review, we summarize rational engineering approaches to optimizing the heterologous production of secondary metabolites and recombinant proteins in Streptomyces species in terms of genetic tool development and chassis construction. Further perspectives on the development of optimal Streptomyces chassis by the design-build-test-learn cycle in systems are suggested, which may increase the availability of secondary metabolites and recombinant proteins.
Introduction
Many efforts have been made to produce recombinant proteins on a large industrial scale. Heterologous protein expression in the platform host by the introduction of the gene of interest is the most promising approach in several aspects. Heterologous expression hosts can overcome the complexities associated with native hosts, such as slow and fastidious growth, limited molecular biology tools, scarce genetic information, and low productivity (Park et al., 2020). Several representative heterologous expression hosts have been used according to their specialized characteristics and product types (Huo et al., 2019; Zhang et al., 2019; Kang and Kim, 2021; Pham et al., 2021). For example, Escherichia coli is the most extensively studied and used for heterologous protein expression, as it exhibits rapid growth, ease of genetic manipulation, and high productivity. Bacillus subtilis is another extensively used Gram-positive bacteria that acts as an efficient workhorse for the production of industrial enzymes and pharmaceuticals, having robust growth and good genetic tractability, along with many endogenous proteases. Beyond the microbial hosts, Saccharomyces cerevisiae is a commonly used eukaryotic host for recombinant protein production due to its recombinant DNA stability, easy genome engineering strategies, and the ability to provide post-translational modifications. Recently, a high-throughput platform for heterologous protein expression for fungal biosynthetic gene clusters (BGCs) in S. cerevisiae, named HEx, was established to successfully produce diverse fungal secondary metabolites (SMs) (Harvey et al., 2018). Chinese hamster ovary (CHO) cells are the mammalian cell line that dominates the other recombinant protein production hosts because of their capacity to express large and complex recombinant proteins, but genetic engineering and clonal selection are more difficult than microbial hosts.
Among the potential microbial chassis, the genus Streptomyces, a soil-derived Gram-positive bacterium with a high GC content genome, is an attractive microbial host for heterologous protein expression (Liu et al., 2018a). To survive under limited nutrient conditions and compete with various other microorganisms in soil, Streptomyces has a complex developmental cycle that sporulates after mycelial growth and produces diverse SMs (Van Wezel and Mcdowall, 2011; ). In addition, various enzymes are known to be produced and secreted to degrade complex nutrients, such as lignocellulose, and to perform various reactions on different substrates (). SMs are synthesized by a series of reactions catalyzed by the biosynthetic enzymes encoded in the BGCs. For example, polyketide synthases (PKSs) and non-ribosomal peptide synthetases (NRPSs) are organized by multiple domains, and even by multiple modules in several types that constitute a large biosynthetic machinery (Hwang et al., 2020). In this sense, Streptomyces are likely to be more amenable to producing functional biosynthetic enzymes from BGCs relative to other microorganisms, such as E. coli. Although heterologous expression of BGC enzymes has been successful in Streptomyces platform hosts, several inadequacies and overcoming strategies have been identified.
In this review, the advantages and limitations of Streptomyces as a chassis for heterologous protein expression are discussed. Then, BGCs and recombinant protein examples of heterologous expression in Streptomyces are reviewed, particularly focusing on genetic tool development and chassis construction. In addition, future perspectives on effective strategies with respect to the design-build-test-learn (DBTL) cycle in synthetic biology are also proposed.
Streptomyces as the Heterologous Protein Expression Host: Advantages and Limitations
Streptomyces as a Heterologous Protein Expression Host
The growth of several Streptomyces species is robust and scalable, as they have been intensively used for the industrial production of SMs (). They are also favorable hosts for heterologous production of recombinant proteins. This is mainly due to their protein secretion systems in the extracellular milieu (Liu et al., 2013; ; ). Secretion is beneficial in terms of protein folding, because the extracellular medium is an ordinarily oxidizing environment that promotes disulfide bond formation for correct folding, while the cytoplasm is a reducing environment that impedes the disulfide bonds (). Streptomyces is a Gram-positive bacterium that has a cell wall layer without an outer membrane, and its secretion into the extracellular space is easier than that of Gram-negative bacteria. As the cell disruption is not required, the downstream protein purification from secreted proteins by Streptomyces is more comfortable without contamination by intracellular proteins (Sommer et al., 2009). In addition, Streptomyces exhibits low toxicity and does not contain lipopolysaccharides (LPSs), which may act as potent immunostimulatory endotoxins (), allowing easy downstream purification processes. Moreover, S. lividans, the most frequently used Streptomyces host for recombinant protein production, is known to have low restriction enzyme and proteolytic activities, enabling efficient introduction of the recombinant DNA and high yield of the protein, respectively ().
Streptomyces as a Heterologous Expression Host of Secondary Metabolite BGCs
The number of BGCs per Streptomyces genome was predicted to be 36.5 on average, by antiSMASH, reflecting the potential diversity of SMs and their biosynthetic enzymes (Lee et al., 2021). As these biosynthetic enzymes have specific and sophisticated structures, the cellular environment in the heterologous expression host to maintain their structures is important for their function (Hwang et al., 2020). Therefore, Streptomyces heterologous expression hosts are favorable for producing functional biosynthetic enzymes encoded in the BGCs of Streptomyces sources relative to other microorganisms, such as E. coli.
Correct folding is closely correlated with enzyme solubility. In particular, correct incorporation of multiple domains and modules is necessary for enzyme solubility. For example, exchanging the dehydratase domain or linker domain for combinatorial biosynthesis of polyketides (PKs) often generates insoluble aggregates of enzymes (Liew et al., 2012; ). In addition, uncoupling transcription and translation may lead to insolubility due to misfolding, which requires optimization of the transcription and translation rate for heterologous expression (Skiba et al., 2018). Codon usage has a significant impact on the translation rate of GC-rich BGC sequences that are likely to be translated inefficiently at low-use codons in E. coli (Ke and Yoshikuni, 2020). However, Streptomyces hosts do not need additional codon optimization to improve the translation efficiency for BGC expression. Moreover, the cytoplasmic redox state of the heterologous expression host should be similar to that of the native host to stimulate correct disulfide bonds. For example, a large size of the main synthetase of the glycopeptide NRPS chloroeremomycin BGC CepA was expressed in E. coli, but it showed low activity, perhaps due to incorrect folding by the non-optimal redox state of E. coli (Trauger and Walsh, 2000; Skiba et al., 2018). Therefore, Streptomyces is a more convenient host for the expression of functional large BGC enzymes. Chaperone is also essential for the functioning of biosynthesis enzymes in several examples, including MbtH homologs within several NRPS BGCs and PqqD family chaperones within lasso peptide BGCs (Shao et al., 2019). Other considerations for the heterologous expression of functional enzymes, including cDNA selection, expression system optimization, tagging, pH, temperature, and cofactor, were reviewed in a previous study (Skiba et al., 2018).
Metabolic background of Streptomyces plays a key role on successful heterologous production of SMs, especially in terms of substrate availability. As Streptomyces hosts produce a variety of SMs from native BGCs encoded in their genomes, they naturally possess diverse reactions to produce sufficient precursors such as propionyl-CoA, methylmalonyl-CoA, benzoyl-CoA, and others for PKs, and p-aminobenzoic acid, 3-amino-5-hydroxybenzoic acid, and various β-amino acids for NRPs, respectively (Pfeifer and Khosla, 2001; Luo et al., 2016; Sharma et al., 2021). Despite of the ability, sufficient precursor supply should be additionally optimized for the high yield by preventing the undesired flux to other pathways competing for the same precursor molecules to enhance the productivity.
Next, SM biosynthesis usually involves many diverse post-modifications at the final step by tailoring enzymes governing phosphorylation, methylation, acetylation, cyclization, farnesylation, and glycosylation (Pfeifer and Khosla, 2001; Liu et al., 2018a). As Streptomyces heterologous expression hosts have a high possibility of expressing functional tailoring enzymes, they would be better than other hosts. However, tailoring enzymes are distinct even between Streptomyces species that are carefully chosen for co-expression. For instance, a farnesyl transferase-coding gene was not found in the genome of S. albus, indicating the requirement for additional introduction of this enzyme to produce related SMs (Liu et al., 2018a). Lastly, high production of SMs, especially antibiotics, requires the transport and resistance genes to have self-tolerance against the products. Streptomyces heterologous expression hosts may have native transporters or resistance proteins with broad substrate specificity to have higher self-tolerance than other heterologous hosts. With the availability of precursors and the presence of other additional genes, such as regulatory, tailoring, transport, and resistance genes, Streptomyces heterologous expression hosts are a good choice because they are not very different from the native BGC hosts as compared to E. coli.
In summary, Streptomyces is a specialized host for BGC expression due to its functional biosynthetic enzyme expression, substrate availability, and presence of other accessory genes. Recombinant proteins are also effectively expressed in Streptomyces, mainly due to their secretion systems. However, there are also some drawbacks compared to other heterologous hosts in terms of the robustness of growth, genetic tools, and genetic information. To overcome these limitations, rational engineering approaches for heterologous protein production have been developed for Streptomyces, as presented in the following sections (Figure 1).

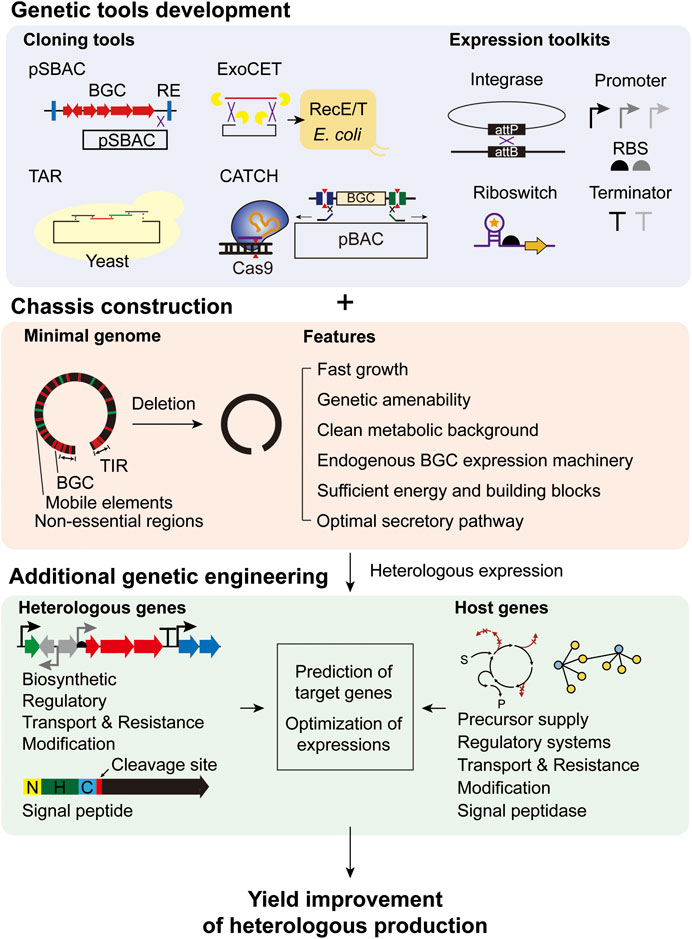

FIGURE 1
Genetic Tools for Rational Engineering of BGC Heterologous Expression in Streptomyces
Since a number of genes are included in a gene cluster, BGCs are generally large, ranging from 10Ā kb to over 200Ā kb in size. Cloning of large BGCs requires considerable time and effort and is limited in terms of efficiency. Therefore, many tools have been developed to improve the efficiency and fidelity of Streptomyces heterologous hosts. This section focuses on the cloning or assembly strategies that have been developed so far. The following section will provide the steps to improve heterologous protein expression via the engineering of genetic elements.
Strategies for the Cloning and Assembly of BGCs
The traditional cloning strategy is a library-based method in which genomic DNA is digested with restriction enzymes and ligated into vectors, such as cosmids, P1-derived atomic chromosome (PAC), and the bacterial atomic chromosome (BAC). Cosmid is a vector based on the E. coli Ī» bacteriophage, that can accommodate a small BGC of up to 42Ā kb (Jones et al., 2013), while BAC containing an F-factor or PAC vector can accommodate a relatively large BGC, up to 490Ā kb in BAC (Zimmer and Verrinder Gibbins, 1997) and 300Ā kb in PAC (Tu et al., 2018). The library-based cloning method was problematic in that it required numerous clones to be screened by polymerase chain reaction (PCR). Instead, direct cloning strategies for BGCs without library construction have emerged. Direct cloning strategies were further divided depending on whether the cloning was performed in vivo or in vitro (Table 1).

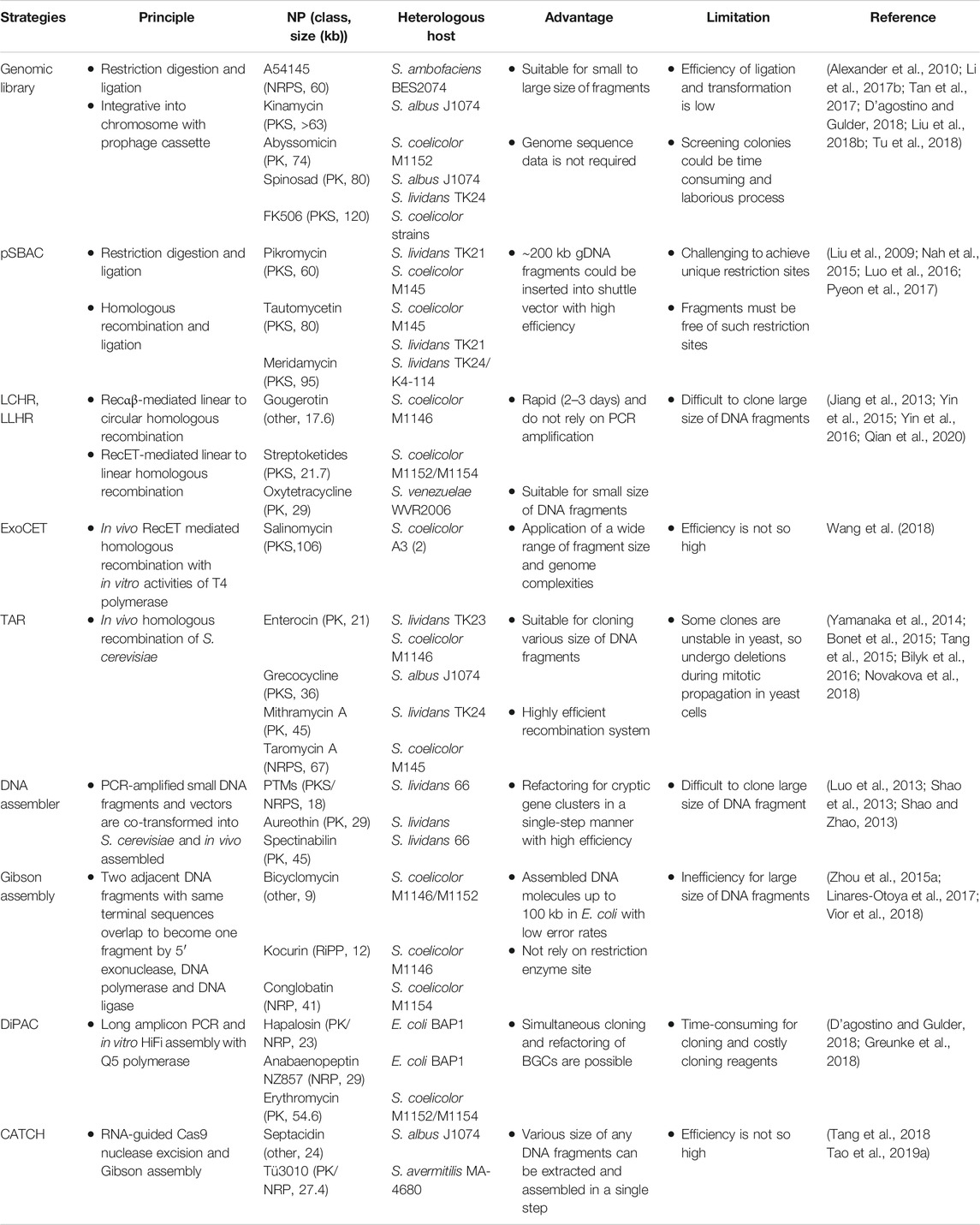

TABLE 1
| Strategies | Principle | NP (class, size (kb)) | Heterologous host | Advantage | Limitation | Reference |
|---|---|---|---|---|---|---|
| Genomic library | ⢠Restriction digestion and ligation | A54145 (NRPS, 60) | S. ambofaciens BES2074 | ⢠Suitable for small to large size of fragments | ⢠Efficiency of ligation and transformation is low | (; Li et al., 2017b; Tan et al., 2017; ; Liu et al., 2018b; Tu et al., 2018) |
| ⢠Integrative into chromosome with prophage cassette | Kinamycin (PKS, >63) | S. albus J1074 | ||||
| Abyssomicin (PK, 74) | S. coelicolor M1152 | ⢠Genome sequence data is not required | ⢠Screening colonies could be time consuming and laborious process | |||
| Spinosad (PK, 80) | S. albus J1074 | |||||
| S. lividans TK24 | ||||||
| FK506 (PKS, 120) | S. coelicolor strains | |||||
| pSBAC | ⢠Restriction digestion and ligation | Pikromycin (PKS, 60) | S. lividans TK21 | ⢠ā¼200Ā kb gDNA fragments could be inserted into shuttle vector with high efficiency | ⢠Challenging to achieve unique restriction sites | (Liu et al., 2009; Nah et al., 2015; Luo et al., 2016; Pyeon et al., 2017) |
| S. coelicolor M145 | ||||||
| ⢠Homologous recombination and ligation | Tautomycetin (PKS, 80) | S. coelicolor M145 | ⢠Fragments must be free of such restriction sites | |||
| S. lividans TK21 | ||||||
| Meridamycin (PKS, 95) | S. lividans TK24/K4-114 | |||||
| LCHR, LLHR | ⢠Recαβ-mediated linear to circular homologous recombination | Gougerotin (other, 17.6) | S. coelicolor M1146 | ⢠Rapid (2ā3Ā days) and do not rely on PCR amplification | ⢠Difficult to clone large size of DNA fragments | (Jiang et al., 2013; Yin et al., 2015; Yin et al., 2016; Qian et al., 2020) |
| ⢠RecET-mediated linear to linear homologous recombination | Streptoketides (PKS, 21.7) | S. coelicolor M1152/M1154 | ||||
| Oxytetracycline (PK, 29) | S. venezuelae WVR2006 | ⢠Suitable for small size of DNA fragments | ||||
| ExoCET | ⢠In vivo RecET mediated homologous recombination with in vitro activities of T4 polymerase | Salinomycin (PKS,106) | S. coelicolor A3 (2) | ⢠Application of a wide range of fragment size and genome complexities | ⢠Efficiency is not so high | Wang et al. (2018) |
| TAR | ⢠In vivo homologous recombination of S. cerevisiae | Enterocin (PK, 21) | S. lividans TK23 | ⢠Suitable for cloning various size of DNA fragments | ⢠Some clones are unstable in yeast, so undergo deletions during mitotic propagation in yeast cells | (Yamanaka et al., 2014; ; Tang et al., 2015; ; Novakova et al., 2018) |
| S. coelicolor M1146 | ||||||
| Grecocycline (PKS, 36) | S. albus J1074 | |||||
| Mithramycin A (PK, 45) | S. lividans TK24 | ⢠Highly efficient recombination system | ||||
| Taromycin A (NRPS, 67) | S. coelicolor M145 | |||||
| DNA assembler | ⢠PCR-amplified small DNA fragments and vectors are co-transformed into S. cerevisiae and in vivo assembled | PTMs (PKS/NRPS, 18) | S. lividans 66 | ⢠Refactoring for cryptic gene clusters in a single-step manner with high efficiency | ⢠Difficult to clone large size of DNA fragment | (Luo et al., 2013; Shao et al., 2013; Shao and Zhao, 2013) |
| Aureothin (PK, 29) | S. lividans | |||||
| Spectinabilin (PK, 45) | S. lividans 66 | |||||
| Gibson assembly | ⢠Two adjacent DNA fragments with same terminal sequences overlap to become one fragment by 5Ⲡexonuclease, DNA polymerase and DNA ligase | Bicyclomycin (other, 9) | S. coelicolor M1146/M1152 | ⢠Assembled DNA molecules up to 100 kb in E. coli with low error rates | ⢠Inefficiency for large size of DNA fragments | (Zhou et al., 2015a; Linares-Otoya et al., 2017; Vior et al., 2018) |
| Kocurin (RiPP, 12) | S. coelicolor M1146 | ⢠Not rely on restriction enzyme site | ||||
| Conglobatin (NRP, 41) | S. coelicolor M1154 | |||||
| DiPAC | ⢠Long amplicon PCR and in vitro HiFi assembly with Q5 polymerase | Hapalosin (PK/NRP, 23) | E. coli BAP1 | ⢠Simultaneous cloning and refactoring of BGCs are possible | ⢠Time-consuming for cloning and costly cloning reagents | (; ) |
| Anabaenopeptin NZ857 (NRP, 29) | E. coli BAP1 | |||||
| Erythromycin (PK, 54.6) | S. coelicolor M1152/M1154 | |||||
| CATCH | ⢠RNA-guided Cas9 nuclease excision and Gibson assembly | Septacidin (other, 24) | S. albus J1074 | ⢠Various size of any DNA fragments can be extracted and assembled in a single step | ⢠Efficiency is not so high | (Tang et al., 2018 Tao et al., 2019a) |
| Tü3010 (PK/NRP, 27.4) | S. avermitilis MA-4680 |
Selected examples of strategies for cloning and assembly of secondary metabolite BGCs.
Plasmid Streptomyces bacterial artificial chromosome (pSBAC) is an E. coli-Streptomyces shuttle vector that can carry large BGCs. After insertion of the pSBAC vector into the restriction sites at the flanking regions of the BGC, the BGC could be separated from the genome by the restriction enzymes and captured into pSBAC (Nah et al., 2015). This vector can switch conveniently from single-copy to high-copy replication in E. coli and then integrate into heterologous Streptomyces host after intergenic conjugation (Liu et al., 2009). When integrated, pSBAC used phage ΦBT1 attP-int site-specific integration system instead of a ΦC31 attP-int system, which has been reported to have detrimental effects on antibiotic production. Using this method, meridamycin (Liu et al., 2009), tautomycetin (Nah et al., 2015), and pikromycin (Pyeon et al., 2017), which are large BGCs, were successfully expressed. However, during the process, target BGCs must be free of restriction sites, and sometimes it is challenging to find unique restriction sites.
Both linear-to-circular homologous recombination (LCHR) and linear-to-linear HR (LLHR) are strategies in which homologous recombination occurs between the flanking sequences of the target BGC from digested genomic DNA and the vector containing homology arms after co-transformation into E. coli (Ma and Wang, 2019). LCHR occurs between the linear insert and the circular vector using the Red-α/β protein derived from the lambda red phage, whereas LLHR occurs between two linearized DNA fragments using RecE/T from a Rac prophage (). These methods are rapid and highly efficient for cloning small- or medium-sized BGCs, such as gougerotin (Jiang et al., 2013), streptoketides (Qian et al., 2020), and oxytetracycline (Yin et al., 2016). However, this is limited because the linearized vector and BGC segment must be introduced simultaneously into E. coli before homologous recombination occurs. Recently, exonuclease combined with RecET recombination (ExoCET), an improved strategy from LLHR, was developed (Wang et al., 2018). Because of the activity of 3Ⲡexonuclease from in vitro T4 polymerase, approximately 80 bp single-strand homologous arms were generated from the flanking regions of a linear vector and a target BGC fragment. Two DNA fragments were annealed in vitro before transformation into E. coli. Owing to the in vitro annealing step, the efficiency of in vivo homologous recombination through the RecE/T system could be improved. Using ExoCET, 106 kb salinomycin was cloned without further assembly processes (Yin et al., 2015; Wang et al., 2018).
Unlike the above methods, transformation-associated recombination (TAR) cloning is a method in which the insert and vector are co-transformed into yeast. Yeast is known to have excellent recombination machinery, so it can clone large DNA fragments of up to 250Ā kb in size (Kouprina and Larionov, 2006). After cloning the linearized shuttle vector pCAP01 and the DNA fragment through homologous recombination in yeast, the vector was transformed into E. coli, transformed with Streptomyces by conjugation, and inserted into the chromosome via the attP-int site. However, some isolated clones may be unstable in yeast or lost during the mitotic propagation of yeast, while some DNA fragments may not be fully recovered in yeast (Kouprina and Larionov, 2006).
The DNA assembler is another in vivo assembly method in yeast based on TAR cloning (Shao et al., 2012). All successive DNA fragments were designed to overlap with each other and amplified by PCR. When fragments and a linearized vector were co-transformed into yeast, they were assembled into a vector with in vivo homologous recombination (Shao et al., 2009). This strategy has the advantage of modularity, which makes it possible to refactor gene clusters. In particular, by refactoring the well-known promoter, RBS, and terminator regions with the gene cluster using overlap extension PCR, silent BGCs could be expressed (Shao et al., 2013; Joska et al., 2014).
In addition to in vivo cloning, BGCs can also be cloned in vitro. In vitro cloning involves DNA assembly, which is mainly based on Gibson Assembly. Gibson Assembly assembles several fragments into one fragment by overlapping adjacent DNA fragments with the same terminal sequences using a 5ā² exonuclease, DNA polymerase, and ligase (). Using this method, short-and medium-sized BGCs were efficiently cloned (Zhou et al., 2015a; Linares-Otoya et al., 2017). Recently, to compensate for the decrease in efficiency due to high GC content, a modified Gibson Assembly was developed, and 67Ā kb of BGC was successfully cloned (Li et al., 2015; Li et al., 2018).
Direct pathway cloning (DiPaC) is an in vitro cloning method based on Gibson Assembly. After making a long amplicon PCR of approximately 10Ā kb per each using Q5 high-fidelity polymerase, the fragments were assembled into a complete BGC using HiFi DNA assembly and captured as a pET28 vector (). This strategy is suitable for small- or medium-sized BGCs; however, this is a time-consuming process and the reagent is expensive. Recently, a strategy has been introduced to overcome the limitations of DiPaC with sequence- and ligation-independent cloning (SLIC), using T4 polymerase instead of HiFi DNA assembly ().
The Cas9-assisted targeting of chromosome segments (CATCH) method is also an in vitro cloning method based on Gibson Assembly. All or partial fragments of a BGC are directly cleaved using PCR-based amplified single-guide RNA (sgRNA) and Cas9 protein and then captured into a vector using Gibson Assembly, the whole process being performed at once on agarose gels (Jiang and Zhu, 2016). Since only the target region is cleaved using the Cas9 protein, intact fragments without an off-target could be captured into vectors. In addition, the risk of DNA shearing is low compared to other methods because chromosomes are protected by the agarose matrix. Thus, even very large fragments of approximately 100Ā kb can be cloned (Jiang et al., 2015).
In vivo cloning strategies can clone large fragments with high efficiency, but since cloning has to be done in bacteria or yeast, the process is slow because it has to wait for cells to grow. Furthermore, extraction from organisms is necessary to achieve the vector, which is then transformed into E. coli to transfer them to Streptomyces by conjugation. On the other hand, since in vitro cloning is not performed in cells, the process proceeds easily and quickly. However, the efficiency of cloning large DNA fragments is not yet high. If in vivo and in vitro strategies can be used together to compensate for their respective disadvantages, large BGCs can be cloned more efficiently and maintained in stable conditions.
Genetic Parts
The development of efficient cloning tools has made it possible to introduce target BGCs into heterologous hosts. However, after being introduced into a heterologous host, only trace amounts of target SMs were detected. This is because the expression of BGCs is regulated by complex regulatory networks (Xia et al., 2020). Therefore, attempts have been made to engineer additional genetic parts to express target BGCs (Table 2).
TABLE 2
| Vector | Strategies | Name | Reference |
|---|---|---|---|
| Replicative | Low-copy | pRM5, pHU204, pOJ446, pIJ101 | (Marti et al., 2000; Medema et al., 2011; ) |
| High-copy | pUC119, pKC1139 | ||
| Integrative | ΦC31 attP-int locus | pSET152, pOJ436, pIJ6902, pIJ10702 (cosmid), pHL931 (BAC), pESAC13 (BAC), pCAP01 (TAR cloning) | (Huang et al., 2005; Jones et al., 2013; ; Yin et al., 2016; Horbal et al., 2018a; Liu et al., 2018b) |
| ΦBT1 attP-int locus | pMS82, pJ10257, pSBAC | (; Hong et al., 2005; Liu et al., 2009) | |
| VWB attP-int locus | pCLY10 (TAR cloning) | ||
| Genetic parts | Features | Reference | |
| Integrase | ΦC31 | Derived from Streptomyces phage ĻC31 | Khaleel et al. (2011) |
| ΦBT1 | Derived from Streptomyces phage ĻBT1 | ( Zhang et al., 2013) | |
| VWB | Derived from bacteriophage VWB, introduced to a tRNAArg (AGG) gene in several Streptomyces species | Van Mellaert et al. (1998) | |
| RP3 | Derived from Streptomyces phage RP3, introduced to a tRNAArg (AGG) gene in S. rimosus | Van Mellaert et al. (1998) | |
| R4 | Derived from S. parvulus phage R4, site-specifically introduced into the chromosome of S. parvulus | ||
| TG1 | Derived from Streptomyces phage TG1, site-specifically introduced in S. cattleya | ||
| Bxb1 | Derived from Mycobacteriophage Bxb1 | ||
| SV1 | Derived from S. venezuelaeĀ phage SV1 | ||
| Φ1/6 | Derived from prophage Φμ1/6, introduced to chromosome of tetracycline producing strains, S. aureofaciens | ||
| ΦOZJ | Derived from actinophage OzzyJ | Ko et al. (2020) | |
| ΦJoe | StreptomycesĀ phage ĻJoe, introduced to SCO2603, an ancestral phage fragment, in S. coelicolor | ||
| Constitutive Promoter | ermEp | Derived from S. erythraeus, promoter of erythromycin resistance gene | |
| ermEp* | Trinucleotide deletion in the ermEp1 region of ermEp | ||
| SF14 | Derived from phage 119 isolated from S. ghanaensis | Labes et al. (1997) | |
| gapdhp | Derived from S. griseus, promoter of glyceraldehyde-3-phosphate dehydrogenase | Shao et al. (2013) | |
| rpsLp | Derived from S. griseus, promoter of 30S ribosomal protein | Tan et al. (2017) | |
| kasOp | Derived from S. coelicolor A3, promoter of SARP family regulator | Wang et al. (2013) | |
| kasOp* | Engineered by removing the binding sites of ScbR and ScbR2 regulators, then by using random mutation | Wang et al. (2013) | |
| thlM4p | Derived from S. chattanoogensis L10, promoter of peptidase M4 thermolysin | Wang et al. (2019a) | |
| Synthetic promoter library | Randomized to construct synthetic promoter library in S. lividans, 38 synthetic promoters sequenced | Seghezzi et al. (2011) | |
| Randomized synthetic promoter library in S. venezuelae. Among 180, six showed stronger strength than kasOp* | |||
| Synthetic promoter library based on ermEp1 promoter. Among 56, one promoter shows stronger strength than ermEp1 | Siegl et al. (2013) | ||
| Inducible promoter | tipAp | Thiostrepton inducible promoter from S. lividans 66 | |
| tcp830p | Tetracycline inducible promoter | Rodriguez-Garcia et al. (2005) | |
| nitAp | Isovaleronitrile or ε-caprolactam inducible promoter from Rhodococcus rhodochrous J1 | Komeda et al. (1996) | |
| xylAp | Xylose inducible promoter | Noguchi et al. (2018) | |
| otrBp | Oxytetracycline inducible promoter | Yang et al. (2019) | |
| PA3-rolO-RolR | Resorcinol inducible promoter | Horbal et al. (2014) | |
| P21-cmt-CymR | Cumate inducible promoter | Horbal et al. (2014) | |
| Terminator | TD1 | Derived from Bacillus subtilis phage Φ29 | Pulido et al. (1987) |
| Fd | Derived from E. coliĀ phage fd | Ward et al. (1986) | |
| ttsbiB | Heterologous expression level of glucuronidase in Mycobacteria | Horbal et al. (2018b) | |
| Riboswitch | Synthetic theophylline-dependent riboswitches | ||
Examples of genetic parts for gene expression.
Vectors can be divided into two types depending on whether they self-replicate in the host cell or integrate into the host genome. First, replicative vectors are mainly derivatives based on the pRM5 vector containing the SCP2 replicon (Marti et al., 2000). This backbone vector is maintained in Streptomyces in a low-copy state and can be stably replicated up to a size of 31Ā kb or more (). Meanwhile, pKC1139 is mainly used to improve the productivity of target BGCs while maintaining 20ā50 copy numbers in Streptomyces (). Since BGCs are large in size, low-copy replicative vectors were used to maintain stability within Streptomyces (Marti et al., 2000). However, as these vectors also have some limitations, such as difficulties in genetic manipulation and reduced DNA purity, due to a low level of DNA recovery, the strategy was changed from a replicative vector to an integrative vector (Liu et al., 2009; Heidorn et al., 2011). ΦC31 integrase is commonly used, but the problems of detrimental effects on the production of BGCs and entering a pseudo position have been reported in some strains. Therefore, ΦBT1 replaced ΦC31. In addition, several other integrases were identified (Table 2). Recently, a modular and integrative vector that is easily compatible with vectors for cloning and assembly methods has been developed (). The antibiotic resistance cassette module and the integration system cassette module can be easily replaced with other cassettes by unique restriction sites, so multiple vector types can be generated from one backbone. Because it has the advantage of being able to add a module, this method can contribute to resolving the difference in efficiency depending on the type of host or cloning strategy ().
One of the most critical factors for expressing target BGCs is the promoter element. First, constitutive promoters are commonly used for overexpression of heterologous genes. In particular, the ermE promoter, which contains two regions, ermEp1 and ermEp2, is widely used as a strong constitutive promoter. ermEp* is a variant that is upregulated by the deletion of trinucleotides from the ermEp1 region (). In addition to the ermE series, there are several strong constitutive promoters, SF14, rpsLp, gapdhp, and kasOp, each of which is known to have similar or stronger intensities to ermEp* (Labes et al., 1997; Shao et al., 2013; Wang et al., 2013). kasOp was engineered by removing two binding sites of regulators and then using random mutation. Finally, kasOp* was developed, which showed the strongest strength in S. coelicolor and S. avermitilis compared to SF14 and ermEp*, because its structure can be recognized more readily by sigma factor, HrdB, than the other two promoters (Wang et al., 2013).
Promoters have different strengths depending on the species. To overcome this limitation, a method was developed to screen strong constitutive promoters among synthetic promoter libraries by randomizing the consensus sequences of known promoters (Seghezzi et al., 2011; Siegl et al., 2013; ). For example, to acquire stronger promoters than kasOp*, a library was constructed by mutating the spacer sequence between the -35 and -10 regions of kasOp* in S. venezuelae, and their strengths were measured by GFP fluorescence. Among the 180 synthetic promoters, six synthetic promoters were stronger than kasOp* (). Alternatively, an approach to discover strong native promoters within the host has been developed. For example, to expand a panel of strong native promoters, 32 candidates that may be strong promoters were screened using RNA-seq data from S. albus. Then, through xylE activity assay with time course analysis, 10 native promoters were validated to have stronger strength than kasOp* (Luo et al., 2015).
The disadvantage of constitutive promoters is that sustained expression of BGCs can generate negative effects on host bacteria, such as products becoming toxic or unable to maintain the bacterial growth rate. Inducible promoters have the advantage of being able to turn on gene expression only at a desired point. However, some inducible promoters have the disadvantage of leaky expression (Huang et al., 2015), such as the commonly used tipA promoter () induced by thiostrepton and tcp830 strong promoter (Rodriguez-Garcia et al., 2005) induced by tetracycline. To overcome the problem of leaky expression of promoters, synthetic inducible systems have been developed. One is the PA3-rolO-RolR system, which consists of a codon-optimized RolR regulator and synthetic promoter A3 with operater rolO from C. glutamicum, induced by resorcinol. The other is the P21-cmt-CymR system, similar to the resorcinol inducible system, induced by the presence of cumate, by binding CymR to the cmt operator fusing with the synthetic promoter 21 (Horbal et al., 2014).
The transcriptional terminator is also an essential genetic component for gene expression to prevent readthrough problems. Terminators mainly consist of inverted repeat sequences, which are known to contribute to stability by forming a stem-loop structure in the mRNA state. However, only a limited number of terminators are efficient in Streptomyces. The TD1 terminator, derived from B. subtilis phage Φ29, successfully recognized the termination of S. lividans and was active as an in vivo terminator (Pulido et al., 1987). Likewise, the Fd terminator originating from E. coli phage fd can also be used as an in vivo terminator (Ward et al., 1986). Another example is the synthetic bi-directional transcriptional terminator B (ttsbiB) is a highly efficient terminator in S. lividans in the test of heterologous glucuronidase activity (Huff et al., 2010; Horbal et al., 2018b).
The riboswitch is composed of an aptamer region that detects a compound and a gene expression control region that can change the structure after the aptamer binds. By redesigning sequences that interact with aptamers, a synthetic riboswitch was developed that can initiate the transcription when a specific compound enters (Rudolph et al., 2013). Based on this principle, a theophylline-dependent riboswitch introduced in S. coelicolor increased heterologous bottromycin production by 120-fold (). In addition, efforts have been made to increase or control the efficiency of gene expression by using genetic parts for translational regulation, such as RBS and codon usage (Makrides, 1996). Nevertheless, since many genetic parts still show different efficiencies depending on Streptomyces species, continuous development of genetic parts is required.
Chassis Development for Rational Engineering BGC Heterologous Expression in Streptomyces
The expression of BGCs in native hosts might be difficult in genetic engineering, have a complex metabolic background, and their endogenous BGCs are often cryptic. Then, the producers showed no expression of BGCs under laboratory conditions. Therefore, BGC expression using a heterologous production platform is a solution. The key characteristics for robust heterologous expression chassis are as follows: 1) fast growth, 2) genetic amenability and well-established genetic toolkits, 3) clean metabolic background to supply precursors for building a variety of SMs and express diverse biosynthetic classes with minimal interruption from host SMs; 4) providing all of the genes of heterologous biosynthetic pathways regarding transcription, translation, and post-translational modifications, 5) resistance to SMs, effective efflux pump system, 6) efficient nutrient and oxygen utilization, and 7) optimization of downstream processes. Based on these principles, many chassis strains have been constructed in diverse species (Table 3).

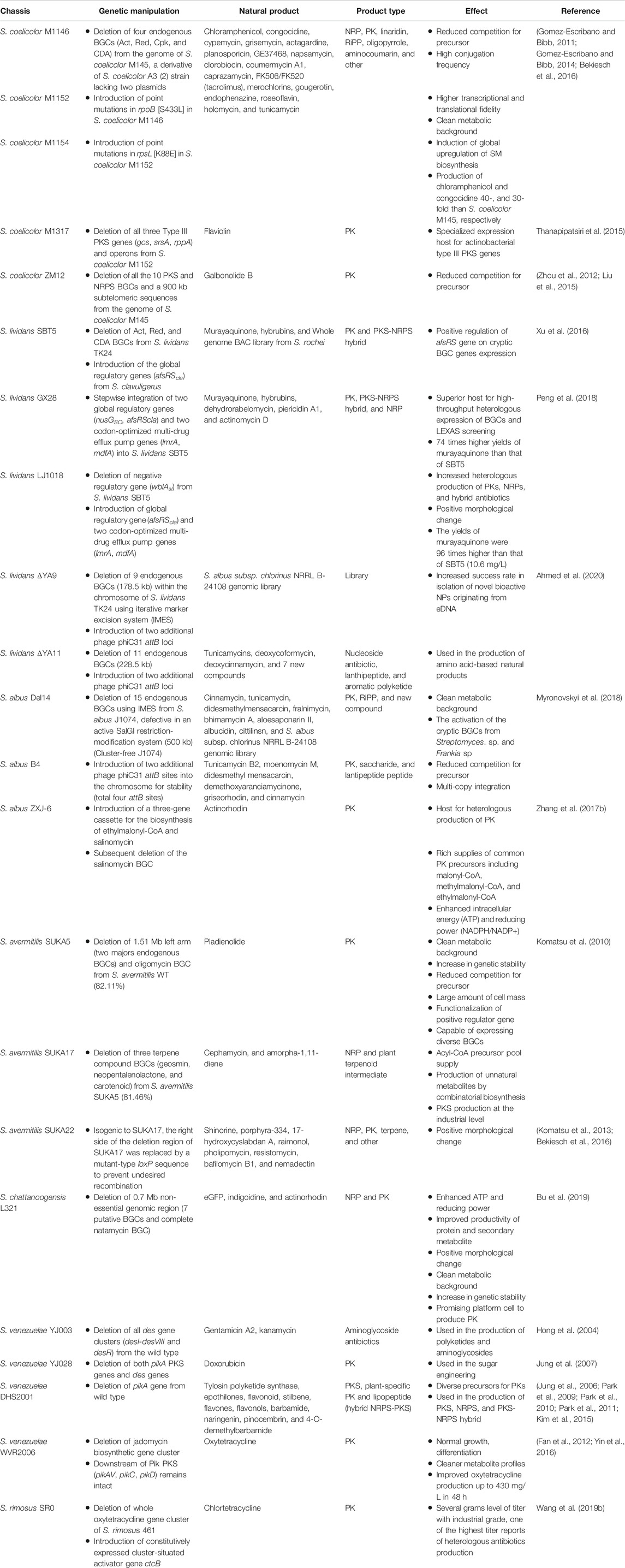

TABLE 3
| Chassis | Genetic manipulation | Natural product | Product type | Effect | Reference |
|---|---|---|---|---|---|
| S. coelicolor M1146 | ⢠Deletion of four endogenous BGCs (Act, Red, Cpk, and CDA) from the genome of S. coelicolor M145, a derivative of S. coelicolor A3 (2) strain lacking two plasmids | Chloramphenicol, congocidine, cypemycin, grisemycin, actagardine, planosporicin, GE37468, napsamycin, clorobiocin, coumermycin A1, caprazamycin, FK506/FK520 (tacrolimus), merochlorins, gougerotin, endophenazine, roseoflavin, holomycin, and tunicamycin | NRP, PK, linaridin, RiPP, oligopyrrole, aminocoumarin, and other | ⢠Reduced competition for precursor | (; ; ) |
| ⢠High conjugation frequency | |||||
| S. coelicolor M1152 | ⢠Introduction of point mutations in rpoB [S433L] in S. coelicolor M1146 | ⢠Higher transcriptional and translational fidelity | |||
| ⢠Clean metabolic background | |||||
| S. coelicolor M1154 | ⢠Introduction of point mutations in rpsL [K88E] in S. coelicolor M1152 | ⢠Induction of global upregulation of SM biosynthesis | |||
| ⢠Production of chloramphenicol and congocidine 40-, and 30-fold than S. coelicolor M145, respectively | |||||
| S. coelicolor M1317 | ⢠Deletion of all three Type III PKS genes (gcs, srsA, rppA) and operons from S. coelicolor M1152 | Flaviolin | PK | ⢠Specialized expression host for actinobacterial type III PKS genes | Thanapipatsiri et al. (2015) |
| S. coelicolor ZM12 | ⢠Deletion of all the 10 PKS and NRPS BGCs and a 900 kb subtelomeric sequences from the genome of S. coelicolor M145 | Galbonolide B | PK | ⢠Reduced competition for precursor | (Zhou et al., 2012; Liu et al., 2015) |
| S. lividans SBT5 | ⢠Deletion of Act, Red, and CDA BGCs from S. lividans TK24 | Murayaquinone, hybrubins, and Whole genome BAC library from S. rochei | PK and PKS-NRPS hybrid | ⢠Positive regulation of afsRS gene on cryptic BGC genes expression | Xu et al. (2016) |
| ⢠Introduction of the global regulatory genes (afsRScla) from S. clavuligerus | |||||
| S. lividans GX28 | ⢠Stepwise integration of two global regulatory genes (nusGSC, afsRScla) and two codon-optimized multi-drug efflux pump genes (lmrA, mdfA) into S. lividans SBT5 | Murayaquinone, hybrubins, dehydrorabelomycin, piericidin A1, and actinomycin D | PK, PKS-NRPS hybrid, and NRP | ⢠Superior host for high-throughput heterologous expression of BGCs and LEXAS screening | Peng et al. (2018) |
| ⢠74 times higher yields of murayaquinone than that of SBT5 | |||||
| S. lividans LJ1018 | ⢠Deletion of negative regulatory gene (wblAsl) from S. lividans SBT5 | ⢠Increased heterologous production of PKs, NRPs, and hybrid antibiotics | |||
| ⢠Introduction of global regulatory gene (afsRScla) and two codon-optimized multi-drug efflux pump genes (lmrA, mdfA) | ⢠Positive morphological change | ||||
| ⢠The yields of murayaquinone were 96 times higher than that of SBT5 (10.6 mg/L) | |||||
| S. lividans ĪYA9 | ⢠Deletion of 9 endogenous BGCs (178.5Ā kb) within the chromosome of S. lividans TK24 using iterative marker excision system (IMES) | S. albus subsp. chlorinus NRRL B-24108 genomic library | Library | ⢠Increased success rate in isolation of novel bioactive NPs originating from eDNA | |
| ⢠Introduction of two additional phage phiC31 attB loci | |||||
| S. lividans ĪYA11 | ⢠Deletion of 11 endogenous BGCs (228.5Ā kb) | Tunicamycins, deoxycoformycin, deoxycinnamycin, and 7 new compounds | Nucleoside antibiotic, lanthipeptide, and aromatic polyketide | ⢠Used in the production of amino acid-based natural products | |
| ⢠Introduction of two additional phage phiC31 attB loci | |||||
| S. albus Del14 | ⢠Deletion of 15 endogenous BGCs using IMES from S. albus J1074, defective in an active SalGI restriction-modification system (500 kb) (Cluster-free J1074) | Cinnamycin, tunicamycin, didesmethylmensacarcin, fralnimycin, bhimamycin A, aloesaponarin II, albucidin, cittilinsn, and S. albus subsp. chlorinus NRRL B-24108 genomic library | PK, RiPP, and new compound | ⢠Clean metabolic background | Myronovskyi et al. (2018) |
| ⢠The activation of the cryptic BGCs from Streptomyces. sp. and Frankia sp | |||||
| S. albus B4 | ⢠Introduction of two additional phage phiC31 attB sites into the chromosome for stability (total four attB sites) | Tunicamycin B2, moenomycin M, didesmethyl mensacarcin, demethoxyaranciamycinone, griseorhodin, and cinnamycin | PK, saccharide, and lantipeptide peptide | ⢠Reduced competition for precursor | |
| ⢠Multi-copy integration | |||||
| S. albus ZXJ-6 | ⢠Introduction of a three-gene cassette for the biosynthesis of ethylmalonyl-CoA and salinomycin | Actinorhodin | PK | ⢠Host for heterologous production of PK | Zhang et al. (2017b) |
| ⢠Subsequent deletion of the salinomycin BGC | ⢠Rich supplies of common PK precursors including malonyl-CoA, methylmalonyl-CoA, and ethylmalonyl-CoA | ||||
| ⢠Enhanced intracellular energy (ATP) and reducing power (NADPH/NADP+) | |||||
| S. avermitilis SUKA5 | ⢠Deletion of 1.51 Mb left arm (two majors endogenous BGCs) and oligomycin BGC from S. avermitilis WT (82.11%) | Pladienolide | PK | ⢠Clean metabolic background | Komatsu et al. (2010) |
| ⢠Increase in genetic stability | |||||
| ⢠Reduced competition for precursor | |||||
| ⢠Large amount of cell mass | |||||
| ⢠Functionalization of positive regulator gene | |||||
| ⢠Capable of expressing diverse BGCs | |||||
| S. avermitilis SUKA17 | ⢠Deletion of three terpene compound BGCs (geosmin, neopentalenolactone, and carotenoid) from S. avermitilis SUKA5 (81.46%) | Cephamycin, and amorpha-1,11-diene | NRP and plant terpenoid intermediate | ⢠Acyl-CoA precursor pool supply | |
| ⢠Production of unnatural metabolites by combinatorial biosynthesis | |||||
| ⢠PKS production at the industrial level | |||||
| S. avermitilis SUKA22 | ⢠Isogenic to SUKA17, the right side of the deletion region of SUKA17 was replaced by a mutant-type loxP sequence to prevent undesired recombination | Shinorine, porphyra-334, 17-hydroxycyslabdan A, raimonol, pholipomycin, resistomycin, bafilomycin B1, and nemadectin | NRP, PK, terpene, and other | ⢠Positive morphological change | (Komatsu et al., 2013; ) |
| S. chattanoogensis L321 | ⢠Deletion of 0.7 Mb non-essential genomic region (7 putative BGCs and complete natamycin BGC) | eGFP, indigoidine, and actinorhodin | NRP and PK | ⢠Enhanced ATP and reducing power | |
| ⢠Improved productivity of protein and secondary metabolite | |||||
| ⢠Positive morphological change | |||||
| ⢠Clean metabolic background | |||||
| ⢠Increase in genetic stability | |||||
| ⢠Promising platform cell to produce PK | |||||
| S. venezuelae YJ003 | ⢠Deletion of all des gene clusters (desI-desVIII and desR) from the wild type | Gentamicin A2, kanamycin | Aminoglycoside antibiotics | ⢠Used in the production of polyketides and aminoglycosides | Hong et al. (2004) |
| S. venezuelae YJ028 | ⢠Deletion of both pikA PKS genes and des genes | Doxorubicin | PK | ⢠Used in the sugar engineering | Jung et al. (2007) |
| S. venezuelae DHS2001 | ⢠Deletion of pikA gene from wild type | Tylosin polyketide synthase, epothilones, flavonoid, stilbene, flavones, flavonols, barbamide, naringenin, pinocembrin, and 4-O-demethylbarbamide | PKS, plant-specific PK and lipopeptide (hybrid NRPS-PKS) | ⢠Diverse precursors for PKs | (Jung et al., 2006; Park et al., 2009; Park et al., 2010; Park et al., 2011; Kim et al., 2015) |
| ⢠Used in the production of PKS, NRPS, and PKS-NRPS hybrid | |||||
| S. venezuelae WVR2006 | ⢠Deletion of jadomycin biosynthetic gene cluster | Oxytetracycline | PK | ⢠Normal growth, differentiation | (; Yin et al., 2016) |
| ⢠Downstream of Pik PKS (pikAV, pikC, pikD) remains intact | ⢠Cleaner metabolite profiles | ||||
| ⢠Improved oxytetracycline production up to 430 mg/L in 48 h | |||||
| S. rimosus SR0 | ⢠Deletion of whole oxytetracycline gene cluster of S. rimosus 461 | Chlortetracycline | PK | ⢠Several grams level of titer with industrial grade, one of the highest titer reports of heterologous antibiotics production | Wang et al. (2019b) |
| ⢠Introduction of constitutively expressed cluster-situated activator gene ctcB |
Examples of Streptomyces heterologous expression chassis.
S. coelicolor
S. coelicolor is a genetically well-characterized Streptomyces species. The 8.6 Mb genome has been reported, including over 20 BGCs (). S. coelicolor is the genetically best-studied species as the regulatory systems of endogenous BGCs has been well-understood. Genetic tools, including replicative and integrative vectors and well-established genetic parts, can be applied in S. coelicolor. Several mutant strains have been developed for successful heterologous expression of BGCs for the production of SMs. In addition to the deletion of the main antibiotic gene clusters (S. coelicolor M1146), point mutations in rpoB encoding RNA polymerase β-subunit (S. coelicolor M1152), and rpsL encoding ribosomal protein S12 were introduced to regulate the strain at both the transcriptional and translational levels (S. coelicolor M1154) (Hu et al., 2002; Ochi, 2007; ). As a result, transcriptional and translational fidelity increased BGC expression, and SM productivity was enhanced without growth impairment. These strains successfully expressed 18 different heterologous BGCs, leading to increased SM yields ranging from 0.4 to 160 mg/L. Moreover, the genome-minimized strain was constructed by deleting all the PKS and NRPS BGCs and also 900 kb sub-telomeric sequence (S. coelicolor ZM12) (Zhou et al., 2012). Galbonolide BGC was successfully expressed in heterologous S. coelicolor ZM12 with a clean background, which verified the essential role of core genes in the biosynthesis of galbonolides (Liu et al., 2015).
S. lividans
S. lividans lacks an endonuclease restriction system, whereas S. coelicolor and S. avermitilis restrict methylated DNA, making it highly acceptable to foreign DNA. Notably, S. lividans presents high conjugation efficiency, and thus, this species is applicable for high-throughput transfer of the libraries (Martinez et al., 2004). Indeed, S. lividans TK24-derived strains have been used as heterologous hosts for library expression and function-directed screening systems (LEXAS) (Xu et al., 2016). S. lividans SBT5 was developed by the deletion of Act, Red, and CDA BGCs from S. lividans TK24 (Shima et al., 1996). For high-throughput heterologous expression and screening of genomic libraries to express cryptic BGCs and to mine bioactive compounds, SBT5 was further developed by elevating conjugation efficiency and the positive effects of global activators (; Poelarends et al., 2002; ; Peng et al., 2018). For example, S. lividans GX28 was used as a library expression host (Peng et al., 2018; Nah et al., 2021). As a result, high-throughput LEXAS of one BAC library and two cosmid libraries from three different Streptomyces strains successfully screened three antibiotic BGCs (Peng et al., 2018). In addition, a genome-minimized strain was constructed for cleaner and simpler metabolite profiles than the parental strain, in which 11 endogenous BGCs were deleted and two additional phage ФC31 attB sites were introduced (S. lividans ĪYA11) (). The benefit of adding additional integration sites was validated by expressing heterologous gene clusters in both parental S. lividans TK24 and ĪYA11, whose production levels were elevated in S. lividans ĪYA11 by approximately two-fold.
S. albus
S. albus is one of the most widely used heterologous expression hosts in Streptomyces. It provides successful heterologous expression of diverse BGCs for the production of PKs, NRPs, terpenes, and saccharides with high productivity (Wendt-Pienkowski et al., 2005; ; Lombo et al., 2006; Winter et al., 2007; ; Makitrynskyy et al., 2010; ). The versatility of S. albus is highly related to its relatively small genome (6.8 Mb) and the availability of efficient genetic toolkits (Zaburannyi et al., 2014). S. albus J1074 is a derivative of the S. albus G1 defective in an active SalI restriction-modification system; thus, heterologous BGCs can be easily transformed. S. albus J1074 mostly showed the best performance in isomigrastatin (PK) production, which was 2 to 10-fold higher than that of other Streptomyces chassis strains (Yang et al., 2011). The remarkable production capacity was also demonstrated by discovering novel SMs from cryptic gene clusters of the metagenome, which did not yield on other chassis hosts. From S. albus J1074, all dispensable BGCs, including PKS, NRPS, lanthipeptide, and glycoside antibiotic clusters, were gradually deleted and marker-free; thus, an extremely clean metabolite profile was achieved, named S. albus Del 14. Additionally, ФC31 attB sites were introduced for multi-copy integration (S. albus B4). This large deletion did not influence growth, morphological characteristics, or fitness.
S. avermitilis
S. avermitilis is an industrial microorganism that produces important anthelmintic agent avermectins (Miller et al., 1979; ). S. avermitilis SUKA5, SUKA17, and SUKA22 strains were genome-reduced derivatives from the wild-type. S. avermitilis has an intrinsically stable genome because it has the shortest terminal inverted repeats (TIR) (Komatsu et al., 2013). Such genetic properties are strengthened by systematic large-scale deletions; thus, the strain is more suitable for the expression of exogenous BGCs (Komatsu et al., 2010; Komatsu et al., 2013). The difference in pladienolide production between wild-type and SUKA5 is more than 20-fold, which appears to be due to the competition for the common acyl-CoA precursor for pladienolide biosynthesis and avermectin biosynthesis in the wild-type strain, which demonstrates the extended precursor availability in mutants. In addition, morphological differentiation, growth rate, and biomass in the stationary phase were enhanced compared to the wild-type strain (Komatsu et al., 2013). The engineered host can produce heterologous PKs, NRPs, aminoglycosides, shikimate-derived compounds, and terpenes.
Others
S. chattanoogensis is an industrial microorganism used for the production of natamycin. Through the rational deletion of non-essential genomic regions based on systematic analysis, a genome-reduced chassis strain was constructed (S. chattanoogensis L321) (Zhou et al., 2015b). Unlike wild-type, the engineered strain does not have an endogenous CRISPR/Cas system; therefore, several CRISPR/Cas9 systems were successfully introduced without any interference and improved the efficiency of genome editing. Heterologous production level of SMs in wild-type and the chassis was investigated during serial passages of the culture, resulting in the constant level in the chassis, while the reduced level in the wild-type. This is because the undesired mutations were generated and accumulated in the wild-type genome according to the serial passages, while the removal of mobile genetic element in the chassis genome showed a positive effect on genetic stability. Also, the rational deletion of non-essential genomic regions might pleiotropically influence the engineered strain, resulting in highly efficient expression of BGCs. Indeed, the S. chattanoogensis chassis strain showed great performance as a heterologous host, especially in PKs (Zhou et al., 2015b).
S. venezuelae ATCC 15439 has a fast growth rate, which enables a large accumulation of cell mass and metabolites (Xue and Sherman, 2001). In addition, ease of genetic manipulation, liquid sporulation in a dispersed manner, and abundant building blocks for SMs are other advantages. Three major chassis strains of S. venezuelae are 15,439, DHS 2001, YJ003, and YJ28. These chassis strains are promising heterologous hosts that successfully express diverse heterologous BGCs from different sources.
S. rimosus 461 is a high-yielding industrial producer of oxytetracycline. Therefore, the construction of a heterologous host from S. rimosus 461 is worthwhile for expression of BGCs for the production of other tetracycline antibiotics and type II PK, validated by the heterologous expression of chlortetracycline BGC in SR0 chassis, which is 38-fold higher than that of the original producer, and 68-fold higher than that of the S. lividans strain (Wang et al., 2019b).
Furthermore, a rational study using computational approaches, such as comparative genome analysis, should be widely used for the prediction of dispensable genetic elements, such as mobile genetic elements, genomic islands, and BGCs, to carefully engineer the strains for heterologous expression of BGCs. In addition to BGC expression, elimination of the competing precursor sinks greatly facilitates the identification of exogenous bioactive compounds, improves production yield with increased precursor pool, and streamlines downstream processing.
Rational Engineering Approaches for Heterologous Production of Recombinant Proteins in Streptomyces
As a decomposer in natural habitats, Streptomyces secretes multiple enzymes to degrade saprophytic compounds, and its secretion capacity makes Streptomyces attractive as a host for recombinant protein production (). In this section, the secretion pathways of Streptomyces and approaches to increase recombinant protein yield are discussed.
Secretion Pathway of Streptomyces
The Sec-pathway is the dominant bacterial protein export pathway, comprising approximately 96% of exported proteins in E. coli (Orfanoudaki and Economou, 2014). On the other hand, for Streptomyces, especially S. lividans, twin-arginine translocation (Tat-pathway) is exploited for approximately 21% of the secreted proteins (Tsolis et al., 2018). Utilization of the Tat-pathway, which secretes proteins in the folded state, can be advantageous over the Sec-pathway, since cytoplasmic folding is crucial for the activity of some proteins (Weiner et al., 1998; ; Thomas et al., 2001). However, the Sec-pathway is generally superior to the Tat-pathway for heterologous protein production in terms of production titer and applicability. For example, the production yield of streptokinase from Streptococcus equisimilis in S. lividans was 30 times higher when the Sec-pathway was utilized (Kim et al., 2010). In addition, the overproduction of Sec-pathway dependent protein (α-amylase) using Tat-pathway was unsuccessful in S. lividans. (). Since the Tat-pathway exports folded proteins, the secretion efficiency may be highly dependent on the structure of the protein (). To demonstrate the lower product yield via the Tat-pathway, a comparative transcriptomics approach was applied to S. lividans overexpressing proteins via either Sec-pathway or Tat-pathway to identify possible bottlenecks for protein production, and a stringent response was induced when the Tat-pathway was exploited for protein secretion (). However, the Tat-pathway is still worth investigating for proper intracellular folding of proteins.
Approaches to Increase the Protein Yield
Streptomyces would not be a preferred host over E. coli for heterologous protein production, with few exceptions, including proteins from Streptomycetes, due to the lower product yield (Kim et al., 2010). Many efforts have been made to improve protein production, and representative examples are presented in Table 4.
TABLE 4
| Optimization | Product | Native host | Expression host | Plasmid | Promoter | Promoter host | Signal peptide | Signal peptide host | Host engineering | Reference |
|---|---|---|---|---|---|---|---|---|---|---|
| Gene expression | DagA (agarase) | S. coelicolor A3 (2) | S. lividans TK24 | pWHM3-TR1R2 | sprTp | S. griseus | Native | Temuujin et al. (2011) | ||
| pHSEV-1 | tipAp | S. lividans | Native | |||||||
| pUWL201Ā PW | ermEp | Saccharopolyspora erythraea | Native | |||||||
| SCO3487 (β-agarase) | S. coelicolor A3 (2) | S. lividans TK24 | pUWL201 PW | ermEp | Saccharopolyspora erythraea | Native | Temuujin et al. (2012) | |||
| PVA (penicillin V acylase) | S. lavendulae ATCC 13664 | S. lividans 1,326 | pEM4 | ermE*p | Saccharopolyspora erythraea | Native | Torres-Bacete et al. (2015) | |||
| BTA hydrolase | Thermobifida sp. BCC23166 | S. rimosus R7 | pIJ8600 | tipAp | S. lividans | Native | Sinsereekul et al. (2010) | |||
| Transglutaminase | S. hygroscopicus WSH03-13 | S. lividans TK24 | pIJ86 | Native | Native | Liu et al. (2016) | ||||
| Native (negative regulatory element deletion) | Native | |||||||||
| Native; codon-optimized | ||||||||||
| Lipase | Metagenomic | S. lividans 10-164 | pIAFC109 | C109p | - | Native | ||||
| Cel6A (endoglucanase) | Thermobifida fusca YX | S. lividans 1,326 | pZRJ362 | Xylose isomerase promoter | Actinoplanes missouriensis | Native | Li et al. (2013b) | |||
| Phospholipase D | S. halstedii ATCC10897 | S. lividans TK24 | pIJ12739 | tipAp/ermE*p dual promoter | S. lividans/Saccharopolyspora erythraea | Native | Tao et al. (2019b) | |||
| Chitosanase | Kitasatospora sp. N106 | S. lividans TK24 | pHM8aBĪM | Native | Native | |||||
| Native (negative regulatory element deletion) | Native | |||||||||
| S. ghanaensis phage I19 derived promoter | Native | |||||||||
| Native | Native | csnR deletion | ||||||||
| Native (negative regulatory element deletion) | Native | |||||||||
| S. ghanaensis phage I19 derived promoter | Native | |||||||||
| pFDES | Native | Native | ||||||||
| Native (negative regulatory element deletion) | Native | csnR deletion | ||||||||
| Chitinase | Metagenomic | S. lividans TK24 | pIJ86 | ermE*p | Saccharopolyspora erythraea | Native | ||||
| S. venezuelae ATCC10595 | ||||||||||
| S. coelicolor A3 (2) | ||||||||||
| Glutenase | Actinoallomurus A8 | S. lividans TK24 | pIJ86 | ermE*p | Saccharopolyspora erythraea | Native | ||||
| Chitobiase | S. avermitilis MA-4680 | S. lividans 1,326 | pIJ350 | xylAp | S. avermitilis MA-4680 | Native | Noguchi et al. (2018) | |||
| Sfp2 (keratinase) | S. fradiae var. k11 | S. lividans 1,326 | pJTU4881 | Xylose isomerase promtoer | Actinoplanes missouriensis | Native | Li et al. (2013a) | |||
| O-glycoprotein | Mycobacterium tuberculosis | S. lividans 1,326 | pIJ6021 | tipAp | S. lividans | Native | ||||
| Secretion system | DagA (agarase) | S. coelicolor | S. lividans TK21 | pIJ486 | Native | Native | ||||
| Native | Native | sipY deletion | ||||||||
| DagA (agarase) | S. coelicolor | S. lividans TK21 | pAGAs1 | Native | Native | WT | ||||
| secG deletion | ||||||||||
| tatC deletion | ||||||||||
| amlB | S. lividans TK21 | WT | ||||||||
| secG deletion | ||||||||||
| tatC deletion | ||||||||||
| Both | Transglutaminase | S. mobaraensis | S. lividans | pTONA4 | pldp | S. cinnamoneus | pld | S. cinnamoneus | - | Noda et al. (2013) |
| Pernisine | Aeropyrum pernix K1 | S. rimosus M4018 | pVF | tcp830p | Synthetic | srT | S. rimosus | - | Snajder et al. (2019) | |
| Native | ||||||||||
| Native; codon-optimized | ||||||||||
| Xys1 (xylanase) | S. halstedii JM8 | S. lividans 1,326 | pN702GEM3 | Native | Native | Sevillano et al. (2016) | ||||
| ssgA overexpression | ||||||||||
| α-amylase | S. griseus IMRU 3570 | |||||||||
| α-amylase + 3 codons of the mature amylase | ||||||||||
| pstSp | S. lividans | Native | ||||||||
| xylAp | S. coelicolor | Native | ||||||||
| glpQp | S. coelicolor | Native | ||||||||
| ermE*p | Saccharopolyspora erythraea | Native | ||||||||
| vsip | S. venezuelae CBS762.70 | Native | ||||||||
| α-amylase | S. griseus IMRU 3570 | xysAp | S. halstedii | Native | ||||||
| ssgA overexpression | ||||||||||
| pstSp | S. lividans | Native | ||||||||
| Small laccase | S. coelicolor | pHJL401 | xysA | S. halstedii | Native | |||||
| xlnR deletion | ||||||||||
| bxlR deletion | ||||||||||
| XylE (catechol 2,3-dioxygenase) | Pseudomonas putida | S. rimosus M4018 | pAB04 | ermE*p | Saccharopolyspora erythraea | Native | ||||
| nitAp | Rhodococcus rhodochrous J1 | Native | ||||||||
| tcp830p | Synthetic | Native | ||||||||
| pVF | ermE*p | Saccharopolyspora erythraea | Native | |||||||
| nitAp | Rhodococcus rhodochrous J1 | Native | ||||||||
| tcp830p | Synthetic | Native | ||||||||
| pVM | ermE*p | Saccharopolyspora erythraea | vsi | S. venezuelae | - | |||||
| amy | S. griseus | - | ||||||||
| sprB | S. griseus | - | ||||||||
| aml | S. venezuelae | - | ||||||||
| xysA | S. halstedii | - | ||||||||
| aml* | S. venezuelae | - | ||||||||
| srT | S. rimosus | - | ||||||||
| lip | S. rimosus | - | ||||||||
| AppA (phytase) | Escherichia coli | pVM | ermE*p | Saccharopolyspora erythraea | srT | S. rimosus | - | |||
| lip | S. rimosus | - | ||||||||
| aml | S. venezuelae | - | ||||||||
| pVF | nitAp | Rhodococcus rhodochrous J1 | srT | S. rimosus | - | |||||
| tcp830p | Synthetic | - | ||||||||
| pAB04 | ermE*p | Saccharopolyspora erythraea | srT | S. rimosus | - | |||||
| CelA (cellulase A) | Rhodothermus marinusDSM4253 | S. lividans TK24 | pIJ486 | vsip | S. venezuelae CBS762.70 | vsi | S. venezuelae CBS762.70 | - | Hamed et al. (2017) | |
| hTNF-α | human | S. lividans TK24 | pIJ486 | vsip | S. venezuelae CBS762.70 | vsi | S. venezuelae CBS762.70 | - | Lule et al. (2012) | |
| pepck overexpression | ||||||||||
| Interleukin-6 | human | S. lividans TK24 | pIMB1 | ermE*p | Saccharopolyspora erythraea | melC1 | S. antibioticus | - | Zhu et al. (2011) | |
| cagA | S. globisporus C-1027 | - | ||||||||
| cagA (TTA codon to CTG codon) | S. globisporus C-1027 | - | ||||||||
| Transglutaminase | Streptoverticillium cinnamoneum | S. lividans 1,326 | pIJ702 | pldp | Streptoverticillium cinnamoneum | pld | Streptoverticillium cinnamoneum | - | Noda et al. (2010) | |
| β-1,4-endoglucanase | Thermobifida fusca YX | - | ||||||||
| β-glucosidase | - | |||||||||
| Transglutaminase | S. hygroscopicus WSH03-13 | S. lividans 1,326 | pIJ86 | Native | Native | |||||
| Native | Native (TTA codon to CTG codon) | |||||||||
| ermE*p | Saccharopolyspora erythraea | Native (TTA codon to CTG codon) | ||||||||
| S. griseus | Native | Native (TTA codon to CTG codon) | ||||||||
| S. lividans TK24 | Native | Native (TTA codon to CTG codon) | ||||||||
| Aminopeptidase | Bacillus subtilis Zj016 | S. lividans TK24 | Transglutaminase promoter | S. hygroscopicus WSH03-13 | Transglutaminase (TTA codon to CTG codon) | S. hygroscopicus WSH03-13 | - | |||
| S. lividans 1,326 | - | |||||||||
| S. griseus | - | |||||||||
| S. hygroscopicus FR008 | - | |||||||||
| Phenylalanine ammonia-lyase | Rhodotorula glutinis | S. lividans TK24 | Transglutaminase promoter | S. hygroscopicus WSH03-13 | Transglutaminase (TTA codon to CTG codon) | S. hygroscopicus WSH03-13 | - | |||
| S. lividans 1,326 | - | |||||||||
| S. griseus | - | |||||||||
| S. hygroscopicus FR008 | - | |||||||||
| Streptokinase | Streptococcus equisimilisATCC 9542 | S. lividans TK24 | pWHM3-TR1R2 | sprTp | S. griseus | sgt | S. griseus | - | Kim et al. (2010) | |
| Native | ||||||||||
| pUWL201PW | ermE*p | Saccharopolyspora erythraea | Native | |||||||
| pSEV1 | tipAp | S. lividans | Native | |||||||
| Streptavidin | S. avidinii NBRC13429 | S. lividans 1,326 | pTONA4 | pldp | S. cinnamoneus | pld | S. cinnamoneus | - | Noda et al. (2015) | |
| Native | ||||||||||
Selected examples of optimization of heterologous protein production in Streptomyces since 2010.
The most frequently used approach for improved protein production is to increase the gene expression level, mainly by adopting strong promoters. One of the frequently used promoters is ermE*, which has been widely adopted as a strong constitutive promoter in Streptomyces (). While many of the promoters from relatively close species are functional in the production host, regulatory elements for the promoters would also be conserved, resulting in transcriptional inhibition by negative regulators. To overcome this drawback, the promoter sequence or Streptomyces host was engineered to avoid negative regulation. For example, the activity of the strong inducible promoter xysAp from S. halstedii was further increased by deleting the homologs of negative regulators, BxlR and XlnR, in S. lividans, resulting in up to 70% higher production of a heterologous protein (Sevillano et al., 2016). Another example is the production of chitosanase from Kitasatospora sp. N106, an actinomycete in S. lividans (). To improve protein production, the negative regulatory gene csnR was deleted and/or two base pairs of the palindromic negative regulatory sequences in the promoter were mutated. The approach for increased gene expression level still holds more potential for improvement, since only a small number of promoters have been exploited (Table 5). Accumulation of transcriptomic data enables the identification and utilization of strong endogenous promoters, and a synthetic promoter library has been demonstrated for Streptomyces (Wang et al., 2013; Luo et al., 2015). In addition to transcription activation-related factors, transcriptional terminators are worth investigating to improve gene expression. Streptomyces lacks an extremely strong expression system, such as the T7 expression system of E. coli BL21 (DE3) (although T7 RNA polymerase has been demonstrated in S. lividans); increasing the half-life of transcripts by exploiting strong transcriptional terminators may serve as an efficient tool for higher gene expression (Lussier et al., 2010; Lee et al., 2019; Hwang et al., 2021).
Enhancing protein secretion efficiency is another important approach that drastically increases the protein yield. The native signal peptides are generally functional for protein secretion in the Streptomyces host; however, optimization of signal peptides improves protein production and secretion in terms of both the proportion of secretion and product yield (Snajder et al., 2019). For example, various signal peptides were tested for the production of XylE, the catechol 2,3-dioxygenase, from Pseudomonas putida in S. rimosus, and extracellular XylE activity was highest when the lipase signal peptide of S. rimosus was utilized, while the xysA signal peptide of S. halstedii resulted in the highest secretion efficiency (). In addition to examining diverse signal peptides, mutagenesis of signal peptides may elicit increased protein secretion. For example, the effect of charge variation in the α-amylase signal peptide of S. venezuelae on the secretion of mouse tumor necrosis factor α (mTNF-α) was investigated, and the introduction of one extra positive charge led to approximately 6.25-fold increased secretive production compared to the wild-type signal peptide (Lammertyn et al., 1998). Furthermore, when adopting a non-native signal peptide, introducing additional amino acids to the N-terminus of the mature protein to maintain the environment of the signal peptide cleavage site can improve production yield (Sevillano et al., 2016). Despite the effectiveness of signal peptide optimization, it is tedious to identify the proper signal peptide, since the secretion efficiency of each signal peptide differs for every target protein (Lammertyn et al., 1998; ). For a more general solution, modulating the secretion pathway, rather than diversifying signal peptides, has been demonstrated. Deletion of the sipY gene, which encodes a major signal peptidase, led to increased heterologous production of agarase from S. coelicolor in S. lividans (). The secretion of agarase in the SipY-deficient strain can be complemented by other signal peptidases, such as SipW, SipX, and SipZ, while extracellular protease activity is reduced (Parro et al., 1999; ). Although the agarase of S. coelicolor is the only example of production improvement utilizing the SipY-deficient strain compared to the wild-type strain, the low extracellular protease activity would be favorable for the secretion of other proteins, and deletion of extracellular proteases may further elicit an increase in protein production.
In addition to increasing gene expression and optimizing the secretion system, cell morphology is related to protein secretion, and formation of clumps during culture is generally unfavorable. For example, overexpression of the ssgA gene, which is related to cell division and morphogenesis, led to improved protein yield. For other bacteria, codon optimization may be necessary for successful protein production. The genome of Streptomycetes is GC-rich (approximately 70%), and thus, GC-rich codons are preferred (Ruckert et al., 2015). In particular, the use of the rare leucine codon TTA would have to be avoided, since the codon is decoded by a dedicated tRNA species encoded by the bldA gene, and bldA is temporally regulated (Hesketh et al., 2007). For this reason, even proteins of Streptomyces origin are often codon-optimized to eliminate TTA when the production host is Streptomyces ().
Perspectives on Future Engineering Approaches for Heterologous Protein Expression in Streptomyces
Although rational engineering approaches to improve the yield of heterologous production of recombinant proteins in Streptomyces have been introduced as described above, some challenges remain. First, genetic tools should be more efficient for cloning large BGCs (Nah et al., 2017). Technical advances in the preparation of intact large-size BGC sequences for in vitro cloning are needed, which may be accomplished by the optimization of genomic DNA extraction to minimize shearing. In addition, the improvement of TAR cloning efficiency in terms of a large number of small- or medium-sized BGC fragments should be considered. The development of a new bacterial TAR cloning hosts, instead of yeast, may be one of the solutions. Alternatively, each fragment can be de novo synthesized by a gene synthesis technique, which is beneficial for refactoring the standardized genetic parts, but may pose an issue with respect to length. BGC expression by the integrative vector system seems to be more stable and controllable than the replicative vector system. Comparative studies of integrative attachment sites and their genomic positions would assist in the optimization of BGC expression. Moreover, available synthetic parts for Streptomyces, including promoters, RBSs, riboswitches, and terminators for refactoring BGC genes should be expanded to tightly control gene expression in terms of strength and timing.
To determine the performance of expression systems and select the optimal clone with high yield among the libraries, high-throughput screening techniques are indispensable. Fluorescence-based reporter genes, such as the superfolder green fluorescent protein (sfGFP), have been applied in Streptomyces, which can lead to high-throughput screening of clones using fluorescence-activated cell sorting (FACS) (). Streptomyces based cell-free protein synthesis (CFPS) is also noteworthy for high-throughput screening. Efforts have been made to improve CFPS systems (Li et al., 2017a; Moore et al., 2021). Since DNA can be directly added to the production environment, extremely large BGCs can be expressed easily compared to in vivo systems, owing to the low transformation efficiency of large-sized DNA. In addition, it can be performed on a multi-well plate scale that can easily facilitate the automation device application.
The main challenge in yield improvement by rational engineering after heterologous expression of BGC in Streptomyces is the lack of genetic information. In other words, finding engineering targets when the yield of heterologous expression is low is not simple. This is because heterologous BGC may interact with complex endogenous factors in the host which is the unpredictable interference hindering the orthogonal heterologous expression system (). The effects of heterologous host factors on the native host expression elements may be predicted by homology-based search, and it was the most common approach used in previous studies. However, BGC expression in the heterologous host phylogenetically close to the native host is not always better than that in the distant host. For example, a heterologous expression study of violacein BGC from Pseudoalteromonas luteoviolacea 2ta16 in the three different hosts revealed that violacein yield was higher in the phylogenetically distant host, Agrobacterium tumefaciens LBA4404, than in E. coli, because of the difference between PviR activator homologs (Zhang et al., 2017a). Therefore, high-throughput approaches using systems and synthetic biology to design, build, and test all possible individual factors, followed by learning from the data for the positive feedback to the next DBTL cycle would be an effective strategy.
To realize a high-throughput DBTL approach, an optimal Streptomyces chassis system is urgently needed. However, it has been suggested that the āuniversal chassisā is difficult to be constructed because individual host factors differentially affect the expression of each BGC and protein of interest (Liu et al., 2018a; Ke and Yoshikuni, 2020). As introduced in the chassis development section above, Streptomyces chassis with reduced genome such as S. coelicolor M1146, S. avermitilis SUKA, S. lividans ĪYA9, and S. albus Del14 are generally efficient for the heterologous expression of BGCs due to their genome simplicity, but certain BGCs resulted in different expression levels among them. For example, heterologous expression screening of the BAC library of S. albus subsp. chlorinus NRRL B-24108 resulted that some BGCs were expressed in only one of S. albus Del14 and S. lividans ĪYA9 (). For another example, the heterologous production yields of cephamycin C BGC of S. clavuligerus in S. coelicolor M1146 and S. avermitilis SUKA22 were both lower than the yield of the native host (Komatsu et al., 2013; Martinez-Burgo et al., 2014). The remaining biological complexity of these strains are likely to hamper them to be the āuniversal chassisā (). Instead, a āspecialized chassis libraryā could be an alternative option. As a proof of concept, a āspecialized Streptomyces chassis libraryā is demonstrated in this review (Figure 2). Several Streptomyces species previously used for heterologous hosts due to their general and specific advantages would be the starting strains, and their genomes will be minimized by removing all of their native BGCs and genes with negative effects on heterologous expression, such as insertion sequence (IS) elements, resulting in the āminimized Streptomyces chassis library.ā These strains are expected to have robust growth, sufficient cellular energy, clear metabolic profiles, and genetic stability. Then, the combination of additional genes that govern precursor supply, transport, tailoring, and regulations will be determined, and each combination will be introduced to the minimized chassis library, resulting in the āspecialized Streptomyces chassis library.ā Precursor supply gene sets for specific BGC types might be predicted by a pan-genome model containing all biosynthetic reactions of known SMs, which integrates the information of all genome-scale models of reported Streptomyces species. For example, the biosynthetic gene sets for representative PK precursors, such as malonyl-CoA, methylmalonyl-CoA, ethylmalonyl-CoA, and methoxymalonyl-ACP, will be co-expressed in minimal chassis, resulting in a PK-specialized chassis. Accessory gene sets, including transport, resistance and tailoring genes, might be determined from their specificity, but related studies on this are scarce. Regulatory gene sets might be determined by high-throughput clustered regularly interspaced short palindromic repeats interference (CRISPRi) library-based approaches to screen regulatory genes with positive or negative effects on the expression of each BGC. As a result, the best clone with the highest yield of each BGC could be selected by introducing BGCs to the āspecialized Streptomyces chassis libraryā and screening in a high-throughput manner. Learning from the systematic analysis of the best clone will aid in continuously optimizing the rational engineering design to improve the yield. This āspecialized Streptomyces chassis libraryā will also be appropriate for testing uncharacterized BGCs to discover novel SMs.
FIGURE 2
As the production of recombinant proteins is less diverse than that of BGC products, the development of an optimal Streptomyces recombinant protein chassis may be a better choice than constructing a chassis library. Possible considerations of this chassis include the secretion pathway as the yield of functional recombinant proteins by either the Sec-pathway or Tat-pathway may be different according to their folding nature. In addition, comparative analysis of signal peptides may aid in determining the specific peptidases and controlling their expression for yield improvement. Also, more empirically, the further development of downstream processes such as purification steps will aid the improvement of the recombinant protein yield (Tripathi and Shrivastava, 2019). Although S. lividans was mostly used as a heterologous host for recombinant proteins, other species were also screened for their ability because some proteins were not effectively produced in S. lividans compared to other strains.
Conclusion
This review focuses on rational engineering examples and perspectives of heterologous expression of BGCs and recombinant proteins in Streptomyces. Heterologous expression is an effective strategy for overcoming the native host in terms of growth, ease of genetic manipulation, and production yield. Streptomyces is an attractive heterologous expression host for BGCs and recombinant protein genes because of its functional biosynthetic enzyme expression, substrate availability, secretion systems, and other accessory genes. Rational engineering approaches for the yield improvement of heterologous expression in Streptomyces have been facilitated by the development of genetic tools, chassis construction, and additional genetic engineering strategies, emphasizing further demand for vigorous systems and synthetic biology approaches. Employing the high-throughput DBTL cycle using the āStreptomyces chassis libraryā or āStreptomyces chassisā for heterologous expression will open new horizons, expanding the availability and diversity of SMs and recombinant proteins.
Statements
Data availability statement
The original contributions presented in the study are included in the article/Supplementary Material, further inquiries can be directed to the corresponding author.
Author contributions
B-KC designed and supervised the project. SH, YL, JK, GK, HK, and WK wrote the manuscript. SH, SC, BP, and B-KC revised the manuscript. All authors read and approved the final manuscript.
Funding
This work was funded by the Bio and Medical Technology Development Program (2018M3A9F3079664 to B-KC and NRF 2021M3A9I5023245 to B-KC) through the National Research Foundation of Korea (NRF) funded by the Ministry of Science and ICT (MSIT). This work was also funded by the Novo Nordisk Foundation (NNF10CC1016517 to BP).
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Publisherās note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
References
1
AhmedY.RebetsY.EstƩvezM. R.ZappJ.MyronovskyiM.LuzhetskyyA. (2020). Engineering of Streptomyces Lividans for Heterologous Expression of Secondary Metabolite Gene Clusters. Microb. Cel Fact19, 5. 10.1186/s12934-020-1277-8
2
AlexanderD. C.RockJ.HeX.BrianP.MiaoV.BaltzR. H. (2010). Development of a Genetic System for Combinatorial Biosynthesis of Lipopeptides in Streptomyces Fradiae and Heterologous Expression of the A54145 Biosynthesis Gene Cluster. Appl. Environ. Microbiol.76, 6877ā6887. 10.1128/aem.01248-10
3
AnnĆ©J.VranckenK.Van MellaertL.Van ImpeJ.BernaertsK. (2014). Protein Secretion Biotechnology in Gram-Positive Bacteria with Special Emphasis on Streptomyces Lividans. Biochim. Biophys. Acta (Bba) - Mol. Cel Res.1843, 1750ā1761. 10.1016/j.bbamcr.2013.12.023
4
AubryC.PernodetJ. L.LautruS. (2019). Modular and Integrative Vectors for Synthetic Biology Applications in Streptomyces Spp. Appl. Environ. Microbiol.85. 10.1128/AEM.00485-19
5
BaiC.ZhangY.ZhaoX.HuY.XiangS.MiaoJ.et al (2015). Exploiting a Precise Design of Universal Synthetic Modular Regulatory Elements to Unlock the Microbial Natural Products in Streptomyces. Proc. Natl. Acad. Sci. USA112, 12181ā12186. 10.1073/pnas.1511027112
6
BaltzR. H. (2012). Streptomyces Temperate Bacteriophage Integration Systems for Stable Genetic Engineering of Actinomycetes (And Other Organisms). J. Ind. Microbiol. Biotechnol.39, 661ā672. 10.1007/s10295-011-1069-6
7
Barbuto FerraiuoloS.CammarotaM.SchiraldiC.RestainoO. F. (2021). Streptomycetes as Platform for Biotechnological Production Processes of Drugs. Appl. Microbiol. Biotechnol.105, 551ā568. 10.1007/s00253-020-11064-2
8
BehnkenS.LinckeT.KlossF.IshidaK.HertweckC. (2012). Antiterminator-mediated Unveiling of Cryptic Polythioamides in an Anaerobic Bacterium. Angew. Chem. Int. Ed.51, 2425ā2428. 10.1002/anie.201108214
9
BeitesT.MendesM. V. (2015). Chassis Optimization as a Cornerstone for the Application of Synthetic Biology Based Strategies in Microbial Secondary Metabolism. Front. Microbiol.6, 906. 10.3389/fmicb.2015.00906
10
BekieschP.BasittaP.ApelA. K. (2016). Challenges in the Heterologous Production of Antibiotics inStreptomyces. Arch. Pharm. Chem. Life Sci.349, 594ā601. 10.1002/ardp.201600058
11
BentleyS. D.ChaterK. F.CerdeƱo-TĆ”rragaA.-M.ChallisG. L.ThomsonN. R.JamesK. D.et al (2002). Complete Genome Sequence of the Model Actinomycete Streptomyces Coelicolor A3(2). Nature417, 141ā147. 10.1038/417141a
12
BeriniF.CasartelliM.MontaliA.ReguzzoniM.TettamantiG.MarinelliF. (2019). Metagenome-Sourced Microbial Chitinases as Potential Insecticide Proteins. Front. Microbiol.10, 1358. 10.3389/fmicb.2019.01358
13
BeriniF.MarinelliF.BindaE. (2020). Streptomycetes: Attractive Hosts for Recombinant Protein Production. Front. Microbiol.11, 1958. 10.3389/fmicb.2020.01958
14
BibbM. J.JanssenG. R.WardJ. M. (1985). Cloning and Analysis of the Promoter Region of the Erythromycin Resistance Gene (ermE) of Streptomyces Erythraeus. Gene38, 215ā226. 10.1016/0378-1119(85)90220-3
15
BilykB.LuzhetskyyA. (2014). Unusual Site-specific DNA Integration into the Highly Active Pseudo-attB of the Streptomyces Albus J1074 Genome. Appl. Microbiol. Biotechnol.98, 5095ā5104. 10.1007/s00253-014-5605-y
16
BilykO.SekurovaO. N.ZotchevS. B.LuzhetskyyA. (2016). Cloning and Heterologous Expression of the Grecocycline Biosynthetic Gene Cluster. PLoS One11, e0158682. 10.1371/journal.pone.0158682
17
BonetB.TeufelR.CrüsemannM.ZiemertN.MooreB. S. (2015). Direct Capture and Heterologous Expression of Salinispora Natural Product Genes for the Biosynthesis of Enterocin. J. Nat. Prod.78, 539ā542. 10.1021/np500664q
18
BuQ.-T.YuP.WangJ.LiZ.-Y.ChenX.-A.MaoX.-M.et al (2019). Rational Construction of Genome-Reduced and High-Efficient Industrial Streptomyces Chassis Based on Multiple Comparative Genomic Approaches. Microb. Cel Fact18, 16. 10.1186/s12934-019-1055-7
19
CaiW.ZhangW. (2018). Engineering Modular Polyketide Synthases for Production of Biofuels and Industrial Chemicals. Curr. Opin. Biotechnol.50, 32ā38. 10.1016/j.copbio.2017.08.017
20
Carrillo RincónA. F.MagdevskaV.KranjcL.FujsÅ .MüllerR.PetkoviÄH. (2018). Production of Extracellular Heterologous Proteins in Streptomyces Rimosus, Producer of the Antibiotic Oxytetracycline. Appl. Microbiol. Biotechnol.102, 2607ā2620. 10.1007/s00253-018-8793-z
21
CavalettiL.TaravellaA.CarranoL.CarenziG.SigurtĆ A.SolinasN.et al (2019). E40, a Novel Microbial Protease Efficiently Detoxifying Gluten Proteins, for the Dietary Management of Gluten Intolerance. Sci. Rep.9, 13147. 10.1038/s41598-019-48299-7
22
ChiuM. L.FolcherM.KatohT.PugliaA. M.VohradskyJ.YunB.-S.et al (1999). Broad Spectrum Thiopeptide Recognition Specificity of theStreptomyces Lividans TipAL Protein and its Role in Regulating Gene Expression. J. Biol. Chem.274, 20578ā20586. 10.1074/jbc.274.29.20578
23
CĆ“tĆ©A.ShareckF. (2010). Expression and Characterization of a Novel Heterologous Moderately Thermostable Lipase Derived from Metagenomics in Streptomyces Lividans. J. Ind. Microbiol. Biotechnol.37, 883ā891. 10.1007/s10295-010-0735-4
24
CrawfordD. L. (1978). Lignocellulose Decomposition by Selected Streptomyces Strains. Appl. Environ. Microbiol.35, 1041ā1045. 10.1128/aem.35.6.1041-1045.1978
25
D'agostinoP. M.GulderT. A. M. (2018). Direct Pathway Cloning Combined with Sequence- and Ligation-independent Cloning for Fast Biosynthetic Gene Cluster Refactoring and Heterologous Expression. ACS Synth. Biol.7, 1702ā1708. 10.1021/acssynbio.8b00151
26
DuD.WangL.TianY.LiuH.TanH.NiuG. (2015). Genome Engineering and Direct Cloning of Antibiotic Gene Clusters via Phage ĻBT1 Integrase-Mediated Site-specific Recombination in Streptomyces. Sci. Rep.5, 8740. 10.1038/srep08740
27
DubeauM.-P.GuayI.BrzezinskiR. (2011). Modification of Genetic Regulation of a Heterologous Chitosanase Gene in Streptomyces Lividans TK24 Leads to Chitosanase Production in the Absence of Chitosan. Microb. Cel Fact10, 7. 10.1186/1475-2859-10-7
28
EdgarR.BibiE. (1997). MdfA, an Escherichia coli Multidrug Resistance Protein with an Extraordinarily Broad Spectrum of Drug Recognition. J. Bacteriol.179, 2274ā2280. 10.1128/jb.179.7.2274-2280.1997
29
EscutiaM. R.ValG.PalacĆnA.GeukensN.AnnĆ©J.MelladoR. P. (2006). Compensatory Effect of the minorStreptomyces Lividans Type I Signal Peptidases on the SipY Major Signal Peptidase Deficiency as Determined by Extracellular Proteome Analysis. Proteomics6, 4137ā4146. 10.1002/pmic.200500927
30
EylesT. H.ViorN. M.TrumanA. W. (2018). Rapid and Robust Yeast-Mediated Pathway Refactoring Generates Multiple New Bottromycin-Related Metabolites. ACS Synth. Biol.7, 1211ā1218. 10.1021/acssynbio.8b00038
31
FanK.PanG.PengX.ZhengJ.GaoW.WangJ.et al (2012). Identification of JadG as the B Ring Opening Oxygenase Catalyzing the Oxidative C-C Bond Cleavage Reaction in Jadomycin Biosynthesis. Chem. Biol.19, 1381ā1390. 10.1016/j.chembiol.2012.09.009
32
FarkasovskaJ.GodanyA. (2012). Analysis of the Site-specific Integration System of the Streptomyces Aureofaciens Phage Mu1/6. Curr. Microbiol.64, 226ā233.
33
FayedB.YoungerE.TaylorG.SmithM. C. M. (2014). A Novel Streptomyces Spp. Integration Vector Derived from the S. Venezuelaephage, SV1. BMC Biotechnol.14, 51. 10.1186/1472-6750-14-51
34
FeilmeierB. J.IsemingerG.SchroederD.WebberH.PhillipsG. J. (2000). Green Fluorescent Protein Functions as a Reporter for Protein Localization in Escherichia coli. J. Bacteriol.182, 4068ā4076. 10.1128/jb.182.14.4068-4076.2000
35
FengZ.WangL.RajskiS. R.XuZ.Coeffet-LegalM. F.ShenB. (2009). Engineered Production of Iso-Migrastatin in Heterologous Streptomyces Hosts. Bioorg. Med. Chem.17, 2147ā2153. 10.1016/j.bmc.2008.10.074
36
FisherA. C.KimJ.-Y.Perez-RodriguezR.Tullman-ErcekD.FishW. R.HendersonL. A.et al (2008). Exploration of Twin-Arginine Translocation for Expression and Purification of Correctly Folded Proteins inEscherichia Coli. Microb. Biotechnol.1, 403ā415. 10.1111/j.1751-7915.2008.00041.x
37
FoggP. C. M.HaleyJ. A.StarkW. M.SmithM. C. M. (2017). Genome Integration and Excision by a New Streptomyces Bacteriophage, ĻJoe. Appl. Environ. Microbiol.83, e02767. 10.1128/AEM.02767-16
38
FongR.HuZ.HutchinsonC. R.HuangJ.CohenS.KaoC.et al (2007). Characterization of a Large, Stable, High-Copy-Number Streptomyces Plasmid that Requires Stability and Transfer Functions for Heterologous Polyketide Overproduction. Appl. Environ. Microbiol.73, 1296ā1307. 10.1128/aem.01888-06
39
FoorF.RobertsG. P.MorinN.SnyderL.HwangM.GibbonsP. H.et al (1985). Isolation and Characterization of the Streptomyces Cattleya Temperate Phage TG1. Gene39, 11ā16. 10.1016/0378-1119(85)90101-5
40
FuJ.BianX.HuS.WangH.HuangF.SeibertP. M.et al (2012). Full-length RecE Enhances Linear-Linear Homologous Recombination and Facilitates Direct Cloning for Bioprospecting. Nat. Biotechnol.30, 440ā446. 10.1038/nbt.2183
41
GabarróM. L. V.GullónS.VicenteR. L.CaminalG.MelladoR. P.López-SantĆnJ. (2017). A Streptomyces Lividans SipY Deficient Strain as a Host for Protein Production: Standardization of Operational Alternatives for Model Proteins. J. Chem. Technology Biotechnol.92, 217ā223. 10.1002/jctb.4933
42
Gamboa-SuasnavartR. A.Valdez-CruzN. A.Cordova-DavalosL. E.Martinez-SoteloJ. A.Servin-GonzalezL.EspitiaC.et al (2011). The O-Mannosylation and Production of Recombinant APA (45/47 KDa) Protein from Mycobacterium tuberculosis in Streptomyces Lividans Is Affected by Culture Conditions in Shake Flasks. Microb. Cel Fact10, 110. 10.1186/1475-2859-10-110
43
GaoH.LiuM.ZhouX.LiuJ.ZhuoY.GouZ.et al (2010). Identification of Avermectin-High-Producing Strains by High-Throughput Screening Methods. Appl. Microbiol. Biotechnol.85, 1219ā1225. 10.1007/s00253-009-2345-5
44
GhoshP.WasilL. R.HatfullG. F. (2006). Control of Phage Bxb1 Excision by a Novel Recombination Directionality Factor. Plos Biol.4, e186. 10.1371/journal.pbio.0040186
45
GibsonD. G.YoungL.ChuangR. Y.VenterJ. C.HutchisonC. A.3rdSmithH. O. (2009). Enzymatic Assembly of DNA Molecules up to Several Hundred Kilobases. Nat. Methods6, 343ā345. 10.1038/nmeth.1318
46
Gomez-EscribanoJ. P.BibbM. J. (2011). Engineering Streptomyces Coelicolor for Heterologous Expression of Secondary Metabolite Gene Clusters. Microb. Biotechnol.4, 207ā215. 10.1111/j.1751-7915.2010.00219.x
47
Gomez-EscribanoJ. P.BibbM. J. (2014). Heterologous Expression of Natural Product Biosynthetic Gene Clusters in Streptomyces Coelicolor: from Genome Mining to Manipulation of Biosynthetic Pathways. J. Ind. Microbiol. Biotechnol.41, 425ā431. 10.1007/s10295-013-1348-5
48
GregoryM. A.TillR.SmithM. C. (2003). Integration Site for Streptomyces Phage phiBT1 and Development of Site-specific Integrating Vectors. J. Bacteriol.185, 5320ā5323. 10.1128/jb.185.17.5320-5323.2003
49
GreunkeC.DuellE. R.D'agostinoP. M.GlockleA.LammK.GulderT. A. M. (2018). Direct Pathway Cloning (DiPaC) to Unlock Natural Product Biosynthetic Potential. Metab. Eng.47, 334ā345. 10.1016/j.ymben.2018.03.010
50
GuanC.CuiW.HeX.HuX.XuJ.DuG.et al (2015). Construction and Development of a Novel Expression System of Streptomyces. Protein Expr. Purif.113, 17ā22. 10.1016/j.pep.2015.04.009
51
GullonS.MarinS.MelladoR. P. (2015a). Overproduction of a Model Sec- and Tat-dependent Secretory Protein Elicits Different Cellular Responses in Streptomyces Lividans. PLoS One10, e0133645. 10.1371/journal.pone.0133645
52
GullonS.OlanoC.AbdelfattahM. S.BranaA. F.RohrJ.MendezC.et al (2006). Isolation, Characterization, and Heterologous Expression of the Biosynthesis Gene Cluster for the Antitumor Anthracycline Steffimycin. Appl. Environ. Microbiol.72, 4172ā4183. 10.1128/aem.00734-06
53
GullonS.VicenteR. L.ValverdeJ. R.MarinS.MelladoR. P. (2015b). Exploring the Feasibility of the Sec Route to Secrete Proteins Using the Tat Route in Streptomyces Lividans. Mol. Biotechnol.57, 931ā938. 10.1007/s12033-015-9883-0
54
HamedM. B.AnneJ.KaramanouS.EconomouA. (2018). Streptomyces Protein Secretion and its Application in Biotechnology. FEMS Microbiol. Lett.365, 1. 10.1093/femsle/fny250
55
HamedM. B.KaramanouS.OlafsdottirS.BasilioJ. S. M.SimoensK.TsolisK. C.et al (2017). Large-scale Production of a Thermostable Rhodothermus Marinus Cellulase by Heterologous Secretion from Streptomyces Lividans. Microb. Cel Fact16, 232. 10.1186/s12934-017-0847-x
56
HarveyC. J. B.TangM.SchlechtU.HoreckaJ.FischerC. R.LinH. C.et al (2018). HEx: A Heterologous Expression Platform for the Discovery of Fungal Natural Products. Sci. Adv.4, eaar5459. 10.1126/sciadv.aar5459
57
HeidornT.CamsundD.HuangH. H.LindbergP.OliveiraP.StensjoK.et al (2011). Synthetic Biology in Cyanobacteria Engineering and Analyzing Novel Functions. Methods Enzymol.497, 539ā579. 10.1016/b978-0-12-385075-1.00024-x
58
HeskethA.BuccaG.LaingE.FlettF.HotchkissG.SmithC. P.et al (2007). New Pleiotropic Effects of Eliminating a Rare tRNA from Streptomyces Coelicolor, Revealed by Combined Proteomic and Transcriptomic Analysis of Liquid Cultures. BMC Genomics8, 261. 10.1186/1471-2164-8-261
59
HongH. J.HutchingsM. I.HillL. M.ButtnerM. J. (2005). The Role of the Novel Fem Protein VanK in Vancomycin Resistance in Streptomyces Coelicolor. J. Biol. Chem.280, 13055ā13061. 10.1074/jbc.m413801200
60
HongJ. S.ParkS. H.ChoiC. Y.SohngJ. K.YoonY. J. (2004). New Olivosyl Derivatives of Methymycin/pikromycin from an Engineered Strain of Streptomyces Venezuelae. FEMS Microbiol. Lett.238, 391ā399. 10.1111/j.1574-6968.2004.tb09781.x
61
HorbalL.FedorenkoV.LuzhetskyyA. (2014). Novel and Tightly Regulated Resorcinol and Cumate-Inducible Expression Systems for Streptomyces and Other Actinobacteria. Appl. Microbiol. Biotechnol.98, 8641ā8655. 10.1007/s00253-014-5918-x
62
HorbalL.MarquesF.NadmidS.MendesM. V.LuzhetskyyA. (2018a). Secondary Metabolites Overproduction through Transcriptional Gene Cluster Refactoring. Metab. Eng.49, 299ā315. 10.1016/j.ymben.2018.09.010
63
HorbalL.SieglT.LuzhetskyyA. (2018b). A Set of Synthetic Versatile Genetic Control Elements for the Efficient Expression of Genes in Actinobacteria. Sci. Rep.8, 491. 10.1038/s41598-017-18846-1
64
HuH.ZhangQ.OchiK. (2002). Activation of Antibiotic Biosynthesis by Specified Mutations in the rpoB Gene (Encoding the RNA Polymerase Beta Subunit) of Streptomyces Lividans. J. Bacteriol.184, 3984ā3991. 10.1128/jb.184.14.3984-3991.2002
65
HuangH.ZhengG.JiangW.HuH.LuY. (2015). One-step High-Efficiency CRISPR/Cas9-mediated Genome Editing in Streptomyces. Acta Biochim. Biophys. Sin (Shanghai)47, 231ā243. 10.1093/abbs/gmv007
66
HuangJ.ShiJ.MolleV.SohlbergB.WeaverD.BibbM. J.et al (2005). Cross-regulation Among Disparate Antibiotic Biosynthetic Pathways of Streptomyces Coelicolor. Mol. Microbiol.58, 1276ā1287. 10.1111/j.1365-2958.2005.04879.x
67
HuffJ.CzyzA.LandickR.NiederweisM. (2010). Taking Phage Integration to the Next Level as a Genetic Tool for Mycobacteria. Gene468, 8ā19. 10.1016/j.gene.2010.07.012
68
HuoL.HugJ. J.FuC.BianX.ZhangY.MullerR. (2019). Heterologous Expression of Bacterial Natural Product Biosynthetic Pathways. Nat. Prod. Rep.36, 1412ā1436. 10.1039/c8np00091c
69
HwangS.LeeN.ChoS.PalssonB.ChoB. K. (2020). Repurposing Modular Polyketide Synthases and Non-ribosomal Peptide Synthetases for Novel Chemical Biosynthesis. Front. Mol. Biosci.7, 87. 10.3389/fmolb.2020.00087
70
HwangS.LeeN.ChoeD.LeeY.KimW.JeongY.et al (2021). Elucidating the Regulatory Elements for Transcription Termination and Posttranscriptional Processing in the Streptomyces Clavuligerus Genome. mSystems6, 1. 10.1128/msystems.01013-20
71
JiangL.WeiJ.LiL.NiuG.TanH. (2013). Combined Gene Cluster Engineering and Precursor Feeding to Improve Gougerotin Production in Streptomyces Graminearus. Appl. Microbiol. Biotechnol.97, 10469ā10477. 10.1007/s00253-013-5270-6
72
JiangW.ZhaoX.GabrieliT.LouC.EbensteinY.ZhuT. F. (2015). Cas9-Assisted Targeting of CHromosome Segments CATCH Enables One-step Targeted Cloning of Large Gene Clusters. Nat. Commun.6, 8101. 10.1038/ncomms9101
73
JiangW.ZhuT. F. (2016). Targeted Isolation and Cloning of 100-kb Microbial Genomic Sequences by Cas9-Assisted Targeting of Chromosome Segments. Nat. Protoc.11, 960ā975. 10.1038/nprot.2016.055
74
JonesA. C.GustB.KulikA.HeideL.ButtnerM. J.BibbM. J. (2013). Phage P1-Derived Artificial Chromosomes Facilitate Heterologous Expression of the FK506 Gene Cluster. PLoS One8, e69319. 10.1371/journal.pone.0069319
75
JoskaT. M.MashruwalaA.BoydJ. M.BeldenW. J. (2014). A Universal Cloning Method Based on Yeast Homologous Recombination that Is Simple, Efficient, and Versatile. J. Microbiol. Methods100, 46ā51. 10.1016/j.mimet.2013.11.013
76
JungW. S.HanA. R.HongJ. S.ParkS. R.ChoiC. Y.ParkJ. W.et al (2007). Bioconversion of 12-, 14-, and 16-membered Ring Aglycones to Glycosylated Macrolides in an Engineered Strain of Streptomyces Venezuelae. Appl. Microbiol. Biotechnol.76, 1373ā1381. 10.1007/s00253-007-1101-y
77
JungW. S.LeeS. K.HongJ. S.ParkS. R.JeongS. J.HanA. R.et al (2006). Heterologous Expression of Tylosin Polyketide Synthase and Production of a Hybrid Bioactive Macrolide in Streptomyces Venezuelae. Appl. Microbiol. Biotechnol.72, 763ā769. 10.1007/s00253-006-0318-5
78
KangH. S.KimE. S. (2021). Recent Advances in Heterologous Expression of Natural Product Biosynthetic Gene Clusters in Streptomyces Hosts. Curr. Opin. Biotechnol.69, 118ā127. 10.1016/j.copbio.2020.12.016
79
KeJ.YoshikuniY. (2020). Multi-chassis Engineering for Heterologous Production of Microbial Natural Products. Curr. Opin. Biotechnol.62, 88ā97. 10.1016/j.copbio.2019.09.005
80
KhaleelT.YoungerE.McewanA. R.VargheseA. S.SmithM. C. (2011). A Phage Protein that Binds phiC31 Integrase to Switch its Directionality. Mol. Microbiol.80, 1450ā1463. 10.1111/j.1365-2958.2011.07696.x
81
KimE. J.YangI.YoonY. J. (2015). Developing Streptomyces Venezuelae as a Cell Factory for the Production of Small Molecules Used in Drug Discovery. Arch. Pharm. Res.38, 1606ā1616. 10.1007/s12272-015-0638-z
82
KimM. R.ChoengY. H.ChiW. J.KangD. K.HongS. K. (2010). Heterologous Production of Streptokinase as a Secretory Form in Streptomyces Lividans and Nonsecretory Form in Escherichia coli. J. Microbiol. Biotechnol.20, 132ā137. 10.4014/jmb.0906.06005
83
KoB.D'alessandroJ.DouangkeomanyL.StumpfS.DebuttsA.BlodgettJ. (2020). Construction of a New Integrating Vector from Actinophage varphiOZJ and its Use in Multiplex Streptomyces Transformation. J. Ind. Microbiol. Biotechnol.47, 73ā81. 10.1007/s10295-019-02246-7
84
KomatsuM.KomatsuK.KoiwaiH.YamadaY.KozoneI.IzumikawaM.et al (2013). Engineered Streptomyces Avermitilis Host for Heterologous Expression of Biosynthetic Gene Cluster for Secondary Metabolites. ACS Synth. Biol.2, 384ā396. 10.1021/sb3001003
85
KomatsuM.UchiyamaT.OmuraS.CaneD. E.IkedaH. (2010). Genome-minimized Streptomyces Host for the Heterologous Expression of Secondary Metabolism. Proc. Natl. Acad. Sci. U S A.107, 2646ā2651. 10.1073/pnas.0914833107
86
KomedaH.HoriY.KobayashiM.ShimizuS. (1996). Transcriptional Regulation of the Rhodococcus Rhodochrous J1 nitA Gene Encoding a Nitrilase. Proc. Natl. Acad. Sci. U S A.93, 10572ā10577. 10.1073/pnas.93.20.10572
87
KouprinaN.LarionovV. (2006). TAR Cloning: Insights into Gene Function, Long-Range Haplotypes and Genome Structure and Evolution. Nat. Rev. Genet.7, 805ā812. 10.1038/nrg1943
88
LabesG.BibbM.WohllebenW. (1997). Isolation and Characterization of a strong Promoter Element from the Streptomyces Ghanaensis Phage I19 Using the Gentamicin Resistance Gene (aacC1) of Tn 1696 as Reporter. Microbiology (Reading)143 (Pt 5), 1503ā1512. 10.1099/00221287-143-5-1503
89
LammertynE.DesmyterS.SchachtS.Van MellaertL.AnneJ. (1998). Influence of Charge Variation in the Streptomyces Venezuelae Alpha-Amylase Signal Peptide on Heterologous Protein Production by Streptomyces Lividans. Appl. Microbiol. Biotechnol.49, 424ā430. 10.1007/s002530051193
90
LeeN.HwangS.KimW.LeeY.KimJ. H.ChoS.et al (2021). Systems and Synthetic Biology to Elucidate Secondary Metabolite Biosynthetic Gene Clusters Encoded in Streptomyces Genomes. Nat. Prod. Rep.38, 1330ā1361. 10.1039/d0np00071j
91
LeeY.LeeN.JeongY.HwangS.KimW.ChoS.et al (2019). The Transcription Unit Architecture of Streptomyces Lividans TK24. Front. Microbiol.10, 2074. 10.3389/fmicb.2019.02074
92
LiJ.ChenD.YuZ.ZhaoL.ZhangR. (2013a). Improvement of Expression Level of Keratinase Sfp2 from Streptomyces Fradiae by Site-Directed Mutagenesis of its N-Terminal Pro-sequence. Biotechnol. Lett.35, 743ā749. 10.1007/s10529-013-1139-0
93
LiJ.WangH.KwonY. C.JewettM. C. (2017a). Establishing a High Yielding Streptomyces-Based Cell-free Protein Synthesis System. Biotechnol. Bioeng.114, 1343ā1353. 10.1002/bit.26253
94
LiJ. X.ZhaoL. M.WuR. J.ZhengZ. J.ZhangR. J. (2013b). High-level Overproduction of Thermobifida Enzyme in Streptomyces Lividans Using a Novel Expression Vector. Int. J. Mol. Sci.14, 18629ā18639. 10.3390/ijms140918629
95
LiL.JiangW.LuY. (2018). A Modified Gibson Assembly Method for Cloning Large DNA Fragments with High GC Contents. Methods Mol. Biol.1671, 203ā209. 10.1007/978-1-4939-7295-1_13
96
LiL.ZhaoY.RuanL.YangS.GeM.JiangW.et al (2015). A Stepwise Increase in Pristinamycin II Biosynthesis by Streptomyces Pristinaespiralis through Combinatorial Metabolic Engineering. Metab. Eng.29, 12ā25. 10.1016/j.ymben.2015.02.001
97
LiL.ZhengG.ChenJ.GeM.JiangW.LuY. (2017b). Multiplexed Site-specific Genome Engineering for Overproducing Bioactive Secondary Metabolites in Actinomycetes. Metab. Eng.40, 80ā92. 10.1016/j.ymben.2017.01.004
98
LiewC. W.NilssonM.ChenM. W.SunH.CornvikT.LiangZ. X.et al (2012). Crystal Structure of the Acyltransferase Domain of the Iterative Polyketide Synthase in Enediyne Biosynthesis. J. Biol. Chem.287, 23203ā23215. 10.1074/jbc.m112.362210
99
Linares-OtoyaL.Linares-OtoyaV.Armas-MantillaL.Blanco-OlanoC.CrusemannM.Ganoza-YupanquiM. L.et al (2017). Identification and Heterologous Expression of the Kocurin Biosynthetic Gene Cluster. Microbiology (Reading)163, 1409ā1414. 10.1099/mic.0.000538
100
LiuC.ZhangJ.LuC.ShenY. (2015). Heterologous Expression of Galbonolide Biosynthetic Genes in Streptomyces Coelicolor. Antonie Van Leeuwenhoek107, 1359ā1366. 10.1007/s10482-015-0415-5
101
LiuH.JiangH.HaltliB.KulowskiK.MuszynskaE.FengX.et al (2009). Rapid Cloning and Heterologous Expression of the Meridamycin Biosynthetic Gene Cluster Using a Versatile Escherichia Coli-Streptomyces Artificial Chromosome Vector, pSBAC. J. Nat. Prod.72, 389ā395. 10.1021/np8006149
102
LiuL.YangH.ShinH. D.LiJ.DuG.ChenJ. (2013). Recent Advances in Recombinant Protein Expression by Corynebacterium, Brevibacterium, and Streptomyces: from Transcription and Translation Regulation to Secretion Pathway Selection. Appl. Microbiol. Biotechnol.97, 9597ā9608. 10.1007/s00253-013-5250-x
103
LiuR.DengZ.LiuT. (2018a). Streptomyces Species: Ideal Chassis for Natural Product Discovery and Overproduction. Metab. Eng.50, 74ā84. 10.1016/j.ymben.2018.05.015
104
LiuS.WangM.DuG.ChenJ. (2016). Improving the Active Expression of Transglutaminase in Streptomyces Lividans by Promoter Engineering and Codon Optimization. BMC Biotechnol.16, 75. 10.1186/s12896-016-0304-7
105
LiuX.LiuD.XuM.TaoM.BaiL.DengZ.et al (2018b). Reconstitution of Kinamycin Biosynthesis within the Heterologous Host Streptomyces Albus J1074. J. Nat. Prod.81, 72ā77. 10.1021/acs.jnatprod.7b00652
106
LomboF.VelascoA.CastroA.De La CalleF.BranaA. F.Sanchez-PuellesJ. M.et al (2006). Deciphering the Biosynthesis Pathway of the Antitumor Thiocoraline from a marine Actinomycete and its Expression in Two Streptomyces Species. Chembiochem7, 366ā376. 10.1002/cbic.200500325
107
LuleI.MaldonadoB.D'huysP. J.Van MellaertL.Van ImpeJ.BernaertsK.et al (2012). On the Influence of Overexpression of Phosphoenolpyruvate Carboxykinase in Streptomyces Lividans on Growth and Production of Human Tumour Necrosis Factor-Alpha. Appl. Microbiol. Biotechnol.96, 367ā372. 10.1007/s00253-012-4182-1
108
LuoY.EnghiadB.ZhaoH. (2016). New Tools for Reconstruction and Heterologous Expression of Natural Product Biosynthetic Gene Clusters. Nat. Prod. Rep.33, 174ā182. 10.1039/c5np00085h
109
LuoY.HuangH.LiangJ.WangM.LuL.ShaoZ.et al (2013). Activation and Characterization of a Cryptic Polycyclic Tetramate Macrolactam Biosynthetic Gene Cluster. Nat. Commun.4, 2894. 10.1038/ncomms3894
110
LuoY.ZhangL.BartonK. W.ZhaoH. (2015). Systematic Identification of a Panel of Strong Constitutive Promoters from Streptomyces Albus. ACS Synth. Biol.4, 1001ā1010. 10.1021/acssynbio.5b00016
111
LussierF. X.DenisF.ShareckF. (2010). Adaptation of the Highly Productive T7 Expression System to Streptomyces Lividans. Appl. Environ. Microbiol.76, 967ā970. 10.1128/aem.02186-09
112
MaZ.WangP. G. (20191954). RecET Direct Cloning of Polysaccharide Gene Cluster from Gram-Negative Bacteria. Methods Mol. Biol.1, 15ā23. 10.1007/978-1-4939-9154-9_2
113
MakitrynskyyR.RebetsY.OstashB.ZaburannyiN.RabykM.WalkerS.et al (2010). Genetic Factors that Influence Moenomycin Production in Streptomycetes. J. Ind. Microbiol. Biotechnol.37, 559ā566. 10.1007/s10295-010-0701-1
114
MakridesS. C. (1996). Strategies for Achieving High-Level Expression of Genes in Escherichia coli. Microbiol. Rev.60, 512ā538. 10.1128/mr.60.3.512-538.1996
115
MartiT.HuZ.PohlN. L.ShahA. N.KhoslaC. (2000). Cloning, Nucleotide Sequence, and Heterologous Expression of the Biosynthetic Gene Cluster for R1128, a Non-steroidal Estrogen Receptor Antagonist. Insights into an Unusual Priming Mechanism. J. Biol. Chem.275, 33443ā33448. 10.1074/jbc.m006766200
116
MartinezA.KolvekS. J.YipC. L.HopkeJ.BrownK. A.MacneilI. A.et al (2004). Genetically Modified Bacterial Strains and Novel Bacterial Artificial Chromosome Shuttle Vectors for Constructing Environmental Libraries and Detecting Heterologous Natural Products in Multiple Expression Hosts. Appl. Environ. Microbiol.70, 2452ā2463. 10.1128/aem.70.4.2452-2463.2004
117
Martinez-BurgoY.Alvarez-AlvarezR.Perez-RedondoR.LirasP. (2014). Heterologous Expression of Streptomyces Clavuligerus ATCC 27064 Cephamycin C Gene Cluster. J. Biotechnol.186, 21ā29. 10.1016/j.jbiotec.2014.06.002
118
MedemaM. H.BreitlingR.TakanoE. (2011). Synthetic Biology in Streptomyces Bacteria. Methods Enzymol.497, 485ā502. 10.1016/b978-0-12-385075-1.00021-4
119
MillerT. W.ChaietL.ColeD. J.ColeL. J.FlorJ. E.GoegelmanR. T.et al (1979). Avermectins, New Family of Potent Anthelmintic Agents: Isolation and Chromatographic Properties. Antimicrob. Agents Chemother.15, 368ā371. 10.1128/aac.15.3.368
120
MooreS. J.LaiH. E.CheeS. M.TohM.CoodeS.ChenganK.et al (2021). A Streptomyces Venezuelae Cell-free Toolkit for Synthetic Biology. ACS Synth. Biol.10, 402ā411. 10.1021/acssynbio.0c00581
121
MyronovskyiM.RosenkranzerB.NadmidS.PujicP.NormandP.LuzhetskyyA. (2018). Generation of a Cluster-free Streptomyces Albus Chassis Strains for Improved Heterologous Expression of Secondary Metabolite Clusters. Metab. Eng.49, 316ā324. 10.1016/j.ymben.2018.09.004
122
NahH. J.ParkJ.ChoiS.KimE. S. (2021). WblA, a Global Regulator of Antibiotic Biosynthesis in Streptomyces. J. Ind. Microbiol. Biotechnol.48, 1. 10.1093/jimb/kuab007
123
NahH. J.PyeonH. R.KangS. H.ChoiS. S.KimE. S. (2017). Cloning and Heterologous Expression of a Large-Sized Natural Product Biosynthetic Gene Cluster in Streptomyces Species. Front. Microbiol.8, 394. 10.3389/fmicb.2017.00394
124
NahH. J.WooM. W.ChoiS. S.KimE. S. (2015). Precise Cloning and Tandem Integration of Large Polyketide Biosynthetic Gene Cluster Using Streptomyces Artificial Chromosome System. Microb. Cel Fact14, 140. 10.1186/s12934-015-0325-2
125
NodaS.ItoY.ShimizuN.TanakaT.OginoC.KondoA. (2010). Over-production of Various Secretory-form Proteins in Streptomyces Lividans. Protein Expr. Purif.73, 198ā202. 10.1016/j.pep.2010.05.011
126
NodaS.MatsumotoT.TanakaT.KondoA. (2015). Secretory Production of Tetrameric Native Full-Length Streptavidin with Thermostability Using Streptomyces Lividans as a Host. Microb. Cel Fact14, 5. 10.1186/s12934-014-0188-y
127
NodaS.MiyazakiT.TanakaT.ChiakiO.KondoA. (2013). High-level Production of Mature Active-form Streptomyces Mobaraensis Transglutaminase via Pro-transglutaminase Processing Using Streptomyces Lividans as a Host. Biochem. Eng. J.74, 76ā80. 10.1016/j.bej.2013.02.011
128
NoguchiY.KashiwagiN.UzuraA.OginoC.KondoA.IkedaH.et al (2018). Development of a Strictly Regulated Xylose-Induced Expression System in Streptomyces. Microb. Cel Fact17, 151. 10.1186/s12934-018-0991-y
129
NovakovaR.NunezL. E.HomerovaD.KnirschovaR.FeckovaL.RezuchovaB.et al (2018). Increased Heterologous Production of the Antitumoral Polyketide Mithramycin A by Engineered Streptomyces Lividans TK24 Strains. Appl. Microbiol. Biotechnol.102, 857ā869. 10.1007/s00253-017-8642-5
130
OchiK. (2007). From Microbial Differentiation to Ribosome Engineering. Biosci. Biotechnol. Biochem.71, 1373ā1386. 10.1271/bbb.70007
131
OrfanoudakiG.EconomouA. (2014). Proteome-wide Subcellular Topologies of E. coli Polypeptides Database (STEPdb). Mol. Cel Proteomics13, 3674ā3687. 10.1074/mcp.o114.041137
132
ParkD.SwayambhuG.PfeiferB. A. (2020). Heterologous Biosynthesis as a Platform for Producing New Generation Natural Products. Curr. Opin. Biotechnol.66, 123ā130. 10.1016/j.copbio.2020.06.014
133
ParkS. R.AhnM. S.HanA. R.ParkJ. W.YoonY. J. (2011). Enhanced Flavonoid Production in Streptomyces Venezuelae via Metabolic Engineering. J. Microbiol. Biotechnol.21, 1143ā1146. 10.4014/jmb.1108.08012
134
ParkS. R.PaikJ. H.AhnM. S.ParkJ. W.YoonY. J. (2010). Biosynthesis of Plant-specific Flavones and Flavonols in Streptomyces Venezuelae. J. Microbiol. Biotechnol.20, 1295ā1299. 10.4014/jmb.1005.05038
135
ParkS. R.YoonJ. A.PaikJ. H.ParkJ. W.JungW. S.BanY. H.et al (2009). Engineering of Plant-specific Phenylpropanoids Biosynthesis in Streptomyces Venezuelae. J. Biotechnol.141, 181ā188. 10.1016/j.jbiotec.2009.03.013
136
ParroV. C.SchachtS.AnneJ.MelladoR. P. (1999). Four Genes Encoding Different Type I Signal Peptidases Are Organized in a Cluster in Streptomyces Lividans TK21. Microbiology (Reading)145 (Pt 9), 2255ā2263. 10.1099/00221287-145-9-2255
137
PengQ.GaoG.LuJ.LongQ.ChenX.ZhangF.et al (2018). Engineered Streptomyces Lividans Strains for Optimal Identification and Expression of Cryptic Biosynthetic Gene Clusters. Front. Microbiol.9, 3042. 10.3389/fmicb.2018.03042
138
PfeiferB. A.KhoslaC. (2001). Biosynthesis of Polyketides in Heterologous Hosts. Microbiol. Mol. Biol. Rev.65, 106ā118. 10.1128/mmbr.65.1.106-118.2001
139
PhamV. T. T.NguyenC. T.DhakalD.NguyenH. T.KimT.-S.SohngJ. K. (2021). Recent Advances in the Heterologous Biosynthesis of Natural Products from Streptomyces. Appl. Sci.11, 1851. 10.3390/app11041851
140
PoelarendsG. J.MazurkiewiczP.KoningsW. N. (2002). Multidrug Transporters and Antibiotic Resistance in Lactococcus Lactis. Biochim. Biophys. Acta1555, 1ā7. 10.1016/s0005-2728(02)00246-3
141
PulidoD.JimenezA.SalasM.MelladoR. P. (1987). A Bacillus Subtilis Phage Phi 29 Transcription Terminator Is Efficiently Recognized in Streptomyces Lividans. Gene56, 277ā282. 10.1016/0378-1119(87)90144-2
142
PyeonH. R.NahH. J.KangS. H.ChoiS. S.KimE. S. (2017). Heterologous Expression of Pikromycin Biosynthetic Gene Cluster Using Streptomyces Artificial Chromosome System. Microb. Cel Fact16, 96. 10.1186/s12934-017-0708-7
143
QianZ.BruhnT.D'agostinoP. M.HerrmannA.HaslbeckM.AntalN.et al (2020). Discovery of the Streptoketides by Direct Cloning and Rapid Heterologous Expression of a Cryptic PKS II Gene Cluster from Streptomyces Sp. Tu 6314. J. Org. Chem.85, 664ā673. 10.1021/acs.joc.9b02741
144
Rodriguez-GarciaA.CombesP.Perez-RedondoR.SmithM. C.SmithM. C. (2005). Natural and Synthetic Tetracycline-Inducible Promoters for Use in the Antibiotic-Producing Bacteria Streptomyces. Nucleic Acids Res.33, e87. 10.1093/nar/gni086
145
RuckertC.AlbersmeierA.BuscheT.JaenickeS.WinklerA.FriethjonssonO. H.et al (2015). Complete Genome Sequence of Streptomyces Lividans TK24. J. Biotechnol.199, 21ā22. 10.1016/j.jbiotec.2015.02.004
146
RudolphM. M.VockenhuberM. P.SuessB. (2013). Synthetic Riboswitches for the Conditional Control of Gene Expression in Streptomyces Coelicolor. Microbiology (Reading)159, 1416ā1422. 10.1099/mic.0.067322-0
147
SeghezziN.AmarP.KoebmannB.JensenP. R.VirolleM. J. (2011). The Construction of a Library of Synthetic Promoters Revealed Some Specific Features of strong Streptomyces Promoters. Appl. Microbiol. Biotechnol.90, 615ā623. 10.1007/s00253-010-3018-0
148
SevillanoL.VijgenboomE.Van WezelG. P.DiazM.SantamariaR. I. (2016). New Approaches to Achieve High Level Enzyme Production in Streptomyces Lividans. Microb. Cel Fact15, 28. 10.1186/s12934-016-0425-7
149
ShaoM.MaJ.LiQ.JuJ. (2019). Identification of the Anti-infective Aborycin Biosynthetic Gene Cluster from Deep-Sea-Derived Streptomyces Sp. SCSIO ZS0098 Enables Production in a Heterologous Host. Mar. Drugs17. 10.3390/md17020127
150
ShaoZ.LuoY.ZhaoH. (2012). DNA Assembler Method for Construction of Zeaxanthin-Producing Strains of Saccharomyces cerevisiae. Methods Mol. Biol.898, 251ā262. 10.1007/978-1-61779-918-1_17
151
ShaoZ.RaoG.LiC.AbilZ.LuoY.ZhaoH. (2013). Refactoring the Silent Spectinabilin Gene Cluster Using a Plug-And-Play Scaffold. ACS Synth. Biol.2, 662ā669. 10.1021/sb400058n
152
ShaoZ.ZhaoH. (2013). Construction and Engineering of Large Biochemical Pathways via DNA Assembler. Methods Mol. Biol.1073, 85ā106. 10.1007/978-1-62703-625-2_9
153
ShaoZ.ZhaoH.ZhaoH. (2009). DNA Assembler, an In Vivo Genetic Method for Rapid Construction of Biochemical Pathways. Nucleic Acids Res.37, e16. 10.1093/nar/gkn991
154
SharmaV.KaurR.SalwanR. (2021). Streptomyces: Host for Refactoring of Diverse Bioactive Secondary Metabolites. 3 Biotech.11, 340. 10.1007/s13205-021-02872-y
155
ShimaJ.HeskethA.OkamotoS.KawamotoS.OchiK. (1996). Induction of Actinorhodin Production by rpsL (Encoding Ribosomal Protein S12) Mutations that Confer Streptomycin Resistance in Streptomyces Lividans and Streptomyces Coelicolor A3(2). J. Bacteriol.178, 7276ā7284. 10.1128/jb.178.24.7276-7284.1996
156
SieglT.TokovenkoB.MyronovskyiM.LuzhetskyyA. (2013). Design, Construction and Characterisation of a Synthetic Promoter Library for fine-tuned Gene Expression in Actinomycetes. Metab. Eng.19, 98ā106. 10.1016/j.ymben.2013.07.006
157
SinsereekulN.WangkamT.ThamchaipenetA.SrikhirinT.EurwilaichitrL.ChampredaV. (2010). Recombinant Expression of BTA Hydrolase in Streptomyces Rimosus and Catalytic Analysis on Polyesters by Surface Plasmon Resonance. Appl. Microbiol. Biotechnol.86, 1775ā1784. 10.1007/s00253-010-2465-y
158
SkibaM. A.MaloneyF. P.DanQ.FraleyA. E.AldrichC. C.SmithJ. L.et al (2018). PKS-NRPS Enzymology and Structural Biology: Considerations in Protein Production. Methods Enzymol.604, 45ā88. 10.1016/bs.mie.2018.01.035
159
SnajderM.Carrillo RinconA. F.MagdevskaV.BahunM.KranjcL.PasM.et al (2019). Extracellular Production of the Engineered Thermostable Protease Pernisine from Aeropyrum Pernix K1 in Streptomyces Rimosus. Microb. Cel Fact18, 196. 10.1186/s12934-019-1245-3
160
SommerB.FriehsK.FlaschelE.ReckM.StahlF.ScheperT. (2009). Extracellular Production and Affinity Purification of Recombinant Proteins with Escherichia coli Using the Versatility of the Maltose Binding Protein. J. Biotechnol.140, 194ā202. 10.1016/j.jbiotec.2009.01.010
161
TanG. Y.DengK.LiuX.TaoH.ChangY.ChenJ.et al (2017). Heterologous Biosynthesis of Spinosad: An Omics-Guided Large Polyketide Synthase Gene Cluster Reconstitution in Streptomyces. ACS Synth. Biol.6, 995ā1005. 10.1021/acssynbio.6b00330
162
TangW.GuoZ.CaoZ.WangM.LiP.MengX.et al (2018). d-Sedoheptulose-7-phosphate Is a Common Precursor for the Heptoses of Septacidin and Hygromycin B. Proc. Natl. Acad. Sci. U S A.115, 2818ā2823. 10.1073/pnas.1711665115
163
TangX.LiJ.Millan-AguinagaN.ZhangJ. J.O'neillE. C.UgaldeJ. A.et al (2015). Identification of Thiotetronic Acid Antibiotic Biosynthetic Pathways by Target-Directed Genome Mining. ACS Chem. Biol.10, 2841ā2849. 10.1021/acschembio.5b00658
164
TaoW.ChenL.ZhaoC.WuJ.YanD.DengZ.et al (2019a). In Vitro Packaging Mediated One-step Targeted Cloning of Natural Product Pathway. ACS Synth. Biol.8, 1991ā1997. 10.1021/acssynbio.9b00248
165
TaoX.ZhaoM.ZhangY.LiuM.LiuQ.WangW.et al (2019b). Comparison of the Expression of Phospholipase D from Streptomyces Halstedii in Different Hosts and its Over-expression in Streptomyces Lividans. FEMS Microbiol. Lett.366, fnz051. 10.1093/femsle/fnz051
166
TemuujinU.ChiW. J.ChangY. K.HongS. K. (2012). Identification and Biochemical Characterization of Sco3487 from Streptomyces Coelicolor A3(2), an Exo- and Endo-type Beta-Agarase-Producing Neoagarobiose. J. Bacteriol.194, 142ā149. 10.1128/jb.05978-11
167
TemuujinU.ChiW. J.LeeS. Y.ChangY. K.HongS. K. (2011). Overexpression and Biochemical Characterization of DagA from Streptomyces Coelicolor A3(2): an Endo-type Beta-Agarase Producing Neoagarotetraose and Neoagarohexaose. Appl. Microbiol. Biotechnol.92, 749ā759. 10.1007/s00253-011-3347-7
168
ThanapipatsiriA.ClaesenJ.Gomez-EscribanoJ. P.BibbM.ThamchaipenetA. (2015). A Streptomyces Coelicolor Host for the Heterologous Expression of Type III Polyketide Synthase Genes. Microb. Cel Fact14, 145. 10.1186/s12934-015-0335-0
169
ThomasJ. D.DanielR. A.ErringtonJ.RobinsonC. (2001). Export of Active green Fluorescent Protein to the Periplasm by the Twin-Arginine Translocase (Tat) Pathway in Escherichia coli. Mol. Microbiol.39, 47ā53. 10.1046/j.1365-2958.2001.02253.x
170
Torres-BaceteJ.HormigoD.Torres-GuzmanR.ArroyoM.CastillonM. P.GarciaL.et al (2015). Overexpression of Penicillin V Acylase from Streptomyces Lavendulae and Elucidation of its Catalytic Residues. Appl. Environ. Microbiol.81, 1225ā1233. 10.1128/aem.02352-14
171
TraugerJ. W.WalshC. T. (2000). Heterologous Expression in Escherichia coli of the First Module of the Nonribosomal Peptide Synthetase for Chloroeremomycin, a Vancomycin-type Glycopeptide Antibiotic. Proc. Natl. Acad. Sci. U S A.97, 3112ā3117. 10.1073/pnas.97.7.3112
172
TripathiN. K.ShrivastavaA. (2019). Recent Developments in Bioprocessing of Recombinant Proteins: Expression Hosts and Process Development. Front. Bioeng. Biotechnol.7, 420. 10.3389/fbioe.2019.00420
173
TsolisK. C.TsareE. P.OrfanoudakiG.BuscheT.KanakiK.RamakrishnanR.et al (2018). Comprehensive Subcellular Topologies of Polypeptides in Streptomyces. Microb. Cel Fact17, 43. 10.1186/s12934-018-0892-0
174
TuJ.LiS.ChenJ.SongY.FuS.JuJ.et al (2018). Characterization and Heterologous Expression of the Neoabyssomicin/abyssomicin Biosynthetic Gene Cluster from Streptomyces Koyangensis SCSIO 5802. Microb. Cel Fact17, 28. 10.1186/s12934-018-0875-1
175
Van MellaertL.MeiL.LammertynE.SchachtS.AnnJ. (1998). Site-specific Integration of Bacteriophage VWB Genome into Streptomyces Venezuelae and Construction of a VWB-Based Integrative Vector. Microbiology (Reading)144 (Pt 12), 3351ā3358. 10.1099/00221287-144-12-3351
176
Van WezelG. P.McdowallK. J. (2011). The Regulation of the Secondary Metabolism of Streptomyces: New Links and Experimental Advances. Nat. Prod. Rep.28, 1311ā1333. 10.1039/c1np00003a
177
ViorN. M.LacretR.ChandraG.Dorai-RajS.TrickM.TrumanA. W. (2018). Discovery and Biosynthesis of the Antibiotic Bicyclomycin in Distantly Related Bacterial Classes. Appl. Environ. Microbiol.84. 10.1128/AEM.02828-17
178
WangH.LiZ.JiaR.YinJ.LiA.XiaL.et al (2018). ExoCET: Exonuclease In Vitro Assembly Combined with RecET Recombination for Highly Efficient Direct DNA Cloning from Complex Genomes. Nucleic Acids Res.46, 2697. 10.1093/nar/gkx1296
179
WangK.LiuX. F.BuQ. T.ZhengY.ChenX. A.LiY. Q.et al (2019a). Transcriptome-Based Identification of a Strong Promoter for Hyper-Production of Natamycin in Streptomyces. Curr. Microbiol.76, 95ā99. 10.1007/s00284-018-1589-7
180
WangW.LiX.WangJ.XiangS.FengX.YangK. (2013). An Engineered strong Promoter for Streptomycetes. Appl. Environ. Microbiol.79, 4484ā4492. 10.1128/aem.00985-13
181
WangX.YinS.BaiJ.LiuY.FanK.WangH.et al (2019b). Heterologous Production of Chlortetracycline in an Industrial Grade Streptomyces Rimosus Host. Appl. Microbiol. Biotechnol.103, 6645ā6655. 10.1007/s00253-019-09970-1
182
WardJ. M.JanssenG. R.KieserT.BibbM. J.ButtnerM. J.BibbM. J. (1986). Construction and Characterisation of a Series of Multi-Copy Promoter-Probe Plasmid Vectors for Streptomyces Using the Aminoglycoside Phosphotransferase Gene from Tn5 as Indicator. Mol. Gen. Genet.203, 468ā478. 10.1007/bf00422072
183
WeinerJ. H.BilousP. T.ShawG. M.LubitzS. P.FrostL.ThomasG. H.et al (1998). A Novel and Ubiquitous System for Membrane Targeting and Secretion of Cofactor-Containing Proteins. Cell93, 93ā101. 10.1016/s0092-8674(00)81149-6
184
Wendt-PienkowskiE.HuangY.ZhangJ.LiB.JiangH.KwonH.et al (2005). Cloning, Sequencing, Analysis, and Heterologous Expression of the Fredericamycin Biosynthetic Gene Cluster from Streptomyces Griseus. J. Am. Chem. Soc.127, 16442ā16452. 10.1021/ja054376u
185
WinterJ. M.MoffittM. C.ZazopoulosE.McalpineJ. B.DorresteinP. C.MooreB. S. (2007). Molecular Basis for Chloronium-Mediated Meroterpene Cyclization: Cloning, Sequencing, and Heterologous Expression of the Napyradiomycin Biosynthetic Gene Cluster. J. Biol. Chem.282, 16362ā16368. 10.1074/jbc.m611046200
186
XiaH.LiX.LiZ.ZhanX.MaoX.LiY. (2020). The Application of Regulatory Cascades in Streptomyces: Yield Enhancement and Metabolite Mining. Front. Microbiol.11, 406. 10.3389/fmicb.2020.00406
187
XuM.WangY.ZhaoZ.GaoG.HuangS. X.KangQ.et al (2016). Functional Genome Mining for Metabolites Encoded by Large Gene Clusters through Heterologous Expression of a Whole-Genome Bacterial Artificial Chromosome Library in Streptomyces Spp. Appl. Environ. Microbiol.82, 5795ā5805. 10.1128/aem.01383-16
188
XueY.ShermanD. H. (2001). Biosynthesis and Combinatorial Biosynthesis of Pikromycin-Related Macrolides in Streptomyces Venezuelae. Metab. Eng.3, 15ā26. 10.1006/mben.2000.0167
189
YamanakaK.ReynoldsK. A.KerstenR. D.RyanK. S.GonzalezD. J.NizetV.et al (2014). Direct Cloning and Refactoring of a Silent Lipopeptide Biosynthetic Gene Cluster Yields the Antibiotic Taromycin A. Proc. Natl. Acad. Sci. U S A.111, 1957ā1962. 10.1073/pnas.1319584111
190
YangD.ZhuX.WuX.FengZ.HuangL.ShenB.et al (2011). Titer Improvement of Iso-Migrastatin in Selected Heterologous Streptomyces Hosts and Related Analysis of mRNA Expression by Quantitative RT-PCR. Appl. Microbiol. Biotechnol.89, 1709ā1719. 10.1007/s00253-010-3025-1
191
YangT.YangK.ChenY.FanK. (2019). Characterization of a Bi-directional Promoter OtrRp Involved in Oxytetracycline Biosynthesis. Curr. Microbiol.76, 1264ā1269. 10.1007/s00284-019-01753-1
192
YinJ.HoffmannM.BianX.TuQ.YanF.XiaL.et al (2015). Direct Cloning and Heterologous Expression of the Salinomycin Biosynthetic Gene Cluster from Streptomyces Albus DSM41398 in Streptomyces Coelicolor A3(2). Sci. Rep.5, 15081. 10.1038/srep15081
193
YinS.LiZ.WangX.WangH.JiaX.AiG.et al (2016). Heterologous Expression of Oxytetracycline Biosynthetic Gene Cluster in Streptomyces Venezuelae WVR2006 to Improve Production Level and to Alter Fermentation Process. Appl. Microbiol. Biotechnol.100, 10563ā10572. 10.1007/s00253-016-7873-1
194
ZaburannyiN.RabykM.OstashB.FedorenkoV.LuzhetskyyA. (2014). Insights into Naturally Minimised Streptomyces Albus J1074 Genome. BMC Genomics15, 97. 10.1186/1471-2164-15-97
195
ZhangJ. J.TangX.MooreB. S. (2019). Genetic Platforms for Heterologous Expression of Microbial Natural Products. Nat. Prod. Rep.36, 1313ā1332. 10.1039/c9np00025a
196
ZhangJ. J.TangX.ZhangM.NguyenD.MooreB. S. (2017a). Broad-Host-Range Expression Reveals Native and Host Regulatory Elements that Influence Heterologous Antibiotic Production in Gram-Negative Bacteria. mBio8. 10.1128/mBio.01291-17
197
ZhangL.ZhuB.DaiR.ZhaoG.DingX. (2013). Control of Directionality in Streptomyces Phage phiBT1 Integrase-Mediated Site-specific Recombination. PLoS One8, e80434. 10.1371/journal.pone.0080434
198
ZhangX.LuC.BaiL. (2017b). Conversion of the High-Yield Salinomycin Producer Streptomyces Albus BK3-25 into a Surrogate Host for Polyketide Production. Sci. China Life Sci.60, 1000ā1009. 10.1007/s11427-017-9122-8
199
ZhouM.JingX.XieP.ChenW.WangT.XiaH.et al (2012). Sequential Deletion of All the Polyketide Synthase and Nonribosomal Peptide Synthetase Biosynthetic Gene Clusters and a 900-kb Subtelomeric Sequence of the Linear Chromosome of Streptomyces Coelicolor. FEMS Microbiol. Lett.333, 169ā179. 10.1111/j.1574-6968.2012.02609.x
200
ZhouY.MurphyA. C.SamborskyyM.PredigerP.DiasL. C.LeadlayP. F. (2015a). Iterative Mechanism of Macrodiolide Formation in the Anticancer Compound Conglobatin. Chem. Biol.22, 745ā754. 10.1016/j.chembiol.2015.05.010
201
ZhouZ.XuQ.BuQ.GuoY.LiuS.LiuY.et al (2015b). Genome Mining-Directed Activation of a Silent Angucycline Biosynthetic Gene Cluster in Streptomyces Chattanoogensis. Chembiochem16, 496ā502. 10.1002/cbic.201402577
202
ZhuY.WangL.DuY.WangS.YuT.HongB. (2011). Heterologous Expression of Human Interleukin-6 in Streptomyces Lividans TK24 Using Novel Secretory Expression Vectors. Biotechnol. Lett.33, 253ā261. 10.1007/s10529-010-0428-0
203
ZimmerR.Verrinder GibbinsA. M. (1997). Construction and Characterization of a Large-Fragment Chicken Bacterial Artificial Chromosome Library. Genomics42, 217ā226. 10.1006/geno.1997.4738
Summary
Keywords
streptomyces, heterologous expression, chassis, recombinant protein, secondary metabolite
Citation
Hwang S, Lee Y, Kim JH, Kim G, Kim H, Kim W, Cho S, Palsson BO and Cho B-K (2021) Streptomyces as Microbial Chassis for Heterologous Protein Expression. Front. Bioeng. Biotechnol. 9:804295. doi: 10.3389/fbioe.2021.804295
Received
29 October 2021
Accepted
30 November 2021
Published
21 December 2021
Volume
9 - 2021
Edited by
Dong-Yup Lee, Sungkyunkwan University, South Korea
Reviewed by
Marta Vaz Mendes, Universidade do Porto, Portugal
Jian Wang, University of Georgia, United States
Updates
Copyright
Ā© 2021 Hwang, Lee, Kim, Kim, Kim, Kim, Cho, Palsson and Cho.
This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) and the copyright owner(s) are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.
*Correspondence: Byung-Kwan Cho, bcho@kaist.ac.kr
ā These authors have contributed equally to this work
This article was submitted to Synthetic Biology, a section of the journal Frontiers in Bioengineering and Biotechnology
Disclaimer
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article or claim that may be made by its manufacturer is not guaranteed or endorsed by the publisher.
