Coronary access following ACURATE neo implantation for transcatheter aortic valve-in-valve implantation: Ex vivo analysis in patient-specific anatomies

Abstract

Background:

Coronary access after transcatheter aortic valve implantation (TAVI) with supra-annular self-expandable valves may be challenging or un-feasible. There is little data concerning coronary access following transcatheter aortic valve-in-valve implantation (ViV-TAVI) for degenerated surgical bioprosthesis.

Aims:

To evaluate the feasibility and challenge of coronary access after ViV-TAVI with the supra-annular self-expandable ACURATE neo valve.

Materials and methods:

Sixteen patients underwent ViV-TAVI with the ACURATE neo valve. Post-procedural computed tomography (CT) was used to create 3D-printed life-sized patient-specific models for bench-testing of coronary cannulation. Primary endpoint was feasibility of diagnostic angiography and PCI. Secondary endpoints included incidence of challenging cannulation for both diagnostic catheters (DC) and guiding catheters (GC). The association between challenging cannulations with aortic and transcatheter/surgical valve geometry was evaluated using pre and post-procedural CT scans.

Results:

Diagnostic angiography and PCI were feasible for 97 and 95% of models respectively. All non-feasible procedures occurred in ostia that underwent prophylactic “chimney” stenting. DC cannulation was challenging in 17% of models and was associated with a narrower SoV width (30 vs. 35 mm, p < 0.01), STJ width (28 vs. 32 mm, p < 0.05) and shorter STJ height (15 vs. 17 mm, p < 0.05). GC cannulation was challenging in 23% of models and was associated with narrower STJ width (28 vs. 32 mm, p < 0.05), smaller transcatheter-to-coronary distance (5 vs. 9.2 mm, p < 0.05) and a worse coronary-commissural overlap angle (14.3° vs. 25.6^o, p < 0.01). Advanced techniques to achieve GC cannulation were required in 22/64 (34%) of cases.

Conclusion:

In this exploratory bench analysis, diagnostic angiography and PCI was feasible in almost all cases following ViV-TAVI with the ACURATE neo valve. Prophylactic coronary stenting, higher implantation, narrower aortic sinus dimensions and commissural misalignment were associated with an increased challenge of coronary cannulation.

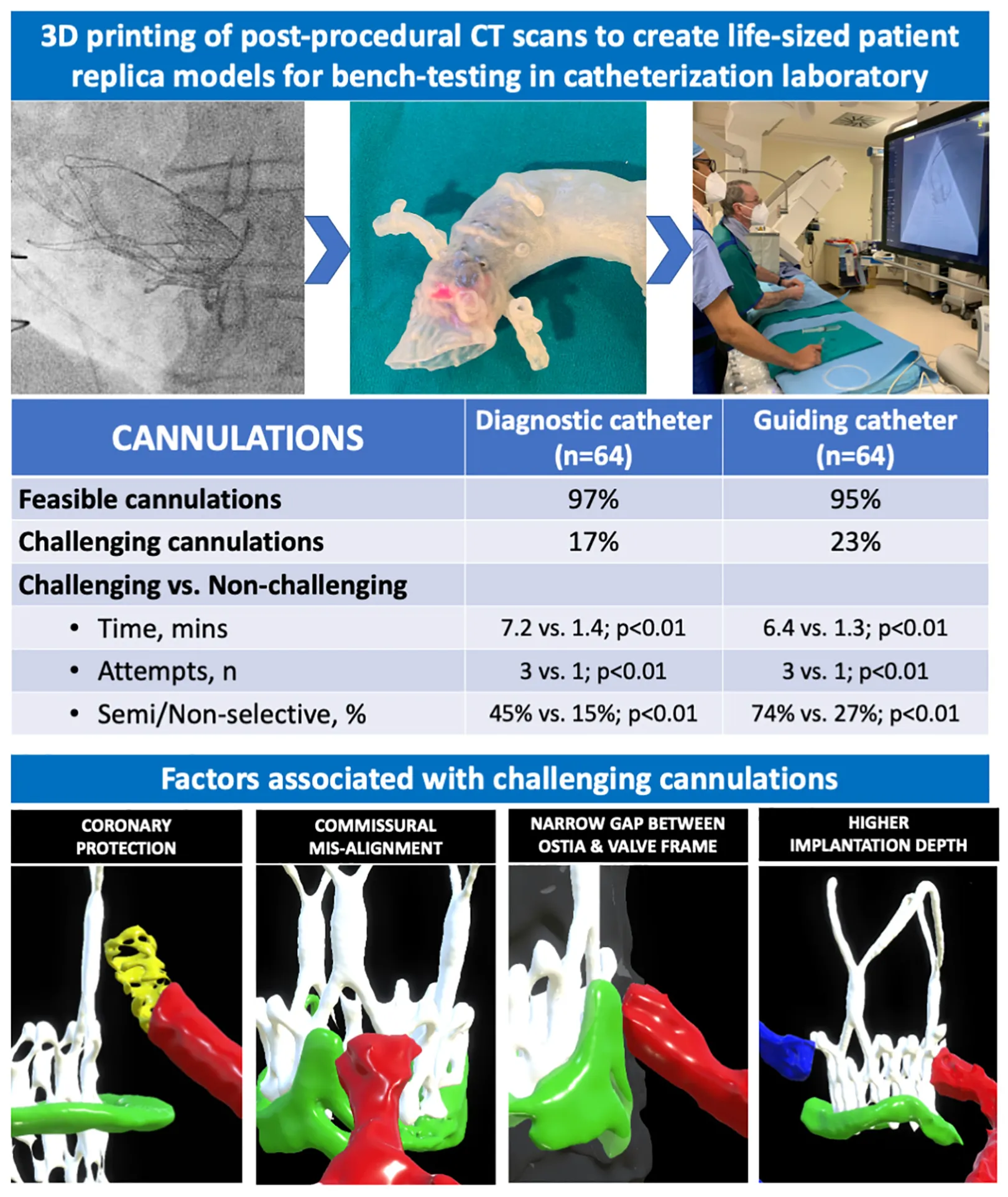

Central illustration: Evaluating feasibility and challenge of coronary cannulation after ViV-TAVI with ACURATE neo valve.

Introduction

Transcatheter aortic valve-in-valve implantation (ViV-TAVI) is a recommended treatment for degenerated surgical bioprosthetic valves (SBV) in patients deemed high-risk for re-do surgical aortic valve replacement (SAVR) (1). SBV have limited durability and when they fail, ViV-TAVI has shown favourable procedural and clinical outcomes compared to re-do SAVR (2–4). The number of ViV-TAVI procedures is further expected to increase given the expansion of TAVI toward low surgical-risk patients, in whom ViV-TAVI represents a potential treatment strategy for the lifelong management of severe aortic stenosis (5–8). As a consequence, an increased cumulative risk for repeat invasive angiography or percutaneous coronary intervention (PCI) procedures is expected in the next years (9–11). Therefore, the evaluation of coronary access following ViV-TAVI is increasingly relevant when considering the optimal sequential valve treatment for younger patients (7).

Coronary access following TAVI can be challenging and if un-feasible is associated with adverse outcomes (11–13). Prior studies have identified various anatomical, procedural and device-related factors, which can influence the challenge of coronary access following TAVI and TAVI-in-TAVI procedures (14–21). However, comparatively little data exists on coronary access following ViV-TAVI, where the additional presence of the surgical valve frame and leaflets might make coronary re-engagement more challenging (22, 23).

Therefore, we simulated diagnostic angiography and PCI procedures to determine the feasibility and challenge of coronary access in 3D printed patient-specific models derived from a cohort of patients who underwent ViV-TAVI.

Materials and methods

Patient cohort

The bench-models were derived from a real cohort of consecutive patients who underwent ACURATE neo (Boston Scientific, Marlborough, MA, USA) valve implantation to treat degenerated SBV across three high-volume European centres between February 2018 and February 2020. All patients were deemed high-surgical risk for re-do SAVR following local heart team discussion. All procedures were performed from transfemoral access and choice of valve sizing and implantation technique was left to the operator’s discretion. Ethical approval for this study was obtained in accordance to the local policy of each institution.

Imaging analysis

All patients underwent pre and post-procedural contrast-enhanced CT scans using a 128-slice or greater multidetector-row scanner with ECG gating of both systolic and diastolic phases with varying temporal windows to optimise image quality. All images were analysed by three independent cardiologists using a dedicated CT analysis software (Horos, version 3.3.6, OsiriX, Switzerland).

On the pre-procedural scan, baseline measurements of the aortic root, coronaries and surgical bioprosthesis were performed in accordance with current recommendations (24). On the post-procedural scan, the geometrical relationships between the transcatheter valve with the SBV and native aortic/coronary anatomy were evaluated by measuring the vertical and horizontal distances between the coronary ostia and transcatheter valve frame, the implantation depth and the extent of overlap between the coronary ostia and commissural posts (Supplementary Figure 1).

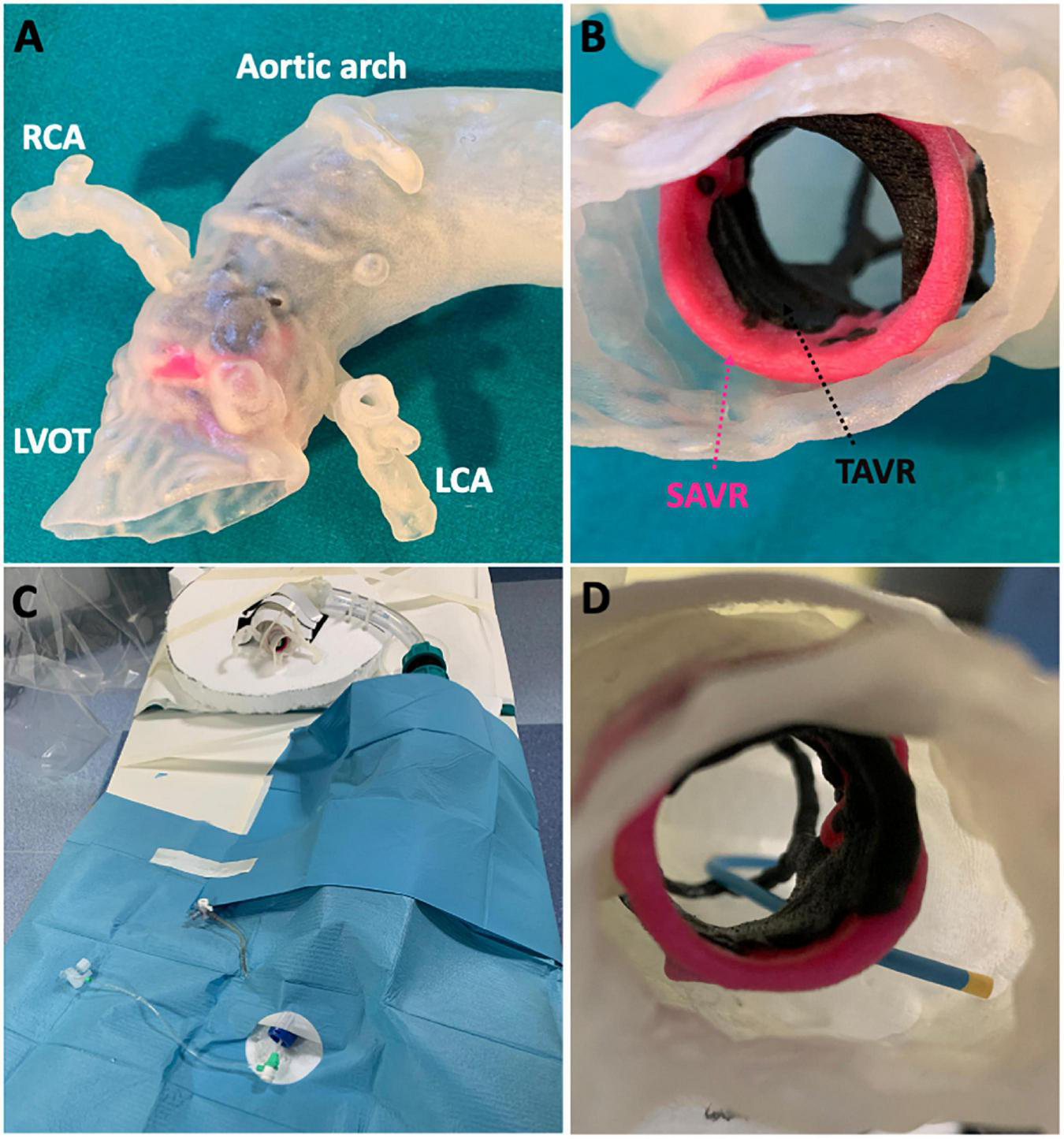

Creation of 3D printed models

Raw data from each scan was exported in the Digital Imaging and Communication in Medicine (DICOM) format and the aorta, left ventricular blood pool, surgical/transcatheter valves and coronary arteries were segmented using semi-automatic segmentation algorithms (region growing/thresholding/level-tracing) with added manual corrections.

The segmented models were converted into 3D digital models, which were exported as.stl files into a computer assisted design (CAD) software (GrabCAD, Stratasys, USA) for 3D printing. Polyjet technology was used to print the patient-specific 3D models (J720 3D printer, Stratasys) (Supplementary Figure 2). The entire aortic arch, ascending aorta and aortic root along with the coronary arteries was printed together using the same material, whilst the surgical and transcatheter heart valves were printed during the same process but using a different more rigid material.

Each 3D printed model was an exact 1:1 sized replica of the patient’s true anatomy and surgical/transcatheter valve geometry (Figures 1A,B). The materials were selected following preliminary bench-testing to ensure that catheter, wire and device movements closely matched in vivo conditions. Each patient model was attached to a prosthetic descending aorta with a femoral access sheath inserted for bench-testing (Figures 1C,D). The authenticity of the final assembled bench-model in terms of performing angiography and PCI procedures was independently confirmed by expert interventional operators (CT, AC, FG, DD).

FIGURE 1

Bench-testing

To evaluate the feasibility and challenge of coronary access, each patient-specific bench-model was assembled under cardiac catheterization laboratory conditions, using real equipment to simulate diagnostic angiography and PCI procedures under fluoroscopy (Supplementary Figure 2). Two expert (defined as > 2,000 PCI, 400 TAVI and > 50 ViV-TAVI procedures) interventional cardiologists were instructed to perform a diagnostic angiogram and PCI to both the right and left coronary arteries of each bench-model. Both operators were blinded to the pre and post-procedural CT scan data and each operator was blinded to the cannulation strategies and techniques used by the other operator.

All procedures were performed from the femoral access route using 6Fr catheters. For the diagnostic angiography, the operators were instructed to start with the Judkins right (JR4) and Judkins left (JL4) catheters to reflect conventional practice. If initial cannulation was unsuccessful, the subsequent choice of catheter or cannulation strategy was left to the discretion of the operator. Following diagnostic angiography, the operators were instructed to perform PCI of the proximal right coronary artery (RCA) and left anterior descending artery (LAD). The operators were free to select their preferred guiding catheters, wires and any additional equipment to complete the procedure.

For each procedure, the following data were recorded: cannulation selectivity (selective, semi-selective, non-selective), number of cannulation attempts, fluoroscopy time, catheters used, cannulation techniques and additional equipment used (e.g., guide-extension catheters). The topography of cannulation in relation to the transcatheter heart valve was noted and recorded as either above or below the upper crown and catheter passage inside or outside valve frame.

Study outcomes

The primary outcome of the study was the feasibility of diagnostic angiography and PCI. A diagnostic angiogram was considered feasible if complete opacification of the coronary vessels was obtained following contrast media injection. A PCI was considered feasible if the vessel was successfully wired distally, a 2.5 mm × 20 mm semi-compliant balloon (Euphora, Boston Scientific, USA) was inflated, followed by successful advancement and retraction of a 3.5 mm × 20 mm drug-eluting stent (Resolute Onyx, Medtronic) in the proximal segment of the vessel.

The secondary outcome was to determine the incidence of challenging diagnostic catheter (DC) and guiding catheter (GC) cannulation, defined as, if for at least one operator either of the two criteria were met:

• 1.

  Cannulation was not feasible or non-selective;

• 2.

  Cannulation was selective/semi-selective but required greater than 5 min of fluoroscopy time and at least two attempts.

In addition, the association between challenging cannulations with the imaging variables derived from the pre and post-procedural CT scans was evaluated.

Statistical analysis

Categorical variables are expressed as numbers and percentages and continuous variables as median and interquartile range (IQR) or mean and standard deviation (SD). Categorical data were compared using the chi-squared test or Fisher exact test as appropriate. For comparison of continuous variables, the Student’s t-test or Mann-Whitney U test was applied depending on the normality of distribution (assessed by the Kolmogorov-Smirnov test). A 2-sided p-value < 0.05 was considered as statistically significant. All statistical analysis were performed using StataIC version 17.0 (StataCorp, IBM).

Results

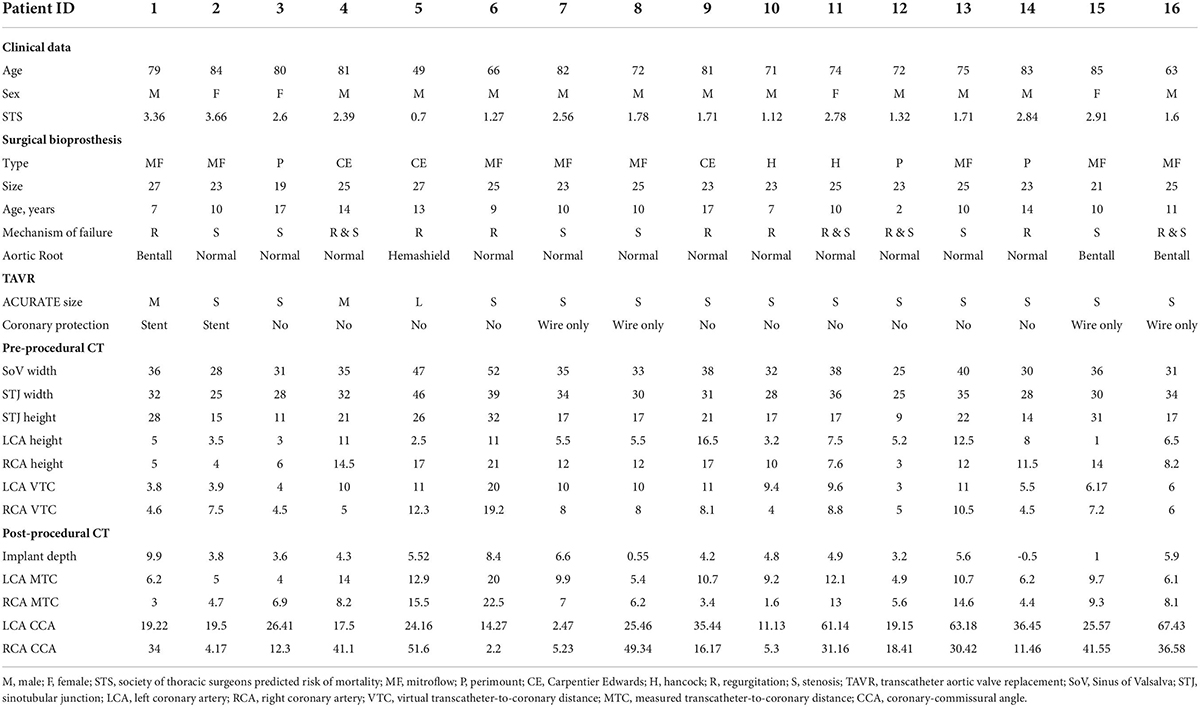

Sixteen consecutive patients underwent transfemoral ViV-TAVI with the ACURATE neo valve. Baseline characteristics, procedural and CT imaging data of the study population are presented in Table 1. The mean age was 77 years, 75% were male and mean STS score was 2.09. Mechanism of SBV failure was stenosis, regurgitation or mixed in 6 (38%), 6 (38%) and 4 (25%) cases, respectively. A size S of the ACURATE neo valve was implanted in 13 (81%) cases with prophylactic “chimney” stenting performed for both ostia in 2 (13%) patients. Two operators independently attempted both diagnostic angiography and PCI of each coronary ostium, resulting in a total of 64 diagnostic cannulations and 64 PCI procedures.

Diagnostic angiography

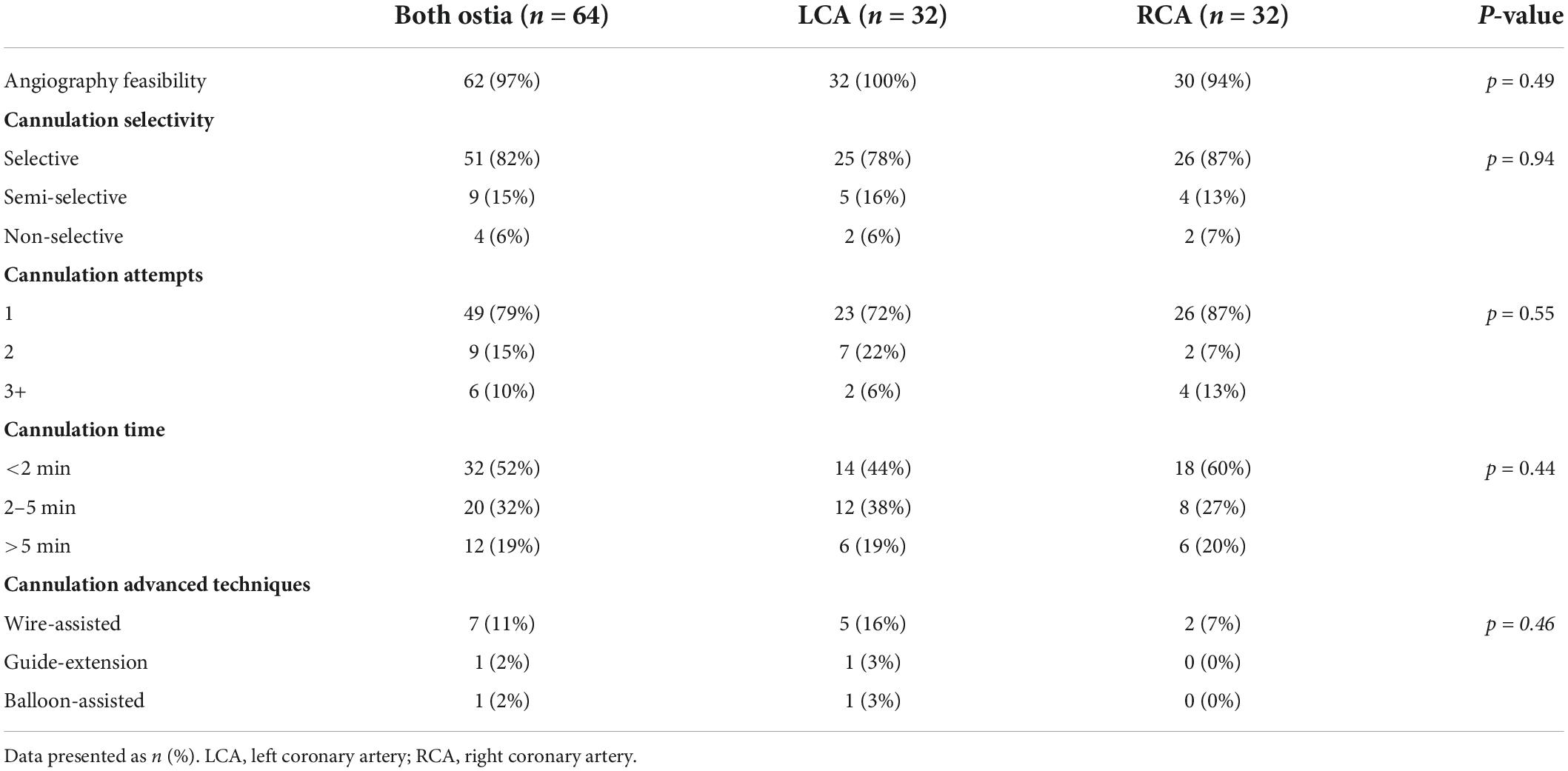

The primary outcome of diagnostic angiography feasibility was observed for 62/64 (97%) cannulations. Cannulation was not feasible for both operators in one RCA ostium, which underwent prophylactic stenting during the ViV-TAVI procedure. Data on DC cannulations are presented in Table 2. Median number of cannulation attempts was 1 (IQR: 1-1) and median cannulation time was 1 min 48 s (IQR: 1 min 5 s–3 min 11 s). The majority of cannulations required no more than a single cannulation attempt (49/62, 79%). Selective cannulation was achieved in 51/62 (82%) and most of the cannulations required less than 2 min of fluoroscopy time (32/62, 52%). Advanced cannulation techniques were required for 9/62 (15%) cannulations, with 0.014” coronary wire-assisted cannulation being the main technique of choice (Figure 2). There was no significant difference observed in cannulation feasibility, selectivity, attempts, time or technique used between the LCA and RCA (Table 2).

FIGURE 2

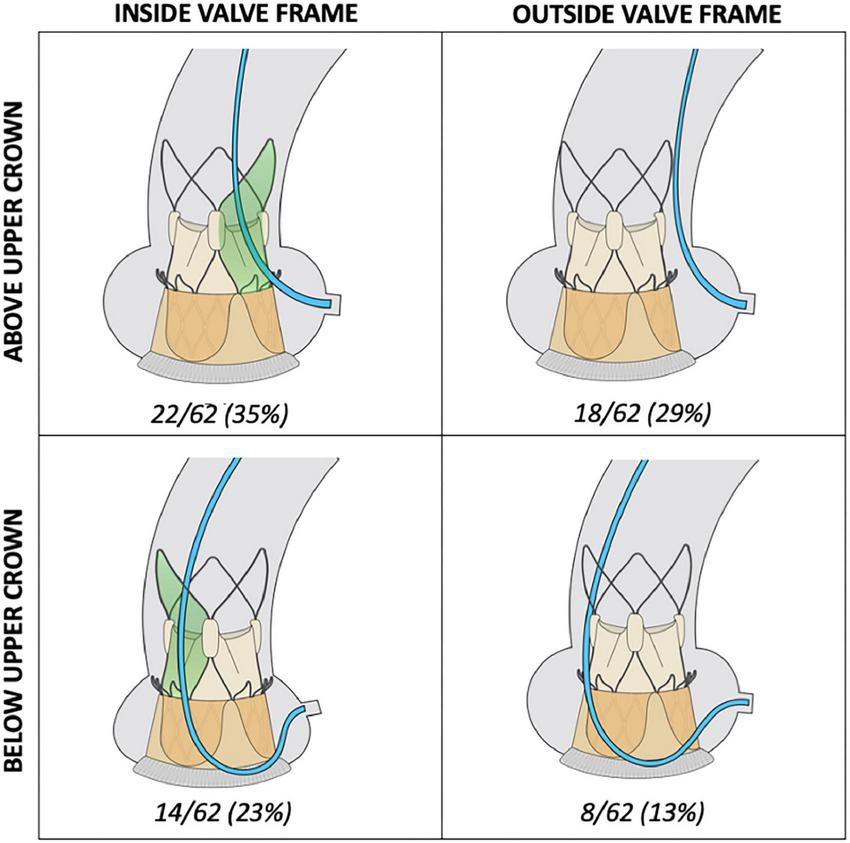

Choice of catheters selected and topography of cannulation in relation to the valve frame is shown in Supplementary Figure 3 and Figure 3, respectively. Differences in procedural outcomes between the operators as well as the individual operator’s perceived level of difficulty for performing diagnostic angiography are reported in Supplementary Table 1 and Supplementary Figure 4, respectively.

FIGURE 3

Percutaneous coronary intervention

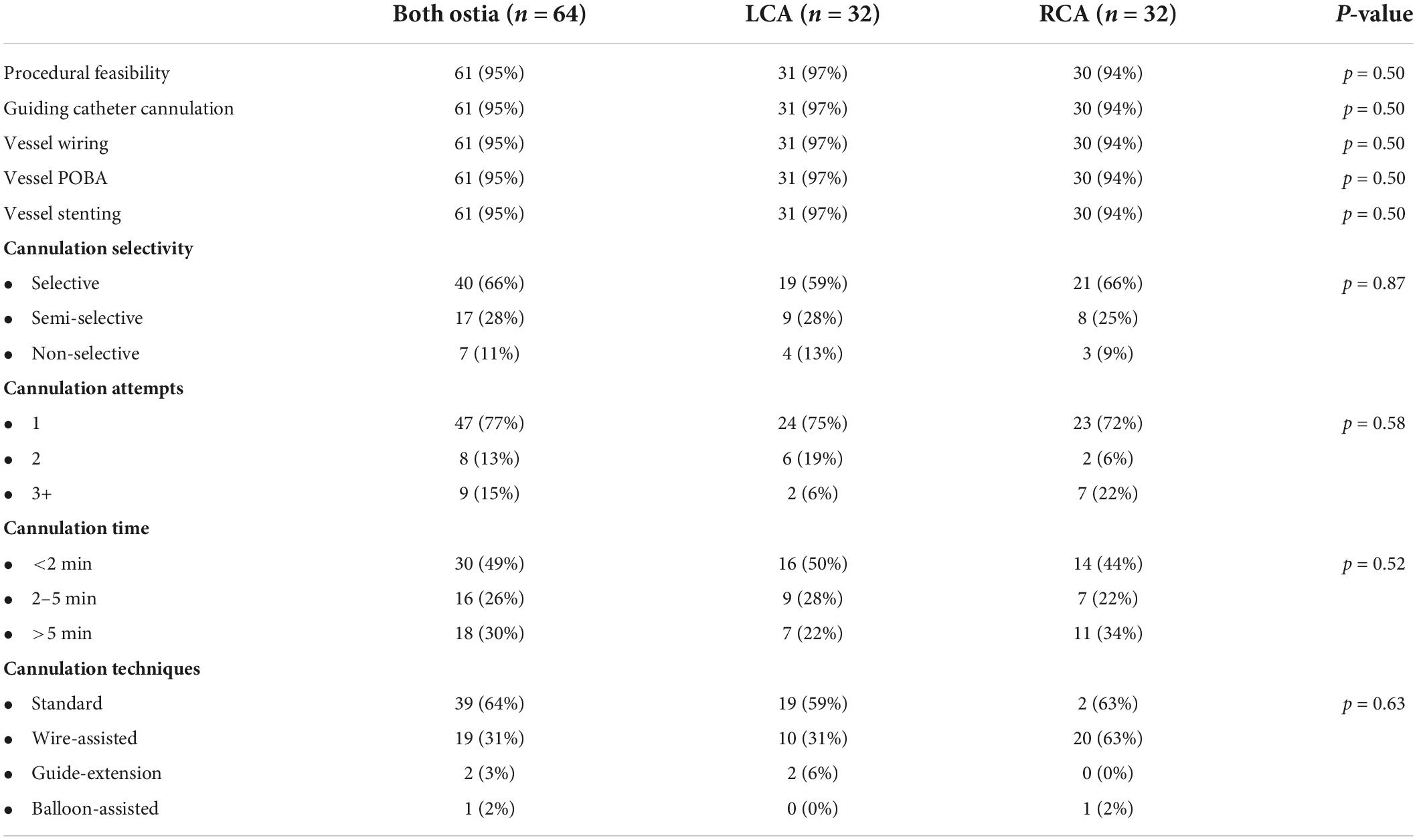

Performing a complete PCI procedure was feasible in 61/64 (95%) of cases. PCI could not be performed for ostia that underwent prophylactic coronary stenting (1 LCA cannulation, 2 RCA cannulations) (Table 3).

Compared to DC, a greater percentage of GC cannulations were either semi- (14 vs. 27%) or non-selective (6 vs. 11%) (Figure 2). Median cannulation time was 2 min 5 s (IQR: 48 s-5 min 12 s). Advanced techniques to achieve guide catheter cannulation were required in 22/64 (34%) of cannulations, with the use of a 0.014” coronary wire only or in addition to a guide-extension catheter or balloon-assisted technique required for 19/64 (30%), 2/64 (3%) and 1/64 (2%) of cannulations, respectively (Table 3). A wider selection of guiding catheters were selected particularly for cannulation of the LCA (Figure 3).

Differences in procedural outcomes between the operators as well as the individual operator’s perceived level of difficulty for performing PCI are reported in Supplementary Table 1 and Supplementary Figure 4, respectively.

Challenging cannulation

The secondary outcome criteria for challenging cannulation were met for 11/64 (17%) of DC and 15/64 (23%) of GC cannulations. Data regarding the cannulation procedures, transcatheter and surgical valve types and pre- and post-CT imaging analysis for challenging DC and GC cannulations is presented in Supplementary Tables 2, 3.

Challenging cannulations were associated with a longer cannulation time (DC: 7 min 16 s vs. 1 min 25 s, p < 0.01; GC: 6 min 9 s vs. 1 min 15 s, p < 0.01), required a greater number of attempts [DC: 3 (IQR: 2–4) vs. 1 (IQR: 1–1), p < 0.01; GC: 3 (IQR: 2–3) vs. 1 (IQR: 1–1), p < 0.01] and were associated with more semi- and non-selective cannulations (DC: 45 vs. 15%, p < 0.01; GC: 74 vs. 27%, p < 0.01) (Table 4).

Use of non-standard cannulation techniques (0.014” coronary guide wire-assisted, guide-extension catheter or balloon-assisted cannulation) were more frequently required for challenging versus non-challenging DC (wire: 27 vs. 6%, guide-extension: 9 vs. 0%, balloon: 9 vs. 0%; p < 0.01) and GC cannulations (wire: 53 vs. 20%, guide-extension: 13 vs. 2%, balloon: 7 vs. 0%; p < 0.01) (Table 4).

Factors associated with challenging cannulations

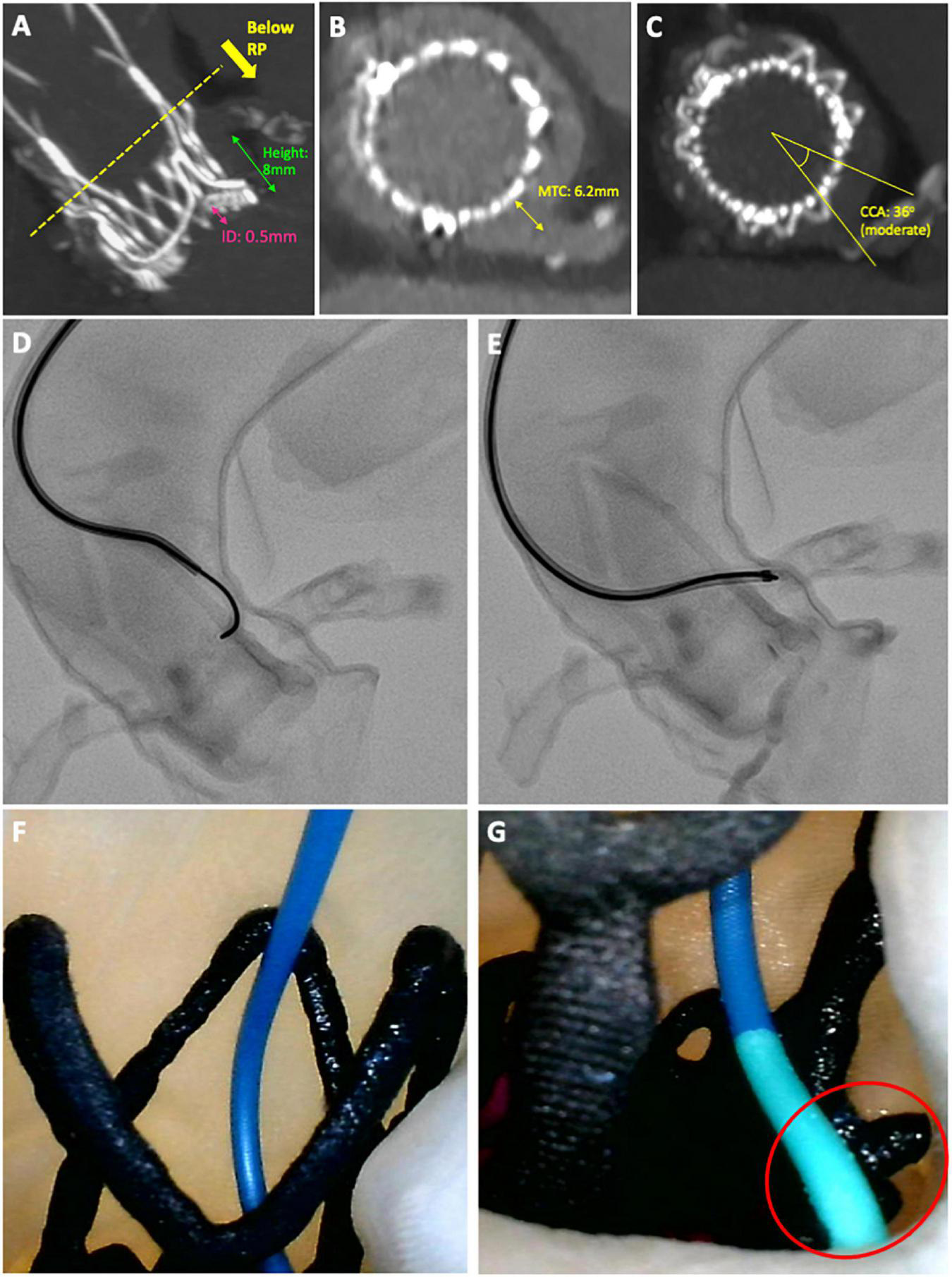

Challenging DC and GC occurred when coronary ostia arose below the upper crown of the THV, there was a narrow sinus gap between the transcatheter/surgical valve frames and aortic wall, commissural mis-alignment and when prophylactic “chimney” stenting was performed. In the most challenging cases, the combination of these factors resulted in prolonged cannulation times, requiring multiple attempts with the use of advanced techniques (Figure 4).

FIGURE 4

Differences in pre- and post-procedural CT imaging data were evaluated between challenging and non-challenging cannulations (Table 4). Aortic sinus dimensions, as evaluated by SoV and STJ width, were smaller for both challenging DC (p < 0.05) and GC (p = 0.05) cannulations. Challenging cannulations were associated with lower left (3.6 vs. 4.8 mm) and right (3.8 vs. 4.8 mm) coronary heights but this difference was not statistically significant.

On post-procedural CT, the measured transcatheter-to-coronary (MTC) distance (5 vs. 9.2 mm; p < 0.05) and commissure-coronary angle (14.3° vs. 25.6°; p < 0.01) were both significantly lower for challenging GC cannulations. Implantation depth was numerically lower (DC: 3.8 vs. 4.8 mm, p = 0.23; GC: 3.8 vs. 4.8 mm; p = 0.57) for challenging cannulations.

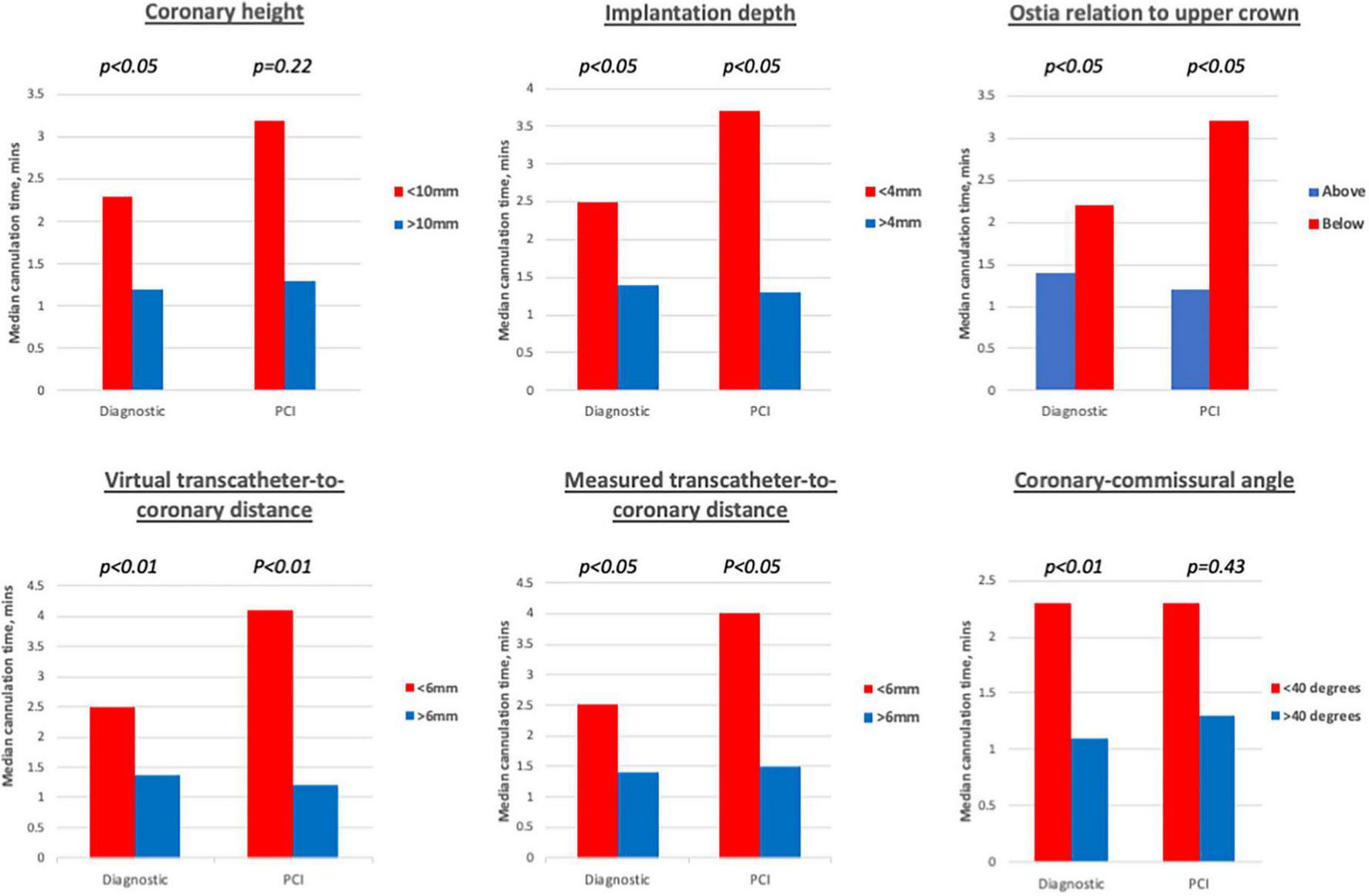

The impact of each pre- and post-CT imaging parameter on diagnostic and guiding catheter cannulation time, numbers of attempts and selectivity are presented in Supplementary Tables 4, 5. In summary, cannulation time with both DC and GC was prolonged when either the implantation depth was < 4 mm, coronary ostia were located below the upper crown or the virtual-transcatheter distance (VTC) was < 6 mm (p-values for all < 0.05) (Figure 5). For DC cannulation, an implantation depth < 4 mm, was associated with increased cannulation attempts and worsening cannulation selectivity. For GC cannulations increased attempts and worsening cannulation selectivity was observed when the MTC < 6 mm and the coronary-commissural angle was < 40° (p-values for all < 0.05).

FIGURE 5

Discussion

This exploratory study is the first study to systematically evaluate diagnostic and guide catheter cannulation following ViV-TAVI with the ACURATE neo valve. Bench-testing of patient-specific 3D printed models demonstrated (Graphical Abstract):

• 1)

  Feasibility to perform diagnostic angiography and PCI was 97 and 95%, respectively.

• 2)

  Seventeen percentage of diagnostic and 23% of guiding catheter cannulations were challenging requiring greater fluoroscopy time, number of attempts, semi- or non-selective cannulation and use of advanced techniques.

• 3)

  The main reasons for challenging cannulation were prophylactic stenting performed during the ViV-TAVI procedure, smaller aortic sinus dimensions, severe commissural mis-alignment and when ostia arose below the upper crown of the valve, which could be due to higher implantation depths or lower coronary heights.

• 4)

  Implantation depth < 4 mm, virtual transcatheter-to-coronary (VTC) distance < 6 mm, measured transcatheter-to-coronary (MTC) distance < 6 mm and coronary-commissural angle < 40° were more frequently observed in challenging cannulations.

Assessing the feasibility of coronary access and PCI is increasingly relevant as TAVI expands toward younger and lower-risk patients who have an increased life-time risk for repeat invasive angiography due to progression of CAD (9–12). Studies using pre or post-procedural CT to virtually assess coronary access have suggested that challenging or un-feasible cannulation may occur following 9–35% TAVR (16–18), 27–78% of TAVI-in-TAVI (19, 20, 25) and 58% of ViV-TAVI (22) procedures. However, data from real studies of post TAVI cannulation are more re-assuring with success rates for diagnostic cannulation and PCI success ranging between 90–100 and 92–97%, respectively, even in the acute setting (11–14, 26–28).

In our study the feasibility for diagnostic angiography and PCI was 97 and 95%, respectively. These findings are encouraging in the setting of ViV-TAVI, where the presence of the SBV frame and leaflets should further hamper coronary cannulation. Several explanations for these favourable results could be considered. All cannulations were performed by senior interventionists experienced in catheter selection and cannulation techniques required for post-TAVI coronary access (27). Moreover, the transcatheter valve design may have a significant impact upon the feasibility of coronary access (14, 16). All the patients underwent ViV-TAVI with the ACURATE neo valve, which has a split-level design consisting of a short lower stent frame and large open-celled upper stabilisation arches. This unique design is potentially advantageous for coronary access, as it provides operators with different possible cannulation routes to the coronary ostium (Figure 3). In contrast, valves with larger stent-frames such as the Corevalve/Evolut platform are associated with more challenging or un-feasible coronary cannulation although data is conflicting (11–14).

Factors associated with challenging cannulation

A combination of multiple anatomical, procedural and device-related factors contribute to the challenge of coronary access (14, 27). Proposed classification schemes for coronary access have highlighted three key factors: (1) implantation depth, (2) gap between valve frame and aortic wall and the (3) extent of commissural alignment (15, 29). Previously we showed that an implantation depth > 4 mm suggested more favourable coronary access without impacting upon post-procedural gradients (22). Similarly, our bench study demonstrates that an implantation depth > 4 mm was associated with a shorter cannulation time, more selective cannulations and fewer cannulation attempts when using a DC. Moreover, GC cannulation times were also shorter with advanced techniques required less frequently. The reason for favourable coronary access at lower valve implantations is that more ostia are likely to be located above the covered stent frame, which cannot be traversed by a catheter.

Ostia deemed challenging to cannulate had smaller aortic dimensions as assessed by SoV and STJ width. A narrow aortic sinus translates into a smaller gap available between the THV frame and aortic wall for subsequent catheter entry. Previous studies have used different methodologies to measure and evaluate this gap (14, 16–19, 22, 30), with current classification schemes suggesting that a 2 mm cut-off distance identifies challenging or un-feasible coronary access (15, 29). However, in our cohort the median MTC distance was 7.55 mm and only one coronary ostium had a MTC gap < 2 mm. In contrast, we found that a cut-off of 6 mm was a more useful discriminator for challenging cannulation, with prolonged diagnostic cannulation times, increased attempts for guide catheter cannulation and fewer selective cannulations achieved when the MTC was < 6 mm compared to > 6 mm. Although a 2 mm gap allows for a 6Fr (∼1.8 mm) catheter to enter the aortic sinus, it may not account for the additional space required to manoeuvre the catheter in order to achieve stable, supportive and selective cannulation, particularly for guiding catheters. Greater insights into the necessary space required for successful cannulation might be obtained by analyzing the volume and three-dimensional morphology of the aortic sinuses (30).

Overlap between a THV commissural post and coronary ostia is common following TAVR and may pose a significant challenge to coronary cannulation (16, 18, 29, 31). However, to date no study has evaluated how the extent of commissural-coronary overlap can directly influence cannulation challenge and feasibility. In our cohort, severe overlap or mis-alignment, defined as a coronary-commissural angle (CCA) < 20° was present in 15/32 (47%) coronary ostia. The average CCA for challenging DC and GC cannulation was 14.3° and 18.4°, respectively. However, the impact of severe overlap was greater for GC cannulations, which required more attempts and advanced techniques and resulted in fewer selective cannulations. This finding could be explained by the fact that guiding catheters are stiffer, and the reduced flexibility makes it more challenging to navigate around the obstacle of the THV commissural post. Therefore, a 0.014” coronary wire or guide-extension catheter is often required to achieve selective cannulation with adequate support to complete the PCI. The incidence of severe coronary overlap is expected to be lower as procedural techniques designed to achieve commissural alignment with the ACURATE neo valve are adopted (32). Of note, in our cohort systematic techniques to achieve commissural alignment with the ACURATE neo valve were not adopted. However, the impact of these techniques in reducing the challenge of coronary access, particularly in the setting of ViV-TAVI remains to be determined.

Coronary protection with the chimney technique resulted in 2/64 (3%) DC and 3/64 (5%) GC cannulations being unfeasible. In one patient, PCI to both coronary arteries was not feasible due to an inability to cannulate the neo-ostia, which were located in an un-favourable position for cannulation (Supplementary Figure 5). This highlights the importance selecting an appropriate coronary protection strategy, which will also maintain long-term coronary access. Consideration should be given to the stent positioning, extent of stent protrusion and for certain cases alternative coronary protection strategies such as Bioprosthetic Aortic Scallop Intentional Laceration Coronary Artery (BASILICA) may be considered (33).

Limitations

Our study is limited to a small sample of ViV-TAVI patients in whom only the ACURATE neo valve was utilised, therefore these findings cannot be applied to other transcatheter heart valves. Cannulations were performed by two experienced interventional operators and variations in their preferred techniques could have accounted for some of the observed differences. Furthermore, cannulation challenge and feasibility may vary amongst operators particularly due to different levels of expertise in post-TAVI coronary access. However, in this context, the fact that certain cannulations were challenging or even un-feasible for experienced operators is highly relevant. Due to the design and assembly of the bench-models, all cannulations were performed from the femoral access route and catheters and techniques selected could be different if the cannulations were performed from the trans-radial access. The prosthetic descending aorta and femoral access may not have replicated real-life ilio-femoral tortuosity which can contribute to the challenge of coronary cannulation. Finally, the nature of bench-testing means that these results were obtained following cannulation of static ostia in ex vivo models, which may not fully reflect the dynamic in vivo conditions. However, given that these models were 3D printed based on post-procedural CT scans, ensured that the complex anatomical relationships between the transcatheter/surgical valves with surrounding aorta and coronary ostia was preserved.

Conclusion

In this exploratory bench-analysis, diagnostic angiography and PCI was found to be highly feasible following ViV-TAVI with the ACURATE neo valve. Important factors associated with non-feasible or challenging cannulation included prophylactic “chimney” stenting, higher implantation, narrower aortic sinus dimensions and severe commissural misalignment.
