Abstract
Hypertension is a leading cause of morbidity and mortality worldwide and poses a major risk factor for cardiovascular diseases and chronic kidney disease. Research has shown that nitric oxide (NO) is a vasodilator that regulates vascular tension and the decrease of NO bioactivity is considered one of the potential pathogenesis of essential hypertension. The L-arginine-nitric oxide synthase (NOS) pathway is the main source of endogenous NO production. However, with aging or the onset of diseases, the function of the NOS system becomes impaired, leading to insufficient NO production. The nitrate–nitrite–NO pathway allows for the generation of biologically active NO independent of the NOS system, by utilizing endogenous or dietary inorganic nitrate and nitrite through a series of reduction cycles. The oral cavity serves as an important interface between the body and the environment, and dysbiosis or disruption of the oral microbiota has negative effects on blood pressure regulation. In this review, we explore the role of oral microbiota in maintaining blood pressure homeostasis, particularly the connection between nitrate-reducing bacteria and the bioavailability of NO in the bloodstream and blood pressure changes. This review aims to elucidate the potential mechanisms by which oral nitrate-reducing bacteria contribute to blood pressure homeostasis and to highlight the use of oral nitrate-reducing bacteria as probiotics for oral microbiota intervention to prevent hypertension.
1 Introduction
Hypertension is one of the main causes of global morbidity and mortality and poses a major risk factor for cardiovascular diseases such as heart disease, stroke, and chronic kidney disease. Recent findings of the sixth round of the national hypertension survey indicate that approximately 245 million people with hypertension in China, with an annual increase of about 10 million individuals (). The development of hypertension is a complex process, which is influenced by genetic factors, age, dietary habits, and daily behaviors. Research has found that primary hypertension is characterized by a decrease in the production and bioavailability of nitric oxide (NO), suggesting that maintaining or restoring NO homeostasis in vivo may be a potential solution for the prevention and treatment of hypertension ().
With the advancement of microbial genomics research, more studies suggest that the human microbiota, which includes symbiotic microbial communities, plays a role in various physiological processes of the host, such as energy homeostasis and cardiovascular function (). The oral cavity, as one of the most complex microbial ecosystems in the human body, has been extensively studied for its role in oral health. There is a group of bacteria in the oral cavity that possess the ability to reduce nitrate and participate in human nitrogen metabolism through the nitrate–nitrite–NO pathway, thereby maintaining NO homeostasis and vascular dilation to alleviate hypertension in the host (). This review provides an overview of the metabolism and effects of NO in the body and explores the role of the oral microbiota in the nitrate–nitrite–NO pathway and its potential function in maintaining host blood pressure homeostasis, aiming to provide theoretical references for exploring measures to prevent and treat hypertension.
2 Relationship between NO and blood pressure homeostasis
NO is an important signaling molecule in mammals, participating in various physiological processes such as endothelial function, immune function, and glucose metabolism (). Its relationship with blood pressure homeostasis was first discovered approximately 40 years ago, and its role as a signaling molecule in the cardiovascular system for regulating vascular tone was awarded the Nobel Prize in 1998 (). NO in the blood vessels is released by endothelial cells and significantly affects endothelial and cardiovascular physiology. The decreased bioavailability of NO is a common feature in cardiovascular diseases, and the mechanisms by which NO maintains blood pressure homeostasis are complex (). NO exhibits lipophilic properties, allowing its diffusion from endothelial cells to vascular smooth muscle cells. It binds to the heme moiety of soluble guanylate cyclase (sGC), activating sGC to catalyze the conversion of guanosine triphosphate (GTP) to cyclic guanosine monophosphate (cGMP). The increased synthesis of cGMP leads to an increase in intracellular calcium ion flux, ultimately resulting in the relaxation of vascular smooth muscle, vasodilation, and a decrease in blood pressure (, ). The early discovery of nitroglycerin as an old vasodilator used in the treatment of angina pectoris demonstrated its action through the release of NO and activation of sGC, thus promoting the identification of NO function (). Impaired endothelial function leads to imbalances in NO homeostasis, resulting in endothelium-dependent vasodilatation dysfunction. NO can protect endothelial cells from damage and inflammation by reducing the expression of adhesion molecules within these cells, thus maintaining the normal function of the vascular endothelium and preventing vascular injury and thrombus formation (, ). Moreover, NO inhibits platelet aggregation, reduces platelet viscosity and blood viscosity, improves hemodynamics, lowers blood pressure, and reduces the risk of cardiovascular diseases (). NO also reduces the activity of the renin–angiotensin–aldosterone system, an important mechanism that regulates blood pressure and fluid balance (). The biological activity of NO is closely related to kidney and metabolic functions. It can affect sodium reabsorption and potassium excretion by regulating ion channels in renal tubules, thereby influencing blood pressure stability (). As mentioned above, NO is essential for regulating blood pressure homeostasis. However, when the immune cells perceive a threat, NO levels may increase, increasing the likelihood of cell death (). Additionally, excessive NO generation can induce cellular oxidative stress, promoting inflammatory reactions (). Therefore, maintaining NO homeostasis is crucial for regulating the overall physiological balance and ensuring vascular stability, particularly in the context of hypertension (). Exploring the mechanisms and pathways involved in maintaining NO homeostasis has potential application value for the prevention and control of hypertension.
3 NO production pathways
3.1 Endogenous NO synthase pathway
NO, as an important vasodilator in the human body, is responsible for arterial relaxation and dilation. Reduced generation or enhanced metabolism of NO leading to decreased bioactivity of NO is considered a potential mechanism underlying the onset of primary hypertension and is associated with aging, renal, cardiovascular, and metabolic disorders (). Several studies have suggested that maintaining NO homeostasis in the body could be a potential solution for blood pressure control (, ). In endothelial cells, NO is produced by nitric oxide synthase (NOS). The classical view is that the L-arginine-NOS pathway is the major endogenous source of NO formation and signaling. Under normal physiological conditions, L-arginine and molecular oxygen generate NO through the action of NOS, maintaining the balance in the body (). There are three isoforms of NOS, namely, endothelial NOS (eNOS), neuronal NOS (nNOS), and inducible NOS (iNOS). Among them, eNOS is mainly present in endothelial cells, where it plays a crucial role in vasodilation and improving blood flow and oxygen delivery, thus maintaining vascular health (). With aging, there is a decrease in NOS gene expression, resulting in reduced availability of endogenous NO derived from NOS, which ultimately leads to an increased incidence of hypertension in the elderly population (). In addition, when the body experiences local hypoxia or pathologies such as renal, cardiovascular, and metabolic diseases, NOS pathway synthesis is also hindered, and endogenous NO synthesis is impaired. In such cases, exogenous nitrate intake can effectively maintain NO homeostasis (, ) (Figure 1).

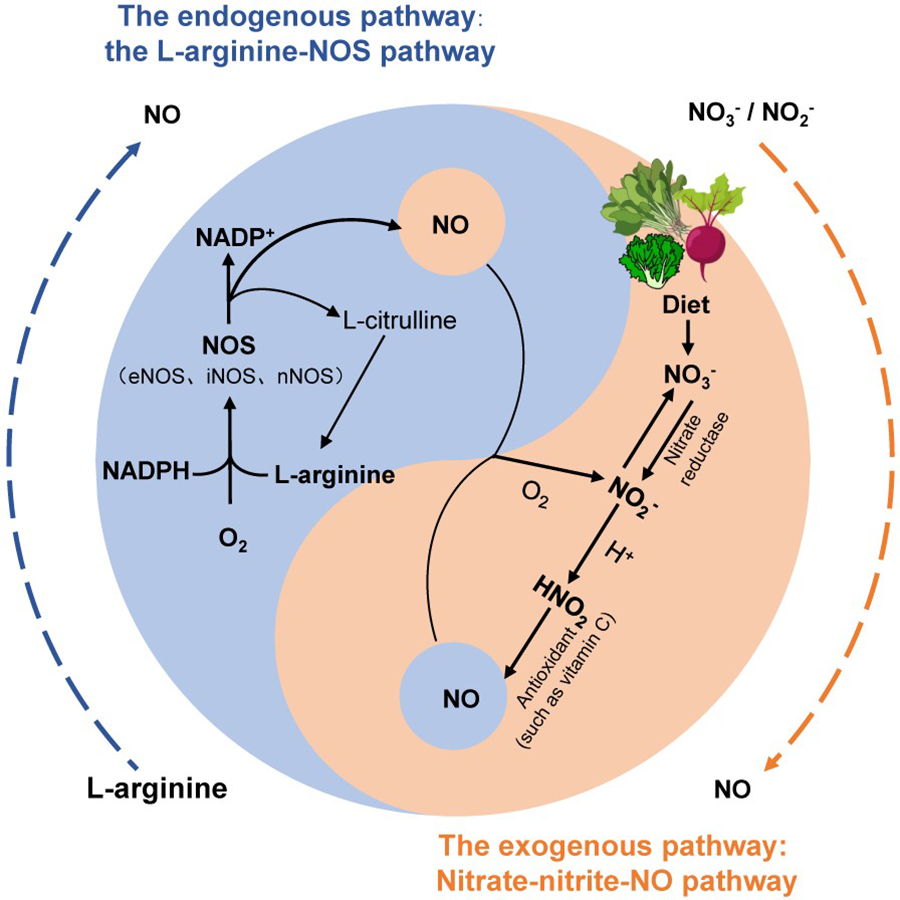

Figure 1
3.2 Nitrate–nitrite–NO pathway
Inorganic nitrates and nitrites have been regarded as harmful food additives with potential carcinogenic effects (

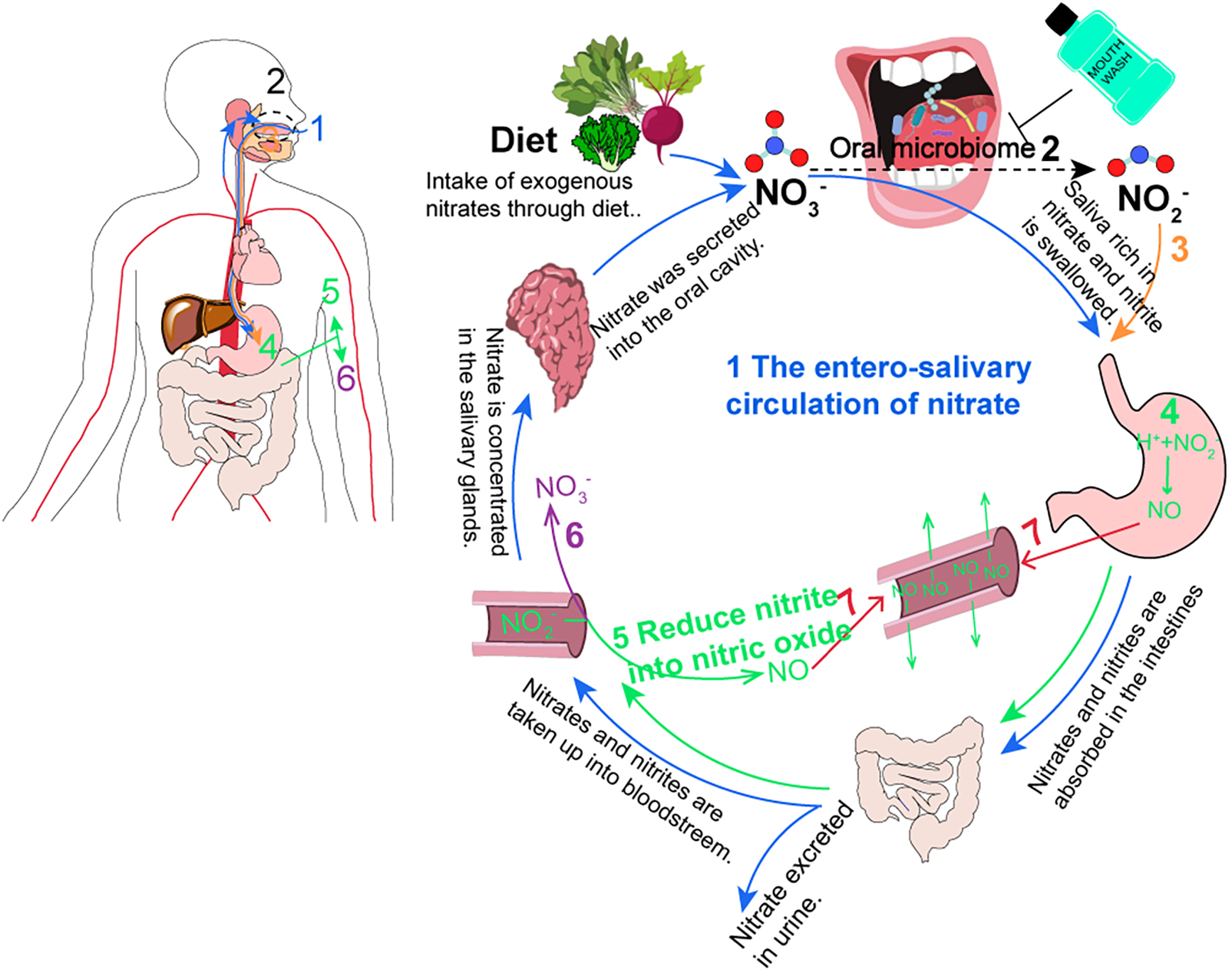

Figure 2

The circulation of nitrate in humans. (1) The enterosalivary circulation of nitrate (blue) [modified from (
4 The oral microbiota regulates blood pressure homeostasis
4.1 Involvement of oral microbiota in the nitrate–nitrite–NO pathway
In the natural environment, bacteria collectively drive the processes of nitrification and denitrification, completing the nitrogen cycle (
4.2 Role of oral microbiota in host blood pressure homeostasis
The oral cavity, as the gateway of the human body, is one of the five major microbial ecosystems of the human body, and it is related to cardiovascular diseases and metabolic health. Ko et al. (
4.3 Diversity of the oral microbiome in blood pressure homeostasis
Currently, more than 770 known bacterial species have been found in the oral cavity, mainly belonging to the phyla Actinobacteria, Bacteroidetes, Firmicutes, Proteobacteria, Spirochaetes, and Synergistetes (

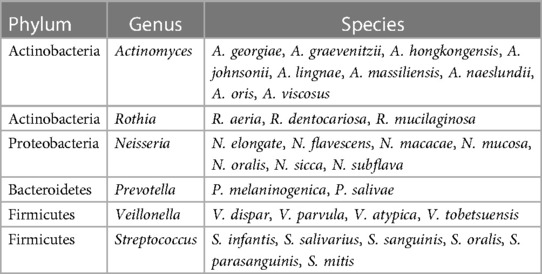

Table 1
| Phylum | Genus | Species |
|---|---|---|
| Actinobacteria | Actinomyces | A. georgiae, A. graevenitzii, A. hongkongensis, A. johnsonii, A. lingnae, A. massiliensis, A. naeslundii, A. oris, A. viscosus |
| Actinobacteria | Rothia | R. aeria, R. dentocariosa, R. mucilaginosa |
| Proteobacteria | Neisseria | N. elongate, N. flavescens, N. macacae, N. mucosa, N. oralis, N. sicca, N. subflava |
| Bacteroidetes | Prevotella | P. melaninogenica, P. salivae |
| Firmicutes | Veillonella | V. dispar, V. parvula, V. atypica, V. tobetsuensis |
| Firmicutes | Streptococcus | S. infantis, S. salivarius, S. sanguinis, S. oralis, S. parasanguinis, S. mitis |
The predominant nitrate-reducing species of the oral microbiota in humans.
People are concerned about the safety of inorganic nitrate and the application of oral nitrate-reducing bacteria, primarily due to the worry that nitrite, derived from nitrate metabolism, may lead to the formation of nitrosamines, potentially leading to cancer (
5 The future of oral probiotics in hypertension
NO, as a vasodilator, maintains blood pressure homeostasis by controlling and regulating vascular tone. The disruption of NO homeostasis may contribute to the development of hypertension. However, supplementation with exogenous nitrate can help maintain NO homeostasis through the nitrate–nitrite–NO pathway in the enterosalivary circulation. This pathway relies on oral nitrate-reducing bacteria that convert nitrate to nitrite or NO. The net ability of subgingival plaque bacteria to generate nitrite is associated with a lower risk of cardiovascular metabolic outcomes (
Statements
Author contributions
XC: writing – original draft. LL: conceptualization, writing – review and editing. FC: conceptualization, writing – review and editing.
Funding
The authors declare financial support was received for the research, authorship, and/or publication of this article.
The study was supported by grants-in-aid from the National Key Research and Development Program of China (2022YFA1206103 and 2022YFE0118300) and the National Natural Science Foundation of China (No. 81991501), and the China Postdoctoral Science Foundation (2023M740139).
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Publisher’s note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
References
1.
ZhangMShiYZhouBHuangZZhaoZLiCet alPrevalence, awareness, treatment, and control of hypertension in China, 2004–18: findings from six rounds of a national survey. Br Med J. (2023) 380:e071952. 10.1038/s41598-023-28407-4
2.
BlekkenhorstLCBondonnoNPLiuAHWardNCPrinceRLLewisJRet alNitrate, the oral microbiome, and cardiovascular health: a systematic literature review of human and animal studies. Am J Clin Nutr. (2018) 107:504–22. 10.1093/ajcn/nqx046
3.
LiJZhaoFWangYChenJTaoJTianGet alGut microbiota dysbiosis contributes to the development of hypertension. Microbiome. (2017) 5:14. 10.1186/s40168-016-0222-x
4.
RosierBTMoya-GonzalvezEMCorell-EscuinPMiraA. Isolation and characterization of nitrate-reducing bacteria as potential probiotics for oral and systemic health. Front Microbiol. (2020) 11:555465. 10.3389/fmicb.2020.555465
5.
WangSQinL. Homeostatic medicine: a strategy for exploring health and disease. Curr Med (Cham). (2022) 1:16. 10.1007/s44194-022-00016-9
6.
SoRelleR. Nobel prize awarded to scientists for nitric oxide discoveries. Circulation. (1998) 98:2365–6. 10.1161/01.CIR.98.22.2365
7.
BryanNS. Nitric oxide deficiency is a primary driver of hypertension. Biochem Pharmacol. (2022) 206:115325. 10.1016/j.bcp.2022.115325
8.
Janaszak-JasieckaAPloskaAWieronskaJMDobruckiLWKalinowskiL. Endothelial dysfunction due to eNOS uncoupling: molecular mechanisms as potential therapeutic targets. Cell Mol Biol Lett. (2023) 28:21. 10.1186/s11658-023-00423-2
9.
WalfordGLoscalzoJ. Nitric oxide in vascular biology. J Thromb Haemost. (2003) 1:2112–8. 10.1046/j.1538-7836.2003.00345.x
10.
ArnoldWPMittalCKKatsukiSMuradF. Nitric oxide activates guanylate cyclase and increases guanosine 3′:5′-cyclic onophosphate levels in various tissue preparations. Proc Natl Acad Sci U S A. (1977) 74:3203–7. 10.1073/pnas.74.8.3203
11.
XuSIlyasILittlePJLiHKamatoDZhengXet alEndothelial dysfunction in atherosclerotic cardiovascular diseases and beyond: from mechanism to pharmacotherapies. Pharmacol Rev. (2021) 73:924–67. 10.1124/pharmrev.120.000096
12.
HoustonMHaysL. Acute effects of an oral nitric oxide supplement on blood pressure, endothelial function, and vascular compliance in hypertensive patients. J Clin Hypertens. (2014) 16:524–9. 10.1111/jch.12352
13.
OmarSAWebbAJLundbergJOWeitzbergE. Therapeutic effects of inorganic nitrate and nitrite in cardiovascular and metabolic diseases. J Intern Med. (2016) 279:315–36. 10.1111/joim.12441
14.
HsuCNTainYL. Targeting the renin-angiotensin-aldosterone system to prevent hypertension and kidney disease of developmental origins. Int J Mol Sci. (2021) 22:2298. 10.3390/ijms22052298
15.
HyndmanKABoesenEIElmarakbyAABrandsMWHuangPKohanDEet alRenal collecting duct NOS1 maintains fluid-electrolyte homeostasis and blood pressure. Hypertension. (2013) 62:91–8. 10.1161/HYPERTENSIONAHA.113.01291
16.
SimpsonDSPangJWeirAKongIYFritschMRashidiMet alInterferon-γ primes macrophages for pathogen ligand-induced killing via a caspase-8 and mitochondrial cell death pathway. Immunity. (2022) 55:423–41.e429. 10.1016/j.immuni.2022.01.003
17.
KrolMKepinskaM. Human nitric oxide synthase-its functions, polymorphisms, and inhibitors in the context of inflammation, diabetes and cardiovascular diseases. Int J Mol Sci. (2021) 22:56. 10.3390/ijms22010056
18.
LundbergJOWeitzbergE. Nitric oxide signaling in health and disease. Cell. (2022) 185:2853–78. 10.1016/j.cell.2022.06.010
19.
LundbergJOWeitzbergEGladwinMT. The nitrate-nitrite-nitric oxide pathway in physiology and therapeutics. Nat Rev Drug Discov. (2008) 7:156–67. 10.1038/nrd2466
20.
MarlettaMA. Nitric oxide synthase: aspects concerning structure and catalysis. Cell. (1994) 78:927–30. 10.1016/0092-8674(94)90268-2
21.
PieJEBaekSYKimHPRyuSDChungWGChaYNet alAge-related decline of inducible nitric oxide synthase gene expression in primary cultured rat hepatocytes. Mol Cells. (2002) 13:399–406. 10.1016/S1016-8478(23)15051-5
22.
KapilVKhambataRSJonesDARathodKPrimusCMassimoGet alThe noncanonical pathway for in vivo nitric oxide generation: the nitrate-nitrite-nitric oxide pathway. Pharmacol Rev. (2020) 72:692–766. 10.1124/pr.120.019240
23.
McKnightGMDuncanCWLeifertCGoldenMH. Dietary nitrate in man: friend or foe?Br J Nutr. (1999) 81:349–58. 10.1017/S000711459900063X
24.
BondonnoCPCroftKDHodgsonJM. Dietary nitrate, nitric oxide, and cardiovascular health. Crit Rev Food Sci. (2016) 56:2036–52. 10.1080/10408398.2013.811212
25.
BlekkenhorstLCPrinceRLWardNCCroftKDLewisJRDevineAet alDevelopment of a reference database for assessing dietary nitrate in vegetables. Mol Nutr Food Res. (2017) 61:1600982. 10.1002/mnfr.201600982
26.
QinLWangS. Protective roles of inorganic nitrate in health and diseases. Curr Med. (2022) 1:4. 10.1007/s44194-022-00002-1
27.
LundbergJOGovoniM. Inorganic nitrate is a possible source for systemic generation of nitric oxide. Free Radic Biol Med. (2004) 37:395–400. 10.1016/j.freeradbiomed.2004.04.027
28.
WagnerDAYoungVRTannenbaumSRSchultzDSDeenWM. Mammalian nitrate biochemistry: metabolism and endogenous synthesis. IARC Sci Publ. (1984) 57:247–53.
29.
RosierBTTakahashiNZauraEKromBPMartInez-EspinosaRMvan BredaSGJet alThe importance of nitrate reduction for oral health. J Dent Res. (2022) 101:887–97. 10.1177/00220345221080982
30.
LundbergJOWeitzbergEColeJABenjaminN. Nitrate, bacteria and human health. Nat Rev Microbiol. (2004) 2:593–602. 10.1038/nrmicro929
31.
HuangLBorniquelSLundbergJO. Enhanced xanthine oxidoreductase expression and tissue nitrate reduction in germ free mice. Nitric Oxide. (2010) 22:191–5. 10.1016/j.niox.2010.01.004
32.
LiHDuncanCTownendJKillhamKSmithLMJohnstonPet alNitrate-reducing bacteria on rat tongues. Appl Environ Microbiol. (1997) 63:924–30. 10.1128/aem.63.3.924-930.1997
33.
BurleighMCLiddleLMonaghanCMuggeridgeDJSculthorpeNButcherJPet alSalivary nitrite production is elevated in individuals with a higher abundance of oral nitrate-reducing bacteria. Free Radic Biol Med. (2018) 120:80–8. 10.1016/j.freeradbiomed.2018.03.023
34.
SchreiberFStiefPGiesekeAHeisterkampIMVerstraeteWde BeerDet alDenitrification in human dental plaque. BMC Biol. (2010) 8:24. 10.1186/1741-7007-8-24
35.
WoessnerMSmoligaJMTarziaBStablerTVan BruggenMAllenJD. A stepwise reduction in plasma and salivary nitrite with increasing strengths of mouthwash following a dietary nitrate load. Nitric Oxide. (2016) 54:1–7. 10.1016/j.niox.2016.01.002
36.
GovoniMJanssonEAWeitzbergELundbergJO. The increase in plasma nitrite after a dietary nitrate load is markedly attenuated by an antibacterial mouthwash. Nitric Oxide. (2008) 19:333–7. 10.1016/j.niox.2008.08.003
37.
BlotS. Antiseptic mouthwash, the nitrate-nitrite-nitric oxide pathway, and hospital mortality: a hypothesis generating review. Intensive Care Med. (2021) 47:28–38. 10.1007/s00134-020-06276-z
38.
KoC-YHuA-KChouDHuangL-MSuH-ZYanF-Ret alAnalysis of oral microbiota in patients with obstructive sleep apnea-associated hypertension. Hypertens Res. (2019) 42:1692–700. 10.1038/s41440-019-0260-4
39.
ChenB-YLinW-ZLiY-LBiCDuL-JLiuYet alRoles of oral microbiota and oral-gut microbial transmission in hypertension. J Adv Res. (2023) 43:147–61. 10.1016/j.jare.2022.03.007
40.
DougallHTSmithLDuncanCBenjaminN. The effect of amoxycillin on salivary nitrite concentrations: an important mechanism of adverse reactions?Br J Clin Pharmacol. (1995) 39:460–2. 10.1111/j.1365-2125.1995.tb04479.x
41.
KapilVHaydarSMPearlVLundbergJOWeitzbergEAhluwaliaA. Physiological role for nitrate-reducing oral bacteria in blood pressure control. Free Radic Biol Med. (2013) 55:93–100. 10.1016/j.freeradbiomed.2012.11.013
42.
BescosRAshworthACutlerCBrookesZLBelfieldLRodilesAet alEffects of chlorhexidine mouthwash on the oral microbiome. Sci Rep. (2020) 10:5254. 10.1038/s41598-020-61912-4
43.
HajishengallisG. Periodontitis: from microbial immune subversion to systemic inflammation. Nat Rev Immunol. (2014) 15:30–44. 10.1038/nri3785
44.
BacklundCJSergesketterAROffenbacherSSchoenfischMH. Antibacterial efficacy of exogenous nitric oxide on periodontal pathogens. J Dent Res. (2014) 93:1089–94. 10.1177/0022034514529974
45.
VanhataloABlackwellJRL'HeureuxJEWilliamsDWSmithAvan der GiezenMet alNitrate-responsive oral microbiome modulates nitric oxide homeostasis and blood pressure in humans. Free Radic Biol Med. (2018) 124:21–30. 10.1016/j.freeradbiomed.2018.05.078
46.
AasJAPasterBJStokesLNOlsenIDewhirstFE. Defining the normal bacterial flora of the oral cavity. J Clin Microbiol. (2005) 43:5721–32. 10.1128/JCM.43.11.5721-5732.2005
47.
DoelJJBenjaminNHectorMPRogersMAllakerRP. Evaluation of bacterial nitrate reduction in the human oral cavity. Eur J Oral Sci. (2005) 113:14–9. 10.1111/j.1600-0722.2004.00184.x
48.
GohCEBohnBMarotzCMolinskyRRoySPasterBJet alNitrite generating and depleting capacity of the oral microbiome and cardiometabolic risk: results from ORIGINS. J Am Heart Assoc. (2022) 11:e023038. 10.1161/JAHA.121.023038
49.
Carda-DiéguezMRosierBTLloretSLlenaCMiraA. The tongue biofilm metatranscriptome identifies metabolic pathways associated with the presence or absence of halitosis. NPJ Biofilms Microbiomes. (2022) 8:100. 10.1038/s41522-022-00364-2
50.
HydeERAndradeFVaksmanZParthasarathyKJiangHParthasarathyDKet alMetagenomic analysis of nitrate-reducing bacteria in the oral cavity: implications for nitric oxide homeostasis. PLoS One. (2014) 9:e88645. 10.1371/journal.pone.0088645
51.
Sato-SuzukiYWashioJWicaksonoDPSatoTFukumotoSTakahashiN. Nitrite-producing oral microbiome in adults and children. Sci Rep. (2020) 10:16652. 10.1038/s41598-020-73479-1
52.
BedaleWSindelarJJMilkowskiAL. Dietary nitrate and nitrite: benefits, risks, and evolving perceptions. Meat Sci. (2016) 120:85–92. 10.1016/j.meatsci.2016.03.009
53.
d'IschiaMNapolitanoAManiniPPanzellaL. Secondary targets of nitrite-derived reactive nitrogen species: nitrosation/nitration pathways, antioxidant defense mechanisms and toxicological implications. Chem Res Toxicol. (2011) 24:2071–92. 10.1021/tx2003118
54.
Milton-LaskibarIMartinezJAPortilloMP. Current knowledge on beetroot bioactive compounds: role of nitrate and betalains in health and disease. Foods. (2021) 10:1314. 10.3390/foods10061314
55.
BerendsJEvan den BergLMMGuggeisMAHenckensNFTHosseinIJde JoodeMEJRet alConsumption of nitrate-rich beetroot juice with or without vitamin C supplementation increases the excretion of urinary nitrate, nitrite, and N-nitroso compounds in humans. Int J Mol Sci. (2019) 20:2277. 10.3390/ijms20092277
56.
LiYQianFChengXWangDWangYPanYet alDysbiosis of oral microbiota and metabolite profiles associated with type 2 diabetes-mellitus. Microbiol Spectr. (2023) 11:e0379622. 10.1128/spectrum.03796-22
57.
GaoCLiXZhaoXYangPWangXChenXet alStandardized studies of the oral microbiome: from technology-driven to hypothesis-driven. Imeta. (2022) 1:e19. 10.1002/imt2.19
Summary
Keywords
hypertension, nitric oxide, oral microbiota, nitrate-reducing bacteria, probiotics, blood pressure homeostasis
