Instant termination as a novel indicator for prognosis of persistent atrial fibrillation during cryoballoon ablation: a propensity score-matched analysis

  • 1. Department of Cardiology, The Second Affiliated Hospital, School of Medicine, Zhejiang University, Hangzhou, China

  • 2. State Key Laboratory of Transvascular Implantation Devices, Hangzhou, China

  • 3. Heart Regeneration and Repair Key Laboratory of Zhejiang Province, Hangzhou, China

Article metrics

View details

1,3k

Views

377

Downloads

Abstract

Background:

Instant atrial fibrillation termination (AFT) during radiofrequency ablation has been suggested as a predictor of prognosis in persistent atrial fibrillation (AF). However, its role in cryoballoon ablation remains unclear. This study investigated the association between AFT and recurrent atrial tachyarrhythmia in patients with persistent AF undergoing cryoballoon ablation.

Methods:

Patients with non-valvular, drug-resistant, persistent AF who underwent cryoballoon ablation between January 2021 and June 2023 were included and categorized based on the presence or absence of AFT. Propensity score matching (PSM) was applied to eliminate covariate imbalances. Baseline characteristics, procedural details, and clinical outcomes were compared between the groups.

Results:

A total of 189 patients [65.0 (59.0–71.0) years] were included. Among them, 41 experienced instant AFT, while 148 remained in AF rhythm. The baseline conditions were similar, except that patients with AFT presented significantly lower left atrial diameter (LAD). During a follow-up of 16.0 [9.1–26.9] months, the recurrence rates of arrhythmias were significantly lower in the AFT group (log-rank P = 0.044). Both AFT [HR: 0.298, 95% CI: (0.091–0.976), P = 0.035] and baseline LAD [HR: 1.079, 95% CI: (1.012–1.151), P = 0.021] were independent predictors of recurrence. We further assessed the prognostic value of AFT in PSM groups which showed that the recurrence rates were also significantly lower in the AFT group (log-rank P = 0.049).

Conclusion:

Instant AFT during cryoballoon ablation is associated with a reduced risk of arrhythmic recurrence in patients with persistent AF.

1 Introduction

Characterized by episodes lasting longer than 7 days, persistent atrial fibrillation (AF) is associated with a higher risk of stroke, heart failure, and mortality (1–3). Catheter ablation, a minimally invasive procedure, has emerged as a well-established treatment for persistent AF. Recent evidence indicates that catheter ablation offers superior rhythm control compared with anti-arrhythmic drug therapy (4, 5), potentially improving quality of life and reducing hospitalizations.

Instant AF termination (AFT) during ablation, leading to immediate restoration of sinus rhythm or atrial tachycardia, is considered a critical procedural endpoint of catheter ablation for persistent AF as it has been observed by some experts to predict successful long-term outcomes (6, 7), suggesting a correlation with reduced AF recurrence (8, 9). This immediate response is thought to signify effective lesion formation and adequate substrate modification, key goals in AF ablation.

However, existing studies largely focus on radiofrequency ablation, and a significant gap exists in the literature regarding the role of instant AFT in the context of cryoballoon ablation, a relatively newer technique for persistent AF management. This gap in evidence highlights a crucial area for future research, as understanding the relationship between instant AFT during cryoballoon ablation and long-term ablation success could significantly enhance procedural strategies, patient selection, and overall treatment efficacy in managing persistent AF. Therefore, our study aimed to investigate the role of instant AFT in predicting the clinical outcome of persistent AF patients who underwent cryoballoon ablation.

2 Materials and methods

2.1 Study population

A total of 189 patients with non-valvular, drug-resistant, persistent AF who underwent cryoballoon ablation from January 2021 to June 2022 in the Second Affiliated Hospital Zhejiang University School of Medicine were included. Among them, 41 had instant AFT during cryoballoon ablation, while 148 remained in AF rhythm after the ablation. The study flowchart is displayed in Figure 1. AF was diagnosed as absolutely irregular RR intervals and no discernible distinct P waves lasting longer than 30 s, as documented with a Holter monitor or electrocardiogram. AF lasting longer than 7 days or terminated by cardioversion after >7 days was defined as persistent AF. Short-term persistent AF was defined as a duration <1 year since onset, while long-standing persistent AF was defined as a duration >1 year since onset.

Figure 1

Figure 1

Study flowchart. AF, atrial fibrillation; CBA, cryoballoon ablation; PSM, propensity score matching.

Patients were excluded if they had a left atrial diameter (LAD) (anterior-to-posterior) >60 mm on transthoracic echocardiography, the presence of thrombus in the left atrium or left atrial appendage (LAA) on transesophageal echocardiography or computed tomography angiography, previous history of AF ablation, acute cardiovascular events within 3 months, or malignancy with life expectancy <1 year. Since this is a retrospective observational study using de-identified data, written informed consent was not required from the patient. Our study was approved by the local institution review committee of the Second Affiliated Hospital Zhejiang University School of Medicine (approved number 2024-0463 on 16 April 2024) and complied with the precepts of the Declaration of Helsinki.

2.2 Cryoballoon ablation

Local anesthesia with sedation was employed for every patient. Under x-ray guidance, a single transseptal puncture was completed. A 23 or 28 mm second-generation cryoballoon (Arctic Front Advance, Medtronic, MN, USA) was advanced through a steerable sheath (FlexCath Advance, Medtronic, MN, USA) into the left atrium. Once the pulmonary vein was confirmed, the cryoballoon was further inflated and advanced to the ostium of the pulmonary vein, following angiography with the injection of contrast dye to ensure complete pulmonary vein occlusion.

The Achieve catheter (Achieve, Medtronic, MN, USA) was cannulated distally into the pulmonary vein for the measurement of electric activity. The cryoballoon ablation followed the sequence of left superior pulmonary vein (LSPV), left inferior pulmonary vein (LIPV), right superior pulmonary vein (RSPV), and right inferior pulmonary vein (RIPV). A standard 180 s freeze was adopted for each pulmonary vein including those without a recorded potential. The freezing time and duration were adjusted according to our protocol based on the time to isolation (TTI).

Generally, the freezing time was set to 150–180 s when TTI was ≤30 s. When the TTI was between 30 and 60 s, the freezing time was set to 180 s. A bonus freeze of 120 s was applied only when the TTI was >60 s. If the TTI could not be recorded, a 180 s freeze with or without a bonus freeze of 120 s (when the temperature decreased below −40℃ within 60 s after the application) was adopted.

During the freezing of the RSPV and RIPV, continuous phrenic pacing (8–10 V; pace interval, 2,000 ms) with an electrode placed in the superior vena cava was applied. Phrenic nerve palsy was monitored by observing diaphragm movement under fluoroscopy. If a decrease in diaphragm movement was detected, the freezing procedure was subsequently halted to prevent further injury.

In the event of atrial flutter or tachycardia during the ablation procedure, the operator first attempted to map and ablate the relevant sites. If termination was unsuccessful or the patient could not tolerate the procedure, cardioversion was performed. Heparin was intravenously administered throughout the procedure, with the activated clotting time carefully monitored to maintain a range of 250–300 s.

Following the ablation, the Achieve catheter was routinely employed for pulmonary vein potential mapping and pacing verification. Electrophysiology studies and atrial burst pacing were subsequently performed to confirm the isolation effect.

Instant AFT was defined as the conversion of AF to sinus rhythm during cryoballoon ablation at any of the locations, including the pulmonary vein, left atrium roof, and left and right pulmonary vein antra.

2.3 Periprocedural preparation

Upon admission, current and past medical histories of all patients were acquired after admission. Physical examinations were performed by experienced physicians, and routine laboratory examinations were carried out. Transthoracic echocardiography was performed for every patient. Transesophageal echocardiography or computed tomography angiography was performed 1 day prior to the procedure to assess for thrombus in the left atrium or LAA, re-evaluate the left atrial size, and identify any structural lesions.

Before the procedure, anti-arrhythmic drugs were discontinued five half-lives before the procedure. All patients received anticoagulation therapy for a minimum of 8 weeks. New oral anticoagulants (dabigatran or rivaroxaban) were commonly prescribed and discontinued 24 h before the procedure. For patients taking warfarin, ablation was only considered if the international normalized ratio was stable and within the range of 2.0–3.0, and warfarin was not withdrawn before the procedure.

2.4 Follow-up

Patients were scheduled for outpatient follow-up visits and 24 h Holter monitoring at 1, 3, 6, and 12 months post-procedure, and then annually thereafter. A 12-lead electrocardiogram was used to detect arrhythmic recurrence. Telephone follow-up was conducted before the scheduled visit to evaluate patients' status and ensure timely re-examination. During every outpatient visit, physical examinations were also performed, and precise medical histories were taken to evaluate post-procedural complications. Additional laboratory, radiological, or echocardiographic examinations were only performed when certain indications were presented.

The primary endpoint was the recurrence of arrhythmias, defined as episodes of AF, atrial flutter, and atrial tachycardia lasting longer than 30 s after the blanking period (3 months post-procedure), which was confirmed by Holter monitor, 12-lead electrocardiogram, or data from a previously implanted device. During the blanking period, almost all patients received anti-arrhythmic drugs. If CHA2DS2-VASc ≥2 in males or ≥3 in females, oral anticoagulants were recommended for long-term anticoagulation. The continuation of anti-arrhythmic drugs was not considered a recurrence in this study.

2.5 Statistical analysis

Continuous variables are described as the mean ± standard deviation. Comparisons between groups were made using a two-sample t-test or Mann–Whitney test, depending on the equality of variance. Categorical variables are presented as percentages (%), with P-values derived from χ2 tests or Fisher's exact tests (for expected frequencies lower than 5). Univariate and multivariate logistic regression analysis was adopted to assess the relationship between instant AFT and other baseline variables. Model 1 was the univariate regression model, and Model 2 adjusted for age and gender. Model 3 adjusted for age, gender, body mass index (BMI), AF type, CHA2DS2-VASc score, HAS-BLED score, LAD, left ventricular ejection fraction (LVEF), estimated glomerular filtration rate (eGFR), history of hypertension, and history of diabetic mellitus.

A Kaplan–Meier analysis with the log-rank test was adopted to evaluate the recurrence risk. Both univariate and multivariate Cox proportional hazard regression models were applied to calculate the hazard ratios for baseline characteristics. Variables of age, gender, BMI, AFT, AF type, LAD, and eGFR were included in univariate analysis (P < 0.10), and the prognostic factors for arrhythmic recurrence were discovered through multivariate analysis. A 1:1 propensity score matching (PSM) was carried out, using a multivariate logistic regression model including age, gender, LAD, and BMI to adjust for baseline imbalances. A two-sided P-value of <0.05 was considered statistically significant. SAS 9.4 software (SAS Institute Inc., Cary, NC, USA) was used to conduct the analysis.

3 Results

A total of 189 patients were included in the study. Among them, 41 experienced instant AFT, while 148 remained in AF rhythm after cryoballoon ablation. No significant differences in age and gender were observed between the two groups. The baseline characteristics were similar, except that patients with instant AFT had significantly higher LAD [40.4 (37.7, 43.4) mm vs. 42.2 (39.6, 46.8) mm, P = 0.005]. A detailed comparison of baseline characteristics is listed in Table 1.

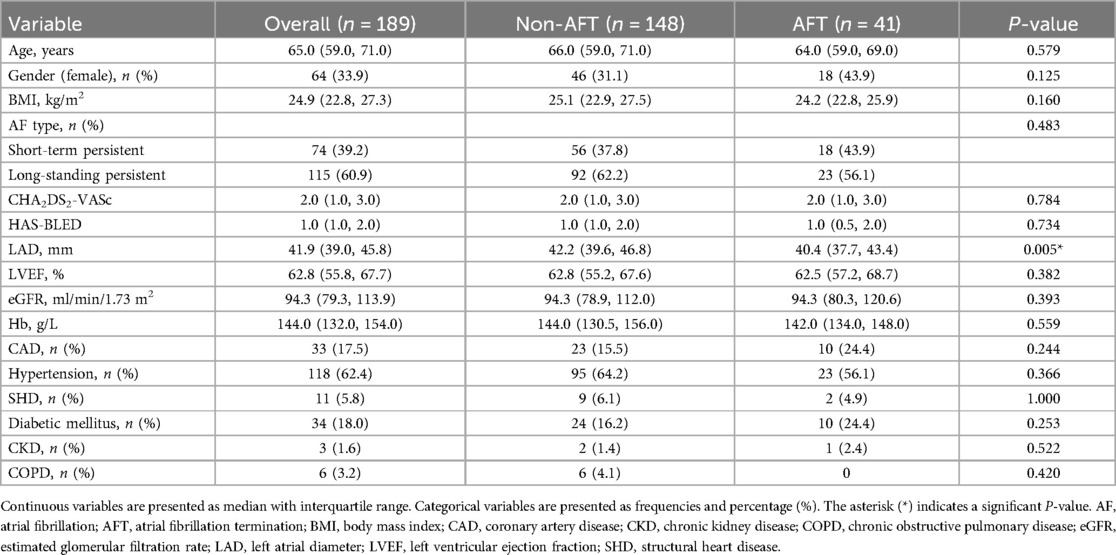

Table 1

Variable Overall (n = 189) Non-AFT (n = 148) AFT (n = 41) P-value
Age, years 65.0 (59.0, 71.0) 66.0 (59.0, 71.0) 64.0 (59.0, 69.0) 0.579
Gender (female), n (%) 64 (33.9) 46 (31.1) 18 (43.9) 0.125
BMI, kg/m2 24.9 (22.8, 27.3) 25.1 (22.9, 27.5) 24.2 (22.8, 25.9) 0.160
AF type, n (%) 0.483
Short-term persistent 74 (39.2) 56 (37.8) 18 (43.9)
Long-standing persistent 115 (60.9) 92 (62.2) 23 (56.1)
CHA2DS2-VASc 2.0 (1.0, 3.0) 2.0 (1.0, 3.0) 2.0 (1.0, 3.0) 0.784
HAS-BLED 1.0 (1.0, 2.0) 1.0 (1.0, 2.0) 1.0 (0.5, 2.0) 0.734
LAD, mm 41.9 (39.0, 45.8) 42.2 (39.6, 46.8) 40.4 (37.7, 43.4) 0.005*
LVEF, % 62.8 (55.8, 67.7) 62.8 (55.2, 67.6) 62.5 (57.2, 68.7) 0.382
eGFR, ml/min/1.73 m2 94.3 (79.3, 113.9) 94.3 (78.9, 112.0) 94.3 (80.3, 120.6) 0.393
Hb, g/L 144.0 (132.0, 154.0) 144.0 (130.5, 156.0) 142.0 (134.0, 148.0) 0.559
CAD, n (%) 33 (17.5) 23 (15.5) 10 (24.4) 0.244
Hypertension, n (%) 118 (62.4) 95 (64.2) 23 (56.1) 0.366
SHD, n (%) 11 (5.8) 9 (6.1) 2 (4.9) 1.000
Diabetic mellitus, n (%) 34 (18.0) 24 (16.2) 10 (24.4) 0.253
CKD, n (%) 3 (1.6) 2 (1.4) 1 (2.4) 0.522
COPD, n (%) 6 (3.2) 6 (4.1) 0 0.420

Baseline characteristics of patients with or without instant AFT.

Continuous variables are presented as median with interquartile range. Categorical variables are presented as frequencies and percentage (%). The asterisk (*) indicates a significant P-value. AF, atrial fibrillation; AFT, atrial fibrillation termination; BMI, body mass index; CAD, coronary artery disease; CKD, chronic kidney disease; COPD, chronic obstructive pulmonary disease; eGFR, estimated glomerular filtration rate; LAD, left atrial diameter; LVEF, left ventricular ejection fraction; SHD, structural heart disease.

For procedural information, AFT occurred in 41 patients out of 189 patients who underwent cryoballoon ablation, accounting for 21.6% of the study population. The highest incidence of AFT was observed during ablation of RSPV (24.4%), followed by LIPV (19.5%), RIPV (19.5%), and LSPV (17.1%). Moreover, eight cases of AFT occurred during additional pulmonary vein ablation: five (12.2%) cases at the left atrial roof, two (4.9%) cases at the left pulmonary vein (LPV) antrum, and one (2.4%) case at the right pulmonary vein (RPV) antrum.

Notably, pulmonary vein potential was more frequently recorded in patients with instant AFT, especially at RSPV [33 (80.5%) vs. 91 (61.5%), P = 0.023]. Furthermore, ablation tended to be more moderate in the instant AFT group, with fewer patients undergoing additional pulmonary vein ablation, particularly at the left atrial roof [29 (70.7%) vs. 125 (84.5%), P = 0.045]. Ablation duration was significantly shorter for LIPV and RIPV, while complication rates were comparable between the two groups. Detailed results are presented in Table 2.

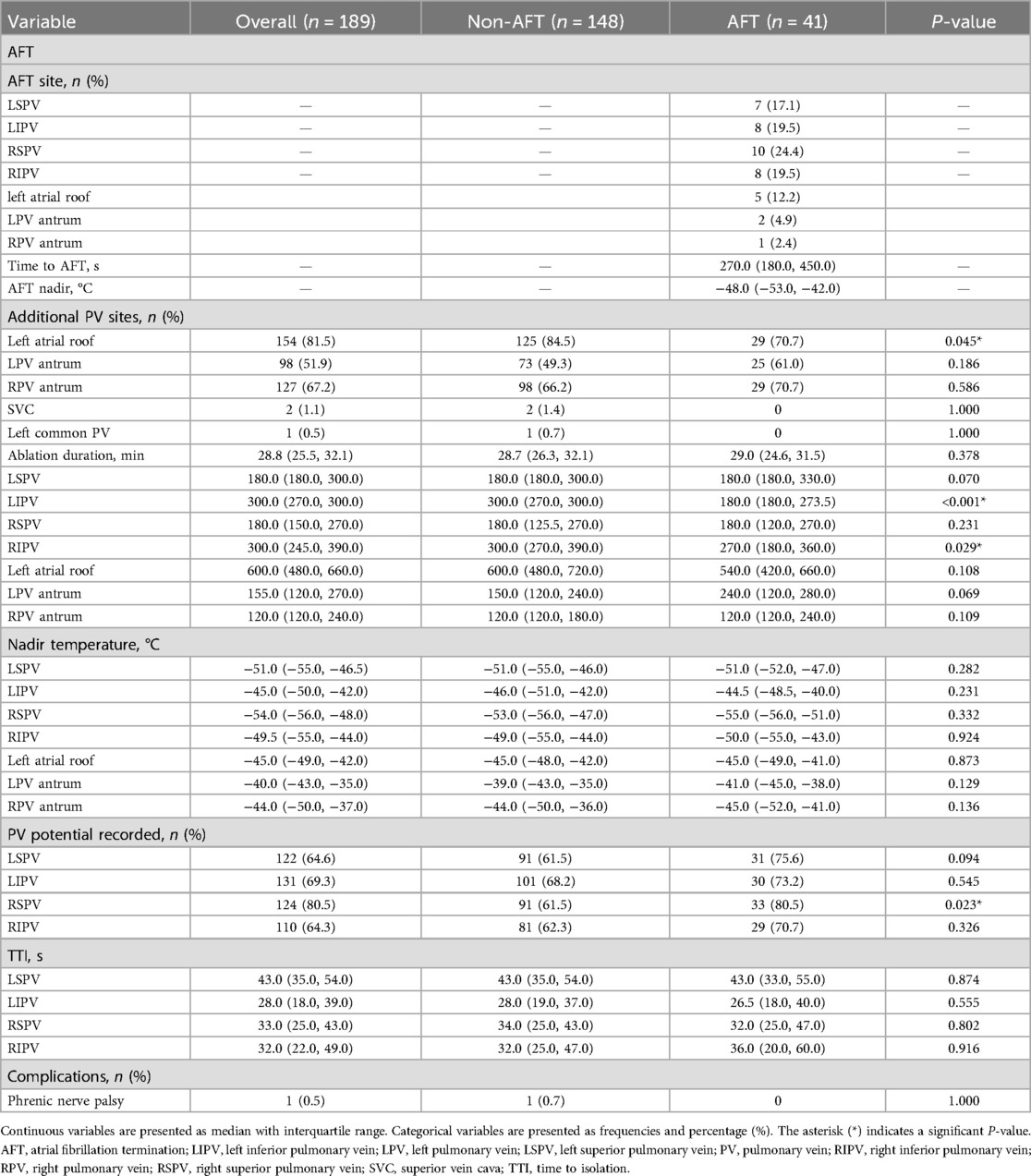

Table 2

Variable Overall (n = 189) Non-AFT (n = 148) AFT (n = 41) P-value
AFT
AFT site, n (%)
LSPV — — 7 (17.1) —
LIPV — — 8 (19.5) —
RSPV — — 10 (24.4) —
RIPV — — 8 (19.5) —
left atrial roof 5 (12.2)
LPV antrum 2 (4.9)
RPV antrum 1 (2.4)
Time to AFT, s — — 270.0 (180.0, 450.0) —
AFT nadir, ℃ — — −48.0 (−53.0, −42.0) —
Additional PV sites, n (%)
Left atrial roof 154 (81.5) 125 (84.5) 29 (70.7) 0.045*
LPV antrum 98 (51.9) 73 (49.3) 25 (61.0) 0.186
RPV antrum 127 (67.2) 98 (66.2) 29 (70.7) 0.586
SVC 2 (1.1) 2 (1.4) 0 1.000
Left common PV 1 (0.5) 1 (0.7) 0 1.000
Ablation duration, min 28.8 (25.5, 32.1) 28.7 (26.3, 32.1) 29.0 (24.6, 31.5) 0.378
LSPV 180.0 (180.0, 300.0) 180.0 (180.0, 300.0) 180.0 (180.0, 330.0) 0.070
LIPV 300.0 (270.0, 300.0) 300.0 (270.0, 300.0) 180.0 (180.0, 273.5) <0.001*
RSPV 180.0 (150.0, 270.0) 180.0 (125.5, 270.0) 180.0 (120.0, 270.0) 0.231
RIPV 300.0 (245.0, 390.0) 300.0 (270.0, 390.0) 270.0 (180.0, 360.0) 0.029*
Left atrial roof 600.0 (480.0, 660.0) 600.0 (480.0, 720.0) 540.0 (420.0, 660.0) 0.108
LPV antrum 155.0 (120.0, 270.0) 150.0 (120.0, 240.0) 240.0 (120.0, 280.0) 0.069
RPV antrum 120.0 (120.0, 240.0) 120.0 (120.0, 180.0) 120.0 (120.0, 240.0) 0.109
Nadir temperature, ℃
LSPV −51.0 (−55.0, −46.5) −51.0 (−55.0, −46.0) −51.0 (−52.0, −47.0) 0.282
LIPV −45.0 (−50.0, −42.0) −46.0 (−51.0, −42.0) −44.5 (−48.5, −40.0) 0.231
RSPV −54.0 (−56.0, −48.0) −53.0 (−56.0, −47.0) −55.0 (−56.0, −51.0) 0.332
RIPV −49.5 (−55.0, −44.0) −49.0 (−55.0, −44.0) −50.0 (−55.0, −43.0) 0.924
Left atrial roof −45.0 (−49.0, −42.0) −45.0 (−48.0, −42.0) −45.0 (−49.0, −41.0) 0.873
LPV antrum −40.0 (−43.0, −35.0) −39.0 (−43.0, −35.0) −41.0 (−45.0, −38.0) 0.129
RPV antrum −44.0 (−50.0, −37.0) −44.0 (−50.0, −36.0) −45.0 (−52.0, −41.0) 0.136
PV potential recorded, n (%)
LSPV 122 (64.6) 91 (61.5) 31 (75.6) 0.094
LIPV 131 (69.3) 101 (68.2) 30 (73.2) 0.545
RSPV 124 (80.5) 91 (61.5) 33 (80.5) 0.023*
RIPV 110 (64.3) 81 (62.3) 29 (70.7) 0.326
TTI, s
LSPV 43.0 (35.0, 54.0) 43.0 (35.0, 54.0) 43.0 (33.0, 55.0) 0.874
LIPV 28.0 (18.0, 39.0) 28.0 (19.0, 37.0) 26.5 (18.0, 40.0) 0.555
RSPV 33.0 (25.0, 43.0) 34.0 (25.0, 43.0) 32.0 (25.0, 47.0) 0.802
RIPV 32.0 (22.0, 49.0) 32.0 (25.0, 47.0) 36.0 (20.0, 60.0) 0.916
Complications, n (%)
Phrenic nerve palsy 1 (0.5) 1 (0.7) 0 1.000

Procedural details of patients with or without instant AFT.

Continuous variables are presented as median with interquartile range. Categorical variables are presented as frequencies and percentage (%). The asterisk (*) indicates a significant P-value. AFT, atrial fibrillation termination; LIPV, left inferior pulmonary vein; LPV, left pulmonary vein; LSPV, left superior pulmonary vein; PV, pulmonary vein; RIPV, right inferior pulmonary vein; RPV, right pulmonary vein; RSPV, right superior pulmonary vein; SVC, superior vein cava; TTI, time to isolation.

To investigate the relationship between AFT and baseline characteristics, we conducted a logistic regression analysis (Figure 2 and Supplementary Table 1). Our findings revealed that LAD was the only significant factor associated with AFT, with an adjusted OR (95% CI) of 0.889 (0.813, 0.972) with P = 0.010, suggesting that a larger LAD is associated with a lower frequency of AFT.

Figure 2

Figure 2

Forest plot of multivariate logistic regression analysis. LAD is the only factor that is significantly associated with AFT (adjusted OR: 0.889, 95% CI: 0.813–0.972; P = 0.010). AF, atrial fibrillation; AFT, atrial fibrillation termination; BMI, body mass index; DM, diabetic mellitus; eGFR, estimated glomerular filtration rate; HTN, hypertension; LAD, left atrial diameter; LVEF, left ventricular ejection fraction.

Through a follow-up of 16.0 (9.1, 26.9) months, 13 (6.9%) patients were lost due to changes in their contact information or their residence being too far from the hospital, and 1 patient died in a car accident. Most follow-up events were similar between the two groups, including a non-significant higher occurrence of AF redo ablation in the non-AFT group. Notably, 33 cases (18.5%) of recurrent arrhythmia were observed (shown in Table 3), and recurrence rates differed significantly between the AFT and non-AFT groups (Figure 3A, 7.7% vs. 21.9%, log-rank P = 0.044). A Cox proportional hazard model showed that both AFT [0.298 (0.091, 0.976), P = 0.035] and baseline LAD [1.079 (1.012, 1.151), P = 0.021] could independently predict the risk of recurrence (Table 4).

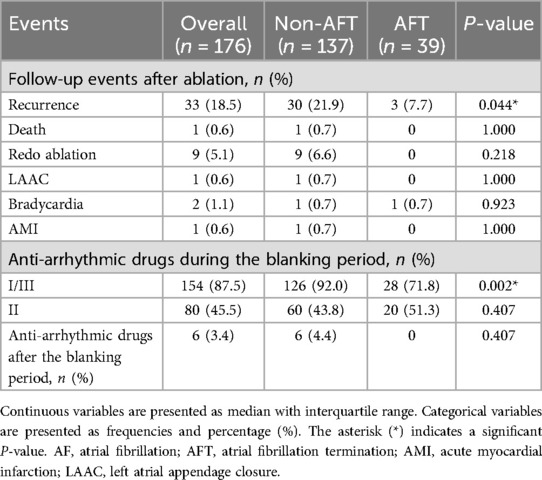

Table 3

Events Overall (n = 176) Non-AFT (n = 137) AFT (n = 39) P-value
Follow-up events after ablation, n (%)
Recurrence 33 (18.5) 30 (21.9) 3 (7.7) 0.044*
Death 1 (0.6) 1 (0.7) 0 1.000
Redo ablation 9 (5.1) 9 (6.6) 0 0.218
LAAC 1 (0.6) 1 (0.7) 0 1.000
Bradycardia 2 (1.1) 1 (0.7) 1 (0.7) 0.923
AMI 1 (0.6) 1 (0.7) 0 1.000
Anti-arrhythmic drugs during the blanking period, n (%)
I/III 154 (87.5) 126 (92.0) 28 (71.8) 0.002*
II 80 (45.5) 60 (43.8) 20 (51.3) 0.407
Anti-arrhythmic drugs after the blanking period, n (%) 6 (3.4) 6 (4.4) 0 0.407

Detailed follow-up events of patients with or without instant AFT.

Continuous variables are presented as median with interquartile range. Categorical variables are presented as frequencies and percentage (%). The asterisk (*) indicates a significant P-value. AF, atrial fibrillation; AFT, atrial fibrillation termination; AMI, acute myocardial infarction; LAAC, left atrial appendage closure.

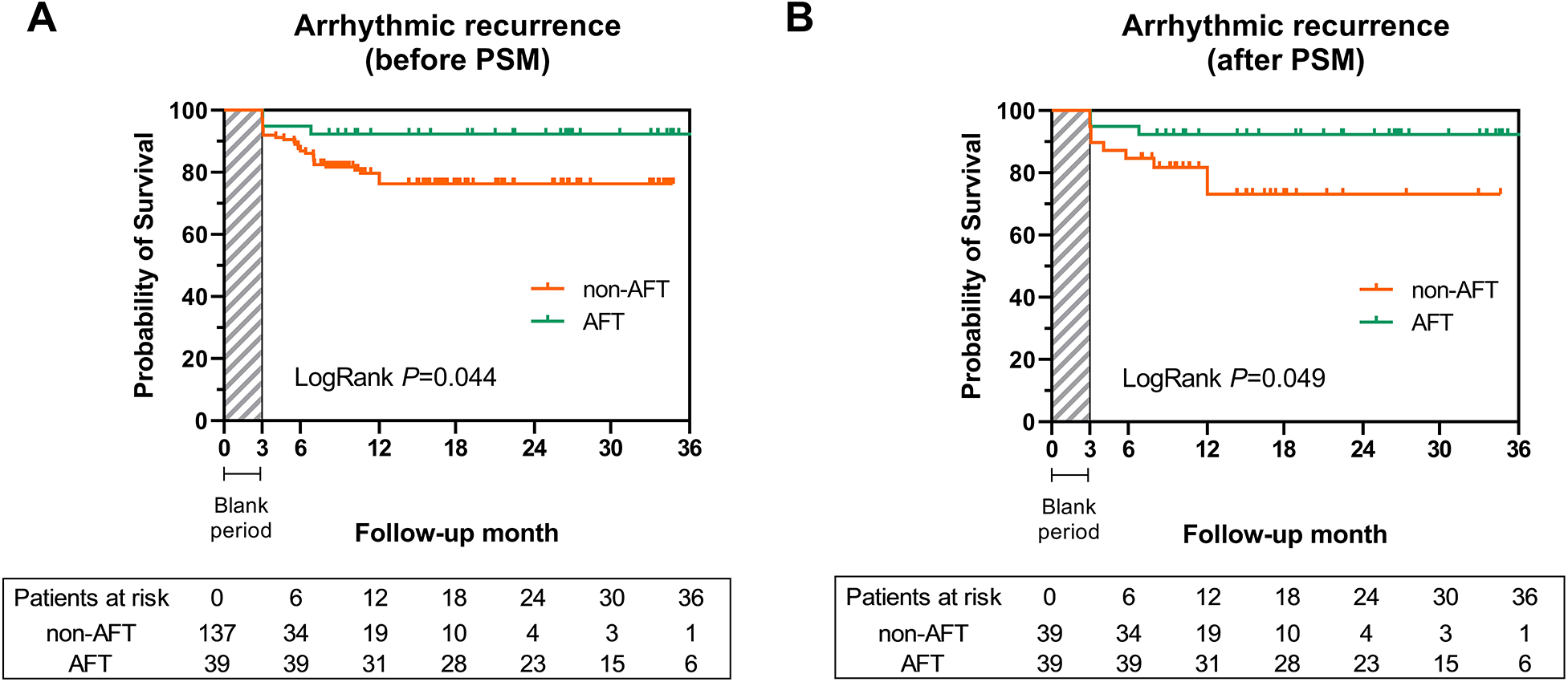

Figure 3

Figure 3

Kaplan-Meier curve for the risk of arrhythmic recurrence among the AFT group and non-AFT group before and after PSM. (A) Cumulative survival free from arrhythmic recurrence was significantly higher in the AFT group before PSM (log-rank P = 0.044). (B) The AFT group also presented a higher survival rate free from arrhythmic recurrence after PSM (log-rank P = 0.049). AF, atrial fibrillation; AFT, atrial fibrillation termination; PSM, propensity score matching.

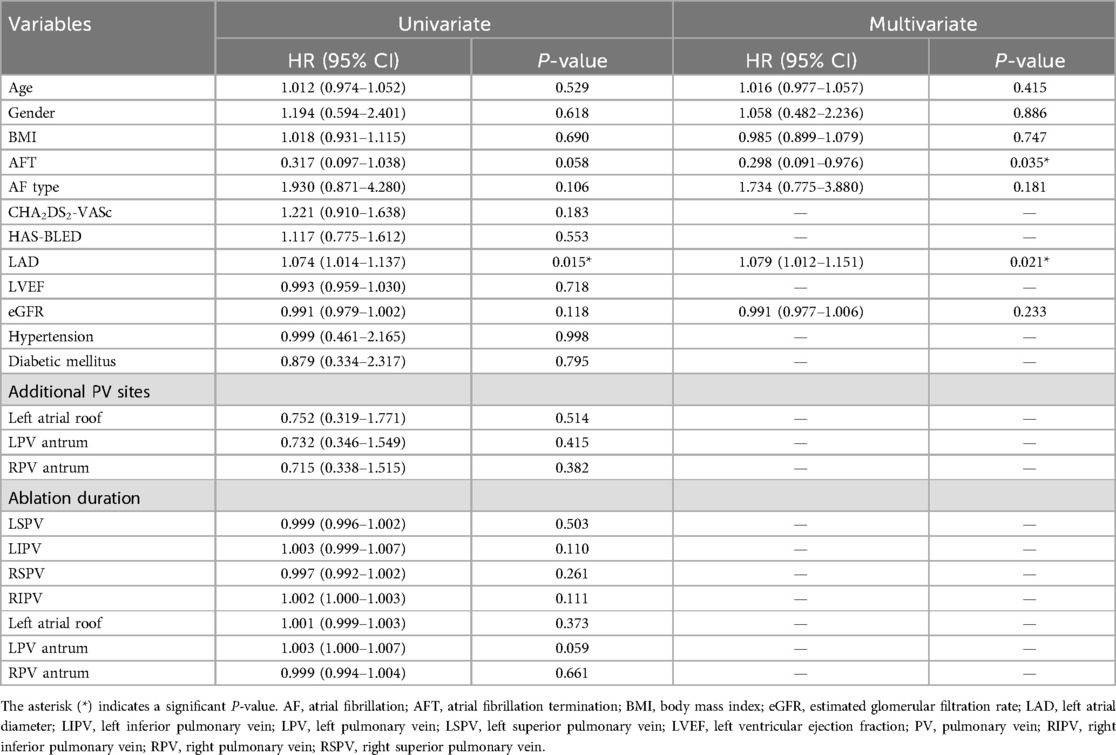

Table 4

Variables Univariate Multivariate
HR (95% CI) P-value HR (95% CI) P-value
Age 1.012 (0.974–1.052) 0.529 1.016 (0.977–1.057) 0.415
Gender 1.194 (0.594–2.401) 0.618 1.058 (0.482–2.236) 0.886
BMI 1.018 (0.931–1.115) 0.690 0.985 (0.899–1.079) 0.747
AFT 0.317 (0.097–1.038) 0.058 0.298 (0.091–0.976) 0.035*
AF type 1.930 (0.871–4.280) 0.106 1.734 (0.775–3.880) 0.181
CHA2DS2-VASc 1.221 (0.910–1.638) 0.183 — —
HAS-BLED 1.117 (0.775–1.612) 0.553 — —
LAD 1.074 (1.014–1.137) 0.015* 1.079 (1.012–1.151) 0.021*
LVEF 0.993 (0.959–1.030) 0.718 — —
eGFR 0.991 (0.979–1.002) 0.118 0.991 (0.977–1.006) 0.233
Hypertension 0.999 (0.461–2.165) 0.998 — —
Diabetic mellitus 0.879 (0.334–2.317) 0.795 — —
Additional PV sites
Left atrial roof 0.752 (0.319–1.771) 0.514 — —
LPV antrum 0.732 (0.346–1.549) 0.415 — —
RPV antrum 0.715 (0.338–1.515) 0.382 — —
Ablation duration
LSPV 0.999 (0.996–1.002) 0.503 — —
LIPV 1.003 (0.999–1.007) 0.110 — —
RSPV 0.997 (0.992–1.002) 0.261 — —
RIPV 1.002 (1.000–1.003) 0.111 — —
Left atrial roof 1.001 (0.999–1.003) 0.373 — —
LPV antrum 1.003 (1.000–1.007) 0.059 — —
RPV antrum 0.999 (0.994–1.004) 0.661 — —

Cox proportional hazard model for the arrhythmic recurrence.

The asterisk (*) indicates a significant P-value. AF, atrial fibrillation; AFT, atrial fibrillation termination; BMI, body mass index; eGFR, estimated glomerular filtration rate; LAD, left atrial diameter; LIPV, left inferior pulmonary vein; LPV, left pulmonary vein; LSPV, left superior pulmonary vein; LVEF, left ventricular ejection fraction; PV, pulmonary vein; RIPV, right inferior pulmonary vein; RPV, right pulmonary vein; RSPV, right superior pulmonary vein.

Given the baseline differences in LAD, we further assessed the prognostic value of AFT using the 1:1 PSM analysis. After matching, 39 patients with AFT were compared with 39 patients without AFT, and baseline characteristics (including LAD, Table 5) and procedural information (Supplementary Table 2) were comparable. Survival analysis demonstrated that the recurrence risk in the AFT-matched group remained significantly lower than in the non-AFT-matched group (Figure 3B, log-rank P = 0.049).

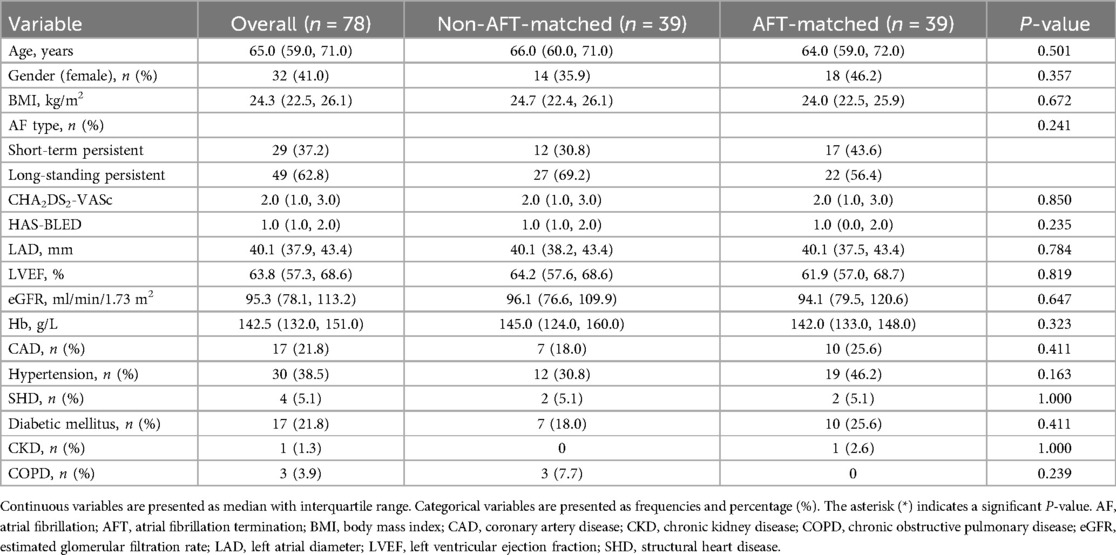

Table 5

Variable Overall (n = 78) Non-AFT-matched (n = 39) AFT-matched (n = 39) P-value
Age, years 65.0 (59.0, 71.0) 66.0 (60.0, 71.0) 64.0 (59.0, 72.0) 0.501
Gender (female), n (%) 32 (41.0) 14 (35.9) 18 (46.2) 0.357
BMI, kg/m2 24.3 (22.5, 26.1) 24.7 (22.4, 26.1) 24.0 (22.5, 25.9) 0.672
AF type, n (%) 0.241
Short-term persistent 29 (37.2) 12 (30.8) 17 (43.6)
Long-standing persistent 49 (62.8) 27 (69.2) 22 (56.4)
CHA2DS2-VASc 2.0 (1.0, 3.0) 2.0 (1.0, 3.0) 2.0 (1.0, 3.0) 0.850
HAS-BLED 1.0 (1.0, 2.0) 1.0 (1.0, 2.0) 1.0 (0.0, 2.0) 0.235
LAD, mm 40.1 (37.9, 43.4) 40.1 (38.2, 43.4) 40.1 (37.5, 43.4) 0.784
LVEF, % 63.8 (57.3, 68.6) 64.2 (57.6, 68.6) 61.9 (57.0, 68.7) 0.819
eGFR, ml/min/1.73 m2 95.3 (78.1, 113.2) 96.1 (76.6, 109.9) 94.1 (79.5, 120.6) 0.647
Hb, g/L 142.5 (132.0, 151.0) 145.0 (124.0, 160.0) 142.0 (133.0, 148.0) 0.323
CAD, n (%) 17 (21.8) 7 (18.0) 10 (25.6) 0.411
Hypertension, n (%) 30 (38.5) 12 (30.8) 19 (46.2) 0.163
SHD, n (%) 4 (5.1) 2 (5.1) 2 (5.1) 1.000
Diabetic mellitus, n (%) 17 (21.8) 7 (18.0) 10 (25.6) 0.411
CKD, n (%) 1 (1.3) 0 1 (2.6) 1.000
COPD, n (%) 3 (3.9) 3 (7.7) 0 0.239

Comparison of baseline characteristics between PSM groups.

Continuous variables are presented as median with interquartile range. Categorical variables are presented as frequencies and percentage (%). The asterisk (*) indicates a significant P-value. AF, atrial fibrillation; AFT, atrial fibrillation termination; BMI, body mass index; CAD, coronary artery disease; CKD, chronic kidney disease; COPD, chronic obstructive pulmonary disease; eGFR, estimated glomerular filtration rate; LAD, left atrial diameter; LVEF, left ventricular ejection fraction; SHD, structural heart disease.

4 Discussion

4.1 Ablation strategies for persistent AF

Pulmonary vein isolation (PVI) remains the cornerstone of catheter ablation for persistent AF (10). A meta-analysis of 14 studies showed a 1-year arrhythmia-free survival rate of 66.7% for PVI alone (11). However, whether PVI alone is sufficient for persistent AF remains debated. The STAR AF II trial, which included 589 patients, found no significant difference in the risk of AF recurrence after 18 months between those who underwent PVI alone (59% free of recurrence) and those who had PVI plus additional ablation strategies (49% for CFAE, 46% for linear ablation) (12). Similarly, other studies have demonstrated that adding extra ablation steps did not significantly improve outcomes (13–17).

While new ablation techniques continue to emerge, the complex mechanisms underlying persistent AF, along with potential complications from longer procedures, suggest that further research is needed to define optimal ablation targets and protocols.

4.2 Procedural endpoints of cryoballoon ablation

PVI and TTI are both established endpoints for cryoballoon ablation. PVI has been proven to improve outcomes in persistent AF (18). However, pulmonary vein reconnection can occur after PVI, leading to recurrent AF or atrial tachycardia (19–21). The adenosine test is performed to verify the presence or recovery of pulmonary vein block and assess the need for further ablation. Mean TTI has been identified as an independent predictor of AF recurrence (HR: 1.008; 95% CI: 1.002–1.014; P = 0.010) (22), with a TTI ≤60 s associated with more durable PVI (23). Nonetheless, TTI is not always measurable during procedures, limiting its utility.

Instant AFT as an endpoint offers the advantage of guiding procedural strategy. Our study suggests that the occurrence of AFT during cryoballoon ablation is associated with a lower recurrence risk, potentially reducing the need for extensive ablations. Singh et al. also proposed that PVI alone may be optimal for patients who experience AFT (24). In contrast, the absence of AFT may indicate incomplete transmural lesions or extra initiating and maintenance mechanisms; thus, further ablation is required.

4.3 The mechanism of instant AFT

Santangeli et al. reported that nearly 90% of persistent AF originated from the pulmonary vein (25). In our study, approximately 80% of AFT cases occurred during PVI, suggesting a potential connection between AFT sites and AF onset.

We observed that LAD independently predicted the occurrence of AFT, with smaller LAD values in patients who experienced AFT, consistent with other studies (7, 9, 24). In addition to left atrial enlargement, a longer duration of AF and more severe AF classification are associated with a lower incidence of AFT and a poorer prognosis for PVI (26, 27). We hypothesize that the site where AFT occurs may act as an AF driver, contributing to both the initiation and perpetuation of AF. In the early stages of AF, ectopic activity in the pulmonary veins serves as the primary trigger. However, as AF progresses, atrial structural remodeling, particularly tissue fibrosis, results in extrapulmonary vein triggers and conduction abnormalities that sustain AF (28). Consequently, during early AF, pulmonary vein triggers predominate, and PVI can effectively eliminate these triggers, leading to AFT and favorable clinical outcomes. In later stages of AF, characterized by larger LAD, more severe AF, and longer AF duration, the underlying mechanisms become more intricate, and ectopic activity of pulmonary veins is no longer the dominant factor, resulting in a reduced incidence of AFT and less benefit from PVI.

Thus, we propose two reasons why AFT is linked to a lower risk of arrhythmic recurrence. Firstly, AFT indicates the successful elimination of AF trigger foci, making additional ablations unnecessary. Secondly, patients with AFT tend to have less advanced AF, which is associated with simpler mechanisms and better outcomes following PVI.

4.4 Limitations

There are several limitations to this study. First, it is a single-center retrospective study with a relatively small sample size, particularly for patients with instant AFT. Although we used multivariable Cox regression and 1:1 PSM to strengthen our conclusions, bias due to the small sample size is inevitable. A well-designed multicenter study with a larger sample size and longer follow-up period is needed to provide stronger evidence and identify additional factors associated with AFT.

Second, the population in our study was relatively younger and healthier, with a maximum age of 71 years, good left ventricular ejection fraction, and small atria, which may limit the generalizability of our findings. However, our results have clinical significance, as approximately 60% of patients had long-standing persistent AF, which is typically more challenging to treat. This suggests that AFT could be a useful prognostic indicator for patients with long-standing persistent AF undergoing cryoballoon ablation. Future studies should explore the predictive value of AFT in this subgroup.

Third, the 24 h Holter monitoring may not fully capture arrhythmia episodes, particularly if patients experience silent AF, potentially underestimating the actual recurrence rate.

Finally, instant AFT can be followed by various termination patterns, such as sinus rhythm or atrial tachycardia, each indicating a distinct underlying mechanism and suggesting different clinical outcomes, while our study focused solely on the conversion from AF to sinus rhythm.

5 Conclusion

Baseline LAD was strongly correlated with instant AFT, and both factors independently predicted the recurrence of atrial tachyarrhythmia. However, AFT itself was associated with a lower risk of recurrence in patients with persistent AF, regardless of LAD. These findings suggest that instant AFT may serve as a novel prognostic indicator for the outcomes of cryoballoon ablation.

Statements

Data availability statement

The raw data supporting the conclusions of this article will be made available by the authors, without undue reservation.

Ethics statement

This study involving humans was approved by the Ethics Committee of the Second Affiliated Hospital Zhejiang University School of Medicine. This study was conducted in accordance with the local legislation and institutional requirements. The ethics committee/institutional review board waived the requirement of written informed consent for participation from the participants or the participants' legal guardians/next of kin because this is a retrospective observational study using de-identified data.

Author contributions

YF: Conceptualization, Formal analysis, Funding acquisition, Investigation, Methodology, Project administration, Supervision, Writing – original draft, Writing – review & editing. JY: Data curation, Methodology, Software, Validation, Visualization, Writing – review & editing. XW: Formal analysis, Investigation, Validation, Writing – review & editing. LS: Data curation, Investigation, Resources, Writing – review & editing. YZ: Data curation, Investigation, Resources, Writing – review & editing. YW: Resources, Supervision, Writing – review & editing.

Funding

The authors declare financial support was received for the research, authorship, and/or publication of this article. This work was supported by the Key Research and Development Program of Zhejiang Province (grant number 2023C03088) and the Clinical Medicine Program of Zhejiang Medical Association (grant number 2023ZYC-A07).

Conflict of interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Generative AI statement

The author(s) declare that no Generative AI was used in the creation of this manuscript.

Publisher’s note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

Supplementary material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fcvm.2025.1522086/full#supplementary-material

References

  • 1.

    de Vos CB Pisters R Nieuwlaat R Prins MH Tieleman RG Coelen R-JS et al Progression from paroxysmal to persistent atrial fibrillation clinical correlates and prognosis. J Am Coll Cardiol. (2010) 55(8):725–31. 10.1016/j.jacc.2009.11.040

  • 2.

    Ganesan AN Chew DP Hartshorne T Selvanayagam JB Aylward PE Sanders P et al The impact of atrial fibrillation type on the risk of thromboembolism, mortality, and bleeding: a systematic review and meta-analysis. Eur Heart J. (2016) 37(20):1591–602. 10.1093/eurheartj/ehw007

  • 3.

    Steinberg BA Hellkamp AS Lokhnygina Y Patel MR Breithardt G Hankey GJ et al Higher risk of death and stroke in patients with persistent vs. paroxysmal atrial fibrillation: results from the ROCKET-AF trial. Eur Heart J. (2015) 36(5):288–96. 10.1093/eurheartj/ehu359

  • 4.

    Packer DL Mark DB Robb RA Monahan KH Bahnson TD Poole JE et al Effect of catheter ablation vs antiarrhythmic drug therapy on mortality, stroke, bleeding, and cardiac arrest among patients with atrial fibrillation: the CABANA randomized clinical trial. JAMA. (2019) 321(13):1261–74. 10.1001/jama.2019.0693

  • 5.

    Poole JE Bahnson TD Monahan KH Johnson G Rostami H Silverstein AP et al Recurrence of atrial fibrillation after catheter ablation or antiarrhythmic drug therapy in the CABANA trial. J Am Coll Cardiol. (2020) 75(25):3105–18. 10.1016/j.jacc.2020.04.065

  • 6.

    Honarbakhsh S Dhillon G Abbass H Waddingham PH Dennis A Ahluwalia N et al Noninvasive electrocardiographic imaging-guided targeting of drivers of persistent atrial fibrillation: the TARGET-AF1 trial. Heart Rhythm. (2022) 19(6):875–84. 10.1016/j.hrthm.2022.01.042

  • 7.

    Scherr D Khairy P Miyazaki S Aurillac-Lavignolle V Pascale P Wilton SB et al Five-year outcome of catheter ablation of persistent atrial fibrillation using termination of atrial fibrillation as a procedural endpoint. Circ Arrhythm Electrophysiol. (2015) 8(1):18–24. 10.1161/CIRCEP.114.001943

  • 8.

    Li K Xu C Zhu X Wang X Ye P Jiang W et al Multi-centre, prospective randomized comparison of three different substrate ablation strategies for persistent atrial fibrillation. Europace. (2023) 25(5):euad090. 10.1093/europace/euad090

  • 9.

    O'Neill MD Wright M Knecht S Jaïs P Hocini M Takahashi Y et al Long-term follow-up of persistent atrial fibrillation ablation using termination as a procedural endpoint. Eur Heart J. (2009) 30(9):1105–12. 10.1093/eurheartj/ehp063

  • 10.

    Hindricks G Potpara T Dagres N Arbelo E Bax JJ Blomström-Lundqvist C et al 2020 ESC guidelines for the diagnosis and management of atrial fibrillation developed in collaboration with the European Association for Cardio-Thoracic Surgery (EACTS): the task force for the diagnosis and management of atrial fibrillation of the European Society of Cardiology (ESC) developed with the special contribution of the European Heart Rhythm Association (EHRA) of the ESC. Eur Heart J. (2021) 42(5):373–498. 10.1093/eurheartj/ehaa612

  • 11.

    Voskoboinik A Moskovitch JT Harel N Sanders P Kistler PM Kalman JM . Revisiting pulmonary vein isolation alone for persistent atrial fibrillation: a systematic review and meta-analysis. Heart Rhythm. (2017) 14(5):661–7. 10.1016/j.hrthm.2017.01.003

  • 12.

    Verma A Jiang C-Y Betts TR Chen J Deisenhofer I Mantovan R et al Approaches to catheter ablation for persistent atrial fibrillation. N Engl J Med. (2015) 372(19):1812–22. 10.1056/NEJMoa1408288

  • 13.

    Fink T Schlüter M Heeger C-H Lemes C Maurer T Reissmann B et al Stand-alone pulmonary vein isolation versus pulmonary vein isolation with additional substrate modification as index ablation procedures in patients with persistent and long-standing persistent atrial fibrillation: the randomized alster-lost-AF trial (Ablation at St. Georg Hospital for long-standing persistent atrial fibrillation). Circ Arrhythm Electrophysiol. (2017) 10(7):e005114. 10.1161/CIRCEP.117.005114

  • 14.

    Kim T-H Uhm J-S Kim J-Y Joung B Lee M-H Pak H-N . Does additional electrogram-guided ablation after linear ablation reduce recurrence after catheter ablation for longstanding persistent atrial fibrillation? A prospective randomized study. J Am Heart Assoc. (2017) 6(2):e004811. 10.1161/JAHA.116.004811

  • 15.

    Vogler J Willems S Sultan A Schreiber D Lüker J Servatius H et al Pulmonary vein isolation versus defragmentation: the CHASE-AF clinical trial. J Am Coll Cardiol. (2015) 66(24):2743–52. 10.1016/j.jacc.2015.09.088

  • 16.

    Wong KCK Paisey JR Sopher M Balasubramaniam R Jones M Qureshi N et al No benefit of complex fractionated atrial electrogram ablation in addition to circumferential pulmonary vein ablation and linear ablation: benefit of complex ablation study. Circ Arrhythm Electrophysiol. (2015) 8(6):1316–24. 10.1161/CIRCEP.114.002504

  • 17.

    Yang G Zheng L Jiang C Fan J Liu X Zhan X et al Circumferential pulmonary vein isolation plus low-voltage area modification in persistent atrial fibrillation: the STABLE-SR-II trial. JACC Clin Electrophysiol. (2022) 8(7):882–91. 10.1016/j.jacep.2022.03.012

  • 18.

    Boveda S Metzner A Nguyen DQ Chun KRJ Goehl K Noelker G et al Single-procedure outcomes and quality-of-life improvement 12 months post-cryoballoon ablation in persistent atrial fibrillation: results from the multicenter CRYO4PERSISTENT AF trial. JACC Clin Electrophysiol. (2018) 4(11):1440–7. 10.1016/j.jacep.2018.07.007

  • 19.

    Nanthakumar K Plumb VJ Epstein AE Veenhuyzen GD Link D Kay GN . Resumption of electrical conduction in previously isolated pulmonary veins: rationale for a different strategy?Circulation. (2004) 109(10):1226–9. 10.1161/01.CIR.0000121423.78120.49

  • 20.

    Ouyang F Antz M Ernst S Hachiya H Mavrakis H Deger FT et al Recovered pulmonary vein conduction as a dominant factor for recurrent atrial tachyarrhythmias after complete circular isolation of the pulmonary veins: lessons from double lasso technique. Circulation. (2005) 111(2):127–35. 10.1161/01.CIR.0000151289.73085.36

  • 21.

    Verma A Kilicaslan F Pisano E Marrouche NF Fanelli R Brachmann J et al Response of atrial fibrillation to pulmonary vein antrum isolation is directly related to resumption and delay of pulmonary vein conduction. Circulation. (2005) 112(5):627–35. 10.1161/CIRCULATIONAHA.104.533190

  • 22.

    Bordignon S Chen S Bologna F Thohoku S Urbanek L Willems F et al Optimizing cryoballoon pulmonary vein isolation: lessons from >1000 procedures-the Frankfurt approach. Europace. (2021) 23(6):868–77. 10.1093/europace/euaa406

  • 23.

    Aryana A Mugnai G Singh SM Pujara DK de Asmundis C Singh SK et al Procedural and biophysical indicators of durable pulmonary vein isolation during cryoballoon ablation of atrial fibrillation. Heart Rhythm. (2016) 13(2):424–32. 10.1016/j.hrthm.2015.10.033

  • 24.

    Singh SM d'Avila A Kim Y-H Aryana A Mangrum JM Michaud GF et al Termination of persistent atrial fibrillation during pulmonary vein isolation: insight from the MAGIC-AF trial. Europace. (2017) 19(10):1657–63. 10.1093/europace/euw266

  • 25.

    Santangeli P Zado ES Hutchinson MD Riley MP Lin D Frankel DS et al Prevalence and distribution of focal triggers in persistent and long-standing persistent atrial fibrillation. Heart Rhythm. (2016) 13(2):374–82. 10.1016/j.hrthm.2015.10.023

  • 26.

    Miller JM Kalra V Das MK Jain R Garlie JB Brewster JA et al Clinical benefit of ablating localized sources for human atrial fibrillation: the Indiana University FIRM Registry. J Am Coll Cardiol. (2017) 69(10):1247–56. 10.1016/j.jacc.2016.11.079

  • 27.

    Lim HS Hocini M Dubois R Denis A Derval N Zellerhoff S et al Complexity and distribution of drivers in relation to duration of persistent atrial fibrillation. J Am Coll Cardiol. (2017) 69(10):1257–69. 10.1016/j.jacc.2017.01.014

  • 28.

    Nattel S Heijman J Zhou L Dobrev D . Molecular basis of atrial fibrillation pathophysiology and therapy: a translational perspective. Circ Res. (2020) 127(1):51–72. 10.1161/CIRCRESAHA.120.316363

Summary

Keywords

instant termination of atrial fibrillation, cryoballoon ablation, left atrial diameter, arrhythmic recurrence, persistent atrial fibrillation

Citation

Fan Y, Ye J, Wang X, Song L, Zhang Y and Wang Y (2025) Instant termination as a novel indicator for prognosis of persistent atrial fibrillation during cryoballoon ablation: a propensity score-matched analysis. Front. Cardiovasc. Med. 12:1522086. doi: 10.3389/fcvm.2025.1522086

Received

03 November 2024

Accepted

11 February 2025

Published

28 February 2025

Volume

12 - 2025

Edited by

Vassil Traykov, Acibadem City Clinic Tokuda Hospital, Bulgaria

Reviewed by

Piotr Buchta, Akademisches Lehrkrankenhaus der Technischen Universität Dresden, Germany

Vincenzo Mirco La Fazia, Texas Cardiac Arrhythmia Institute, United States

Updates

Copyright

* Correspondence: Youqi Fan

†These authors have contributed equally to this work

Disclaimer

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article or claim that may be made by its manufacturer is not guaranteed or endorsed by the publisher.

Outline

Figures

Cite article

Copy to clipboard


Export citation file


Share article

Article metrics
