Genomic evolution and dissemination of non-conjugative virulence plasmid of ST65 carbapenem-resistant and hypervirulent Klebsiella pneumoniae strains in a Chinese hospital

Background: The global rise in infections caused by hypervirulent and carbapenem-resistant K. pneumoniae (CR-hvKp) represents a growing public health threat. This study investigates ST65 CR-hvKp strains, with a focus on their genomic attributes and the mechanisms underlying the transmission of non-conjugative virulence plasmids.

Methods: Two clinical K2-ST65 CR-hvKp isolates (P6 and P10) were identified. Plasmid conjugation experiments were performed to assess the dissemination of the virulence plasmid. Antimicrobial susceptibility testing and virulence assays, including serum resistance, siderophore production, and G. mellonella larvae infection models, were used to characterize resistance and virulence phenotypes. Comprehensive bioinformatic analyses were performed to explore genetic evolution.

Results: Genomic analyses showed that both P6 and P10 carry a non-conjugative virulence plasmid, a conjugative untyped KPC plasmid, and a conjugative IncM2 plasmid. These isolates displayed broad-spectrum anti-microbial resistance and multiple virulence phenotypes, although they failed to sustain both hypervirulence and carbapenem resistance over time. The IncM2 plasmid was shown to be essential for the transfer of non-conjugative virulence plasmid. Mechanistic studies highlighted IS26-mediated plasmid fusion and the role of IncM2 plasmids in mobilizing non-conjugative virulence plasmids. The resulting transconjugants exhibited multidrug resistance, enhanced capsule production, and increased siderophore production.

Conclusions: This study provides new insights into the genomic dynamics of ST65-CR-hvKp strains and uncovers key mechanisms, such as IS26-mediated plasmid fusion and IncM2-mediated mobilization, which facilitate the dissemination of non-conjugative virulence plasmids. Understanding these mechanisms is crucial for developing effective strategies to manage and prevent the spread of these clinically challenging strains.

1 Introduction

Klebsiella. pneumoniae, a Gram-negative commensal bacterium, colonizes the gastrointestinal tract intestines of patients and the skin of hospital staff (Martin and Bachman, 2018). It is frequently implicated in healthcare-associated infections due to its ability to spread through respiratory droplets and direct contact (Borgmann et al., 2018; Al Bshabshe et al., 2020). The organism’s resistance to multiple antibiotics is largely attributed to horizontal gene transfer via plasmids and other mobile genetic elements, making carbapenem-resistant K. pneumoniae (CRKP) a major clinical concern (Tamma et al., 2023). Beyond hospital settings, K. pneumoniae is also responsible for community-acquired infections such as liver abscesses and endophthalmitis, even in otherwise healthy individuals (Choby et al., 2020). These infections are often associated with a hypermucoviscous phenotype characteristic of hypervirulent K. pneumoniae (hvKp) strains (Choby et al., 2020). The CG65 clone is recognized as a hypervirulent lineage enriched with virulence plasmids, including iuc, iro, rmpA, and rmpA2, but typically lacking significant antibiotic resistance determinants (Wyres et al., 2019). These strains commonly carry a conserved 224 Kb virulence plasmid and infrequently acquire additional plasmids, resulting in low pan-genome diversity (Lam et al., 2018; Wyres et al., 2019).

Reports of clinical isolates exhibiting both hypervirulence and carbapenem resistance are on the rise (Yang et al., 2022; Pu et al., 2023; Guo et al., 2024). A previous study (Tian et al., 2022) categorized these dual-threat strains into two evolutionary pathways: 1) CR-hvKp, where hvKp strains acquire resistance plasmids, and 2) hv-CRKP, where CRKP strains acquire virulence plasmids. Current evidence suggests the hv-CRKP pathway is more prevalent (Han et al., 2022; Yang et al., 2022), likely due to the facilitative role of bla_KPC-bearing IncFII plasmids that can co-mobilize non-conjugative virulence plasmids through shared oriT sequences (Xu et al., 2021; Tian et al., 2022). Conversely, CR-hvKp strains must acquire resistance elements despite innate barriers intrinsic to hvKp, including hypercapsule production and active CRISPR-Cas systems, which impair plasmid acquisition and maintenance (Lam et al., 2018; Zhou et al., 2020). Notably, acquisition of KPC-encoding plasmids has been shown to attenuate capsule synthesis in hvKp strains, reflecting an evolutionary trade-off between resistance and virulence (Tian et al., 2022). Due to the limited number of clinical CR-hvKp isolates, the mechanisms of plasmid acquisition, maintenance, and transmission in these strains remain poorly understood. Therefore, it is necessary to investigate the prevalence and dissemination of hv-CRKP strains in hospitals.

This study investigates two ST65 K2-serotype CR-hvKp isolates, providing insights into their genomic architecture and unveiling novel mechanisms of plasmid mobilization that facilitate the simultaneous spread of hypervirulence and carbapenem resistance in clinical settings.

2 Materials and methods

2.1 Strains and definitions

Two isolates, P6 and P10, were identified as K2 serotype and sequence type 65 (ST65), both carrying the bla_KPC-2 and iucA genes. Bacterial species identification was confirmed using MALDI-TOF MS (Biotyper Microflex, Bruker Daltonics, Bremen, Germany).

Additionally, 1478 complete Klebsiella genomes (retrieved on 31 December 2022) were downloaded from the NCBI database (https://www.ncbi.nlm.nih.gov/datasets/genome/) (Datasheet 1). Sequence types, K loci, virulence and antibiotic resistance genes, and corresponding scores were analyzed using Kleborate (http://github.com/katholt/Kleborate). Resistance scores were calculated as follows: 0 = no ESBL or carbapenemase; 1 = ESBL without carbapenemase (regardless of colistin resistance); 2 = carbapenemase without colistin resistance (regardless of ESBL); 3 = carbapenemase with colistin resistance (regardless of ESBL). Virulence scores were calculated as follows: 0 = none present; 1 = yersiniabactin only; 2 = colibactin without aerobactin (regardless of yersiniabactin; however, ybt is almost always co-present with clb); 3 = aerobactin only; 4 = aerobactin and yersiniabactin without colibactin; and 5 = all three present. CRKP was defined as carrying carbapenem resistance genes (with resistance scores exceeding 2). HvKp was defined by the presence of virulence-associated genes (virulence scores exceeding 3). Convergent K. pneumoniae was defined as carrying both carbapenem resistance genes and virulence-associated genes (resistance score more than 2 and virulence score more than 3).

2.2 Phylogenetic analysis

To explore the evolutionary relationship between P6, P10 and nine ST65 genomes from NCBI, a phylogenetic tree was constructed based on whole genome SNPs using the CSI Phylogeny 1.4 web-based program. Parameters included a minimum distance of 10 bp, a minimum of 10x depth, 10% breadth coverage, mapping quality > 30, and SNP quality > 25 (Kaas et al., 2014). SNPs were called by BWA v. 0.7.2 and SAMtools v. 0.1.18, leaving out all SNPs in a 10-base vicinity of each other. CSI phylogeny returns a newick file for tree visualization (Jensen et al., 2021). P6 strain served as the reference genome. All genome and sequence assemblies were uploaded in a FASTA format. The tree was visualized and annotated by Evolview v3 (https://www.evolgenius.info/evolview).

2.3 Antimicrobial susceptibility tests

Antimicrobial susceptibility testing was performed for P6, P10 and their transconjugants against 16 antibiotics using the broth microdilution method. Minimum inhibitory concentration (MIC) were determined following Clinical and Laboratory Standards Institute guidelines (CLSI-M100), with Escherichia coli ATCC 25922 used as a quality control.

2.4 Plasmid conjugation experiments

Plasmid conjugation was conducted using sodium azide-resistant E. coli J53 as the recipient and P6 and P10 strains as donors. Equal volumes of donor and recipient logarithmic-phase cultures were mixed and incubated overnight at 37°C to facilitate conjugation. Transconjugants were selected on agar containing sodium azide (80 μg/ml) and potassium tellurite (1.5 μg/ml). The virulence plasmid carries potassium tellurite resistance genes. PCR assays targeting iucA (encoding aerobactin synthetase), and oqxA (belonging to the RND family) were used to confirm the transfer of non-conjugative virulence plasmid to E. coli J53. The oqxA gene is chromosomal in the donor strains P6 or P10 but absent in the recipient strain J53, allowing for genotype-based distinction. Consequently, the donor strains exhibit an iucA-positive and oqxA-positive genotype, the recipient strain shows an iucA-negative and oqxA-negative genotype, and the transconjugants are iucA-positive but oqxA-negative.

A second-round plasmid conjugation was performed using rifampicin-resistant E. coli C600 as the recipient and the previous transconjugants as donors. Transconjugants were selected on agar containing rifampicin (200 μg/ml) and potassium tellurite (1.5 μg/ml). PCR assays targeting iucA, and YeeU (type IV toxin-antitoxin system) were used to confirm the success of transconjugation. The YeeU gene is chromosomal in the recipient strain C600 but absent in the donor strains. Consequently, the donor strains exhibit an iucA-positive and YeeU-negative genotype, the recipient strain shows an iucA-negative and YeeU-positive genotype, and the transconjugants are iucA-positive but YeeU-positive. The primers are listed in Supplementary Table S1. Plasmids in transconjugants were visualized using S1 nuclease-Pulsed-Field Gel Electrophoresis (S1-PFGE) (Tian et al., 2020).

2.5 Plasmid stability

Plasmid stability was tested as previously described (Zhou et al., 2020). Briefly, P6 and P10 were cultured overnight at 37°C in LB medium with meropenem (1 µg/ml) and potassium tellurite (1.5 µg/ml), then serially passaged 50 times (12 hours/passage) in antibiotic-free LB. The plasmid loss rate was calculated per generation (Zhou et al., 2020).

2.6 Whole genome sequencing

P6, P10, and their transconjugants were sequenced using the Illumina NovaSeq and MinION platforms. Raw data quality control was performed with FastQC software (v. 0.11.8, http://www.bioinformatics.babraham.ac.uk/projects/fastqc/). De novo genome assembly was performed using HGAP and CANU with default settings (Chin et al., 2016; Koren et al., 2017), and the assembly correction was performed using Pilon v1.22 (Walker et al., 2014). Circular plasmid maps for comparative analysis were generated using the BLAST Ring Image Generator (BRIG) (http://sourceforge.net/projects/brig). Prediction of oriT sequences and transfer-associated elements was carried out using oriTfinder’s default parameters (https://bioinfo-mml.sjtu.edu.cn/oriTfinder/).

2.7 Plasmid construction and targeted plasmid elimination

The pCasRif plasmid, containing the arr-3 gene for rifampin resistance, was constructed as previously described (Hao et al., 2020). Single guide RNAs (sgRNA) targeting the replicons of the pP6P3 plasmid and pP6Inc were designed using the IDT CRISPR design tool (https://eu.idtdna.com/site/order/designtool/index/CRISPR_CUSTOM). The sgRNA fragments were amplified using pCascure as a template, and primer sequences are listed in Supplementary Table S1. The PCR products were cloned into XbaI- and SpeI-digested pCasCure to generate the targeted constructs pCasCure-IncM and pCasCure-P3. These constructs were introduced into K. pneumoniae P6 by electroporation, and transformants were selected on LB agar plates supplemented with rifampin (200 μg/ml). Successful plasmid transfer was confirmed by PCR. To eliminate the target plasmids, the transformants were cultured LB broth containing 0.1% arabinose and 200 μg/ml rifampin for 6 hours at 37 °C with aeration. Cultures were then serially diluted and plated on LB agar plates, and plasmid loss was confirmed by PCR. The resulting K. pneumoniae P6-P3cured and P6-IncMcured strains were co-cultured with E. coli J53 to assess the conjugative transfer potential of the virulence plasmid.

2.8 Virulence-associated experiments

Virulence was evaluated for strains P6, P10, and transconjugants using multiple assays. The K. pneumoniae RJF293 strain (Accession: CP014008.1), a confirmed hypervirulent K2-ST65 strain (Wang et al., 2018), was used as a positive control, while the ST11 strain HS11286 (Accession: CP003200.1) served as a negative control. Assays for viscosity, capsular polysaccharide (CPS) production, siderophore production, and G. mellonella larvae infection were performed as described previously (Tian et al., 2022). Briefly, overnight bacteria cultures were centrifuged at 10000g for 30 seconds, and the optical density (OD600) of the supernatants was measured to assess viscosity. CPS production was quantified by measuring uronic acid content. Siderophore production was assessed using the Chrome Azurol S (CAS) Assay. Serum resistance was performed according to a previous study (Sahly et al., 2004). Bacterial cultures in mid-log phase (adjusted to OD600 = 0.5) were mixed with normal human serum at a 1:3 ratio and incubated at 37°C for 3 hours. Both self-controls and blank controls were included to validate the assay. Serum resistance was determined by plotting the average survival percentage of each strain over the incubation period.

2.9 Statistical analysis

All statistical analyses were conducted using GraphPad Prism 9 (GraphPad Software, San Diego, CA, USA). Student’s t-test was used for comparing means, and the log-rank test was employed for survival curve analysis.

3 Results

3.1 Identification of ST65 hypervirulent and carbapenem-resistant K. pneumoniae strains

Carbapenem-resistant and hypervirulent K. pneumoniae strains P6 and P10 were isolated from sputum cultures of ICU and neurosurgery patients on April 13 and June 11, 2020, respectively. Notably, the hospital stays of the two patients did not overlap. To investigate the genetic background of these isolates, we sequenced and assembled their genomes. A SNP-based phylogenetic analysis showed that P6 and P10 were almost identical, differing by only one SNP, and shared the same profiles of virulence and resistance genes (Figure 1). We compared two isolates with nine ST65 genomes from NCBI to further characterize their virulence and resistance. Most ST65 strains exhibited high virulence scores and low resistance scores (Figure 1). In contrast, P6 and P10 displayed both high virulence and high resistance scores (Figure 1), indicating the emergence of ST65 strains with a convergent resistance-virulence phenotype.

Figure 1

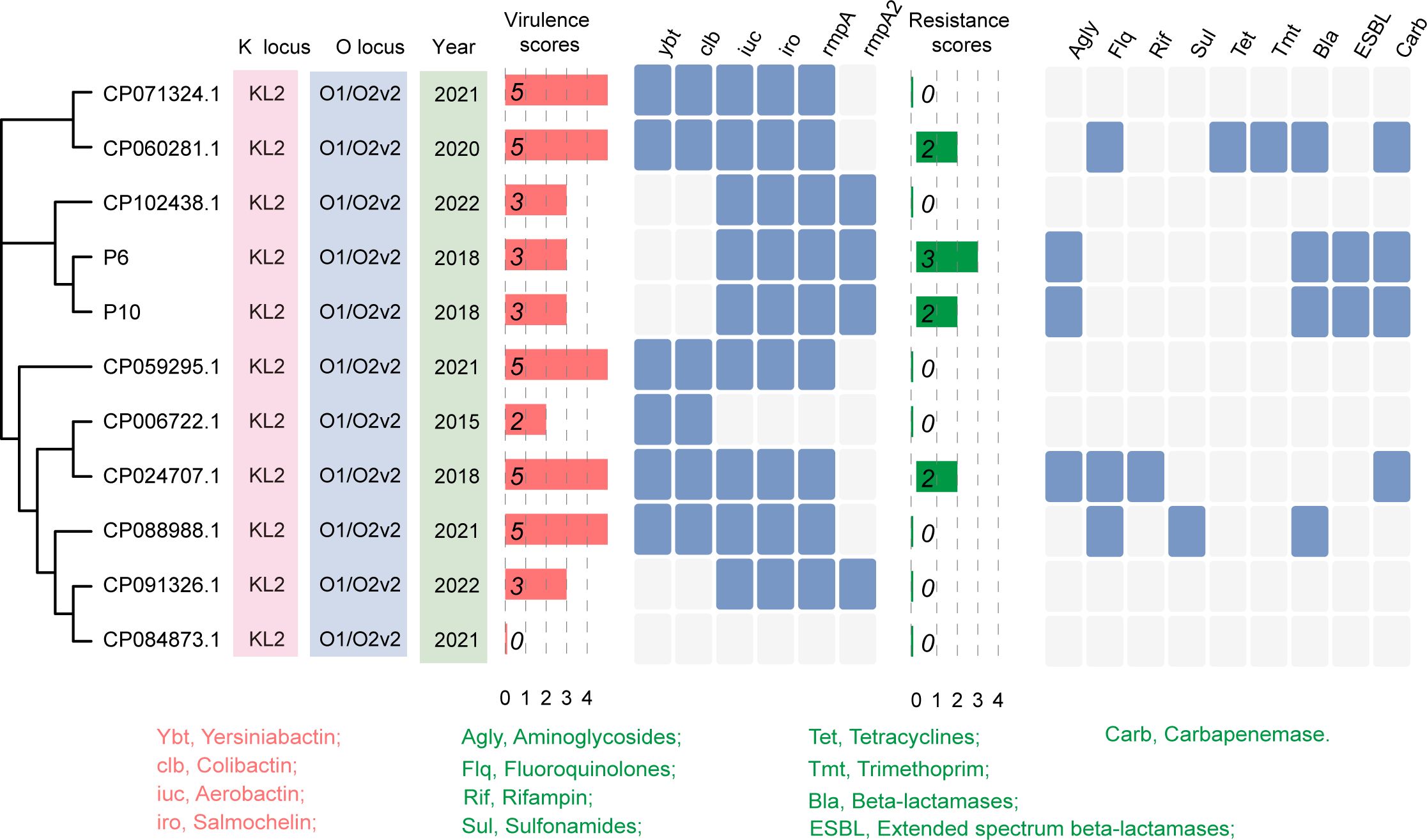

Figure 1. Identification of ST65 hypervirulent and carbapenem-resistant K. pneumoniae. Phylogenetic analysis and basic characteristics of ST65 K. pneumoniae strains. The phylogenetic tree was constructed based on the core genome sequences of P6 and P10 strains (isolated in this study), and nine ST65 K. pneumoniae strains retrieved from the GenBank database.

3.2 Mobilization of non-conjugative virulence plasmids

Both P6 and P10 harbored four plasmids: (i) a KPC plasmid, (ii) a virulence plasmid, (iii) an IncM2 plasmid carrying aac(3)-IId, bla_TEM-1, bla_CTX-M-15, and (iv) a ColRNAI plasmid (Table 1). Except for IncM2, the KPC, virulence, and ColRNAI plasmids of P6 and P10 were almost identical (Supplementary Figure S1). The IncM2 plasmid in P6 has indel and a rearrangement difference compared to the IncM2 plasmid of P10, producing two copies of aac(3)-IId in P6. The bla_KPC gene was located on an untyped plasmid (P3). Conjugation experiments confirmed that both the KPC and IncM2 plasmids were transferable (Supplementary Figure S2), indicating potential for mobilizing non-conjugative plasmids. The 228-kb virulence plasmid (IncFIB/IncHI1B type) lacked intact transfer machinery such as Type IV Secretion System (T4SS).

Table 1

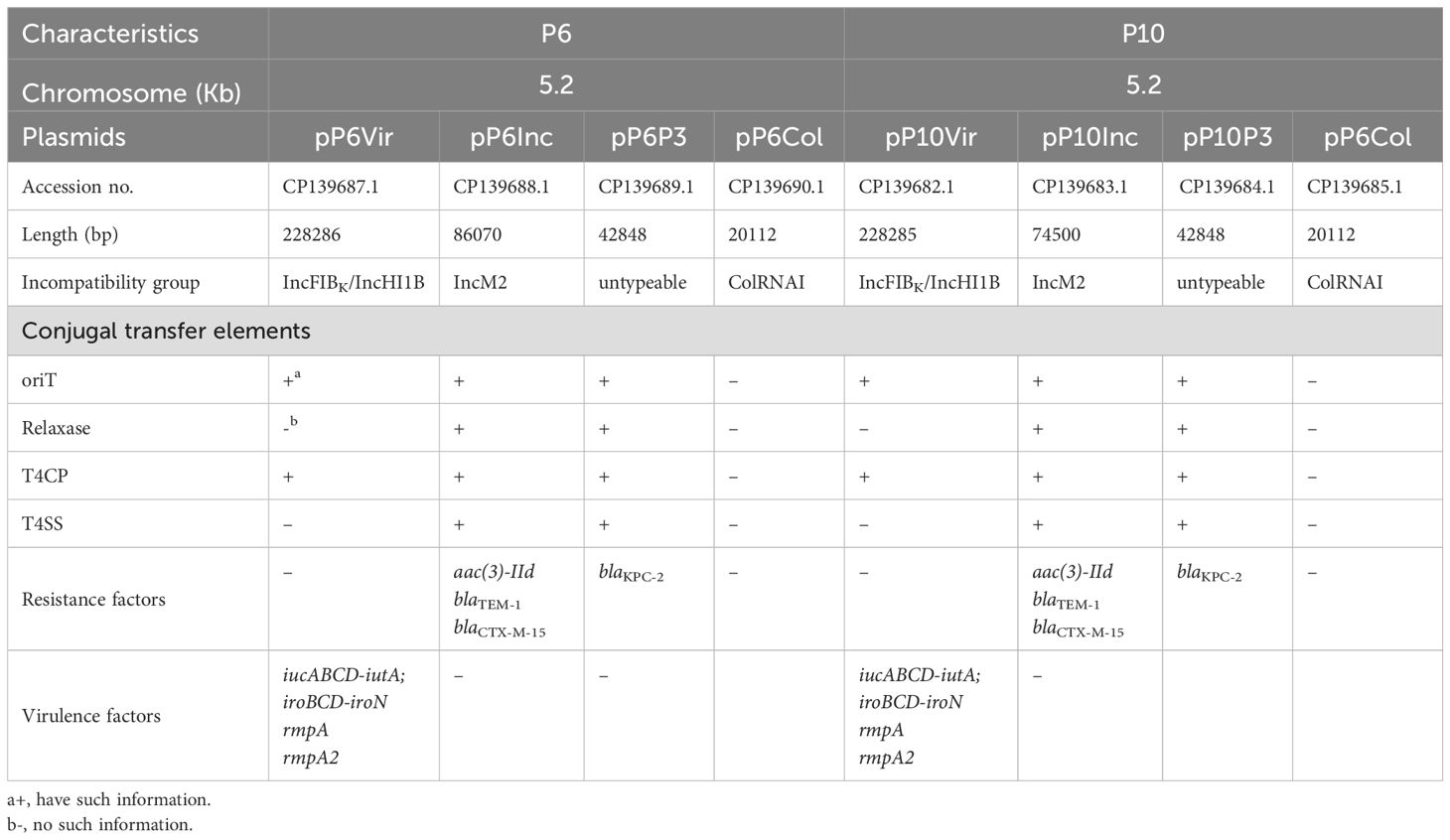

Table 1. The genomic characteristics of ST65 hypervirulent and carbapenem-resistant K. pneumoniae strains in this study.

To investigate if the virulence plasmids could still be mobilized, we co-cultured ST65-CR-hvKp with E. coli J53. Both P6 and P10 successfully transferred their virulence plasmids at conjugation frequencies of 6.5 ± 3.4×10^-6 and 4.6 ± 2.3×10^-6, respectively (Figure 2). However, the plasmid profiles of transconjugants differed from their parental strains. Both P6 transconjugants (TP6) and P10 transconjugants (TP10) acquired an identical 33 Kb plasmid p3 (Figure 2). We aligned all plasmids from the donor and recipient (Supplementary Figure S3), but their origin was unclear. Additionally, TP6 strains harbored a 240 Kb-plasmid, while P10 strains contained a 300 Kb plasmid (Figure 2).

Figure 2

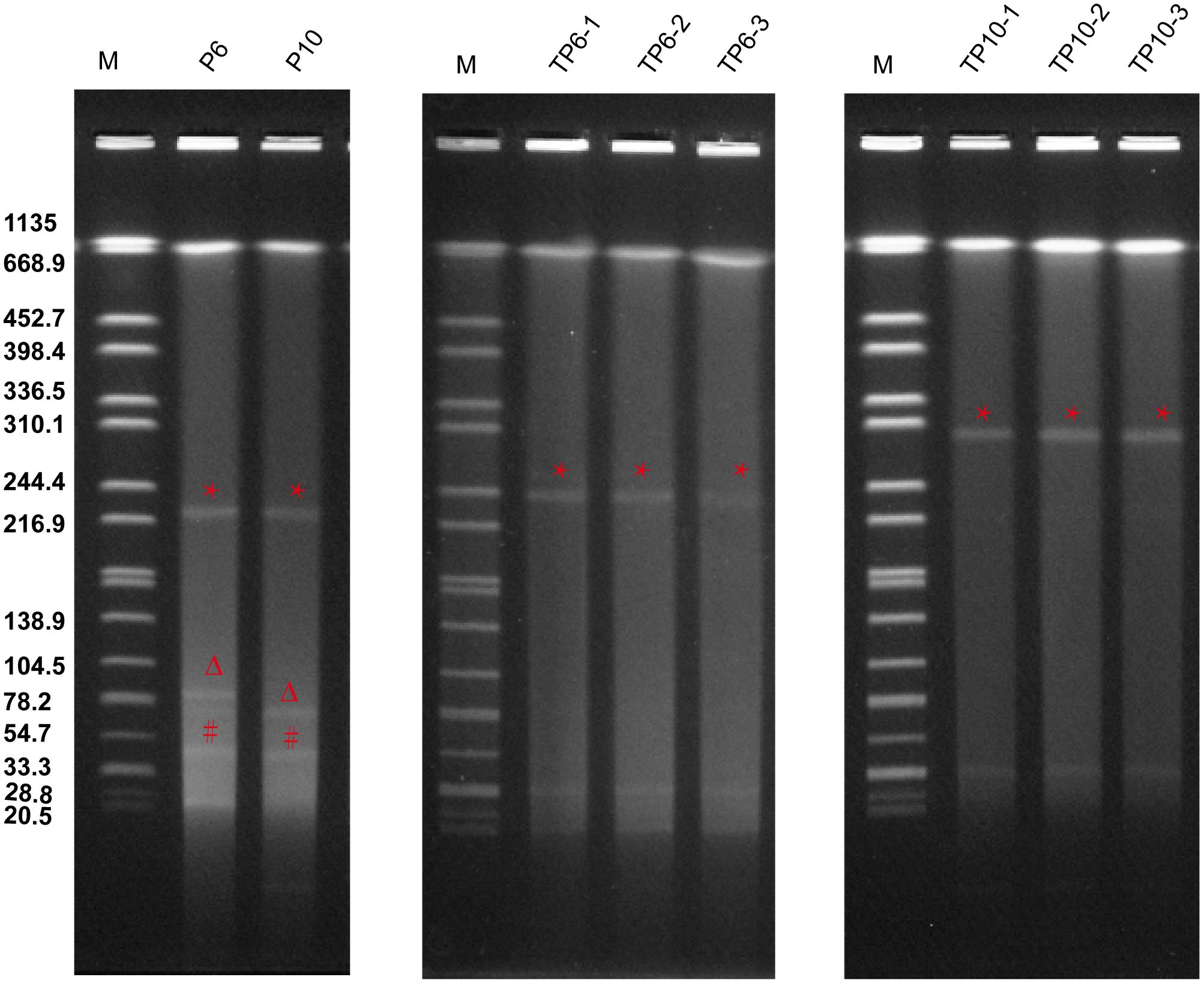

Figure 2. Plasmid profiles of P6, P10 and their transconjugants. S1-PFGE analysis was performed on three TP6 transconjugants (TP6-1, TP6-2, and TP6-3) and three TP10 transconjugants (TP10-1, TP10-2, and TP10-3) that were randomly selected to perform. * indicate virulence plasmids (pVir), Δ indicate IncM2 plasmids (pInc), # indicate KPC plasmids (pP3).

3.3 IS26-mediated the plasmid fusion

To explore plasmid evolution in the transconjugants, three clones each from TP6 and TP10 were randomly selected for sequencing and assembly (Supplementary Table S2). Comparative genomics revealed that the 303 kb hybrid plasmid in TP10 formed via fusion of the virulence plasmid (pP10Vir) and the IncM2 plasmid (pP10Inc) at different insertion sites (Figures 3A-C). An inversion was also observed during plasmid fusion (Figure 3A). Upon closer inspection of the overall structure of the hybrid plasmid, we postulated a plausible pattern of cointegrate formation (Figure 3D). IS26 in pP10Inc targeted a site (e.g., GACTAAAC) pVir, leading to replicative cointegrate formation. The cointegrate plasmid was formed by incorporating pInc upstream of gene D in pVir, resulting in an 8 bp target site duplication (TSD) and acquisition of an extra IS26 copy. This produced two direct TSD repeats flanking pInc.

Figure 3

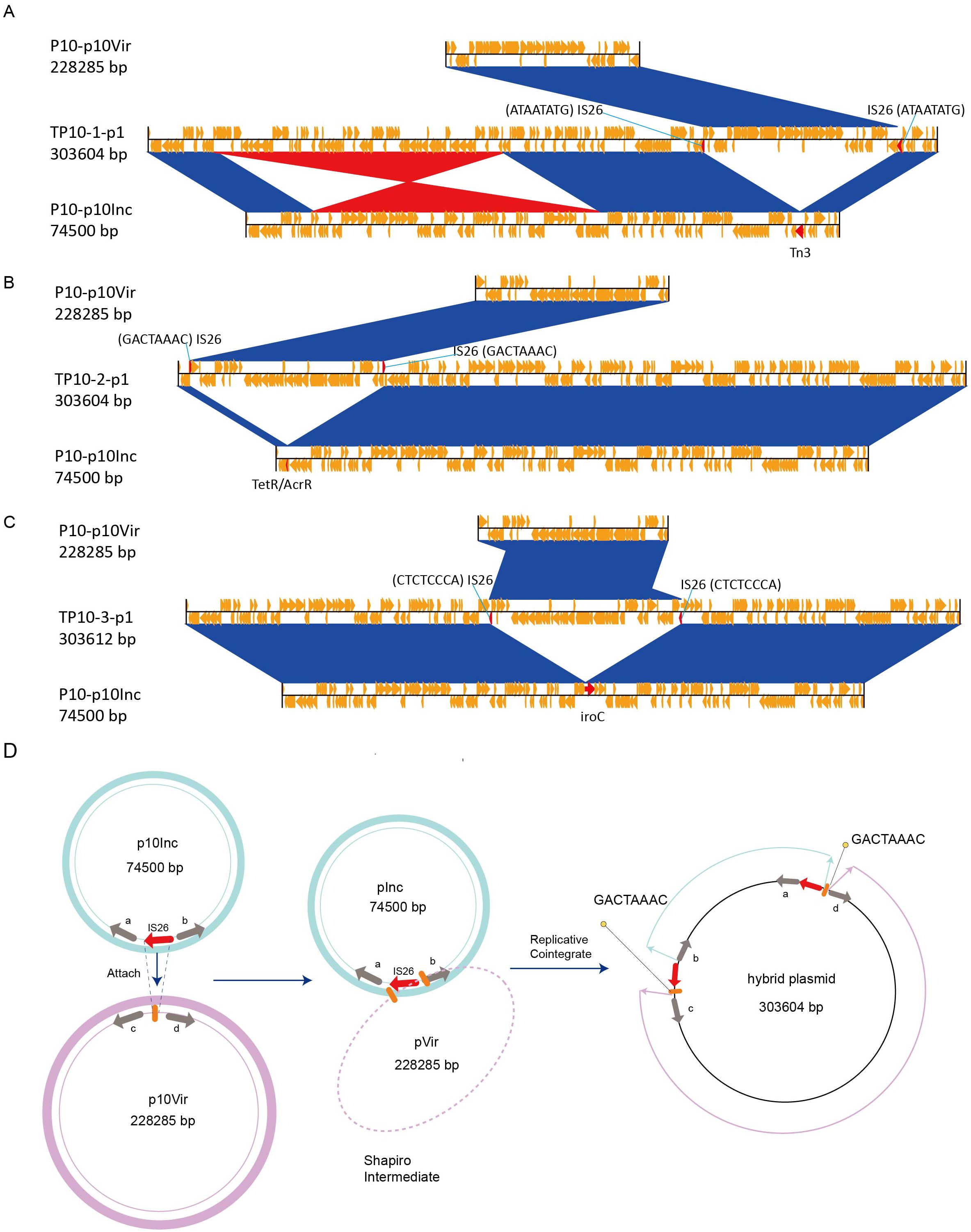

Figure 3. Comparative genome analysis of hybrid plasmid (TP10-pVir) and proposed mechanism of plasmid fusion. (A-C) Comparative genome analysis of hybrid plasmid identified in TP10-1, TP10-2, and TP10-3, respectively. (D) Proposed model of IS26-mediated plasmid fusion using TP10-2-p1 as an example. Red arrows represent IS26 elements, and orange bold string represent the 8 bp target site duplication (GACTAAAC).

Similarly, pVir plasmids in TP6 transconjugants (229105 bp) gained an additional IS26 insertion compared to the parental pP6Vir (228286 bp), confirming IS26-mediated plasmid fusion and recombination as key drivers of plasmid evolution in clinical K. pneumoniae strains.

3.4 Movement pattern of virulence plasmid

Although fusion with a conjugative plasmid via IS26 (Figure 3) explains virulence plasmid transfer to TP10, it does not account for transfer in TP6. To investigate alternative mobilization mechanisms, we cured P6 of specific plasmids, generating P6-P3cured and P6-IncMcured strains (Figure 4A). Conjugation assays showed that pVir remained transferable from P6-P3cured but not from P6-IncMcured (Figure 4B), indicating that the IncM2 plasmid, but not the KPC plasmid, mediates pVir mobilization. Additionally, removal of the KPC plasmid imposed fitness costs on P6 compared to the P6-P3cured strain (Figure 4C). Sequence analysis revealed the oriT sequence of pP6Vir was 100% identical to pK2044 (AP006726.1) and shared 66.7% identity at nic site of the IncM2 plasmid (pP6Inc) (Figure 4D).

Figure 4

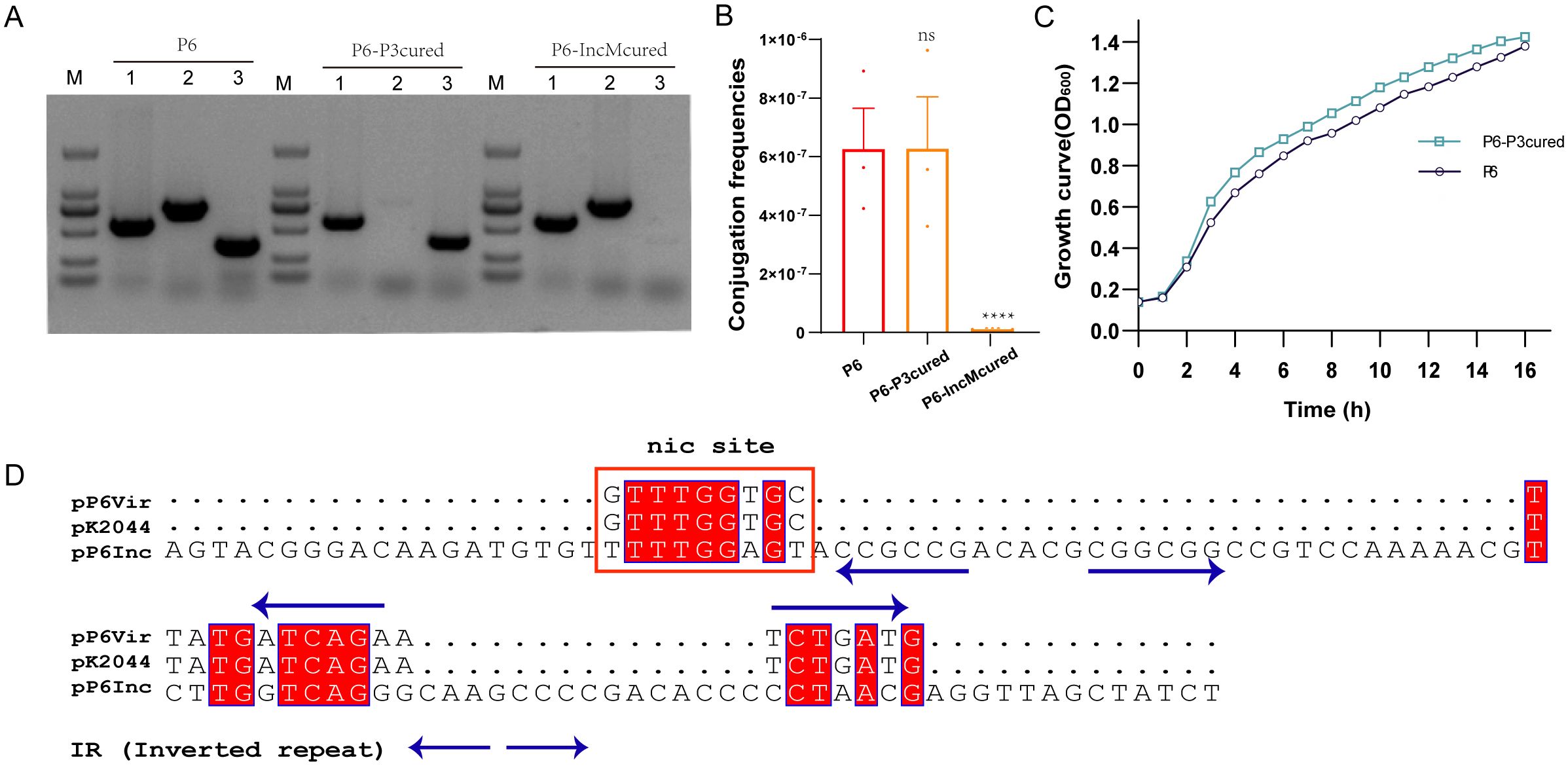

Figure 4. Transmission mechanisms and mobilization of non-conjugative virulence plasmids. (A) Elimination of pP3 and pInc plasmids from P6. The P6-P3cured and P6-IncMcured strains were successfully constructed. Lane 1: pVir gene; lane 2: pP3 gene; lane 3: pInc gene. (B) Conjugation frequencies of pVir plasmids of P6-P3cured and P6-IncMcured strains. ****P< 0.0001, ns, not significant. (C) Growth curves of P6 and P6-P3cured strains. (D) Alignment of OriT sequences from pP6Vir, pK2044, and pP6Inc. Multiple sequence alignment was performed using MUSCLE sequence alignment tool. The nic site is highlighted with a red box.

In summary, the non-conjugative virulence plasmid can be transferred either through fusion with or by assistance from the conjugative IncM2 plasmid.

3.5 Resistance and virulence phenotypes

P6, P10 displayed multidrug-resistant (MDR) against various antimicrobial agents (Table 2), consistent with the presence of bla_KPC-2, bla_TEM-1, aac(2)-IId, bla_CTX-M-15 (Table 2). Acquisition of virulence plasmids imposed measurable fitness costs (Figure 5A). Both strains produced less capsule polysaccharide (CPS) and exhibited lower viscosity than the hypervirulent positive control strain RJF293 (K2-ST65), but more than that of the less-virulent negative control strain HS11286 (K64-ST11) (Figures 5B, C). Siderophore production of P6 and P10 was approximately 9-fold higher than in HS11286 and approached RJF293 levels (Figures 5D, E). Serum-killing assays confirmed their high virulence, with robust serum resistance (Grade 5 and Grade 6) (Figure 5F), and this was further validated in animal models (Figure 5G). Thus, K. pneumoniae P6 and P10 exhibited both carbapenem resistance and hypervirulence. However, the KPC plasmid was rapidly lost in both P6 and P10 strains (Supplementary Figure S4), suggesting that ST65-CR-hvKp strains may struggle to maintain both carbapenem resistance and hypervirulence simultaneously. While the 10th generation P6 strain (P6-10th) retained similar virulence and resistance profiles, the KPC lost-derivative (P6-10th-KPClost) became carbapenem-sensitive (Supplementary Figure S3 and Supplementary Table S3).

Table 2

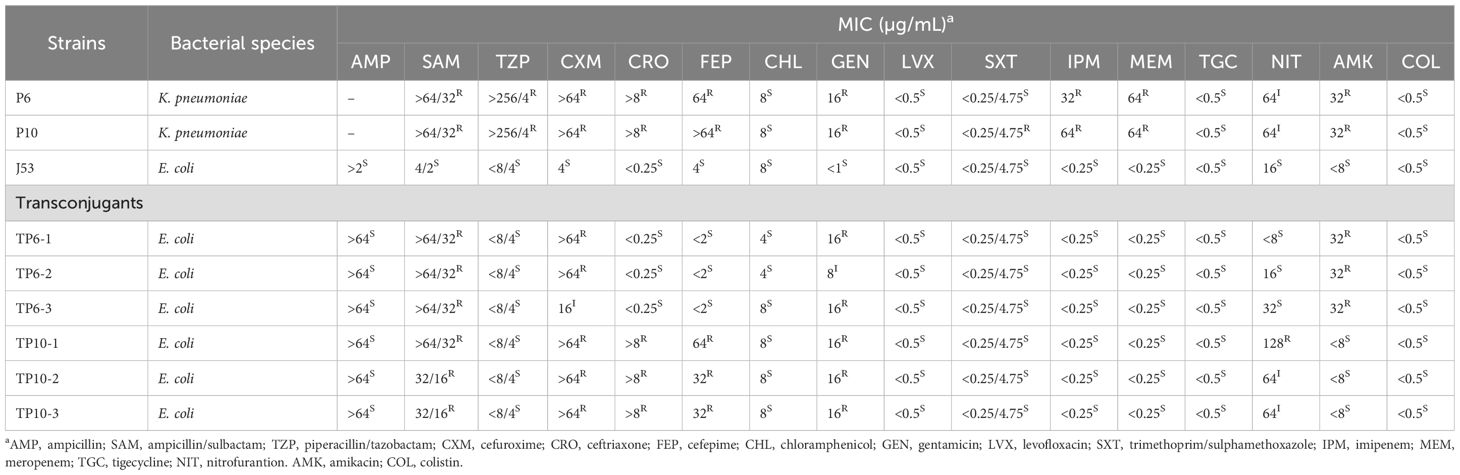

Table 2. Antimicrobial susceptibilities of strains and their transconjugants.

Figure 5

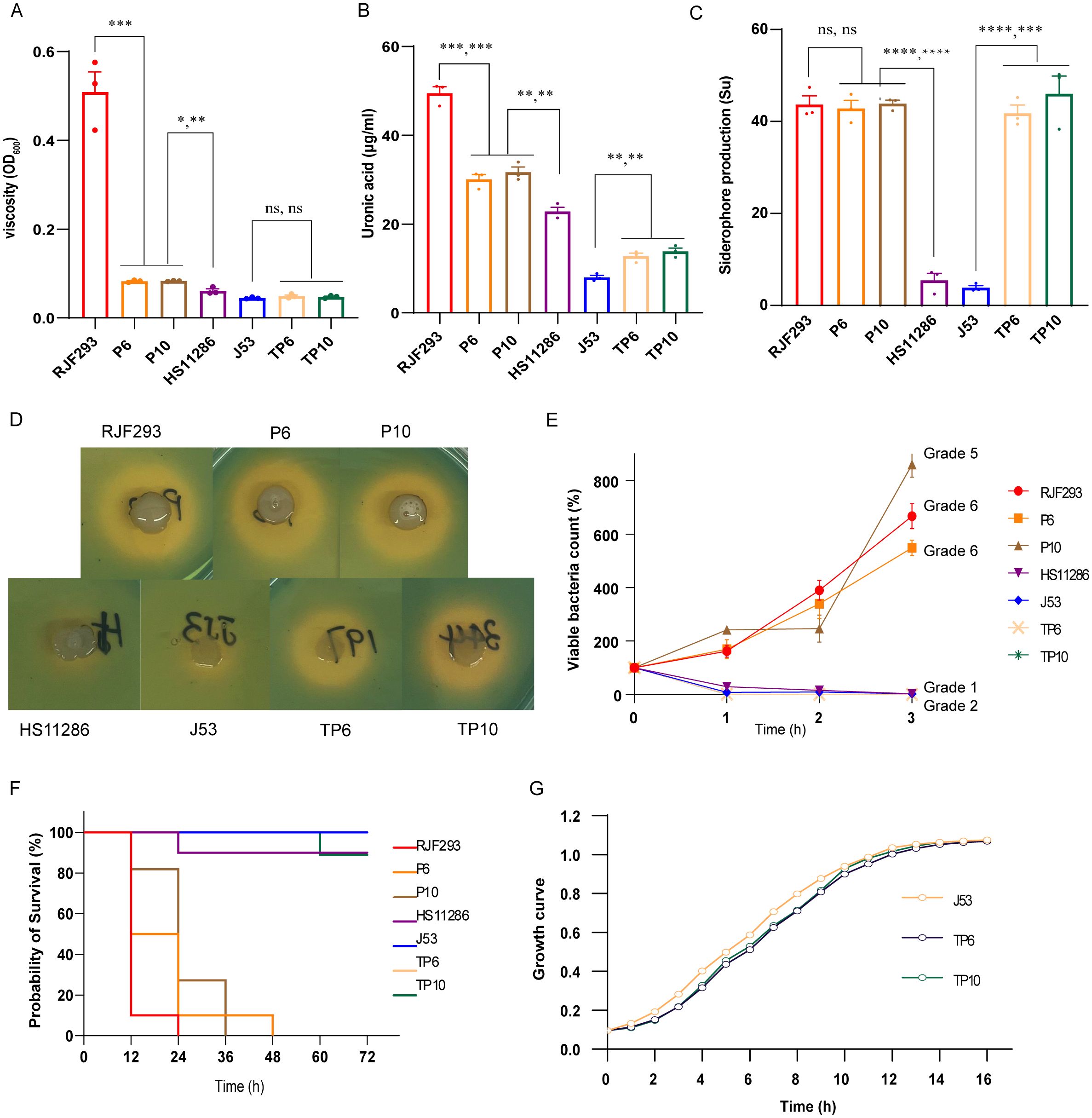

Figure 5. Virulence phenotypes of P6, P10, and their transconjugants. (A) Growth curves of P6, P10, and their transconjugants. (B) Viscosity measurements. (C) CPS production assays. (D) Siderophore production assessed using CAS agar. (E) Quantitative measurement of siderophore production. (F) Serum killing assay results. (G) Survival curves of Galleria mellonella larvae infected with the indicated strains. ****P< 0.0001, ***P< 0.001, **P< 0.01, *P< 0.05, ns, not significant.

Transconjugants that acquired plasmids from P6 and P10 showed increased resistance to certain antimicrobial agents but remained carbapenem-sensitive as the bla_KPC-2-carrying pP3 was not co-transferred (Table 2). Acquisition of the virulence plasmid from P6 and P10 significantly increased uronic acid levels and siderophore production, although viscosity, serum resistance, and larval mortality rates remained comparable to E. coli J53 (Figure 5).

These findings demonstrate that virulence plasmid transfer can simultaneously disseminate resistance and virulence traits, reshaping the phenotypic landscape of recipient bacteria.

4 Discussion

Infections caused by CR-hvKp strains pose a significant global threat to human health, with repercussions exceeding those of either individual hvKp or CRKP infections alone (Gu et al., 2018). Previous studies have highlighted the ongoing expansion of convergent K. pneumoniae strains, with hv-CRKP strains (particularly ST11) being the most prevalent (Tian et al., 2022; Yang et al., 2022). However, CR-hvKp strains (typified by ST23 and ST65) also warrant close attention. A PubMed search using the terms “ST65”, “carbapenem-resistant”, “hypervirulent”, and “Klebsiella” retrieved only 10 records, highlighting the scarcity of clinical reports despite the considerable pathogenicity and multidrug resistance associated with these strains.

ST65 K. pneumoniae belongs to the K2 capsular type associated with CPS overproduction (Jun, 2018). Traditionally, ST65 has been linked to classical hvKp carrying non-conjugative pLVPK-like virulence plasmids lacking resistance genes (Bialek-Davenet et al., 2014; Wyres et al., 2019). Our previous research demonstrated that when ST65 strain acquired a KPC plasmid in vitro, it was unable to maintain carbapenem-resistance and CPS overproduction simultaneously, often leading to mutations in capsular biosynthesis genes (Tian et al., 2022). Both capsule synthesis and bla_KPC expression are energetically demanding processes that impose significant metabolic costs on the bacterium (Cortina et al., 2018; Whitfield et al., 2020). In this study, we identified two clinical ST65 K. pneumoniae strains exhibiting both carbapenem resistance and hypervirulence; however, these traits appear to be unstable, which may explain the lower prevalence of ST65-CR-hvKp compared to ST11 hv-CRKP strains.

Our findings also shed light on the mechanisms facilitating the transfer of non-conjugative virulence plasmids (Li et al., 2020; Xie et al., 2020; Zhao et al., 2022). While previous studies have demonstrated the role of crossover recombination and Tn3-mediated replicative transposition in fusing KPC and virulence plasmids (Xie et al., 2020; Zhao et al., 2022; Tian et al., 2022), our results reveal a novel IS26-mediated hybrid plasmid formation in ST65 CR-hvKp. IS26 is well known to facilitate plasmid rearrangement and does not transpose independently; instead, it forms cointegrates as the final products of IS26 transposase activity (Harmer and Hall, 2016; 2021). Mobile genetic elements (MGEs), such as transposons, insertion sequences (IS), are key drivers of resistance gene dissemination and bacterial adaptation (Partridge et al., 2018; Tang et al., 2022).

Recent studies have shown that non-conjugative pLVPK-like virulence plasmids can be mobilized by conjugative bla_KPC-positive IncFII plasmids (Xu et al., 2021; Tian et al., 2022). These conjugative plasmids encode the machinery and factors required to transfer genetic material from one bacterial cell to another, even when the virulence plasmid itself cannot transfer autonomously. In our study, the untyped KPC plasmid in ST65 strains encoded a complete vir-type T4SS, while an additional conjugative IncM2 plasmid encoded a tra-trb-type T4SS. Interestingly, we found that it was the conjugative IncM2 plasmid, not the KPC plasmid, which mobilized the non-conjugative virulence plasmid. This finding expands current understanding of the intricate molecular mechanisms underlying virulence plasmid transfer. Furthermore, we observed that CPS and siderophore production were significantly elevated in recipient strains following acquisition of the virulence plasmid, although serum resistance and Galleria. mellonella mortality did not differ significantly. This aligns with previous studies indicating that virulence in K. pneumoniae is multifactorial, and that acquisition of a single plasmid may not be sufficient to dramatically alter virulence phenotypes (Tian et al., 2021; Zhu et al., 2021; Hu et al., 2023).

The dissemination of virulence plasmids plays a central role in CR-hvKp evolution and represents a growing clinical challenge. Although these strains may only transiently sustain both hypervirulence and carbapenem resistance, they serve as critical intermediates for virulence plasmid transmission. Our findings suggest that helper plasmids responsible for mobilizing non-conjugative virulence plasmids are not limited to the bla_KPC-positive types. Various conjugative plasmids may participate in the transfer of virulence determinants, and the presence of oriT sequences similar to those of helper conjugative plasmids emerges as critical for relaxase recognition and initiation of the conjugation (O’Brien et al., 2015; Xu et al., 2021). However, further investigation is needed to determine which specific plasmids can mobilize pLVPK-like virulence plasmids.

There are several limitations to this study. The scarcity of ST65-CR-hvKp strains in clinical settings limited our analysis to only two isolates included, emphasizing the need for larger studies. Additionally, potential plasmid recombination events during conjugation may not have been fully captured, underscoring the importance of incorporating a broader collection of clinically sequenced K. pneumoniae genomes in future investigations.

In conclusion, we reveal two novel transmission mechanisms of virulence plasmids in ST65 CR-hvKp strains: 1) IncM2 plasmids can mobilize virulence plasmid; 2) IncM2 plasmids facilitate virulence plasmid transfer via recombination with virulence plasmids through IS26 sequences. The virulence and resistance traits can also be transferred through virulence and resistance plasmid. Given the therapeutic challenges posed by CR-hvKp, implementing strict infection control measures is imperative.

Data availability statement

The datasets presented in this study can be found in online repositories. The names of the repository/repositories and accession number(s) can be found in the article/Supplementary Material.

Author contributions

DT: Writing – original draft, Writing – review & editing, Conceptualization, Investigation, Methodology. MZ: Writing – original draft, Writing – review & editing, Methodology. LL: Data curation, Methodology, Writing – review & editing. SL: Validation, Writing – review & editing. HD: Conceptualization, Supervision, Writing – review & editing.

Funding

The author(s) declare that financial support was received for the research and/or publication of this article. This work was supported by the National Natural Science Foundation of China (82402692), Shandong Provincial Natural Science Foundation (ZR2023QH215), Tai Shan Young Scholar Foundation of Shandong Province (tsqn202306400), Xiangjiang Scholar Program (XJ2024018), and Project of Shandong Province Higher Educational Youth Innovation Science and Technology Program (2022KJ106).

Acknowledgments

The authors would like to acknowledge all the other employees of the laboratory who participated in the creation of the collection.

Conflict of interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Generative AI statement

The author(s) declare that no Generative AI was used in the creation of this manuscript.

Publisher’s note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

Supplementary material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fcimb.2025.1548300/full#supplementary-material
