Abstract
Blockchain technology has emerged as a potential solution for securing the rapidly expanding Internet of Things (IoT). This review critically analyzes 49 recent scientific publications to assess the current state of blockchain-based IoT security. We examine the strengths and weaknesses of various approaches, focusing on their ability to address data integrity, authentication, and access control vulnerabilities. The review identifies persistent challenges related to scalability, energy efficiency, and privacy, and proposes actionable future research directions. These directions include the development of context-aware security protocols, adaptive trust models, and privacy-preserving analytics techniques. This paper provides a valuable resource for researchers seeking to advance the field of blockchain-based IoT security.
1 Introduction
The IoT’s (Internet of Things) fast growth has revealed the lack of device identity, key management, data integrity, and access control that has existed for a long time in heterogeneous, resource-constrained nodes (Obaidat et al., 2024). Essentially, this proliferation is characterized by billions of energy-sensitive, connected devices that pose privacy and security issues because of single points of failure, opaque data governance, and excessive trust in third parties that act as intermediaries (Alzoubi et al., 2022).
In addition to the resource constraints, the cryptographic overheads for securing endpoints greatly limit the scalability of networks that handle real-time telemetry at scale (Abang et al., 2024). Blockchain can deliver clear logs, witness changes in state, and offer programmable controls via smart contracts when it is implemented sensibly and as part of a bigger security framework (Barazanchi and Hashim, 2023). Anyway, decentralisation, rather than “eliminating” central authorities, can still keep the number of middlemen low in specific workflows and under clearly defined scenarios (Obaidat et al., 2024).
One of the current developments in the field of blockchain technology is the energy-conscious consensus system (for instance PoS/DPoS) which is capable of relieving some of the blockchain network’s energy consumption problems (Barazanchi and Hashim, 2023). Furthermore, the use of layered architectures in blockchain networks enables such networks to distribute and thus prevent bottlenecking in the process of load in the actual work (Eghmazi et al., 2024b). However, the overall performance of these models is calculated based on a combination of their implementation in realistic environments where latency, throughput, and integration constraints are considered (Abang et al., 2024). So, we cite the evidence of experiments and prototypes versus implementation in production deployments, quite strictly, and we avoid extending the benefits beyond the tested areas (Obaidat et al., 2024). As a step to go beyond mere descriptions, we have brought the identity and trust-chain lifecycle (enrolment → credential issuance → authentication → authorisation → transaction logging → revocation/rotation → audit) to the forefront and depicted which on-chain versus off-chain control.
This review synthesizes findings from recent (2020–2025) studies to:
(1) Recognize major privacy and security issues of IoT that the adoption of a blockchain could relieve the IoT stated manner (Obaidat et al., 2024).
(2) Work out a systematic classification for the IoT solutions that use blockchain technology (BIoT) on the basis of architecture, consensus, application domain, and security objective (Shammar et al., 2021).
(3) Integrate the strengths and trade-offs (e.g., auditability vs. latency; privacy strength vs. device budgets; portability vs. domain fit) through a brief benchmarking rubric (security/performance/resource/governance/interoperability) to support a data-driven appraisal process (Abang et al., 2024).
(4) And uncover the issues (e.g., identity lifecycle governance, benchmarking, real-world validation) and suggest feasible research directions that resonate with the regulatory and operational conditions (Obaidat et al., 2024).
We generally adopt a critical stance: Is it really that blockchain has the capacity to help meet certain security goals, especially those of auditability, non-repudiation, and tamper-evident logging, that is if the context, architecture, and operational maturity are the right ones (Tranvåg, 2025). Moreover, security measures such should device identity proofing, hardware-backed key custody, and secure firmware pipelines that are necessary and not replaced by on-chain mechanisms remain.
2 Literature review
The relevant literature was systematically identified through keyword searches in major scholarly databases (IEEE Xplore, SpringerLink, ScienceDirect, and arXiv), following a topic-centred screening protocol (Obaidat et al., 2024). Search terms included combinations of “IoT security,” “blockchain integration,” “privacy,” “consensus algorithm,” “smart contracts,” and “trust management,” reflecting the core technical axes of BIoT research (Obaidat et al., 2024). To ensure relevance, the search focused on peer-reviewed articles published between 2020 and 2025 that explicitly investigate blockchain-based security or privacy for IoT (Obaidat et al., 2024). The selected articles were then categorised along four axes to enable structured comparison (Shammar et al., 2021).
(1) Blockchain Architecture. We distinguish permissioned designs (e.g., Hyperledger Fabric), permissionless implementations (e.g., Ethereum-based), and layered/hybrid models that partition responsibilities across tiers (Eghmazi et al., 2024a).
(2) Consensus Algorithm. We group studies by mechanism—PoW/PoS, PBFT-style finality, and lightweight or reputation-based approaches tailored to constrained devices (Yuan et al., 2025).
(3) Application Area. We assign research to domains such as healthcare, smart home/city, industrial IoT, and supply-chain. For example, in smart-home settings, a consortium-chain message-authentication scheme anchors signed telemetry to curb spoofing (Liu et al., 2023); and in healthcare, an opportunistic access-control model combines blockchain with ML-based context checks to improve auditability and traceability (Anjum et al., 2025).
(4) Security Objective. We classify works by primary goal—authentication/access control, integrity, privacy preservation, or trust management, aligning with established taxonomies in recent reviews (Shammar et al., 2021).
Across domains, BIoT integration has been explored chiefly in pilots and prototypes rather than production deployments, and reported gains are often domain-specific with limited portability under different workloads or threat models (Obaidat et al., 2024). To ground terminology and avoid over-generalisation, subsection 2.5 formalises the identity and trust-chain lifecycle and makes explicit which controls are anchored on-chain versus which remain off-chain (e.g., device attestation, secure boot, and hardware-backed key custody) (Lorych and Plappert, 2024).

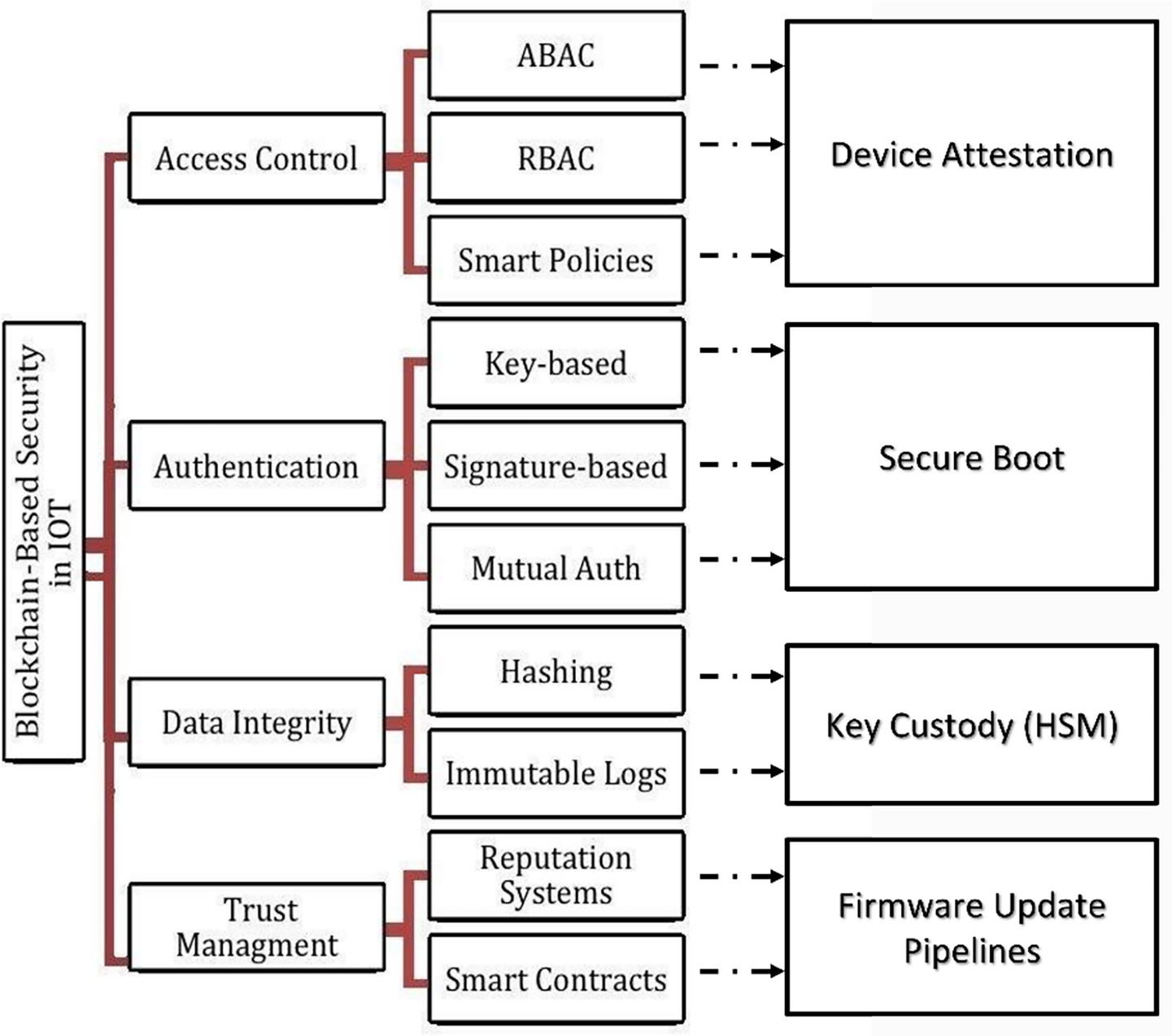

The Figure 1 illustrates how blockchain could be applied, under stated assumptions, to support decentralized identity, data integrity, and device trust, with on-chain anchors (e.g., revocation, audit hashes) and off-chain mandatory controls (device attestation, secure boot, key custody).
Figure 1
2.1 Blockchain architecture
Many studies have delved into designing architectural frameworks that would effectively combine blockchain with IoT for achieving scalability, decentralization, and safe data management; nevertheless, the overall benefit is dependent on the context and is limited by device budgets, integration overheads, and governance realities (Obaidat et al., 2024; Abang et al., 2024; Eghmazi et al., 2024b). In reality, on-chain components are required to be compatible with off-chain controls (device attestation, key custody, secure boot), which, most often, are the ones that set the end-to-end risk.
A study introduces a lightweight, permissioned-blockchain group-key protocol for clustered devices that significantly reduces control-plane overhead (Maeng et al., 2022). Still, the paper only provides limited information about the system’s performance under dynamic, large-scale, and heterogeneous networks, thereby, adaptability, failure modes, and revocation latency remain unaddressed (Abang et al., 2024; Mazzocca et al., 2024a).
One more idea for IIoT data flows to be transparent is the proposal of a decentralised architecture with real-time blockchain layers to eliminate the need for a central broker (Latif et al., 2020). The auditability can be raised; however, as the network gets larger, so does the computational complexity and message amplification, which puts a limit on the number of resource-limited nodes and gateways that can be adopted (Abang et al., 2024; Yuan et al., 2025).
To partition responsibilities, one such as hierarchical design introduces multi-tier blockchains, which not only enhance capacity but also the extent of the admin control (Oktian et al., 2020). Although, specialised bridges are essential to allow communication between different protocols due to the diversity of the protocols, this in turn results in interoperability and lifecycle management across vendors being more complex (Eghmazi et al., 2024b; Obaidat et al., 2024).
By implementing such a four-layer stack, streaming can be made scalable, where the private blockchain is integrated with a Kafka-based pipeline (Eghmazi et al., 2024a). The project is a good demonstration of practicable scalability and privacy partitioning, but the issues of complexity in the daily operations and the high price of the setup - in particular multi-tenant, multi-vendor deployments with uneven SRE capacity still remain (Eghmazi et al., 2024b; Abang et al., 2024).
These architectures reveal the same conflicts multiple times: throughput/latency and energy efficiency whence auditability and policy transparency are demanded. After all, most of the evaluations are pilots/prototypes rather than production deployments, so generalisability and field validation are still at the initial stage (Obaidat et al., 2024; Eghmazi et al., 2024b; Lorych and Plappert, 2024). As a result, we consider blockchain as a supplement to off-chain identity and firmware-security controls rather than the solution that entirely replaces them, and these trade-offs are reflected in our comparative analysis (Section 3) and the identity and trust-chain lifecycle (Section 2.5).
2.2 Consensus mechanism
Consensus design is the main point through which blockchain and IoT are integrated, however, the benefit of such a system is still dependent on the context of a non-hardware or low-latency environment. The envelope of security/performance depends on the complexity of the messages, hypotheses of synchrony, the number of members in the committee/the rate of replacement, and the resistance against Sybil attacks—all of which are overlapping with energy budgets and wireless variability (Abang et al., 2024; Yuan et al., 2025; Kim and Kim, 2024).
One of the methods in the field of high-volume transactions with anonymity incites the use of group signatures with batch verification as a way to increase processing effectiveness (Basudan, 2023). Nevertheless, the model here still presupposes quite stable connectivity—made worse with the re-transmissions and re-batching under lossy links that can diminish p95/p99 latency and predictability (Abang et al., 2024; Kim and Kim, 2024). The privacy–performance trade-off is still a matter to be regulated in heterogeneous nodes. The hybrid framework for mobile/vehicular IoT is a combination of the PBFT model and the support for anonymous and dynamic participation (Vangala et al., 2022). However, it should be kept in mind that the compute/communication costs are raised by quadratic messaging and view-change overheads and as a result, strict real-time operation on lightweight nodes without gateway offload or smaller committees is faced with a big challenge (Yuan et al., 2025; Banupriya and Sharmila, 2024).
For constrained devices, a lightweight protocol demonstrates high throughput and low latency in simulation (Natraj et al., 2025); at industrial scale and partial synchrony, leader contention/timeouts can re-introduce bottlenecks, requiring parameter tuning (committee sizing, timeout policy) and adversarial failure-mode testing (Abang et al., 2024; Yuan et al., 2025). To trim communication, a reputation-based mechanism adapts consensus roles to node trust levels (Zhao et al., 2024). This improves scalability/energy use but opens attack surface (reputation poisoning/collusion) unless backed by robust admission control and periodic re-randomisation (Obaidat et al., 2024; Yuan et al., 2025).
In an effort to reduce energy consumption, a PoS + BFT-inspired model is proposing to keep finality, but at the same time power down the system (Barazanchi and Hashim, 2023). Nevertheless, the range of security covered by staking concentration, partitions, and adaptive adversaries is minimally accounted for—formal verification and experiments under adverse conditions are needed (Yuan et al., 2025; Abang et al., 2024).
The lower message complexity and faster finality that can be emulated by latency/energy improvements are, however, a trade-off in resilience to churn, partitions, and Byzantine behavior; as a matter of fact, safety margins conversely being stronger result in higher communication/compute overhead (Yuan et al., 2025; Banupriya and Sharmila, 2024; Abang et al., 2024). To enable rigorous cross-study comparison (Section 3), we choose the Benchmarking Rubric encompassing security (safety/liveness under churn/faults), performance (p95 latency, burst throughput), resource (energy/tx, RAM/flash), governance (revocation propagation, committee-rotation latency), and interoperability (gateway failure modes) as our metric. Wherever consensus-critical telemetry is logged, on-chain attestations should be used, whereas heavy cryptography and device attestation, even if telemetry is off-chain, can be considered (See Section 2.5).
2.3 Security goals
The literature addresses the fundamental goals of security—authentication, access control, integrity, and privacy—however, the overall benefit to network security is frequently dependent on the context of device budgets, latency restrictions, and identity-lifecycle management gaps (Obaidat et al., 2024). Moreover, the implementation of more robust privacy measures and more detailed policy models generally leads to higher computing, storage, and key management overhead for the nodes with limited resources (Hu, 2023).
For lightweight authentication, a recent paper presents a protocol adjusted to the most limited resource budgets that decreases the per-handshake cost and accelerates the establishment of trust (Yang et al., 2021). The account of the behavior of the system under heterogeneous links and large traffic bursts is very limited, thus scalability is still regarded as an open question (Abang et al., 2024). Besides, the latency of revocation and credential-rotation are also barely outlined (Mazzocca et al., 2024a). To link integrity with secrecy, another work branch suggests contract-mediated validation with zero-knowledge proofs (Kaur and Ali, 2021). The step of ZK proof generation and verification, which is the main cause of the processing overhead and latency, and hence the challenge for real-time IIoT control loops, is discussed in (Ramezan and Meamari, 2024b).
The survey, which is comprehensive at the threat-landscape level, outlines risks of the blockchain–IoT integration and gives a preview of mitigations (Singh et al., 2021). As a result, a lot of the security measures proposed are still at the concept stage with very few implementations that can withstand the insider threat and the cleverness of the adaptive attackers (Obaidat et al., 2024).
Recently, changes in the firmware and data flow have signaled the advent of privacy-preserving improvements, where ZK-based protection is offered to ensure the secrecy of the data and provide the evidence of the absence of tampering in the decentralized sirmetting (Ramezan and Meamari, 2024a). Their large computational and memory footprint make it very difficult to deploy them on low-powered edge devices (Ramezan and Meamari, 2024b). Another stream fuses CP-ABE with blockchain to boost fine-grained authorisation, that is a measure for better accountability as well as non-repudiation (Lee et al., 2023). Besides that, encryption overhead along with key lifecycle complexity are two major operational factors (Hu, 2023). The usability of such systems can be further impacted in mobile or dynamic topologies (Yang et al., 2024). A lightweight scheme for efficient mutual authentication exploits modular square-root cryptography to reduce resource usage to a minimum (Yang et al., 2021). However, to be really secure, the assurance of long-term cryptography and the tightness of parameters will need more work that is beyond the scope of near-term performance (Obaidat et al., 2024).
Three tensions keep coming back throughout the work: more strong personal details versus the device budget, richer policies against latency and operational complexity, and lightweight primitives versus long-term confidence (Obaidat et al., 2024). Audit hashes and revocation events as on-chain anchors can raise easier verification levels (Tranvåg, 2025). Off-chain controls, for example, device attestation, secure boot, and key custody, are always there and indispensable for end-to-end assurance (Lorych and Plappert, 2024). To do a thorough cross-study comparison, we use the benchmarking rubric with latency and burst throughput as performance baselines to set performance metrics (Abang et al., 2024). The means of governance are judged through revocation-propagation latency (Mazzocca et al., 2024a). Interoperability is gauged through the examination of gateway failure modes and portability factors (Obaidat et al., 2024).
2.4 Application domain
Across different sectors, there has been wide interest in exploring the integration of blockchain with IoT. These sectors have diverse security, scalability, and privacy needs. But most of the evidence supporting such an integration is based on pilots/prototypes rather than the actual deployment of the production, and the reported improvements are usually limited to a specific domain with little portability under different workloads and threat models (Obaidat et al., 2024). For example, in smart-home environments, signed telemetry is at the core of data integrity and dynamic audit functionalities, which are enabled by a consortium-chain message-authentication system (Liu et al., 2023). The device-key management for the lifecycle of the device has to be very accurate in the real-world scenario, and high-frequency traffic can cause audit delays and verifier load, thereby affecting the system’s responsiveness (Abang et al., 2024). Medical field-wise, a blockchain system is usage for an opportunistic access-control model. The model is composed of machine learning-based context signals and aims to provide access in the real-time situation, which is very important during an emergency, situations (Anjum et al., 2025). Besides that, ML integration complicates the tuning/monitoring process and can lead to a change in bottleneck location to feature quality and model drift, as per the authors’ disclosure (Obaidat et al., 2024).
In IIoT, a trust-scoring and secure-transmission model employs distributed ledger to figure out the trustworthiness of a device and guard telemetry (Rathee et al., 2022); still, the dependence on coordinator nodes can cause the same problems that the decentralisation goals try to overcome, i.e., bottlenecks and single points of failure (Abang et al., 2024). A domain solution for access control and device identity is designed to prevent the abuse of devices such as crypto-mining on compromised ones (Janani and Ramamoorthy, 2023); however, the technology remains only partially capable of confronting adaptive threats and new hardware platforms if there were no ongoing policy/firmware updates (Lorych and Plappert, 2024). For city/industrial applications, the authors implemented a four-layer stack that a private blockchain with stringent access control to manage dynamic data volumes (Eghmazi et al., 2024a). The necessary infrastructure and the amount of integration work needed are significantly large, this in turn limits the possible usage in resource-limited settings and smaller deployments (Eghmazi et al., 2024b).
The three themes that are common to all areas recurred in their respective domains: (i) the governance of the identity lifecycle is the key to the provision of sustained assurance (Mazzocca et al., 2024a); (ii) the throughput/latency limitations are frequently noticed at the gateways and coordinators rather than the on-chain (Abang et al., 2024); and (iii) the portability gets worse when the domain-specific assumptions have already leaked into the core architecture (Obaidat et al., 2024). So, we explicitly identify those things that are on-chain, for instance, audit hashes and revocation events (Tranvåg, 2025), and those things are off-chain, device attestation, secure boot, and key custody (Lorych and Plappert, 2024). The Benchmarking Rubric (Section 3) with latency and burst throughput (performance), energy/tx and RAM/flash (resources), policy-enforcement correctness and MTTR (security), revocation propagation (governance), and gateway failure modes (interoperability) is our recommended method for the future evaluation of domain solutions. We are also able to use this setting to guard against the common mistake of over-generalizing the results of domain-bound studies to wider deployments (Obaidat et al., 2024) (see Table 1).

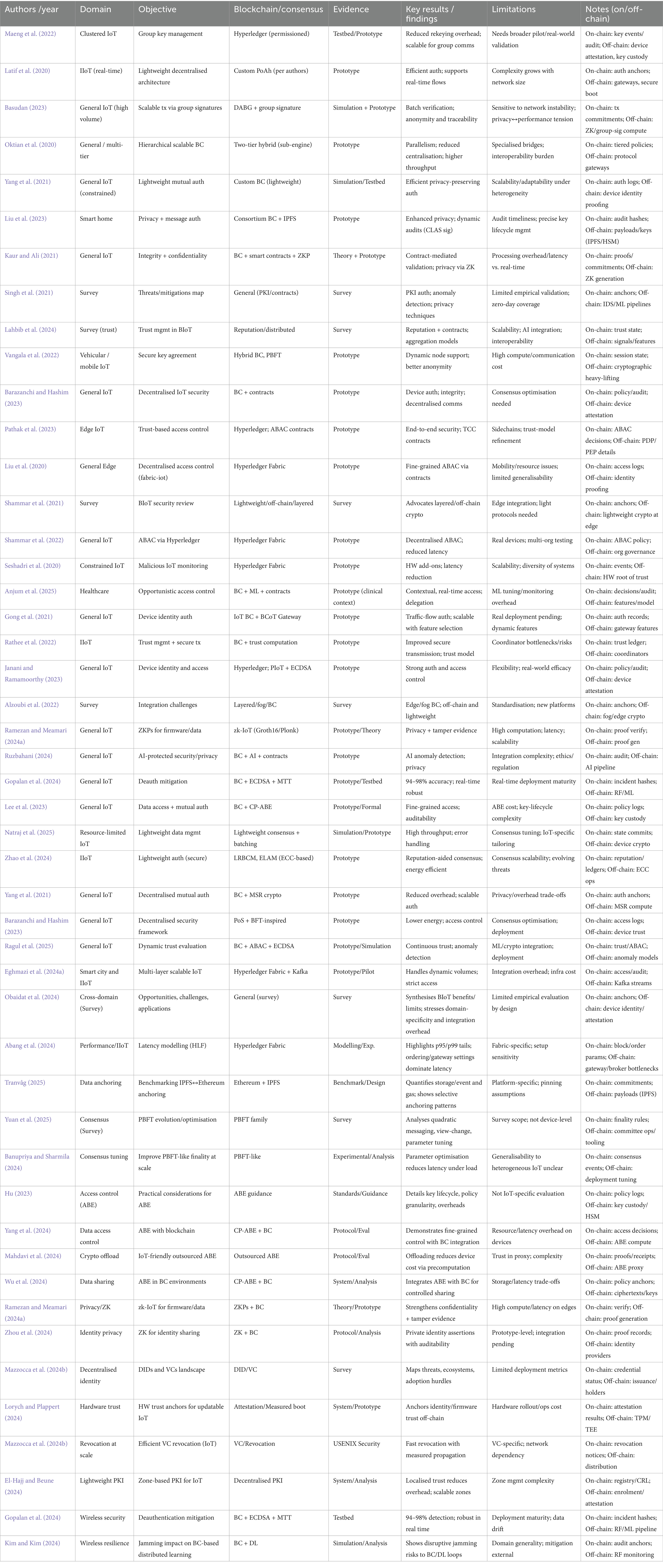

Table 1
| Authors /year | Domain | Objective | Blockchain/consensus | Evidence | Key results /findings | Limitations | Notes (on/off-chain) |
|---|---|---|---|---|---|---|---|
| Maeng et al. (2022) | Clustered IoT | Group key management | Hyperledger (permissioned) | Testbed/Prototype | Reduced rekeying overhead; scalable for group comms | Needs broader pilot/real-world validation | On-chain: key events/audit; Off-chain: device attestation, key custody |
| Latif et al. (2020) | IIoT (real-time) | Lightweight decentralised architecture | Custom PoAh (per authors) | Prototype | Efficient auth; supports real-time flows | Complexity grows with network size | On-chain: auth anchors; Off-chain: gateways, secure boot |
| Basudan (2023) | General IoT (high volume) | Scalable tx via group signatures | DABG + group signature | Simulation + Prototype | Batch verification; anonymity and traceability | Sensitive to network instability; privacy↔performance tension | On-chain: tx commitments; Off-chain: ZK/group-sig compute |
| Oktian et al. (2020) | General / multi-tier | Hierarchical scalable BC | Two-tier hybrid (sub-engine) | Prototype | Parallelism; reduced centralisation; higher throughput | Specialised bridges; interoperability burden | On-chain: tiered policies; Off-chain: protocol gateways |
| Yang et al. (2021) | General IoT (constrained) | Lightweight mutual auth | Custom BC (lightweight) | Simulation/Testbed | Efficient privacy-preserving auth | Scalability/adaptability under heterogeneity | On-chain: auth logs; Off-chain: device identity proofing |
| Liu et al. (2023) | Smart home | Privacy + message auth | Consortium BC + IPFS | Prototype | Enhanced privacy; dynamic audits (CLAS sig) | Audit timeliness; precise key lifecycle mgmt | On-chain: audit hashes; Off-chain: payloads/keys (IPFS/HSM) |
| Kaur and Ali (2021) | General IoT | Integrity + confidentiality | BC + smart contracts + ZKP | Theory + Prototype | Contract-mediated validation; privacy via ZK | Processing overhead/latency vs. real-time | On-chain: proofs/commitments; Off-chain: ZK generation |
| Singh et al. (2021) | Survey | Threats/mitigations map | General (PKI/contracts) | Survey | PKI auth; anomaly detection; privacy techniques | Limited empirical validation; zero-day coverage | On-chain: anchors; Off-chain: IDS/ML pipelines |
| Lahbib et al. (2024) | Survey (trust) | Trust mgmt in BIoT | Reputation/distributed | Survey | Reputation + contracts; aggregation models | Scalability; AI integration; interoperability | On-chain: trust state; Off-chain: signals/features |
| Vangala et al. (2022) | Vehicular / mobile IoT | Secure key agreement | Hybrid BC, PBFT | Prototype | Dynamic node support; better anonymity | High compute/communication cost | On-chain: session state; Off-chain: cryptographic heavy-lifting |
| Barazanchi and Hashim (2023) | General IoT | Decentralised IoT security | BC + contracts | Prototype | Device auth; integrity; decentralised comms | Consensus optimisation needed | On-chain: policy/audit; Off-chain: device attestation |
| Pathak et al. (2023) | Edge IoT | Trust-based access control | Hyperledger; ABAC contracts | Prototype | End-to-end security; TCC contracts | Sidechains; trust-model refinement | On-chain: ABAC decisions; Off-chain: PDP/PEP details |
| Liu et al. (2020) | General Edge | Decentralised access control (fabric-iot) | Hyperledger Fabric | Prototype | Fine-grained ABAC via contracts | Mobility/resource issues; limited generalisability | On-chain: access logs; Off-chain: identity proofing |
| Shammar et al. (2021) | Survey | BIoT security review | Lightweight/off-chain/layered | Survey | Advocates layered/off-chain crypto | Edge integration; light protocols needed | On-chain: anchors; Off-chain: lightweight crypto at edge |
| Shammar et al. (2022) | General IoT | ABAC via Hyperledger | Hyperledger Fabric | Prototype | Decentralised ABAC; reduced latency | Real devices; multi-org testing | On-chain: ABAC policy; Off-chain: org governance |
| Seshadri et al. (2020) | Constrained IoT | Malicious IoT monitoring | Hyperledger Fabric | Prototype | HW add-ons; latency reduction | Scalability; diversity of systems | On-chain: events; Off-chain: HW root of trust |
| Anjum et al. (2025) | Healthcare | Opportunistic access control | BC + ML + contracts | Prototype (clinical context) | Contextual, real-time access; delegation | ML tuning/monitoring overhead | On-chain: decisions/audit; Off-chain: features/model |
| Gong et al. (2021) | General IoT | Device identity auth | IoT BC + BCoT Gateway | Prototype | Traffic-flow auth; scalable with feature selection | Real deployment pending; dynamic features | On-chain: auth records; Off-chain: gateway features |
| Rathee et al. (2022) | IIoT | Trust mgmt + secure tx | BC + trust computation | Prototype | Improved secure transmission; trust model | Coordinator bottlenecks/risks | On-chain: trust ledger; Off-chain: coordinators |
| Janani and Ramamoorthy (2023) | General IoT | Device identity and access | Hyperledger; PIoT + ECDSA | Prototype | Strong auth and access control | Flexibility; real-world efficacy | On-chain: policy/audit; Off-chain: device attestation |
| Alzoubi et al. (2022) | Survey | Integration challenges | Layered/fog/BC | Survey | Edge/fog BC; off-chain and lightweight | Standardisation; new platforms | On-chain: anchors; Off-chain: fog/edge crypto |
| Ramezan and Meamari (2024a) | General IoT | ZKPs for firmware/data | zk-IoT (Groth16/Plonk) | Prototype/Theory | Privacy + tamper evidence | High computation; latency; scalability | On-chain: proof verify; Off-chain: proof gen |
| Ruzbahani (2024) | General IoT | AI-protected security/privacy | BC + AI + contracts | Prototype | AI anomaly detection; privacy | Integration complexity; ethics/regulation | On-chain: audit; Off-chain: AI pipeline |
| Gopalan et al. (2024) | General IoT | Deauth mitigation | BC + ECDSA + MTT | Prototype/Testbed | 94–98% accuracy; real-time robust | Real-time deployment maturity | On-chain: incident hashes; Off-chain: RF/ML |
| Lee et al. (2023) | General IoT | Data access + mutual auth | BC + CP-ABE | Prototype/Formal | Fine-grained access; auditability | ABE cost; key-lifecycle complexity | On-chain: policy logs; Off-chain: key custody |
| Natraj et al. (2025) | Resource-limited IoT | Lightweight data mgmt | Lightweight consensus + batching | Simulation/Prototype | High throughput; error handling | Consensus tuning; IoT-specific tailoring | On-chain: state commits; Off-chain: device crypto |
| Zhao et al. (2024) | IIoT | Lightweight auth (secure) | LRBCM, ELAM (ECC-based) | Prototype | Reputation-aided consensus; energy efficient | Consensus scalability; evolving threats | On-chain: reputation/ledgers; Off-chain: ECC ops |
| Yang et al. (2021) | General IoT | Decentralised mutual auth | BC + MSR crypto | Prototype | Reduced overhead; scalable auth | Privacy/overhead trade-offs | On-chain: auth anchors; Off-chain: MSR compute |
| Barazanchi and Hashim (2023) | General IoT | Decentralised security framework | PoS + BFT-inspired | Prototype | Lower energy; access control | Consensus optimisation; deployment | On-chain: access logs; Off-chain: device trust |
| Ragul et al. (2025) | General IoT | Dynamic trust evaluation | BC + ABAC + ECDSA | Prototype/Simulation | Continuous trust; anomaly detection | ML/crypto integration; deployment | On-chain: trust/ABAC; Off-chain: anomaly models |
| Eghmazi et al. (2024a) | Smart city and IIoT | Multi-layer scalable IoT | Hyperledger Fabric + Kafka | Prototype/Pilot | Handles dynamic volumes; strict access | Integration overhead; infra cost | On-chain: access/audit; Off-chain: Kafka streams |
| Obaidat et al. (2024) | Cross-domain (Survey) | Opportunities, challenges, applications | General (survey) | Survey | Synthesises BIoT benefits/limits; stresses domain-specificity and integration overhead | Limited empirical evaluation by design | On-chain: anchors; Off-chain: device identity/attestation |
| Abang et al. (2024) | Performance/IIoT | Latency modelling (HLF) | Hyperledger Fabric | Modelling/Exp. | Highlights p95/p99 tails; ordering/gateway settings dominate latency | Fabric-specific; setup sensitivity | On-chain: block/order params; Off-chain: gateway/broker bottlenecks |
| Tranvåg (2025) | Data anchoring | Benchmarking IPFS↔Ethereum anchoring | Ethereum + IPFS | Benchmark/Design | Quantifies storage/event and gas; shows selective anchoring patterns | Platform-specific; pinning assumptions | On-chain: commitments; Off-chain: payloads (IPFS) |
| Yuan et al. (2025) | Consensus (Survey) | PBFT evolution/optimisation | PBFT family | Survey | Analyses quadratic messaging, view-change, parameter tuning | Survey scope; not device-level | On-chain: finality rules; Off-chain: committee ops/tooling |
| Banupriya and Sharmila (2024) | Consensus tuning | Improve PBFT-like finality at scale | PBFT-like | Experimental/Analysis | Parameter optimisation reduces latency under load | Generalisability to heterogeneous IoT unclear | On-chain: consensus events; Off-chain: deployment tuning |
| Hu (2023) | Access control (ABE) | Practical considerations for ABE | ABE guidance | Standards/Guidance | Details key lifecycle, policy granularity, overheads | Not IoT-specific evaluation | On-chain: policy logs; Off-chain: key custody/HSM |
| Yang et al. (2024) | Data access control | ABE with blockchain | CP-ABE + BC | Protocol/Eval | Demonstrates fine-grained control with BC integration | Resource/latency overhead on devices | On-chain: access decisions; Off-chain: ABE compute |
| Mahdavi et al. (2024) | Crypto offload | IoT-friendly outsourced ABE | Outsourced ABE | Protocol/Eval | Offloading reduces device cost via precomputation | Trust in proxy; complexity | On-chain: proofs/receipts; Off-chain: ABE proxy |
| Wu et al. (2024) | Data sharing | ABE in BC environments | CP-ABE + BC | System/Analysis | Integrates ABE with BC for controlled sharing | Storage/latency trade-offs | On-chain: policy anchors; Off-chain: ciphertexts/keys |
| Ramezan and Meamari (2024a) | Privacy/ZK | zk-IoT for firmware/data | ZKPs + BC | Theory/Prototype | Strengthens confidentiality + tamper evidence | High compute/latency on edges | On-chain: verify; Off-chain: proof generation |
| Zhou et al. (2024) | Identity privacy | ZK for identity sharing | ZK + BC | Protocol/Analysis | Private identity assertions with auditability | Prototype-level; integration pending | On-chain: proof records; Off-chain: identity providers |
| Mazzocca et al. (2024b) | Decentralised identity | DIDs and VCs landscape | DID/VC | Survey | Maps threats, ecosystems, adoption hurdles | Limited deployment metrics | On-chain: credential status; Off-chain: issuance/holders |
| Lorych and Plappert (2024) | Hardware trust | HW trust anchors for updatable IoT | Attestation/Measured boot | System/Prototype | Anchors identity/firmware trust off-chain | Hardware rollout/ops cost | On-chain: attestation results; Off-chain: TPM/TEE |
| Mazzocca et al. (2024b) | Revocation at scale | Efficient VC revocation (IoT) | VC/Revocation | USENIX Security | Fast revocation with measured propagation | VC-specific; network dependency | On-chain: revocation notices; Off-chain: distribution |
| El-Hajj and Beune (2024) | Lightweight PKI | Zone-based PKI for IoT | Decentralised PKI | System/Analysis | Localised trust reduces overhead; scalable zones | Zone mgmt complexity | On-chain: registry/CRL; Off-chain: enrolment/attestation |
| Gopalan et al. (2024) | Wireless security | Deauthentication mitigation | BC + ECDSA + MTT | Testbed | 94–98% detection; robust in real time | Deployment maturity; data drift | On-chain: incident hashes; Off-chain: RF/ML pipeline |
| Kim and Kim (2024) | Wireless resilience | Jamming impact on BC-based distributed learning | BC + DL | Simulation/Analysis | Shows disruptive jamming risks to BC/DL loops | Domain generality; mitigation external | On-chain: audit anchors; Off-chain: RF monitoring |
Comparison of reviewed works.
2.5 Identity and trust-chain lifecycle in BIoT
Whether the network of connected devices (BIoT—Blockchain IoT) is successful or not, one of the main factors is the identity governance system, which must be robust enough to manage different types of devices with limited resources (Mazzocca et al., 2024a). We envision the lifecycle of the system from start to finish as: enrollment → credential issuance → authentication → authorization → transaction logging → revocation/rotation → audit. Although blockchain can act as a revocation event anchor, notarise key-state changes, and offer tamper-evident logs (Tranvåg, 2025), it seems that private-key custody, device attestation, and secure boot are operations that remain off-chain and rely on hardware roots of trust and operational runbooks (Lorych and Plappert, 2024).
2.5.1 Enrollment and issuance
It is advisable that devices be enrolled through certified supply-chain/operator procedures (El-Hajj and Beune, 2024). Credentials which may be public keys, certificates, or verifiable credentials also have validity periods, recovery methods, and revocation endpoints (Mazzocca et al., 2024b). On-chain anchoring logs the issuance metadata and hash commitments whereas the secrets are not allowed to be changed or updated in device/HSM boundaries (Tranvåg, 2025). Hardware-backed trust (TPM/TEE) is the basis for the safe provisioning and upgrade routes (Lorych and Plappert, 2024).
2.5.2 Authentication and authorization
Authentication is a combination of device-held keys and nonce/timestamp challenges which makes it difficult for replay (Obaidat et al., 2024). Authorisation policies can be present in smart contracts or in off-chain PDP/PEP engines, while on-chain attestations can keep records of grants/denials for auditability (Obaidat et al., 2024). Attribute-centric or context-aware models (e.g., CP-ABE) may enhance the accuracy of the authentication but also add to the computing and key-management load—especially at the edge (Hu, 2023).
2.5.3 Revocation and rotation
Revocation rapid propagation is very important (Mazzocca et al., 2024a). On-chain publishing of revocation events enhances transparency; however, their utility relies on how fast gateways/brokers/controllers fetch and implement revocations in the data plane (Abang et al., 2024).
Implication. The “blockchain + smart contracts” solution is just an adjunct, rather than a substitute, for a reliable device identity proofing process, hardware-backed key management, and secure firmware supply chain (Lorych and Plappert, 2024). The allocation of responsibility should be very clear to not give the impression that the net security benefits are overstated (Obaidat et al., 2024) (see Table 2).

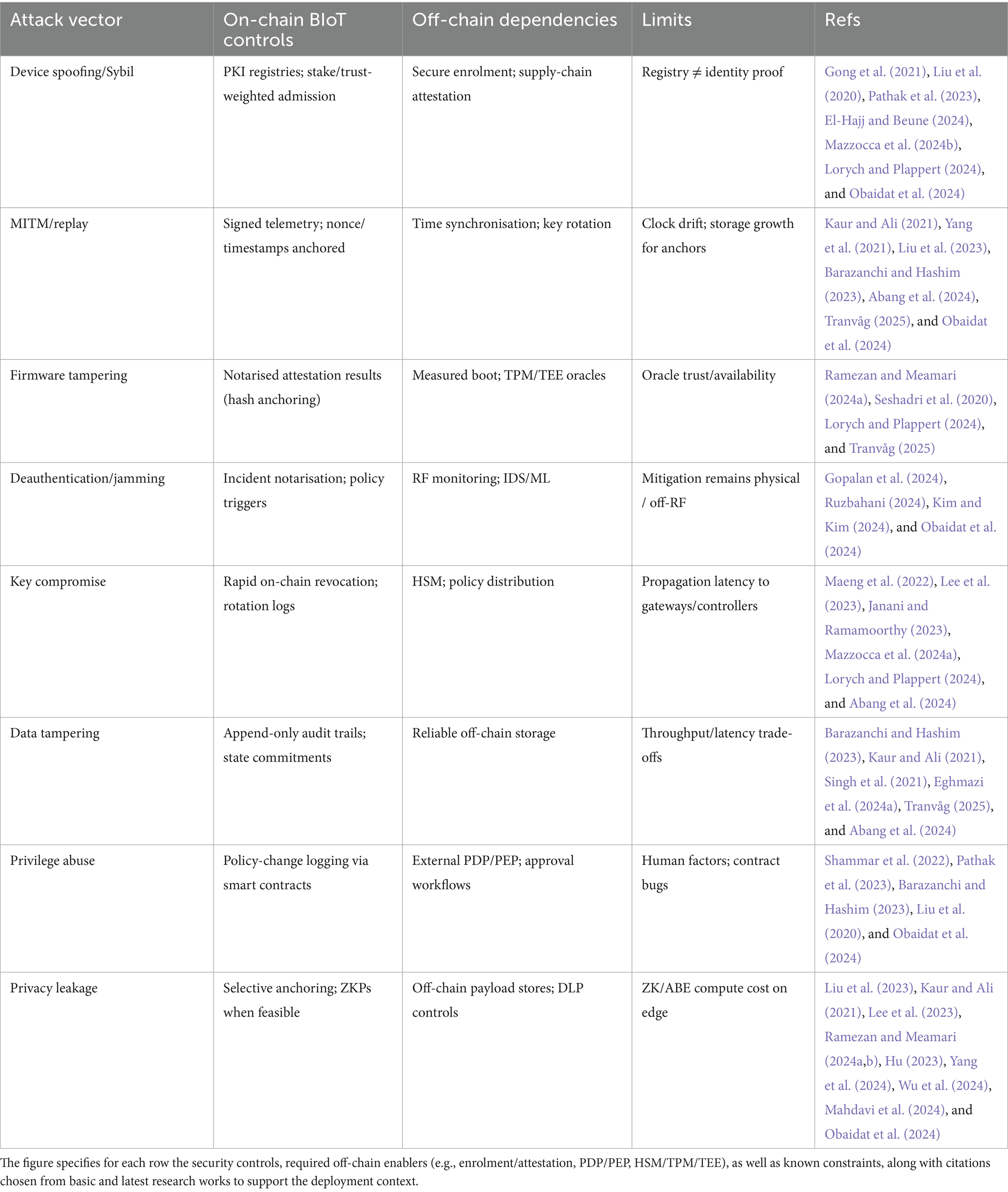

Table 2
| Attack vector | On-chain BIoT controls | Off-chain dependencies | Limits | Refs |
|---|---|---|---|---|
| Device spoofing/Sybil | PKI registries; stake/trust-weighted admission | Secure enrolment; supply-chain attestation | Registry ≠ identity proof | Gong et al. (2021), Liu et al. (2020), Pathak et al. (2023), El-Hajj and Beune (2024), Mazzocca et al. (2024b), Lorych and Plappert (2024), and Obaidat et al. (2024) |
| MITM/replay | Signed telemetry; nonce/timestamps anchored | Time synchronisation; key rotation | Clock drift; storage growth for anchors | Kaur and Ali (2021), Yang et al. (2021), Liu et al. (2023), Barazanchi and Hashim (2023), Abang et al. (2024), Tranvåg (2025), and Obaidat et al. (2024) |
| Firmware tampering | Notarised attestation results (hash anchoring) | Measured boot; TPM/TEE oracles | Oracle trust/availability | Ramezan and Meamari (2024a), Seshadri et al. (2020), Lorych and Plappert (2024), and Tranvåg (2025) |
| Deauthentication/jamming | Incident notarisation; policy triggers | RF monitoring; IDS/ML | Mitigation remains physical / off-RF | Gopalan et al. (2024), Ruzbahani (2024), Kim and Kim (2024), and Obaidat et al. (2024) |
| Key compromise | Rapid on-chain revocation; rotation logs | HSM; policy distribution | Propagation latency to gateways/controllers | Maeng et al. (2022), Lee et al. (2023), Janani and Ramamoorthy (2023), Mazzocca et al. (2024a), Lorych and Plappert (2024), and Abang et al. (2024) |
| Data tampering | Append-only audit trails; state commitments | Reliable off-chain storage | Throughput/latency trade-offs | Barazanchi and Hashim (2023), Kaur and Ali (2021), Singh et al. (2021), Eghmazi et al. (2024a), Tranvåg (2025), and Abang et al. (2024) |
| Privilege abuse | Policy-change logging via smart contracts | External PDP/PEP; approval workflows | Human factors; contract bugs | Shammar et al. (2022), Pathak et al. (2023), Barazanchi and Hashim (2023), Liu et al. (2020), and Obaidat et al. (2024) |
| Privacy leakage | Selective anchoring; ZKPs when feasible | Off-chain payload stores; DLP controls | ZK/ABE compute cost on edge | Liu et al. (2023), Kaur and Ali (2021), Lee et al. (2023), Ramezan and Meamari (2024a,b), Hu (2023), Yang et al. (2024), Wu et al. (2024), Mahdavi et al. (2024), and Obaidat et al. (2024) |
The mapping of IoT attack vectors to on-chain BIoT controls, off-chain dependencies, and practical limits.
The figure specifies for each row the security controls, required off-chain enablers (e.g., enrolment/attestation, PDP/PEP, HSM/TPM/TEE), as well as known constraints, along with citations chosen from basic and latest research works to support the deployment context.
3 Comparative analysis of blockchain-based security approaches in IoT
This section synthesizes cross-cutting trade-offs and presents a benchmarking rubric that facilitates evidence-based comparison over diverse IoT environments. In this work, we clarify the differences between on-chain anchors (e.g., audit hashes, revocation notices) and off-chain mandatory controls (device attestation, secure boot, key custody) and analyze the findings considering the identity and trust-chain lifecycle (Section 2.5) (Obaidat et al., 2024; Abang et al., 2024; Tranvåg, 2025; Eghmazi et al., 2024b).
3.1 Non-obvious trade-offs
(1) Decentralization vs. real-time QoS. More validator diversity and on-chain verification can lead better system transparency/non-repudiation; however, these improvements are frequently accompanied with higher end-to-end delays and jitters. Such performance degradations under wireless loss and committee churn can make it difficult for the control loops in Industrial Internet of Things and vehicular applications to operate (Vangala et al., 2022; Abang et al., 2024; Yuan et al., 2025; Banupriya and Sharmila, 2024).
(2) Strong privacy vs. device budget. To achieve better privacy and policy fidelity, zero-knowledge proofs and CP-ABE are used, but as a result, they raise the amount of computation, memory, and key-lifecycle overhead on constrained nodes. Hybrid off-chain verification can lessen the device load; however, it goes a step further to re-introduce trusted components (Hu, 2023; Yang et al., 2024; Mahdavi et al., 2024; Wu et al., 2024; Ramezan and Meamari, 2024b; Zhou et al., 2024).
(3) Generalizability vs. domain fit. Domain-specific (healthcare, smart home, industrial) tailored frameworks are likely to be very successful locally, nevertheless, they make certain assumptions about traffic patterns, risk models, and trust anchors that gradually erode their ability to be scalable and portable across different regions and jurisdictions; the majority of the support for this claim comes from prototypes/pilots rather than production deployments (Liu et al., 2023; Anjum et al., 2025; Rathee et al., 2022; Obaidat et al., 2024; Eghmazi et al., 2024b).
3.2 Benchmarking rubric for BIoT security solutions
Comparisons are conducted using five axes, we “benchmark” solutions by specifying at least one metric for each of the axes:
Security: policy-enforcement correctness; safety/liveness under churn; MTTD/MTTR; revocation effectiveness (Obaidat et al., 2024; Mazzocca et al., 2024a).
Performance: latency; effective throughput under bursts; view-change/leader-election cost (relevant for PBFT-like finality) (Abang et al., 2024; Yuan et al., 2025; Banupriya and Sharmila, 2024).
Resource: energy per transaction; CPU/RAM/flash footprints; storage growth per anchored event (esp. with selective anchoring) (Abang et al., 2024; Tranvåg, 2025; Eghmazi et al., 2024b; Hu, 2023; Yang et al., 2024; Mahdavi et al., 2024; Wu et al., 2024; Ramezan and Meamari, 2024b).
Governance: revocation propagation latency; key/credential rotation SLAs; committee rotation cadence (Obaidat et al., 2024; Mazzocca et al., 2024a).
Interoperability: gateway failure modes; protocol coverage; portability across vendors/jurisdictions (on−/off-chain split) (Obaidat et al., 2024; Abang et al., 2024; Tranvåg, 2025; Eghmazi et al., 2024b).
In such cases, the recommendation would be to log consensus-critical events as on-chain attestations while keeping heavy cryptography and payloads off-chain (Abang et al., 2024; Tranvåg, 2025; Eghmazi et al., 2024b; Ramezan and Meamari, 2024b).
3.3 Interdependency framework
Challenges in BIoT are causally interdependent; alleviating one can follow another that is worse. We are recommending a conceptual model that charts primary drivers—Resource Constraints, Latency/Throughput, Identity Governance, Privacy Requirements, Domain Assumptions—to their results—Security Posture, Scalability, Portability (Obaidat et al., 2024; Abang et al., 2024; Tranvåg, 2025; Eghmazi et al., 2024b; Hu, 2023; Yang et al., 2024; Mahdavi et al., 2024; Wu et al., 2024; Ramezan and Meamari, 2024b; Zhou et al., 2024; Mazzocca et al., 2024a) (see Table 3).

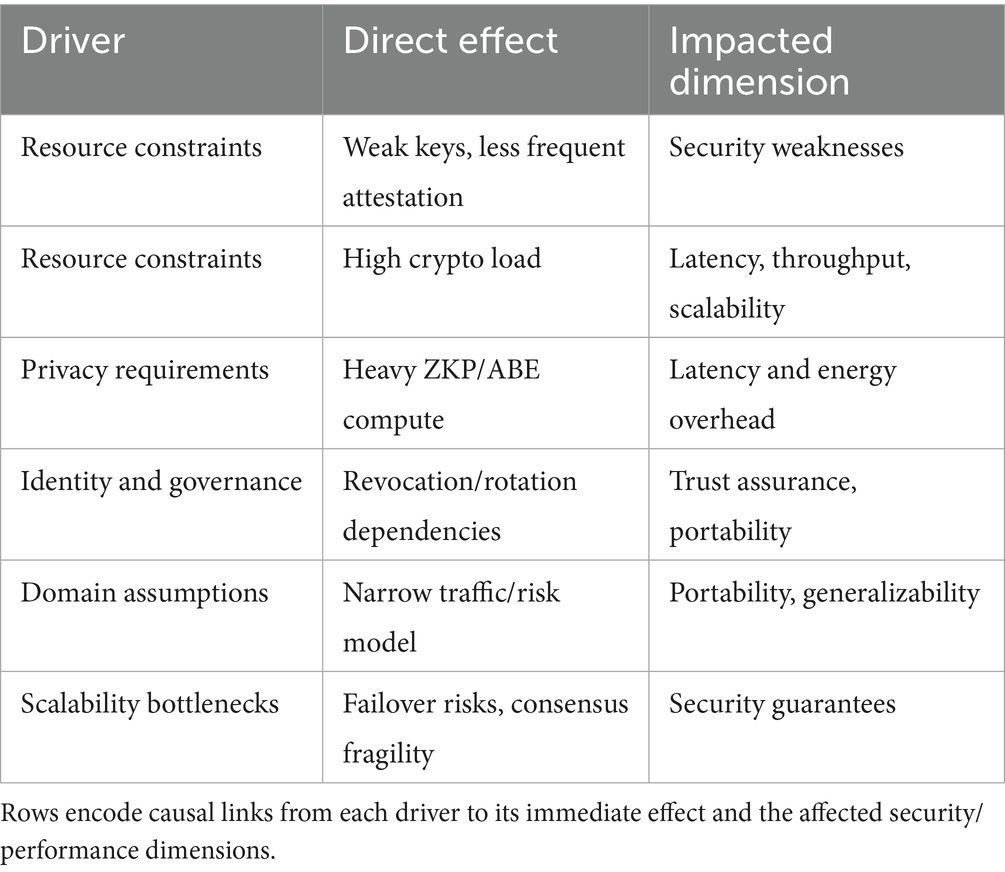

Table 3
| Driver | Direct effect | Impacted dimension |
|---|---|---|
| Resource constraints | Weak keys, less frequent attestation | Security weaknesses |
| Resource constraints | High crypto load | Latency, throughput, scalability |
| Privacy requirements | Heavy ZKP/ABE compute | Latency and energy overhead |
| Identity and governance | Revocation/rotation dependencies | Trust assurance, portability |
| Domain assumptions | Narrow traffic/risk model | Portability, generalizability |
| Scalability bottlenecks | Failover risks, consensus fragility | Security guarantees |
Interdependency matrix for BIoT challenges (drivers → direct effects → impacted dimensions).
Rows encode causal links from each driver to its immediate effect and the affected security/performance dimensions.
3.4 Practical implementation and benchmarking challenges
Most assessments are still experimental stages/pilots; the transition to diverse, production-grade ecosystems entails: workload-realistic experiments (burst traffic, partial synchrony, adversarial churn, RF loss/jamming) (Abang et al., 2024; Yuan et al., 2025; Banupriya and Sharmila, 2024; Kim and Kim, 2024); lifecycle authenticity (issuance/rotation/revocation at scale; supply-chain variance) (Mazzocca et al., 2024a,b; Lorych and Plappert, 2024); operational cost measuring (SRE effort, incident response, audit pipelines, data-residency compliance) (Obaidat et al., 2024; Abang et al., 2024; Tranvåg, 2025; Eghmazi et al., 2024b); and reporting practice (publish p95 latency and energy/tx; disclose off-chain dependencies; include failure-mode analysis) (Abang et al., 2024; Tranvåg, 2025; Eghmazi et al., 2024b; Hu, 2023; Yang et al., 2024; Mahdavi et al., 2024; Wu et al., 2024; Ramezan and Meamari, 2024b; Zhou et al., 2024).
3.5 Synthesis matrix: comparative summary of blockchain-IoT approaches

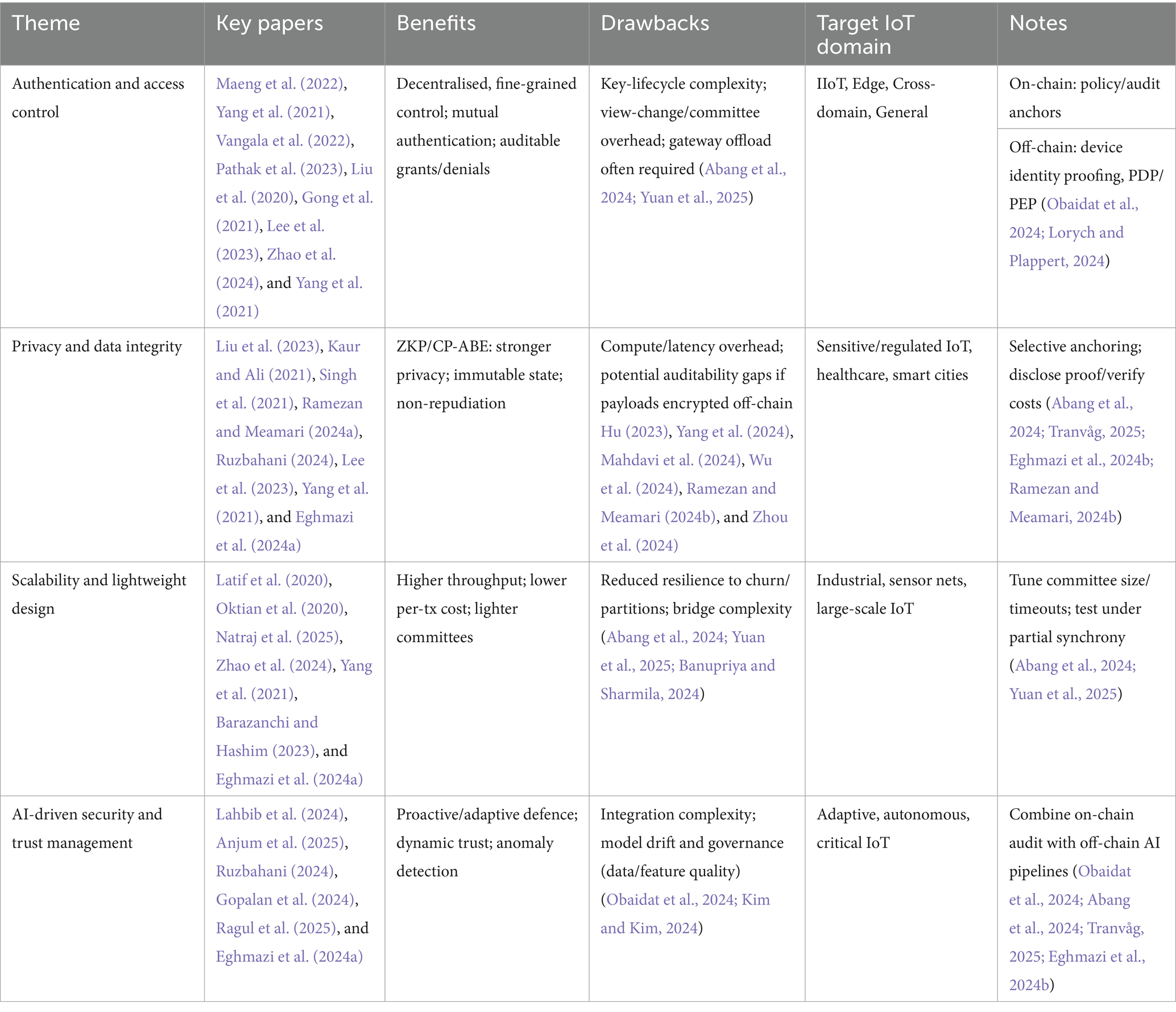

Table 4 shows comparative summary of blockchain-IoT security approaches. This synthesis matrix categorizes representative studies by theme (authentication, privacy, scalability, and AI-driven trust), highlighting reported benefits, limitations, and target IoT domains. Claims on privacy/auditability should be interpreted alongside: (i) p95 latency under bursty workloads, (ii) energy per transaction, (iii) revocation-propagation latency, and (iv) the on-/off-chain responsibility split, before cross-domain comparisons are made (Abang et al., 2024; Tranvåg, 2025; Eghmazi et al., 2024b; Yuan et al., 2025; Ramezan and Meamari, 2024b; Mazzocca et al., 2024a).
Table 4
| Theme | Key papers | Benefits | Drawbacks | Target IoT domain | Notes |
|---|---|---|---|---|---|
| Authentication and access control | Maeng et al. (2022), Yang et al. (2021), Vangala et al. (2022), Pathak et al. (2023), Liu et al. (2020), Gong et al. (2021), Lee et al. (2023), Zhao et al. (2024), and Yang et al. (2021) | Decentralised, fine-grained control; mutual authentication; auditable grants/denials | Key-lifecycle complexity; view-change/committee overhead; gateway offload often required (Abang et al., 2024; Yuan et al., 2025) | IIoT, Edge, Cross-domain, General | On-chain: policy/audit anchors |
| Off-chain: device identity proofing, PDP/PEP (Obaidat et al., 2024; Lorych and Plappert, 2024) | |||||
| Privacy and data integrity | Liu et al. (2023), Kaur and Ali (2021), Singh et al. (2021), Ramezan and Meamari (2024a), Ruzbahani (2024), Lee et al. (2023), Yang et al. (2021), and Eghmazi et al. (2024a) | ZKP/CP-ABE: stronger privacy; immutable state; non-repudiation | Compute/latency overhead; potential auditability gaps if payloads encrypted off-chain Hu (2023), Yang et al. (2024), Mahdavi et al. (2024), Wu et al. (2024), Ramezan and Meamari (2024b), and Zhou et al. (2024) | Sensitive/regulated IoT, healthcare, smart cities | Selective anchoring; disclose proof/verify costs (Abang et al., 2024; Tranvåg, 2025; Eghmazi et al., 2024b; Ramezan and Meamari, 2024b) |
| Scalability and lightweight design | Latif et al. (2020), Oktian et al. (2020), Natraj et al. (2025), Zhao et al. (2024), Yang et al. (2021), Barazanchi and Hashim (2023), and Eghmazi et al. (2024a) | Higher throughput; lower per-tx cost; lighter committees | Reduced resilience to churn/partitions; bridge complexity (Abang et al., 2024; Yuan et al., 2025; Banupriya and Sharmila, 2024) | Industrial, sensor nets, large-scale IoT | Tune committee size/timeouts; test under partial synchrony (Abang et al., 2024; Yuan et al., 2025) |
| AI-driven security and trust management | Lahbib et al. (2024), Anjum et al. (2025), Ruzbahani (2024), Gopalan et al. (2024), Ragul et al. (2025), and Eghmazi et al. (2024a) | Proactive/adaptive defence; dynamic trust; anomaly detection | Integration complexity; model drift and governance (data/feature quality) (Obaidat et al., 2024; Kim and Kim, 2024) | Adaptive, autonomous, critical IoT | Combine on-chain audit with off-chain AI pipelines (Obaidat et al., 2024; Abang et al., 2024; Tranvåg, 2025; Eghmazi et al., 2024b) |
Comparative summary of blockchain-IoT approaches.
4 Challenges in current research
Recent literature Maeng et al. (2022), Latif et al. (2020), Basudan (2023), Oktian et al. (2020), Yang et al. (2021), Liu et al. (2023), Kaur and Ali (2021), Singh et al. (2021), Lahbib et al. (2024), Vangala et al. (2022), Barazanchi and Hashim (2023), Pathak et al. (2023), Liu et al. (2020), Shammar et al. (2021, 2022), Seshadri et al. (2020), Anjum et al. (2025), Gong et al. (2021), Rathee et al. (2022), Janani and Ramamoorthy (2023), Alzoubi et al. (2022), Ramezan and Meamari (2024a,b), Ruzbahani (2024), Gopalan et al. (2024), Lee et al. (2023), Natraj et al. (2025), Zhao et al. (2024), Yang et al. (2021), Barazanchi and Hashim (2023), Ragul et al. (2025), Eghmazi et al. (2024a,b), Obaidat et al. (2024), Abang et al. (2024), Tranvåg (2025), Yuan et al. (2025), Banupriya and Sharmila (2024), Hu (2023), Yang et al. (2024), Mahdavi et al. (2024), Wu et al. (2024), Zhou et al. (2024), Mazzocca et al. (2024a,b), Lorych and Plappert (2024), El-Hajj and Beune (2024), Gopalan et al. (2024), and Kim and Kim (2024) reveals that, notwithstanding the blockchain integration leading to the offering of several advantages for the IoS ecosystems, there are still many unresolved critical challenges. These issues become even more complicated with new architectures, advanced cryptography, and cross-disciplinary integrations (e.g., AI-blockchain). The principal barriers are outlined in Figure 2.

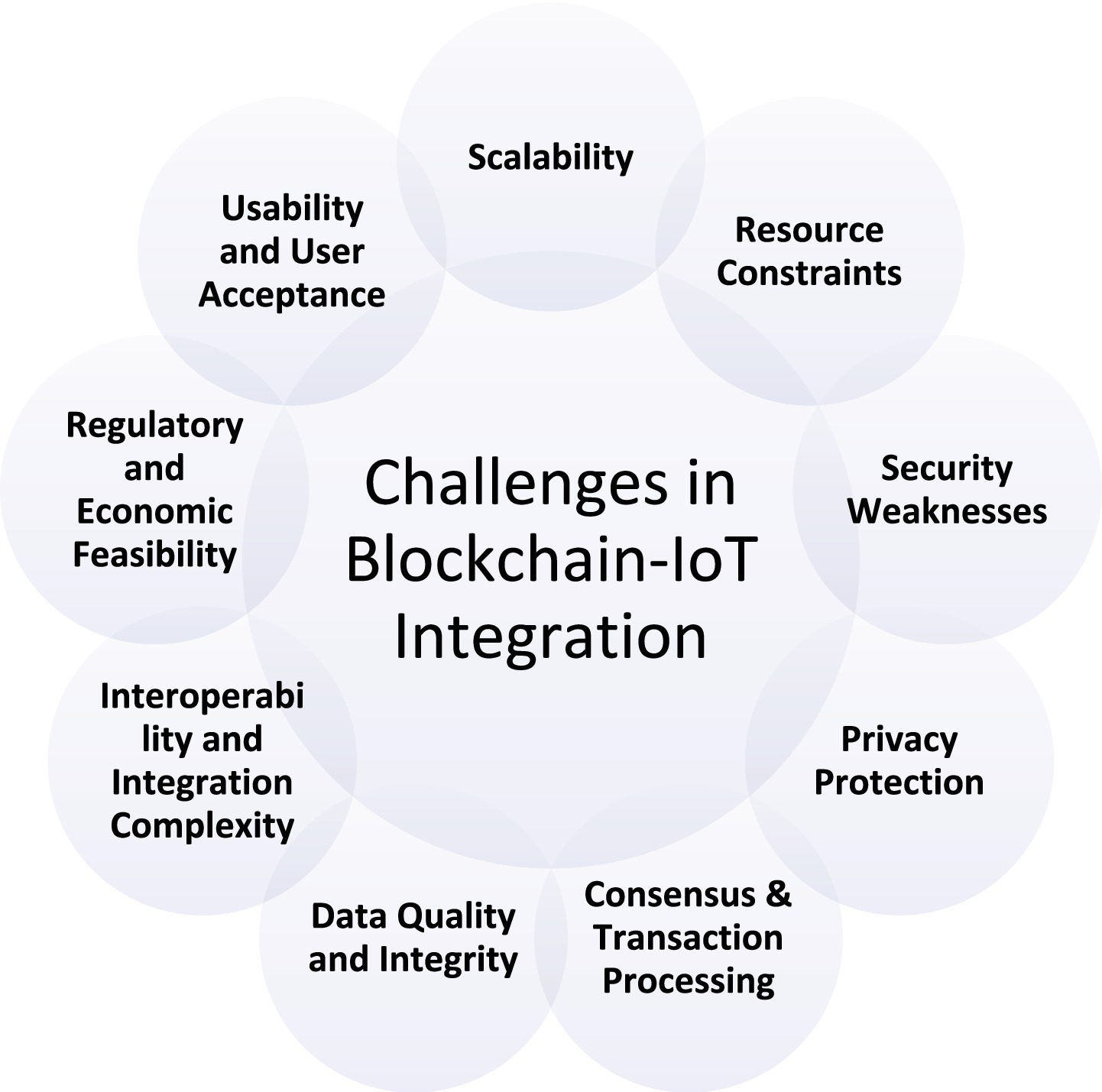

Figure 2
This figure depicts the largest impediments derived from the analysed papers—covering scalability, resource constraints, security weaknesses, privacy protection, consensus feasibility/performance, data integrity, interoperability, regulatory compliance, environmental impact, and usability (Maeng et al., 2022; Latif et al., 2020; Basudan, 2023; Oktian et al., 2020; Yang et al., 2021; Liu et al., 2023; Kaur and Ali, 2021; Singh et al., 2021; Lahbib et al., 2024; Vangala et al., 2022; Barazanchi and Hashim, 2023; Pathak et al., 2023; Liu et al., 2020; Shammar et al., 2021, 2022; Seshadri et al., 2020; Anjum et al., 2025; Gong et al., 2021; Rathee et al., 2022; Janani and Ramamoorthy, 2023; Alzoubi et al., 2022; Ramezan and Meamari, 2024a,b; Ruzbahani, 2024; Gopalan et al., 2024; Lee et al., 2023; Natraj et al., 2025; Zhao et al., 2024; Yang et al., 2021; Barazanchi and Hashim, 2023; Ragul et al., 2025; Eghmazi et al., 2024a,b; Obaidat et al., 2024; Abang et al., 2024; Tranvåg, 2025; Hu, 2023; Yang et al., 2024; Mahdavi et al., 2024; Wu et al., 2024; Zhou et al., 2024; Mazzocca et al., 2024a; Kim and Kim, 2024).
4.1 Scalability
The diverse and rapidly increasing number of IoT nodes, as well as the high frequency of telemetry, are the reasons why scalability is the main concern. Throughput can be raised by conventional and hierarchical designs; however, performance limits can be still observed under industrial-scale workloads and partial synchrony (Latif et al., 2020; Oktian et al., 2020; Natraj et al., 2025; Eghmazi et al., 2024a; Abang et al., 2024; Yuan et al., 2025; Banupriya and Sharmila, 2024). As an illustration, Natraj et al. (2025) cite the case of throughput escalation in lightweight designs, yet at the point where the system is scaled up, bottlenecks reappear. Layered or Kafka-backed stacks (Eghmazi et al., 2024a,b; Abang et al., 2024) can alleviate the problem, but they also suffer from the issue of having to do proper capacity planning and back-pressure control.
4.2 Resource constraints
IoT devices have strict limitations in budgets (CPU/RAM/flash/energy). Lightweight consensus and authentication are considered the right track (Yang et al., 2021; Natraj et al., 2025; Zhao et al., 2024; Yang et al., 2021), however, there is still the security–resource trade-off problem, which is even more aggravated by heterogeneous links and burst loads (Hu, 2023; Yang et al., 2024; Mahdavi et al., 2024; Wu et al., 2024). Take for example Yang et al. (2021) who utilize modular square-root crypto to lessen computation, but at the expense of long-term cryptographic strength.
4.3 Security weaknesses
In their essence, blockchains allow tamper-evident logging; however, in a real-world scenario, certain weaknesses emerge due to the interactions between humans and technical systems - theft of keys, compromise of firmware, misconfiguration, etc. (Yang et al., 2021; Gong et al., 2021; Ramezan and Meamari, 2024a; Gopalan et al., 2024; Lee et al., 2023; Yang et al., 2021; Ragul et al., 2025). Mitigating actions (for instance, AI-assisted detection, policy automation), if performed in real-time, may result in oversubscription of the resources of a device and thus, the arising of the operational complexity (Ramezan and Meamari, 2024a; Gopalan et al., 2024; Ragul et al., 2025). As an example, Gopalan et al. (2024) combine blockchain with multi-task transformers for real-time deauthentication detection. However, the device/edge cost still needs to be scheduled.
4.4 Privacy protection
The main characteristics of blockchains, i.e., transparency and immutability, somehow contradict with the principle of data minimization. Zero-knowledge proofs (ZKPs) (Ramezan and Meamari, 2024a,b; Zhou et al., 2024), ciphertext-policy attribute-based encryption (CP-ABE) (Lee et al., 2023; Hu, 2023; Yang et al., 2024; Mahdavi et al., 2024; Wu et al., 2024), and selective anchoring (hash on-chain, payload off-chain) (Eghmazi et al., 2024a,b; Abang et al., 2024; Tranvåg, 2025) enhance privacy, but at the same time, these techniques entail longer computation times, more complex integration efforts, and more challenging key-lifecycle management. For instance, Ramezan and Meamari (2024a) (zk-IoT) make use of ZKPs to grant data confidentiality for firmware and data integrity, however, taking the majority of the costs in the proof.
4.5 Consensus and transaction processing (feasibility, performance, and energy)
Traditional PoW/PoS are not very effective for constrained IoT scenarios (Vangala et al., 2022; Janani and Ramamoorthy, 2023; Natraj et al., 2025; Zhao et al., 2024; Barazanchi and Hashim, 2023). PBFT-like finality offers better latency at small committees but encounters quadratic messaging and view-change overheads with scale/churn increase (Yuan et al., 2025; Banupriya and Sharmila, 2024; Abang et al., 2024). Reputation-supported or lightweight variations lessen the volume of chatter (Natraj et al., 2025; Zhao et al., 2024; Barazanchi and Hashim, 2023), however, they can become less secure in terms of partitions/Byzantine behavior or rely on fragile trust assumptions (Zhao et al., 2024; Barazanchi and Hashim, 2023). Moreover, energy/green-computing limitations further restrict the option, especially for battery-powered nodes (Natraj et al., 2025; Zhao et al., 2024; Barazanchi and Hashim, 2023; Abang et al., 2024).
Situation: Zhao et al. (2024)’s LRBCM reduces energy consumption, however, it can be impacted negatively by the adversarial setting; Barazanchi and Hashim (2023) utilizes PoS/BFT for the purpose of efficiency, but the security of the system is only guaranteed partially under concentration/partitions.
4.6 Data quality and integrity
Classic PoW/PoS are not favorable for constrained IoT (Vangala et al., 2022; Janani and Ramamoorthy, 2023; Natraj et al., 2025; Zhao et al., 2024; Barazanchi and Hashim, 2023). PBFT-like finality allows faster response time at small committees but due to quadratic messaging and view-change overheads as scale/churn increase, it is not suitable for large networks (Yuan et al., 2025; Banupriya and Sharmila, 2024; Abang et al., 2024). Reputation-supported or lightweight versions help in reducing the number of messages (Natraj et al., 2025; Zhao et al., 2024; Barazanchi and Hashim, 2023), nonetheless, they can be less robust against network partitions/Byzantine behaviors or rely on trust assumptions which are not completely secure (Zhao et al., 2024; Barazanchi and Hashim, 2023). Besides, energy/green-computing limitations narrow the selection even more, in particular, for battery-powered nodes (Natraj et al., 2025; Zhao et al., 2024; Barazanchi and Hashim, 2023; Abang et al., 2024). For instance: Zhao et al. (2024)’s LRBCM cuts down power consumption, however, it can be compromised in the presence of adversaries; Barazanchi and Hashim (2023) uses PoS/BFT to achieve energy efficiency, though the security is not guaranteed under concentration/partition scenarios.
4.7 Interoperability and integration complexity
Protocol diversity and vendor heterogeneity inflate integration cost. Hierarchical/multi-layered stacks offer flexibility (Liu et al., 2020; Eghmazi et al., 2024a) but introduce specialised bridges and lifecycle overhead (Eghmazi et al., 2024a,b). Portability often degrades when domain-specific assumptions seep into core architecture (Obaidat et al., 2024; Eghmazi et al., 2024b).
4.8 Regulatory and economic feasibility
Compliance (privacy, data residency, sectoral rules) constrains architecture choices (Ruzbahani, 2024; Eghmazi et al., 2024a,b; Obaidat et al., 2024; Abang et al., 2024; Tranvåg, 2025). Compliance-by-design pushes auditable controls and selective anchoring (Abang et al., 2024; Tranvåg, 2025; Eghmazi et al., 2024b), while identity governance and revocation propagation become measurable obligations (Mazzocca et al., 2024a). Economic viability hinges on SRE effort, incident response, audit pipelines, and integration cost (Obaidat et al., 2024; Abang et al., 2024; Tranvåg, 2025; Eghmazi et al., 2024b). Ethical/legal gaps around AI–blockchain are highlighted in (Ruzbahani, 2024).
4.9 Usability and user acceptance
Complex stacks negatively affect the usability of the operators and users who are, therefore, less willing to use them, especially in the case of consumer IoT. Such systems need simpler interfaces with explicit failure modes that do not undermine the level of trust (Barazanchi and Hashim, 2023; Eghmazi et al., 2024a; Obaidat et al., 2024). For instance: Eghmazi et al. (2024a) recognize the issue of usability impacting the implementation of multi-layer solutions as a “practical hurdle.”
5 Solution identification and future research
The comparative analysis (Maeng et al., 2022; Latif et al., 2020; Basudan, 2023; Oktian et al., 2020; Yang et al., 2021; Liu et al., 2020, 2023; Kaur and Ali, 2021; Singh et al., 2021; Lahbib et al., 2024; Vangala et al., 2022; Barazanchi and Hashim, 2023; Pathak et al., 2023; Shammar et al., 2021, 2022; Seshadri et al., 2020; Anjum et al., 2025; Gong et al., 2021; Rathee et al., 2022; Janani and Ramamoorthy, 2023; Alzoubi et al., 2022; Ramezan and Meamari, 2024a,b; Ruzbahani, 2024; Gopalan et al., 2024; Lee et al., 2023; Natraj et al., 2025; Zhao et al., 2024; Yang et al., 2021; Barazanchi and Hashim, 2023; Ragul et al., 2025; Eghmazi et al., 2024a,b; Obaidat et al., 2024; Abang et al., 2024; Tranvåg, 2025; Yuan et al., 2025; Banupriya and Sharmila, 2024; Hu, 2023; Yang et al., 2024; Mahdavi et al., 2024; Wu et al., 2024; Zhou et al., 2024; Mazzocca et al., 2024a,b; Lorych and Plappert, 2024; El-Hajj and Beune, 2024; Gopalan et al., 2024; Kim and Kim, 2024) was instrumental in the understanding the design principles outlined in this section as well as identifying the research directions related to these challenges. These difficulties pertain to the combination of blockchain and IoT. Consequently, the need arises to dwell on these four aspects, namely, uncomplicatedness, scalability, privacy by design, and the possibility of functioning in a diverse and resource-limited environment.
5.1 Modular and responsibility-aware architectures
Identity management, authentication, access control, and data integrity need to be separated into clearly defined components for future systems to be layered modularity. By using so-called selective anchoring that allows for the placing of a hash and attestations on-chain while the main data and cryptography remain off-chain, one can achieve a good balance between the system’s verifiability and its efficiency (Eghmazi et al., 2024a,b; Abang et al., 2024; Tranvåg, 2025). Moreover, this kind of modularity lowers the system’s architectural complexity, makes upgrades easier, and limits the extent to which failures can affect the system.
5.2 Consensus mechanisms for realistic deployment
Lightweight and parameterised consensus protocols need to be congruent with the actual conditions in which they operate in the world. This means that they must be able to handle network irregularities, device heterogeneity, and energy constraints. Such an assessment should go beyond the typical computer simulations, including latency, throughput under burst loads, and resilience to churn and partitions (Abang et al., 2024; Yuan et al., 2025; Banupriya and Sharmila, 2024).
Deterministic trust scoring combined with BFT-style finality is a hybrid model that has the potential to provide a desirable compromise between energy efficiency and resilience (Zhao et al., 2024; Barazanchi and Hashim, 2023). Nevertheless, they also have to be thoroughly tested under harsh conditions like collusion, denial-of-service, and partial synchrony failures (Vangala et al., 2022; Natraj et al., 2025; Abang et al., 2024).
5.3 Privacy-preserving but resource-conscious approaches
Confidentiality-preserving methods like zero-knowledge proofs (ZKPs) and ciphertext-policy attribute-based encryption (CP-ABE) offer almost foolproof privacy guarantees (Ramezan and Meamari, 2024a,b; Lee et al., 2023; Hu, 2023; Yang et al., 2024; Mahdavi et al., 2024; Wu et al., 2024; Zhou et al., 2024), however, the computational and key-management overhead associated with them is usually more than what constrained IoT devices can accommodate. The next work should look into implementing hierarchical or event-triggered programs where complicated cryptographic operations are performed only when the risk level is high. By offloading part of the verification work to the edge or gateway nodes, the device-level burden can be further minimized without losing the quality of the audit.
5.4 Interoperability as a first-class principle
It is necessary that the principle of interoperability is deeply ingrained into the design of the system, instead of being considered as an additional feature. In order for different kinds of vendors, standards, and protocols to be able to exchange information, it is necessary that translation and compatibility layers facilitate such communication (Liu et al., 2020; Eghmazi et al., 2024a,b; Obaidat et al., 2024). Uniform policy schemas and formats of attestation will encourage the free movement of software/hardware across different legal areas and facilitate compliance with regulations without causing any restrictions in the variety of the system.
5.5 Identity governance and revocation
Effective security necessitates that one implements the identity and trust-chain lifecycle: enrolment, issuance, authorisation, logging, revocation, and rotation. Publishing revocation notices on the chain, along with quick distribution at gateways and controllers, gives better confidence (Mazzocca et al., 2024a). The use of DIDs and VCs is a hopeful solution to the problem of identity, if only the part of the key and the attestation that is hardware-based can be trusted (Mazzocca et al., 2024b; Lorych and Plappert, 2024).
5.6 Research agenda: actionable directions
(1) Revocation at scale. Create and evaluate scalable revocation models that have limited propagation delays, and monitor enforcement latency at gateways and controllers (Mazzocca et al., 2024a).
(2) Resource-aware privacy. Facilitate the selective or event-triggered implementation of ZKPs/ABE with verification offloading, and publish the end-to-end latency and energy profiles for representative IoT classes (Hu, 2023; Yang et al., 2024; Mahdavi et al., 2024; Wu et al., 2024; Ramezan and Meamari, 2024b; Zhou et al., 2024).
(3) Consensus under adversity. Experiment with the robustness of lightweight and hybrid consensus protocols under conditions of partial synchrony, RF loss, and adversarial churn, outlining performance tails (Abang et al., 2024; Yuan et al., 2025; Banupriya and Sharmila, 2024; Kim and Kim, 2024).
(4) Selective anchoring patterns. Deliver the code examples for Merkle commitments, hash-chains, and off-chain storage pointers, with the clear and detailed explanation of the trade offs in storage overhead and residency requirements (Eghmazi et al., 2024a,b; Abang et al., 2024; Tranvåg, 2025).
(5) Identity and Attestation Tooling. Establish open testbeds coupling TPM/TEE-based attestation with on-chain notarisation, reporting enrolment, rotation, and revocation times at scale (Lorych and Plappert, 2024; Mazzocca et al., 2024a).
(6) Operational economics. Quantify operational costs (SRE effort, auditing, compliance) and compare total cost of ownership across permissioned, hybrid, and public-anchored deployments (Obaidat et al., 2024; Abang et al., 2024; Tranvåg, 2025; Eghmazi et al., 2024b).
(7) Benchmark suites and public datasets. Release IoT-realistic traces and reproducible benchmarks aligned with the proposed rubric to standardise evaluation practices.
In summary, sustainable blockchain–IoT security solutions should be modular, benchmark-driven, privacy-conscious, and adaptive to dynamic operating conditions. Blockchain can provide verifiable state and programmable auditability, but only when coupled with robust identity governance, effective revocation, and carefully balanced off-chain controls (Obaidat et al., 2024; Abang et al., 2024; Tranvåg, 2025; Eghmazi et al., 2024b; Hu, 2023; Yang et al., 2024; Mahdavi et al., 2024; Wu et al., 2024; Ramezan and Meamari, 2024b; Zhou et al., 2024; Mazzocca et al., 2024a,b; Lorych and Plappert, 2024).
6 Future research directions
The research areas we are outlining here broaden the work from Sections 3–5. They include those aspects that deal with scalability, resource-awareness, privacy-preserving analytics, interoperability, sustainability, and regulation-conscious design in blockchain–IoT systems. The respective research themes are associated with the presented hypotheses and include reporting guidance compliant with the benchmarking rubric from Section 3.2 (e.g., latency, energy/tx, revocation latency).
6.1 Layer-2 and sharding for large-scale IoT
The next step would be to experimentally verify the pointing-out Layer-2 configurations (e.g., rollups, state channels) to keep the throughput levels stable and achieve a reduction in p95 latency in the case of topologies being diverse, say smart factories or cities (Abang et al., 2024). One way to do this is via rollup-based anchoring which effectively sets a limit on storage growth on the chain for each event, at the same time, it allows for full auditability (Tranvåg, 2025). At the same time, it is possible that sharding coupled with locality-aware routing can help maintain throughput levels when there is committee churn and partial synchrony (Yuan et al., 2025; Banupriya and Sharmila, 2024). The burst throughput and different failure scenarios during reorgs/aggregator faults should be a part of disclosures in reports (Abang et al., 2024).
6.2 Context-aware lightweight cryptography
Research is needed on adaptive cryptographic profiles that scale key sizes, proof complexity, and handshake frequency to device context (battery level, link quality, criticality) (Hu, 2023). Event-triggered proofs can meet assurance targets with lower energy per transaction when verification is offloaded to gateways (Ramezan and Meamari, 2024b). CP-ABE and related schemes should be applied selectively on constrained nodes, with explicit reporting of RAM/flash footprints and key-lifecycle overhead (Lee et al., 2023; Hu, 2023; Wu et al., 2024).
6.3 Adaptive trust and reputation models
Trust and reputation should evolve with behavior drift and adversarial activity using supervised/unsupervised/RL methods, while recording on-chain audit anchors for decisions (Obaidat et al., 2024). We hypothesise that adaptive trust improves safety/liveness at fixed communication budgets in PBFT-like settings (Yuan et al., 2025), and that poisoning-resilient designs (e.g., bagging, periodic re-randomisation) limit consensus bias (Kim and Kim, 2024). Authors should report FPR/FNR of detectors and committee-rotation cadence alongside admission latency (Abang et al., 2024).
6.4 Privacy-preserving analytics for sensitive domains
For the healthcare and finance sectors, using federated learning alongside on-chain model-update attestations can lead to the desired accuracy without the need for centralised data pooling (Abang et al., 2024). The selective anchoring of hashes/commitments ensures that there is a record of the auditability while, at the same time, keeping payloads that are off-chain to meet data-residency requirements (Eghmazi et al., 2024a,b). In situations of higher risk, ZKPs and ABE can offer more robust privacy; however, their compute/latency costs still need to be figured out for each device class (Ramezan and Meamari, 2024a,b; Zhou et al., 2024).
6.5 Interoperability standards and cross-platform gateways
Interoperability must be regarded as a constraint of the highest importance, and the adoption of standardised policy schemas (authorisation, attestation) can not only cut down the integration time but also the incident MTTR (Obaidat et al., 2024). The cross-chain gateways can be the connecting point between different vendors and protocols that are incompatible with each other; however, this can only be possible if the interface contracts are formally set so as to avoid any policy ambiguity (Eghmazi et al., 2024b). The ability to move from one jurisdiction/vendor to another should be looked at through repeatable tests (Liu et al., 2020; Eghmazi et al., 2024a).
6.6 Green blockchain architectures for constrained nodes
Battery-powered IoT definitely needs energy-aware consensus (stake/trust-weighted admission + lightweight finality) and duty-cycled participation (Barazanchi and Hashim, 2023). Event batching, properly engineered for commitments, can significantly reduce the on-chain storage without sacrificing the complete forensics audit trail (Abang et al., 2024). The report should cover energy/tx, leader-election/view-change cost, and auditability under batching (Natraj et al., 2025; Zhao et al., 2024).
6.7 Policy-aware, regulation-responsive design
Architectures need to translate compliance constraints (GDPR, HIPAA, residency) into machine-verifiable policies, on-chain revocation notices, and measurable propagation SLAs for the mitigation of compliance risks (Abang et al., 2024). DIDs/VCs can become a solution for the problem of identity portability across domains if they are accompanied by an efficient revocation mechanism (Mazzocca et al., 2024a,b). The assessment must cover revocation propagation latency and audit time across different legal regimes (Eghmazi et al., 2024a).
6.8 Zero-trust-aligned architectures
Zero-trust alignment assumes breach by default and enforces continuous verification of device identity, posture, and context at each interaction (Obaidat et al., 2024). On-chain policy updates can accelerate consistent enforcement across gateways/controllers, but introduce decision-path latency that must be measured under load (Abang et al., 2024). Experiments should report policy-enforcement correctness under simulated lateral-movement scenarios.
6.9 Post-quantum cryptography readiness
Migration to post-quantum cryptography should leverage hybrid schemes and crypto-agility to preserve compatibility while adding quantum resistance (Hu, 2023). For constrained nodes, the handshake latency/energy and memory footprint of PQC primitives must be profiled, and key-roll strategies documented to maintain trust-chain continuity (Lorych and Plappert, 2024).
6.10 Open benchmarks and realistic datasets
In order to have a fair and thorough comparison across different studies, it would be beneficial for the community to put out open benchmark suites together with real-life IoT scenarios (bursty traffic, lossy links, adversarial churn) that are in line with the rubric of Section 3.2 (Abang et al., 2024). Public datasets and harnesses not only make it easier for other researchers to replicate the experiments but also expedite the validation process of consensus, privacy, and interoperability protocols (Yuan et al., 2025; Banupriya and Sharmila, 2024).

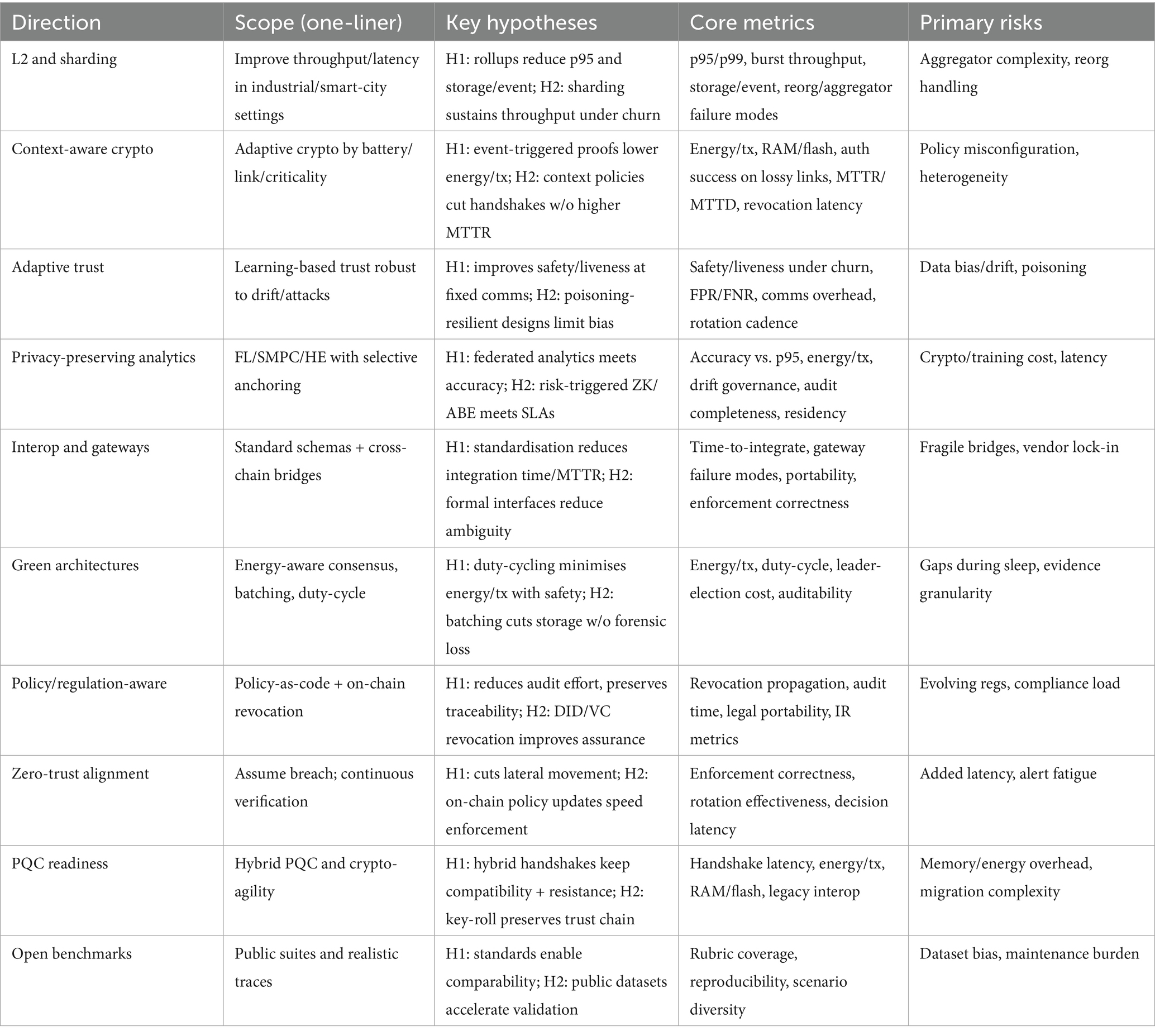

Table 5 presents summary of future research directions:
Table 5
| Direction | Scope (one-liner) | Key hypotheses | Core metrics | Primary risks |
|---|---|---|---|---|
| L2 and sharding | Improve throughput/latency in industrial/smart-city settings | H1: rollups reduce p95 and storage/event; H2: sharding sustains throughput under churn | p95/p99, burst throughput, storage/event, reorg/aggregator failure modes | Aggregator complexity, reorg handling |
| Context-aware crypto | Adaptive crypto by battery/link/criticality | H1: event-triggered proofs lower energy/tx; H2: context policies cut handshakes w/o higher MTTR | Energy/tx, RAM/flash, auth success on lossy links, MTTR/MTTD, revocation latency | Policy misconfiguration, heterogeneity |
| Adaptive trust | Learning-based trust robust to drift/attacks | H1: improves safety/liveness at fixed comms; H2: poisoning-resilient designs limit bias | Safety/liveness under churn, FPR/FNR, comms overhead, rotation cadence | Data bias/drift, poisoning |
| Privacy-preserving analytics | FL/SMPC/HE with selective anchoring | H1: federated analytics meets accuracy; H2: risk-triggered ZK/ABE meets SLAs | Accuracy vs. p95, energy/tx, drift governance, audit completeness, residency | Crypto/training cost, latency |
| Interop and gateways | Standard schemas + cross-chain bridges | H1: standardisation reduces integration time/MTTR; H2: formal interfaces reduce ambiguity | Time-to-integrate, gateway failure modes, portability, enforcement correctness | Fragile bridges, vendor lock-in |
| Green architectures | Energy-aware consensus, batching, duty-cycle | H1: duty-cycling minimises energy/tx with safety; H2: batching cuts storage w/o forensic loss | Energy/tx, duty-cycle, leader-election cost, auditability | Gaps during sleep, evidence granularity |
| Policy/regulation-aware | Policy-as-code + on-chain revocation | H1: reduces audit effort, preserves traceability; H2: DID/VC revocation improves assurance | Revocation propagation, audit time, legal portability, IR metrics | Evolving regs, compliance load |
| Zero-trust alignment | Assume breach; continuous verification | H1: cuts lateral movement; H2: on-chain policy updates speed enforcement | Enforcement correctness, rotation effectiveness, decision latency | Added latency, alert fatigue |
| PQC readiness | Hybrid PQC and crypto-agility | H1: hybrid handshakes keep compatibility + resistance; H2: key-roll preserves trust chain | Handshake latency, energy/tx, RAM/flash, legacy interop | Memory/energy overhead, migration complexity |
| Open benchmarks | Public suites and realistic traces | H1: standards enable comparability; H2: public datasets accelerate validation | Rubric coverage, reproducibility, scenario diversity | Dataset bias, maintenance burden |
Summary of future research directions.
7 Conclusion
This paper examines the combined security and privacy challenges of implementing a distributed ledger technology (DLT) solution, specifically blockchain, into the Internet of Things (IoT) environment by critically reviewing and integrating the findings of 31 core studies and other relevant recent works. Although blockchain technology allows for the provision of an accountable state, a logging process that is detectable for any forms of tampering, and programmable policy/audit, its overall advantage is still dependent on the context of the constraints placed on the device budgets, latency/throughput requirements, interoperability, and governance factors. The research findings that have been gathered from various application areas (smart home, healthcare, industrial, and smart city) reveal that improvements in auditability and decentralisation are very often exchanges with the performance, energy, and integration cost, especially in the condition of heterogeneous links and bursty workloads.
The review complements the discussion with three major contributions of his work. The first one is that it differentiates the on-chain anchors (e.g., audit hashes, revocation notices) from off-chain mandatory controls (device identity proofing, secure boot/attestation, key custody), thus giving a clear definition of the boundaries of responsible persons for system assurance. The second one refers to the characteristics of a benchmarking rubric—security, performance, resource efficiency, governance, and interoperability—with concrete reporting baselines (e.g., p95 latency, energy/tx, revocation-propagation latency, storage growth per anchored event) as a means for rigorous cross-study comparison. The third one is the proposal of a challenge interdependency model that depicts the manner in which one dimension (e.g., privacy) may lead to the aggravation of others (e.g., latency and scalability), thus being the reason for the differences in the literature.
The review, looking ahead, describes an outline of possible solutions and an agenda for future research which covers the themes of the modular, responsibility-aware designs, and the practical implementation of operations. The recommended directions include the use of selective anchoring and layered architectures to achieve a compromise between verifiability and efficiency; the evaluation of a lightweight/parameterised consensus under partial synchrony and churn; resource-aware privacy (selective ZK/ABE with offloaded verification); interoperability by design through standardised policy/attestation schemas and robust gateways; besides identity governance, with rapid revocation as the first-class concern.
Moreover, the agenda, which is designed to connect the theory with the practice, also requests the presence of zero-trust-aligned enforcement, readiness for the post-quantum era, and open and reproducible benchmarks with realistic IoT traces. This will allow security and privacy claims to be verified along with cost, latency, and energy under deployment-like conditions.
In essence, the integration of sustainable blockchain and IoT security will not result from a “best” secure design but rather from a combination of (i) a well-defined separation of on-chain and off-chain tasks, (ii) performance measurement based on common metrics, and (iii) privacy-protecting, regulation-compliant, and environment-adaptive solutions. Through the implementation of these principles, initial-stage experiments can transform into systems that are not only efficient with energy, but also certifiable, compatible, and scalable to provide reliable IoT services.
Statements
Author contributions
WS: Conceptualization, Formal analysis, Writing – original draft. MA: Conceptualization, Formal analysis, Writing – original draft. SS: Funding acquisition, Project administration, Supervision, Writing – review & editing.
Funding
The author(s) declare that financial support was received for the research and/or publication of this article. This work was supported by the Deanship of Scientific Research, Vice Presidency for Graduate Studies and Scientific Research, King Faisal University, Saudi Arabia (Grant No. KFU 253457).
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Generative AI statement
The authors declare that no Gen AI was used in the creation of this manuscript.
Any alternative text (alt text) provided alongside figures in this article has been generated by Frontiers with the support of artificial intelligence and reasonable efforts have been made to ensure accuracy, including review by the authors wherever possible. If you identify any issues, please contact us.
Publisher’s note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
References
1
AbangJ. E.TakruriH.Al-ZaidiR.Al-KhalidiM. (2024). Latency performance modelling in Hyperledger fabric blockchain: challenges and directions with an IoT perspective. Internet of Things26:101217. doi: 10.1016/j.iot.2024.101217
2
AlzoubiY. I.Al-AhmadA.KahtanH.JaradatA. (2022). Internet of things and blockchain integration: security, privacy, technical, and design challenges. Future Internet14:216. doi: 10.3390/fi14070216
3
AnjumM.KraiemN.MinH.DuttaA. K.DaradkehY. I.ShahabS. (2025). Opportunistic access control scheme for enhancing IoT-enabled healthcare security using blockchain and machine learning. Sci. Rep.15:7589. doi: 10.1038/s41598-025-90908-1
4
BanupriyaS.SharmilaP. (2024). An optimization of Blockchain parameters for improving PBFT-like finality under scale. J. Intell. Fuzzy Syst.17, 501–510.
5
BarazanchiI. I. A.HashimW. (2023). Enhancing IoT device security through blockchain technology: a decentralized approach. SHIFRA2023, 10–16. doi: 10.70470/shifra/2023/002
6
BasudanS. (2023). A scalable blockchain framework for secure transactions in IoT-based dynamic applications. IEEE Open J. Commun. Soc.4, 1931–1945. doi: 10.1109/OJCOMS.2022.1234567
7
EghmaziA.AtaeiM.LandryR. J.ChevretteG. (2024a). Enhancing IoT data security: using the blockchain to boost data integrity and privacy. IoT5, 20–34. doi: 10.3390/iot5010002
8
EghmaziA.et al., “Multi-layer architecture for scalable IoT with Hyperledger fabric and Kafka,” (2024b).
9
El-HajjM.BeuneP. (2024). Decentralized zone-based PKI: a lightweight security framework for IoT ecosystems. Information15:304. doi: 10.3390/info15060304
10
GongL.AlghazzawiD. M.ChengL. (2021). BCOT sentry: a blockchain-based identity authentication framework for IoT devices. Information12:203. doi: 10.3390/info12050203
11
GopalanS. H.ManikandanA.DharaniN. P.SujathaG. (2024). Enhancing IoT security: a blockchain-based mitigation framework for deauthentication attacks. Int. J. Networked Distrib. Comput.12, 237–249. doi: 10.1007/s44227-024-00029-w
12
HuV. C. (2023). NIST IR 8450 — Overview and considerations of access control based on attribute encryption. Gaithersburg, Maryland, USA: National Institute of Standards and Technology, (Final).
13
JananiK.RamamoorthyS. (2023). A security framework to enhance IoT device identity and data access through blockchain consensus model. Clust. Comput.27, 2877–2900. doi: 10.1007/s10586-023-04113-8
14
KaurR.AliA., “A novel blockchain model for securing IoT based data transmission,” Int. J. Grid Distrib. Comput., vol. 14, pp. 1045–1055, (2021). Available online at: https://www.researchgate.net/publication/351437183
15
KimG.KimY. (2024). The threat of disruptive jamming to blockchain-based distributed learning in wireless networks. Sensors24:535. doi: 10.3390/s24020535
16
LahbibA.ToumiK.LaouitiA.MartinS. (2024). Blockchain based distributed trust management in IoT and IIoT: a survey. J. Supercomput.80, 21867–21919. doi: 10.1007/s11227-024-06286-4
17
LatifS.IdreesZ.AhmadJ.ZhengL.ZouZ. (2020). A blockchain-based architecture for secure and trustworthy operations in the industrial internet of things. J. Ind. Inf. Integr.21:100190. doi: 10.1016/j.jii.2020.100190
18
LeeJ.KimM.ParkK.NohS.BishtA.DasA. K.et al. (2023). Blockchain-based data access control and key agreement system in IoT environment. Sensors23:5173. doi: 10.3390/s23115173
19
LiuH.HanD.LiD. (2020). Fabric-IoT: a blockchain-based access control system in IoT. IEEE Access8, 18207–18218. doi: 10.1109/access.2020.2968492
20
LiuB.YaoX.GuoK.ZhuP. (2023). Consortium blockchain based lightweight message authentication and auditing in smart home. IEEE Access11, 68473–68485. doi: 10.1109/access.2023.3293401
21
LorychP.PlappertC., “Hardware trust anchor authentication for updatable IoT,” ACM (2024) Attestation, measured/secure boot as off-chain mandatory controls.
22
MaengJ.HeoY.JoeI. (2022). Hyperledger fabric-based lightweight group management (H-LGM) for IoT devices. IEEE Access10, 56401–56409. doi: 10.1109/access.2022.3177270
23
MahdaviM.TadayonM. H.HaghighiM. S.AhmadianZ. (2024). IoT-friendly, pre-computed and outsourced attribute based encryption. Futur. Gener. Comput. Syst.150, 115–126. doi: 10.1016/j.future.2023.08.015
24
MazzoccaC.AcarA.UluagacS.MontanariR. (2024a). EVOKE: efficient revocation of verifiable credentials in IoT networks: USENIX Security.
25
MazzoccaC.AcarA.UluagacS.MontanariR.BellavistaP.ContiM. (2024b). (comprehensive overview of DIDs/VCs, threats, and adoption)). A survey on decentralized identifiers and verifiable credentials. IEEE Commun. Surv. Tutor.14, 1279–1295. doi: 10.13140/RG.2.2.12726.92485
26
NatrajN. A.KishoreB.BhoreS. (2025). A lightweight blockchain framework for secure IoT data management: design, implementation and performance analysis. SGS Eng. Sci.1.
27
ObaidatM. A.et al. (2024). Exploring IoT and blockchain: a comprehensive survey on opportunities, challenges, and applications. Information15.
28
OktianY. E.LeeS.-G.LeeH. J. (2020). Hierarchical multi-blockchain architecture for scalable internet of things environment. Electronics9:1050. doi: 10.3390/electronics9061050
29
PathakA.Al-AnbagiI.HamiltonH. J. (2023). TABI: trust-based ABAC mechanism for edge-IoT using blockchain technology. IEEE Access11, 36379–36398. doi: 10.1109/access.2023.3265349
30
RagulM.AloysiusA.ArulkumarV. (2025). Advancing IoT security through blockchain-driven dynamic trust evaluation. Indian J. Sci. Technol.18, 526–538. doi: 10.17485/IJST/v18i7.3783
31
RamezanG.MeamariE., “Zk-IoT: securing the internet of things with zero-knowledge proofs on blockchain platforms,” 2024 IEEE International Conference on Blockchain and Cryptocurrency (ICBC), Dublin, Ireland, (2024a) 1–7. doi: 10.1109/ICBC59979.2024.10634342
32
RamezanG.MeamariE., “Zk-IoT: securing the internet of things with zero-knowledge proofs on blockchain platforms,” (2024b).
33
RatheeG.AhmadF.JaglanN.KonstantinouC. (2022). A secure and trusted mechanism for industrial IoT network using blockchain. IEEE Trans. Industr. Inform.19, 1894–1902. doi: 10.1109/tii.2022.3182121
34
RuzbahaniA. M.. (2024). AI-protected Blockchain-based IoT environments: harnessing the future of network security and privacy. arXiv preprint, arXiv:2405.13847.
35
SeshadriS. S.RodriguezD.SubediM.ChooK. K. R.AhmedS.ChenQ.et al. (2020). IOTCOP: a Blockchain-based monitoring framework for detection and isolation of malicious devices in internet-of-things systems. IEEE Internet Things J.8, 3346–3359. doi: 10.1109/jiot.2020.3022033
36
ShammarE. A.ZaharyA. T.Al-ShargabiA. A. (2021). A survey of IoT and blockchain integration: security perspective. IEEE Access9, 156114–156150. doi: 10.1109/access.2021.3129697
37
ShammarE. A.ZaharyA. T.Al-ShargabiA. A. (2022). An attribute-based access control model for internet of things using hyperledger fabric blockchain. Wirel. Commun. Mob. Comput.2022, 1–25. doi: 10.1155/2022/6926408
38
SinghS.HosenA. S. M. S.YoonB. (2021). Blockchain security attacks, challenges, and solutions for the future distributed IoT network. IEEE Access9, 13938–13959. doi: 10.1109/access.2021.3051602
39
TranvågJ. B. (2025). Anchoring off-chain data to the Ethereum blockchain (with IPFS): Benchmarking and design. (MSc thesis). University of Bergen.
40
VangalaA.DasA. K.MitraA.DasS. K.ParkY. (2022). Blockchain-enabled authenticated key agreement scheme for Mobile vehicles-assisted precision agricultural IoT networks. IEEE Trans. Inf. Forensics Secur.18, 904–919. doi: 10.1109/tifs.2022.3231121
41
WuH.LiuY.ZhuK.ZhangL. (2024). Data-sharing system with attribute-based encryption in blockchain and privacy computing. Symmetry16:1550. doi: 10.3390/sym16111550
42
YangZ.ChenX.HeY.LiuL.CheY.WangX.et al. (2024). An attribute-based data access control scheme using blockchain technology. Digit Commun Netw4:100199. doi: 10.1016/j.hcc.2024.100199
43
YangX.YangX.YiX.KhalilI.ZhouX.HeD.et al. (2021). Blockchain-based secure and lightweight authentication for internet of things. IEEE Internet Things J.9, 3321–3332. doi: 10.1109/jiot.2021.3098007
44
YuanF.HuangX.ZhengL.WangL.WangY.YanX.et al. (2025). The evolution and optimization strategies of a PBFT consensus algorithm for consortium blockchains. Information16:268. doi: 10.3390/info16040268
45
ZhaoM.ShiC.YuanY. (2024). Blockchain-based lightweight authentication mechanisms for industrial internet of things and information systems. Int. J. Semant. Web Inf. Syst.20, 1–30.
46
ZhouL.DiroA.SainiA.KaisarS.HiepP. C. (2024). Leveraging zero-knowledge proofs for Blockchain-based identity sharing: a survey of advancements, challenges and opportunities80:103678. doi: 10.1016/j.jisa.2023.103678(Example ZK identity sharing on blockchain)
Summary
Keywords
blockchain, Internet of Things, IoT, security, privacy
Citation
Shujaa W, Alanzi M and Sankaranarayanan S (2025) Enhancing IoT security through blockchain integration. Front. Comput. Sci. 7:1670473. doi: 10.3389/fcomp.2025.1670473
Received
21 July 2025
Accepted
14 October 2025
Published
29 October 2025
Volume
7 - 2025
Edited by
Andrejs Romanovs, Riga Technical University, Latvia
Reviewed by
Larry C. Bates, Independent Researcher, Detroit, United States; Abdul Muhammed Rasheed, Noorul Islam University, India
Updates
Copyright
© 2025 Shujaa, Alanzi and Sankaranarayanan.
This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) and the copyright owner(s) are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.
*Correspondence: Suresh Sankaranarayanan, ssuresh@kfu.edu.sa
Disclaimer
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article or claim that may be made by its manufacturer is not guaranteed or endorsed by the publisher.
