Enhancing Medical Image Segmentation via Complementary CNN-Transformer Fusion and Boundary Perception

Xiaowei Liu^1*Juanxiu Tian¹Shangrong Huang¹Wei Shen^2*

• ¹Hunan Engineering University, Xiangtan, China
• ²The Third Xiangya Hospital of Central South University, Changsha, China

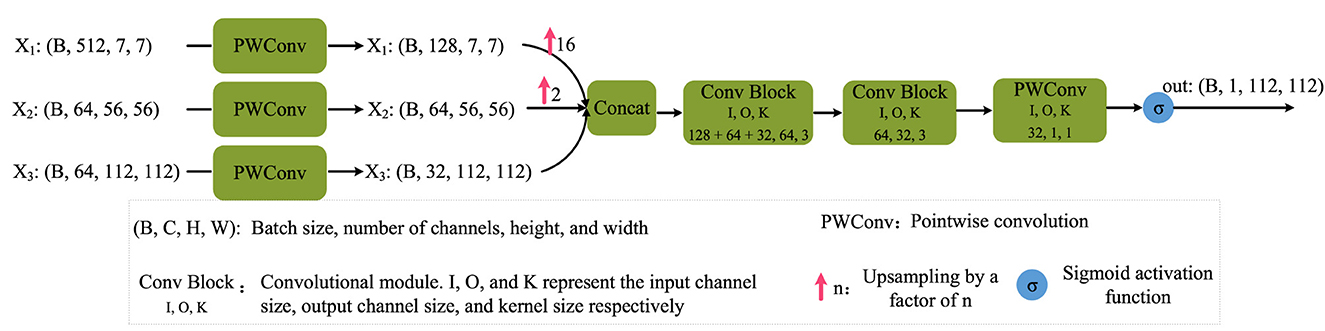

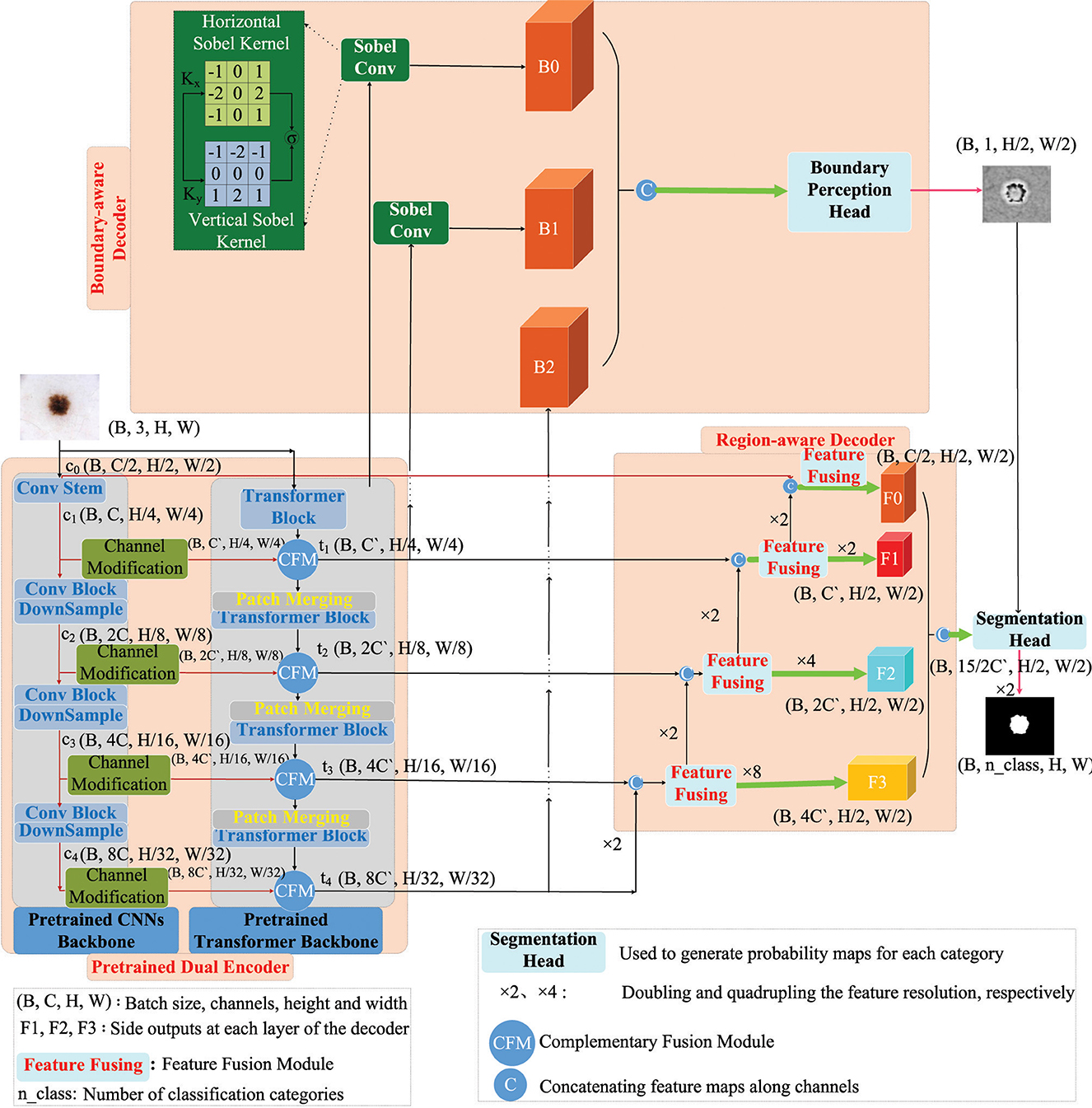

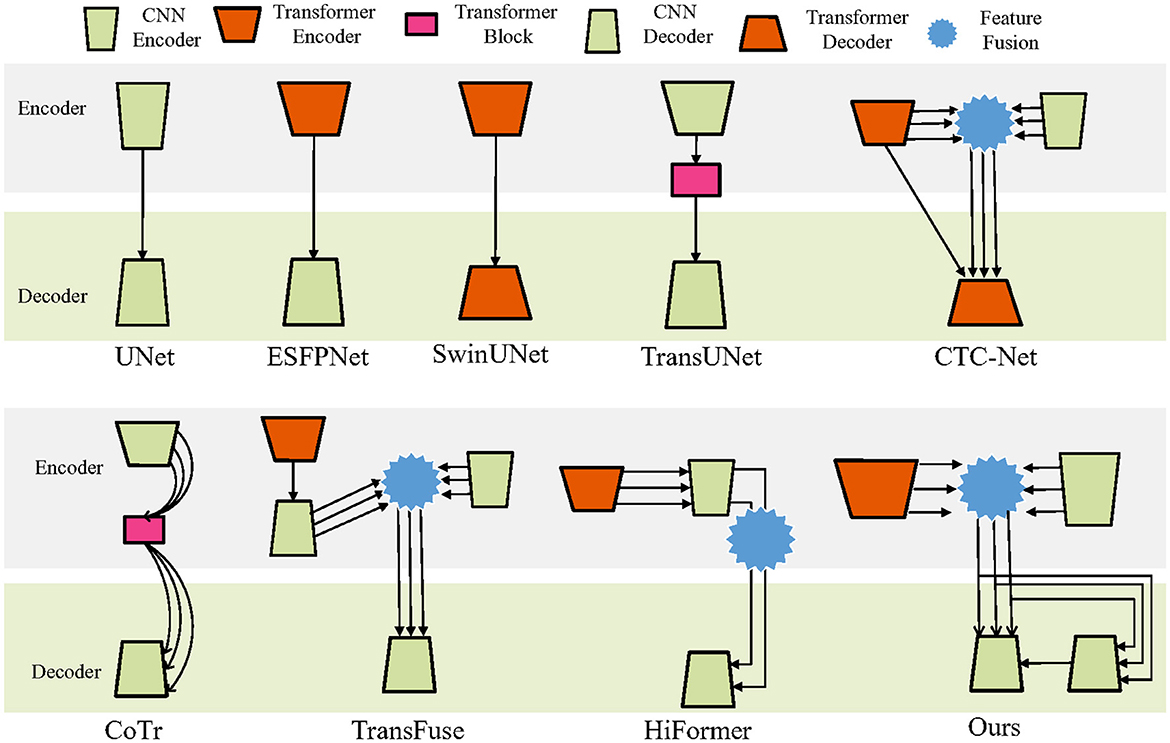

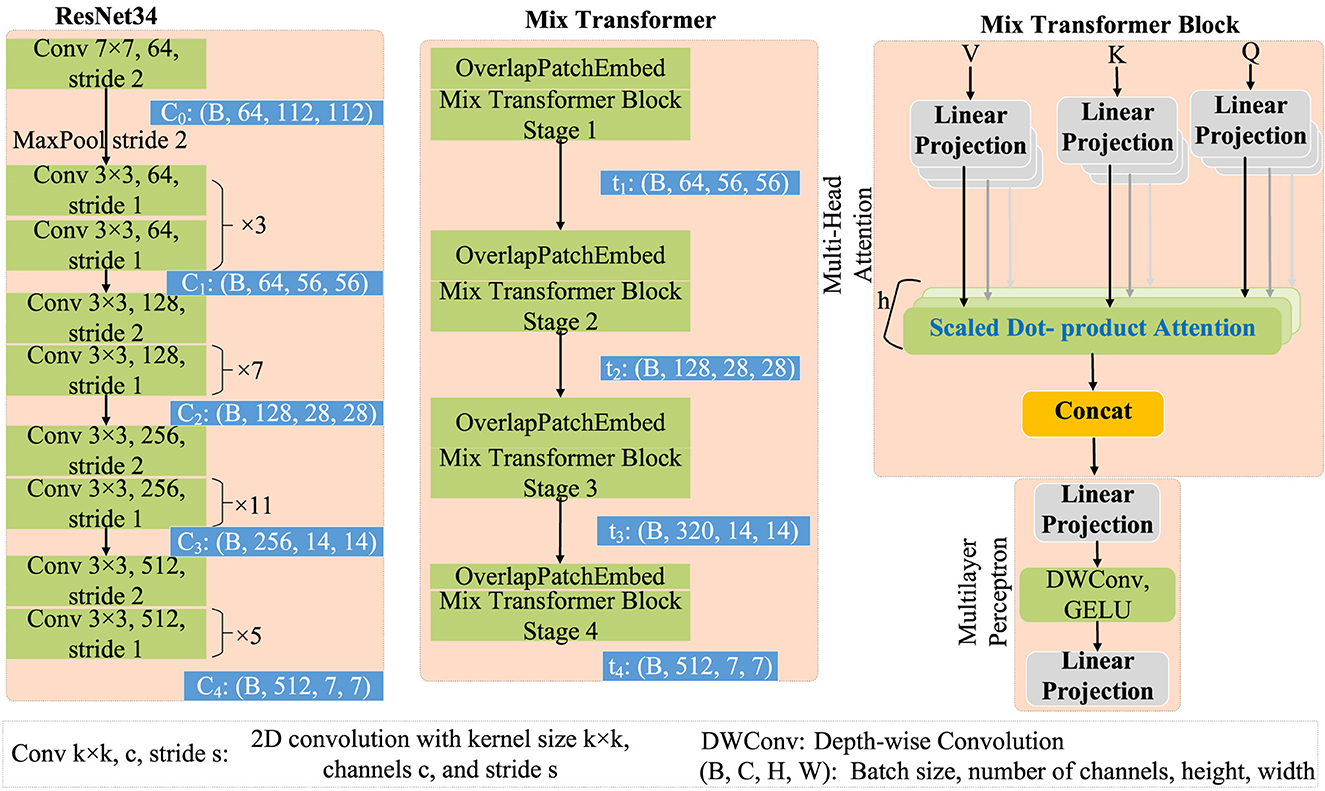

The emergence of Vision Transformers (ViTs) has demonstrated competitive potential compared to convolutional neural networks (CNNs) in large-scale natural image recognition. However, their direct application to medical image segmentation faces two fundamental limitations: (1) the lack of inductive bias for capturing local anatomical structures, and (2) insufficient adaptability to heterogeneous characteristics of medical imaging modalities including CT, endoscopic, and dermoscopic images. Additionally, the effective integration of multi-scale features from pre-trained CNNs and ViTs remains an understudied challenge in this domain. To address these issues, we propose a Pyramid Feature Fusion Network (PFF-Net) that systematically combines hierarchical representations from pre-trained CNN and Transformer backbones. Our dual-branch architecture synergistically exploits their complementary strengths: the region-aware perception branch establishes global-to-local contextual understanding through pyramid feature fusion, while the boundary-aware perception branch enhances structural precision via a novel hybrid edge detection mechanism. Specifically, the boundary branch employs orthogonally oriented Sobel operators to extract primitive edge cues, which are subsequently refined by integrating low-level fusion features to generate semantically consistent boundaries. These boundary predictions are then iteratively fed back to reinforce feature representations in the region branch, creating a mutually enhancing loop between anatomical region segmentation and structural boundary delineation. Quantitative evaluations demonstrate superior performance across three clinical-critical scenarios: The proposed method achieves 91.87% Dice score on polyp segmentation, surpassing TransUNet by 5.6% (86.96%) with 47.5% reduction in HD95 distance (11.68 vs. 22.25). For spleen CT analysis, it obtains 95.33% Dice, outperforming ESFPNet-S by 4.3% (94.92%) while reducing HD95 by 52.1% (3.35 vs. 6.99). In skin lesion segmentation, our model reaches 90.29% Dice, showing 7.3% improvement over ESFPNet-S (89.64%). Notably, the framework exhibits strong generalization on small-scale datasets despite significant domain gaps between Xiaowei Liu et al. Boundary-Aware Medical Segmentation via CNN-Transformer Fusion medical and natural images. These results validate the pyramid fusion strategy's effectiveness in bridging cross-domain disparities through dual-branch mutual enhancement.
