ORIGINAL RESEARCH article
Front. Dent. Med.
Sec. Dental Materials
This article is part of the Research TopicBiomaterials for Dental Caries Prevention and ManagementView all 3 articles
Effect of Particle Size Reduction on the Physicochemical and Mechanical Properties of Conventional Glass Ionomer Cement
Provisionally accepted
Nozimjon Tuygunov1
Farangis Abdurahimova1Sevara Rizaeva1
Zohaib Khurshid2
Arief Cahyanto3*
Myrna Nurlatifah Zakaria3
Bakhtinur Oybutaevich Khudanov1- 1Tashkent Medical Academy, Tashkent, Uzbekistan
- 2King Faisal University, Al Ahsa, Saudi Arabia
- 3Ajman University, Ajman, United Arab Emirates
Select one of your emails
You have multiple emails registered with Frontiers:
Notify me on publication
Please enter your email address:
If you already have an account, please login
You don't have a Frontiers account ? You can register here

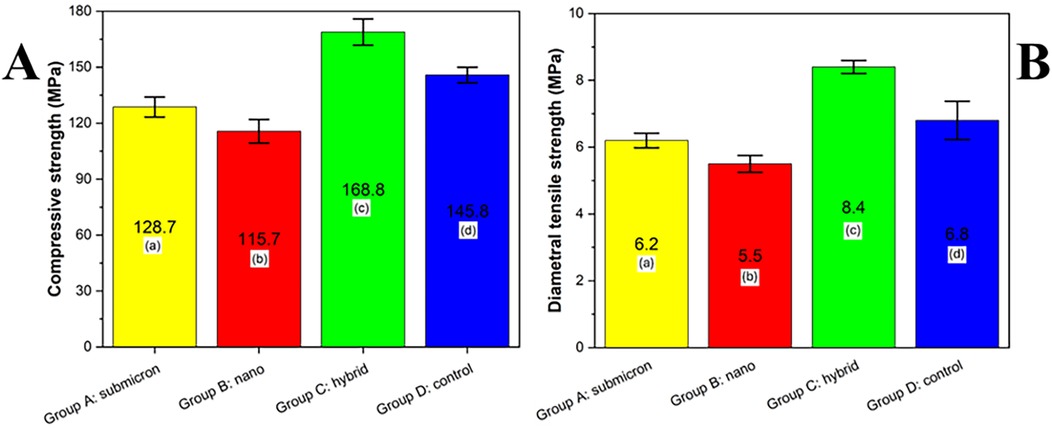

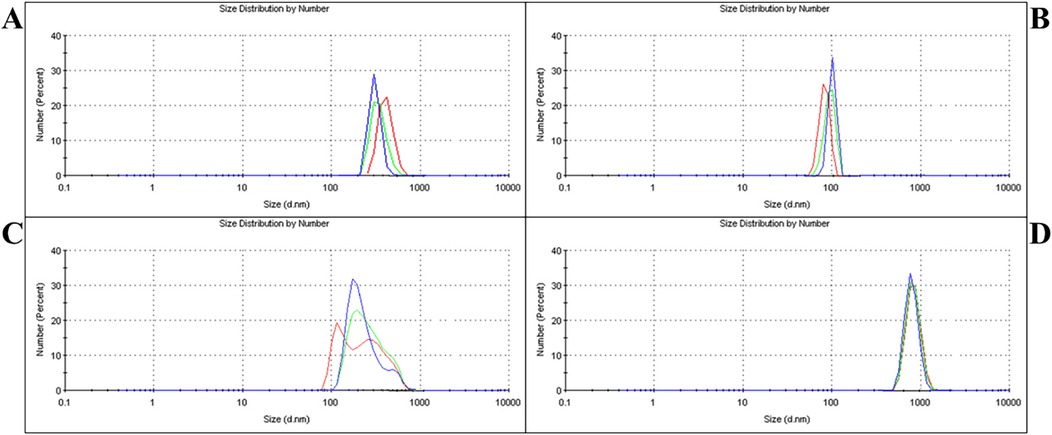

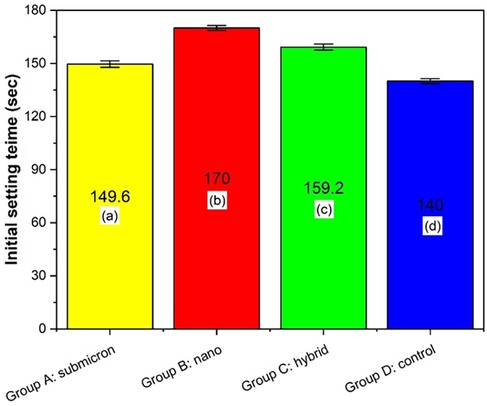

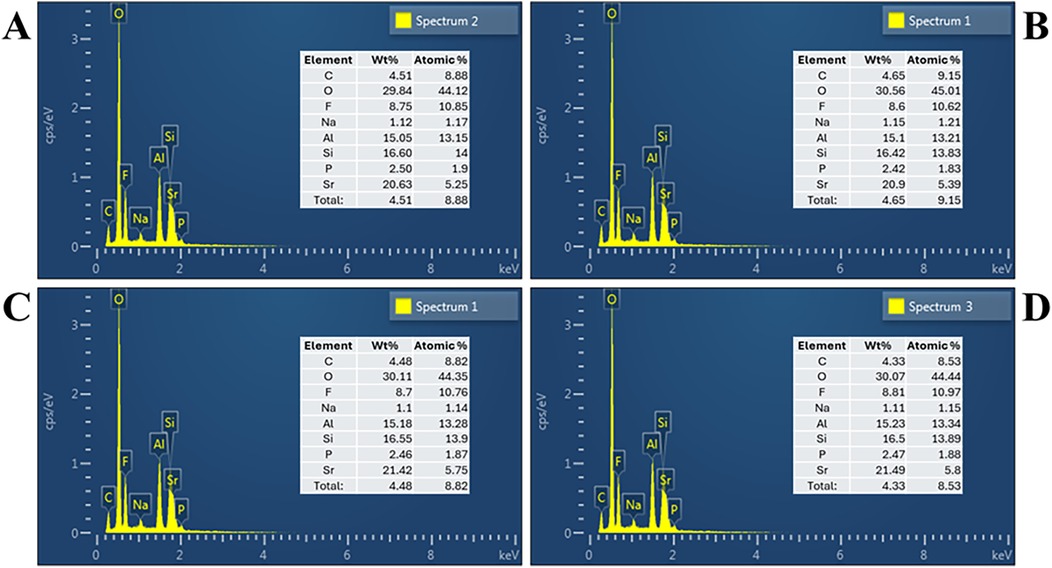

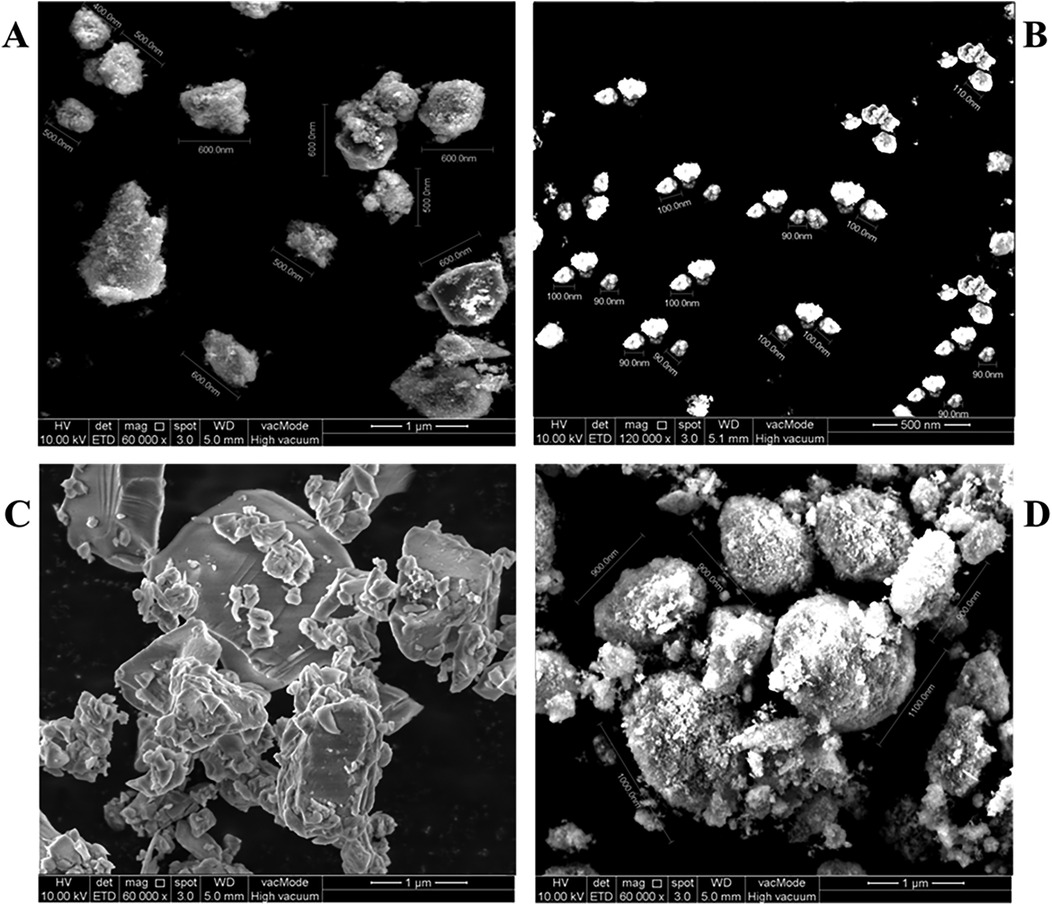

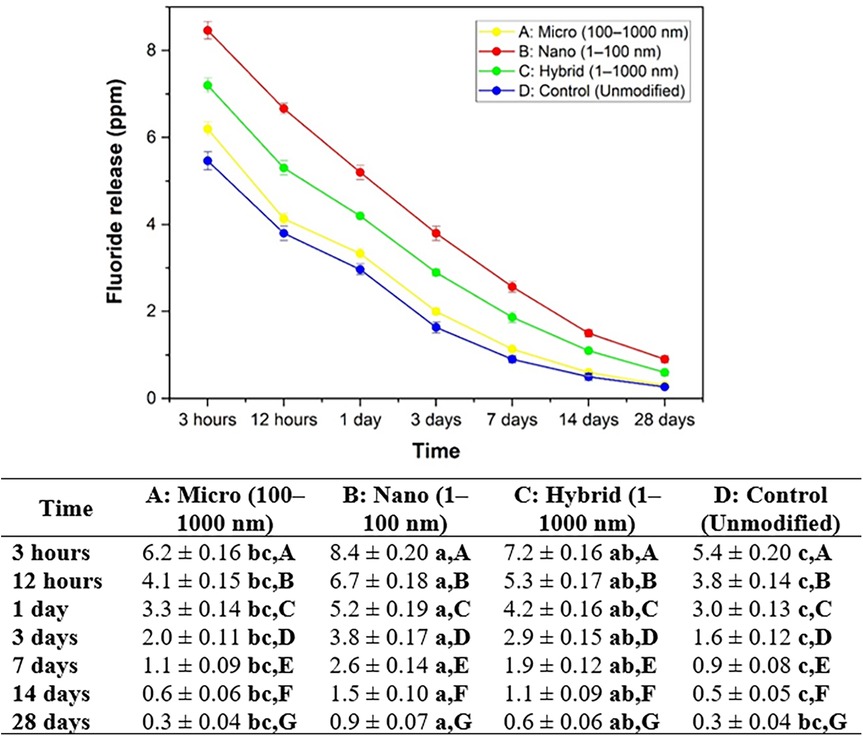

Background: Conventional Glass Ionomer Cement (GIC) is widely used in restorative dentistry due to its biocompatibility and fluoride release; however, its limited mechanical strength and bioactivity restrict its broader clinical applications. Reducing glass powder particle size represents a promising approach to enhancing its physicochemical performance. Objective: To investigate the effect of glass powder particle size reduction on the physicochemical and mechanical properties of a conventional GIC. Methods: Four groups of conventional GIC were prepared by modifying glass powder particle size through one-or two-step ball milling. Particle size distribution (PSD) and field emission scanning electron microscopy (FE-SEM) were used to verify particle morphology, while energy dispersive X-ray spectroscopy (EDX), X-ray diffraction (XRD), and Fourier-transform infrared spectroscopy (FTIR) confirmed chemical composition. The groups included: A – submicron (average 576.9 nm), B – nano (average 92.4 nm), C – hybrid (average 352.6 nm; composed of both nano and submicron particles), and D – control (936.8 nm, unmodified). Evaluations included pH, fluoride, and calcium ion release (over 28 days), initial setting time, compressive strength, and diametral tensile strength. Data were analyzed using one-way analysis of variance (ANOVA) with Tukey's honestly significant difference (HSD) test (p < 0.05). Results: Group B (nano) exhibited the highest fluoride (8.4 ± 0.2 ppm at 3 h) and calcium ion release (1.3 ± 0.08 ppm at 3 h), and the most alkaline pH (6.6 ± 0.09 at day 28). Particle size reduction significantly increased ion release and pH over time but reduced compressive strength (99.02 ± 4.01 MPa) and prolonged setting time (426 ± 10.14 s). The hybrid group (Group C) demonstrated a balanced profile between ion release and mechanical strength, with no chemical alteration observed across groups. Conclusion: Reducing GIC particle size to the nanoscale enhances ion release and alkalinity but compromises mechanical strength. A hybrid formulation incorporating both nano-and submicron-sized particles provides an optimal balance between bioactivity and strength, offering a promising direction for future development of GICs.
Keywords: Glass ionomer cement, nano-sized particles, Compressive Strength, ion release, Setting time, pH, Dental Materials
Received: 29 Sep 2025; Accepted: 13 Nov 2025.
Copyright: © 2025 Tuygunov, Abdurahimova, Rizaeva, Khurshid, Cahyanto, Zakaria and Khudanov. This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) or licensor are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.
* Correspondence: Arief Cahyanto, a.cahyanto@ajman.ac.ae
Disclaimer: All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article or claim that may be made by its manufacturer is not guaranteed or endorsed by the publisher.
