Front. Endocrinol., 14 June 2021
Sec. Experimental Endocrinology
This article is part of the Research Topic Endocrine Disruptors in Aquatic Vertebrates View all 8 articles

Effects of Di-Isononyl Phthalate (DiNP) on Follicular Atresia in Zebrafish Ovary

  • 1Dipartimento Scienze della Vita e dell’Ambiente, Università Politecnica dele Marche, Ancona, Italy
  • 2Departamento de Fisiologia, Instituto de Biociências, Universidade de São Paulo, Rua do Matão, Cidade Universitária, São Paulo, Brazil
  • 3Department of Biological Sciences, University of Calgary, Calgary, AB, Canada
  • 4Laboratorio de Ecotoxicología Acuática, IBBEA, CONICET-UBA & DBBE, FCEyN, Universidad de Buenos Aires, Buenos Aires, Argentina
  • 5Istituto Nazionale Biostrutture Biosistemi, Consorzio Interuniversitario di Biosistemi e Biostrutture, Rome, Italy

Di-isononyl phthalate (DiNP) is a plasticizer reported to elicit hormone-like activity and disrupt metabolism and reproduction in fish and other vertebrates. In general, phthalates have been used at high concentrations beyond reported environmental levels to assess their adverse effects on fish gonadal physiology. The present study exposed adult female zebrafish to a wide range of DiNP concentrations [0.42 µg L−1 (10−9 M), 4.2 µg L−1 (10−8 M), and 42 µg L−1 (10−7 M)] for 21 days. We evaluated gene expression profiles related to apoptosis, autophagy, and oxidative stress; DNA fragmentation (TUNEL assay: terminal deoxynucleotidyl transferase dUTP nick end labeling) and caspase activity (CAS3) were also examined. Exposure to 0.42 and 4.2 µg L−1 upregulated the genes coding for tnfa and baxa, sod1, prkaa1, respectively. CAS3 immunohistochemistry revealed a higher number of positive vitellogenic oocytes in ovaries exposed to 0.42 µg L−1. Subsequently, we examined the relationship between CAS3 signaling and DNA fragmentation. Accordingly, DNA fragmentation was observed in vitellogenic follicles of fish exposed to 0.42 and 4.2 μg L−1. Our results demonstrate that follicular atresia can occur after exposure to environmental levels of DiNP for 21 days, which may adversely affect the reproductive performance of female zebrafish in a non-monotonic manner.

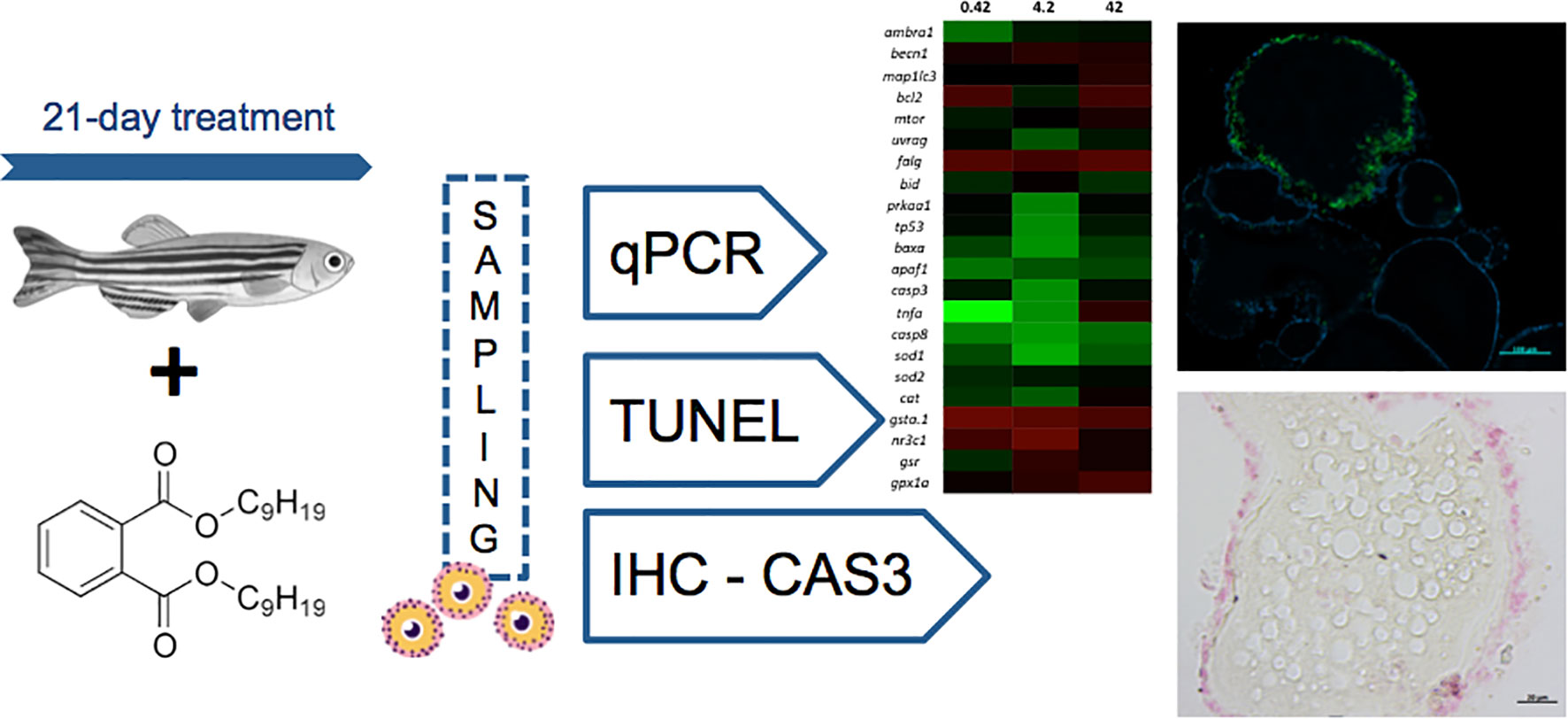

Graphical Abstract


1. In adult female zebrafish, DiNP exposure elicited discrete gene expression modifications in the ovaries.

2. 21-day DiNP exposure enhanced caspase-3 activity in vitellogenic follicles.

3. Environmental concentrations of DiNP induced DNA fragmentation in follicular cells.


Approximately 6 million tons of phthalate esters are produced worldwide (1) and used primarily to improve the elasticity, strength, and durability of plastic items. The binding of phthalates to the plastic matrix is not covalent and can, therefore, migrate to the surroundings (2, 3). Currently, many phthalate esters, i.e., dimethyl phthalate (DMP), diethyl phthalate (DEP), di-n-butyl phthalate (DnBP), butyl benzyl phthalate (BBP), di-n-octyl phthalate (DnOP), and di(2-ethylhexyl) phthalate (DEHP), can be detected in aquatic ecosystems (46).

Among them, DEHP is one of the most studied phthalates in the aquatic environment (6, 7), and experimentally, the negative impacts of DEHP have been largely reported for teleost, i.e., disruption of oocytes growth and maturation, impairment of spermatogenesis, or hormonal dysfunction (811). Considering the major effects of DEHP on aquatic life, the di-isononyl phthalate (DiNP) was introduced in the plastic industry as a DEHP substitute (12) due to its similar applications (13), and also described as less harmful to reproduction when compared to other phthalates (14, 15). Currently, DiNP can be detected in wastewater, soil (7, 16), and surface waters with concentrations ranging from 0.23 to 85 µg L−1 (see Materials and Methods).

Recent studies conducted in our laboratory revealed that in zebrafish, DiNP altered the gonadal endocannabinoid system, oocyte growth, and oocyte maturation (17, 18). The observed reproductive effects of DiNP indicate that this phthalate is an endocrine disrupting chemical (EDC), capable of interfering with the reproductive physiology and, therefore, requesting further studies to decipher the impacts of phthalates toxicity (19, 20).

One of the reproductive mechanisms in female gonads is the follicular atresia, a process based on follicular reabsorption throughout an interplay between apoptosis and autophagy, ensuring reproductive viability of the follicles in the ovaries (21, 22), and also tightly regulated by hormones (23). Under normal conditions, these processes regulate follicular atresia during yolk reabsorption and cell death (22), but such processes might be disrupted following unfavorable environmental conditions leading to the progression of atresia (24).

The role of autophagy and apoptosis during follicular atresia depends on key molecular components that regulate each process (25). In this context, the caspase-dependent (CAS) pathway is among the main mechanisms driving apoptosis and programmed cell death in the ovary. Extrinsically, CAS3 is activated by CAS8, which is recruited after the expression of the tumor necrosis factor receptor (TNFR) family, TNF-related apoptosis-inducing ligand (TRAIL) receptors, and FAS receptors (25). Apoptosis can also be initiated through an intrinsic mitochondria-dependent pathway via activation of CAS9 and CAS3, involving the mitochondrial outer membrane permeabilization (MOMP) and p53 tumor suppressor (25). It should be noted that autophagy is essential for cellular homeostasis during normal stress conditions. The process of autophagy involves the formation of autophagosomes, which are activated by several molecules, such as mTOR (mammalian Target of Rapamycin) or beclin1 (26). These processes involve a number of key molecules that can occur simultaneously and can be disrupted in response to environmental stressors and abnormal physiological conditions (25).

To better understand this process, we examined the effects of exposure to environmentally relevant concentrations of DiNP on zebrafish ovarian function, using different molecular and cellular approaches to further investigate follicular atresia through apoptosis and autophagy.

Material And Methods

Experimental Design

Adult female zebrafish (Danio rerio, AB wild-type strain, 1-year-old, 0.6 ± 0.15 g) were maintained in 100-L glass aquaria with oxygenated water under controlled conditions (28.0 ± 0.5°C; 14/10 h of light/dark period). Fish were fed twice a day with a 1:1 mixture of adult zebrafish complete diet (Zeigler Bross., Inc.) and live brine shrimp nauplii. Females (25 per group, in duplicate) were exposed for 21 days to three nominal concentrations of DiNP (Sigma-Aldrich; 99% purity): 0.42 µg L−1 (10−9 M); 4.2 µg L−1 (10−8 M); 42 µg L−1 (10−7 M) and a control (CTL) free of DiNP. The concentration range used was based on our previous studies (17, 18) and information from reported environmental concentrations of DiNP, ranging from 0.52 µg L−1 in European waters (27), 0.15 to 1.98 µg L−1 in European rivers (28), 21 and 70 µg L−1 in urban run-off (29), and 85 µg L−1 in urban storm-water (30).

In the present study, DiNP concentrations in water were confirmed using gas chromatography-mass spectrometry (GC-MS). Because of its poor water solubility, DiNP was diluted in 1 ml of absolute EtOH and then, added to each aquarium. EtOH concentration (0.001% v/v) was below the activity threshold reported previously (31, 32).

After 21 days, fish were euthanized with an overdose of buffered methane sulfonate MS-222 (300 mg L−1) (Sigma-Aldrich). Ovarian samples for molecular analysis were immediately frozen at −80°C with dry ice. Samples for TUNEL and CAS3 techniques were fixed in Bouin’s solution (Bio-Optica) overnight, then rinsed in 70% EtOH and stored at 4°C until needed for further analysis. Experiments were conducted in accordance with the guidelines on the care and use of fish in research, teaching, and testing from the Canadian Council on Animal Care (2005), as well as being in compliance with the University of Calgary animal care protocol.

RNA Extraction and cDNA Synthesis

RNA extraction, assessment of the RNA quality/quantity, and cDNA synthesis were performed using the whole ovary following (33). Briefly, RNA was extracted with TRIzol® reagent (Invitrogen) followed by chloroform disaggregation. RNA was precipitated with isopropanol and washed twice with absolute ethanol. Samples were treated with DNAse, and RNA quantification was determined by spectrophotometry. The quality of mRNA was assessed by electrophoresis in 1% agarose gel.

Real-Time PCR (RT-qPCR)

The relative quantification of gene transcripts was conducted using SYBR Green dye-based detection in a CFX iCycler thermal cycler (Bio-Rad). All samples were analyzed in duplicates. Each reaction contained: 1 μl of diluted (1/10) cDNA, 5 μl of 2× SYBR Green PCR Master Mix (Bio Rad), 0.1 μl of both forward and reverse primers, and 3.8 μl of milliQ water with a final volume of 10 μl per well. The reference genes used were rplp0 (Ribosomal Protein Large P0) and rplp13 (Ribosomal Protein Large P13). A list of the used primers is provided in Table 1. Data were analyzed using iQ5 Optical System version 2.0 (Bio-Rad), including Genex Macro iQ5 Conversion and Genex Macro iQ5 files (33).


Table 1 List of primers for Real Time qPCR analysis.

Terminal Deoxynucleotidyl Transferase dUTP Nick End Labeling (TUNEL) Assay

Ovaries were processed according to Randazzo et al. (34). Briefly, after dehydration in graded EtOH solutions, samples were clarified in xylene and embedded in paraffin. Sections (5 μm) obtained using a microtome (Leica RM2125 RTS) were placed on gelatinized slides and processed following the manufacture protocol (Roche Diagnostics GmbH). Next, sections were deparaffinized in xylene, rehydrated, and post-fixed using 4% paraformaldehyde (PFA). Positive control was performed without the PFA. All slides were rinsed (15 min) with proteinase K to deactivate free enzymes in a humidified chamber. Then, the slides were treated with TdT buffer 1× for 30 min, followed by overnight incubation at 4°C with the reaction mixture (10 μl TdT buffer 5×, 5 μ CoCl2, 0.5 μl digoxigenin-11-UTP, 1.5 μl terminal transferase enzyme, and 33 μl PBS per sample). Next, the slides were washed with EDTA (1 mM in PBS), blocked with sheep serum, and incubated with anti-digoxigenin AP (1:5.000) for 90 min at room temperature (RT). Finally, the staining solution was freshly prepared by dissolving one Fast Red pill in 2 ml of buffer (5 ml Tris HCl 1 M, 50 μl Tween 20, 45 ml deionized H2O, pH 8.2) to mark the reaction. The sections were observed under a Zeiss Axio Imager.M2 coupled with a high-resolution Zeiss Axiocam 105 color camera.

Caspase 3 Immunohistochemistry Assay (CAS3)

Deparaffinized slide sections (5 μm) were rehydrated and treated with citrate buffer (10 mM sodium citrate, 10 mM citric acid, 0.05% Tween 20, pH 6.0) for the antigen retrieval. Next, endogenous peroxidases were inactivated using 3% H2O2 at RT for 5 min. Then, to block non-specific bindings, slide sections were treated with 40% calf serum (Sigma-Aldrich). After the blocking, sections were incubated overnight in a humid chamber at 4°C with the primary cleaved CAS3 antibody from rabbit (1:200) (Abcam, 13847) recognizing a cleaved form of Caspase 3 (~17 kDa). The next day, sections were rinsed with PBS buffer (pH 7.5) for 15 min and incubated with the secondary antibody IgG (Alexa Fluor 488) goat Anti-Rabbit diluted at 1:500 (Abcam, 150077) at RT for 2 h. Subsequently, the slides were mounted with Fluoroshield mounting medium with DAPI (Abcam, 104139) for nuclei staining. Sections were observed under a Zeiss Axio Imager.M2 microscope, and images were acquired with a high-resolution Zeiss Axiocam 506 monochromatic camera. Images were processed with ZEN 2.3 lite software (Zeiss Microscopy GmbH).

The relative frequency of atretic follicles and vitellogenic follicles (focusing on stages III and IV) with CAS3-positive reaction were evaluated as described previously (35, 36).

Statistical Analysis

The data were analyzed with one-way ANOVA when fulfilled the conditions for applying a parametric test followed by Dunnett’s post hoc analysis. When data did not accomplish those conditions, Kruskal-Wallis non-parametric test was used. All statistical procedures were run using GraphPad Prism 6. The results are reported as mean ± standard error of the mean (SEM). Statistical significance was set at p < 0.05. Heatmap design was conducted using R software. Briefly, gene expression was normalized and standardized using z-score, and then, the mean was clustered with Euclidean distance matrix method. The results were expressed as a hierarchical clustering dendrogram followed by the heatmap plot. The relative frequency of CAS3 signal was assessed using a generalized linear model (glm) in R software (37).


Discrete Dose-Dependent Gene Expression Deregulations in Response to DiNP

We examined the effects of DiNP on the transcriptomic profile to unravel candidate markers for apoptosis, autophagy, and oxidative stress in the D. rerio ovaries. Results are summarized in Table 2. Genes coding for the autophagic pathway (becn1, map1lc3c, mtor, uvrag, bid) were not significantly altered, except for prkaa1 which displayed an upregulation in the 4.2 μg L−1 group. Additionally, 0.42 and 4.2 μg L−1 ovaries evidenced increased mRNA levels for baxa and tnfa, genes related to the apoptotic pathway. The gene coding for sod1 was the only oxidative stress marker showing an upregulated expression in the 4.2 μg L−1 group. Gene expressions were visually described as a heatmap (Figure 1).

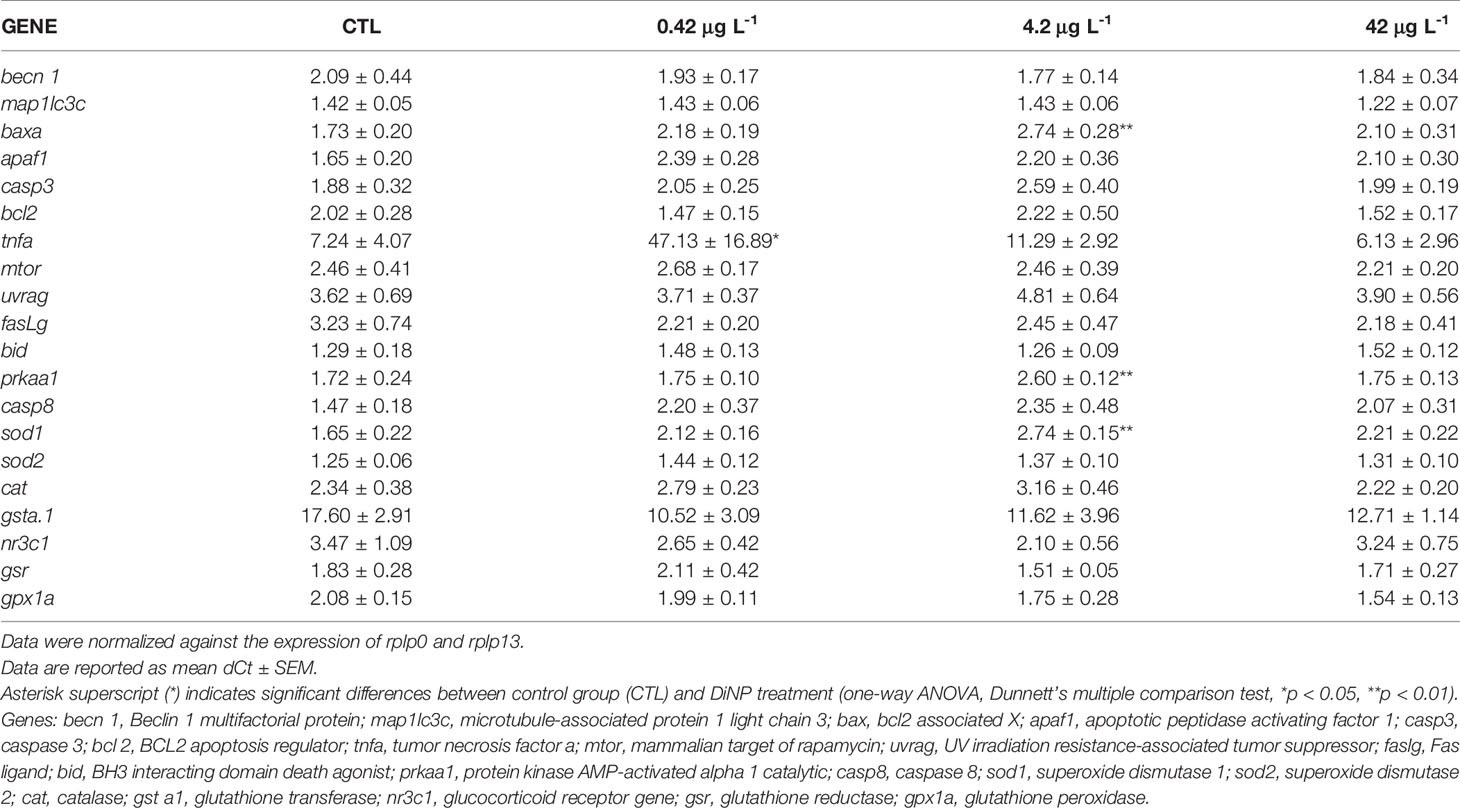

Table 2 Transcriptional effects of DiNP on the zebrafish ovary.


Figure 1 Gene expression heatmap (autophagy, apoptosis and oxidative stress) from zebrafish ovaries exposed to DINP. Color code to represented upregulated genes (green) and downregulated genes (red). Both rows (genes) and columns (treatments) were grouped by hierarchical clustering.

Impact of DiNP on Follicle DNA Fragmentation

To further investigate the potential apoptotic effects, TUNEL assay was used to evaluate DNA fragmentation. Positive DNA fragmentation label (Figure 2, red staining) was observed in follicular cells of atretic and vitellogenic follicles of zebrafish exposed to 0.42 μg L−1 (Figure 2B) and 4.2 μg L−1 (Figure 2C). No reaction was evidenced following exposure to the highest DiNP concentration (Figure 2D), nor was in the CTL group (Figure 2A).


Figure 2 TUNEL assay in ovaries sections from zebrafish exposed to DiNP for 21 days. Positive TUNEL reaction stained in red (arrowheads). CTL (A); 0.42 μg L−1 DiNP (B); 4.2 μg L−1 DiNP (C); 42 μg L−1 DiNP (D). Scale bar: 20 μm.

DiNP Differentially Affects CAS3 Expression in Ovarian Follicle Cells

Positive immunoreaction for CAS3 (ir-CAS3; Figure 3) was identified within the follicle cells of vitellogenic and atretic oocytes in CTL group (Figure 3A). Similarly, ir-CAS3–positive cells were shown in vitellogenic oocytes and atretic from 0.42 μg L−1 (Figure 3B), 4.2 μg L−1 (Figure 3C), and 42 μg L−1 (Figure 3D) DiNP groups. Inserts in Figures 3B, C evidenced the ir-CAS3 in follicular cells (white arrowheads).


Figure 3 Immunolocalization of CAS3 (ir-CAS3) in ovaries cross-sections from control and exposed zebrafish for 21 days to DiNP. CTL (A), 0.42 μg L−1 DiNP (B), 4.2 μg L−1 DiNP (C), 42 μg L−1 DiNP (D). CAS3 signal in green (arrowheads) and DAPI nuclei counterstaining in blue. Scale bar: 100 μm; insert in (B, C) 20 μm; insert in (D) 50 μm.

Specifically, quantification of the relative frequency of positive vitellogenic follicles stage III (VF III), vitellogenic follicles stage IV (VF IV), as well as atretic follicles (AF), displayed a higher frequency of ir-CAS3 in VF IV from 0.42 μg L−1 DiNP ovaries compared to females CTL group (results provided in Table 3).

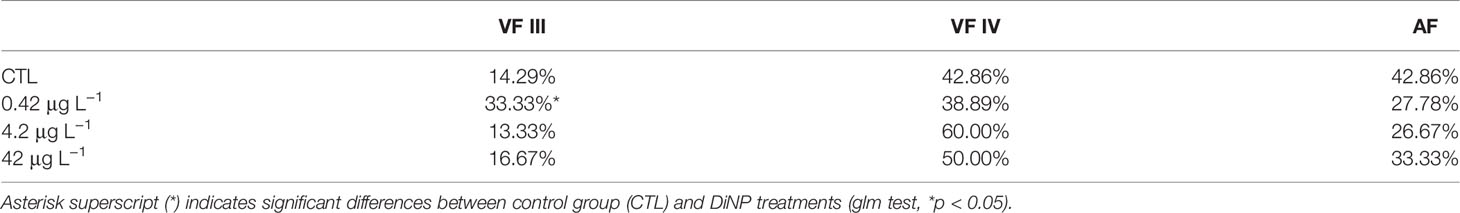

Table 3 Relative frequency of CAS3 signal on vitellogenic follicles stage III (VF III), vitellogenic follicles stage IV (VF IV) and atretic follicles (AF) in zebrafish ovaries exposed to DiNP.


The present study extends the knowledge about the effects of DiNP exposure on zebrafish ovarian follicular apoptosis by providing novel information on discrete gene expression modifications, DNA fragmentation, and increased ir-CAS3 in follicular cells.

From an experimental standpoint, previous studies demonstrated the ability of phthalates or other xenobiotics, such as DEHP or bisphenol A (BPA), to exacerbate atresia in cultured mouse antral or zebrafish oocytes, respectively (35, 38). In the case of zebrafish, low concentrations of BPA induce atresia by accelerating the vitellogenic phase III progression, resulting in abnormally enlarged phase IV follicles. It should be noted that a previous study from our laboratory demonstrated that zebrafish exposed to DiNP led to a reduction in the number of vitellogenic oocytes (18), which is consistent with the observed higher frequency of ir-CAS3 signal in the DiNP VF III. There is evidence that apoptosis is associated with follicle atresia (23), impairing ovarian function (24). In addition, our previous study demonstrated that exposure to DiNP downregulated genes involved in steroidogenesis, oocyte growth, and maturation (18).

While the RT-qPCR approach provides useful information on gene expression patterns following xenobiotic exposures, our results demonstrated that exposure to environmental concentrations of DiNP increased transcript abundance for a limited number of genes, including baxa, tnfa, prkaa1 and sod1. It is likely that the apoptotic activation (extrinsic and intrinsic) involved changes in baxa and tnfa expression. On one hand, the extrinsic apoptotic pathway depends on TNF family for the activation of CAS cascade (25), and on the other, baxa is an internal signal for supporting the release of pro-apoptotic proteins and, consequently, causing DNA fragmentation and production of reactive oxygen species (ROS) (39). Rats exposed to di-n-butyl phthalate (DBP) and DiNP displayed increased TNF-α and BAX in the brain and an alteration of SOD activity, indicating that DBP and DiNP may also trigger neuroinflammation and apoptotic activation in the brain (40, 41). Similarly, rats exposed to 400 μM of DEHP resulted in amplified mitochondria-ROS mediated apoptosis in granulosa cells and enhanced ovarian expression of apoptotic genes including baxa and cas3 (20).

We here reported that exposure to DiNP altered CAS3 signal and DNA fragmentation in follicular cells and that DiNP could induce apoptotic processes in the zebrafish ovary, accordingly with previous observations in rats treated with DiNP and other phthalate congeners (20, 40, 41). Furthermore, there is evidence that plasticizers, in general, exert deleterious effects by inducing oxidative stress in rodent ovary, dysregulating steroid production and activating cell death mechanisms (42).

Studies with phthalates are mainly conducted in mammals with non-realistic concentrations, presumably due to the phylogenetic proximity to humans. Since these compounds are abundantly present in the aquatic ecosystems (27), there is a need to study their effects on aquatic species (43) A recent study from our laboratory evidenced a decline in oocyte growth and maturation following DiNP exposure in zebrafish (18). Accordingly, we here reinforced these data by providing evidence on the ability of DiNP to induce follicle apoptosis. However, it should be noted that we used a heterologous polyclonal antibody raised against the cleaved form of human Caspase 3 (~17 kDa). We here acknowledge that this may constitute a limitation of interpreting immunohistochemistry data since we cannot rule out the remote possibility of cross-reactivity with the pro-caspase 3 (37 kDa). Thus, supporting the validity of our findings, other studies have previously demonstrated the specificity of this antibody for the active form of zebrafish CAS3 (4448).

In addition, there is a crosstalk mechanism between autophagy and apoptotic processes in ovarian follicular atresia in fish species, highlighting the importance of maintaining a balance between the atresia/autophagy and folliculogenesis (21, 22). In this line, although we did not observe significant alterations in the transcripts of genes coding for autophagy (becn1, map1lc3c, mtor, uvrag, bid), any change in the proapoptotic factors could alter the homeostatic balance of follicular development and demise. After DiNP exposure, the autophagic gene coding for prkaa1 was the only upregulated marker, indicating possible metabolic stress (49), and further unfavorable physiological conditions.

Finally, our data outlined a non-monotonic mode of action for DiNP (17, 18, 42), where lower concentrations seem to disrupt the ovarian function. This is not an unusual characteristic of environmental contaminants acting as endocrine disrupting chemicals (EDCs), such as phthalates, which can interact with multiple receptor-mediated endocrine and metabolic pathways (5052). Considering the non-monotonic nature of DiNP in fish, exposure to low concentrations of DiNP and other phthalates found in the aquatic environment may contribute to a vulnerable reproductive condition with adverse consequences on reproductive success of aquatic organisms.


We provide novel data highlighting the capacity of DiNP to induce apoptotic processes, unbalancing the follicular atresia and consequently, impairing the reproductive performance of Danio rerio females in a non-monotonic way. However, the present research leaves several significant questions that might be further examined. Foremost is the significance of the data obtained in zebrafish with DiNP to other aquatic species and other phthalate congeners exposure at it can occur due to the ubiquity of phthalates in aquatic ecosystems. From a pathophysiological standpoint, the implication of DiNP on the dynamic of folliculogenesis/oogenesis and the underlining mechanism on atresia remain to be fully understood and should be included in follow-up studies. Our data outlined discrete gene expression changes at low DiNP concentrations, thus, further analysis are required targeting those specific genes that may be importantly implicated in the phenotypes here reported.

In conclusion, our results provide a set of novel data on the dose-dependent effects of DiNP to the zebrafish ovary, suggesting that apoptotic biomarkers may be used as a relevant tool to evaluate the impacts of EDCs on the folliculogenesis of aquatic species.

Data Availability Statement

The raw data supporting the conclusions of this article will be made available by the authors, without undue reservation.

Ethics Statement

The animal study was reviewed and approved by Canadian Council on Animal Care (2005) as well as in compliance with the University of Calgary protocol.

Author Contributions

Conceptualization: OC, HRH, FLN, and RM. Data curation: FG and IFP. Formal analysis: FG, IFP, and BR. Funding acquisition: OC. Investigation: FG and IFP. Methodology: FG, IFP, and BR. Project administration, resources, supervision, and validation: OC. Visualization: OC. Roles/writing—original draft: FG, OC, and HRH. Writing—review and editing: FG, IFP, OC, FLN, HRH, RM, BR. All authors contributed to the article and approved the submitted version.


This work was supported by Progetti di Rilevante Interesse Nazionale (PRIN) 2010–2011 (prot 2010W87LBJ) to OC, and by Fundação de Amparo à Pesquisa do Estado de São Paulo (FAPESP; Processes: 2018/10495-0; 2017/07139-5, 2017/11530-1 and 2014/16320-7) to FG and RM.

Conflict of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.


1. Meng XZ, Wang Y, Xiang N, Chen L, Liu Z, Wu B, et al. Flow of Sewage Sludge-Borne Phthalate Esters (Paes) From Human Release to Human Intake: Implication for Risk Assessment of Sludge Applied to Soil. Sci Total Environ (2014) 476–477:242–9. doi: 10.1016/j.scitotenv.2014.01.007

PubMed Abstract | CrossRef Full Text | Google Scholar

2. Heudorf U, Mersch-Sundermann V, Angerer J. Phthalates: Toxicology and Exposure. Int J Hyg Environ Health (2007) 210(5):623–34. doi: 10.1016/j.ijheh.2007.07.011

PubMed Abstract | CrossRef Full Text | Google Scholar

3. Babich MA, Bevington C, Dreyfus MA. Plasticizer Migration From Children’s Toys, Child Care Articles, Art Materials, and School Supplies. Regul Toxicol Pharmacol (2020) 111:104574. doi: 10.1016/j.yrtph.2019.104574

PubMed Abstract | CrossRef Full Text | Google Scholar

4. Bergé A, Cladière M, Gasperi J, Coursimault A, Tassin B, Moilleron R. Meta-Analysis of Environmental Contamination by Phthalates. Vol 20 Environ Sci Pollut Res (2013) 20:8057–76. doi: 10.1007/s11356-013-1982-5

CrossRef Full Text | Google Scholar

5. Zolfaghari M, Drogui P, Seyhi B, Brar SK, Buelna G, Dubé R. Occurrence, Fate and Effects of Di (2-Ethylhexyl) Phthalate in Wastewater Treatment Plants: A Review. Environ Pollut (2014) 194:281–93. doi: 10.1016/j.envpol.2014.07.014

PubMed Abstract | CrossRef Full Text | Google Scholar

6. Wang Y, Zhu H, Kannan K. A Review of Biomonitoring of Phthalate Exposures. Toxics (2019) 7:21. doi: 10.3390/toxics7020021

CrossRef Full Text | Google Scholar

7. Gani KM, Tyagi VK, Kazmi AA. Occurrence of Phthalates in Aquatic Environment and Their Removal During Wastewater Treatment Processes: A Review. Environ Sci Pollut Res (2017) 24(21):17267–84. doi: 10.1007/s11356-017-9182-3

CrossRef Full Text | Google Scholar

8. Carnevali O, Tosti L, Speciale C, Peng C, Zhu Y, Maradonna F. DEHP Impairs Zebrafish Reproduction by Affecting Critical Factors in Oogenesis. PloS One (2010) 5(4):e10201. doi: 10.1371/journal.pone.0010201

PubMed Abstract | CrossRef Full Text | Google Scholar

9. Corradetti B, Stronati A, Tosti L, Manicardi G, Carnevali O, Bizzaro D. Bis-(2-Ethylexhyl) Phthalate Impairs Spermatogenesis in Zebrafish (Danio rerio). Reprod Biol (2013) 13(3):195–202. doi: 10.1016/j.repbio.2013.07.003

PubMed Abstract | CrossRef Full Text | Google Scholar

10. Grande SW, Andrade AJM, Talsness CE, Grote K, Golombiewski A, Sterner-Kock A, et al. A Dose-Response Study Following In Utero and Lactational Exposure to Di-(2-Ethylhexyl) Phthalate (DEHP): Reproductive Effects on Adult Female Offspring Rats. Toxicology (2007) 229(1–2):114–22. doi: 10.1016/j.tox.2006.10.005

PubMed Abstract | CrossRef Full Text | Google Scholar

11. Adeogun AO, Ibor OR, Imiuwa ME, Omogbemi ED, Chukwuka AV, Omiwole RA, et al. Endocrine Disruptor Responses in African Sharptooth Catfish (Clarias gariepinus) Exposed to Di-(2-Ethylhexyl)-Phthalate. Comp Biochem Physiol Part - C: Toxicol Pharmacol (2018) 213:7–18. doi: 10.1016/j.cbpc.2018.07.001

CrossRef Full Text | Google Scholar

12. Duan J, Deng T, Kang J, Chen M. DINP Aggravates Autoimmune Thyroid Disease Through Activation of the Akt/mTOR Pathway and Suppression of Autophagy in Wistar Rats. Environ Pollut (2019) 245:316–24. doi: 10.1016/j.envpol.2018.10.108

PubMed Abstract | CrossRef Full Text | Google Scholar

13. Larsson K, Lindh CH, Jönsson BA, Giovanoulis G, Bibi M, Bottai M, et al. Phthalates, Non-Phthalate Plasticizers and Bisphenols in Swedish Preschool Dust in Relation to Children’s Exposure. Environ Int (2017) 102:114–24. doi: 10.1016/j.envint.2017.02.006

PubMed Abstract | CrossRef Full Text | Google Scholar

14. Boberg J, Christiansen S, Axelstad M, Kledal TS, Vinggaard AM, Dalgaard M, et al. Reproductive and Behavioral Effects of Diisononyl Phthalate (DINP) in Perinatally Exposed Rats. Reprod Toxicol (2011) 31(2):200–9. doi: 10.1016/j.reprotox.2010.11.001

PubMed Abstract | CrossRef Full Text | Google Scholar

15. Yang S, Arcanjo RB, Nowak RA. The Effects of the Phthalate DiNP on Reproduction†. Biol Reprod (2021) 104(2):305–16. doi: 10.1093/biolre/ioaa201

PubMed Abstract | CrossRef Full Text | Google Scholar

16. Yang GCC, Wang CL, Chiu YH. Occurrence and Distribution of Phthalate Esters and Pharmaceuticals in Taiwan River Sediments. J Soils Sediments (2015) 15(1):198–210. doi: 10.1007/s11368-014-1003-4

CrossRef Full Text | Google Scholar

17. Forner-Piquer I, Santangeli S, Maradonna F, Rabbito A, Piscitelli F, Habibi HR, et al. Disruption of the Gonadal Endocannabinoid System in Zebrafish Exposed to Diisononyl Phthalate. Environ Pollut (2018) 241:1–8. doi: 10.1016/j.envpol.2018.05.007

PubMed Abstract | CrossRef Full Text | Google Scholar

18. Santangeli S, Maradonna F, Zanardini M, Notarstefano V, Gioacchini G, Forner-Piquer I, et al. Effects of Diisononyl Phthalate on Danio rerio Reproduction. Environ Pollut (2017) 231:1051–62. doi: 10.1016/j.envpol.2017.08.060

PubMed Abstract | CrossRef Full Text | Google Scholar

19. Carnevali O, Santangeli S, Forner-Piquer I, Basili D, Maradonna F. Endocrine-Disrupting Chemicals in Aquatic Environment: What Are the Risks for Fish Gametes? Fish Physiol Biochem (2018) 44(6):1561–76. doi: 10.1007/s10695-018-0507-z

PubMed Abstract | CrossRef Full Text | Google Scholar

20. Tripathi A, Pandey V, Sahu AN, Singh A, Dubey PK. Di-(2-Ethylhexyl) Phthalate (DEHP) Inhibits Steroidogenesis and Induces Mitochondria-ROS Mediated Apoptosis in Rat Ovarian Granulosa Cells. Toxicol Res (2019) 8(3):381–94. doi: 10.1039/C8TX00263K

CrossRef Full Text | Google Scholar

21. Gioacchini G, Valle LD, Benato F, Fimia GM, Nardacci R, Ciccosanti F, et al. Interplay Between Autophagy and Apoptosis in the Development of Danio rerio Follicles and the Effects of a Probiotic. Reprod Fertil Dev (2013) 25(8):1115–25. doi: 10.1071/RD12187

PubMed Abstract | CrossRef Full Text | Google Scholar

22. Morais RDVS, Thomé RG, Lemos FS, Bazzoli N, Rizzo E. Autophagy and Apoptosis Interplay During Follicular Atresia in Fish Ovary: A Morphological and Immunocytochemical Study. Cell Tissue Res (2012) 347(2):467–78. doi: 10.1007/s00441-012-1327-6

PubMed Abstract | CrossRef Full Text | Google Scholar

23. Habibi HR, Andreu-Vieyra CV. Hormonal Regulation of Follicular Atresia in Teleost Fish. In: The Fish Oocyte: From Basic Studies to Biotechnological Applications. Dordrecht: Springer (2007). p. 235–53. doi: 10.1007/978-1-4020-6235-3_9

CrossRef Full Text | Google Scholar

24. Thomé RG, Domingos FFT, Santos HB, Martinelli PM, Sato Y, Rizzo E, et al. Apoptosis, Cell Proliferation and Vitellogenesis During the Folliculogenesis and Follicular Growth in Teleost Fish. Tissue Cell (2012) 44(1):54–62. doi: 10.1016/j.tice.2011.11.002

PubMed Abstract | CrossRef Full Text | Google Scholar

25. Mariño G, Niso-Santano M, Baehrecke EH, Kroemer G. Self-Consumption: The Interplay of Autophagy and Apoptosis. Nat Rev Mol Cell Biol (2014) 15:81–94. doi: 10.1038/nrm3735

PubMed Abstract | CrossRef Full Text | Google Scholar

26. Klionsky DJ. Autophagy: From Phenomenology to Molecular Understanding in Less Than a Decade. Nat Rev Mol Cell Biol (2007) 8:931–7. doi: 10.1038/nrm2245

PubMed Abstract | CrossRef Full Text | Google Scholar

27. Quinn-Hosey KM. A Toxicological Assessment of Endocrine Disrupting Chemicals Found in the BMW (Border, Midland and Western) Region of Ireland. J Environ Prot (2012) 03(04):304–15. doi: 10.4236/jep.2012.34039

CrossRef Full Text | Google Scholar

28. Kelly MA, Reid AM, Quinn-Hosey KM, Fogarty AM, Roche JJ, Brougham CA. Investigation of the Estrogenic Risk to Feral Male Brown Trout (Salmo trutta) in the Shannon International River Basin District of Ireland. Ecotoxicol Environ Saf (2010) 73(7):1658–65. doi: 10.1016/j.ecoenv.2010.08.018

PubMed Abstract | CrossRef Full Text | Google Scholar

29. Kalmykova Y, Björklund K, Strömvall AM, Blom L. Partitioning of Polycyclic Aromatic Hydrocarbons, Alkylphenols, Bisphenol A and Phthalates in Landfill Leachates and Stormwater. Water Res (2013) 47(3):1317–28. doi: 10.1016/j.watres.2012.11.054

PubMed Abstract | CrossRef Full Text | Google Scholar

30. Björklund K, Cousins AP, Strömvall AM, Malmqvist PA. Phthalates and Nonylphenols in Urban Runoff: Occurrence, Distribution and Area Emission Factors. Sci Total Environ (2009) 407(16):4665–72. doi: 10.1016/j.scitotenv.2009.04.040

PubMed Abstract | CrossRef Full Text | Google Scholar

31. Hutchinson TH, Shillabeer N, Winter MJ, Pickford DB. Acute and Chronic Effects of Carrier Solvents in Aquatic Organisms: A Critical Review. Aquat Toxicol (2006) 76:69–92. doi: 10.1016/j.aquatox.2005.09.008

PubMed Abstract | CrossRef Full Text | Google Scholar

32. OECD. Organization for Economic Co-Operation and Development. Fish Toxicity Testing Framework. Series on Testing and Assessment No 171, Paris: OECD Publishing. Vol. 171. (2012).

Google Scholar

33. Forner-Piquer I, Beato S, Piscitelli F, Santangeli S, Di Marzo V, Habibi HR, et al. Effects of BPA on Zebrafish Gonads: Focus on the Endocannabinoid System. Environ Pollut (2020) 264:114710. doi: 10.1016/j.envpol.2020.114710

PubMed Abstract | CrossRef Full Text | Google Scholar

34. Randazzo B, Zarantoniello M, Gioacchini G, Giorgini E, Truzzi C, Notarstefano V, et al. Can Insect-Based Diets Affect Zebrafish (Danio rerio) Reproduction? A Multidisciplinary Study. Zebrafish (2020) 17(5):287–304. doi: 10.1089/zeb.2020.1891

PubMed Abstract | CrossRef Full Text | Google Scholar

35. Migliaccio M, Chioccarelli T, Ambrosino C, Suglia A, Manfrevola F, Carnevali O, et al. Characterization of Follicular Atresia Responsive to BPA in Zebrafish by Morphometric Analysis of Follicular Stage Progression. Int J Endocrinol (2018). doi: 10.1155/2018/4298195

PubMed Abstract | CrossRef Full Text | Google Scholar

36. Grier HJ, Uribe MC, Lo Nostro FL, Mims SD, Parenti LR. Conserved Form and Function of the Germinal Epithelium Through 500 Million Years of Vertebrate Evolution. J morphol (2016) 277(8):1014–44. doi: 10.1002/jmor.20554

PubMed Abstract | CrossRef Full Text | Google Scholar

37. Jaeger TF. Categorical Data Analysis: Away From ANOVAs (Transformation or Not) and Towards Logit Mixed Models. J Memory Lang (2008) 59(4):434–46. doi: 10.1016/j.jml.2007.11.007

CrossRef Full Text | Google Scholar

38. Hannon PR, Brannick KE, Wang W, Gupta RK, Flaws JA. Di(2-Ethylhexyl) Phthalate Inhibits Antral Follicle Growth, Induces Atresia, and Inhibits Steroid Hormone Production in Cultured Mouse Antral Follicles. Toxicol Appl Pharmacol (2015) 284(1):42–53. doi: 10.1016/j.taap.2015.02.010

PubMed Abstract | CrossRef Full Text | Google Scholar

39. Maiuri MC, Zalckvar E, Kimchi A, Kroemer G. Self-Eating and Self-Killing: Crosstalk Between Autophagy and Apoptosis. Nat Rev Mol Cell Biol (2007) 8:741–52. doi: 10.1038/nrm2239

PubMed Abstract | CrossRef Full Text | Google Scholar

40. Duan J, Kang J, Qin W, Deng T, Liu H, Li B, et al. Exposure to Formaldehyde and Diisononyl Phthalate Exacerbate Neuroinflammation Through NF-κb Activation in a Mouse Asthma Model. Ecotoxicol Environ Saf (2018) 163:356–64. doi: 10.1016/j.ecoenv.2018.07.089

PubMed Abstract | CrossRef Full Text | Google Scholar

41. Kassab RB, Lokman MS, Essawy EA. Neurochemical Alterations Following the Exposure to Di-N-Butyl Phthalate in Rats. Metab Brain Dis (2019) 34(1):235–44. doi: 10.1007/s11011-018-0341-0

PubMed Abstract | CrossRef Full Text | Google Scholar

42. Neff AM, Flaws JA. The Effects of Plasticizers on the Ovary. Curr Opin Endocr Metab Res (2021) 18:35–47. doi: 10.1016/j.coemr.2021.01.004

PubMed Abstract | CrossRef Full Text | Google Scholar

43. Mathieu-Denoncourt J, Wallace SJ, de Solla SR, Langlois VS. Plasticizer Endocrine Disruption: Highlighting Developmental and Reproductive Effects in Mammals and Non-Mammalian Aquatic Species. Gen Comp Endocrinol (2015) 219:74–88. doi: 10.1016/j.ygcen.2014.11.003

PubMed Abstract | CrossRef Full Text | Google Scholar

44. Cox AG, Tsomides A, Kim AJ, Saunders D, Hwang KL, Evason KJ, et al. Selenoprotein H is an Essential Regulator of Redox Homeostasis That Cooperates With p53 in Development and Tumorigenesis. Proc Natl Acad Sci USA (2016) 113(38):E5562–71. doi: 10.1073/pnas.1600204113

PubMed Abstract | CrossRef Full Text | Google Scholar

45. Jia K, Cheng B, Huang L, Xiao J, Bai Z, Liao X, et al. Thiophanate-Methyl Induces Severe Hepatotoxicity in Zebrafish. Chemosphere (2020) 248:125941. doi: 10.1016/j.chemosphere.2020.125941

PubMed Abstract | CrossRef Full Text | Google Scholar

46. Stanic K, Reig G, Wichmann IA, Opazo JC, Owen GI, Corvalán AH, et al. The Reprimo Gene Family Member, Reprimo-Like (Rprml), Is Required for Blood Development in Embryonic Zebrafish. Sci Rep (2019) 9(1):1–11. doi: 10.1038/s41598-019-43436-8

PubMed Abstract | CrossRef Full Text | Google Scholar

47. Zhang Y, Xu B, Chen Q, Yan Y, Du J, Du X. Apoptosis of Endothelial Cells Contributes to Brain Vessel Pruning of Zebrafish During Development. Front Mol Neurosci (2018) 11:222. doi: 10.3389/fnmol.2018.00222

PubMed Abstract | CrossRef Full Text | Google Scholar

48. Zhao C, Jia Z, Li E, Zhao X, Han T, Tian J, et al. Hepatotoxicity Evaluation of Euphorbia Kansui on Zebrafish Larvae In Vivo. Phytomedicine (2019) 62:152959. doi: 10.1016/j.phymed.2019.152959

PubMed Abstract | CrossRef Full Text | Google Scholar

49. Liang J, Shao SH, Xu ZX, Hennessy B, Ding Z, Larrea M, et al. The Energy Sensing LKB1-AMPK Pathway Regulates p27kip1 Phosphorylation Mediating the Decision to Enter Autophagy or Apoptosis. Nat Cell Biol (2007) 9(2):218–24. doi: 10.1038/ncb1537

PubMed Abstract | CrossRef Full Text | Google Scholar

50. Kinch CD, Ibhazehiebo K, Jeong JH, Habibi HR, Kurrasch DM. Low-Dose Exposure to Bisphenol a and Replacement Bisphenol S Induces Precocious Hypothalamic Neurogenesis in Embryonic Zebrafish. Proc Natl Acad Sci USA (2015) 112(5):1475–80. doi: 10.1073/pnas.1417731112

PubMed Abstract | CrossRef Full Text | Google Scholar

51. Jordan J, Zare A, Jackson LJ, Habibi HR, Weljie AM. Environmental Contaminant Mixtures at Ambient Concentrations Invoke a Metabolic Stress Response in Goldfish Not Predicted From Exposure to Individual Compounds Alone. J Proteome Res (2012) 11(2):1133–43. doi: 10.1021/pr200840b

PubMed Abstract | CrossRef Full Text | Google Scholar

52. Lagarde F, Beaus. oleil C, Belcher SM, Belzunces LP, Emond C, Guerbet M, et al. Non-monotonic Dose-Response Relationships and Endocrine Disruptors: A Qualitative Method of Assessment. Environ Health (2015) 14:1–15. doi: 10.1186/1476-069X-14-13

PubMed Abstract | CrossRef Full Text | Google Scholar
