Abstract
Tuberculosis (TB) is a major health issue globally. Although typically the disease can be cured by chemotherapy in all age groups, and prevented in part in newborn by vaccination, general consensus exists that development of novel intervention measures requires better understanding of disease mechanisms. Human TB is characterized by polarity between host resistance as seen in 2 billion individuals with latent TB infection and susceptibility occurring in 9 million individuals who develop active TB disease every year. Experimental animal models often do not reflect this polarity adequately, calling for a reverse translational approach. Gene expression profiling has allowed identification of biomarkers that discriminate between latent infection and active disease. Functional analysis of most relevant markers in experimental animal models can help to better understand mechanisms driving disease progression. We have embarked on in-depth characterization of candidate markers of pathology and protection hereby harnessing mouse mutants with defined gene deficiencies. Analysis of mutants deficient in miR-223 expression and CXCL5 production allowed elucidation of relevant pathogenic mechanisms. Intriguingly, these deficiencies were linked to aberrant neutrophil activities. Our findings point to a detrimental potential of neutrophils in TB. Reciprocally, measures that control neutrophils should be leveraged for amelioration of TB in adjunct to chemotherapy.
Introduction
Until today, segregation between basic and applied research has not been fully overcome in medical science, including immunology. Principally, basic research is conceived as hypothesis-driven, which benefits from choice of the most suitable experimental approach. Successful studies end with an outlook on medical application. In rare instances when this outlook indeed materializes, the whole endeavor is considered a perfect example of translational medicine. In contrast, applied clinical research is hampered by various layers of complexity, including heterogeneity of human populations and limitations in experimental approaches.
Recent advances in “omics” (i.e., high-throughput, HT, approaches, such as genomics or transcriptomics) have allowed a reciprocal strategy related to data-driven and hypothesis-generating approaches, which have been recognized as valuable complements to the hypothesis-driven path (1). Comparative studies of patients and healthy controls using different omics readouts allow a deeper understanding of mechanisms underlying disease progression, and identification of thus far unknown or insufficiently understood biological functions (2, 3). Hence, new research questions can be formulated, based on findings in the clinical context, which can subsequently be dissected in appropriate experimental models (Figure 1) – in short, from the bed to the bench (4).
Figure 1
Immunology of tuberculosis (TB) is a case in point: mechanisms underlying pathology and protection in TB are highly intertwined and quantitative rather than qualitative differences tip the balance toward disease progression (5). We have embarked on analyzing biomarkers that distinguish TB patients from healthy individuals and identified markers, which have fueled our interest to better understand their biological functions in TB.
The Issue: Tuberculosis
With a morbidity of 8.6 million cases and a mortality of 1.3 million deaths annually, TB remains a major health issue, surpassed only by human immunodeficiency virus/acquired immune deficiency syndrome (HIV/AIDS) (6, 7). In fact, the two diseases have joined forces to create a perfect storm: TB is the major cause of death of HIV-infected individuals and HIV/AIDS the driving force for TB reemergence (6). Infection with Mtb transforms into active disease in only 5–10% resulting in 2 billion individuals with latent TB infection (LTBI), who remain healthy. Immunity is orchestrated by T lymphocytes that activate anti-mycobacterial activities in infected macrophages (5, 8). This is a local event focused on granulomatous lesions. Mtb is efficiently contained in solid granulomas where it adopts a dormant stage characterized by low replication rate and minimal metabolic activity (9, 10).
Globally, the ca. 2 billion healthy individuals with LTBI maintain this stage by means of an active immune response (5, 8). Yet, once it deviates, active disease develops. This is preceded by increasing necrosis of the granuloma followed by liquefaction. In the caseous granuloma, Mtb is resuscitated and resumes high replicative and metabolic activity (9, 10). Often in TB patients, granulomas of different maturation stages coexist (11). Whilst in some granulomas the immune response is still capable of controlling Mtb, in others, it has already failed and Mtb has mastered the battle field (9, 10). Divergent immune activities in different lesions create major obstacles in the analyses of relevant immune responses in the periphery: it is likely that the circulating leukocytes reflect an averaged dominant stage of immune defense, but not unique activities operative in different lesions of varying immune status.
In infants, serious forms of TB can be prevented by vaccination. The vaccine, bacille Calmette–Guérin (BCG), therefore is still part of vaccination programs in countries where TB is endemic (12). Today, BCG is the most widely used vaccine with at least 4 billion total, and ca. 100 million annual, administrations. Yet, an efficacious vaccine against pulmonary TB in all age groups, which is not only the most prevalent form, but also the major source of transmission, is not available. Currently, novel vaccine candidates are being developed of which more than a dozen are undergoing clinical evaluation (13).
Tuberculosis can be cured by chemotherapy. However, successful treatment is long-lasting, requiring three to four drugs given over a period of at least 6 months. Not the least due to the complex and long-lasting treatment regimen, resistant TB is on the rise (14–16). Fifty million individuals are infected with multidrug-resistant (MDR)-Mtb strains that cannot be treated adequately with first-line drugs. Therefore, for half a million new MDR-TB cases annually, second-line drugs requiring longer and more complex treatment schedules with higher side effects must be employed. The ca. 50,000 individuals registered in 92 countries, who have developed extensively drug-resistant (XDR)-TB, are even worse off since this form of TB is almost untreatable (6). In the meantime, totally drug-resistant (TDR)-TB has been notified in countries in Asia, Europe and Africa. No drugs are available to treat this form of TB. As a corollary, cost for TB control is increasing. It has been estimated that the European Union invests more than half a billion € for TB control and that the real cost including loss of human capital is in the order of 6 billion € (17). Globally, somewhere between 20 and 200 billion US$ are lost due to TB, resulting in 0.5% loss of gross national income.
The epidemiologic facts of 1.3 million deaths and 8.6 million new cases of TB annually, may be viewed as perplexing in the face of 2 billion healthy individuals with LTBI. This conundrum immediately raises the question: what is the difference between individuals who successfully control one of the most devastating pathogens, whilst others succumb? This enigma is difficult to study in experimental animal models, which, aside from non-human primates, do not reflect the dissociation between LTBI and active TB disease adequately. At the same time, modern HT gene expression profiling of peripheral blood leukocytes could allow a gateway toward the elucidation of gene products involved in resistance underlying LTBI and pathology present in active TB. We launched a critical analysis of biomarkers that distinguish patients with active TB from healthy individuals with LTBI and selected markers of interest for in-depth analyses in experimental mouse models.
Biosignatures, Biomarkers and Reverse Translation
The past decade has witnessed increasing interest in biomarker research in the area of TB. The potential of these biomarkers ranges from differential diagnosis to predictive response to therapy and risk to disease progression (2, 3). Biomarkers will also play a crucial role in future vaccine and drug trial design (18–20). On top of this, omics marker research can provide a wealth of information, which can be further exploited to decipher underlying resistance and disease mechanisms.
Principally, biomarker research is set in a clinical context and seeks to answer questions such as: How to diagnose or predict disease? How to monitor treatment outcome? How to predict vaccine efficacy and safety? Thus, large-scale HT platforms have been launched with the goal of screening thousands of genes or hundreds of metabolites [for a review see Ref. (2)]. From these studies the view emerges that quantitative biosignatures, rather than individual, “on-off” biomarkers are informative predictors of disease progression, treatment outcome or vaccine efficacy/safety. Basically, mere presence or absence of a single gene in a biosignature is insufficient to achieve error rates below 10%. Rather, relative expression levels of a set of genes or abundances of a set of metabolites form a more informative multidimensional biosignature. Metaphorically, instead of a single decision maker (i.e., a single biomarker), we view a biosignature as a house of representatives that agree on a mechanism, state of disease, or outcome of an intervention by casting a majority vote.
The primary goal of attempts to define biosignatures remains in the clinical arena. Yet, added to this, the functional interpretation of biosignatures allows precious insights into the pathophysiology of TB, as well as the generation of specific hypotheses to be tested in an experimental setting (3, 21). Vice versa, identifying relevant biological processes can clearly drive the search for useful biomarkers (22). Biomarkers should thus not be viewed as a computational black box that exists outside of biology; rather, they can both drive, and profit from, specific hypothesis-driven research.
Whole genome expression profiling by microarray analysis of peripheral blood cells, which has been applied most widely (23–30), provides a large body of data tempting researchers to formulate novel hypotheses. Prominent in peripheral blood, active TB disease is reflected by an increased activity in interferon (IFN) signaling, mainly in circulating neutrophils (23). In a similar fashion, most studies on blood cells have identified up-regulated signaling through Fc gamma receptors and elevated activity of the complement system [Ref. (23–25, 29, 31), for a review see Ref. (2)]. Finally, several publications describe activation of the Janus kinase-signal transducer and activator of transcription (JAK-STAT) pathway (23–25), and abnormal functionality of regulatory suppressors of cytokine signaling [SOCS3, Ref. (27)] in TB. Such findings point to dysregulation in several key biological pathways, marking chronic immune activation and immune pathology of TB disease. The biomarker studies performed over the past years have revealed several TB-related signatures as described herein. The current challenge is to identify markers that are specific and unique for TB (for a short listing of markers in TB and other pulmonary diseases; see Table 1). For example, the first “TB-specific” signature identified in a comparison with other infectious diseases (23), turned out shortly afterward to be also present in sarcoidosis (26, 32), which has high clinical similarity to TB. Elevated IFN-signaling, Fc gamma receptor signaling and complement activation are also shared with other respiratory diseases (26, 32, 33). A recent study (34) identified blood transcriptome signatures that were identified in both HIV− and HIV+ donors. Such findings are encouraging that future TB-specific signatures could also be applied in HIV-endemic countries.

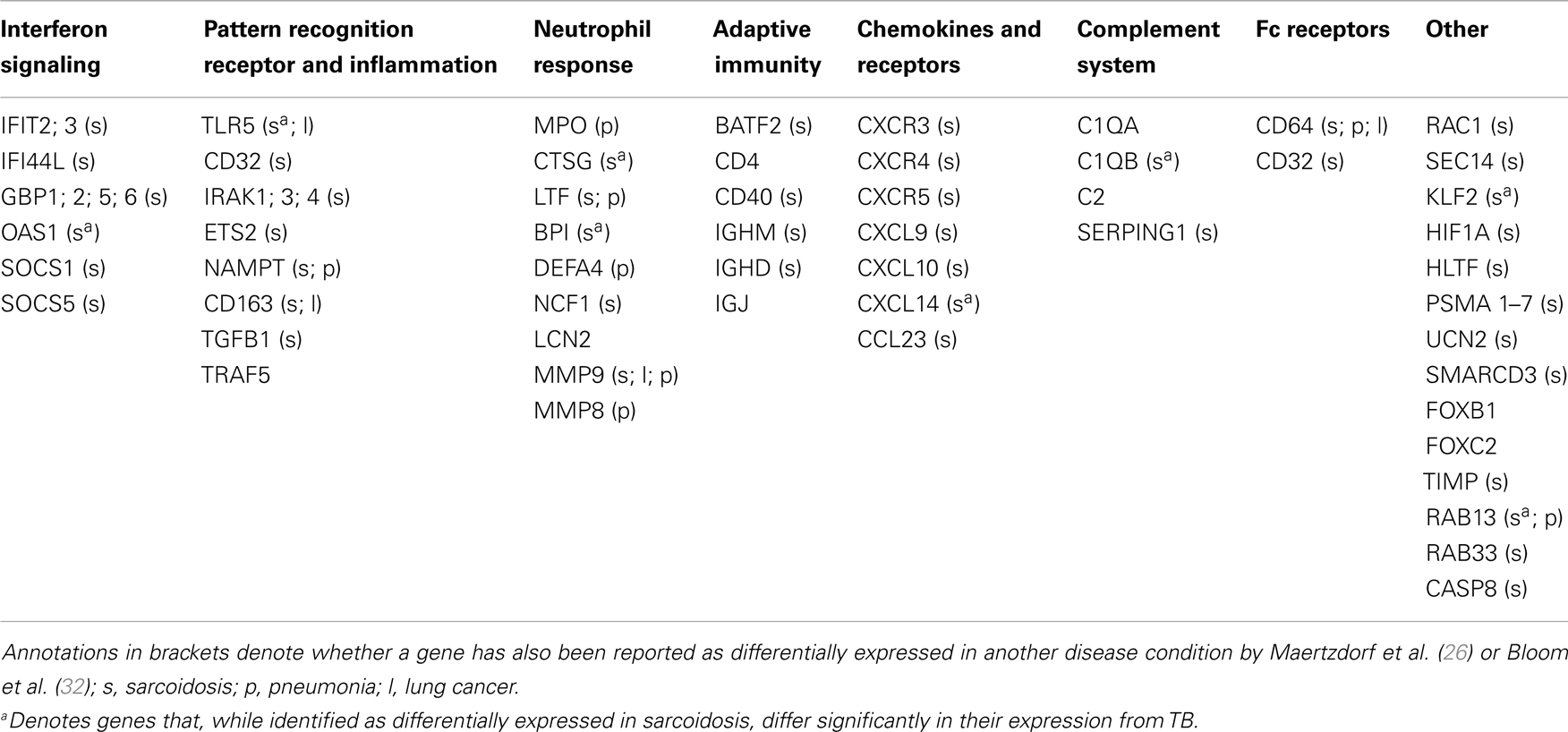

Table 1
| Interferon signaling | Pattern recognition receptor and inflammation | Neutrophil response | Adaptive immunity | Chemokines and receptors | Complement system | Fc receptors | Other |
|---|---|---|---|---|---|---|---|
| IFIT2; 3 (s) | TLR5 (sa; l) | MPO (p) | BATF2 (s) | CXCR3 (s) | C1QA | CD64 (s; p; l) | RAC1 (s) |
| IFI44L (s) | CD32 (s) | CTSG (sa) | CD4 | CXCR4 (s) | C1QB (sa) | CD32 (s) | SEC14 (s) |
| GBP1; 2; 5; 6 (s) | IRAK1; 3; 4 (s) | LTF (s; p) | CD40 (s) | CXCR5 (s) | C2 | KLF2 (sa) | |
| OAS1 (sa) | ETS2 (s) | BPI (sa) | IGHM (s) | CXCL9 (s) | SERPING1 (s) | HIF1A (s) | |
| SOCS1 (s) | NAMPT (s; p) | DEFA4 (p) | IGHD (s) | CXCL10 (s) | HLTF (s) | ||
| SOCS5 (s) | CD163 (s; l) | NCF1 (s) | IGJ | CXCL14 (sa) | PSMA 1–7 (s) | ||
| TGFB1 (s) | LCN2 | CCL23 (s) | UCN2 (s) | ||||
| TRAF5 | MMP9 (s; l; p) | SMARCD3 (s) | |||||
| MMP8 (p) | FOXB1 | ||||||
| FOXC2 | |||||||
| TIMP (s) | |||||||
| RAB13 (sa; p) | |||||||
| RAB33 (s) | |||||||
| CASP8 (s) |
Genes identified as differentially expressed in TB compared to healthy controls and reported as a part of a biosignature.
Annotations in brackets denote whether a gene has also been reported as differentially expressed in another disease condition by Maertzdorf et al. (26) or Bloom et al. (32); s, sarcoidosis; p, pneumonia; l, lung cancer.
aDenotes genes that, while identified as differentially expressed in sarcoidosis, differ significantly in their expression from TB.
Although signatures, as described above, are related to elevated anti-microbial activities of the immune response, they can also have detrimental effects. One informative example is the preponderant role of IFNs in the inflammation sustained during TB disease. While the role of type II IFN (IFN II or IFN-γ) in protection against TB is well established (35, 36), the role of type I IFN (IFN I) is less clear. Rather IFN I responses have been generally associated with anti-viral defense (37). Yet, both IFN I and IFN II signaling pathways are markedly up-regulated in TB. This led several groups to embark on analysis of IFN I in experimental TB and investigate interference between IFN I and II in mycobacterial infections.
IFN I Cross-Regulates Cytokine Networks in TB
Non-redundant functions have been attributed to IFN I and II during pulmonary TB in TB-resistant mice (38). Both cytokines contribute to adequate differentiation, survival and/or recruitment of myeloid cells to the lungs early during infection. Anti-inflammatory roles affecting leukocyte recruitment were uncovered in animals with intact IFN I signaling. These observations, however, contrast data obtained with animals receiving IFN I inducers (39), which develop exacerbated lung inflammation. Others have proposed that similarly to IFN II, IFN I limits availability of IL-1, a key pro-inflammatory cytokine (40, 41). The anti-inflammatory roles of IFN I in murine TB, as described for TB-resistant mice, are partially in line with results recorded for acute bacterial infections (42). Yet, these effects are opposed to those reported for chronic insults and infections (43, 44), which are characterized by IFN I-triggered inflammation. These apparently contradictory findings suggest biphasic and perhaps context-specific activity of IFN I. In support of this notion, investigations focusing on lymphocytic choriomeningitis virus (LCMV) infection describe a paradoxical detrimental role of IFN I during the chronic phase of this viral disease (45, 46).
In addition, cross-regulation between IFN I and II was revealed during mycobacterial infection, thereby explaining, to some extent, divergent observations. Via IL-10, IFN I regulates expression of the receptor for IFN II and subsequently cellular responsiveness to protective IFN-γ (47). On the other hand, absence of the IFN I-inducible ubiquitin-like intracellular protein ISG15 limits release of IFN II (48). It appears that both positive and negative regulation loops between IFN I and II exist and additional regulatory check points will likely be identified in the future. Although considerable progress has been achieved to streamline the biomarker value of IFN I, there is still need to decipher in greater detail local and perhaps systemic effects of IFN I signaling in TB.
miR-223 Fine-Tunes Inflammation in TB
In the beginning, gene expression profiling mainly targeted protein-coding genes. More recently, the potential value of microRNAs (miRs), as TB biomarkers, has gained increasing interest (49) (Table 2). miRs have a profound impact on the biological activity of proteins by regulating messenger RNA (mRNA) stability and translation (50). Parallel analysis of miRs and mRNAs revealed significant correlations between expression of protein-coding and regulatory small miRs, suggesting functional relevance in TB (26). Particular miRs have been tentatively identified as potential biomarkers based on their differential expression levels (51–55). Moreover, by means of HT analyses of TB mRNAs and miRs, we identified clusters of correlated miRs and mRNAs, which were differentially expressed between TB and controls (2, 26) and enriched for immune-related functions. Their direct biological function in TB, however, remains largely elusive. Whereas miRs are generally considered to fine-tune mRNA expression rather than performing unique functions, we recently demonstrated a unique biological role of one such miR in inflammatory processes in TB (56).

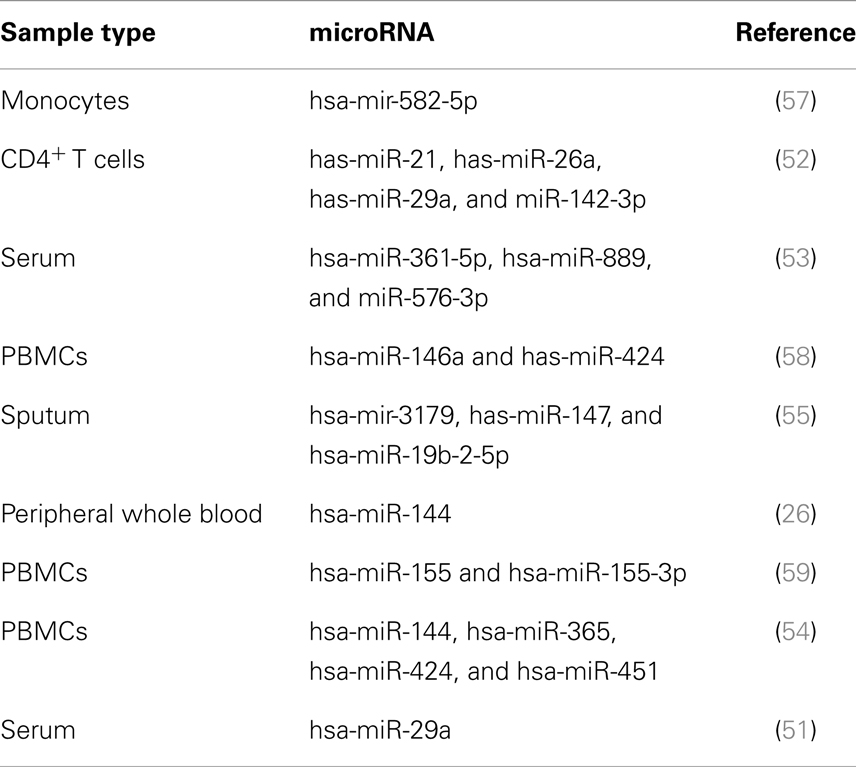

Table 2
| Sample type | microRNA | Reference |
|---|---|---|
| Monocytes | hsa-mir-582-5p | (57) |
| CD4+ T cells | has-miR-21, has-miR-26a, has-miR-29a, and miR-142-3p | (52) |
| Serum | hsa-miR-361-5p, hsa-miR-889, and miR-576-3p | (53) |
| PBMCs | hsa-miR-146a and has-miR-424 | (58) |
| Sputum | hsa-mir-3179, has-miR-147, and hsa-miR-19b-2-5p | (55) |
| Peripheral whole blood | hsa-miR-144 | (26) |
| PBMCs | hsa-miR-155 and hsa-miR-155-3p | (59) |
| PBMCs | hsa-miR-144, hsa-miR-365, hsa-miR-424, and hsa-miR-451 | (54) |
| Serum | hsa-miR-29a | (51) |
Candidate microRNA biomarkers for active TB.
In our studies, we focused our attention on miR-223, which had been identified in one study as one of the most up-regulated miRs in peripheral blood of patients with active TB compared to individuals with LTBI (54). MiR-223 expression is induced during granulopoiesis (60), controlled by different myeloid transcription factors (61, 62), and reaches its highest level in mature neutrophils. Additionally, miR-223 modulates cell activation by targeting NLR family pyrin (NLRP) containing domain 3 (NLRP3) inflammasome and I-kappa-B-kinase (IKK) alpha (IKK-α) (63, 64). To address the biological role of miR-223 during TB, we employed the aerosol Mtb infection model of miR-223 mutant mice (60). MiR-223-deficient mice were highly susceptible to pulmonary TB. Lethality was preceded by profound alteration of the lung structure, high bacterial burden, and exacerbated inflammation, which was mostly due to uncontrolled neutrophil migration to the site of infection. Lung gene expression profiling highlighted genes involved in neutrophil recruitment and the immune response as potential targets for miR-223.
Corroboration of gene expression profiles with predicted targets of miR-223, combined with molecular investigations, allowed us to identify chemokine (C-X-C motif) ligand 2 (CXCL2), chemokine (C-C motif) ligand 3 (CCL3), and interleukin 6 (IL-6) as novel targets of miR-223. These proteins were abundant during Mtb infection and directed neutrophil activation, and/or recruitment. Indeed, CXCL2 and CCL3 were first identified as chemotactic molecules for neutrophils produced by activated macrophages while IL-6 regulates granulopoiesis (65–67). Thus, in our model of experimental TB, the absence of miR-223 was responsible for uncontrolled expression of chemotactic mediators, CXCL2 and CCL3, and heightened neutrophil availability due to impaired granulopoiesis as a consequence of uncontrolled IL-6 expression. These conditions, concurrent with more abundant chemokine (C-X-C motif) receptor 2 (CXCR2) expression (60), were responsible for impaired neutrophil migration to the lung during TB and consequently tissue destruction.
These results add further knowledge to the role of miRs during TB and in particular suggest that miR-223 controls TB susceptibility by limiting neutrophil recruitment through regulation of pro-inflammatory chemokines.
Chemokine-Dependent Neutrophil Influx Modulates TB Pathology and Susceptibility
Our biomarker analysis focusing on miR-223 in experimental TB of mice as well as reports by others reveal a profound correlation between disease susceptibility, TB pathology, and magnitude of the neutrophil responses. DBA/2, CBA/J, and C3HeB/FeJ, all Mtb-susceptible mouse strains, suffer from increased pulmonary neutrophil influx (68–70). Treatment of these animals with anti-inflammatory agents alone or combined with anti-mycobacterial chemotherapy limits progression of active TB (70, 71), suggesting that targeting neutrophilic inflammation is a valid option for cure of TB. Likewise, susceptible gene-deletion mutant strains, such as Card9−/− and miR-223−/− mice can be rescued by antibody-mediated neutrophil depletion (56, 72). In patients with pulmonary TB, neutrophils are abundant in BAL fluid and sputum and show higher bacterial burden than macrophages (73). The potential beneficial role of neutrophils in TB through killing the pathogen remains a matter of debate. Reports on a role of neutrophils in human TB range from assigning them solely phagocytic capacities to Mtb-killing capacities (74). In the zebrafish model, neutrophils kill M. marinum by engulfing-infected macrophages (75). In mice, immune-advantageous functions of neutrophils in TB have been linked to dendritic cell migration and T cell priming (76, 77).
Neutrophils can rapidly enter sites of inflammation under the direction of humoral factors including chemokines, notably of the ELR+ CXC family, which bind to CXCR1 and CXCR2. ELR− CXC chemokines, for example, CXCL13, are primarily chemoattractants for lymphocytes and bind to CXCR3, CXCR4, CXCR5, and CXCR7. Further subfamilies, include the CC chemokine subfamily, which comprises various members and bind to CC receptors; their target cells include most types of leukocytes. The third and fourth chemokine subgroups contain few members: the (X)C chemokine family consists of XCL1 and XCL2, and both primarily target T cells expressing the receptor XCR1. The CX3C chemokine subfamily comprises to date only one known member, CX3CL1, which serves in its soluble form as chemoattractant for T cells and monocytes and in its cell-bound form as adhesion molecule [reviewed in Ref. (78, 79)].
To better understand how excessive neutrophil influx participated in increased TB susceptibility, we embarked on studying the role of CXCR2/CXCL5 in neutrophil control. Different chemokine/chemokine receptor pairs and inflammatory mediators are described to be involved in neutrophil influx into the lung (80). However, we and others had noted that the neutrophil-chemotactic receptor, CXCR2 and its ligand, CXCL5 [or LPS-induced CXC chemokine (LIX)] are strongly up-regulated early following Mtb infection (69, 78, 81). Other ligands of CXCR2 comprise ELR+ chemokines, such as CXCL1 [or keratinocyte-derived chemokine (KC)], CXCL2 [or macrophage inflammatory protein 2 (MIP-2)], and CXCL15 (or lungkine).
The potential of chemokines and their receptors in shaping immune responses against Mtb have thus far focused on lymphocyte recruitment and granuloma organization (78). The influence of the chemokine system on neutrophil responses and inflammation in TB is poorly characterized. CXCR2−/− mice show normal pulmonary neutrophil influx following intratracheal infection with an atypical Mycobacterium, M. avium. After intraperitoneal challenge with M. avium, however, neutrophil recruitment was impaired in CXCR2−/− mice albeit without affecting bacterial burden (82). We found that following aerosol Mtb infection, neutrophil influx into alveolar spaces depended on CXCR2 as well as CXCL5. Moreover, absence of either CXCR2 or CXCL5 rendered mice more tolerant to high-dose Mtb infection (83).
Since multiple chemokines can bind CXCR2, they have generally been regarded as redundant. However, kinetic analyses indicate their temporal regulation (78) and cell type-specific expression of different chemokines points toward their spatial regulation. In TB, lung epithelial cells served as the pulmonary source of CXCL5 (83). Neutrophil-attracting chemokines including CXCL2 and CXCL1 are abundantly secreted by macrophages and neutrophils. CXCL1, but not CXCL2, is also secreted by pneumocytes. CXCL15 is solely secreted by bronchial epithelial cells (80, 84). CXCL5 is produced by platelets and various tissue-resident cells, such as alveolar epithelial cells (85, 86), cardiac myocytes (87), enterocytes (88), and aortic endothelial cells (89).
Taking the pathologic potential of dysregulated neutrophil responses into account, it appears essential that the host employs mechanisms to tightly regulate their recruitment into sensitive tissues. We propose that one mechanism is the temporal and spatial regulation of neutrophil-attracting chemokines. Thus, rather than being redundant, we suggest that neutrophil-attracting chemokines targeting the same receptor express unique, often additive effects.
Concluding Remarks
Tuberculosis biomarker research continues to generate signatures with clinical applicability and additionally furnishes novel hypotheses related to disease pathophysiology. We followed several candidate pathways and molecules that emerged from transcriptomics studies, including miR-223. Murine experiments provided deeper insights into disease processes influenced by this molecule. Neutrophils represented key effector cells of pathogenesis. In a complementary approach, we investigated the pathways that control neutrophil recruitment to the lung in progressive TB and distinguished a hitherto unappreciated relevance of a unique chemokine, namely CXCL5.
These examples illustrate that reverse translation is a valid approach and perhaps most importantly that iterative cross-examining of basic research findings and patient “omics” data, allows novel insights into TB pathogenesis. We envisage that additional aspects of disease pathophysiology will be uncovered by integrating information from multiple patient-driven HT studies, such as metabolomics, proteomics, lipidomics along with transcriptomics, and deep-sequencing. In a further step, host information could be complemented by pathogen screens. This strategy will facilitate insights into host–pathogen interplay and allow prediction of interaction algorithms to be experimentally validated. As TB vaccine research and development suffer from lack of rigorous correlates of protection, we propose that reverse translation can significantly contribute to better understanding of basic mechanisms underlying pathophysiology. Such an approach will not only form the basis for identification of biosignatures that predict risk of disease but also predict vaccine efficacy. In a similar vein, biosignatures derived from TB vaccine trials can provide novel insights into vaccine-induced protective mechanisms. The feasibility of such an approach has proven successful in trials with licensed vaccines (18). Reciprocally, experimental TB research can facilitate rational design of novel intervention measures.
Statements
Author contributions
All have contributed to this work (It is not original work.): Anca Dorhoi, Marco Iannaccone, Jeroen Maertzdorf, Geraldine Nouailles, January Weiner 3rd, Stefan H. E. Kaufmann. Drafting the work or revising it critically for important intellectual content: Anca Dorhoi, Marco Iannaccone, Jeroen Maertzdorf, Geraldine Nouailles, January Weiner 3rd, Stefan H. E. Kaufmann. Final approval of the version to be published: Anca Dorhoi, Marco Iannaccone, Jeroen Maertzdorf, Geraldine Nouailles, January Weiner 3rd, Stefan H. E. Kaufmann. Agreement to be accountable for all aspects of the work: Anca Dorhoi, Marco Iannaccone, Jeroen Maertzdorf, Geraldine Nouailles, January Weiner 3rd, Stefan H. E. Kaufmann.
Acknowledgments
This work is supported by Qiagen; the Bill and Melinda Gates Foundation Grand Challenges in Global Health Program (BMGF GC6-74, #37772); the European Union’s Seventh Framework Programme (EU FP7) projects NEWTBVAC (HEALTH-F3-2009-241745) and ADITEC (HEALTH-F4-2011-280873); and, the Innovative Medicines Initiative (IMI) Joint Undertaking (JU) “Biomarkers for Enhanced Vaccine Safety” project BioVacSafe (IMI JU Grant No. 115308). We also thank Mary Louise Grossman for excellent help in the preparation of this manuscript and Diane Schad for preparing the figure.
Conflict of interest
Stefan H. E. Kaufmann is coinventor of VPM1002. The other co-authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
References
1
KellDBOliverSG. Here is the evidence, now what is the hypothesis? The complementary roles of inductive and hypothesis-driven science in the post-genomic era. Bioessays (2004) 26:99–105.10.1002/bies.10385
2
MaertzdorfJWeinerJIIIKaufmannSH. Enabling biomarkers for tuberculosis control. Int J Tuberc Lung Dis (2012) 16:1140–8.10.5588/ijtld.12.0246
3
WeinerJMaertzdorfJKaufmannSH. The dual role of biomarkers for understanding basic principles and devising novel intervention strategies in tuberculosis. Ann N Y Acad Sci (2013) 1283:22–9.10.1111/j.1749-6632.2012.06802.x
4
van’t VeerLJBernardsR. Enabling personalized cancer medicine through analysis of gene-expression patterns. Nature (2008) 452:564–70.10.1038/nature06915
5
O’GarraARedfordPSMcNabFWBloomCIWilkinsonRJBerryMP. The immune response in tuberculosis. Annu Rev Immunol (2013) 31:475–527.10.1146/annurev-immunol-032712-095939
6
WHO. Global Tuberculosis Report 2013. Geneva: WHO Press (2013).
7
UNAIDS; WHO. Global Report: UNAIDS Report on the Global AIDS Epidemic 2013. Geneva: WHO (2013).
8
CollinsHLKaufmannSHE. Prospects for better tuberculosis vaccines. Lancet Infect Dis (2001) 1:21–8.10.1016/S1473-3099(01)00018-4
9
GengenbacherMKaufmannSHE. Mycobacterium tuberculosis: success through dormancy. FEMS Microbiol Rev (2012) 36:514–32.10.1111/j.1574-6976.2012.00331.x
10
ReeceSTKaufmannSH. Floating between the poles of pathology and protection: can we pin down the granuloma in tuberculosis?Curr Opin Microbiol (2012) 15:63–70.10.1016/j.mib.2011.10.006
11
RussellDGBarryCEIIIFlynnJL. Tuberculosis: what we don’t know can, and does, hurt us. Science (2010) 328:852–6.10.1126/science.1184784
12
KaufmannSHEHusseyGLambertPH. New vaccines for tuberculosis. Lancet (2010) 375:85–94.10.1016/S0140-6736(10)60393-5
13
KaufmannSH. Tuberculosis vaccine development: strength lies in tenacity. Trends Immunol (2012) 33:373–9.10.1016/j.it.2012.03.004
14
MaZLienhardtCMcIlleronHNunnAJWangX. Global tuberculosis drug development pipeline: the need and the reality. Lancet (2010) 375:2100–9.10.1016/S0140-6736(10)60359-9
15
LonnrothKCastroKGChakayaJMChauhanLSFloydKGlaziouPet alTuberculosis control and elimination 2010-50: cure, care, and social development. Lancet (2010) 375:1814–29.10.1016/S0140-6736(10)60483-7
16
MaraisBJRaviglioneMCDonaldPRHarriesADKritskiALGrahamSMet alScale-up of services and research priorities for diagnosis, management, and control of tuberculosis: a call to action. Lancet (2010) 375:2179–91.10.1016/S0140-6736(10)60554-5
17
DielRVandeputteJde VriesGStilloJWanlinMNienhausA. Costs of tuberculosis disease in the EU – a systematic analysis and cost calculation. Eur Respir J (2014) 43:554–65.10.1183/09031936.00079413
18
PulendranBLiSNakayaHI. Systems vaccinology. Immunity (2010) 33:516–29.10.1016/j.immuni.2010.10.006
19
DiercksAAderemA. Systems approaches to dissecting immunity. Curr Top Microbiol Immunol (2013) 363:1–19.10.1007/82_2012_246
20
MooneyMMcWeeneySSekalyRP. Systems immunogenetics of vaccines. Semin Immunol (2013) 25:124–9.10.1016/j.smim.2013.06.003
21
WeinerJParidaSKMaertzdorfJBlackGFRepsilberDTelaarAet alBiomarkers of inflammation, immunosuppression and stress with active disease are revealed by metabolomic profiling of tuberculosis patients. PLoS One (2012) 7:e40221.10.1371/journal.pone.0040221
22
SawyersCL. The cancer biomarker problem. Nature (2008) 452:548–52.10.1038/nature06913
23
BerryMPGrahamCMMcNabFWXuZBlochSAOniTet alAn interferon-inducible neutrophil-driven blood transcriptional signature in human tuberculosis. Nature (2010) 466:973–7.10.1038/nature09247
24
MaertzdorfJOtaMRepsilberDMollenkopfHJWeinerJHillPCet alFunctional correlations of pathogenesis-driven gene expression signatures in tuberculosis. PLoS One (2011) 6:e26938.10.1371/journal.pone.0026938
25
MaertzdorfJRepsilberDParidaSKStanleyKRobertsTBlackGet alHuman gene expression profiles of susceptibility and resistance in tuberculosis. Genes Immun (2011) 12:15–22.10.1038/gene.2010.51
26
MaertzdorfJWeinerJIIIMollenkopfHJBauerTPrasseAMuller-QuernheimJet alCommon patterns and disease-related signatures in tuberculosis and sarcoidosis. Proc Natl Acad Sci U S A (2012) 109:7853–8.10.1073/pnas.1121072109
27
JacobsenMRepsilberDKleinsteuberKGutschmidtASchommer-LeitnerSBlackGet alSuppressor of cytokine signaling-3 is affected in T-cells from tuberculosis TB patients. Clin Microbiol Infect (2011) 17:1323–31.10.1111/j.1469-0691.2010.03326.x
28
MistryRCliffJMClaytonCLBeyersNMohamedYSWilsonPAet alGene-expression patterns in whole blood identify subjects at risk for recurrent tuberculosis. J Infect Dis (2007) 195:357–65.10.1086/510397
29
JacobsenMRepsilberDGutschmidtANeherAFeldmannKMollenkopfHJet alCandidate biomarkers for discrimination between infection and disease caused by Mycobacterium tuberculosis. J Mol Med (Berl) (2007) 85:613–21.10.1007/s00109-007-0157-6
30
LeshoEForestieroFJHirataMHHirataRDCeconLMeloFFet alTranscriptional responses of host peripheral blood cells to tuberculosis infection. Tuberculosis (Edinb) (2011) 91:390–9.10.1016/j.tube.2011.07.002
31
JoostenSAGoemanJJSutherlandJSOpmeerLde BoerKGJacobsenMet alIdentification of biomarkers for tuberculosis disease using a novel dual-color RT-MLPA assay. Genes Immun (2012) 13:71–82.10.1038/gene.2011.64
32
BloomCIGrahamCMBerryMPRozakeasFRedfordPSWangYet alTranscriptional blood signatures distinguish pulmonary tuberculosis, pulmonary sarcoidosis, pneumonias and lung cancers. PLoS One (2013) 8:e70630.10.1371/journal.pone.0070630
33
KothLLSolbergODPengJCBhaktaNRNguyenCPWoodruffPG. Sarcoidosis blood transcriptome reflects lung inflammation and overlaps with tuberculosis. Am J Respir Crit Care Med (2011) 184:1153–63.10.1164/rccm.201106-1143OC
34
KaforouMWrightVJOniTFrenchNAndersenSTBanganiNet alDetection of tuberculosis in HIV-infected and -uninfected African adults using whole blood RNA expression signatures: a case-control study. PLoS Med (2013) 10:e1001538.10.1371/journal.pmed.1001538
35
ZhangSYBoisson-DupuisSChapgierAYangKBustamanteJPuelAet alInborn errors of interferon (IFN)-mediated immunity in humans: insights into the respective roles of IFN-alpha/beta, IFN-gamma, and IFN-lambda in host defense. Immunol Rev (2008) 226:29–40.10.1111/j.1600-065X.2008.00698.x
36
FortinAAbelLCasanovaJLGrosP. Host genetics of mycobacterial diseases in mice and men: forward genetic studies of BCG-osis and tuberculosis. Annu Rev Genomics Hum Genet (2007) 8:163–92.10.1146/annurev.genom.8.080706.092315
37
Gonzalez-NavajasJMLeeJDavidMRazE. Immunomodulatory functions of type I interferons. Nat Rev Immunol (2012) 12:125–35.10.1038/nri3133
38
DesvignesLWolfAJErnstJD. Dynamic roles of type I and type II IFNs in early infection with Mycobacterium tuberculosis. J Immunol (2012) 188:6205–15.10.4049/jimmunol.1200255
39
AntonelliLRGigliottiRAGoncalvesRRoffeECheeverAWBaficaAet alIntranasal Poly-IC treatment exacerbates tuberculosis in mice through the pulmonary recruitment of a pathogen-permissive monocyte/macrophage population. J Clin Invest (2010) 120:1674–82.10.1172/JCI40817
40
NovikovACardoneMThompsonRShenderovKKirschmanKDMayer-BarberKDet alMycobacterium tuberculosis triggers host type I IFN signaling to regulate IL-1beta production in human macrophages. J Immunol (2011) 187:2540–7.10.4049/jimmunol.1100926
41
Mayer-BarberKDAndradeBBBarberDLHienySFengCGCasparPet alInnate and adaptive interferons suppress IL-1alpha and IL-1beta production by distinct pulmonary myeloid subsets during Mycobacterium tuberculosis infection. Immunity (2011) 35:1023–34.10.1016/j.immuni.2011.12.002
42
TrinchieriG. Type I interferon: friend or foe?J Exp Med (2010) 207:2053–63.10.1084/jem.20101664
43
MajerOBourgeoisCZwolanekFLassnigCKerjaschkiDMackMet alType I interferons promote fatal immunopathology by regulating inflammatory monocytes and neutrophils during Candida infections. PLoS Pathog (2012) 8:e1002811.10.1371/journal.ppat.1002811
44
LeePYLiYKumagaiYXuYWeinsteinJSKellnerESet alType I interferon modulates monocyte recruitment and maturation in chronic inflammation. Am J Pathol (2009) 175:2023–33.10.2353/ajpath.2009.090328
45
TeijaroJRNgCLeeAMSullivanBMSheehanKCWelchMet alPersistent LCMV infection is controlled by blockade of type I interferon signaling. Science (2013) 340:207–11.10.1126/science.1235214
46
WilsonEBYamadaDHElsaesserHHerskovitzJDengJChengGet alBlockade of chronic type I interferon signaling to control persistent LCMV infection. Science (2013) 340:202–7.10.1126/science.1235208
47
TelesRMGraeberTGKrutzikSRMontoyaDSchenkMLeeDJet alType I interferon suppresses type II interferon-triggered human anti-mycobacterial responses. Science (2013) 339:1448–53.10.1126/science.1233665
48
BogunovicDByunMDurfeeLAAbhyankarASanalOMansouriDet alMycobacterial disease and impaired IFN-gamma immunity in humans with inherited ISG15 deficiency. Science (2012) 337:1684–8.10.1126/science.1224026
49
WallisRSKimPColeSHannaDAndradeBBMaeurerMet alTuberculosis biomarkers discovery: developments, needs, and challenges. Lancet Infect Dis (2013) 13:362–72.10.1016/S1473-3099(13)70034-3
50
KrolJLoedigeIFilipowiczW. The widespread regulation of microRNA biogenesis, function and decay. Nat Rev Genet (2010) 11:597–610.10.1038/nrg2843
51
FuYYiZWuXLiJXuF. Circulating microRNAs in patients with active pulmonary tuberculosis. J Clin Microbiol (2011) 49:4246–51.10.1128/JCM.05459-11
52
KleinsteuberKHeeschKSchattlingSKohnsMSander-JulchCWalzlGet alDecreased expression of miR-21, miR-26a, miR-29a, and miR-142-3p in CD4(+) T cells and peripheral blood from tuberculosis patients. PLoS One (2013) 8:e61609.10.1371/journal.pone.0061609
53
QiYCuiLGeYShiZZhaoKGuoXet alAltered serum microRNAs as biomarkers for the early diagnosis of pulmonary tuberculosis infection. BMC Infect Dis (2012) 12:384.10.1186/1471-2334-12-384
54
WangCYangSSunGTangXLuSNeyrollesOet alComparative miRNA expression profiles in individuals with latent and active tuberculosis. PLoS One (2011) 6:e25832.10.1371/journal.pone.0025832
55
YiZFuYJiRLiRGuanZ. Altered microRNA signatures in sputum of patients with active pulmonary tuberculosis. PLoS One (2012) 7:e43184.10.1371/journal.pone.0043184
56
DorhoiAIannacconeMFarinacciMFaeKCSchreiberJMoura-AlvesPet alMicroRNA-223 controls susceptibility to tuberculosis by regulating lung neutrophil recruitment. J Clin Invest (2013) 123(11):4836–48.10.1172/JCI67604
57
LiuYJiangJWangXZhaiFChengX. miR-582-5p is upregulated in patients with active tuberculosis and inhibits apoptosis of monocytes by targeting FOXO1. PLoS One (2013) 8:e78381.10.1371/journal.pone.0078381
58
SpinelliSVDiazAD’AttilioLMarchesiniMMBogueCBayMLet alAltered microRNA expression levels in mononuclear cells of patients with pulmonary and pleural tuberculosis and their relation with components of the immune response. Mol Immunol (2013) 53:265–9.10.1016/j.molimm.2012.08.008
59
WuJLuCDiaoNZhangSWangSWangFet alAnalysis of microRNA expression profiling identifies miR-155 and miR-155* as potential diagnostic markers for active tuberculosis: a preliminary study. Hum Immunol (2012) 73:31–7.10.1016/j.humimm.2011.10.003
60
JohnnidisJBHarrisMHWheelerRTStehling-SunSLamMHKirakOet alRegulation of progenitor cell proliferation and granulocyte function by microRNA-223. Nature (2008) 451:1125–9.10.1038/nature06607
61
FaziFRosaAFaticaAGelmettiVDe MarchisMLNerviCet alA minicircuitry comprised of microRNA-223 and transcription factors NFI-A and C/EBPalpha regulates human granulopoiesis. Cell (2005) 123:819–31.10.1016/j.cell.2005.09.023
62
FukaoTFukudaYKigaKSharifJHinoKEnomotoYet alAn evolutionarily conserved mechanism for microRNA-223 expression revealed by microRNA gene profiling. Cell (2007) 129:617–31.10.1016/j.cell.2007.02.048
63
HaneklausMGerlicMKurowska-StolarskaMRaineyAAPichDMcInnesIBet alCutting edge: miR-223 and EBV miR-BART15 regulate the NLRP3 inflammasome and IL-1beta production. J Immunol (2012) 189:3795–9.10.4049/jimmunol.1200312
64
LiTMorganMJChoksiSZhangYKimYSLiuZG. MicroRNAs modulate the noncanonical transcription factor NF-kappaB pathway by regulating expression of the kinase IKKalpha during macrophage differentiation. Nat Immunol (2010) 11:799–805.10.1038/ni.1918
65
WolpeSDSherryBJuersDDavatelisGYurtRWCeramiA. Identification and characterization of macrophage inflammatory protein 2. Proc Natl Acad Sci U S A (1989) 86:612–6.10.1073/pnas.86.2.612
66
WolpeSDDavatelisGSherryBBeutlerBHesseDGNguyenHTet alMacrophages secrete a novel heparin-binding protein with inflammatory and neutrophil chemokinetic properties. J Exp Med (1988) 167:570–81.10.1084/jem.167.2.570
67
LiuFPoursine-LaurentJWuHYLinkDC. Interleukin-6 and the granulocyte colony-stimulating factor receptor are major independent regulators of granulopoiesis in vivo but are not required for lineage commitment or terminal differentiation. Blood (1997) 90:2583–90.
68
EruslanovEBLyadovaIVKondratievaTKMajorovKBScheglovIVOrlovaMOet alNeutrophil responses to Mycobacterium tuberculosis infection in genetically susceptible and resistant mice. Infect Immun (2005) 73:1744–53.10.1128/IAI.73.3.1744-1753.2005
69
KellerCHoffmannRLangRBrandauSHermannCEhlersS. Genetically determined susceptibility to tuberculosis in mice causally involves accelerated and enhanced recruitment of granulocytes. Infect Immun (2006) 74:4295–309.10.1128/IAI.00057-06
70
MarzoEVilaplanaCTapiaGDiazJGarciaVCardonaPJ. Damaging role of neutrophilic infiltration in a mouse model of progressive tuberculosis. Tuberculosis (Edinb) (2014) 94:55–64.10.1016/j.tube.2013.09.004
71
VilaplanaCMarzoETapiaGDiazJGarciaVCardonaPJ. Ibuprofen therapy resulted in significantly decreased tissue bacillary loads and increased survival in a new murine experimental model of active tuberculosis. J Infect Dis (2013) 208:199–202.10.1093/infdis/jit152
72
DorhoiADeselCYeremeevVPradlLBrinkmannVMollenkopfHJet alThe adaptor molecule CARD9 is essential for tuberculosis control. J Exp Med (2010) 207:777–92.10.1084/jem.20090067
73
EumSYKongJHHongMSLeeYJKimJHHwangSHet alNeutrophils are the predominant infected phagocytic cells in the airways of patients with active pulmonary TB. Chest (2010) 137:122–8.10.1378/chest.09-0903
74
LoweDMRedfordPSWilkinsonRJO’GarraAMartineauAR. Neutrophils in tuberculosis: friend or foe?Trends Immunol (2012) 33:14–25.10.1016/j.it.2011.10.003
75
YangCTCambierCJDavisJMHallCJCrosierPSRamakrishnanL. Neutrophils exert protection in the early tuberculous granuloma by oxidative killing of mycobacteria phagocytosed from infected macrophages. Cell Host Microbe (2012) 12:301–12.10.1016/j.chom.2012.07.009
76
BlomgranRDesvignesLBrikenVErnstJD. Mycobacterium tuberculosis inhibits neutrophil apoptosis, leading to delayed activation of naive CD4 T cells. Cell Host Microbe (2012) 11:81–90.10.1016/j.chom.2011.11.012
77
BlomgranRErnstJD. Lung neutrophils facilitate activation of naive antigen-specific CD4+ T cells during Mycobacterium tuberculosis infection. J Immunol (2011) 186:7110–9.10.4049/jimmunol.1100001
78
SlightSRKhaderSA. Chemokines shape the immune responses to tuberculosis. Cytokine Growth Factor Rev (2013) 24:105–13.10.1016/j.cytogfr.2012.10.002
79
ZlotnikAYoshieO. The chemokine superfamily revisited. Immunity (2012) 36:705–16.10.1016/j.immuni.2012.05.008
80
BhatiaMZemansRLJeyaseelanS. Role of chemokines in the pathogenesis of acute lung injury. Am J Respir Cell Mol Biol (2012) 46:566–72.10.1165/rcmb.2011-0392TR
81
KangDDLinYMorenoJRRandallTDKhaderSA. Profiling early lung immune responses in the mouse model of tuberculosis. PLoS One (2011) 6:e16161.10.1371/journal.pone.0016161
82
GoncalvesASAppelbergR. The involvement of the chemokine receptor CXCR2 in neutrophil recruitment in LPS-induced inflammation and in Mycobacterium avium infection. Scand J Immunol (2002) 55:585–91.10.1046/j.1365-3083.2002.01097.x
83
NouaillesGDorhoiAKochMZerrahnJWeinerJIIIFaeKCet alCXCL5/LIX-secreting pulmonary epithelial cells drive destructive neutrophilic inflammation in tuberculosis. J Clin Invest (2013).10.1172/JCI72030
84
CaiSBatraSLiraSAKollsJKJeyaseelanS. CXCL1 regulates pulmonary host defense to Klebsiella infection via CXCL2, CXCL5, NF-kappaB, and MAPKs. J Immunol (2010) 185:6214–25.10.4049/jimmunol.0903843
85
JeyaseelanSManzerRYoungSKYamamotoMAkiraSMasonRJet alInduction of CXCL5 during inflammation in the rodent lung involves activation of alveolar epithelium. Am J Respir Cell Mol Biol (2005) 32:531–9.10.1165/rcmb.2005-0063OC
86
YamamotoKFerrariJDCaoYRamirezMIJonesMRQuintonLJet alType I alveolar epithelial cells mount innate immune responses during pneumococcal pneumonia. J Immunol (2012) 189:2450–9.10.4049/jimmunol.1200634
87
MadorinWSRuiTSugimotoNHandaOCepinskasGKvietysPR. Cardiac myocytes activated by septic plasma promote neutrophil transendothelial migration: role of platelet-activating factor and the chemokines LIX and KC. Circ Res (2004) 94:944–51.10.1161/01.RES.0000124395.20249.AE
88
MeiJLiuYDaiNHoffmannCHudockKMZhangPet alCxcr2 and Cxcl5 regulate the IL-17/G-CSF axis and neutrophil homeostasis in mice. J Clin Invest (2012) 122:974–86.10.1172/JCI60588
89
RousselleAQadriFLeukelLYilmazRFontaineJFSihnGet alCXCL5 limits macrophage foam cell formation in atherosclerosis. J Clin Invest (2013) 123:1343–7.10.1172/JCI66580
Summary
Keywords
tuberculosis, biomarker, inflammation, microRNA, interferon, neutrophil, chemokine
Citation
Dorhoi A, Iannaccone M, Maertzdorf J, Nouailles G, Weiner 3rd J and Kaufmann SHE (2014) Reverse Translation in Tuberculosis: Neutrophils Provide Clues for Understanding Development of Active Disease. Front. Immunol. 5:36. doi: 10.3389/fimmu.2014.00036
Received
27 November 2013
Accepted
22 January 2014
Published
05 February 2014
Volume
5 - 2014
Edited by
Francesco Dieli, University of Palermo, Italy
Reviewed by
Heinrich Korner, Menzies Research Institute Tasmania, Australia; Helen Alison Fletcher, London School of Hygiene and Tropical Medicine, UK; Pere-Joan Cardona, Universitat Autònoma de Barcelona, Spain
Copyright
© 2014 Dorhoi, Iannaccone, Maertzdorf, Nouailles, Weiner 3rd and Kaufmann.
This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) or licensor are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.
*Correspondence: Stefan H. E. Kaufmann, Department of Immunology, Max Planck Institute for Infection Biology, Charitéplatz 1, Berlin D-10117, Germany e-mail: kaufmann@mpiib-berlin.mpg.de
This article was submitted to Microbial Immunology, a section of the journal Frontiers in Immunology.
Disclaimer
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article or claim that may be made by its manufacturer is not guaranteed or endorsed by the publisher.
