Front. Immunol., 22 March 2019
Sec. Autoimmune and Autoinflammatory Disorders

Antigenic Mimicry in Paraneoplastic Immune Thrombocytopenia

\r\nGuillaume Vial&#x;Guillaume Vial1Etienne Rivire,,*&#x;Etienne Rivière1,2,3*Anne-Aurlie Raymond&#x;Anne-Aurélie Raymond4Chlo James,,Chloé James2,3,5Sylvaine Di-TommasoSylvaine Di-Tommaso4Nathalie Dugot-SenantNathalie Dugot-Senant6Jean-William DupuyJean-William Dupuy7Mokrane YacoubMokrane Yacoub8Marie ParrensMarie Parrens9Frderic Saltel&#x;Fréderic Saltel4Jean-Franois Viallard,,&#x;Jean-François Viallard1,2,3
  • 1Internal Medicine and Infectious Diseases Department, Haut Lévêque Hospital, University Hospital Centre of Bordeaux, Pessac, France
  • 2INSERM, Biology of Cardiovascular Diseases, U1034, Pessac, France
  • 3Biology of Cardiovascular Diseases, U1034, University of Bordeaux, Pessac, France
  • 4INSERM U1053, Oncoprot, Bordeaux University, Bordeaux, France
  • 5Laboratory of Hematology, University Hospital Centre of Bordeaux, Pessac, France
  • 6Plateforme d'Histopathologie, TBM-Core US 005, Bordeaux, France
  • 7Centre de Génomique Fonctionnelle, Plateforme Protéome, Université de Bordeaux, Bordeaux, France
  • 8Pathology Department, Pellegrin Hospital, CHU Bordeaux, Bordeaux, France
  • 9Pathology Department, Haut Lévêque Hospital, University Hospital Centre of Bordeaux, Pessac, France

The association of immune thrombocytopenia (ITP) with cancer has been reported, but the causality of tumor cells in paraneoplastic ITP pathogenesis and maintenance has never been established. We analyzed the unusual case of refractory ITP and coincident urothelial tumor of the kidney with circulating high titer anti-GPIIBIIIA autoantibodies. Intriguingly, after nephrectomy, the patient recovered fully and her anti-GPIIBIIIA autoantibodies disappeared. Proteomic and immunohistochemistry analyses revealed erratic GPIIB expression by the tumor cells, suggesting possible antigenic mimicry chronically stimulating the immune system and leading to this patient's refractory ITP. Such previously unreported findings provide proof-of-concept that requires further confirmation with the prospective study of a larger number of patients.


Immune thrombocytopenic purpura (ITP) is a rare disease associating increased autoimmune platelet destruction and decreased platelet production leading to potentially life-threatening bleeding. Its link with immune deficiency has been reported (1), but its link with cancer has rarely been described in adults (27). ITP's complex pathogenesis, involving autoreactive B and T cells, leads to antiplatelet autoantibody production targeting platelet components, i.e., glycoproteins; three of the latter, including GPIIBIIIA, could be detected by a specific assay (8), with anti-GPIIBIIIA antibodies found in 35 to 55% of ITP patients (9, 10). We describe a link between ITP platelets and GPIIB-expressing tumor cells that suggests antigenic mimicry between them.

Materials and Methods


Clinical data were obtained from the patient's medical records. The patient gave informed consent to publish this report and conduct further specific researches on her case, in accordance with the procedures of the Ethics Review Board of the Université de Bordeaux, Bordeaux (France).

Detection of Antiplatelet Antibodies

Antiplatelet antibodies were detected in serum as previously described (8).

T Cells Phenotyping

Circulating T cells were phenotyped as previously described (11), with specific searches for CD3+HLADR+, CD3+CD4+HLADR+, and CD3+CD8+HLADR+ T cells before and after nephrectomy.

Platelet Purification

Platelet purification was adapted from a previously described protocol (12). Briefly, blood was collected in anticoagulant-citrate-dextrose-A (ACD-A) tubes (BD Biosciences, Le-Pont-de-Claix, France) and centrifuged to collect platelet-rich plasma. ACD-A and apyrase (Sigma Aldrich, Saint-Quentin Fallaviers, France) were added to prevent platelet activation. Platelets were centrifuged and resuspended in N-2-hydroxyethylpiperazine-N'-2-ethanesulfonic acid (HEPES) tyrode buffer containing glucose, apyrase and 0.5 μM EDTA. Leukocytes were removed with magnetic Dynabeads® pan-mouse IgG (Life Technologies, St-Aubin, France) coupled to anti-CD45 primary antibody (BD Biosciences).

Proteomic Analyses

Platelets were lysed in radioimmunoprecipitation assay (RIPA) buffer (Sigma) supplemented with protease-inhibitor cocktail (Roche, Mannheim, Germany). A 6-mm2 area of a 2.5-μm–thick, formalin-fixed, paraffin-embedded (FFPE), tumor-tissue section was preselected on a hematoxylin-and-eosin–stained slide and microdissected with a PALM type 4 (Zeiss) laser microdissector. Tumor proteins were extracted from the tumor and platelet proteomes with formalin cross-link reversion were subjected to mass-spectrometry (MS) analysis, as previously described (13). The Mascot 2.5 algorithm identified proteins with the Proteome Discoverer 1.4 Software (Thermo Fisher Scientific, Illkirch, France) used in batch mode to search the Homo sapiens database (71,663 entries, Reference Proteome Set, release 2017_06) from website, allowing 2 missed enzyme cleavages. MS and MS/MS mass tolerances were set to 10 ppm and 0.02 Da. Methionine oxidation, lysine acetylation, and asparagine and glutamine deamidations as dynamic modifications, and cysteine carbamidomethylation as a static modification were sought. Peptides were validated with Proline software ( Only peptides with 1.0% false-discovery rate (FDR), calculated using the Mascot “decoy” option, and a pretty rank = 1 were retained. Proteins were identified with ≥2 specific peptides and FDR <1.0%.

Immunohistochemistry Analyses

The 2.5-μm–thick tissues sections were dewaxed, rehydrated and antigens were retrieved in EnVisionTM FLEX Target Retrieval Solution Low pH solution (Dako-Agilent, Santa-Clara, CA, US), and immunolabeled in an automated autostainer (Dako-Agilent, Santa-Clara, CA, US) using standard reagents provided by the manufacturer. The sections were incubated with anti-CD41 rabbit polyclonal antibody (HPA031168; Sigma), diluted 1:50, for 60 min at room temperature, then incubated with anti-rabbit IgG conjugated horseradish peroxidase (EnVision Flex/HRP, Dako-Agilent) for 20 min for signal amplification, revealed by 3,3′-diaminobenzidine (Dako). The slides were counterstained with hematoxylin, dehydrated, and mounted. Each immunohistochemical run contained a negative control (buffer, no primary antibody). Sections were examined with a Nikon-Eclipse 501 microscope, and images were acquired using NIS-Elements F.

Results and Discussion

A 70-year-old Caucasian woman was admitted for gastrointestinal bleeding and acute severe thrombocytopenia (2 × 109/L), newly diagnosed as ITP (age >65 years, 2 purpura locations, hemorrhagic oral bullae and gastrointestinal bleeding with acute anemia) with a bleeding score (14) of 24. Her ITP failed to respond successively to steroids, immunoglobulins, vinblastine, romiplostim, emergent splenectomy, cyclophosphamide, rituximab, and eltrombopag. According to the international consensus (15) and after those therapeutic failures (Figure 1), refractory ITP was diagnosed. Her diagnostic work-up, including urine cytology and abdominal computed tomography, detected an intraepithelial papillary carcinoma of the right kidney and the urinary tract. At 1-year follow-up postnephrectomy, her thrombocytopenia was cured. Before nephrectomy, she had high-titer anti-GPIIBIIIA autoantibodies and elevated numbers of circulating activated CD3+CD8+HLADR+ cytotoxic T cells. Importantly, 9 days postnephrectomy, autoantibodies were no longer detectable in serum (titer at 2.05 before surgery vs. 0.67, 0.4, and 0.33, at 9, 54, and 166 days after surgery, respectively, with a positivity threshold at 1), and CD3+CD8+HLADR+ T cells returned to normal within 308 days. Given the complete ITP remission postsurgery, we hypothesized that the urothelial tumor had triggered and maintained antiplatelet autoimmunity through GPIIBIIIA antigenic mimicry mechanisms. To further explore this hypothesis, we compared the patient's platelets and tumor proteomes to look for common cell-surface proteins that could have triggered an autoimmune-response loop.

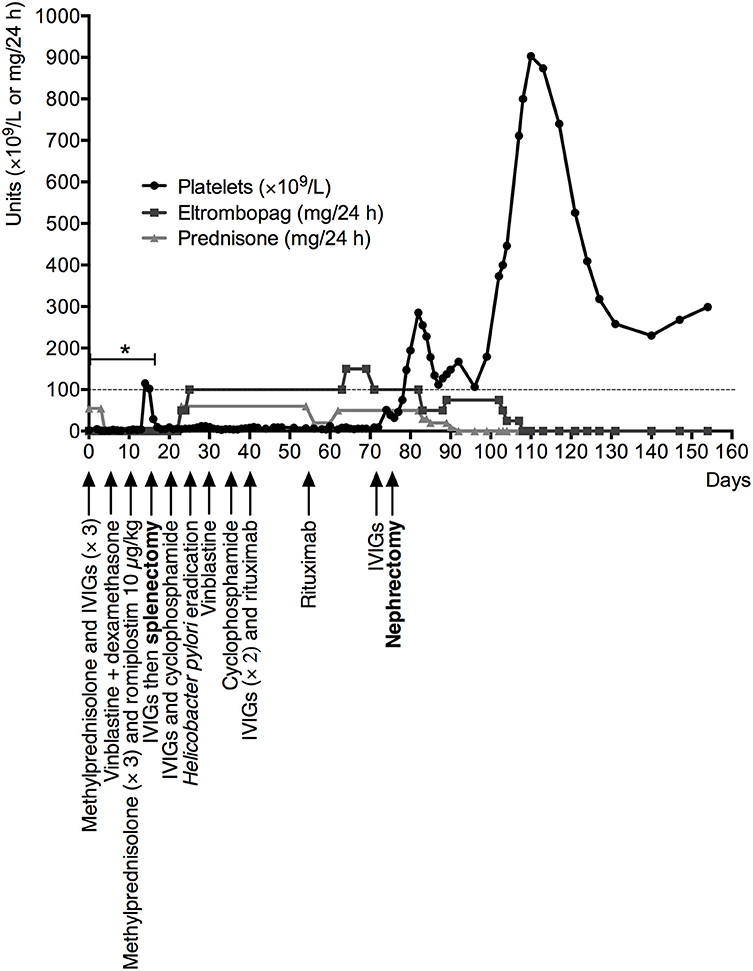

Figure 1. Patient's evolution under specific ITP treatments: platelet count (red line) as a function of days since ITP diagnosis and treatments administered (arrows), especially steroids (blue line), and eltrombopag (green line). *Intermittent bleeding was successive gastrointestinal hemorrhages, initially with and then without acute anemia, localized petechial or ecchymotic purpura and spontaneous hemorrhagic oral bullae. IVIGs, intravenous immunoglobulins.

As postulated, integrin α-IIb (also known as GPIIB or CD41) was found among the 738 proteins identified in purified platelets (Figure 2B), and validated with 57 specific peptides. Surprisingly, integrin α-IIb was also found among the 422 proteins identified in the microdissected tumor (Figure 2A) and validated with 2 specific peptides, suggesting tumor aberrant α-IIb expression, which would have triggered anti-GPIIBIIIA autoantibody production. Another explanation could be platelet contamination of the tumor sample subjected to proteomic analyses. Therefore, we looked for other platelet-specific proteins among identified tumor proteins. Proteomic analyses revealed only a partial overlap of the patient's platelet and tumor proteins, meaning her tumor was probably platelet-free. Notably, many ubiquitous proteins were present in both samples but only few specific peptides, e.g., GPIIB. To determine whether tumor cells expressed GPIIB or GPIIB peptides were just platelet contamination, immunohistochemical labeling was done. Pertinently, no blood vessels were detected in the histological preparation: we observed bright punctiform labeling in the platelet-rich zone of the patient's removed spleen (Figure 2Ca). Anti-CD41 antibody (diluted 1:50) diffusely labeled our patient's tumor cells (Figure 2Cb) but not the carcinoma cells from an anti-GPIIBIIIA antibody-negative patient (Figure 2Cc). That diffuse labeling, only observed with high antibody concentration, could suggest weak antigen expression on the carcinoma cell surface.


Figure 2. Proteomic and immunohistochemistry analyses on patient's platelets and tumor. Tissue was microdissected from a hematoxylin and eosin-stained FFPE section (A) (dotted lines show the microdissected area), tumor proteins were extracted and analyzed by MS and compared to the patient's platelet proteome. (B) Illustrates the overlapping of platelet and tumor proteomes. (C) Integrin α-IIb (also known as GPIIB or CD41) was detected immunohistochemically in the platelet-rich part of the patient's excised spleen (a) and tumor cells (b), but not in another patient's carcinoma cells (c) at low (top) and high magnification (bottom).

To summarize, proteomic analyses and immunohistochemistry results support the hypothesis of aberrant tumor-cell expression of GPIIB. Other cell-surface proteins (e.g., integrins α6 and β1 or a disintegrin and metalloproteinase domain-containing protein-10 (ADAM10), were also identified in the tumor and platelets. Because we did not test their potential antigenic mimicry, the hypothetical combined implication of several proteins in ITP cannot be excluded.

Antigenic mimicry is powerful in breaking immune self-tolerance (16). In our case, a slight structural or conformational change in the fast growing tumor cells could have induced a point mutation in critical epitopes of GPIIB, although we have been unable to prove it. These changes might have circumvented the established tolerance, first against the mimicry epitope (tumor cells GPIIB), and later to the original epitope (platelets GPIIB) by additional epitope spreading. T cells hold an important role in the autoimmune loop induced by antigenic mimicry (17, 18), but B cells also by diversifying the autoimmune repertoire via intramolecular B cell epitope spreading (19).

A general defect in tolerance has been shown in ITP, mainly because of a decreased level and function of regulatory T cells as shown in some studies (20, 21). Interestingly, some patients experienced ITP remission while their platelet count rose under TPO mimetic treatment (22, 23), therefore suggesting that a platelet count rise could restore immune tolerance, possibly to GPIIB as well, however this is not specifically proven (24). Furthermore, a break in peripheral immune tolerance has been shown in ITP with an insufficient activity of indoleamine 2,3-dioxygenase leading to an increased survival of autoreactive T cells (25). Therefore, antigenic mimicry through GPIIB might have led to the activation and persistence of an anti-platelet autoimmune loop in our patient.

The spectacular efficacy of nephrectomy on the patient's refractory ITP raises some confounding biases. Mainly, our patient received many immunosuppressive agents before surgery, notably rituximab, whose estimated initial response onset ranges between 7 and 56 days (26). Nevertheless, the complicated management of the initial gastrointestinal bleeding attributable to profound thrombocytopenia led to therapeutic escalation according to best practices (27), especially early splenectomy. However, her platelet count rose only postnephrectomy, suggesting a postsurgical time correspondence with the complete ITP remission.

We described full recovery from paraneoplastic refractory ITP with detectable anti-GPIIBIIIA autoantibodies in serum and tumor-cell expression of GPIIB, cured by nephrectomy with autoantibody clearance and immune-activation termination. Such a case has not been reported previously and further confirmation of our findings is needed. Should they be confirmed, systematic computed-tomography screening for cancer in elderly patients with newly diagnosed ITP could be recommended.

Author Contributions

ER, GV, A-AR, FS, MY, MP, and J-FV designed the research. ER purified platelets. MY and MP selected the areas of interest for proteomic analyses. J-WD, SD-T, and A-AR ran the proteomic analyses. ND-S did the immunohistochemical-labeling studies. ER, GV, A-AR, CJ, FS, and J-FV wrote the final manuscript. ER, GV, A-AR, CJ, FS, MY, and J-FV analyzed data. All authors approved the final manuscript.

Conflict of Interest Statement

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.


We warmly thank the patient for her courage and help in this research, and the specialized Hematology Laboratory technicians of Haut-Leveque Hospital for their assistance. We also thank Janet Jacobson for editorial assistance.


1. Podjasek JC, Abraham RS. Autoimmune cytopenias in common variable immunodeficiency. Front Immunol. (2012) 3:189. doi: 10.3389/fimmu.2012.00189

PubMed Abstract | CrossRef Full Text | Google Scholar

2. Krauth M-T, Puthenparambil J, Lechner K. Paraneoplastic autoimmune thrombocytopenia in solid tumors. Crit Rev Oncol Hematol. (2012) 81:75–81. doi: 10.1016/j.critrevonc.2011.02.004

PubMed Abstract | CrossRef Full Text | Google Scholar

3. Betsch DM, Gray S, Zed SE. A case of metastatic prostate cancer and immune thrombocytopenia. Curr Oncol. (2017) 24:e434–6. doi: 10.3747/co.24.3592

PubMed Abstract | CrossRef Full Text | Google Scholar

4. Cho EJ, Lee HJ, Park KU, Kim U-Y, Lee HJ, Bang SM. Immune thrombocytopenic purpura in a patient with renal cell carcinoma. Korean J Intern Med. (2014) 29:671–4. doi: 10.3904/kjim.2014.29.5.671

PubMed Abstract | CrossRef Full Text | Google Scholar

5. Ikizoglu HT, Ayan I, Tokat F, Tecimer T, Topuzlu Tekant G. Immune thrombocytopenia in a child with neuroblastoma. Case Rep Pediatr. (2017) 2017:1329489. doi: 10.1155/2017/1329489

PubMed Abstract | CrossRef Full Text | Google Scholar

6. Rodríguez-Lobato LG, Martinez-Cibrian N, Fernández-Avilés F, Gaya A, Pineda-Losada E, Esteve J. Romiplostim for the treatment of glioblastoma-related paraneoplastic autoimmune thrombocytopenia refractory to conventional therapy. Ann Hematol. (2016) 95:665–6. doi: 10.1007/s00277-016-2600-7

PubMed Abstract | CrossRef Full Text | Google Scholar

7. Watanabe T, Matsumura Y, Minowa M, Suzuki H, Notsuda H, Hara Y, et al. Remission of newly diagnosed immune thrombocytopenia after lung cancer resection. Ann Thorac Surg. (2014) 97:e105–7. doi: 10.1016/j.athoracsur.2013.12.069

PubMed Abstract | CrossRef Full Text | Google Scholar

8. Kiefel V, Santoso S, Weisheit M, Müeller-Eckhardt C. Monoclonal antibody–specific immobilization of platelet antigens (MAIPA): a new tool for the identification of platelet-reactive antibodies. Blood. (1987) 70:1722–6.

PubMed Abstract | Google Scholar

9. Zeng Q, Zhu L, Tao L, Bao J, Yang M, Simpson EK, et al. Relative efficacy of steroid therapy in immune thrombocytopenia mediated by anti-platelet GPIIbIIIa versus GPIbα antibodies. Am J Hematol. (2012) 87:206–8. doi: 10.1002/ajh.22211

PubMed Abstract | CrossRef Full Text | Google Scholar

10. Arnold DM, Vrbensky JR, Karim N, Smith JW, Liu Y, Ivetic N, et al. The effect of rituximab on anti-platelet autoantibody levels in patients with immune thrombocytopenia. Br J Haematol. (2017) 178:302–7. doi: 10.1111/bjh.14664

PubMed Abstract | CrossRef Full Text | Google Scholar

11. Viallard J-F, Blanco P, André M, Etienne G, Liferman F, Neau D, et al. CD8+HLA-DR+ T lymphocytes are increased in common variable immunodeficiency patients with impaired memory B-cell differentiation. Clin Immunol. (2006) 119:51–8. doi: 10.1016/j.clim.2005.11.011

PubMed Abstract | CrossRef Full Text | Google Scholar

12. Amisten S. A rapid and efficient platelet purification protocol for platelet gene expression studies. Methods Mol Biol. (2012) 788:155–72. doi: 10.1007/978-1-61779-307-3_12

PubMed Abstract | CrossRef Full Text | Google Scholar

13. Henriet E, Abou Hammoud A, Dupuy J-W, Dartigues B, Ezzoukry Z, Dugot-Senant N, et al. Argininosuccinate synthase 1 (ASS1): a marker of unclassified hepatocellular adenoma and high bleeding risk. Hepatol. (2017) 66:2016–28. doi: 10.1002/hep.29336

PubMed Abstract | CrossRef Full Text | Google Scholar

14. Khellaf M, Michel M, Schaeffer A, Bierling P, Godeau B. Assessment of a therapeutic strategy for adults with severe autoimmune thrombocytopenic purpura based on a bleeding score rather than platelet count. Haematologica. (2005) 90:829–32. Available online at:

PubMed Abstract | Google Scholar

15. Provan D, Stasi R, Newland AC, Blanchette VS, Bolton-Maggs P, Bussel JB, et al. International consensus report on the investigation and management of primary immune thrombocytopenia. Blood. (2010) 115:168–86. doi: 10.1182/blood-2009-06-225565

PubMed Abstract | CrossRef Full Text | Google Scholar

16. Rojas M, Restrepo-Jiménez P, Monsalve DM, Pacheco Y, Acosta-Ampudia Y, Ramírez-Santana C, et al. Molecular mimicry and autoimmunity. J Autoimmun. (2018) 95:100–23. doi: 10.1016/j.jaut.2018.10.012

PubMed Abstract | CrossRef Full Text | Google Scholar

17. Cusick MF, Libbey JE, Fujinami RS. Molecular mimicry as a mechanism of autoimmune disease. Clin Rev Allergy Immunol. (2012) 42:102–11. doi: 10.1007/s12016-011-8294-7

PubMed Abstract | CrossRef Full Text | Google Scholar

18. Ehser J, Holdener M, Christen S, Bayer M, Pfeilschifter JM, Hintermann E, et al. Molecular mimicry rather than identity breaks T-cell tolerance in the CYP2D6 mouse model for human autoimmune hepatitis. J Autoimmun. (2013) 42:39–49. doi: 10.1016/j.jaut.2012.11.001

PubMed Abstract | CrossRef Full Text | Google Scholar

19. Cornaby C, Gibbons L, Mayhew V, Sloan CS, Welling A, Poole BD. B cell epitope spreading: mechanisms and contribution to autoimmune diseases. Immunol Lett. (2015) 163:56–68. doi: 10.1016/j.imlet.2014.11.001

PubMed Abstract | CrossRef Full Text | Google Scholar

20. Stasi R, Cooper N, Del Poeta G, Stipa E, Laura Evangelista M, Abruzzese E, et al. Analysis of regulatory T-cell changes in patients with idiopathic thrombocytopenic purpura receiving B cell-depleting therapy with rituximab. Blood. (2008) 112:1147–50. doi: 10.1182/blood-2007-12-129262

PubMed Abstract | CrossRef Full Text | Google Scholar

21. Yu J, Heck S, Patel V, Levan J, Yu Y, Bussel JB, et al. Defective circulating CD25 regulatory T cells in patients with chronic immune thrombocytopenic purpura. Blood. (2008) 112:1325–8. doi: 10.1182/blood-2008-01-135335

PubMed Abstract | CrossRef Full Text | Google Scholar

22. Ghadaki B, Nazi I, Kelton JG, Arnold DM. Sustained remissions of immune thrombocytopenia associated with the use of thrombopoietin receptor agonists. Transfusion. (2013) 53:2807–12. doi: 10.1111/trf.12139

PubMed Abstract | CrossRef Full Text | Google Scholar

23. Mahévas M, Fain O, Ebbo M, Roudot-Thoraval F, Limal N, Khellaf M, et al. The temporary use of thrombopoietin-receptor agonists may induce a prolonged remission in adult chronic immune thrombocytopenia. Results of a French observational study. Br J Haematol. (2014) 165:865–9. doi: 10.1111/bjh.12888

PubMed Abstract | CrossRef Full Text | Google Scholar

24. Swinkels M, Rijkers M, Voorberg J, Vidarsson G, Leebeek FWG, Jansen AJG. Emerging concepts in immune thrombocytopenia. Front Immunol. (2018) 9:880. doi: 10.3389/fimmu.2018.00880

PubMed Abstract | CrossRef Full Text | Google Scholar

25. Wang C-Y, Shi Y, Min Y-N, Zhu X-J, Guo C-S, Peng J, et al. Decreased IDO activity and increased TTS expression break immune tolerance in patients with immune thrombocytopenia. J Clin Immunol. (2011) 31:643–9. doi: 10.1007/s10875-011-9525-7

PubMed Abstract | CrossRef Full Text | Google Scholar

26. Rodeghiero F, Stasi R, Gernsheimer T, Michel M, Provan D, Arnold DM, et al. Standardization of terminology, definitions and outcome criteria in immune thrombocytopenic purpura of adults and children: report from an international working group. Blood. (2009) 113:2386–93. doi: 10.1182/blood-2008-07-162503

PubMed Abstract | CrossRef Full Text | Google Scholar

27. Neunert C, Lim W, Crowther M, Cohen A, Solberg L, Crowther MA, et al. The American society of hematology 2011 evidence-based practice guideline for immune thrombocytopenia. Blood. (2011) 117:4190–207. doi: 10.1182/blood-2010-08-302984

PubMed Abstract | CrossRef Full Text | Google Scholar

Keywords: antigenic mimicry, solid tumors, tumor antigens, immune thrombocytopenia, proteomics
