Immunotherapies in Huntington's disease and α-Synucleinopathies

  • 1. Department of Molecular Neuroscience, Graduate School of Medicine, Osaka University, Suita, Japan

  • 2. WPI -Immunology Frontier Research Center, Osaka University, Suita, Japan

  • 3. Department of Neuro-Medical Science, Graduate School of Medicine, Osaka University, Suita, Japan

Abstract

Modulation of immune activation using immunotherapy has attracted considerable attention for many years as a potential therapeutic intervention for several inflammation-associated neurodegenerative diseases. However, the efficacy of single-target immunotherapy intervention has shown limited or no efficacy in alleviating disease burden and restoring functional capacity. Marked immune system activation and neuroinflammation are important features and prodromal signs in polyQ repeat disorders and α-synucleinopathies. This review describes the current status and future directions of immunotherapies in proteinopathy-induced neurodegeneration with emphasis on preclinical and clinical efficacies of several anti-inflammatory compounds and antibody-based therapies for the treatment of Huntington's disease and α-synucleinopathies. The review concludes with how disease modification and functional restoration could be achieved by using targeted multimodality therapy to target multiple factors.

Highlights

  • - Modulation of immune activation in Huntington's disease (HD) and α-synucleinopathies using immune-based therapies appears promising.

  • - Several immune-based therapies failed to meet the clinical trial primary endpoint.

  • - Development of multimodality therapy that target neuroinflammation and other neurocircuitry disruptions might be warranted.

Introduction

Nearly all major neurodegenerative diseases are proteinopathic in origin. Neurodegenerative proteinopathies are characterized by abnormal deposition of pathogenic protein aggregates in the form of inclusion bodies. Hereditary polyglutamine (polyQ) triplet disorders and α-synucleinopathies are classical examples of neurodegenerative proteinopathies marked by the accumulation of specific pathogenic protein aggregates in specific brain regions. Hereditary polyQ triplet disorders are rare, inherited forms of neurodegenerative diseases caused by the abnormal expansion of CAG trinucleotides repeats encoding a polyQ tract in the coding regions of specific genes within the genome. The consequences of the polyQ repeat expansions appear to be at the protein level, resulting from toxic gain, or change-of function mutations (). Currently, nine disorders fall under this category of neurological diseases, including Huntington's disease (HD), spinobulbar muscular atrophy (SBMA), dentatorubral-pallidoluysian atrophy (DRPLA), and spinocerebellar ataxias (SCA1, SCA2, SCA3, SCA6, SCA7, and SCA17) (). Among the hereditary polyQ triplet disorders, HD appears to be the most representative. HD evolves from an abnormal expansion of polyQ repeats in the huntingtin (Htt) gene. The resultant mutant Htt protein (mHtt) forms ubiquitously expressed intracellular aggregates throughout the body, particularly in the brain where it is cytotoxic to specific neurons in the striatum and cortex, causing neurotoxicity and devastating neurodegeneration. The pathological features of HD are summarized in Table 1. α-Synucleinopathies are common progressive neurodegenerative diseases caused by the abnormal formation of αsynuclein (α-Syn) and its aggregation within neuronal or glial cells (). α-Syn related diseases include Parkinson's disease (PD), dementia with Lewy bodies (DLB), and multiple system atrophy (MSA). α-Syn abnormal deposition, which forms β-sheet enriched amyloid fibrils is a neuropathological hallmark of α-synucleinopathies (). While these diseases share the same pathological protein, the pathological phenotypes from distinct α-synucleinopathies are quite different among patients (Table 1).

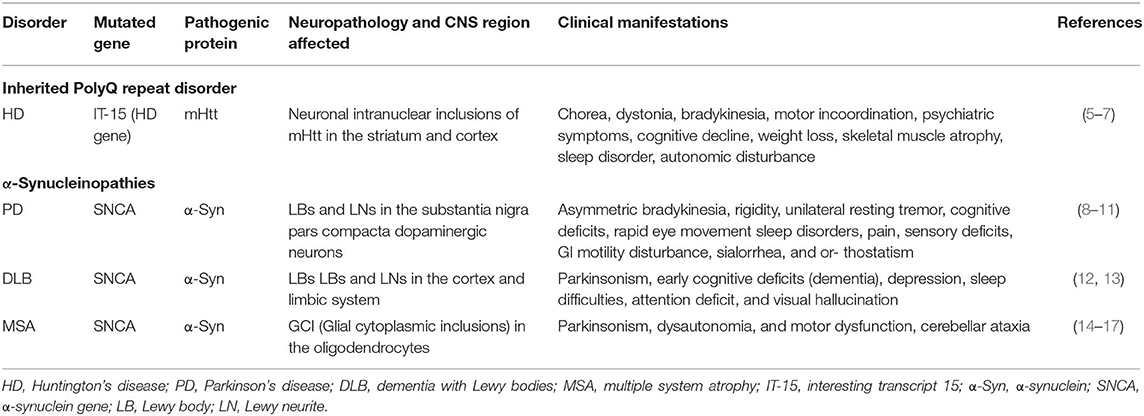

Table 1

DisorderMutated genePathogenic proteinNeuropathology and CNS region affectedClinical manifestationsReferences
Inherited PolyQ repeat disorder
HDIT-15 (HD gene)mHttNeuronal intranuclear inclusions of mHtt in the striatum and cortexChorea, dystonia, bradykinesia, motor incoordination, psychiatric symptoms, cognitive decline, weight loss, skeletal muscle atrophy, sleep disorder, autonomic disturbance()
α-Synucleinopathies
PDSNCAα-SynLBs and LNs in the substantia nigra pars compacta dopaminergic neuronsAsymmetric bradykinesia, rigidity, unilateral resting tremor, cognitive deficits, rapid eye movement sleep disorders, pain, sensory deficits, GI motility disturbance, sialorrhea, and or- thostatism()
DLBSNCAα-SynLBs LBs and LNs in the cortex and limbic systemParkinsonism, early cognitive deficits (dementia), depression, sleep difficulties, attention deficit, and visual hallucination(, )
MSASNCAα-SynGCI (Glial cytoplasmic inclusions) in the oligodendrocytesParkinsonism, dysautonomia, and motor dysfunction, cerebellar ataxia()

Clinical features of HD and α-synucleinopathies.

HD, Huntington's disease; PD, Parkinson's disease; DLB, dementia with Lewy bodies; MSA, multiple system atrophy; IT-15, interesting transcript 15; α-Syn, α-synuclein; SNCA, α-synuclein gene; LB, Lewy body; LN, Lewy neurite.

A common pathological signature of neurodegenerative proteinopathies is chronic immune activation, encompassing innate and adaptive immune responses (Figure 1). Over the past decade, a plethora of studies has demonstrated a remarkable connection between pathogenic misfolded protein aggregates and immune activation in HD and α-synucleinopathies (Tables 2, 3).

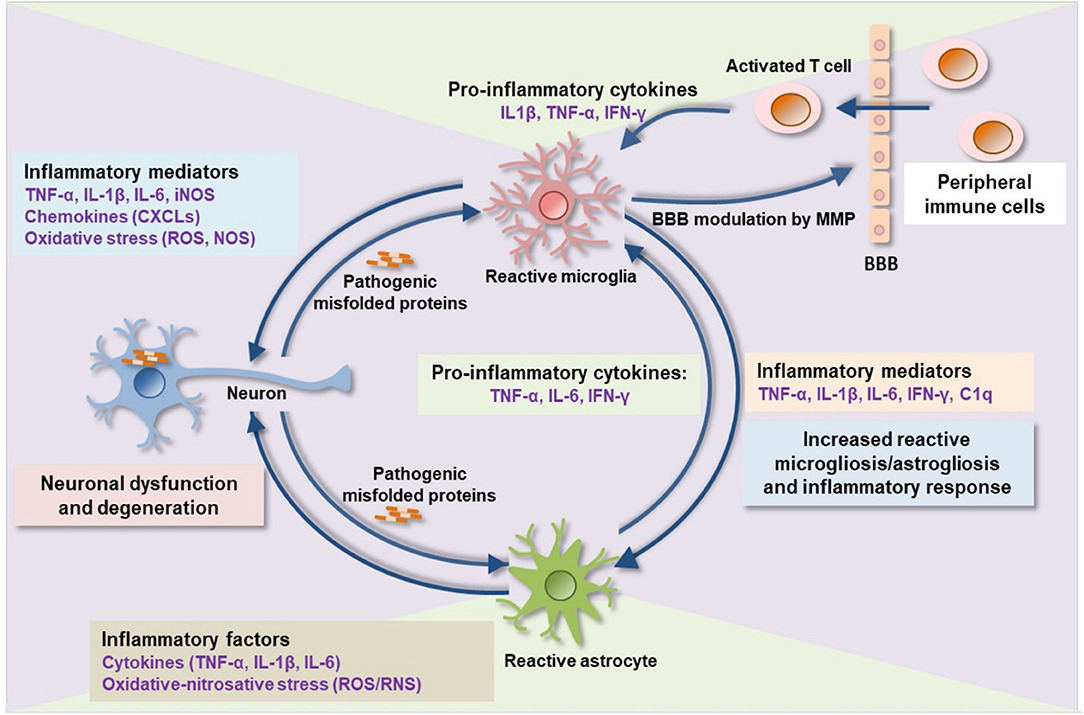

Figure 1

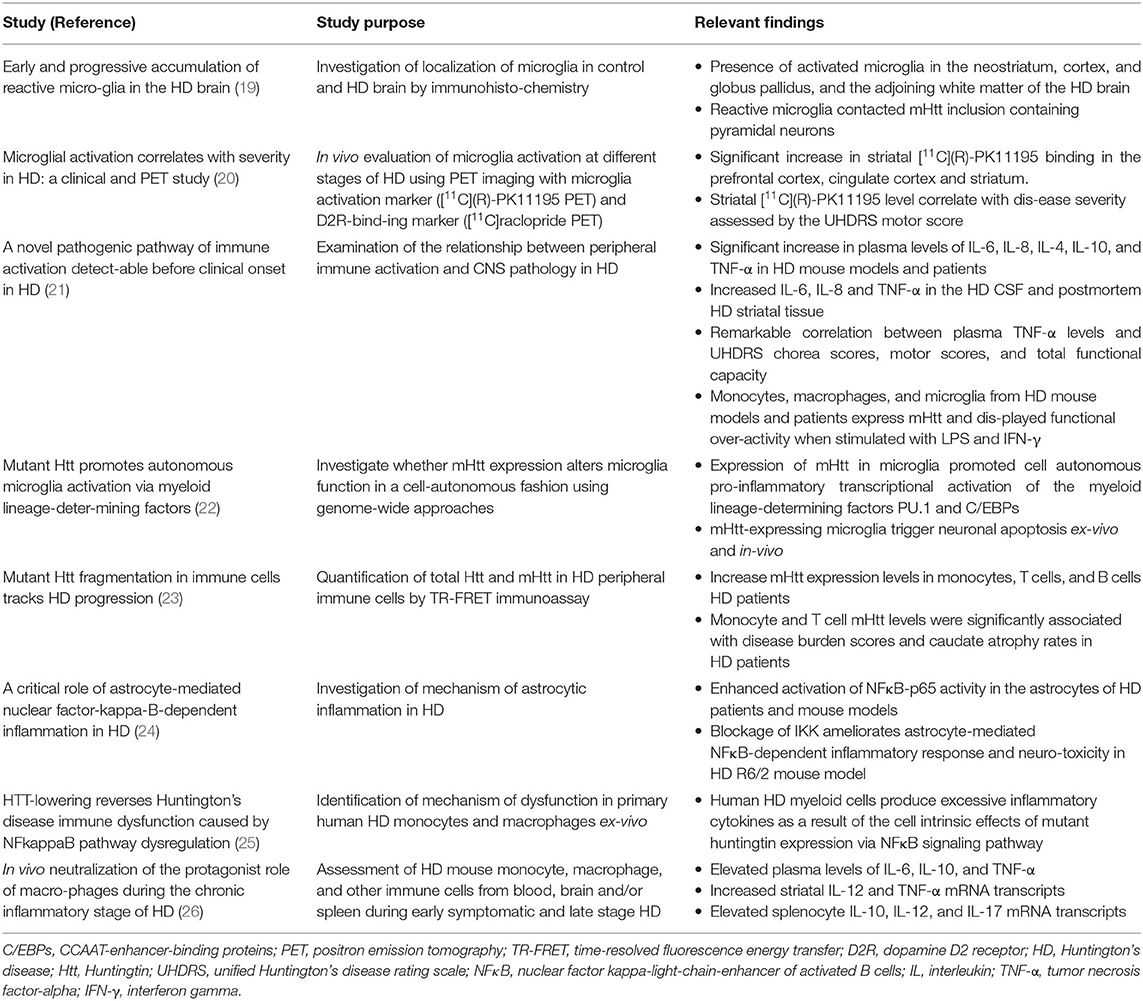

Table 2

Study (Reference)Study purposeRelevant findings
Early and progressive accumulation of reactive micro-glia in the HD brain ()Investigation of localization of microglia in control and HD brain by immunohisto-chemistry• Presence of activated microglia in the neostriatum, cortex, and globus pallidus, and the adjoining white matter of the HD brain
• Reactive microglia contacted mHtt inclusion containing pyramidal neurons
Microglial activation correlates with severity in HD: a clinical and PET study ()In vivo evaluation of microglia activation at different stages of HD using PET imaging with microglia activation marker ([11C](R)-PK11195 PET) and D2R-bind-ing marker ([11C]raclopride PET)• Significant increase in striatal [11C](R)-PK11195 binding in the prefrontal cortex, cingulate cortex and striatum.
• Striatal [11C](R)-PK11195 level correlate with dis-ease severity assessed by the UHDRS motor score
A novel pathogenic pathway of immune activation detect-able before clinical onset in HD ()Examination of the relationship between peripheral immune activation and CNS pathology in HD• Significant increase in plasma levels of IL-6, IL-8, IL-4, IL-10, and TNF-α in HD mouse models and patients
• Increased IL-6, IL-8 and TNF-α in the HD CSF and postmortem HD striatal tissue
• Remarkable correlation between plasma TNF-α levels and UHDRS chorea scores, motor scores, and total functional capacity
• Monocytes, macrophages, and microglia from HD mouse models and patients express mHtt and dis-played functional over-activity when stimulated with LPS and IFN-γ
Mutant Htt promotes autonomous microglia activation via myeloid lineage-deter-mining factors ()Investigate whether mHtt expression alters microglia function in a cell-autonomous fashion using genome-wide approaches• Expression of mHtt in microglia promoted cell autonomous pro-inflammatory transcriptional activation of the myeloid lineage-determining factors PU.1 and C/EBPs
• mHtt-expressing microglia trigger neuronal apoptosis ex-vivo and in-vivo
Mutant Htt fragmentation in immune cells tracks HD progression ()Quantification of total Htt and mHtt in HD peripheral immune cells by TR-FRET immunoassay• Increase mHtt expression levels in monocytes, T cells, and B cells HD patients
• Monocyte and T cell mHtt levels were significantly associated with disease burden scores and caudate atrophy rates in HD patients
A critical role of astrocyte-mediated nuclear factor-kappa-B-dependent inflammation in HD ()Investigation of mechanism of astrocytic inflammation in HD• Enhanced activation of NFκB-p65 activity in the astrocytes of HD patients and mouse models
• Blockage of IKK ameliorates astrocyte-mediated NFκB-dependent inflammatory response and neuro-toxicity in HD R6/2 mouse model
HTT-lowering reverses Huntington's disease immune dysfunction caused by NFkappaB pathway dysregulation ()Identification of mechanism of dysfunction in primary human HD monocytes and macrophages ex-vivo• Human HD myeloid cells produce excessive inflammatory cytokines as a result of the cell intrinsic effects of mutant huntingtin expression via NFκB signaling pathway
In vivo neutralization of the protagonist role of macro-phages during the chronic inflammatory stage of HD ()Assessment of HD mouse monocyte, macrophage, and other immune cells from blood, brain and/or spleen during early symptomatic and late stage HD• Elevated plasma levels of IL-6, IL-10, and TNF-α
• Increased striatal IL-12 and TNF-α mRNA transcripts
• Elevated splenocyte IL-10, IL-12, and IL-17 mRNA transcripts

Important clinical and experimental findings on chronic immune activation in HD.

C/EBPs, CCAAT-enhancer-binding proteins; PET, positron emission tomography; TR-FRET, time-resolved fluorescence energy transfer; D2R, dopamine D2 receptor; HD, Huntington's disease; Htt, Huntingtin; UHDRS, unified Huntington's disease rating scale; NFκB, nuclear factor kappa-light-chain-enhancer of activated B cells; IL, interleukin; TNF-α, tumor necrosis factor-alpha; IFN-γ, interferon gamma.

Table 3

Study (Reference)Study purposeRelevant findings
Microglial activation and dopamine terminal loss in early PD ()In vivo investigation of changes in microglial activity associated with changes in the presynaptic dopamine trans-porter density in the PD brain using PET imaging with microglia activation marker ([11C](R)-PK11195-PET) and dopamine transporter marker ([11C]CFT-PET)• Increased midbrain [11C](R)-PK11195-PET-BP
• Midbrain [11C](R)-PK11195-PET activity correlated inversely with [11C]CFT-BP in the putamen
• Midbrain [11C](R)-PK11195-PET activity correlated with the motor severity assessed by the Unified Parkinson's Disease Rating Scale (UPDRS)
In vivo imaging of microglial activation with [11C](R)-PK11195 PET in idiopathic PD ()In vivo evaluation of brain distribution of activated microglia in idiopathic PD using ([11C](R)-PK11195-PET)• Widespread microglia activation is associated with pathological processes in PD but did not correlate with clinical severity or putamen [18F]-dopa uptake
Peripheral cytokines profile in PD ()Investigation of levels of production and expression of cytokines and chemokines by PD patients-PBMCs• Significant increase in basal and LPS-induced levels of MCP-1/CCL3, RANTES/CCL5, MIP-1α, IL-8, IFNγ, IL-1β and TNFα
Direct transfer of α-Syn from neuron to astroglia causes inflammatory responses in synucleinopathies ()Investigation of mechanism of glia inter-action and glial α-Syn pathology in α-Syn transgenic mice• α-Syn released from neuronal cells are endocytosed by astrocytes through and form glial inclusions that triggers pro-inflammatory functionally polarized phenotype of astrocytes
α-Syn fibrils recruit peripheral immune cells in the rat brain prior to neurodegeneration ()In vivo assessment of MHCII-expression and neuroinflammation profiles in rat model of α-Syn-mediated neurodegeneration• α-Syn fibrils promote microglial activation with peripheral immune cell infiltration in the SNpc α-Syn fibrils rapidly induce a persistent MHCII response derived from both microglia, monocytes and macrophages
Peripheral monocyte entry is required for α-Syn induced inflammation and neurodegeneration in a model of PD ()Investigation of peripheral monocytes in mouse model of α-Syn-mediated neurodegeneration• Overexpression of α-Syn induces robust infiltration of pro-inflammatory CCR2-positive peripheral monocytes into the substantia nigra
Genetic deletion of CCR2 prevents α-Syn induced monocyte entry, attenuates MHCII expression, and block subsequent neurodegeneration
Early microglial activation and peripheral inflammation in DLB ()In vivo assessment of central and peripheral inflammatory changes in DLB patients using PET imaging with micro-glia activation marker ([11C](R)-PK11195-PET)• Elevated microglia activation in several brain regions associated with cognitive functions
• Microglial activation strongly correlates with cognitive score in DLB patients
• Raised peripheral inflammatory cytokines
The peripheral inflammatory response to α-Syn and endotoxin in PD ()Investigation of cell-extrinsic factors in systemic immune activation by using α-Syn monomers and fibrils, as well as bacterial toxins, to stimulate both PD and control PBMCs• α-Syn monomers or fibrils resulted in a robust cytokine response in both PD and control PBMCs
Increased immune activation by pathologic α-Syn in PD ()Investigation of immune response of primary human monocytes and a micro-glial cell line to pathologic forms of α-Syn• Pathogenic α-Syn activates peripheral blood monocytes and microglial BV2 cell line leading to in-creased IL-6 release
• Extracellular vesicles (EVs) from PD patient plasma induces a stronger activation peripheral blood monocyte than plasma EVs from healthy patients
Oligodendroglial α-synucleinopathy-driven neuroinflammation in MSA ()Analysis of temporal patterns of neuroinflammation in postmortem MSA-P brain and MBP29-hα-Syn mice• Marked inflammatory myeloid response in corpus callosum and the striatum
• Increased astrogliosis
• Elevated CCL2, CCL7, and CXCL10 mRNA transcripts in α-Syn-overexpressing primary oligodendrocytes and MBP29-hα-Syn mice

Important clinical and experimental findings on chronic immune activation in α-synucleinopathies.

DLB, dementia with Lewy bodies; EVs, extracellular vesicles; PD, Parkinson's disease; MHCII, major histocompatibility complex class II; PET, positron emission tomography; D2R, dopamine D2 receptor; LPS, lipopolyschaccarides; BP, binding potential; PBMCs, peripheral blood mononuclear cells; MSA, multiple system atrophy; MBP, myelin basic protein; MBP29-hα-Syn mice, transgenic mice overexpressing human α-Syn under the control of an oligodendrocyte-specific MBP promoter; MCP-1, monocyte chemoattractant protein-1; MIP-1α/CCL3, macrophage inflammatory protein 1-alpha/Chemokine (C-C motif) ligand 3; RANTES/CCL5, regulated on activation, normal T cell expressed and secreted/chemokine (C-C motif) ligand 5; IL, interleukin; TNF-α, tumor necrosis factor-alpha; IFN-γ, interferon-gamma; SNpc, substantia nigra pars compacta.

Mutant Htt is abundantly expressed in brain resident and peripheral immune cells, acting as an inflammatory stimulus for these cells (, ). In HD patients and several rodent models of HD, increased microglial activation, and elevated proinflammatory cytokines and chemokines have been shown to correlate with disease progression (, ). HD patients and several rodent models of HD show elevated plasma cytokine and chemokine expression levels (, , ). Mouse neuroblastoma cells expressing mutant Htt show an elevated level of chemokines, including monocyte chemoattractant protein-1 (MCP-1) and murine chemokine (). NF-κB is a nuclear transcription factor and a key regulator of the inflammatory cascades. Activation of IκB kinases (IKK) leads to the release of NF-κB as a result of cytoplasmic sequestration by IκB and subsequent translocation to the nucleus. MHtt interacts with IκB, upregulating IKK, and NF-κB gene expressions in the immune cells of human HD and mouse models of HD (, 41, 42).

Human α-Syn is a cytoplasmic protein with a 140 amino acid length encoded by the SNCA gene (43). It is mainly expressed in the presynaptic terminal in the central nervous system (CNS), but also partly found in the peripheral nervous system (PNS) and other tissues. Pathological α-Syn, secreted from neurons, interacts with glial cells to promote neuroinflammatory responses (, 44). α-Syn activates innate and adaptive immune responses in several rodent models of PD and PD patients, as evidenced by pronounced neuroinflammatory changes within the brain as well as marked elevation of immune markers in the peripheral blood (, , , , 45, 46).

In recent years, there is accumulating evidence that prionlike propagation of pathogenic proteins from cell-to-cell accounts for the progression of pathology in HD and α-synucleinopathies. These prion-like spreading and seeding capacities of pathogenic mHtt and a-Syn (either neuron-to neuron or neuron-to-glia) occur via several mechanisms, including exosomal transfer, synaptic transmission, and glial phagocytosis (4754). Cell-to-cell transfer of pathogenic proteins disturbs neuroimmune network, leading to enhanced immune response and inflammation, as in these incurable neurodegenerative proteinopathies. Based on the notion that pathogenic protein aggregates lead to perturbed neuroimmune homeostatic network and consequent chronic immune activation, therapeutic strategies that aim to suppress immune activation or pathogenic proteins during neurodegenerative processes remain one of the popular treatment paradigms in several neurodegenerative disorders.

Over the years, several immunotherapeutic modalities for immunosuppression (using anti-inflammatory/antibody-based therapies), boosting the host's own adaptive immune response against specific pathogenic protein (via active vaccination) and/or antibody-mediated neutralization of specific pathogenic protein (passive vaccination) have been developed for HD and α-synucleinopathy. However, despite the remarkable recent progress, there remain intriguing concerns about the efficacy of these treatment modalities in human clinical trials.

In this article, we review several immunotherapeutic strategies that have been developed to suppress immune activation (using a variety of anti-inflammatory and antibody-based therapies) or eliminate pathogenic protein aggregates (via active and passive immunization) in preclinical rodent studies and human clinical trials for HD and α-synucleinopathies. We also discuss some of the pitfalls of single immunotherapy and place emphasis on the potential benefits of combination therapies or multi-target drugs in achieving successful clinical trials.

Immunomodulatory Drugs for HD

Several preclinical and clinical trials of potential immunomodulatory drugs have been investigated in HD, such as laquinimod, anti-SEMA4D monoclonal antibody, and TNF-α inhibitors (Table 4).

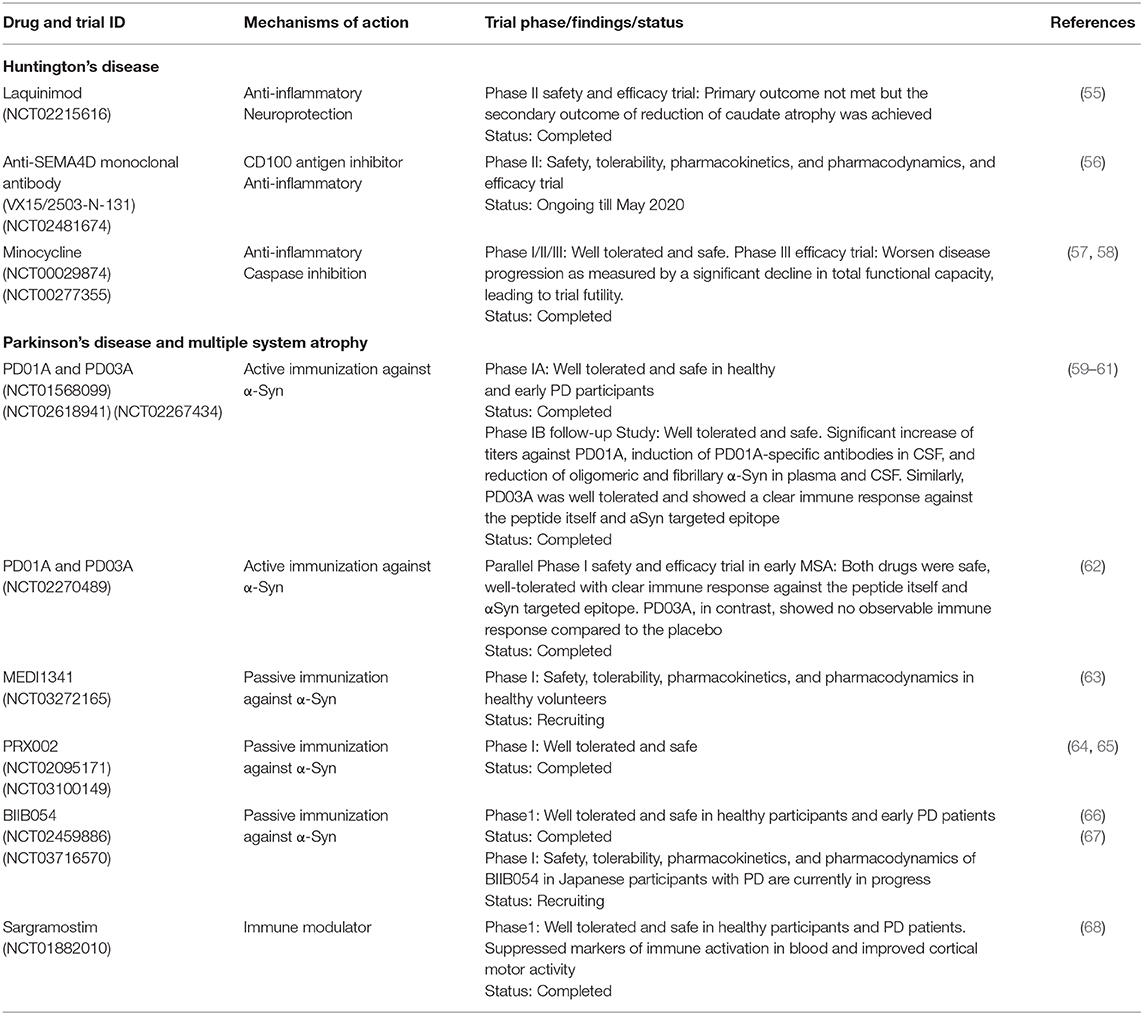

Table 4

Drug and trial IDMechanisms of actionTrial phase/findings/statusReferences
Huntington's disease
Laquinimod
(NCT02215616)
Anti-inflammatory
Neuroprotection
Phase II safety and efficacy trial: Primary outcome not met but the secondary outcome of reduction of caudate atrophy was achieved
Status: Completed
(55)
Anti-SEMA4D monoclonal antibody
(VX15/2503-N-131)
(NCT02481674)
CD100 antigen inhibitor
Anti-inflammatory
Phase II: Safety, tolerability, pharmacokinetics, and pharmacodynamics, and efficacy trial
Status: Ongoing till May 2020
(56)
Minocycline
(NCT00029874)
(NCT00277355)
Anti-inflammatory
Caspase inhibition
Phase I/II/III: Well tolerated and safe. Phase III efficacy trial: Worsen disease progression as measured by a significant decline in total functional capacity, leading to trial futility.
Status: Completed
(57, 58)
Parkinson's disease and multiple system atrophy
PD01A and PD03A
(NCT01568099)
(NCT02618941) (NCT02267434)
Active immunization against α-SynPhase IA: Well tolerated and safe in healthy and early PD participants
Status: Completed
Phase IB follow-up Study: Well tolerated and safe. Significant increase of titers against PD01A, induction of PD01A-specific antibodies in CSF, and reduction of oligomeric and fibrillary α-Syn in plasma and CSF. Similarly, PD03A was well tolerated and showed a clear immune response against the peptide itself and aSyn targeted epitope
Status: Completed
(5961)
PD01A and PD03A
(NCT02270489)
Active immunization against α-SynParallel Phase I safety and efficacy trial in early MSA: Both drugs were safe, well-tolerated with clear immune response against the peptide itself and αSyn targeted epitope. PD03A, in contrast, showed no observable immune response compared to the placebo
Status: Completed
(62)
MEDI1341
(NCT03272165)
Passive immunization against α-SynPhase I: Safety, tolerability, pharmacokinetics, and pharmacodynamics in healthy volunteers
Status: Recruiting
(63)
PRX002
(NCT02095171)
(NCT03100149)
Passive immunization against α-SynPhase I: Well tolerated and safe
Status: Completed
(64, 65)
BIIB054
(NCT02459886)
(NCT03716570)
Passive immunization against α-SynPhase1: Well tolerated and safe in healthy participants and early PD patients
Status: Completed
Phase I: Safety, tolerability, pharmacokinetics, and pharmacodynamics of BIIB054 in Japanese participants with PD are currently in progress
Status: Recruiting
(66) (67)
Sargramostim
(NCT01882010)
Immune modulatorPhase1: Well tolerated and safe in healthy participants and PD patients. Suppressed markers of immune activation in blood and improved cortical motor activity
Status: Completed
(68)

Clinical trial immunomodulatory agents and immunotherapies for HD and α-synucleinopathies.

Laquinimod

Laquinimod is an orally active and well-tolerated immunomodulatory small molecule developed primarily to target inflammation and neurodegeneration. The efficacy of laquinimod has been evaluated for several clinical disorders including relapsing-remitting multiple sclerosis (RRMS), Guillain-Barré syndrome, Crohn's disease, lupus, and Huntington's disease (HD). Although the precise mechanism of action of laquinimod is unclear, evidence shows that it exerts both anti-inflammatory effects by driving Th (T helper cell) polarization from Th1-activating to Th2-activating cytokine production (69, 70) and as neuroprotective effects by promoting brain-derived neurotrophic factor (BDNF) production (71, 72). Gurevich et al. showed that laquinimod modulates antigen presentation-related genes and associated inflammatory molecules from peripheral blood mononuclear cells (PBMC) of RRMS patients (73). Dobson et al. demonstrated that laquinimod significantly dampened the release of hyper-reactive cytokines from stimulated premanifest and manifest HD patient monocytes (74). In YAC128 HD mice, laquinimod shows neuroprotective effects, rescuing corticostriatal neurodegeneration, white matter demyelination, and behavioral deficits (75, 76). Laquinimod ameliorates DNA-damage induced activation of caspase-6 by reducing Bax expression in primary neuronal cultures (77). Laquinimod provides a mild ameliorative effect on motor function deficit and striatal neuropathology in R6/2 HD mice (78). Recently, the efficacy of laquinimod (0.5 and 1.0 mg/d) in slowing down the progression of HD was evaluated in 352 HD patients using the Unified Huntington's Disease Rating Scale-Total Motor Score (UHDRS-TMS). In this study, laquinimod fails to meet its primary clinical endpoint of change (no significant difference in the primary efficacy outcome) for functional capacity in HD patients as assessed by UHDRS-TMS, from baseline, after 12 months of treatment. However, the secondary clinical endpoint of structural change was achieved, as revealed by a reduction of caudate atrophy (LEGATO-HD, ClinicalTrials.gov identifier NCT02215616).

These clinical findings raise the intriguing question of why the beneficial effect of laquinimod on caudate volume atrophy fails to impact on functional capacity (TMS and other clinical outcomes) in HD. One would expect a relevant correlation between MRI-detected structural brain changes and motor performance assessed by TMS. Overall, these findings indicate that reduction in motor function is not simply a footprint of regional brain volume abnormalities (striatal atrophy) but global structural brain network changes.

Anti-semaphorin 4D

Semaphorin 4D (SEMA4D), otherwise known as CD100, is chemorepulsive axonal guidance and immunoregulatory transmembrane signaling molecule. It signals via three receptor subtypes, Plexin-B1 (PLXNB1), Plexin-B2 (PLXNB2), and CD72. PLXNB1 represents the high-affinity receptor of SEMA4D and is expressed in neurons, oligodendrocytes, endothelial cells, as well as some tumor cells (7982). In the CNS, SEMA4D interacts with PLXNB1 in neuronal cells via Rho-GTPases-RhoA and R-Ras GTPase-activating protein activities, inducing axonal growth cone collapse (8385). In the immune system, SEMA4D-CD72 interactions promote both B and dendritic cell activation, leading to T cell priming (86, 87).

Previous studies in rodents have demonstrated the efficacy of SEMA4D activity blockage in several disorders, including neurodegenerative diseases. Anti-Sema4D blocking antibody ameliorates neuroinflammation and development of experimental autoimmune encephalomyelitis (EAE) in mice (88). Similarly, PLXNB1 deficient mice are resistant to the development of EAE (88). Antibody neutralization of SEMA4D ameliorates neuropathological deficits and improves some of the behavioral symptoms in YAC128 HD transgenic mice (89).

Altogether, these findings support the immunomodulatory properties of SEMA4D in translational rodent models of inflammation-associated neurodegenerative diseases, including HD. Whether SEMA4D inhibition, however, will be beneficial in human HD is yet unknown. In 2015, Vaccinex Inc. in collaboration with the Huntington study group and the University of Rochester's clinical trials coordination center started the first clinical trial to investigate the safety, tolerability, and efficacy of Pepinemab, a humanized antiSEMA4D neutralizing monoclonal antibody (VX15/2503) as a potential treatment for late prodromal and early manifest HD patients, with specific focus on neuroimmunomodulation as well as delay of the onset and progression of HD. This study is currently ongoing with expected completion in May 2020.

Anti-TNF-α Therapy

TNF-α is a multifunctional cytokine associated with cellular proliferation, differentiation, inflammation, immune responses, and apoptosis (90). TNF-α exists in 2 forms: a transmembrane stable homotrimeric form (tm-TNF-α), that is involved in immune functions by activating TNFR2, and a soluble homotrimeric form (sol-TNF-α), which mediates chronic inflammation by interacting with TNFR1, a death domain-containing protein (9194). Tm-TNF-α is cleaved on the cell surface by a TNF-α-converting enzyme to yield the sol-TNF-α. The complex interaction between the death receptor (TNFR1) and death receptor ligands [sol-TNF-α or lymphotoxin (LT)-α] activates apoptotic signaling pathway through the help of adaptor proteins, such as Fas-associated protein with death domain, TNFR-associated death domain protein, and the TNFR-associated factor-1 (95). TNFR1 signaling complex recruits and dimerizes initiator caspase (caspase 8) which in turn, initiates apoptosis by cleaving and activating executioner caspases (caspase-3,-6, and-7) (96). Sol-TNF-α has been implicated as a hallmark of acute and chronic neuroinflammation and a key regulator of inflammatory responses in many neurodegenerative disorders, including MS, PD, AD, and HD. An elevated level of TNF-α in serum, cerebrospinal fluid (CSF), and brain tissue are associated with the pathophysiology of HD (, 97) and a molecule that inhibits TNF-α signaling was shown to be beneficial in an HD rodent model (98). DN-TNF-α (XPro1595) is an inactive engineered human TNF-α variant that inactivates the native homotrimer sol-TNF-α via a subunit exchange mechanism, thus blocking TNF bioactivity (99). Hsiao et al. demonstrated that intracerebroventricular (ICV) infusion of DN-TNF-α modulates neuroinflammation, mHtt aggregate burden, caspase activation, and motor function deficit in R6/2 HD transgenic mice (98). It is worth noting that in comparison to ICV infusion, systemic injection of DN-TNF-α shows lesser efficacy on motor function in R6/2 mice. However, the clinical efficacy of this molecule in human HD warrants investigation. A most recent follow-up study by Pido-Lopez et al. demonstrated that systemic injection of etanercept, a TNFα inhibiting drug, dampens the plasma level of TNFα and other peripheral circulating proinflammatory cytokines such as IL1β and IL6 in preclinical HD R6/2 transgenic mice. Striatal TNFα and IL-6 expression levels, however, remain unaffected by etanercept treatment. In the same study, while treatment with etanercept partially reduces brain atrophy, it fails to ameliorate HD related functional and cognitive deficits in R6/2 mice (100). Lack of improvement in motor and cognitive impairment after etanercept treatment in R6/2 mice may be due to poor/low CNS distribution as etanercept is known to be BBB impenetrable (101). Therefore, further studies on central delivery of etanercept in HD preclinical mouse models might be warranted to validate etanercept efficacy. Minocycline, a second-generation tetracycline antibiotic, is another small molecule inhibitor of TNF-α signaling which decreases TNF-α synthesis, microgliosis, and TNF-α-induced caspase activation and apoptotic cell death (102). Minocycline has been shown to be protective in several neurological disorders, including PD, HD, amyotrophic lateral sclerosis, multiple sclerosis, stroke, and spinal cord injury (103). The impact of minocycline in the progression of HD symptoms has been previously assessed in various preclinical HD transgenic mice and HD patients. Preclinical evaluation of minocycline in HD raised many conflicting findings. Chen et al. and Stack et al. demonstrated that minocycline and combined minocycline and Coenzyme-Q10 therapy, respectively, delays disease progression and cell death in R6/2 HD mouse model (104, 105). Intriguingly, however, Smith et al. reported conflicting data, in which oral minocycline treatment in R6/2 mice shows no beneficial effects on behavioral abnormalities as well as mHtt aggregate load (106). The findings of Smith et al. were supported by several other studies in which minocycline showed a lack of efficacy in slowing the progressive functional decline in several HD mouse models (107109). Also, in a phase III efficacy study (IND 60943), minocycline failed to show efficacy in HD patients (DOMINO Huntington study group, 2010). Taking together, these findings show that targeting peripheral circulating sol-TNFα helps to resolve neuroinflammation, but also suggest that suppressing neuroinflammatory process alone would be insufficient to restore functional capacity in HD.

Immunotherapies for mHtt

Active Immunization Against mHtt

Few studies have examined the beneficial effects of active vaccination in rodent models of HD, emphasizing the safety, immunogenicity, and efficacy of some vaccine immunogens. Ramsingh et al. examined the safety and immunogenicity of three non-overlapping Htt exon 1 peptides (AA1-17, AA4960, and AA74-88) in two different preclinical rodent models of HD (110). While the three peptides were safe, only AA1-17 induces stronger immunogenic response against Htt-targeted epitope in HD mutant mice. Vaccination using a combination of the three peptides showed stronger immunogenic response in both HD mutant and control mice. Notably, differential expression of immune-related genes, indicated by up-regulation of innate immune responses and downregulation of memory T cell responses were observed in immunized mutant HD mice (110). Additionally, DNA plasmid vaccination against mHtt ameliorates the diabetic phenotype in HD R6/2 transgenic mice (111). Studies of active immunization against mHtt remain obscure and warrant further follow-up preclinical studies to explicate immunogenicity, safety, and efficacy in different HD preclinical models.

Passive Immunotherapy via Targeted mHtt-specific Intrabodies

Intrabodies are engineered single-chain variable fragments antibodies (scFv) expressed inside cells and directed to different subcellular compartments to bind different epitopes on a target protein (Figure 2) (112). They act as effector molecules with a capacity to neutralize or sequester specific proteins in a particular cellular compartment. ScFv intrabody consists of variable heavy chain (VH) and variable light-chain (VL) domains joined by a flexible polypeptide linker (112). Several studies have analyzed the therapeutic potential of several recombinant anti-Htt-directed intrabodies to specifically counteract the downstream intracellular mHtt pathologic cascades in cell culture and preclinical rodent models of HD. The intrastriatal fusion of recombinant adeno-associated virus (rAAV)-expressing anti-N-terminal Htt-exon 1-scFv-C4 intrabody results in delay accumulation of mutant Htt in HD R6/1 transgenic mice (113, 114). Similarly, enhancement of intrabody's efficacy via fusion of the C-terminal PEST region of mouse ornithine decarboxylase (MODC) to scFv-C4 significantly reduces mHtt aggregation and toxicity compared to scFv-C4 alone in a striatal cell line expressing exon 1 of mHtt with 72 glutamine repeats (113). ScFv intrabodies against N terminus and proline-rich (PRR) domains of Htt (VL12.3 and Happ1, respectively) reduce mHtt-induced toxicity and aggregation in an in vitro and corticostriatal brain slice models of HD (115). Concordantly, rAAV-expressing Happ1 ameliorates the neuropathology and prolongs survival in four different HD transgenic mice (116). Transduction with rAAV-expressing INT41, intrabody specific for the PRR domain of Htt, significantly reduces mHtt aggregate loads and ameliorates cognitive decline in HD R6/2 transgenic mice (117). Recombinant AAV-expressed scFv-EM-48 suppresses mHtt accumulation and ameliorates neuronal dysfunction in R6/2 and N171-82Q transgenic mice (118).

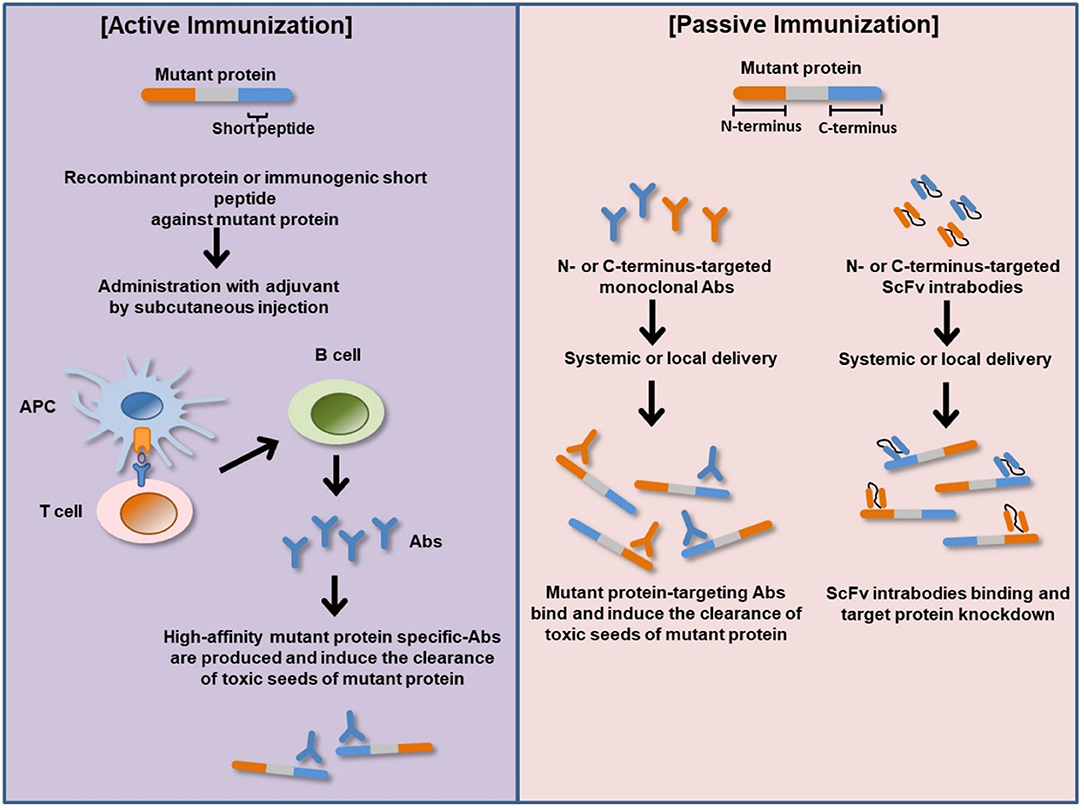

Figure 2

Together, the findings support the therapeutic relevance of passive immunization via targeted mHtt-specific intrabodies in preclinical HD models. However, the translational prospect in terms of safety, tolerability, and efficacy in human HD remains undetermined.

Immunomodulatory Drugs for α-synucleinopathies

Recent studies have identified many potent immunomodulatory agents, including sargramostim and azathioprine (Table 4). Suppressing the peripheral immune response might offer an effective disease-modifying strategy for PD patients.

Sargramostim

Sargramostim, otherwise known as leukine, is a recombinant human granulocyte macrophage colony-stimulating factor (GM-CSF). GM-CSF is a potent immune modulator known to promotes regulatory T cells (Treg) activities and dampen pro-inflammatory T effector (Teff) responses, thereby protecting against inflammation-mediated neurodegeneration. The homeostatic balance between circulating T cell subsets is impaired in several rodent models of PD and PD patients (119). In fact, T cells from PD patients recognize α-Syn peptides as antigenic epitopes (120). In a randomized, placebo-controlled double-blind phase 1 trial in PD patients and non-Parkinsonian subjects, treatment with sargramostim was feasible and reasonably well-tolerated (68). More so, sargramostim improves magnetoencephalography-recorded cortical motor activities and immunomodulatory activities of Tregs (68). However, the therapeutic potential of sargramostim warrants a larger cohort and further confirmatory studies.

Azathioprine

Azathioprine is an inosine monophosphate dehydrogenase (IMDH) inhibitor with an immunosuppressive function. Azathioprine treatment is associated with a lower risk of PD (121). Azathioprine inhibits IMDH which leads to the blockage of DNA synthesis and consequent suppression of circulating T-cell activity. Since T cells from PD patients recognize α-Syn peptides as antigenic epitopes, the suppressive activity of T-cells might dampen peripheral propagation of α-Syn. Just like sargramostim, the therapeutic potential of azathioprine as an immunosuppressant for PD is promising but warrants a larger cohort and further clinical studies. Also, whether the long-term use of azathioprine, like other immunosuppressants, such as corticosteroids, will engender serious potential morbidity such as cardiovascular disease, metabolic dysfunction, osteoporosis, remains unknown.

Immunotherapies for α-Syn Pathology

A vast number of clinical trial potential α-Syn immunotherapies have been investigated in α-synucleinopathies, including active and passive immunization against α-Syn and immunomodulatory drugs (Figure 2 and Table 4).

Active Immunization Against α-Syn

The potency of active immunization targeting α-Syn has been examined in a Lewy Body (LB) disease mouse model. In this study, transgenic mice overexpressing human wildtype α-Syn under control of the platelet-derived growth factor-β promoter was used. These mice present α-Syn aggregation in neurons of the cortex, hippocampus, and olfactory bulb (122). When mice were immunized with recombinant human α-Syn, high-affinity α-Syn antibodies directed to its C-terminus were produced. The antibody-treated mice exhibited a reduction of α-Syn accumulation in neuronal cell bodies and synapses, leading to amelioration of neurodegeneration. Importantly, in both adjuvant-treated and human α-Syn-vaccinated animals, there was a mild neuroinflammatory response as demonstrated by the microglial marker (Iba1) and the astroglial marker [glial fibrillary acidic protein (GFAP)]. However, no differences in Iba1 and GFAP markers were detected in both groups, suggesting that microglia might not be involved in the clearance of αSyn. Notably, antibodies produced by immunized mice were targeted to the C-terminal region of α-Syn with higher affinity. Consequentially, short epitopes of α-Syn were developed for inducing α-Syn-targeting antibodies.

Ghochikyan et al. generated three peptide-based epitope vaccines composed of α-Syn-derived short peptides fused with a T helper epitope from tetanus toxin (P30) (123). Immunization of mice with these vaccines generated high titers of anti-α-Syn that can bind to LBs in brain tissues from DLB patients.

Dendritic cells (DCs) play an important role in initiating primary immune responses, through the antigen presentation to T cells (124). DC-based vaccination appears to be one of the cell-based therapeutic strategies to elicit an immune response using human α-Syn-sensitized DCs. Based on this strategy, Ugen et al. developed fragments and full-length human α-Syn protein-sensitized bone marrow-derived DCs to generate vaccine for PD (125). Sensitized DCs-injected transgenic mice expressing human A53T variant α-Syn showed significant improvement of locomotor function without an inflammatory response.

Nevertheless, it would be important to perform further studies in detail for the mechanisms before moving the above strategies to clinical trials.

Short Peptides-AFFITOPEs® (AFF1)

AFFITOPEs®AFF1 is a C-terminal α-Syn mimicking small molecule and peptide developed by the Austrian pharmaceutical company AFFiRiS AG. This immunogenic peptide is too short to cause α-Syn-specific T cell and autoimmune response. Active immunization with AFF1 resulted in decreased accumulation of α-Syn oligomers and reduced degeneration of tyrosine hydroxylase (TH) positive fibers in the caudo-putamen regions in PDGF-and mThy1 promoter controlled α-Syn transgenic mice for PD and DLB, respectively (122).

Furthermore, AFF1 vaccination increased the clearance of α-Syn via microglial activation and the production of anti-inflammatory cytokines such as IL-1Ra, IL-2, and IL-27. In a mouse model of MSA, AFF1 treatment diminished the spreading of α-Syn from oligodendrocytes to astroglial cells and alleviated demyelination and neurodegeneration in the neocortex, striatum, and corpus callosum (126). More importantly, repeated immunization led to the recovery of motor function, learning, and memory. It is suggested that clearance of α-Syn involved activation of microglia and reduced spreading of α-Syn to astroglial cells leads to improvement of locomotor- and cognitive function. Phase 1 testing is currently in preparation for the following two AFFITOPE® vaccines that target α-Syn using MSA as a model for α-synucleinopathies.

PD01A and PD03A

Based on the beneficial effects in preclinical research, including animal experiments, AFF1 progressed to human clinical trials as AFFITOPEs®PD01A and PD03A, synthetic peptides against αSyn. PD01A treatment in early-stage PD patients showed local and systemic tolerance without any severe or unexpected reactions. In another study, a different synthetic epitope of α-Syn, PD03A was tested. This trial was a randomized, placebo-controlled, parallel-group, patient-blind, two-center study, assessing tolerability, and safety of repeated subcutaneous administration of two different doses of PD03A to patients with early PD. Both doses of PD03A were locally and systemically well-tolerated with no unexpected effect.

A parallel phase 1 clinical trial (NCT02270489) evaluated a high-dose of PD01A and PD03A in 30 MSA patients over 36 weeks. PD01A and PD03A were well-tolerated in early MSA patients. Interestingly, PD03A showed a clear dose-dependent immune response against the peptide itself and cross-reactivity against the α-Syn targeted epitope over time while PD03A showed no significant immune response compared to placebo.

Although the clinical studies were not set up or powered to properly estimate the efficacy, PD01A is intended to investigate the efficacy in PD patients in a phase II trial in the second half of 2020.

Passive Immunization Against α-Syn

Passive immunization for PD is performed by using a monoclonal antibody targeting α-Syn. The reason for choosing passive immunization rather than active immunization is to reduce the dose and avoid the potential side effects. Passive immunization has the potential to target and induce the clearance of toxic seeds of α-Syn, including aggregated and fibrillary forms in neuronal populations and the propagation (Figure 2).

There are two main targets for monoclonal antibodies for αSyn in C-terminal and N-terminal regions. C-terminal α-Syn is implicated to play an important role in the pathogenic properties in PD (127, 128). A mouse monoclonal antibody against the C-terminus of α-Syn (9E4) (epitope aa 118–126) significantly decreased the C-terminally truncated α-Syn aggregates in axons and synaptic terminals and improved motor and cognitive deficits in PDGF-α-Syn transgenic mice (129). Another laboratory showed similar results of motor behavioral improvement and reduction in α-Syn following treatment with C-terminal antibody AB274 (epitope aa 120–140, mIgG2a) in the same transgenic mice (130). Interestingly, the uptake of Ab274/α-Syn complex by microglia was observed, suggesting that the degradation of α-Syn may be primarily by microglia.

Three other antibodies, 1H7 (epitope aa 91–99), 5C1, and 5D12 (epitope aa 118–126) were also tested in Thy1 promoter-controlled human α-Syn transgenic mice (131). All these antibodies showed some beneficial effects on PD motor behavior deficits and neuropathology Several N-terminal-directed antibodies against α-Syn were also developed and tested in various rodent models of PD. Treatment with N-terminal anti-α-Syn antibody (Syn303) (epitope aa 1–5) ameliorated the spread of α-Syn aggregates and the loss of dopaminergic neurons, as well as improved locomotor functions in intrastriatal α-Syn pre-formed fibrils (PFF)-injected mice (132). Also, N-terminal antibody (AB1) (epitope aa 16–35) treatment in an AAV-α-Syn rat model of PD resulted in moderate motoric improvement with the concomitant rescue of the substantia nigra dopaminergic neurons as well as modulation of microglial activation (133). Due to the pathogenicity of α-Syn in its aggregated conformational states, the use of antibodies with special properties for targeting oligomers and fibrils have been suggested and documented. Immunization with a monoclonal antibody that targeted oligomeric/prefibrillary forms of α-Syn (mAb47) mitigates the accumulation of oligomeric αSyn in the brain stem and improved motor behavioral performance (134). Recently, Kallab et al. showed three antibodies (Syn-F1, Syn-O1, and Syn-O4) that specifically target oligomeric α-Syn and damped motor behavior deficit and neuroinflammation (135).

Overall, passive immunization using a targeted α-Syn antibody is quite promising for modifying disease pathology in rodent models of PD. These findings have been advanced into human clinical trials, evaluating the safety and tolerability in healthy volunteers.

PRX002

The first candidate of passive immunization for PD patients was PRX002, a humanized version of the 9E4 antibody, developed by Prothena Biosciences. PRX002 administration in several doses showed good tolerability, favorable safety, and pharmacokinetic profiles with no immunogenicity in PD patients (64). Serum level of free α-Syn was significantly reduced following PRX002 administration, whereas total α-Syn increased, dose-dependently, because of the expected change in kinetics following the binding of the antibody. More recently, a trial of multiple ascending doses of PRX002 was performed in patients with idiopathic PD (65). In this randomized clinical trial, single and multiple ascending doses of PRX002 were generally safe and well-tolerated and resulted in robust binding of peripheral αSyn. Also, PRX002 cerebrospinal fluid levels increased in a dose-dependent manner following treatment, with concentrations that may be expected to engage extracellular aggregated α-Syn in the brain. In 2017, a phase II multinational study of PRX002/RO7046015 in newly diagnosed PD patients was initiated in collaboration with F. Hoffmann-La Roche AG (PASADENA Study, ClinicalTrials.gov identifier NCT03100149).

BIIB054

BIIB054 developed by Biogen Inc. (rights to BIIB054 were acquired from Neuroimmune AG) is the second antibody going into a clinical trial. BIIB054 is a fully human IgG1 monoclonal antibody directed at the N-terminus of α-Syn and is highly selective for the aggregated forms of α-Syn with 800-fold higher apparent affinity for fibrillary vs. monomeric α-Syn (136). In a randomized phase I clinical trial, BIIB054 showed favorable safety, tolerability, and pharmacokinetic profiles in volunteers and PD participants. All PD participants showed almost complete saturation of the BIIB054/α-Syn complex formation, indicating that it binds much less of its monomeric form. Currently, BIIB054 is being studied in the ongoing phase II trial (SPARK study, ClinicalTrials.gov identifier NCT03318523).

MEDI1341

MEDI1341 is a potent α-Syn C-terminal specific synthetic human monoclonal antibody co-developed by AstraZeneca plc and Takeda Pharmaceutical Company Ltd. It binds human, cynomolgus monkey and rat α-Syn monomers and aggregates. Recent preclinical study shows that MEDI1341 blocks cell-to-cell spread of pathogenic α-Syn in an in vitro human SH-SY5Y-donor cells pretreated with pre-sonicated human preformed α-Syn fibrils (137). Also, systemic administration of MEDI1341 to rat and monkeys achieves high brain penetration and suppresses extracellular α-Syn in the CNS as evidenced by significant reduction in the CSF and brain interstitial fluid α-Syn levels (137). Of interest, passive immunization with either MEDI1341 or its engineered effector null mutant version MEDI1341-D265A mitigates hippocampal and neocortical α-Syn expression as well as transhippocampal tracts/axons spreading of α-Syn in mice injected with lentiviral vector expressing human-α-Syn (137). Evaluation of MEDI1341 for safety, tolerability, pharmacokinetics, and efficacy is currently in human clinical testing (ClinicalTrials.gov identifier NCT03272165).

Future Perspectives

Despite the advancement in the development of immune based therapies for HD and α-synucleinopathies, alleviation of disease progression has not been fully achieved. Most of the immunotherapies and anti-inflammatory agents currently used to treat a variety of neurodegenerative diseases have little to no disease-alleviating properties, which accounts for their failures in clinical trials. It appears that the pitfalls of these compounds are in the multiple pathogenic cascades associated with these neurodegenerative diseases. Intuitively, the human brain is a very complex system and sometimes the structural measures do not necessarily predict functional capacity (i.e., correspond to function). In other words, one cannot account for functional and cognitive recoveries by looking at the structural changes alone, particularly when damage is not restricted to a single brain region, as is the case of proteinopathy-induced neurodegenerative diseases. Targeting the immune system might be insufficient to restore functional capacity in HD and α-synucleinopathies. Also, since neurodegenerative diseases show complexity, combination therapies or multi-target drugs targeting several dysregulated mechanistic pathways might be required to achieve a significant functional recovery and halt or delay disease progression (Figure 3). Combination therapy is a multi-modality therapeutic approach targeting multiple components of biological regulatory circuits in order to achieve stronger efficacy in terms of addictive or even synergistic effects (138, 139). According to a mathematic model, combination therapies that target distinct pathways might produce a stronger, long-lasting treatment efficacy for a disease than individual treatments (140, 141). By identifying candidate drugs that target distinct pathways and administering them in combination may offer long-lasting beneficial effects for neurodegenerative proteinopathies. Taking a lesson from cancer immunotherapy, amalgamation of anticancer drugs that target key pathways in a characteristically synergistic or addictive manner proffers enhanced efficacy and efficiency compared to the monotherapy approach (142). In preclinical and clinical studies in which either cancer monotherapy targeting program cell death protein 1 (PD-1) or costimulatory receptor, glucocorticoid-induced tumor necrosis factor receptor-related protein (GITR) showed limited efficacy in mouse cancer models (143, 144), combination therapy achieved synergistic effects, leading to stronger T-cells activation and enhanced tumor control in mouse cancer models (145147). Also, the efficacy of the anti-SEMA4D antibody as an immunomodulatory therapy in tumors was enhanced by combination with other immunotherapies, including anti–CTLA-4, anti–PD-1, and cyclophosphamide (81, 82).

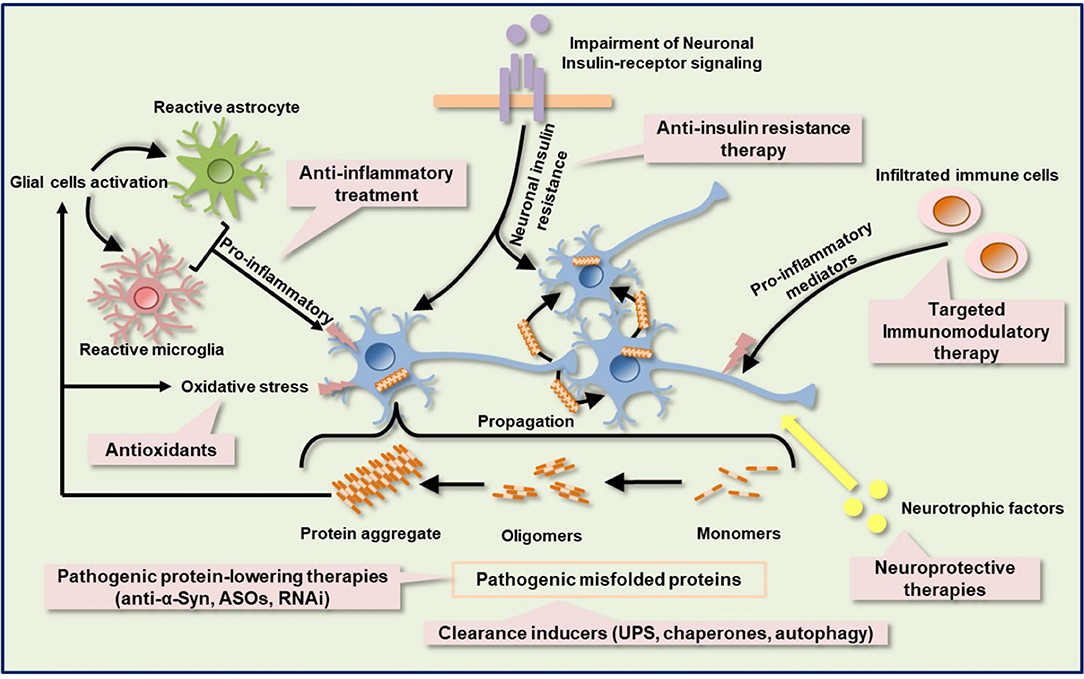

Figure 3

Although therapeutic targets against α-Syn are beneficial in cellular and rodent models of PD (130, 135), their translational efficacy in human clinical trials still poses a major challenge as underlying mechanisms are not fully understood.

Relatedly, anti-inflammatory agents currently used to treat a variety of neurodegenerative diseases demonstrated efficacy in various rodent preclinical models of HD; however, disease alleviating efficacy has rarely been achieved in clinical trials (55, 57).

Dysfunction of protein quality control systems such as autophagy, the ubiquitin-proteasome system, and chaperones have been reported in HD and α-synucleinopathies (148, 149) Enhancement of mHtt and α-Syn degradation through the above systems or some enzymes, neurosin (kallikrein 6) (150) may support the clearance of pathological α-Syn. After neural damage, several neurotrophic factors such as brain-derived neurotrophic factor (BDNF), ciliary neurotrophic factor (CNTF), glial cell line-derived neurotrophic factor (GDNF), cerebral dopamine neurotrophic factor (CDNF), and vascular endothelial growth factor (VEGF), which provide neuroprotective and neurorestorative effects via anti-inflammatory, anti-apoptotic, re-myelination, and axon regeneration properties, are significantly altered (151). VEGF has shown apparent neuroprotective effects in rodent preclinical models of PD, which is accompanied by an improvement in motor symptoms (152). Moreover, the use of VEGF in combination with other neurotrophic factors has shown a synergistic effect in 6-hydroxydopamine (6OHDA) partially lesioned rats (153). Additionally, Valera et al. demonstrated the stronger efficacy of combination of αSyn-targeted passive immunotherapy (CD5-D5) and anti-inflammatory treatment (lenalidomide) over each single treatment in MBP-α-Syn transgenic mice (154), further strengthening the therapeutic potential of strategic combination of treatments in neurodegenerative proteinopathies. Metabolic dysfunction such as type II diabetes mellitus has been associated with HD and PD. The mechanisms by which metabolic dysfunction induces exacerbation of neurodegenerative diseases are still not clear. Intuitively, neurodegenerative diseases and type II diabetes mellitus show similar pathologies, including mitochondrial impairment, oxidative stress, and chronic inflammation. Interestingly, insulin signaling and related molecule pathways were disturbed in neurodegenerative diseases and type II diabetes mellitus (155). Insulin signaling is known to be essential for neuron survival (156158).

Based on these findings, targeted multi-modality therapy could serve as a potential treatment strategy for polyQ diseases and α-synucleinopathies, where several potential immunotherapies have failed as disease-slowing treatments. The potential efficacy of these novel drugs might be enhanced through a combined therapy with other potential targeted drugs, such as mutant protein lowering agents (antisense oligonucleotide, RNAi, anti-α-Syn), chaperones, neurotrophic factors, anti-insulin resistance therapy, and antioxidants. Remarkably, early diagnosis and prompt treatment intervention during premanifest disease stage are crucial for successful combination treatment regimens in clinical trials.

Summary and Conclusion

Neuroinflammation is a major contributing factor in several neurological disorders, validating the use of immunotherapies and anti-inflammatory agents, such as anti-inflammatory cytokine biologics, as a therapeutic option to alleviate disease burden. In this review, we summarized findings evaluating the beneficial effects of immunotherapies in HD and α-synucleinopathies. Immunotherapies and anti-inflammatory agents have rarely achieved robust effectiveness in alleviating HD and α-synucleinopathies in human clinical trials. Evaluating the combined treatment strategy of immunotherapy with multiple target neurorestorative candidate drugs to target different processes that complement each other or the same process at different levels of pathogenesis for additive or synergistic effects, could probably show better efficacy in slowing down disease progression. While targeted multi-modality therapy is promising in terms of greater clinical efficacy, it is limited by its potential side effects and toxicity. Therefore, as with all monotherapy development, it is important to understand the molecular mechanisms, possible drug-drug interaction, and tolerability of side effects (safety) of each mono-drug and combination therapy. Also, optimizing the dose of drugs in combination, by using a lower dose, might help to reduce the risk of toxicity and side effects.

The development of multimodality therapy that targets inflammation-mediated progression and neurocircuitry disruptions might be warranted to alleviate disease burden as well as to improve the duration and quality of life of patients suffering from proteinopathy-induced neurodegeneration such as HD, SCAs, PD, DLB,b and MSA.

Statements

Author contributions

All authors listed have made a substantial, direct and intellectual contribution to the work, and approved it for publication.

Funding

This study was supported by AMED-CREST (18gm1210005h0001) to TY.

Conflict of interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

    Abbreviations

  • HD

    Huntington's disease

  • PD

    Parkinson's disease

  • mHtt

    mutant Htt protein

  • DLB

    dementia with Lewy bodies

  • MSA

    multiple system atrophy

  • SCAs

    spinocerebellar ataxias

  • α-Syn

    α-synuclein

  • mAb

    monoclonal antibody

  • UHDRS-TMS

    Unified Huntington's Disease Rating Scale-Total Motor Score

  • IL

    interleukin

  • IT-15

    interesting transcript 15

  • SCNA

    α-synuclein gene

  • LB

    Lewy body

  • LN

    Lewy neurite

  • BBB

    blood-brain barrier

  • MMP

    matrix metalloproteinase

  • TNF-α

    tumor necrosis factor-alpha

  • IFN-γ

    interferon-gamma

  • C1q

    complement component 1q

  • CXCLs

    chemokine (C-X-C motif) ligand 1

  • iNOS

    inducible nitric oxide synthase

  • ROS

    reactive oxygen species

  • RNS

    reactive nitrogen species

  • APC

    antigen-presenting cell

  • Abs

    antibodies

  • N-terminus

    amino terminus

  • C-terminus

    carboxyl terminus

  • ASOs

    antisense oligonucleotides

  • RNAi

    RNA interference

  • UPS

    ubiquitin proteasome system.

References

  • 1.

    AshleyCTJrWarrenST. Trinucleotide repeat expansion and human disease. Annu Rev Genet. (1995) 29:70328. 10.1146/annurev.ge.29.120195.003415

  • 2.

    BatesGPMangiariniLWankerEEDaviesSW. Polyglutamine expansion and Huntington's disease. Biochem Soc Trans. (1998) 26:4715. 10.1042/bst0260471

  • 3.

    CummingsCJZoghbiHY. Fourteen and counting: unraveling trinucleotide repeat diseases. Hum Mol Genet. (2000) 9:90916. 10.1093/hmg/9.6.909

  • 4.

    RübUSchölsLPaulsonHAuburgerGKermerPJenJCet al. Clinical features, neurogenetics and neuropathology of the polyglutamine spinocerebellar ataxias type 1, 2, 3, 6 and 7. Prog Neurobiol. (2013) 104:3866. 10.1016/j.pneurobio.2013.01.001

  • 5.

    MangiariniLSathasivamKSellerMCozensBHarperAHetheringtonCet al. Exon 1 of the HD gene with an expanded CAG repeat is sufficient to cause a progressive neurological phenotype in transgenic mice. Cell. (1996) 87:493506. 10.1016/S0092-8674(00)81369-0

  • 6.

    WalkerFO. Huntington's disease. Lancet. (2007) 369:21828. 10.1016/S0140-6736(07)60111-1

  • 7.

    RossCATabriziSJ. Huntington's disease: from molecular pathogenesis to clinical treatment. Lancet Neurol. (2011) 10:8398. 10.1016/S1474-4422(10)70245-3

  • 8.

    LawtonMBaigFRolinskiMRuffmanCNithiKMayMTet al. Parkinson's disease subtypes in the oxford Parkinson disease centre (OPDC) discovery cohort. J Parkinsons Dis. (2015) 5:26979. 10.3233/JPD-140523

  • 9.

    LawtonMBen-ShlomoYMayMTBaigFBarberTRKleinJCet al. Developing and validating Parkinson's disease subtypes and their motor and cognitive progression. J Neurol Neurosurg Psychiatry. (2018) 89:127987. 10.1136/jnnp-2018-318337

  • 10.

    GoedertMJakesRSpillantiniMG. The synucleinopathies: twenty years on. J Parkinsons Dis. (2017) 7(s1):S5169. 10.3233/JPD-179005

  • 11.

    PengCGathaganRJCovellDJMedellinCStieberARobinsonJLet al. Cellular milieu imparts distinct pathological alpha-synuclein strains in alphasynucleinopathies. Nature. (2018) 557:55863. 10.1038/s41586-018-0104-4

  • 12.

    BarberRPanikkarAMcKeithIG. Dementia with Lewy bodies: diagnosis and management. Int J Geriatr Psychiatry. (2001) 16(Suppl. 1):S128. 10.1002/1099-1166(200112)16:1+<::aid-gps562>3.0.co;2-3

  • 13.

    OuteiroTFKossDJErskineDWalkerLKurzawa-AkanbiMBurnDet al. Dementia with Lewy bodies: an update and outlook. Mol Neurodegener. (2019) 14:5. 10.1186/s13024-019-0306-8

  • 14.

    GilmanSWenningGKLowPABrooksDJMathiasCJTrojanowskiJQet al. Second consensus statement on the diagnosis of multiple system atrophy. Neurology. (2008) 71:6706. 10.1212/01.wnl.0000324625.00404.15

  • 15.

    WatanabeHRikuYHaraKKawabataKNakamuraTItoMet al. Clinical and imaging features of multiple system atrophy: challenges for an early and clinically definitive diagnosis. J Mov Disord. (2018) 11:10720. 10.14802/jmd.18020

  • 16.

    KrismerFWenningGK. Multiple system atrophy: insights into a rare and debilitating movement disorder. Nat Rev Neurol. (2017) 13:23243. 10.1038/nrneurol.2017.26

  • 17.

    JellingerKA. Multiple system atrophy: an oligodendroglioneural synucleinopathy1. J Alzheimers Dis. (2018) 62:114179. 10.3233/JAD-170397

  • 18.

    PengCGathaganRJLeeVM. Distinct alphaSynuclein strains and implications for heterogeneity among alpha-Synucleinopathies. Neurobiol Dis. (2018) 109(Pt B):20918. 10.1016/j.nbd.2017.07.018

  • 19.

    SappEKegelKBAroninNHashikawaTUchiyamaYTohyamaKet al. Early and progressive accumulation of reactive microglia in the Huntington disease brain. J Neuropathol Exp Neurol. (2001) 60:16172. 10.1093/jnen/60.2.161

  • 20.

    PaveseNGerhardATaiYFHoAKTurkheimerFBarkerRAet al. Microglial activation correlates with severity in Huntington disease: a clinical and PET study. Neurology. (2006) 66:163843. 10.1212/01.wnl.0000222734.56412.17

  • 21.

    BjörkqvistMWildEJThieleJSilvestroniAAndreRLahiriNet al. A novel pathogenic pathway of immune activation detectable before clinical onset in Huntington's disease. J Exp Med. (2008) 205:186977. 10.1084/jem.20080178

  • 22.

    CrottiABennerCKermanBEGosselinDLagier-TourenneCZuccatoCet al. Mutant Huntingtin promotes autonomous microglia activation via myeloid lineagedetermining factors. Nat Neurosci. (2014) 17:51321. 10.1038/nn.3668

  • 23.

    WeissATrägerUWildEJGrueningerSFarmerRLandlesCet al. Mutant huntingtin fragmentation in immune cells tracks Huntington's disease progression. J Clin Invest. (2012) 122:37316. 10.1172/JCI64565

  • 24.

    HsiaoHYChenYCChenHMTuPHChernY. A critical role of astrocyte-mediated nuclear factor-kappaB-dependent inflammation in Huntington's disease. Hum Mol Genet. (2013) 22:182642. 10.1093/hmg/ddt036

  • 25.

    TrägerUAndreRLahiriNMagnusson-LindAWeissAGrueningerSet al. HTT-lowering reverses Huntington's disease immune dysfunction caused by NFkappaB pathway dysregulation. Brain. (2014) 137(Pt 3):81933. 10.1093/brain/awt355

  • 26.

    Pido-LopezJAndreRBenjaminACAliNFaragSTabriziSJet al. In vivo neutralization of the protagonist role of macrophages during the chronic inflammatory stage of Huntington's disease. Sci Rep. (2018) 8:11447. 10.1038/s41598-018-29792-x

  • 27.

    OuchiYYoshikawaESekineYFutatsubashiMKannoTOgusuTet al. Microglial activation and dopamine terminal loss in early Parkinson's disease. Ann Neurol. (2005) 57:16875. 10.1002/ana.20338

  • 28.

    GerhardAPaveseNHottonGTurkheimerFEsMHammersAet al. In vivo imaging of microglial activation with [11C](R)-PK11195 PET in idiopathic Parkinson's disease. Neurobiol Dis. (2006) 21:40412. 10.1016/j.nbd.2005.08.002

  • 29.

    RealeMIarloriCThomasAGambiDPerfettiBDi NicolaMet al. Peripheral cytokines profile in Parkinson's disease. Brain Behav Immun. (2009) 23:5563. 10.1016/j.bbi.2008.07.003

  • 30.

    LeeHJSukJEPatrickCBaeEJChoJHRhoSet al. Direct transfer of alpha-synuclein from neuron to astroglia causes inflammatory responses in synucleinopathies. J Biol Chem. (2010) 285:926272. 10.1074/jbc.M109.081125

  • 31.

    HarmsASDelicVThomeADBryantNLiuZChandraSet al. alpha-Synuclein fibrils recruit peripheral immune cells in the rat brain prior to neurodegeneration. Acta Neuropathol Commun. (2017) 5:85. 10.1186/s40478-017-0494-9

  • 32.

    HarmsASThomeADYanZSchonhoffAMWilliamsGPLiXet al. Peripheral monocyte entry is required for alpha-synuclein induced inflammation and neurodegeneration in a model of Parkinson disease. Exp Neurol. (2018) 300:17987. 10.1016/j.expneurol.2017.11.010

  • 33.

    SurendranathanASuLMakEPassamontiLHongYTArnoldRet al. Early microglial activation and peripheral inflammation in dementia with Lewy bodies. Brain. (2018) 141:341527. 10.1093/brain/awy265

  • 34.

    WhiteAJWijeyekoonRSScottKMGunawardanaNPHayatSSolimIHet al. The peripheral inflammatory response to alpha-synuclein and endotoxin in Parkinson's disease. Front Neurol. (2018) 9:946. 10.3389/fneur.2018.00946

  • 35.

    GrozdanovVBoussetLHoffmeisterMBliederhaeuserCMeierCMadionaKet al. Increased immune activation by pathologic alpha-synuclein in Parkinson's disease. Ann Neurol. (2019) 86:593606. 10.1002/ana.25557

  • 36.

    HoffmannAEttleBBattisKReiprichSSchlachetzkiJCMMasliahEet al. Oligodendroglial alphasynucleinopathy-driven neuroinflammation in multiple system atrophy. Brain Pathol. (2019) 29:38096. 10.1111/bpa.12678

  • 37.

    TaiYFPaveseNGerhardATabriziSJBarkerRABrooksDJet al. Microglial activation in presymptomatic Huntington's disease gene carriers. Brain. (2007) 130(Pt 7):175966. 10.1093/brain/awm044

  • 38.

    EllrichmannGReickCSaftCLinkerRA. The role of the immune system in Huntington's disease. Clin Dev Immunol. (2013) 2013:541259. 10.1155/2013/541259

  • 39.

    RochaNPRibeiroFMFurr-StimmingETeixeiraAL. Neuroimmunology of Huntington's disease: revisiting evidence from human studies. Mediators Inflamm. (2016) 2016:8653132. 10.1155/2016/8653132

  • 40.

    GodavarthiSKet al. Induction of chemokines, MCP1, and KC in the mutant huntingtin expressing neuronal cells because of proteasomal dysfunction. J Neurochem. (2009) 108:78795. 10.1111/j.1471-4159.2008.05823.x

  • 41.

    KhoshnanASabbaughACalaminiBMarineroSADunnDEYooJHet al. IKKbeta and mutant huntingtin interactions regulate the expression of IL-34: implications for microglial-mediated neurodegeneration in HD. Hum Mol Genet. (2017) 26:426777. 10.1093/hmg/ddx315

  • 42.

    KhoshnanAKoJWatkinEEPaigeLAReinhartPHPattersonPH. Activation of the IkappaB kinase complex and nuclear factor-kappaB contributes to mutant huntingtin neurotoxicity. J Neurosci. (2004) 24:79998008. 10.1523/JNEUROSCI.2675-04.2004

  • 43.

    VendaLLCraggSJBuchmanVLWade-MartinsR. alpha-Synuclein and dopamine at the crossroads of Parkinson's disease. Trends in Neurosci. (2010) 33:55968. 10.1016/j.tins.2010.09.004

  • 44.

    ChengJLuQSongLHoMS. alpha-Synuclein trafficking in Parkinson's disease: insights from fly and mouse models. ASN Neuro. (2018) 10:1759091418812587. 10.1177/1759091418812587

  • 45.

    HasegawaYInagakiTSawadaMSuzumuraA. Impaired cytokine production by peripheral blood mononuclear cells and monocytes/macrophages in Parkinson's disease. Acta Neurol Scand. (2000) 101:15964. 10.1034/j.1600-0404.2000.101003159.x

  • 46.

    CollinsLMToulouseAConnorTJNolanYM. Contributions of central and systemic inflammation to the pathophysiology of Parkinson's disease. Neuropharmacology. (2012) 62:215468. 10.1016/j.neuropharm.2012.01.028

  • 47.

    WoermanALStöhrJAoyagiARampersaudRKrejciovaZWattsJCet al. Propagation of prions causing synucleinopathies in cultured cells. Proc Natl Acad Sci U S A. (2015) 112:E494958. 10.1073/pnas.1513426112

  • 48.

    GribaudoSTixadorPBoussetLFenyiALinoPMelkiRet al. Propagation of alpha-Synuclein strains within human reconstructed neuronal network. Stem Cell Rep. (2019) 12:23044. 10.1016/j.stemcr.2018.12.007

  • 49.

    TarutaniASuzukiGShimozawaANonakaTAkiyamaHHisanagaSet al. The effect of fragmented pathogenic alpha-synuclein seeds on prion-like propagation. J Biol Chem. (2016) 291:1867588. 10.1074/jbc.M116.734707

  • 50.

    GoedertMMasuda-SuzukakeMFalconB. Like prions: the propagation of aggregated tau and alphaSynuclein in neurodegeneration. Brain. (2017) 140:26678. 10.1093/brain/aww230

  • 51.

    JansenAHBatenburgKLPecho-VrieselingEReitsEA. Visualization of prion-like transfer in Huntington's disease models. Biochim Biophys Acta Mol Basis Dis. (2017) 1863:793800. 10.1016/j.bbadis.2016.12.015

  • 52.

    BabcockDTGanetzkyB. Transcellular spreading of huntingtin aggregates in the Drosophila brain. Proc Natl Acad Sci U S A. (2015) 112:E542733. 10.1073/pnas.1516217112

  • 53.

    JeonICicchettiFCisbaniGLeeSLiEBaeJet al. Human-to-mouse prion-like propagation of mutant huntingtin protein. Acta Neuropathol. (2016) 132:57792. 10.1007/s00401-016-1582-9

  • 54.

    MasnataMSciaccaGMaxanABoussetLDenisHLLauruolFet al. Demonstration of prion-like properties of mutant huntingtin fibrils in both in vitro and in vivo paradigms. Acta Neuropathol. (2019) 137:9811001. 10.1007/s00401-019-01973-6

  • 55.

    Teva Branded Pharmaceutical Products RDI. A clinical study in participants with Huntington's disease (HD) to assess efficacy and safety of three oral doses of laquinimod (LEGATO-HD). Available online at: https://ClinicalTrials.gov/show/NCT02215616

  • 56.

    Vaccinex Inc. Huntington Study Group. A study in subjects with late prodromal and early manifest Huntington's disease (HD) to assess the safety, tolerability, pharmacokinetics, and efficacy of pepinemab (VX15/2503) (SIGNAL). Available online at: https://ClinicalTrials.gov/show/NCT02481674

  • 57.

    Huntington Study Group DOMINO Investigators. A futility study of minocycline in Huntington's disease. Mov Disord. (2010) 25:221924. 10.1002/mds.23236

  • 58.

    Huntington Study Group. Minocycline safety and tolerability in Huntington disease. Neurology. (2004) 63:5479. 10.1212/01.WNL.0000133403.30559.FF

  • 59.

    AffirisAG. Tolerability and Safety of Subcutaneous Administration of Two Doses of AFFITOPE® PD01A in Early Parkinson's Disease. Available online at: https://ClinicalTrials.gov/show/NCT01568099

  • 60.

    AffirisAG. Study Assessing Tolerability and Safety of AFFITOPE® PD03A in Patients with Early Parkinson's Disease (AFF011). Available online at: https://ClinicalTrials.gov/show/NCT02267434

  • 61.

    AffirisAG. Follow-up Study to Assess a Second Boost Immunization with AFFITOPE® PD01A with Regard to Safety and Clinical Activity (AFF008AA). Available online at: https://ClinicalTrials.gov/show/NCT02618941

  • 62.

    AffirisAG. Study Assessing Safety and Therapeutic Activity of AFFITOPE® PD01A and PD03A in Patients with Early MSA (AFF009). Available online at: https://ClinicalTrials.gov/show/NCT02270489

  • 63.

    AstraZeneca. Single Ascending Dose Study of MEDI1341 in Healthy Volunteers. Available online at: https://ClinicalTrials.gov/show/NCT03272165

  • 64.

    SchenkDBKollerMNessDKGriffithSGGrundmanMZagoWet al. First-in-human assessment of PRX002, an anti-alpha-synuclein monoclonal antibody, in healthy volunteers. Mov Disord. (2017) 32:21118. 10.1002/mds.26878

  • 65.

    JankovicJGoodmanISafirsteinBMarmonTKSchenkDBKollerMet al. Safety and tolerability of multiple ascending doses of PRX002/RG7935, an anti-alphaSynuclein monoclonal antibody, in patients with Parkinson disease: a randomized clinical trial. JAMA Neurol. (2018) 75:120614. 10.1001/jamaneurol.2018.1487

  • 66.

    BrysMFanningLHungSEllenbogenAPennerNYangMet al. Randomized phase I clinical trial of antialpha-synuclein antibody BIIB054. Mov Disord. (2019) 10.1002/mds.27738

  • 67.

    Inc. B. A Study to Evaluate Safety, Tolerability, Pharmacokinetics, and Pharmacodynamics of BIIB054 in Japanese Participants with Parkinson's Disease. Available online at: https://ClinicalTrials.gov/show/NCT03716570

  • 68.

    GendelmanHEZhangYSantamariaPOlsonKESchuttCRBhattiDet al. Evaluation of the safety and immunomodulatory effects of sargramostim in a randomized, double-blind phase 1 clinical Parkinson's disease trial. NPJ Parkinson's disease. (2017) 3:10. 10.1038/s41531-017-0013-5

  • 69.

    YangJSXuLYXiaoBGHedlundGLinkH. Laquinimod (ABR-215062) suppresses the development of experimental autoimmune encephalomyelitis, modulates the Th1/Th2 balance and induces the Th3 cytokine TGF-beta in Lewis rats. J Neuroimmunol. (2004) 156:39. 10.1016/j.jneuroim.2004.02.016

  • 70.

    BrückWWegnerC. Insight into the mechanism of laquinimod action. J Neurol Sci. (2011) 306:1739. 10.1016/j.jns.2011.02.019

  • 71.

    AharoniRSaadaREilamRHayardenyLSelaMArnonR. Oral treatment with laquinimod augments regulatory T-cells and brain-derived neurotrophic factor expression and reduces injury in the CNS of mice with experimental autoimmune encephalomyelitis. J Neuroimmunol. (2012) 251:1424. 10.1016/j.jneuroim.2012.06.005

  • 72.

    ThoneJEllrichmannGSeubertSPerugaILeeDHConradRet al. Modulation of autoimmune demyelination by laquinimod via induction of brain-derived neurotrophic factor. Am J Pathol. (2012) 180:26774. 10.1016/j.ajpath.2011.09.037

  • 73.

    GurevichMGritzmanTOrbachRTullerTFeldmanAAchironA. Laquinimod suppress antigen presentation in relapsing-remitting multiple sclerosis: in-vitro high-throughput gene expression study. J Neuroimmunol. (2010) 221:8794. 10.1016/j.jneuroim.2010.02.010

  • 74.

    DobsonLTrägerUFarmerRHayardenyLLoupePHaydenMRet al. Laquinimod dampens hyperactive cytokine production in Huntington's disease patient myeloid cells. J Neurochem. (2016) 137:78294. 10.1111/jnc.13553

  • 75.

    Garcia-MirallesMHongXTanLJCaronNSHuangYToXVet al. Laquinimod rescues striatal, cortical and white matter pathology and results in modest behavioural improvements in the YAC128 model of Huntington disease. Sci Rep. (2016) 6:31652. 10.1038/srep31652

  • 76.

    Garcia-MirallesMYusofNABMTanJYRadulescuCISidikHTanLJet al. Laquinimod treatment improves myelination deficits at the transcriptional and ultrastructural levels in the YAC128 mouse model of Huntington disease. Mol Neurobiol. (2019) 56:446478. 10.1007/s12035-018-1393-1

  • 77.

    EhrnhoeferDECaronNSDengYQiuXTsangMHaydenMR. Laquinimod decreases Bax expression and reduces caspase-6 activation in neurons. Exp Neurol. (2016) 283(Pt A):1218. 10.1016/j.expneurol.2016.06.008

  • 78.

    EllrichmannGBluschA2FatobaO2BrunnerJ2ReickC2HayardenyLet al. Laquinimod treatment in the R6/2 mouse model. Sci Rep. (2017) 7:4947. 10.1038/s41598-017-04990-1

  • 79.

    TamagnoneLArtigianiSChenHHeZMingGISongHet al. Plexins are a large family of receptors for transmembrane, secreted, and GPIanchored semaphorins in vertebrates. Cell. (1999) 99:7180. 10.1016/S0092-8674(00)80063-X

  • 80.

    BasileJRBaracAZhuTGuanKLGutkindJS. Class IV semaphorins promote angiogenesis by stimulating Rho-initiated pathways through plexin-B. Cancer Res. (2004) 64:521224. 10.1158/0008-5472.CAN-04-0126

  • 81.

    EvansEEJonasonASBusslerHTornoSVeeraraghavanJReillyCet al. Antibody blockade of semaphorin 4D promotes immune infiltration into tumor and enhances response to other immunomodulatory therapies. Cancer Immunol Res. (2015) 3:689701. 10.1158/2326-6066.CIR-14-0171

  • 82.

    EvansEEParisMSmithESZaudererM. Immunomodulation of the tumor microenvironment by neutralization of Semaphorin 4D. Oncoimmunology. (2015) 4:e1054599. 10.1080/2162402X.2015.1054599

  • 83.

    SwierczJMKunerRBehrensJOffermannsS. Plexin-B1 directly interacts with PDZ-RhoGEF/LARG to regulate RhoA and growth cone morphology. Neuron. (2002) 35:5163. 10.1016/S0896-6273(02)00750-X

  • 84.

    OinumaIIshikawaYKatohHNegishiM. The semaphorin 4D receptor plexinB1 is a GTPase activating protein for R-Ras. Science. (2004) 305:8625. 10.1126/science.1097545

  • 85.

    ItoYOinumaIKatohHKaibuchiKNegishiM. Sema4D/plexin-B1 activates GSK-3beta through R-Ras GAP activity, inducing growth cone collapse. EMBO Rep. (2006) 7:7049. 10.1038/sj.embor.7400737

  • 86.

    KumanogohAKikutaniH. The CD100-CD72 interaction: a novel mechanism of immune regulation. Trends Immunol. (2001) 22:6706. 10.1016/S1471-4906(01)02087-7

  • 87.

    KumanogohAWatanabeCLeeIWangXShiWArakiHet al. Identification of CD72 as a lymphocyte receptor for the class IV semaphorin CD100: a novel mechanism for regulating B cell signaling. Immunity. (2000) 13:62131. 10.1016/S1074-7613(00)00062-5

  • 88.

    OkunoTNakatsujiYMoriyaMTakamatsuHNojimaSTakegaharaNet al. Roles of Sema4D-plexin-B1 interactions in the central nervous system for pathogenesis of experimental autoimmune encephalomyelitis. J Immunol. (2010) 184:1499506. 10.4049/jimmunol.0903302

  • 89.

    SouthwellALFranciosiSVillanuevaEBXieYWinterLAVeeraraghavanJet al. Anti-semaphorin 4D immunotherapy ameliorates neuropathology and some cognitive impairment in the YAC128 mouse model of Huntington disease. Neurobiol Dis. (2015) 76:4656. 10.1016/j.nbd.2015.01.002

  • 90.

    LocksleyRMKilleenNLenardoMJ. The TNF and TNF receptor superfamilies: integrating mammalian biology. Cell. (2001) 104:487501. 10.1016/S0092-8674(01)00237-9

  • 91.

    GrellMDouniEWajantHLöhdenMClaussMMaxeinerBet al. The transmembrane form of tumor necrosis factor is the prime activating ligand of the 80 kDa tumor necrosis factor receptor. Cell. (1995) 83:793802. 10.1016/0092-8674(95)90192-2

  • 92.

    MacEwanDJ. TNF receptor subtype signalling: differences and cellular consequences. Cell Signal. (2002) 14:47792. 10.1016/S0898-6568(01)00262-5

  • 93.

    AggarwalBB. Signalling pathways of the TNF superfamily: a double-edged sword. Nat Rev Immunol. (2003) 3:74556. 10.1038/nri1184

  • 94.

    SteelandSLibertCVandenbrouckeRE. A new venue of TNF targeting. Int J Mol Sci. (2018) 19:1442. 10.3390/ijms19051442

  • 95.

    SedgerLMMcDermottMF. TNF and TNFreceptors: from mediators of cell death and inflammation to therapeutic giants - past, present and future. Cytokine Growth Factor Rev. (2014) 25:45372. 10.1016/j.cytogfr.2014.07.016

  • 96.

    McIlwainDRBergerTMakTW. Caspase functions in cell death and disease. Cold Spring Harb Perspect Biol. (2013) 5:a008656. 10.1101/cshperspect.a008656

  • 97.

    PolitisMLahiriNNiccoliniFSuPWuKGiannettiPet al. Increased central microglial activation associated with peripheral cytokine levels in premanifest Huntington's disease gene carriers. Neurobiol Dis. (2015) 83:11521. 10.1016/j.nbd.2015.08.011

  • 98.

    HsiaoHYChiuFLChenCMWuYRChenHMChenYCet al. Inhibition of soluble tumor necrosis factor is therapeutic in Huntington's disease. Hum Mol Genet. (2014) 23:432844. 10.1093/hmg/ddu151

  • 99.

    SteedPMTanseyMGZalevskyJZhukovskyEADesjarlaisJRSzymkowskiDEet al. Inactivation of TNF signaling by rationally designed dominant-negative TNF variants. Science. (2003) 301:18958. 10.1126/science.1081297

  • 100.

    Pido-LopezJTanudjojoBFaragSBondulichMKAndreRTabriziSJet al. Inhibition of tumour necrosis factor alpha in the R6/2 mouse model of Huntington's disease by etanercept treatment. Sci Rep. (2019) 9:7202. 10.1038/s41598-019-43627-3

  • 101.

    TweedieDSambamurtiKGreigNH. TNFalpha inhibition as a treatment strategy for neurodegenerative disorders: new drug candidates and targets. Curr Alzheimer Res. (2007) 4:37885. 10.2174/156720507781788873

  • 102.

    McCoyMKTanseyMG. TNF signaling inhibition in the CNS: implications for normal brain function and neurodegenerative disease. J Neuroinflammation. (2008) 5:45. 10.1186/1742-2094-5-45

  • 103.

    YongVWWellsJGiulianiFCashaSPowerCMetzLM. The promise of minocycline in neurology. Lancet Neurol. (2004) 3:74451. 10.1016/S1474-4422(04)00937-8

  • 104.

    ChenMOnaVOLiMFerranteRJFinkKBZhuSet al. Minocycline inhibits caspase-1 and caspase-3 expression and delays mortality in a transgenic mouse model of Huntington disease. Nat Med. (2000) 6:797801. 10.1038/77528

  • 105.

    StackECSmithKMRyuHCormierKChenMHagertySWet al. Combination therapy using minocycline and coenzyme Q10 in R6/2 transgenic Huntington's disease mice. Biochim Biophys Acta. (2006) 1762:37380. 10.1016/j.bbadis.2005.11.002

  • 106.

    SmithDLWoodmanBMahalASathasivamKGhazi-NooriSLowdenPAet al. Minocycline and doxycycline are not beneficial in a model of Huntington's disease. Ann Neurol. (2003) 54:18696. 10.1002/ana.10614

  • 107.

    BantubungiKJacquardCGrecoAPintorAChtartoATaiKet al. Minocycline in phenotypic models of Huntington's disease. Neurobiol Dis. (2005) 18:20617. 10.1016/j.nbd.2004.09.017

  • 108.

    DiguetEFernagutPOWeiXDuYRoulandRGrossCet al. Deleterious effects of minocycline in animal models of Parkinson's disease and Huntington's disease. Eur J Neurosci. (2004) 19:326676. 10.1111/j.0953-816X.2004.03372.x

  • 109.

    MievisSLevivierMCommuniDVassartGBrotchiJLedentCet al. Lack of minocycline efficiency in genetic models of Huntington's disease. Neuromolecular Med. (2007) 9:4754. 10.1385/NMM:9:1:47

  • 110.

    RamsinghAIManleyKRongYReillyAMesserA. Transcriptional dysregulation of inflammatory/immune pathways after active vaccination against Huntington's disease. Hum Mol Genet. (2015) 24:618697. 10.1093/hmg/ddv335

  • 111.

    MillerTWShirleyTLWolfgangWJKangXMesserA. DNA vaccination against mutant huntingtin ameliorates the HDR6/2 diabetic phenotype. Mol Ther. (2003) 7(5 Pt 1):5729. 10.1016/S1525-0016(03)00063-7

  • 112.

    MarschallALDübelSBöldickeT. Specific in vivo knockdown of protein function by intrabodies. MAbs. (2015) 7:101035. 10.1080/19420862.2015.1076601

  • 113.

    ButlerDCMesserA. Bifunctional anti-huntingtin proteasome-directed intrabodies mediate efficient degradation of mutant huntingtin exon 1 protein fragments. PLoS ONE. (2011) 6:e29199. 10.1371/journal.pone.0029199

  • 114.

    Snyder-KellerAMcLearJAHathornTMesserA. Early or late-stage anti-Nterminal huntingtin intrabody gene therapy reduces pathological features in B6.HDR6/1 mice. J Neuropathol Exp Neurol. (2010) 69:107885. 10.1097/NEN.0b013e3181f530ec

  • 115.

    SouthwellALKhoshnanADunnDEBuggCWLoDCPattersonPH. Intrabodies binding the prolinerich domains of mutant huntingtin increase its turnover and reduce neurotoxicity. J Neurosci. (2008) 28:901320. 10.1523/JNEUROSCI.2747-08.2008

  • 116.

    SouthwellALKoJPattersonPH. Intrabody gene therapy ameliorates motor, cognitive, and neuropathological symptoms in multiple mouse models of Huntington's disease. J Neurosci. (2009) 29:13589602. 10.1523/JNEUROSCI.4286-09.2009

  • 117.

    AmaroIAHendersonLA. An intrabody drug (rAAV6-INT41) reduces the binding of N-Terminal Huntingtin fragment(s) to DNA to basal levels in PC12 cells and Delays cognitive loss in the R6/2 animal model. J Neurodegener Dis. (2016) 2016:7120753. 10.1155/2016/7120753

  • 118.

    WangCETydlackaSOrrALYangSHGrahamRKHaydenMRet al. Accumulation of N-terminal mutant huntingtin in mouse and monkey models implicated as a pathogenic mechanism in Huntington's disease. Hum Mol Genet. (2008) 17:273851. 10.1093/hmg/ddn175

  • 119.

    ShameliAXiaoWZhengYShyuSSumodiJMeyersonHJet al. A critical role for alpha-synuclein in development and function of T lymphocytes. Immunobiology. (2016) 221:33340. 10.1016/j.imbio.2015.10.002

  • 120.

    SulzerDAlcalayRNGarrettiFCoteLKanterEAgin-LiebesJet al. T cells from patients with Parkinson's disease recognize alpha-synuclein peptides. Nature. (2017) 546:65661. 10.1038/nature22815

  • 121.

    RacetteBAGrossAVouriSMCamacho-SotoAWillisAWSearles NielsenS. Immunosuppressants and risk of Parkinson disease. Ann Clin Transl Neurol. (2018) 5:8705. 10.1002/acn3.580

  • 122.

    MandlerMValeraERockensteinEWeningerHPatrickCAdameAet al. Next-generation active immunization approach for synucleinopathies: implications for Parkinson's disease clinical trials. Acta Neuropathol. (2014) 127:86179. 10.1007/s00401-014-1256-4

  • 123.

    GhochikyanAPetrushinaIDavtyanHHovakimyanASaingTDavtyanAet al. Immunogenicity of epitope vaccines targeting different B cell antigenic determinants of human alpha-synuclein: feasibility study. Neurosci Lett. (2014) 560:8691. 10.1016/j.neulet.2013.12.028

  • 124.

    GernerMYCaseyKAKastenmullerWGermainRN. Dendritic cell and antigen dispersal landscapes regulate T cell immunity. J Exp Med. (2017) 214:310522. 10.1084/jem.20170335

  • 125.

    UgenKELinXBaiGLiangZCaiJLiKet al. Evaluation of an alpha synuclein sensitized dendritic cell based vaccine in a transgenic mouse model of Parkinson disease. Hum Vaccin Immunother. (2015) 11:92230. 10.1080/21645515.2015.1012033

  • 126.

    MandlerMElviraValeraEdwardRockensteinMichaelManteHaraldWeningerChristinaPatricket al. Active immunization against alpha-synuclein ameliorates the degenerative pathology and prevents demyelination in a model of multiple system atrophy. Mol Neurodegener. (2015) 10:10. 10.1186/s13024-015-0008-9

  • 127.

    DuftyBMWarnerLRHouSTJiangSXGomez-IslaTLeenhoutsKMet al. Calpain-cleavage of alpha-synuclein: connecting proteolytic processing to disease-linked aggregation. Am J Pathol. (2007) 170:172538. 10.2353/ajpath.2007.061232

  • 128.

    LiWWestNCollaEPletnikovaOTroncosoJCMarshLet al. Aggregation promoting C-terminal truncation of alpha-synuclein is a normal cellular process and is enhanced by the familial Parkinson's disease-linked mutations. Proc Natl Acad Sci U S A. (2005) 102:21627. 10.1073/pnas.0406976102

  • 129.

    MasliahERockensteinEManteMCrewsLSpencerBAdameAet al. Passive immunization reduces behavioral and neuropathological deficits in an alpha-synuclein transgenic model of Lewy body disease. PLoS ONE. (2011) 6:e19338. 10.1371/journal.pone.0019338

  • 130.

    BaeEJLeeHJRockensteinEHoDHParkEBYangNYet al. Antibody-aided clearance of extracellular alpha-synuclein prevents cell-to-cell aggregate transmission. J Neurosci. (2012) 32:1345469. 10.1523/JNEUROSCI.1292-12.2012

  • 131.

    GamesDValeraESpencerBRockensteinEManteMAdameAet al. Reducing C-terminal-truncated alphasynuclein by immunotherapy attenuates neurodegeneration and propagation in Parkinson's disease-like models. J Neurosci. (2014) 34:944154. 10.1523/JNEUROSCI.5314-13.2014

  • 132.

    TranHTChungCH-YIbaMZhangBTrojanowskiJQLukKCet al. Alpha-synuclein immunotherapy blocks uptake and templated propagation of misfolded alphasynuclein and neurodegeneration. Cell Rep. (2014) 7:205465. 10.1016/j.celrep.2014.05.033

  • 133.

    ShahaduzzamanMNashKHudsonCSharifMGrimmigBLinXet al. Anti-human alpha-synuclein N-terminal peptide antibody protects against dopaminergic cell death and ameliorates behavioral deficits in an AAV-alpha-synuclein rat model of Parkinson's disease. PLoS ONE. (2015) 10:e0116841. 10.1371/journal.pone.0116841

  • 134.

    LindströmVFagerqvistTNordströmEErikssonFLordATuckerSet al. Immunotherapy targeting alphasynuclein protofibrils reduced pathology in (Thy-1)h[A30P] alpha-synuclein mice. Neurobiol Dis. (2014) 69:13443. 10.1016/j.nbd.2014.05.009

  • 135.

    KallabMHerrera-VaqueroMJohannessonMErikssonFSigvardsonJPoeweWet al. Region-specific effects of immunotherapy with antibodies targeting alpha-synuclein in a transgenic model of synucleinopathy. Front Neurosci. (2018) 12:452. 10.3389/fnins.2018.00452

  • 136.

    WeihofenALiuYArndtJWHuyCQuanCSmithBAet al. Development of an aggregateselective, human-derived alpha-synuclein antibody BIIB054 that ameliorates disease phenotypes in Parkinson's disease models. Neurobiol Dis. (2019) 124:27688. 10.1016/j.nbd.2018.10.016

  • 137.

    SchofieldDJIrvingLCaloLBogstedtAReesGNuccitelliAet al. Preclinical development of a high affinity alpha-synuclein antibody, MEDI1341, that can enter the brain, sequester extracellular alpha-synuclein and attenuate alpha-synuclein spreading in vivo. Neurobiol Dis. (2019) 132:104582. 10.1016/j.nbd.2019.104582

  • 138.

    PemovskaTBigenzahnJWSuperti-FurgaG. Recent advances in combinatorial drug screening and synergy scoring. Curr Opin Pharmacol. (2018) 42:10210. 10.1016/j.coph.2018.07.008

  • 139.

    MeyerCTWootenDJPaudelBBBauerJHardemanKNWestoverDet al. Quantifying drug combination synergy along potency and efficacy axes. Cell Syst. (2019) 8:97108.e16. 10.1016/j.cels.2019.01.003

  • 140.

    BozicIReiterJGAllenBAntalTChatterjeeKShahPet al. Evolutionary dynamics of cancer in response to targeted combination therapy. Elife. (2013) 2:e00747. 10.7554/eLife.00747

  • 141.

    SaputraECHuangLChenYTucker-KelloggL. Combination therapy and the evolution of resistance: the theoretical merits of synergism and antagonism in cancer. Cancer Res. (2018) 78:241931. 10.1158/0008-5472.CAN-17-1201

  • 142.

    Bayat MokhtariRet al. Combination therapy in combating cancer. Oncotarget. (2017) 8:3802243. 10.18632/oncotarget.16723

  • 143.

    KneeDAHewesBBrogdonJLKneeDAHewesBBrogdonJL. Rationale for anti-GITR cancer immunotherapy. Eur J Cancer. (2016) 67:110. 10.1016/j.ejca.2016.06.028

  • 144.

    SiuLLHomayouniTSBaluchNMorgatskayaEKumarSDasBet al. Preliminary results of a phase I/IIa study of BMS-986156 (glucocorticoid-induced tumor necrosis factor receptor-related gene [GITR] agonist), alone and in combination with nivolumab in pts with advanced solid tumors. J Clin Oncol. (2017) 35:104. 10.1200/JCO.2017.35.15_suppl.104

  • 145.

    LuLXuXZhangBZhangRJiHWangX. Combined PD-1 blockade and GITR triggering induce a potent antitumor immunity in murine cancer models and synergizes with chemotherapeutic drugs. J Transl Med. (2014) 12:36. 10.1186/1479-5876-12-36

  • 146.

    Twyman-Saint VictorCRechAJMaityARenganRPaukenKEStelekatiEet al. Radiation and dual checkpoint blockade activate non-redundant immune mechanisms in cancer. Nature. (2015) 520:3737. 10.1038/nature14292

  • 147.

    WangBZhangWJankovicVGolubovJPoonPOswaldEMet al. Combination cancer immunotherapy targeting PD-1 and GITR can rescue CD8(+) t cell dysfunction and maintain memory phenotype. Sci Immunol. (2018) 3:eaat7061. 10.1126/sciimmunol.aat7061

  • 148.

    ZondlerLKostkaMGaridelPHeinzelmannUHengererBMayerBet al. Proteasome impairment by alpha-synuclein. PLoS ONE. (2017) 12:e0184040. 10.1371/journal.pone.0184040

  • 149.

    Ebrahimi-FakhariDMcLeanPJUnniVK. Alpha-synuclein's degradation in vivo: opening a new (cranial) window on the roles of degradation pathways in Parkinson disease. Autophagy. (2012) 8:2813. 10.4161/auto.8.2.18938

  • 150.

    SpencerBMichaelSShenJKosbergKRockensteinEPatrickCet al. Lentivirus mediated delivery of neurosin promotes clearance of wild-type alphasynuclein and reduces the pathology in an alphasynuclein model of LBD. Mol Ther. (2013) 21:3141. 10.1038/mt.2012.66

  • 151.

    NasrolahiAMahmoudiJAkbarzadehAKarimipourMSadigh-EteghadSSalehiRet al. Neurotrophic factors hold promise for the future of Parkinson's disease treatment: is there a light at the end of the tunnel?Rev Neurosci. (2018) 29:47589. 10.1515/revneuro-2017-0040

  • 152.

    FalkTYueXZhangSMcCourtADYeeBJGonzalezRTet al. Vascular endothelial growth factor-B is neuroprotective in an in vivo rat model of Parkinson's disease. Neurosci Lett. (2011) 496:437. 10.1016/j.neulet.2011.03.088

  • 153.

    HerránERequejoCRuiz-OrtegaJAAristietaAIgartuaMBengoetxeaHet al. Increased antiParkinson efficacy of the combined administration of VEGF- and GDNF-loaded nanospheres in a partial lesion model of Parkinson's disease. Int J Nanomedicine. (2014) 9:267787. 10.2147/IJN.S61940

  • 154.

    ValeraESpencerBFieldsJATrinhIAdameAManteMet al. Combination of alpha-synuclein immunotherapy with anti-inflammatory treatment in a transgenic mouse model of multiple system atrophy. Acta Neuropathol Commun. (2017) 5:2. 10.1186/s40478-016-0409-1

  • 155.

    TakamatsuYHoGKoikeWSugamaSTakenouchiTWaragaiMet al. Combined immunotherapy with “anti-insulin resistance” therapy as a novel therapeutic strategy against neurodegenerative diseases. NPJ Parkinsons Dis. (2017) 3:4. 10.1038/s41531-016-0001-1

  • 156.

    ApostolatosASongSAcostaSPeartMWatsonJEBickfordPet al. Insulin promotes neuronal survival via the alternatively spliced protein kinase CdeltaII isoform. J Biol Chem. (2012) 287:9299310. 10.1074/jbc.M111.313080

  • 157.

    TakachOGillTBSilvermanMA. Modulation of insulin signaling rescues BDNF transport defects independent of tau in amyloid-beta oligomer-treated hippocampal neurons. Neurobiol Aging. (2015) 36:137882. 10.1016/j.neurobiolaging.2014.11.018

  • 158.

    GuptaSYadavKMantriSSSinghalNKGaneshSSandhirR. Evidence for compromised insulin signaling and neuronal vulnerability in experimental model of sporadic alzheimer's disease. Mol Neurobiol. (2018) 55:891635. 10.1007/s12035-018-0985-0

Summary

Keywords

Huntington's disease, α-synucleinopathies, immune activation, immunotherapy, combination therapy

Citation

Fatoba O, Ohtake Y, Itokazu T and Yamashita T (2020) Immunotherapies in Huntington's disease and α-Synucleinopathies. Front. Immunol. 11:337. doi: 10.3389/fimmu.2020.00337

Received

04 December 2019

Accepted

11 February 2020

Published

25 February 2020

Volume

11 - 2020

Edited by

Robert Weissert, University of Regensburg, Germany

Reviewed by

Javier Fernández-Ruiz, Complutense University of Madrid, Spain; Shihua Li, Jinan University, China; Hong Jiang, Xiangya Hospital, China

Updates

Copyright

*Correspondence: Oluwaseun Fatoba Yosuke Ohtake

This article was submitted to Multiple Sclerosis and Neuroimmunology, a section of the journal Frontiers in Immunology

†These authors have contributed equally to this work

Disclaimer

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article or claim that may be made by its manufacturer is not guaranteed or endorsed by the publisher.

Outline

Figures

Cite article

Copy to clipboard


Export citation file


Share article

Article metrics
