Abstract
CD7-targeted chimeric antigen receptor-T (CAR-T) cell therapy has shown great promise in the treatment of relapsed/refractory T-cell acute lymphoblastic leukemia (T-ALL). In this study, we reported a case of a 34-year-old male patient with T-ALL who finally developed multi-line drug resistance and refractoriness after multiple lines of high-intensity chemotherapy. After physician evaluation, this patient received allogeneic hematopoietic stem cell transplantation (allo-HSCT). Then, The patient remained in complete remission (CR) for four months before a relapse with 26.64% chimerism rate, so he was treated with allogeneic anti-CD7 CAR-T cells after chemotherapy reducing the tumor burden. The CAR-T product was a novel anti-CD7 CAR-T based on retroviral vectors (RV). After infusion, the patient achieved CR within 1 month after anti-CD7 CAR-T infusion and the remission has been ongoing for 9 months to date. Cytokine release syndrome (CRS) 1 was experienced while no immune effector cell-associated neurotoxicity syndrome (ICANS) was found. In addition, CAR copy number peaked at 350, 758 copies/μg on day 6. This case report of clinical treatment of T-ALL with anti-CD7 CAR-T cells prepared using a retroviral vector without gene editing and combined with chemotherapy, which demonstrated that the RV-based anti-CD7 CAR-T cells had good therapeutic effect and high safety in triple-refractory T-ALL patients.
Introduction
Lymphocytic leukemia (ALL) is a hematological malignancy originating from B or T lymphocytes, and its pathogenesis involves genetic changes such as chromosomal translocation, mutations, and abnormal regulation of the cell cycle (, ). The total incidence rate of ALL is 3.85/100000 people, and patients under 19 years old account for 60% of the total ALL patients (). Among them, acute T-lymphocytic leukemia (T-ALL) accounts for 15% -25% of ALL, and is known as the invasive subtype of ALL (). T-ALL accounts for about 10% -15% of childhood ALL patients. The incidence rate peaked between 2-5 years old, with a median age of 18 years. Men are more than women. The complete remission (CR) rate is low, and the median survival period is only 11-17 months (). T-ALL is further divided into early T-cell type (early T-ALL) and mature T-cell type, with the former often having a worse prognosis than the latter ().
Meanwhile, relapsed/refractory (r/r) T-ALL still faces significant challenges, with extremely poor prognosis and a 3-5 year OS rate of only 7% to 23%. Chimeric antigen receptor T cells refer to T cells that have been genetically modified to express chimeric antigen receptors (CARs) that can specifically recognize tumor cell antigen molecules, thereby obtaining antigen-specific killing ability against tumor cells. CAR-T has achieved significant results in the treatment of hematological tumors and is a promising immunotherapy approach. CAR-T therapy can significantly improve the prognosis of patients with r/r B-ALL (–). However, due to the co-expression of many optional target antigens between normal and malignant T cells, CAR-T targeting T cell antigens will clear endogenous T cells in patients, which may lead to severe T cell immune deficiency. Therefore, designing CAR-T treatment plans for T-ALL remains a challenge (). Nevertheless, researchers are actively seeking specific targets that can be applied to such patients. Some preclinical studies have found that CAR-T targeting CD7 has anti-tumor effects in vitro and preclinical mouse model experiments (–).
In this study, we prepared novel anti-CD7 CAR-T based on retroviral vector technology. For RV packaging, Phoenix-ECO cells and PG13 cells were used to produce stable PG13 CD7 RV producer cell lines. PG13 was Gibbon Ape Leukemia Virus (GALV) Packaging cell lines. A patient with r/r T-ALL treated with allogeneic hematopoietic stem cell transplantation follow by anti-CD7 CAR-T cell therapy was also reported. One month after treatment, the patient had a complete remission (CR) that had lasted for more than 9 months.
Case presentation
A 34-year-old male was admitted to the hematology department of our hospital for fatigue, dizziness, chest tightness. After completing the relevant examinations, he was diagnosed with T-cell acute lymphoblastic leukemia (T cells, KRAS, NOTCH1, PHF6 mutations) in March 2023. The diagnostic results were as follows: Bone marrow biopsy revealed malignant tumor (Figure 1A). Peripheral blood smears showed 66% primitive and naive cells. Bone marrow smear cytology showed hyperactive proliferation of primitive cells, and bone marrow flow immunotyping showed: 71.9% cells expressed CD7, CD34part, cCD3, CD5, CD38, CD1a part, CD10part, TDT, CD99 and CD33part (Figure 1B). Comprehensive detection of ALL/LBL related genes showed that KRAS variation abundance was 45.20%, NOTCH1 variation abundance was 39.5%, and PHF6 variation abundance was 93.5%.

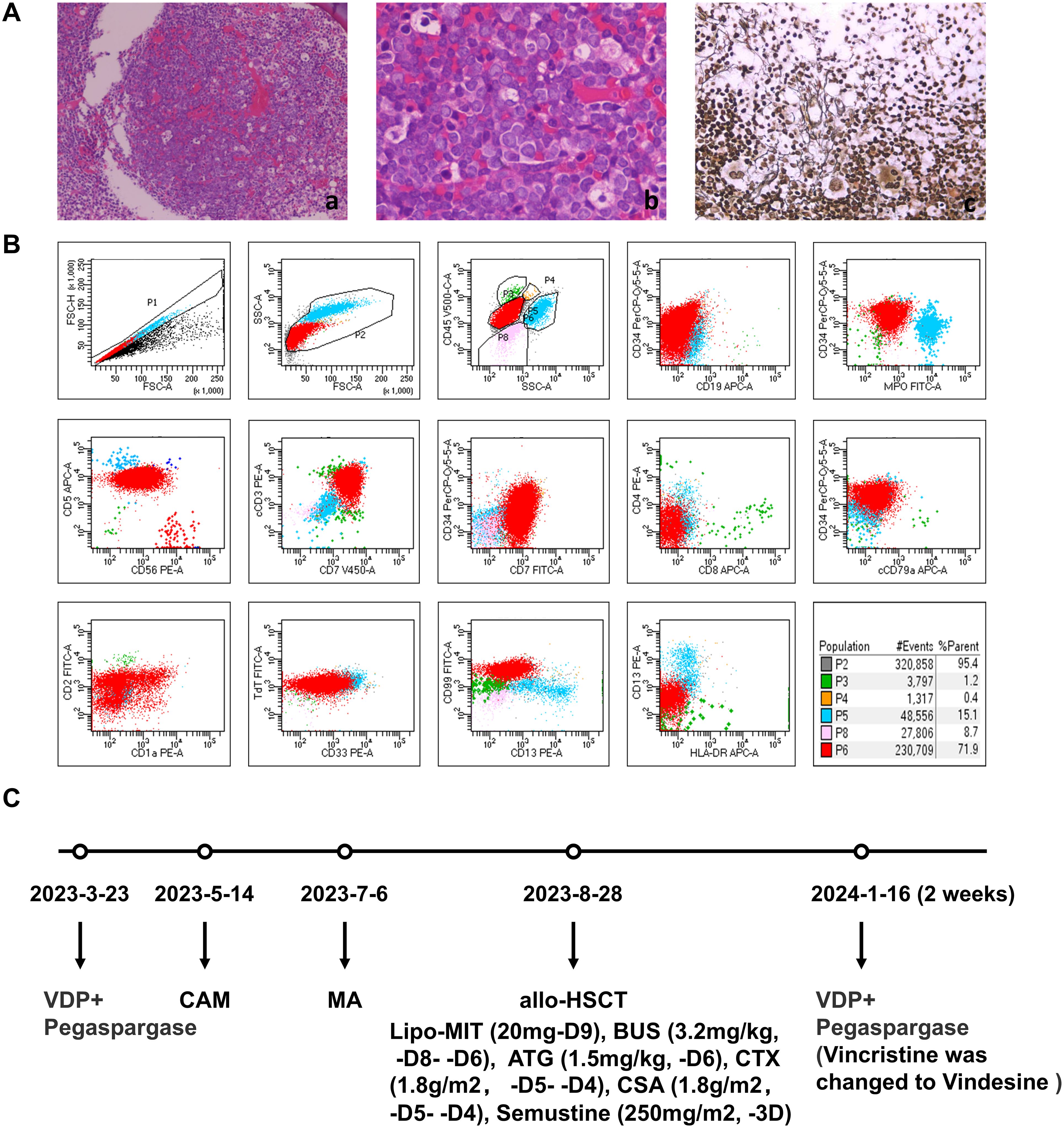

Figure 1
The treatment plan was shown in Figure 1C. Bone marrow tests showed that complete remission (CR) was achieved after 2 weeks of treatment with VDP+PEG-asp (Vincristine, Daunorubicin, Dexamethasone and Pegaspargase) from March 23, 2023. Then, CAM (Cyclophosphamide, Cytarabine, and Mercaptopurine tablets), HD-MTX (methotrexate) and MA (Mitoxantrone hydrochloride liposome and Cytarabine) were used for consolidation chemotherapy. Allogeneic hematopoietic stem cell transplantation (allo-HSCT) pre-treatment (Mitoxantrone hydrochloride liposome, Busulfan, Cyclophosphamide, and Semustine) was performed from August 18, 2023. On August 28, 2023, a allogeneic hematopoietic stem cell transplantation of 170ml (CD34 3.15 × 106/Kg, MNC 8.55 × 108/Kg) was performed.
The patient was maintained CR for 4 months after allo-HSCT, and then he was diagnosed with a relapse of T-ALL based on peripheral blood smears showing a significant increase in the number of original cells, and bone marrow smears showing that the number of original cells accounted for 76.5%, minimal residual disease (MRD) results showed that 54.9% of the original cells were abnormal naive T cells (Figure 2A) and bone marrow chimerism decreased to 26.64% on January 15, 2024. After allo-HSCT, Cyclosporine was used for immunosuppression, and the concentration of Cyclosporine was monitored regularly to maintain the dose of 100-200ug/L, and immunosuppressive therapy was stopped immediately after relapse.
Figure 2
After 2 weeks of treatment with VDP (Vindesine, Daunorubicin, Dexamethasone) +PEG asp, bone marrow smears showed that primitive immature cells accounted for 63.5%, and minimal residual disease (MRD) results showed that 21.9% of original cells were abnormal naive T cells (Figure 2A). Based on the unsatisfactory chemotherapy effect mentioned above, it was considered to change the chemotherapy regimen and combine CAR-T cells for treatment. Before immune cell therapy, VDP (Daunorubicin was changed to Mitoxantrone hydrochloride liposome) +PEG asp chemotherapy regimen was used. After one week of treatment, although the flow cytometry results on February 18, 2024 showed an MRD of 0.7% (Figure 2A), considering the high risk of disease recurrence and progression, subsequent infusion of allogeneic CAR-T cells aims to improve efficacy. The structure of the CAR is shown in Figure 3A. PBMCs were collected at D-16 for CAR-T cell preparation. After 16 days culture in vitro, the proportion of CD7+ T cells continued to decrease (Figure 3B), indicating that CD7 CAR-T exerted a killing effect on CD7+ T cells. We also performed killing assays to demonstrate the efficacy of CD7 CAR-T before infusion in vitro (Supplementary Figure 1). Fludarabine and Cyclophosphamide were used for lymphodepletion on March 01, 2024, then 50mL (total 1.80×108 cells) anti-CD7 CAR-T infusion was performed on March 06, 2024 (Figures 3C, D). During the treatment, the patient took oral probiotics to maintain intestinal flora homeostasis and prevent Graft versus host disease (GVHD), and then probiotics were administered long-term.

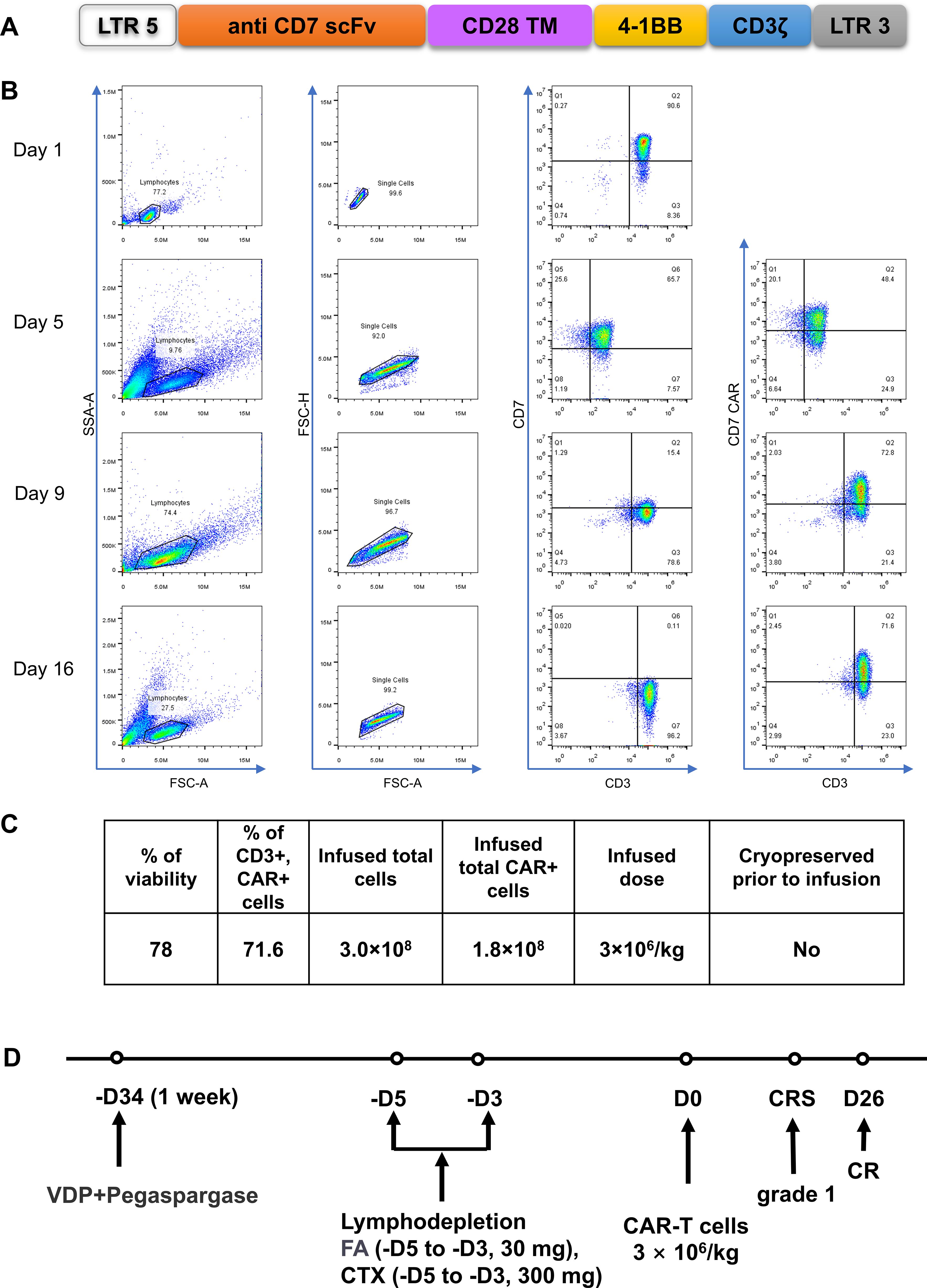

Figure 3
Two days after the infusion of anti-CD7 CAR-T, the patient developed severe neutropenia with fever and a maximum temperature of 39.0°C on March 07, 2024. At this time, the count of patient’s WBC and Neut decreased (Figure 4A), the levels of serum CRP (Figure 4A) and IL-6 (Figure 4B) also increased accordingly, which reached the highest peak within 1 week after infusion. Patients were considered to have grade 1 CRS according to the guidelines of the CARTOX Working group (). Ibuprofen was used for symptomatic treatment, Cefoperazone sulbactam sodium or meropenem or tigecycline were used for anti-infective treatment depending on the patient, and γ-Globulin was intermittently supplemented to enhance immunity. The RV copy numbers of CD7-CARs reached the peak at 350, 758 copies/μg by using qPCR to quantitatively analyse (Figure 4C). After one week infusion, a decrease in the proportion of T cells was followed by an increase (Figure 4D), indicating that CD7 CAR-T exerted effect for T-ALL. According to the bone marrow MRD analysis of T-ALL, MRD remained negative from the 26th day after CAR-T infusion (Figure 2B; Supplementary Figure 2), indicating that the patient’s condition was effectively controlled and achieved CR. At the same time, the bone marrow chimerism rate recovered from 26.64% before infusion to 100% (Figures 2C, D) and the patient did not experience any symptoms related to GVHD, such as gut microbiota disruption caused by diarrhea (Supplementary Figure 3).
Figure 4
After CAR-T therapy and symptomatic treatment, the patient’s condition improved and MRD was continuously negative, which was been 9 months without recurrence.
Discussion
CD7 is a transmembrane glycoprotein expressed in 90% -96% of normal T cells (), and is a potential target for the treatment of T-cell lymphoma. CAR-T cells targeting CD7 are considered to have a high CR rate in T-ALL (, ). For T-LBL with bone marrow involvement, autologous CD7 CAR-T cell therapy is currently not feasible due to the presence of a common antigen between normal and malignant T cells. The patient did not achieve satisfactory results after undergoing allo-HSCT treatment in this case. In recent years, allo-HSCT combined with CAR-T syndrome has gradually become an effective treatment measure (). Studies have shown that patients receiving CD7 CAR-T and sequential allo-HSCT have achieved satisfactory therapeutic effects (, ). However, pretreatment and allo-HSCT may also lead to depletion of CAR-T cells in vivo, affecting the long-term efficacy of CAR-T cell therapy (). How to further optimize the CAR-T combined with allo-HSCT strategy has become a problem that researchers need to solve. In this case, after allogeneic hematopoietic stem cell transplantation, the patient further underwent chemotherapy to reduce tumor burden and received donor derived CD7 CAR-T infusion to achieve CR efficacy. After administering CD7 CAR-T from the donor source, the patient did not experience any GVHD related symptoms such as diarrhea. It was considered that using gut microbiota as adjuvant therapy could alleviate the symptoms of GVHD (, ).
As a key factor in the preparation of CAR-T cells, the design of gene transduction vectors is currently mainly based on the use of RV and lentiviral vectors (, ). However, compared with lentiviral vectors, RV exhibits advantages in industrial production due to its ability to generate stable toxin producing cell lines, low plasmid dosage, low impurity content, good transduction effect, and high viral vector titer. So as to meet the requirements of high-throughput and low-cost CAR-T production, while ensuring effectiveness and safety (, ). Therefore, in this case, the novel anti CD7 CAR-T cells were prepared using RV. Not only has it achieved significant clinical therapeutic effects, but it also demonstrates the feasibility and cost control advantages of RV application in CAR-T cell production. Meanwhile, CAR-T cells did not exhibit abnormal proliferation. These results demonstrate that RV produced anti CD7 CAR-T cells have good clinical efficacy and safety.
Conclusion
In summary, this patient received allo-HSCT support, followed by chemotherapy and sequential anti-CD7 CAR-T cell immunotherapy. On the one hand, chemotherapy was used to reduce the burden of tumors, thereby lowering the risk of CRS response. On the other hand, it reflected the advantage of CAR-T cells in further precise tumor clearance in vivo, and once again validated the advantage of RV in preparing CAR-T cells to control tumor treatment costs, which also provided an effective clinical product for the treatment of relapsed/refractory T-ALL. This case demonstrated that RV-based anti-CD7 CAR-T cells have good therapeutic effects on patients with relapsed/refractory T-ALL. This is also the first clinical case of using RV to prepare anti-CD7 CAR-T cells.
Statements
Data availability statement
The original contributions presented in the study are included in the article/Supplementary Material. Further inquiries can be directed to the corresponding authors.
Ethics statement
The studies involving humans were approved by Medical Ethics Committee, School of Medicine, Wuhan University of Science and Technology. The studies were conducted in accordance with the local legislation and institutional requirements. The participants provided their written informed consent to participate in this study. Written informed consent was obtained from the individual(s) for the publication of any potentially identifiable images or data included in this article.
Author contributions
HZ: Validation, Writing – review & editing. WZ: Data curation, Writing – original draft, Writing – review & editing. QM: Data curation, Writing – original draft, Writing – review & editing. NL: Writing – review & editing, Project administration. MJ: Project administration, Writing – review & editing. YF: Supervision, Writing – review & editing. LZ: Supervision, Writing – review & editing. RL: Supervision, Writing – review & editing. HL: Supervision, Writing – review & editing. RS: Supervision, Writing – review & editing. YS: Funding acquisition, Project administration, Writing – review & editing. ZG: Funding acquisition, Methodology, Project administration, Writing – review & editing. JW: Methodology, Project administration, Supervision, Writing – review & editing. LL: Supervision, Writing – review & editing.
Funding
The author(s) declare that financial support was received for the research, authorship, and/or publication of this article. This study was supported by Nanshan District medical key discipline construction financial support project, Shenzhen Nanshan District Health System Science and Technology Major Project (No. NSZD2023018), the Project of Shenzhen Cell Valley·South China Laboratory of Cell Cultivation (2203-440310-04-01-245967), NHC Key Laboratory of Nuclear Technology Medical Transformation (Mianyang Central Hospital) (Grant No.2023HYX033).
Conflict of interest
The authors of Qihong Ma, Yaru Feng, Lijun Zhao, Rui Sun, Rongyou Li, Huaxiu Li, Yuanyuan Shi, Jianxun Wang are employed by Shenzhen Cell Valley Biomedical Co., LTD.
The remaining authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Generative AI statement
The author(s) declare that no Generative AI was used in the creation of this manuscript.
Publisher’s note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
Supplementary material
The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fimmu.2024.1519055/full#supplementary-material
Supplementary Figure 1The killing activity of CD7 CAR-T was detected by flow cytometry. Anti-CD7 CAR-T cells were co-cultured with Jurkat cells at a gradient of E/T ratio for 12 hours. CFSE and Annexin V were measured.
Supplementary Figure 2Bone marrow MRD analysis for November 7, 2024. Phenotypically abnormal primitive/naive T lymphocytes were not detected by flow cytometry in bone marrow samples. Mature T cells accounted for about 38.9% of the total number of nuclear cells, and their immunophenotype was CD3+, CD5+, CD2+, CD7 deficient expression, CD34-, CD99-, nTdT-, cCD3+.
Supplementary Figure 3Changes of intestinal flora after CAR-T infusion. (A) The relative abundance of fecal intestinal flora before and after CD7 CAR-T infusion at the gate level. (A) Relative abundance of beneficial and harmful bacteria in intestine before and after after CD7 CAR-T infusion. (a) Before infusion. (b) After infusion.
