H. Daniel Lacorazza- Department of Pathology & Immunology, Baylor College of Medicine, Houston, TX, United States
The Krüppel-like factor 4 (KLF4) is an evolutionarily conserved zinc finger transcription factor that regulates cellular processes in stem cells, epithelial cells, and immune blood cells by controlling gene expression through genetic, epigenetic, and chromatin remodeling. The landmark 2006 publication identified KLF4 as one of the factors involved in reprogramming differentiated cells into pluripotent stem cells, sparking increased interest in KLF4 research a decade after its discovery, particularly in the fields of stem cell research, epithelial cell biology, endothelial cell function, and tumorigenesis. Over the years, KLF4 has emerged as a key transcription factor in modulating innate and adaptive immunity, especially in macrophage differentiation and function. This review summarizes the key findings regarding KLF4 in normal blood cells and leukemia.
Introduction
KLF4 is a member of the Krüppel-like factor (KLF) family of transcription factors that play essential roles in stem cell functions, including self-renewal (1–5), pluripotency (1–3, 5, 6), embryogenesis (7), and erythropoiesis (8). The KLF4 protein contains three distinct functional domains involved in DNA binding, gene activation, and gene repression (9). Three zinc fingers within the carboxyl terminal domain mediate the binding of KLF4 to GC-rich sequences (i.e., CACCC) found in gene regulatory promoters and enhancers, leading to the recruitment of co-activators or co-repressors in a cell context-dependent manner (Figure 1A) (10). In addition to binding DNA, KLF4 regulates gene expression through protein-to-protein interactions with proteins bound to gene regulatory regions (e.g., the KLF4 to β-catenin interaction regulating the telomerase reverse transcriptase gene) (11). The expression of KLF4 is regulated at the transcriptional level through mechanisms such as CpG methylation, gene regulation, and miRNA, as well as by post-translational modifications including phosphorylation, acetylation, sumoylation, and methylation (12–14). The number of publications on KLF4 has steadily increased since its discovery in 1996, exhibiting an upward trend ten years later when Yamanaka’s group published their groundbreaking findings on reprogramming somatic cells into pluripotent stem cells by the factors KLF4, c-MYC, SOX2, and OCT3/4 (Figure 1B) (6). A search of PubMed for KLF4 and specific immune cells reveals that macrophages lead the publications, with a growing interest in T cells (Figure 1C).

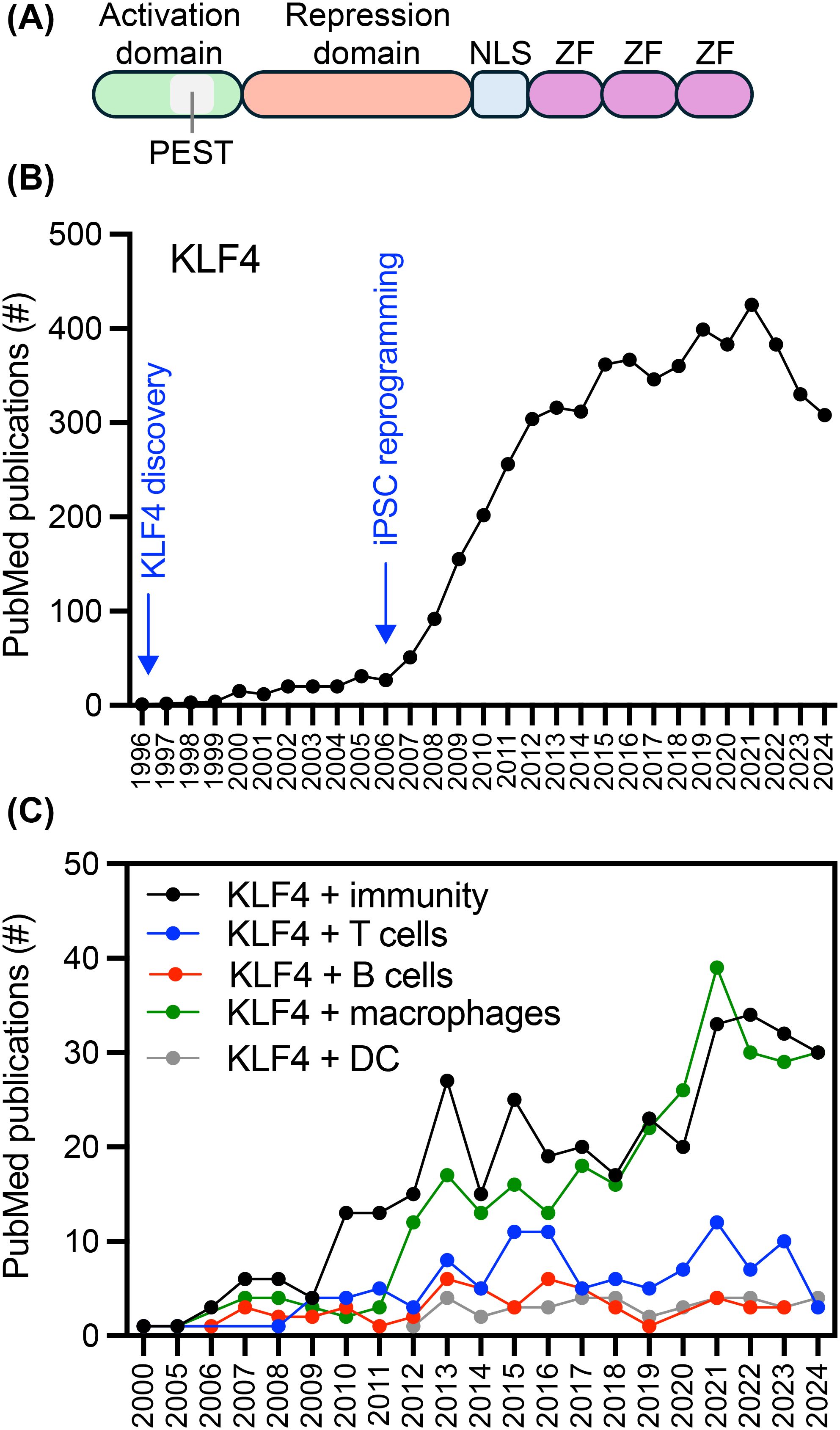

Figure 1. Publication growth related to KLF4 over the years. (A) A diagram depicting the main domains in the KLF4 protein. (B) Number of publications in PubMed focused on KLF4. (C) Number of publications in PubMed focused on KLF4 in conjunction with immunity, T cells, B cells, macrophages, or dendritic cells (DC).
As a pioneering transcription factor, KLF4 regulates gene expression by binding to silent chromatin and influencing the epigenetic landscape and cell fate (15, 16). To add to the complexity, it has been shown that KLF4 can organize chromatin by forming a liquid-like biomolecular condensate with DNA that recruits OCT4 and SOX2 (17). KLF4 is part of a small group of transcription factors that bind to both unmethylated and CpG-methylated DNA (18, 19). This feature allows KLF4 to bind methylated loci to initiate stem-cell gene expression profiles during reprogramming. KLF factors often work in synchrony. The KLF circuitry composed of KLF2, KLF4, and KLF5 regulates self-renewal in embryonic stem cells (ESC) and the expression of pluripotency genes such as Nanog (1). In addition to ESCs, KLF4 promotes self-renewal in tissue-specific stem cells (e.g., embryo, intestine, skin) and cancer-associated stem cells (1, 13, 20–31).
KLF4 has both tumor suppressor and pro-oncogenic roles in carcinogenesis. This dual role is influenced by several factors, including the cell cycle (e.g., p21 and p53), oncogenic signals (Ras, Wnt, hormone receptors, TGFb, Notch1), and cell survival (32–35). KLF4 tumor suppressor function in solid tumors (e.g., gastrointestinal, lung adenocarcinoma, prostate, pancreatic) and hematological malignancies (e.g., leukemia, lymphoma) has been associated with silencing of the KLF4 locus through different mechanisms (DNA methylation, micro RNAs, histone modifications) (reviewed in (36)). Our group investigated the role of KLF4 in leukemia stem cells using mouse models developed through the retroviral transformation of hematopoietic stem/progenitor cells and transplantation (37–39). In this review article, part of the research topic “Exploring KLF4’s role in immune cell function and disease progression,” we will summarize KLF4’s role in blood cells, including immune cells, and focus on hematological malignancies, mainly lymphoid and myeloid leukemias.
KLF4 regulation of normal blood cells
KLF4 regulates the function and differentiation of hematopoietic stem cells (HSCs) and mature blood cells, including immune cells (Figure 2). It plays a crucial role in monocytic differentiation, macrophage polarization, natural killer cell survival, antibody responses in memory B cells, dendritic cell development, and the inhibition of homeostatic proliferation of naïve T cells (Table 1). Next, we will summarize the key findings regarding hematopoietic stem cells and the main immune cells.

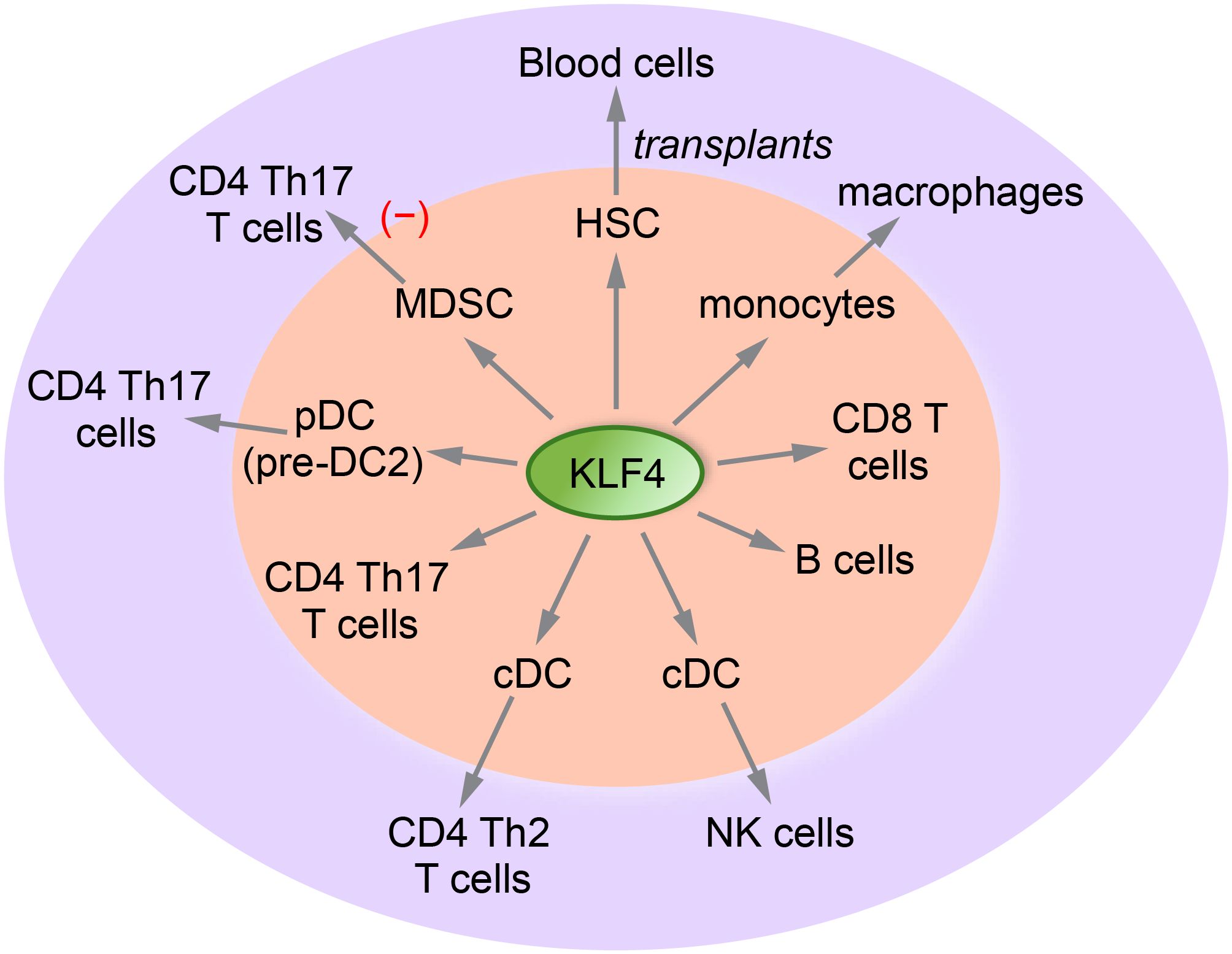

Figure 2. A diagram illustrating the role of KLF4 in immune cells. KLF4 directly regulates the differentiation and function of CD4 and CD8 T cells, conventional dendritic cells (cDCs), B cells, monocytes, and hematopoietic stem cells (HSCs). Additionally, KLF4 secondarily regulates Th17 and Th2 CD4 T cells, NK cells, and macrophages.

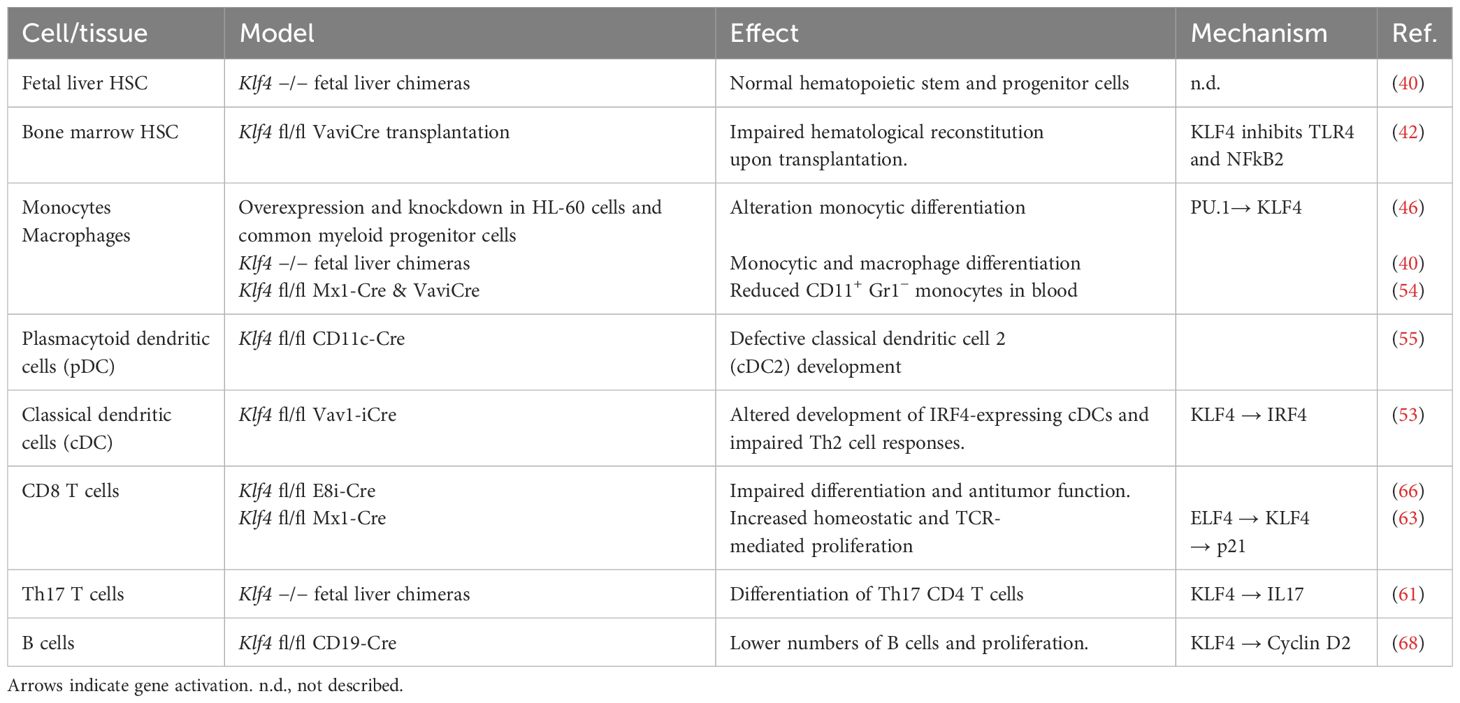

Table 1. The physiological role of KLF4 in the immune system based on mouse models.
Hematopoietic stem cells
An early study demonstrated normal stem cell function using fetal liver (E14.5) Klf4−/− HSCs because the embryonic deletion of the Klf4 gene leads to perinatal lethality due to an impaired skin barrier (40, 41). Our group recently reported that the conditional deletion of the Klf4 gene in hematopoietic cells weakens the regenerative capacity of adult HSCs while maintaining many of the stem cell functions during homeostasis (Figure 3, Table 1) (42). Competitive transplantation of Klf4fl/fl Vav-iCre+ HSCs revealed a reduced ability to regenerate the hematopoietic system in an inflamed bone marrow. Transcriptome analysis revealed that loss of KLF4 was linked to increased expression of toll-like receptors (TLRs), such as TLR4, and the activation of the non-canonical NFκB2 (nuclear factor kappa light chain enhancer of activated B cells) pathway (Figure 3) (42). This finding aligns with earlier studies showing that chronic activation of the NFκB pathway causes bone marrow failure by disrupting the quiescence and impairing the regenerative function of HSCs (43). Activating NF-κB via the transgenic expression of constitutively active IKK2, enzyme that activates NF-κB, promotes HSC proliferation, decreases quiescence, and impairs the repopulating ability in secondary and competitive transplants (44). Thus, KLF4 preserves the capacity of HSCs to regenerate blood cells during transplantation-induced hematopoiesis by suppressing the expression and activity of toll-like receptors (TLRs) during homeostasis. However, one question remains unanswered: does KLF4 activity decline with age in HSCs, contributing to chronic stem cell inflammation and potentially linking to stem cell aging and myelodysplasia?

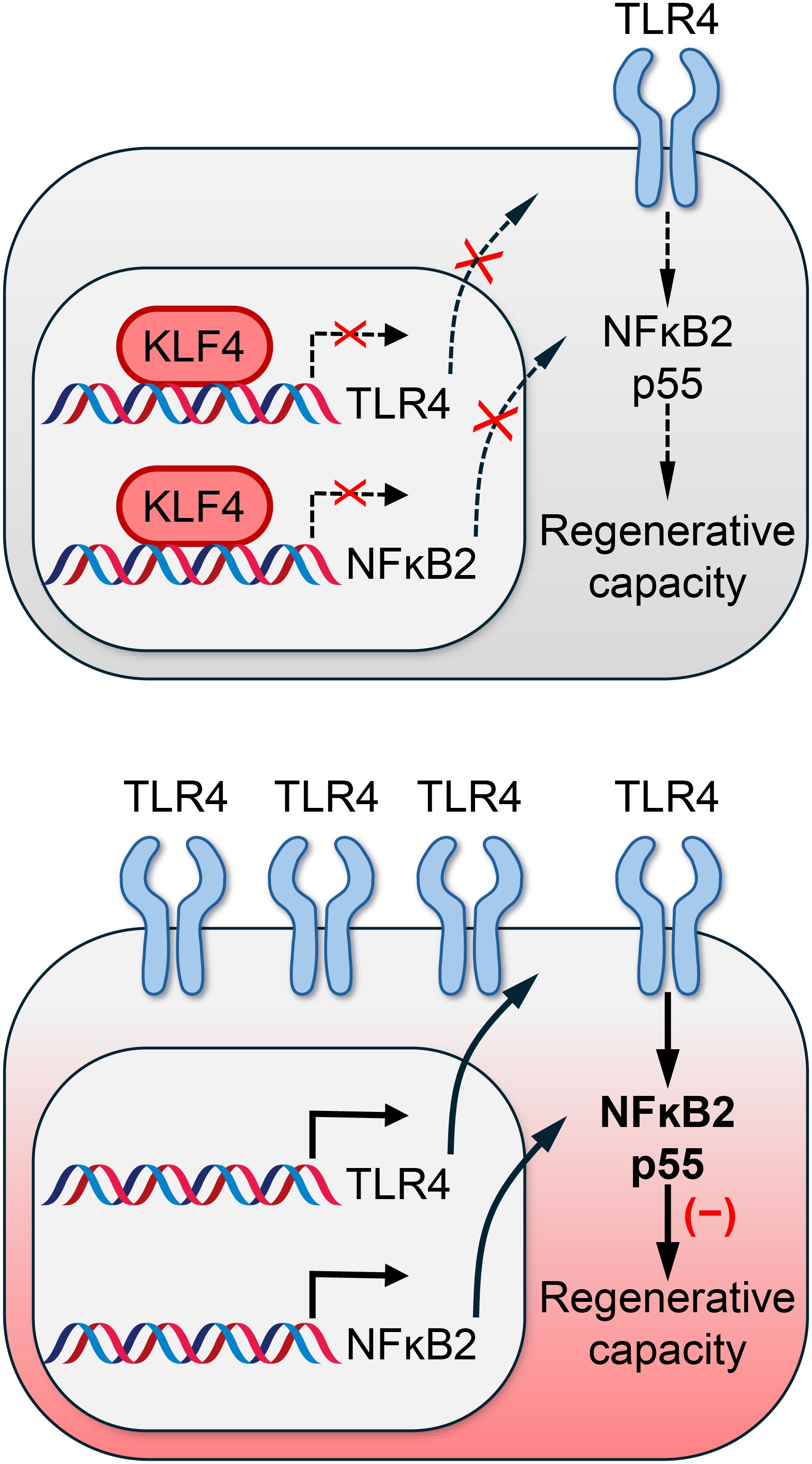

Figure 3. KLF4 protects the regenerative capacity of HSCs. KLF4 represses the expression of TLRs and NFkB2 in HSCs during steady state, preventing chronic inflammation that hinders their capacity to regenerate the hematopoietic system after transplantation into inflamed bone marrow.
Monocytes and macrophages
The role of KLF4 in inflammatory diseases has been extensively studied (45). This review will briefly summarize the role of KLF4 in differentiating these cells, focusing on other myeloid and lymphoid cells. Research on loss- and gain-of-function in HL-60 cells and murine stem/progenitor cells has established the role of KLF4 in differentiation toward the monocytic lineage (46). Furthermore, ectopic expression of KLF4 in PU.1-null fetal liver cells restored the ability to differentiate into monocytes, suggesting that PU.1 promotes KLF4 expression during monocyte differentiation. This finding was confirmed by the transplantation of fetal liver Klf4−/− HSCs, which showed impaired differentiation of monocytes (40). Research has demonstrated that interferon regulatory factor 8 (IRF8) induces the expression of the Klf4 gene in myeloid progenitor cells, while PU.1, a crucial transcription factor in myeloid development, targets KLF4 (46, 47). KLF4 also regulates the differentiation of monocytes into macrophages and tumor-associated macrophages during tissue migration (48–50). KLF4 is essential for M1-type differentiation and influences macrophage activation, activating cytokine response (40, 46, 47, 51). Interestingly, decreased diurnal KLF4 expression in aged macrophages disrupted diurnal rhythms in phagocytic activity, indicating that KLF4 is involved in the circadian regulation of the innate immune response during aging (52). This finding raises the concern that many functional studies of KLF4 in different blood cells may need to be re-evaluated to investigate the impact of circadian variations on KLF4 expression.
Dendritic cells
Conditional Klf4 gene deletion through Vav-iCre transgenic mice showed loss of Ly6Chi monocytes and reduced interferon regulatory factor 4 (IRF4) expression on pre-conventional dendritic cells (pre-cDC) but not mature cDCs (53). The splenic classical DCs (cDC: CD11chi CD11b+), regulated by KLF4, enhance the survival of NK cells in peripheral tissues through IL-15 signaling (54). Conditional Klf4 deletion in cDCs using Itgax-Cre mice impairs Th2 cell responses to the helminth Schistosoma mansoni (53). Additionally, KLF4 is essential for differentiating a subpopulation of plasmacytoid DCs, pre-DC2 cells, into CX3CR1+ ESAM− (cDC2b) cells, which play a key role in maintaining the Th17 cell pool in the surveillant lymph nodes of the skin (55).
Natural killer cells
Natural killer (NK) cells are crucial in the innate immune response. KLF4 regulates the differentiation and survival of NK cells through several mechanisms. KLF4 enhances the survival of NK cells in peripheral tissues by promoting the differentiation of splenic conventional dendritic cells (cDC) defined as CD11chi CD11b+ cells (54). KLF4 induces the expression of the NKG2D ligand MICA in acute myeloid leukemia cell lines; however, the function of KLF4-NKG2D in primary leukemic cells still requires additional investigation (56). KLF4 induces ICAM-1 expression in hypoxia-sensitive epididymal cells via the KLF4-ASH1L-ICAM-1 axis, which leads to NK cell activation and epididymal damage (57). KLF4 interacts with ASH1L, a subunit of the histone methyltransferase complex MLL, bringing it to the adhesion molecule ICAM-1 promoter for the tri-methylation of histone H3 at lysine 4 (H3K4me3), an epigenetic mark linked to gene activation.
T cells
T cells are developed in the thymus from bone marrow-derived T cell progenitor cells. Early thymic progenitors do not express CD4 or CD8 (double negative: DN) and can be further classified into subsets based on CD44 and CD25 expression, progressing in differentiation from DN1 (CD44+ CD25−) to DN2 (CD44+ CD25+) to DN3 (CD44− CD25+) and finally to DN4 (CD44− CD25−) cells, with the latter differentiating into immature double-positive (DP) cells that finally mature in either CD4 or CD8 T cells. The expression of Yamanaka factors in thymocyte subsets shows that KLF4 is highest in embryonic stem cells, with lower levels in HSCs, CLPs, and DN1, and continuing to drop in DN2-DN4 and DP cells (58). The conditional deletion of the Klf4 gene in hematopoietic cells using Vav-iCre transgenic mice leads to decreased cellularity across all thymocyte subsets, from DN1 to CD4 and CD8 single-positive cells, despite showing no significant differences in cell proliferation and survival in peripheral tissues, which are regulated by other mechanisms (59). The expression of KLF4 in thymic endothelial cells (TEC) during late pregnancy prompted the conditional deletion of the Klf4 gene in these cells. This deletion led to a notable reduction in thymic size and cellularity during pregnancy-induced thymic involution despite causing minimal changes in thymic cellularity during homeostasis (60). This finding suggests that KLF4 preserves the integrity of thymic endothelial cells during pregnancy and thymic regeneration after childbirth.
As stated above, KLF4 can modulate the function of different T cell subsets by promoting the differentiation of specialized dendritic cells or myeloid-derived suppressor cells. KLF4 promotes Th17 differentiation in CD4 T cells by activating the IL17 promoter (61). On the other hand, KLF4 inhibits Th17 differentiation in the ob/ob mouse pressure ulcer model, which promotes diabetic chronic wound healing through myeloid-derived suppressor cells (62). In naïve CD8 T cells, the transcription factor ELF4 directly activates the Klf4 gene, inhibiting cell division through cell cycle kinase inhibitor p21 expression during homeostasis and in response to antigen-driven proliferation by activating the T cell receptor (TCR) (63). CD8+ T cells from mice with Klf4 gene deletion, induced by the Mx1-Cre (cre-recombinase driven by the Mx1 promoter) and poly-I:C injection (double stranded RNA induces systemic IFNγ secretion) model, showed increased cell division upon in vitro crosslinking with anti-CD3 and anti-CD28, alongside homeostatic expansion of CD8+ T cells showing a memory-like immunophenotype (CD122+ CD44hi) (63). Klf4-null CD8+ T cells expressing the OT1 transgene (ovalbumin-specific TCR) demonstrated enhanced expansion in both primary and recall responses to infection with Listeria monocytogenes-OVA (bacteria expressing ovalbumin) (59). The regulation of KLF4 by ELF4 was governed upstream by the ERK and mTOR pathways in CD8+ T cells (64). Consistent with these findings, the proteasomal degradation of KLF4, which is ubiquitinated at lysine by the E3 ligase Mule, promotes the transition from G1 to S-phase in T cells (51). As a result, deleting the Klf4 gene exacerbates experimental autoimmune encephalomyelitis due to the pathogenic role of Th17 cells while hindering the clearance of lymphocytic choriomeningitis virus (LCMV) infection (65). A group reported that KLF4 is a hallmark of cytolytic effector-like CD8 T cells during the exhaustion process; therefore, ectopic KLF4 expression can enhance the activity of exhausted T cells and is associated with better prognosis in cancer patients (66). Stabilization of the KLF4 protein through PRMT5 arginine methylation, which prevents ubiquitination by VHL, contributes to genome stability and carcinogenesis (12); however, the role of this post-translational modification in regulating homeostatic and antigen-driven T cell proliferation remains unexplored.
B cells
Transcriptional profiling of multipotent progenitor cells induced to differentiate into B cells by Id3 expression revealed a wave of priming transcription factors (e.g., KLF4, NR4A2, EGR1) before the expression of core transcription factors E2A, EBF1, and PAX5 (67). The conditional deletion of Klf4 in B cells using the CD19-Cre system reduces the frequency of pro-B and mature B cells and lowers proliferation induced by crosslinking with anti-IgM and anti-CD40, attributed to the regulation of the cyclin D2 promoter (68). Transcriptional analysis during in vitro B cell differentiation identified KLF4 as one of the transcription factors involved in the early priming of B cell progenitor cells (67). KLF4 expression in bone marrow plasma cells promotes a gene expression profile supporting early cell differentiation (69). Naïve B cells express higher levels of KLF4, KLF9, and PLZF compared to memory B cells, and this expression decreases following B cell activation. This indicates that the reduced expression in memory B cells allows them to enter the cell cycle rapidly, which is a key feature of memory cells (70). B cells can undergo reprogramming; a tetracistronic Sendai virus carrying OCT4, SOX2, KLF4, and MYC can reprogram CD19-positive B cells from cord blood or peripheral blood into induced pluripotent stem cells, which are extremely useful for studying B cell function and transformation in hematological malignancies (71).
KLF4 has tumor suppressive and pro-leukemic functions in leukemia
Most research on KLF4 in cancer centers compares its expression in patient samples with that in healthy individuals. Examining the correlation between DNA methylation and gene expression revealed that hypermethylation of the KLF4 gene was associated with lower KLF4 expression in fifteen patients with chronic lymphocytic leukemia (72). However, DNA methylation profiling in leukemia does not have diagnostic value, and its potential link to tumor suppression needs to be investigated in mouse models. In B-cell non-Hodgkin lymphoma, KLF4, regulated by the transcription factor YY1, acts as a tumor suppressor by inducing apoptosis through the pro-apoptotic gene BAK1 (36, 73, 74). Research on the oncogenic role of KLF4 has mainly focused on overexpression in established cell lines, with limited assessment in mouse models of cancer, especially concerning blood malignancies. In this review, we will summarize studies from our group that utilized conditional Klf4 deletion and retroviral transduction models with oncogenes to investigate their role in leukemia stem cells (LSC) within lymphoid and myeloid leukemia (Figure 4A). Generally, purified HSCs (Lin− Sca-1+ c-kit+ CD150+= LSK-CD150 cells) or bone marrow cells from mice pre-treated with 5-fluorouracil (5-FU) to enrich bone marrow in hematopoietic stem/progenitor cells (HSPC) are utilized for retroviral transduction carrying leukemia specific oncogenes (Figure 4A). Retrovirus carrying a gain-of-function NOTCH1 mutant, the constitutively activated BCR-ABL1 kinase, or the fusion MLL-AF9 are used to induce T-cell acute lymphoblastic leukemia (T-ALL, chronic myeloid leukemia (CML), or acute myeloid leukemia (AML), respectively.

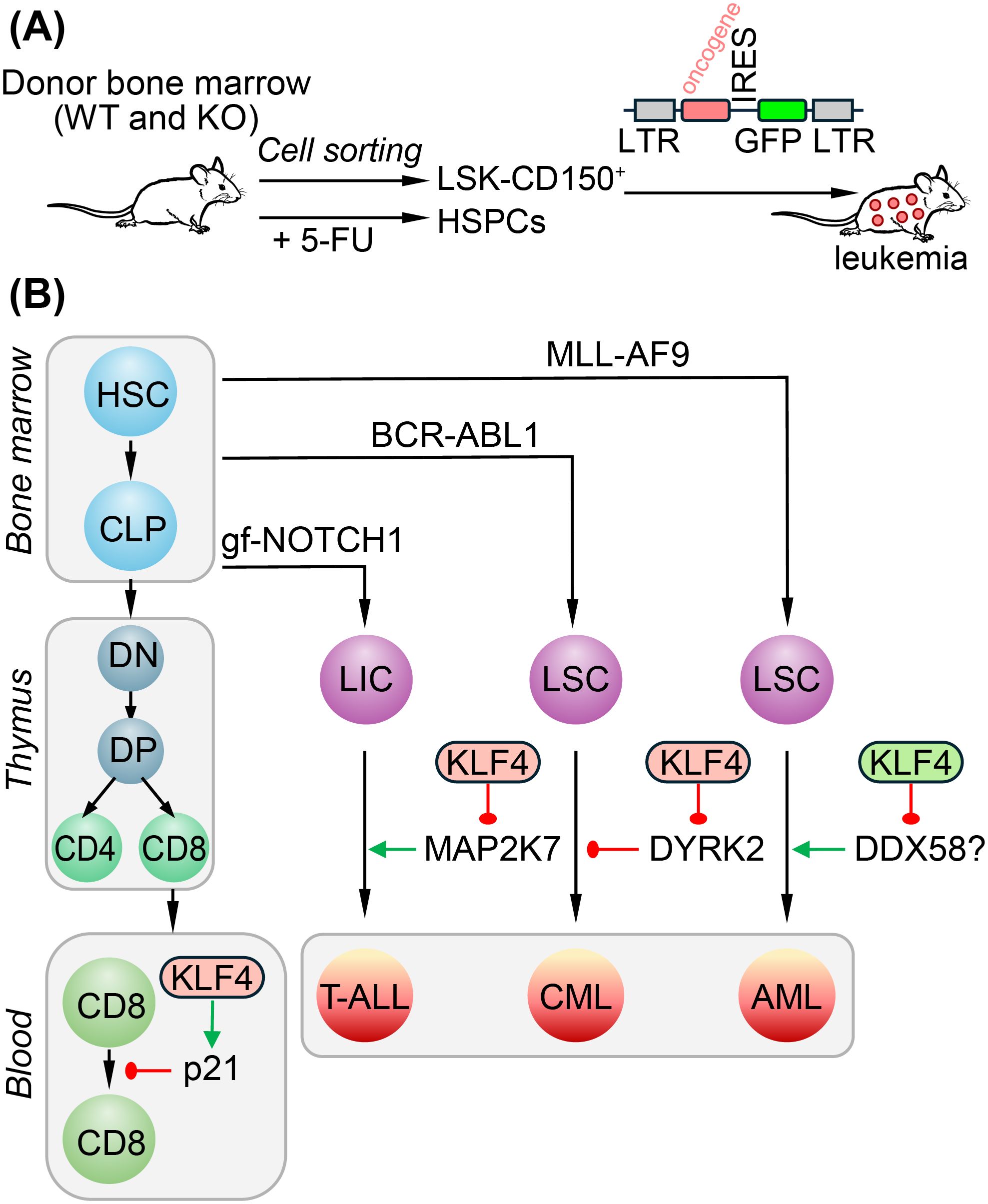

Figure 4. Control of leukemia stem cells (LSC) and leukemia-initiating cells (LIC) in myeloid and lymphoid leukemia. (A) Transduction of hematopoietic stem/progenitor cells with a retrovirus carrying an oncogene: BCR-ABL1 to induce chronic myeloid leukemia (CML), gain-of-function NOTCH1 mutant (gfNOTCH1) for T-cell acute lymphoblastic leukemia (T-ALL), and MLL-AF9 for acute myeloid leukemia (AML). (B) KLF4 represses MAP2K7 in T-ALL (tumor suppressor function). KLF4 exhibits a pro-oncogenic function in BCR-ABL1-induced CML by repressing the DYRK2 gene, preventing inhibition of LSC self-renewal. In AML, the upregulation of DDX58 in Klf4 knockout LSCs does not appear to contribute to the impaired frequency of LSCs. The activity repressing or activating target gene expression is indicated in red and green, respectively.
Acute lymphoblastic leukemia (ALL) is the most common cancer in children under 14 years old, with T-cell ALL (T-ALL) being a subtype recognized for its high relapse rate. KLF4 in T-ALL has been studied due to its ability to inhibit the proliferation of naïve T cells and its suppressive role in T-ALL cell lines (37, 75, 76). A gene expression profiling analysis in pediatric leukemia indicates that KLF4 is significantly downregulated in T-ALL compared to normal bone marrow, particularly in T-ALL subtypes associated with the worst prognosis (37). This finding aligns with the epigenetic silencing of the KLF4 gene due to DNA CpG methylation seen in children with T-ALL, which was not present in the bone marrow and T cells obtained from healthy individuals (37). The conditional deletion of the Klf4 gene accelerated leukemia in the NOTCH1-induced T-ALL mouse model, increasing both the proliferation of T-ALL cells and the frequency of leukemia-initiating cells (LIC) measured in a limiting dilution transplantation study (37). Since KLF4 represses the Map2k7 gene, which encodes a dual specificity mitogen-activated protein kinase kinase 7 (MAP2K7), the epigenetic silencing of KLF4 in patients and its conditional deletion in the mouse model of T-ALL lead to the aberrant activation of the MAP2K7-JNK pathway (Figure 4B) (37, 77). Pharmacological inhibition of the MAP2K7 kinase has demonstrated anti-leukemic effects in T-ALL cell lines and patient-derived xenograft cells (78–80). In summary, KLF4 has tumor suppressor activity in pediatric T-ALL, at least in part by inhibiting MAP2K7, which may be considered for therapeutic targeting. Research now is focused on developing specific, potent, and safe MAP2K7 inhibitors to translate into the clinics.
Chronic myeloid leukemia (CML) is caused by the oncoprotein BCR-ABL1, which is the product of the chromosomal translocation t (9, 22). While remission can be achieved with the tyrosine kinase inhibitor Imatinib, patients must be kept on treatment for life. As a result, a considerable amount of research focuses on LSCs due to their resistance to Imatinib and potential to cause relapses if the treatment is stopped. Using the retroviral BCR-ABL1 model to induce myeloproliferative-like disease, which serves as a model for CML, researchers found that the conditional deletion of the Klf4 gene prolonged overall survival. This effect is attributed to the inhibition of self-renewal and the induction of apoptosis in leukemia stem cells (LSCs), a rare population of leukemic cells with stem cell features that continuously feed the neoplasm (38). KLF4 loss leads to the upregulation of the dual-specificity DYRK2 kinase since KLF4 represses the expression of the Dyrk2 gene (Figure 4B). DYRK2 upregulation was linked to increased apoptosis through p53 phosphorylation and c-Myc proteasomal degradation via prime-phosphorylation, as DYRK2 can be activated by auto-phosphorylation (38). In addition to the genetic upregulation of DYRK2, inhibiting the ubiquitin ligase SIAH2, which mediates the proteasomal degradation of DYRK2, with synthetic vitamin K3 stabilizes the DYRK2 protein (38). However, vitamin K3 cannot be administered to patients due to its high toxicity. Like embryonic stem cells, KLF4 promotes self-renewal in CML LSCs, but it does so by repressing a DYRK2-mediated inhibition mechanism. It needs to be further investigated whether the pharmacological stabilization of DYRK2 protein could help achieve treatment-free remission by eliminating LSCs.
Acute myeloid leukemia (AML) is an aggressive cancer that primarily affects the elderly and has a poor prognosis due to ineffective treatments. Unlike T-ALL, the KLF4 gene is not silenced epigenetically by CpG methylation in AML. Genome editing of the KLF4 gene in the AML cell lines NB4 and MonoMac6 by CRISPR/Cas9 showed reduced cell growth and increased apoptosis (81). In the AML model induced by retroviral expression of the MLL-AF9 fusion in hematopoietic stem/progenitor cells followed by transplantation, the loss of KLF4 caused improved survival of leukemic mice, which was linked to a reduced frequency of LSCs identified in this model as granulocyte monocyte progenitor (GMP) cells that are positive for MLL-AF9 (Figure 4B) (39, 81). Gene expression profiles obtained from purified leukemic GMP cells of wild-type and Klf4 knockout leukemic mice indicate that the loss of KLF4 is associated with decreased expression of genes regulated by MLL-AF9, as well as a leukemic stemness gene signature and cell cycle regulators (39). Genes related to inflammation, such as the dsRNA helicase DDX58, were upregulated in murine HSCs and LSCs (L-GMP), indicating a role in the inflammatory type I interferon pathway in AML. However, experiments of knocking down DDX58 in Klf4 knockout MLL-AF9-induced leukemia suggested that elevated levels of DDX58 in Klf4 knockout LSCs did not contribute to impaired LSC frequency despite reducing clonogenicity in methylcellulose (39). Overall, KLF4 supports MLL-AF9-driven AML by sustaining the expression of genes related to LSC stemness and MLL target genes.
Concluding remarks
Recently, there has been a growing interest in studying KLF4 in normal and malignant hematopoiesis. In normal hematopoietic stem cells, KLF4 preserves their regenerative capacity after transplantation by repressing TLR and NFkB2 during homeostasis. In leukemia, KLF4 may inhibit or promote self-renewal in leukemic stem cells, depending on oncogenic signals and KLF4’s dual role as a transcriptional activator and repressor. Likewise, KLF4 can function as either a tumor suppressor or a pro-oncogene, depending on the regulation of cell cycle and signaling within an oncogenic environment. In myeloid leukemias, KLF4 has pro-leukemic function in CML by suppressing a mechanism that inhibits LSC self-renewal, and in AML by promoting the expansion of LSCs. In line with its role in inhibiting cell division in normal T cells, KLF4 functions as a tumor suppressor in leukemic T cells by repressing a kinase that drives T-ALL cell proliferation. Further investigation is needed to clarify the physiological and pathological roles of KLF4 in various blood lineages and to identify actionable target genes and downstream mechanisms for potential pharmacological intervention. This is necessary because transcription factors are often considered undruggable, and there are concerns regarding systemic therapy targeting KLF4, given its dual carcinogenic functions.
Author contributions
HDL: Conceptualization, Data curation, Formal Analysis, Funding acquisition, Investigation, Methodology, Project administration, Resources, Software, Supervision, Validation, Visualization, Writing – original draft, Writing – review & editing.
Funding
The author(s) declare that financial support was received for the research and/or publication of this article. This work was supported by the National Cancer Institute (R01 CA283079, R21 CA286412, R01 CA285402 to HDL).
Acknowledgments
The author thanks Karen Prince for the preparation of the Figures.
Conflict of interest
The author declares that the research was conducted without any commercial or financial relationships that could be construed as a potential conflict of interest.
Generative AI statement
The author(s) declare that no Generative AI was used in the creation of this manuscript.
Publisher’s note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
References
1. Jiang J, Chan YS, Loh YH, Cai J, Tong GQ, Lim CA, et al. A core Klf circuitry regulates self-renewal of embryonic stem cells. Nat Cell Biol. (2008) 10:353–60. doi: 10.1038/ncb1698
2. Jeon H, Waku T, Azami T, Khoa le TP, Yanagisawa J, Takahashi S, et al. Comprehensive identification of kruppel-like factor family members contributing to the self-renewal of mouse embryonic stem cells and cellular reprogramming. PLoS One. (2016) 11:e0150715. doi: 10.1371/journal.pone.0150715
3. Wang H, Zhou Y, Yu D, and Zhu H. Klf2 contributes to the stemness and self-renewal of human bone marrow stromal cells. Cytotechnology. (2016) 68:839–48. doi: 10.1007/s10616-014-9837-6
4. Schuetz A, Nana D, Rose C, Zocher G, Milanovic M, Koenigsmann J, et al. The structure of the Klf4 DNA-binding domain links to self-renewal and macrophage differentiation. Cell Mol Life Sci. (2011) 68:3121–31. doi: 10.1007/s00018-010-0618-x
5. Zhao T, Liu C, and Chen L. Roles of klf5 acetylation in the self-renewal and the differentiation of mouse embryonic stem cells. PLoS One. (2015) 10:e0138168. doi: 10.1371/journal.pone.0138168
6. Takahashi K and Yamanaka S. Induction of pluripotent stem cells from mouse embryonic and adult fibroblast cultures by defined factors. Cell. (2006) 126:663–76. doi: 10.1016/j.cell.2006.07.024
7. Kotkamp K, Mossner R, Allen A, Onichtchouk D, and Driever W. A Pou5f1/Oct4 dependent Klf2a, Klf2b, and Klf17 regulatory sub-network contributes to EVL and ectoderm development during zebrafish embryogenesis. Dev Biol. (2014) 385:433–47. doi: 10.1016/j.ydbio.2013.10.025
8. Pang CJ, Lemsaddek W, Alhashem YN, Bondzi C, Redmond LC, Ah-Son N, et al. Kruppel-like factor 1 (KLF1), KLF2, and Myc control a regulatory network essential for embryonic erythropoiesis. Mol Cell Biol. (2012) 32:2628–44. doi: 10.1128/MCB.00104-12
9. McConnell BB and Yang VW. Mammalian Kruppel-like factors in health and diseases. Physiol Rev. (2010) 90:1337–81. doi: 10.1152/physrev.00058.2009
10. Miller IJ and Bieker JJ. A novel, erythroid cell-specific murine transcription factor that binds to the CACCC element and is related to the Kruppel family of nuclear proteins. Mol Cell Biol. (1993) 13:2776–86. doi: 10.1128/mcb.13.5.2776-2786.1993
11. Park CS, Shen Y, Lewis A, and Lacorazza HD. Role of the reprogramming factor KLF4 in blood formation. J Leukoc Biol. (2016) 99:673–85. doi: 10.1189/jlb.1RU1215-539R
12. Hu D, Gur M, Zhou Z, Gamper A, Hung MC, Fujita N, et al. Interplay between arginine methylation and ubiquitylation regulates KLF4-mediated genome stability and carcinogenesis. Nat Commun. (2015) 6:8419. doi: 10.1038/ncomms9419
13. Kim MO, Kim SH, Cho YY, Nadas J, Jeong CH, Yao K, et al. ERK1 and ERK2 regulate embryonic stem cell self-renewal through phosphorylation of Klf4. Nat Struct Mol Biol. (2012) 19:283–90. doi: 10.1038/nsmb.2217
14. Ghaleb AM and Yang VW. Kruppel-like factor 4 (KLF4): What we currently know. Gene. (2017) 611:27–37. doi: 10.1016/j.gene.2017.02.025
15. Soufi A, Garcia MF, Jaroszewicz A, Osman N, Pellegrini M, and Zaret KS. Pioneer transcription factors target partial DNA motifs on nucleosomes to initiate reprogramming. Cell. (2015) 161:555–68. doi: 10.1016/j.cell.2015.03.017
16. Huyghe A, Trajkova A, and Lavial F. Cellular plasticity in reprogramming, rejuvenation and tumorigenesis: a pioneer TF perspective. Trends Cell Biol. (2023) 68():839–48. doi: 10.1007/s10616-014-9837-6
17. Sharma R, Choi KJ, Quan MD, Sharma S, Sankaran B, Park H, et al. Liquid condensation of reprogramming factor KLF4 with DNA provides a mechanism for chromatin organization. Nat Commun. (2021) 12:5579. doi: 10.1038/s41467-021-25761-7
18. Hu S, Wan J, Su Y, Song Q, Zeng Y, Nguyen HN, et al. DNA methylation presents distinct binding sites for human transcription factors. Elife. (2013) 2:e00726. doi: 10.7554/eLife.00726
19. Spruijt CG, Gnerlich F, Smits AH, Pfaffeneder T, Jansen PW, Bauer C, et al. Dynamic readers for 5-(hydroxy)methylcytosine and its oxidized derivatives. Cell. (2013) 152:1146–59. doi: 10.1016/j.cell.2015.03.017
20. Yamane M, Ohtsuka S, Matsuura K, Nakamura A, and Niwa H. Overlapping functions of Kruppel-like factor family members: targeting multiple transcription factors to maintain the naive pluripotency of mouse embryonic stem cells. Development. (2018) 145(10):dev162404. doi: 10.1242/dev.162404
21. Wei Z, Gao F, Kim S, Yang H, Lyu J, An W, et al. Klf4 organizes long-range chromosomal interactions with the oct4 locus in reprogramming and pluripotency. Cell Stem Cell. (2013) 13:36–47. doi: 10.1016/j.stem.2013.05.010
22. Li Y, McClintick J, Zhong L, Edenberg HJ, Yoder MC, and Chan RJ. Murine embryonic stem cell differentiation is promoted by SOCS-3 and inhibited by the zinc finger transcription factor Klf4. Blood. (2005) 105:635–7. doi: 10.1182/blood-2004-07-2681
23. Chan KK, Zhang J, Chia NY, Chan YS, Sim HS, Tan KS, et al. KLF4 and PBX1 directly regulate NANOG expression in human embryonic stem cells. Stem Cells. (2009) 27:2114–25. doi: 10.1002/stem.143
24. Zhang P, Andrianakos R, Yang Y, Liu C, and Lu W. Kruppel-like factor 4 (Klf4) prevents embryonic stem (ES) cell differentiation by regulating Nanog gene expression. J Biol Chem. (2010) 285:9180–9. doi: 10.1074/jbc.M109.077958
25. Wong CW, Hou PS, Tseng SF, Chien CL, Wu KJ, Chen HF, et al. Kruppel-like transcription factor 4 contributes to maintenance of telomerase activity in stem cells. Stem Cells. (2010) 28:1510–7. doi: 10.1002/stem.477
26. Aksoy I, Giudice V, Delahaye E, Wianny F, Aubry M, Mure M, et al. Klf4 and Klf5 differentially inhibit mesoderm and endoderm differentiation in embryonic stem cells. Nat Commun. (2014) 5:3719. doi: 10.1038/ncomms4719
27. Yu F, Li J, Chen H, Fu J, Ray S, Huang S, et al. Kruppel-like factor 4 (KLF4) is required for maintenance of breast cancer stem cells and for cell migration and invasion. Oncogene. (2011) 30:2161–72. doi: 10.1038/onc.2010.591
28. Yan Y, Li Z, Kong X, Jia Z, Zuo X, Gagea M, et al. KLF4-mediated suppression of CD44 signaling negatively impacts pancreatic cancer stemness and metastasis. Cancer Res. (2016) 76:2419–31. doi: 10.1158/0008-5472.CAN-15-1691
29. Yu T, Chen X, Zhang W, Liu J, Avdiushko R, Napier DL, et al. KLF4 regulates adult lung tumor-initiating cells and represses K-Ras-mediated lung cancer. Cell Death Differ. (2016) 23:207–15. doi: 10.1038/cdd.2015.85
30. Li X, Zhao Z, Zhang X, Yang S, Lin X, Yang X, et al. Klf4 reduces stemness phenotype, triggers mesenchymal-epithelial transition (MET)-like molecular changes, and prevents tumor progression in nasopharygeal carcinoma. Oncotarget. (2017) 8:93924–41. doi: 10.18632/oncotarget.21370
31. Zhu XY, Wang L, Luan SH, Zhang HS, Huang WT, and Wang NH. The PGI-KLF4 pathway regulates self-renewal of glioma stem cells residing in the mesenchymal niches in human gliomas. Neoplasma. (2014) 61:401–10. doi: 10.4149/neo_2014_049
32. Tetreault MP, Yang Y, and Katz JP. Kruppel-like factors in cancer. Nat Rev Cancer. (2013) 13:701–13. doi: 10.1038/nrc3582
33. Rowland BD, Bernards R, and Peeper DS. The KLF4 tumour suppressor is a transcriptional repressor of p53 that acts as a context-dependent oncogene. Nat Cell Biol. (2005) 7:1074–82. doi: 10.1038/ncb1314
34. Wei D, Kanai M, Huang S, and Xie K. Emerging role of KLF4 in human gastrointestinal cancer. Carcinogenesis. (2006) 27:23–31. doi: 10.1093/carcin/bgi243
35. Zhao W, Hisamuddin IM, Nandan MO, Babbin BA, Lamb NE, and Yang VW. Identification of Kruppel-like factor 4 as a potential tumor suppressor gene in colorectal cancer. Oncogene. (2004) 23:395–402. doi: 10.1038/sj.onc.1207067
36. Frazzi R. KLF4 is an epigenetically modulated, context-dependent tumor suppressor. Front Cell Dev Biol. (2024) 12:1392391. doi: 10.3389/fcell.2024.1392391
37. Shen Y, Park CS, Suppipat K, Mistretta TA, Puppi M, Horton TM, et al. Inactivation of KLF4 promotes T-cell acute lymphoblastic leukemia and activates the MAP2K7 pathway. Leukemia. (2017) 31:1314–24. doi: 10.1038/leu.2016.339
38. Park CS, Lewis AH, Chen TJ, Bridges CS, Shen Y, Suppipat K, et al. A KLF4-DYRK2-mediated pathway regulating self-renewal in CML stem cells. Blood. (2019) 134:1960–72. doi: 10.1182/blood.2018875922
39. Lewis AH, Bridges CS, Moorshead DN, Chen TJ, Du W, Zorman B, et al. Kruppel-like factor 4 supports the expansion of leukemia stem cells in MLL-AF9-driven acute myeloid leukemia. Stem Cells. (2022) 40:736–50. doi: 10.1093/stmcls/sxac033
40. Alder JK, Georgantas RW 3rd, Hildreth RL, Kaplan IM, Morisot S, Yu X, et al. Kruppel-like factor 4 is essential for inflammatory monocyte differentiation in vivo. J Immunol. (2008) 180:5645–52. doi: 10.4049/jimmunol.180.8.5645
41. Segre JA, Bauer C, and Fuchs E. Klf4 is a transcription factor required for establishing the barrier function of the skin. Nat Genet. (1999) 22:356–60. doi: 10.1038/11926
42. Park CS, Bridges CS, Lewis AH, Chen TJ, Shai S, Du W, et al. KLF4 enhances transplantation-induced hematopoiesis by inhibiting TLRs and non-canonical NFkappaB signaling at a steady state. Exp Hematol. (2025) 144:104730. doi: 10.1016/j.exphem.2025.104730
43. Takizawa H, Fritsch K, Kovtonyuk LV, Saito Y, Yakkala C, Jacobs K, et al. Pathogen-induced TLR4-TRIF innate immune signaling in hematopoietic stem cells promotes proliferation but reduces competitive fitness. Cell Stem Cell. (2017) 21:225–40 e5. doi: 10.1016/j.stem.2017.06.013
44. Nakagawa MM, Chen H, and Rathinam CV. Constitutive activation of NF-kappaB pathway in hematopoietic stem cells causes loss of quiescence and deregulated transcription factor networks. Front Cell Dev Biol. (2018) 6:143. doi: 10.3389/fcell.2018.00143
45. Liang Y, Zhao J, Dai T, Li X, Chen L, He Z, et al. A review of KLF4 and inflammatory disease: Current status and future perspective. Pharmacol Res. (2024) 207:107345. doi: 10.1016/j.phrs.2024.107345
46. Feinberg MW, Wara AK, Cao Z, Lebedeva MA, Rosenbauer F, Iwasaki H, et al. The Kruppel-like factor KLF4 is a critical regulator of monocyte differentiation. EMBO J. (2007) 26:4138–48. doi: 10.1038/sj.emboj.7601824
47. Kurotaki D, Osato N, Nishiyama A, Yamamoto M, Ban T, Sato H, et al. Essential role of the IRF8-KLF4 transcription factor cascade in murine monocyte differentiation. Blood. (2013) 121:1839–49. doi: 10.1182/blood-2012-06-437863
48. Liao X, Sharma N, Kapadia F, Zhou G, Lu Y, Hong H, et al. Kruppel-like factor 4 regulates macrophage polarization. J Clin Invest. (2011) 121:2736–49. doi: 10.1172/JCI45444
49. Tugal D, Liao X, and Jain MK. Transcriptional control of macrophage polarization. Arterioscler Thromb Vasc Biol. (2013) 33:1135–44. doi: 10.1161/ATVBAHA.113.301453
50. Kapoor N, Niu J, Saad Y, Kumar S, Sirakova T, Becerra E, et al. Transcription factors STAT6 and KLF4 implement macrophage polarization via the dual catalytic powers of MCPIP. J Immunol. (2015) 194:6011–23. doi: 10.4049/jimmunol.1402797
51. Feinberg MW, Cao Z, Wara AK, Lebedeva MA, Senbanerjee S, and Jain MK. Kruppel-like factor 4 is a mediator of proinflammatory signaling in macrophages. J Biol Chem. (2005) 280:38247–58. doi: 10.1074/jbc.M509378200
52. Blacher E, Tsai C, Litichevskiy L, Shipony Z, Iweka CA, Schneider KM, et al. Aging disrupts circadian gene regulation and function in macrophages. Nat Immunol. (2022) 23:229–36. doi: 10.1038/s41590-021-01083-0
53. Tussiwand R, Everts B, Grajales-Reyes GE, Kretzer NM, Iwata A, Bagaitkar J, et al. Klf4 expression in conventional dendritic cells is required for T helper 2 cell responses. Immunity. (2015) 42:916–28. doi: 10.1016/j.immuni.2015.04.017
54. Park CS, Lee PH, Yamada T, Burns A, Shen Y, Puppi M, et al. Kruppel-like factor 4 (KLF4) promotes the survival of natural killer cells and maintains the number of conventional dendritic cells in the spleen. J Leukoc Biol. (2012) 91:739–50. doi: 10.1189/jlb.0811413
55. Rodrigues PF, Kouklas A, Cvijetic G, Bouladoux N, Mitrovic M, Desai JV, et al. pDC-like cells are pre-DC2 and require KLF4 to control homeostatic CD4 T cells. Sci Immunol. (2023) 8:eadd4132. doi: 10.1126/sciimmunol.add4132
56. Alkhayer R, Ponath V, Frech M, Adhikary T, Graumann J, Neubauer A, et al. KLF4-mediated upregulation of the NKG2D ligand MICA in acute myeloid leukemia: a novel therapeutic target identified by enChIP. Cell Commun Signal. (2023) 21:94. doi: 10.1186/s12964-023-01118-z
57. Zeng J, Gao W, Tang Y, Wang Y, Liu X, Yin J, et al. Hypoxia-sensitive cells trigger NK cell activation via the KLF4-ASH1L-ICAM-1 axis, contributing to impairment in the rat epididymis. Cell Rep. (2023) 42:113442. doi: 10.1016/j.celrep.2023.113442
58. Wen X, Liu H, Xiao G, and Liu X. Downregulation of the transcription factor KLF4 is required for the lineage commitment of T cells. Cell Res. (2011) 21:1701–10. doi: 10.1038/cr.2011.183
59. Mamonkin M, Shen Y, Lee PH, Puppi M, Park CS, and Lacorazza HD. Differential roles of KLF4 in the development and differentiation of CD8 T cells. Immunol Lett. (2013) 156(1-2):94–101. doi: 10.1016/j.imlet.2013.09.008
60. Depoers L, Dumont-Lagace M, Trinh VQ, Houques C, Cote C, Larouche JD, et al. Klf4 protects thymus integrity during late pregnancy. Front Immunol. (2023) 14:1016378. doi: 10.3389/fimmu.2023.1016378
61. Lebson L, Gocke A, Rosenzweig J, Alder J, Civin C, Calabresi PA, et al. Cutting edge: The transcription factor Kruppel-like factor 4 regulates the differentiation of Th17 cells independently of RORgammat. J Immunol. (2010) 185:7161–4. doi: 10.4049/jimmunol.1002750
62. Yang X, Mathis BJ, Huang Y, Li W, and Shi Y. KLF4 promotes diabetic chronic wound healing by suppressing th17 cell differentiation in an MDSC-dependent manner. J Diabetes Res. (2021) 2021:7945117. doi: 10.1155/2021/7945117
63. Yamada T, Park CS, Mamonkin M, and Lacorazza HD. Transcription factor ELF4 controls the proliferation and homing of CD8+ T cells via the Kruppel-like factors KLF4 and KLF2. Nat Immunol. (2009) 10:618–26. doi: 10.1038/ni.1730
64. Yamada T, Gierach K, Lee PH, Wang X, and Lacorazza HD. Cutting edge: Expression of the transcription factor E74-like factor 4 is regulated by the mammalian target of rapamycin pathway in CD8+ T cells. J Immunol. (2010) 185:3824–8. doi: 10.4049/jimmunol.1000718
65. Hao Z, Sheng Y, Duncan GS, Li WY, Dominguez C, Sylvester J, et al. K48-linked KLF4 ubiquitination by E3 ligase Mule controls T-cell proliferation and cell cycle progression. Nat Commun. (2017) 8:14003. doi: 10.1038/ncomms14003
66. Nah J and Seong RH. Kruppel-like factor 4 regulates the cytolytic effector function of exhausted CD8 T cells. Sci Adv. (2022) 8:eadc9346. doi: 10.1126/sciadv.adc9346
67. Miyai T, Takano J, Endo TA, Kawakami E, Agata Y, Motomura Y, et al. Three-step transcriptional priming that drives the commitment of multipotent progenitors toward B cells. Genes Dev. (2018) 32:112–26. doi: 10.1101/gad.309575.117
68. Klaewsongkram J, Yang Y, Golech S, Katz J, Kaestner KH, and Weng NP. Kruppel-like factor 4 regulates B cell number and activation-induced B cell proliferation. J Immunol. (2007) 179:4679–84. doi: 10.4049/jimmunol.179.7.4679
69. Schoenhals M, Jourdan M, Seckinger A, Pantesco V, Hose D, Kassambara A, et al. Forced KLF4 expression increases the generation of mature plasma cells and uncovers a network linked with plasma cell stage. Cell Cycle. (2016) 15:1919–28. doi: 10.1080/15384101.2016.1191709
70. Good KL and Tangye SG. Decreased expression of Kruppel-like factors in memory B cells induces the rapid response typical of secondary antibody responses. Proc Natl Acad Sci U S A. (2007) 104:13420–5. doi: 10.1073/pnas.0703872104
71. Bueno C, Sardina JL, Di Stefano B, Romero-Moya D, Munoz-Lopez A, Ariza L, et al. Reprogramming human B cells into induced pluripotent stem cells and its enhancement by C/EBPalpha. Leukemia. (2016) 30:674–82. doi: 10.1038/leu.2015.294
72. Filarsky K, Garding A, Becker N, Wolf C, Zucknick M, Claus R, et al. Kruppel-Like Factor 4 (KLF4) inactivation in chronic lymphocytic leukemia correlates with promoter DNA-methylation and can be reversed by inhibition of NOTCH signaling. Haematologica. (2016) 101(6):e249–53. doi: 10.3324/haematol.2015.138172
73. Guan H, Xie L, Leithauser F, Flossbach L, Moller P, Wirth T, et al. KLF4 is a tumor suppressor in B-cell non-Hodgkin lymphoma and in classic Hodgkin lymphoma. Blood. (2010) 116:1469–78. doi: 101(6):e249-53
74. Morales-Martinez M, Valencia-Hipolito A, Vega GG, Neri N, Nambo MJ, Alvarado I, et al. Regulation of Kruppel-Like Factor 4 (KLF4) expression through the transcription factor Yin-Yang 1 (YY1) in non-Hodgkin B-cell lymphoma. Oncotarget. (2019) 10:2173–88. doi: 10.18632/oncotarget.v10i22
75. Shen Y, Chen TJ, and Lacorazza HD. Novel tumor-suppressor function of KLF4 in pediatric T-cell acute lymphoblastic leukemia. Exp Hematol. (2017) 53:16–25. doi: 10.1016/j.exphem.2017.04.009
76. Li W, Jiang Z, Li T, Wei X, Zheng Y, Wu D, et al. Genome-wide analyses identify KLF4 as an important negative regulator in T-cell acute lymphoblastic leukemia through directly inhibiting T-cell associated genes. Mol Cancer. (2015) 14:26. doi: 10.1186/s12943-014-0285-x
77. Lacorazza HD. Pharmacological inhibition of the MAP2K7 kinase in human disease. Front Oncol. (2024) 14:1486756. doi: 10.3389/fonc.2024.1486756
78. Chen TJ, Du W, Junco JJ, Bridges CS, Shen Y, Puppi M, et al. Inhibition of the MAP2K7-JNK pathway with 5Z-7-oxozeaenol induces apoptosis in T-cell acute lymphoblastic leukemia. Oncotarget. (2021) 12:1787–801. doi: 10.18632/oncotarget.28040
79. Bridges CS, Chen TJ, Puppi M, Rabin KR, and Lacorazza HD. Antileukemic properties of the kinase inhibitor OTSSP167 in T-cell acute lymphoblastic leukemia. Blood Adv. (2023) 7:422–35. doi: 10.1182/bloodadvances.2022008548
80. Kim DR, Orr MJ, Kwong AJ, Deibler KK, Munshi HH, Bridges CS, et al. Rational design of highly potent and selective covalent MAP2K7 inhibitors. ACS Med Chem Lett. (2023) 14:606–13. doi: 10.1021/acsmedchemlett.3c00029
Keywords: KLF4, hematopoietic stem cells, T cells, leukemia, transcription factor
