Hongyan Sui1*
Rosana Wiscovitch-Russo1Silvia Cachaco1,2Jun Yang1Whitney Bruchey1Sylvain Laverdure1,2Qian Chen1
Tomozumi Imamichi1- 1Laboratory of Human Retrovirology and Immunoinformatics, Frederick National Laboratory, Frederick, MD, United States
- 2Center for Infectious Disease Research, George Mason University, Manassas, VA, United States
Ataxia-telangiectasia mutated (ATM) is traditionally recognized as a nuclear kinase involved in DNA damage repair. We were the first to report that ATM also participates in a manganese (Mn)-dependent TBK1 phosphorylation pathway. However, the underlying mechanism by which how Mn induces TBK1 phosphorylation through ATM remained unclear. Here, we show that Mn dose-dependently induced TBK1 phosphorylation in the presence of ATM across multiple cell lines, as well as in primary human macrophages and T cells. This phosphorylation was abolished in ATM-deficient cells, and we identified cytoplasmic ATM as a key mediator. Immunoprecipitation assays revealed that Mn promoted ATM phosphorylation at Ser1891, Ser1981, and Ser2996. TBK1 interacted with phosphorylated ATM at early stages, but upon phosphorylation, TBK1 dissociated from the ATM–TBK1 complex. This dissociation coincided with enhanced antiviral cytokine production. Furthermore, Mn inhibited HIV replication in a dose-dependent manner by inducing multiple antiviral host factors and cytokines, with Mn-dependent ATM-TBK1 phosphorylation pathway being patricianly involved. Together, these findings identify a cytoplasmic ATM–TBK1 phosphorylation cycle as one of essential regulators of antiviral innate immunity and suggest Mn supplementation as a potential therapeutic approach against HIV and other viral infections.

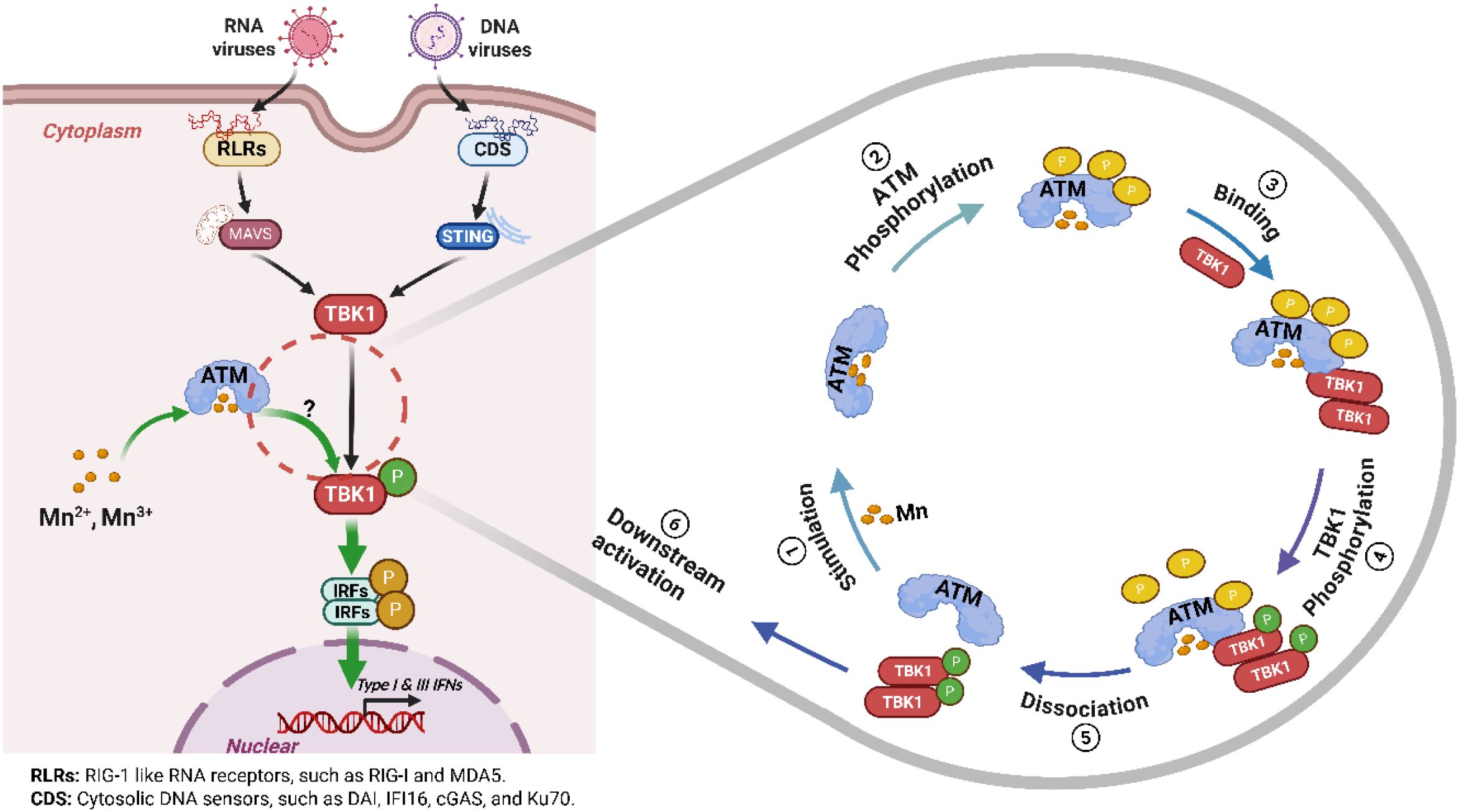

Graphical Abstract.
Introduction
The innate immune system serves as the first line of host defense, aiming to prevent infection and eliminate invading pathogens such as viruses and bacteria (1, 2). A key component of antiviral immunity involves pattern recognition receptors (PRRs), which detect conserved molecular features of viral pathogens and initiate signaling pathways that lead to the expression of antiviral genes (3). PRRs that detect extracellular pathogen-associated molecular patterns (PAMPs) are typically located on the plasma membrane or within endosomal membranes (4, 5). These include Toll-like receptors (TLRs) (6–8) and C-type lectin receptors (CLRs) (9, 10). Membrane-bound PRRs are primarily expressed in immune cells such as macrophages and dendritic cells (11). In contrast, intracellular PRRs are found in the cytoplasm or nucleus of mammalian cells (4, 12). These include NOD-like receptors (NLRs) (13, 14), RIG-I-like receptors (RLRs) (15), and a group of intracellular DNA sensors such as cyclic GMP–AMP synthase (cGAS) (16–18) and interferon-γ (IFNγ)-inducible protein 16 (IFI16) (19), some DNA repair proteins like Ku70 (20–22) and DNA-PKcs (DNA-dependent protein kinase catalytic subunit) (23, 24). They play a crucial role in both DNA repair and innate immunity, particularly in the context of DNA sensing and signaling. These intracellular sensors are broadly or ubiquitously expressed across various cell types, enabling the detection of viral pathogens that have invaded the cytoplasm or nucleus of host cells.
Following the recognition of PAMPs, PRRs initiate innate immune signaling through the hierarchical activation of PRR family-specific adaptor proteins—for instance, mitochondrial antiviral-signaling protein (MAVS) (25–28), stimulator of interferon genes (STING) (21, 29), and myeloid differentiation primary response 88 (MYD88) (30, 31)—as well as a shared set of well-characterized serine/threonine kinases, which include TANK-binding kinase 1 (TBK1), IκB kinase (IKK) complex and IKK-related kinases: IKKϵ, and transcription factors: IRF1, IRF3, IRF7, nuclear factor kappa B (NF-kB) (32–35). This signal transduction cascade ultimately results in the production of various host defense molecules, including type I and type III interferons (IFNs), along with pro-inflammatory cytokines and chemokines. The secreted IFNs act in both autocrine and paracrine manners by binding to their respective receptors, thereby inducing the expression of hundreds of interferon-stimulated genes (ISGs). The proteins encoded by ISGs inhibit critical steps in the viral life cycle and modulate innate immune sensing and cytokine production, contributing to the establishment of an antiviral state (36, 37).
Despite rapid advances in the development of antiviral drugs for some viruses, there remains a concerning lack of effective antiviral drugs for many clinically significant viral pathogens. The continued emergence of new and previously known viral pathogens, as well as drug-resistant variants, highlights the continuous and urgent need for the development of novel and more effective vaccines and antivirals to combat viruses and mitigate human disease. For example, HIV has evolved multiple sophisticated strategies to evade recognition by innate immune sensors and to suppress the activation of PRRs and their downstream signaling pathways, thereby posing significant challenges to the development of effective preventive and therapeutic interventions (38, 39).
Mn is an important dietary trace element associated with several physiological processes such as anti-tumor immunity, development and bone growth (40, 41). In addition to its well-established role in general health, Mn has recently attracted attention for its involvement in regulating innate immune responses. Mn was shown to increase the sensitivity of cGAS to double-stranded DNA (dsDNA) and its enzymatic activity also facilitates STING activity by boosting cGAMP-STING binding affinity (42). Further studies have revealed that Mn directly activates cGAS to induce a noncanonical catalytic synthesis of 2′3′-cGAMP, through a conformation closely resembling that of dsDNA-activated cGAS (43). Mn has also been shown to activate natural killer (NK) cells in neonatal mice through promoting the level of IFN (44). In addition, the human blood-derived monocytes/macrophages exposed to Mn show an increased production of the cytokines: interleukin (IL)-1β, IL-6, IL-8, IFN-γ and tumor necrosis factor α (TNF-α) as compared to control-treated cells (45). Consistent with those studies, we found that Mn enhances the induction of multiple antiviral cytokines—including IFN-α, IFN-β, and IFN-λ—but by promoting the phosphorylation of TBK1 (46). Consistent with our findings, Sun et al. subsequently demonstrated that Mn retains antiviral activity in cGAS- or STING-deficient cells, indicating that its broad-spectrum antiviral effects are exerted in a cGAS–STING–independent manner (47). TBK1 is a serine/threonine protein kinase that plays a central role in multiple signaling pathways, acting as a critical regulatory node (48). Due to its involvement in diverse cellular processes, selectively modulating TBK1 activity within specific pathways offers a more effective strategy for targeted regulation. In addition, ATM is also a serine/threonine protein kinase, and is primarily activated in response to DNA double-strand breaks and orchestrates a complex DNA damage response by phosphorylating a wide range of substrates, including key tumor suppressors such as p53 (49, 50). This activation leads to cell cycle arrest, DNA repair, or apoptosis, depending on the extent of the damage (51). We previously demonstrated that ATM is involved in the Mn-enhanced innate immune signaling pathway (46). However, the precise mechanism by which Mn promotes TBK1 phosphorylation through ATM remains unclear, and the role of ATM in innate immunity is still not fully understood. Therefore, the present study aims to provide new insights into the regulatory function of Mn in antiviral immunity, particularly in the context of HIV and other viral infections.
Materials and methods
Cells
SV40 T-antigen-transformed Human embryonic kidney 293 (293T) and HeLa cells were obtained from the American Type Culture Collection (ATCC, Manassas, VA, USA) and maintained according to the manufacturer’s instructions in D10 medium (DMEM medium (Thermo Fisher Scientific, Waltham, MA, USA) supplemented with 10% fetal bovine serum (FBS; R&D systems, Minneapolis, MN, USA), 25 mM HEPES (Quality Biology, Gaithersburg, MD, USA), and 5 µg/mL gentamicin (Thermo Fisher Scientific)). A549 cells (ATCC) and ATM knockout (KO) A549 cells (Ubigene, Austin, TX, USA) were cultured in F-12K medium (Thermo Fisher Scientific, Waltham, MA, USA) supplemented with 10% FBS (R&D systems), 25 mM HEPES (Quality Biology), and 5 µg/mL gentamicin (Thermo Fisher Scientific). ATM KO 293T cells (Ubigene) were cultured in D10 medium as described above.
To generate monocyte-derived macrophages (MDMs), CD14+ monocytes were isolated from peripheral blood mononuclear cells (PBMCs) of healthy donors using CD14+ microbeads (Miltenyi Biotec, San Diego, CA) and plated at 1.0 × 107 cells per 10 cm petri dish (Thermo Fisher Scientific), and then differentiated into macrophages by stimulation with 25 ng/mL M-CSF (R&D Systems) in macrophage serum-free medium (Thermo Fisher Scientific) for seven days. Differentiated macrophages were then maintained in D10 medium prior to experimental use.
CD4+ T cells were isolated from CD14- PBMCs of healthy donors (the flow-through from prior CD14+ cell isolation) using CD4+ microbeads (Miltenyi Biotec), following the manufacturer’s protocol (Miltenyi Biotec). Isolated cells were stimulated with 5 μg/mL phytohemagglutinin (PHA; Sigma-Aldrich, St. Louis, MO, USA) for three days in RPMI-1640 medium (Thermo Fisher Scientific) supplemented with 10% FBS (Thermo Fisher Scientific), 25 mM HEPES (Quality Biological), and 5 μg/mL gentamicin (Thermo Fisher Scientific).
Plasmid and DNA transfection
The plasmid pcDNA3.1(+)Flag-His-ATM wt, pcDNA3.1(+) Flag-His-ATM kd, and hATMS1981A were gifts from Michael Kastan (Addgene plasmid # 31985,# 31986 and # 32300, respectively) (52, 53). All three plasmids were used to overexpress either wild-type or mutant forms of ATM. The plasmid PEF1α-V5-pEF6/V5-His-TBK1, constructed from the empty vector pEF1α pEF6/V5-His (Thermo Fisher Scientific), was used to overexpress TBK1 for co-immunoprecipitation assays. Transfections into 293T or ATM KO 293T cells were performed using TransIT-293 transfection reagent (Mirus Bio, Madison, WI, USA) according to the manufacturer’s instructions. To generate linearized noncoding DNA for stimulation assays, the pCR2.1 plasmid (Thermo Fisher Scientific) was digested with EcoRI, followed by purification using a PCR purification kit (QIAGEN, Germantown, MD, USA). The resulting linearized DNA was used as a noncoding DNA stimulant, as previously described (54). DNA stimulation of MDMs, CD4+ T cells and A549 cells was carried out using TransIT-X2 transfection reagent (Mirus Bio) according to the manufacturer’s protocol.
RNA extraction and real-time RT-PCR
Total cellular RNA was extracted using the RNeasy Mini Kit (QIAGEN) according to the manufacturer’s instructions. Complementary DNA (cDNA) was synthesized from total cellular RNA using TaqMan Reverse Transcription Reagents (Thermo Fisher Scientific) with random hexamer primers (Thermo Fisher Scientific). Gene expression levels of IFNs or Mn-stimulated genes were quantified using the QuantStudio™ 7 Pro Real-Time PCR System (Thermo Fisher Scientific). The thermal cycling conditions consisted of 40 cycles of 95°C for 15 seconds and 60°C for one minute. Relative mRNA levels were calculated using the ΔΔCt method (55), with GAPDH serving as the internal reference gene. Normalized expression was presented as the fold change relative to the average ΔCt value of the control group. TaqMan gene expression probes specific to IFNs or Mn-responsive genes were obtained from Applied Biosystems (Thermo Fisher Scientific).
Western blot
Whole-cell lysates were prepared using RIPA buffer (Boston BioProducts, Ashland, MA, USA) supplemented with a protease inhibitor cocktail (Sigma-Aldrich) and Halt phosphatase inhibitor cocktail (Thermo Fisher Scientific). Protein concentrations were determined using the microBCA Protein Assay Kit (Thermo Fisher Scientific) to ensure equal loading across all samples. Equal amounts of total protein were resolved on either NuPAGE 4–12% Bis-Tris gels or 3–8% Tris-Acetate gels (Thermo Fisher Scientific), followed by transfer onto 0.45 µm nitrocellulose or PVDF membranes (Thermo Fisher Scientific). Membranes were probed with the appropriate primary antibodies, followed by HRP-conjugated secondary antibodies. Protein bands were visualized using ECL Plus Western blotting detection reagents (GE Healthcare, Chicago, IL, USA) and imaged on a Chemiluminescent Western Blot Imager Azure 300 (Azure Biosystems, Dublin, CA, USA). Primary antibodies and secondary antibodies are listed in the Supplementary Table S1. The dilutions in the experiments are provided.
Co-immunoprecipitation assay and mass spectrometry analysis
ATM KO 293T cells were seeded at a density of 3.5 × 106 cells per 10-cm dish and incubated overnight. Cells were then transfected with 6 µg of the following plasmids: pcDNA3.1(+) Flag-His-ATM (wild-type) (Addgene) and/or PEF6/V5-His-TBK1 pEF6/V5-His-TBK1. After 48 hours, cells were treated with 100 µM MnCl2 (Sigma-Aldrich). Cells were lysed 24 h after Mn treatment in Pierce IP Lysis Buffer (Thermo Fisher Scientific), supplemented with protease and phosphatase inhibitor cocktail (Sigma-Aldrich and Thermo Fisher Scientific). Lysates were incubated overnight at 4°C with anti-FLAG M2 affinity gel (MilliporeSigma). Beads were washed four times with tris-buffered saline (TBS, Quality Biology), and bound proteins were eluted by boiling for 5 minutes at 95°C in NuPAGE™ LDS Sample Buffer (Thermo Fisher Scientific). The resulting samples were analyzed by immunoblotting for ATM and TBK1 expression.
For proteomic analysis, FLAG-immunoprecipitated proteins from Mn-treated and untreated ATM KO 293T cells were subjected to trypsin/Lys-C digestion, followed by liquid chromatography–tandem mass spectrometry (LC-MS/MS). Raw MS data were analyzed using Proteome Discoverer 2.5 (Thermo Fisher Scientific) against the human protein database. Proteins identified with matched peptide sequences and post-translational modifications were cataloged for each condition, and a comparative analysis between Mn-treated and untreated samples was performed by PooChon Scientific (Frederick, MD, USA).
Immunofluorescence assay and confocal microscopy
A549 cells were seeded at a density of 1.0 × 105 cells per well onto Corning BioCoat Poly-L-Lysine–treated 12 mm glass coverslips (MilliporeSigma) in 12-well plates and treated with or without 100 µM MnCl2. At 6, 14, and 24 hours post-treatment, cells were fixed with 4% formaldehyde (Thermo Fisher Scientific) for 15 minutes at room temperature. After fixation, cells were washed three times with 1X phosphate-buffered saline (PBS, Quality Biology), permeabilized with 0.1% Triton X-100 (Sigma-Aldrich) in PBS for 10 minutes, and washed again three times with PBS. Cells were then blocked with Intercept Blocking Buffer (LI-COR Biotechnology, Lincoln, NE, USA) for at least 1 hour at room temperature. Coverslips were removed from the wells and placed face-down on one 80 μL-drop of primary antibody solution (prepared in blocking buffer) and incubated overnight at 4°C in a humidified dark chamber. The following day, coverslips were washed three times with PBS and incubated with appropriate fluorophore-conjugated secondary antibodies for 1 hour at room temperature, followed by four times of PBS washes. The information about the antibodies used in this assay are listed in the Supplementary Table S1. Finally, coverslips were mounted on glass slides using ProLong Diamond Antifade Mountant with DAPI (Thermo Fisher Scientific), and images were acquired using a Zeiss Axio Observer.Z1 LSM800 confocal microscope equipped with a Plan-Apochromat 63×/1.40 oil immersion objective.
Imaging flow cytometry and data analysis
A549 cells were seeded at a density of 1.0 × 106 cells per well in 6-well plates and treated with 100 µM MnCl2. At 24 hours post-treatment, cells were harvested using Accutase (Thermo Fisher Scientific) and fixed with 4% formaldehyde (Thermo Fisher Scientific) in 1X PBS for 15 minutes at room temperature, followed by permeabilization with 0.1% Triton X-100 (Sigma-Aldrich) in 1x PBS for 10 minutes. Cells were incubated with primary antibodies (see immunofluorescence assay section) overnight at 4°C, then washed and incubated with Alexa Fluor–conjugated secondary antibodies (Cell Signaling Technology)) for 1 hour at room temperature. After each incubation step, cells were washed three times with 1X PBS. Finally, cells were resuspended in 1× PBS containing 2% BSA (Sigma-Aldrich) for downstream analysis.
Stained cells were analyzed using the ImageStream® X Mark II Imaging Flow Cytometer (Amnis Corporation, Cytek Biosciences, Seattle, WA, USA) at 40× magnification under low flow rate, high sensitivity, and high gain settings. The following laser lines and detection parameters were used: 488 nm laser (40.00 mW) for AF488 detection in channel 2 (606–680 nm), 647 nm laser (150 mW) for AF647 detection in channel 11 (642–746 nm), 785 nm laser (2.66 mW) for side scatter (SSC) in channel 6 (746–800 nm); brightfield images were captured in channels 1 and 9, while fluorescence images were acquired in Channel 2: Phospho-TBK1 (AF488), Channel 11: ATM (AF647), and Channel 6: Side scatter respectively. A total of 50,000 single-cell events were acquired per sample. Single-cell gating was performed using brightfield images (channel 1) based on cell area and aspect ratio. Cells were gated to include those with an area between 200 and 600 with an aspect ratio (width-to-height) greater than 0.6, ensuring selection of intact, single cells and exclusion of doublets or debris.
The intracellular expression levels of phosphorylated TBK1 (p-TBK1) and ATM in untreated and Mn-treated cells were analyzed using IDEAS™ software (version 6.4). A specific subpopulation of focused, single cells was defined using the following gating strategy: Focus quality was determined by the Gradient RMS of the brightfield image (channel 1), with a threshold of >50 to identify in-focus cells. Single cells were then gated based on area (200–600) and aspect ratio (>0.6), using brightfield parameters, as described above. Visual inspection of image galleries confirmed the accuracy of gate placement for each individual sample. The fluorescence intensity distributions—measured as the sum of all pixel intensities per cell—for p-TBK1 (AF488, channel 2) and ATM (AF647, channel 11) were plotted as histograms for both untreated and Mn-treated cell populations. Histogram overlays were used to directly compare intensity distributions between conditions. To further examine the distribution of p-TBK1, bivariate plots were generated showing brightfield area vs. p-TBK1 intensity (channel 2). Isotype controls (AF488 and AF647) for both untreated and Mn-treated samples were used to define background fluorescence resulting from nonspecific antibody binding. The antibodies used for staining were Mouse anti-ATM (1:100 dilution) and Rabbit anti–p-TBK1 (1:50 dilution), the details are listed in Supplementary Table S1.
Pseudotyped HIV-1 luciferase viruses and ATM inhibitor
VSV-G-pseudo typed HIV-luciferase virus (HIV Luc-V) was prepared by co-transfecting HEK293T cells with pNL4-3ΔEnv-Luc (56, 57) and pLTR-VSVG (58) using the TransIT-293 transfection reagent (Mirus Bio) as previously described (59). Virus-containing supernatants of HEK293T cell were harvested 48 h after transfection and filtered with 0.45-μm Steriflip Filter Units (MilliporeSigma). Virus particles were pelleted by ultracentrifugation at 100,000×g for 2 h, at 4 °C on a 20% sucrose in 150 mM NaCl-HEPES, pH7.4 buffer and resuspended in D10 medium. Virus concentration was quantified using Alliance HIV-1 P24 antigen ELISA kit (Revvity, Boston, MA, USA), and then aliquoted, stored at -80°C until use.
HIV-1 Infection assay was performed using the pseudotyped HIV Luc-V as previously described (60). Monocytes-derived macrophages were seeded in 96 well plate (50 × 103 cells/well), and then infected with 50 μL of 100 ng p24/ml of HIV Luc-V for 2 h at 37°C. Infected cells were washed twice with warm D10 medium and then cultured for 24 h at 37°C. Cells were lysed in 1X Passive Lysis Buffer (Promega, Madison, Wisconsin, USA) and luciferase activity was measured using the Luciferase Assay System (Promega) on an Enspire Multimode Plate Reader (Perkin Elmer, Boston, MA, USA).
The ATM inhibitor Ku-60019 (Sigma-Aldrich, Cat# 5319780001) was added at a final concentration of 10 µM 30 minutes prior to Mn treatment (46, 61, 62).
Microarray
Microarray analysis was conducted as previously described (46). Briefly, total cellular RNA was extracted using the RNeasy isolation kit (QIAGEN). RNA quantity and quality were assessed using Nanodrop 1000 spectrophotometer (Thermo Fisher Scientific) and an Agilent Bioanalyzer RNA Nano 6000 chip (Agilent Technologies, Santa Clara, CA, USA). Complementary RNA (cRNA) synthesis, labeling, and hybridization to the Human GeneArray (Thermo Fisher Scientific) were performed according to the manufacturer’s instructions.
Raw expression data were processed and analyzed using Partek Genomics Suite (Partek, Inc., St. Louis, MO, USA). Arrays were normalized via quantile normalization, and statistically significant gene expression differences were identified using two-way ANOVA. Functional enrichment analyses were carried out using Metascape, a comprehensive resource for gene annotation, visualization, and integrated discovery.
Statistical analysis
Results represent data from at least three independent experiments. Values are expressed as mean ± standard deviation (SD) of individual samples. Statistical significance was determined using the student’s unpaired t-test, or one-way/two-way ANOVA with multiple comparisons, as appropriate. p values lower than 0.05 were considered statistically significant. And are indicated as follows: p < 0.05 (*), p < 0.01 (**), p < 0.001 (***), and p < 0.0001 (****).
Results
Mn dose-dependently induces phosphorylation of TBK1 across multiple cell types with the presence of functional ATM
In our previous study, we demonstrated that Mn enhances DNA-mediated IFN induction in human primary macrophages and showed that ATM plays a role in this Mn-enhanced innate immune response, as evidenced by ATM knockdown and treatment with ATM inhibitors (46). To address potential off-target effects of siRNA and the non-specificity of ATM inhibitors, we employed ATM knockout (KO) A549 cells to further validate the essential role of ATM. Compared to wild-type A549 cells (A549 WT), phosphorylation of TBK1 was markedly reduced in ATM KO A549 cells (Figure 1A). Furthermore, Mn-induced enhancement of IFN-λ1 expression was completely abolished in ATM KO A549 cells (Figure 1B). These results indicated that Mn induced TBK1 phosphorylation in an ATM-dependent manner. To determine whether these observations extend beyond A549 cells, we next evaluated other cell lines and human primary cells. 293T cells, HeLa cells, human primary monocyte-derived macrophages (MDMs), and PHA-activated human primary CD4(+) T cells were included in the study. The results demonstrated that Mn induced phosphorylation of TBK1 in a dose-dependent manner across all these cell types, with ATM expression confirmed in each cell type (Figures 1C–F). Notably, the optimal Mn concentration varied among cell types: for example, phosphorylation of TBK1 in macrophages was effectively induced at 25 µM Mn (Figure 1E), whereas HeLa cells required a higher concentration of 500 µM for optimal induction (Figure 1D). Overall, data from Figure 1 indicated that primary cells respond to lower Mn concentrations compared to established cell lines. Collectively, these findings confirmed that ATM was essential for Mn-induced phosphorylation of TBK1 across diverse cell types.

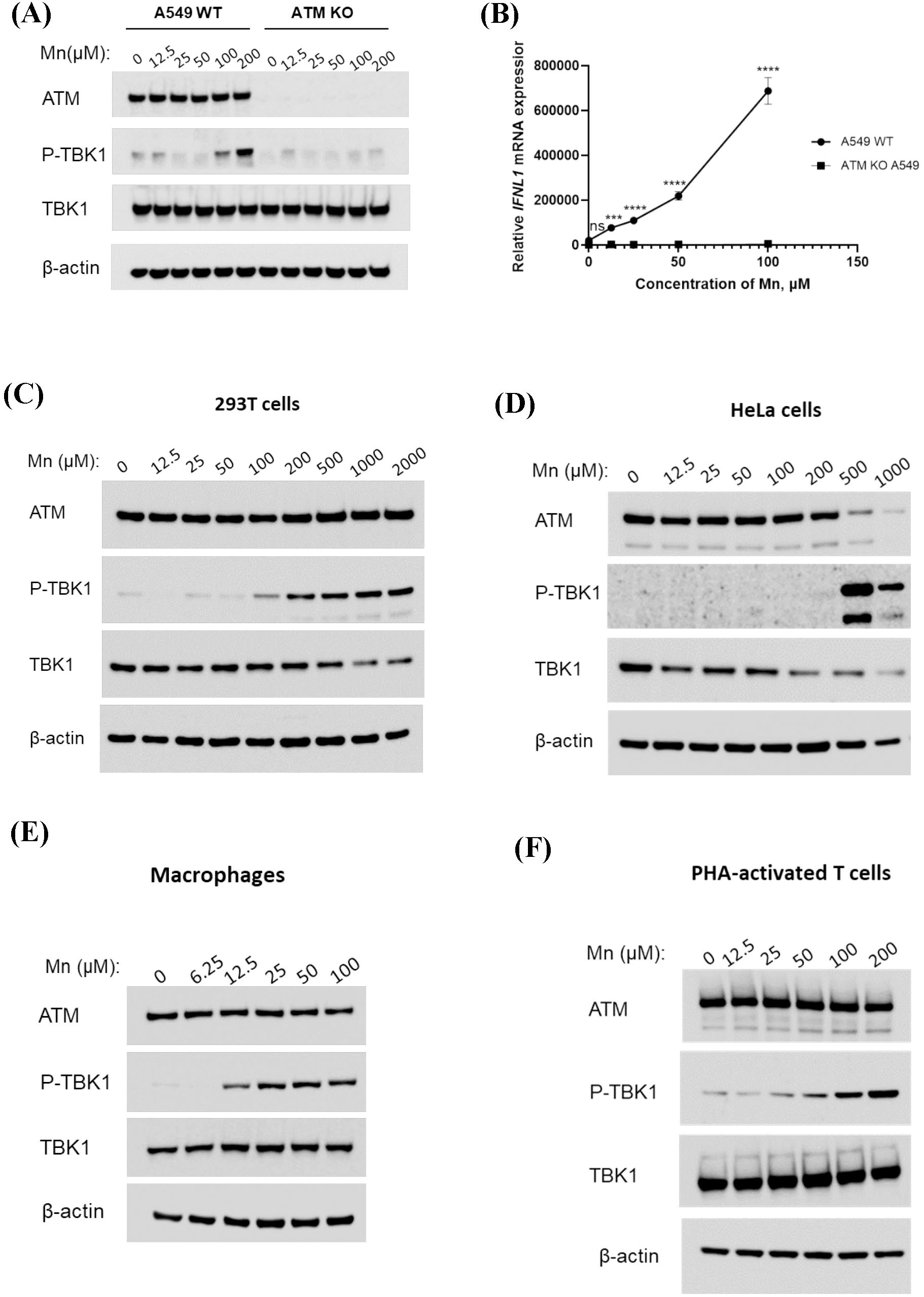

Figure 1. Mn dose-dependently phosphorylates TBK1 in multiple cell types in an ATM-dependent manner. (A) A549 wild-type and ATM KO A549 cells were treated with increasing concentrations of MnCL2. Total cell lysates were prepared 24 hours post-treatment using RIPA buffer and analyzed by Western blot using antibodies against ATM, TBK1, and p-TBK1. β-actin served as a loading control. Images are representatives of three independent experiments. (B) A549 and ATM KO A549 cells were treated with the indicated concentrations of MnCL2, followed by stimulation with linearized DNA 24 hours later. After an additional 24 hours, total RNA was extracted, and IFN-λ1 mRNA expression levels were measured by quantitative RT-PCR and normalized to GAPDH. Data represents at least three independent experiments and are shown as mean ± SD (n=3). Statistical significance was determined using Two-way ANOVA with Dunnett’s multiple comparisons test, p > 0.05 (ns), p < 0.001 (***), and p < 0.0001 (****). (C–F) 293T cells (C), HeLa cells (D), MDMs (E), and PHA-activated CD4+ T cells (F) were treated with varying doses of MnCL2. Whole cell lysates were collected after 24 hours and analyzed by Western blot using anti-ATM, anti-p-TBK1, and anti-TBK1 antibodies. β-actin was included as an internal loading control. All images are representatives of three independent experiments.
Cytoplasmic ATM promotes phosphorylation of TBK1
To define whether the interaction between ATM and TBK1 occurred, we performed immunofluorescence analysis using confocal microscopy. Mn-treated A549 cells were collected at 6, 14, and 24 h post-treatment. Cells were fixed and stained with anti-ATM and anti-phospho-TBK1 antibodies, then visualized under a confocal microscope. Confocal microscopy images revealed that ATM localized both in the nucleus and the cytoplasm of A549 cells (Figure 2A). However, its nuclear expression was notably more intense, indicating that ATM is predominantly a nuclear kinase. In contrast, the phosphorylation of TBK1 progressively increased with the duration of Mn treatment. By 24 hours post-treatment, a substantial increase in phosphorylated TBK1 levels was observed, characterized by a distinct punctate pattern within the cytoplasm. This suggested that Mn induced cytoplasmic activation of TBK1 over time. The merged images further suggested that cytoplasm-localized ATM may interact with TBK1 and potentially contribute to the induction of TBK1 phosphorylation.

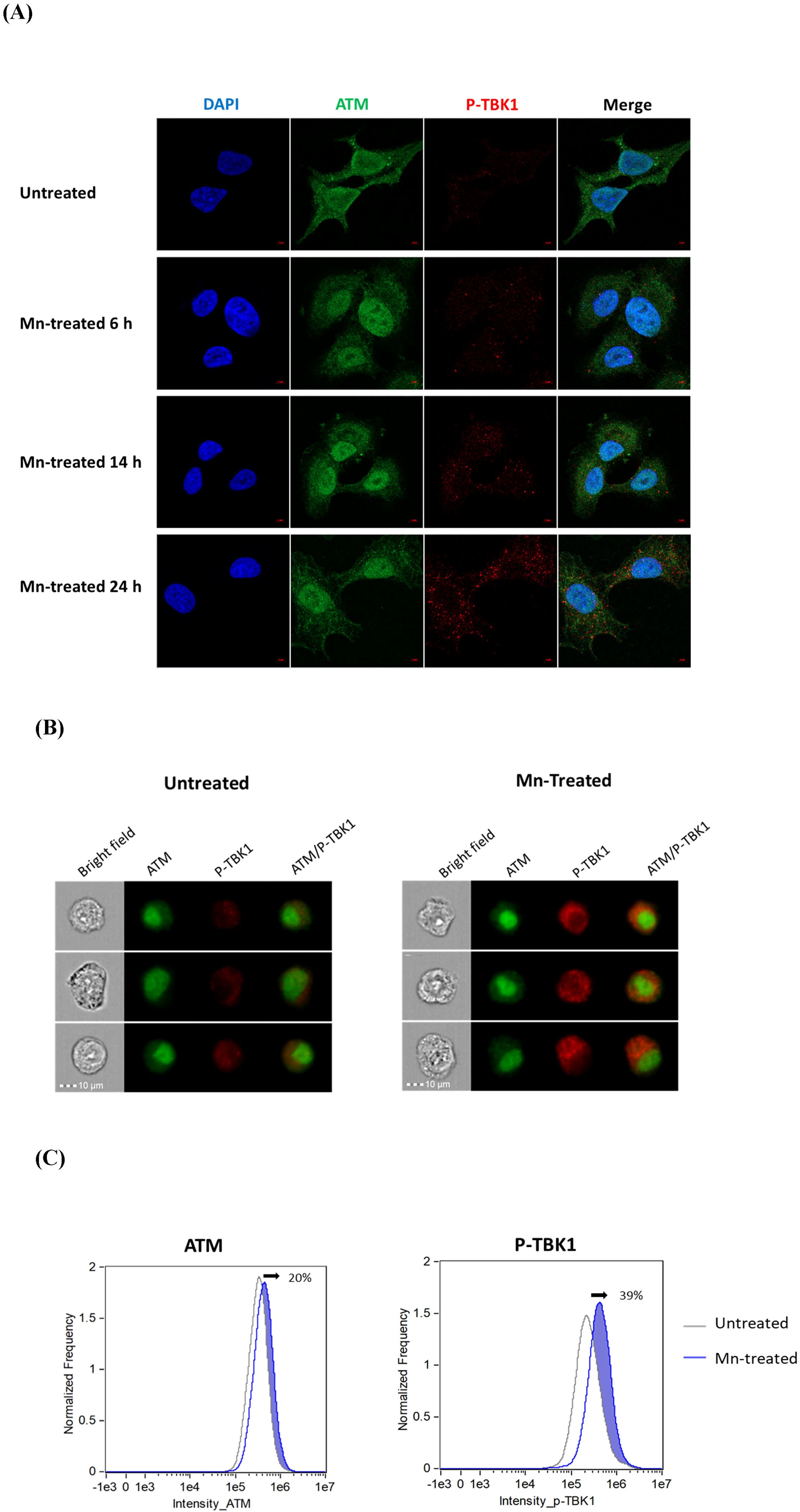

Figure 2. Cytoplasmic ATM promotes phosphorylation of TBK1. (A) Confocal microscopy analysis of the localization and expression of ATM and p-TBK1 in A549 cells after Mn treatment. A549 cells were grown on 12mm coverslip-inserted 12-well cell culture plates and treated with or without 100 µM MnCL2, then fixed, permeabilized and stained with anti-ATM (green), anti-P-TBK1 (Red) antibody at 6, 14 and 24 h after Mn treatment. Nuclei were counterstained with DAPI (blue), and cells were imaged using a 63×/1.4 objective. Images are representative of at least three independent experiments. (B, C) AMINS analysis for the expression of ATM and p-TBK1. A549 cells were seeded on 6-well cell culture plates and treated with or without Mn treatment at 100 µM, then detached using Accutase at 24 h after Mn treatment, fixed, permeabilized, and stained by anti-ATM (Green) and anti-p-TBK1 (Red) antibodies, the single cell morphonology was viewed by bright field. (B) Image galleries display of brightfield, fluorescence dyes AF647 (ATM, channel 11) and AF488 (p-TBK1, channel 2), and composite image of the two fluorescence channels. Images are representative of at least three independent experiments. (C) Histogram overlay of ATM and p-TBK1 intensity of untreated versus Mn-treated focused single cells. The shifted area was shaded in blue, and the shifted percentage (calculated by Fiji) were indicated in the figure.
To further quantify Mn-induced phosphorylation of TBK1 (p-TBk1) and assess the subcellular localization of phosphorylated TBK1 in relation to ATM, Amnis ImageStream flow cytometry was performed. Approximately 50,000 focused cells were acquired for each sample. Single-color controls and isotype antibody controls were included to generate a spectral crosstalk matrix, which was applied to each dataset for accurate spectral compensation across detection channels. Representative single-cell images were shown in Figure 2B. These images demonstrated that ATM expression levels and localization remained largely unchanged between Mn-treated and untreated cells. In contrast, p-TBK1 expression was markedly increased in Mn-treated cells compared to untreated controls, indicating robust induction of TBK1 phosphorylation following Mn exposure. To further quantify the ImageStream data, the intensity distributions—defined as the sum of all pixel intensities per cell—for ATM and p-TBK1 were analyzed and displayed as histograms for both untreated and Mn-treated subpopulations. Histogram overlays were used to compare the fluorescence intensity profiles between the two groups. As shown in Figure 2C, the Mn-treated cell population exhibited an approximate 20% increase in overall ATM intensity compared to the untreated group. Notably, around 40% increase in overall p-TBK1 of the Mn-treated cells shifted outside the distribution range of the untreated population, indicating a substantial increase in p-TBK1 expression following 24 h Mn exposure. The isotype control staining for ATM or p-TBK1 was shown in Supplementary Figure S1. These findings, consistent with the confocal immunofluorescence results, further confirmed that Mn significantly enhanced the expression of p-TBK1 in the cytoplasm. Based on these data, we hypothesized that the cytoplasm serves as the primary site of interaction between cytoplasmic TBK1 and cytoplasm-localized ATM.
TBK1 initially interacts with ATM and then dissociates from the ATM–TBK1 complex upon its own phosphorylation
To further investigate the mechanism of the interaction between ATM and TBK1 in the cytoplasm, a co-immunoprecipitation (co-IP) assay was performed to determine whether ATM and TBK1 formed a protein complex. First, ATM KO 293T cells were transfected with a FLAG-tagged ATM plasmid and treated with or without Mn. Cell lysates were collected at 6 and 14 hours of post-treatment, followed by immunoprecipitation using anti-Flag antibodies to pull down ATM and any interacting proteins. Endogenous TBK1 was detected in the ATM-containing protein complex 6 hours after Mn treatment. Notably, TBK1 formed a complex under untreated conditions, with similar band intensities observed regardless of Mn treatment. This suggested that TBK1 constitutively interacted with ATM, independent of Mn exposure, at early time points. However, analysis of immunoprecipitated samples collected at 14 hours post-Mn treatment showed a slight reduction in TBK1 band intensity in the Mn-treated samples compared to untreated controls (Figure 3A). Based on these results, we hypothesized that TBK1 bound to ATM at early time points, and following its phosphorylation, phosphorylated TBK1 dissociated from the ATM–TBK1 complex at later stages. To further validate this hypothesis, an additional immunoprecipitation assay was performed using a model overexpressing both ATM and TBK1. Cell lysates were collected 14 hours after Mn treatment. Consistent with previous observations, the intensity of the TBK1 band was clearly reduced in Mn-treated samples compared to untreated controls (Figure 3B). In summary, the immunoprecipitation assays demonstrated that TBK1 is associated with ATM at early time points and subsequently dissociated from the complex following its own phosphorylation at later stages.

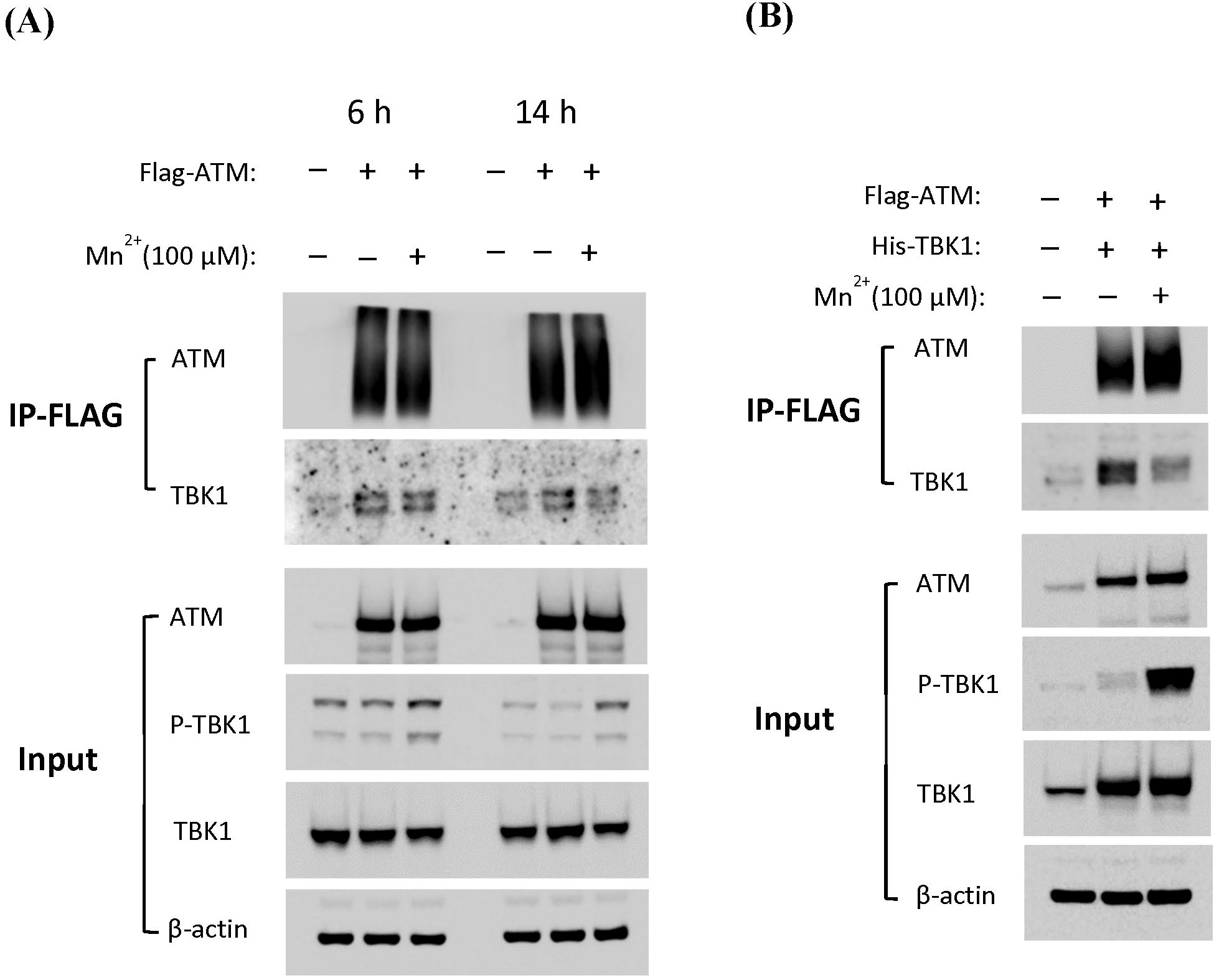

Figure 3. TBK1 first interacts with ATM and later dissociates from the ATM–TBK1 complex after it becomes phosphorylated. ATM KO 293T cells were transfected with (A) Flag-tagged ATM or (B) a combination of plasmids encoding Flag-tagged ATM and His-tagged TBK1 and then were treated by MnCL2 at 100 µM. Cytosolic lysates were prepared at 6 or 14 h after Mn treatment, followed by immunoprecipitation (IP) with anti-Flag antibody-conjugated agarose. Precipitated proteins were then analyzed by Western blotting with antibodies against ATM and TBK1. Input controls were also included. All WB images are representative of three independent co-IP experiments.
Mn enhances phosphorylation of ATM at multiple sites at early time points, followed by subsequent phosphorylation of TBK1 at later stages
While we have demonstrated that Mn treatment induced phosphorylation of TBK1, it remained unclear whether ATM itself undergoes phosphorylation in response to Mn, and what the precise relationship is between phosphorylated ATM and TBK1 phosphorylation. PTM-MS analysis was performed on FLAG-immunoprecipitated samples from Mn-treated ATM KO 293T cells overexpressing FLAG-tagged ATM. The phosphorylation status of ATM was examined, revealing that Mn treatment led to the phosphorylation of ATM at multiple sites—Ser1891, Ser1981, and Ser2996—each located within distinct ATM kinase domains (Figure 4A). However, in comparison with the modification status of ATM in untreated samples, Mn treatment did not induce any novel phosphorylation sites on ATM. To validate the PTM-MS findings, Western blot analysis was performed using an anti-phospho-ATM (Ser1981) antibody to assess ATM phosphorylation. Phosphorylation of TBK1 was also examined. The results, shown in Figure 4B, demonstrated that Mn-treated samples exhibited a stronger p-ATM (Ser1981) signal compared to untreated controls. Quantification of band intensity using Image J analysis (Supplementary Figure S2) further confirmed the significant increase in ATM phosphorylation upon Mn treatment. In comparison, the band intensity of p-TBK1 in Mn-treated cell lysates was significantly stronger than in untreated samples. This data suggested that Mn first enhanced ATM phosphorylation, which in turn promoted the phosphorylation of TBK1.

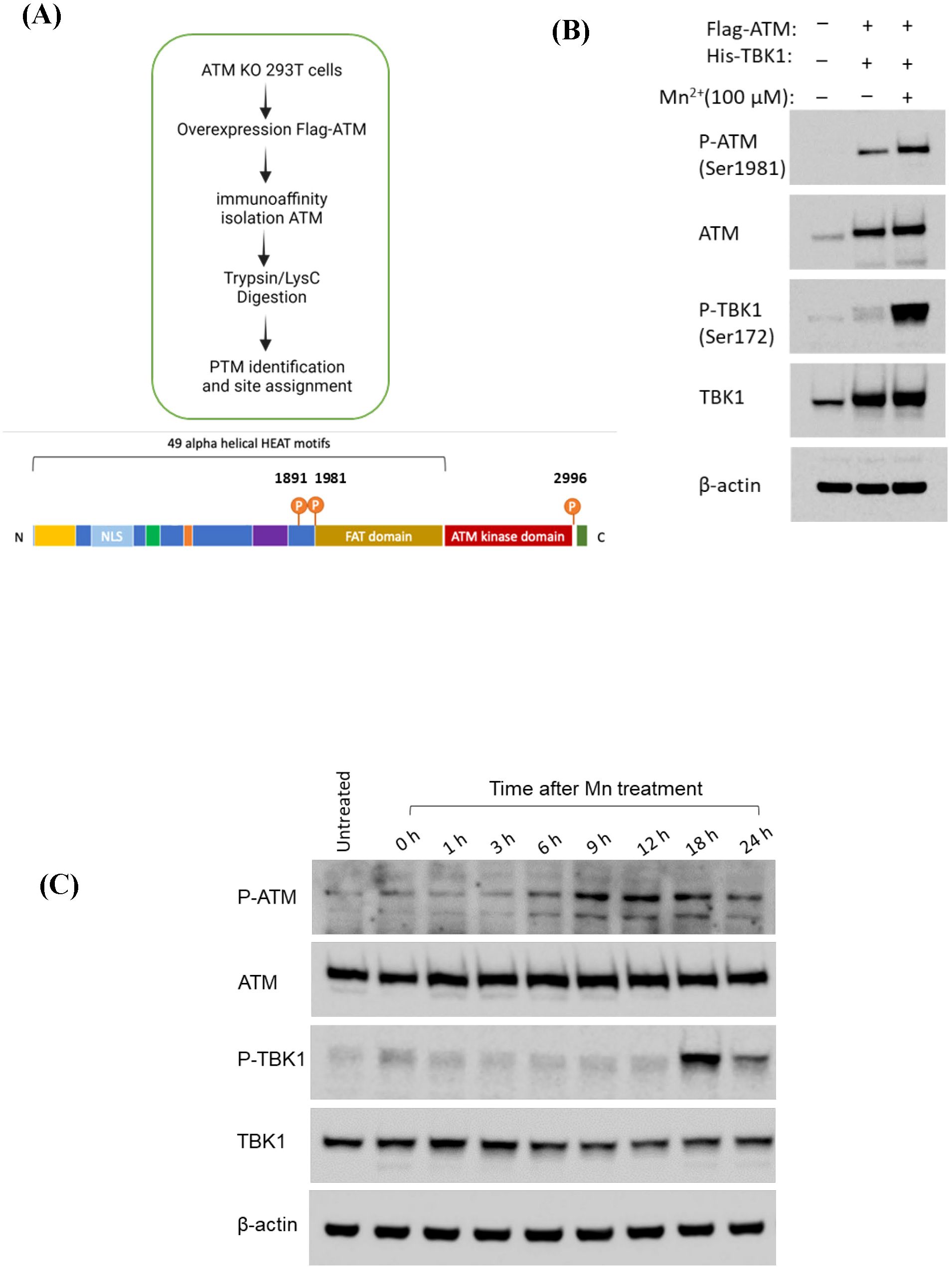

Figure 4. Mn phosphorylates ATM at multiple sites at an earlier time point. (A) The illustration for Mass spectrometry process and identified phosphorylated sites on ATM by Mn treatment, n=1. (B) ATM KO 293T cells were overexpressed by Flag-tagged ATM and His-tagged TBK1 and then treated by Mn at 100 µM. The whole cell lysate was prepared and analyzed by western blot using the antibodies against p-ATM (Ser1981), ATM, p-TBK1 (Ser172), anti-β-actin was included to indicate loading control. (C) A549 cells were seeded in 6-well cell culture plates and treated with Mn at 100 µM. The total cell lysate was prepared using RIPA buffer at different time points after Mn treatment. The cell lysate was analyzed by anti-p-ATM, anti-ATM, anti-p-TBK1 and TBK1 antibodies. Anti-β-actin was included as the internal loading control for the experiment. The WB images are representative of three independent experiments.
To confirm the temporal sequence of Mn-enhanced phosphorylation of ATM and TBK1, Western blot analysis was performed on samples collected at various time points following Mn treatment. Phosphorylation of ATM was detected using an anti-phospho-ATM (Ser1981) antibody, while phosphorylation of TBK1 was assessed with an anti-phospho-TBK1 (Ser172) antibody. The data showed that ATM phosphorylation began at 6 hours post-Mn treatment, peaked at 12 hours, and then gradually declined. In contrast, phosphorylation of TBK1 was first detected at 18 hours after Mn treatment, followed by a subsequent decrease in signal intensity (Figure 4C). The data clearly demonstrated that ATM phosphorylation occurred earlier, between approximately 9 to 18 hours after Mn treatment, while TBK1 phosphorylation started later, around 18 hours post-treatment. The dynamic phosphorylation cascade from ATM to TBK1 was further demonstrated by the densitometric analysis presented in Supplementary Figure S3. This temporal pattern suggested that Mn first induced ATM phosphorylation, which was then followed by phosphorylation of TBK1. Accordingly, we proposed that Mn triggered a phosphorylation cascade involving ATM activation upstream of TBK1.
ATM mutations in the kinase domain or at phosphorylation site S1981 do not completely abolish ATM-mediated phosphorylation of TBK1
Mn induced phosphorylation of ATM at multiple sites—Ser1893, Ser1981, and Ser2996—each located within distinct domains of the ATM kinase protein (Figure 4A). To determine which domain or phosphorylation site of ATM is critical for the subsequent phosphorylation of TBK1, various ATM mutants were transfected into ATM KO 293T cells. These ATM mutant-expressing cells were then compared to wild-type 293T cells as well as ATM KO 293T cells reconstituted with wild-type ATM. Consistently, in 293T cells expressing endogenous ATM, Mn treatment induced TBK1 phosphorylation in a dose-dependent manner. In contrast, TBK1 phosphorylation was markedly reduced in ATM KO 293T cells. Notably, a detectable level of phosphorylated TBK1 was only observed at a high Mn concentration (200 µM) in the absence of ATM. TBK1 phosphorylation is a complex and context-dependent process involving both autophosphorylation and regulation by upstream kinases. We speculated that the detectable level of p-TBK1 likely represents the basal phosphorylation state of TBK1 at higher Mn concentrations. TBK1 may have been phosphorylated by other kinases (63), or cellular stimuli. Reintroduction of wild-type ATM into ATM KO cells fully restored Mn-induced TBK1 phosphorylation (the third panel, Figure 5). The kinase domain of ATM is located in the C-terminal region of the protein, where three conserved amino acids are essential for phosphotransferase activity (64, 65). To evaluate the functional contribution of this domain, we used an ATM kinase-dead (ATM Kd) mutant construct in which two of three critical residues were substituted (Asp2870 → Ala and Asn2875 → Lys). It was presumed that the expression of this mutant would markedly reduce ATM’s kinase activity. As shown in Figure 5, however, the two mutations in the kinase domain did not completely abolish TBK1 phosphorylation. A similar result was observed with the ATM S1981A mutant. Collectively, these findings suggest that neither mutation in the kinase domain nor alteration at Ser1981 completely eliminates ATM’s capacity to phosphorylate TBK1. This result suggests that the presence of multiple phosphorylation sites within ATM may contribute to its overall kinase activity toward TBK1.

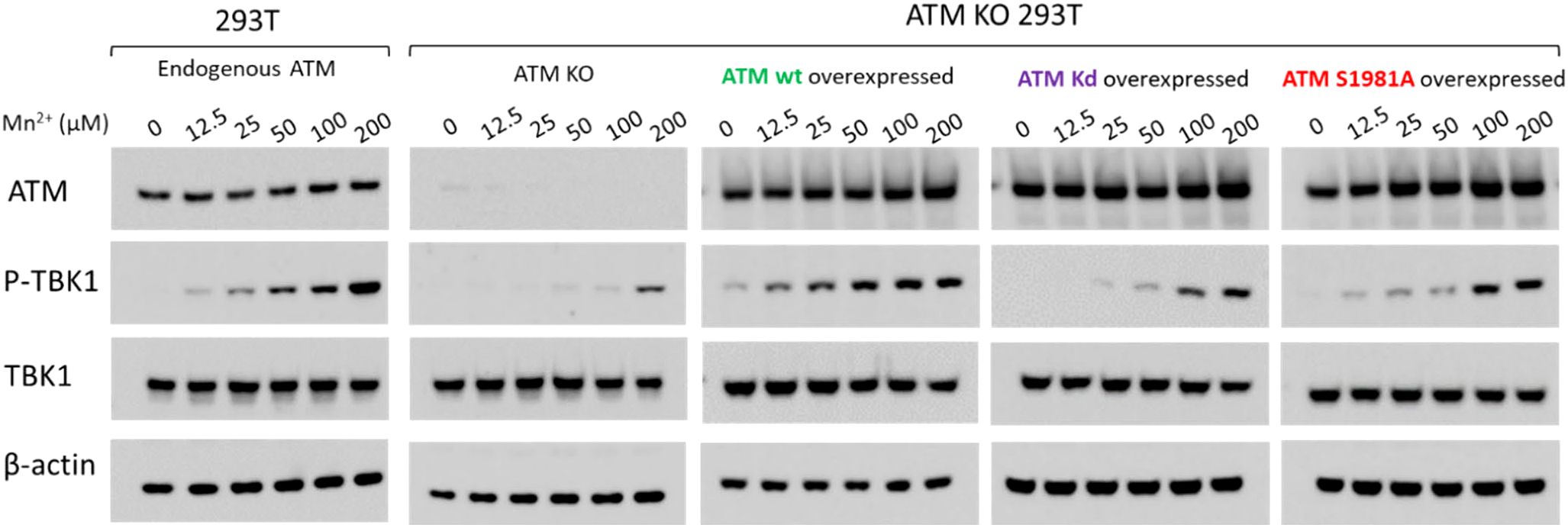

Figure 5. ATM mutants retain partial phosphorylation activity toward TBK1 ATM KO 293T cells were overexpressed by transfecting plasmids encoding wild type ATM (wt ATM), mutated ATM at kinase domain (ATM kd), mutated ATM at S1981A (ATM S1981A), respectively, and treated with Mn at varying concentrations. The total cell lysate was collected at 24 h after Mn treatment and subjected to western blot analysis using anti-ATM, p-TBK1, TBK1 antibodies, anti-β-actin was included as internal loading control. Untransfected 293T cells were also included in the experiment to serve as positive control. Images are representative of three independent experiments.
Mn inhibits HIV replication through the induction of multiple antiviral cytokines and factors with anti-HIV activity, with the ATM-TBK1 pathway partially involved in the process
Our previous study has demonstrated that Mn inhibits both DNA and RNA virus infections (46). The current data further indicated the broad-spectrum antiviral potential of Mn, suggesting its capacity to suppress a wide range of viral infections. Given that HIV remains a major global public health concern, we aimed to investigate whether Mn treatment can also inhibit HIV replication in human primary cells. Human primary macrophages were pretreated with varying concentrations of Mn prior to infection with pseudotyped HIV-Luc-V. The results demonstrated that Mn inhibited HIV replication in a dose-dependent manner (Figure 6A). Notably, Mn treatment at a concentration of 25 µM resulted in over 90% inhibition of viral replication, suggesting that Mn may induce some factors with potent anti-HIV activities. To identify host genes induced by Mn treatment, we performed microarray analysis comparing gene expression profiles in human primary macrophages with and without Mn pretreatment. This analysis revealed 1,065 genes that were upregulated or downregulated by more than 2-fold with a p-value < 0.05. To assess the potential relevance of these genes to HIV inhibition, we conducted a Venn diagram analysis comparing the 1,065 of Mn-induced genes with a dataset of 2,439 known anti-HIV host factors identified through CRISPR, siRNA, and shRNA library screenings, as well as interferon-stimulated genes (ISGs) (66–72) (Figure 6B). Interestingly, 42 of the Mn-induced genes overlapped with anti-HIV genes identified via CRISPR screening, 71 were identified through siRNA/shRNA library screenings, and 66 were present in the ISG database. In total, 156 of the 1,065 of Mn-induced genes overlapped with previously identified anti-HIV host factors, suggesting that Mn treatment may activate a network of antiviral genes that contribute to the suppression of HIV replication. To further characterize the 156 of Mn-induced potential anti-HIV genes in MDMs, functional annotation analysis was performed using Metascape (73). This analysis revealed significant enrichment of pathways related to viral response, cytokine signaling in the immune system, and cellular response to cytokine stimulus (Figure 6C). And the list of 156 of Mn upregulated or downregulated anti-HIV factors was shown in the Supplementary Table S1.

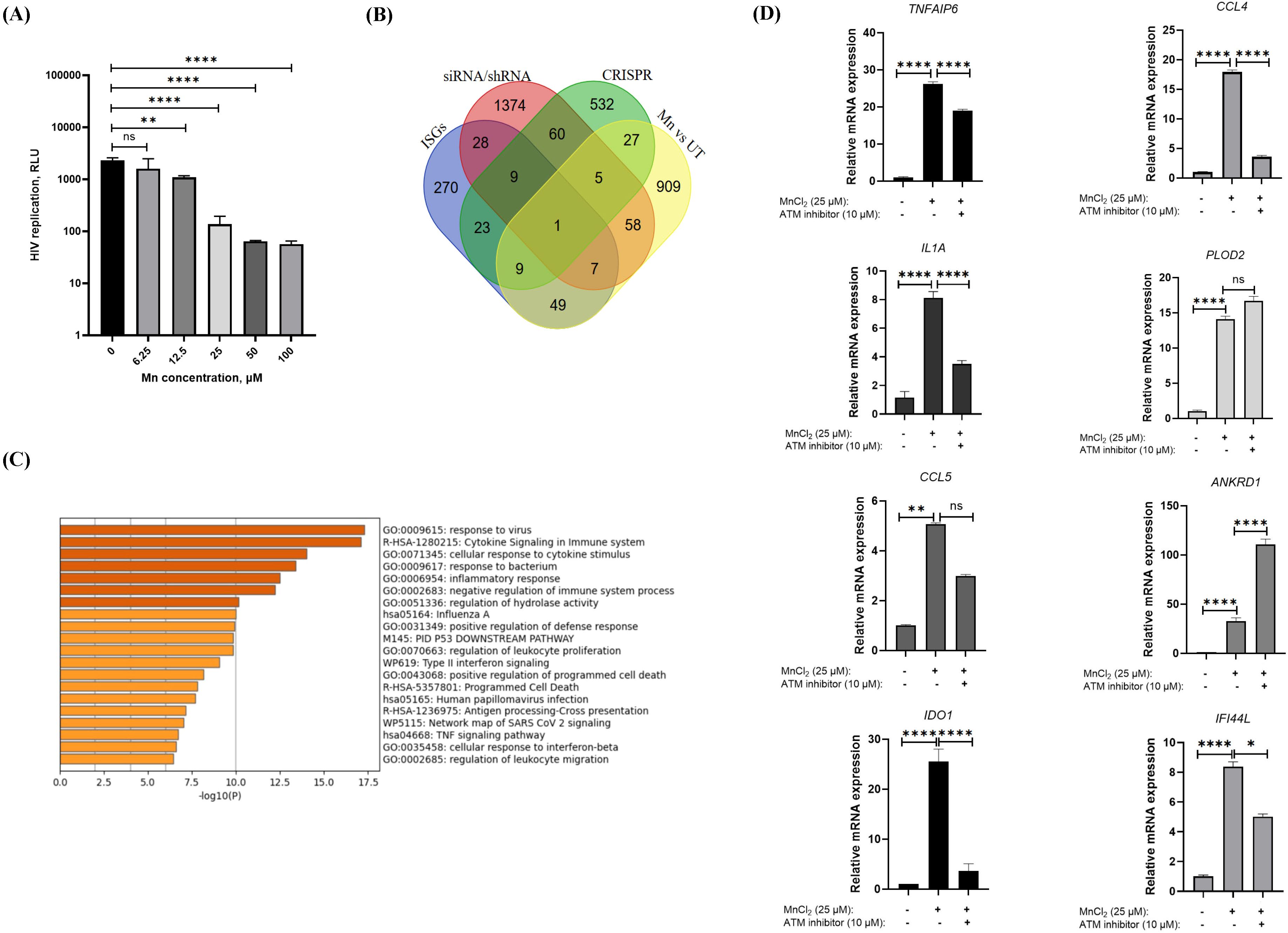

Figure 6. Mn inhibits HIV virus replication in MDMs by inducing multiple anti-viral cytokines or ISGs, with partial involvement of the ATM–TBK1 pathway. (A) MDMs were treated with different concentrations of MnCL2, and 24 h later, were further infected with recombinant HIV-Luc virus. HIV replication was determined by luciferase assay at 48 h after infection. Data represents at least three independent experiments and are shown as mean ± SD (n=3). One-way ANOVA with Dunnett’s multiple comparisons test was performed to indicate significant changes among samples by P value in different doses of Mn treatment vs. untreated control. P>0.05 (ns), p<0.01 (**), p<0.0001 (****) were noted. (B) Identification of host factors associated with HIV inhibition in the Mn-induced 1065 genes. Venn diagram analysis was conducted using the Mn-induced 1065 genes and a total of 2,439 genes of host factor identified from CRISPR, siRNA/shRNA library screening, and ISGs. (C) Functional enrichment analysis by Metascape (Metascape.org) for 156 Mn-induced genes related with anti-HIV activities (Supplementary Table S1). (D) Total RNA was extracted from with or without Mn-treated or ATM inhibitor Ku-60019-treated MDMs. Relative mRNA expression of indicated genes was detected using real-time RT-PCR, the values were normalized by GAPDH expression. Data represent at least three independent experiments and are shown as mean ± SD (n=3). Statistical significance was determined using one-way ANOVA with Dunnett’s multiple comparisons test, p > 0.05 (ns), p<0.05 (*), p < 0.01 (**), and p < 0.0001 (****).
Eight genes were selected for further validation: TNFAIP6 and IDO1 (from the anti-HIV ISG database); CCL4, CCL5, and IFI44L (present in both the ISG and siRNA/shRNA databases); and IL1A, PLOD2, and ANKRD1 (from the siRNA/shRNA database, with ANKRD1 also identified in the CRISPR dataset). Among these, CCL4 and CCL5 are known CCR5 ligands that compete with HIV for receptor binding, thereby blocking viral entry. IFI44L is an interferon-stimulated gene previously implicated in anti-HIV defense (74, 75). Although specific anti-HIV activities have not been reported for the remaining genes, their inclusion in anti-HIV databases and strong Mn-induced expression suggest potential relevance. The results confirmed that all eight selected genes were significantly upregulated following Mn treatment (Figure 6D), consistent with the microarray data. Furthermore, cells were treated with the ATM inhibitor Ku-60019, which had been validated in our previous study (46). The data showed that the expression levels of five genes—TNFAIP6, CCL4, IL1A, IDO1, and IFI44L—were markedly or partially reduced following ATM inhibition. Meanwhile, we also attempted to use ATM KO A549 cells to evaluate the induction of anti-HIV genes in the complete absence of ATM. However, among the six tested genes (TNFAIP6, CCL4, IL1A, PLOD2, CCL5, and ANKRD1), only IL1A showed a consistent induction pattern similar to that observed in macrophages, whereas all other genes were either not induced or only minimally induced by Mn treatment (Supplementary Figure S4). These results demonstrate that Mn treatment induces far fewer and significantly lower levels of anti-HIV factors in A549 cells compared with macrophages. Collectively, these findings suggest that Mn-mediated induction of anti-HIV factors occurs predominantly in macrophages, and that immortalized cell lines are not appropriate models for these experiments. Overall, these results suggest that the ATM–TBK1 signaling pathway may be partially involved in Mn-mediated anti-HIV activities.
Discussion
We have previously reported that supplementation of Mn in the form of Mn2+ in culture medium enhances innate antiviral immune response against DNA or RNA virus infection. This phenomenon is due to an increase in the phosphorylation of TBK-1. The use of siRNA against ATM or the ATM inhibitor Ku-60019 demonstrated that ATM, a protein kinase, is involved in this pathway (46). However, both siRNA and small molecule inhibitors can produce unintended side effects. siRNA, even when designed for specific mRNA silencing, may inadvertently suppress transcripts with similar sequences or trigger unexpected signaling pathways (76). Conversely, small-molecule inhibitors can engage off-target proteins or pathways, leading to unforeseen biological effects (77). Therefore, whether ATM is directly involved in the Mn-mediated enhancement of the innate immune response remains to be fully confirmed, and the molecular mechanisms underlying the interaction network among Mn, ATM, and TBK1 have not yet to be elucidated. In this study, we aimed to fully elucidate the role of ATM in the Mn-induced TBK1 phosphorylation pathway. Experiments using ATM KO A549 and ATM KO 293T cells consistently demonstrated that both TBK1 phosphorylation and the Mn-mediated enhancement of the antiviral innate immune response were abolished in the absence of ATM. These findings provide further evidence that ATM is involved in Mn-induced TBK1 phosphorylation.
ATM is a versatile protein kinase with diverse roles in DNA damage response, cellular homeostasis, and disease pathogenesis (78, 79). It is considered as a nuclear protein associated with the chromatin and nuclear matrix (80). We demonstrated that ATM localizes to both the nucleus and cytoplasm, indicating that it may also exert functional roles in the cytoplasm. We further confirm that p-TBK1 is predominantly localized in the cytoplasm, and its expression intensity progressively increased with the duration of Mn exposure. Based on this observation, we subsequently demonstrated that cytoplasmic ATM interacts with cytoplasmic TBK1. Moreover, the punctate staining pattern of p-TBK1 suggests that TBK1 forms homodimers upon phosphorylation (81).
In the immunoprecipitation assay, the amount of TBK1 bound to ATM decreased at 14 h post-treatment compared with samples collected at the same time points but without Mn treatment. This observation suggested that unphosphorylated TBK1 interacted with ATM at the initial stage, and that the TBK1–ATM interaction is a transient process. TBK1 dissociated from the ATM–TBK1 complex after phosphorylation, illustrating the dynamic nature of the ATM–TBK1 interaction. Subsequently, phosphorylated TBK1 may translocate to other regions of the cytoplasm to activate downstream signaling pathways. This process is consistent with the biology function of TBK1 as a kinase protein in innate immune response (82). TBK1 is a kinase involved in innate immunity, autophagy, and cell cycle regulation. It can be found in various cellular locations, including the cytosol, endosome membrane, and nucleoplasm. Interestingly, TBK1’s localization is often regulated by interactions with adaptor proteins, which can direct it to specific cellular compartments and signaling pathways (83–85). So, the translocation of TBK1 within the cytoplasm is consistent with the function switches of TBK1.
ATM is a large protein kinase, a member of the phosphatidylinositol 3-kinase-like protein kinase (PIKK) family (78). ATM is known as a master regulator of the cellular response to DNA double-strand breaks (DSBs) and related genotoxic stress in the nucleus (86). When DSBs occur, ATM becomes an activated form and then initiates a complex signaling network by phosphorylating various downstream proteins, including p53, Chk2, and H2AX, leading to processes like cell cycle arrest and DNA repair (50, 87). In the current study, we demonstrated ATM also phosphorylated TBK1, and ATM facilitated TBK1-mediated activating of downstream signaling. However, what is the status of ATM after Mn treatment? Mn is an essential trace element and serves as a cofactor for many enzymes (41). Studies show that Mn can activate ATM kinase activity (88). A specific signaling pathway involving ATM and the tumor suppressor protein p53 has been identified to be Mn dependent (88). Our current study suggested that Mn phosphorylated ATM at multiple sites, Ser1891, Ser1981, and Ser2996, and all the phosphorylation sites contribute to downstream TBK1 phosphorylation, since the mutations in the kinase domain and single mutation at Ser1981 had no critical effect on the activity of TBK1 phosphorylation. However, in the context of DNA damage, autophosphorylation at Ser1981 is widely recognized as a hallmark of ATM activation. Phosphorylation at this site stabilizes ATM at DSBs and is essential for an effective DNA damage response (89). Most naturally occurring ATM mutant proteins are unstable (90), making it technically challenging to generate and analyze all single-site phosphorylation mutants. Further studies are needed to specifically evaluate the role of each individual phosphorylation site in regulating TBK1 phosphorylation.
Furthermore, we confirmed that the phosphorylation of ATM is the upstream event of TBK1 phosphorylation. Inactive ATM typically forms a homodimer. This dimeric structure is crucial for maintaining ATM in an autoinhibited state. In this form, key regulatory elements within the ATM dimer restrict access to the active site, preventing substrate binding and kinase activity (79, 91, 92). Upon activation, the ATM dimer dissociates, forming active monomers. The monomeric form allows for a structural rearrangement that removes the inhibitory constraints on the active site. This liberation of the active site allows ATM to bind and phosphorylate its target proteins (93). Active ATM then phosphorylates a variety of downstream proteins involved in DNA repair, cell cycle control, and apoptosis. For example, ATM phosphorylates members of the MRN (MRE11-RAD50-NBS1) complex, which are crucial for repairing DNA damage (94). And we confirmed in the current study that Mn initially phosphorylated ATM, and the active form of ATM then phosphorylated TBK1, followed by an enhanced induction of innate immune response. Thus, the Mn-mediated ATM-TBK1 phosphorylation is essential for Mn-mediated antiviral activities.
In this study, we delineated an Mn-enhanced antiviral innate immune response mediated by an ATM–TBK1 phosphorylation axis, wherein ATM activation positively correlated with TBK1 phosphorylation. ATM exhibits an Mn-dependent function, a previously unrecognized role in innate immune responses that are commonly present in multiple cell types. The ATM–TBK1 dynamic cycle is essential for the Mn-mediated innate immune response. However, Zhang et al. reported an alternative ATM–TBK1 model, where ATM inhibition triggers TBK1 activation and type I IFN production in pancreatic cells, a response that is further amplified by radiation (95). In their study, radiation-induced DNA damage leads to the release of damaged DNA into the cytoplasm, which activates the cGAS–STING pathway, culminating in TBK1 activation and IFN production. In this pathway, ATM does not directly phosphorylate TBK1; rather, ATM inhibition reduces phosphorylation of CHK2 and AKT2 while increasing phosphorylation of p70-S6K and SRC, with phosphorylated SRC subsequently phosphorylating TBK1 (95). Therefore, we speculated that the interplay between ATM and TBK1 is stimulus- and cell-type dependent, and the signaling pathway may differ under distinct biological contexts. Additionally, our study demonstrates that Mn directly induces ATM phosphorylation at Ser1891/1981/2996, whereas DNA damage primarily relies on Ser1981 autophosphorylation. This suggests that site-specific phosphorylation of ATM may determine its distinct downstream functions in the contexts of innate immunity and DNA repair.
Wang et al. reported that Mn binds to cGAS, increasing its sensitivity to dsDNA and enhancing the production of the secondary messenger cGAMP. Mn also increases the binding affinity between cGAMP and STING. Activation of the cGAS-STING pathway subsequently leads to the production of type I interferons (IFNs) and other cytokines (42). Mn was also shown essential in the innate immune sensing of tumors (96, 97). Mn administration promotes the maturation of dendritic cells and macrophages and enhances tumor-specific antigen presentation (42, 98). Our previous study revealed that Mn enhances both DNA and RNA virus-mediated antiviral activities through increasing the phosphorylation of TBK1 (46), implicating that Mn may work in any TBK1-involved signaling pathway. We further evaluated the potential antiviral activity of Mn on HIV virus infection and the data suggested that Mn dose-dependently inhibits HIV virus infection in human primary macrophages. This data further motivated us to investigate whether Mn induces some antiviral factors which has been validated with antiviral activities previously. The microarray analysis indicated that 156 of the 1,065 Mn-induced genes overlapped with previously identified anti-HIV host factors (66–72, 99, 100). And those genes were highly focused on the response to viruses or bacterium, cytokine signaling in immune system. So, we proposed that Mn treatment may activate a network of antiviral factors that contribute to the suppression of HIV replication. In the current study, we used recombinant HIV virus expressing the Vesicular Stomatitis Virus glycoprotein (VSV-G) instead of HIV envelope protein, so the viruses enter macrophages without using HIV receptors (CD4 and chemokine receptors, CCR5 or CXCR4). VSV-G binds to receptors on host cell surface including the low-density lipoprotein receptor (LDLR) via endocytosis and complete only a single round of infection. As such, this system allowed us to focus on HIV-1 infection at a post-entry level (101, 102). We have planned to use replication competent HIV virus for infection in next step to further fully evaluate the antiviral efficiency of Mn with more physiology relevance. However, the current finding provided valuable insight on developing new anti-HIV reagents to fight HIV virus infection on humans. Since Mn induced 156 of multiple anti-HIV factors to suppress HIV virus infection, it is supposed there would be less opportunities for HIV virus to develop Mn-resistant mutations. Using the ATM inhibitor Ku-60019, we further found that Mn-induced expression of several antiviral genes (TNFAIP6, CCL4, IL1A, IDO1, and IFI44L) was significantly reduced, whereas other genes (PLOD2, CCL5, ANKRD1) were unaffected or not inhibited. These results suggest that Mn induces a broad antiviral response through both TBK1-dependent and TBK1-independent pathways, with the ATM–TBK1 pathway contributing partially to the overall anti-HIV effect. Further studies are needed to dissect the cooperative mechanisms underlying Mn’s potent anti-HIV effects.
Our results also indicate that primary cells, such as MDMs, are more sensitive to Mn than immortalized cell lines; for example, HeLa cells require 500 µM Mn to induce TBK1 phosphorylation, whereas MDMs respond to only 25 µM. This difference may reflect higher basal expression of ATM and other components of the TBK1-involved innate immunity pathway in primary cells, as well as the presence of additional synergistic factors that enhance pathway activation. Mn incorporation into cells is mediated via multiple channels and transporters (103, 104), thus the expression level of the Mn-channel or transporter may also effect the Mn efficiency. Importantly, this cell-type-specific sensitivity suggests that the optimization of Mn dosing may need to be contingent upon the target cell type in the context of potential antiviral applications, with lower doses potentially sufficient for primary immune cells and higher doses required for certain transformed or immortalized cells.
In summary, we further elucidated the role of ATM in Mn-mediated antiviral responses. Mn first induced phosphorylation of ATM, which in turn phosphorylated TBK1. Initially, TBK1 interacted with monomeric ATM and became phosphorylated. Upon phosphorylation, TBK1 dissociated from the ATM complex and activated downstream signaling pathways, thereby enhancing the antiviral response. The broad-spectrum antiviral activity of Mn also inhibits HIV replication, highlighting its great potential for the development of novel anti-HIV therapeutic formulations.
Data availability statement
Publicly available datasets were analyzed in this study. This data can be found here: Microscopy data analyzed in this article have been deposited at GEO previously and are publicly available. Accession number is GSE214181.
Ethics statement
Approval of these studies, including all sample materials, was granted by the National Institute of Allergy and Infectious Diseases Institutional Review Board, and participants gave written informed consent prior to blood being drawn. All experimental procedures in these studies were approved by the National Cancer Institute at Frederick (the protocol code number: 2016–19A6/11-30) and performed in accordance with the relevant guidelines and regulations.
Author contributions
HS: Conceptualization, Visualization, Validation, Formal Analysis, Supervision, Writing – original draft, Methodology, Investigation, Data curation. RW-R: Validation, Writing – review & editing, Data curation. SC: Data curation, Writing – review & editing. JY: Formal Analysis, Writing – review & editing. WB: Methodology, Formal Analysis, Writing – review & editing, Data curation. SL: Formal Analysis, Writing – review & editing. QC: Writing – review & editing, Data curation. TI: Writing – review & editing, Supervision, Project administration, Conceptualization.
Funding
The author(s) declare that financial support was received for the research and/or publication of this article. This project has been funded in whole or in part with federal funds from the National Cancer Institute, National Institutes of Health, under contract number HHSN261200800001E. This research was supported, in part, by the National Institute of Allergy and Infectious Diseases, National Institutes of Health. The content of this publication does not necessarily reflect the views or policies of the Department of Health and Human Services, nor does the mention of trade names, commercial products, or organizations imply endorsement by the U.S. Government.
Acknowledgments
We thank HC. Lane and M. Baseler support this project. We also thank Ming Hao and Weizhong Chang for discussing protein structure analysis. The Graphical Abstract was created using Biorender.com.
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Generative AI statement
The author(s) declare that no Generative AI was used in the creation of this manuscript.
Any alternative text (alt text) provided alongside figures in this article has been generated by Frontiers with the support of artificial intelligence and reasonable efforts have been made to ensure accuracy, including review by the authors wherever possible. If you identify any issues, please contact us.
Publisher’s note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
Supplementary material
The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fimmu.2025.1708516/full#supplementary-material
Supplementary Figure 1 | Sequential gating strategy for analysis in IDEAS™ (v6.4) analysis software. (A) Histogram of channel 1 brightfield (BF) gradient RMS of all acquired cells for selection of focused cells. (B) Selection of single cells from focused cells population using a density scatter plot of brightfield area versus brightfield aspect ratio. (C, D) Histogram overlay of intensity of focused single cell subpopulations of AF647 isotype control versus untreated and Mn-treated cells. (E, F) Histogram overlay of intensity of focused single cell subpopulations of AF488 isotype control versus untreated and Mn-treated cells.
Supplementary Figure 2 | A densitometry analysis was performed according to the data shown in Figure 4B by Fiji. The intensity of band for p-ATM or p-TBK1 is normalized by total ATM or TBK1, respectively. Data represents at least three independent experiments and are shown as mean ± SD (n=3). A student’s t test was performed to compare the phosphorylation of ATM and TBK1 under two conditions without Mn vs. with Mn. ** stands for p<0.01. The data represents three independent experiments.
Supplementary Figure 3 | A densitometry analysis was performed according to the data shown in Figure 4C by Fiji. The intensity of band for p-ATM or p-TBK1 is normalized by total ATM or TBK1, respectively. Data represents at least three independent experiments and are shown as mean ± SD (n=3).
Supplementary Figure 4 | Mn treatment induces far fewer and much lower levels of anti-HIV factors in A549 cells. Total RNA was extracted from with or without Mn-treated A549 or ATM KO A549. Relative mRNA expression of indicated genes was detected using real-time RT-PCR. The values were normalized by GAPDH expression. Data represents three independent experiments and are shown as mean ± SD (n=3). Statistical significance was determined using two-way ANOVA with Bonferroni’s multiple comparisons test, p > 0.05 (ns), p<0.05 (*), p < 0.001 (***), and p < 0.0001 (****).
Supplementary Table 2 | Total 156 genes are listed for Mn upregulated or downregulated anti-HIV factors (fold changes > 2). Group classification corresponds to the cross-referenced databases shown in Figure 6B.
Supplementary Table 1 | A list of antibodies used for western blot, immunofluorescence and Imaging flow cytometry assays. The information about the catalog numbers, suppliers and dilutions is provided.
