Potential Acclimatization and Adaptive Responses of Adult and Trans-Generation Coral Larvae From a Naturally Acidified Habitat

Abstract

Coral reefs are one of the most susceptible ecosystems to ocean acidification (OA) caused by increasing atmospheric carbon dioxide (CO₂). OA is suspected to impact the calcification rate of corals as well as multiple early life stages including larval and settlement stages. Meanwhile, there is now a strong interest in evaluating if organisms have the potential for acclimatization or adaptation to OA. Here, by taking advantage of a naturally acidified site in Nikko Bay, Palau where corals are presumably exposed to high CO₂ conditions for their entire life history, we tested if adult and the next-generation larvae of the brooder coral Pocillopora acuta originating from the high-CO₂ site are more tolerant to high CO₂ conditions compared to the individuals from a control site. Larvae released from adults collected from the high-CO₂ site within the bay and a control site outside the bay were reciprocally cultivated under experimental control or high-CO₂ seawater conditions to evaluate their physiology. Additionally, reciprocal transplantation of adult P. acuta corals were conducted between the high-CO₂ and control sites in the field. The larvae originating from the control site showed lower Chlorophyll-a content and lipid percentages when reared under high-CO₂ compared to control seawater conditions, while larvae originating from the high-CO₂ site did not. Additionally, all 10 individuals of adult P. acuta from control site died when transplanted within the bay, while all P. acuta corals within the bay survived at both control and high-CO₂ site. Furthermore, P. acuta within the bay showed higher calcification and net photosynthesis rates when exposed to the condition they originated from. These results are one of the first results that indicate the possibility that the long-living corals could enable to show local adaptation to different environmental conditions including high seawater pCO₂.

Introduction

Coral reefs are highly susceptible to ocean acidification (OA) which is caused by increasing concentrations of atmospheric carbon dioxide (CO₂; Hoegh-Guldberg et al., 2007). Seawater pH is expected to decrease by about 0.2–0.4 units compared to present levels of 8.1 by the end of this century according to the RCP scenarios (IPCC, 2014). Because the seawater calcium carbonate saturation (Ω) decreases with OA, the calcification rate of most calcifiers including corals, is expected to decrease in the future ocean (Kleypas et al., 2005; Chan and Connolly, 2013). Additionally, OA has been reported to impact multiple life stages of corals, including fertilization (Albright and Mason, 2013), larval (Nakamura et al., 2011; Putnam et al., 2013), and settlement (Doropoulos et al., 2012), suggesting strong impacts of OA on corals and coral reef ecosystems.

Meanwhile, more recent studies reported that the responses of marine calcifiers to OA could vary among species and even among populations or individuals within a species (Kroeker et al., 2010; McCulloch et al., 2012). These findings stimulate ideas about acclimatization or adaptation potential of organisms to OA (Pandolfi et al., 2011; Kelly and Hofmann, 2012; Sunday et al., 2014; Vargas et al., 2017). Indeed, some experimental studies demonstrated potential existence of genetic variations (e.g., sea urchins: Sunday et al., 2011) or phenotypic plasticity (e.g., corals: Putnam et al., 2016) to high pCO₂ environment. Additionally, acclimatization by “trans-generational plasticity” such that offspring of parents exposed to OA can show higher tolerance to OA have also been indicated (Munday, 2014; Lamare et al., 2016; Thomsen et al., 2017). When the parents of anemone fish were cultured under high pCO₂, it was found that the effects of high pCO₂ were absent or reversed in terms of the survival or size of their juveniles (Miller et al., 2012). Putnam and Gates (2015) studied the trans-generational acclimatization potential of the coral Pocillopora damicornis to high pCO₂ and temperature conditions, and found that the exposure of coral parents to those conditions may alleviate stress in next-generation larval stages. However, one of the limitations of these studies are that the exposure time of parents to the OA condition is restricted to a limited period of time or life stages (e.g., 1.5 months for the coral P. damicornis). Although evolution experiments studying the processes of adaptation to high pCO₂ using short generation organisms such as phytoplankton are now available (Lohbeck et al., 2012), we still lack for understanding multigeneration effects of OA on particularly long-living organisms such as corals (Torda et al., 2017). In this context, organisms living in naturally acidified sites such as on CO₂ vents (Hall-Spencer et al., 2008; Fabricius et al., 2011; Inoue et al., 2013) and sheltered lagoon (Shamberger et al., 2014; Golbuu et al., 2016) can be an ideal model to test adaptation potential and trans-generation responses to high pCO₂ (Calosi et al., 2013; Harvey et al., 2016; Welch and Munday, 2017).

Here we focused on the coral Pocillopora acuta living in Nikko Bay, Palau, where the seawater shows naturally low pH and high pCO₂ conditions with the aim of testing for the first time if adult and the next-generation larval stages of corals exposed to low pH for their entire life cycle show potential adaptation response to the OA. Seawater pH within Nikko Bay is 0.2–0.3 lower than that outside the bay, which is suggested to be caused by the net decomposition and net calcification by the organisms within the bay (Shamberger et al., 2014; Golbuu et al., 2016; Kurihara et al., unpublished data). The seawater residence time within the bay is also known to exceed 70 days (Golbuu et al., 2016), suggesting that the organisms within the bay may be genetically isolated from outside the bay (e.g., vermetid Cerasignum maximum: Soliman et al., 2019). This is likely so for P. acuta a brooder species, which releases larvae that mostly settled within 1–2 days (Kopp et al., 2016); they are thus suggested to have less dispersion capacity compared to spawning corals (Isomura and Nishihira, 2001; Nishikawa et al., 2003). This species has recently been identified as a cryptic species of coral P. damicornis complex (Schmidt-Roach et al., 2013).

In this study we tested if the adults and the larvae of P. acuta originating from the high-CO₂ site within Nikko Bay are more tolerant to high pCO₂ conditions compared to the adult and larvae from the control site outside the bay, respectively. To examine this hypothesis, we first conducted a reciprocal cultivation of larvae released from high-CO₂ and control site corals P. acuta under experimental control or high pCO₂ seawater conditions and evaluated their physiology including photosynthesis, respiration, zooxanthella density, chlorophyll-a (Chl-a) concentration, and lipid content. Additionally, reciprocal transplantation of adult colonies was conducted between the high-CO₂ and control site in the field, to evaluate their fitness by examining survival rate and physiology including calcification, photosynthesis, and respiration rate.

Materials and Methods

Coral Collection for Larval Experiment

Five different colonies of the coral P. acuta were collected from each of two sites (high-CO₂ and control site, both 4–5 m depth) in Palau on March 15, 2018 that have different seawater pCO₂ concentrations. The high-CO₂ site was within Nikko Bay (7°19′13.2″N, 134°30′00.6″ E) where seawater pCO₂ is naturally high (1,123 μatm/pH 7.77) and represents the value expected by the end of this century (RCP 8.5 IPCC). The control site was outside of Nikko Bay (7°18′15.3″N, 134°30′01.4″ E) where seawater pCO₂ shows normal concentrations (mean±SD: 416 ± 73 μatm/pH 8.15 ± 0.06, n = 3, Table 1) equivalent to present conditions (Table 1). The high pCO₂ and low pH condition within the bay is suggested to be caused mainly by high dissolved inorganic carbon (DIC) and low alkalinity resulting from net decomposition and net calcification by the organisms within the bay which has a high seawater residence time (Shamberger et al., 2014; Golbuu et al., 2016; Kurihara et al., unpublished data). In addition to seawater pCO₂, the average seawater temperature was also slightly higher (about 1.0°C) and the light intensity significantly lower within Nikko Bay compared to the control site (Supplementary Figure 1). The bottom seawater pH and salinity at both sites were measured by casts of a multi-parameter water quality sensor (AAQ-RINKO, JFE Advantech Co., Ltd., Japan). Bottom seawater samples were also collected three times using a Van Don water sampler for the measurement of total alkalinity (TA) and nutrient concentrations. Seawater TA was measured using an auto burette titrator (ATT-05, KIMOTO, Japan) with precision evaluated by analyzing certified reference materials (CRMs) supplied by the A. Dickson laboratory, Scripps Institution of Oceanography. Seawater for nutrient concentration analysis (4 replicates per sampling) was filtered through pre-combusted filters and frozen until measurement using an AACS II (BRAN+LUEBBE, Table 1). Seawater temperature and light intensity were recorded using temperature data logger (U22-001, HOBO V2, Onset Corp., United States) and light quantum (DEFI-L, JFE Advantech Co., Ltd., Japan) data loggers installed at each site for around 2 weeks (Supplementary Figure 1).

Experimental Set-Up for Larval Experiment

After collection, all corals were immediately brought to the Palau International Coral Reef Center (PICRC) and each 5 colonies was placed individually within 10 aquaria (36 × 22 × 26 cm) in which seawater pCO₂ was maintained at the comparable condition as where the corals were collected (control condition: 504 ± 164 μatm/pH 8.09 ± 012; high-CO₂ condition: 1301 ± 465 μatm/pH 7.74 ± 0.15, n = 16) (Table 1). Seawater pCO₂ was controlled by bubbling running seawater pumped from the ocean in front of PICRC with air mixed with either CO₂ gas or air only. Flow rates of CO₂ gas and air were controlled by mass flow controllers (SEC-E40, HoribaSTEC, Japan). Seawater pH (NBS scale) and salinity were measured, respectively, using a pH sensor (SenTix 940-3) and salinity sensor (TetraCon 925) connected to a multi-parameter portable meter (WTW Multi 3420, Germany). Seawater was sampled from aquaria for TA measurement and seawater pCO₂ and DIC was calculated using the CO2sys program of Lewis and Wallace (1998).

Coral Larvae

Two days after coral sampling, corals started to release larvae, which peaked on March 20 and 21 and lasted for about 1 week. Coral larvae were collected each day in a plastic container with a plankton mesh side installed at side of each aquaria every night (19:00) such that seawater exiting the aquaria flowed into the containers. Larval collection last for 6 days. The next morning (6:00), all larvae released at the same day from the adult colonies that were collected from the same site condition (control or high-CO₂ site) were pooled, and about each 150 larvae released from control or high-CO₂ site adults were allocated into plastic container (750 ml) filled with the same control or high-CO₂ seawater used for adults. Although we lose the genetical differentiation, larvae released from different colonies were pooled to get enough number of samples for the following measurements. Those larvae that following measurements were conducted the same day the larvae were collected, were designated as the Day 0 sample (2 treatments: larvae released from corals from the control and high-CO₂ sites and reared under the same control or high-CO₂ seawater conditions, respectively). After collecting larvae for Day 0, each 150 larvae released from control and high-CO₂ sites adults were reciprocated into containers (3–4 containers per treatment according to the released number of larvae) containing either control or high-CO₂ seawater and cultured for 5 days, designated as the Day 5 sample (4 treatments: larvae released from coral from the control and high-CO₂ sites and reared, reciprocally, under both control and high-CO₂ seawater conditions, respectively). The same procedure written above was repeated for 6 days using the larvae released from control and high-CO₂ sites adults each day. Seawater within the containers was changed every day and seawater temperatures were controlled by keeping the containers within a running seawater bath. The following measurement were conducted for the Day 0 and Day 5 samples, respectively.

Larval Metabolic Activity

Light photosynthesis and dark respiration rate of the Day 0 and Day 5 larvae samples were measured for all treatments. The symbiotic zooxanthella of pocilloporid corals such as P. acuta are known to be transmitted directly from the adult to the larvae (Atoda, 1947). Ten larvae from each treatment were held in air-tight 2 ml glass vials containing pre-filtered control or high-CO₂ seawater. After 20 min acclimatization, oxygen concentrations were measured with a fiber optic oxygen electrode (FIBOX 3, PreSens) for 5 min every 30 min under LED light (83 ± 5 μmol photon m^–2 s^–1) or dark conditions. This measurement was conducted for 9–12 replicates consisting of 10 larvae for each of the 2 and 4 treatments at Day 0 and Day 5, respectively.

Larval Zooxanthella Density and Chlorophyll-a Concentration

To evaluate the density of zooxanthella and chlorophyll-a (Chl-a) concentration in the larvae, each 10 larvae group used for the photosynthesis and respiration rate measurement were pooled into a 1.5 ml microtube, and homogenized with a micro-homogenizer. Thereafter, 150 μl of filtered seawater was added, mixed again and 50 μl of the homogenized sample was used for counting zooxanthellae numbers by a hemocytometer. The remaining 100 μl sample was filtered through pre-combusted (450°C, 4 h) GF/F glass filters, and Chl-a was extracted within a N,N-dimethylformamide (DMF) solutions, and measured using a Trilogy fluorometer (Turner Design) following Holm-Hansen et al. (1965) method.

Adult Zooxanthella Density and Chlorophyll-a Concentration

Since we found differences in the zooxanthella density and Chl-a concentration in coral larvae from the control and high-CO₂ sites, we also evaluated the density of zooxanthella and Chl-a concentration of adult colonies. A piece of an additional 4 colonies of P. acuta were sampled from each site after all the larval experiments were complited. After collection, they were immediately brought to PICRC and the tissue from each coral piece was removed using a waterpik and filtered seawater. After homogenizing the seawater containing the coral tissue, the sample was centrifuged three times and zooxanthellae numbers counted using a hemocytometer. Additionally, a known amount of the sample was filtered through pre-combusted (450°C, 4 h) GF/F glass filters, extracted with DMF and Chl-a measured using the Trilogy fluorometer. The surface area of each piece was measured using the aluminum foil technique (Marsh, 1970) and the zooxanthella density and Chl-a concentration was standardized by surface area.

Larval Dry Weight

To evaluate the larval dry weight, each 20 larvae from Day 0 and Day 5 samples were collected on pre-combusted and pre-weighted GF/F glass filters (450°C, 4 h) from each of the 2 and 4 treatments at Day 0 and Day 5, respectively. Filters were frozen at −80°C and then freeze-dried and weighted, and the weight per larvae was calculated. Each filter with 20 larvae were used as a replicate, and the replicate number per treatment was 4 to 13 (see Figure 4 for detail).

Larval Lipid

To evaluate the lipid content, 50 larvae from Day 0 and Day 5 samples were collected on pre-combusted and pre-weighted GF/F glass filters (450°C, 4 h) for each of the 2 and 4 treatments at Day 0 and Day 5, respectively. Filters were frozen at −80°C until lipid analysis. Each filter with 50 larvae were used as a replicate, and the numbers of filter replications per treatment was 3 to 6 (see Figure 5). All filters were first freeze-dried, weighted and the lipids extracted following Harii et al. (2010). Briefly, lipids were extracted within a 6:4 dichloromethane:methanol solution, and concentrated by removing water with Na₂SO₄ and the amount of extracted lipid weighted. The amount of lipid was calculated as the percentage of lipid per larvae by dividing the extracted lipid weight by the dry weight of 50 larvae and the number of larvae.

Adult Experiment

To evaluate the possibility of any acclimatization or adaptation responses of adult colonies, 10 different colonies of P. acuta were collected from the same sites that corals were sampled for larval collection; the high-CO₂ site within Nikko Bay and the control site outside the bay in February 2017. All colonies collected were immediately brought to PICRC, and two nubbins of about 5–7 cm² were taken from each colony and glued to plastic screws. Two days later, the buoyant wet weigh of all 40 P. acuta nubbins were measured with an electronic balance (0.1 mg precision, HR-200, A&D, Japan) according to Davies (1989). Thereafter, each 20 nubbins (10 nubbins originated from control and 10 nubbins from high-CO₂ sites) were set into a mesh panel (ca. 1 m²), and the nubbins were reciprocally transplanted back to each of the high-CO₂ and control sites till October 2017. This transplantation period was decided so that the corals experience the two different seasons (dry season: February to May and wet season: July to September) at Palau (Watanabe et al., 2006). Seawater carbon chemistry at each site was measured six times during the transplantation as explained above (Table 2).

After 7 months, all nubbins were re-collected, and brought back to PICRC for photosynthesis rate, dark respiration rate and buoyant wet weight measurements. Additionally, seawater from each site was collected to use for the following photosynthesis and respiration rate measurements. Although most coral nubbins were alive, all of the 10 nubbins that were collected at the control site (outside of Nikko Bay) and transplanted to the high-CO₂ site (within Nikko Bay) died, and hence we could not take any measurement for those nubbins.

Photosynthesis and dark respiration were measured in 500 ml air-tight glass chamber with stir bars during the daytime under meta-halide lump (250 μmol photon m^–2 s^–1), and during the nighttime under dark conditions, respectively. Each glass container was filled with the seawater from the same site the corals were retrieved from and submerged within a water bath to control seawater temperatures. Oxygen concentrations were measured with a fiber optic oxygen electrode (FIBOX 3, PreSens) for 1 min every 15 min. After photosynthesis and dark respiration measurement, the buoyant wet weight of all nubbins was measured, and calcification rates were calculated based on the change in dry weight measured before transplantation. All photosynthesis, dark respiration and calcification rates were normalized by surface area.

Statistical Analysis

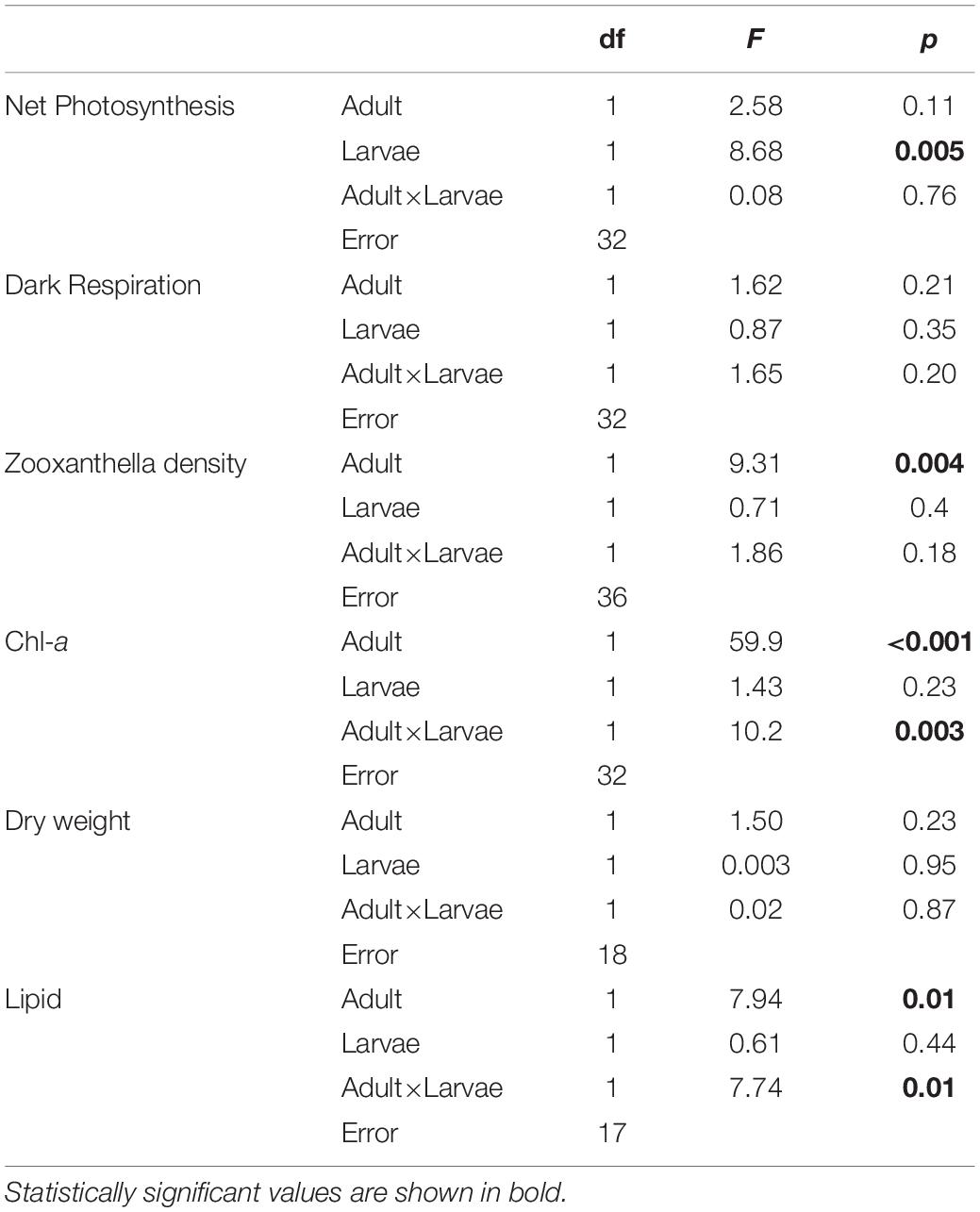

The larval data measured at Day 0 were analyzed with a student t-test between the two sites the parental colonies were collected from (control and high-CO₂ sites). When the data did not meet the assumption of normality, data was analyzed with a Wilcoxon rank test. The larval data measured at Day 5 were analyzed by 2-way ANOVA (Type III was used for all unbalanced designed data) with fixed factors of the site that parental colonies were collected from (control and high-CO₂ site) and the environment larval were cultured under (control and high-CO₂ conditions) and their interactions. For the photosynthesis, dark respiration and calcification rates of adult corals, because we could not get data for the nubbins from the control site transplanted to the high-CO₂ site, data were analyzed with restricted maximum likelihood (REML) with the 3 treatments (from control-transplanted to control, from CO₂-transplanted to CO₂, from CO₂-transplanted to control) as a fixed factor and colonies as a random effect. Variables with significant interactions were examined further with Tukey’s honest significant differences (HSD) test. Assumptions of normality and variables were tested and transformed for analysis when necessary. Statistical analysis was carried out in R (R.2.7.2).

Results

Larval Experiment

The larval net photosynthesis rate measured at Day 0 just after released from the adults collected at the high-CO₂ site within Nikko Bay was significantly higher than larvae from the control site adults (student t-test, t = −4.7, p = 0.0001, Figure 1). Respiration rates were not significantly different among the two larval groups (student t-test, t = −0.4, p = 0.69). After the larvae were reciprocally cultivated at control or high CO₂ seawater for 5 days, photosynthesis rate of the larvae cultured at high-CO₂ was significantly higher than control seawater regardless of the seawater conditions where they originated from [F_(1,32) = 8.68, p = 0.005], with no interaction (Figure 1 and Table 3). Respiration rate did not differ based on origin of the parents, or the culture condition, with no interaction between the two factors [F_(1,32) = 1.65, p = 0.20, Figure 1 and Table 3].

FIGURE 1

Zooxanthella densities of larvae released from adults originating from the high-CO₂ site were significantly higher compared to larvae from control adults at Day 0 (t-test, t = −3.2, p = 0.003, Figure 2). A similar trend was also observed at Day 5, where zooxanthella densities in the larvae originating from high-CO₂ adults were significantly higher compared to larvae from control adults, regardless of the seawater conditions they were cultured under [F_(1,36) = 9.31, p = 0.004], with no interaction [F_(1,36) = 1.86, p = 0.18, Figure 2 and Table 3]. Chl-a concentrations did not differ among larvae released from adults originating from control and high-CO₂ sites at Day 0 (Wilcoxon-rank test, p = 0.09, Figure 2). However, at Day 5, Chl-a of the larvae originating from high-CO₂ adults was significantly higher than control larvae [F_(1,32) = 59.9, p < 0.001], with a significant interaction among parent origin and the seawater condition that larvae were cultured under [F_(1,32) = 10.25, p = 0.003, Table 3]. The Chl-a of larvae released from control adults cultured under high-CO₂ seawater was significantly lower than the other larvae (Tukey’s HSD, Figure 2). In addition to the larvae, both zooxanthella density (t-test, t = −5.6, p = 0.001) and Chl-a (t-test, t = −2.4, p = 0.05) of adult corals originating from the high-CO₂ site were significantly higher than in adults originating from the control site (Figure 3).

FIGURE 2

FIGURE 3

The dry weight of the larvae released from control adults was significantly higher than the larvae released from high-CO₂ adults at Day 0 (Wilcoxon-rank test, p = 0.02, Figure 4). However, after 5 days of culture, the dry weight of larvae did not show any significant differences among parent origin [F_(1,18) = 0.23] and the seawater condition that larvae were cultured under [F_(1,18) = 0.95, Figure 4 and Table 3]. Lipid concentrations in larvae released from control and high-CO₂ adults did not show any significant differences at Day 0 (t-test, t = 0.9, p = 0.39, Figure 5). However, after 5 days of culture, the lipid concentration displayed an interaction effect among the origin of adults and the conditions the larvae were cultured under [F_(1,17) = 7.74, p = 0.01, Figure 5 and Table 3]. When the larvae released from adults originating from the control site were cultured under high CO₂ seawater, lipid concentrations were significantly lower than when the larvae were cultured under control conditions (Tukey’s HSD, Figure 5). Meanwhile, larvae released from adult originating from the high-CO₂ site did not show any difference when cultured under control or high-CO₂ seawater.

FIGURE 4

FIGURE 5

Adult Experiment

While only one nubbin collected at the control site and transplanted to the control site died, all 10 nubbins derived from each 10 different colonies collected at control site and transplanted to the high-CO₂ site died after 7 months. No nubbins collected from the high-CO₂ site and transplanted to the control or high-CO₂ sites died. Calcification rates for the nubbins collected from the high-CO₂ site and transplanted to their original high-CO₂ site were significantly higher than the nubbins collected from the high-CO₂ site and transplanted to the control site [REML, F_(2,18.5) = 4.60, p = 0.02, Figure 6]. Additionally, net photosynthesis rates in the nubbins collected from the high-CO₂ site and transplanted to their original high-CO₂ site was significantly higher than the nubbins transplanted to the control site from both the control and high-CO₂ site [REML, F_(2,19.1) = 13.56, p = 0.0002, Figure 6].

FIGURE 6

Discussion

Although tropical coral reefs provide number of ecological functions and economic values, we still lack information on whether long-living corals have the capacity to show acclimatization or adaptation responses to the environmental change (Torda et al., 2017). Here we first found that adult corals and the next-generation larvae which are potentially exposed for multigeneration to naturally acidified environment show higher fitness under their condition similar to their original sites. These results provide, insights for the potential of corals to acclimatize or adapt to the environmental change including CO₂ conditions.

The P. acuta larvae released from adults originating from the high-CO₂ site showed significantly higher photosynthesis rates, which may be due to the higher zooxanthellae density of larvae from the high-CO₂ site compared to those from the control site. Since the adult P. acuta colonies originating from the high-CO₂ site also showed higher zooxanthella density compared to the control site colonies, it appears that the amount of zooxanthella in the parent can affect amount transmitted to larvae, suggesting strong parental effects on next generation. Reasons for adult corals from the high-CO₂ site within Nikko Bay showing higher zooxanthellae densities may related to (1) the high seawater pCO₂ concentration, which may enhance primary production, (2) the slightly higher nutrient concentrations (Table 1) or (3) the lower light intensity observed within the bay (control site: 336 ± 341 μmol photon m^–2 s^–1, high-CO₂ site: 71 ± 95 μmol photon m^–2 s^–1, Table 1, Supplementary Figure 1). Previous studies demonstrated increased ammonium concentrations induced proliferation of zooxanthella in both adults (Muller-Parker et al., 1994) and larvae of P. damicornis (Gaither and Rowan, 2010). In addition, zooxanthella density has been reported to increase under low light intensity by the increase in the zooxanthella division and decrease in zooxanthella degradation, which has been suggested to be an acclimation strategy of corals to low light environment (Falkowski and Dubinsky, 1981; Stimpson, 1997; Titlyanov et al., 1999). Hence all the above factors can be suggested as reasons for the differences observed in the high-CO₂ adults. For Chl-a, although there was no significant differences among control and high-CO₂ larvae at Day 0, after 5 days of culture, the Chl-a was significantly lower in larvae originating from the control site cultured under high-CO₂ conditions, while larvae from the high-CO₂ site did not show any change between control and high-CO₂ conditions. This may suggest that, although larvae from parents living at control corals show some potential stress responses to high pCO₂ seawater, larvae from high-CO₂ corals are able to tolerate a wide range of pCO₂ concentration.

The dry weight of the larvae released from the adults originating from the high-CO₂ site was lower compared to larvae from the control site at the Day 0, suggesting that they were smaller in size or of lower density. Interestingly, the same trend in the production of smaller larval size was observed when the adult of P. damicornis adult were culture under high CO₂ and high temperatures for 1.5 months (Putnam and Gates, 2015). Here we measured the dry weight instead of larval size because we found it difficult to measure the swimming larval size correctly, but we expect that the larval dry weight correlates well with their volume. The production of smaller larvae has been suggested to be a potential adaptive plasticity of adults under predictable stressful conditions (Crean and Marshall, 2009; Putnam and Gates, 2015), which can also be the case observed in this study. However, here we did not observe any potential stress responses such as declines of physiological performance in either larvae or adult corals from the high-CO₂ site. Additionally, after 5 days of culture, the dry weight of larvae from all conditions did not show any significant differences, suggesting that the initially low dry weight may not negatively affect the subsequent development of the larvae from the high-CO₂ site. Interestingly, although we were not able to prove statistically because we did not count the number of larvae released per colony, we observed that the summed number of larvae released by the 5 colonies from the high-CO₂ site was larger (total of 1383 larvae from 5 colonies) compared to the control site (total of 875 larvae from 5 colonies, Figure 7A). Additionally, same trend was also found for the corals collected on September 2017 (those larvae were not used for the present study) from the same high-CO₂ site (total of 1262 larvae from 5 colonies) compared to the control site (total of 919 larvae from 5 colonies, Figure 7B). Although further studies should be conducted before make any firm conclusion, this may suggest that corals from the high-CO₂ site tend to release a larger number of larvae of smaller size compared to the corals at control site, which can be a potential adaptation strategy of the corals living within this high-CO₂ Nikko bay.

FIGURE 7

Another difference that was found among larvae from the control and high-CO₂ sites was that the larvae from control site cultured under high-CO₂ conditions for 5 days shows significantly lower lipid percentage. Larvae from the high-CO₂ site did not show any differences in lipids among control and high CO₂ conditions. Several studies have indicated that corals may need further energy to compensate for their internal pH when reared under low pH (Cohen and Holocomb, 2009; Allemand et al., 2011; Edmunds, 2011), so excess use of lipid could be expected in larvae from the control site reared under high CO₂. Meanwhile, larvae from the parents originating from the high-CO₂ site seems to be acclimatized or adapted to the high-CO₂ seawater. Larval lipid content has also been suggested to be used as energy for locomotion and mucus secretion (Richmond, 1987; Gaither and Rowan, 2010). Although we did not observe any clear differences in larval locomotion, effects of CO₂ on these biological activities can also be expected (Bergman et al., 2018). In any case, since the lipid content of larvae has been proposed as an important factor affecting the duration of the larval period (Harii et al., 2007), and larvae with larger amounts of lipid may benefit post-settlement by growing faster (Richmond, 1987), larvae from the high-CO₂ site within Nikko Bay are likely to be conferred an advantage compared to larvae from the control site when under high-CO₂ conditions.

In addition to larval responses, reciprocal transplantation of adult corals showed that while all corals originated from Nikko Bay survived when transplanted to either control or high-CO₂ sites at Nikko Bay, P. acuta colonies originated from the control site were not able to survive within the bay, suggesting the existence of strong selection within the bay. Though, here we need to take into account the fact that all transplanted corals originated outside and inside the bay were put together at same mesh, there might have other interactive effects that influenced their survival. But, because only the out-side corals transplanted within the bay died, even though the corals originated from out-side and in-side the bay were put randomly at the same mesh, it seem that is more likely that the coral mortality rate was influenced by their origin rather than by the mesh. Additionally, considering the fact that corals within the bay showed higher fitness of high calcification and net photosynthesis rates when exposed to the condition they originated from compared to the control condition, it can be suggested that P. acuta living in Nikko Bay are well adapted to the conditions found within the bay. Although we also need to note that not only seawater pCO₂ concentration but also several other conditions, such as light intensity, temperature and nutrient concentrations, all differ between the control site and the high-CO₂ site (Table 1). Of particular note, light intensity within the bay was less than half that compared to the control site (Supplementary Figure 1), which is mainly due to the higher turbidity (control site: 0.3 ± 0.15 FTU, CO₂ site: 1.8 ± 0.8 FTU). Additionally, seawater temperatures were about 1°C higher within the bay (Supplementary Figure 1). Some previous studies indicated that Pocilloporidae corals may have a higher tolerance to high pCO₂ condition compared to other corals such as the Acroporidae (Putnam et al., 2013; Comeau et al., 2014). Hence the low survival of P. acuta corals from the control site transplanted into the Nikko Bay may be a response to the synergistic impacts of a range of conditions: high pCO₂, high temperature, and low light. Although we cannot evaluate the genetic mechanisms as here we lack of molecular approaches, Vidal-Dupiol et al. (2013) revealed that several genes related to calcification, heterotrophy and autotrophy were up-regulated in P. damicornis adults reared under low pH conditions. Epigenetic phenotypic plasticity to high pCO₂ by DNA methylation has also been found in the coral P. damicornis (Putnam et al., 2016) and Stylophora pistillata (Liew et al., 2018). Additionally, the change in expression of several genes in P. damicornis larvae reared under OA and high temperature conditions has also been reported (Rivest et al., 2018). Future studies evaluating the potential interactive effects of other environmental factors and the potential genetical differences in corals within the bay are needed for better understanding the mechanisms driving their tolerances.

Although there are several uncertainties, the seawater environmental condition found within Nikko bay has been suggested to be maintained for at least 5000 years (Golbuu et al., 2016). This time period could be long enough for selecting individuals that shows higher fitness to the environmental conditions found within the bay which may have been amplified by the trans-generation acclimatization responses. Additionally, gradual change of the environmental condition including seawater pCO₂ found from outside toward the bay (Kurihara et al., unpublished data) may allow the step by step acclimatization of corals to the environment found within the bay. Long-living and high dispersal capacity corals have been suggested to have less capacity of transgenerational epigenetic inheritance to effect rapid phenotypic change to the environmental change (Torda et al., 2017), however, this is one of the first results that indicate the possibility that corals could show local adaptation to high CO₂ and other conditions including high temperature and high turbidity. Though, interpretation of these results should take into account the fact that future OA is expected to occur at whole ocean and at the speed of few decades, the present study gives strong insight for the ability of corals to acclimatize or adapt to different environmental conditions. Future studies evaluating the genetical background of those corals within this bay may give important insights for the potential conservation strategies such as assisted evolution (van Oppen et al., 2017) and understanding the mechanism of organisms to acclimatize and adapt to different environmental conditions, including high pCO₂ seawater concentration.
