Front. Microbiol., 20 March 2015
Sec. Extreme Microbiology

Microbial methane formation in deep aquifers of a coal-bearing sedimentary basin, Germany

  • 1Resource Geochemistry, Geomicrobiology, Federal Institute for Geosciences and Natural Resources, Hannover, Germany
  • 2Federal Institute for Geosciences and Natural Resources, Hannover, Germany
  • 3Institute of Groundwater Ecology, Helmholtz Center for Environmental Health, Neuherberg, Germany
  • 4Department of Isotope Biogeochemistry, Helmholtz Centre for Environmental Research, Leipzig, Germany

Coal-bearing sediments are major reservoirs of organic matter potentially available for methanogenic subsurface microbial communities. In this study the specific microbial community inside lignite-bearing sedimentary basin in Germany and its contribution to methanogenic hydrocarbon degradation processes was investigated. The stable isotope signature of methane measured in groundwater and coal-rich sediment samples indicated methanogenic activity. Analysis of 16S rRNA gene sequences showed the presence of methanogenic Archaea, predominantly belonging to the orders Methanosarcinales and Methanomicrobiales, capable of acetoclastic or hydrogenotrophic methanogenesis. Furthermore, we identified fermenting, sulfate-, nitrate-, and metal-reducing, or acetogenic Bacteria clustering within the phyla Proteobacteria, complemented by members of the classes Actinobacteria, and Clostridia. The indigenous microbial communities found in the groundwater as well as in the coal-rich sediments are able to degrade coal-derived organic components and to produce methane as the final product. Lignite-bearing sediments may be an important nutrient and energy source influencing larger compartments via groundwater transport.


The occurrence of methane in coal-bearing sedimentary basins has traditionally been linked to high maturity coals with thermogenic gas potential (Strąpoć et al., 2011). However, recent geochemical studies have frequently detected natural occurrence of biogenic methane, identified by its carbon and hydrogen isotopic signatures (Whiticar et al., 1986), in groundwater and pore water from lower maturity coal systems, like those in the Powder River Basin (Strąpoć et al., 2011 and the references therein). Biogenic methane can be generated from coal material under anoxic conditions (Krüger et al., 2008; Beckmann et al., 2011a; Guo et al., 2012). Coal is extremely rich in complex organic matter and therefore a very attractive carbon source for microbial biodegradation (Fakoussa and Hofrichter, 1999) and, eventually, for methanogenesis. Lignite coal is soft brown sediment with high water content and a relatively low heating value. These characteristics place it somewhere between peat and sub-bituminous coal. Because of the high organic matter concentrations, coal-derived sediments are potential important microbial sources of energy (Fry et al., 2009). The biodegradation of coal components is primarily performed by bacterial fermentation of polymers and monomers to fatty acids, organic acids, alcohols and/or hydrogen and carbon dioxide. These products can then be used by methanogens. Thus, the successful conversion of coal to methane depends on the syntrophic interaction of both microbial groups: fermenting bacteria and methanogenic Archaea (For a review see Strąpoć et al., 2011).

Based on laboratory methanogenesis stimulation studies and the analysis of archaeal communities (where members of Methanosarcinales, belonging to Methanosarcina and Methanosaeta, were abundant), Krüger et al. (2008) reported a predominance of acetoclastic methanogenesis in hard coal and timber in abandoned mines. These results were later confirmed by Stable Isotope Probing (Beckmann et al., 2011b). In a subsequent study, Beckmann et al. (2011a) described the bacterial community present in those mines, dominated by potential fermenters and acetogens.

Other studies conducted in the Gippsland Basin (Midgley et al., 2010), the Illinois Basin (Strąpoć et al., 2008), Northern Japan (Shimizu et al., 2007) and Western Canada (Penner et al., 2010), reported the presence not only of Methanosarcina and Methanosaeta, but also of several other methanogenic archaeal genera including Methanolobus, Methanobacterium, Methanocorpusculum, Methanococcus, Methanoculleus, and Methanoregula in formation water samples and sediment cores. Dominant bacterial species included the phyla Firmicutes, Spirochaetes, Bacteroidetes and members of all subgroups of Proteobacteria (Strąpoć et al., 2011). Detmers et al. (2001) showed the presence of an anaerobic food chain in groundwater from a pristine aquifer with lignite layers, consisting of active fermenting Betaproteobacteria and sulfate-reducing bacteria (Desulfotomaculum spp.) at the interface between aquifer and lignite seam.

Nevertheless, to date, little is known about the biodegradation processes of coal leading to methane production in ligniteous coal-rich sediments and coal-associated aquifers, the diversity of the microbial communities involved, and the influence of geochemical parameters. Because of this, the aim of this work was (1) to study the importance of coal-derived organic substrates for methanogenic microbial communities present in sediment and formation water samples, (2) to investigate microbial syntrophic interactions and degradation pathways and (3) the microorganisms involved in the biodegradation. This should contribute to a better understanding of metabolic processes in coal-associated habitats leading to biogenic gas generation. For this purpose, we sampled groundwater and coal-rich sediments from a coal-associated sedimentary basin, where isotopic signatures of methane (δ13C-CH4 and δD-CH4) indicated the occurrence of biogenic methane. Geochemical investigations were combined with microbiological and molecular biological approaches leading to the identification and characterization of the bacterial and archaeal community composition in coal-rich sediment and groundwater samples as well as methanogenic enrichment cultures with hydrocarbons as sole carbon source. Integrating these methods we were able to show a close interaction between organic substrates and microbial populations in coal-rich sediments with the groundwater aquifer system.

Materials and Methods

Sampling and Sample Preparation

Groundwater samples and samples of coal-bearing sediments were collected in February 2009. Groundwater samples were taken from 10 different continuously running wells from the groundwater management system in the proximity of an open-cast lignite coal mine. They were collected in sterile bottles previously flushed with N2. Bottles were completely filled with water and caped with butyl rubber stoppers to prevent further O2 exposure. All samples were transported and stored cool (4°C) and processed 1 day after sampling. The main geochemical properties for each one are given in Table 1. All groundwater samples showed pH-values of ∼7, the salinity ranged between 5 and 9%. The locally measured water temperature was ∼29°C, only in well site 3 a water temperature of 15°C was detected, the air temperature ∼0°C. Four groundwater samples (from wells 2, 4, 5, 10) smelled sulfurous, the other were odorless. For the investigation of the water chemistry, the fluids were immediately filtered upon arrival (0.45–0.22 μm depending on the analysis) and stored at 4°C or frozen (-20°C) until further analysis.


TABLE 1. Methane content and geochemical properties of groundwater samples collected from wells located in coal-rich sediments.

In addition, three coal-rich sediment samples were collected from freshly mined heaps of brown coal (sample 1), air-dried coal from the bottom of the mine (sample 2) and coal slurry from a wet spot (sample 3). Collected groundwater and coal-rich sediment samples were transferred into sterile glass bottles and immediately flushed with N2. Directly after collection of groundwater samples, pH, temperature, conductivity and salinity were determined. All samples were transported and stored at 4°C for further analyses.

Cultivation Methods

Anaerobic incubations were set up in an anaerobic chamber. A first set of incubations was established to determine methanogenic and sulfate-reducing rates. Three g of sediment (sediment microcosms) or 10 mL of groundwater (groundwater microcosms) were transferred into autoclaved 19-mL Hungate vials containing 5 mL of freshwater medium (Widdel and Bak, 1992) with 2 mM (in the case of the methanogenic microcosms, to stimulate the first biodegradation steps, according to Zengler et al., 1999) or 10 mM sulfate (for the sulfate-reducing ones). The glass vials were sealed with sterile butyl rubber stoppers and aluminum crimp caps. All tubes were flushed with N2 to remove traces of H2 from the anaerobic chamber.

To investigate methane production rates related to different methanogenic degradation pathways, cultures (three of each) were amended with either acetate (10 mM), methanol (0,5 mM) or a H2/CO2 mix (80/20%). Controls without any added carbon source were incubated in parallel. Cultures with 2-bromoethanesulfonate (BES; 10 mM), a specific inhibitor for methanogenic microorganisms, were included as well to account for possible non-microbial methane emissions from the water or sediment samples. Sulfate-reducing microcosms, containing either lactate or acetate (10 mM of each) or without any additional substrate (three of each), were set up. In this case, cultures with sodium azide (NaN3, 50 mM), a strong microbial toxin, were used as controls to show feasible degassing from non-microbial origin.

All microcosms were incubated at 30°C in the dark and monthly sampled to assess methane and CO2 formation in the headspace. Methane and CO2 production rates were calculated by linear regression of each gas increased with incubation time and expressed in μmol day-1 mL-1 groundwater or μmol day-1 gDW-1 (dry weight) of sediment (Krüger et al., 2001). Sulfate-reduction rates were followed via the production of copper sulfide from dissolved sulfide (HS-), according to Cord-Ruwisch (1985).

After 94 days of incubation, growing methanogenic cultures (5 mL) were subsequently re-inoculated into fresh medium and amended with 13C-labeled substrates ([13C16] n-hexadecane, [13C7] toluene, [13C2] ethylbenzene, or 2-[13C]-methylnaphthalene), to investigate the transformation of selected hydrocarbons into methane and CO2. 13C-labeled or unlabeled single substrates, n-hexadecane, ethylbenzene (both 0.1% v/v), toluene or 2-methylnaphthalene (0.5 mg of each), were added into the anaerobic enrichment cultures, containing 25 mL fresh sterile medium and 5 mL transferred pre-culture from groundwater or coal-rich sediment samples (as described previously) in 56-mL serum bottles. All labeled or unlabeled hydrocarbons (ethylbenzene, toluene, and methylnaphthalene) were from Campro Scientific GmbH (Germany), except the U-13C-n-hexadecane, which was synthesized as described by Feisthauer et al. (2010).

Analytical Methods

The elemental composition of 10 different groundwater samples was analyzed using an inductively coupled-plasma mass-spectrometry instrument (ICP-MS ELAN 5000, Perkin Elmer Sciex, USA; Dekov et al., 2007). Concentrations of potassium, sodium, chloride, magnesium, calcium, sulfate, bicarbonate, ferrous iron, manganese, aluminum, arsenic, borate, barium, cadmium, chromium, lithium, nickel, lead, silica, and strontium were measured. Anions (nitrite, nitrate, and phosphate) were determined by ion chromatography with a DX-500 ion chromatograph system (Dionex, Germany) and ammonium was detected by flow injection analysis according to DIN EN ISO 11732. Total inorganic carbon (TIC) and dissolved organic carbon (DOC; 0.45 μm filtered) were measured using catalytic high temperature combustion with a Shimadzu TOC-VCPN carbon analyzer (Shimadzu, Japan).

Methane and CO2 concentrations from groundwater samples and from microcosms headspace were analyzed using a methanizer-equipped gas chromatograph with flame ionization detector (GC-FID) fitted with a 6 Hayesep D column (SRI 8610C, SRI Instruments, USA) running isothermally at 60°C, after reduction of CO2 to methane. Carbon and hydrogen isotopic signatures from methane and carbon dioxide emanated from the coal-rich sediment samples in the bottles were determined using a gas-chromatography-combustion-isotope ratio mass spectrometry system (GC-C-IRM-MS), equipped with a CP-pora BOND Q column coupled to a combustion or high temperature pyrolysis interface (GC-combustion III or GC/C-III/TC; Thermo Finnigan, Bremen, Germany) and a MAT 252 IRMS for the carbon analysis or a MAT 253 IRMS for the hydrogen analysis (both from Thermo Finnigan, Bremen, Germany; Feisthauer et al., 2010; Herrmann et al., 2010). The carbon and hydrogen isotopic compositions (R) are reported as delta notation (δ13C and δD) in parts per 1000 (‰) relative to the Vienna Pee Dee Belemnite (VPDB) and Vienna Standard Mean Ocean Water (VSMOW), respectively. The error associated with the system (accuracy and reproducibility) was around 0.5‰ for carbon and 4‰ for hydrogen.

Molecular Biological Methods

Quantification of Microorganisms in Environmental Samples and Cultures

Total cell numbers were counted after staining with SYBR Green II under the fluorescence microscope as described by Weinbauer et al. (1998).

Genomic DNA from the coal-rich sediments and from the microcosms amended with hydrocarbons was extracted using protocols from Lueders et al. (2004). Groundwater samples were aseptically filtered with membrane filters (0.22 μm; Whatman, General Electric Company, Munich, Germany) and DNA was extracted from the filters according to Lueders et al. (2004).

16S rRNA gene copy numbers of Archaea and Bacteria were determined as described previously (Takai and Horikoshi, 2000; Nadkarni et al., 2002) using the Q-PCR instrument ABI Prism 7000 (Applied Biosystems, Life Technologies Corporation, USA). In addition, Crenarchaeota were quantified according to Ochsenreiter et al. (2003). Concentrations of methyl-coenzyme M reductase subunit alpha gene (mcrA; using mlas and mcrA-rev primers) and dsrA gene coding for the alpha subunit of the dissimilatory (bi)sulfite reductase of sulfate-reducing prokaryotes were determined according to Steinberg and Regan (2008, 2009) and Schippers and Neretin (2006). All Q-PCR reactions were measured in three parallels and three dilutions, to account for possible inhibitor effects in the DNA extracts. To perform Q-PCR quantification, a StepOne detection system (StepOne version 2.0, Applied Biosystems, USA) coupled with the StepOne v2.1 software was used.

Terminal Restriction Fragment Length Polymorphism

For terminal restriction fragment length polymorphism (T-RFLP) analysis, extracted DNA was used as template for PCR amplification of phosphoramidite fluorochrome 5-carboxyfluorescein (FAM)-labeled amplicons. Amplifications were generated with the use of the primer sets Ar109f and 912rt-FAM, or Ba27f-FAM and 907r. To account for possible inhibitor effects in environmental DNA extracts, a dilution series of each fresh extract was used. T-RFLP analysis of PCR products was done using the restriction endonucleases TaqI (archaeal assay) and MspI (bacterial assay), respectively. The procedure was described by Pilloni et al. (2011). Capillary electrophoresis and data collection were operated on an ABI 3730 Genetic Analyzer (Applied Biosystems, USA). The electropherograms were processed with sequence analysis software PeakScanner 1.0 and GeneMapper 4.0 (Applied Biosystems, USA). T-RFLP histograms were performed with the use of the T-REX online software using the default settings (Culman et al., 2009). Terminal restriction fragments were compared to theoretical predictions from 16S rRNA gene sequences for a preliminary identification of specific groups of bacteria. The particular T-RF length represents the most abundant microorganisms within the bacterial community.

Clone Libraries

Clone libraries were created using DNA extract from the original coal-rich sediment samples and the derived microcosms amended with hydrocarbons. 16S rRNA gene fragments were amplified by PCR using the domain specific primer pairs 21f (5-TTC CGG TTG ATC CYG CCG GA) and 958r (5-YCC GGC GTT GAM TCC AAT T) for Archaea (DeLong, 1992), and GM3f (5-AGA GTT TGA TCM TGG C) and GM4r (5-TAC CTT GTT ACG ACT T) for Bacteria (Lane, 1991). Cloning and sequencing of the archaeal and bacterial 16S rRNA amplicons was performed by Microsynth AG1 (Switzerland). Sequences were assembled using the Geneious ProTM 5.3 software2. Prior to phylogenetic analysis, vector sequences flanking the 16S rRNA gene inserts were removed. Chimeric sequences were detected using the DECIPHER’s Find Chimeras online software (Wright et al., 2012) from the University of Wisconsin Madison3 and were excluded from further analysis. Sequences were compared to GenBank BLASTn algorithm from the National Center for Biotechnology Information (Altschul et al., 1990)4 and the Ribosomal Database Project Classifier (Wang et al., 2007; RDP5) to select closely related species. Sequences were aligned with their nearest neighbors in the SSU dataset using SINA Alignment Service6 (Pruesse et al., 2012).

Amplicon Pyrosequencing

Amplicon pyrosequencing of bacterial 16S rRNA genes was performed on a 454 GS FLX Titanium system (Roche, Penzberg, Germany) as reported by Pilloni et al. (2012). Briefly, bar-coded amplicons for multiplexing were prepared using the primers Ba27f and Ba519r (for an easier linking of observed TRFs to restriction sites predicted for assembled pyrotag contigs) and extended with the respective adapters, key sequence and multiplex identifiers (MIDs) as recommended by Roche. Pyrotag PCR was performed in a Mastercycler ep gradient (Eppendorf, Hamburg, Germany) as described in Pilloni et al. (2012), and amplicons were subsequently purified.

Quality filtering of the pyrosequencing reads was performed using the automatic amplicon pipeline of the GS Run Processor (Roche) with a modification of the valley filter (vfScanAll- Flows false instead of TiOnly) to extract sequences. Reads were further trimmed using the TRIM function of GREENGENES (DeSantis et al., 2006) with default settings, and those shorter than 250 bp or with incorrect sequencing primers were excluded from further analysis. Read affiliation was done for combined forward and reverse reads for each library using the RDP classifier (Wang et al., 2007) with confidence threshold set to 80% (default).

Contigs for T-RF prediction of dominating amplicons were assembled with using SEQMAN II software (DNAStar, Madison, WI, USA), using forward- and reverse-reads, as described elsewhere (Pilloni et al., 2012). Thresholds of read assembly into one contig were set to at least 98% sequence similarity for a minimum overlap of 50 bp. Contigs within one library with less than 20 reads and not at least one forward and one reverse read were excluded from further analysis.

Cloning sequences and contigs originated from pyrosequencing were grouped into operational taxonomic units (OTUs) based on a sequence similarity cutoff of 97% (Yu et al., 2006) using Mothur software7 (Schloss et al., 2009). One clone sequence from each OTU having two or more representatives was submitted to NCBI GenBank database (accession numbers KJ424433 to KJ425107).


Occurrence of Biogenic Methane in Groundwater and Sediments

The high TIC content in all groundwater samples, demonstrated the presence of active CO2-releasing microbial metabolization processes (Table 1). Dissolved CH4 concentrations ranged from 10 μM in well 1–100 μM in well 5 (Table 1).

Dissolved methane and CO2 exhibited light carbon isotopic signatures, with δ13C values ranging from -71 to -80‰ and -14 to -20‰ relative to VPDB, respectively (Table 1). These values are on the lower range of previously reported δ13C signatures for coalbed methane (-80 to -17‰) and CO2 (-27 to+19‰) as compiled by Rice (1993), and are compatible with a biogenic origin of the methane (Figure 1A). The isotopic composition of methane hydrogen δD-CH4 was highly variable but relatively light, ranging from -234 (well 3) to -376‰ (well 7), consistent with either CO2 reduction or bacterial methyl-type fermentation (Figure 1B; Schoell, 1980, 1983; Whiticar et al., 1986; Whiticar, 1999).


FIGURE 1. Genetic diagrams for gasses of different samples: carbon isotopic composition of natural methane and CO2 in groundwater samples from deep aquifers of coal-rich sedimentary basin and sediments (A). Hydrogen vs. carbon isotopic composition of methane (δ13CCH4 and δDCH4) of natural methane in groundwater samples (B). Zoning after Schoell (1980, 1983) and Whiticar et al. (1986). VPDB, Vienna PeeDee Belemnite; SMOW, Standard Mean Ocean Water.

Similarly, C isotopic composition of natural gas collected from coall-rich sediments was light, with δ13C-CH4-values of -70.8‰ (sediment 1), -72.3‰ (sediment 2) and -63.4‰ (sediment 3), and δ13C-CO2-values of -16.8, -15.6, and - 24.1‰, respectively. These signatures were consistent with a biogenic origin as well, either by CO2 reduction (sediments 1 and 2) or acetate fermentation (sediment 3; Figure 1A).

In vitro Methanogenic and Sulfate Reduction Rates

Groundwater and coal-rich sediment samples were incubated under methanogenic conditions for 94 days. Methane production rates were ≤0.5 nmol CH4 day-1 mL-1 and ≤0.6 nmol CH4 day-1 g-1, in the case of the water samples or sediments, respectively (Figure 2). Conversely, no methane increase was detected in cultures of samples from wells 5 and 9, and BES and sodium azide-amended cultures (data not shown).


FIGURE 2. Methane production rates from cultured groundwater samples from wells 1 to 10 amended without any additional substrate, or with either acetate, a mixture of H2 and CO2 or methanol (A), and from sediments 1–3 without any substrate added or amended with either acetate, or a mixture of H2 and CO2 (B). Notice the different scale of the Y axis. The error bars represent the SD of three replicates. All cultures were incubated at 30°C for 73 days.

All groundwater cultures exhibited methane production when simple methanogenic substrates were added (Figure 2A). Potential rates of CH4 production in acetate-amended groundwater cultures were between 0.1 and 2.87 nmol CH4 day-1 mL-1 (1.3–14 times higher than those of the non-amended controls). In methanol amended groundwater microcosms the rates were generally higher (increasing up to 44-fold compared to the non-amended controls), particularly in microcosms from wells 2, 3, 4, 6, and 8 (2.27–8.86 nmol CH4 day-1 mL-1). However, the highest methanogenic rates (up to 149 nmol CH4 day-1 mL-1) were detected in microcosms were H2 and CO2 had been added, increasing up to 1500 times in microcosms from well 10.

Acetate addition enhanced methane production (up to sevenfold) in microcosms with sediments 2 or 3 (4.6, and 1.1 nmol CH4 day-1 g-1 on average, respectively; Figure 2B). H2 and CO2 stimulated methane production only in microcosms with sediment 2. Among the hydrocarbon-amended microcosms, only those inoculated with sediments 1 or 2 and amended with n-hexadecane showed significantly increased methane production. The rates ranged from 8.7 ± 1.0 nmol CH4 day-1 mL-1 (sediment 2) to 16.4 ± 0.5 nmol CH4 day-1 mL-1 (sediment 1). The values for the non-inoculated cultures varied between 0.13 and 0.23 nmol CH4 day-1 mL-1.

Sulfate reduction rates varied between 1 and 60 nmol H2S produced mL-1 d-1 in the groundwater microcosms with no additional substrate. Lactate addition significantly accelerated sulfate reduction (up to 20-fold) in almost all groundwater cultures (rates from 0.4 to 0.6 μmol H2S mL-1 d-1). On the other hand, inocula from wells 3, 4, and 5 did not exhibit any sulfate reduction, even when lactate was added. Sulfate reduction in sediment cultures was only detectable in microcosms from sediment 3 amended with lactate (being 0.5 μmol H2S mL-1 d-1 on average).

Quantification of Microbial Groups

The total number of cells in the groundwater samples, determined by direct count of SYBR Green-stained cells, was around 107 cells mL-1 in samples 4, 5, and 10. Groundwater sample 3 showed the lowest numbers (104 cells mL-1). Groundwater samples 1, 2, 6, 7, 8, and 9 had on the order of 106 cells mL-1 (ranging from 2 to 9 × 106).

The abundance of selected microbial groups in the coal-rich sediment samples was determined via quantitative (real time) PCR (Q-PCR; Figure 3). Average bacterial numbers ranged between 2 × 109 and 1 × 1010 16S rRNA gene copies g-1. However, archaeal numbers were much lower, in a range of 106 copies g-1. Crenarchaeota were found in all three samples in nearly similar 16S rRNA gene copy numbers (6 × 106, 8 × 106, and 1 × 106 copies g-1 in sediment sample 1, 2, and 3, respectively). However, only 104–105 16S rRNA gene copies g-1 were retrieved using the primer set by Takai and Horikoshi (2000).

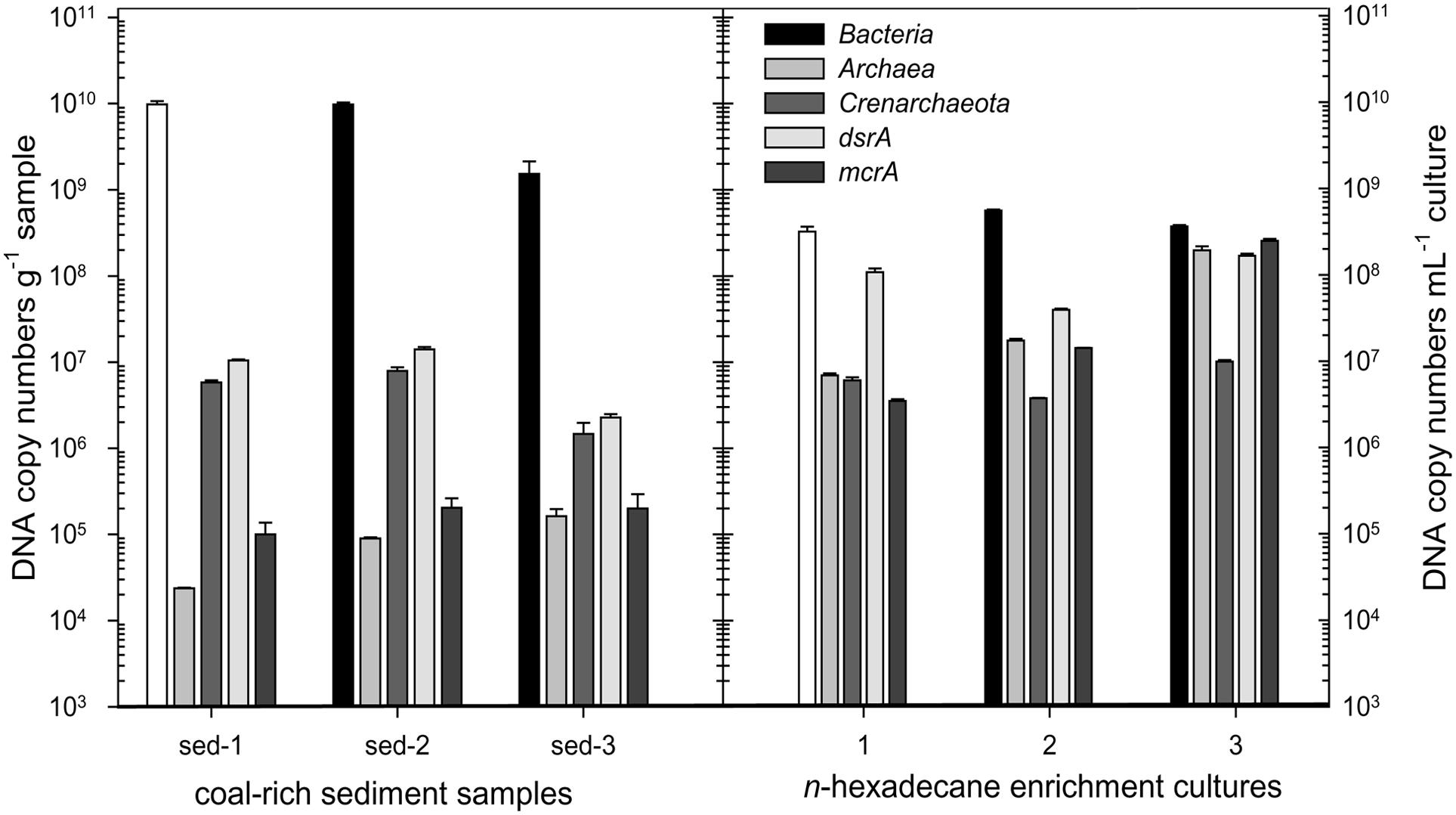

FIGURE 3. Abundance of Bacteria, Archaea, Crenarchaeota, sulfate-reducing prokaryotes (dsrA) and methanogens (mcrA) in coal-rich sediment samples and their derived n-hexadecane-amended enrichment cultures, as determined by quantitative PCR. The error bars represent the SD of three replicates.

The quantitative detection of the dissimilatory sulfite reductase gene (dsrA) revealed sulfate-reducing prokaryotes in the range of 2 × 106 (sediment 3) and 1 × 107 copies g-1 in sediments 1 and 2. The abundance of methyl-coenzyme M reductase genes (mcrA) was between 1 and 2 × 105 copies g-1.

The proportion of Archaea, methanogens and sulfate-reducers vs. Bacteria increased drastically in enrichment cultures amended with n-hexadecane, compared to the original sediments (Figure 3). Conversely, within the Archaea, the proportion of Crenarchaeota was lower in the n-hexadecane cultures.

Phylogenetic Analysis of the Microbial Communities Composition

The diversity of the microbial communities in all environmental samples and n-hexadecane enrichment cultures was analyzed and compared using T-RFLP (Figures 4 and 5). Additionally, to identify the main fragments, clone libraries of the archaeal communities and pyrosequencing of the bacterial communities of selected sediment samples were performed, the results are shown in Tables 2 and 3, respectively. Because sediment sampling points were quite closely located, DNA for all three was pooled and subsequently analyzed.


FIGURE 4. Heatmap showing the T-RF found in Bacterial 16S rRNA gene T-RFLP fingerprints from different groundwater samples collected from deep aquifers of coal-rich sedimentary basin, coal-rich sediment samples, and the derived enrichment cultures amended with n-hexadecane. The gray scale indicates the relative abundance of each fragment. Only values above 1% are given. *The abundance of this peak equals the maximum abundance for the sample.


FIGURE 5. Heatmap showing the T-RF found in Archaeal 16S rRNA gene T-RFLP fingerprints from different groundwater samples collected from deep aquifers of coal-rich sedimentary basin, coal-rich sediment samples, and the derived enrichment cultures amended with n-hexadecane. The gray scale indicates the relative abundance of each fragment. Only values above 1% are given.


TABLE 2. Phylogenetic affiliation of sequences produced by pyrosequencing analysis of bacterial 16S rRNA gene fragments retrieved from DNA extracted from unamended ligniteous coal-rich sediment and derived enrichment cultures (after 17 months) amended with n-hexadecane.


TABLE 3. Phylogenetic affiliation of clone sequences produced via clone libraries of archaeal 16S rRNA gene fragments retrieved from DNA extracted from unamended ligniteous coal-rich sediment and derived enrichment cultures (after 17 months of incubation) amended with n-hexadecane.

Bacterial Communities

Terminal restriction fragment length polymorphism profiles of the three different coal-rich sediment samples exhibited only few T-RF (Figure 4), reflecting the predominance of a small number of taxa. The most significant peaks were 476-bp T-RF, corresponding to the epsilonproteobacterium Arcobacter; 488-bp T-RF, belonging to Acidovorax, and 492-bp T-RF, which matched with Pseudomonas sp. and Acinetobacter (Pseudomonadales), and several Betaproteobacteria affiliated to Oxalobacteraceae, Comamonadaceae and Methylophilaceae. Minor peaks corresponded to the genera Sulfurospirillum (468-bp T-RF) and Arthrobacter sp. (161-bp T-RF).

5176 sequences were retrieved from the pyrosequencing analysis of sediment samples. The majority of these pyrosequences corresponded to representatives of Actinobacteria (52.5%), mostly Arthrobacter (52.4%); Gammaproteobacteria (18.8%), most of them belonging to Pseudomonas (18.2%); Betaproteobacteria (16.1%), represented by members of the Oxalobacteraceae (like Massilia), Comamonadaceae (mainly of genera Acidivorax or Albidiferax, 5.9%) and Methylophilaceae (e.g., genus Methylotenera, 2.3%) families; Epsilonproteobacteria (8.4%), mainly Arcobacter spp. (7.4%) and Sulfurospirillum.

According to the TRFL-P profiles, bacterial communities from n-hexadecane amended sediment-derived cultures (Figure 3) were more diverse (i.e., presented several predominant peaks), which was also confirmed by pyrosequencing (Table 2), and more similar to groundwater rather than coal-sediment samples. Most of the identified phylotypes belonged to Proteobacteria, followed by members of Actinobacteria, Anaerolineae, and Clostridia. In addition, there was a shift of the bacterial dominance toward the Deltaproteobacteria, mainly Desulfobacterales (like Desulforhopalus or Desulfatiferula), Desulfuromonadales (belonging to Geobacteraceae) and Syntrophobacterales (Desulfomonile and Smithella), and the Anaerolineae. The remaining sequences fell in the classes of Alphaproteobacteria, Betaproteobacteria, Gammaproteobacteria, Clostridia (e.g., Bacillus and Paenibacillus) and Actinobacteria (e.g., Arthrobacter, Micrococcus, Nocardioides and Marmoricola Table 2).

T-RFLP patterns of groundwater samples were highly variable, but most of them presented only a few predominant peaks (Figure 4). Dominant T-RFs were coincident to those from sediment samples: 161-bp T-RF (Arthrobacter) 468-bp T-RF (Sulfurospirillum), 475-bp T-RF (Arcobacter), and 492-bp T-RF (assigned to several Gammaproteobacteria and Betaproteobacteria, as already stated). Another genus abundant in well 3, was Desulfatiferula (Deltaproteobacteria), corresponding to the 517-bp T-RF. In addition the community presented different fragments, which could not be identified (Figure 4).

Archaeal Communities

The phylogenetic analysis of archaeal 16S rRNA gene fragments (Table 3; Figure 4) confirmed the presence of methanogenic Archaea in the coal-rich sediment samples, mainly Methanosaeta sp. (24%), but also Methanosarcina (1%; 183-bp T-RF) and Methanomethylovorans (1%; 790-bp T-RF). Furthermore, 46% of sequences were affiliated to unclassified Thermoprotei within the phylum Crenarchaeota.

The majority of the generated sequences from enrichment cultures belonged to unclassified Thermoprotei (Table 3; Figure 5) or methanogenic Archaea, like Methanomethylovorans (790-bp T-RF, abundant in enrichment culture 2) or phylotypes closely related to Methanosaeta concilii (282-bp T-RF) and Methanoregula formicicum (392-bp T-RF). Archaeal community diversity was lower than bacterial diversity in all groundwater samples. Only the T-RFLP fingerprints of wells 2 and 3 presented more than one T-RF peak (Figure 5), corresponding to genera Methanosarcina (183-bp T-RFs), Methanosaeta (282-bp T-RFs), and Methanoregula (392-bp T-RFs). Most of the 16S rRNA gene sequences were related to members of the class Methanomicrobia (Euryarchaeota) and unclassified Thermoprotei. In addition, two dominant peaks (227-bp T-RF, present in wells 2 and 3, and 87-bp T-RF could not be assigned.


Groundwater and coal-rich sediment samples were investigated to assess the ability of subsurface microbial communities to produce methane from coal-related hydrocarbons. Both water and sediments showed evidence for biological activity, particularly for methanogenic processes, as reflected in the high concentrations of DOC and on the biogenic isotopic signatures of methane and CO2. This activity was consistent with the presence of sufficient amounts of N and P, trace elements and electron acceptors to support microbial growth and potentially stimulate the initial steps of hydrocarbon degradation, which could eventually lead to methane production.

Putative Hydrocarbon Degrading Microorganisms in Lignite-Bearing Sediments and Associated Waters

To identify the microorganisms responsible for the degradation of complex organic matter of ligniteous coals to substrates for methanogenesis, microbial communities from groundwater and sediment samples were studied using T-RFLP fingerprinting combined with pyrosequencing of 16S rRNA gene fragments.

Microbial communities in groundwater and coal-rich sediments were dominated by putative hydrocarbon-degrading taxa affiliated to Actinobacteria (such as Arthrobacter) and Proteobacteria, mostly Gammaproteobacteria belonging to Pseudomonadales, and Betaproteobacteria, including Acidovorax, Burkholderia, Polaromonas, Geofuchsia, and Ralstonia (Figure 4; Table 2). Many of these have been frequently found in other coalbed reservoirs (Shimizu et al., 2007; Li et al., 2008; Penner et al., 2010), associated waters (Lemay and Konhauser, 2006; Midgley et al., 2010; Penner et al., 2010), and other hydrocarbon-rich environments like petroleum reservoirs (Li et al., 2007; Tang et al., 2012) or petroleum-contaminated soils or sediments (Reisfeld et al., 1972), and are known to degrade a variety of hydrocarbon and related substituted molecules (Parales, 2010).

Within the hydrocarbon degrading microorganisms were nitrate reducers related to Pseudomonas, Acinetobacter, Arcobacter, Arthrobacter, and Geofuchsia. This was consistent with the nitrate content, the absence of oxygen and with the close association of groundwater to coal-rich sediments, where different hydrocarbons are available as substrate for microbes. Pseudomonas species are often capable to degrade alkane, alkene- and polycyclic aromatic hydrocarbons (Rockne et al., 2000). Acinetobacter strains have been shown to be able to efficiently degrade short- and long-chain linear alkanes, isoalkanes and various aromatic compounds (Mbadinga et al., 2011; Li et al., 2012). Arthrobacter species are gram-negative soil Actinomycetes, able to degrade cellulose and other polysaccharides (Li et al., 2008), as well as polycyclic aromatic hydrocarbons (Kallimanis et al., 2009). Arthrobacter sp. may play an important role in biodegradation of coal-associated hydrocarbon compounds at the coal-water boundary layer within the sites investigated here. Georgfuchsia toluolica degrades BTEX compounds using nitrate, Fe(III) or Mn(IV) as electron acceptor (Weelink et al., 2009).

Hydrocarbon-degrading sulfate reducers were identified as well. For example, Desulfatiferula sp. was exclusively found in groundwater sample 3 where the sulfate concentration was higher than in the other groundwater samples. Desulfatiferula olefinivorans, a mesophilic sulfate-reducing bacterium isolated from oil-polluted sediment, exclusively oxidizes long-chain alkenes and fatty acids incompletely to acetate, using only sulfate as electron acceptor (Cravo-Laureau et al., 2007).

All these hydrocarbon-degrading microorganisms may be involved in the initial breakdown of coal and its transformation into more labile compounds which might be further used by the reminder of the microbial community. In this respect, Pseudomonadales are considered to play an important role in the degradation of organic matter of lignite and sub-bituminous coals (Machnikowska et al., 2002; Jones et al., 2010).

Other taxa, such as the genera Acidovorax, Arcobacter, or Methylotenera, have been previously found in petroleum and coal-related environments (Voordouw et al., 1996; Li et al., 2008; Midgley et al., 2010; Penner et al., 2010; Liu and Liu, 2013). So they might also be related to hydrocarbon biodegradation. Methylotenera spp., for example, utilizes fermentation products (Kalyuzhnaya et al., 2006).

The identification of aerobic or facultative denitrifying together with sulfate- and iron-reducing hydrocarbon-degrading microorganisms suggests a high metabolic versatility of the microbial community, which thus could easily respond to changes in the availability of electron acceptors, and continue to degrade coal regardless of the electron acceptor available. The presence of relatives of the Sulfurospirillum spp. and Arcobacter spp. points to an important role of sulfur and nitrogen cycling. Some Arcobacter species are able to reduce nitrate and oxidize sulfide, while Sulfurospirillum species have extremely diverse metabolic features and possibly reduce sulfur as well as oxidize nitrite (Tang et al., 2012).

Interestingly, a high abundance of 16S rRNA gene sequences affiliated to the unclassified Thermoprotei (within the phylum Crenarchaeota) was found in all coal-rich sediment samples. Kemnitz et al. (2007) showed that Crenarchaeota are ubiquitous and commonly found in low temperature environments. However, little is known about their physiological characteristics and their ecological importance, because the majority of this group of microorganisms has not been cultivated yet. Nevertheless, recently, relatives of hyperthermophilic Thermoprotei were detected in production waters from high-temperature petroleum reservoirs in China (e.g., Li et al., 2007; Ren et al., 2011; Tang et al., 2012), which suggests a capability of hydrocarbon degradation or a close contribution to the degradation process.

The microbial community identified in the groundwater samples contains a broad spectrum of putative hydrocarbon degraders, able to degrade complex organic compounds such as long-chain alkenes, polycyclic aromatic hydrocarbons, BTEX, and other coal-associated compounds (e.g., fatty acids) to lower molecular weight compounds which are utilizable by methanogens.

Hydrocarbon and Low Molecular Weight Organic Acid Degradation in Enrichment Cultures

To demonstrate microbial growth and conversion of coal-rich sediments or hydrocarbons to methane and carbon dioxide by coal-associated communities, enrichment cultures amended with hydrocarbon substrates or original coal as sole carbon and energy source were investigated. According to Orem et al. (2010), alkanes are among the primary intermediates in the biodegradation pathway from coal-derived geopolymers. We assume that the enriched microorganisms directly involved in this process, with different degradation steps performed by specifically adapted microbial groups, are also active in their native coal-associated environments.

Microbial communities from n-hexadecane enrichment cultures consisted predominantly of deltaproteobacteria syntrophic and sulfate-reducing taxa belonging to Desulfobacterales, Desulfuromonadales, Desulfovibrionales, and Syntrophobacterales known for their ability to degrade long-chain fatty acids (Sousa et al., 2009), correlating well with the detection of high amounts of dsrA genes via Q-PCR. In a previous study we observed that the addition of electron acceptors such as manganese, ferric iron or low concentrations of sulfate (below 5 mM), can accelerate n-hexadecane-dependent methanogenesis (Siegert et al., 2011). On the other hand, Thermoprotei were highly enriched in these n-hexadecane-amended cultures, which reinforces the hypothesis of their contribution in the biodegradation of hydrocarbons.

In the present study, n-hexadecane proved to be a good methanogenic substrate for the lignite-rich sediment-associated microbial community. However, it did not stimulate methanogenesis in groundwater inoculated microcosms, unlike acetate, methanol or CO2 and H2. Therefore, it seems likely that there is an inflow of low-molecular-weight organic acids (LMWOA) and other fermentation products from the underlying lignite-rich sediments into the coal-associated aquifer.

Vieth et al. (2008) demonstrated that some LMWOA, such as acetate, formate, and oxalate, could be released from low rank ligniteous coals into surrounding water, providing a carbon source for the associated microbiota. This process depends on the organic matter and maturity of the coal material. Their study also showed that the water soluble acids were transported by diffusion and/or advection from the coal layers to the adjacent carrier lithologies to support the deep biosphere (Vieth et al., 2008). According to Bergmann (1999) lignite seams are the main source of organic carbon in the aquifers. Available LMWOA in subsurface aquatic systems have the potential for providing a sufficient energy source for microbial life, especially for methanogenic activity (Vieth et al., 2008). Moreover, LMWOA could also be produced by microbial degradation of organic carbon material from low rank coals (Laborda et al., 1997; Fakoussa and Hofrichter, 1999). Further, several studies demonstrated that the natural microbial activity was stimulated at lignite-rich/sediment interfaces (Ulrich et al., 1998) and at the interface between aquifer and lignite seam (Detmers et al., 2001). Both studies concluded that microbial fermentation of organic matter in lignite-rich sediments provides LMWOA, which in turn feed the sulfate-reducing bacteria.

Because of the high similarity of the microbial communities in both geosystems, we suppose that not only LMWOA but also the indigenous microbes of coal seam layers were leached out into the groundwater and thus affected the microbial groundwater community.

CO2 Reduction as Prevailing Methanogenic Pathway in Groundwater

Methanogenic Archaea were predominant in both groundwater and sediment samples, which was consistent with the occurrence of biogenic methane. In both cases, the methanogenic community included putative acetoclastic, hydrogenotrophic and methylotrophic methanogens closely related to Methanosarcina horonobensis, Methanosaeta concilii, and Methanoregula formicicum. Sediment samples contained Methanomethylovorans sp. as well.

Related taxa had previously been found in other coal-related locations, such as coalbed wells from the Fort Union Formation in the Powder River Basin (Green et al., 2008) or a deep coal seam in northern Japan (Shimizu et al., 2007), and on methanogenic enrichment cultures of samples from abandoned coal mines (Beckmann et al., 2011b).

Methanoregula formicicum, detected in nearly all groundwater samples, is able to use formate or H2 and CO2 as substrates for growth (Yashiro et al., 2011).

Relatives of Methanomethylovorans, described by Lomans et al. (1999) and Jiang et al. (2005), utilize methanol, methylated amines, dimethyl sulfide and methane-thiol for methanogenic activity, and have been found in eutrophic fresh water sediments (Lomans et al., 1999), rice field soils (Lueders et al., 2001) and oil contaminated groundwater (Watanabe et al., 2002)

Methanosarcina sp. and Methanosaeta sp. are the only two known genera which can utilize acetate as a substrate for methanogenesis. The genus Methanosaeta has traditionally been considered to exclusively use acetate as sole source for energy or as substrate for methanogenesis (Patel and Sprott, 1990), as it is unable to use H2 or formate as electron donors for methane production from CO2. However, in a recent study, Rotaru et al. (2014) demonstrated that at least some Methanosaeta species are capable of accepting electrons from other microorganisms for CO2 reduction. In this respect, the carbon isotopic composition (δ13C) of methane and CO2 (Figure 1) indicated a dominance of methanogenic CO2 reduction in most of the groundwater wells, including 2 and 3, suggesting that Methanosaeta could also take part in this methanogenic process.

Methanosarcina sp. dominated in samples from well 9, where according to its isotopic composition methane could have a mixed or acetoclastic origin. Methanosarcina horonobensis, isolated from deep subsurface groundwater of a mudstone formation, is able to metabolize methanol, methylated compounds (e.g., di- and trimethylamine, dimethylsulfide) or acetate as sole energy source (Shimizu et al., 2011). Mixed or acetoclastic methane was also observed in samples 7 and 10 and in other coal seams characterized by the movement of meteoric water containing nutrients and microbiota (e.g., Flores et al., 2008; Klein et al., 2008). Nevertheless, these samples exhibited a higher methane production potential in enrichment cultures where a mixture of H2 and CO2 was added. Conversely, the sediment enrichment cultures predominantly produced methane from acetate. H2 and CO2 did either not enhance methanogenesis or the effect was lower, paralleling previous results by Krüger et al. (2008) and Green et al. (2008). Krüger et al. (2008) suggested that acetate would be a central intermediate in the transformation of coal to methane. In summary, the methanogens found in our study seemed to be adapted to their local environmental conditions.

Methanogenic archaeal communities (including Methanomethylovorans sp. and phylotypes closely related to Methanosaeta concilii and Methanoregula formicicum) together with their syntrophic bacterial partners and unclassified Crenarchaeota were successfully enriched in cultures amended with n-hexadecane as sole source of carbon and energy, as reflected in the increase of the proportion of the archaeal, crenarchaeal, methanogenic, and sulfate-reducing populations (Figure 3). These enrichments were able to produce methane, which proves that microbial communities inhabiting the coal-rich sediments can convert n-hexadecane, an intermediate of coal biodegradation (Orem et al., 2010), to methane. The predominance of one or another methanogenic pathway must be site-dependent and can be influenced by a variety of factors, such as temperature, changes on the availability of electron acceptors, etc. leading to the formation of a highly adapted microbial community, in which acetoclastic as well as hydrogenotrophic methanogens are abundant.


The investigated coal-rich sediments in contact with groundwater provide an important source of organic material and electron acceptors for microbial life in the subsurface biosphere. This organic material possibly includes low-molecular-weight organic acids derived from coal biodegradation. They were then partly transferred into the coal-associated aquifer system by circulating natural meteoric waters. The detected fermenting and sulfate-reducing bacterial consortia are able to degrade complex organic material from coal to lower molecular weight compounds which consequently directly influence the microbial interactions in the groundwater system. The resulting end products, like H2 or small organic acids, are potential substrates for methanogenic archaea. The identified methanogenic archaea point to the simultaneous occurrence of both methanogenic pathways, although hydrogenotrophic methanogenesis seemed to dominate in groundwaters. This assumption was supported by δ13CCH4- and δDCH4-values, of a respective microbial origin, in coal-rich sediment and groundwater samples.

Conflict of Interest Statement

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.


This work was supported by funding from the German Research Foundation (DFG) within the SPP1319 (projects KR3311 6-1 and 6-2) and the BGR. We would like to thank Daniela Zoch, Holger Probst, and Michaela Blank (all from the BGR) for collecting samples and for technical assistance. Katrin Hörmann and Frederick von Netzer (Helmholtz Zentrum München) are acknowledged for assistance in fingerprinting and pyrosequencing. Ursula Günther and Matthias Gehre are thanked for support in the stable isotope laboratory of the Helmholtz Centre for Environmental Research (UFZ).
