Francisco J. Pérez-Llarena
Germán Bou- Servicio de Microbiología-INIBIC, Complejo Hospitalario Universitario A Coruña, A Coruña, Spain
Proteomic studies have improved our understanding of the microbial world. The most recent advances in this field have helped us to explore aspects beyond genomics. For example, by studying proteins and their regulation, researchers now understand how some pathogenic bacteria have adapted to the lethal actions of antibiotics. Proteomics has also advanced our knowledge of mechanisms of bacterial virulence and some important aspects of how bacteria interact with human cells and, thus, of the pathogenesis of infectious diseases. This review article addresses these issues in some of the most important human pathogens. It also reports some applications of Matrix-Assisted Laser Desorption/Ionization-Time-Of-Flight (MALDI-TOF) mass spectrometry that may be important for the diagnosis of bacterial resistance in clinical laboratories in the future. The reported advances will enable new diagnostic and therapeutic strategies to be developed in the fight against some of the most lethal bacteria affecting humans.
Introduction
Bacterial diseases continue to be a major cause of death throughout the world as a result of the emergence of new infectious agents, increased transmission due to human migration, and the development of antibiotic resistance (Beceiro et al., 2013). Novel antibiotics and therapies are urgently needed to control these infections, together with new rapid and reliable diagnostic techniques for characterizing resistant strains. Matrix-Assisted Laser Desorption/Ionization-Time-Of-Flight (MALDI-TOF) mass spectrometry techniques may be useful for this task. The present review considers some recent advances in the diagnosis of microbial resistance. Examination of protein profiles by proteomic analysis has become an essential tool for studying the basic mechanisms of bacterial resistance and virulence. This has led to a better understanding of the biology of pathogens that cannot be investigated by reductionist or even genomic studies (e.g., global post-translational protein modifications, subcellular protein location, and protein turnover rates, which are also considered in this review; Chao and Hansmeier, 2012).
Proteomic techniques are continuously being developed and there is now a great diversity of methods and applications available (Van Oudenhove and Devreese, 2013; Otto et al., 2014). The improved sensitivity of mass spectrometers, together with upgraded sample preparation and protein fractionation technologies, has enabled a more complete study of proteomes. In the past, most quantitative proteomic studies were performed by 2D-PAGE, particularly after the incorporation of immobilized pH gradients and of the difference fluorescent labeling method (DIGE). The gel free method then became more popular and metabolic labeling was included in quantitative analysis. In this labeling method, cells are grown under appropriate conditions in media supplied with either a light or heavy stable isotope of a nutrient, commonly a nitrogen source or an amino acid. The so-called stable isotope labeling by amino acids in cell culture (SILAC) strategy now prevails (Ong et al., 2002). As a substitute to metabolic labeling, differential analysis can be carried out by chemical labeling. Isotope-coded affinity tags (ICAT) covalently label cysteines in extracted proteins with either a light or heavy (deuterium containing) conformation of the ICAT indicator (Gygi et al., 1999). Today, the use of multiple isobaric tags is prevailing among chemical isotope labeling methods. Some products such as isobaric tags for relative and absolute quantification (iTRAQ) and tandem mass tags (TMT) are commercially available (Thompson et al., 2003; Ross et al., 2004). A similar strategy, known as isotope-coded protein label (ICPL), in which both N-termini and lysine side chains are labeled, has been developed for use at the protein level (Schmidt et al., 2005). Recent progress in the development of high throughput and automation of liquid chromatography–mass spectrometry (LC–MS) instruments and in particular progress toward the use of novel algorithms to handle LC–MS data is facilitating the application of quantitative proteomics using label-free strategies. The methods, in which synthetic proteotypic peptides labeled with stable isotopes are used as the ideal internal standard, are becoming particularly popular. Thus, these internal standard peptides are used to measure the total quantity of individual proteins of interest after digestion by selected reaction monitoring (SRM)-MS measurements (Gerber et al., 2003). The various advantages and disadvantages of the different protocols are summarized in Table 1 (Tiwari and Tiwari, 2014).
Table 1. Different quantitative proteomic approaches with the associated advantages and disadvantages.
The potential application of proteomics to bacterial pathogen research is huge. However, this review will only consider some of these applications and will specifically address bacteria (rather than fungi). The basic knowledge concerning resistance and virulence obtained recently through proteomic technology should be useful for developing new diagnostic and therapeutic applications for the treatment of infectious diseases.
Proteomics for Studying Interactions Between Bacteria and Antibiotics
General Aspects
Antibiotic resistance has become a serious problem in the past two decades and an understanding of the mechanisms of the process is necessary to extend the life of current antibiotics and to enable discovery of novel targets (Lee C. R. et al., 2015). We will describe how antibiotic resistance in bacteria is studied by proteomic techniques. In proteomics, analysis of the total protein content of cells is usually carried out after sublethal contact between selected antibiotics and a pair of isogenic resistant and susceptible bacterial strains. In some cases, intermediate phenotypes are also studied. Resistant strains may be clinical strains or strains obtained in vitro (Park et al., 2016). The proteomic response is usually specific to each antibiotic, but proteins involved in energy and nitrogen metabolism, protein and nucleic acid synthesis, glucan biosynthesis, and stress response are often affected (Park et al., 2016). The findings of proteomic studies are commonly confirmed by genomic and/or transcriptomic analysis of the strains and in some cases also by study of the response of strains in which relevant genes are inactivated by gene replacement technology (Lima et al., 2013).
We will describe essential studies and novel findings as well as some proteomic studies involving the main bacterial antibiotic families.
Antibiotics Targeting the Cell Wall
Beta-lactams
Resistance to beta-lactam antibiotics is one of the types of resistance most commonly studied by proteomics methods (Lima et al., 2013). The beta-lactams antibiotics (e.g., penicillin, cephalosporin, carbapenens, monobactam, and beta-lactamase inhibitors) may disturb the synthesis and/or stability of the cell envelope, thus disrupting cell-wall biogenesis and leading to loss of selective permeability and osmotic integrity, finally causing bacterial cell death (Waxman and Strominger, 1983). The main mechanism of resistance to beta-lactam antibiotics is the presence of antibiotic hydrolyzing proteins, known as beta-lactamases (Pérez-Llarena and Bou, 2009). Other important mechanisms include the imbalance in transport proteins such as efflux pumps and porins and alteration in the penicillin binding protein targets (Poole, 2004). The increased use of antibiotics has generally led to the prevalence of some important resistance strains such as penicillin resistant Streptococcus pneumoniae, methicillin resistant Staphylococcus aureus, and extended spectrum beta-lactamase (ESBL), and cabapenemase-producing Enterobacteriaceae, Pseudomonas aeruginosa, and Acinetobacter baummanni (Boucher et al., 2009).
One of the earliest proteomic studies was an investigation of ampicillin resistant Pseudomonas aeruginosa, in which novel porins involved in resistance were discovered (Peng et al., 2005). Study of resistance to piperacillin/tazobactam in Escherichia coli has revealed reduced expression of porin OmpX and increased expression of TolC (Dos Santos et al., 2010). In the case of the penicillin-tolerant Gram-positive Streptococcus pyogenes, overexpression of murein metabolism proteins and general alteration of bacterial physiology were observed (Chaussee et al., 2006).
Alterations in cell physiology and overexpression of catalase and superoxide dismutase were detected in methicillin resistant S. aureus. The role of alanine dehydrogenase was indicated as being important in antibiotic resistance (Monteiro et al., 2012). Adaptation to oxacillin in S. aureus has recently been investigated (Solis et al., 2014). These authors concluded that proteins involved in capsule formation, peptidoglycan biosynthesis, and wall remodeling are regulated in response to antibiotics. Spectral counting-based label-free quantitative proteomics has been applied to study global responses in methicillin-resistant Staphylococcus aureus (MRSA) and methicillin susceptible S. aureus treated with subinhibitory doses of oxacillin (Liu et al., 2014). Beta-lactamase and penicillin-binding protein 2a were uniquely upregulated in oxacillin-treated MRSA (Table 2). Analysis of the inner membrane fraction of carbapenem resistant A. baumanni has shown an association with beta-lactamase AmpC and OXA-51 production as well as metabolic enzymes, elongation factor Tu, and ribosomal proteins (Tiwari et al., 2012; Tiwari and Tiwari, 2014).
Table 2. Pathway enrichment study by Database for Annotation, Visualization, and Integrated Discovery (DAVID) of the differentially expressed proteins in oxacillin-treated MRSA and MSSA compared with their untreated controls.
Glycopeptides
The glycopeptide vancomycin acts by inhibiting peptidoglycan synthesis. It binds to the DAla-DAla terminus of the nascent peptidoglycan, thus blocking its correct synthesis. In Enterococcus spp., a substitution of the DAla residue from peptidoglycan termini by D-lactose or D-Serine has been detected as the main mechanism of resistance to vancomycin. In S. aureus, a more complex scenario involving different enzymes and gene clusters implicated in vancomycin resistance has been proposed. Some resistant strains such as vancomycin resistant Staphylococcus aureus (VRSA) and vancomycin resistant enterococci (VRE) are of serious clinical concern (Lima et al., 2013).
In the first proteomic study of vancomycin resistant Enterococcus faecalis, Wang et al. (2010) examined a reference strain (V583) and a clinical isolate (V309) in the presence and absence of vancomycin. These authors found that proteins involved in vancomycin resistance functions, virulence factors, stress, metabolism, translation, and conjunction were regulated. Proteomic profiles of vancomycin resistant E. faecium SU18 strain treated and not treated with vancomycin have recently been obtained (Ramos et al., 2015). Fourteen proteins were differentially expressed in SU18. Proteins involved in the vancomycin resistance mechanisms were upregulated in the presence of vancomycin, while metabolism-related proteins were downregulated, leading to compensatory effects. Differential expression of proteins has been observed in vancomycin resistant S. aureus, thus distinguishing vancomycin intermediate (VISA) type strain Mu50 and vancomycin resistant strains (Drummelsmith et al., 2007). More recently, the proteomic profile of a group of heterogeneous vancomycin-intermediate Staphylococcus aureus (hVISA) was compared with that of vancomycin susceptible S. aureus (Chen et al., 2013). The study initially detected five upregulated proteins in hVISA, although only one was definitely confirmed by real time quantitative reverse transcription PCR (qRT-PCR): the protein encoded by the isaA gene involved in cell wall biogenesis.
Antibiotics Targeting Protein Synthesis
Chloramphenicol
Chloramphenicol acts by binding to the 50 S ribosome subunit. Three mechanisms of resistance to chloramphenicol are known: reduced membrane permeability, mutation of the 50S ribosomal subunit, and production of chloramphenicol acetyltransferase (Civljak et al., 2014). Li et al. (2007) observed differential expression of 10 membrane proteins, including TolC, OmpC, OmpW, and OmpT, in chloramphenicol resistant E. coli. A more recent study demonstrated overexpression of two different efflux pumps in chloramphenicol resistant strains of Burkholderia thailandensis obtained in the laboratory (Biot et al., 2011).
Linezolid
In the case of linezolid, an oxazolidinone that binds to the 23S rRNA (Ribosomal ribonucleic acid), different resistance mechanisms have emerged, including increased expression of ABC transporters, mutations in 23S rRNA, mutations in ribosomal proteins L3 and L4, and mutations in an RNA methyltransferase (Lee C. R. et al., 2015). Proteomic and transcriptomic screening of linezolid revealed a possible increase in the metabolism and transport of carbohydrates in some linezolid-resistant S. pneumoniae mutants (Feng et al., 2011). Several glycolytic proteins were overexpressed in the resistant strains, along with other enzymes and transporters involved in sugar metabolism.
Tetracyclines
The tetracycline family of antibiotics inhibits aminoacyl tRNA binding to the mRNA-ribosome complex. Cells become resistant to tetracycline via at least three mechanisms: enzymatic inactivation of tetracycline, efflux, and ribosomal protection (Falagas et al., 2015).
Yun et al. (2008) used 2-DE/MS-MS (Two-dimensional tandem mass spectrometry) and 1-DE/LC/MS-MS (One-dimensional Liquid chromatography tandem mass spectrometry) techniques to study the surface proteome of A. baumannii DU202 (which is highly resistant to tetracycline) after treatment with subminimal inhibitory concentrations (subMIC) of tetracycline. These authors observed that OmpA38, CarO, OmpW, and other Omps were increasingly secreted on exposure to tetracycline. This indicates an important role for Omps in overcoming antibiotic-induced stress.
A parallel proteomic approach has been applied in the analysis of sarcosine-insoluble outer membrane fraction of P. aeruginosa responding to ampicillin, kanamycin, and tetracycline resistance. The effects on expression levels were variable and expression of OprG decreased as expression of OprF, Oprl, Omp, and MexA increased (Peng et al., 2005). In an interesting study, Lin et al. (2014) labeled the differential proteome of E. coli K12 BW25113 in response to chlortetracycline stress with isobaric tags and applied quantitative proteomics technology for relative and absolute quantitation of the labeling. Crucial metabolic pathways such as the tricarboxylic acid cycle, pyruvate metabolism, and glycolysis/gluconeogenesis fluctuated greatly. The ribosome protein complexes contributing to the translation process were generally elevated under conditions of chlortetracycline stress, which is known to be a compensatory mechanism caused by the action of chlortetracycline on the ribosome.
Aminoglycosides
The aminoglycoside antibiotic family interrupts protein synthesis by blocking the small 16S subunit of the bacterial ribosome. Three mechanisms of aminoglycoside resistance are known: reduced uptake or decreased cell permeability, alterations at the ribosomal binding sites, and production of aminoglycoside modifying enzymes (Jackson et al., 2013).
In an initial study, a subproteomic approach was used to characterize the outer membrane proteins of streptomycin resistant E. coli. TolC, OmpT, and LamB were upregulated and FadL, OmpW and a location-unknown protein Dps were downregulated in the streptomycin-resistant E. coli strain (Li et al., 2008). Another study analyzed and compared the protein profile of whole cell extracts from Mycobacterium tuberculosis clinical isolates susceptible and resistant to streptomycin. On comparing 2DE patterns, nine proteins were consistently overexpressed in streptomycin resistant isolates and were identified. Moreover, in silico docking analysis revealed significant interactions between these proteins and streptomycin (Sharma et al., 2010). In a native/SDS-PAGE based proteomic study, low levels of NarG and NarH, two components of respiratory nitrate reductase (Nar), were observed in streptomycin, gentamicin, ceftazidime, tetracycline, and nalidixic acid-resistant E. coli strains (Ma et al., 2013).
Nabu et al. (2014) compared the protein expression profiles of a high-level spectinomycin-resistant (clinical isolate) and a susceptible (reference strain) Neisseria gonorrhoeae after treatment with subminimal inhibitory concentrations (subMICs) of spectinomycin. The 50S ribosomal protein L7/L12, an essential component for ribosomal translocation, was over-expressed in both strains, indicating that compensatory mechanisms may work in response to antibiotics that inhibit protein synthesis. Proteomics techniques have been used to establish the effects of gentamicin on the proteomes of aerobic and oxygen-limited E. coli (Al-Majdoub et al., 2013). Ribosomal proteins L1, L9, L10, and S2 were upregulated under both conditions, and the authors postulated that these are candidate drug targets for the development of synergistic combinations with gentamicin.
Kanamycin and amikacin resistant isolates of M. tuberculosis have been studied by proteomic analysis. Twelve proteins, two of which are of unknown function, were upregulated in both antibiotic-resistant isolates. All of the proteins were cellular proteins. Kanamycin and amikacin interacted correctly with the proteins according to molecular docking studies. Kumar et al. (2013) suggested that two of them were putative iron regulation/metabolism related proteins, thereby indicating the role of iron in conferring resistance to second-line drugs. In a recent proteomic and western blotting study of the E. coli K-12 outer membrane (OM) proteins involved in kanamycin resistance, Li H. et al. (2015) observed upregulation of some OM proteins such as Tolc, TsX, and OstA, and downregulation of MipA, OmpA, FadL, and OmpW OM proteins in the kanamycin resistant E. coli K-12 strain. These authors concluded that MipA is a novel OM protein implicated in antibiotic resistance.
Macrolides
Macrolide antibiotics act by binding reversibly to the P site on the subunit 23 S of the bacterial ribosome. The primary means of bacterial resistance to macrolides is by post-transcriptional methylation of the 23S bacterial ribosomal RNA. Two other rarely observed types of acquired resistance include the production of drug-inactivating enzymes (esterases or kinases) and the production of active ATP (Adenosine triphosphate)-dependent efflux proteins that transport the drug outside of the cell (Cornick and Bentley, 2012).
In an early study, Cash et al. (1999) examined the proteins synthesized by erythromycin-susceptible and erythromycin-resistant S. pneumoniae. These authors used peptide mass mapping to identify a 38,500 Dalton protein upregulated in resistant strains as glyceraldehyde-3-phosphate dehydrogenase (GAPDH). Considering this as the possible cause of resistance against erythromycin, the authors proposed an increment in energy production for the efflux system.
In comparative proteomic analysis of isolated sarcosine-insoluble outer membrane protein (OMP) fractions from clarithromycin-susceptible and resistant Helicobacter pylori strains, Smiley et al. (2013) showed that iron-regulated membrane protein, UreaseB, EF-Tu, and a putative OMP were downregulated; the HopT (BabB) transmembrane protein, HofC and OMP31 were upregulated in clarithromycin-resistant H. pylori, revealing that alteration of the outer membrane protein profile may be a novel mechanism involved in clarithromycin resistance in H. pylori.
Antibiotics Targeting DNA or RNA Synthesis
Metronidazole
Metronidazole is an antibiotic of the nitroimidazole class that inhibits nucleic acid synthesis by disrupting the DNA of microbial cells. Multiple mechanisms or resistance have been described in Bacteroides fragilis and H. pylori (Chong et al., 2014)
After analysis of the protein profiles of a derivative of H. pylori strain 26695, which is resistant to moderate levels of metronidazole, McAtee et al. (2001) proposed that the ability of the mutant strain to increase various isoforms of alkylhydroperoxide reductase during exposure to metronidazole is critically important in producing the resistant phenotype. In a metronidazole-resistant strain derived from B. fragilis ATCC 25285, the proteomic changes affected a wide range of metabolic proteins, including lactate dehydrogenase (upregulated) and flavodoxin (downregulated), which may be involved in electron transfer reactions: the enzymatic activity of the pyruvate-ferredoxin oxidoreductase (PorA) complex was also found to be impaired (Diniz et al., 2004).
Alterations in the metabolic pathway involving pyruvate-ferredoxin oxidoreductase were also found in a multidisciplinary analysis of a non-toxigenic Clostridium difficile strain with stable resistance to metronidazole (Moura et al., 2014).
Another recent proteomic analysis revealed regulation of DNA repair proteins, putative nitroreductases and the ferric uptake regulator (Fur) in a NAP1 C. difficile clinical isolate resistant to metronidazole (Chong et al., 2014).
Rifampicin
Rifampicin inhibits bacterial DNA-dependent RNA synthesis by inhibiting bacterial DNA-dependent RNA polymerase. Resistance to rifampicin arises from mutations that alter residues of the rifampicin binding site on RNA polymerase, resulting in decreased affinity for rifampicin. Resistant mutations map to the rpoB gene, encoding RNA polymerase beta subunit (Goldstein, 2014).
Neri et al. (2010) found that 23 proteins were differentially expressed in two rifampicin resistant and one susceptible meningococcus. Increased expression of some of the proteins involved in the major metabolic pathways, mainly pyruvate catabolism and the tricarboxylic acid cycle, was observed. Decreased expression of proteins involved in gene regulation and in polypeptide folding was also observed. Sandalakis et al. (2012) analyzed rifampicin resistance in a rifampicin resistant strain of Brucella abortus 2308 developed in vitro. The resistant strain contained 39 differentially regulated proteins, most of which are involved in various metabolic pathways. The authors suggested that, apart from mutations in the rpoB gene, rifampicin resistance in Brucella mainly involves excitation of several metabolic processes and possible use of the already existing secretion mechanisms at a more efficient level.
Quinolones
The fluoroquinolones are the most commonly used family of quinolones in clinical settings. First and second generation fluoroquinolones selectively inhibit the topoisomerase II ligase domain. Third and fourth generation fluoroquinolones are more selective for the topoisomerase IV ligase domain, and thus have enhanced Gram-positive coverage. Three mechanisms of resistance to quinolones are known: efflux pumps; proteins that can bind to DNA gyrase, protecting it from the action of quinolones; and mutations at key sites in DNA gyrase or topoisomerase IV, which decrease their binding affinity and thus decrease the effectiveness of the drug (Redgrave et al., 2014). Two early proteomic studies considered the effects of fluoroquinolones on P. aeruginosa and Salmonella enterica. In the first of these, expression of a probable ATP-binding component of ATP binding cassette (ABC) transporter was observed in ciprofloxacin-intermediate and resistant strains, but not in the sensitive strain (Zhou et al., 2006). The authors of the second study, involving the S. enterica multiple antibiotic resistant strain, suggested that the increased expression of AcrAB/TolC was associated with resistance, while increases in e.g., F1F0-ATP synthase and Imp were a response to fluoroquinolone (Coldham et al., 2006). In a proteomic study of nalidixic acid (NA) resistance in E. coli, Lin et al. (2008) observed upregulation of TolC, OmpT, OmpC, and OmpW and downregulation of FadL in resistant strains. In a broader search for mechanisms at the protein level that confer resistance to fluoroquinolones, Vranakis et al. (2011) compared the proteomes of fluoroquinolone-susceptible Coxiella burnetii and fluoroquinolone-resistant samples of the bacterium (developed in vitro). The study revealed differential expression of 15 bacterial proteins involved in different cellular processes, suggesting that the mechanism of antibiotic resistance in the bacterium is a multifaceted process.
Antibiotics Targeting Cell Membranes
Daptomycin
Daptomycin is a lipopeptide that interacts with phosphatidylglycerol in the bacterial membrane, leading to the formation of holes that leak intracellular ions. Until now, specific genetic determinants of the daptomycin-resistant strains remain to be elucidated (Lee C. R. et al., 2015). Fischer et al. (2011) studied an isogenic daptomycin-susceptible and daptomycin-resistant pair of S. aureus strains (616 and 701) by using comparative proteomics of 616 vs. 701, revealing different concentrations of proteins in various functional categories, including cell wall-associated targets and biofilm formation proteins.
Colistin
Colistin is an antimicrobial peptide that interacts with the bacterial outer membrane, by displacing bacterial counter ions in the lipopolysaccharide (LPS). Hydrophobic/hydrophilic regions interact with the cytoplasmic membrane just like a detergent, solubilizing the membrane. The most common mechanisms of resistance to colistin are modifications to LPS (Bialvaei and Samadi Kafil, 2015).
Fernández-Reyes et al. (2009) induced resistance in the susceptible A. baumannii ATCC 19606 by growing the strain under increasing colistin pressure. These researchers then carried out 2-D difference gel electrophoresis (DIGE) experiments and identified 35 proteins that were expressed differently in the two phenotypes. Most of the proteins appearing were downregulated in the colistin-resistant strain. These include outer membrane (OM) proteins, chaperones, protein biosynthesis factors, and metabolic enzymes, indicating an important loss of biological fitness in the resistant phenotype. In a later study, Pournaras et al. (2014) sequentially collected samples from two colistin-susceptible/colistin-resistant (Col(s)/Col(r)) pairs of A. baumannii strains assigned to international clone 2, which is prevalent worldwide after extended exposure to colistin. These researchers observed underexpression of the protein CsuA/B and C from the csu operon in Col(r) isolate Ab347, relative to its Col(s) counterpart Ab299.
The biofilm efficiency of the A. baumannii 19606 type strain depends on the formation of pili, cell-surface appendages assembled via the CsuAB-A-B-C-D-E chaperone–usher secretion system, according to Tomaras et al. (2008). Chaperone usher (CU) pili are linear polymers made of subunits capable of either self-polymerization or assembly with other subunits. The biogenesis of CU fibers need a periplasmic chaperone and outer membrane assembly platform named the usher. Among the three chaperone systems, the archaic systems are associated with bacteria that cause some of the most serious diseases in humans, animals, and plants. This pilus is formed from four subunits, namely CsuA/B, CsuA, CsuB, and CsuE, and is assembled using the CsuC-CsuD chaperone-usher secretion machinery (Pakharukova et al., 2015).
In addition, the Col(r) isolate Ab347 underexpressed aconitase B and some enzymes implicated in the oxidative stress response, such as KatE catalase, superoxide dismutase, and alkyl hydroperoxide reductase. This possibly suggests a limited response to reactive oxygen species (ROS) and, therefore, impaired colistin-mediated cell death by means of hydroxyl radical production (Table 3).
Table 3. Proteins involved in antibiotic resistance and virulence differentially expressed in Colr strain Ab347.
The low intracellular c-di-GMP level in dispersed cells of a P. aeruginosa strain coincided with increased expression of proteins required for the virulence and development of antimicrobial peptide resistance in P. aeruginosa (Chua et al., 2013), and P. aeruginosa cells with low c-di-GMP levels were consequently found to be more resistant to colistin than P. aeruginosa cells with high c-di-GMP levels.
Chopra et al. (2013) analyzed the proteome of two strains of A. baummanii: the multidrug resistant A. baummanii strain BAA-1605 and the drug sensitive strain ATCC 1798. The analysis was performed by by iTRAQ labeling and online 2D LC/MS/MS for peptide/protein identification. A significant number of proteins were overexpressed at least twofold in the multidrug resistant strains including drug-, antibiotic-, and heavy metal-resistance proteins, porins, lipoproteins, stress-related proteins, membrane transporters, proteins important for acquisition of foreign DNA, cell-wall, and exopolysaccharide-related proteins, biofilm-related proteins, metabolic proteins, and many with no annotated function. However, the porin OmpW, less abundant in carbapenem- and colistin-resistant A. baumannii strains, was overexpressed by three times in BAA-1605.
Conclusions
Greater knowledge of the specific mechanisms involved in bacterial resistance is needed to improve the treatment of diseases caused by infectious bacteria and thus control the survival of recalcitrant populations. This interesting area of research is complicated by the fact that multiple, super-imposed and/or balancing resistance mechanisms coexist in the same bacterial species.
Most proteomic analysis of antibiotic resistance can be classified into two broad groups: comparison of resistant and susceptible bacteria, and bacterial responses to the presence of antibiotics (Table 4). In general, in the first type of studies the least abundant proteins are related to secretion and metabolism, specifically OmpW, which is a known bacteriocin receptor. The most commonly expressed proteins are those involved in cell wall biogenesis, known resistance mechanisms, polysaccharide metabolism, and transport. The most frequently cited of these is Tolc, an outer membrane channel that participates in several efflux systems. In the second case, analysis of the bacterial response to antibiotic challenge revealed that the proteins most commonly affected are chaperone proteins and proteins involved in stress response, amino acid metabolism and energy metabolism. Some proteins involved in amino acid and energy metabolism are overexpressed while others are underexpressed, indicating the problem of using broad functional classifications and also the complexity of antibiotic response (Table 4). Some of the most revealing analysis coupled both previously described approaches, to investigate the response of both susceptible and resistant strains to antibiotic exposure. Multivariable approaches, i.e., those combining several strains, growth conditions, concentrations and types of antibiotics, and time points, may contribute to a better understanding of bacterial pathways and systems relevant to resistance.
Table 4. Representative proteomic techniques for studying antibiotic resistance.
Some unique mechanisms or groups of proteins are expressed at low or indiscernible levels in the unchallenged resistant organisms, but are regulated in response to antibiotic exposure. These represent potentially useful targets in new therapies against resistance.
Analysis of Antimicrobial Resistance for Diagnostic Purposes
General Aspects
The main purpose of a clinical microbiology laboratory is to provide reliable information as quickly as possible about the etiological agents responsible for infections and their sensitivity to antibiotics. The information obtained should allow enable selection of the most appropriate antimicrobial therapy to improve the care provided to the patient while at the same time contributing to better control of resistance and also to decreasing expenditure on antibiotics (DeMarco and Ford, 2013).
Recent findings indicate the potential usefulness of mass spectrometry techniques, in particular MALDI-TOF MS, to identify specific mechanisms of resistance. These techniques are less expensive and produce results more quickly than the currently used methods. The applications of MALDI-TOF MS for diagnosis of antibiotic resistance have been discussed in two recent excellent reviews (Hrabák et al., 2013; Kostrzewa et al., 2013). These methods are at the initial stages of evaluation and some are only useful for centers of excellence and research laboratories.
Here, we will try to summarize and classify methods available with some valuable examples and providing the latest contributions. MALDI-TOF MS applications in detection of antimicrobial resistance can be classified depending on the type of target and the methodology into the following approaches.
Identification of the Entire Cell Profile
Identification of the entire cell profile involves establishing differences in the whole protein spectra profile of susceptible and resistant strains. This approach has been used to identify methicillin-resistant S. aureus (MRSA), with the first attempts being carried out by Edwards-Jones et al. (2000) at Manchester University. MRSA and MSSA strains were subsequently successfully distinguished using a protein Chip array (SELDI-TOF, Surface-enhanced laser desorption/ionization; Shah et al., 2011). Retrospective typing of an MRSA outbreak showed that it is possible to differentiate unrelated MSSA, MRSA and borderline resistant S. aureus (BORSA) strains.
MALDI-TOF MS has been also used to detect vancomycin-resistant enterococci. The method was used to detect vanB positive Enterococcus faecium with a high sensitivity and specificity (Griffin et al., 2012), and vanA positive E. faecium has recently been detected (Nakano et al., 2014). Similar findings have recently been reported for an important Gram-negative anaerobic pathogen, B. fragilis. Two groups (division I and II), division II harboring the gene cfiA, encoding a potent metallo-beta-lactamase have been differentiated by a specific peak in their MALDI-TOF profile spectra (Nagy et al., 2011; Wybo et al., 2011).
MALDI-TOF MS techniques have also been used by different researchers to differentiate beta-lactamase genes carrying strains of Enterobacteriaceae and P. aeruginosa. Dubska et al. (2011) used SELDI-TOF MS, but were unable to clearly differentiate different beta-lactamases. However, Camara and Hays (2007) detected a peak corresponding to a beta-lactamase in E. coli strains. Overall the results suggest that the routine detection of beta-lactamase producing strains is not yet possible in clinical laboratories.
Identification of an Antibiotic and Product of Hydrolysis
This promising approach has been reported for the important clinical carbapenemases and extended-spectrum beta-lactamases. The mass shift that occurs during the addition of a water residue in the beta-lactam molecule after enzymatic hydrolysis can be detected by MALDI-TOF MS. The beta-lactamase negative strains do not modify the molecular weight of the beta-lactam (Hrabák et al., 2013; Kostrzewa et al., 2013). Moreover, the procedure enables quantitative analysis that is useful for direct comparison with MIC-values, and it also provides rapid resolution. Furthermore, the method can be improved by using beta-lactamase inhibitors to identify specific types of beta-lactamase and it is applicable to positive blood cultures. The main limitation is the interference with other resistance mechanisms such as porins and efflux pumps when intact cells are used; however, this can be overcome by using different lysis methods. Analysis of the raw spectra can also be difficult for unexperienced microbiologists.
The first two studies involving direct carbapenemase detection were both published in 2011 (Burckhardt and Zimmermann, 2011; Hrabák et al., 2011). The prevailing approach consists of the incubation of a pellet from a bacterial culture, usually grown overnight, with the beta-lactam antibiotic. After incubation of the culture for 1–3 h at 35°C, the supernatant is analyzed by MALDI-TOF MS (Figure 1). The addition of NH4HCO3 increased the sensitivity of detection of OXA-48 (Papagiannitsis et al., 2015; Studentova et al., 2015). The method has also been extended to OXA-51 and SIM-1 carbapenemases (Lee et al., 2013). MALDI-TOF MS can be used detect OXA- and GES-carbapenemases (Chong et al., 2015). The method has been used to detect carbapenemase resistance associated with cifA encoded metallo-beta-lactamase in blood samples (Johansson et al., 2014). The capacity of these techniques for detecting carbapenemases has recently been enhanced by different research groups (Álvarez-Buylla et al., 2013; Peaper et al., 2013; Wang et al., 2013). The method has been shown to be useful in detecting ESBL-producing Enterobacteriaceae from positive blood cultures, with 99% of sensitivity within a maximum of 150 min, with cefotaxime and ceftazime antibiotics (Oviaño et al., 2014).
Figure 1. Basic protocol for detecting beta-lactam hydrolyzed products by MALDI-TOF MS. 3 McFarland is a measure of optical density of the bacterial culture. Obtained from Hrabák et al. (2013) and reprinted with permission from the publisher.
Some MALDI-TOF MS based methods can also be used to detect modifications that occur in resistance to aminoglycosides, such as inactivation by acetyltransferases (Kostrzewa et al., 2013), with poor reproducibility and rRNA methyltransferase (Hrabák et al., 2013). Overall these data suggest that MALDI-TOF can be used to detect aminoglycoside resistance, although these methods are generally limited to research laboratories.
Detection of Resistance Proteins within the Cell
In this case, MALDI-TOF MS can be used to help detect some microbial biomarkers (essentially proteins or their fragments, obtained after trypsin digestion) that confer resistance to the pathogen.
For example, methicillin-resistant S. aureus positive for agr (accessory gene regulator) and harboring the class A mec complex was identified by detection of the small peptide called PSM-mec in whole cells (Josten et al., 2014).
Detection of antibiotic resistance markers, such as peptide fragments, in clinical strains of E. coli associated with some beta-lactamases (CTX-M1, CMY-2, VIM, and TEM) together with kanR and aminoglycoside modifying enzyme was obtained by periplasm extraction followed by nano-LC separation (Hart et al., 2015) Capillary-electrophoresis mass spectrometry is useful for detecting OXA-48 and KPC carbapenemases in multi-drug resistant Gram-negative bacteria (Fleurbaaij et al., 2014; Figure 2), and detection of beta-lactamase proteins has been improved by the use of MALDI-TOF MS methods rather than PCR detection of the corresponding genes (Trip et al., 2015).
Figure 2. Differentiation between different β-lactamase subgroups and species. (A) Phylogenetic tree based on a sequence alignment of different β-lactamases from different functional subgroups. For some classes, the primary structures are very similar (e.g., KPC and CTX) while for others, individual sequences vary considerably (e.g., OXA). (B) Tandem mass spectrum for a unique tryptic peptide from the KPC-group of carbapenemases (FPLCSSFK). (C) Tandem mass spectrum for a unique tryptic peptide from OXA-48 (SQGVVVLWNENK). Obtained and adapted from Fleurbaaij et al. (2014) and reprinted with permission from the publisher.
Cell Wall Analysis
The cell wall is the target of most antibiotics and is a barrier to other antibiotics that act in the cytosol. Some components of the outer membrane of Gram-negative bacteria such as porins, efflux pumps, and lipopolysaccharides have been quantified by MALDI-TOF MS techniques to distinguish between resistant and sensitive strains (Peng et al., 2005; Imperi et al., 2009). For example, a MALDI-TOF MS based method proved better than SDS-PAGE for characterizing the Ompk36 porin in K. pneumoniae (Cai et al., 2012). Changes in the structure of the lipopolysaccharide lipid A that occur during emergence of resistance to colistin can be detected by MALDI-TOF MS in A. baumanni (Beceiro et al., 2011).
Discovery of Mutations within Resistance Genes through Mini-Sequencing
MALDI-TOF MS methods have been used to analyse DNA sequencing (Pusch et al., 2002). The technique is based on a primer extension assay for only a few bases, and the molecular weight shift is then detected by MALDI-TOF MS. The technique is limited to DNA molecules smaller than 40 bp (Figure 3).
Figure 3. Simplified procedure of minisequencing linked to MALDI-TOF MS detection. Obtained from Hrabák et al. (2013) and reprinted with permission from the publisher.
Although, it has been used to detect mutations for a large and diverse number of resistance mechanism (Hrabák et al., 2013), this approach is time-consuming and does not confer any advantages over standard sequencing protocols.
PCR/electrospray ionization Mass spectrometry (PCR/ESI MS), which involves mini-sequencing of larger PCR products (110–450 bp), has been successfully used to identify pathogens and has also proved useful for detecting some blaKPC beta-lactamase producing Enterobacteria (Endimiani et al., 2010). This technique has been commercialized via development of a fully automated system (PLEX-ID, Abbot Biosciencies).
Stable Isotope Labeling and Monitoring of Cell Growth
The technique has been used for monitoring resistance to fluconazole (Marinach et al., 2009) and caspofungin (De Carolis et al., 2012) in fungi. Cells harvested from solid cultures were incubated with different concentrations of antibiotic for 24 h and the total peak profile was determined; however, no improvement in time-to-result was achieved, despite the good correlation between MIC-values and different spectra. A simplified version of this approach that facilitates discrimination of susceptible and resistant isolates of Candida albicans after incubation for 3 h in the presence of “breakpoint” level drug concentrations of the caspofungin has been described (Vella et al., 2013).
Some studies have attempted to detect bacterial resistance by incorporating stable isotope labeled nutrients during growth in the presence of antibiotics (Demirev et al., 2013). The peak profiles were compared with those of intact microorganisms grown in unlabeled media without the drug. Some biomarkers were detected by characteristic mass shifts provided by a suitable isotope. A similar approach has recently been used with 13CN2-L-lysine as the isotope for detection of methicillin-resistant S. aureus (Sparbier et al., 2013). Stable isotope labeling by amino acids in cell culture (SILAC) technology with the same isotope have been used to distinguish resistant and susceptible strains of P. aeruginosa to meropenem, tobramycin, and ciprofloxacin (Jung et al., 2014).
Conclusions
Although, the use of MALDI-TOF MS in clinical microbiology has been successfully applied in identifying bacteria, detection of antibiotic resistance, essential in bacterial diagnostics, is still at an early stage of development. Some promising achievements are the detection of proteins that hydrolyze antibiotics by means of direct detection of antibiotic modifications. The most remarkable example is the detection of beta-lactamases, particularly carbapenemases, by a method that has been validated and routinely used in clinical and reference laboratories. However, detection of resistance mechanism elements (particularly Qnr proteins and mutant PBP and beta-lactamases) for improved diagnosis of multiresistant bacteria must be improved and validated, despite some reports about the detection of vancomycin resistant Enterococcus spp. and discrimination between MRSA and MSSA strains.
In summary, several of the cited methods require further validation, simplification and automation. MALDI TOF-MS analysis may prove to be too labor intensive for routine use in clinical laboratories. Other challenges include the better study of the interaction between proteomic results and MIC-values for used in prescribing appropriate treatment and monitoring infection. Methods of testing multiple antibiotics are urgently required in order to provide a complete picture of antibiotic resistance. Standard susceptibility testing will probably coexist with new proteomic methods, as resistance to antibiotic is a complex process.
Proteomics for Studying Bacterial Virulence
General Aspects
Proteomic techniques are becoming important tools for investigating microbial pathogenesis. Applications include identification of virulence factors and study of the response of both host and pathogen to infection.
Research was initially limited to the classical proteomic analysis of protein contents of bacterial cultures, usually involving comparison of avirulent and virulent strains or conditions that simulate stresses that bacteria encounter during the infection process, such as acid stress, low oxygen content, high osmolarity, and other conditions of temperature, presence or limited availability of iron and presence of urine or plasma. Co-cultivation with host cell cultures and the direct isolation of bacteria from samples were not achieved until a later stage, because of the technical challenge that arose in measuring bacterial proteins against the overwhelming background of host proteins. Different approaches have been used to solve these problems, usually involving different separation techniques such as differential centrifugation, cell sorting, and immunomagnetic separation. Some review articles have already considered these early studies (Bhavsar et al., 2010; Cash, 2011; Yang et al., 2015), and we therefore focus on recent studies that we consider important in the study of bacterial pathogenesis by proteomics.
Bacterial Pathogenesis
Wang et al. (2014) recently compared the proteome profile of the S. enterica subsp. enterica serovar Typhimurium and S. typhi, which are responsible for, respectively, gastroenteritis and typhoid fever types. These researchers first detected a group of proteins with serovar-specific expression, which can be used as new biomarkers for identifying clinical serotypes. They also found that expression of flagella and chemotaxis proteins was lower in S. typhi than in S. typhimurium. Finally, the expression of core genes, which were involved in metabolism and transport of carbohydrates and amino acids, differed in the two serovars.
Proteomics, microbial genetics, competitive infections, and computational approaches have previously been used to obtain a comprehensive overview of Salmonella nutrition and growth in a mouse typhoid fever model (Steeb et al., 2013). In a study of the virulence of H. pylori, Vitoriano et al. (2011) compared the proteomes of strains of the bacterium isolated from children with peptic ulcer disease and from children with non-ulcer dyspepsia. In addition to the presence of genes clearly encoding virulence factor, the pediatric ulcerogenic strains presented a proteome profile defined by changes of motility-associated proteins (involved in higher motility), antioxidant proteins (involved in better resistance to inflammation), and proteins implicated in key functions in the metabolism of glucose, amino acids, and urea (probably advantageous for confronting changes in nutrient availability).
More recently, Ansong et al. (2013a) performed a temporal multi-omic analysis, at physiologically relevant temperatures, of Yersinia pestis (YP), the causative agent of plague with a high mortality rate, and Yersinia pseudotuberculosis (YPT), an enteric pathogen with a modest mortality rate. Gene and protein expression levels of conserved major virulence factors were higher in YP than in YPT, including the Yop virulon and the pH6 antigen. The global transcriptome and proteome responses of YP and YPT revealed conserved post-transcriptional control of metabolism and the translational machinery including the modulation of glutamate levels in Yersiniae.
Madeira et al. (2013) compared the proteomic profiles of three clonal isolates of Burkholderia cenocepacia obtained from a cystic fibrosis patient between onset of infection and before death from cepacia syndrome 3.5 years later. They found that 52 proteins were similarly altered in both late-stage isolates, relative to the first isolate, which suggests an important role for metabolic reprogramming in the virulence potential and persistence of B. cenocepacia, particularly in regard to bacterial adaptation to microaerophilic conditions. The content of the virulence determinant AidA was also higher in the two late-stage isolates.
In an original approach, Provenzano et al. (2013) analyzed the metaproteome of microbial communities from endodontic infections associated with acute apical abscesses and asymptomatic apical periodontal lesions. They found several proteins related to pathogenicity and resistance/survival in endodontic samples, including proteins involved in adhesion, biofilm formation, and antibiotic resistance, stress proteins, exotoxins, invasins, proteases, and endopeptidases (mostly in abscesses), and an archaeal protein linked to methane production. Most of the human proteins detected were involved in cellular processes and metabolism, as well as immune defense.
In a study involving quantitative proteomic analysis, Liu et al. (2012) showed that on entry into host cells, Campylobacter jejuni undergoes a significant metabolic downshift. They also observed reprogramming of respiration in intracellular C. jejuni, favoring respiration of fumarate.
Pieper et al. (2013) performed global proteomic analysis of Shigella flexneri strain 2457T in association with three distinct growth environments: in broth (in vitro), in epithelial cell cytoplasm (intracellular), and coculture with extracellular epithelial cells. The intracellular bacteria showed elevated protein expression in invasion and cell-to-cell spread determinants, including IpA, Mxi, and Ics proteins, compared with in vitro and extracellular bacteria. The intracellular environment was also characterized by changes in iron stress and carbon metabolism protein expression levels, which may indicate its important role in the transition of S. flexneri from the extra to the intracellular milieu.
Another elegant study identified the pathogenic mechanisms of Chlamydia trachomatis after entry into host cells and the formation of a membrane-bound compartment (the inclusion) accompanied by secretion of inclusion membrane proteins (Incs). Mirrashidi et al. (2015) used affinity purification-mass spectroscopy (AP-MS) to detect Inc-human interactions for 38/58 Incs involved in host processes of intracellular life cycles, including retromer components as sorting nexins. Inc targets and overlapping of viral proteins were detected, suggesting common pathogenic mechanisms among obligate intracellular microbes.
During a very recent study with the infectious agent A. baumannii, we obtained an ex vivo protein expression profiling for pneumonia (Méndez et al., 2015). We characterized the proteome of A. baumannii in the presence of bronchoalveolar lavage fluid from infected rats (to simulate conditions in the respiratory tract) and in the presence RAW 264.7 cells (control conditions). We observed alterations in cell wall synthesis and identified two upregulated virulence-associated proteins with >15 peptides/protein in both ex vivo models (OmpA and YjjK), which suggests that these proteins are fundamental for pathogenesis and virulence in the airways (Figure 4A).
Figure 4. (A) Distribution of differently expressed proteins in A. baumannii following ex vivo incubation according to functional categories. The stacked bar chart shows the number of overexpressed proteins (red) and underexpressed proteins (dark blue) in the macrophage model and the number of overexpressed proteins (yellow) and underexpressed proteins (light blue) in the bronchoalveolar lavage fluid (BALF) model in each functional category. Obtained and adapted from Méndez et al. (2015) and reprinted with permission from the publisher. Functional classification of the proteins identified in the A. baumannii extracellular sub-proteomes. (B) Proteins from Outer Membrane Vesicle subproteome and (C) Freely soluble extracellular proteins. The total numbers of proteins within the respective group are shown in brackets. Obtained and adapted from Mendez et al. (2012) and reprinted with permission from the publisher.
Studies of Microbial Biofilm
At least 65% of all human infectious diseases are known to be associated with the biofilm form of microorganisms. The most notable and clinically relevant property of biofilms is the greater resistance to antimicrobials than shown by their planktonic counterparts (Seneviratne et al., 2012). Some proteomic studies have revealed an association between resistance mechanisms and biofilm state, the subject of a recent review article (Seneviratne et al., 2012). Our research group has been able to identify a putative resistance-nodulation-cell division type efflux pump (RND pump), which increased in A. baumannii biofilms. Overexpression of this type of efflux pump in A. baumannii confers resistance to aminoglycosides, as well as to other drugs, including fluoroquinolones, tetracyclines, chloramphenicol, erythromycin, trimethoprim, and ethidium bromide (Cabral et al., 2011). In another study recently carried out in our laboratory, A. baumannii clinical strain AbH12O-A2 was able to survive long periods of desiccation as a result of the presence of cells in a dormant state, via mechanisms affecting control of cell cycling, DNA coiling, transcriptional and translational regulation, protein stabilization, antimicrobial resistance, and toxin synthesis; a few surviving cells embedded in a biofilm matrix were able to resume growth and restore the original population in appropriate environmental conditions (Gayoso et al., 2014).
Relationships between biofilm state and virulence factors have also been discovered recently. High-resolution 2-dimensional gel electrophoresis was used to obtain the proteome profiles of spiral H. pylori and early biofilm (Shao et al., 2013). Differential protein spots were identified and associated with flagellar movement, bacterial virulence, signal transduction, and regulation.
MALDI-TOF MS/MS analysis of the secretome of single and mixed biofilms of P. aeruginosa and C. albicans carried out at different times (Purschke et al., 2012) identified 16 proteins overexpressed or exclusively expressed in P. aeruginosa when interacting with C. albicans including virulence factors such as exotoxin A and iron acquisition systems.
Another strategy was used to study the biofilm expression profile in a clinical strain of S. pneumoniae serotype 14. A decrease in the expression of enzymes related to the glycolytic pathway, as well as proteins involved in translation, transcription, and virulence was detected during biofilm growth by the proteomics method (Allan et al., 2014).
Outer Membrane Vesicles and their Impact on Virulence
Outer membrane vesicles (OMVs) are nanoscale structures secreted by bacteria and that can carry nucleic acids, proteins, and small metabolites. They mediate intracellular communication and play a role in virulence. One of the early proteomic studies of the protein fraction of the outer membrane vesicles was carried out in our laboratory. This study focused on two main protein fractions of the extracellular proteome: proteins exported by outer membrane vesicles (OMVs) and freely soluble extracellular proteins (FSEPs) present in the culture medium of a highly invasive, multidrug-resistant strain of A. baumannii (clone AbH12O-A2; Mendez et al., 2012). Of the OMV proteins, 39 were associated with pathogenesis and virulence, including proteins associated with attachment to host cells (e.g., CsuE, CsuB, CsuA/B) and specialized secretion systems for delivery of virulence factors (e.g., P-pilus assembly and FilF), whereas the FSEP fraction possessed extracellular enzymes with degradative activity, such as alkaline metalloprotease. Among the FSEP, we have also detected at least 18 proteins with a known role in the oxidative stress response (e.g., catalase, thioredoxin, oxidoreductase, superoxide dismutase; Figures 4B,C). These findings are supported by those of a recent study of other clinical A. baummanni strains in which it was discovered that A. baumanni strain A38 possesses an outer membrane vesicle containing virulence factors including Omp38, EpsA, Ptk, GroEL, hemagglutinin-like protein, and FilF (Li Z. T. et al., 2015). The high content of virulence factors in outer membrane vesicles has been demonstrated in other Gram-negative bacteria such as clinical strains of E. coli and Stenotrophomonas maltophila (Devos et al., 2015; Wurpel et al., 2015). Indeed, this phenomenon is also conserved in some Gram-positive pathogenic strains such as M. tuberculosis and S. pneumoniae (Olaya-Abril et al., 2014; Lee J. et al., 2015).
However, as pointed out by several authors (Koning et al., 2013; Pérez-Cruz et al., 2013), OMVs may be composed by inner membrane fractions and can thus be considered outer-inner membrane vesicles. These structures may thus contain cytosolic fractions. OMV-related virulence can be considered in the context of this novel concept.
Post-Translational Protein Modifications and their Impact on Virulence
Bacteria contain different types of post-translational modifications, many of which are commonly present in eukaryotes: phosphorylation, acetylation, glycosylation, ubiquitination, and glutathionylation (Soufi et al., 2012). Relationships between these types of post-translational modifications and virulence have been established in recent years. One of the first studies with Pseudomonas species revealed that phosphoproteins involved in motility, transport and pathogenicity pathways in P. aeruginosa are critical for survival and virulence (Ravichandran et al., 2009).
Around the same time, the phosphoproteome of K. pneumoniae NTUH-K2044 was analyzed by a shotgun approach, and 117 unique phosphopeptides were identified along with 93 in vivo phosphorylated sites corresponding to 81 proteins (Lin et al., 2009). Interestingly, three of these were found to be distributed in proteins of the cps locus and the authors of the study speculated that they were involved in the converging signal transduction of capsule biosynthesis, which has been related to virulence. Involvement of phosphorylated proteins in virulence was also hypothesized after proteomic analysis of S. pneumoniae and Mycoplasma pneumoniae (Schmidl et al., 2010; Sun et al., 2010).
Interestingly, qualitative comparison between the Ser/Thr/Tyr phosphoproteomes of two A. baumannii strains (a reference strain and a highly invasive multidrug-resistant clinical isolate) led to the identification of phosphoproteins with a role in pathogenicity and also involved in drug resistance (Soares et al., 2014).
Other types of post-translational modifications have recently been discovered by proteomic methods. In a well-designed study, Iwashkiw et al. (2012) showed that A. baumannii ATCC 17978 possesses an O-glycosylation system responsible for the glycosylation of multiple proteins. These authors identified seven A. baumannii glycoproteins, of yet unknown function, by 2D-DIGE and mass spectrometry. A glycosylation-deficient strain was generated by homologous recombination. This strain did not show any growth defects, but exhibited a severely diminished capacity to generate biofilms. Disruption of the glycosylation machinery also resulted in reduced virulence in two infection models (Dictyostelium discoideum and Galleria mellonella) and reduced in vivo fitness in a mouse model of peritoneal sepsis. In a study involving proteomic and glycoproteomic analysis, Scott et al. (2014) found higher N-linked glycosylation in Campylobacter jejuni NCTC11168 O clinical strain than in the laboratory-derived strain.
Another post-translational modification was described by Xie et al. (2015) who investigated proteome lysine acetylation profiling in M. tuberculosis by using a combination of anti-acetyl lysine antibody-based immunoaffinity enrichment and high-resolution mass spectrometry. These authors identified 1128 acetylation sites on 658 acetylated M. tuberculosis proteins, several of which, e.g., isocitrate lyase, were involved in the persistence, virulence and antibiotic resistance. In an interesting study, Ansong et al. (2013b) identified different uses for the protein S-thiolation forms S-glutathionylation and S-cysteinylation in response to infection-like conditions and basal conditions in S. typhimurium and supported by analysis of protein structure and gene deletion.
Conclusions
The use of proteomic analysis to study the interactions between bacterial pathogenesis and host is at a very early stage. Nevertheless, we have described the use of proteomic techniques to investigate many aspects of bacterial pathogenesis: assignment of a virulence factor reservoir of a single pathogen, analysis of the interaction between host and pathogen response during the infection, identification of interactions between several virulence factors and host cell components and even the identification of biochemical action of virulence factors (Table 5).

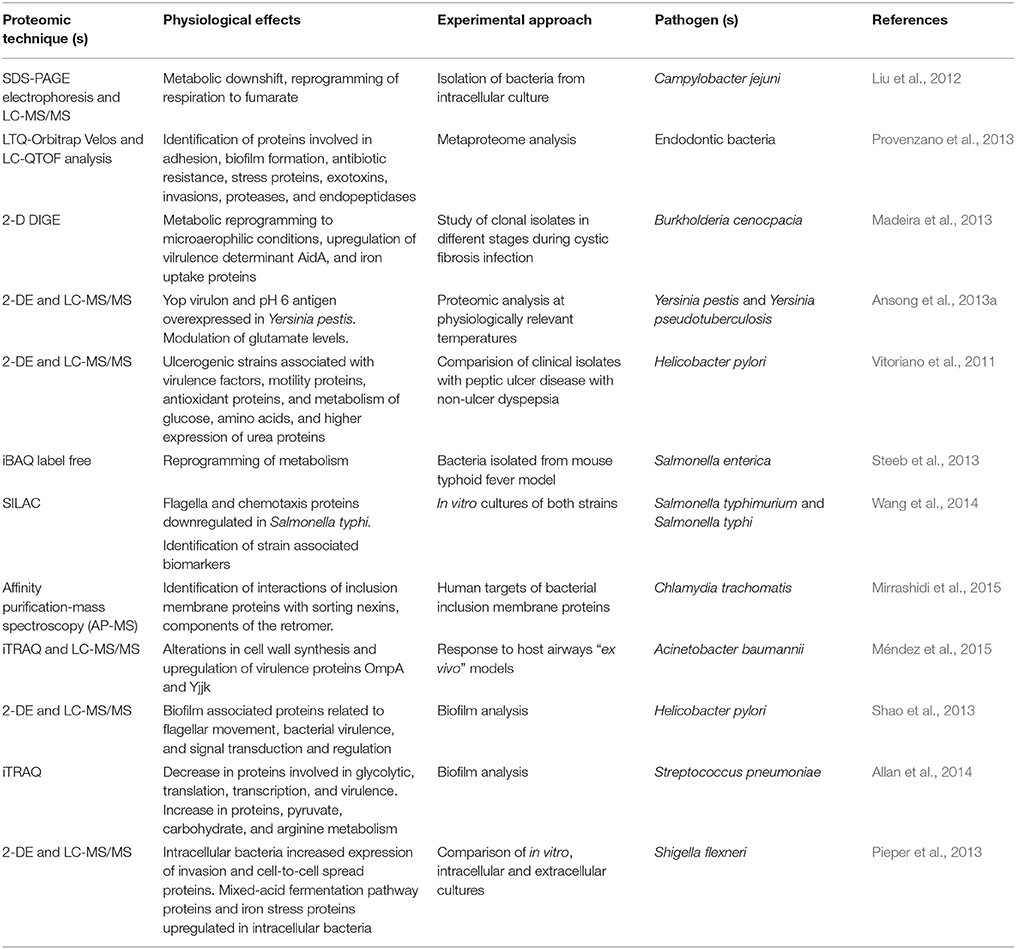

Table 5. Representative proteomic techniques for studying virulence determinants.
The limit of sensitivity has prevented a more detailed proteomic study of in vivo models of infection, particularly in humans, in comparison with tissue culture models. Although, current methods of analysis are proving very useful, they must be improved further in order to advance our knowledge in this field. A multidisciplinary approach including methods such as immmunoassays, histological methods, and electron microscopy should be undertaken for an integrated understanding of bacterial pathogenesis. Monitoring of the temporal and spatial action of virulence factors may also contribute to advances in this field.
The relationships between biofilm formation, outer membrane vesicles, and virulence have been highlighted during this review.
Identification of variations in post-translational changes in the bacteria and/or in the host proteomes after infection is also important for studying interactions between signaling cascades.
A detailed global picture of the interaction between host and pathogen may provide opportunities for identifying new targets for antimicrobial programs and vaccine development.
Practical Applications
We have reported the huge progress in diagnostics of microbial resistance and basic research in resistance and virulence achieved in recent years. Many of these advances have been transferred to protocols for practical diagnosis and will potentially lead to the development of new therapies against pathogenic bacteria. Such examples include the discovery of 34 unknown proteins of similar abundance found in both cell envelopes and membrane vesicles fractions in four N. gonorrhoeae strains (Zielke et al., 2014). Depletion of one of these, a homolog of an outer membrane protein LptD, was found to cause loss of viability in N. gonorrhoeae. These authors also identified another six predicted outer membrane proteins of unknown function. Loss of NGO1985, in particular, resulted in dramatically decreased viability of N. gonorrhoeae on treatment with detergents, polymyxin B and chloramphenicol, suggesting that this protein functions in maintaining the cell envelope barrier to permeability and may represent a new therapeutic target (Zielke et al., 2014).
Proteomic studies involving metabolism of virulent or resistant strains have been a source of potential therapeutic targets. For example, in a study investigating determinants of the biofilm condition of A. baumannii, Cabral et al. (2011) found that histidine metabolism (like Urocanase) was implicated in biofilm formation, as confirmed by gene disruption experiments. The authors proposed a model in which novel proteins are suggested for the first time as targets for preventing the formation of A. baumannii biofilms.
Vaccination has been revealed as an important strategy for reducing the incidence of infectious diseases. Immunoproteomics permits the characterization of putative vaccine candidates by combining proteomic analysis during infection together with serum identification of immunoreactive antigens. A recent review described examples of vaccine candidates that have been identified by immunoproteomics and have successfully protected animals against challenge when tested in immunization studies (Dennehy and McClean, 2012).
An exopolysaccharide and a protein-based biofilm expressed by two clinical strains of S. aureus have recently been studied by proteomic methods. Moreover, the number of bacterial cells inside a biofilm and in the surrounding tissue decreased after immunization with the biofilm matrix exoproteome in an in vivo model with a biofilm linked to infection (Gil et al., 2014).
Concluding Remarks
The method used for MS-based identification of proteins is constantly improving and has allowed progress from qualitative determination of proteins (i.e., presence or absence) toward quantitative studies of the proteome. However, the method still has many limitations. The inability to determine many proteins present at low concentrations, together with small number of proteins in the dataset may lead to errors in interpretation (e.g., associating complete biochemical pathways with virulence or resistance mechanisms). Comprehensive interpretation is also very difficult when the genome has not yet been obtained. This could be solved by using the highest resolution bottom-up approach and appropriate use of the knowledge base to improve the design of new studies and by the inclusion of specific statistical strategies to identify significant proteins. Next-generation sequencing should be linked with proteomic techniques. The combined use of different methods will cut down on the number of experiments required and improve the chances of identifying effective targets.
Basic aspects of bacterial growth and physiology are often ignored. Collaboration between a broad range of specialist including biochemists, biologists, and statisticians will be necessary, especially once metabolites can be synthesized. These metabolites must be assayed by metabolomic methods. Recent reviews of the relationship between metabolism and antibiotic resistance revealed global regulators that simultaneously alter virulence, metabolism and antibiotic resistance (Martínez and Rojo, 2011).
It can be difficult to coordinate and interpret the increasing volume of high resolution MS data obtained in the field of bacterial proteomics. Thus, an outstanding role for microbial bioinformatics is expected and more software packages for MS analysis must be shared. Attempts could also be made to merge several previous studies and select common patterns that ultimately enable better design of future experiments.
On the other hand, the multifactorial nature of bacterial infection must be investigated using several approaches, in a systems biology strategy. The coordinated use of different techniques including genomics, transcriptomics, and metabolomics, together with good standard proteomic methods will improve the capacity for detecting bacterial resistance, determination of resistance mechanisms and the understanding of virulence response in bacteria and host. This will hopefully help in the discovery of new biomarkers, vaccines, and drugs for combating bacterial infection worldwide.
In conclusion, in this review we summarize some of the applications of proteomic technology for diagnosing infections as well as performing basic studies for understanding antimicrobial resistance and virulence. This will enable discovery of new targets for novel and innovative antibiotics as well as the implementation of new therapies in the near future.
Author Contributions
FP, revised literature and wrote; GB, wrote and contributed with critical analysis.
Funding
This work was funded by the European Community, FP7, ID:278232 (MagicBullet) and by the Plan Nacional de I+D+I 2008–2011 and Instituto de Salud Carlos III, Subdirección General de Redes y Centros de Investigación Cooperativa, Ministerio de Economía y Competitividad, Spanish Network for Research in Infectious Diseases (REIPI RD12/0015/0014) co-financed by the European Development Regional Fund “ A Way to Achieve Europe” ERDF. Additional funding was provided by the Fondo de Investigación Sanitaria (grants PI12/00552 and PI15/00860).
Conflict of Interest Statement
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Abbreviations
ATCC, American Type Culture Collection; c-di-GMP, cyclic diguanylate; DIGE, difference gel electrophoresis; ICAT, isotope-coded affinity tags; iTRAQ, isobaric tags for relative and absolute quantification; LC–MS, liquid chromatography–mass spectrometry; MIC, minimal inhibitory concentration; MRSA, methicillin-resistant Staphylococcus aureus; MS, mass spectrometry; MSSA, methicillin-sensitive Staphylococcus aureus; Omp, outer membrane proteins; SDS-PAGE, sodium dodecyl sulfate polyacrylamide gel electrophoresis; SILAC, stable isotope labeling by amino acids in cell culture; SRM, selected reaction monitoring; TMT, tandem mass tags.
References
Al-Majdoub, Z. M., Owoseni, A., Gaskell, S. J., and Barber, J. (2013). Effects of gentamicin on the proteomes of aerobic and oxygen-limited Escherichia coli. J. Med. Chem. 11, 2904–2910. doi: 10.1021/jm301858u
Allan, R. N., Skipp, P., Jefferies, J., Clarke, S. C., Faust, S. N., Hall-Stoodley, L., et al. (2014). Pronounced metabolic changes in adaptation to biofilm growth by Streptococcus pneumoniae. PLoS ONE 9:e107015. doi: 10.1371/journal.pone.0107015
Álvarez-Buylla, A., Picazo, J. J., and Culebras, E. (2013). Optimized method for Acinetobacter species carbapenemase detection and identification by matrix-assisted laser desorption ionization-time of flight mass spectrometry. J. Clin. Microbiol. 51, 1589–1592. doi: 10.1128/JCM.00181-13
Ansong, C., Schrimpe-Rutledge, A. C., Mitchell, H. D., Chauhan, S., Jones, M. B., Kim, Y. M., et al. (2013a). A multi-omic systems approach to elucidating Yersinia virulence mechanisms. Mol. Biosyst. 27, 44–54. doi: 10.1039/C2MB25287B
Ansong, C., Wu, S., Meng, D., Liu, X., Brewer, H. M., Deatherage Kaiser, B. L., et al. (2013b). Top-down proteomics reveals a unique protein S-thiolation switch in Salmonella Typhimurium in response to infection-like conditions. Proc. Natl. Acad. Sci. U.S.A. 110, 10153–10158. doi: 10.1073/pnas.1221210110
Beceiro, A., Llobet, E., Aranda, J., Bengoechea, J. A., Doumith, M., Hornsey, M., et al. (2011). Phosphoethanolamine modification of lipid A in colistin-resistant variants of Acinetobacter baumannii mediated by the pmrAB two-component regulatory system. Antimicrob. Agents Chemother. 55, 3370–3379. doi: 10.1128/AAC.00079-11
Beceiro, A., Tomás, M., and Bou, G. (2013). Antimicrobial resistance and virulence: a successful or deleterious association in the bacterial world? Clin. Microbiol. Rev. 26, 185–230. doi: 10.1128/CMR.00059-12
Bhavsar, A. P., Auweter, S. D., and Finlay, B. B. (2010). Proteomics as a probe of microbial pathogenesis and its molecular boundaries. Future Microbiol. 5, 2532–2565. doi: 10.2217/fmb.09.114
Bialvaei, A. Z., and Samadi Kafil, H. (2015). Colistin, mechanisms and prevalence of resistance. Curr. Med. Res. Opin. 4, 707–721. doi: 10.1185/03007995.2015.1018989
Biot, F. V., Valade, E., Garnotel, E., Chevalier, J., Villard, C., Thibault, F. M., et al. (2011). Involvement of the efflux pumps in chloramphenicol selected strains of Burkholderia thailandensis: proteomic and mechanistic evidence. PLoS ONE 6:e16892. doi: 10.1371/journal.pone.0016892
Boucher, H. W., Talbot, G. H., Bradley, J. S., Edwards, J. E., Gilbert, D., Rice, L. B., et al. (2009). Bad bugs, no drugs: no ESKAPE! An update from the Infectious Diseases Society of America. Clin. Infect. Dis. 48, 1–12. doi: 10.1086/595011
Burckhardt, I., and Zimmermann, S. (2011). Using matrix-assisted laser desorption ionization–time of flight mass spectrometry to detect carbapenem resistance within 1 to 2.5 hours. J. Clin. Microbiol. 49, 3321–3324. doi: 10.1128/JCM.00287-11
Cabral, M. P., Soares, N. C., Aranda, J., Parreira, J. R., Rumbo, C., Poza, M., et al. (2011). Proteomic and functional analyses reveal a unique lifestyle for Acinetobacter baumannii biofilms and a key role for histidine metabolism. J. Proteome Res. 10, 3399–3417. doi: 10.1021/pr101299j
Cai, J. C., Hu, Y. Y., Zhang, R., Zhou, H. W., and Chen, G-X. (2012). Detection of Ompk36 porin loss in Klebsiella spp. by matrix-assisted laser desorption ionization–time of flight mass spectrometry. J. Clin. Microbiol. 50, 2179–2182. doi: 10.1128/JCM.00503-12
Camara, J. E., and Hays, F. A. (2007). Discrimination between wild-type and ampicillin-resistant Escherichia coli by matrix-assisted laser desorption/ionization time-of-flight mass spectrometry. Anal. Bioanal. Chem. 389, 1633–1638. doi: 10.1007/s00216-007-1558-7
Cash, P. (2011). Investigating pathogen biology at the level of the proteome. Proteomics 11, 3190–3202. doi: 10.1002/pmic.201100029
Cash, P., Argo, E., Ford, L., Lawrie, L., and McKenzie, H. (1999). A proteomic analysis of erythromycin resistance in Streptococcus pneumoniae. Electrophoresis 20, 2259–2268.
Chao, T. C., and Hansmeier, N. (2012). The current state of microbial proteomics: where we are and where we want to go. Proteomics 12, 638–650. doi: 10.1002/pmic.201100381
Chaussee, M. A., McDowell, E. J., Rieck, L. D., Callegari, E. A., and Chaussee, M. S. (2006). Proteomic analysis of a penicillin tolerant rgg mutant strain of Streptococcus pyogenes. J. Antimicrob. Chemother. 58, 752–759. doi: 10.1093/jac/dkl319
Chen, H., Liu, Y., Zhao, C., Xiao, D., Zhang, J., Zhang, F., et al. (2013). Comparative proteomics-based identification of genes associated with glycopeptide resistance in clinically derived heterogeneous vancomycin-intermediate Staphylococcus aureus strains. PLoS ONE 8:e66880. doi: 10.1371/journal.pone.0066880
Chong, P. M., Lynch, T., McCorrister, S., Kibsey, P., Miller, M., Gravel, D., et al. (2014). Proteomic analysis of a NAP1 Clostridium difficile clinical isolate resistant to metronidazole. PLoS ONE. 6:e82622. doi: 10.1371/journal.pone.0082622
Chong, P. M., McCorrister, S. J., Unger, M. S., Boyd, D. A., Mulvey, M. R., and Westmacott, G. R. (2015). MALDI-TOF MS detection of carbapenemase activity in clinical isolates of Enterobacteriaceae spp., Pseudomonas aeruginosa, and Acinetobacter baumannii compared against the Carba-NP assay. J. Microbiol. Methods 111, 21–23. doi: 10.1016/j.mimet.2015.01.024
Chopra, S., Ramkissoon, K., and Anderson, D. C. (2013). A systematic quantitative proteomic examination of multidrug resistance in Acinetobacter baumannii. J. Proteomics 12, 17–39. doi: 10.1016/j.jprot.2013.03.008
Chua, S. L., Tan, S. Y., Rybtke, M. T., Chen, Y., Rice, S. A., Kjelleberg, S., et al. (2013). Bis-(3′-5′)-cyclic dimeric GMP regulates antimicrobial peptide resistance in Pseudomonas aeruginosa. Antimicrob. Agents Chemother. 57, 2066–2075. doi: 10.1128/AAC.02499-12
Civljak, R., Giannella, M., Di Bella, S., and Petrosillo, N. (2014). Could chloramphenicol be used against ESKAPE pathogens? A review of in vitro data in the literature from the 21st century. Expert Rev. Anti. Infect. Ther. 12, 249–264. doi: 10.1586/14787210.2014.878647
Coldham, N. G., Randall, L. P., Piddock, L. J., and Woodward, M. J. (2006). Effect of fluoroquinolone exposure on the proteome of Salmonella enterica serovar Typhimurium. J. Antimicrob. Chemother. 58, 1145–1153. doi: 10.1093/jac/dkl413
Cornick, J. E., and Bentley, S. D. (2012). Streptococcus pneumoniae: the evolution of antimicrobial resistance to beta-lactams, fluoroquinolones and macrolides. Microbes Infect. 14, 573–583. doi: 10.1016/j.micinf.2012.01.012
De Carolis, E., Vella, A., Florio, A. R., Posteraro, P., Perlin, D. S., Sanguinetti, M., et al. (2012). Use of matrix-assisted laser desorption ionization-time of flight mass spectrometry for caspofungin susceptibility testing of Candida and Aspergillus species. J. Clin. Microbiol. 50, 2479–2483. doi: 10.1128/JCM.00224-12
DeMarco, M. L., and Ford, B. A. (2013). Beyond identification: emerging and future uses for MALDI-TOF mass spectrometry in the clinical microbiology laboratory. Clin. Lab. Med. 33, 611–628. doi: 10.1016/j.cll.2013.03.013
Demirev, P. A., Hagan, N. S., Antoine, M. D., Lin, J. S., and Feldman, A. B. (2013). Establishing drug resistance in microorganisms by mass spectrometry. Am. Soc. Mass Spectrom. 24, 1194–1201. doi: 10.1007/s13361-013-0609-x
Dennehy, R., and McClean, S. (2012). Immunoproteomics: the key to discovery of new vaccine antigens against bacterial respiratory infections. Curr. Protein Pept. Sci. 13, 807–815. doi: 10.2174/138920312804871184
Devos, S., Van Oudenhove, L., Stremersch, S., Van Putte, W., De Rycke, R., Van Driessche, G., et al. (2015). The effect of imipenem and diffusible signaling factors on the secretion of outer membrane vesicles and associated Ax21 proteins in Stenotrophomonas maltophilia. Front. Microbiol. 14:298. doi: 10.3389/fmicb.2015.00298
Diniz, C. G., Farias, L. M., Carvalho, M. A., Rocha, E. R., and Smith, C. J. (2004). Differential gene expression in a Bacteroides fragilis metronidazole-resistant mutant. J. Antimicrob. Chemother. 54, 100–108. doi: 10.1093/jac/dkh256
Dos Santos, K. V., Diniz, C. G., Veloso Lde, C., de Andrade, H. M., Giusta Mda, S., Pires Sda, F., et al. (2010). Proteomic analysis of Escherichia coli with experimentally induced resistance to piperacillin/tazobactam. Res. Microbiol. 161, 268–275. doi: 10.1016/j.resmic.2010.03.006
Drummelsmith, J., Winstall, E., Bergeron, M. G., Poirier, G. G., and Ouellette, M. (2007). Comparative proteomics analyses reveal a potential biomarker for the detection of vancomycin intermediate Staphylococcus aureus strains. J. Proteome Res. 6, 4690–4702. doi: 10.1021/pr070521m
Dubska, L., Pilatova, K., Dolejska, M., Bortlicek, Z., Frostova, T., Literak, I., et al. (2011). Surface-enhanced laser desorption ionization/timeof-flight (SELDI-TOF) mass spectrometry (MS) as a phenotypic method for rapid identification of antibiotic resistance. Anaerobe 17, 444–447. doi: 10.1016/j.anaerobe.2011.05.008
Edwards-Jones, V., Claydon, M. A., Evason, D. J., Walker, J., Fox, A. J., and Gordon, D. B. (2000). Rapid discrimination between methicillin-sensitive and methicillin-resistant Staphylococcus aureus by intact cell mass spectrometry. J. Med. Microbiol. 49, 295–300. doi: 10.1099/0022-1317-49-3-295
Endimiani, A., Hujer, K. M., Hujer, A. M., Sampath, R., Ecker, D. J., and Bonomo, R. A. (2010). Rapid identification of blaKPC-possessing Enterobacteriaceae by PCR/electrospray ionization-mass spectrometry. J. Antimicrob. Chemother. 65, 1833–1834. doi: 10.1093/jac/dkq207
Falagas, M. E., Vardakas, K. Z., Kapaskelis, A., Triarides, N. A., and Roussos, N. S. (2015). Tetracyclines for multidrug-resistant Acinetobacter baumannii infections. Int. J. Antimicrob. Agents. 45, 455–460. doi: 10.1016/j.ijantimicag.2014.12.031
Feng, J., Billal, D. S., Lupien, A., Racine, G., Winstall, E., Légaré, D., et al. (2011). Proteomic and transcriptomic analysis of linezolid resistance in Streptococcus pneumoniae. J. Proteome Res. 7, 4439–4452. doi: 10.1021/pr200221s
Fernández-Reyes, M., Rodríguez-Falcón, M., Chiva, C., Pachón, J., Andreu, D., and Rivas, L. (2009). The cost of resistance to colistin in Acinetobacter baumannii: a proteomic perspective. Proteomics 9, 1632–1645. doi: 10.1002/pmic.200800434
Fischer, A., Yang, S. J., Bayer, A. S., Vaezzadeh, A. R., Herzig, S., Stenz, L., et al. (2011). Daptomycin resistance mechanisms in clinically derived Staphylococcus aureus strains assessed by a combined transcriptomics and proteomics approach. J. Antimicrob. Chemother. 66, 1696–1711. doi: 10.1093/jac/dkr195
Fleurbaaij, F., Heemskerk, A. A., Russcher, A., Klychnikov, O. I., Deelder, A. M., Mayboroda, O. A., et al. (2014). Capillary-electrophoresis mass spectrometry for the detection of carbapenemases in (multi-)drug-resistant Gram-negative bacteria. Anal. Chem. 86, 9154–9161. doi: 10.1021/ac502049p
Gayoso, C. M., Mateos, J., Méndez, J. A., Fernández-Puente, P., Rumbo, C., Tomás, M., et al. (2014). Molecular mechanisms involved in the response to desiccation stress and persistence in Acinetobacter baumannii. J. Proteome Res. 13, 460–476. doi: 10.1021/pr400603f
Gerber, S. A., Rush, J., Stemman, O., Kirschner, M. W., and Gygi, S. P. (2003). Absolute quantification of proteins and phosphoproteins from cell lysates by tandem MS. Proc. Natl. Acad. Sci. U.S.A. 100, 6940–6945. doi: 10.1073/pnas.0832254100
Gil, C., Solano, C., Burgui, S., Latasa, C., García, B., Toledo-Arana, A., et al. (2014). Biofilm matrix exoproteins induce a protective immune response against Staphylococcus aureus biofilm infection. Infect. Immun. 82, 1017–1029. doi: 10.1128/IAI.01419-13
Goldstein, B. P. (2014). Resistance to rifampicin: a review. J. Antibiot. 67, 625–630. doi: 10.1038/ja.2014.107
Griffin, P. M., Price, G. R., Schooneveldt, J. M., Schlebusch, S., Tilse, M. H., Urbanski, T., et al. (2012). Use of matrix-assisted laser desorption ionization–time of flight mass spectrometry to identify vancomycin-resistant enterococci and investigate the epidemiology of an outbreak. J. Clin. Microbiol. 50, 2918–2931. doi: 10.1128/JCM.01000-12
Gygi, S. P., Rist, B., Gerber, S. A., Turecek, F., Gelb, M. H., and Aebersold, R. (1999). Quantitative analysis of complex protein mixtures using isotopecoded affinity tags. Nature Biotechnol. 17, 994–999.
Hart, P. J., Wey, E., McHugh, T. D., Balakrishnan, I., and Belgacem, O. (2015). A method for the detection of antibiotic resistance markers in clinical strains of Escherichia coli using MALDI mass spectrometry. J. Microbiol. Methods. 111, 1–8. doi: 10.1016/j.mimet.2015.01.020
Hrabák, J., Chudácková, E., and Walková, R. (2013). Matrix-assisted laser desorption ionization-time of flight (maldi-tof) mass spectrometry for detection of antibiotic resistance mechanisms: from research to routine diagnosis. Clin. Microbiol. Rev. 26, 103–114. doi: 10.1128/CMR.00058-12
Hrabák, J., Walková, R., Studentová, V., Chudácková, E., and Bergerová, T. (2011). Carbapenemase activity detection by matrix-assisted laser desorption–ionization time of flight mass spectrometry. J. Clin. Microbiol. 49, 3222–3227. doi: 10.1128/JCM.00984-11
Imperi, F., Ciccosanti, F., Perdomo, A. B., Tiburzi, F., Mancone, C., Alonzi, T., et al. (2009). Analysis of the periplasmic proteome of Pseudomonas aeruginosa, a metabolically versatile opportunistic pathogen. Proteomics 9, 1901–1915. doi: 10.1002/pmic.200800618
Iwashkiw, J. A., Seper, A., Weber, B. S., Scott, N. E., Vinogradov, E., Stratilo, C., et al. (2012). Identification of a general O-linked protein glycosylation system in Acinetobacter baumannii and its role in virulence and biofilm formation. PLoS Pathog. 8:e1002758. doi: 10.1371/journal.ppat.1002758
Jackson, J., Chen, C., and Buising, K. (2013). Aminoglycosides: how should we use them in the 21st century? Curr. Opin. Infect. Dis. 26, 516–525. doi: 10.1097/QCO.0000000000000012
Johansson, Å., Nagy, E., and Sóki, J. (2014). Instant screening and verification of carbapenemase activity in Bacteroides fragilis in positive blood culture, using matrix-assisted laser desorption ionization–time of flight mass spectrometry. J. Med. Microbiol. 63, 1105–1110. doi: 10.1099/jmm.0.075465-0
Josten, M., Dischinger, J., Szekat, C., Reif, M., Al-Sabti, N., Sahl, H. G., et al. (2014). Identification of agr-positive methicillin-resistant Staphylococcus aureus harbouring the class A mec complex by MALDI-TOF mass spectrometry. Int. J. Med. Microbiol. 304, 1018–1023. doi: 10.1016/j.ijmm.2014.07.005
Jung, J. S., Eberl, T., Sparbier, K., Lange, C., Kostrzewa, M., Schubert, S., et al. (2014). Rapid detection of antibiotic resistance based on mass spectrometry and stable isotopes. Eur. J. Clin. Microbiol. Infect. Dis. 33, 949–955. doi: 10.1007/s10096-013-2031-5
Koning, R. I., de Breij, A., Oostergetel, G. T., Nibbering, P. H., Koster, A. J., and Dijkshoorn, L. (2013). Cryo-electron tomography analysis of membrane vesicles from Acinetobacter baumannii ATCC19606 T. Res. Microbiol. 164, 397–405. doi: 10.1016/j.resmic.2013.02.007
Kostrzewa, M., Sparbier, K., Maier, T., and Schubert, S. (2013). MALDI-TOF MS: an upcoming tool for rapid detection of antibiotic resistance in microorganisms. Proteomics Clin. Appl. 7, 767–778. doi: 10.1002/prca.201300042
Kumar, B., Sharma, D., Sharma, P., Katoch, V. M., Venkatesan, K., and Bisht, D. (2013). Proteomic analysis of Mycobacterium tuberculosis isolates resistant to kanamycin and amikacin. J. Proteomics 6, 68–77. doi: 10.1016/j.jprot.2013.08.025
Lee, C. R., Lee, J. H., Park, K. S., Jeong, B. C., and Lee, S. H. (2015). Quantitative proteomic view associated with resistance to clinically important antibiotics in Gram-positive bacteria: a systematic review. Front. Microbiol. 11:828. doi: 10.3389/fmicb.2015.00828
Lee, J., Kim, S. H., Choi, D. S., Lee, J. S., Kim, D. K., Go, G., et al. (2015). Proteomic analysis of extracellular vesicles derived from Mycobacterium tuberculosis. Proteomics 15, 3331–3337. doi: 10.1002/pmic.201500037
Lee, W., Chung, H. S., Lee, Y., Yong, D., Jeong, S. H., Lee, K., et al. (2013). Comparison of matrix-assisted laser desorption ionization-time-of-flight mass spectrometry assay with conventional methods for detection of IMP-6, VIM-2, NDM-1, SIM-1, KPC-1, OXA-23, and OXA-51 carbapenemase-producing Acinetobacter spp., Pseudomonas aeruginosa, and Klebsiella pneumoniae. Diagn. Microbiol. Infect. Dis. 77, 227–230. doi: 10.1016/j.diagmicrobio.2013.07.005
Li, H., Lin, X. M., Wang, S. Y., and Peng, X. X. (2007). Identification and antibody-therapeutic targeting of chloramphenicol-resistant outer membrane proteins in Escherichia coli. J. Proteome Res. 6, 3628–3636. doi: 10.1021/pr070307y
Li, H., Wang, B. C., Xu, W. J., Lin, X. M., and Peng, X. X. (2008). Identification and network of outer membrane proteins regulating streptomycin resistance in Escherichia coli. J. Proteome Res. 7, 4040–4049. doi: 10.1021/pr800310y
Li, H., Zhang, D. F., Lin, X. M., and Peng, X. X. (2015). Outer membrane proteomics of kanamycin-resistant Escherichia coli identified MipA as a novel antibiotic resistance-related protein. FEMS Microbiol Lett. 362:fnv074. doi: 10.1093/femsle/fnv074
Li, Z. T., Zhang, R. L., Bi, X. G., Xu, L., Fan, M., Xie, D., et al. (2015). Outer membrane vesicles isolated from two clinical Acinetobacter baumannii strains exhibit different toxicity and proteome characteristics. Microb. Pathog. 81, 46–52. doi: 10.1016/j.micpath.2015.03.009
Lima, T. B., Pinto, M. F. S., Ribeiro, S. M., de Lima, L. A., Viana, J. C., Júnior, N. G., et al. (2013). Bacterial resistance mechanism: what proteomics can elucidate. FASEB J. 27, 1291–1303. doi: 10.1096/fj.12-221127
Lin, M. H., Hsu, T. L., Lin, S. Y., Pan, Y. J., Jan, J. T., Wang, J. T., et al. (2009). Phosphoproteomics of Klebsiella pneumoniae NTUH-K2044 reveals a tight link between tyrosine phosphorylation and virulence. Mol. Cell. Proteomics 8, 2613–2623. doi: 10.1074/mcp.M900276-MCP200
Lin, X., Kang, L., Li, H., and Peng, X. (2014). Fluctuation of multiple metabolic pathways is required for Escherichia coli in response to chlortetracycline stress. Mol. Biosyst. 10, 901–908. doi: 10.1039/c3mb70522f
Lin, X. M., Li, H., Wang, C., and Peng, X. X. (2008). Proteomic analysis of nalidixic acid resistance in Escherichia coli: identification and functional characterization of OM proteins. J. Proteome Res. 7, 2399–23405, 1223–1233. doi: 10.1021/pr800073c
Liu, X., Gao, B., Novik, V., and Galán, J. E. (2012). Quantitative proteomics of intracellular Campylobacter jejuni reveals metabolic reprogramming. PLoS Pathog 8:e1002562. doi: 10.1371/journal.ppat.1002562
Liu, X., Hu, Y., Pai, P. J., Chen, D., and Lam, H. (2014). Label-free quantitative proteomics analysis of antibiotic response in Staphylococcus aureus to oxacillin. J. Proteome Res. 13, 1223–1233. doi: 10.1021/pr400669d
Ma, Y., Guo, C., Li, H., and Peng, X. X. (2013). Low abundance of respiratory nitrate reductase is essential for Escherichia coli in resistance to aminoglycoside and cephalosporin. J. Proteomics 11, 78–88. doi: 10.1016/j.jprot.2013.05.019
Madeira, A., dos Santos, S. C., Santos, P. M., Coutinho, C. P., Tyrrell, J., McClean, S., et al. (2013). Proteomic profiling of Burkholderia cenocepacia clonal isolates with different virulence potential retrieved from a cystic fibrosis patient during chronic lung infection. PLoS ONE 8:e83065. doi: 10.1371/journal.pone.0083065
Marinach, C., Alanio, A., Palous, M., Kwasek, S., Fekkar, A., Brossas, J. Y., et al. (2009). MALDITOF MS-based drug susceptibility testing of pathogens: the example of Candida albicans and fluconazole. Proteomics 9, 4627–4631. doi: 10.1002/pmic.200900152
Martínez, J. L., and Rojo, F. (2011). Metabolic regulation of antibiotic resistance. FEMS Microbiol. Rev. 35, 768–789. doi: 10.1111/j.1574-6976.2011.00282.x
McAtee, C. P., Hoffman, P. S., and Berg, D. E. (2001). Identification of differentially regulated proteins in metronidozole resistant Helicobacter pylori by proteome techniques. Proteomics 1, 516–521. doi: 10.1002/1615-9861(200104)1:4<516::AID-PROT516>3.0.CO;2-O
Méndez, J. A., Mateos, J., Beceiro, A., Lopez, M., Tomás, M., Poza, M., et al. (2015). Quantitative proteomic analysis of host-pathogen interactions: a study of Acinetobacter baumannii responses to host airways. BMC Genomics 16:422. doi: 10.1186/s12864-015-1608-z
Mendez, J. A., Soares, N. C., Mateos, J., Gayoso, C., Rumbo, C., Aranda, J., et al. (2012). Extracellular proteome of a highly invasive multidrug-resistant clinical strain of Acinetobacter baumannii. J. Proteome Res. 7, 5678–5694. doi: 10.1021/pr300496c
Mirrashidi, K. M., Elwell, C. A., Verschueren, E., Johnson, J. R., Frando, A., Von Dollen, J., et al. (2015). Global mapping of the Inc-human interactome reveals that retromer restricts Chlamydia infection. Cell Host Microbe 18, 109–121. doi: 10.1016/j.chom.2015.06.004
Monteiro, R., Vitorino, R., Domingues, P., Radhouani, H., Carvalho, C., Poeta, P., et al. (2012). Proteome of a methicillin-resistant Staphylococcus aureus clinical strain of sequence type ST398. J. Proteomics. 75, 2892–2915. doi: 10.1016/j.jprot.2011.12.036
Moura, I., Monot, M., Tani, C., Spigaglia, P., Barbanti, F., Norais, N., et al. (2014). Multidisciplinary analysis of a nontoxigenic Clostridium difficile strain with stable resistance to metronidazole. Antimicrob. Agents Chemother. 58, 4957–4960. doi: 10.1128/AAC.02350-14
Nabu, S., Lawung, R., Isarankura-Na-Ayudhya, P., Isarankura-Na-Ayudhya, C., Roytrakul, S., and Prachayasittikul, V. (2014). Reference map and comparative proteomic analysis of Neisseria gonorrhoeae displaying high resistance against spectinomycin. J. Med. Microbiol. 63, 371–385. doi: 10.1099/jmm.0.067595-0
Nagy, E., Becker, S., Sóki, J., Urbán, E., and Kostrzewa, M. (2011). Differentiation of division I (cfiA-negative) and division II (cfiApositive) Bacteroides fragilis strains bymatrix-assisted laser desorption/ionization time-of-flight mass spectrometry. J. Med. Microbiol. 60, 1584–1590. doi: 10.1099/jmm.0.031336-0
Nakano, S., Matsumura, Y., Kato, K., Yunoki, T., Hotta, G., Noguchi, T., et al. (2014). Differentiation of vanA-positive Enterococcus faecium from vanA-negative E. faecium by matrix-assisted laser desorption/ionisation time-of-flight mass spectrometry. Int. J. Antimicrob. Agents 44, 256–259. doi: 10.1016/j.ijantimicag.2014.05.006
Neri, A., Mignogna, G., Fazio, C., Giorgi, A., Schininà, M. E., and Stefanelli, P. (2010). Neisseria meningitidis rifampicin resistant strains: analysis of protein differentially expressed. BMC Microbiol. 24:246. doi: 10.1186/1471-2180-10-246
Olaya-Abril, A., Prados-Rosales, R., McConnell, M. J., Martín-Peña, R., González-Reyes, J. A., Jiménez-Munguía, I., et al. (2014). Characterization of protective extracellular membrane-derived vesicles produced by Streptococcus pneumoniae. J. Proteomics 25, 46–60. doi: 10.1016/j.jprot.2014.04.023
Ong, S. E., Blagoev, B., Kratchmarova, I., Kristensen, D. B., Steen, H., Pandey, A., et al. (2002). Stable isotope labeling by amino acids in cell culture, SILAC, as a simple and accurate approach to expression proteomics. Mol. Cell. Proteomics 1, 376–386. doi: 10.1074/mcp.M200025-MCP200
Otto, A., Becher, D., and Schmidt, F. (2014). Quantitative proteomics in the field of microbiology. Proteomics 14, 547–565. doi: 10.1002/pmic.201300403
Oviaño, M., Fernández, B., Fernández, A., Barba, M. J., Mouriño, C., and Bou, G. (2014). Rapid detection of enterobacteriaceae producing extended spectrum beta-lactamases directly from positive blood cultures by matrix-assisted laser desorption ionization-time of flight mass spectrometry. Clin. Microbiol. Infect. 20, 1146–1157. doi: 10.1111/1469-0691.12729
Pakharukova, N., Garnett, J. A., Tuittila, M., Paavilainen, S., Diallo, M., Xu, Y., et al. (2015). Structural insight into archaic and alternative chaperone usher pathways reveals a novel mechanism of pilus biogenesis. PLoS Pathog. 11:e1005269. doi: 10.1371/journal.ppat.1005269
Papagiannitsis, C. C., Študentová, V., Izdebski, R., Oikonomou, O., Pfeifer, Y., Petinaki, E., et al. (2015). Matrix-assisted laser desorption ionization-time of flight mass spectrometry meropenem hydrolysis assay with NH4HCO3, a reliable tool for direct detection of carbapenemase activity. J. Clin. Microbiol. 53, 1731–1735. doi: 10.1128/JCM.03094-14
Park, A. J., Krieger, J. R., and Khursigara, C. M. (2016). Survival proteomes: the emerging proteotype of antimicrobial resistance. FEMS Microbiol. Rev. 40:fuv051. doi: 10.1093/femsre/fuv051
Peaper, D. R., Kulkarni, M. V., Tichy, A. N., Jarvis, M., Murray, T. S., and Hodsdon, M. E. (2013). Rapid detection of carbapenemase activity through monitoring ertapenem hydrolysis in Enterobacteriaceae with LC-MS/MS. Bioanalysis 5, 147–157. doi: 10.4155/bio.12.310
Peng, X., Xu, C., Ren, H., Lin, X., Wu, L., and Wang, S. (2005). Proteomic analysis of the sarcosine-insoluble outer membrane fraction of Pseudomonas aeruginosa responding to ampicilin, kanamycin, and tetracycline resistance. J. Proteome Res. 4, 2257–2265. doi: 10.1021/pr050159g
Pérez-Cruz, C., Carrión, O., Delgado, L., Martinez, G., López-Iglesias, C., and Mercade, E. (2013). New type of outer membrane vesicle produced by the Gram-negative bacterium Shewanella vesiculosa M7T: implications for DNA content. Appl. Environ. Microbiol. 79, 1874–1881. doi: 10.1128/AEM.03657-12
Pérez-Llarena, F. J., and Bou, G. (2009). Beta-lactamase inhibitors: the story so far. Curr. Med. Chem. 16, 3740–3765. doi: 10.2174/092986709789104957
Pieper, R., Fisher, C. R., Suh, M. J., Huang, S. T., Parmar, P., and Payne, S. M. (2013). Analysis of the proteome of intracellular Shigella flexneri reveals pathways important for intracellular growth. Infect. Immun. 81, 4635–4648. doi: 10.1128/IAI.00975-13
Poole, K. (2004). Resistance to beta-lactam antibiotics. Cell. Mol. Life Sci. 61, 2200–2223. doi: 10.1007/s00018-004-4060-9
Pournaras, S., Poulou, A., Dafopoulou, K., Chabane, Y. N., Kristo, I., Makris, D., et al. (2014). Growth retardation, reduced invasiveness, and impaired colistin-mediated cell death associated with colistin resistance development in Acinetobacter baumannii. Antimicrob. Agents Chemother. 58, 828–832. doi: 10.1128/AAC.01439-13
Provenzano, J. C., Siqueira, J. F. Jr., Rôças, I. N., Domingues, R. R., Paes Leme, A. F., and Silva, M. R. (2013). Metaproteome analysis of endodontic infections in association with different clinical conditions. PLoS ONE 15:e76108. doi: 10.1371/journal.pone.0076108
Purschke, F. G., Hiller, E., Trick, I., and Rupp, S. (2012). Flexible survival strategies of Pseudomonas aeruginosa in biofilms result in increased fitness compared with Candida albicans. Mol. Cell. Proteomics 11, 1652–1669. doi: 10.1074/mcp.M112.017673
Pusch, W., Wurmbach, J. H., Thiele, H., and Kostrzewa, M. (2002). MALDI-TOF mass spectrometry-based SNP genotyping. Pharmacogenomics 3, 537–548. doi: 10.1517/14622416.3.4.537
Ramos, S., Chafsey, I., Silva, N., Hébraud, M., Santos, H., Capelo-Martinez, J. L., et al. (2015). Effect of vancomycin on the proteome of the multiresistant Enterococcus faecium SU18 strain. J. Proteomics 15, 378–387. doi: 10.1016/j.jprot.2014.10.012
Ravichandran, A., Sugiyama, N., Tomita, M., Swarup, S., and Ishihama, Y. (2009). Ser/Thr/Tyr phosphoproteome analysis of pathogenic and non-pathogenic Pseudomonas species. Proteomics 9, 2764–2775. doi: 10.1002/pmic.200800655
Redgrave, L. S., Sutton, S. B., Webber, M. A., and Piddock, L. J. (2014). Fluoroquinolone resistance: mechanisms, impact on bacteria, and role in evolutionary success. Trends Microbiol. 22, 438–445. doi: 10.1016/j.tim.2014.04.007
Ross, P. L., Huang, Y. N., Marchese, J. N., Williamson, B., Parker, K., Hattan, S., et al. (2004). Multiplexed protein quantitation in Saccharomyces cerevisiae using amine-reactive isobaric tagging reagents. Mol. Cell. Proteomics 3, 1154–1169. doi: 10.1074/mcp.M400129-MCP200
Sandalakis, V., Psaroulaki, A., De Bock, P. J., Christidou, A., Gevaert, K., Tsiotis, G., et al. (2012). Investigation of rifampicin resistance mechanisms in Brucella abortus using MS-driven comparative proteomics. J. Proteome Res. 6, 2374–2385. doi: 10.1021/pr201122w
Schmidl, S. R., Gronau, K., Pietack, N., Hecker, M., Becher, D., and Stülke, J. (2010). The phosphoproteome of the minimal bacterium Mycoplasma pneumoniae: analysis of the complete known Ser/Thr kinome suggests the existence of novel kinases. Mol. Cell. Proteomics 9, 1228–1242. doi: 10.1074/mcp.M900267-MCP200
Schmidt, A., Kellermann, J., and Lottspeich, F. (2005). A novel strategy for quantitative proteomics using isotope-coded protein labels. Proteomics 5, 4–15. doi: 10.1002/pmic.200400873
Scott, N. E., Marzook, N. B., Cain, J. A., Solis, N., Thaysen-Andersen, M., Djordjevic, S. P., et al. (2014). Comparative proteomics and glycoproteomics reveal increased N-linked glycosylation and relaxed sequon specificity in Campylobacter jejuni NCTC11168 O. J. Proteome Res. 7, 5136–5150. doi: 10.1021/pr5005554
Seneviratne, C. J., Wang, Y., Jin, L., Wong, S. S., Herath, T. D., and Samaranayake, L. P. (2012). Unraveling the resistance of microbial biofilms:has proteomics been helpful? Proteomics 12, 651–665. doi: 10.1002/pmic.201100356
Shah, H. N., Rajakaruna, L., Ball, G., Misra, R., Al-Shahib, A., Fang, M., et al. (2011). Tracing the transition of methicillin resistance in sub-populations of Staphylococcus aureus, using SELDI-TOF mass spectrometry and artificial neural network analysis. Syst. Appl. Microbiol. 34, 81–86. doi: 10.1016/j.syapm.2010.11.002
Shao, C., Sun, Y., Wang, N., Yu, H., Zhou, Y., Chen, C., et al. (2013). Changes of proteome components of Helicobacter pylori biofilms induced by serum starvation. J. Mol. Med. Rep. 8, 1761–1766. doi: 10.3892/mmr.2013.1712
Sharma, P., Kumar, B., Gupta, Y., Singhal, N., Katoch, V. M., Venkatesan, K., et al. (2010). Proteomic analysis of streptomycin resistant and sensitive clinical isolates of Mycobacterium tuberculosis. Proteome Sci. 18:59. doi: 10.1186/1477-5956-8-59
Smiley, R., Bailey, J., Sethuraman, M., Posecion, N., and Showkat Ali, M. (2013). Comparative proteomics analysis of sarcosine insoluble outer membrane proteins from clarithromycin resistant and sensitive strains of Helicobacter pylori. J. Microbiol. 51, 612–618. doi: 10.1007/s12275-013-3029-5
Soares, N. C., Spät, P., Méndez, J. A., Nakedi, K., Aranda, J., and Bou, G. (2014). Ser/Thr/Tyr phosphoproteome characterization of Acinetobacter baumannii: comparison between a reference strain and a highly invasive multidrug-resistant clinical isolate. J. Proteomics 6, 113–114. doi: 10.1016/j.jprot.2014.03.009
Solis, N., Parker, B. L., Kwong, S. M., Robinson, G., Firth, N., and Cordwell, S. J. (2014). Staphylococcus aureus surface proteins involved in adaptation to oxacillin identified using a novel cell shaving approach. J. Proteome Res. 6, 2954–2972. doi: 10.1021/pr500107p
Soufi, B., Soares, N. C., Ravikumar, V., and Macek, B. (2012). Proteomics reveals evidence of cross-talk between protein modifications in bacteria: focus on acetylation and phosphorylation. Curr. Opin. Microbiol. 15, 357–363. doi: 10.1016/j.mib.2012.05.003
Sparbier, K., Lange, C., Jung, J., Wieser, A., Schubert, S., and Kostrzewa, M. (2013). MALDI biotyper-based rapid resistance detection by stable-isotope labeling. J. Clin. Microbiol. 51, 3741–3748. doi: 10.1128/JCM.01536-13
Steeb, B., Claudi, B., Burton, N. A., Tienz, P., Schmidt, A., Farhan, H., et al. (2013). Parallel exploitation of diverse host nutrients enhances Salmonella virulence. PLoS Pathog. 9:e1003301. doi: 10.1371/journal.ppat.1003301
Studentova, V., Papagiannitsis, C. C., Izdebski, R., Pfeifer, Y., Chudackova, E., Bergerova, T., et al. (2015). Detection of OXA-48-type carbapenemase-producing Enterobacteriaceae in diagnostic laboratories can be enhanced by addition of bicarbonates to cultivation media or reaction buffers. Folia Microbiol. 60, 119–129. doi: 10.1007/s12223-014-0349-8
Sun, X., Ge, F., Xiao, C. L., Yin, X. F., Ge, R., Zhang, L. H., et al. (2010). Phosphoproteomic analysis reveals the multiple roles of phosphorylation in pathogenic bacterium Streptococcus pneumoniae. J. Proteome Res. 9, 275–282. doi: 10.1021/pr900612v
Thompson, A., Schäfer, J., Kuhn, K., Kienle, S., Schwarz, J., Schmidt, G., et al. (2003). Tandem mass tags: a novel quantification strategy for comparative analysis of complex protein mixtures by MS/MS. Anal. Chem. 75, 1895–1904. doi: 10.1021/ac0262560
Tiwari, V., and Tiwari, M. (2014). Quantitative proteomics to study carbapenem resistance in Acinetobacter baumannii. Front. Microbiol. 5:512. doi: 10.3389/fmicb.2014.00512
Tiwari, V., Vashistt, J., Kapil, A., and Moganty, R. R. (2012). Comparative proteomics of inner membrane fraction from carbapenem-resistant Acinetobacter baumannii with a reference strain. PLoS ONE 7:e39451. doi: 10.1371/journal.pone.0039451
Tomaras, A. P., Flagler, M. J., Dorsey, C. W., Gaddy, J. A., and Actis, L. A. (2008). Characterization of a two-component regulatory system from Acinetobacter baumannii that controls biofilm formation and cellular morphology. Microbiology 154, 3398–3409. doi: 10.1099/mic.0.2008/019471-0
Trip, H., Mende, K., Majchrzykiewicz-Koehorst, J. A., Sedee, N. J., Hulst, A. G., Jansen, H. J., et al. (2015). Simultaneous identification of multiple β-lactamases in Acinetobacter baumannii in relation to carbapenem and ceftazidime resistance, using liquid chromatography-tandem mass spectrometry. J. Clin. Microbiol. 53, 1927–1930. doi: 10.1128/JCM.00620-15
Van Oudenhove, L., and Devreese, B. (2013). A review on recent developments in mass spectrometry instrumentation and quantitative tools advancing bacterial proteomics. Appl. Microbiol. Biotechnol. 97, 4749–4762. doi: 10.1007/s00253-013-4897-7
Vella, A., De Carolis, E., Vaccaro, L., Posteraro, P., Perlin, D. S., Kostrzewa, M., et al. (2013). Rapid antifungal susceptibility testing by matrix-assisted laser desorption ionization time-of-flight mass spectrometry analysis. J. Clin. Microbiol. 51, 2964–2969. doi: 10.1128/JCM.00903-13
Vitoriano, I., Saraiva-Pava, K. D., Rocha-Gonçalves, A., Santos, A., Lopes, A. I., Oleastro, M., et al. (2011). Ulcerogenic Helicobacter pylori strains isolated from children: a contribution to get insight into the virulence of the bacteria. PLoS ONE 6:e26265. doi: 10.1371/journal.pone.0026265
Vranakis, I., De Bock, P. J., Papadioti, A., Tselentis, Y., Gevaert, K., Tsiotis, G., et al. (2011). Identification of potentially involved proteins in levofloxacin resistance mechanisms in Coxiella burnetii. J. Proteome Res. 10, 756–762. doi: 10.1021/pr100906v
Wang, L., Han, C., Sui, W., Wang, M., and Lu, X. (2013). MALDI-TOF MS applied to indirect carbapenemase detection: a validated procedure to clearly distinguish between carbapenemase-positive and carbapenemase-negative bacterial strains. Anal. Bioanal. Chem. 405, 5259–5266. doi: 10.1007/s00216-013-6913-2
Wang, X., He, X., Jiang, Z., Wang, J., Chen, X., Liu, D., et al. (2010). Proteomic analysis of the Enterococcus faecalis V583 strain and clinical isolate V309 under vancomycin treatment. J. Proteome Res. 9, 1772–1785. doi: 10.1021/pr901216e
Wang, Y., Huang, K. Y., and Huo, Y. (2014). Proteomic comparison between Salmonella Typhimurium and Salmonella Typhi. J. Microbiol. 52, 71–76. doi: 10.1007/s12275-014-3204-3
Waxman, D. J., and Strominger, J. L. (1983). Penicillin-binding proteins and the mechanism of action of beta-lactam antibiotics. Annu. Rev. Biochem. 52, 825–869. doi: 10.1146/annurev.bi.52.070183.004141
Wurpel, D. J., Moriel, D. G., Totsika, M., Easton, D. M., and Schembri, M. A. (2015). Comparative analysis of the uropathogenic Escherichia coli surface proteome by tandem mass-spectrometry of artificially induced outer membrane vesicles. J. Proteomics 6, 93–106. doi: 10.1016/j.jprot.2014.12.005
Wybo, I., De Bel, A., Soetens, O., Echahidi, F., Vandoorslaer, K., Van Cauwenbergh, M., et al. (2011). Differentiation of cfiA-negative and cfiA-positive Bacteroides fragilis isolates by matrix-assisted laser desorption ionization-time of flight mass spectrometry. J. Clin. Microbiol. 49, 1961–1964. doi: 10.1128/JCM.02321-10
Xie, L., Wang, X., Zeng, J., Zhou, M., Duan, X., Li, Q., et al. (2015). Proteome-wide lysine acetylation profiling of the human pathogen Mycobacterium tuberculosis. Int. J. Biochem. Cell Biol. 59, 193–202. doi: 10.1016/j.biocel.2014.11.010
Yang, Y., Hu, M., Yu, K., Zeng, X., and Liu, X. (2015). Mass spectrometry-based proteomic approaches to study pathogenic bacteria-host interactions. Protein Cell 6, 265–274. doi: 10.1007/s13238-015-0136-6
Yun, S. H., Choi, C. W., Park, S. H., Lee, J. C., Leem, S. H., Choi, J. S., et al. (2008). Proteomic analysis of outer membrane proteins from Acinetobacter baumannii DU202 in tetracycline stress condition. J. Microbiol. 46, 720–727. doi: 10.1007/s12275-008-0202-3
Zhou, J., Hao, D., Wang, X., Liu, T., He, C., Xie, F., et al. (2006). An important role of a “probable ATP-binding component of ABC transporter” during the process of Pseudomonas aeruginosa resistance to fluoroquinolone. Proteomics 6, 2495–2503. doi: 10.1002/pmic.200501354
Keywords: resistance, diagnostic, antibiotic, virulence, proteomics, bacteria
Citation: Pérez-Llarena FJ and Bou G (2016) Proteomics As a Tool for Studying Bacterial Virulence and Antimicrobial Resistance. Front. Microbiol. 7:410. doi: 10.3389/fmicb.2016.00410
Received: 23 October 2015; Accepted: 14 March 2016;
Published: 31 March 2016.
Edited by:
Weiwen Zhang, Tianjin University, ChinaReviewed by:
Blanca Barquera, Rensselaer Polytechnic Institute, USABiswapriya Biswavas Misra, University of Florida, USA
Copyright © 2016 Pérez-Llarena and Bou. This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) or licensor are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.
*Correspondence: Germán Bou, Z2VybWFuLmJvdS5hcmV2YWxvQHNlcmdhcy5lcw==
