Fate of Listeria monocytogenes on Fresh Apples under Different Storage Temperatures

  • 1. School of Food Science, Washington State University, Pullman WA, United States

  • 2. Washington Tree Fruit Research Commission, Wenatchee WA, United States

Abstract

Fresh apples are typically stored for up to 1 year commercially; different apple varieties require different storage temperatures to maintain their quality characteristics. There is sparse information available about Listeria monocytogenes survival on fresh apples under various storage temperatures. The objective of this study was to comprehensively evaluate the effect of storage temperature on apple fruit decay and L. monocytogenes survival. Unwaxed apple fruits of selected varieties (Fuji and Granny Smith) were dip inoculated in a three-strain L. monocytogenes cocktail to establish ∼3.5 and 6.0 Log10 CFU/apple. Twenty-four hours post-inoculation, apples were subjected to 1, 4, 10, or 22°C storage for up to 3 months. Apples under the different storage treatments were sampled at 1-, 4-, 7- and 14-day for short-term storage under all four tested temperatures, and 2-, 4-, 8-, and 12-week for long-term storage at 1, 4, and 10°C. A set of uninoculated and unwaxed apples were simultaneously subjected to the previously mentioned storage temperatures and sampled biweekly for their total bacterial count (TPC) and yeasts/molds (Y/M) count. During the 2-week short-term storage, L. monocytogenes population on organic Granny Smith apples stored at 1, 4, or 10°C was reduced by 0.2–0.3 Log. When apples were stored at 22°C, there was a 0.5–1.2 Log10 CFU/apple reduction 14-day post storage dependent on the initial inoculation level. During the 12-week cold storage under 1, 4, and 10°C, L. monocytogenes count on organic Granny Smith apples decreased by 0.5–1.5 Log10 CFU/apple for both inoculation levels. L. monocytogenes had similar survival pattern on conventional Granny Smith and Fuji apples with 0.8–2.0 Log10 CFU/apple reduction over a 3-month cold storage period. Interestingly, both TPC and Y/M count were stable regardless of apple variety or cultivation practice during the 12-week storage at all tested temperatures. In summary, while L. monocytogenes did not proliferate on apple surfaces during 12 weeks of refrigerated storage, only a limited reduction of L. monocytogenes was observed in this study. Therefore, the apple industry cannot rely on cold storage alone to control this pathogen. Additional interventions are needed to eradicate Listeria on fresh apples during long-term cold storage.

Introduction

Listeria monocytogenes is a major foodborne pathogen and causes about 1600 illnesses annually in the United States with a mortality rate of ∼16% (). L. monocytogenes is listed by the U.S. Food and Drug Administration as a “pathogen of concern” and has been singled out on ready-to-eat (RTE) produce due to its nature as a environmental species, its frequent occurrence in many produce-associated environment and operations, and its high mortality rate (). Historically, L. monocytogenes outbreaks were associated with RTE meat such as turkey franks (), hot dog (), and delicatessen turkey meat (). Dairy products, such as ice cream () and soft cheese products (; ; ), are frequently involved in L. monocytogenes outbreaks. In recent years, increasing numbers of L. monocytogenes outbreaks were associated with fresh produce. The 2011 cantaloupe outbreak resulted in 143 hospitalizations and 33 deaths (). The 2014–2015 multistate L. monocytogenes outbreak related to caramel apples caused 35 illnesses in 12 states including 7 deaths (). In addition, there were numerous L. monocytogenes recalls related to fresh apples (), sliced apples (; ), and stone fruits including whole peaches, nectarines, plums, and pluots (). The above evidence indicates L. monocytogenes has become an increasing threat to fresh produce safety and in particular to tree fruit producers.

Unique among other foodborne pathogens, L. monocytogenes has the ability to survive and even grow on fresh produce at refrigerated temperatures. L. monocytogenes was stable on lettuce during a 5-day storage at 5°C () and tomatoes during the 20-day storage under 10°C (). A recent study indicated that L. monocytogenes established on fresh Gala apples were stable during 15-day storage at 5°C; while under the same conditions, the population of L. monocytogenes inoculated on caramel apples increased by ∼3 Log10 CFU/apple (). In addition, L. monocytogenes population increased by more than 3 Log10 CFU/apple in caramel apples with an inserted stick within 3 days of storage at 25°C (; ). These data have corroborated the concerns about L. monocytogenes and its negative effect on fresh produce safety. However, inadequate information is available about the behavior of L. monocytogenes on fresh apples. The Produce Rule of the Food Safety Modernization Act (FSMA) () requires the fresh apple growers, packers, as well as processors to identify and adopt validated and effective preventive methods to reduce microbial risk in fresh apples by implementing worker training and hygienic practices, control of agricultural water, biological soil amendments, and wild animals, as well as sanitation of equipment, tools, and buildings. This study aimed to evaluate the fate of L. monocytogenes in fresh apples stored at different temperatures during both short- and long-term storage. Granny Smith apples (GSA) were studied since it’s a cultivar involved in the L. monocytogenes outbreaks (). Both organic and conventional GSA were used to elucidate the potential influence of different native flora due to the cultivation differences (). Conventional Fuji apples, which have a different surface structure, were also used in this study.

Materials and Methods

L. monocytogenes Strains and Culture Condition

Listeria monocytogenes NRRL B-57618 (1/2a), NRRL B-33053 (4b), and NRRL-33466 (1/2b) were obtained from USDA-ARS culture collection [National Center for Agricultural Utilization Research (NRRL), Peoria, IL, United States] and maintained at -80°C in Trypticase Soy Broth (Becton, Dickinson and Company, Sparks, MD, United States) supplemented with 0.6% Yeast Extract (Fisher Scientific, Fair Lawn, NJ, United States) (TSBYE) and 20% (v/v) glycerol. The frozen culture was first activated in TSBYE at 37°C for 24 h statically, and then 1:500 subcultured in TSBYE for additional 24 h at 37°C before use.

Inoculum Preparation

Twice-activated bacteria cultures were centrifuged at 8,000 × g for 5 min at 4°C. The resulting bacteria pellets were washed once and then re-suspended in Phosphate Buffered Saline (PBS, pH7.4). Equal volume of each L. monocytogenes strain was combined to make a three-strain cocktail and, subsequently, diluted to ∼6 and 3 Log10 CFU/ml for apple inoculation. At the high inoculation level, there were 6.29 ± 0.04, 6.42 ± 0.04, and 6.01 ± 0.07 Log10 CFU/apple on organic GSA, conventional GSA, and Fuji apples, respectively, immediately after inoculation. At the low inoculation level, 3.01 ± 0.06, 3.04 ± 0.07, and 3.48 ± 0.03 Log10 CFU/apple on organic GSA, conventional GSA, and Fuji apples, respectively, immediately after inoculation.

Inoculation of Apples

Whole fresh unwaxed GSA (organic and conventional) and Fuji apples (conventional) were donated by Allan Brothers Inc. and Stemilt Growers LLC. All fruit was of commercial maturity (the optimum maturity for the fresh market or storage) (). Apples were delivered from the commercial packing houses 1-week prior to inoculation and stored in a walk-in cooler (4°C) temporarily. Medium size apples (with an average weight ∼220 g) without cuts, bruising, or scars were selected and rinsed with cold tap water and dried on a bench top overnight to balance apple temperature to room temperature (RT). The apples were then inoculated with L. monocytogenes by submerging 15 apples each time in 5 L of three-strain L. monocytogenes cocktail inoculum solution at a selected inoculation level, and gently massaged by turning the apples in the inoculum for 10 min so that microorganisms were evenly distributed in the sample. For each variety at each inoculation level, four inocula were independently prepared with a total of ∼100 apples inoculated per inoculum. Inoculated apples were dried for 24 h at RT (∼22.5°C) before being subjected to storage. Twelve apples were sampled (three apples were randomly sampled from each of four inoculation batches) immediately following inoculation and 24 h post-inoculation for microbial enumeration to confirm inoculum uniformity, inoculation level, and the attachment of L. monocytogenes on fresh apples.

Storage Treatment of Apples

Both uninoculated and 24 h post-inoculation apples were placed in cardboard boxes and stored at 1°C, 4°C, 10°C, and RT in lab-scale refrigerated incubators. Temperatures were monitored continuously by the built-in sensors, and double-checked weekly using two calibrated digital thermometers (Omega HH11, Omega Engineering Inc., Stamford, CT, United States) to ensure precision. Actual storage temperatures were 0.93 ± 0.01, 4.17 ± 0.03, 9.76 ± 0.03, and 22.65 ± 0.03°C. Twelve apples (three apples from each of the four inoculation batches) were sampled for microbial analysis from each temperature of each inoculation level (uninoculated, high and low inoculation levels) at selected sampling points. Uninoculated apples were sampled at 2-, 4-, 8-, 12-week of storage for total plate count (TPC) and yeasts/molds (Y/M) enumeration. Apples inoculated with L. monocytogenes were sampled at 1-, 4-, 7- and 14-day intervals for short-term storage, and at 2-, 4-, 8-, and 12-week for long-term cold storage (1, 4, and 10°C).

Microbial Analysis of Apples

Each apple was placed into a sterile stomacher bag with 10 ml sterile PBS and hand-rubbed for 1.5 min. Wash solutions from each bag were 10-fold serially diluted with sterile PBS, and 0.1 or 1 ml from appropriate dilutions was plated on duplicate appropriate plates. For inoculated apples, TSAYE (TSBYE with 1.5% agar) plates were used for apples with a L. monocytogenes level higher than 4.0 Log10 CFU/apple where L. monocytogenes counts are much higher than the background flora (<3.0 Log10 CFU/apple). TSAYE overlaid with Modified Oxford agar (MOX, Becton, Dickinson and Company, Sparks, MD, United States) plates were used for the enumeration of L. monocytogenes when its counts are lower than 4.0 Log10 CFU/apple to discern from resident background flora of apples. The detection limit of L. monocytogenes is 10 CFU/apple. For uninoculated apples, rub solutions were plated onto TSAYE for TPC and Potato Dextrose Agar (PDA, Becton, Dickinson and Company, Sparks, MD, United States) plates for Y/M count. TSAYE plates were incubated at 35 ± 1°C for 48 h. PDA plates were incubated at RT for 5 days.

Statistical Analysis

Data was analyzed by GLM from Statistical Analysis Systems (SAS, Cary, NC, United States). Mean values were compared by least significant difference (LSD) multiple-comparison test. P-values less than 0.05 were considered significant. Four batches of inocula were independently used to inoculate apples at each inoculation level for each variety. Each individual apple was an experimental unit. At each sampling point, three apples were randomly sampled from each batch (N = 12). Results were reported as mean ± SEM (standard error of mean).

Results

L. monocytogenes Survival on Organic GSA

Immediately after inoculation, organic GSA exhibited attachment of 6.29 ± 0.04 and 3.01 ± 0.06 Log10 CFU/apple of L. monocytogenes, respectively (Figures 1A,B). After 24 h attachment at RT, bacterial counts were 6.31 ± 0.06 and 3.51 ± 0.08 for their respective inoculation levels (Figures 1A,B). There was a significant increase of 0.5 Log10 CFU/apple for the low inoculation level (Figure 1B, P < 0.05). During 2 weeks of cold storage at 1, 4, and 10°C, bacterial populations did not significantly change (Figures 1C,D). On apples stored at 22°C, however, bacterial counts were reduced by 1.17 and 0.66 Log10 CFU/apple for the high and low inoculation levels, respectively (Figures 1C,D). L. monocytogenes established on fresh apples at either high or low level remained stable during cold storage. At both inoculation levels, only a 0.5–1.5 Log10 CFU/apple reduction on organic GSA during the 3-month cold storage was achieved (Figures 1E,F).

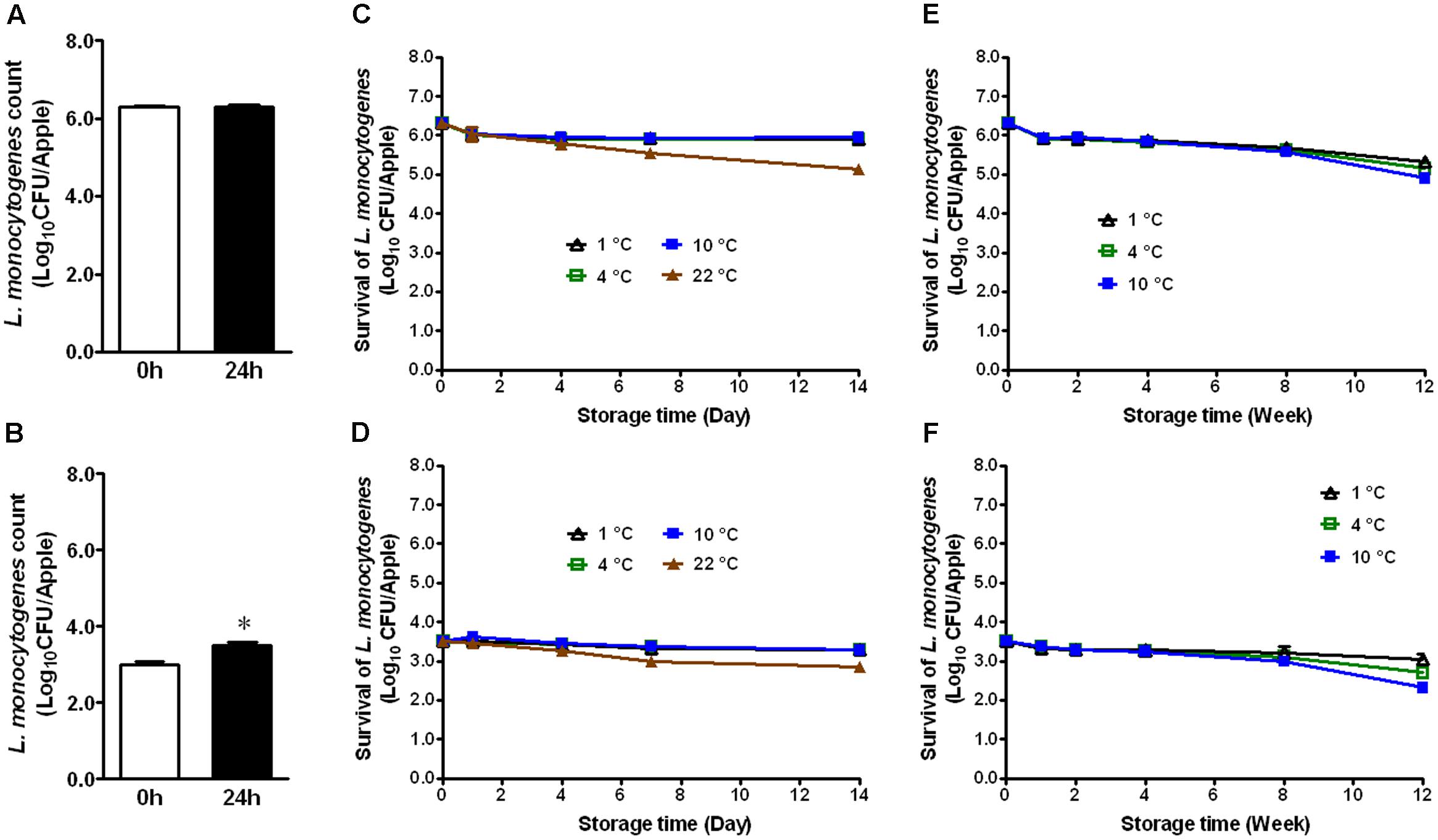

FIGURE 1

L. monocytogenes Survival on Conventional GSA and Fuji Apples

Apples from different agricultural practice or different varieties may behave differently in terms of bacterial adhesion and inactivation of the attached microorganisms to their surface. Therefore, we evaluated the fate of L. monocytogenes established on conventional GSA during storage. At the high inoculation level, L. monocytogenes maintained the same population size 24 h post-inoculation (Figure 2A). At the low inoculation level, the bacterial count was increased by ∼0.7 Log10 CFU/apple 24 h post-inoculation (Figure 2B, P < 0.05). After 2 weeks of cold storage, L. monocytogenes counts were slightly decreased for the high inoculation level, while no reduction was observed for the low inoculation level (Figures 2C,D). L. monocytogenes counts on apples stored at RT were reduced by 1.1 and 0.6 Log10 CFU/apple for high and low inoculation level, respectively (Figures 2C,D). After 3-month cold storage, a 0.9–2.0 Log10 CFU/apple reduction was achieved for both inoculation levels with 1°C showing the least reduction and 10°C the most (Figures 2E,F). Given the similar behavior of L. monocytogenes on organic and conventional GSA, the fate of L. monocytogenes was only accessed on conventional Fuji apples. Similar results were observed on inoculated conventional Fuji apples (Figure 3). After 2 weeks of cold storage, L. monocytogenes population on fresh Fuji apples was slightly reduced. There was about ∼1.7 and 0.7 Log10 CFU/apple reduction of L. monocytogenes on Fuji apples with high and low inoculation level, respectively, after 2-week of RT storage (Figures 3C,D), a slightly higher reduction than that on GSA. After 3-months, L. monocytogenes populations on Fuji apples were decreased by 0.8, 0.9, and 1.4 Log10 CFU/apple at 1, 4, and 10°C, respectively, for the high inoculation level (Figure 3E). For the low inoculation level, L. monocytogenes counts on Fuji apples declined by 1.4, 1.5, and 1.8 Log10 CFU/apple at 1, 4, and 10°C, respectively (Figure 3F).

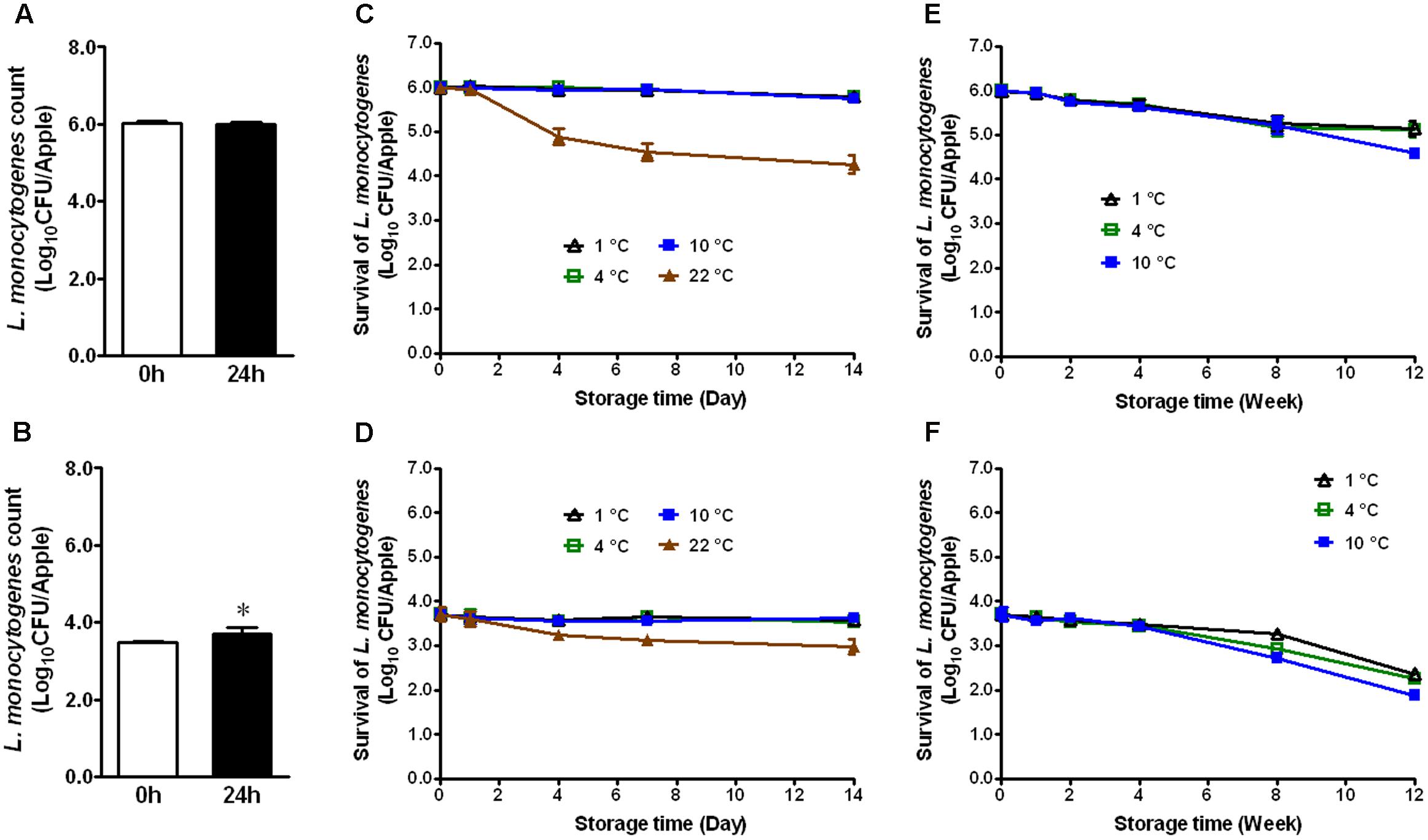

FIGURE 2

FIGURE 3

Evolution of Spoilage Microbiota in GSA and Fuji Apples

Bacteria, mold, and yeast can cause postharvest decay of apples (), reducing apple quality and causing a potential chemical (mycotoxin) hazard. Storage temperature has been reported to play a role in fruit decay (). Therefore, TPC, in addition to Y/M count was performed on uninoculated apples of the selected varieties stored under different temperatures. The initial TPC was 3.57 ± 0.06, 3.16 ± 0.07, and 3.55 ± 0.06 Log10 CFU/apple for organic GSA, conventional GSA, and conventional Fuji apples, respectively (Figures 4AC). After 3-month storage, TPC was significantly reduced by 0.2–0.4 Log10 CFU/apple for organic GSA, and 0.5–0.6 Log10 CFU/apple for conventional GSA and Fuji apples (Figures 4AC). There was no difference in TPC on apples stored under different temperatures.

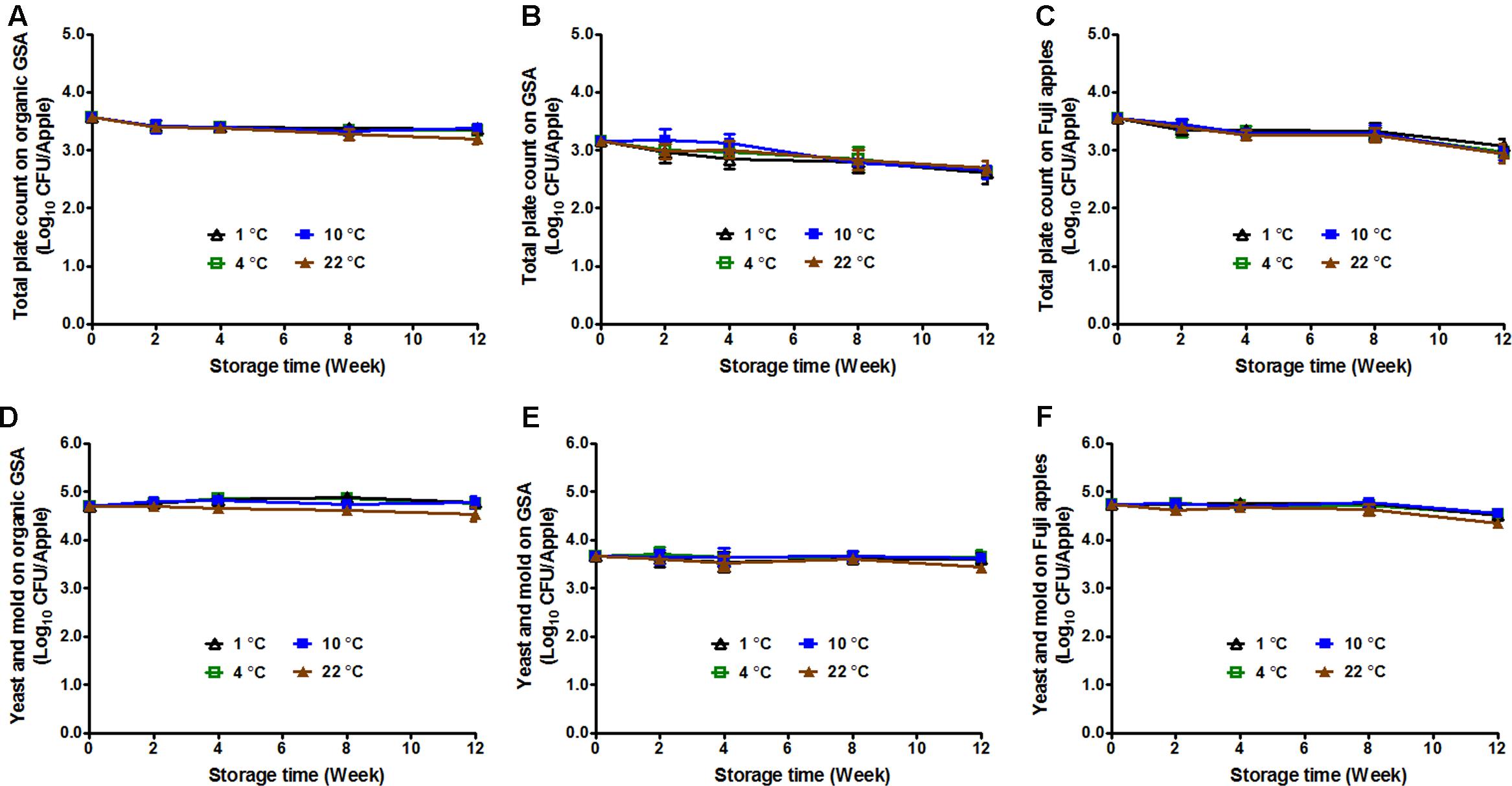

FIGURE 4

The initial Y/M count of organic GSA, conventional GSA, and conventional Fuji apples were 4.74 ± 0.05, 3.67 ± 0.10, and 4.73 ± 0.07 Log10 CFU/apple, respectively (Figures 4DF). For both GSA (organic and conventional) and Fuji apples, Y/M count stayed the same throughout the cold storage with only a slight decline on apples stored at 22°C (Figures 4DF).

Discussion

L. monocytogenes Attachment on Apples

At the inoculation level of ∼6 Log10 CFU/apple, L. monocytogenes population on fresh apples did not change during the 24 h establishment on the apple surface at RT, regardless of apple varieties or agricultural practice. Our results were corroborated with other previously published studies where the population of L. monocytogenes inoculated on whole strawberries at ∼7.5 Log10 CFU/berry was not significantly changed 24 h post-inoculation at 21°C (). Interestingly, at the low inoculation level, the population size of L. monocytogenes on apples slightly increased. Similarly, L. monocytogenes inoculated at ∼3 Log10 CFU/g on whole tomatoes were increased by ∼1.5 Log10 CFU/g after 2-day storage at 21°C (). While the mechanism for the observed difference between high and low inoculation levels is unknown, it might be due to the competition for the limited nutrients on apple surface at the high inoculation level.

L. monocytogenes Population on Fresh Apples Decreased during Room Temperature Storage

A consumer survey study indicated that 42% of consumers have been reported to store apples at RT (). Therefore, we evaluated behavior of L. monocytogenes on fresh apples during 2-week storage at RT. L. monocytogenes on apples of different cultivation practices (organic and conventional) or different varieties (GSA and Fuji apples) behaved similarly with 0.5–1.7 Log10 CFU/apple reduction regardless of the inoculation level after 2-week storage under RT. Consistent with our findings, L. monocytogenes inoculated onto a GSA surface at ∼5 Log10 CFU/apple was reduced by ∼1.5 Log10 CFU/apple after 15-day storage at 25°C (). The population of L. monocytogenes on whole strawberries at 7.1 Log10 CFU/berry was declined by 1.0 Log10 CFU/berry after 2-day storage under 24°C (). There was a 1.5 Log10 CFU/cm2 reduction of L. monocytogenes inoculated on whole cantaloupe surfaces at ∼3.5 Log10 CFU/cm2 during a 15-day storage at 20°C ().

L. monocytogenes on Fresh Apples during Cold Storage

Fresh apples are commercially stored at ∼1°C for extended periods of time (). Apples are also held at 4°C in the packing house and consumer’s refrigerators at home (). During the transportation, apples may be exposed to temperature abuse of 10°C (). Therefore, all three temperatures were tested in this study for extended storage of 3 months. Our results showed that L. monocytogenes on apples was stable during the first 2 weeks at all three temperatures regardless of inoculation level, apple variety, or growing practice. A similar phenomenon was observed when L. monocytogenes (5 Log10 CFU/g) was inoculated onto whole Golden Delicious apples; there was no L. monocytogenes reduction during a 9-day storage at 4°C (). Similarly, the population size of L. monocytogenes inoculated on whole tomatoes at ∼3.5 Log10 CFU/g remained at the same level throughout the 21-day storage at 10°C ().

Survival of L. monocytogenes was similar among 1, 4, and 10°C, which was higher than that of RT storage. It might because apples stored at RT produced more volatile compounds including those with antimicrobial effects such as alcohols, aldehydes, ketones, and esters compared with apples at refrigerated storage (; ; ), which facilitated L. monocytogenes death under RT storage. On molecular level, cold storage might increase survival through altering fatty acid composition of the bacterial membrane (), which protects L. monocytogenes against other environmental stresses during storage (). Cold temperatures may have also induced the expression of general stress sigma factor σB, facilitating L. monocytogenes survival (; ). However, L. monocytogenes inoculated on whole strawberries was reduced by ∼3 Log10 CFU/berry after 7-day storage at 4°C (). These data indicate that a different food matrix and/or surface properties impacts L. monocytogenes survival at refrigerated temperature. The reduction of L. monocytogenes in strawberries might also be associated with the high moisture and low pH value of the fruit surface.

During 3 months of extended cold storage, reduction of L. monocytogenes on apples was temperature-dependent with relatively more reduction at 10°C. In support of our data, less L. monocytogenes were recovered from stainless steel surfaces stored at 10°C than those at 4°C (). This might due to the induction of a more fierce stress response and accumulation of more low molecular weight solutes at lower temperatures (). The phenomenon could also resulted from temperature-dependent alteration in apple fruit quality during long-term storage () with more antimicrobial volatile compounds production at a higher cold storage temperature (). Inoculation level, apple variety, or agricultural practice had minor influences on L. monocytogenes survival on apple surfaces during cold storage.

Storage Temperatures Had No Effect on Apple Fruit Decay

Resident bacteria, yeasts, and molds on apples contribute to fruit decay (). Thus, their fate was further studied over storage. TPC and Y/M counts stayed at the similar level throughout the 3-month storage under different temperatures for apples of the selected varieties and practices. In support of our finding, mesophilic aerobic microorganism, and Y/M counts were not changed on raw carrots during 18-day storage at 5°C (). However, inconsistent with our results, TPC and Y/M counts of raw carrots were increased by ∼0.5 and 1.5 Log10 CFU/g, respectively, after the 7-day storage at 15°C (). In another study, TPC as well as Y/M counts on whole tomatoes increased during the 20-day storage at 10°C and the 8-day storage at 21°C (). The difference in background flora behavior might due to different crop surfaces. The low-moisture condition on apple surface in this study might prevent the growth of resident bacteria, yeasts, and molds.

Conclusion

Short-term RT storage resulted in 0.5–1.7 Log10 CFU/apple reduction of L. monocytogenes on fresh apples. Growers and packers in the apple industry often assume that L. monocytogenes on apples will die off during long-term cold storage. However, a limited reduction of L. monocytogenes on apple surfaces occurred during 12 weeks of refrigerated storage regardless of inoculation levels, apple varieties, or agricultural practices. This indicates that cold storage alone is not enough for eradicating L. monocytogenes from fresh apple surfaces. Additional intervention steps or hurdles for removal of L. monocytogenes are urgently needed during fruit storage or thereafter, such as during the packing of the fruit, in the apple industry.

Statements

Author contributions

LS is the main person who performed the experiment and wrote the manuscript. KE helped with the experiment and manuscript revision. H-CT helped with the experiment. IH provided the experimental apples and helped revise the manuscript. M-JZ guided the experimental design, experiment, as well as the manuscript revision.

Acknowledgments

This activity was partially funded by the Washington Tree Fruit Research Commission. We thank Allan Brothers Inc. and Stemilt Growers LLC for their generous donation of fresh apples. We thank Xiaofei Sun, Tonia Green, Yansong Xue, Michael H. Taylor, and Xia Song for their help in preparation of inoculated apples and microbial analysis.

Conflict of interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
