- 1Department of Vector Biology, Max Planck Institute for Infection Biology, Berlin, Germany
- 2Department of Entomology and Nematology, University of Florida, Gainesville, FL, United States
- 3Institute of Integrative Biology, University of Liverpool, Liverpool, United Kingdom
- 4Department of Pathology, Institute for Human Infections and Immunity, Center for Biodefense and Emerging Infectious Disease, Center for Tropical Diseases, University of Texas Medical Branch, Galveston, TX, United States
Experimental evidence is accumulating that endosymbionts of phytophagous insects may transmit horizontally via plants. Intracellular symbionts known for manipulating insect reproduction and altering fitness (Rickettsia, Cardinium, Wolbachia, and bacterial parasite of the leafhopper Euscelidius variegatus) have been found to travel from infected insects into plants. Other insects, either of the same or different species can acquire the symbiont from the plant through feeding, and in some cases transfer it to their progeny. These reports prompt many questions regarding how intracellular insect symbionts are delivered to plants and how they affect them. Are symbionts passively transported along the insect-plant-insect path, or do they actively participate in the process? How widespread are these interactions? How does symbiont presence influence the plant? And what conditions are required for the new infection to establish in an insect? From an ecological, evolutionary, and applied perspective, this mode of horizontal transmission could have profound implications if occurring frequently enough or if new stable symbiont infections are established. Transmission of symbionts through plants likely represents an underappreciated means of infection, both in terms of symbiont epidemiology and the movement of symbionts to new host species.
Introduction
Bacteria–insect symbioses, ranging from mutualistic to parasitic interactions, are pervasive in nature. Their commonness is likely due to the profound influence of the symbionts on host biology, whereby they can be required for hosts’ survival, increase host fitness, or manipulate reproduction to promote their own spread (Moran et al., 2008). Insect–symbiont associations can either be obligate or facultative for the host, symbionts can have intracellular or extracellular lifestyles, and they can be transmitted vertically, horizontally, or by the combination of both strategies (Moran et al., 2008; Ebert, 2013).
While vertical transmission is the most frequent transmission mode for facultative intracellular symbionts of insects, incongruence between the host and symbiont phylogenies indicates that many horizontal symbiont transfers have occurred over evolutionary time. These events are important, enabling symbionts to extend their host range and for the hosts, which, together with the new symbiont, gain new adaptations (Sudakaran et al., 2017). Most of the directly observed horizontal symbiont transfer events involve parasitoids, as is the case for Arsenophonus-uninfected parasitoids acquiring the infection while developing within the same host with the infected counterparts (Duron et al., 2010). Parasitoids may also serve as phoretic vectors, spreading Wolbachia from infected to uninfected whiteflies (Ahmed et al., 2015) and Hamiltonella defensa and Regiella insecticola by sequentially stabbing infected and uninfected aphids (Gehrer and Vorburger, 2012). Finally, parasitoids may acquire infection while developing inside an infected host (Heath et al., 1999; Chiel et al., 2009). In addition to these routes, intracellular insect symbionts can occasionally spread through the insects’ food sources, such as in the cases of predation and cannibalism of symbiont-harboring individuals, which has been demonstrated in isopods (Le Clec’h et al., 2013). Transmission via food has also been seen in aphids feeding on a common artificial diet (Darby and Douglas, 2003). However, in general, this form of transmission may be more common for gut compared to intracellular symbionts.
There has been increasing interest in the role of symbiont transmission through plants. In the case of herbivores, indirect evidence for horizontal transmission via plant diet comes from the observations that insects that feed upon common plants possess similar symbionts (Sintupachee et al., 2006; Stahlhut et al., 2010; Morrow et al., 2014). In this review, we examine the mechanistic process involved in symbiont transmission through the plant, first detailing the experimental systems studied to date, before examining four phases of transfer: from insect to plant; establishment or residence in the plant; uptake of a symbiont by an insect feeding upon that plant and then transmission of the symbiont by the insect to its progeny (Figure 1). We then discuss the ecological and evolutionary significance of plant-mediated transmission of symbionts before outlining areas for future research.

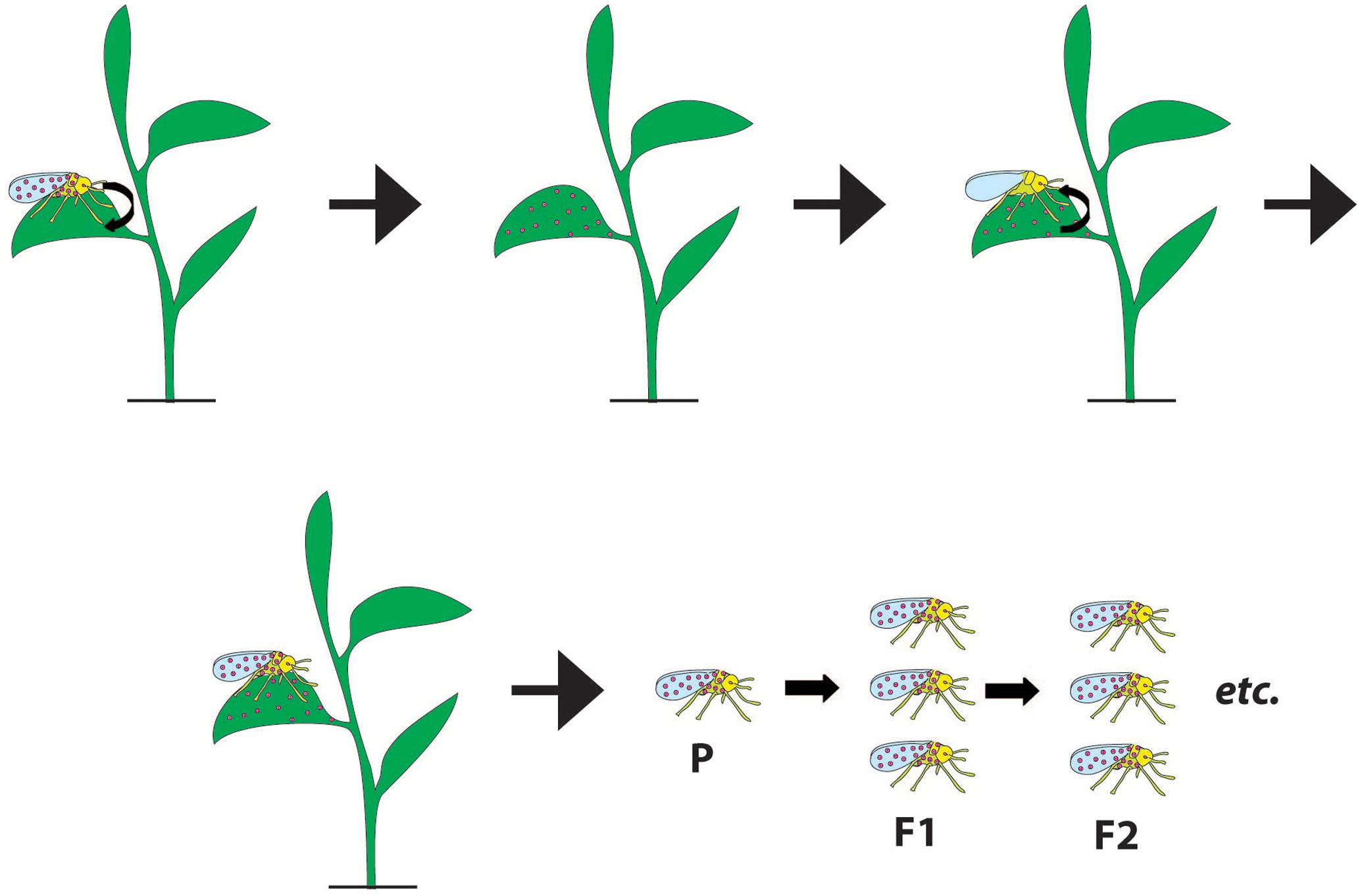

FIGURE 1. Schematic overview of the plant-mediated symbiont transfer. The process requires insect-to-plant symbiont transfer, symbiont’s survival, and persistence in a plant (where the symbiont may or may not disseminate), plant-to-insect transfer and successful establishment in the new insect. A subsequent vertical transmission of an acquired symbiont can increase its prevalence, however, even the transient infections could impact host populations. Small black arrows indicate symbiont moving between organisms. P stands for the parent, F1 is the progeny of the parent, and F2 is the progeny of the F1.
Experimental Systems In Plant-Mediated Symbiont Transfer Studies
Intracellular bacteria usually regarded as insect symbionts, such as Rickettsia, Wolbachia, Cardinium, and bacterial parasite of the leafhopper Euscelidius variegatus (BEV), have been shown to pass from herbivorous insects to plants, localize to plant tissues, and infect or contaminate the naïve insects feeding on the plant (Purcell et al., 1994; Caspi-Fluger et al., 2012; Gonella et al., 2015; Li et al., 2017). All four symbionts are primarily vertically transmitted, they possess several characteristics ensuring success within the insect host and in the instances discussed here they were associated with phloem feeding insects (Table 1).
Horizontal transfers of these symbionts are important as these organisms can profoundly influence their hosts. Rickettsia, an alphaproteobacterium, increases heat tolerance (Brumin et al., 2011), fitness (Himler et al., 2011), as well as susceptibility to insecticides (Kontsedalov et al., 2008) of the whitefly Bemisia tabaci. Notably, this Rickettsia is closely related to the plant-pathogenic Rickettsia causing Papaya bunchy top disease, vectored by leafhoppers Empoasca papayae (Davis et al., 1998; Weinert et al., 2009). Thus, Rickettsia could easily transition between being an insect mutualist and a plant pathogen. Wolbachia, closely related to Rickettsia, is a symbiont well known for manipulating insect reproduction (Werren et al., 2008), for protecting insect hosts from pathogens (Hedges et al., 2008; Teixeira et al., 2008), and has also been suggested to increase the fitness of the whiteflies (Xue et al., 2012). Cardinium, a member of the Bacteroidetes clade, manipulates reproduction, immunity, and fitness of various insects (Hunter and Zchori-Fein, 2006). Finally, BEV, a gammaproteobacterial symbiont of the leafhopper E. variegatus, is pathogenic: it reduces fecundity, longevity and increases leafhopper’s developmental time (Purcell et al., 1986; Purcell and Suslow, 1987), but also decreases X-disease transmission by leafhopper to the celery plants (Purcell and Suslow, 1987). From the bacteria discussed here, it is also the only one that can be cultivated outside of host cells (Purcell et al., 1986).
Symbiont Passage from Insect to Plant
Plant-mediated horizontal transmission initially requires for a symbiont to be passed from an insect to a plant. The route of symbiont transmission to a plant may differ depending on the transmitting insect’s anatomy, physiology, and the mechanism of feeding. Symbiont factors are likely equally important, including symbiont density and tissue distribution (Caspi-Fluger et al., 2012). It has been noted that symbionts exhibiting a scattered infection pattern, whereby bacteria reside in the bacteriome, hemolymph, and other organs, are more likely to be horizontally transmitted than the ones restricted to bacteriome and ovaries (Caspi-Fluger et al., 2012). While Wolbachia in B. tabaci can exhibit both infection patterns (Ahmed et al., 2015), insects with the scattered infection transferred symbionts to plants (Li et al., 2017). Similarly, BEV, Cardinium, and Rickettsia also infect various tissues in their respective hosts, including salivary glands or stylets (Purcell et al., 1986; Mitsuhashi et al., 2002; Gottlieb et al., 2006; Sacchi et al., 2008; Marubayashi et al., 2014; Gonella et al., 2015). As such, bacteria from these hosts may be inoculated directly into the plant tissue or vascular cells.
Direct access to the cellular milieu may be important for the persistence of these microorganisms, given their intracellular lifestyle. However, intracellular symbionts of insects are known to stay viable and invasive outside of the cells (Purcell et al., 1986; Rasgon et al., 2006). Thus, apart from direct ‘injection’ into the plant tissues, bacteria may also be passed from insect to plant in the form of surface contamination, likely by feces or in honeydew. The intracellular ‘pea aphid Bemisia-like symbiont’ (Hamiltonella defensa), which can be horizontally transmitted via a bacteria-enriched artificial diet, was detected in some aphid honeydew and siphuncular fluid samples, but was absent from salivary gland secretions (Darby and Douglas, 2003), suggesting transmission via contamination.
The question as to whether intracellular symbionts commonly use surface contamination as a transmission mode could be addressed by artificially inoculating symbionts onto plants and examining whether they can be acquired by uninfected insects. This experiment has already been performed for BEV, which can spread to insects through feeding on contaminated plants, but failed to infect new individuals when artificially sprayed on the surface of the leaves (Purcell et al., 1994). The authors postulated that in this case, the survival of the symbiont outside of the plant was probably poor (Purcell et al., 1994), but other as yet unknown factors could also be necessary to facilitate transmission. Further experiments are required to understand the most efficient ways in which insect symbionts can be shared with plants, which conditions are necessary for the transfers to occur, and how insect-to-plant transfers can be enhanced experimentally.
Plant–Symbiont Interaction
Endosymbiont survival within or on the surface of the plant is necessary to complete plant-mediated horizontal transmission. Given that these microbes predominantly infect insects and are adapted to the insect intracellular environment, their survival in association with plants is remarkable. Additionally, symbionts entering plant tissues likely need to overcome or resist plant defenses. Plants defend themselves against microbial pathogens and herbivorous insects through the jasmonic acid (JA) and salicylic acid (SA) pathways (Erb et al., 2012; Pieterse et al., 2012). Insect feeding and necrotrophic pathogen attack induce the JA pathway, which leads to the production of repellent, antinutritive, or toxic compounds (Howe and Jander, 2008). The main function of SA pathway is orchestrating the response to biotrophic pathogens. This response involves oxidative bursts, callose deposition, ethylene production, and induction of defensive genes, including antimicrobial proteins (Durrant and Dong, 2004). Both pathways have an antagonistic effect on each other (Pieterse et al., 2012), imposing a trade-off between defense against herbivore attack and concomitant bacterial challenge, which possibly facilitates symbiont transfer from herbivores to plants.
Detection of Wolbachia and Rickettsia RNA within the tissues of plants confirms that intracellular insect symbionts can survive in this unusual niche (Caspi-Fluger et al., 2012; Li et al., 2017). Moreover, Wolbachia was observed to persist in plants for extended periods of time and disseminate to neighboring leaves (Li et al., 2017), which suggests that it can acquire nutrients from plant tissues. Intriguingly, electron microscopy revealed a Wolbachia-like bacterium within the vacuole of the phloem cell of the plant (Li et al., 2017). Wolbachia has been shown before to be able to invade insect cells in culture (White et al., 2017), but an invasion of a plant cell in vivo would likely require different machinery. Whether this is a singular case of intracellular localization or a common Wolbachia niche in plants remains to be determined. If the morphological identification of Wolbachia within the plant cell is correct, it may represent a biological interaction, with for instance nutrient provisioning of the symbiont in this Wolbachia-plant system. Despite the apparently close Wolbachia-plant association, Wolbachia had no observable effects on the health of Gossypium hirsutum (Li et al., 2017). In contrast to Wolbachia, BEV did not disseminate in the plant when injected into the phloem by the leafhopper E. variegatus, which is surprising given that this bacterium originates from a lineage of plant pathogens (Degnan et al., 2011). Consequently, just like Wolbachia, it also did not cause observable pathology in plants (Purcell et al., 1994). The examples above indicate that different symbionts can act differently, sometimes counterintuitively, once they reach the plant.
Overall, we have a poor mechanistic understanding of interactions occurring between plants and intracellular insect-associated bacteria and many questions remain. Do intracellular insect symbionts injected to the plant or their effectors influence plant biology? Do plants mount an immune response against these organisms? And are plants stably or transiently colonized by these bacteria?
The observation that disease causing agents, such as Aster Yellows phytoplasma strain Witches’ Broom, actively alters plant biology and development in a manner that potentiates transmission (MacLean et al., 2014; Orlovskis and Hogenhout, 2016) makes it worth investigating whether symbionts have evolved likewise. In this context, it is notable that insect endosymbiont-derived compounds can affect plants. GroEL, a bacterial chaperonin highly expressed by aphid obligate bacteriocyte-enclosed Buchnera aphidicola, was found in aphid saliva and heterologously expressed protein was shown to elicit an immune response in plants (Chaudhary et al., 2014; van Bel and Will, 2016). Further studies in these systems are required to obtain a more thorough understanding of the interactions between plants and insect symbionts.
Symbiont Acquisition by a New Insect
Similar to symbiont transfer from insect to plant, successful insect acquisition of a symbiont from plant likely depends on a number of insect, symbiont, and plant factors. Location of the symbiont in the plant would appear critical. Wolbachia and Cardinium (as well as Arsenophonus) were found in the phloem of plants which likely increased their chances of being acquired by phloem feeders (Bressan et al., 2012; Gonella et al., 2015; Li et al., 2017). Once in the insect gut, symbionts have to resist digestion, alkaline pH, constitutive reactive oxygen species production, and all the activities of the gut microbiota (Vallet-Gely et al., 2008). Moreover, unless they are able to attach quickly, they could be eliminated by peristaltic gut movements (Vallet-Gely et al., 2008). Subsequently, symbionts have to traverse the peritrophic matrix, invade the gut epithelium or pass through extracellular spaces, enter the body cavity, and localize within appropriate insect tissues. If these bacteria stimulate insect immunity, then avoidance of, or resistance to, the immune responses may also be required. Infection of the appropriate tissue within the germline to ensure vertical transmission is probably not easy to achieve either, with several barriers on the way including the epithelial sheath, peritoneal sheath, and follicular epithelium (Hughes and Rasgon, 2014). Despite these challenges, diverse classes of symbionts have been reported to be vertically transmitted after horizontal transfers, suggesting that symbionts possess innate qualities enabling them to infect germline (Russell and Moran, 2005; Frydman et al., 2006; Weiss et al., 2006; Hughes et al., 2014; Nakayama et al., 2015).
The literature on symbiont acquisition from plants reports various outcomes for the symbiont and insect. In the case of Rickettsia, we only know that symbiont DNA has reached the recipient host (Caspi-Fluger et al., 2012), while BEV was shown to be alive in the plant-feeding E. variegatus (Purcell et al., 1994). Cardinium accumulated in the guts of M. quadripunctulatus and E. vitis (Gonella et al., 2015), although it is not clear if it established in the insects, as assays were performed immediately after cessation of feeding on the symbiont-contaminated plant. In contrast, Wolbachia was reported to be found in the adult progeny derived from the newly infected B. tabaci females (Li et al., 2017), suggesting a stable infection.
The examples discussed above add to the body of the literature on insects acquiring their symbionts from a food source (Heath et al., 1999; Darby and Douglas, 2003; Le Clec’h et al., 2013). It is possible that some symbiont–insect host combinations, plant species, and conditions support these horizontal transmission events (Sintupachee et al., 2006; Stahlhut et al., 2010; Morrow et al., 2014; Ahmed et al., 2016). Importantly, the observation that DNA of the symbiont can be acquired from the food source should be taken into account in screens attempting to estimate population infection frequencies from PCR assays on whole insects collected in the field. Symbiont DNA in the insect gut is not equivalent to an infection, and there are cases where orally acquired symbionts failed to establish (Chiel et al., 2009; Faria et al., 2016). Performing screens using dissected tissues different than the gut and carefully avoiding contamination with the gut content may overcome this bias. Confirmation by in situ hybridization would provide further evidence of the infection.
Symbiont Establishment in the Newly Infected Insect Line
Once the symbiont infects the new insect host and establishes efficient vertical transmission, it may induce a cost for its new host. Thus, the symbiont has to prevent elimination from the newly infected lineage by natural selection and only symbionts capable of manipulating their new host biology can persist. Two general strategies facilitate facultative symbiont establishment: providing fitness benefit or manipulating the reproduction (Moran et al., 2008). Furthermore, phenotype induced by the symbiont in the new insect host species may differ from that in the original host (McGraw et al., 2002; Sasaki et al., 2002; Hornett et al., 2008; Le Clec’h et al., 2012).
As closely related insects share similar genetic background and adaptations, at least in some cases intraspecies transfers may be more efficient than interspecies transfers (Łukasik et al., 2015). However, patterns of symbiont distribution in different host species indicate that interspecies transfers occur as well (Tagami and Miura, 2004; Sintupachee et al., 2006; Stahlhut et al., 2010; Morrow et al., 2014; Ahmed et al., 2016). Overall, the efficiency of symbiont establishment in the new lineage upon plant-mediated horizontal transmission depends not only on the symbiont but also on the host’s genetic makeup, physiology, and population structure as well as environmental factors. Even if symbionts rarely succeed in particular transfer events the insect–symbiont–plant interface is a platform for horizontal transmission to occur.
Ecological and Evolutionary Consequences of Plant-Mediated Horizontal Transfer
Horizontal transmission can have profound consequences for the ecology and evolution of the symbionts and their hosts. It has been postulated that insect symbionts may adapt to utilize plants as a means for horizontal transmission and evolve toward increased virulence within them (Frago et al., 2012). This is likely the case of bacteria in the genus Arsenophonus, which have transitioned from being arthropod symbionts to insect-vectored plant pathogens at least twice in their evolutionary history (Bressan et al., 2012). Based on molecular phylogeny and host range, similar conclusions could be drawn for Spiroplasma, another widespread clade of arthropod symbionts (Lo et al., 2015). In contrast, some plant pathogens have adapted to live in symbiosis with insects (Degnan et al., 2011; Flórez et al., 2017). Thus, there is an evolutionary continuum in the spectrum of interactions, with some vertically transmitted symbionts of herbivores evolving toward increased plant-mediated transmission and pathogenesis in plants, and some insect-vectored plant pathogens evolving toward efficient vertical transmission in insect populations. In addition to driving adaptation, horizontal transmission broadens a symbiont’s host range. Crossing species and kingdom barriers and establishing symbioses with new hosts can strengthen the selection on parts of the genome that would have otherwise deteriorated and will select to maintain systems required for transfer. Potential coinfections enable symbiont competition with respect to speed of bacterial replication and higher bacterial load within the insect host, and these two are often correlated with higher virulence in the insect host. Moreover, coinfections allow recombination, creating new variants and potentially mitigating against mutational decay through Muller’s ratchet. Horizontal transmission may also drive the evolution and persistence of parasites, such as BEV, as it at least in part unties the fitness of the symbiont from the fitness of the insect host. Moreover, it selects for symbiont genotypes able to survive in the plant and in the new host midgut, and able to invade insect tissues, and proliferate to compensate for stochastic and host-induced symbiont loss on the way to the germline. Together with the relaxed pressure for not harming their hosts, plant-mediated horizontal transmission likely selects for more virulent bacteria.
Finally, horizontal transmission can result in infection of previously uninfected insect lineages and species (Sintupachee et al., 2006; Stahlhut et al., 2010; Morrow et al., 2014), a superinfection with a different symbiont genotype, or a replacement of the original symbiont by the newly acquired one. The consequences of these events for the host have been reviewed elsewhere (Sudakaran et al., 2017). Intriguingly, if horizontal transmission of transovarially transmitted insect symbionts via plants (or any other route) occurs efficiently from both male and female donors, males are not an evolutionary dead end for these organisms (Engelstädter and Hurst, 2009). Transmission through males also implies that the new reproductive manipulations are less likely to be favored (Engelstädter and Hurst, 2009). Therefore, each plant-mediated symbiont transmission event may be a turning point in the history of the symbiont, insect, and plant species.
Future Endeavors
As we are just starting to explore the cases of plant-mediated horizontal transmission of intracellular bacterial symbionts, there is still much to discover about these systems. Some important questions include: How common are these interactions? How frequently does this form of transmission lead to stable infection in recipient hosts? If the infections are transient, what implications do they have for host biology? And how do insect symbionts influence plants? The broad nature of these questions means that multidisciplinary collaborations would be required to address them.
It would seem imperative to identify how commonly intracellular insect symbionts associate with plants. The existing reports have already provided evidence that at least four different symbionts, five insects, and five plant species could participate in plant-mediated transmission (Table 1; Purcell et al., 1994; Caspi-Fluger et al., 2012; Gonella et al., 2015; Li et al., 2017). Screening plant tissues for intracellular symbionts by PCR assay could provide evidence of plant colonization. Another method to identify symbionts in plants would be to screen next generation sequencing (NGS) data for symbiont-derived reads, as many NGS projects aimed at characterizing hosts serendipitously sequenced symbionts too (Salzberg et al., 2005a,b, 2009; Richardson et al., 2012; Gutzwiller et al., 2015). This should be done carefully, to exclude cases of insect contamination and horizontal gene transfer from bacteria to the plant. Similarly, it may be possible to leverage plant RNAseq data to gain insights into the transcriptional activity of symbionts in plants. However, suitable data sets are currently scarce due to the common poly-A enrichment procedure eliminating most of the bacterial transcripts.
Once we have a better understanding of these systems, plant-mediated symbiont transfer could be used for transinfecting new phytophagous insect lineages or species. Moreover, symbiont–plant associations could be exploited from an applied perspective to seed or facilitate the spread of a particular symbiont that induces desirable phenotypes in a herbivorous insect pest. Plant-mediated symbiont transfer may also provide a system suitable to explore the mechanisms and evolutionary trajectories leading to host switching by intracellular insect symbionts and the emergence of insect and insect-vectored plant pathogens.
Author Contributions
EC and GLH conceived, designed, and wrote the manuscript. GDDH and KP-S provided input and edited the manuscript. EC designed the figure. All authors approved the final version.
Funding
GLH is supported by NIH (Grant Nos. R21AI124452, R21AI12950701), a CDC (Grant No. U01CK000512), and a University of Texas Rising Star award. EC is supported by EMBO Long-Term Fellowship (EMBO ALTF 1497-2015), co-funded by Marie Curie Actions by the European Commission (LTFCOFUND2013, GA-2013-609409). GDDH is supported by the NERC (Grant No. NE/N010434/1), while KP-S is supported by a USDA-NIFA Project (00098869).
Conflict of Interest Statement
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Acknowledgment
We thank members of the Twitter scientific community for vibrant discussions that inspired this paper and the two reviewers for their comments and suggestions.
References
Ahmed, M. Z., Breinholt, J. W., and Kawahara, A. Y. (2016). Evidence for common horizontal transmission of Wolbachia among butterflies and moths. BMC Evol. Biol. 16:118. doi: 10.1186/s12862-016-0660-x
Ahmed, M. Z., Li, S. J., Xue, X., Yin, X. J., Ren, S. X., Jiggins, F. M., et al. (2015). The intracellular bacterium Wolbachia uses parasitoid wasps as phoretic vectors for efficient horizontal transmission. PLOS Pathog. 11:e1004672. doi: 10.1371/journal.ppat.1004672
Bressan, A., Terlizzi, F., and Credi, R. (2012). Independent origins of vectored plant pathogenic bacteria from arthropod-associated Arsenophonus endosymbionts. Microb. Ecol. 63, 628–638. doi: 10.1007/s00248-011-9933-5
Brumin, M., Kontsedalov, S., and Ghanim, M. (2011). Rickettsia influences thermotolerance in the whitefly Bemisia tabaci B biotype. Insect Sci. 18, 57–66. doi: 10.1111/j.1744-7917.2010.01396.x
Caspi-Fluger, A., Inbar, M., Mozes-Daube, N., Katzir, N., Portnoy, V., Belausov, E., et al. (2012). Horizontal transmission of the insect symbiont Rickettsia is plant-mediated. Proc. Biol. Sci. 279, 1791–1796. doi: 10.1098/rspb.2011.2095
Chaudhary, R., Atamian, H. S., Shen, Z., Briggs, S. P., and Kaloshian, I. (2014). GroEL from the endosymbiont Buchnera aphidicola betrays the aphid by triggering plant defense. Proc. Natl. Acad. Sci. U.S.A. 111, 8919–8924. doi: 10.1073/pnas.1407687111
Chiel, E., Zchori-Fein, E., Inbar, M., Gottlieb, Y., Adachi-Hagimori, T., Kelly, S. E., et al. (2009). Almost there: transmission routes of bacterial symbionts between trophic levels. PLOS ONE 4:e4767. doi: 10.1371/journal.pone.0004767
Darby, A. C., and Douglas, A. E. (2003). Elucidation of the transmission patterns of an insect-borne bacterium. Appl. Environ. Microbiol. 69, 4403–4407. doi: 10.1128/AEM.69.8.4403-4407.2003
Davis, M. J., Ying, Z., Brunner, B. R., Pantoja, A., and Ferwerda, F. H. (1998). Rickettsial relative associated with papaya bunchy top disease. Curr. Microbiol. 36, 80–84. doi: 10.1007/s002849900283
Degnan, P. H., Bittleston, L. S., Hansen, A. K., Sabree, Z. L., Moran, N. A., and Almeida, R. P. P. (2011). Origin and examination of a leafhopper facultative endosymbiont. Curr. Microbiol. 62, 1565–1572. doi: 10.1007/s00284-011-9893-5
Duron, O., Wilkes, T. E., and Hurst, G. D. D. (2010). Interspecific transmission of a male-killing bacterium on an ecological timescale. Ecol. Lett. 13, 1139–1148. doi: 10.1111/j.1461-0248.2010.01502.x
Durrant, W. E., and Dong, X. (2004). Systemic acquired resistance. Annu. Rev. Phytopathol. 42, 185–209. doi: 10.1146/annurev.phyto.42.040803.140421
Ebert, D. (2013). The epidemiology and evolution of symbionts with mixed-mode transmission. Annu. Rev. Ecol. Evol. Syst. 44, 623–643. doi: 10.1146/annurev-ecolsys-032513-100555
Engelstädter, J., and Hurst, G. D. D. (2009). What use are male hosts? The dynamics of maternally inherited bacteria showing sexual transmission or male killing. Am. Nat. 173, E159–E170. doi: 10.1086/597375
Erb, M., Meldau, S., and Howe, G. A. (2012). Role of phytohormones in insect-specific plant reactions. Trends Plant Sci. 17, 250–259. doi: 10.1016/j.tplants.2012.01.003
Faria, V. G., Paulo, T. F., and Sucena, É. (2016). Testing cannibalism as a mechanism for horizontal transmission of Wolbachia in Drosophila. Symbiosis 68, 79–85. doi: 10.1007/s13199-015-0354-y
Flórez, L. V., Scherlach, K., Gaube, P., Ross, C., Sitte, E., Hermes, C., et al. (2017). Antibiotic-producing symbionts dynamically transition between plant pathogenicity and insect-defensive mutualism. Nat. Commun. 8:15172. doi: 10.1038/ncomms15172
Frago, E., Dicke, M., and Godfray, H. C. J. (2012). Insect symbionts as hidden players in insect-plant interactions. Trends Ecol. Evol. 27, 705–711. doi: 10.1016/j.tree.2012.08.013
Frydman, H. M., Li, J. M., Robson, D. N., and Wieschaus, E. (2006). Somatic stem cell niche tropism in Wolbachia. Nature 441, 509–512. doi: 10.1038/nature04756
Gehrer, L., and Vorburger, C. (2012). Parasitoids as vectors of facultative bacterial endosymbionts in aphids. Biol. Lett. 8, 613–615. doi: 10.1098/rsbl.2012.0144
Gonella, E., Pajoro, M., Marzorati, M., Crotti, E., Mandrioli, M., Pontini, M., et al. (2015). Plant-mediated interspecific horizontal transmission of an intracellular symbiont in insects. Sci. Rep. 5:15811. doi: 10.1038/srep15811
Gottlieb, Y., Ghanim, M., Chiel, E., Gerling, D., Portnoy, V., Steinberg, S., et al. (2006). Identification and localization of a Rickettsia sp. in Bemisia tabaci (Homoptera: Aleyrodidae). Appl. Environ. Microbiol. 72, 3646–3652. doi: 10.1128/AEM.72.5.3646-3652.2006
Gutzwiller, F., Carmo, C. R., Miller, D. E., Rice, D. W., Newton, I. L. G., Hawley, R. S., et al. (2015). Dynamics of Wolbachia pipientis gene expression across the Drosophila melanogaster life cycle. G3 5, 2843–2856. doi: 10.1534/g3.115.021931
Heath, B. D., Butcher, R. D. J., Whitfield, W. G. F., and Hubbard, S. F. (1999). Horizontal transfer of Wolbachia between phylogenetically distant insect species by a naturally occurring mechanism. Curr. Biol. 9, 313–316. doi: 10.1016/S0960-9822(99)80139-0
Hedges, L. M., Brownlie, J. C., O’Neill, S. L., and Johnson, K. N. (2008). Wolbachia and virus protection in insects. Science 322, 702. doi: 10.1126/science.1162418
Himler, A. G., Adachi-Hagimori, T., Bergen, J. E., Kozuch, A., Kelly, S. E., Tabashnik, B. E., et al. (2011). Rapid spread of a bacterial symbiont in an invasive whitefly is driven by fitness benefits and female bias. Science 332, 254–256. doi: 10.1126/science.1199410
Hornett, E. A., Duplouy, A. M. R., Davies, N., Roderick, G. K., Wedell, N., Hurst, G. D. D., et al. (2008). You can’t keep a good parasite down: evolution of a male-killer suppressor uncovers cytoplasmic incompatibility. Evolution 62, 1258–1263. doi: 10.1111/j.1558-5646.2008.00353.x
Howe, G. A., and Jander, G. (2008). Plant immunity to insect herbivores. Annu. Rev. Plant Biol. 59, 41–66. doi: 10.1146/annurev.arplant.59.032607.092825
Hughes, G. L., Dodson, B. L., Johnson, R. M., Murdock, C. C., Tsujimoto, H., Suzuki, Y., et al. (2014). Native microbiome impedes vertical transmission of Wolbachia in Anopheles mosquitoes. Proc. Natl. Acad. Sci. U.S.A. 111, 12498–12503. doi: 10.1073/pnas.1408888111
Hughes, G. L., and Rasgon, J. L. (2014). Transinfection: a method to investigate Wolbachia-host interactions and control arthropod-borne disease. Insect Mol. Biol. 23, 141–151. doi: 10.1111/imb.12066
Hunter, M. S., and Zchori-Fein, E. (2006). “Inherited bacteroidetes symbionts in arthropods,” in Insect Symbiosis, Vol. 2, eds K. Bourtzis, and T. A. Miller (Boca Raton, FL: CRC Press), 46–49.
Kontsedalov, S., Zchori-Fein, E., Chiel, E., Gottlieb, Y., Inbar, M., and Ghanim, M. (2008). The presence of Rickettsia is associated with increased susceptibility of Bemisia tabaci (Homoptera: Aleyrodidae) to insecticides. Pest Manag. Sci. 64, 789–792. doi: 10.1002/ps.1595
Le Clec’h, W., Braquart-Varnier, C., Raimond, M., Ferdy, J.-B., Bouchon, D., and Sicard, M. (2012). High virulence of Wolbachia after host switching: when autophagy hurts. PLOS Pathog. 8:e1002844. doi: 10.1371/journal.ppat.1002844
Le Clec’h, W., Chevalier, F. D., Genty, L., Bertaux, J., Bouchon, D., and Sicard, M. (2013). Cannibalism and predation as paths for horizontal passage of Wolbachia between terrestrial isopods. PLOS ONE 8:e60232. doi: 10.1371/journal.pone.0060232
Li, S.-J., Ahmed, M. Z., Lv, N., Shi, P.-Q., Wang, X.-M., Huang, J.-L., et al. (2017). Plant–mediated horizontal transmission of Wolbachia between whiteflies. ISME J. 11, 1019–1028. doi: 10.1038/ismej.2016.164
Lo, W.-S., Gasparich, G. E., and Kuo, C.-H. (2015). Found and lost: the fates of horizontally acquired genes in arthropod-symbiotic Spiroplasma. Genome Biol. Evol. 7, 2458–2472. doi: 10.1093/gbe/evv160
Łukasik, P., Guo, H., van Asch, M., Henry, L. M., Godfray, H. C. J., and Ferrari, J. (2015). Horizontal transfer of facultative endosymbionts is limited by host relatedness. Evolution 69, 2757–2766. doi: 10.1111/evo.12767
MacLean, A. M., Orlovskis, Z., Kowitwanich, K., Zdziarska, A. M., Angenent, G. C., Immink, R. G. H., et al. (2014). Phytoplasma effector SAP54 hijacks plant reproduction by degrading MADS-box proteins and promotes insect colonization in a RAD23-dependent manner. PLOS Biol. 12:e1001835. doi: 10.1371/journal.pbio.1001835
Marubayashi, J. M., Kliot, A., Yuki, V. A., Rezende, J. A. M., Krause-Sakate, R., Pavan, M. A., et al. (2014). Diversity and localization of bacterial endosymbionts from whitefly species collected in Brazil. PLOS ONE 9:e108363. doi: 10.1371/journal.pone.0108363
McGraw, E. A., Merritt, D. J., Droller, J. N., and O’Neill, S. L. (2002). Wolbachia density and virulence attenuation after transfer into a novel host. Proc. Natl. Acad. Sci. U.S.A. 99, 2918–2923. doi: 10.1073/pnas.052466499
Mitsuhashi, W., Saiki, T., Wei, W., Kawakita, H., and Sato, M. (2002). Two novel strains of Wolbachia coexisting in both species of mulberry leafhoppers. Insect Mol. Biol. 11, 577–584. doi: 10.1046/j.1365-2583.2002.00368.x
Moran, N. A., McCutcheon, J. P., and Nakabachi, A. (2008). Genomics and evolution of heritable bacterial symbionts. Annu. Rev. Genet. 42, 165–190. doi: 10.1146/annurev.genet.41.110306.130119
Morrow, J. L., Frommer, M., Shearman, D. C. A., and Riegler, M. (2014). Tropical tephritid fruit fly community with high incidence of shared Wolbachia strains as platform for horizontal transmission of endosymbionts. Environ. Microbiol. 16, 3622–3637. doi: 10.1111/1462-2920.12382
Nakayama, S., Parratt, S. R., Hutchence, K. J., Lewis, Z., Price, T. A. R., and Hurst, G. D. D. (2015). Can maternally inherited endosymbionts adapt to a novel host? Direct costs of Spiroplasma infection, but not vertical transmission efficiency, evolve rapidly after horizontal transfer into D. melanogaster. Heredity 114, 539–543. doi: 10.1038/hdy.2014.112
Orlovskis, Z., and Hogenhout, S. A. (2016). A bacterial parasite effector mediates insect vector attraction in host plants independently of developmental changes. Front. Plant Sci. 7:885. doi: 10.3389/fpls.2016.00885
Pieterse, C. M. J., Van der Does, D., Zamioudis, C., Leon-Reyes, A., and Van Wees, S. C. M. (2012). Hormonal modulation of plant immunity. Annu. Rev. Cell Dev. Biol. 28, 489–521. doi: 10.1146/annurev-cellbio-092910-154055
Purcell, A. H., Steiner, T., Megraud, F., Bove, J., Mégraud, F., and Bové, J. (1986). In vitro isolation of a transovarially transmitted bacterium from the leafhopper Euscelidius variegatus (Hemiptera: Cicadellidae). J. Invertebr. Pathol. 48, 66–73. doi: 10.1016/0022-2011(86)90144-8
Purcell, A. H., and Suslow, K. G. (1987). Pathogenicity and effects on transmission of a mycoplasmalike organism of a transovarially infective bacterium on the leafhopper Euscelidius variegatus (Homoptera: Cicadellidae). J. Invertebr. Pathol. 50, 285–290. doi: 10.1016/0022-2011(87)90094-2
Purcell, A. H., Suslow, K. G., and Klein, M. (1994). Transmission via plants of an insect pathogenic bacterium that does not multiply or move in plants. Microb. Ecol. 27, 19–26. doi: 10.1007/BF00170111
Rasgon, J. L., Gamston, C. E., and Ren, X. (2006). Survival of Wolbachia pipientis in cell-free medium. Appl. Environ. Microbiol. 72, 6934–6937. doi: 10.1128/AEM.01673-06
Richardson, M. F., Weinert, L. A., Welch, J. J., Linheiro, R. S., Magwire, M. M., Jiggins, F. M., et al. (2012). Population genomics of the Wolbachia endosymbiont in Drosophila melanogaster. PLOS Genet. 8:e1003129. doi: 10.1371/journal.pgen.1003129
Russell, J. A., and Moran, N. A. (2005). Horizontal transfer of bacterial symbionts: heritability and fitness effects in a novel aphid host. Appl. Environ. Microbiol. 71, 7987–7994. doi: 10.1128/AEM.71.12.7987-7994.2005
Sacchi, L., Genchi, M., Clementi, E., Bigliardi, E., Avanzati, A. M., Pajoro, M., et al. (2008). Multiple symbiosis in the leafhopper Scaphoideus titanus (Hemiptera: Cicadellidae): details of transovarial transmission of Cardinium sp. and yeast-like endosymbionts. Tissue Cell 40, 231–242. doi: 10.1016/j.tice.2007.12.005
Salzberg, S. L., Dunning Hotopp, J. C., Delcher, A. L., Pop, M., Smith, D. R., Eisen, M. B., et al. (2005a). Correction: serendipitous discovery of Wolbachia genomes in multiple Drosophila species. Genome Biol. 6, 402. doi: 10.1186/gb-2005-6-7-402
Salzberg, S. L., Dunning Hotopp, J. C., Delcher, A. L., Pop, M., Smith, D. R., Eisen, M. B., et al. (2005b). Serendipitous discovery of Wolbachia genomes in multiple Drosophila species. Genome Biol. 6:R23. doi: 10.1186/gb-2005-6-3-r23
Salzberg, S. L., Puiu, D., Sommer, D. D., Nene, V., and Lee, N. H. (2009). Genome sequence of the Wolbachia endosymbiont of Culex quinquefasciatus JHB. J. Bacteriol. 191, 1725. doi: 10.1128/JB.01731-08
Sasaki, T., Kubo, T., and Ishikawa, H. (2002). Interspecific transfer of Wolbachia between two lepidopteran insects expressing cytoplasmic incompatibility: a Wolbachia variant naturally infecting Cadra cautella causes male killing in Ephestia kuehniella. Genetics 162, 1313–1319.
Sintupachee, S., Milne, J. R., Poonchaisri, S., Baimai, V., and Kittayapong, P. (2006). Closely related Wolbachia strains within the pumpkin arthropod community and the potential for horizontal transmission via the plant. Microb. Ecol. 51, 294–301. doi: 10.1007/s00248-006-9036-x
Stahlhut, J. K., Desjardins, C. A., Clark, M. E., Baldo, L., Russell, J. A., Werren, J. H., et al. (2010). The mushroom habitat as an ecological arena for global exchange of Wolbachia. Mol. Ecol. 19, 1940–1952. doi: 10.1111/j.1365-294X.2010.04572.x
Sudakaran, S., Kost, C., and Kaltenpoth, M. (2017). Symbiont acquisition and replacement as a source of ecological innovation. Trends Microbiol. 25, 375–390. doi: 10.1016/j.tim.2017.02.014
Tagami, Y., and Miura, K. (2004). Distribution and prevalence of Wolbachia in Japanese populations of Lepidoptera. Insect Mol. Biol. 13, 359–364. doi: 10.1111/j.0962-1075.2004.00492.x
Teixeira, L., Ferreira, A., and Ashburner, M. (2008). The bacterial symbiont Wolbachia induces resistance to RNA viral infections in Drosophila melanogaster. PLOS Biol. 6:e2. doi: 10.1371/journal.pbio.1000002
Vallet-Gely, I., Lemaitre, B., and Boccard, F. (2008). Bacterial strategies to overcome insect defences. Nat. Rev. Microbiol. 6, 302–313. doi: 10.1038/nrmicro1870
van Bel, A. J. E., and Will, T. (2016). Functional evaluation of proteins in watery and gel saliva of aphids. Front. Plant Sci. 7:1840. doi: 10.3389/fpls.2016.01840
Weinert, L. A., Werren, J. H., Aebi, A., Stone, G. N., and Jiggins, F. M. (2009). Evolution and diversity of Rickettsia bacteria. BMC Biol. 7:6. doi: 10.1186/1741-7007-7-6
Weiss, B. L., Mouchotte, R., Rio, R. V. M., Wu, Y. N., Wu, Z., Heddi, A., et al. (2006). Interspecific transfer of bacterial endosymbionts between tsetse fly species: Infection establishment and effect on host fitness. Appl. Environ. Microbiol. 72, 7013–7021. doi: 10.1128/AEM.01507-06
Werren, J. H., Baldo, L., and Clark, M. E. (2008). Wolbachia: master manipulators of invertebrate biology. Nat. Rev. Microbiol. 6, 741–751. doi: 10.1038/nrmicro1969
White, P. M., Pietri, J. E., Debec, A., Russell, S., Patel, B., and Sullivan, W. (2017). Mechanisms of horizontal cell-to-cell transfer of Wolbachia spp. in Drosophila melanogaster. Appl. Environ. Microbiol. 83:e03425-16. doi: 10.1128/AEM.03425-16
