- 1Department of Microbiology, Immunobiology and Genetics, Max F. Perutz Laboratories, Center of Molecular Biology, University of Vienna – Vienna Biocenter, Vienna, Austria
- 2Institute of Theoretical Chemistry, University of Vienna, Vienna, Austria
Pseudomonas aeruginosa (Pae) is an opportunistic human pathogen, able to resist host defense mechanisms and antibiotic treatment. In Pae, the master regulator of stress responses RpoS (σS) is involved in the regulation of quorum sensing and several virulence genes. Here, we report that the sRNA ReaL translationally silences rpoS mRNA, which results in a decrease of the RpoS levels. Our studies indicated that ReaL base-pairs with the Shine-Dalgarno region of rpoS mRNA. These studies are underlined by a highly similar transcription profile of a rpoS deletion mutant and a reaL over-expressing strain.
Introduction
Pseudomonas aeruginosa (Pae) is an opportunistic human pathogen that causes severe infections in immunocompromised individuals, burn patients, and patients suffering from cystic fibrosis. Owing to its ability to form biofilms, Pae can resist host defense mechanisms and antibiotic treatment (Costerton et al., 1999). Many Pae virulence factors are controlled by numerous two component systems, extra-cytoplasmic sigma factors, and by the four inter-linked quorum sensing (QS) systems Las, Rhl, Pqs, and Iqs (Van Delden and Iglewski, 1998; Lee and Zhang, 2015).
Different sigma factors control different subsets of genes, enabling bacteria to adapt to environmental changes (Wosten, 1998). While expression of housekeeping genes is regulated by σ70, Pae encodes a number of additional sigma factors (Martínez-Bueno et al., 2002), one of which is RpoS (σS), considered to be the master regulator of stress responses. RpoS is predominantly expressed during stationary growth (Fujita et al., 1994) and under other stress conditions, including low pH, heat shock, oxidative stress, and increased osmolarity (Jorgensen et al., 1999; Cochran et al., 2000; Venturi, 2003; Schuster et al., 2004; Dong and Schellhorn, 2010). As RpoS controls the synthesis of quorum-sensing (QS) dependent response regulators in Pae, RpoS governs the expression of a large subset of genes including functions required for the synthesis of virulence factors such as pyocyanin, exotoxin A, LasA and LasB elastases, and exoenzyme S (Suh et al., 1999; Sonnleitner et al., 2003; Hogardt et al., 2004).
Bacterial sRNAs play a major role in post-transcriptional regulation. Their expression is usually induced by environmental cues and leads to a fast response and adaptation to stressors and/or habitats (Hoe et al., 2013). In general sRNAs modulate gene expression in a positive- or negative manner by base-pairing with their target mRNAs, which often requires the RNA chaperone Hfq (Storz et al., 2011). In addition, RNAs can mediate gene expression by sequestration of regulatory proteins, as exemplified by the Pae RNAs CrcZ (Sonnleitner and Bläsi, 2014) and RsmW/RsmY/RsmZ (Lapouge et al., 2008; Miller et al., 2016). While numerous candidate sRNAs have been identified in several Pae strains (Livny et al., 2006; Sonnleitner et al., 2008; Sonnleitner and Haas, 2011; Ferrara et al., 2012; Gómez-Lozano et al., 2012; Wurtzel et al., 2012; Caldelari et al., 2013) only a few, including the sRNAs PhrS (Sonnleitner et al., 2011), NrsZ (Wenner et al., 2014), PrrF1-2 (Reinhart et al., 2015), ErsA (Ferrara et al., 2015), PesA (Ferrara et al., 2017), sr0161, and Sr006 (Zhang et al., 2017), have been functionally characterized.
In E. coli, the expression of rpoS is predominantly regulated post-transcriptionally. The E. coli 5′ untranslated region (UTR) of rpoS mRNA contains a stem-loop structure that occludes the ribosome binding site (RBS) (Majdalani et al., 1998). Binding of sRNAs to this region disrupts the secondary structure and results in enhanced rpoS mRNA translation, which is accompanied by stabilization of the mRNA (Majdalani et al., 1998; Majdalani et al., 2002; McCullen et al., 2010). In E. coli, the three Hfq-binding sRNAs, DsrA, RprA, and ArcZ, are known to activate rpoS mRNA translation through this mechanism (Majdalani et al., 1998; Mika and Hengge, 2014), whereas OxyS RNA represses RpoS synthesis by a mechanism that is not fully understood (Zhang et al., 1998). Similarly, as observed for OxyS RNA in E. coli, ectopic expression of the RpoS-dependent sRNA RgsA decreased RpoS synthesis in a Hfq-dependent manner during exponential growth phase in Pae (Lu et al., 2018). However, the latter authors did not obtain evidence for base-pairing between rpoS mRNA and RgsA. In addition, the physiological implications for these findings remain unclear as RgsA did not impact on RpoS synthesis during stationary growth, when the increase in RpoS levels results in increased rgsA expression (Lu et al., 2018).
Carloni et al. (2017) characterized the Pae PA14 sRNA SPA0084 (Ferrara et al., 2012) as a QS regulator that is up-regulated during stationary growth. They termed the sRNA ReaL for ‘regulator of 2-alkyl-4(1H)–quinolone′. The reaL gene, which is highly conserved among 13 Pae strains, is located in Pae strain PAO1 in the intergenic region between the two open reading frames PA3535 and PA3536 (Carloni et al., 2017; Supplementary Figure S1A). The analysis of the promoter region of reaL revealed a consensus motif for s70 and RpoS, respectively (Carloni et al., 2017). The RpoS dependency was supported by the finding that ReaL synthesis did not increase during stationary phase in a PA14 rpoS deletion mutant (Carloni et al., 2017). It was further shown that ReaL acts as a link between the Las and PQS systems. Carloni et al. (2017) reported that LasR negatively regulates reaL transcription and that ReaL interacts with and positively regulates pqsC translation in a Hfq-independent manner, which finally results in increased PQS production and in the establishment of PQS dependent virulence traits such as pyocyanin production, biofilm formation, and swarming motility. These findings could be reconciled with an attenuated and a hyper-virulent phenotype of a reaL deletion strain and a reaL overexpressing strain, respectively.
The Pae sRNA SPA0084/ReaL has been independently identified in our laboratory as PaeIII (Sorger-Domenigg, 2010). A comparative RNASeq based transcriptome analysis of a reaL overproducing PAO1 strain and a PAO1 reaL deletion strain revealed striking similarities with the expression profile obtained with a PAO1 rpoS deletion strain (Schuster et al., 2004). Using sRNA target identification by ligation (Han et al., 2016) and rpoS::lacZ translational reporter gene fusions, we provide evidence that ReaL directly represses rpoS mRNA translation through base-pairing with a sub-sequence encompassing the Shine and Dalgarno sequence of the latter. Hence, we identify ReaL as the first bacterial sRNA that translationally silences rpoS mRNA through a base-pairing mechanism.
Materials and Methods
Bacterial Strains and Growth Conditions
Strains and plasmids used in this study are listed in Supplementary Table S1. Unless indicated otherwise, the cultures were grown aerobically at 37°C in Luria–Bertani (LB; Miller, 1972) broth supplemented with appropriate antibiotics.
The PAO1ΔreaL strain was constructed through homologous recombination as previously described (Ye et al., 1995). Briefly, the upstream and downstream sequences of reaL, spanning the regions -655 to -26 and +62 to +666 with regard to the transcriptional start site of reaL, were amplified from PAO1 chromosomal DNA by PCR using primer combinations V34/W34 and Q32/R32 (Supplementary Table S2), respectively. The 629 nt upstream PCR product was cloned into plasmid pSUP202 using the restriction sites PstI and PvuI to generate pSUP202-ReaLup. The 604 nt downstream PCR product, containing the reaL rho-independent terminator sequence, was then cloned into plasmid pSUP202-ReaLup using the restriction sites PvuI and EcoRI, resulting in the generation of plasmid pSUP202-ReaLko. This plasmid (suicide vector) was transformed into the E. coli strain S17-1 and then transferred by conjugation to PAO1. The plasmid was chromosomally integrated by homologous recombination in the presence of tetracycline. The excision of the vector by a second crossover event was achieved by enrichment for tetracycline-sensitive cells (Ye et al., 1995). The chromosomal deletion of reaL was verified by DNA sequencing and Northern-blot analysis.
Construction of Plasmids
The plasmids for over-expression of reaL and the reaL variant harboring a deletion spanning nt +11 to +18 with respect to its transcriptional start site were constructed as follows. Full length reaL as well as the reaLΔ11-18 variant were amplified from PAO1 chromosomal DNA by PCR using primer pairs Y138/Z138 and E163/Z138 (Supplementary Table S2), respectively. The PCR fragments were then cloned into the XbaI, and PstI sites of plasmid pKH6. In the resulting plasmids, pKH6-ReaL and pKH6-ReaLΔ11-18, reaL and reaLΔ11-18 are under the transcriptional control of an arabinose-inducible PBAD promoter.
A translational rpoS::lacZ fusion under the transcriptional control of the rpoS promoter was constructed as follows. The rpoS promoter and the first 56 rpoS codons were amplified by PCR using oligonucleotides A52 and B52 (Supplementary Table S2), which contained a BamHI and a PstI restriction site, respectively. The PCR product was cloned into the corresponding restriction sites of plasmid pME6014 to generate plasmid pME6014-RpoS. This PCR product was also cloned into the corresponding restriction sites of plasmid pME6016 to generate plasmid pME6016-RpoS, harboring a transcriptional rpoS-lacZ reporter gene.
RNA Isolation
Total RNA was isolated using the hot phenol method as described by Leoni et al. (1996). Briefly, the cells were harvested by centrifugation. The pellet was resuspended in 50 μl DEPC treated ddH2O and mixed with pre-heated (65°C) 250 μl lysis buffer and 500 μl phenol (pH 5.5) and vigorously vortexed. After centrifugation (5 min at 16,000 g), the aqueous phase was extracted with an equal volume of phenol/chloroform (1:1), re-centrifuged, and then extracted with an equal volume of chloroform. The RNA was precipitated over-night at -20°C, by addition of 0.1 volume of 3 M Na-acetate (pH 5.5) and 2.5 volumes of 96% ethanol. Removal of DNA was achieved by multiple rounds of TURBO DNase I (ThermoFisher) treatment followed by phenol chloroform extraction and Na-acetate/ethanol precipitation.
Mapping of the ReaL Termini
Simultaneous mapping of the 5′ and 3′ ends of ReaL by RACE (Rapid Amplification of cDNA Ends) using circularized RNAs was performed as previously described (Toledo-Arana et al., 2009). Briefly, 6 μg total RNA were treated with DNase I (Roche) followed by phenol/chloroform extraction. The RNA was divided into two aliquots, one of which was treated with tobacco acid pyrophosphatase, (TAP) (Epicentre Biotechnologies) as specified by the manufacturer. After TAP treatment, the RNA was extracted with acid–phenol/chloroform followed by ethanol precipitation. Serial dilutions (from 500 to 0.5 ng) of the TAP+ and TAP- RNAs were prepared. Each dilution was ligated with 40 U T4 RNA ligase I (Fermentas) in the presence of 1× RNA ligase buffer in a total volume of 25 μl at 37°C for 1 h. The RNA was again extracted with acid–phenol/chloroform and precipitated with ethanol. The RNAs were resuspended in 10 μl RNase-free water. The subsequent RT-PCR reactions were performed with the oligonucleotides B53 and C53 (Supplementary Table S2) and the SuperScript One-Step RT-PCR kit (Invitrogen). DNA fragments of the expected size present in the TAP+ reactions were gel extracted, purified, and then cloned into the pGEM-T Easy Vector System (Promega). Five plasmid clones were sequenced and the sequences were compared to the PAO1 genome to localize the 5′- and 3′-ends of ReaL.
RNA-Sequencing
PAO1ΔreaL(pKH6) and PAO1ΔreaL(pKH6-ReaL) were grown in LB medium supplemented with 50 μg/ml gentamycin until they reached an OD600 of 2.5. ReaL synthesis was induced with L-arabinose (final concentration 0.2%). After 30 min, total RNA was isolated from three biological replicates of either strain as described above. Ribosomal RNA was depleted with the Ribo-Zero rRNA Removal Kit (Illumina). Then, libraries were prepared using the NEBNext Ultra Directional RNA Library Prep Kit (Illumina) and sequenced using the Illumina HiSeq 2000, 100 bp single end read platform at the Vienna Biocentre Core Facilities.1 After removal of the adaptors, the sequences were quality trimmed with trimmomatic using default parameters (Bolger et al., 2014). The resulting sequences were then mapped onto the PAO1 reference genome (NC_002516.2) using Segemehl (Hoffmann et al., 2009, 2014) with default parameters. To allow sequence visualization in the UCSC Genome Browser (Chan et al., 2012), the ViennaNGS toolbox (Wolfinger et al., 2015) was used. For differential gene expression analysis, reads were counted using BEDtools (Quinlan and Hall, 2010) and analyzed using the DESeq2 package (Love et al., 2014). All RNAs with a log2-fold change greater than ±1.5 and a multiple testing adjusted p-value below 0.05 were considered to be differentially abundant. The raw sequencing data were deposited in the European Nucleotide Archive (ENA) as a study under the accession number PRJEB28696.
Northern-Blot Analysis
The abundance of ReaL was determined by Northern blotting using 10 μg total RNA. The RNA samples were denatured for 5 min at 65°C in loading buffer containing 50% formamide, separated on 8% polyacrylamide/8 M urea gels, and then transferred to nylon membranes by electroblotting. The RNAs were cross-linked to the membrane by exposure to UV light. The membranes were hybridized with gene-specific 32P-end-labeled oligonucleotides (ReaL: W28; 5S rRNA: I26), and the hybridization signals were visualized using a PhosphorImager (Molecular Dynamics).
Determination of the Steady State Levels and Half-Life of rpoS mRNA by RT-qPCR in the Presence and Absence of ReaL
PAO1ΔreaL(pKH6) and PAO1ΔreaL(pKH6-ReaL) were grown in LB medium supplemented with 50 μg/ml gentamycin until they reached an OD600 of 2.5. ReaL synthesis was induced with L-arabinose (final concentration 0.2 %). After 30 min (t0), the first sample was withdrawn and rifampicin was added to a final concentration of 250 μg/ml. Additional samples were then taken after 1, 2, 5, and 7.5 min, respectively. Then, total RNA was isolated from either sample as described above and DNase I treated. cDNA was synthesized from 2 μg of DNA-free total RNA using random hexamer primers (Promega) and AMV reverse transcriptase (Promega) according to the instructions of the manufacturer. For qPCR, 100 ng cDNA was used as template from either sample. The qPCR was performed with rpoS specific primers J98 and K98. The transcript levels of the rpoD gene obtained with the primers Q117 and R117 were used for normalization of the t0 samples as described by Lee et al. (2012). The real-time PCR mixture containing 5× HOT FIREPol EvaGreen qPCR Mix (Medibena), 100 ng cDNA, and 250 nM of each primer was placed in a Real-time PCR cycler (Eppendorf Mastercycler), and the reaction was started at 95°C for 5 min, followed by 40 cycles of 20 s at 95°C, 20 s at 55°C, and 20 s at 72°C. For all reactions including the DNA standards and the negative control (no template), two biological replicates and three technical replicates each were performed. The fluorescence was measured at the last step of each cycle. After 40 cycles, a melting curve analysis was performed by raising the temperature from 45°C to 95°C every 15 s, and by measuring the fluorescence at each cycle. The melting curve analysis yielded a single peak in the melting curve. Changes in the rpoS levels were estimated as previously described (Pfaffl, 2001).
Western-Blot Analysis
The cells were cultured in LB broth until they reached an OD600 of 1.0. Then, ReaL synthesis was induced with L-arabinose (0.2% final concentration), and the cells were cultured for another 30 min. Aliquots containing cells from a total OD600 of 2 were harvested by centrifugation at 15,500 g for 2 min, resuspended in 100 μl Laemmli buffer, and lysed by heating to 95°C for 5 min. The cell lysates were then centrifuged at 26,000 g for 25 min and the pellets were discarded. A 10-μl aliquot of each sample was separated on a 10% SDS-polyacrylamide gel, and the proteins were transferred to a nitrocellulose membrane (Amersham Protran, GE Healthcare Life Sciences) by electroblotting. The membranes were incubated for 1 h at room temperature in TBST [25 mM Tris (pH 7.4), 150 mM NaCl, 0.05% Tween-20] containing 2.5% non-fat dry milk followed by washing in TBST. After washing, the membranes were probed at 4°C overnight with anti-RpoS antibodies. Probing with anti-ribosomal protein S1 antibodies served as a loading control. The membranes were washed in TBST and incubated with a goat anti-rabbit IgG horseradish peroxidase-linked antibody (Cell Signaling Technology, Europe) for 1 h at room temperature. Finally, the membranes were washed with TBST, and the proteins were detected with the enhanced chemiluminescence detection kit (Thermo Fisher Scientific, Inc.). Protein levels were calculated using the ImageLab work-suite (Bio-rad) and normalized against ribosomal protein S1 (internal control).
Modified GRIL-Seq
To corroborate the ReaL-rpoS interaction, the GRIL-seq approach (Han et al., 2016) was employed. Briefly, the strains PAO1ΔreaL (pKH-ReaL; pKH13-t4rnl1) and PAO1ΔreaL (pKH6; pKH13-t4rnl1) were cultured in 15 ml LB broth supplemented with 50 μg/ml gentamicin and 250 μg/ml carbenicillin until they reached an OD600 of 1.8. T4 RNA ligase gene expression was induced with IPTG to a final concentration of 1 mM. After 1 h, ReaL synthesis was induced with L-arabinose (0.2% final concentration), and the cells were cultured for another 30 min. Then, the cells were harvested by centrifugation at 12,000 g for 5 min and total RNA was isolated as described above. Next, reverse transcription was performed with AMV reverse transcriptase (Promega), 1 μg total RNA, and the rpoS specific primer Z144 (Supplementary Table S2). ReaL-rpoS chimera were amplified by PCR using primers Y144 and Z144 (Supplementary Table S2), and a 1-μl aliquot of the reverse transcription reaction as template. The PCR products were purified using a Gel Extraction kit (QIAGEN) and cloned into the SmaI site of plasmid pUC19. Finally, the inserts were sequenced using the universal sequencing primer M13 (Supplementary Table S2).
β-Galactosidase Assays
Briefly, PAO1ΔreaL(pKH6; pME6014-RpoS), PAO1ΔreaL(pKH6-ReaL; pME6014-RpoS), PAO1ΔreaL(pKH6-ReaLΔ11-18; pME6014-RpoS), PAO1ΔreaL(pKH6; pME6016-RpoS), and PAO1ΔreaL(pKH6-ReaL; pME6016-RpoS) were grown in triplicates in 20 ml LB broth. At an OD600 of 2.5, the synthesis of ReaL or of the ReaLΔ11-18 variant was induced with L-arabinose (0.2% final concentration). Cells were cultured for another 30 min after which samples were withdrawn. Then, the β-galactosidase activities were determined from equal volumes of cells as described (Miller, 1972).
Results
Negative Regulation of RpoS Dependent Genes by ReaL
To identify novel sRNAs in PAO1, an in silico search was performed using the general scheme described by Lenz et al. (2004). This screen revealed the putative sRNA PaeIII (Sorger-Domenigg, 2010), which was later also identified with an RNASeq approach as SPA0084 (Ferrara et al., 2012), and recently renamed ReaL (Carloni et al., 2017). The expression of reaL in strain PAO1 was confirmed by Northern blot analysis (Supplementary Figure S1B). The transcriptional start site of reaL in sPAO1 was mapped to genome position 3958053 by a 5′-3′ circularization approach (Supplementary Figure S1C). Based on this information, a PAO1ΔreaL strain was generated and transformed with either the reaL encoding plasmid pKH6-ReaL or the parental vector pKH6. As shown by Northern-blot analyses, ReaL was synthesized in PAOΔreaL(pKH6-ReaL) and was absent in PAO1ΔreaL(pKH6) (Supplementary Figure S2).
To study the impact of ReaL on global transcription, a comparative RNASeq based transcriptome analysis was performed with PAO1ΔreaL(pKH6-ReaL) and PAO1ΔreaL(pKH6). A p-value (adjusted for multiple testing) of 0.05 was set as a threshold for significance and the change in abundance for a given transcript had to exceed a log2 ± 1.5-fold change to be considered differentially abundant (Supplementary Table S3). In brief, the largest differential abundance was observed for transcripts whose functions are involved in anaerobic respiration, in the synthesis of fimbriae, carbon source utilization, production of siderophores, and other virulence factors, many of which are regulated by RpoS (Schuster et al., 2004; Supplementary Table S3). In fact, the transcriptional profile of the PAO1ΔreaL(pKH6-ReaL) strain resembled that previously described for a PAO1ΔrpoS strain at the level of individual transcripts (Schuster et al., 2004). Next, a meta-analysis of normalized expression of differentially abundant transcripts was performed for the following strain pairs: PAO1ΔreaL(pKH6-ReaL) versus PAO1ΔreaL(pKH6) and PAO1ΔrpoS versus PAO1. For this purpose, the genes were grouped into the corresponding KEGG pathways.2 As shown in the heat-map, the transcriptional profiles of the ReaL over-producing strain and the rpoS deletion strain were closely related at the level of the KEGG pathways (Figure 1). Very similar changes in the abundance of transcripts assigned to distinct pathways were observed for PAO1ΔreaL(pKH6-ReaL) and PAO1ΔrpoS when compared with strains PAO1ΔreaL(pKH6) and PAO1, respectively (Figure 1). In summary, these analyses suggested that ReaL might negatively impact RpoS synthesis.
FIGURE 1. Meta-analysis of normalized expression of differentially abundant transcripts in strains PAO1ΔreaL(pKH6-ReaL) versus PAO1ΔreaL(pKH6) and strains PAO1DrpoS versus PAO1 (Schuster et al., 2004). The genes are grouped into the corresponding pathways (http://www.kegg.jp/kegg-bin/show_organism?org=pau). The columns denote PAO1ΔreaL(pKH6-ReaL) versus PAO1ΔreaL(pKH6) (A) and PAO1ΔrpoS versus PAO1 (B), respectively. The color code shown in the scale at the right denotes log2-fold changes and fold change for the RNASeq-based analysis, and the microarray-based analysis, respectively. Red indicates an overall decrease and green indicates an overall increase in the transcript levels of genes in a particular pathway. The numbers of genes within each pathway are indicated by the numbers given in parenthesis.
ReaL Interacts With rpoS mRNA
As judged from the RNASeq analysis, the transcript levels of rpoS were ∼19-fold decreased in strain PAO1ΔreaL(pKH6-ReaL) when compared with PAO1ΔreaL(pKH6) (Supplementary Table S3) 30 min after induction of the reaL gene, which could be a consequence of translational silencing of rpoS mRNA by ReaL followed by degradation of the mRNA. Similarly, qPCR revealed a ∼18-fold decrease in the rpoS levels under the same experimental conditions (Supplementary Figure S3). In addition, the half-life of rpoS mRNA was ∼fivefold reduced in the ReaL overproducing strain when compared with the control strain (Supplementary Figure S3). Therefore, an in silico approach (IntaRNA) (Mann et al., 2017) was first used to explore whether ReaL might interact with the translation initiation region (TIR) of rpoS mRNA. This analysis suggested an interaction between the first 18 nt of ReaL and the TIR of rpoS (Figure 2A).

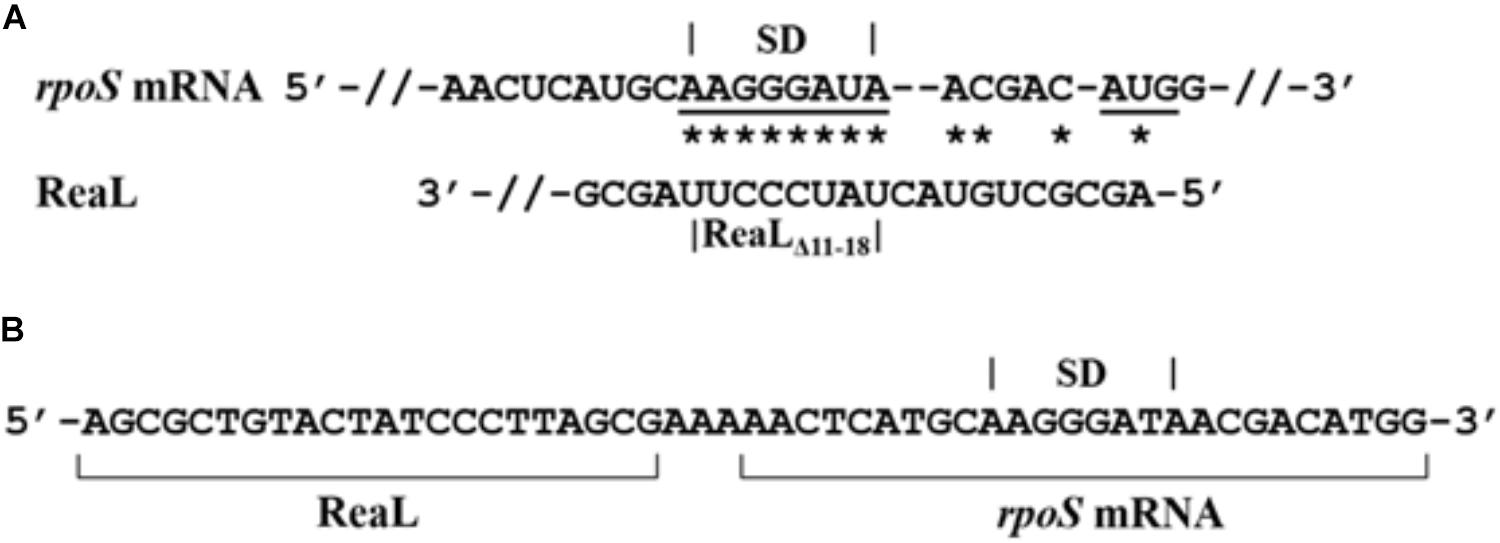

FIGURE 2. Interaction of ReaL with the TIR of rpoS mRNA. (A) Complementarity of ReaL with the TIR of rpoS mRNA predicted with the IntaRNA algorithm (Mann et al., 2017). Possible base-pairing interactions are denoted by stars. The rpoS SD region and the start codon are underlined, respectively. The deletion of nt 11–18 present in ReaLΔ11-18 is indicated below. (B) ReaL-rpoS mRNA RLM-RT-PCR. The sub-sequence generated by ligation of ReaL with rpoS mRNA is shown. The ReaL and rpoS mRNA sequences are indicated by brackets and the rpoS SD region is denoted on top.
To corroborate the predicted ReaL-rpoS mRNA interaction in vivo, RNA ligase-mediated RT-PCR (RLM-RT-PCR) based on the GRIL-seq approach (Han et al., 2016) was employed. Briefly, GRIL-seq uses the ability of T4 RNA ligase to link two base-paired RNA molecules in vivo. In case of base-pairing between a sRNA and its target RNA(s), chimeras of the sRNA and the target RNA(s) are generated. These chimeras are then reverse transcribed, amplified, and sequenced to identify targets for a given sRNA. The strains PAO1ΔreaL(pKH6) and PAO1ΔreaL(pKH6-ReaL) were additionally transformed with plasmid pKH13-t4rnl1, encoding the T4RNA ligase gene. ReaL and T4RNA ligase synthesis was induced with IPTG and L-arabinose, respectively. Then RLM-RT-PCR was performed with total RNA isolated from either strain, using rpoS and reaL specific oligonucleotides (Supplementary Table S2). A product of ∼200 nt in length was detected in total RNA isolated from strain PAO1ΔreaL(pKH6-ReaL; pKH13-t4rnl1), whereas this product was absent in total RNA isolated from strain PAO1ΔreaL(pKH6; pKH13-t4rnl1). Cloning and sequencing of the ∼200 nt product detected in PAO1ΔreaL(pKH6-ReaL; pKH13-t4rnl1) confirmed the formation of a ReaL-rpoS chimera in vivo (Figure 2B). This chimera contained the first 22 nt of ReaL, an adenosine triplet followed by the sub-sequence of the rpoS mRNA predicted to interact with ReaL.
ReaL Inhibits RpoS Synthesis
As the modified GRIL-seq approach supported the hypothesis that ReaL inhibits rpoS translation, we next assessed the steady-state levels of RpoS protein in strains PAO1ΔrpoS, PAO1ΔreaL(pKH6), and PAO1ΔreaL(pKH6-ReaL). These strains were cultured in LB until they reached an OD600 of 1. Then, ReaL synthesis was induced with L-arabinose, and the cells were further grown for 30 min. The RpoS levels were assessed through quantitative Western-blotting. A lower OD600 value for ReaL induction was chosen for this analysis to minimize detection of RpoS synthesized prior to ReaL induction. In contrast to strain PAO1ΔreaL(pKH6), the RpoS levels were greatly diminished (>10-fold) in the ReaL over-producing strain PAO1ΔreaL(pKH6-ReaL) (Figure 3A).

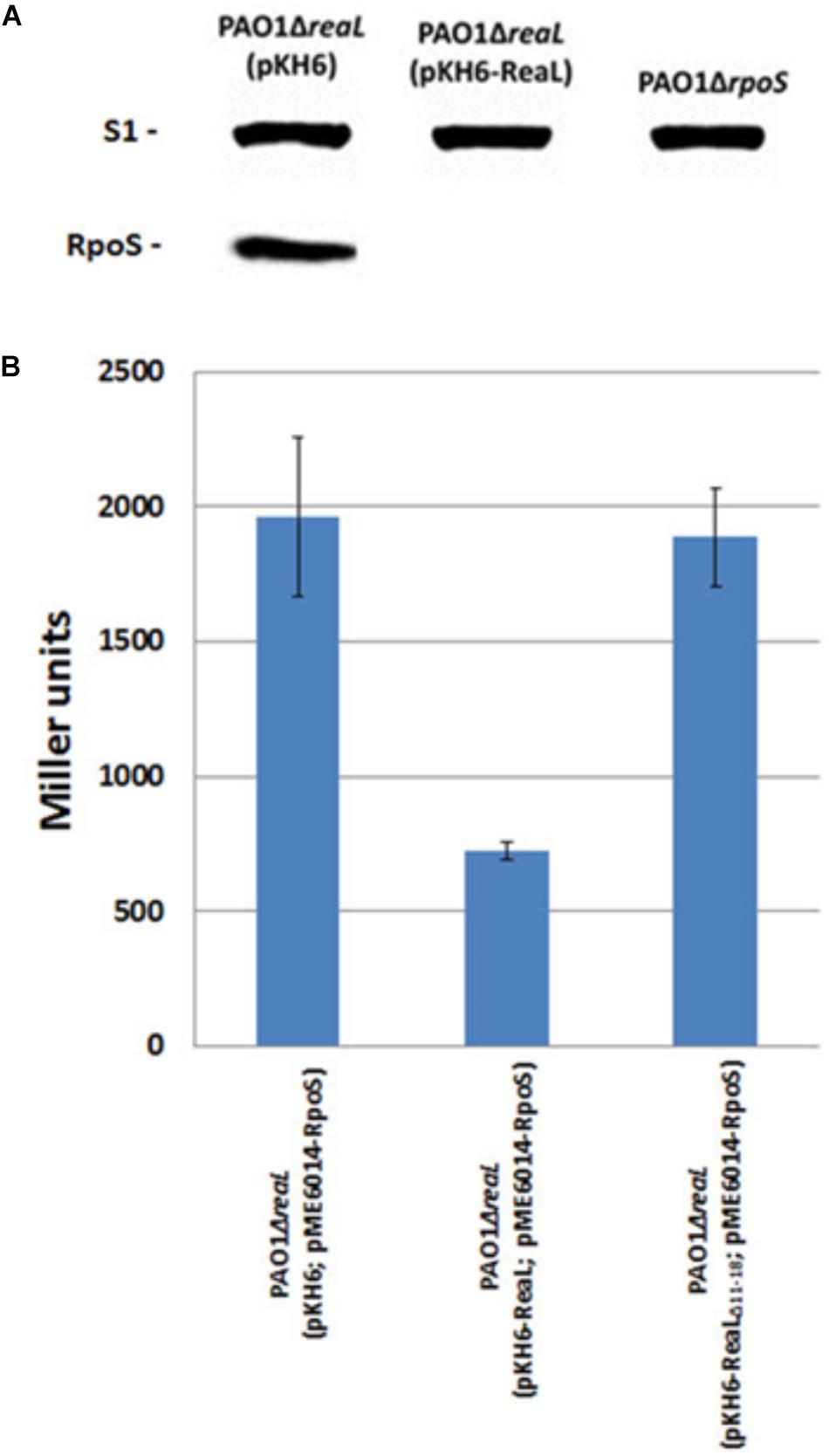

FIGURE 3. RpoS synthesis is repressed by ReaL. (A) The strains PAO1ΔreaL(pKH6), PAO1ΔreaL(pKH6-ReaL), and PAO1ΔrpoS were grown in LB medium. At an OD600 of 1, ReaL synthesis was induced by addition of L-arabinose (final concentration 0.2%). Samples for quantitative Western-blot analysis were withdrawn 30 min after reaL induction. The strains are indicated on top. The position of RpoS and ribosomal protein S1 (loading control) are indicated at the right. (B) The strains PAO1ΔreaL(pKH6; pME6014-RpoS), PAO1ΔreaL(pKH6-ReaL; pME6014-RpoS), and PAO1ΔreaL(pKH6-ReaLΔ11-18; pME6014-RpoS) were grown in LB medium. At an OD600 of 2.5, ReaL synthesis was induced by addition of L-arabinose (final concentration 0.2%). Samples for β-galactosidase activity measurements were withdrawn 30 min after ReaL induction. The values shown were derived from three independent experiments. The error bars represent standard deviations.
To verify this finding, a translational rpoS::lacZ reporter gene, mounted on plasmid pME6014-RpoS, was employed. Strain PAO1ΔreaL(pME6014-RpoS) was transformed with plasmids pKH6, pKH6-ReaL, and pKH6-ReaLΔ11-18, respectively. Plasmid pKH6-ReaLΔ11-18 encodes a truncated variant of ReaL lacking nucleotides 11 - 18, which are predicted to interact with rpoS mRNA (Figure 2A). The β-galactosidase activities conferred by plasmid pME6014-RpoS in strains PAO1ΔreaL(pKH6; pME6014-RpoS) and PAO1ΔreaL(pKH6-ReaL; pME6014-RpoS) (Figure 3B) showed that reaL expression leads to a significant reduction of rpoS::lacZ translation. However, expression of the reaLΔ11-18 variant resulted in β-galactosidase activities similar to those observed with the control strain PAO1ΔreaL(pKH6; pME6014-RpoS). As the ReaL levels were similar in strains PAO1ΔreaL(pKH6-ReaL; pME6014-RpoS), and PAO1ΔreaL(pKH6-ReaLΔ11-18; pME6014-RpoS) (Supplementary Figure S2), and as ReaL synthesis did not impact on the expression of a transcriptional rpoS-lacZ fusion gene (Supplementary Figure S4), we concluded that the 5′-terminal sequence of ReaL is required for base-pairing with and to inhibit rpoS translation.
The study by Carloni et al. (2017) indicated that ReaL acts by base-pairing with pqsC mRNA and that it positively stimulates translation of the pqsC gene in a Hfq-independent manner. To test whether ReaL-mediated translational silencing of rpoS mRNA requires Hfq, we compared the β-galactosidase activities conferred by plasmid pME6014-rpoS in strains PAO1 (pKH6-ReaL; pME6014-RpoS), PAO1(pKH6; pME6014-RpoS), PAO1Δhfq(pKH6-ReaL; pME6014-RpoS), and PAO1Δhfq(pKH6; pME6014-RpoS). In contrast to strain PAO1(pKH6-ReaL; pME6014-RpoS), rpoS translation did not decrease in the hfq deletion strain (Supplementary Figure S5), suggesting that negative regulation of rpoS by ReaL is Hfq-dependent.
Discussion
Here, we identified ReaL as the first known bacterial sRNA, which apparently represses rpoS translation by a base-pairing mechanism in a Hfq-dependent manner. The interaction between ReaL and rpoS mRNA is supported by the modified GRIL-seq approach (Figure 2B) and by the observation that ReaLD11-18 was defective in repressing rpoS translation (Figure 3B). We attempted to obtain further evidence for the ReaL-rpoS mRNA interaction by introducing mutations into the TIR of rpoS mRNA. However, compensatory mutations in the 5′ UTR of rpoS could not be constructed because of their effect on translation initiation due to the disruption of the Shine-Dalgarno sequence; indeed, all attempted mutations affected translation of rpoS mRNA per se. This excluded the possibility to study ReaL-mediated regulation of rpoS in more detail. In any case, ReaL overproduction reduced the rpoS transcript (Supplementary Table S3 and Figure S3) and protein levels (Figure 3A), respectively. It turn, translational silencing of rpoS mRNA resulted in faster degradation of the mRNA in the presence of ReaL (Supplementary Figure S3) as previously observed for RyhB-mediated translational repression of sodB mRNA (Massé and Gottesman, 2002; Afonyushkin et al., 2005).
By comparing the transcriptomes of PAO1 and a PAO1DrpoS strain, Schuster et al. (2004) reported that RpoS positively regulates the QS response regulator genes lasR and rhlR ∼2-fold, which is in agreement with our RNASeq analysis performed with the strains PAO1ΔreaL(pKH6) and PAO1ΔreaL(pKH6-ReaL) (not shown). Hence, several differentially abundant transcripts/operons (Figure 1) and QS-mediated phenotypes reported upon over-production of ReaL (Carloni et al., 2017) might result from RpoS-mediated regulation of lasR/rhlR. When QS comes into effect the LasR regulator is the first to be activated, which in turn activates the Rhl, Pqs, and Iqs systems (Lee and Zhang, 2015). Thus, ReaL-mediated repression of rpoS, and consequently reduced synthesis of lasR would explain the diminished transcription of LasR-dependent genes/operons, such as the psl operon (Supplementary Table S3; Gilbert et al., 2009), encoding functions for matrix polysaccharide- or functions required for pyoverdine synthesis (Supplementary Table S3). The increase in pyocyanin production observed after ReaL overproduction (Carloni et al., 2017) is phenotypically in accord with the increased production of pyocyanin observed in a PAO1DrpoS strain (Suh et al., 1999; Whiteley et al., 2000; Diggle et al., 2002). However, ReaL-mediated over-production of pyocyanin was LasR/I independent (Carloni et al., 2017), and can therefore not be reconciled with its positive impact on LasR transcription (Schuster et al., 2004). ReaL-mediated stimulation of pyocyanin production was dependent on RhlR (Carloni et al., 2017), which can regulate PQS production in a positive (Dekimpe and Deziel, 2009) as well as in a negative manner (Brouwer et al., 2014). Given the complexity and interdependence of QS regulation more studies are required to test how ReaL-mediated negative regulation of rpoS impacts on the Rhl system and how this affects pyocyanin production. The increase in pyocyanin synthesis upon ReaL overproduction has been mainly attributed to ReaL-mediated translational stimulation of the pqsC gene, the function of which is required for production of the quinolone signal PQS (Figure 4; Carloni et al., 2017). However, as ReaL regulates several QS-dependent genes (Supplementary Table S3), which are likewise regulated by RpoS, its impact seems not to be restricted to PQS synthesis but it seems to operate as well in a hierarchical manner by acting on top of the cascade (Figure 4).
FIGURE 4. Integration of ReaL in the multi-layered quorum sensing cascade. σ70-dependent reaL transcription occurs during logarithmic growth (Sorger-Domenigg, 2010; Carloni et al., 2017). Continuous ReaL synthesis may prevent rpoS translation during logarithmic growth to avoid needless gene expression. When the cells encounter stationary phase, RpoS-mediated transcription of reaL increases through RpoS (Carloni et al., 2017), which in turn leads to repression of rpoS translation by a mixed negative feedback loop. When the cell density increases, LasR bound to its cognate autoinducer represses reaL transcription (Carloni et al., 2017), alleviating ReaL-mediated repression of RpoS synthesis, which in turn would stimulate LasR and RhlR synthesis (Schuster et al., 2004), and consequently the synthesis of PqsR and IqsR. Thus, in conjunction with other upstream regulators (Lee and Zhang, 2015), RpoS would act on top of a coherent feed-forward loop that serves to induce QS dependent genes. Positive and negative regulation is denoted by arrows and bars, respectively.
Despite the similarities in phenotypes and in the transcriptional profiles observed for the rpoS deletion mutant (Schuster et al., 2004) and the ReaL over-producing strain, a large number of genes displayed differential abundance in either strains (Supplementary Table S3). On one hand, these differences may arise from the different methods used for the transcriptome analysis, viz DNA microarrays (Schuster et al., 2004) and RNASeq (Supplementary Table S3). On the other hand, it is possible that the regulatory role of ReaL extends beyond rpoS repression.
A working model, which integrates RpoS and ReaL in the multi-layered QS network is presented in Figure 4. s70-dependent reaL transcription is observed during logarithmic growth and peaks in stationary phase (Sorger-Domenigg, 2010; Carloni et al., 2017). Therefore, continuous ReaL synthesis may prevent rpoS translation during logarithmic growth to avoid superfluous gene expression. When the cells enter stationary phase, RpoS-mediated transcription of reaL increases through stimulation by RpoS, which in turn leads to repression of rpoS translation by a mixed negative feedback loop, as observed for RpoE and the sRNA RybB in E. coli (Thompson et al., 2007). When the cell density increases, LasR bound to its cognate autoinducer represses reaL transcription (Carloni et al., 2017), alleviating ReaL-mediated repression of RpoS synthesis, which in turn would stimulate LasR and RhlR synthesis (Schuster et al., 2004), and consequently the synthesis of PqsR and IqsR. Thus, in conjunction with other upstream regulators (Lee and Zhang, 2015), RpoS would act on top of a coherent feed-forward loop that serves to induce QS dependent genes.
Author Contributions
UB and ES conceived and designed the experiments. HTBN, DRA, MT, and TS-D performed the experiments. UB, ES, HTBN, FA, and DRA analyzed the data. UB and DRA wrote the paper.
Funding
The work was supported by the Austrian Science Fund (www.fwf.ac.at/en) through the Special Research Program RNA-REG F43, subproject AF4311 (UB). DRA was supported by the FWF through a post-doctoral “Liese Meitner” fellowship (AM02067-11). HTBN was supported by a “Ernst Mach” fellowship (ICM-2017-06785) from the Austrian Federal Ministry of Science, Research, and Economy within the frame work of the ASEA-UNINET program.
Conflict of Interest Statement
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Acknowledgments
We are grateful to Mr. Kook Han and Dr. Stephen Lory, Harvard Medical School, Boston, United States, for providing the materials for the GRIL-seq analysis and to Dr. Françoise Norel, Institut Pasteur, France, for providing the anti-RpoS antibodies.
Supplementary Material
The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fmicb.2018.02488/full#supplementary-material
