Abstract
Enterotoxigenic Escherichia coli produces a myriad of adhesive structures collectively named colonization factors (CFs). CS3 is a CF, which is assembled into fine wiry fibrillae encoded by the cstA-H gene cluster. In this work we evaluated the influence of environmental cues such as temperature, osmolarity, pH, and carbon source on the expression of CS3 genes. The transcription of cstH major pilin gene was stimulated by growth of the bacteria in colonization factor broth at 37°C; the presence of glycerol enhanced cstH transcription, while glucose at high concentration, high osmolarity, and the depletion of divalent cations such as calcium and magnesium repressed cstH expression. In addition, we studied the role of H-NS, CpxRA, and CRP global regulators in CS3 gene expression. H-NS and CpxRA acted as repressors and CRP as an activator of cstH expression. Under high osmolarity, H-NS, and CpxRA were required for cstH repression. CS3 was required for both, bacterial adherence to epithelial cells and biofilm formation. Our data strengthens the existence of a multi-factorial regulatory network that controls transcription of CS3 genes in which global regulators, under the influence of environmental signals, control the production of this important intestinal colonization factor.
Introduction
Enterotoxigenic Escherichia coli (ETEC) is responsible for high rates of morbidity and mortality in children living in countries with poor sanitation and is the main cause of travelers’ diarrhea (; ). The most important virulence factors of ETEC are the heat-labile (LT) and heat-stable (ST) enterotoxins, which are responsible for the secretory watery diarrhea that characterizes human ETEC infection (). Colonization of the small intestine is achieved by adhesive pili collectively named colonization factors (CFs), which also include the coli surface antigens (CS1–CS6) (; ; ). Twenty-three different CFs have been described so far and their distribution in ETEC strains varies according to geographic regions (). One of the most common CFs is CS3, which can be co-produced with CS1 or CS2 by some ETEC strains (; ). Human volunteers fed with the CS3-producing strain E9034A developed diarrhea and showed significant rises in serum IgG antibody against CS3, suggesting that this adhesin is produced in vivo, plays a role in pathogenesis, and triggers an antibody immune response (; ).
In contrast to most CFs, which are long rod-like pili, the CS3 surface antigen assembles into fine wiry fibrillae (2–3 nm wide). The production of CS3 is encoded by the cstA-H gene cluster (; ), where the cstA gene codes for a putative chaperone protein which shares homology to FimC and PapD proteins that participate in the assembly of the type I and P pili, respectively (). The cstB gene codes for an usher protein and the four cstC-F genes are contained within the same cstB ORF each having different translational start points and only one stop codon (). Finally, both cstG and cstH genes code for pilin subunits (; ), of which CstH is the major pilin subunit.
Host and environmental stimuli such as temperature, osmolarity, pH, and carbon source are sensed by ETEC to regulate the expression of virulence factors such as toxins and pili (; ; ; ). However, only in a few cases the influence of environmental and nutritional factors on the expression and production of some of the ETEC’s CFs has been reported. ETEC possesses a myriad of transcription regulators controlling its virulence. Namely, H-NS (histone-like nucleoid structuring), CpxRA (conjugation pilus expression), and CRP (cAMP receptor protein) are global regulators that control the expression of the main virulence factors in ETEC, such as enterotoxins and CFs (; ; ; ; ). H-NS is a pleiotropic regulator, which binds AT-rich DNA regions blocking the interaction of the RNA polymerase, silencing transcription of housekeeping, and virulence genes (). CRP is a global regulatory protein involved in catabolic repression in many enterobacteria and its activity depends of the binding of cAMP to target protein (). The CpxRA two-component system senses a variety of stimuli (e.g., pH changes, overexpression of envelope proteins, and alterations in the membrane) within the bacterial cell envelope, controlling virulence in enterobacterial pathogens ().
In this work we sought to investigate the environmental cues and transcriptional factors involved in the regulation of CS3 using the prototypic ETEC strain E9034A. In particular, we inquired about the role of global regulators such as H-NS, CpxRA, and CRP, in the transcriptional control of CS3. In addition, the function of CS3 in both bacterial adherence to epithelial cells and biofilm formation was analyzed using an isogenic cstH mutant. The data generated in this work will help to understand the regulation of this important intestinal CF and to suggest a model of the regulatory network that controls ETEC virulence factors.
Materials and Methods
Bacterial Strains and Growth Conditions
Enterotoxigenic Escherichia coli strains used and bacterial constructs generated in this study are listed in Table 1. E9034A [CS3+, Longus (CS21)+, LT+, ST+] was used as the prototypic strain and for construction of isogenic mutants (; ). For routine work, the strains were grown overnight in Luria-Bertani broth (LB) with shaking at 37°C. To determine expression of cst genes, several liquid bacteriological media such as pleuropneumoniae-like organisms (PPLO), LB, trypticase soy broth (TSB), Brucella broth (BB), colonization factor broth (CFA), Dulbecco’s modified Eagle’s medium (DMEM) with low (1.0 g/l) or high glucose (4.5 g/l), and brain heart infusion (BHI) were used. Environmental conditions were tested to analyze the transcription of cstH gene in CFA broth at 37°C with shaking and samples were collected 6 h post-inoculation for RNA extraction. CFA broth was prepared as previously described [1% Casamino Acids and 0.15% yeast extract plus 0.005% MgSO4 and 0.0005% MnCl2 ()]. In addition, CFA broth supplemented with 0.3M NaCl, 1.0 mM EDTA, 5.0 mM CaCl2, 5.0 mM MgCl2, 0.05% glucose or 0.05% glycerol was prepared.

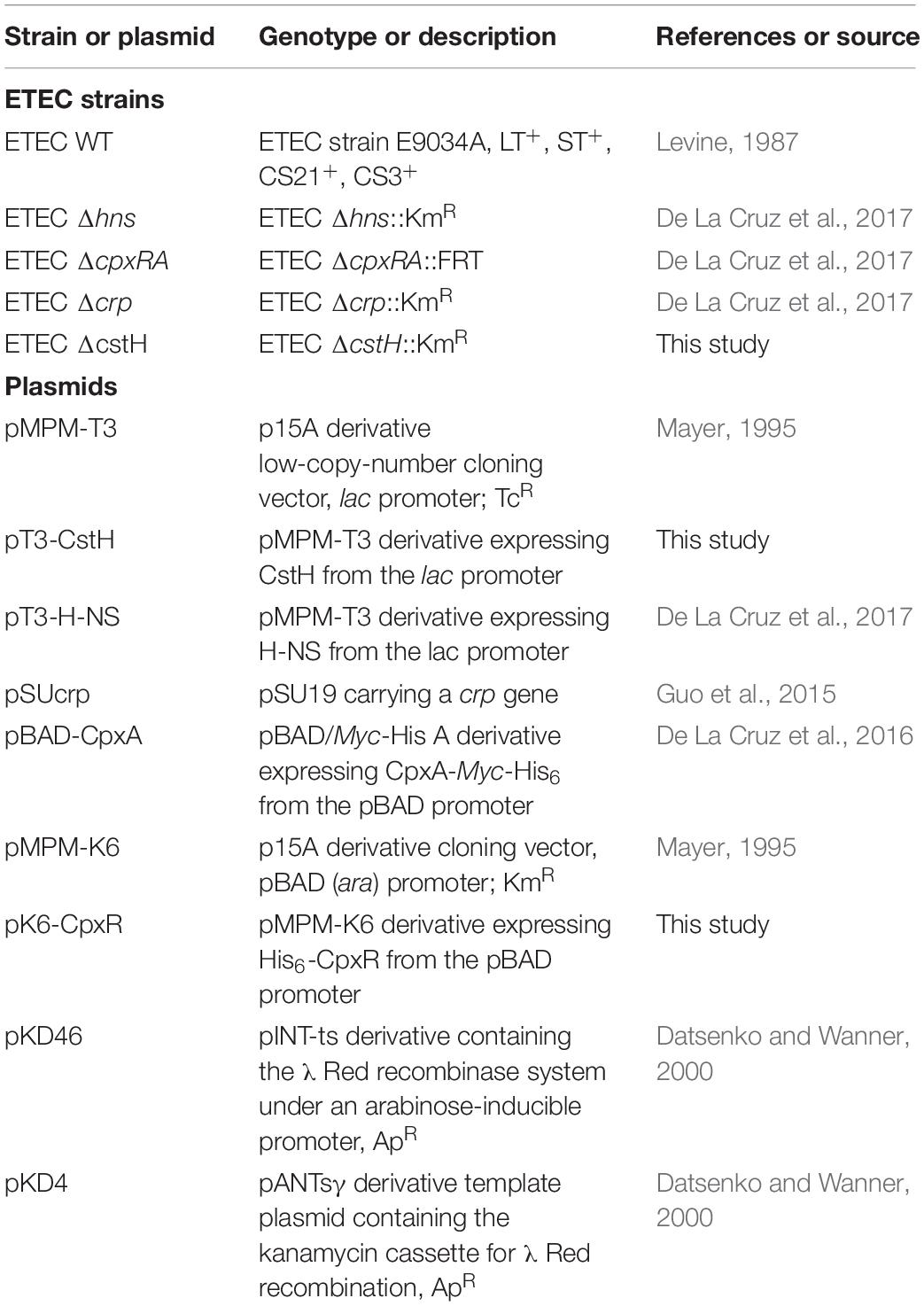

TABLE 1
| Strain or plasmid | Genotype or description | References or source |
| ETEC strains | ||
| ETEC WT | ETEC strain E9034A, LT+, ST+, CS21+, CS3+ | |
| ETEC Δhns | ETEC Δhns::KmR | |
| ETEC ΔcpxRA | ETEC ΔcpxRA::FRT | |
| ETEC Δcrp | ETEC Δcrp::KmR | |
| ETEC ΔcstH | ETEC ΔcstH::KmR | This study |
| Plasmids | ||
| pMPM-T3 | p15A derivative low-copy-number cloning vector, lac promoter; TcR | |
| pT3-CstH | pMPM-T3 derivative expressing CstH from the lac promoter | This study |
| pT3-H-NS | pMPM-T3 derivative expressing H-NS from the lac promoter | |
| pSUcrp | pSU19 carrying a crp gene | |
| pBAD-CpxA | pBAD/Myc-His A derivative expressing CpxA-Myc-His6 from the pBAD promoter | |
| pMPM-K6 | p15A derivative cloning vector, pBAD (ara) promoter; KmR | |
| pK6-CpxR | pMPM-K6 derivative expressing His6-CpxR from the pBAD promoter | This study |
| pKD46 | pINT-ts derivative containing the λ Red recombinase system under an arabinose-inducible promoter, ApR | |
| pKD4 | pANTsγ derivative template plasmid containing the kanamycin cassette for λ Red recombination, ApR |
List of bacterial strains and plasmids used.
Construction of Isogenic Mutants and Plasmids
Enterotoxigenic Escherichia coli ΔcstH mutant was generated by the lambda Red recombinase mutagenesis system as previously described (), using gene-specific primer pairs to amplify the kanamycin resistance gene from plasmid pKD4 (Table 1). For cloning of cstH and complementation of theΔcstH mutant, specific primers (Table 2) containing the HindIII (5′)/BamHI (3′) restriction sites were used to obtain a PCR product, which was digested with HindIII and BamHI restriction enzymes and then ligated into pMPM-T3 previously digested with the same restriction enzymes. For cpxR, primers (Table 2) containing the NcoI (5′)/HindIII (3′) restriction sites were used to generate a PCR product, which was digested with NcoI and HindIII and then ligated into pMPM-K6 () previously digested with the same restriction enzymes, generating pK6-CpxR. The mutations and clones were confirmed by PCR and nucleotide sequencing.

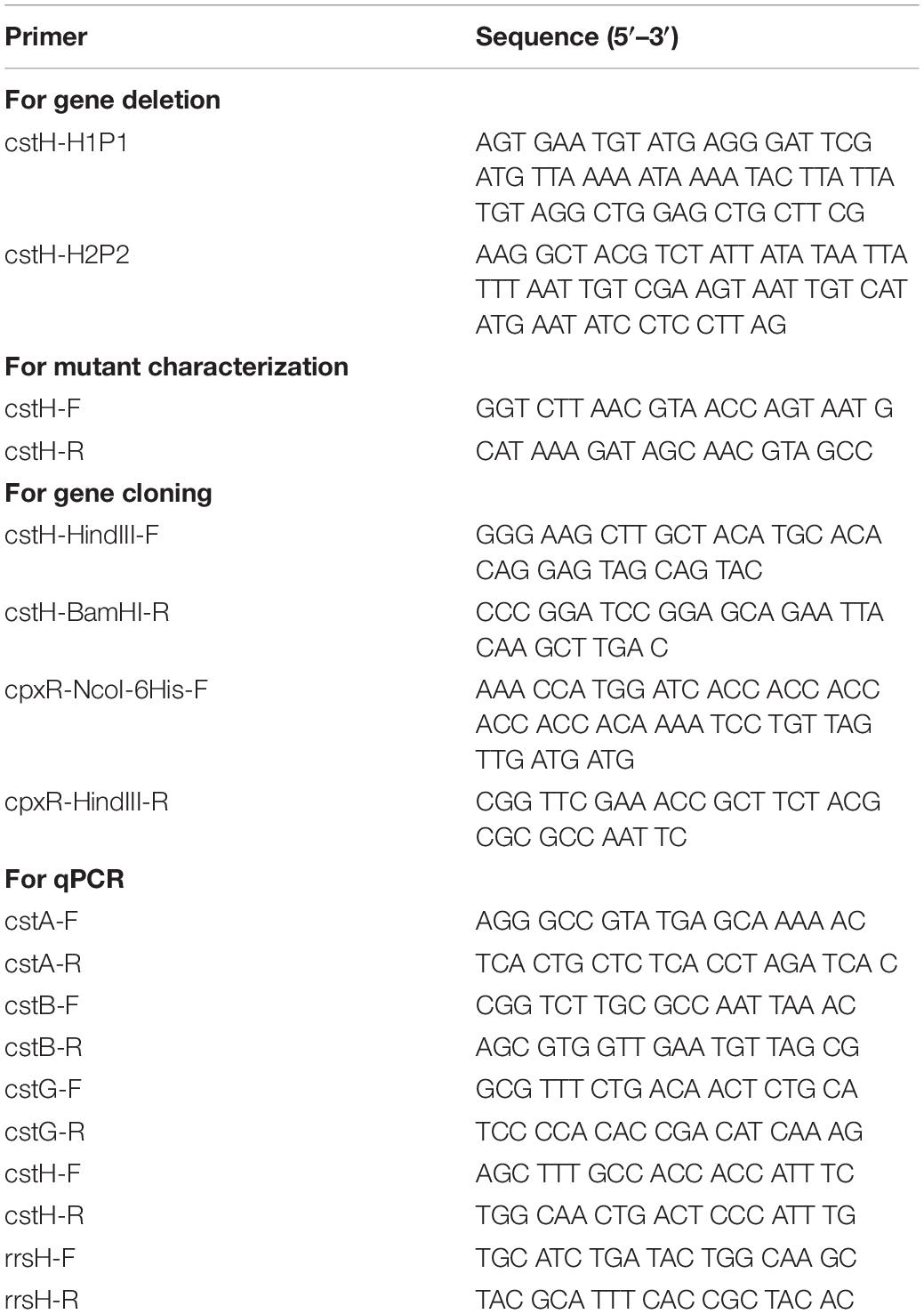

TABLE 2
| Primer | Sequence (5′–3′) |
| For gene deletion | |
| cstH-H1P1 | AGT GAA TGT ATG AGG GAT TCG ATG TTA AAA ATA AAA TAC TTA TTA TGT AGG CTG GAG CTG CTT CG |
| cstH-H2P2 | AAG GCT ACG TCT ATT ATA TAA TTA TTT AAT TGT CGA AGT AAT TGT CAT ATG AAT ATC CTC CTT AG |
| For mutant characterization | |
| cstH-F | GGT CTT AAC GTA ACC AGT AAT G |
| cstH-R | CAT AAA GAT AGC AAC GTA GCC |
| For gene cloning | |
| cstH-HindIII-F | GGG AAG CTT GCT ACA TGC ACA CAG GAG TAG CAG TAC |
| cstH-BamHI-R | CCC GGA TCC GGA GCA GAA TTA CAA GCT TGA C |
| cpxR-NcoI-6His-F | AAA CCA TGG ATC ACC ACC ACC ACC ACC ACA AAA TCC TGT TAG TTG ATG ATG |
| cpxR-HindIII-R | CGG TTC GAA ACC GCT TCT ACG CGC GCC AAT TC |
| For qPCR | |
| cstA-F | AGG GCC GTA TGA GCA AAA AC |
| cstA-R | TCA CTG CTC TCA CCT AGA TCA C |
| cstB-F | CGG TCT TGC GCC AAT TAA AC |
| cstB-R | AGC GTG GTT GAA TGT TAG CG |
| cstG-F | GCG TTT CTG ACA ACT CTG CA |
| cstG-R | TCC CCA CAC CGA CAT CAA AG |
| cstH-F | AGC TTT GCC ACC ACC ATT TC |
| cstH-R | TGG CAA CTG ACT CCC ATT TG |
| rrsH-F | TGC ATC TGA TAC TGG CAA GC |
| rrsH-R | TAC GCA TTT CAC CGC TAC AC |
Primers used in this study.
Quantitative RT-PCR
Total RNA was extracted from bacteria grown under different culture conditions using the hot phenol method (). DNA was removed with TURBO DNA-free (Ambion, Inc.) and the quality of RNA was assessed using a NanoDrop (ND-1000; Thermo Scientific) and an Agilent 2100 bioanalyzer with a Picochip (Agilent Technologies). The absence of contaminating DNA was controlled by the lack of amplification products after 35 qPCR cycles using RNA as template. Control reactions with no template (water) and without reverse transcriptase were rn in all experiments. cDNA synthesis and qPCR was performed as previously described (; ). Specific primers were designed with the Primer3Plus software and they are listed in Table 2. 16S rRNA (rrsH) was used as a reference gene for normalization and the relative gene expression was calculated using the 2– ΔΔCt method ().
Bacterial Infection and Adherence Assays
Monolayers of HeLa (ATCC CCL-2) human cervix epithelial and Caco-2 (ATCC HTB-37) human colonic epithelial cell lines were used in adherence assays as previously described (). For infection, these cells were cultivated in DMEM high glucose (4.5 g/l) (Invitrogen) at 37°C under a 5% CO2 atmosphere in polystyrene 24-well plates (CellStar). Next day, the bacteria (previously grown in LB overnight), were subcultured in CFA broth at early stationary phase (OD600 nm = 1.2) at 37°C. The cell monolayers (7 × 105) were infected at a multiplicity of infection (MOI) of 100 for 2 h, washed thrice with PBS to remove unbound bacteria, and subsequently treated with 1 mL of 0.1% Triton X-100 for 15 min. Following lysis, colony-forming-units (CFUs) were obtained and quantified by plating out 10-fold dilutions of the bacterial suspensions. The experiments were performed in triplicate on three different days, and the mean results were expressed as adhering CFUs/ml.
Biofilm Assay
Overnight bacterial cultures were diluted 1:100 with CFA broth and 200 μL aliquots were transferred to 96-well plates (Nunc, Sigma-Aldrich). After incubation for 24 h at 30°C the medium was discarded and the wells were rinsed thrice with PBS. The biofilms were stained with 1% Crystal Violet (Merck). After washing, the adsorbed dye was recovered with ethanol and the color read at an optical density of 595 nm with a spectrophotometer (Multiskan Ascent, Thermo Scientific). All the samples were tested in quintupled and the experiments were repeated three times on different days. The data represent the average of the mean of three experiments.
Statistical Analysis
For statistical differences, one-way ANOVA followed by the Tukey’s comparison test was performed using Prism5.0 (GraphPad Software, Inc., San Diego, CA, United States). p ≤ 0.05 was considered statistically significant.
Results
Genetic Organization of CS3
Similar to other CFs, the assembly of CS3 is directed by genes encoded on a large virulence plasmid of ETEC (). This locus is a 4.7-kbp region encoding four genes: cstA, cstB, cstG, and cstH (Figure 1). Using bioinformatics analysis, we found a putative promoter region located upstream of cstA gene, which appears to be transcriptionally organized in a polycistronic operon (Figure 1). The CS3-encoding region found in the sequenced ETEC strain 1392/75 showed that it has a GC content of 35.6%, which is significantly different to the average 47.7 and 50.7% of the p1018 plasmid and the chromosome, respectively, suggesting that CS3 genes were acquired by horizontal transfer.
FIGURE 1
CS3 Is Expressed in CFA Broth at Early Stationary Phase
Colonization factor broth agar was reported to induce the production of CFs of ETEC (; ). We began this study by determining transcription of cstA, cstB, cstG, and cstH by RT-qPCR, at early stationary phase (OD600 nm = 1.2) of E9034A grown at 37°C in different culture media. In agreement with the literature, our data showed that the expression of CS3 cstABGH genes was significantly induced in CFA broth (Figure 2A) as compared to growth in other rich media such as LB, PPLO, or DMEM defined medium. The level of expression of the different cst genes in the different culture media, suggest that they are genetically organized in an operon (Figures 1, 2A). Next, we analyzed transcription of the cstH upon growth of the bacteria in CFA broth during 8 h at 37°C. The expression of cstH reached its highest level after 6 h of growth, which corresponds to early stationary growth phase (OD600 nm = 1.2) (Figure 2B).
FIGURE 2
Effect of Temperature and Nutritional Components on CS3 Expression
The expression of CS3 was analyzed at different temperatures. The highest level of expression of cstH was seen at 37°C as compared to growth at 30 and 42°C in CFA broth at early stationary phase (OD600 nm = 1.2) (Figure 3A), which is a common feature for virulence determinants in human enteric pathogens.
FIGURE 3
Because the expression of virulence factors is influenced by the carbon source, divalent cations and osmolarity (; ; ), we analyzed the effect of the addition of glucose, glycerol, EDTA, and sodium chloride to CFA broth on the expression of cstH at early stationary phase (OD600 nm = 1.2) at 37°C. The depletion of divalent cations by addition of EDTA affected ETEC growth and reduced cstH transcription and this defect was reversed by the addition of calcium and magnesium cations to the CFA broth (Figures 3B,C). Glucose and glycerol significantly repressed and activated the expression of cstH, respectively (Figure 3C). Lastly, high osmolarity (0.3M NaCl) also affected negatively the transcription of the cstH gene (Figure 3C). Our data show that environmental conditions such as high osmolarity, high glucose and the depletion of divalent cations repress CS3 gene transcription.
H-NS, CRP, and CpxRA Control the Expression of CS3
The expression of virulence genes in ETEC is regulated by complex networks involving several global transcriptional regulators such as H-NS, CpxRA, and CRP (; ; ). For instance, we recently reported that the expression of Longus type IV pilus in ETEC was regulated by such global regulators (). We sought to investigate if these global regulators were implicated in the regulatory network controlling CS3 gene expression. To determine the expression of cstH, E9034A isogenic hns, crp, and cpxRA mutants were analyzed by RT-qPCR in CFA broth at early stationary phase (OD600 nm = 1.2) at 37°C. Of note, growth of both hns and crp mutants was affected in CFA broth and the complemented mutants showed similar growth to the wild-type strain (Figure 4A). The transcription of cstH was drastically increased and diminished in the hns (180-fold) and crp (100-fold) mutants, respectively, as compared to the wild-type background (Figure 4B). Interestingly, in the absence of CpxRA the expression of cstH was up-regulated (fivefold) as compared to the wild-type strain. These effects were counteracted when the mutant strains were trans-complemented with hns, crp, and cpxRA genes carried on plasmids (Figure 4B). These data are compelling evidence that H-NS, CRP, and CpxRA regulate transcription of CS3 genes.
FIGURE 4
Effect of H-NS and CpxRA on the Osmo- and Thermo-Regulation of CS3
It was previously reported that expression of ETEC virulence factors such as the LT toxin and Longus pilus are under the influence of temperature and salt (; ). Since NaCl reduces CS3 gene expression (Figure 3C), we analyzed cstH expression in the wild-type, hns, and cpxRA backgrounds upon the addition of 0.3M NaCl to CFA broth at early stationary phase (OD600 nm = 1.2) at 37°C. We found that in the absence of H-NS or CpxRA in the respective mutants, cstH expression was not diminished in high osmolarity medium (Figure 5A), indicating that both H-NS and CpxRA are involved in the salt-mediated repression of CS3 transcription observed in the wild-type strain.
FIGURE 5
H-NS is a thermo-regulator of virulence factors in several pathogenic bacteria (; ; ; ; ; ). We analyzed the regulatory effect of H-NS and CpxRA on cstH expression at 30 and 37°C in CFA broth at early stationary phase (OD600 nm = 1.2) (Figure 5B). We found the same levels of cstH expression at both temperatures in the mutants and the wild-type strain, indicating that neither H-NS nor CpxRA act as thermo-regulators of cstH transcription. However, it is known that CS3 is favorably produced at 37°C both in vitro and in vivo suggesting the existence of other thermo-regulators that activate CS3 production in the small bowel.
CS3 Is Required for Biofilm Formation and Adherence to Epithelial Cells
We investigated and compared the ability of ETEC wild-type, ΔcstH mutant, and ΔcstH pT3-CstH to form biofilms. The ΔcstH mutant was significantly affected in biofilm formation as compared to the wild-type strain and the complemented ΔcstH mutant (Figure 6A). These data indicate that CS3 exerts a positive role in ETEC’s biofilm formation. Although CS3 was identified in the late 1970s, the molecular Koch’s postulates have not been fulfilled to confirm the role of CS3 in cell adherence. For example, the construction of a CS3 knock-out mutant unable to produce CS3 and to adhere to cultured epithelial cells has not been documented. Thus, we evaluated the role of CS3 in E9034’s adherence to HeLa and Caco-2 cells, testing the wild-type, its derivative isogenic cstH mutant, and complemented cstH (pT3-CstH) strains in CFA broth at early stationary phase (OD600 nm = 1.2) at 37°C. Adherence of the cstH mutant was 10- and 121-fold reduced as compared to the wild-type strain in HeLa and Caco-2 cells, respectively (Figure 6B). The levels of adherence of the cstH complemented mutant were restored to wild-type levels in both HeLa and Caco-2 cells. These data confirm that CS3 is needed for adherence of ETEC to epithelial cells, particularly colonic Caco-2 cells.
FIGURE 6
Discussion
Enterotoxigenic Escherichia coli strains produce a repertoire of canonical CFs that are believed to promote bacterial attachment to the enterocytes in the small bowel. Typically, most CFs are encoded on large virulence plasmids along with LT and/or ST toxin genes (; ; ; ; ; ). Like many other bacterial virulence factors the production of ETEC CFs is affected by host and environmental stimuli such as temperature, pH, and nutritional components present in specific anatomical sites of infection. It is well-known that most CFs, except for Longus, are produced upon growth of E9034A on CFA medium at 37°C and they are less expressed in the commonly used LB broth or temperatures below 37°C. We recently reported that the production of Longus in E9034A is enhanced by the presence of calcium and addition of glucose and sodium chloride to the growth medium (). In the present study we analyzed the effect of these environmental stimuli on the expression of CS3 genes. The experimental data showed that growth of E9034A at 37°C enhanced the expression of cstH, but diminished at 30 and 42°C. Divalent cations-regulation of virulence factors in Yersinia, Vibrio, and pathogenic E. coli has been reported (; ; ; ). In the case of E9034A, we found that the presence of divalent cations such as calcium and magnesium was necessary for optimal expression of CS3 genes. In terms of effect of the carbon source in transcription, glycerol and glucose activated and repressed cstH, respectively. Glycerol is an antagonist molecule of glucose that positively controls the synthesis of cAMP, which is required for the transcriptional activity of CRP regulatory protein (). Glucose is abundant in the duodenum and it is absorbed by the small intestine resulting in low concentrations of this sugar in the ileum, regulating the expression of the ST and LT enterotoxins. In contrast to glucose, glycerol is apparently accumulated toward the colon and its origin is attributed to in situ microbial synthesis, desquamation of epithelial cells, and low absorption of this molecule (; ; ; ). A model for the differential regulation of both enterotoxins was proposed in which LT is repressed while ST is enhanced in ileum, whereas the contrary occurs in the duodenum (). Judging from our data, CS3 would probably be expressed in the ileum along with ST since both virulence factors are repressed in the presence of glucose and therefore controlled by the CRP regulatory protein (Figure 7). Whereas the expression of Longus genes is increased in the presence of glucose and repressed with glycerol, the transcription control of cstH occurred in the opposite way.
FIGURE 7
The presence of sodium chloride repressed transcription of CS3 genes. This effect is contrary to the effect on the expression of Longus and LT genes (; ), Salt can control the conformation of the silencing global regulator H-NS (). H-NS represses transcription of LT, ST, and Longus genes (; ; ). In agreement, our data showed that H-NS also silenced cstH transcription. Fimbrial genes such as csgD, fimA, papB, daaA and fanA, are repressed in presence of salt and this effect is H-NS and CpxR-dependent (; ; ). In our study, H-NS and CpxRA regulators were required for salt-mediated CS3 repression, supporting the notion that both systems, control and integrate environmental cues such as osmolarity, in order to repress the expression of virulence genes.
Regarding CpxRA, this two-component system has been implicated in the regulation of virulence factors of some Gram-negative bacterial pathogens (; ; ; , , ; ). In this study, CpxRA was found to be a repressor of CS3 expression. CRP and CpxRA seem to act antagonistically on the expression of both CS3 and Longus genes (). While CRP and CpxRA activated and repressed cstH expression, respectively, these regulatory proteins showed an opposite effect on lng genes, suggesting that the expression of CS3 and Longus genes is mutually exclusive (Figure 7). The data generated in this study are the foundation to further characterize in detail the molecular mechanisms governed by the H-NS, CpxRA, and CRP regulatory proteins that control the expression of CS3. We are currently evaluating the direct or indirect effect of these regulatory proteins on CS3 gene transcription.
Our experimental data suggest a spatio-temporal expression of CS3 and other ETEC virulence factors such as Longus and both enterotoxins in the small intestine. When ETEC reaches the duodenum, Longus and LT would be expressed in this niche. In the ileum, ETEC would switch the expression of both CS3 and ST genes. In addition to the canonical ETEC virulence factors, other surface components such as the type 1 pilus, EatA, YghJ, EaeH, EtpA have been shown to be associated with intestinal colonization in mice (; ; ; , ). Further studies are needed to elucidate how the expression of ETEC canonical and non-canonical virulence factors is orchestrated and synchronized during human gut colonization.
Statements
Data availability statement
All datasets generated for this study are included in the manuscript and/or the supplementary files.
Author contributions
MD conceived and designed the experiments. MA, JA-G, DR-V, LP, CJ-G, MJ-Q, and MC performed the experiments. MD and MA analyzed the data. MA, MA-C, JT, JG, and MD wrote the manuscript.
Acknowledgments
We thank Hilda A. Valdez-Salazar and Ricardo Carreón-Talavera for technical assistance, Fernando Navarro-GarcÃa and Zhixiong Xie for providing the Caco-2 cells and pSUcrp plasmid, respectively.
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
References
1
AltmanE.SegalG. (2008). The response regulator CpxR directly regulates expression of several Legionella pneumophila icm/dot components as well as new translocated substrates.J. Bacteriol.1901985–1996. 10.1128/JB.01493-07
2
AresM. A.Fernandez-VazquezJ. L.Rosales-ReyesR.Jarillo-QuijadaM. D.Von BargenK.TorresJ.et al (2016). H-NS nucleoid protein controls virulence features of Klebsiella pneumoniae by regulating the expression of Type 3 Pili and the capsule polysaccharide.Front. Cell Infect Microbiol6:13. 10.3389/fcimb.2016.00013
3
BegumY. A.BabyN. I.FaruqueA. S.JahanN.CraviotoA.SvennerholmA. M.et al (2014). Shift in phenotypic characteristics of enterotoxigenic Escherichia coli (ETEC) isolated from diarrheal patients in Bangladesh.PLoS Negl. Trop. Dis.8:e3031. 10.1371/journal.pntd.0003031
4
BilecenK.YildizF. H. (2009). Identification of a calcium-controlled negative regulatory system affecting Vibrio cholerae biofilm formation.Environ. Microbiol.112015–2029. 10.1111/j.1462-2920.2009.01923.x
5
BoderoM. D.MunsonG. P. (2009). Cyclic AMP receptor protein-dependent repression of heat-labile enterotoxin.Infect. Immun.77791–798. 10.1128/IAI.00928-08
6
BoylanM.ColemanD. C.SmythC. J. (1987). Molecular cloning and characterization of the genetic determinant encoding CS3 fimbriae of enterotoxigenic Escherichia coli.Microb. Pathog.2195–209. 10.1016/0882-4010(87)90021-0
7
DatsenkoK. A.WannerB. L. (2000). One-step inactivation of chromosomal genes in Escherichia coli K-12 using PCR products.Proc. Natl. Acad. Sci. U.S.A.976640–6645. 10.1073/pnas.120163297
8
De La CruzM. A.MorganJ. K.AresM. A.Yanez-SantosJ. A.RiordanJ. T.GironJ. A. (2016). The two-component system CpxRA negatively regulates the locus of enterocyte effacement of enterohemorrhagic Escherichia coli involving sigma(32) and lon protease.Front. Cell Infect. Microbiol.6:11. 10.3389/fcimb.2016.00011
9
De La CruzM. A.Perez-MoralesD.PalaciosI. J.Fernandez-MoraM.CalvaE.BustamanteV. H. (2015). The two-component system CpxR/A represses the expression of Salmonella virulence genes by affecting the stability of the transcriptional regulator HilD.Front. Microbiol.6:807. 10.3389/fmicb.2015.00807
10
De La CruzM. A.Ruiz-TagleA.AresM. A.PachecoS.YanezJ. A.CedilloL.et al (2017). The expression of Longus type 4 pilus of enterotoxigenic Escherichia coli is regulated by LngR and LngS and by H-NS, CpxR and CRP global regulators.Environ. Microbiol.191761–1775. 10.1111/1462-2920.13644
11
De WeirdtR.PossemiersS.VermeulenG.Moerdijk-PoortvlietT. C.BoschkerH. T.VerstraeteW.et al (2010). Human faecal microbiota display variable patterns of glycerol metabolism.FEMS Microbiol. Ecol.74601–611. 10.1111/j.1574-6941.2010.00974.x
12
DengW.LiY.HardwidgeP. R.FreyE. A.PfuetznerR. A.LeeS.et al (2005). Regulation of type III secretion hierarchy of translocators and effectors in attaching and effacing bacterial pathogens.Infect. Immun.732135–2146. 10.1128/iai.73.4.2135-2146.2005
13
DormanC. J. (2007). H-NS, the genome sentinel.Nat. Rev. Microbiol.5157–161. 10.1038/nrmicro1598
14
DuongN.OsborneS.BustamanteV. H.TomljenovicA. M.PuenteJ. L.CoombesB. K. (2007). Thermosensing coordinates a cis-regulatory module for transcriptional activation of the intracellular virulence system in Salmonella enterica serovar Typhimurium.J. Biol. Chem.28234077–34084. 10.1074/jbc.m707352200
15
EvansD. G.EvansD. J.Jr.TjoaW. (1977). Hemagglutination of human group A erythrocytes by enterotoxigenic Escherichia coli isolated from adults with diarrhea: correlation with colonization factor.Infect. Immun.18330–337.
16
FalconiM.ColonnaB.ProssedaG.MicheliG.GualerziC. O. (1998). Thermoregulation of Shigella and Escherichia coli EIEC pathogenicity. A temperature-dependent structural transition of DNA modulates accessibility of virF promoter to transcriptional repressor H-NS.EMBO J.177033–7043. 10.1093/emboj/17.23.7033
17
FalkerS.SchmidtM. A.HeusippG. (2006). Altered Ca(2+) regulation of Yop secretion in Yersinia enterocolitica after DNA adenine methyltransferase overproduction is mediated by Clp-dependent degradation of LcrG.J. Bacteriol.1887072–7081. 10.1128/jb.00583-06
18
FicE.BonarekP.GoreckiA.Kedracka-KrokS.MikolajczakJ.PolitA.et al (2009). cAMP receptor protein from Escherichia coli as a model of signal transduction in proteins–a review.J. Mol. Microbiol. Biotechnol.171–11. 10.1159/000178014
19
FleckensteinJ. M.HardwidgeP. R.MunsonG. P.RaskoD. A.SommerfeltH.SteinslandH. (2010). Molecular mechanisms of enterotoxigenic Escherichia coli infection.Microbes Infect.1289–98. 10.1016/j.micinf.2009.10.002
20
FujimotoN.InoueK.HayashiY.YuasaH. (2006). Glycerol uptake in HCT-15 human colon cancer cell line by Na(+)-dependent carrier-mediated transport.Biol. Pharm. Bull.29150–154. 10.1248/bpb.29.150
21
GironJ. A.LevineM. M.KaperJ. B. (1994). Longus: a long pilus ultrastructure produced by human enterotoxigenic Escherichia coli.Mol. Microbiol.1271–82. 10.1111/j.1365-2958.1994.tb00996.x
22
GironJ. A.XuJ. G.GonzalezC. R.HoneD.KaperJ. B.LevineM. M. (1995). Simultaneous expression of CFA/I and CS3 colonization factor antigens of enterotoxigenic Escherichia coli by delta aroC, delta aroD Salmonella typhi vaccine strain CVD 908.Vaccine13939–946. 10.1016/0264-410x(95)00003-j
23
GonzalesL.SanchezS.ZambranaS.IniguezV.WiklundG.SvennerholmA. M.et al (2013). Molecular characterization of enterotoxigenic Escherichia coli isolates recovered from children with diarrhea during a 4-year period (2007 to 2010) in Bolivia.J. Clin. Microbiol.511219–1225. 10.1128/JCM.02971-12
24
GuoM.WangH.XieN.XieZ. (2015). Positive effect of carbon sources on natural transformation in Escherichia coli: role of low-level cyclic AMP (cAMP)-cAMP receptor protein in the derepression of rpoS.J. Bacteriol.1973317–3328. 10.1128/JB.00291-15
25
HallR. H.ManevalD. R.Jr.CollinsJ. H.TheibertJ. L.LevineM. M. (1989). Purification and analysis of colonization factor antigen I, coli surface antigen 1, and coli surface antigen 3 fimbriae from enterotoxigenic Escherichia coli.J. Bacteriol.1716372–6374. 10.1128/jb.171.11.6372-6374.1989
26
HaycocksJ. R.SharmaP.StringerA. M.WadeJ. T.GraingerD. C. (2015). The molecular basis for control of ETEC enterotoxin expression in response to environment and host.PLoS Pathog.11:e1004605. 10.1371/journal.ppat.1004605
27
JahnC. E.CharkowskiA. O.WillisD. K. (2008). Evaluation of isolation methods and RNA integrity for bacterial RNA quantitation.J. Microbiol. Methods75318–324. 10.1016/j.mimet.2008.07.004
28
JalajakumariM. B.ThomasC. J.HalterR.ManningP. A. (1989). Genes for biosynthesis and assembly of CS3 pili of CFA/II enterotoxigenic Escherichia coli: novel regulation of pilus production by bypassing an amber codon.Mol. Microbiol.31685–1695. 10.1111/j.1365-2958.1989.tb00154.x
29
JubelinG.VianneyA.BeloinC.GhigoJ. M.LazzaroniJ. C.LejeuneP.et al (2005). CpxR/OmpR interplay regulates curli gene expression in response to osmolarity in Escherichia coli.J. Bacteriol.1872038–2049. 10.1128/jb.187.6.2038-2049.2005
30
KansalR.RaskoD. A.SahlJ. W.MunsonG. P.RoyK.LuoQ.et al (2013). Transcriptional modulation of enterotoxigenic Escherichia coli virulence genes in response to epithelial cell interactions.Infect. Immun.81259–270. 10.1128/IAI.00919-12
31
KhalilI. A.TroegerC.BlackerB. F.RaoP. C.BrownA.AtherlyD. E.et al (2018). Morbidity and mortality due to Shigella and enterotoxigenic Escherichia coli diarrhoea: the global burden of disease study 1990-2016.Lancet Infect. Dis.181229–1240. 10.1016/S1473-3099(18)30475-4
32
KharatV. B.AhmedM.JiangZ. D.RiddleM. S.DupontH. L. (2017). Colonization factors in enterotoxigenic Escherichia coli strains in travelers to Mexico, Guatemala, and India compared with children in houston, Texas.Am. J. Trop. Med. Hyg.9683–87. 10.4269/ajtmh.16-0405
33
KnuttonS.LloydD. R.CandyD. C.McneishA. S. (1985). Adhesion of enterotoxigenic Escherichia coli to human small intestinal enterocytes.Infect. Immun.48824–831.
34
KolbA.BusbyS.BucH.GargesS.AdhyaS. (1993). Transcriptional regulation by cAMP and its receptor protein.Annu. Rev. Biochem.62749–795. 10.1146/annurev.biochem.62.1.749
35
LevineM. M. (1987). Escherichia coli that cause diarrhea: enterotoxigenic, enteropathogenic, enteroinvasive, enterohemorrhagic, and enteroadherent.J. Infect. Dis.155377–389. 10.1093/infdis/155.3.377
36
LevineM. M.RistainoP.MarleyG.SmythC.KnuttonS.BoedekerE.et al (1984). Coli surface antigens 1 and 3 of colonization factor antigen II-positive enterotoxigenic Escherichia coli: morphology, purification, and immune responses in humans.Infect. Immun.44409–420.
37
LivakK. J.SchmittgenT. D. (2001). Analysis of relative gene expression data using real-time quantitative PCR and the 2(-Delta Delta C(T)) Method.Methods25402–408. 10.1006/meth.2001.1262
38
LuoQ.KumarP.VickersT. J.SheikhA.LewisW. G.RaskoD. A.et al (2014). Enterotoxigenic Escherichia coli secretes a highly conserved mucin-degrading metalloprotease to effectively engage intestinal epithelial cells.Infect. Immun.82509–521. 10.1128/IAI.01106-13
39
MacritchieD. M.WardJ. D.NevesinjacA. Z.RaivioT. L. (2008). Activation of the Cpx envelope stress response down-regulates expression of several locus of enterocyte effacement-encoded genes in enteropathogenic Escherichia coli.Infect. Immun.761465–1475. 10.1128/IAI.01265-07
40
MadhavanT. P.SakellarisH. (2015). Colonization factors of enterotoxigenic Escherichia coli.Adv. Appl. Microbiol.90155–197. 10.1016/bs.aambs.2014.09.003
41
ManningP. A.TimmisK. N.StevensonG. (1985). Colonization factor antigen II (CFA/II) of enterotoxigenic Escherichia coli: molecular cloning of the CS3 determinant.Mol. Gen. Genet.200322–327. 10.1007/bf00425443
42
MatterL. B.AresM. A.Abundes-GallegosJ.CedilloM. L.YanezJ. A.Martinez-LagunaY.et al (2018). The CpxRA stress response system regulates virulence features of avian pathogenic Escherichia coli.Environ. Microbiol.203363–3377. 10.1111/1462-2920.14368
43
MayerM. P. (1995). A new set of useful cloning and expression vectors derived from pBlueScript.Gene16341–46. 10.1016/0378-1119(95)00389-n
44
MelliesJ. L.BarronA. M. (2006). Virulence gene regulation in Escherichia coli.EcoSal Plus2 1–36. 10.1128/ecosalplus.8.9.1
45
MirhoseiniA.AmaniJ.NazarianS. (2018). Review on pathogenicity mechanism of enterotoxigenic Escherichia coli and vaccines against it.Microb. Pathog.117162–169. 10.1016/j.micpath.2018.02.032
46
MunsonG. P. (2013). Virulence regulons of enterotoxigenic Escherichia coli.Immunol. Res.57229–236. 10.1007/s12026-013-8453-4
47
NadaR. A.ArmstrongA.ShaheenH. I.NakhlaI.SandersJ. W.RiddleM. S.et al (2013). Phenotypic and genotypic characterization of enterotoxigenic Escherichia coli isolated from U.S. Military personnel participating in Operation Bright Star, Egypt, from 2005 to 2009.Diagn. Microbiol. Infect. Dis.76272–277. 10.1016/j.diagmicrobio.2013.03.028
48
OhtaK. Y.InoueK.HayashiY.YuasaH. (2006). Carrier-mediated transport of glycerol in the perfused rat small intestine.Biol. Pharm. Bull.29785–789. 10.1248/bpb.29.785
49
OnoS.GoldbergM. D.OlssonT.EspositoD.HintonJ. C.LadburyJ. E. (2005). H-NS is a part of a thermally controlled mechanism for bacterial gene regulation.Biochem. J.391203–213. 10.1042/bj20050453
50
PatelS. K.DotsonJ.AllenK. P.FleckensteinJ. M. (2004). Identification and molecular characterization of EatA, an autotransporter protein of enterotoxigenic Escherichia coli.Infect. Immun.721786–1794. 10.1128/iai.72.3.1786-1794.2004
51
QadriF.DasS. K.FaruqueA. S.FuchsG. J.AlbertM. J.SackR. B.et al (2000). Prevalence of toxin types and colonization factors in enterotoxigenic Escherichia coli isolated during a 2-year period from diarrheal patients in Bangladesh.J. Clin. Microbiol.3827–31.
52
QadriF.SvennerholmA. M.FaruqueA. S.SackR. B. (2005). Enterotoxigenic Escherichia coli in developing countries: epidemiology, microbiology, clinical features, treatment, and prevention.Clin. Microbiol. Rev.18465–483. 10.1128/cmr.18.3.465-483.2005
53
RothenbacherF. P.ZhuJ. (2014). Efficient responses to host and bacterial signals during Vibrio cholerae colonization.Gut Microbes5120–128. 10.4161/gmic.26944
54
RoyK.HamiltonD.AllenK. P.RandolphM. P.FleckensteinJ. M. (2008). The EtpA exoprotein of enterotoxigenic Escherichia coli promotes intestinal colonization and is a protective antigen in an experimental model of murine infection.Infect. Immun.762106–2112. 10.1128/IAI.01304-07
55
SchwanW. R.LeeJ. L.LenardF. A.MatthewsB. T.BeckM. T. (2002). Osmolarity and pH growth conditions regulate fim gene transcription and type 1 pilus expression in uropathogenic Escherichia coli.Infect. Immun.701391–1402. 10.1128/iai.70.3.1391-1402.2002
56
SheikhA.LuoQ.RoyK.ShabaanS.KumarP.QadriF.et al (2014). Contribution of the highly conserved EaeH surface protein to enterotoxigenic Escherichia coli pathogenesis.Infect. Immun.823657–3666. 10.1128/IAI.01890-14
57
SheikhA.RashuR.BegumY. A.KuhlmanF. M.CiorbaM. A.HultgrenS. J.et al (2017). Highly conserved type 1 pili promote enterotoxigenic E. coli pathogen-host interactions.PLoS Negl. Trop. Dis.11:e0005586. 10.1371/journal.pntd.0005586
58
TorresO. R.GonzalezW.LemusO.PratdesabaR. A.MatuteJ. A.WiklundG.et al (2015). Toxins and virulence factors of enterotoxigenic Escherichia coli associated with strains isolated from indigenous children and international visitors to a rural community in Guatemala.Epidemiol. Infect.1431662–1671. 10.1017/S0950268814002295
59
UmanskiT.RosenshineI.FriedbergD. (2002). Thermoregulated expression of virulence genes in enteropathogenic Escherichia coli.Microbiology1482735–2744. 10.1099/00221287-148-9-2735
60
VidalR. M.MuhsenK.TennantS. M.SvennerholmA. M.SowS. O.SurD.et al (2019). Colonization factors among enterotoxigenic Escherichia coli isolates from children with moderate-to-severe diarrhea and from matched controls in the Global Enteric Multicenter Study (GEMS).PLoS Negl. Trop. Dis.13:e0007037. 10.1371/journal.pntd.0007037
61
VidalR. M.ValenzuelaP.BakerK.LagosR.EsparzaM.LivioS.et al (2009). Characterization of the most prevalent colonization factor antigens present in Chilean clinical enterotoxigenic Escherichia coli strains using a new multiplex polymerase chain reaction.Diagn. Microbiol. Infect. Dis.65217–223. 10.1016/j.diagmicrobio.2009.07.005
62
VogtS. L.NevesinjacA. Z.HumphriesR. M.DonnenbergM. S.ArmstrongG. D.RaivioT. L. (2010). The Cpx envelope stress response both facilitates and inhibits elaboration of the enteropathogenic Escherichia coli bundle-forming pilus.Mol. Microbiol.761095–1110. 10.1111/j.1365-2958.2010.07145.x
63
VogtS. L.RaivioT. L. (2012). Just scratching the surface: an expanding view of the Cpx envelope stress response.FEMS Microbiol. Lett.3262–11. 10.1111/j.1574-6968.2011.02406.x
64
White-ZieglerC. A.VillapakkamA.RonaszekiK.YoungS. (2000). H-NS controls pap and daa fimbrial transcription in Escherichia coli in response to multiple environmental cues.J. Bacteriol.1826391–6400. 10.1128/jb.182.22.6391-6400.2000
65
YakhchaliB.ManningP. A. (1997). Epitope analysis of the CS3 fimbrial subunit of human enterotoxigenic Escherichia coli and the construction of novel CS3::ST and CS3::LT-B immunogens.Behring Inst. Mitt.98124–134.
66
YangJ.TauschekM.StrugnellR.Robins-BrowneR. M. (2005). The H-NS protein represses transcription of the eltAB operon, which encodes heat-labile enterotoxin in enterotoxigenic Escherichia coli, by binding to regions downstream of the promoter.Microbiology1511199–1208. 10.1099/mic.0.27734-0
67
YuasaH.HamamotoK.DoguS. Y.MarutaniT.NakajimaA.KatoT.et al (2003). Saturable absorption of glycerol in the rat intestine.Biol. Pharm. Bull.261633–1636. 10.1248/bpb.26.1633
Summary
Keywords
CS3, H-NS, CRP, CpxRA, enterotoxigenic E. coli
Citation
Ares MA, Abundes-Gallegos J, RodrÃguez-Valverde D, Panunzi LG, Jiménez-Galicia C, Jarillo-Quijada MD, Cedillo ML, Alcántar-Curiel MD, Torres J, Girón JA and De la Cruz MA (2019) The Coli Surface Antigen CS3 of Enterotoxigenic Escherichia coli Is Differentially Regulated by H-NS, CRP, and CpxRA Global Regulators. Front. Microbiol. 10:1685. doi: 10.3389/fmicb.2019.01685
Received
22 March 2019
Accepted
09 July 2019
Published
25 July 2019
Volume
10 - 2019
Edited by
Alain Pierre Gobert, Vanderbilt University Medical Center, United States
Reviewed by
George P. Munson, University of Miami, United States; James Michael Fleckenstein, Washington University in St. Louis, United States; Takashi Hamabata, National Center for Global Health and Medicine, Japan
Updates
Copyright
© 2019 Ares, Abundes-Gallegos, RodrÃguez-Valverde, Panunzi, Jiménez-Galicia, Jarillo-Quijada, Cedillo, Alcántar-Curiel, Torres, Girón and De la Cruz.
This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) and the copyright owner(s) are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.
*Correspondence: Miguel A. De la Cruz, miguel_angel_81@live.com
This article was submitted to Infectious Diseases, a section of the journal Frontiers in Microbiology
Disclaimer
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article or claim that may be made by its manufacturer is not guaranteed or endorsed by the publisher.
