Functional verification and characterization of a type-III geranylgeranyl diphosphate synthase gene from Sporobolomyces pararoseus NGR

\r\nJianyu Yan&#x;Jianyu Yan1†Chunji Li,&#x;Chunji Li2,3†Ning Zhang*Ning Zhang1*Chunwang LiChunwang Li1Yunjiao WangYunjiao Wang1Bingxue Li*Bingxue Li4*
  • 1College of Bioscience and Biotechnology, Shenyang Agricultural University, Shenyang, China
  • 2Innovative Institute for Plant Health, Zhongkai University of Agriculture and Engineering, Guangzhou, China
  • 3College of Agriculture and Biology, Zhongkai University of Agriculture and Engineering, Guangzhou, China
  • 4College of Land and Environment, Shenyang Agricultural University, Shenyang, China

Carotenoids, a group of natural pigments, have strong antioxidant properties and act as precursors to vitamin A, which have garnered attention from industry and researchers. Sporobolomyces pararoseus represents a hyper-producer of carotenoids, mainly including β–carotene, torulene, and torularhodin. Geranylgeranyl diphosphate synthase (GGPPS) is regarded as a key enzyme in the carotenoid biosynthesis pathway. However, the precise nature of the gene encoding GGPPS in S. pararoseus has not been reported yet. Here, we cloned a cDNA copy of the GGPPS protein-encoding gene crtE from S. pararoseus NGR. The crtE full-length genomic DNA and cDNA are 1,722 and 1,134 bp, respectively, which consist of 9 exons and 8 introns. This gene encodes 377 amino acids protein with a predicted molecular mass of 42.59 kDa and a PI of 5.66. Identification of the crtE gene encoding a functional GGPPS was performed using heterologous complementation detection in Escherichia coli. In vitro enzymatic activity experiments showed that CrtE utilized farnesyl diphosphate (FPP) as an allylic substrate for the condensation reaction with isopentenyl diphosphate (IPP), generating more of the unique product GGPP compared to other allylic substrates. The predicted CrtE 3D-model was analyzed in comparison with yeast GGPPS. The condensation reaction occurs in the cavity of the subunit, and three bulky amino acids (Tyr110, Phe111, and His141) below the cavity prevent further extension of the product. Our findings provide a new source of genes for carotenoid genetic engineering.


Carotenoids are lipophilic isoprenoids found in plenty of bacteria, fungi, algae, and plants. They can be divided into C30, C40, and C50 carotenoids according to the amount of carbon (Yang et al., 2015). In recent years, most of carotenoids have been found to prevent cancer and reduce the risk of heart disease and cataracts and thus widely used in food, cosmetics, health care products, feed, and other industries (Ames et al., 1993; Mussagy et al., 2019). For instance, lycopene prevents lung cancer and cardiovascular diseases (Costa-Rodrigues et al., 2018; Mustra Rakic and Wang, 2020), and astaxanthin protect the brain from oxidative damage as well as prevent obesity (Cakir et al., 2020; Ojulari et al., 2020). Torulene and torularhodin, two monocyclic carotenoids, exhibits more strong antioxidant activities than that of β-carotene, thanks to the existence of thirteen double bonds and a longer polyene chain (Kot et al., 2016). However, due to the extremely unstable structure and few sources of synthesis, more potential functions of torulene and torularhodin have not been explored (Kot et al., 2018).

S. pararoseus is recognized as a kind of oleaginous red yeast, belongs to the order Sporidiobolales. This species produces a variety of carotenoids, mainly including β-carotene, torulene, and torularhodin (Li et al., 2016; Li et al., 2020). It can be used as a source of carotenoids for industrial production because of its low cost, short life cycle and lack of environmental restrictions compared to plants (Chaiyaso and Manowattana, 2018). In recent years, there has been increasing research on carotenoids using the strains of S. pararoseus, especially in torulene and torularhodin. The salt stress resulted in a significant increase in torulene and torularhodin production (Li et al., 2017). The proportion of torulene in total carotenoids increased when glucose was replaced by citrus juice as the carbon source (Wei et al., 2020). However, as the biosynthetic pathway of S. pararoseus carotenoids is progressively discovered, it will be possible to increase carotenoid production through genetic engineering in the future.

Previous studies reported that carotenoids are usually synthesized through the mevalonate (MEV) pathway in oleaginous red yeasts (Hara et al., 2014). Of which, IPP isomerase catalyzed the conversion from isopentenyl diphosphate (IPP) to dimethylallyl diphosphate (DMAPP); geranylgeranyl diphosphate synthase (GGPPS) catalyzed the condensation of DMAPP with three molecules of IPP to form GGPP (Shen et al., 2016; Nagel et al., 2019). Two GGPP units are condensed by CrtYB to form phytoene, which is then dehydrogenated by the desaturase CrtI in four- or five-steps to form lycopene or 3,4-dedihydrolycopene, respectively (Li et al., 2016). Terminals of lycopene are consecutively cyclized by CrtYB to form γ-carotene and β-carotene (Moise et al., 2014). 3,4-dihydrolycopene also could be transformed into torulene and torularhodin through a series of cyclization, hydroxylation, and oxidation reaction (Li et al., 2017). Particularly, the GGPP is a unique precursor for the synthesis of phytoene which is the first pigment in the carotenoids synthesis pathway, hence the flux of GGPP determines the productivity of total carotenoids (Breitenbach et al., 2011). Therefore, elucidating the function of GGPPS in S. pararoseus is essential for understanding the entire carotenoid biosynthesis pathway.

GGPPS is a member of the short chain prenyltransferase family. This family also includes other enzymes with the same product chain length extension mechanism such as geranyl diphosphate synthase (GPPS), farnesyl diphosphate synthase (FPPS), and GGPPS that produce C10, C15, and C20 isoprenoids, respectively. The GGPPS were classified into three types based on amino acid sequence characteristics: type I GGPPS in archaea; type II GGPPS in plants and bacteria; type III GGPPS in animals and fungi (Vandermoten et al., 2009). In general, type I and type II GGPPS mainly catalyze the condensation of DMAPP or GPP with IPP to produce GGPP, while the type III GGPPS mainly condense one molecule FPP and IPP to synthesize GGPP (Barbar et al., 2013). Moreover, the isoprenoid diphosphate synthase from Picea abies, was found to catalyze the condensation of DMAPP and IPP to produce both GPP and GGPP products (Schmidt et al., 2010). The type of GGPPS needs to be judged based on sequence homology and in vivo or in vitro assays.

In the present study, we cloned GGPPS-encoding gene crtE from S. pararoseus NGR and performed functional verification by the combination of in vivo and in vitro experiments. These findings would enhance our understanding of carotenoids synthetic pathway in S. pararoseus NGR and unveil new gene target to further improve its carotenoids production via genetic engineering.

Materials and methods

Strains and culture conditions

S. pararoseus NGR was isolated from strawberry fruit in the green house of Shenyang Agricultural University (41°49′N, 123°34′E). The strain number is recorded in the China General Microbiological Culture Collection Center as CGMCC 2.5280. S. pararoseus NGR was incubated in YPD medium (10 g/L yeast extract, 20 g/L peptone, 20 g/L dextrose, pH 6.0) in shaking flasks at 28°C. Escherichia coli DH5α and BL21 (DE3) strains for the cloning and expression of recombinant plasmids were purchased from TIANGEN Bio. Co., Ltd. (Beijing, China). E. coli DH5α and BL21 (DE3) strains were incubated at shaking flasks at 37°C in LB medium (10 g/L peptone, 5 g/L yeast extract, 10 g/L NaCl, pH 7.0).

Gene cloning of putative crtE from S. pararoseus NGR

Fresh cells of S. pararoseus NGR were collected by centrifugation after 3 days of culture in liquid YPD medium (17,000 × g, 1 min, 4°C), and genomic DNA was prepared by the Yeast Genomic DNA Extraction Kit (Solarbio, Beijing, China). Then, total RNA was extracted using the Spin Column Fungal Total RNA Purification Kit (Sangon, Shanghai, China). The total cDNA of S. pararoseus NGR was prepared by the PrimeScript II Ist Stand cDNA Synthesis Kit (Takara, Dalian, China), and was stored at −20°C for subsequent experiments.

According to the complete GGPPS gene sequence of S. pararoseus NGR resulting from transcriptome sequencing, a pair of specific primers (forward primer crtE-F and reverse crtE-R, listed in Table 1) were designed to clone the crtE with restriction enzymes sites for KpnI and BamHI. The 2 × High Fidelity PCR Master Mix (Sangon, Shanghai, China) was used to amplify crtE from genomic DNA or cDNA of S. pararoseus NGR, and the reaction procedure was as following: 1 cycle of 95°C for 3 min; 35 cycles of 95°C for 15 s, 55°C for 15 s, and 72°C for 1 min; at last, 72°C for 5 min. The amplified fragment was ligated into pMD18-T vector (Takara, Dalian, China) and transformed into E. coli DH5α, then extracted the plasmid pMD18T-crtE by TIANprep Mini Plasmid Kit (Tiangen Biotech Co., Ltd., Beijing, China) and sequenced before the further experiments.

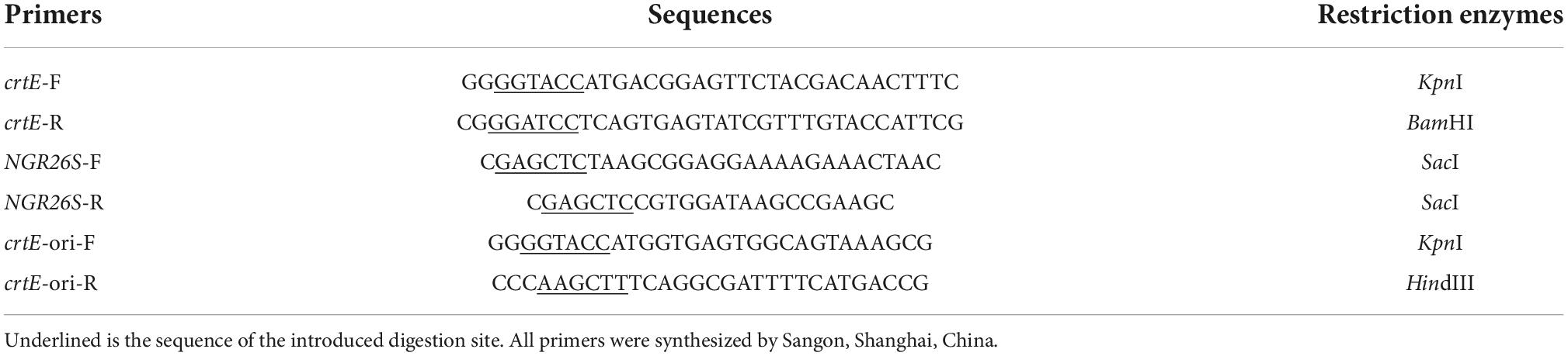

Table 1. Primer sequences used in this study.

Bioinformatics analysis

Sequence alignment of crtE cDNA with its genomic DNA was performed using DNAMAN. The basic physicochemical properties of CrtE were predicted in the ProtParam online tool1 with default parameters. Protein sequence alignment was performed according to the ClustalW algorithm with default parameters. Protein secondary structure prediction using the SPOPMA online tool. The three-dimensional structure of CrtE was predicted on the SWISS-MODEL online tool,2 and the resulting CrtE model was visualized using the software Pymol (The PyMOL Molecular Graphics System, Version 2.0 Schrödinger, LLC.).

Construction of plasmids for crtE gene expression in E. coli

Plasmids pMD18T-crtE and pET32a were digested with restriction enzymes KpnI and BamHI (Takara, Dalian, China). The target gene fragment and pET32a linear fragment were ligated with T4 DNA ligase (Takara, Dalian, China) to construct the recombinant plasmid pET32a-crtE.

pET32a-crtE was transformed into BL21 (DE3) competent cells and pET32a empty vector was used as control. The BL21 (DE3) strain containing plasmids pET32a-crtE and pET32a, respectively, were cultured for 12 h, seeded in LB medium (containing 50 μg/mL ampicillin) at 1:20 and incubated at 37°C with shaking flasks until OD600 = 0.6, then added with isopropyl β-D-thiogalactoside (IPTG) at final concentration of 1 mM for 4–5 h induction. The cells were centrifuged at 17,000 × g for 1 min, and the supernatant was discarded. The precipitates were washed twice with phosphate buffered saline (PBS) buffer. The precipitates were suspended with non-denatured cracking solution (50 mM NaH2PO4, 300 mM NaCl, 10 mM imidazole, pH8.0) and added PMSF (Yuanye Bio-Technology, Shanghai, China) with a final concentration of 1 mM. The suspending cells were broken on the ultrasonic cell crusher to release internal solutes then centrifuged at 21,000 × g for 30 min. After centrifugation, the supernatant and precipitation were used as samples for Sodium Dodecyl Sulfate-PolyAcrylamide Gel Electrophoresis (SDS-PAGE) to analyze the expression of CrtE and total protein.

Enzymatic activity detection

To obtain purified CrtE proteins, the supernatant after cell crushing was subjected to HisTrap HP column (Cytiva, Marlborough, USA), and washed with five column volumes of wash solution (50 mM NaH2PO4, 300 mM NaCl, 20 mM imidazole, pH 8.0), and eluted with five column volumes of elution solution (50 mM NaH2PO4, 300 mM NaCl, 500 mM imidazole, pH 8.0). The resulting purified CrtE was concentrated by Amicon Ultra-0.5 Centrifugal Filter (10 kDa) (Millipore, Billerica, MA, USA) and exchanged with 100 mM HEPES buffer (containing 5 mM MgCl2, pH7.5). Protein concentrations were determined by the Bradford Protein Assay Kit (Solarbio, Beijing, China).

Addition of 10 ng CrtE protein, 50 μM allylic substrate (DMAPP, GPP, or FPP) and 50 μM IPP to the enzymatic activity reaction system and made up to 200 μL with 100 mM HEPES buffer. DMAPP, GPP, FPP, and IPP were purchased from Sigma-Aldrich (Sigma-Aldrich, St Louis, USA). The reaction was incubated at 28°C for 2 h. Then added 200 μL Tris-HCl (pH 9.5) buffer containing 2 U SAP (Shrimp Alkaline Phosphatase) (Takara, Dalian, China) and 2 U TIPP (Thermostable Inorganic Pyrophosphatase) (NEB, USA), and reacted for 12 h at 30°C for dephosphorylation of the product. The reactions were stopped on ice, and added 400 μL hexane for extraction, repeated twice. Then the hexane layer was collected and evaporated to 100 μL under a N2 stream, stored at −80°C for thin layer chromatography (TLC) analysis.

The above samples collected in hexane were analyzed by TLC in TLC Silica gel 60 F254 (Merck, Germany), and GOH, FOH, and GGOH mixtures were used as standards, developed with toluene/acetonitrile/ethylacetate/acetic acid (35:5:15:0.15, v/v/v/v). The standards GOH, FOH, and GGOH were purchased from Sigma-Aldrich (Sigma-Aldrich, St Louis, USA). Color development was performed with iodine vapor and the product distribution was observed by TLC scanner KH-3100 (KEZHE, Shanghai, China).

Functional analysis of putative crtE gene

The following protocol was used for in vivo functional analysis of the putative crtE gene. Plasmid pAC-LYC carries three carotenogenic genes crtE, crtB, and crtI from Erwinia herbicola and can synthesize lycopene in E. coli. As shown in Figure 1, a non-functional S. pararoseus strain NGR large subunit ribosomal RNA sequence (26S) (GenBank accession number ON197886) was inserted into the SacI site of pAC-LYC to construct plasmid pAC-LYC (ΔE). Since E. coli cannot synthesize GGPP by itself (Umeno et al., 2005), the plasmid pAC-LYC (ΔE) cannot synthesize lycopene in E. coli and therefore behaves as white. The plasmids mentioned above are shown in Table 2. Plasmid pET32a-crtE was transformed into the E. coli BL21 (DE3) carrying the plasmid pAC-LYC (ΔE), pET32a empty vector co-expressed with pAC-LYC (ΔE) in BL21 (DE3) as a control strain. Recombinant strains were incubated in LB medium (containing 50 μg/mL ampicillin and 25 μg/mL chloramphenicol) at 37°C until OD600 = 0.6. IPTG with a final concentration of 1 mM was added for induction and cultured in dark for 48 h at 37°C. The cells were collected by centrifugation (11,500 × g, 10 min) to observe the color of recombinant E. coli as a preliminary identification. Lastly, qualitative and quantitative analysis of carotenoids were conducted using high performance liquid chromatography (HPLC) method.

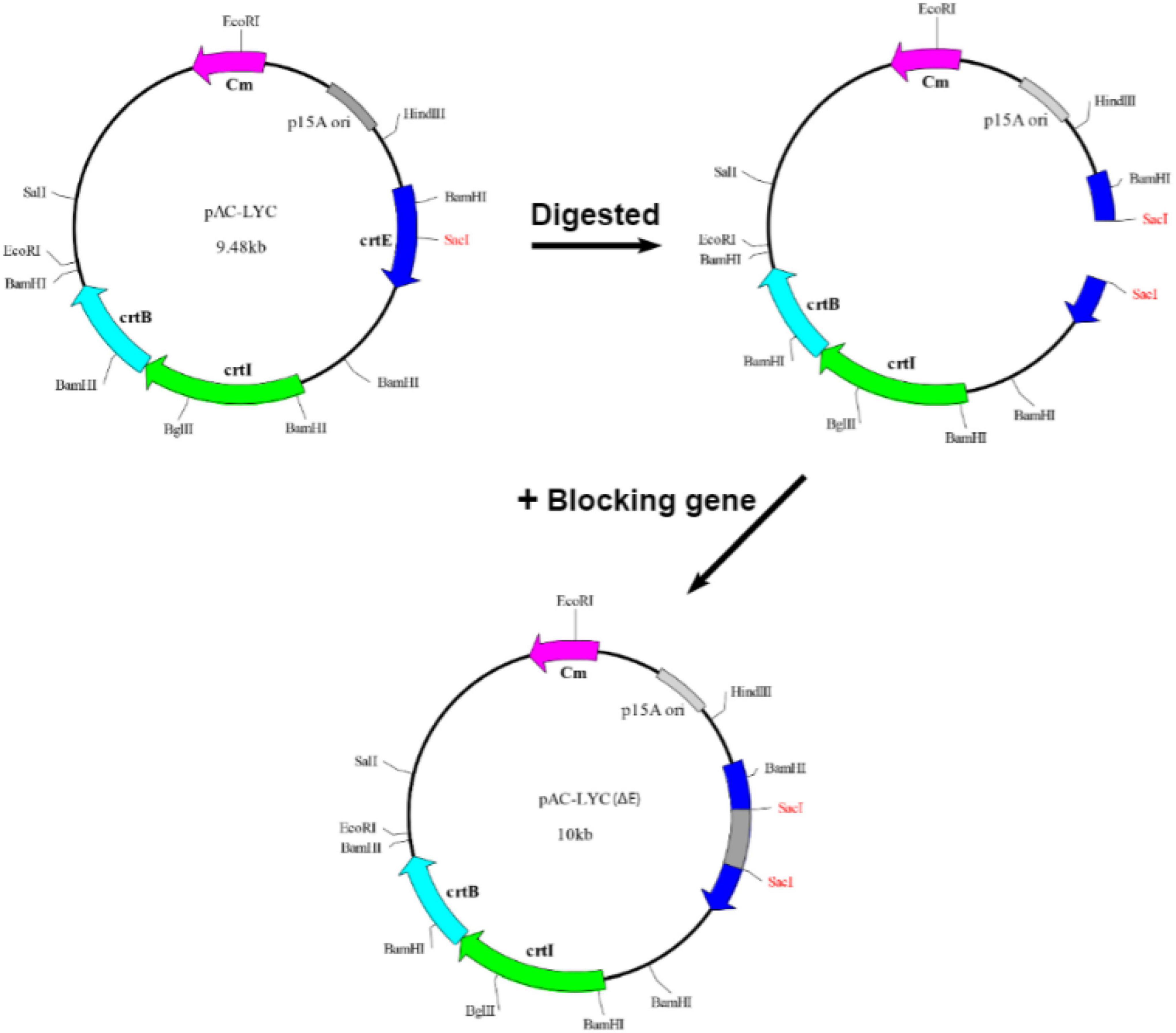

Figure 1. Construction of pAC-LYC (ΔE). A sequence not coding a functional protein was inserted into the pAC-LYC plasmid at the SacI position of the crtE gene. The crtE gene was rendered incapable of expressing functional proteins, but did not affect the expression of the crtB or crtI genes.

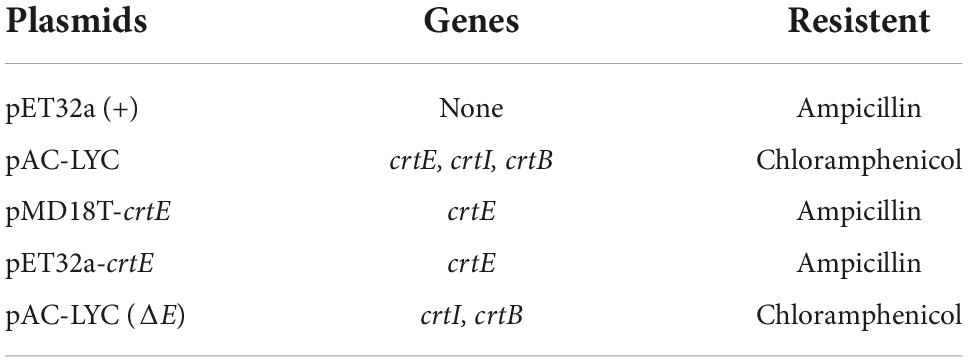

Table 2. Plasmids used in this study and their main characteristics.

Carotenoid extraction and detection

Added 10 mL of dimethyl sulfoxide to the E. coli cells collected from 1 L of culture medium, mixed thoroughly, and treated in a water bath at 65°C for 30 min, shaking several times during the period. Then added 20 mL acetone and stranded 20 min, the pigment supernatant was collected by centrifugation (16,000 × g, 1 min). Sucked the supernatant and mixed it with 15 mL hexane, let it stood for a moment, and took the hexane layer containing pigment. The hexane layer was concentrated under nitrogen before HPLC detection. Carotenoids were detected using the Agilent 1290 Infinity II LC system (Agilent Technologies, Palo Alto, CA, USA) equipped with a reverse phase C18 column (5 μm, 150 × 4.6 mm) (Thermo Fisher Scientific, Waltham, MA, USA) with an isocratic solvent system consisting of acetonitrile/methanol/isopropanol (85:10:5, v/v/v) at a flow rate of 1 mL/min, an injection volume of 20 μL, a column temperature of 32°C and a wavelength of 450 nm. Lycopene standard was purchased from Meilun Biotech Co., Ltd. (Dalian, China).


Putative geranylgeranyl diphosphate synthase gene (crtE) cloning and sequence analysis

In order to clone the putative geranylgeranyl diphosphate synthase gene (crtE) from S. pararoseus NGR, specific primers, crtE-F and crtE-R, were designed based on the transcriptome data. We obtained a full-length cDNA and genomic DNA clone of the crtE gene, 1,134 and 1,722 bp, respectively. Comparison of the two sequences showed that the crtE genomic DNA contains eight introns and all splicing sites following the GT-AG rule (Figure 2A). The corresponding full length cDNA clone contains a complete open reading frame (ORF), encodes a polypeptide with 377 amino acids that was predicted in the ProtParam Tool to have a protein molecular weight is 42.59 kDa and the isoelectric point is 5.66. The cDNA sequences and deduced amino acids of crtE reported in this study are available in the GenBank databases under the accession number: KY652916.1.

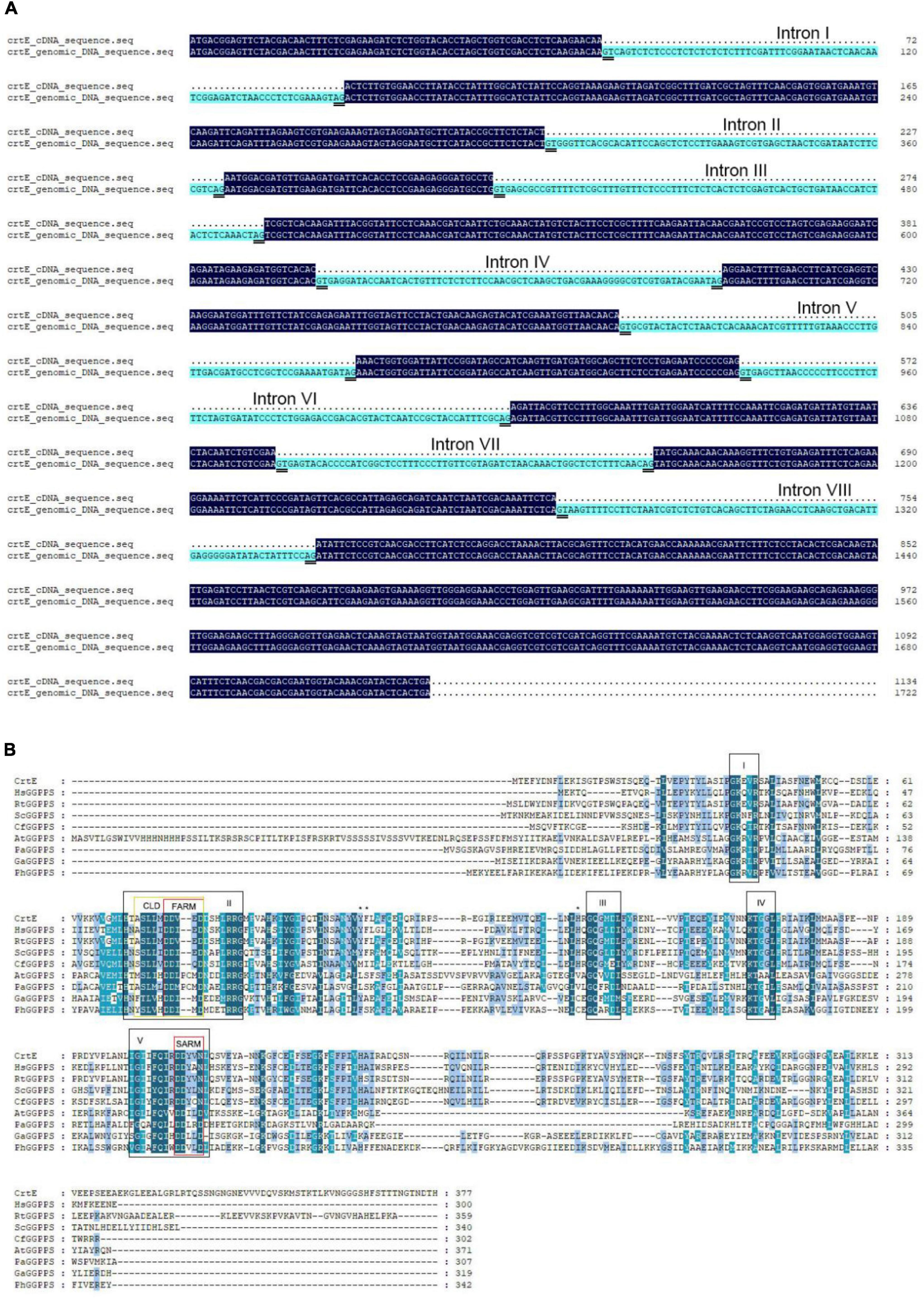

Figure 2. Sequences alignment. (A) Alignment of the crtE cDNA sequence with genomic DNA sequence of S. pararoseus NGR. (B) Alignment were made between geranylgeranyl diphosphate synthetase amino acid sequences in different species. Abbreviations and accession numbers: CrtE, Sporobolomyces pararoseus GGPPS, AVN68390.1; HsGGPPS, Human GGPPS, BAA75909.1; RtGGPPS, Rhodotorula toruloides GGPPS, BBE10611.1; ScGGPPS, Saccharomyces cerevisiae GGPPS, 2E8T_A; CfGGPPS, Choristoneura fumiferana GGPPS, AGW99945.1; AtGGPPS, Arabidopsis thaliana GGPPS, AAA32797.1; PaGGPPS, Pantoea agglomerans pyrophosphate synthase, AAA64977.1; GaGGPPS, Geoglobus acetivorans GGPPS, WP_048092150.1; PhGGPPS, Pyrococcus horikoshii GGPPS, WP_010885159.1. Conserved sequence motifs found in GGPPS are labeled as I–V and highlighted with black boxes. Domains II and V contain first aspartic acid-rich motif (FARM) and second aspartic acid-rich motif (SARM), respectively, both highlighted by red boxes. The region which contains the FARM and the five amino acids upstream is the chain length determination region (CLD), highlighted by a yellow box. The three bulky amino acids Tyr110, Phe111, and His141) mentioned in the main text are marked with an asterisk (*).

Bioinformatics analysis of CrtE protein

To further explore the molecular features of the crtE gene expression product, MEGA7 software was utilized to compare the CrtE protein with the GGPPS of other species. The comparison of these amino acid sequences was shown in Figure 2B, with five highly conserved domains (from I to V), a result similar to that previously reported (Chen et al., 1994). Two of these aspartic acid-rich motifs are located in domains II and V, respectively, where near the N-terminal of the amino acid sequence is known as FARM (first aspartic acid-rich motif) and near the C-terminal is known as SARM (second aspartic acid-rich motif) (Zhang et al., 2021). In the previous crystal structures of prenyltransferase showed that the allylic substrate is bound in the middle of FARM and SARM via magnesium ions (Aaron and Christianson, 2010). In addition, the region which contains FARM and its the upstream five amino acids was defined as CLD (chain length determination region). This region can broadly distinguish the types of prenyltransferase. The CLD region of CrtE is identical to that of Rhodotorula toruloides GGPPS and differs from the human GGPPS CLD region by only the first amino acid upstream of FARM. The FARM region of type I GGPPS is DDXXD and its upstream fifth position is an aromatic amino acid with a large side chain and its upstream fourth position is a non-aromatic amino acid; the FARM region of type II GGPPS is DDXXXXD and its upstream fifth and fourth positions are non-aromatic amino acids; the FARM region of type III GGPPS is DDXXXXD and its upstream fifth and fourth positions are non-aromatic amino acids. Therefore CrtE is consistent with the CLD characteristics of type III GGPPS.

Used the SPOPMA online tool for the CrtE protein secondary structure prediction, as shown in Figure 3A, 55.97% of the α-helices, 10.34% of the extended chains, 5.84% of the β-turns, and 27.85% of the random coils. The main secondary structure of the CrtE protein is the α-helix, with the adjacent α-helices linked by other states.


Figure 3. Predicting secondary structure and 3D-model of CrtE. (A) Prediction of secondary structure of CrtE. (B) 3D-model of the CrtE. The 3D-model prediction of CrtE was performed with the online software SWISS-MODEL. The resulting CrtE 3D-model was visualized in Pymol (The PyMOL Molecular Graphics System, Version 2.0 Schrödinger, LLC.), compared with the Saccharomyces cerevisiae GGPPS (PDB ID code 2E8T) model, and ligands FPP (PDB ID code 2E90) and IPP (PDB ID code 2E8U) were added.

Then, we used the online software SWISS-MODEL to predict the 3D-model of CrtE protein, and the predicted CrtE model has 46.9% sequence identity with the template protein (PDB ID code 6C56) with high reliability. To further explore the enzymatic activity characteristics of CrtE, we compared the CrtE model with the Saccharomyces cerevisiae GGPPS model (PDB ID code 2E8T) in the protein visualization software Pymol and embedded the ligands FPP (PDB ID code 2E90), IPP (PDB ID code 2E8U), and Mg2+ in CrtE. As shown in Figure 3B, CrtE is a dimeric structure where each subunit is composed of multiple α-helices as well as other secondary structures that link the α-helices in tandem. Eight of these α-helices are spatially arranged vertically, crossed below, and capped above by three short α-helices to form an activity cavity in the core. In addition, a terminal α-helix straddles between the two subunits of dimer and serves to maintain dimerization. We enlarged the activity cavity and the pyrophosphate group of the substrate FPP head was immobilized on the space between FARM and SARM by two Mg2+, while IPP was immobilized on the other position.

Analysis of in vitro enzymatic activity of CrtE

In order to express CrtE, plasmid pET32a and pET32a-crtE was transformed into E. coli BL21 (DE3) and expression was induced with IPTG. Following collection of cells for ultrasonic fragmentation, soluble proteins and insoluble precipitates were separated by centrifugation and subjected to SDS-PAGE assay. The total protein and CrtE were visualized by Coomassie Brilliant Blue R250 stain. It could be appeared through (Figure 4A) that the recombinant protein was expressed in the supernatant and inclusion bodies, and more in the supernatant, with a band of about 60 kDa. The molecular weight of the recombinant protein including one Trx⋅tag, one His⋅tag, one S⋅tag, and CrtE was predicted to be 59.06 kDa in ProtParam Tool, consistent with the results obtained by SDS-PAGE.

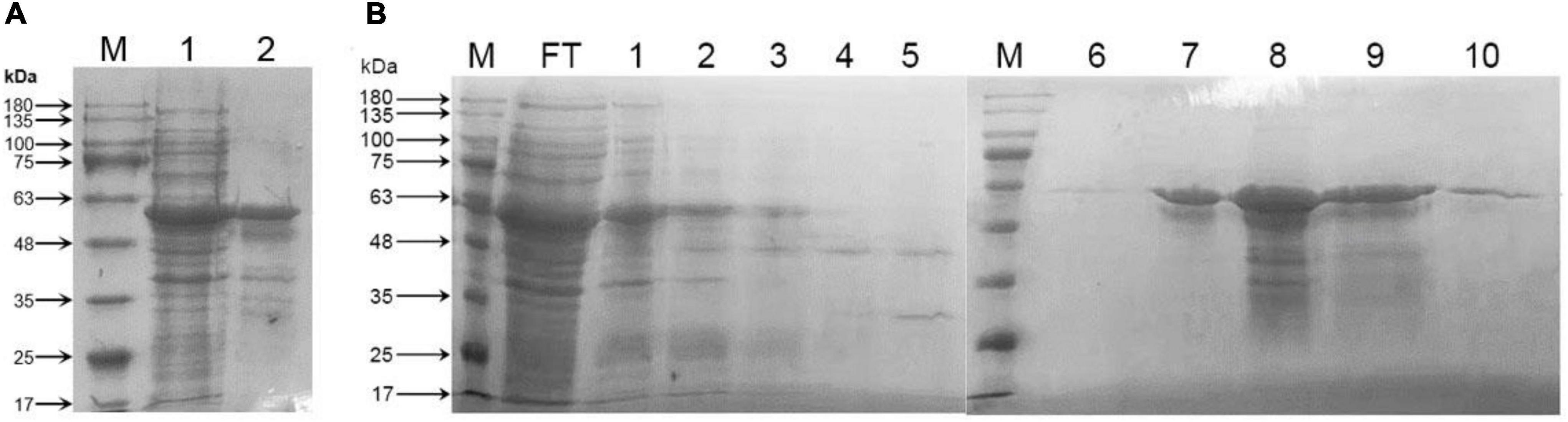

Figure 4. Protein SDS-PAGE analysis. (A) SDS-PAGE analysis of total protein in E. coli carrying recombinant plasmid pET32a-crtE. M: protein marker; 1: soluble proteins in the supernatant; 2: inclusion body proteins in precipitation; (B) purification of CrtE from total soluble protein by HisTrap HP column. M: protein marker; FT: flow through; 1–5: wash 1–5; 6–10: elution 1–5. The number on the left-hand side is ColorMixed Protein Marker (Solarbio, Beijing, China). The total protein and CrtE were visualized by Coomassie Brilliant Blue R250 stain.

Recombinant protein pET32a-CrtE carries a His⋅tag and was purified using HisTrap HP column. As shown in Figure 4B the ninth lane corresponding to elution 4 was used to analyze the CrtE enzymatic activity. The recombinant pET32a-CrtE was used to study GGPPS enzymatic properties without cleavage of the His⋅tag, because of the latter has a negligible effect on enzymatic activity (Barbar et al., 2013).

The enzymatic activation reaction of CrtE protein occurred in HEPES buffer. The synthesis of the products was observed using three different allylic substrates and IPP as substrates for the reaction. As shown in Figure 5, both three allylic substrates can be used as substrates to synthesize the unique product GGPP. Among them, DMAPP produced the least GGPP as a substrate, which showing a very small spot, utilization of GPP was the second most abundant, and largest number of GGPP was produced using FPP. Furthermore, we can see that a portion of the substrate was remained in the system at the end of the reaction. Because we wanted to see if there was product generation other than GGPP by adding an excess of substrate to the reaction system, the results indicated that a specific product, GGPP, was produced regardless of which allylic substrate was utilized.


Figure 5. TLC analysis of in vitro enzymatic activity reaction products of CrtE. S: GOH, FOH, and GGOH standard mix; 1, 3, and 5: enzymatic reaction system without CrtE protein using DMAPP, GPP, and FPP as substrates, respectively; 2, 4, and 6: enzymatic reaction system containing CrtE protein with DMAPP, GPP, and FPP as substrates, respectively.

Heterogeneous complementary identification

We successfully constructed plasmid pAC-LYC (ΔE) for the identification of the putative GGPPS gene of S. pararoseus (Figure 1). In order to test the functional activity of plasmid pAC-LYC (ΔE), we cloned the crtE gene (GenBank accession number M87280) from Erwinia herbicola and ligated it to the expression vector pET32a, which was named pET32a-crtE-ori. The colonies of E. coli BL21 (DE3) carrying plasmid pAC-LYC (ΔE) showed white. When transformed with plasmid pET32a-crtE-ori, the colonies changed to red, while the colonies remained white after transforming the empty vector pET32a (as shown in Figure 6). And HPLC analysis showed that plasmid pAC-LYC (ΔE) and pET32a-crtE-ori co-expressing strains accumulated lycopene (as shown in Figure 6). To sum up, these results suggest that plasmid pAC-LYC (ΔE) can exert its functional activity in E. coli BL21 (DE3).


Figure 6. HPLC analysis of carotenoid production of E. coli carrying different plasmids. Pigment detection was performed by monitoring absorption at 450 nm.

The above complementary experiments are used to identified the functional of the crtE gene of S. pararoseus. The color of strains changed from white to red after transformation of plasmid pET32a-crtE into E. coli BL21 (DE3) carrying plasmid pAC-LYC (ΔE). HPLC analysis showed that the accumulating lycopene of the recombinant strain carrying pAC-LYC (ΔE) transformed with pET32a-crtE plasmid (as shown in Figure 6). The above results indicate that the crtE gene encodes a GGPPS functional protein in E. coli and its metabolites synthesize lycopene under the action of phytoene synthase (CrtB) and phytoene desaturase (CrtI). Furthermore, we found that E. coli harboring the plasmid pAC-LYC (ΔE) and S. pararoseus crtE produces fewer pigments than that of harboring pAC-LYC (ΔE) and E. herbicola crtE. A similar phenomenon has been observed in the process of functional characterization of the gene encoding GGPPS from Dunaliella bardawil (Liang et al., 2015). The expression of DbGGPS in E. coli led to less accumulation of the lycopene than that of the gene crtE from Erwinia uredovora. This could be due to the fact that CrtE of E. herbicola has a higher expression level than CrtE of S. pararoseus in E. coli or has a stronger enzymatic activity. In addition, certain characteristics of the protein itself or the culture conditions of E. coli may be the decisive factors of enzymatic activity.


Sporobolomyces pararoseus, Rhodosporidium toruloides, Rhodotorula glutinis, and Xanthophyllomyces dendrorhous, among others, are red yeasts that are of great interest because of their high production of carotenoids and lipids, short life cycle, and ease of cultivation (Chaiyaso and Manowattana, 2018). In previous studies, the phytoene desaturase gene crtI (Guo et al., 2015) and the bifunctional lycopene cyclase/phytoene synthase gene crtYB (Guo et al., 2014) in the carotenogenic pathway of red yeast have been successfully cloned and characterized, whereas studies encoding the GGPPS gene crtE are rarely reported. In this study, we cloned the crtE gene of S. pararoseus NGR isolated from strawberry fruits based on the results of transcriptome sequencing, and investigated the mechanism of enzymatic activity of its expression product in depth.

Based on the characteristics of CLD, CrtE was classified as type III GGPPS. The fourth and fifth positions upstream of the FARM of CrtE are small residue amino acids (Ser74 and Ala73) that could not form a spatial block at these positions for product chain length extension as in the case of type I GGPPS and FPPS (Wang and Ohnuma, 1999). In a study of the mechanism of product chain length extension of yeast GGPPS, it was shown that Tyr107, Phe108, and His139 are key amino acids that prevent the continued extension of type III GGPPS, and mutation of these sites with Ala resulted in product chain length extension up to C70 (Chang et al., 2006). These three positions correspond to Tyr110, Phe111, and His141 in CrtE. In Figure 3B, it could be seen that Tyr110 and His141 are spatially parallel to the fifth amino acid upstream of the FARM region, and Phe111 is below them, therefore these positions may be the key sites that limit the continued extension of GGPP in CrtE. In addition, the yeast Ser71 (the fourth amino acid upstream of FARM) was mutated to Tyr and the product was completely changed to FPP (Chang et al., 2006). Similar to the CLD feature of TgFPPS, its fourth position upstream of FARM is Phe and fifth position is Cys, thus exhibiting FPPS/GGPPS bifunctional enzymatic activity (Li et al., 2012). Mutation of the upstream fourth position of type III GGPPS to a medium chain length amino acid or mutation of the upstream fifth amino acid to an aromatic amino acid could convert it to FPP/GGPP bifunctional activity, a conjecture to be further tested.

The results of in vitro enzymatic activity experiments showed that CrtE synthesized the sole product GGPP regardless of the allylic substrate utilized. This is consistent with the above conjecture that it is possible that Tyr110, Phe111, and His141 by CrtE act as spatial blocks to keep GGPP from continuing to extend. In addition, more GGPP was produced using FPP in the three allylic substrates, this phenomenon is consistent with the results in GGPPSs of human (Kavanagh et al., 2006) and Choristoneura fumiferana (Barbar et al., 2013) and is in line with typical type III GGPPS. Therefore, there are enzymes in S. pararoseus that are specifically responsible for the production of FPP, providing substrates for metabolites such as GGPP and isoprenylated proteins.

E. coli cannot synthesize GGPP by itself, but can synthesize and accumulate FPP (Umeno et al., 2005), so heterologous complementation experiments can be performed in E. coli to verify the function of CrtE. The carotenoid synthesis genes crtE, crtI, and crtB from E. herbicola were expressed in E. coli in the vector pAC-LYC to synthesize lycopene, which gives the colony its red color (Cunningham et al., 1994). The system was used in combination with HPLC for carotenoid detection and observation of colony to perform functional characterization of the heterologous phytoene desaturase gene, the bifunctional lycopene cyclase/phytoene synthase gene and the GGPPS gene. When the crtE gene of S. pararoseus NGR was co-expressed with pAC-LYC (ΔE) in E. coli, the colony became red due to the synthesis and accumulation of lycopene, indicating that the crtE gene encodes the synthesis of GGPPS functional protein in vivo. The low expression of the S. pararoseus crtE gene in E. coli may be improved by optimizing the codon. The yield of metabolites is generally enhanced by overexpression of homologous genes in some engineered strains, thus allowing the elimination of some sequence optimization steps, such as the promotion of biomass accumulation and carotenoid production after overexpression of carotenoid synthesis-related genes in X. dendrorhous and Corynebacterium glutamicum (Heider et al., 2014; Chi et al., 2015).

In summary, we have identified the crtE gene encoding functional GGPPS and investigated the enzymatic activity mechanism of CrtE protein in depth, which provides a molecular theoretical basis for the subsequent construction of carotenoid-producing S. pararoseus using genetic engineering biotechnology, and is conducive to providing better strains for industry with high carotenoid production.


The putative gene crtE encoding GGPPS in S. pararoseus was functionally characterized by heterologous complementation experiments, and the gene expression product CrtE was purified and characterized for enzymatic activity. CrtE was classified as type III GGPPS and catalyzed the condensation reaction of FPP with IPP to produce the sole product GGPP. The predicted three-dimensional structure of CrtE was analyzed to correlate its amino acid sequence with the enzymatic activity characteristics. This will facilitate the understanding of GGPPS in S. pararoseus and provide a theoretical basis for the construction of engineered strains used in industrial production.
