Transcriptomic Responses of Mycoplasma bovis Upon Treatments of trans-Cinnamaldehyde, Carvacrol, and Eugenol

  • 1Department of Animal Science, University of Connecticut, Storrs, CT, United States
  • 2National Center for Bioinformatics, King Abdulaziz City for Science and Technology, Riyadh, Saudi Arabia
  • 3Department of Pathobiology and Veterinary Science, University of Connecticut, Storrs, CT, United States
  • 4Department of Computer Science and Engineering, University of Connecticut, Storrs, CT, United States

Mycoplasma bovis (M. bovis) is an insidious, wall-less primary bacterial pathogen that causes bovine pneumonia, mid-ear infection, mastitis, and arthritis. The economic losses caused by M. bovis due to culling, diminished milk production, and feed conversion are underestimated because of poor diagnosis/recognition. Treatment with common antibiotics targeting the cell wall is ineffective. Plant-derived antimicrobials (PDAs) such as food-grade trans-cinnamaldehyde (TC), eugenol (EU), and carvacrol (CAR) are inexpensive and generally regarded as safe for humans and animals yet possess strong anti-bacterial properties. In preliminary studies, we found that all three PDAs inhibited the growth of M. bovis in vitro. Through RNA sequencing, we report here that CAR affected the expression of 153 genes which included the downregulation of energy generation-related proteins, pentose phosphate pathway, and upregulation of ribosomes and translation-related proteins. Few differentially expressed genes were found when M. bovis was treated with TC, EU, or when the three PDAs were double or triple combined. Our results suggest that, as opposed to the effect of CAR, the growth-inhibitory effects of TC and EU at levels tested may be exerted through mechanisms other than gene expression regulations.


Mycoplasmas are the smallest free-living bacteria and lack a cell wall (Razin, 1996). Mycoplasma bovis (M. bovis) is the most pathogenic mycoplasma in cattle (Caswell et al., 2010). It is well adapted to live on mucosal surfaces such as the respiratory tract and mammary glands (Peek et al., 2018). M. bovis can cause pneumonia, mastitis, mid-ear infection, arthritis, and other diseases. Cattle are most vulnerable during stressful conditions such as lactation and transport (Jasper et al., 1974; Arcangioli et al., 2008). The estimated losses caused by M. bovis from involuntary culling, reduced feed conversion and decreased production, medical treatments, extra labor, etc. are more than $2 billion/year worldwide (Maunsell et al., 2011). Outbreaks of M. bovis diseases have been reported in virtually every country, the most recent being New Zealand (July 21, 2017), a country with no prior records of M. bovis diseases according to their Ministry of Primary Industries (Boyce et al., 2021).

M. bovis is resistant to commonly used antibiotics because it lacks a cell wall, does not synthesize nucleotides or amino acids (Wormser and Hardy, 2005), and has an unusual form of RNA polymerase (Razin et al., 1998). Although M. bovis is susceptible to a group of uncommon and expensive antibiotics such as enrofloxacin (Rosenbusch et al., 2005), resistance is increasingly observed (Lysnyansky and Ayling, 2016). For example, Cai et al. (2019) found that the minimum inhibitory concentrations (MIC50) of chlortetracycline, oxytetracycline, tilmicosin, and tylosin were much higher in 2009 than the values found in 1990 demonstrating decreased susceptibility of M. bovis to antibiotics over time. Even resistance to enrofloxacin was also reported (Sulyok et al., 2017).

While several vaccines have been developed, most showed inconsistent effectiveness (Nicholas et al., 2002; Perez-Casal et al., 2017), which is attributed to the fast recombination of surface lipoproteins (Caswell and Archambault, 2007). The first commercial vaccines analyzed were Mycomune® R (BIOMUNE Co., Lenexa, KS, United States) and Pulmo-Guard MpB (American Animal Health, Inc.). Both were shown to be ineffective against M. bovis colonization of the upper respiratory tracts or development of lesions caused by M. bovis. Their efficacies were shown to be 44% and less than 1%, respectively (Soehnlen et al., 2011). Furthermore, the two currently available vaccines, MpBGaurd and Myco-B One Dose (Dudek et al., 2021), contain two and three field isolates and their soluble antigens, respectively. Myco-B One Dose was claimed to prevent death and morbidity by only 10.4 and 15.2%, respectively.1 With the lack of effective vaccines (Gautier-Bouchardon et al., 2014; Yair et al., 2020), the use of alternative prevention and treatment regimens for M. bovis is therefore called for.

Plant-derived antimicrobials (PDAs) such as trans-cinnamaldehyde (TC), carvacrol (CAR), and eugenol (EU) are generally considered safe (GRAS) to humans/animals yet possess strong anti-bacterial and anti-fungal effects (Michiels et al., 2007). For instance, cinnamaldehyde and EU have antimicrobial effects in a wide range of bacteria that infect cattle such as Mannheimia haemolytica, Escherichia coli, Staphylococcus aureus, and M. bovis (Rajamanickam et al., 2019). All three PDAs have also been shown to be inhibitory on numerous species of fungi such as Cryptococcus neoformans, Cryptococcus laurentii, and Microsporum gypseum (Kumari et al., 2017; Michalczyk and Ostrowska, 2021).

Although not completely understood, the mechanisms of PDAs actions may include breaking down membrane integrity/increasing permeability, disrupting energy production, and other metabolic regulatory functions (Swamy et al., 2016). Whether these compounds modulate gene expressions of mycoplasma, however, has not been reported.

In preliminary studies, we found that, at low doses, TC (0.02%), EU (0.08%), and CAR (0.04%) caused growth inhibition of M. bovis in culture. This study was designed to delineate the molecular mechanisms for such inhibition by transcriptomic analysis. We found CAR exhibited ample effects on gene expression, while TC and EU might exert growth inhibition through other mechanisms than gene expression regulations.

Materials and Methods


All reagents were purchased from Sigma-Aldrich (Sigma-Aldrich, Inc., St. Louis, MO, United States) unless otherwise specified. Ten percent stock solutions of TC (C80687-25G, Lot # MKCD4749), CAR (W224502-100G-K, Lot # MKBW8250V), and EU (E51791-100G, Lot # STBG9481) were made using dimethyl sulfoxide as the vehicle and stored at 4°C until use.

Mycoplasma bovis Culture, PDA Treatments, and RNA Extraction

Mycoplasma bovis strain PG45 from ATCC (Manassas, VA) was grown for 24 h at 37°C to 1×108 color changing units per milliliter in Fortified Commercial (FC) broth media supplemented with 20% horse serum. The M. bovis culture was aliquoted to 1 ml stock and frozen at −80°C until further use. On days of the treatments, one vial of the stock was thawed, added to 10 ml of culture medium, and cultured for 24 h at 37°C. This fresh culture was used directly in subsequent treatments.

To determine the effects of PDAs on M. bovis gene expression, CAR, EU, and TC were supplemented in culture media as shown in Table 1. Working concentration of PDAs was obtained by adding PDA stock solutions to M. bovis cultures. The treatment was conducted for 12 h at 37°C.

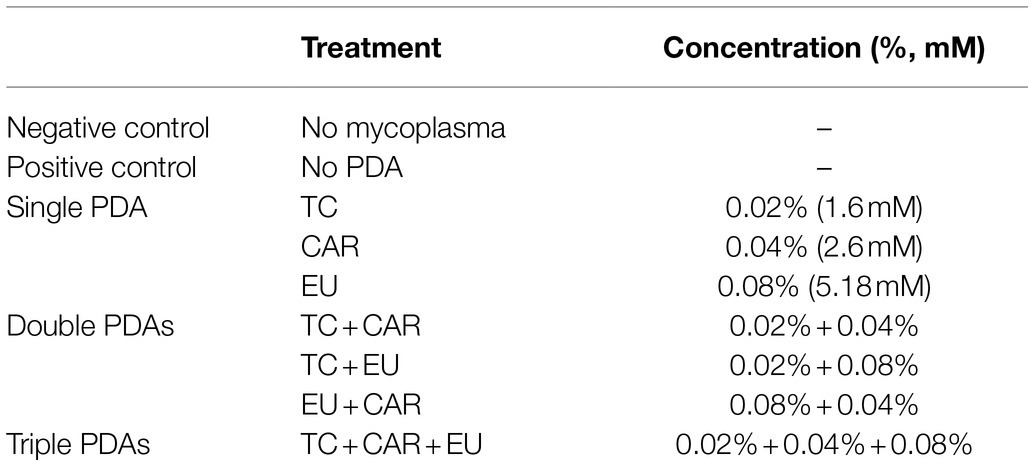

Table 1. PDA treatments of Mycoplasma bovis in culture.

The concentrations, treatment combinations, and durations (Table 1) were selected from preliminary experiments which all showed significant growth inhibition on M. bovis in vitro. Growth inhibition was determined by the color change of the media: growth of M. bovis was visually determined by phenol red in media changing from red to orange during pyruvate metabolism and media acidification, and growth inhibition was associated with lack of color change.

At the end of the treatment period, M. bovis pellets were collected by centrifugation at 10,000 g for 10 min at 4°C. Finally, 10 ml of TRIzol (Invitrogen, Carlsbad, CA, United States) was added to the pellet and stored at −80°C until RNA was extracted. The experiment was conducted three times.

RNA extraction from M. bovis samples was performed according to the standard TRIzol extraction protocol (Rio et al., 2010). To remove any potential DNA contamination, the extracted RNA was incubated with 7.5 U of DNase I (Qiagen, Hilden, Germany) for 15 min at room temperature. Then, RNA was precipitated again with 0.1 volume of 3M sodium acetate and 2.5 volumes of absolute ethanol, washed in 75% ethanol. The RNA was resuspended with 20 μl of RNase free-water and stored at −80°C until further analysis.

RNA Sequencing

Total RNA Quality Control

Total RNA was quantified and purity ratios determined for each sample using the Nanodrop 2000 spectrophotometer (Thermo Fisher Scientific, Waltham, MA, United States). To assess RNA quality, total RNA was analyzed on the Agilent TapeStation 4,200 (Agilent Technologies, Santa Clara, CA, United States) using the RNA High Sensitivity assay and following the manufacturer’s protocol. RNA Integrity Numbers for all the samples were between 8.3 and 9.4.

Illumina-Compatible Transcriptome Library Preparation and Sequencing

Total RNA samples (250 ng of Qubit-quantified total RNA input) were prepared for prokaryotic transcriptome sequencing using the Zymo-Seq RiboFree Total RNA library preparation kit (Zymo Research, Irvine, CA, United States) following the manufacturer’s protocol. Libraries were quantified using the dsDNA High Sensitivity Assay for Qubit 3.0 (Life Technologies, Carlsbad, CA, United States); then, the library quality was validated for fragment length and adapter dimer removal using the Agilent TapeStation 4,200 D1000 High Sensitivity assay (Agilent Technologies, Santa Clara, CA, United States). Sample libraries were pooled and sequenced on illumina HiSeq 4,000 platform with 75 bp, pair-end read. On average, 7–10 M total reads were obtained per sample (Supplementary Table 1).

Read Mapping, Annotation, and Enrichment

Raw reads from Illumina sequencing were processed through TrimGalore/0.6.5 (Krueger et al., 2021) to remove the adapter sequences and to improve the read quality. High-quality reads were aligned with the latest assembly for M. bovis PG45 (, using bowtie2/ (Langmead and Salzberg, 2012) with very sensitive-local flag (Supplementary Table 1). The average read counts and mapping rates were 4,547,069 and 99.17%, respectively. The resulting sequence alignment map files were converted to binary alignment map files using samtools. The read counts were generated using the htseq/0.11.0 package (Anders et al., 2015), normalized, and analyzed for differential expression using the DESeq2 (Love et al., 2014) package in R (R Core Team, 2021). With the normalized counts, principal component analysis (PCA) plots and Pearson correlation coefficient matrix were created using R software. Heat maps from the normalized counts were generated using Heatmapper (Babicki et al., 2016). Genes were considered to be differentially expressed (DEGs) if P-adjusted (P-adj) values were < 0.1 and Log2 Fold change (FC) was > 1 or below < −1, which means gene levels were either doubled or halved by the treatments. All other plots were generated using ggplot2 package in R. Gene Ontology (GO) enrichment and Kyoto Encyclopedia of Genes and Genomes (KEGG) were analyzed using the differentially expressed genes by the Gene Set Enrichment Analysis (GSEA, with default settings.


Transcriptomic Changes of Mycoplasma bovis by PDA Treatments

While all PDAs and combinations exhibited the ability to inhibit growth of M. bovis cultures, CAR induced significant and substantial changes in gene expression; TC, CAR + EU, and TC + EU induced few, while other treatments did not result in statistically significant changes in gene expression (Table 2; Supplementary Table 2). Out of a total of 875 annotated genes (including 179 hypothetical proteins) in M. bovis, CAR significantly upregulated 65 and downregulated 88 genes, accounting for approximately 17.48% of all annotated genes. Among these 153 genes, 117 were functionally annotated and 36 were hypothetical proteins. The treatments of EU, TC + CAR, and triple PDAs did not result in any detectable changes in gene expression. When treated with EU + CAR, 10 genes were upregulated out of which eight encoded annotated proteins. TC + EU modulated just two genes, of which one encoded an annotated protein. TC alone upregulated one gene which encoded a hypothetical protein (Table 2). These results suggest that, at the levels used, PDAs might have exerted growth-inhibitory effects through different mechanisms such as membrane function disruption. Antagonistic effects among PDAs might also have played a role on the regulation of gene expression even though all treatments inhibited growth (Michiels et al., 2007; Bassolé and Juliani, 2012). Interestingly, with the exception of CAR, when PDAs did elicit a gene expression change, it was always upregulation despite the overall growth inhibition. Of the relatively few (13) differentially expressed genes affected by PDA treatments other than CAR alone, four were hypothetical proteins possibly exerting functions yet to be identified.

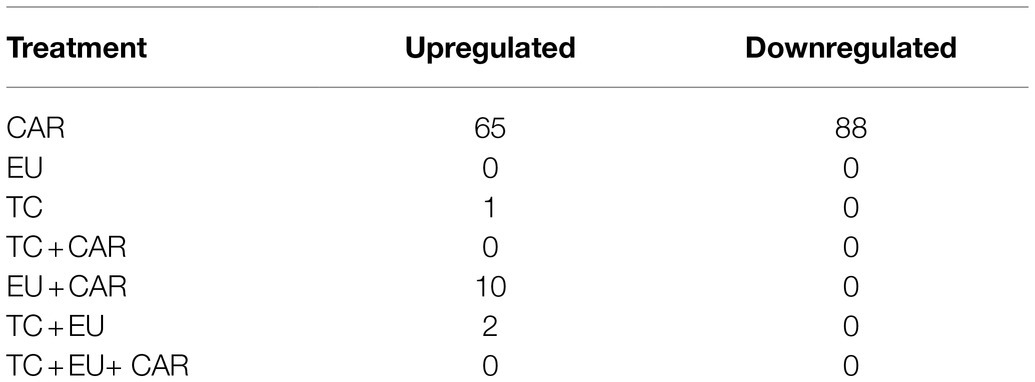

Table 2. The numbers of up- and downregulated DEGs by each PDA or PDA combinations.

Transcriptomic Changes of Mycoplasma bovis Upon CAR Treatment

The PCA of Controls vs. PDA-treated samples did not generate any clustering except for those treated with CAR. This most likely resulted from the low number of DEGs in all treatments except for CAR. As shown in Figure 1, PC1 accounted for 74% of the variance between Control vs. CAR-treated samples, whereas PC2 explained 13% (Figure 1A). Two of the replicates for Control appeared to cluster together, whereas the third deviated from the Control group. On the other hand, replicates for CAR seemed to be grouped in the same area (Figure 1A). When Padj and Log2FC were set to 0.1 and 1, respectively, genes whose levels were at least doubled or halved were regarded as up- and downregulated (blue lines in Figure 1B). Pearson correlation and heatmap analysis indicated that DEGs of the same treatment clustered together (Figures 1C,D).


Figure 1. RNAseq analysis of Control vs. carvacrol (CAR) treated Mycoplasma bovis. (A) PCA of the transcriptomes for Control (green) and CAR (orange). Each dot represents a repeat of the experiments. (B) MA-plot (M = log ratio vs. A = mean average) showing upregulated (red), downregulated (green), and unchanged (gray) genes upon treatment of CAR. The plot was generated using an adjusted p-value of 0.1 and a Log2 fold change of 1. The blue lines denote Log2 fold change between 1 and −1. (C) Correlation plot between replicates of Control and CAR-treated samples. The color scale, ranging from white to blue, shows Pearson correlation coefficients ranging from 0.4 to 1, representing high to low correlation. (D) Heat map of Differentially expressed (DGE) gene between Control and CAR-treated samples. The color scale from green to red, corresponding with a z-score from −2 to 2, shows downregulated to upregulated genes. This clustering was acquired using average linkage and Pearson distance measurement method.

Tables 3, 4 showed genes most down- and upregulated upon CAR treatment based on Log2FC. Interestingly, M. bovis growth inhibition by CAR was associated with upregulation of certain genes, suggesting that these genes might have been used to mitigate the adverse effects of CAR. Most genes upregulated in response to CAR were translation-related. Genes downregulated by CAR encoded variable surface lipoproteins, which may play role in pathogenicity, and metabolic genes. These data suggest that, in response to CAR, M. bovis increased growth-related functions like translation in attempt to counter growth inhibition. At the same time, the cells responded to CAR by reducing expression of genes associated with pathogenicity.


Table 3. The 12 most downregulated genes after CAR treatment based on Log2FC.


Table 4. The 12 most upregulated genes after CAR treatment based on Log2FC.

Four GO terms were significantly associated with upregulated M. bovis genes upon CAR treatment: structural constituent of ribosome, ribosome, translation, and rRNA binding (Figure 2B). These four GO terms were represented by a total of six genes (Figure 2D). Structural constituent of ribosome, translation, and significant KEGG pathway ribosomal groups included genes like 50S ribosomal protein L11 (rplK), 50S ribosomal protein L1(rplA), 50S ribosomal protein L6 (rplF), 30S ribosomal protein S18 (rpsR), and 50S ribosomal protein L7/L12 (rplL). The ribosome category included rplK, rplF, rpsR, and rplL. The rRNA binding category included rplA, rplF, rpsR, and ribonuclease 3 (rnc) genes (Figure 2D).


Figure 2. GO analysis of down- (A) and upregulated (B) genes by CAR treatment, plotted based on p-values. The number of genes within each term is noted in the bar. Upon CAR treatment, three and four significant GO terms were found among the down- and upregulated genes, respectively. Box plots of read counts for all genes down- (C) and upregulated (D) represented by the GO terms. While each GO term was represented by a number of genes, the total number of genes for the three downregulated GO terms was five and their read counts were plotted in C. The genes are as: Cytidylate kinase (cmk), deoxyribose-phosphate aldolase (deoC), ATP-dependent zinc metalloprotease (ftsH3), PTS system N-acetylglucosamine-specific EIICB (nagP), and ribonuclease 3 (rnc) and ribose-phosphate pyrophosphokinase (prs). Similar, six common genes represented the four upregulated GO terms plotted in D. They are ribonuclease 3 (rnc), 50S ribosomal protein L1(rplA), 50S ribosomal protein L6 (rplF), 50S ribosomal protein L11 (rplK), 50S ribosomal protein L7/L12 (rplL), and 30S ribosomal protein S18 (rpsR). Gene list with respect to their Go-Term terms is given in Supplementary Table 3.

Transcriptomic Changes of Mycoplasma bovis Upon Other PDA Treatments

Combined PDAs induced various responses of gene expression alternation. For example, when treated with EU + CAR, 10 genes were upregulated (Figure 3C), suggesting that EU might have reduced the effect of CAR since CAR treatment alone induced 153 DEGs. Alternatively, EU may have more rapidly exerted a growth-inhibitory effect than CAR, thus masking subsequent responses induced by CAR alone. Nonetheless, no significant GO term or KEGG pathway could be associated with the 10 genes differentially regulated after combined PDA treatments, most likely due to the low number of DEGs. TC + EU treatment induced two upregulated genes (Figure 3B), an ATP-binding cassette domain-containing protein and a hypothetical protein. TC-treated samples produced one upregulated gene (Figure 3A), encoding a hypothetical protein. Interestingly, we did not find any significantly downregulated genes when growth inhibition was induced with multiple-PDA treatments.


Figure 3. Box plots of read counts of upregulated genes after TC (A), TC + EU (B), and EU + CAR (C) treatments. The names of the genes are displayed on top of each panel (adjusted p-value <0.1).


To our knowledge, this is the first transcriptomic study on M. bovis. While a previous study showed that EU and TC exhibited growth inhibition of M. bovis in vitro (Rajamanickam et al., 2019) which agreed with our preliminary growth inhibition results, the molecular mechanism of the PDA-mediated inhibition was not determined. Here, we showed that CAR’s inhibitory action on M. bovis involved differential expression of a large number of genes.

All PDAs used in our study have been linked with damage to cell membrane integrity, polarity, and free-radical generation in microbes (Devi et al., 2013; Shen et al., 2015; Al Wafai et al., 2017; Khan et al., 2017). It is therefore possible that membrane disruption may be the first action of PDAs at levels used in causing cell growth inhibition or cell death. Other actions such as altering gene expression regulation may be secondary. This could be the reason that we did not find large-scale gene expression changes for most PDA treatments (i.e., no DEGs from EU, TC + CAR, and Triple treatments, and very few from EU + CAR, TC + EU, and TC treatments).

A number of DEGs in CAR-treated samples are notable given their annotated function. A BspA family leucine-rich repeat surface protein is among the downregulated genes. BspA has been associated with Tannerella forsythia bacterial adhesion and invasion of epithelial cells in vitro (Inagaki et al., 2006). Downregulation of BspA upon CAR treatment weakens M. bovis’ pathogenicity and may be a mechanism of CAR’s antimicrobial efficacy. Downregulation of recU, which plays an important role in chromosome segregation and DNA damage repair (Pereira et al., 2013), may be another potential mechanism for CAR’s antimicrobial action.

Nucleotidyltransferases are a family of enzymes that add nucleotides to substrates like nucleic acids and proteins (Neuenfeldt et al., 2008), and have involvement in DNA repairs (Liu et al., 2007). Upon CAR treatment nucleotidyltransferase is downregulated. This agrees with previous work which showed that the stress of 1,000 mg/l phenol decreased the expression of nucleotidyltransferase in Acinetobacter strain Y (Lin, 2017). Because CAR is a phenolic compound (Sharifi-Rad et al., 2018), this downregulation of nucleotidyltransferase is therefore a potentially logical mechanism for CAR’s antimicrobial effect by impairing DNA repair/synthesis. Another potential effect of CAR on the pathogenicity of M. bovis may be the downregulation of variable surface lipoproteins (Supplementary Table 2), which are assumed to be associated with the capacity of bacteria to adhere to epithelial cells and evade immune system (Christodoulides et al., 2018). This potential effect of CAR, although not related to growth inhibition, could significantly contribute to its overall antimicrobial effect (Michiels et al., 2007). Notably, combined EU + CAR treatment upregulated variable surface lipoprotein expression, but in genes paralogous to that affected by CAR treatment alone.

Phosphotransferase system (PTS) transporter subunit EIIB is part of the bacterial PTS system involved in uptake of sugar molecules like fructose, mannitol, and cellobiose (Deutscher et al., 2014). The downregulation of PTS by CAR treatment indicates disruption of M. bovis sugar uptake, which potentially reduces glycolysis and ATP generation. This is further exacerbated by the actual downregulation of ATP-binding proteins found in our GO analysis (Figures 2A,C). Gene prs is involved in synthesis of the intermediates for purine and pyrimidine, nicotinamide adenine dinucleotide synthesis (Hove-Jensen, 1988), whereas ftsH3 involves in degradation of various transmembrane and cytoplasmic proteins (Srinivasan et al., 2008). Similarly, cytidylate kinase is one of the enzymes that are involved in nucleotide metabolism (An et al., 2014). This shows treatment with CAR results in disruption of cellular metabolism, including synthesis of DNA and RNA. Interestingly, when M. bovis was treated with EU + CAR, PTS transporter subunit EIIB expression was upregulated; this may be due to an antagonistic effect of CAR by EU (Bassolé and Juliani, 2012).

Moreover, we found CAR to affect expression of genes in the pentose phosphate pathway, including deoC and prs which were both downregulated by CAR. deoC is known to catalyze the reaction of 2-deoxy-D-ribose-5-phosphate into glyceraldehyde-3-phosphate and acetaldehyde (Haridas et al., 2018), while prs is the enzyme that generates phosphoribosyl diphosphate (Hove-Jensen et al., 2016). The inhibition of these enzymes conceivably reduces DNA replication and RNA synthesis, thus decreasing growth and replication of M. bovis in response to CAR.

Data here indicated that a major effect of CAR on M. bovis is to alter the translation process. However, CAR’s effect on translation-related genes was not uniform because different genes in the process could be either up- or downregulated. For example, serine- tRNA ligase and rRNA pseudouridine synthetase were downregulated by CAR, yet six ribosomal protein genes (rplF, rpsR, rplK, rplA, rpsR, and rplL; Kaczanowska and Rydén-Aulin, 2007) were upregulated, as was the pre-tRNA and rRNA processing enzyme rnc (Li, 2013). Similar conflicting effects of both up- and downregulation of different genes in the same pathways such as ATP generation (Guo et al., 2019; upregulation of ATP synthase subunits F0F1 ATP synthase subunit A and B) and pentose phosphate pathway (Lyngstadaas et al., 1998; upregulation of the ribulose-phosphate 3-epimerase) also occurred. These conflicting responses of M. bovis upon CAR treatment suggest that cells may have undergone chaotic changes of cellular processes and attempted to counter the reduction in growth by increasing protein translation and other inhibited processes.

Finally, we observed differential expression of many hypothetical proteins in response to CAR. Given the novelty of these proteins and their differential regulation in response to an inhibitory substance like CAR, they may be of great importance regarding survival or pathogenicity of M. bovis and represent important targets for direct experimentation in laboratory (Galperin, 2001). The identification of the functions of these hypothetical proteins will further our understanding of the effects of CAR.

In conclusion, at growth-inhibitory levels, TC, EU, and CAR exhibited different effects on gene expression by M. bovis with CAR inducing the most changes. It is likely that TC and EU at levels studied exerted their inhibitory effects through other mechanisms than that exerted by CAR. The antimicrobial effects of CAR involved the reduction of (1) certain translation-related enzymes, (2) DNA/RNA synthesis through pentose phosphorylation pathway, (3) surface proteins and lipoproteins associated with bacterial adhesion to and invasion of host tissues, and (4) ATP generation.

Data Availability Statement

The datasets presented in this study can be found in online repositories. The names of the repository/repositories and accession number(s) can be found at: Gene Expression Omnibus (GEO)—GSE198086.

Author Contributions

SR, JD, KS, IM, and FA conducted the experiments and/or data analysis. KV, ET, and XT designed the study. XT obtained research funding. All authors contributed to the drafting/editing of the manuscript. All authors contributed to the article and approved the submitted version.


This study was supported by USDA grants to XT (58-8042-5-047 and W4171) and NSF grant to IM (1564936).

Conflict of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s Note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.


We thank the Center for Genome Innovation at the University of Connecticut for carrying out rRNA depletion and sequencing. We thank Steven Geary for allowing us to use his laboratory to conduct the culture experiments and for advice on experimental planning; Brandon Scanlon and Shyann Williams for conducting the preliminary M. bovis growth inhibition work.

Supplementary Material

The Supplementary Material for this article can be found online at
