ORIGINAL RESEARCH article

Front. Microbiol., 28 May 2024
Sec. Virology

Xylella phage MATE 2: a novel bacteriophage with potent lytic activity against Xylella fastidiosa subsp. pauca

Miloud Sabri\n&#x;Miloud Sabri1Kaoutar El Handi\n&#x;Kaoutar El Handi1Orges Cara,Orges Cara1,2Angelo De StradisAngelo De Stradis3Franco ValentiniFranco Valentini1Toufic Elbeaino,
Toufic Elbeaino1,4*
  • 1International Centre for Advanced Mediterranean Agronomic Studies (CIHEAM of Bari), Valenzano, Italy
  • 2Department of Soil, Plant and Food Science, University of Bari, Bari, Italy
  • 3Institute for Sustainable Plant Protection (IPSP), National Research Council of Italy (CNR), University of Bari, Bari, Italy
  • 4Institute for Sustainable Plant Protection (IPSP), National Research Council of Italy (CNR), Portici, Italy

Xylella fastidiosa (Xf) is a major phytosanitary threat to global agricultural production. The complexity and difficulty of controlling Xf underscore the pressing need for novel antibacterial agents, i.e., bacteriophages, which are natural predators of bacteria. In this study, a novel lytic bacteriophage of Xf subsp. pauca, namely Xylella phage MATE 2 (MATE 2), was isolated from sewage water in southern Italy. Biological characterization showed that MATE 2 possessed a broad-spectrum of antibacterial activity against various phytobacteria within the family Xanthomonadaceae, a rapid adsorption time (10 min), and high resistance to a broad range of pH (4–10) and temperatures (4–60°C). Most importantly, MATE 2 was able to suppress the growth of Xf subsp. pauca cells in liquid culture for 7 days, demonstrating its potential as an effective antibacterial agent against Xf. The genomic and electron microscopy analyses revealed that MATE 2 is a new species tentatively belonging to the genus Carpasinavirus within the class Caudoviricetes, with an isometric capsid head of 60 ± 5 nm along with a contractile tail of 120 ± 7.5 nm. Furthermore, the high-throughput sequencing and de novo assembly generated a single contig of 63,695 nucleotides in length; representing a complete genome composed of 95 Open Reading Frames. Bioinformatics analysis performed on MATE 2 genome revealed the absence of lysogenic mediated genes, and genes encoding virulence factors, antibiotic resistance, and toxins. This study adds a new phage to the very short list of Xf-infecting lytic phages, whose in-vitro antibacterial activity has been ascertained, while its efficacy on Xf-infected olive trees in the field has yet to be determined.

1 Introduction

Bacteriophages, often known simply as phages, are viruses that specifically infect and kill bacteria; hence, the term “bacteriophages” means “bacteria eaters” (Chanishvili, 2016). Phages are ubiquitous, existing in various environments, including deserts, polar regions, freshwater, high-salt environments, oceans, soils, or other organisms, and their number is estimated at approximately 1034, making them the most abundant and diverse biological entities in the biosphere (Peng et al., 2023). Discovered more than a century ago, research on phages has recently advanced considerably, improving our understanding on their biology, genetics, ecological function, and impact on biodiversity. Indeed, the current antimicrobial resistance (AMR) crisis has reignited interest in phage therapy as a promising alternative for controlling bacteria in humans, animals, foods, and plants (Liu et al., 2024). Compared with conventional antimicrobials, phages display a numerous of advantageous characteristics, including self-replicating nature, high host-bacteria specificity, low environmental impact, ease of discovery, harmlessness to eukaryotes, high efficiency at low multiplicity of infection (MOI), low cost and simple process for preparation, and effectiveness against multidrug-resistant bacteria (MDR) and in inhibiting the formation of biofilm (Loc-Carrillo and Abedon, 2011; Peng et al., 2023). Moreover, in agricultural applications, the efficient translocation of phages within plants through the vascular system, coupled with their high environmental stability, render them as viable choice for controlling plant pathogenic bacteria, particularly those colonizing xylem vessels, i.e., Xf (Buttimer et al., 2017).

Xylella fastidiosa is one of the most dangerous plant pathogens worldwide, posing a significant threat to various economically crucial crops. In Europe, the presence of Xf was first identified in Apulia (Italy) in 2013 on olives, resulting in catastrophic economic damage, mainly in olive groves (Castro et al., 2021). Its rapid spread to around 54,000 hectares and the death of 10 million olive trees in southern Italy have raised alarming concerns across the Mediterranean basin (Bajocco et al., 2023). Despite the substantial investment and research efforts undertaken to combat Xf, effective and sustainable control of this pathogen remains a challenge. Therefore, there is an urgent need to explore novel antibacterial agents for controlling Xf.

Within the different possibilities available in the field of biological control, virulent (lytic) phages are undoubtedly promising candidates for contrasting Xf infections. Currently, significant efforts are underway in the development and commercialization of various phage products targeting a range of plant pathogenic bacteria, including various strains of Xanthomonas and Ralstonia solanacearum (Erdrich et al., 2022). In this context, OmniLytics has successfully introduced several phage products branded as AgriPhage to control Pseudomonas syringae and Xanthomonas campestris on tomato and pepper plants, along with other plant diseases (Reuter and Kruger, 2020). Furthermore, a commercial phage-based bactericide (XylPhi-PD) against Pierce’s Disease (PD) of grapevines, caused by Xf subsp. fastidiosa, has been developed by A&P Inhpatec.1 Additionally, a research team from Texas A&M University reported for the first time the development of a cocktail composed of four lytic phages with great potential for biocontrol of PD (Das et al., 2015). Building upon this research trajectory, and due to the lack of lytic phages targeting Xf subsp., pauca, our focus has been on isolating Xf phages, specifically targeting the subsp. pauca, laying the foundation for potential biocontrol products.

2 Materials and methods

2.1 Bacterial isolates and growth conditions

Xylella fastidiosa subsp. pauca strain A0PT1, isolated from olive trees affected by the olive quick decline syndrome (OQDS) in southern Italy (Apulia region), was used in all our experiments. The strain was stored in phosphate buffered saline (PBS) supplemented with glycerol (50%) and maintained at −80°C. When needed, aliquots were cultured in buffered charcoal yeast extract (BCYE) agar plates (Wells et al., 1981) and grown at 28°C for 10 to15 days. Cell suspensions were prepared in PBS and adjusted to 108 CFU/mL (OD600 ≅ 0.32). The Xanthomonas strains used for bacteriophage isolation, as well as the bacteria listed in the Table 1 used for phage host range determination, were grown either at 28°C in liquid yeast extract peptone glucose broth (YPG) (5.0 g/L yeast extract, 5.0 g/L peptone and 10.0 g/L glucose) or on yeast extract peptone glucose agar (YPGA, i.e., YPG supplemented with 1.5% agar).

Table 1
www.frontiersin.org

Table 1. Bacterial strains used for phage host range determination in this study.

2.2 Bacteriophage isolation and purification

The phage described in this study was isolated from a sewage water sample collected in April 2023, from the untreated influx point at the wastewater processing station of Bari (south of Italy). Briefly, 1 L of sewage water was passed through a filter paper of Grade 1, Dia. 75 × 100 mm (Whatman, Maidstone, UK) to remove large particles and thoroughly filtered with 0.22 μm filter (Merck, Rome, Italy) to remove cellular debris. The filtrate was centrifuged at 108,763 g (Rotor J50.2 Ti, Beckmann) for 1 h at 4°C to pellet phage particles. Pellets were resuspended in 2 mL phage buffer (100 mM Tris–HCl (pH 7.6); 10 mM MgCl2; 100 mM NaCl; and 10 mM MgSO4) and stored at 4°C.

Given the challenging slow-growing nature of Xf subsp. pauca, an optimized protocol for fast isolation of bacteriophages infecting this bacterium was developed. To directly select active bacteriophages against Xf subsp. pauca, 100 μL of pre-treated sample were added to 900 μL of Xf cells suspended in phage buffer at OD600 of 0.2, and the mixture was incubated at 28°C for phage adsorption during 10 min. The mixture was subsequently centrifuged at 10,000 g for 5 min to precipitate the phage-adsorbed bacteria, and the pellet was resuspended in 100 μL phage buffer. In addition, untreated Xf subsp. pauca suspension and Xf subsp. pauca treated with Agrobacterium phage PAT1 from our collection, which is inactive against Xf subsp. pauca (data not shown), were utilized as controls to ensure the absence of non-specific phage adsorption to Xf subsp. pauca. For phage enrichment, adsorbed phages were enriched on Xf subsp. pauca and on fast-growing bacteria phylogenetically close to Xf, i.e., Xanthomonas albilineans (Xa) and Xanthomonas campestris pv. campestris (Xcc), to facilitate and maximize our chances of isolating Xf subsp. pauca-infecting phages. The culture enrichments underwent incubation at 28°C, lasting 24 h for Xanthomonas strains and for 10 days for Xf subsp. pauca. Then, cultures with phages were centrifuged at 10,000 g for 5 min, and the supernatants were filtered (0.22-μm filter) and stored at 4°C. Phage was isolated and purified from filtrates using Xcc bacteria via the standard double agar overlay method (Kropinski et al., 2009). Single clear plaque-forming unit was transferred into 1 mL of phage buffer and this process was repeated three times to ensure the isolation of a single phage. To obtain high phage titer, 1 mL of Xcc culture (OD600 = 0.2) was inoculated in 500 mL YPG broth medium and 1 mL of purified phage was added, and the mix was then incubated for up to 24 h at 28°C. Amplified phages were filtered through 0.22-μm filters, concentrated by high-speed centrifugation at 108,763 g for 2.5 h, resuspended in 2 mL of phage buffer, and stored at 4°C for further analysis. The phage titer was determined through a double-layer assay.

2.3 Transmission electron microscopy

To scrutinize the morphological and lytic properties of the purified phage (assigned MATE 2 here for brevity), a culture of Xf subsp. pauca was subjected to challenge with MATE 2 (MOI = 1) at room temperature for 1 h. Representative images of the phage and bacterial cells were taken at 10, 30, and 60 min post-infection (pi) via TEM (FEI MORGAGNI 282D, United States) using the dip method. Briefly, carbon-coated copper/rhodium grids underwent a 2-min incubation period with either the phage alone or the phage-treated cells, followed by rinsing with 200 μL of distilled water. Negative staining was obtained by immersing the grids in 200 μL of a 0.5% w/v UA-Zero EM stain solution (Agar-Scientific Ltd., Stansted, UK), and observed under an accelerating voltage of 80 kV.

2.4 DNA extraction, complete genome sequencing, and bioinformatics analysis

Genomic DNA of MATE 2 was extracted from a high-titer stock of phage particles at ~1010 PFU/mL using a DNeasy Plant Extraction kit following the manufacturer’s protocol (Qiagen, Milan, Italy). The extracted DNA was quantified using the NanoDrop One/OneC Microvolume UV–Vis Spectrophotometer (ThermoFisher Scientific, Waltham, MA, United States). Subsequently, 500 ng of purified genomic DNA was sent for Illumina sequencing (2 × 150 bp paired-end mode) (Eurofins Genomics, Germany). The reads were quality checked and trimmed and de novo assembled using the Tadpole tool with different k-mers (Geneious Prime 2024.0.3, San Diego, CA, United States). The ORFs functions were annotated with Geneious, and the predictions of antibiotic resistance genes, acquired virulence genes, and toxin-encoding genes were assessed by CGE.2 The complete genome sequence of MATE 2 was deposited at GenBank and a circular map of the genome and phylogenetic tree based on proteomic analysis were constructed by utilizing VipTree (Nishimura et al., 2017).

2.5 Spot assay

To evaluate the bacteriolytic effect of MATE 2 on Xf subsp. pauca, spot assay was carried out as follows: two drops of Xf subsp. pauca cells in suspension (108 CFU/mL), each containing 30 μL, were positioned at the upper portion of the BCYE agar plates, with approximately 1.5 cm between them. These drops were allowed to let down to the opposite side, forming two parallel rows of Xf cultures. Subsequently, 10 μL of MATE 2 (108 PFU/mL) were administered to the upper part of the rows of Xf cultures after being dried under the laminar flow hood. Phage buffer was used as a negative control. This experiment was conducted with three independent replicates.

2.6 Bacterial reduction assay

To investigate the phage’s ability to inhibit the growth of Xf subsp. pauca in liquid growth medium, a suspension Xf subsp. pauca (200 μL) was challenged with 200 μL of phage MATE 2 (MOI = 1). The mixture was then inoculated in 2 mL of BCYE broth and incubated at 28°C for 7 days. During incubation, optical density measures (each day) at OD600 were taken using the NanoDrop One/OneC Microvolume UV–Vis Spectrophotometer.

2.7 Fluorescence microscopy

Fluorescence microscopy provides accurate assessment of the bacterial lysis process by enumerating intact and permeable cell populations at different time intervals. In this context, an aliquot of Xf subsp. pauca culture was incubated with MATE 2 (MOI = 1) at room temperature. The LIVE/DEAD® BacLight viability kit (ThermoFisher Scientific, Milan, Italy) was employed according to the manufacturer’s recommendations to assess the viability of MATE 2-treated Xf cells at 0, 3, 6, and 24 h post-infection. Photomicrographs were captured using a Nikon E800 microscope equipped with fluorescein isothiocyanate (480/30 excitation filter, DM505 dichroic mirror, 535/40 emission filter) and tetramethyl rhodamine isothiocyanate (546/10 excitation filter, DM575 dichroic mirror, 590 emission filter) fluorescence filter sets.

2.8 Host range analysis

Host range of MATE 2 was determined using the phage sensitivity spot test as follows: bacterial strains listed in Table 1 (except for Xf subsp. pauca strains, which were cultured in BCYE plates as described in spot assay) were cultured at 28°C on YPGA plates for up to 2 days. Then, the cultures were suspended in sterile distilled water and 300 μL of bacterial suspension (OD600 = 0.2) were evenly spread on YPGA plates and allowed to dry. Subsequently, drops of 10 μL of MATE 2 solution (108 PFU/mL) were spotted onto the surface of the plates. Spots were dried at room temperature and the plates cultured for up to 2 days at 28°C. The presence of a clear zone was recorded as the strain being susceptible to MATE 2.

2.9 Temperature and pH stability

The thermal stability of MATE 2 was assessed by incubating 100 μL of phage suspension (~108 PFU/mL) at 4, 28, 40, 50, and 60°C for 1 h. Following the incubation period, a serial dilution was made with phage buffer, and phage titers were determined using Xcc bacteria via the double agar overlay method. To assess pH stability, 100 μL of the phage suspensions were added to 900 μL of sterile-filtered YPG medium that was pH adjusted using 1 M NaOH or 1 M HCl and incubated at 28°C for 1 h. Subsequently, a serial dilution was made with phage buffer, and phage titers were determined using double agar overlay method.

3 Results

3.1 Morphology and host range

One novel discovered phage, hereafter referred to as Xylella phage MATE 2 (MATE 2), that infects Xf subsp. pauca has been isolated from sewage water in Bari, Italy. In double agar overlay assay, MATE 2 produced large (4–5 mm), round, and clear plaques on Xcc culture plates (Figure 1A). The morphological analyses using TEM imaging, revealed that MATE 2 resembles myrovirus phages (A1 morphotype) of the class Caudoviricetes that group all tailed bacterial and archaeal viruses with icosahedral capsids and a double-stranded DNA genome (Turner et al., 2023). The phage particle showed to have an isometric capsid head of 60 ± 5 nm along with a contractile tail of 120 ± 7.5 nm (Figure 1B).

Figure 1
www.frontiersin.org

Figure 1. (A) Plaque morphology of MATE 2 formed in double-layer agar plate with Xanthomonas campestris as host strain. (B) Transmission electron microscopy image of MATE 2 showing a particle with an isometric capsid head and a long contractile tail, scale bar = 25 nm.

For use of phage in biocontrol, host specificity is a key element to consider. To determine the host range of MATE 2, a range of different bacteria were tested for susceptibility, including beneficial bacteria, namely Paenibacillus rigui, Bacillus subtilis, Bacillus pumilus, and Pantoea agglomerans (Table 1). The results showed that MATE 2 had no lytic activity against the beneficial bacteria tested, suggesting its potential safe use without affecting beneficial bacteria possibly present in host plants. Furthermore, among the plant pathogenic bacteria tested, MATE 2 was able to produce a clear lysis zone against Xcc and all tested isolates of Xf subsp. pauca and Xa.

3.2 Genomic and phylogenetic analyses of MATE 2

Complete genome sequencing and de novo assembly of MATE 2 revealed a double-stranded DNA genome of 63,695 base pairs in length. The genome of MATE 2, consisting of a G + C content of 52.1%, which is similar to the available genome sequences of Xf with G + C contents ranging from 51 to 52% (Castillo and Almeida, 2021) but significantly lower than those of sequenced Xanthomonas spp. (∼63.6 to 65.3%) (Ahern et al., 2014), suggests that the primary host of MATE 2 in the plant environment is Xf, as the G + C content of bacteriophages, in particular, is strongly correlated with that of their primary bacterial hosts (Cardinale and Duffy, 2011). Ninety-five open reading frames (ORFs) were identified in MATE 2 genome, of which only 33 (34.73%) are annotated with function with relatively high identity (>80% average amino acid identity), while the remaining 62 (65.26%) are with unknown functions. The functional genes highlighted on the genomic map (Figure 2) encode proteins involved in DNA replication, recombination, and modification; DNA packaging and structural proteins; and cell lysis. Based on the genome annotation, no known virulence, antibiotic resistance, or toxin-encoding genes were found within MATE 2 genome. Interestingly, genes encoding lysogeny-related proteins, such as integrase, are absent from the MATE 2 genome, indicating a strictly lytic infection cycle.

Figure 2
www.frontiersin.org

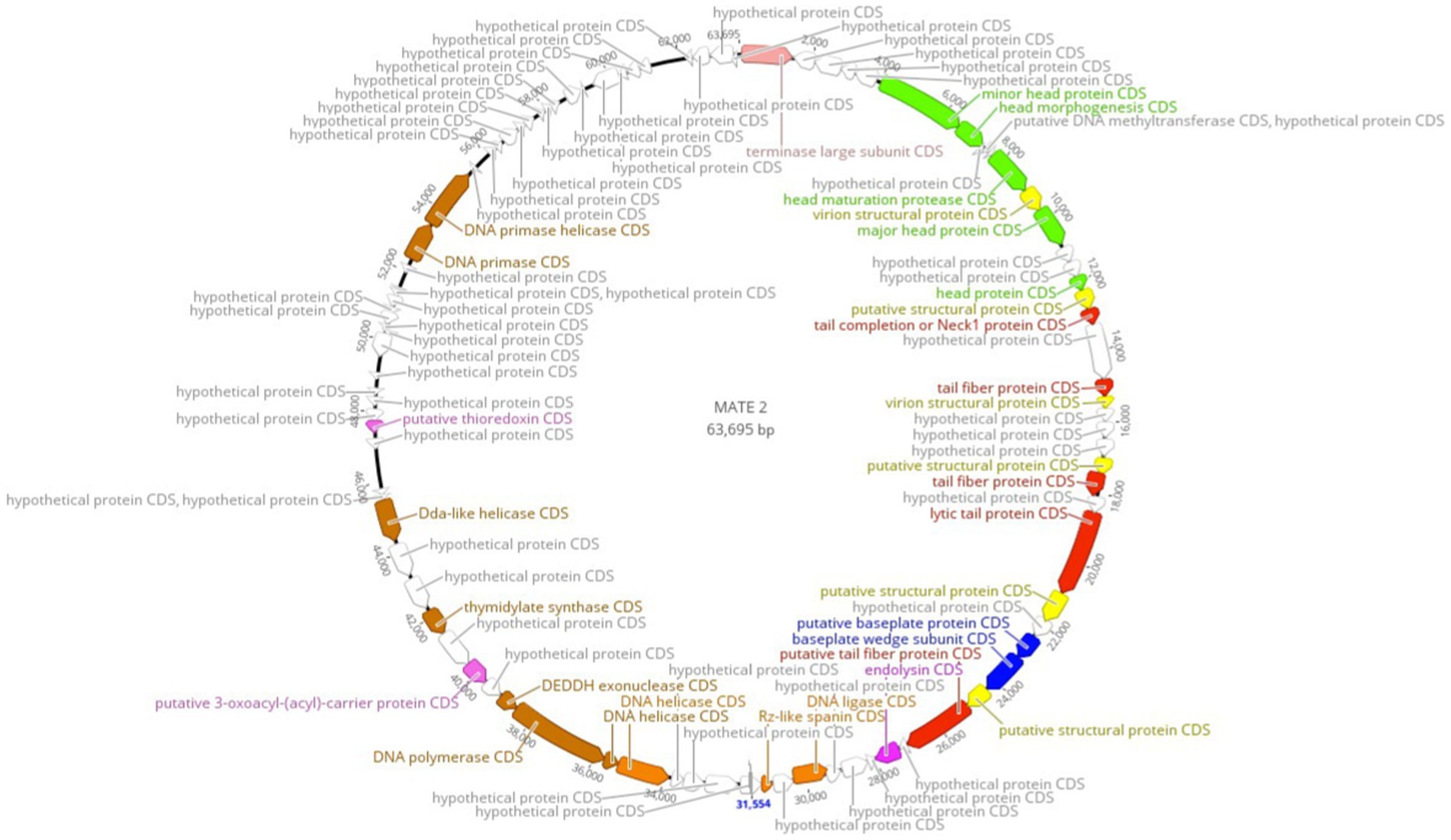

Figure 2. Circular genomic map of Xylella phage MATE 2 representing 95 ORFs encoded by the genome. Hypothetical proteins are displayed in gray and the predicted proteins with a signed functions are highlighted on the genomic map. The map was generated using Geneious Prime 2024.0.3.

The genomic sequence analysis showed that MATE 2 shares maximum nucleotides identity with Xanthomonas phage XcP1 (88.2%; accession n°: NC_048147), followed by Xanthomonas phage FoX6 (86.9%; MT161386), Xanthomonas phage FoX7 (86.8%; MT161387), and Xanthomonas phage Carpasina (85.6%; NC_047962) (Figure 3). All these phages are members of genus Carpasinavirus and are known to infect Xcc. However, the identity found between MATE 2 and other related phages was lower than the demarcation criteria (95%) for the classification of new phage species, as per the “International Committee on Taxonomy of Viruses” (ICTV) rules. Hence, the name Xylella phage MATE 2 was proposed and the complete genome sequence was deposited in the GenBank under the accession number: PP816325. Furthermore, the proteomic tree of MATE 2 genome sequence and close homologs based on genome-wide sequence similarities computed by tBLASTx allocated MATE 2 in a clade with Xanthomonas phage XcP1 and Xanthomonas phage Carpasina classified in the genus Carpasinavirus (Figure 4); therefore, MATE 2 was considered as a tentative species of the genus Carpasinavirus.

Figure 3
www.frontiersin.org

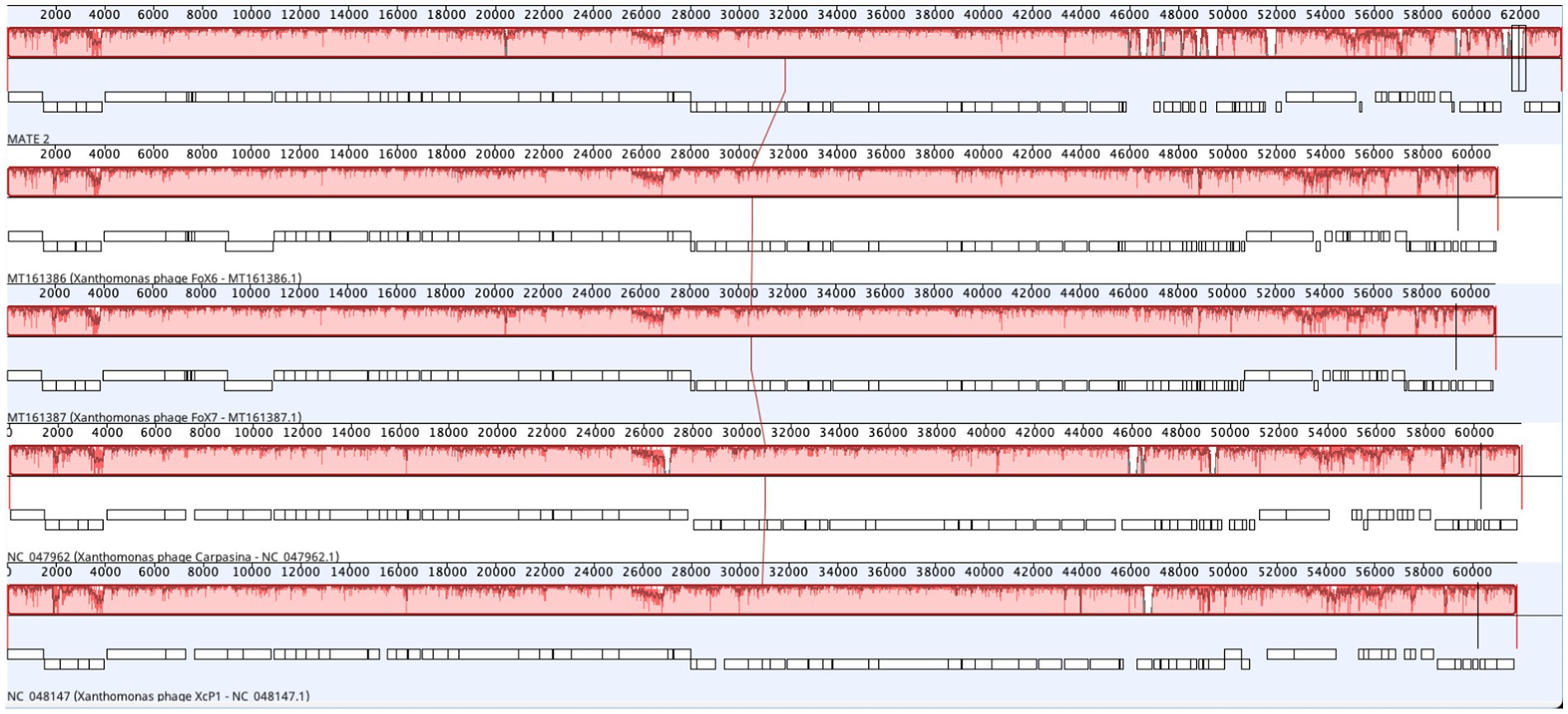

Figure 3. Schematic representation showing comparative genomes alignment of Xylella phage MATE 2 with Xanthomonas phage XcP1, Xanthomonas phage FoX6, Xanthomonas phage FoX7, and Xanthomonas phage Carpasina. Genome similarity is represented by a similarity plot within the colored blocks with the height of the plot proportional to the average nucleotide identity. The white regions represent sequence variations or fragments that were not aligned or contained sequence elements specific to a particular genome. The alignment was generated by Geneious Prime 2024.0.3.

Figure 4
www.frontiersin.org

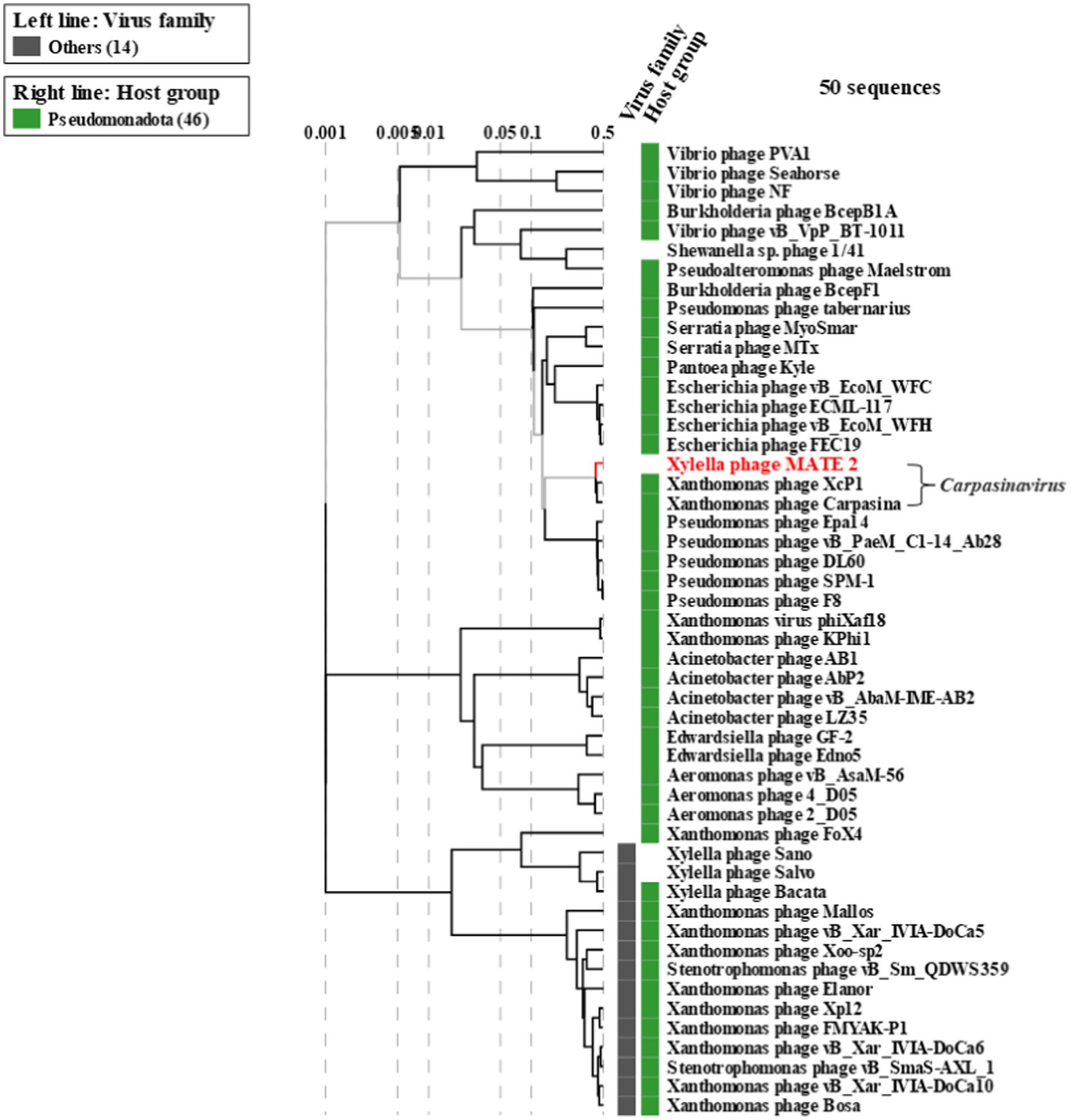

Figure 4. Proteomic tree of phage Xylella phage MATE 2 generated by ViPTree based on genome-wide sequence similarities computed by tBLASTx. Xylella phage MATE 2 belongs to the genus Carpasinavirus.

3.3 Spot assay

Phage sensitivity spot assay performed on Xf subsp. pauca culture showed that MATE 2 exhibits lytic activity against Xf cells. The lytic activity was highly accentuated, underscoring the effectiveness of MATE 2 phage in restraining Xf growth (Figure 5).

Figure 5
www.frontiersin.org

Figure 5. BYCE plate showing the lytic activity of Xylella phage MATE 2 against Xylella fastidiosa subsp. pauca. (A) Xylella fastidiosa treated with phage MATE 2. (B) Xylella fastidiosa treated with PBS. The circles indicate the treatment sites.

3.4 Xylella fastidiosa reduction assay

The inhibitory effect of MATE 2 on Xf growth was evaluated over a 7-day incubation period. The results showed a remarkable OD600 reduction in Xf culture after 24 h of treatment with MATE 2, resulting in 77% cell lysis (Figure 6). Upon treatment with MATE 2, the OD600 of the bacterial culture decreased significantly, leading to a total reduction of the Xf suspension after 48 h pi (Figure 6). The results also showed the exponential growth of untreated Xf bacteria after 72 h of incubation, while no growth was observed for the MATE 2-treated bacteria during the 7 days of incubation, suggesting no emergence of resistant bacteria within Xf population. This outcome shows that MATE 2 effectively inhibits the growth of Xf, indicating its potential implication for controlling Xf.

Figure 6
www.frontiersin.org

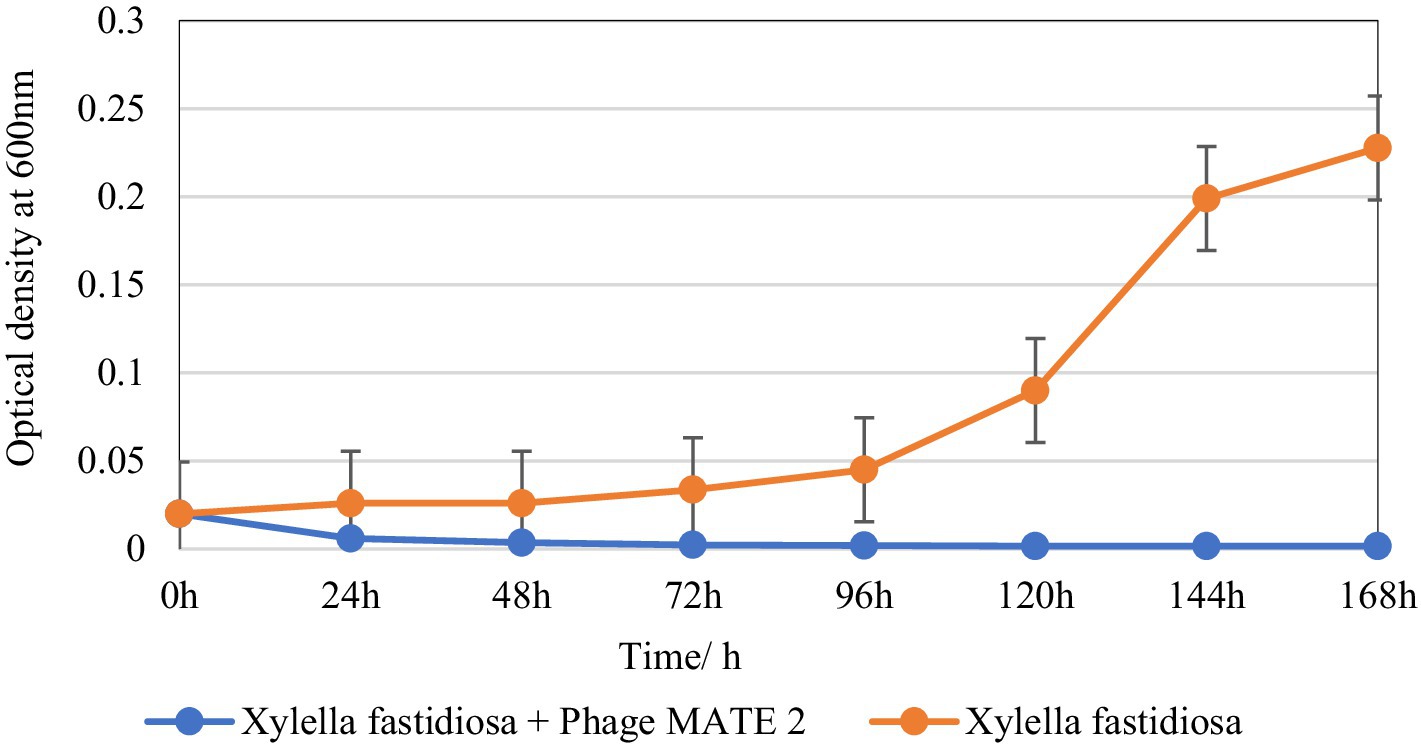

Figure 6. In vitro killing curve displaying the bacteriolytic effect of Xylella phage MATE 2 on Xylella fastidiosa subsp. pauca growth. The optical density of treated and untreated-bacterial culture with MATE 2 at 24-h interval for 7 days is compared. The bars indicate the error means for three replicates.

3.5 Electron and fluorescence microscopy evaluating MATE 2 activity against Xylella fastidiosa

FM and TEM analyses were carried out to further examine the dynamics of phage MATE 2 virulence against Xf. FM micrographs showed that the staining of Xf cells shifted progressively from green (live bacterial cells) to red (dead bacterial cells) 3 h after the addition of MATE 2, indicating an increase in bacterial lysis (Figure 7). Additionally, an efficient cell death was observed after 24 h pi with MATE 2, confirming the results obtained from optical density measurements and validating its notable and rapid efficacy in lysing Xf cells. Analyzing the interaction between MATE 2 and Xf cells using TEM (Figure 8A), micrographs confirmed the attachment of MATE 2 particles to Xf cell surfaces 10 min after contact. Subsequently, after 30 min, phage progeny was already visible in Xf cytoplasm (Figures 8B,C) and the process ends with phage-induced Xf-cell lysis, which results in virion release (Figure 8D). This comprehensive examination provides profound insights into the Xf-MATE 2 interaction at an ultrastructural level, confirming the rapid lytic activity of phage MATE 2 against Xf.

Figure 7
www.frontiersin.org

Figure 7. Fluorescent micrographs showing the effect of Xylella phage MATE 2 on Xylella fastidiosa cells during 24 h of incubation. Green and red fluorescence indicate live and dead cells, respectively. Magnification 2K×.

Figure 8
www.frontiersin.org

Figure 8. Transmission electron micrographs of Xylella fastidiosa cells challenged with Xylella phage MATE 2. (A) untreated Xf cells, used as control. (B,C) MATE 2-treated Xf cells ultrastructure with proliferation of phages (arrow). (D) Lysis of MATE 2-treated Xf cells with release of new phages (arrowhead). bar = 100 nm.

3.6 Phage stability

Physical and chemical factors which influence phage survival and persistence, were assessed through stability tests by exposing MATE 2 to different temperatures and pHs to assess its suitability as a biocontrol agent for plant protection. The thermal and pH stabilities of MATE 2 were estimated by measuring variations in survival rates based on the number of plaque-forming units (PFU). The results showed that MATE 2 is resistant to temperatures ranging from 4°C to 60°C, but at 60°C, the phage infectivity was reduced by about tenfold (Figure 9A). Furthermore, MATE 2 showed to have stable infectivity at pH ranging from 4 to 10 (Figure 9B).

Figure 9
www.frontiersin.org

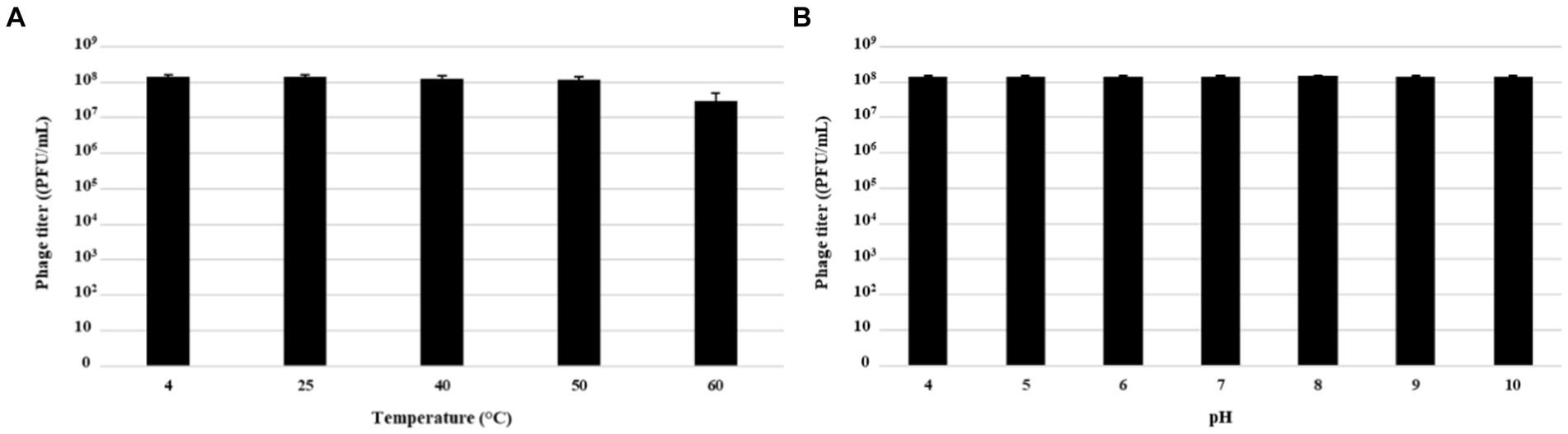

Figure 9. Histograms showing pH and thermal stability tests of Xylella phage MATE 2. (A) Phage infectivity after being treated with different temperatures for 60 min. (B) Phage infectivity after incubation at different pHs ranging from 4 to 10 for 60 min. Phage titers were determined using double agar overlay method. Error bars represent standard deviations from three replicates.

4 Discussion

The considerable challenges in controlling Xf infections have prompted an urgent need for new antibacterial tools that can effectively combat this phytopathogen while preserving the environment and maintaining biodiversity. To this end, phage biocontrol provides a targeted and environmentally sustainable option to contrast Xf infections. The environmental benefits of phage therapy, including its low impact on non-target organisms and ecosystem integrity, highlight its potential as a biocontrol strategy or as part of integrated pest management strategies. However, the limited number of lytic phages identified and tested against Xf subsp. pauca poses a barrier to the adoption of phages for controlling this bacterium. With this aim, this study reports the isolation and characterization of a novel lytic bacteriophage, i.e., Xylella phage MATE 2, that showed therapeutic potential against Xf subsp. pauca.

Xylella phage MATE 2 was isolated from wastewater using a successful optimized isolation procedure for targeting and selecting rapid phages adsorbing to Xf cells. The genome analysis showed that MATE 2 is a new species in the genus Carpasinavirus within the class Caudoviricetes. Prediction of genes functions in the MATE 2 genome also showed the absence of genes encoding virulence factors, antibiotic resistance, toxin, or genes related to any lysogenic action, indicating its suitability for phage therapy in agriculture.

For biocontrol purposes, bacteriophages are required to maintain stability over a wide range of pH and temperatures and be resistant to changes in environmental and ambient conditions. The MATE 2 phage appears to meet these criteria, as demonstrated by its stability at different temperatures and pH ranges. Furthermore, our phage MATE 2, in addition to its powerful activity against Xf, was able to target various phytobacteria of the Xanthomonadaceae family, namely Xanthomonas albilineans and Xanthomonas campestris, without adverse effects on the other beneficial bacteria tested. This ability stands as an attractive trait for agriculture application, allowing MATE 2 to be polyvalent. Polyvalent phages are characterized by their specificity to recognize various host receptors [outer membrane protein or lipopolysaccharide (LPS)] using the same tail fiber protein and by their efficient and rapid adaptation to novel host constraints (Hamdi et al., 2017). This attribute, coupled with its stability, suggests that MATE 2 could effectively inhabit the phyllosphere and exert its broad-spectrum antibacterial activity against its bacterial hosts, thereby enhancing crop protection and agricultural production.

Lysis potential of MATE 2 against Xf subsp. pauca was investigated through a series of assays and microscopy analyses. Results of bacterial growth reduction assays demonstrated the effectiveness of MATE 2 in contrasting Xf, with considerable lytic activity. Indeed, MATE 2 was able to completely reduce and inhibit the growth of Xf for 7 days, highlighting its potential as a realistic predator of Xf. This tremendous lytic activity of MATE 2 against Xf was substantiated by TEM analyses, showing rapid adsorption of MATE 2 onto Xf cells and completion of its replication cycle in less than 1 h. This short duration between MATE 2 infection and Xf cell lysis, together with the slow growing propriety of Xf, makes MATE 2-based biocontrol a viable approach to combat Xf infections.

In the field of phage therapy research, the phage-encoded enzyme (i.e., endolysin) that can specifically hydrolyze the bacterial cell wall and quickly kill bacteria, is the most effective and widespread bactericidal agent on the planet (Liu et al., 2023). The high specificity of endolysins against the genus or species infected by the phage from which they originate is one of the main advantages of endolysins over conventional broad-spectrum antibacterial drugs (Mondal et al., 2020). In our instance, genomic analysis revealed that MATE 2 possesses an endolysin (Figure 2), which can also be used against Xf. Furthermore, recent findings showed that phages exhibit anti-biofilm properties against various pathogenic bacteria, including Escherichia coli, Enterococcus faecium, and Enterococcus faecalis (Melo et al., 2019; Chaudhary et al., 2022), as well as the capacity to act synergistically with other natural antimicrobials, such as bacteriocins and natural antimicrobial peptides (Barache et al., 2024). These findings encourages the exploration of MATE 2’s efficacy and its endolysin against Xf biofilm within the plant vascular system and their potential synergies with existing therapeutic agents to develop a more robust and integrated Xf disease control strategy.

In conclusion, the properties demonstrated by the novel isolated phage, namely lack of lysogenic content on its genome, stability at different temperatures and pH ranges, broad lytic spectra, and strong lytic activity against Xf suggest its realistic biocontrol use. Lastly, further studies are needed to explore the in-planta efficacy of MATE 2.

Data availability statement

The datasets presented in this study can be found in online repositories. The names of the repository/repositories and accession number(s) can be found in the article/supplementary material.

Author contributions

MS: Conceptualization, Data curation, Formal analysis, Investigation, Methodology, Software, Validation, Visualization, Writing – original draft, Writing – review & editing. KE: Conceptualization, Data curation, Investigation, Methodology, Software, Validation, Visualization, Writing – original draft, Writing – review & editing. OC: Data curation, Formal analysis, Investigation, Methodology, Software, Visualization, Writing – review & editing. AD: Data curation, Formal analysis, Investigation, Methodology, Software, Validation, Visualization, Writing – review & editing. FV: Data curation, Formal analysis, Methodology, Validation, Visualization, Writing – review & editing. TE: Conceptualization, Data curation, Formal analysis, Funding acquisition, Investigation, Methodology, Project administration, Resources, Software, Supervision, Validation, Visualization, Writing – original draft, Writing – review & editing.

Funding

The author(s) declare that financial support was received for the research, authorship, and/or publication of this article. This research was financially supported by the Italian Ministry of Agriculture, Food Sovereignty and Forestry (MASAF), in the frame of project “Approcci Nanotecnologici per un Controllo Sostenibile e Innovativo di Xylella fastidiosa – ANCOSIX” CUP n. J83C22001990005.

Conflict of interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

Footnotes

References

Ahern, S. J., Das, M., Bhowmick, T. S., Young, R., and Gonzalez, C. F. (2014). Characterization of novel virulent broad-host-range phages of Xylella fastidiosa and Xanthomonas. J. Bacteriol. 196, 459–471. doi: 10.1128/jb.01080-13

PubMed Abstract | Crossref Full Text | Google Scholar

Bajocco, S., Raparelli, E., and Bregaglio, S. (2023). Assessing the driving role of the anthropogenic landscape on the distribution of the Xylella fastidiosa-driven “olive quick decline syndrome” in Apulia (Italy). Sci. Total Environ. 896:165231. doi: 10.1016/j.scitotenv.2023.165231

PubMed Abstract | Crossref Full Text | Google Scholar

Barache, N., Belguesmia, Y., Martinez, B., Seal, B. S., and Drider, D. (2024). Bacteriocins and bacteriophages as dual biological players for food safety applications. Encyclopedia 4, 79–90. doi: 10.3390/encyclopedia4010007

Crossref Full Text | Google Scholar

Buttimer, C., McAuliffe, O., Ross, R. P., Hill, C., O’Mahony, J., and Coffey, A. (2017). Bacteriophages and bacterial plant diseases. Front. Microbiol. 8:34. doi: 10.3389/fmicb.2017.00034

PubMed Abstract | Crossref Full Text | Google Scholar

Cardinale, D. J., and Duffy, S. (2011). Single-stranded genomic architecture constrains optimal codon usage. Bacteriophage 1, 219–224. doi: 10.4161/bact.1.4.18496

PubMed Abstract | Crossref Full Text | Google Scholar

Castillo, A. I., and Almeida, R. P. P. (2021). Evidence of gene nucleotide composition favoring replication and growth in a fastidious plant pathogen. G3 (Bethesda) 11:jkab076. doi: 10.1093/g3journal/jkab076

PubMed Abstract | Crossref Full Text | Google Scholar

Castro, C., DiSalvo, B., and Roper, M. C. (2021). Xylella fastidiosa: a reemerging plant pathogen that threatens crops globally. PLoS Pathog. 17:e1009813. doi: 10.1371/journal.ppat.1009813

PubMed Abstract | Crossref Full Text | Google Scholar

Chanishvili, N. (2016). Bacteriophages as therapeutic and prophylactic means: summary of the soviet and post soviet experiences. Curr. Drug Deliv. 13, 309–323. doi: 10.2174/156720181303160520193946

PubMed Abstract | Crossref Full Text | Google Scholar

Chaudhary, N., Maurya, R. K., Singh, D., Mohan, B., and Taneja, N. (2022). Genome analysis and Antibiofilm activity of phage 590B against multidrug-resistant and extensively drug-resistant Uropathogenic Escherichia coli isolates, India. Pathogens 11:1448. doi: 10.3390/pathogens11121448

PubMed Abstract | Crossref Full Text | Google Scholar

Das, M., Bhowmick, T. S., Ahern, S. J., Young, R., and Gonzalez, C. F. (2015). Control of Pierce’s disease by phage. PLoS One 10:e0128902. doi: 10.1371/journal.pone.0128902

PubMed Abstract | Crossref Full Text | Google Scholar

Erdrich, S. H., Sharma, V., Schurr, U., Arsova, B., and Frunzke, J. (2022). Isolation of novel Xanthomonas phages infecting the plant pathogens X. translucens and X. campestris. Viruses 14:1449. doi: 10.3390/v14071449

PubMed Abstract | Crossref Full Text | Google Scholar

Hamdi, S., Rousseau, G. M., Labrie, S. J., Tremblay, D. M., Kourda, R. S., Ben Slama, K., et al. (2017). Characterization of two polyvalent phages infecting Enterobacteriaceae. Sci. Rep. 7:40349. doi: 10.1038/srep40349

PubMed Abstract | Crossref Full Text | Google Scholar

Kropinski, A. M., Mazzocco, A., Waddell, T. E., Lingohr, E., and Johnson, R. P. (2009). Enumeration of bacteriophages by double agar overlay plaque assay. Methods Mol. Biol. 501, 69–76. doi: 10.1007/978-1-60327-164-6_7

PubMed Abstract | Crossref Full Text | Google Scholar

Liu, H., Hu, Z., Li, M., Yang, Y., Lu, S., and Rao, X. (2023). Therapeutic potential of bacteriophage endolysins for infections caused by gram-positive bacteria. J. Biomed. Sci. 30:29. doi: 10.1186/s12929-023-00919-1

PubMed Abstract | Crossref Full Text | Google Scholar

Liu, K., Wang, C., Zhou, X., Guo, X., Yang, Y., Liu, W., et al. (2024). Bacteriophage therapy for drug-resistant Staphylococcus aureus infections. Front. Cell. Infect. Microbiol. 14:1336821. doi: 10.3389/fcimb.2024.1336821

PubMed Abstract | Crossref Full Text | Google Scholar

Loc-Carrillo, C., and Abedon, S. T. (2011). Pros and cons of phage therapy. Bacteriophage 1, 111–114. doi: 10.4161/bact.1.2.14590

PubMed Abstract | Crossref Full Text | Google Scholar

Melo, L. D. R., Ferreira, R., Costa, A. R., Oliveira, H., and Azeredo, J. (2019). Efficacy and safety assessment of two enterococci phages in an in vitro biofilm wound model. Sci. Rep. 9:6643. doi: 10.1038/s41598-019-43115-8

PubMed Abstract | Crossref Full Text | Google Scholar

Mondal, S. I., Draper, L. A., Ross, R. P., and Hill, C. (2020). Bacteriophage endolysins as a potential weapon to combat Clostridioides difficile infection. Gut Microbes 12:1813533. doi: 10.1080/19490976.2020.1813533

PubMed Abstract | Crossref Full Text | Google Scholar

Nishimura, Y., Yoshida, T., Kuronishi, M., Uehara, H., Ogata, H., and Goto, S. (2017). ViPTree: the viral proteomic tree server. Bioinformatics 33, 2379–2380. doi: 10.1093/bioinformatics/btx157

PubMed Abstract | Crossref Full Text | Google Scholar

Peng, Q., Ma, Z., Han, Q., Xiang, F., Wang, L., Zhang, Y., et al. (2023). Characterization of bacteriophage vB_KleM_KB2 possessing high control ability to pathogenic Klebsiella pneumoniae. Sci. Rep. 13:9815. doi: 10.1038/s41598-023-37065-5

PubMed Abstract | Crossref Full Text | Google Scholar

Reuter, M., and Kruger, D. H. (2020). Approaches to optimize therapeutic bacteriophage and bacteriophage-derived products to combat bacterial infections. Virus Genes 56, 136–149. doi: 10.1007/s11262-020-01735-7

PubMed Abstract | Crossref Full Text | Google Scholar

Turner, D., Shkoporov, A. N., Lood, C., Millard, A. N., Dutilh, B. E., Alfenas-Zerbini, P., et al. (2023). Abolishment of morphology-based taxa and change to binomial species names: 2022 taxonomy update of the ICTV bacterial viruses subcommittee. Arch. Virol. 168:74. doi: 10.1007/s00705-022-05694-2

PubMed Abstract | Crossref Full Text | Google Scholar

Wells, J. M., Raju, B. C., Nyland, G., and Lowe, S. K. (1981). Medium for isolation and growth of Bacteria associated with plum leaf scald and phony peach diseases. Appl. Environ. Microbiol. 42, 357–363. doi: 10.1128/aem.42.2.357-363.1981

PubMed Abstract | Crossref Full Text | Google Scholar
