ORIGINAL RESEARCH article

Front. Microbiol., 27 May 2025

Sec. Antimicrobials, Resistance and Chemotherapy

Volume 16 - 2025 | https://doi.org/10.3389/fmicb.2025.1601035

This article is part of the Research TopicMetagenomic Approach for Exploration of Antimicrobial Resistance in Uncultivated MicrobiotaView all 8 articles

Identification of an IncHI5-like plasmid co-harboring blaNDM−1 and blaOXA−1 in mcr-8.1-positive Klebsiella pneumoniae isolate


Xu Liu
Xu Liu1*Tingting Zhang,Tingting Zhang2,3Zhiyang Yu,Zhiyang Yu2,3Shangshang Qin,Shangshang Qin2,3Muchen Zhang,Muchen Zhang2,3Yan Li,
Yan Li2,3*
  • 1Department of Clinical Laboratory, The First Affiliated Hospital of Zhengzhou University, Zhengzhou, Henan, China
  • 2XNA Platform, School of Pharmaceutical Sciences, Zhengzhou University, Zhengzhou, Henan, China
  • 3Key Laboratory of Advanced Drug Preparation Technologies, Ministry of Education, Zhengzhou University, Zhengzhou, Henan, China

The emergence of polymyxin-resistant carbapenem-resistant Klebsiella pneumoniae (CRKP) severely limits clinical treatment options and poses a significant threat to anti-infective therapy. In this study, we investigated the genetic characteristics of an IncHI5-like plasmid co-harboring blaNDM−1 and blaOXA−1 in an mcr-8.1-positive clinical CRKP isolate using a combination of MIC testing, conjugation experiments, bacterial whole-genome sequencing, and bioinformatics analyses. The ST626 CRKP strain KP19-2581, isolated from a human clinical infection, exhibited a multidrug-resistant (MDR) phenotype. Whole-genome sequencing revealed that the colistin resistance gene mcr-8.1 was located on an IncFIA/IncFII plasmid, flanked by the conserved structure IS903B-orf-mcr-8.1-orf-IS903B. In addition, strain KP19-2581 carried a novel IncHI5-like MDR plasmid, designated pKP19-2581-367k-HI5-NDM1, which co-harbored the blaNDM−1 and blaOXA−1 genes. This plasmid contained two MDR regions, harboring a diverse array of resistance genes across multiple antibiotic classes. The dissemination of blaOXA−1 in variable region is related to the structure of class 1 integron, while IS26 mediates the integration of blaNDM−1 on IncHI5-like plasmid. Notably, this is the first report of an IncHI5-like plasmid carrying both blaNDM−1 and two copies of blaOXA−1, along with multiple resistance genes and insertion sequences. Given its potential to acquire additional resistance determinants, this plasmid may serve as a reservoir for further antimicrobial resistance evolution, underscoring the urgent need for surveillance of IncHI5 plasmids to mitigate their clinical and epidemiological impact.

Introduction

Carbapenem-resistant Klebsiella pneumoniae (CRKP) is globally widespread and represents a major threat to public health (Wyres and Holt, 2022; Yungyuen et al., 2021). The production of KPC-2, a type of serine-β-lactamases (SBL), is mainly responsible for carbapenem resistance in CRKP (Nordmann and Poirel, 2019; Meng et al., 2019; Meijing Shen et al., 2023). SBLs can be inhibited by various agents, including avibactam, making Ceftazidime-Avibactam (CZA) an effective therapeutic regimen for infections caused by KPC-producing K. pneumoniae (Krapp et al., 2017; Liu et al., 2022). However, the rise of MBL (metallo-β-lactamases) and SBL co-producing K. pneumoniae strains, particularly those harboring both blaNDM−1 and blaKPC−2, has significantly compromised the effectiveness of CZA. In these NDM and KPC co-producing CRKP strains, the blaNDM−1 and blaKPC−2 genes are carried by separate plasmids (Gao et al., 2020). Of note, our previous report identified both blaKPC−2 and blaIMP−4 genes were carried by a single conjugative IncHI5-like plasmid (Dong et al., 2023). The IncHI5 plasmid has been documented as a common vector for carrying single carbapenemase genes, such as blaNDM or blaIMP. The co-harboring of two distinct types of carbapenemase further underscores the ongoing evolution of this plasmid type.

Polymyxins are considered the last line of defense against infections caused by carbapenem-resistant Gram-negative bacteria (Poirel et al., 2017). In China, back in November 2011, the plasmid-mediated polymyxin resistance gene mcr-1 was initially detected in animals (Liu et al., 2016). Subsequently, additional mcr genes, including mcr-2 through mcr-10, have been reported globally (Wang et al., 2020). The worldwide spread of mcr genes poses a serious menace to the final defense line of antibiotic resistance. Of particular concern is the increasing isolation of multidrug-resistant (MDR) Klebsiella strains that co-produce carbapenemases and MCR, which present substantial clinical challenges due to the limited treatment options available for these infections (Kaye et al., 2016; Mendes et al., 2018).

In this study, we report, for the first time, an IncHI5-like plasmid co-harboring blaNDM−1 and blaOXA−1 in an mcr-8.1-positive K. pneumoniae isolate, and comprehensively analyze its genetic characteristics. Through comparative genomics, we explored the genetic background differences of blaNDM−1 and blaOXA−1 on the IncHI5-like plasmid pKP19-2581-367k-HI5-NDM1, examining its integration mode to provide insights into the evolution of this plasmid. The co-existence of MBL genes, SBL genes, and the mcr gene in MDR strains poses a significant threat to public health. This emerging trend warrants close surveillance.

Materials and methods

Bacterial isolation, antimicrobial susceptibility testing and PCR identification

The CRKP isolate, designated KP19-2581, was obtained from the cerebrospinal fluid (CSF) culture of a 45-year-old female patient hospitalized in the neurological intensive care unit (NICU) at a teaching hospital of Zhengzhou University in 2019. The isolate was identified using the Vitek 2 system (bioMérieux, France) and 16S rRNA gene sequencing. Minimal inhibitory concentrations (MICs) were determined using the broth microdilution technique. Resistance breakpoints were interpreted according to Clinical and Laboratory Standards Institute guidelines (CLSI) guidelines (Clinical and Laboratory Standards Institute [CLSI], 2021), the MIC of antibiotics commonly used in clinical practice was determined. E. coli ATCC25922 was used as the quality-control strain. PCR was used to detect the existence of the colistin resistance gene mcr and the carbapenemase coding genes, including blaNDM, blaIMP, blaVIM, blaOXA−48-like and blaKPC. The primers were listed in Supplementary Table 1. This study was approved by the Ethics Committee of Zhengzhou University.

Bacterial whole-genome sequencing (WGS) and bioinformatics analysis

Whole-genome DNA of K. pneumoniae KP19-2581 was extracted using the FastPure Bacteria DNA Isolation Mini Kit (Vazyme™, China) according to the manufacturer's instructions, and quantified using a Qubit 4 Fluorometer and NanoDrop (Thermo Scientific™, USA). The genomic DNA was subjected to both short- and long-read sequencing on the Illumina Hiseq 2500 platform with the PE150 strategy and Oxford Nanopore Technologies MinION platform. Following quality control and filtering with FastQC, hybrid de novo assembly was performed by combining Illumina short-read and Nanopore long-read data using Unicycler v.0.4.8 software (Wick et al., 2017). The assembled genomes were annotated using RAST (Overbeek et al., 2014). Open reading frame (ORF) prediction and annotation were carried out using Glimmer 3.02 (http://cbcb.umd.edu/software/glimmer/). Antibiotic resistance genes (ARGs) and multilocus sequence typing were performed using Kleborate (Lam et al., 2021). Plasmid replicons were identified using PlasmidFinder from the CGE website, with default parameters. ISs were identified using ISfinder with default parameters (Siguier et al., 2006). Sequence alignments for the genetic environments of blaNDM−1 and blaOXA−1 were performed using Brig and Easyfig (Sullivan et al., 2011; Alikhan et al., 2011).

Conjugation experiments

Conjugation experiments were performed according to previously described methods. Briefly, ST11 K. pneumoniae strain HS11286YZ6 (hygromycin resistant) was served as the recipients to examine the transferability of the carbapenem resistance gene bearing IncHI5-like plasmids in CRKP. Cultured in Luria Bertani (LB) broth at 37°C for 6–8 h, the donor and recipient bacteria were mixed at a ratio of 1:1, and then diluted with fresh LB broth incubated at 37°C for 24 h (Sherburne et al., 2000). Subsequently, the mixture was plated on the LB agar containing double antibiotics and incubated at 37°C for 24 h. All suspected transconjugants which were confirmed by PCR amplification for carbapenem resistance genes and antimicrobial susceptibility test.

Nucleotide sequence accession numbers

The complete nucleotide sequences of the KP19-2581 chromosome (CP1208772), along with plasmids pKP19-2581-367k-HI5-NDM1 (CP120875), pKP19-2581-207k-HIB (CP120874), pKP19-2581-101k-mcr-FII-FIA (CP120873), pKP19-2581-65k-R (CP120877), and pKP19-2581-3k-Col4401 (CP120876), have been deposited in GenBank.

Results

Phenotypic and genomic characteristics of CRKP KP19-2581

In 2019, clinical CRKP isolate KP19-2581 was recovered from the cerebrospinal fluid (CSF) culture of a 45-year-old female patient with meningitis in a teaching hospital of Zhengzhou University. Antimicrobial susceptibility testing showed KP19-2581 was resistant to all the β-lactams including meropenem and aztreonam, non-susceptible to colistin, but susceptible to amikacin and tigecycline (Supplementary Table 2). PCR results identified carbapenemase encoding genes blaNDM−1 and colistin resistance gene mcr-8.1 in KP19-2581. Subsequently, Nanopore sequencing data analysis revealed KP19-2581, which was assigned to ST626, has one chromosome of 5,394,956 bp (CP120872) and five plasmids namely pKP19-2581-367k-HI5-NDM1 (CP120875), pKP19-2581-207k-HIB (CP120874), pKP19-2581-101k-mcr-FII-FIA (CP120873), pKP19-2581-65k-R (CP120877), and pKP19-2581-3k-Col4401 (CP120876). The complete resistome is summarized in Table 1. Notably, co-occurrence of 18 resistance genes including blaNDM−1 and blaOXA−1 on a single mega-plasmid pKP19-2581-367k-HI5-NDM1, which prompted us to investigate the genetic features of this MDR plasmid. Conjugation assays demonstrated that the plasmid pKP19-2581-367k-HI5-NDM1 was non-conjugative and could not be transferred from the donor to recipient strains.

Table 1
www.frontiersin.org

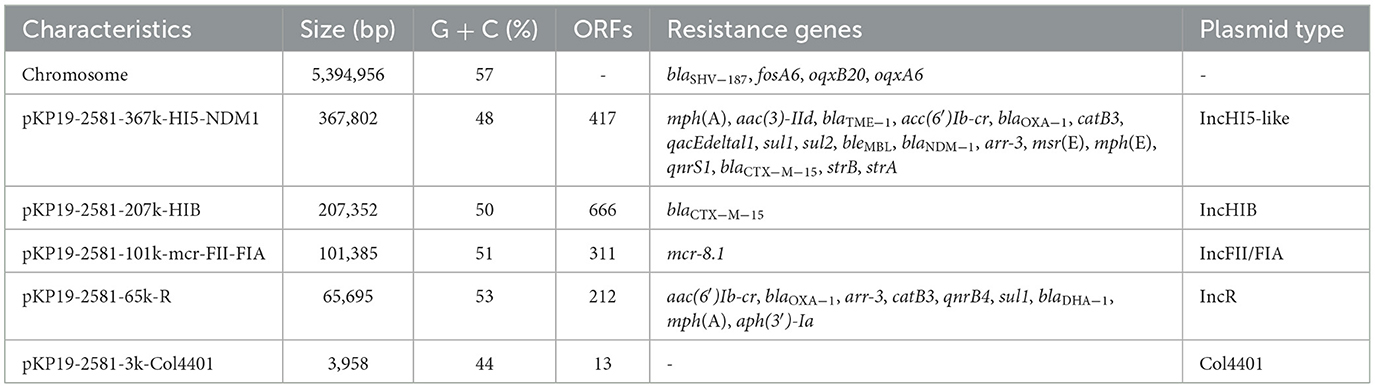

Table 1. Molecular characteristics of MDR Klebsiella pneumoniae strains KP19-2581.

Characterization of a novel IncHI5-like plasmid co-harboring blaNDM−1 and blaOXA−1

Plasmid pKP19-2581-367k-HI5-NDM1 (CP120875), which contains a typical IncHI5-type backbone region and two separated multidrug-resistant regions. An online BLAST of the NCBI nr database displayed that pKP19-2581-367k-HI5-NDM1 shared a generally similar (81% query coverage and 99% nucleotide identity) IncHI5 backbone with plasmids pC39-334kb and pNDM-1-EC12 (Figure 1A). It is noteworthy that two additional regions which have never been described on IncHI5 plasmid were found to be inserted into the backbone region of pKP19-2581-367k-HI5-NDM1. The ~28-kb IncFIIk plasmid p2 (OW968065)-derived region harboring a toxin-antitoxin system CcdAB flanked by the IS26 and ISKpn28 elements was inserted upstream of phage integrase, and other ~17-kb exogenous segment located immediately between two hypothetical protein shares similarity (38% query coverage and 80.96% nucleotide identity) to its corresponding fragment in the chromosome of Enterobacteriaceae strain C2 (CP053730) (Figures 1A, B). Insertion of segments originated from plasmid other than IncHI5 plasmid and chromosome suggested that the formation of pKP19-2581-367k-HI5-NDM1 has undergone complex combination processes based on structure of IncHI5-type plasmid.

Figure 1
www.frontiersin.org

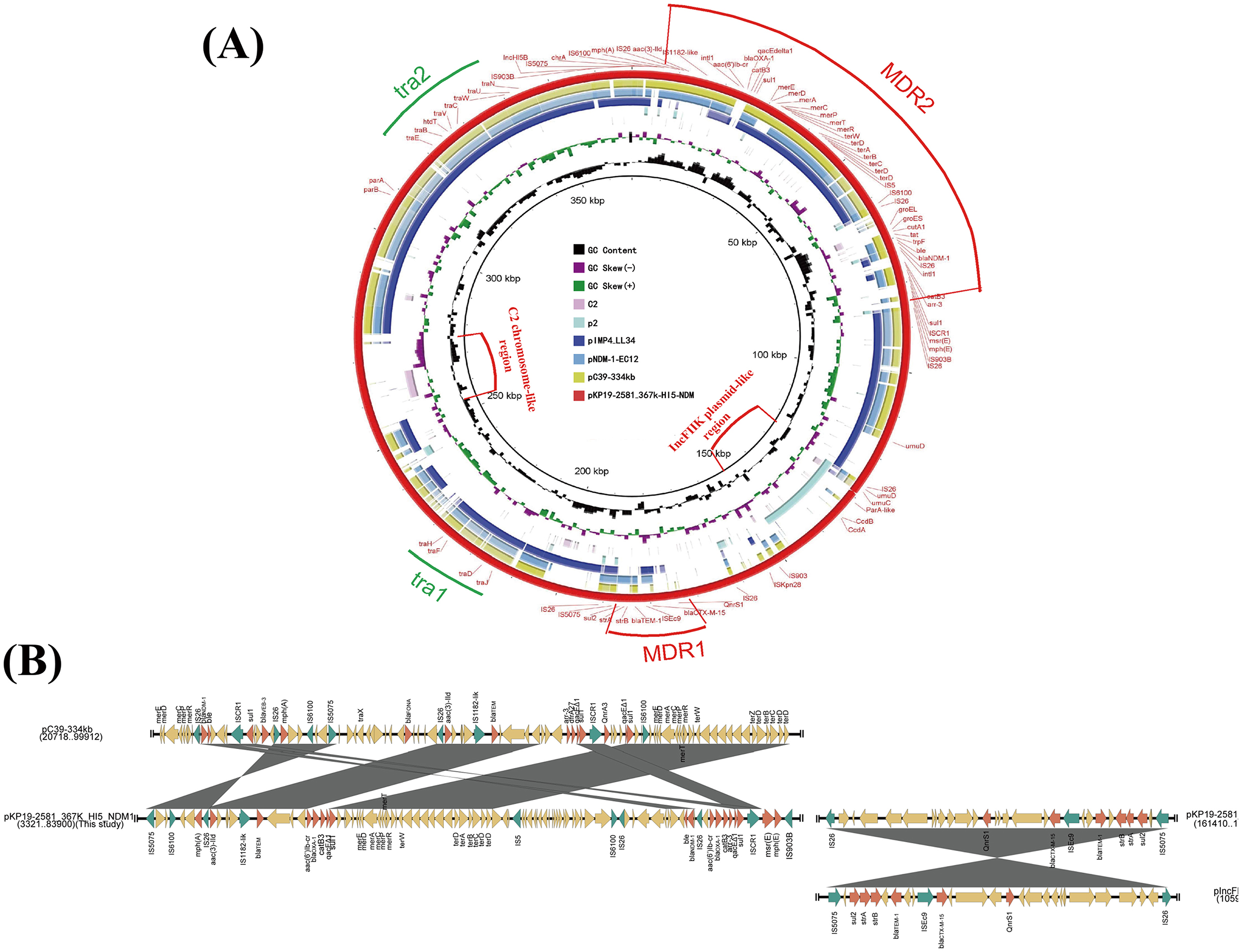

Figure 1. (A) Circular comparison between the plasmid pKP19-2581-367k-HI5-NDM1 and other reported similar plasmids. The circular map was generated using the BLAST Ring Image Generator (BRIG). (B) Linear alignment the MDR regions of plasmid pKP19-2581-367k-HI5-NDM1 with MDR region of plasmids pC39-334kb and pIncFIIK-IncFII. The linear map was generated using EasyFig.

Two MDR regions namely MDR1 and MDR2, were detected in the variable region of the plasmid pKP19-2581-367k-HI5-NDM1. The ~29-kb MDR1 contained multiple resistance genes including qnrs1, blaCTX−M−15, blaTEM−1, strAB and sul2 exhibited 100% homologous to plasmid pIncFIBK-IncFII (CP084503) from K. pneumoniae (Figures 1A, B). Surprisingly, blaNDM−1 and two copies of blaOXA−1 genes were observed on MDR2. Detailed linear analysis showed that MDR2 was ~80kb in length, contained abundant AMR genes and mobile elements, and had high homology (query coverage 80%, nucleotide homology 99.99%) with the corresponding fragment of the K. pneumoniae IncHI5-like plasmid pC39-334kb (CP061701). Interestingly, the main difference between pKP19-2581-367k-HI5-NDM1 and pC39-334kb was in the composition of ARGs (Figure 1B). Compared with the MDR region of pC39-334kb, the highly mosaic MDR2 obviously underwent more complex and unique events of insertion, deletion or integration of AMR genes and different mobile elements. These findings jointly highlight the evolutionary potential of IncHI5 plasmids, as they may lead to the formation of new multidrug-resistant plasmids and become a reservoir of multidrug-resistant genes.

Detailed genetic background analysis showed that the blaNDM−1 gene located on a previously described Tn125-like transposon structure (IS26-ΔISAba125pac-ISCR21-groL-groES-dct-tat-iso-bleMBL-blaNDM−1-ΔISAba125-IS26) (Weber et al., 2019) flanked by two IS26 in the same direction in pKP19-2581-367k-HI5-NDM1 (Figure 2A). Compared with the blaNDM−1 genetic environment on the IncHI5 plasmid reported previously (CP061701 and MN598004), pKP19-2581-367k-HI5-NDM1 harbors a more complete Tn125 structure and carries a broader array of ARGs. In addition, two copies of blaOXA−1 were found in the class 1 integron intI1-aac(6)-Ib-cr-blaOXA−1-catB3-qacEΔ1-sul1 and intI1-aac(6)-Ib-cr-blaOXA−1-catB3-arr-3-qacEΔ1-sul1, which differ by the arr-3 gene (Figure 2B). Interestingly, the IncR plasmid pKP19-2581-65K-R in K. pneumoniae KP19-2581 also carries a blaOXA−1 gene located in the class 1 integron, and an IS mobile element ISKpn26 was added (Figure 2B). As previously reported, mobile integrators (MIs) are ubiquitous elements that provide a platform for the acquisition, recombination, and expression of gene cassettes, many of which are antibiotic resistance genes (Recchia and Hall, 1995; Escudero et al., 2015). These elements are commonly associated with transposons and conjugative plasmids and play an important role in the evolution of resistance in pathogenic bacteria (Partridge et al., 2018). Therefore, the formation of pKP19-2581-367k-HI5-NDM1 may be the insertion of Tn125-like transposons mediated by IS26 elements and a blaOXA−1-carrying class 1 integron from IncR plasmid pKP19-2581-65K-R from the same strain. Moreover, blaOXA−1 gene replicates in MDR 2 during the recombination process.

Figure 2
www.frontiersin.org

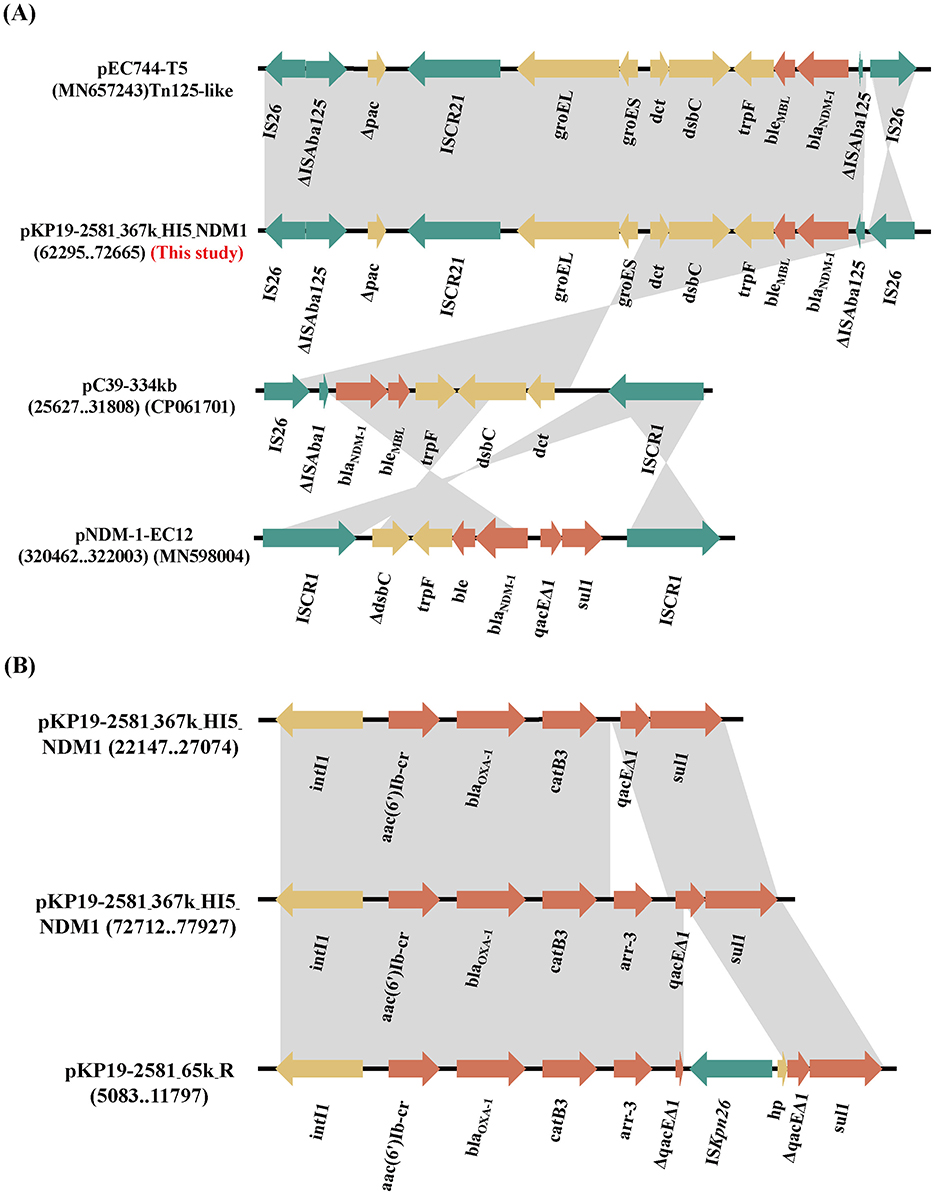

Figure 2. (A) Linear comparison of the genetic environment of blaNDM−1 among plasmids pKP19-2581-367k-HI5-NDM1and pEC744-T5, pC39-334kb, pNDM-1-EC12. (B) Linear comparison of genetic environment of blaOXA−1 among pKP19-2581-367k-HI5-NDM1 and pKP19-2581-65K-R. The plasmid comparison figure was generated by EasyFig.

Molecular characterization of an mcr-8.1-carrying IncFII/FIA plasmid

We found that K. pneumoniae strain KP19-2581 contained an mcr-8.1-harboring plasmid namely pKP19-2581-101k-mcr-FII-FIA (Figure 3). Replicon typing showed that the mcr-8.1 gene was located on an IncFIA/IncFII plasmid, which had a length of 101,385 bp, with an average GC content of 51%, encoding 311 predicted ORFs. A BLASTN search against the NCBI nucleotide database revealed that the mcr-8.1-carrying plasmid pKP19-2581-101k-mcr-FII-FIA displayed 97% query coverage and 99.28% nucleotide identity to plasmid pKP19-3138-3 (CP090619) from the K. pneumoniae, 92% query coverage and 98.84% nucleotide identity to plasmid pKP22 (OL804390) from the K. pneumoniae. Analysis of the surrounding genetic context of the mcr-8.1 gene in pKP19-2581-101k-mcr-FII-FIA showed the transfer of the mcr-8.1 gene was presumably mediated by two IS903B in the same direction, constructing a mobile unit of IS903B-orf-mcr-8.1-orf-IS903B, as previously reported (Wu et al., 2020).

Figure 3
www.frontiersin.org

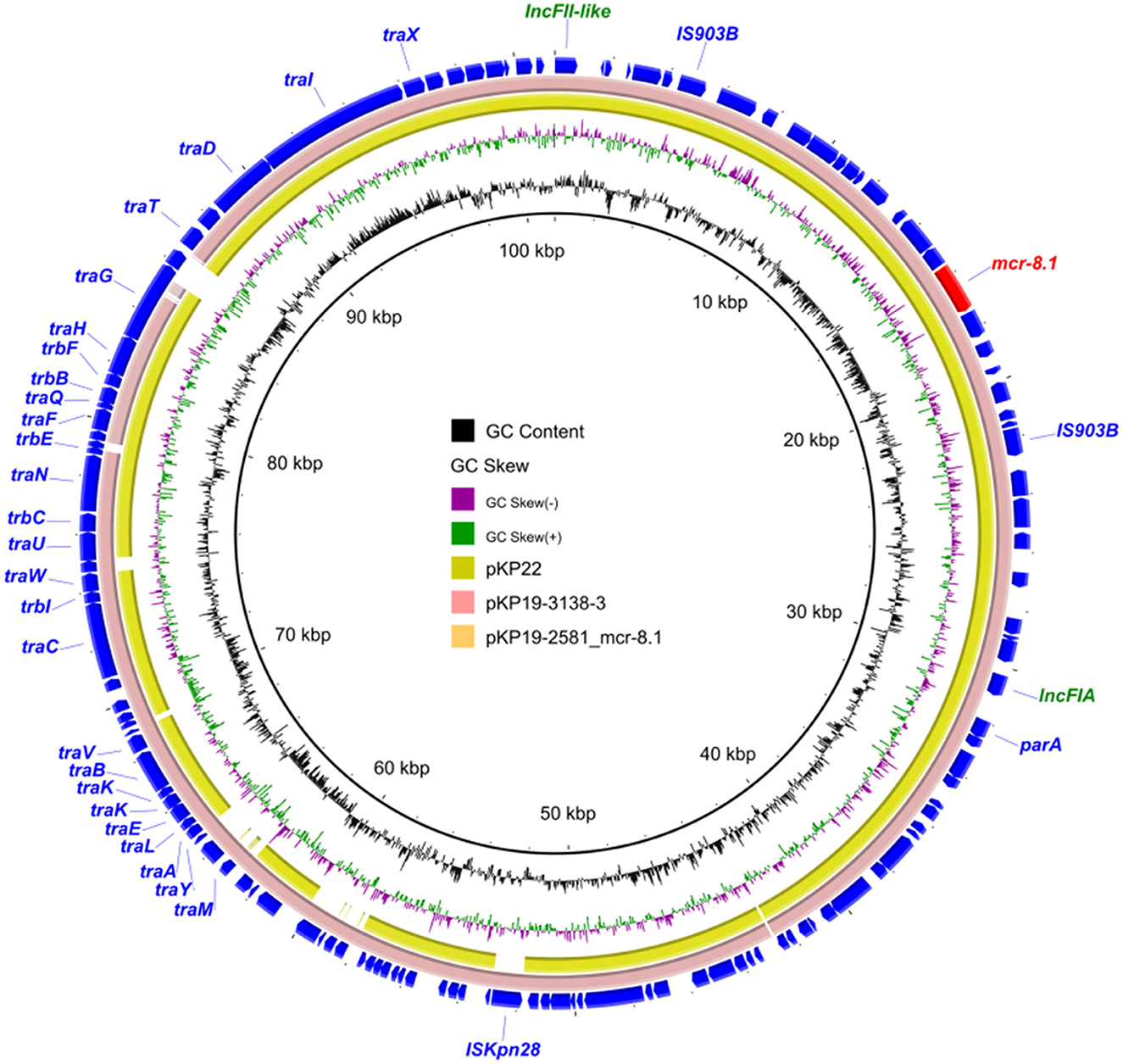

Figure 3. Circular comparison between the plasmid pKP19-2581-mcr-8.1 and other reported similar plasmids.

Discussion and conclusion

There have been several reports of the concurrent presence of blaNDM−1 and blaOXA−1 in isolates of Enterobacteriaceae (Gondal et al., 2020; Xie et al., 2017). In the present study, strain KP19-2581 harbored one blaNDM−1 gene and two copies of the blaOXA−1 gene within the same MDR region on the IncHI5-like plasmid pKP19-2581-367k-HI5-NDM1. Notably, IncHI5 plasmids have garnered significant attention in recent years due to their ability to carry multiple antibiotic resistance genes. An increasing number of studies have identified carbapenem resistance genes on IncHI5 plasmids (Liang et al., 2018; Joseph et al., 2020; Chen et al., 2021; Liu et al., 2021; Wang et al., 2021; Zhang et al., 2021; Dong et al., 2022; Luo et al., 2023), highlighting their role as key reservoirs for resistance genes, particularly carbapenemase genes.

The ISs, which can autonomously replicate and insert into various genomic locations, play a pivotal role in gene recombination, mutation, and the evolution and dissemination of plasmids (Partridge et al., 2018). In our study, the insertion of multiple IS26 elements mediated several insertion and rearrangement events involving a large number of ARGs, including the blaNDM−1-carrying MDR region, thus accelerating the evolution of IncHI5-like plasmids.

Notably, the emergence of the colistin resistance gene mcr-8.1 has further weakened the efficacy of treatments for infections caused by multi-drug-resistant bacteria. When the IncHI5-like plasmid and the mcr-8.1 coexist in the same bacterial strain, clinical treatment will face severe challenges and is highly likely to fall into the difficult situation of having “no drugs available”. Moreover, considering that the IncHI5 plasmid has a broad host adaptability, it has aggravated the global epidemic risk of drug resistance (Liang et al., 2018). Therefore, in such circumstances, it is necessary to strengthen monitoring and control measures to prevent the spread of drug-resistant strains and the outbreak of infections.

The oriTfinder showed relevant genes on this plasmid, yet the oriT region was absent. OriT is crucial for plasmid transfer. Since it's necessary for conjugative plasmids, an incomplete MOB module might explain pKP19-2581-367k-HI5-NDM1's non-conjugative nature. In addition, the plasmid harbors multiple antibiotic resistance genes, and its acquisition may impose a substantial fitness cost on the host strain, thereby limiting its ability to be transferred to other bacterial recipients (Liu et al., 2024). Surprisingly, the first appearance of the IncHI5-like plasmid could be traced back to 2013. Over the past decade, it has not experienced rapid growth, largely due to the fact that only a tiny minority of Inchi5-like plasmids are capable of undergoing conjugative transfer (Luo et al., 2023). However, due to the co-location of genes related to heavy metal resistance and other non-carbapenem resistance genes in IncHI5-like plasmids, stubborn selection pressure may also contribute to the maintenance and spread of IncHI5-like plasmids (Baker-Austin et al., 2006).

In summary, this study is the first to report an mcr-8.1-positive K. pneumoniae strain co-harboring blaNDM−1 and two copies of blaOXA−1 within an IncHI5-like plasmid. The structure of plasmid, comprising three distinct regions—an IncHI5 plasmid-like region, an IncFIIk plasmid-like region, and a C2 chromosome-like region—highlights the strong evolutionary potential of IncHI5 plasmids. The emergence of IncHI5-like plasmids carrying multiple carbapenemase genes underscores their potential to become significant vectors for carbapenemase gene transmission. Although these plasmids are typically non-conjugative, the presence of abundant AMR genes and co-selection pressures may sustain their persistence, further facilitating the dissemination of high-level carbapenemase resistance among clinical isolates. Continuous monitoring of the evolutionary dynamics and spread of IncHI5-like plasmids is therefore imperative to mitigate their potential impact on public health.

Data availability statement

The datasets presented in this study can be found in online repositories. The names of the repository/repositories and accession number(s) can be found in the article/supplementary material.

Ethics statement

The studies involving humans were approved by the Ethics Committee of Zhengzhou University. The studies were conducted in accordance with the local legislation and institutional requirements. Written informed consent for participation was not required from the participants or the participants' legal guardians/next of kin in accordance with the national legislation and institutional requirements.

Author contributions

XL: Writing – original draft, Writing – review & editing, Conceptualization, Validation, Funding Acquisition, Software. TZ: Writing – original draft, Writing – review & editing, Methodology, Data curation. ZY: Writing – original draft, Writing – review & editing, Methodology, Data curation. SQ: Writing – original draft, Writing- review & editing, Software. MZ: Writing – original draft, Writing – review & editing, Formal analysis. YL: Writing – original draft, Writing – review & editing, Conceptualization.

Funding

The author(s) declare that financial support was received for the research and/or publication of this article. This work was supported by National Natural Science Foundation of China (U20041257), Training Plan for Young Backbone Teachers in Colleges and Universities in Henan (2021GGJS016), Key project of Natural Science Foundation of Henan province (252300421272), and National Supercomputing Center in Zhengzhou.

Conflict of interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Generative AI statement

The author(s) declare that no Gen AI was used in the creation of this manuscript.

Publisher's note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

Supplementary material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fmicb.2025.1601035/full#supplementary-material

References

Alikhan, N. F., Petty, N. K., Ben Zakour, N. L., and Beatson, S. A. (2011). BLAST ring image generator (BRIG): simple prokaryote genome comparisons. BMC Genomics 12:402. doi: 10.1186/1471-2164-12-402

PubMed Abstract | Crossref Full Text | Google Scholar

Baker-Austin, C., Wright, M. S., Stepanauskas, R., and McArthur, J. V. (2006). Co-selection of antibiotic and metal resistance. Trends Microbiol. 14, 176–182. doi: 10.1016/j.tim.2006.02.006

PubMed Abstract | Crossref Full Text | Google Scholar

Chen, R. L. Z., Xu, P., Qi, X., Qin, S., Wang, Z., and Li, R. (2021). Deciphering the epidemiological characteristics and molecular features of blaKPC-2- or blaNDM-1-positive Klebsiella pneumoniae isolates in a newly established hospital. Front Microbiol. 12:741093. doi: 10.3389/fmicb.2021.741093

PubMed Abstract | Crossref Full Text | Google Scholar

Clinical and Laboratory Standards Institute [CLSI]. (2021). Performance Standards for Antimicrobial Susceptibility Testing. 31th edn. CLSI supplement M100. Wayne, PA: Clinical and Laboratory Standards Institute.

Google Scholar

Dong, H. L. Y., Cheng, J., Xia, Z., Liu, W., Yan, T., Chen, F., et al. (2022). Genomic epidemiology insights on NDM-producing pathogens revealed the pivotal role of plasmids on blaNDM transmission. Microbiol. Spectr. 10:e0215621. doi: 10.1128/spectrum.02156-21

PubMed Abstract | Crossref Full Text | Google Scholar

Dong, H. L. Z., Wu, Z., Zhang, T., Xia, Z., Zhao, Y., Li, Y., et al. (2023). Characterization of a Conjugative hybrid plasmid coharboring blaKPC-2 and blaIMP-4 in a Klebsiella quasipneumoniae clinical isolate. Microbiol Spectr. 11:e0261622. doi: 10.1128/spectrum.02616-22

PubMed Abstract | Crossref Full Text | Google Scholar

Escudero, J. A., Loot, C., Nivina, A., Mazel, D., Rice, P., Craig, N., et al. (2015). The integron: adaptation on demand. Microbiol. Spect. 3:MDNA3-2014. doi: 10.1128/microbiolspec.MDNA3-0019-2014

PubMed Abstract | Crossref Full Text | Google Scholar

Gao, H., Liu, Y., Wang, R., Wang, Q., Jin, L., Wang, H., et al. (2020). The transferability and evolution of NDM-1 and KPC-2 co-producing Klebsiella pneumoniae from clinical settings. Ebiomedicine 51:102599. doi: 10.1016/j.ebiom.2019.102599

PubMed Abstract | Crossref Full Text | Google Scholar

Gondal, A. J., Saleem, S., Jahan, S., Choudhry, N., and Yasmin, N. (2020). Novel carbapenem-resistant Klebsiella pneumoniae ST147 coharboring blaNDM-1, blaOXA-48 and extended-spectrum β-lactamases from Pakistan. Infect. Drug Resist. 13, 2105–2115. doi: 10.2147/IDR.S251532

PubMed Abstract | Crossref Full Text | Google Scholar

Joseph, S. J., Topaz, N., Chang, H-. Y., Whaley, M. J., Vuong, J. T., Chen, A., et al. (2020). Insights on population structure and within-host genetic changes among meningococcal carriage isolates from U.S. Universities. mSphere 5, e00197–20. doi: 10.1128/mSphere.00197-20

PubMed Abstract | Crossref Full Text | Google Scholar

Kaye, K. S., Pogue, J. M., Tran, T. B., Nation, R. L., and Li, J. (2016). Agents of last resort: polymyxin resistance. Infect. Dis. Clin. North. Am. 30, 391–414. doi: 10.1016/j.idc.2016.02.005

PubMed Abstract | Crossref Full Text | Google Scholar

Krapp, F., Grant, J. L., Sutton, S. H., Ozer, E. A., and Barr, V. O. (2017). Treating complicated carbapenem-resistant enterobacteriaceae infections with ceftazidime/avibactam: a retrospective study with molecular strain characterisation. Int. J. Antimicrob. Agents. 49, 770–773. doi: 10.1016/j.ijantimicag.2017.01.018

PubMed Abstract | Crossref Full Text | Google Scholar

Lam, M. M. C., Wick, R. R., Watts, S. C., Cerdeira, L. T., Wyres, K. L., Holt, K. E. A., et al. (2021). Genomic surveillance framework and genotyping tool for Klebsiella pneumoniae and its related species complex. Nat Commun. 12:4188. doi: 10.1038/s41467-021-24448-3

PubMed Abstract | Crossref Full Text | Google Scholar

Liang, Q., Jiang, X., Hu, L., Yin, Z., Gao, B., Zhao, Y., et al. (2018). Sequencing and genomic diversity analysis of IncHI5 plasmids. Front Microbiol. 9:3318. doi: 10.3389/fmicb.2018.03318

PubMed Abstract | Crossref Full Text | Google Scholar

Liu, X., Chu, Y., Yue, H., Huang, X., and Zhou, G. (2022). Risk factors for and clinical outcomes of ceftazidime-avibactam-resistant carbapenem-resistant Klebsiella pneumoniae nosocomial infections: a single-center retrospective study. Infection 50, 1147–1154. doi: 10.1007/s15010-022-01781-3

PubMed Abstract | Crossref Full Text | Google Scholar

Liu, Y. Y., Wang, Y., Walsh, T. R., Yi, L. X., Zhang, R., Spencer, J., et al. (2016). Emergence of plasmid-mediated colistin resistance mechanism MCR-1 in animals and human beings in China: a microbiological and molecular biological study. Lancet Infect. Dis. 16, 161–168. doi: 10.1016/S1473-3099(15)00424-7

PubMed Abstract | Crossref Full Text | Google Scholar

Liu Z. Chen R. Xu P. Wang Z. and Li. R. (2021). Characterization of a blaNDM-1-bearing IncHI5-like plasmid from Klebsiella pneumoniae of infant origin. Front. Cell. Infect. Microbiol. 11:738053. doi: 10.3389/fcimb.2021.738053

PubMed Abstract | Crossref Full Text | Google Scholar

Liu, Z., Gao, Y., Wang, M., Liu, Y., Wang, F., Shi, J., et al. (2024). Adaptive evolution of plasmid and chromosome contributes to the fitness of a blaNDM-bearing cointegrate plasmid in Escherichia coli. ISME J. 18:wrae037. doi: 10.1093/ismejo/wrae037

PubMed Abstract | Crossref Full Text | Google Scholar

Luo, X., Dong, F., Dai, P., Xu, M., Yu, L., Hu, D., et al. (2023). Coexistence of blaKPC-2 and blaNDM-1 in one IncHI5 plasmid confers transferable carbapenem resistance from a clinical isolate of Klebsiella michiganensis in China. J. Glob. Antimicrob. Resist. 35, 104–109. doi: 10.1016/j.jgar.2023.09.006

PubMed Abstract | Crossref Full Text | Google Scholar

Meijing Shen, X. C., Jingyue, H., Lin, X., Rengui, T., Guangwu, Y., He, Z., and Kaifeng, W. (2023). Antimicrobial resistance patterns, sequence types, virulence and carbapenemase genes of carbapenem-resistant Klebsiella pneumoniae clinical isolates from a tertiary care teaching hospital in Zunyi, China. Infect. Drug Resist. 29, 637–649. doi: 10.2147/IDR.S398304

PubMed Abstract | Crossref Full Text | Google Scholar

Mendes, A. C., Novais, A., Campos, J., Rodrigues, C., Santos, C., Antunes, P., et al. (2018). mcr-1 in carbapenemase-producing Klebsiella pneumoniae with hospitalized patients, Portugal, 2016–2017. Emerg. Infect. Dis. 24, 762–766. doi: 10.3201/eid2404.171787

PubMed Abstract | Crossref Full Text | Google Scholar

Meng, X. Y. J., Duan, J., Liu, S., Huang, X., Wen, X., Huang, X., et al. (2019). Assessing molecular epidemiology of carbapenem-resistant Klebsiella pneumoniae (CR-KP) with MLST and MALDI-TOF in Central China. Sci. Rep. 9:2271. doi: 10.1038/s41598-018-38295-8

PubMed Abstract | Crossref Full Text | Google Scholar

Nordmann, P., and Poirel, L. (2019). Epidemiology and diagnostics of carbapenem resistance in gram-negative bacteria. Clin. Infect. Dis. 69, S521–S8. doi: 10.1093/cid/ciz824

PubMed Abstract | Crossref Full Text | Google Scholar

Overbeek, R., Olson, R., Pusch, G. D., Olsen, G. J., Davis, J. J., Disz, T., et al. (2014). The SEED and the rapid annotation of microbial genomes using subsystems technology (RAST). Nucleic Acids Res. 42, D206–D214. doi: 10.1093/nar/gkt1226

PubMed Abstract | Crossref Full Text | Google Scholar

Partridge, S. R. K. S., Firth, N., and Jensen, S. O. (2018). Mobile genetic elements associated with antimicrobial resistance. Clin. Microbiol. Rev. 31, e00088–17. doi: 10.1128/CMR.00088-17

PubMed Abstract | Crossref Full Text | Google Scholar

Poirel, L., Jayol, A., and Nordmann, P. (2017). Polymyxins: antibacterial activity, susceptibility testing, and resistance mechanisms encoded by plasmids or chromosomes. Clin. Microbiol. Rev. 30, 557–596. doi: 10.1128/CMR.00064-16

PubMed Abstract | Crossref Full Text | Google Scholar

Recchia, G. D., and Hall, R. M. (1995). Gene cassettes: a new class of mobile element. Microbiology 141, 3015–3027. doi: 10.1099/13500872-141-12-3015

PubMed Abstract | Crossref Full Text | Google Scholar

Sherburne, C. K., Lawley, T. D., Gilmour, M. W., Blattner, F. R., Burland, V., Grotbeck, E., et al. (2000). The complete DNA sequence and analysis of R27, a large IncHI plasmid from Salmonella typhi that is temperature sensitive for transfer. Nucleic Acids Res. 28, 2177–2186. doi: 10.1093/nar/28.10.2177

PubMed Abstract | Crossref Full Text | Google Scholar

Siguier, P., Perochon, J., Lestrade, L., Mahillon, J., and Chandler, M. (2006). ISfinder: the reference centre for bacterial insertion sequences. Nucleic Acids Res. 34, D32–D36. doi: 10.1093/nar/gkj014

PubMed Abstract | Crossref Full Text | Google Scholar

Sullivan, M. J., Petty, N. K., and Beatson, S. A. (2011). Easyfig: a genome comparison visualizer. Bioinformatics 27, 1009–1010. doi: 10.1093/bioinformatics/btr039

PubMed Abstract | Crossref Full Text | Google Scholar

Wang, C., Feng, Y., Liu, L., Wei, L., Kang, M., Zong, Z., et al. (2020). Identification of novel mobile colistin resistance gene mcr-10. Emerg. Microbes. Infect. 9, 508–516. doi: 10.1080/22221751.2020.1732231

PubMed Abstract | Crossref Full Text | Google Scholar

Wang, M., Fan, Y., Liu, P., Liu, Y., Zhang, J., Jiang, Y., et al. (2021). Genomic insights into evolution of pathogenicity and resistance of multidrug-resistant Raoultella ornithinolytica WM1. Ann. N. Y. Acad. Sci. 1497, 74–90. doi: 10.1111/nyas.14595

PubMed Abstract | Crossref Full Text | Google Scholar

Weber, R. E., Pietsch, M., Frühauf, A., Pfeifer, Y., Martin, M., Luft, D., et al. (2019). IS26-Mediated transfer of blaNDM-1 as the main route of resistance transmission during a polyclonal, multispecies outbreak in a German hospital. Front. Microbiol. 10:2817. doi: 10.3389/fmicb.2019.02817

PubMed Abstract | Crossref Full Text | Google Scholar

Wick, R. R., Judd, L. M., Gorrie, C. L., and Holt, K. E. (2017). Unicycler: resolving bacterial genome assemblies from short and long sequencing reads. PLoS Comput. Biol. 13:e1005595. doi: 10.1371/journal.pcbi.1005595

PubMed Abstract | Crossref Full Text | Google Scholar

Wu, B., Wang, Y., Ling, Z., Yu, Z., Shen, Z., Zhang, S., et al. (2020). Heterogeneity and diversity of mcr-8 genetic context in chicken-associated Klebsiella pneumoniae. Antimicrob. Agents Chemother. 65, e01872–20. doi: 10.1128/AAC.01872-20

PubMed Abstract | Crossref Full Text | Google Scholar

Wyres, K., and Holt, K. (2022). Regional differences in carbapenem-resistant Klebsiella pneumoniae. Lancet Infect. Dis. 22, 309–310. doi: 10.1016/S1473-3099(21)00425-4

PubMed Abstract | Crossref Full Text | Google Scholar

Xie, L., Dou, Y., Zhou, K., Chen, Y., Han, L., Guo, X., et al. (2017). Coexistence of blaOXA-48 and truncated blaNDM-1 on different plasmids in a Klebsiella pneumoniae isolate in China. Front. Microbiol. 8:133. doi: 10.3389/fmicb.2017.00133

PubMed Abstract | Crossref Full Text | Google Scholar

Yungyuen, T. C. T., Plongla, R., Kanthawong, S., Yordpratum, U., Voravuthikunchai, S. P., Chusri, S., et al. (2021). Nationwide surveillance and molecular characterization of critically drug-resistant gram-negative bacteria: results of the research university network Thailand study. Antimicrob. Agents Chemother. 65, e00675–21. doi: 10.1128/AAC.00675-21

PubMed Abstract | Crossref Full Text | Google Scholar

Zhang, X., Li, Q., Lin, H., Zhou, W., Qian, C., Sun, Z., et al. (2021). High-level aminoglycoside resistance in human clinical klebsiella pneumoniae complex isolates and characteristics of armA-carrying IncHI5 plasmids. Front. Microbiol. 12:636396. doi: 10.3389/fmicb.2021.636396

PubMed Abstract | Crossref Full Text | Google Scholar
