Abstract
We evaluated 284 strains from 15 species across five genera in the Phylum Bacillota (Bacillus, Priestia, Cytobacillus, Neobacillus, and Gottfriedia) for antibiosis activity against the pathogenic oomycete, Phytophthora nicotianae. Fifty-eight strains were strong inhibitors, while 41 and 185 were weak and noninhibitors, respectively. Only Bacillus strains were strong inhibitors, and inhibitory metabolites were most frequently (55 of 58 strains) expressed from five species (B. pumilus, B. safensis, B. altitudinis, B. velezensis, and B. subtilis). Strongly inhibitory strains from B. velezensis (all) and B. subtilis (all but one) were also strong inhibitors of the fungal pathogens Fusarium oxysporum, Fusarium graminearum, and Rhizoctonia solani; therefore, these Bacillus strains were designated as generalists. The strong P. nicotianae inhibitors from B. pumilus, B. safensis, and B. altitudinis strains only weakly inhibited R. solani and did not inhibit F. oxysporum or F. graminearum; therefore, these strains were designated as Oomycete specialists. Lipopeptide-encoding biosynthetic gene clusters (BGCs) were prominently represented within the five bioactive generalist species and virtually absent from the 10 non-inhibitory species. Surfactin-encoding BGCs were observed across all specialists and generalists. B. subtilis strains also carried a fengycin BGC, and some B. velezensis strains were found to encode a novel iturin and fengycin BGC. Iturin (including bacillomycin L), fengycin, and surfactin were the most commonly observed lipopeptide BGCs among the most bioactive species, and many strains contained all three. Lipopeptides from strongly inhibitory B. velezensis JJ334 were isolated, identified, and characterized by LC-MS. Fengycin and bacillomycin L produced strong inhibition of oomycetes and fungi as compared to surfactin. Fengycin was the strongest inhibitor among lipopeptides evaluated. Six to thirteen derivatives of each lipopeptide were observed, varying primarily in fatty acid chain length.
Introduction
Plant-pathogenic fungi and oomycetes are the cause of serious and intractable diseases that result in multiple billions of dollars in annual crop losses (). Crop-destroying representative species from the oomycete Phytophthora are P. infestans, P. sojae, P. capsica, and P. nicotianae. Among these, P. nicotianae is the causative agent of blank shank of tobacco and has a broad host range, including citrus, cotton, apple, cashew, pistachio, tobacco, and tomato (). Economically important plant-pathogenic fungi responsible for severe diseases against a wide range of plants are Magnaporthe oryzae, Botrytis cinerea, Fusarium graminearum, F. oxysporum, and Rhizoctonia solani (; ). The agricultural impacts of climate change combined with the overuse of synthetic fungicides have simultaneously produced an increase in fungal diseases and fungicide resistance (; ; ). Due to these concerns, biological agents have been considered as an alternative and promising strategy for disease control and crop management (). Studies have shown that bacteria from multiple Bacillaceae genera (e.g., Bacillus), as well as Streptomyces and Pseudomonas can be effective biocontrol agents against various plant pathogens (; ). In particular, Bacillus species have shown strong bioactivity against plant pathogens (; ; ).
Species from multiple Bacillaceae genera inhabiting the soil and plant rhizosphere are particularly well-suited as biological agents due to their adaptations to terrestrial environments and their evolution as plant-associated rhizobacteria (). Accordingly, many strains have been described as plant growth-promoting rhizobacteria (PGPR) for their contributions to plant growth and disease biocontrol (). Factors contributing to these aspects include abilities in plant-root colonization and production of allelochemicals such as siderophores, antimicrobials, biocidal volatiles, lytic, and detoxification enzymes (). The most common antimicrobials produced by species from Bacillaceae genera (especially Bacillus strains) are peptides, polyketides, betalactones, fatty-acid derivatives, and lytic enzymes (). These compounds are known as secondary (or specialized) metabolites, often encoded by biosynthetic gene clusters (BGCs).
The most common bioactive secondary metabolites produced these organisms are non-ribosomal and ribosomal-peptides and polyketide-derived macrolides (). The non-ribosomal peptides (NRP) are produced by multimodular BGCs called non-ribosomal peptide synthetases (NRPS) that accept proteinogenic or modified amino acids as substrates (). The most extensively studied Bacillus NRPs are cyclic lipopeptides (e.g., surfactin, fengycin, iturin, etc.,), and siderophores (e.g., bacillibactin) (). In particular, Bacillus lipopeptides are known to be strongly antagonistic against plant pathogenic fungi and oomycetes (). Structurally, these lipopeptides are small peptides (5–12 amino acids) consisting of a cyclic lactone ring with a linked β-amino or β-hydroxy fatty acid of variable carbon chain length. The bioactivity of each lipopeptide varies significantly, ranging from broad to narrow-spectrum antifungal or antibacterial activity, which may depend on the chemical properties of constituent amino acids as well as fatty acid chain length and branching (). The common modes of action of these lipopeptides are cell lysis, cell membrane leakage, inhibition of enzymes, and inhibition of protein synthesis of target pathogens ().
Past studies have demonstrated excellent anti-infective activities of several Bacillus species against plant pathogens in correlation with their abilities to produce single or multiple secondary metabolites (; ; ; ; ). Strains from B. velezensis and B. subtilis are the two most extensively studied Bacillus species with activity against plant pathogens; for example, several studies demonstrated that B. velezensis FZB42 and SQR9 produce multiple antimicrobial secondary metabolites that collectively exert strong antibiosis activity against fungi and oomycetes (; ; ). However, the bioactivity of the Bacillus strain and derived natural products are mostly studied either in a single strain or a few strains within the same species. Consequently, a comparative overview of the conserved roles of such natural products in correlation with their diversity and extent of expression in diverse Bacillus species is missing from the literature. In particular, the breadth of Bacillus antibiosis activity across various plant pathogens such as oomycetes and fungi in connection with the ability for secondary metabolite production is poorly understood.
To address this gap, we carried out a comparative evaluation of the antibiosis activity of 284 strains of species from a diverse set of Bacillaceae genera in connection with their ability to produce antimicrobial secondary metabolites. Antibiosis screening of these organisms against a plant-pathogenic oomycete, P. nicotianae, identified 58 (20%) strongly inhibitory strains. These were further evaluated for broad-spectrum inhibitory properties against three plant pathogenic fungi F. oxysporum, F. graminearum, and R. solani. Genome analyses of these strains showed a strikingly strong conservation of three lipopeptide BGCs (iturin/bacillomycin L, fengycin, and surfactin) among a subset of strongly inhibitory Bacillus species. Bacillomycin L, fengycin, and surfactin were produced, extracted, and isolated from a representative strongly inhibitory strain, B. velezensis JJ334. Characteristic chemical properties and antibiosis activity of each purified lipopeptide were further evaluated using UV-vis absorption spectroscopy, liquid chromatography, high-resolution mass spectrometry, and plate-based antibiosis assays.
Materials and methods
Strains, chemicals, and culture conditions
In the present study, 284 PGPR strains from five Bacillaceae genera (Bacillus, Priestia, Cytobacillus, Neobacillus, and Gottfriedia) were obtained from the Plant-Associated Microbial collection that was assembled by Prof. at Auburn University from various plant rhizospheres. Each of these PGPR strains were cryopreserved at −80 °C and were grown on Tryptic Soy Agar (TSA) for isolated colonies prior to evaluation as potential biological control agents. For genomic analysis, Illumina-generated draft genome sequences were analyzed, trimmed, and assembled using CLC Genomic Workbench1. Genome quality was further evaluated by CheckM v1.1.3. (), and 284 genome sequences with returned genome completeness of greater than 70% were included in this study. A total of 29 (out of 284) Bacillus strains with the greatest biocontrol potential were further sequenced at Nanopore for single-contig complete genome sequence. As originally collected from 1989 through 2014, all of these PGPR strains were classified as belonging to the Bacillus genus. Accordingly, the taxonomy of all 284 strains was initially evaluated by the top hit of average nucleotide identity (ANI) of whole-genome sequence at Microbial Genomes Atlas (MiGA) webserver (). Upon NCBI database deposition, strain identities were confirmed and annotated by the NCBI RefSeq database (), and all strain information was made publicly available at BioProject Accession: PRJNA1078443 and ID: 1078443. A spreadsheet summarizing the information for each strain evaluated in this study (including each NCBI BioProject Strain Accession Number) can be found in Supplementary Table 1. As cited in Supplementary Table 1, 27 of the strains have been mentioned or investigated in previous publications. For convenience, those references are listed here as well (; ; , 2019; ; ; , ; ; ; ; ; ; ; ; ; ; ). Notably, reclassification as proposed by , assigned clades within the Bacillus genus into multiple Bacillaceae genera. Accordingly, all 284 strains were taxonomically distributed into 15 species. Six species fell within non-Bacillus Bacillaceae including Priestia megaterium (65 strains), Cytobacillus firmus (5 strains), Neobacillus dretensis (17 strains), N. vireti (5 strains), N. niacini (5 strains), and Gottfriedia acidiceleris (6 strains). The remaining nine species were retained within the Bacillus genus: B. pumilus (17 strains), B. safensis (24 strains), B. altitudinis (14 strains), B. velezensis (50 strains), B. subtilis (6 strains), B. toyonensis (15 strains), B. thuringiensis (13 strains), and B. pseudomycoides (5 strains). Finally, “Bacillaceae (other)” representing a collection of 37 strains from less commonly observed species contributing < 5 strains each to the pool were evaluated. A phylogenetic tree was constructed using the 16S rRNA sequence of each type strain matching all 15 species obtained from EZbioCloud database (). For routine bacterial growth, the bacteria were cultured at 30 °C in TSA or tryptic soy broth (TSB) medium with shaking at 200 rpm.
Antibiosis assay of strains against P. nicotianae and fungal pathogens
All strains were screened for their abilities to inhibit the growth of the root-associated plant-pathogenic oomycete, P. nicotianae in a plate-based assay. P. nicotianae was grown in a V8 agar medium (180 mL/L V8 juice, 2 g/L CaCO3, and 15 g/L Bacto agar) while the Bacillaceae strains were grown on TSA. Assay plates were prepared using the V8 agar medium in which bacterial colonies were transferred into a well (diameter = 10 mm) containing TSA at the edge of the plate and the P. nicotianae was transferred as a plug to the center of the plate. The growth inhibition of P. nicotianae’s hyphae due to the presence of Bacillaceae colonies was recorded after a 7–10 days incubation. The inhibitory responses of Bacillaceae strains were classified as strong, weak, and no inhibition based on the measurement of the zone of inhibition (ZOI) and morphological changes of the Bacillaceae strain and P. nicotianae being evaluated. A strong inhibition was assigned for a clear zone of inhibition (ZOI) of 5–15 mm with complete elimination of P. nicotianae’s hyphae in the interface of Bacillus colonies and P. nicotianae, while no inhibition was assigned when the P. nicotianae’s hyphae spread over the Bacillus colonies with no observable ZOI. Exhibition of a less clear ZOI of 2–7 mm with substantial reduction of P. nicotianae’s hyphae was assigned as weak inhibition. Fifty-eight P. nicotianae-inhibitory Bacillaceae strains (all from Bacillus species) were further evaluated for antibiosis against F. oxysporum, F. graminearum, and R. solani. Each organism was assayed and evaluated in the same condition as described above for P. nicotianae, and the resulting antibiosis response was similarly classified as strong, weak, and no inhibition based on ZOI and morphological changes of the organisms evaluated.
Calculation of bioactivity index
Conservation of antibiosis activity expressed by various Bacillaceae species was calculated on the basis of the distribution of strong, weak, and no inhibition among strains within each species. A term “bioactivity index” accounting for such conservation of antibiosis activity was calculated using a weighted-average score of 1 for strong inhibition, 0.5 for weak inhibition, and 0 for no inhibition using the following equation:
As defined, bioactivity index of 1 indicates the highest expression of antibiosis activity, where all tested strains of a given species show strong antibiosis activity. Conversely, a 0 indicates no expression of antibiosis activity (i.e., no tested strains of a given species showed antibiosis activity).
Genome mining and bioinformatics analyses of Bacillaceae strains
Genome sequences of all 284 Bacillaceae strains were analyzed by antiSMASH v.5 (antibiotics and secondary metabolite analysis shell) to predict biosynthetic gene clusters (BGCs) and secondary metabolites. Predicted BGCs were further dereplicated based on respective BGCs from single contig complete genome sequences to eliminate duplicated and/or fragmented BGCs. To infer conservation in sequence and putative function, predicted BGCs were grouped into networks of clusters based on sequence similarities using BiG-SCAPE v.0.0.0r (Biosynthetic Gene Similarity Clustering and Prospecting Engine) (). Finally, network distances generated by BiG-SCAPE analysis were visualized and annotated using Cytoscape 2.8 ().
Extraction of secondary metabolites from bioactive Bacillus strains
Representative strains from the five bioactive Bacillus species were selected for producing secondary metabolites that may be responsible for antibiosis activity. In order to produce secondary metabolites, the Bacillus strains were grown in Landy medium (glucose, 20 g/L, yeast 1 g/L, L-glutamic acid 5 g/L, KCl 0.5 g/L, MgSO4 0.5 g/L, KH2PO4 1 g/L, L-phenylalanine 3 mg/L, MnSO4 5 mg/L, FeSO4 0.15 mg/L, CuSO4 0.16 mg/L, pH 7.0) for 72 h at 30 °C with constant agitation (175 rpm). To pellet cells, liquid cultures were subjected to centrifugation at 6,000 × g for 40 min. The pH of harvested cell-free supernatant was adjusted to 2.0 by dropwise addition of concentrated HCl with constant stirring. Following overnight incubation at 4 °C, the precipitate was collected by centrifugation at 6,000 × g for 50 min. The precipitate was extracted twice using 100% MeOH. The pooled MeOH extract was dried under a constant flow of N2 (g), and the dried residue was redissolved in MeOH, filtered with a 0.2 μm Acrodisc syringe filter (Pall Corporation, Ann Arbor, MI), and stored at −20 °C until evaluated.
Evaluation of antibiosis of total extracts against P. nicotianae
The antibiosis assay of the total extract of a representative strain from each of the five bioactive Bacillus species (i.e., B. velezensis JJ334, B. subtilis JM553, B. pumilus, B. altitudinis, and B. safensis) against P. nicotianae was carried out using a disk diffusion method (). The assay was conducted using a V8 agar plate. Freshly grown P. nicotianae was transferred as a plug (diameter = 5 mm) to the center of the assay plate and allowed to grow for 72 h. A total of 10 μL of the total extract was added onto a sterilized filter disk (diameter = 6 mm) and then placed at the edge of the assay plate. The growth inhibition of P. nicotianae hyphae surrounding the filter disk was measured and recorded after 5–7 days of incubation at 25 °C. An example of antibiosis activity of total extracts of B. velezensis JJ334 against P. nicotianae, F. oxysporum, F. graminearum, and R. solani is shown in Supplementary Table 4.
Evaluation of chemical properties of total extract by UV-vis absorption and LC-MS
UV-vis absorption spectra of Bacillus strain total extracts were evaluated for characteristic absorption features. To detect compounds at 220 nm, 20 μL of total extract were separated through a ZORBAX SB-C18 column (4.6 × 150 mm, 5 μm) for 60 min at a flow rate of 0.20 ml/min using an Agilent Infinity 1100 HPLC system (Santa Clara, CA). Solvent A (100% water) and B (100% acetonitrile), each containing 0.1% trifluoroacetate (v/v) were used with the following elution gradient for solvent B: 40% at 0 min, 55% at 15 min, 75% at 40 min, 100% at 60 min, and 75% at 77 min. To identify compounds in the total extract, 0.2 μL of the extract was separated by LC through an Acquity UPLC BEH C18 (2.1 × 50 mm, 1.7 μm) column and eluted onto a Thermo Fisher Exploris 120 orbitrap LC-MS (Milford, MA). The LC separation was run for 20 min with a column temperature of 40 °C and a flow rate of 0.20 mL/min. The mobile phase gradient was created using water (A) and acetonitrile (B), each containing 0.1% formic acid (v/v) such that solvent B was at 40% at 0 min and ramped to 100% at 14 min, and then back to 40% B at 16 min.
Ions were generated using both positive and negative ionization modes employing an electrospray ionization (ESI) source. In addition, fragment ions from the precursor ions were simultaneously produced in a high-stage MSn analyzer. The identity of compounds from the total extract were initially confirmed by the parent ions generated by both positive and negative ionization modes. The mass spectra of each fragmented ion generated by the MSn analyzer from the corresponding precursor ion produced in the positive ionization mode were used for the unambiguous identification of each compound. Further, characteristic fragment ions generated from lipopeptide core peptides were used as diagnostic ions for the identification of lipopeptide derivatives. For fengycin derivatives, two reporter fragment ions (A and B), generated by the cleavage of Orn2-Tyr3 (A) and Glu1-Orn2 (B) bonds from fengycin core peptide (Glu1-Orn2-Tyr3-Thr4-Glu5-Ala/Val6-Pro7-Gln8-Tyr9-Ile/Val10) were used as diagnostic ions for unambiguous identification (; ; ; ). For surfactin, the fragment ions generated by the cleavage of Glu1-Leu/Ile2 bond from the core peptide (Glu1-Leu/Ile2-Leu3-Val4-Asp5-Leu6-Leu/Ile7) and the remaining Glu1-fatty acid tail were used to determine the derivatives and length of fatty acid tail (; ; ). Similarly, the fragment diagnostic ions generated by the cleavage of Asn-Tyr (278.11) and Asn-Tyr-Asn (392.15) fragments from the core peptide and fragmented fatty-acid tail were used for unequivocal identification of bacillomycin L derivatives ().
Isolation of bioactive secondary metabolites using HPLC
Agilent Infinity 1,100 LC system was used for isolating bioactive compounds from the total extract of Bacillus strains. A total of 100 μL of the total extract was injected and eluted through Zorbax (Santa Clara, CA) SB-C18 column (4.6 × 150 mm, 5 mm) for 60 min, at a flow rate of 0.20 mL/min. The mobile phases were water (A) and acetonitrile (B), each containing 0.1% trichloroacetic acid (v/v) with the following gradient for solvent B: 40% at 0 min, 55% at 15 min, 75% at 40 min, 100% at 60 min, and 75% at 77 min. The compounds were detected at 220, 275, 375, and 450 nm by a diode array detector coupled with a full-spectrum (220–500 nm) analysis. Fifteen to 20 fractions were collected, pooled and concentrated from five consecutive runs. The purity of compounds in each fraction was evaluated by UV-vis absorption as well as by MS analyses.
Antibiosis evaluation of isolated lipopeptides and target pathogens
Purified bacillomycin L, fengycin, and surfactin were evaluated for bioactivity against P. nicotianae, and a representative fungus, F. oxysporum using a disk diffusion assay (). The assay was conducted on a V8 agar plate wherein a freshly grown target pathogen was transferred as a plug (d = 5 mm) to the center of the assay plate and allowed to grow for 72 h. A total of 10 μL of the purified lipopeptide was added into a sterilized filter disk (d = 6 mm) and then transferred onto the edge of the assay plate. The growth inhibition of P. nicotianae’s hyphae surrounding the disk was measured and recorded after 5–7 days. In order to determine the inhibitory strength of purified bacillomycin L, fengycin, and surfactin against P. nicotianae and F. oxysporum, a quantitative bioassay was carried out using a 96-well microtiter-based plate assay as described by with minor modifications. Both P. nicotianae and F. oxysporum were grown in a diluted V8 medium (80 mL/L of V8 juice, 1 g/L of CaCO3, and 6 g /L Bacto agar). Freshly grown plugs of target pathogens were macerated by passing through a 22-gauge needle attached to a 10 mL syringe and further homogenized by vortexing for 2 min. A total of 20 μL of homogenized culture macerate, 160 μL of diluted V8 broth (80 mL/L of V8 juice and 0.5 g/L CaCO3), and 20 μL of lipopeptide with desired concentration were then loaded into a 96-well microtiter plate using wide-orifice tips. Plates were incubated for 2 days at 25 °C and the growth of the target organism was determined spectrophotometrically at 600 nm by a microtiter plate reader (Biotek Instruments, Highland Park, VT).
Results
Concentration of P. nicotianae antibiosis activity among five Bacillus species
A library of 284 PGPR strains representing 15 species across five Bacillaceae genera was evaluated for antibiosis activity against a root-associated plant-pathogenic oomycete, P. nicotianae. Antagonism against P. nicotianae was classified as strong, weak, or non-inhibitory based on measurements of zones of inhibition (ZOI) as well as evaluation of morphological changes to P. nicotianae and the respective Bacillaceae strain. Defining characteristics of these levels of inhibition are given in section “Materials and methods,” and a representative antibiosis assay plate illustrating all three levels of inhibition was also documented (Supplementary Figure 1). Fifty-eight (20%) of the 284 strains exhibited strong inhibition, while 41 strains were weak inhibitors, and 185 showed no pathogen inhibition. All 58 of the strongly inhibitory strains belonged to Bacillus species. Across the 103 strains from the other four Bacillaceae genera (Priestia, Cytobacillus, Neobacillus, and Gottfriedia) none showed strong inhibition, and only four showed weak inhibition of P. nicotianae. Further, 55 out of the 58 strongly inhibitory strains belonged to five Bacillus species: B. pumilus, B. safensis, B. altitudinis, B. velezensis, and B. subtilis (Figure 1A). Interestingly, these five species are more closely phylogenetically related to one another as compared to the other species (Figure 1A), suggesting that the common factors contributing to antibiosis activity may be phylogenetically conserved. For each of these species, at least 40% of strains tested exhibited some level of inhibition (strong or weak): B. velezensis (74%), B. pumilus (100%), B. safensis (67%), B. subtilis (67%), and B. altitudinis (43%). Accounting for the overall percentage of inhibitory strains as well as the relative contribution of strong vs. weak vs. non-inhibitory strains, a bioactivity index (ranging from 0 to 1) was calculated (see section “Materials and methods”); these five species returned values of 0.39 (B. altitudinis), 0.58 (B. subtilis), 0.56 (B. safensis), 0.61 (B. velezensis), and 0.85 (B. pumilus) (Figure 1B). Inhibition was sparsely distributed among B. toyonensis, and B. thuringiensis strains, generating bioactivity indices of 0.27, and 0.23, respectively. Finally, all other species tested showed bioactivity indices ≤0.10: B. pseudomycoides (0), P. megaterium (0.02), C. firmus (0.1), N. drentensis (0.03), N. vireti (0), N. niacini (0), and G. acidiceler (0), and Bacillus (other) (0.05) (Figure 1B).
FIGURE 1
P. nicotianae-inhibitory Bacillus species divided into specialists and generalists
The 58 strong inhibitors of P. nicotianae were further evaluated for antibiosis activity against three fungal pathogens: F. graminearum, F. oxysporum, and R. solani. Interestingly, strains from B. velezensis and B. subtilis exhibited strong antibiosis activity against all three fungal pathogens whereas strains from B. pumilus, B. safensis, B. altitudinis, B. toyonensis, and Bacillus (other) exhibited either weak inhibition or were non-inhibitory (Figure 2). Specifically, all strains from B. pumilus, B. safensis, and B. altitudinis exhibited no inhibition against both F. oxysporum and F. graminearum. Further, only weak inhibition was observed against R. solani. As shown in Figure 1A, B. velezensis and B. subtilis are phylogenetically closely related; similarly, B. pumilus, B. safensis, and B. altitudinis are closely related to one another. Due to their ability to exert strong antagonism against P. nicotianae and all three pathogenic fungi, we classified B. velezensis and B. subtilis as generalists for their broad-spectrum bioactivity against fungal and oomycete pathogens; conversely, we classified B. pumilus, B. safensis, and B. altitudinis as oomycete-inhibiting specialists.
FIGURE 2
Number, type, and distribution of BGCs are distinct between strongly inhibitory and non-inhibitory Bacillus species
We surmised that strains strongly inhibitory against P. nicotianae were likely to possess a conserved capacity for biosynthesis of secondary metabolites which would account for their antibiosis activity, and these BGCs would be absent from the non-inhibitory species. In order to evaluate this hypothesis, draft genome sequences of 284 Bacillus strains were analyzed for the presence of predicted BGCs using antiSMASH (v.5) (). A total of 2,446 BGCs (average eight per strain) were predicted across the 284 genomes, including 1,279 known and 1,167 BGCs that do not have a known natural product. Based on the structural and chemical properties of predicted secondary metabolites, BGCs were grouped into six functional classes: NRPS, PKS, a hybrid of PKS and NRPS (PK-NRPS), ribosomally-synthesized and post-translationally modified peptides (RiPP), terpenes, and BGCs outside these five classes (other). Information regarding Bacillus species, strain IDs, anti-P. nicotianae bioactivity, and predicted BGCs (with corresponding secondary metabolites) are available in Supplementary Table 2.
Bacillus species affiliated with the strong inhibitory group generally tended to have a higher number of BGCs per strain (8.9–13.2) with B. velezensis carrying the largest number of BGCs per strain. By comparison, the sparsely inhibitory species group contained 9.0–10.1 BGCs per strain, and the non-inhibitory species group contained 4.2–8.4. Consistent with these observations, the correlation between the overall number of BGCs and bioactivity was strong (Pearson r = 0.80; p = 0.0001).
There was a striking distinction in the representation of NRPS clusters between strains from Bacillus species which averaged 2.67 clusters per strain versus species of the other Bacillaceae which were essentially devoid of them (average = 0.03 NRPS/strain) (Figure 3A). With respect to inhibition, a distinction was also observed between the strong-inhibition generalists (B. velezensis and B. subtilis) with an average 3.0–4.1 per strain, while the strong-inhibition specialists (B. pumilus, B. safensis, and B. altitudinis) only carried 1.9–2.3 NRPS per strain. As a contrast, PKS, RiPP, and terpene BGCs were evenly distributed across all of the Bacillaceae species evaluated, regardless of the level or breadth of inhibition exhibited. Accordingly, correlations between NRPS content and bioactivity were relatively strong (Pearson r = 0.63, p = 0.0069) while those between RiPPs and Terpenes were quite poor (Pearson r = −0.24, p = 0.3640; Pearson r = 0.01, p = 0.9620, respectively). The PKS and other BGCs occupied the middle, showing moderate correlations with bioactivity index (Pearson r = 0.42, p = 0.0953, and Pearson r = 0.58, p = 0.0153, respectively). Interestingly, the tightest correlation parameters between bioactivity index and BGC type were observed for the PKS-NRPS clusters (Pearson r = 0.79, p = 0.0002); however, one species from the strong inhibitory group (B. altitudinis) and one from the sparsely inhibitory group (B. toyonensis) carried no PKS-NRPS BGCs.
FIGURE 3
In order to compare their distribution among the bioactive Bacillus species based on their structural and chemical properties, NRPS clusters were further divided into four subtypes: lipopeptides, siderophores, other, and unknown. All five species belonging to the strongly inhibitory group had at least one and up to 2.7 lipopeptide BGCs per strain on average (Figure 3B). In contrast, lipopeptides were nearly completely absent from all other Bacillaceae species tested (i.e., the sparingly inhibitory and non-inhibitory species groups). Indeed, none were detected in any of the non-Bacillus Bacillaceae, B. pseudomycoides, or B. toynensis strains. Across the B. thuringiensis and Bacillus (other) strains tested the average number of lipopeptide clusters was 0.1 per strain. Siderophores were relatively common among species from strongly and sparsely inhibitory groups, while NRPS classified as “other” were almost completely absent from inhibitory species, and the distribution of unknown NRPS was sporadic. These data suggest that lipopeptides, almost exclusively produced by strains strongly antagonistic to P. nicotianae, may be substantial contributors to strong antibiosis activity. Interestingly, species from the generalist group contained two to three lipopeptides per strain while species from the specialist group contained only one lipopeptide per strain. This indicates that a diverse set of lipopeptides may produce a synergistic effect that contributes to the broad-spectrum antibiosis activity exhibited by generalists.
Specific lipopeptide BGCs are highly conserved among generalists versus specialists
Biosynthetic gene clusters from all 284 Bacillus strains were further analyzed (BiG-SCAPE v.0.0.0r) () for gene cluster similarities to determine the extent to which secondary metabolite biosynthesis is conserved. Similarity analysis showed that BGCs identified as encoding a common putative metabolite across generalists, specialists, and non-inhibitory strains tended to segregate into separate clusters corresponding to these groups (Figure 4). This was particularly striking among lipopeptide BGCs where the differences in the structure of the gene clusters were highly distinct between antibiosis-based species groupings. Only generalists carried BGCs with modules for synthesis of the fengycin core decapeptide (fenA – fenE). Interestingly, the fengycin BGC from B. velezensis also contained ituA, ituB, and ituC, the modules necessary for the synthesis of an iturin core heptapeptide (Figure 5A). Although Bacillus strains from specialist and non-inhibitory species also carried a gene cluster identified as having similarity to a fengycin BGC, none of these contained modules for core peptide synthesis, but only genes supporting the synthesis of a putative betalactone. Interestingly, the specific structures of this BGC from specialists on one hand and non-inhibitory Bacillus species on the other were distinct (Figure 5A). Similarly, generalist and specialist Bacillus species groups all carried a BGC for production of a surfactin-like lipopeptide (Figure 4); no such BGC was identified in any strains from non-inhibitory species. Invariably, generalists (B. velezensis and B. subtilis) carried a BGC identified as surfactin (Figure 4) characterized by three core genes with modules for the synthesis of a heptapeptide (srfAA – srfAC) (Figure 5B). A separate bi-lobed cluster was observed for specialists with high similarity scores (85%) for lichenysin, a surfactin-like lipopeptide (Figure 4). The typical structure for this BGC contained two core genes in addition to the three required for heptapeptide synthesis (Figure 5B). These data suggest that the two to three highly conserved lipopeptides produced by generalists may contribute to a broad antifungal/anti-oomycete activity while the single surfactin or surfactin-like BGC carried by specialists may only enable strong anti-oomycete activity. We have observed that some strains belonging to generalist or specialist species exhibited no (or weak) inhibition (see Figure 1A) even though they appear to carry lipopeptide BGCs. Although the present study does not address this issue, it is possible that these strains may ultimately be unable to produce one or more of these lipopeptides due to missing core genes, nonsense mutations, frameshift mutations, and/or altered gene regulation. Such phenomena have previously been observed and reported for lipopeptide production by among B. subtilis strains, some even co-isolated from the same soil samples ().

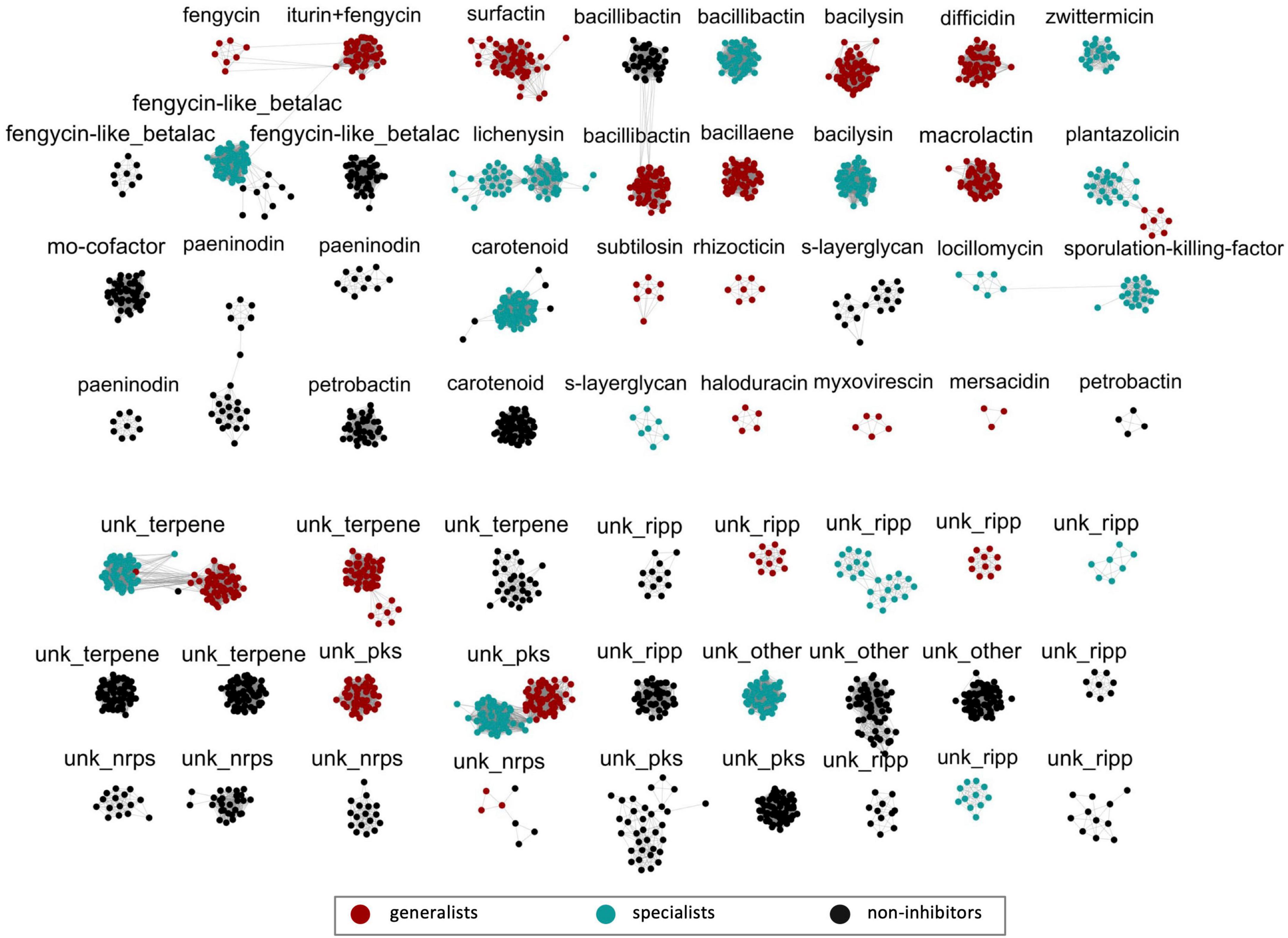

FIGURE 4
FIGURE 5
It should also be noted that other clusters of BGCs that putatively generate metabolites with antimicrobial properties segregate along the lines of generalists versus specialists versus non-inhibitors as well. Many of these BGCs belong to NRPS, PKS-NRPS, or PKS classes. For example, unique bacillibactin BGCs were identified for each of the three groups, and unique bacilysin clusters were each observed for generalists and specialists while non-inhibitors appeared to lack such a cluster altogether. In a similar manner, a bacillaene BGC is found only in generalists, and zwittermicin BGCs were only observed in specialists. Notably, the PKS BGCs for macrolactin and difficidin were only observed in B. velezensis.
Antibiosis generalists produce at least two out of three lipopeptides: iturin, fengycin, and surfactin
Lipopeptides were produced by and extracted from five strains, each representing a Bacillus species with strong P. nicotianae inhibitory activity, including, B. velezensis JJ334, B. subtilis JM553, B. pumilus JJ1622, B. safensis JJ1244, and B. altitudinis JJ1138. Each metabolite extract was evaluated by UV-vis and LC elution profile (see Supplementary Figure 4). Consistent with the structure and predicted products of its BGCs, mass spectrometric screening of B. velezensis strain JJ334 extracts showed the production of bacillomycin L (an iturin), fengycin, and surfactin. Fengycin and surfactin were identified in extracts of the B. subtilis strain, JM553. This also was consistent with the fengycin BGC observed across B. subtilis strains which contained core genes for only fengycin production but not an iturin. Interestingly, only surfactin was identified in B. pumilus JJ1622, B. safensis JJ1244, and B. altitudinis JJ1138 extracts. This was consistent with the production of surfactin-like (lichenysin) compound predicted by antiSMASH. Fractionation of B. velezensis JJ334 extracts by HPLC followed by LC-MS analyses of lipopeptide fractions showed that bacillomycin L derivatives eluted between 1.5 and 2.8 min., while fengycin and surfactin derivatives eluted from 8.0 to 10.0 min and 13.4 to 17.4 min, respectively (Figure 6A). Mass spectrometric analyses identified the presence of six derivatives of bacillomycin L, 10 of fengycin, and eight of surfactin in the purified lipopeptide fractions (Figure 6B).
FIGURE 6
Extracts corresponding to the purified fraction of each lipopeptide were analyzed by LC-MSn employing positive and negative ionization modes (see section “Materials and methods”). Each lipopeptide compound was confirmed by the fragmented ions generated by MSn analyses (see Supplementary Tables 3–5 and Supplementary Figures 6–8). Bacillomycin L (six) and surfactin (eight) derivatives were identified each varying by the carbon chain length of the fatty-acid side chains. For both lipopeptides, derivatives were detected in both positive and negative ion modes as protonated, deprotonated, double-protonated, and/or sodium-adduct forms (Table 1). Thirteen fengycin derivatives were identified as [M+H]+, [M–H], and [M+2H]2+ ions. Four were fengycin A and two were fengycin A2 where the amino acid at position six in the core peptide was Ala, and either Ile or Val occupied position 10, respectively. Three were fengycin B and three were fengycin B2 where the amino acid at position six in the core peptide was Val, and either Ile or Val occupied position 10, respectively. Here as well, derivatives within fengycin A, A2, B, and B2 varied by fatty acid carbon chain length or amino acid in the core peptide (Table 1). There were insufficient data to identify a 13 fengycin, but its ion m/z values were consistent with C21 fengycin B or C22 fengycin B2. To our knowledge, this diversity of production of lipopeptide derivatives from a single Bacillus strain has not previously been observed.
TABLE 1
| Lipopeptides1 | Derivatives2,3 | Molecular Form. | [M+H]+ | [M–H] | [M+2H]2+ | [M+Na]+ |
| Bacillomycin L | C13 | C45H70N10O16 | 1007.5044 | 1005.4879 | 504.2562 | 1029.4858 |
| C14 | C46H72N10O16 | 1021.5198 | 1019.5049 | 511.2637 | 1043.5019 | |
| C15 | C47H74N10O16 | 1035.5354 | 1033.5203 | 518.2717 | 1057.5178 | |
| C16 | C48H76N10O16 | 1049.5539 | 1047.5366 | 525.2793 | 1071.5327 | |
| C17 | C49H78N10O16 | 1063.5666 | 1061.5507 | 532.2871 | 1085.5472 | |
| C18 | C50H80N10O16 | 1077.5820 | 1075.5669 | 539.295 | 1099.5629 | |
| Fengycin | C14 A4 | C70H106N12O20 | 1435.7730 | 1433.7492 | 718.3893 | – |
| C15 A/C16 A25 | C71H108N12O20 | 1449.7878 | 1447.7728 | 725.3971 | – | |
| C16 A/C17 A2 | C72H110N12O20 | 1463.8028 | 1461.7891 | 732.4049 | – | |
| C17 A | C73H112N12O20 | 1477.8185 | 1475.8048 | 739.4134 | – | |
| C16 B6/C17 B27 | C74H114N12O20 | 1491.8332 | 1489.8163 | 746.4210 | – | |
| C17 B | C75H116N12O20 | 1505.8471 | 1503.8320 | 753.4286 | – | |
| C18 B | C76H118N12O20 | 1519.8666 | 1517.8474 | 760.4343 | – | |
| C20 B2 | C77H120N12O20 | 1533.8819 | 1531.8637 | 767.4439 | – | |
| C21 B2 | C78H122N12O20 | 1547.8966 | 1545.8792 | 774.4518 | – | |
| Feng. ND8 | C79H124N12O20 | 1561.9106 | 1559.8946 | 781.4584 | – | |
| Surfactin | C12 | C50H87N7O13 | 994.6428 | 992.6281 | 497.8256 | 1016.6242 |
| C13 | C51H89N7O13 | 1008.6587 | 1006.6429 | 504.8333 | 1030.6397 | |
| C14 | C52H91N7O13 | 1022.6740 | 1020.6577 | 511.8408 | 1044.6560 | |
| C15 | C53H93N7O13 | 1036.6898 | 1034.6730 | 518.8463 | 1058.6716 | |
| C16 | C54H95N7O13 | 1050.7053 | 1048.6884 | 525.8563 | 1072.6881 | |
| C17 | C55H97N7O13 | 1064.7199 | 1062.7056 | 532.8642 | 1086.7013 | |
| C18 | C56H99N7O13 | 1078.7360 | 1076.7212 | 539.8720 | 1100.7178 | |
| C19 | C57H101N7O13 | 1092.7519 | 1090.7370 | 546.8800 | 1114.7327 |
Ions of bacillomycin L, fengycin, and surfactin detected by LC-MSn.
1Each lipopeptide was produced by and extracted from B. velezensis JJ334.
2MS data supporting lipopeptide structure assignments are available in Supplementary materials.
3Lipopeptide derivatives; C12–C21 refers to fatty acid carbon chain length
4Fengycin A core decapeptide sequence: Glu-DOrn-DTyr-DalloThr-Glu-DAla-Pro-Gln-Tyr-Ile.
5Fengycin A2 core decapeptide sequence: Glu-DOrn-DTyr-DalloThr-Glu-DAla-Pro-Gln-Tyr-Val.
6Fengycin B core decapeptide sequence: Glu-DOrn-DTyr-DalloThr-Glu-DVal-Pro-Gln-Tyr-Ile.
7Fengycin B2 core decapeptide sequence: Glu-DOrn-DTyr-DalloThr-Glu-DVal-Pro-Gln-Tyr-Val.
8Feng. ND: Fengycin not fully determined; m/z values are consistent with C21 B or C22 D, but MSn data are inconclusive.
Inhibitory capacity of bacillomycin L, fengycin, and surfactin against P. nicotianae and F. oxysporum
Fractions containing bacillomycin L, fengycin, and surfactin were evaluated for their ability to inhibit the growth of P. nicotianae, F. oxysporum, F. graminearum, and/or R. solani by a disk diffusion method. Interestingly, each lipopeptide fraction exhibited inhibition against all four target pathogens (Supplementary Figure 5). Considering the production of all three lipopeptides by B. velezensis strains Each lipopeptide was further evaluated for inhibition against P. nicotianae and F. oxysporum by a microtiter plate assay. The maximum inhibition of P. nicotianae growth produced by bacillomycin L and fengycin was observed at concentrations of 50 μg/mL each (Figure 7A), where 56% and 59% growth inhibition were detected, respectively. For surfactin, a similar level of P. nicotianae growth inhibition (∼40%) was observed at concentrations ranging from 12.5 to 50 mg/mL. Growth inhibition of F. oxysporum was also observed for all three lipopeptides (Figure 7B). Bacillomycin L and fengycin showed similar inhibitory potency against this organism, with significant growth inhibition observed at lipopeptide concentrations 25 mg/mL and producing 85% and 87% growth inhibition at 100 mg/mL, respectively. The maximum inhibitory effect of surfactin (∼40%) against F. oxysporum was observed at a concentration of 50 μg/mL.
FIGURE 7
Discussion
Several studies have demonstrated that strains of Bacillus species can inhibit plant pathogens and enhance plant growth by producing various secondary metabolites (; ; ; ; ). However, most studies have been conducted on a single strain or a few strains within a species against one to three pathogenic organisms. Studies of this kind naturally limit the scope of investigation on the conservation of antibiosis activity among species and the breadth of antibiosis against different pathogens. This also limits investigating whether the diversity and variation of secondary metabolites produced by different Bacillus species correlate with the observed bioactivity. To address this gap, we evaluated the antibiosis activity of 284 strains against P. nicotianae and compared this against the secondary metabolite-BGCs encoded in each genome to identify conserved factors contributing to activity. Strains strongly inhibitory against P. nicotianae were evaluated further for their ability to inhibit three fungal pathogens, F. oxysporum, F. graminearum, and R. solani.
Our results demonstrate that antibiosis against P. nicotianae is present primarily among five phylogenetically related species: B. pumilus, B. safensis, B. altitudinis, B. velezensis, and B. subtilis. Bacillus antibiosis conservation among strains within each species was expressed as a species-specific bioactivity index (ranging from 0 to 1) and compared against the BGCs carried by these species as determined from genome sequence analyses. This comparison showed a strong correlation between NRPS (especially lipopeptide) BGCs and the bioactivity index, suggesting that lipopeptide BGCs identified in strongly inhibitory Bacillus species are conserved factors that may account for a substantial portion of antibiosis activity against fungi and oomycetes. In terms of lipopeptide BGC content, there was a clear distinction between B. velezensis and B. subtilis strains on one hand and B. pumilus, B. altitudinis, and B. safensis strains on the other; on average, strains of the former encoded two to three times more lipopeptide BGCs than species from the latter group.
The breadth of antibiosis activity followed the same line of demarcation observed with lipopeptide BGC content. Indeed, further evaluation of strong P. nicotianae antagonists from B. velezensis and B. subtilis revealed that all but one B. subtilis strain exerted strong antibiosis activity against all three fungal pathogens evaluated (F. graminearum, F. oxysporum, and R. solani). Even the one B. subtilis strain (JM553) that was observed to be a strong inhibitor of R. solani and F. graminearum showed weak inhibition of F. oxysporum. Conversely, none of the P. nicotianae-antagonistic strains of B. pumilus, B. safensis, or B. altitudinis were able to inhibit either Fusarium species examined, and only weak inhibition was detected against R. solani.
The distribution of lipopeptide BGCs across these species showed distinct patterns that matched up well with the antibiosis phenotypes. The most prolific lipopeptide-producing species was B. velezensis, the strains of which consistently carry three such BGCs: an iturin, a fengycin, and a surfactin. Interestingly, the iturin and the fengycin core genes occupy the same BGC. Consistent with previous observations (), our data indicate that bacillomycin L (e.g., B. velezensis JJ334) and iturin A (e.g., B. velezensis JJ951) are the two most common iturins generated by strains from this species. A broad panel of fengycins (i.e., multiple fatty acid derivatives of fengycin A, A2 B, and B2) are produced from the corresponding B. velezensis BGC. By comparison, B. subtilis strains reliably carry two lipopeptide BGCs, a fengycin-only cluster and a surfactin cluster. Finally, strains from all three of the specialist Bacillus species, B. pumilus, B. altitudinis, and B. safensis, encoded on average just one lipopeptide-generating BGC, and this BGC was predicted to be a lichenysin cluster. Though its overall structure is distinct from that of the closely related surfactin BGCs observed in our B. velezensis and B. subtilis strains, the amino-acid sequence of the core peptide predicted from the modules of the cluster’s first three core genes is Glu-Leu-DLeu-Val-Asp-DLeu-Ile. This is consistent with the surfactin-like group of lipopeptide derivatives observed from these species by LC-MSn analyses. Taken together, these results suggest that production of surfactin alone may be sufficient to exert anti-P. nicotianae activity while antifungal activity requires production of at least fengycin in addition to surfactin. Indeed, Khan et al. have suggested that strong antifungal activity of Bacillus species is due to the synergistic actions of bacillomycin, fengycin, and surfactin ().
The effectiveness of surfactin as a unilateral agent of antibiosis has varied in the literature, depending largely on the identity of the target organism(s). One study reported that surfactin directly contributed to the biological activity of B. subtilis GBL191 against the oomycete Plasmopara viticola (). In contrast, Wang et al. reported that surfactin alone did not inhibit the mycelial growth of the oomycete, Phytophthora infestans even at a concentration as high as 25 mg/mL (). Another study showed that surfactin produced antibacterial activity against the Gram-negative bacterium, Pseudomonas syringae with a minimum inhibitory concentration of 25 mg/mL (). Although the strong anti-P. nicotianae activity of B. pumilus, B. safensis, and B. altitudinis may not be fully explained solely by their ability to produce surfactin, we have observed that isolated surfactin is able to inhibit P. nicotianae. Although its maximum effect against the organism was observed at 50 mg/mL, it should be noted that very little difference in growth inhibition was observed between 12.5 and 50 mg/mL (see Figure 7A). These Bacillus species may produce other compounds with antagonistic activity such as betalactone, bacillibactin, and/or bacilysin along with surfactin to synergistically contribute to anti-P. nicotianae activity. Notably, betalactone and bacillibactin have been reported for anti-oomycete and antibacterial activity, respectively. Bacillysin has been well known for antibacterial activity until recently. Multiple investigators have demonstrated that bacilysin exhibits strong antibiosis activity against the oomycete P. sojae (; ). Future studies are anticipated to isolate these compounds and evaluate their antibiosis activity alone or collectively against P. nicotianae.
Bacillomycin L (an iturin) and fengycin are known as strongly antagonistic against plant-pathogenic fungi (; ; ). Surfactin is known as a broad-spectrum antimicrobial that exhibits bioactivity against fungi, oomycetes, and bacteria (; ; ). We identified a total of six derivatives of bacillomycin L, ten derivatives of fengycin, and eight derivatives of surfactin from B. velezensis JJ334. We observed variation in the core peptide structure of fengycin, and we detected varying lengths of fatty acid side chains from 12 to 21 carbons, depending on the lipopeptide in question. Very few Bacillus species are known to produce all three lipopeptides (), and when they are observed, identification of only a few derivatives (2–5) of each lipopeptide is typical (; ; ). Previous reports have suggested that the bioactivity of lipopeptides may increase along with the length of the fatty acid chain and the number of derivatives, since more derivatives may produce a synergistic effect that contributes to strong bioactivity (; ). In general, strong bioactivity was observed for bacillomycin L and fengycin whereas weak activity was observed for surfactin against oomycetes and fungi (; ; ; ). What stands out in this study is that B. velezensis JJ334 produced a total of 24 lipopeptide derivatives with varying lengths of fatty acids, an impressive ability to produce that many lipopeptides from a single B. velezensis strain.
In summary, antibiosis activity of 284 PGPR Bacillus strains against P. nicotianae showed that antibiosis was highly associated among five species. Specifically, 55 out of 58 inhibitory strains identified came from B. velezensis, B. subtilis, B. pumilus, B. safensis, or B. altitudinis. Strains from closely related B. velezensis and B. subtilis also showed strong antifungal activity against multiple species. Conversely, the B. pumilis, B. safensis, and B. altitudinis strains capable of inhibiting P. nicotianae showed little to no ability to inhibit fungi. Consistent with genomic analysis, 2–3 lipopeptides (either fengycin and surfactin or bacillomycin/iturin, fengycin, and surfactin) were identified in the total extracts of B. subtilis and B. velezensis, respectively. Only surfactin was identified from B. pumilus, B. safensis, and B. altitudinis. All three lipopeptides showed antibiosis activity against both P. nicotianae and F. oxysporum, however, the most potent activities were observed for fengycin and bacillomycin L as compared to surfactin. The broad antibiosis activity of B. velezensis and B. subtilis is likely accounted for by their ability to produce fengycin (B. subtilis) and iturin + fengycin (B. velezensis) along with surfactin.
Statements
Data availability statement
All strain information was made publicly available at BioProject Accession: PRJNA1078443.
Author contributions
JA: Validation, Formal analysis, Methodology, Writing – original draft, Investigation, Data curation, Visualization. OO: Methodology, Data curation, Investigation, Writing – review & editing. FM: Writing – review & editing, Investigation, Methodology. ZN: Methodology, Project administration, Investigation, Resources, Conceptualization, Funding acquisition, Supervision, Writing – review & editing, Formal analysis. ML: Methodology, Visualization, Investigation, Funding acquisition, Formal analysis, Supervision, Conceptualization, Project administration, Writing – review & editing, Resources. DG: Project administration, Visualization, Conceptualization, Formal analysis, Methodology, Writing – review & editing, Supervision, Funding acquisition, Resources, Investigation.
Funding
The author(s) declare that financial support was received for the research and/or publication of this article. This work was supported in part by the USDA National Institute of Food and Agriculture, Hatch project ALA015-1-19110 (accession number: 1025628), and by the Alabama Agricultural Experiment Station under project number ALA021-1-19208.
Acknowledgments
We gratefully acknowledge Joseph Kloepper for the isolation and initial characterization of each of the Bacillus species examined in this work; we are also grateful to John McInroy for expert technical guidance and helpful discussions.
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Generative AI statement
The authors declare that no Generative AI was used in the creation of this manuscript.
Any alternative text (alt text) provided alongside figures in this article has been generated by Frontiers with the support of artificial intelligence and reasonable efforts have been made to ensure accuracy, including review by the authors wherever possible. If you identify any issues, please contact us.
Publisher’s note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
Supplementary material
The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fmicb.2025.1636481/full#supplementary-material
