Abstract
Various neurological diseases have recently been associated with neuroinflammation and worsening outcomes. Subarachnoid hemorrhage has been shown to generate a potent neuroinflammatory response. Heparin is a potential effective anti-inflammatory agent to prevent initial injury as well as delayed neurological decline. Different mechanisms of action for heparin have been proposed including, but not limited to the binding and neutralization of oxyhemoglobin, decreased transcription and signal transduction of endothelin-1, inhibition of binding to vessel wall selectins and vascular leakage into the subarachnoid space as well as direct binding and neutralization of inflammatory molecules. With a reasonably safe side-effect profile, heparin has shown significant promise in small series in human studies of aneurysmal subarachnoid hemorrhage in decreasing both initial and delayed neurological injury. Further studies are needed to validate various neuroprotective features of heparin in subarachnoid hemorrhage as well as other disease states.
Introduction
Neuroinflammation has been recently associated with worse functional outcomes in patients afflicted by a plethora of neurological diseases, but especially in aneurysmal subarachnoid hemorrhage (aSAH) (). Inflammation has been designated as a primary cytotoxic event affecting neurons in both acute and chronic neurological diseases. This has led to specific targeting of the inflammatory cascade (). Unfractionated heparin (UFH) is a safe and commonly used anticoagulant in the treatment of deep venous thrombosis, pulmonary emboli, and other hypercoagulable conditions. In addition to its anticoagulant properties, UFH has been shown to have very promising significant neuroprotective anti-inflammatory properties, especially in association with subarachnoid hemorrhage (–). Studies have shown that heparin is prevalent in various invertebrates with no hematological system, indicating that its primary physiological role is not anticoagulation (). Even though extrapolation to other species is not evident, the role of heparin is worth investigating. In this short review, we focus on the ever-expanding connection between heparin and neuroprotection in the setting of aSHA.
Profile: Characteristics and Mechanism of Action
Unfractionated heparin is a highly sulfated glycosaminoglycan polymer with the most negative charge of any biological molecule (). Inflammatory mediators are generally positively charged and binding to the heparin molecule disturbs the biochemical and electrostatic microenvironment, effectively neutralizing the actions of these mediators (). Particularly in hemorrhagic stroke, heparin is able to bind to oxyhemoglobin and neutralize the toxic effects of free hemoglobin on other structures in the brain (). Given the large size and uniform distribution of the negative charge along the protein, heparin can stoichiometrically bind four molecules of oxyhemoglobin, thereby quickly neutralizing the noxious effects of the oxygen free radicals on the endothelium as well as the brain parenchyma ().
On the molecular level, heparin was found to have various neuroprotective interactions. It is able to decrease the transcription of endothelin-1 (ET-1) and the ET-1 promoter. In addition, heparin decreased the expression of the erythroid transcription factor family (GATA)-binding capacity, which is essential for ET-1 function in the endothelial cells (, ). ET-1 displays significant vasoconstrictive effects mediated in vascular smooth muscle cells through the epidermal growth factor receptor (EGFR) (). Heparin-binding epidermal growth factor, a ligand of EGFR, modulates its transactivation (). Binding of heparin to the ligand prevents EGFR receptor transactivation and was found to dampen any peri-hemorrhagic vasoconstriction and further cerebral injury in both murine and human in vitro models (, ).
Heparin and its low-molecular weight derivatives are potent inhibitors of the adhesion molecules P- and L-selectin, which mediate leukocyte rolling, the initial event governing leukocyte transmigration from vessel walls into areas of inflammation (, ). These mechanisms mirror effects observed in cancer metastasis, where UFH (and not other anticoagulants) was able to decrease the speed of oncologic spread by inhibiting the selectins (). This particular effect has been further explored in cancer research and has been shown to be potent with any type of adhesion molecules (galectins, integrins, etc.), in addition to being shown to be completely unrelated to the anticoagulant properties of heparin (). All effects were preserved with modified 2- or 6-O desulfated, N-acetylated heparins in both the oncologic and neurovascular models (, ). Heparin was also found to bind all the pro-inflammatory molecules such as cytokines, chemokines, as well as mediators of inflammation such as elastase and major basic protein (–).
Translocation of inflammatory leukocytes into an injured area through vascular leakage is a hallmark of the initiation of the inflammatory response. Presence of leukocytes in the subarachnoid space is a specific marker of inflammation (). The accepted mechanism of action of leukocyte extravasation is through interaction of cell glycoproteins with the selectin family of proteins, generally expressed on endothelial cells (). Heparin has been shown to specifically decrease the number of leukocytes participating in the inflammatory response to any insult to the central nervous system (, ).
Prior studies have also shown that microthromboembolisms may have contributed to delayed neurological deficits, therefore possibly implicating the anticoagulation effect of heparin in the neuroprotective effects observed (). This hypothesis has been demonstrated in experimental animal models of subarachnoid hemorrhage. Mice in the experimental group showed an increase in the number of microthrombi when compared with the sham group (). On the other hand, the advent of modifications of heparin lacking the anticoagulation domains and showing anti-inflammatory neuroprotection provides some evidence to suggest microthromboemolisms do not represent the entire pathological picture of aSHA (). A head-to-head comparison of both forms of heparin will need to be conducted to elucidate the roles of the various domains of heparin. The various proposed mechanisms of action of UFH are summarized in Table 1.
Table 1
Direct chelation of hemoglobin in the subarachnoid space
|
Decreased free-radical release
|
Inhibition of endothelin-1 (ET-1)
|
Prevention of K+ channel down-regulation induced by oxyhemoglobin release
|
Suppression of vascular smooth cell hyperplasia
|
Inhibition of neuroinflammatory pathways
|
Mechanisms of action of heparin to prevent delayed neurological injury associated with subarachnoid hemorrhage.
Neuroprotective Effects of Heparin in Subarachnoid Hemorrhage
Some authors hypothesize that a combination of the hemorrhage volume, vasoparalysis, and decreased cerebrospinal fluid resorption associated with aSHA triggers an increase in intracranial pressure leading to significant transient ischemia. This has been considered by various authors to be the cause of the initial neurological injury following the ictus, especially when associated with loss of consciousness at presentation (, ). Heparin and its non-anticoagulant derivatives have been shown to effectively counter the initial injury in various rat models of ischemia/reperfusion mimicking the initial insult following aneurysmal rupture (, ). The caspase pathway is triggered in the initial phase of the injury of subarachnoid hemorrhage, especially given that activation of caspase 1 was first observed in ischemic stroke (). Countering the early activation of caspases 1, 3, 8, 9, and 11 in global cerebral ischemia can prevent neurological devastation. Animal studies demonstrated a significant decrease in cleaved caspase 3 in samples obtained from subarachnoid hemorrhage animals that were given heparin pharmacotherapy. The downregulation of apoptotic effectors leads to decreased neuroinflammation, demyelination, and decreased burden of injury ().
The evidence supporting heparin’s anti-inflammatory role is further supported with evidence from traumatic brain injury (TBI) and chronic neurodegeneration research. Nagata et al. has shown that early administration of heparin is associated with a significant decrease in post-TBI inflammation and preservation of cognitive outcomes. These results were further supported by prior studies investigating the role of low-molecular weight fractionated heparin, enoxaparin (, , –). Human studies investigated the role of enoxaparin (low-molecular weight fractionated heparin) in aneurysmal SAH with mixed results (, ). There was a statistically significant reduction in delayed ischemia and vasospasm in the enoxaparin group in one trial but no obvious benefit in others (, ). A retrospective cohort study showed significant benefits of UFH in Fisher grade 3 subarachnoid hemorrhage patients (). The patients in the heparin group had significantly less clinical and radiographic vasospasm, as well as a decrease in vasospasm-related infarction. In addition, there were a significantly higher proportion of patients who were discharged home from the hospital, instead of having to be discharged to a rehabilitation facility (). Human studies highlighting the neuroprotective effects of heparin in various disease states are summarized in Table 2.

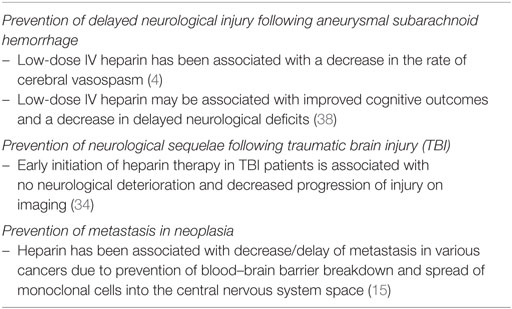

Table 2
Prevention of delayed neurological injury following aneurysmal subarachnoid hemorrhage
|
Prevention of neurological sequelae following traumatic brain injury (TBI)
|
Prevention of metastasis in neoplasia
|
Human studies showing neuroprotection of heparin in various neurological injuries.
In addition to the transient ischemia state associated with SAH, significant vasogenic edema and blood–brain barrier dysfunction plague this patient population and represent a dismal prognostic factor (). Heparin has been shown to counter cerebral edema in general in various pathological states including but not limited to TBI, meningitis, ischemia, and intracerebral hemorrhages (, –). Various interactions in animal models have been reported between heparin and molecules specifically associated with cerebral edema (VEGF, bradykinin, etc.) but no proven connection linking the action of heparin on these molecules was proven.
These neuroprotective effects have been shown to correlate with a decrease in clinical vasospasm and a specific decrease in the delayed neurological injury, namely long-term cognitive decline following subarachnoid hemorrhage (, , ). Despite the fact that the number of patients included in these series remains limited; there is a positive trend and a budding interest in a closer correlation of heparin with improved cognitive outcomes. One such effort is the Aneurysmal Subarachnoid hemorrhage Trial RandOmizing Heparin, a Phase II multi-center randomized trial, studying the effects of low-dose intravenous heparin infusion on 90-day cognitive outcomes using the Montreal Cognitive Assessment test. Enrollment is expected to be complete in December 2018 (NCT02501434).
Conclusion and Future Directions
Heparin is today a venerable, ever-young drug that has not ceased to bewilder and amaze. With its seemingly ubiquitous properties, heparin seems to show promise in various neuropathologies, with a predictable and manageable side-effect profile. Further research is needed to establish heparin as a completely safe and effective intervention in patients with subarachnoid hemorrhage. Together, with its success in other experimental neurological insults such as TBI, stroke, meningitis, cancer, etc., heparin seems to be emerging as a potential silver bullet for mitigating the delayed neurological injury commonly seen after aSHA.
Statements
Author contributions
RJ designed the concept of the review. NK conducted the review, compiled the information, and drafted the initial manuscript. Both authors critically reviewed and approved the final version of the manuscript.
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
References
1
XueMDel BigioMR. Intracerebral injection of autologous whole blood in rats: time course of inflammation and cell death. Neurosci Lett (2000) 283(3):230–2.10.1016/S0304-3940(00)00971-X
2
StutzmannJ-MMMaryVWahlFGrosjean-PiotOUzanAPrattJ. Neuroprotective profile of enoxaparin, a low molecular weight heparin, in in vivo models of cerebral ischemia or traumatic brain injury in rats: a review. CNS Drug Rev (2002) 8(1):1–30.10.1111/j.1527-3458.2002.tb00213.x
3
LindahlULidholtKSpillmannDKjellenL. More to “heparin” than anticoagulation. Thromb Res (1994) 75(1):1–32.10.1016/0049-3848(94)90136-8
4
SimardJMAldrichEFSchreibmanDJamesRFPolifkaABeatyN. Low-dose intravenous heparin infusion in patients with aneurysmal subarachnoid hemorrhage: a preliminary assessment. J Neurosurg (2013) 119(6):1611–9.10.3171/2013.8.JNS1337
5
LeverRPageCP. Novel drug development opportunities for heparin. Nat Rev Drug Discov (2002) 1(2):140.10.1038/nrd724
6
MedeirosGFMendesACastroRABauECNaderHBDietrichCP. Distribution of sulfated glycosaminoglycans in the animal kingdom: widespread occurrence of heparin-like compounds in invertebrates. Biochim Biophys Acta (2000) 1475(3):287–94.10.1016/S0304-4165(00)00079-9
7
HirshJAnandSSHalperinJLFusterV. Mechanism of action and pharmacology of unfractionated heparin. Arterioscler Thromb Vasc Biol (2001) 21(7):1094–6.10.1161/hq0701.093686
8
YoungE. The anti-inflammatory effects of heparin and related compounds. Thromb Res (2008) 122(6):743–52.10.1016/j.thromres.2006.10.026
9
AmiconiGZollaLVecchiniPBrunoriMAntoniniE. The effect of macromolecular polyanions on the functional properties of human hemoglobin. Eur J Biochem (1977) 76(2):339–43.10.1111/j.1432-1033.1977.tb11601.x
10
YokokawaKMandalAKKohnoMHorioTMurakawaKYasunariKet alHeparin suppresses endothelin-1 action and production in spontaneously hypertensive rats. Am J Physiol (1992) 263(5 Pt 2):R1035–41.
11
Kuwahara-WatanabeKHidaiCIkedaHAokaYIchikawaKIguchiNet alHeparin regulates transcription of endothelin-1 gene in endothelial cells. J Vasc Res (2005) 42(3):183–9.10.1159/000084656
12
ChanselDCiroldiMVandermeerschSJacksonLFGomezAMHenrionDet alHeparin binding EGF is necessary for vasospastic response to endothelin. FASEB J (2006) 20(11):1936–8.10.1096/fj.05-5328fje
13
KalmesAVestiBRDaumGAbrahamJAClowesAW. Heparin blockade of thrombin-induced smooth muscle cell migration involves inhibition of epidermal growth factor (EGF) receptor transactivation by heparin-binding EGF-like growth factor. Circ Res (2000) 87(2):92–8.10.1161/01.RES.87.2.92
14
KoenigANorgard-SumnichtKLinhardtRVarkiA. Differential interactions of heparin and heparan sulfate glycosaminoglycans with the selectins. Implications for the use of unfractionated and low molecular weight heparins as therapeutic agents. J Clin Invest (1998) 101(4):877–89.10.1172/JCI1509
15
StevensonJLChoiSHVarkiA. Differential metastasis inhibition by clinically relevant levels of heparins – correlation with selectin inhibition, not antithrombotic activity. Clin Cancer Res (2005) 11(19 Pt 1):7003–11.10.1158/1078-0432.CCR-05-1131
16
CassinelliGNaggiA. Old and new applications of non-anticoagulant heparin. Int J Cardiol (2016) 212:S14–21.10.1016/S0167-5273(16)12004-2
17
DuckworthCAGuimondSESindrewiczPHughesAJFrenchNSLianLYet alChemically modified, non-anticoagulant heparin derivatives are potent galectin-3 binding inhibitors and inhibit circulating galectin-3-promoted metastasis. Oncotarget (2015) 6(27):23671–87.10.18632/oncotarget.4409
18
NajjamSGibbsRVGordonMYRiderCC. Characterization of human recombinant interleukin 2 binding to heparin and heparan sulfate using an ELISA approach. Cytokine (1997) 9(12):1013–22.10.1006/cyto.1997.0246
19
HasanMNajjamSGordonMYGibbsRVRiderCC. IL-12 is a heparin-binding cytokine. J Immunol (1999) 162(2):1064–70.
20
SpencerJLStonePJNugentMA. New insights into the inhibition of human neutrophil elastase by heparin. Biochemistry (2006) 45(30):9104–20.10.1021/bi060338r
21
XuHLGarciaMTestaiFVetriFBarabanovaAPelligrinoDAet alPharmacologic blockade of vascular adhesion protein-1 lessens neurologic dysfunction in rats subjected to subarachnoid hemorrhage. Brain Res (2014) 1586:83–9.10.1016/j.brainres.2014.08.036
22
McEverRP. Selectins: initiators of leucocyte adhesion and signalling at the vascular wall. Cardiovasc Res (2015) 107(3):331–9.10.1093/cvr/cvv154
23
NagataKBrowneKDSutoYKumasakaKCognettiJJohnsonVEet alEarly heparin administration after TBI: prolonged cognitive recovery associated with reduced cerebral edema and neutrophil sequestration. J Trauma Acute Care Surg (2017) 83(3):406–12.10.1097/TA.0000000000001590
24
LeeJHKimCHSeoGHLeeJKimJHKimDGet alHeparin attenuates the expression of TNFalpha-induced cerebral endothelial cell adhesion molecule. Korean J Physiol Pharmacol (2008) 12(5):231–6.10.4196/kjpp.2008.12.5.231
25
SabriMAiJLakovicKD’AbbondanzaJIlodigweDMacdonaldRL. Mechanisms of microthrombi formation after experimental subarachnoid hemorrhage. Neuroscience (2012) 224:26–37.10.1016/j.neuroscience.2012.08.002
26
SabriMAiJLakovicKMacdonaldRL. Mechanisms of microthrombosis and microcirculatory constriction after experimental subarachnoid hemorrhage. Acta Neurochir Suppl (2013) 115:185–92.10.1007/978-3-7091-1192-5_35
27
MoccoJSheltonCESergotPDucruetAFKomotarRJOttenMLet alO-desulfated heparin improves outcome after rat cerebral ischemia/reperfusion injury. Neurosurgery (2007) 61(6):1297–303; discussion 303–4.10.1227/01.neu.0000306109.55174.e6
28
WangJAlotaibiNMAkbarMAAylingOGIbrahimGMMacdonaldRLet alLoss of consciousness at onset of aneurysmal subarachnoid hemorrhage is associated with functional outcomes in good-grade patients. World Neurosurg (2017) 98:308–13.10.1016/j.wneu.2016.10.099
29
SuwatcharangkoonSMeyersEFaloCSchmidtJMAgarwalSClaassenJet alLoss of consciousness at onset of subarachnoid hemorrhage as an important marker of early brain injury. JAMA Neurol (2016) 73(1):28–35.10.1001/jamaneurol.2015.3188
30
QuartermainDLiYSJonasS. The low molecular weight heparin enoxaparin reduces infarct size in a rat model of temporary focal ischemia. Cerebrovasc Dis (2003) 16(4):346–55.10.1159/000072556
31
FriedlanderRMGagliardiniVHaraHFinkKBLiWMacDonaldGet alExpression of a dominant negative mutant of interleukin-1 beta converting enzyme in transgenic mice prevents neuronal cell death induced by trophic factor withdrawal and ischemic brain injury. J Exp Med (1997) 185(5):933–40.10.1084/jem.185.5.933
32
SimardJMTosunCIvanovaSKurlandDBHongCRadeckiLet alHeparin reduces neuroinflammation and transsynaptic neuronal apoptosis in a model of subarachnoid hemorrhage. Transl Stroke Res (2012) 3(Suppl 1):155–65.10.1007/s12975-012-0166-9
33
CorriganFThorntonERoismanLCLeonardAVVinkRBlumbergsPCet alThe neuroprotective activity of the amyloid precursor protein against traumatic brain injury is mediated via the heparin binding site in residues 96–110. J Neurochem (2014) 128(1):196–204.10.1111/jnc.12391
34
KimLSchusterJHolenaDNSimsCALevineJPascualJL. Early initiation of prophylactic heparin in severe traumatic brain injury is associated with accelerated improvement on brain imaging. J Emerg Trauma Shock (2014) 7(3):141–8.10.4103/0974-2700.136846
35
ŽupanŽPilipovićKDangubićBFrkovićVŠustićAŽupanG. Effects of enoxaparin in the rat hippocampus following traumatic brain injury. Prog Neuropsychopharmacol Biol Psychiatry (2011) 35(8):1846–56.10.1016/j.pnpbp.2011.08.005
36
SiironenJJuvelaSVarisJPorrasMPoussaKIlveskeroSet alNo effect of enoxaparin on outcome of aneurysmal subarachnoid hemorrhage: a randomized, double-blind, placebo-controlled clinical trial. J Neurosurg (2003) 99(6):953–9.10.3171/jns.2003.99.6.0953
37
WurmGTomancokBNussbaumerKAdelwohrerCHollK. Reduction of ischemic sequelae following spontaneous subarachnoid hemorrhage: a double-blind, randomized comparison of enoxaparin versus placebo. Clin Neurol Neurosurg (2004) 106(2):97–103.10.1016/j.clineuro.2004.01.006
38
RobertFJKhattarNAljubooriZPagePShaoEYCarterLMet alContinuous infusion of low-dose unfractionated heparin after aneurysmal subarachnoid hemorrhage: a preliminary study of cognitive outcomes. J Neurosurg (2018) (in press).
39
HaymanEGWessellAGerzanichVShethKNSimardJM. Mechanisms of global cerebral edema formation in aneurysmal subarachnoid hemorrhage. Neurocrit Care (2017) 26(2):301–10.10.1007/s12028-016-0354-7
40
LiSEisenstadtRKumasakaKJohnsonVEMarksJNagataKet alDoes enoxaparin interfere with HMGB1 signaling after TBI? A potential mechanism for reduced cerebral edema and neurologic recovery. J Trauma Acute Care Surg (2016) 80(3):381.10.1097/TA.0000000000000935
41
LiPAHeQPSiddiquiMMShuaibA. Posttreatment with low molecular weight heparin reduces brain edema and infarct volume in rats subjected to thrombotic middle cerebral artery occlusion. Brain Res (1998) 801(1–2):220–3.10.1016/S0006-8993(98)00559-9
42
XiGWagnerKRKeepRFHuaYde Courten-MyersGMBroderickJPet alRole of blood clot formation on early edema development after experimental intracerebral hemorrhage. Stroke (1998) 29(12):2580–6.10.1161/01.STR.29.12.2580
43
WeberJRAngstwurmKRosenkranzTLindauerUFreyerDBurgerWet alHeparin inhibits leukocyte rolling in pial vessels and attenuates inflammatory changes in a rat model of experimental bacterial meningitis. J Cereb Blood Flow Metab (1997) 17(11):1221–9.10.1097/00004647-199711000-00011
44
SimardJMSchreibmanDAldrichEFStallmeyerBLeBJamesRFet alUnfractionated heparin: multitargeted therapy for delayed neurological deficits induced by subarachnoid hemorrhage. Neurocrit Care (2010) 13(3):439–49.10.1007/s12028-010-9435-1
45
JamesRFKramerDRAljubooriZSParikhGAdamsSWEatonJCet alNovel treatments in neuroprotection for aneurysmal subarachnoid hemorrhage. Curr Treat Options Neurol (2016) 18(8):38.10.1007/s11940-016-0421-6
Summary
Keywords
unfractionated heparin, neuroprotection, neuroinflammation, subarachnoid hemorrhage, delayed neurological injury, vasospasm
Citation
Khattar NK and James RF (2018) Heparin: The Silver Bullet of Aneurysmal Subarachnoid Hemorrhage?. Front. Neurol. 9:97. doi: 10.3389/fneur.2018.00097
