Knowledge Gaps in Biophysical Changes After Powered Robotic Exoskeleton Walking by Individuals With Spinal Cord Injury—A Scoping Review

Abstract

In addition to helping individuals with spinal cord injury (SCI) regain the ability to ambulate, the rapidly evolving capabilities of robotic exoskeletons provide an array of secondary biophysical benefits which can reduce the complications resulting from prolonged immobilization. The proposed benefits of increased life-long over-ground walking capacity include improved upper body muscular fitness, improved circulatory response, improved bowel movement regularity, and reduced pain and spasticity. Beyond the positive changes related to physical and biological function, exoskeletons have been suggested to improve SCI individuals' quality of life (QOL) by allowing increased participation in day-to-day activities. Most of the currently available studies that have reported on the impact of exoskeletons on the QOL and prevention of secondary health complications on individuals with SCI, are of small scale and are heterogeneous in nature. Moreover, few meta-analyses and reviews have attempted to consolidate the dispersed data to reach more definitive conclusions of the effects of exoskeleton use. This scoping review seeks to provide an overview on the known effects of overground exoskeleton use, on the prevention of secondary health complications, changes to the QOL, and their effect on the independence of SCI individuals in the community settings. Moreover, the intent of the review is to identify gaps in the literature currently available, and to make recommendations on focus study areas and methods for future investigations.

Introduction

Background

To many, spinal cord injury (SCI) is the most commonly associated with the loss of ability to ambulate and experience external stimuli, or perhaps the loss bowel and urinary function. However, there are many additional secondary health complications that can manifest as a result of chronic SCI—these include (and are not limited to) cardiovascular (CVS) disease, an increased risk of osteoporosis and fractures, urinary and bowel complications, pressure injuries, spasticity, and neuropathic pain syndromes (1, 2). Such comorbidities significantly reduce the quality of life (QOL) and increase the risks of premature mortality for individuals with SCI.

Rehabilitation plays a key role in the management of spinal disorders, such as SCI (3). Research has shown that time spent upright, either standing or walking, is beneficial for the prevention and treatment of secondary health complications of SCI (4–7). Early attempts at solving problems associated with immobility in SCI included leg braces and orthoses used to assist standing and walking (4–6). Although these devices did prove to somewhat fulfill their intended design purposes, the increased energy expenditure from truncal and upper limb muscles, slow ambulation speed, and safety concerns, have discouraged some wheelchair users from converting to leg braces (4). More recently, exoskeletons have been developed for individuals with SCI as an alternative for assisting ambulation—both for the purposes of rehabilitation and long-term health maintenance.

Definition of Exoskeletons

The term exoskeleton encompasses a wide range of devices with differing applications. In its original iteration, an exoskeleton is a device that augments the performance of an able-bodied wearer (8). For the purposes of SCI individuals, exoskeletons provided two main functions—to facilitate early rehabilitation and assist ambulation. The first exoskeleton to be designed for SCI was the Lokomat (9). The Lokomat was one of a categories of exoskeletons collectively known as residential exoskeletons, indicating that it could only be used within fixed spaces, such as on a treadmill. These early exoskeletons have since been referred to as a driven gait orthosis, and the type of rehabilitation and gait training involving the use of these devices are collectively known as body-weight-supported treadmill training (BWSTT). Over time, the newer generations of exoskeletons were designed with increased mobility and portability. These devices, known as overground exoskeletons, are designed with portable systems that allow the user to ambulate freely indoors and outdoors, and have provided clinicians and patients with a useful tool to increase the life-long over-ground walking capacity of individuals with SCI. Currently, exoskeletons can be subdivided into assistive devices to be used in the community, such as the Suitx Phoenix, Indego Personal, and Rewalk exoskeletons; or devices designed for rehabilitation with a therapeutic intent, such as the EksoNR and Indego Therapy exoskeletons (8).

Proposed Benefits of Exoskeleton Use

Beyond the benefits related to physical and biological function, exoskeletons have been suggested to improve the SCI individuals' QOL by enabling their participation in day-to-day activities (10, 11). In a recent survey among individuals with SCI, the restoration of walking function was seen as the highest priority (12); another study had previously commented that other functions, such as improved bladder and bowel function, and the elimination of autonomic dysreflexia, were found to be of greater priority than walking in another group of individuals of SCI (13). We believe that the health priorities of SCI individuals are likely to be culturally-dependent, and the results of studies on this may vary according to study design and outcome metrics chosen. Furthermore, a meta-analysis on the clinical effectiveness and safety of exoskeletons has suggested that the potential benefits provided by exoskeleton use may offset the costs associated with the management of secondary ailments resulting from SCI, thereby resulting in a net reduction in costs to the healthcare systems (14).

Objectives of This Scoping Review

Most of the currently available studies have reported on the impact of exoskeletons on the QOL and prevention of secondary health complications, on individuals with SCI, are of small scale and are heterogeneous in nature. Moreover, few meta-analyses and reviews have attempted to consolidate the dispersed data to reach more definitive conclusions of the effects of exoskeleton use (14–19). Many of these reviews included other forms of gait training, such as BWSTT (19), or robotics, such as exoskeletons for upper limbs (16), while others have included the evaluation of exoskeletons beyond individuals with SCI, such as those with a history of stroke (18). Furthermore, many studies have used the term exoskeleton loosely, often applying the term to different devices, such as reciprocating gait orthosis (RGO), driven gait orthoses, bodyweight-supported treadmill trainers, and some leg braces.

This scoping review seeks to provide an overview on the known effects of overground exoskeleton use, on the prevention of secondary health complications, changes to the QOL, and the effects on the independence of SCI individuals in community settings. The intent of the review is to identify gaps in the literature currently available, and to make recommendations on focus study areas and methods for future investigations.

This review shall focus on data on the newer generation, overground, lower-limb, and powered robotic exoskeletons (referred from this point onward as exoskeletons).

Materials and Methods

Scoping Review

The reporting of methods and results in this scoping review follow the Preferred Reporting Items for Systematic reviews and Meta-Analyses extension for Scoping Reviews (PRISMA-ScR) guidelines, and a PRISMA-ScR checklist can be found in Appendix 1. The framework by Arksey and O'Malley (20) has been referenced for the protocol of this scoping review. The summarized protocol of this scoping review can be found in Appendix 2.

Data Sources and Search Strategy

PubMed, Cochrane, and EMBASE were searched for relevant articles from database inception to June 19, 2021; the bibliographies of included articles were screened. The search term used included “exoskeleton,” “spinal cord injury,” and related keywords, both as the free-text keywords and controlled vocabulary of their respective databases (e.g., MeSH for PubMed and Cochrane Library). The details of the search terms used for each database are included in Appendix 3. There was no gray literature included in our search strategy due to the large number of results generated from our search on peer-reviewed platforms. The refinement of protocol was done after the initial search, with focus placed on a defining eligibility criterion with specific attention to the list of biophysical characteristics to include (mentioned below).

Eligibility and Exclusion Criteria

The inclusion criteria were as follows: (1) English language; (2) peer-reviewed journals; (3) studies from the inception of respective databases, up to June 26, 2021; (4) human studies; (5) SCI that caused walking disabilities; 6) the use of over-ground exoskeleton for rehabilitation, specifically as walking aid; (7) the outcome metrics of a predefined list with biophysical characteristic known to affect SCI individuals (cardiovascular [CVS], bowel, body composition, bone mass density [BMD], fracture rate, pain, spasticity, QOL, and independence and community applicability). The exclusion criteria were as follows: (1) non-SCI; (2) concomitant brain injury, neurological injury, or other cognitive impairments; (3) the use of other gait training devices (i.e., driven gait orthoses and BWSTT), without the use of over-ground exoskeleton; (4) outcome metrics that do not include any one from the predefined list of biophysical characteristics; (5) non-English language; (6) non-clinical trial; (7) the use of devices not for gait training; (8) non-human studies; (9) clinical trial in-progress; (10) pediatric study; (11) full-text inaccessible; and (12) review article.

Study Selection

EndNote (X9) was used as the citation software to store all the studies from the initial search. Duplicates were initially removed using the automatic function in EndNote, with remaining duplicates removed manually through Excel (by 2 reviewers independently). Studies were first screened through their titles and abstracts and followed by full-text screening.

Data Extraction and Charting

The final selection of studies was separated into individual groups based on the type of biophysical characteristic that was evaluated; studies that measured more than one biophysical characteristic were included more than once across different tables. Data extraction templates were generated a priori, with minor modifications done after the initial search, and the data elements extracted included: study, intervention, number of training sessions, ASIA grade, number of subjects, time-points during trial when specific relevant measurements were taken, outcome metrics used in the study, and the presence of any control arms.

Results

In total, 654 articles were found in the initial search, 231 of which were found to be duplicate; 329 articles were excluded during the screening of the titles and abstracts, and a further 52 were eliminated after screening the full texts. In the final analysis, 42 papers were included from the initial search, combined with an additional 8 from scanning through the reference lists of relevant studies. Hence, 50 unique studies were included in the charting process. A flow diagram with the details of searching and screening process can be found in Appendix 4.

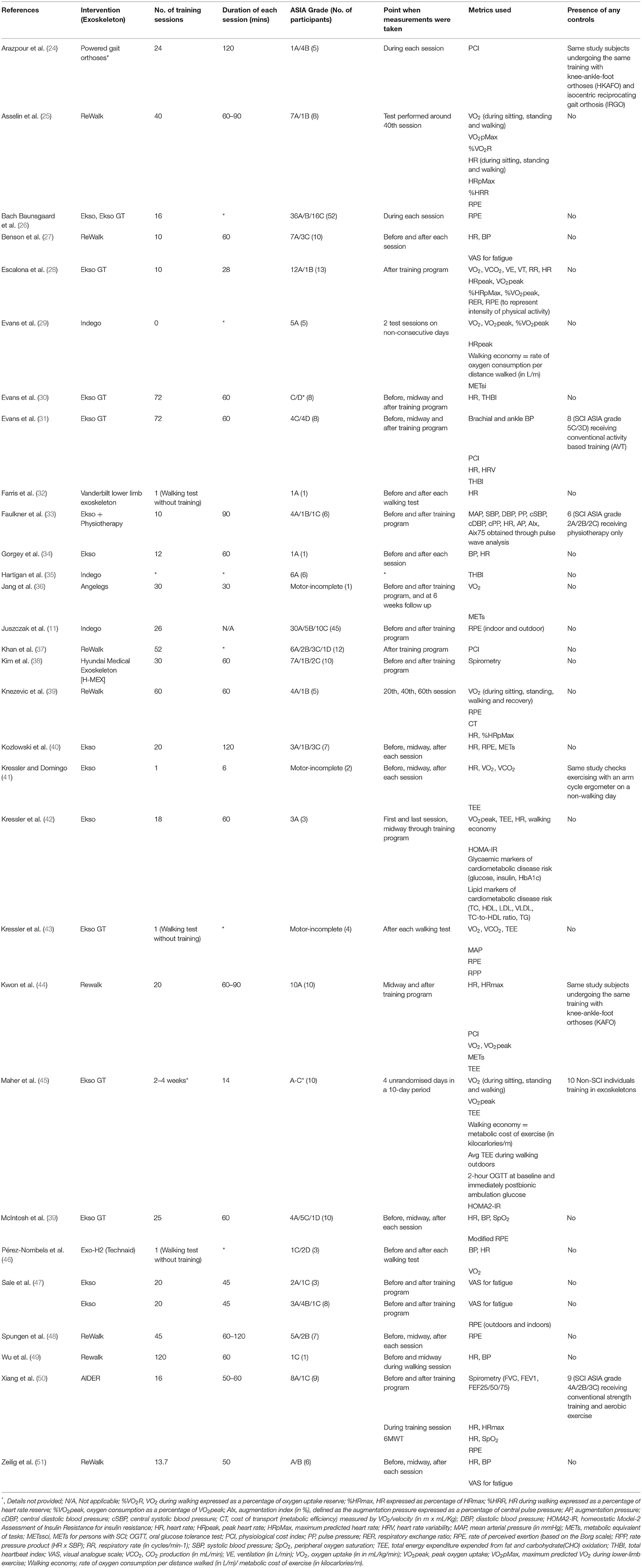

CVS Health

Cardiometabolic diseases are considered as the leading cause of mortality among individuals with chronic SCI living in the community (21). The potential benefit of regular ambulation on combating secondary medical problems has been well documented previously (22, 23). A total of 31 articles related to this topic were found in the search and data extraction is listed in Table 1.

Metabolic Equivalent of Task

One metric that has been used by multiple studies, to quantify the physical exercise associated with exoskeleton use, has been the metabolic equivalent of task (MET) (52). It is well-known that 1 MET is equal to the energy expended during quiet sitting, and in persons with SCI, 1 MET is defined as 2.7 ml/kg/min (reported as METssci) (53). One set of guideline from the American College of Sports Medicine has indicated that physical exercise maintained at 3.3 METS for 1 h/3 days/week is necessary to achieve preventative health benefits for secondary cardiometabolic conditions, where 3.0–5.9 METs equates to a moderate intensity of exercise (54). One meta-analysis by Miller et al. (14), found that it was possible to achieve an average METs of 3.3 during exoskeleton walking, thereby suggesting that exoskeleton use allows a paraplegic individual to carry out a sufficient amount of physical activity which is conducive to yield health benefits, yet without causing the early fatigue as experienced by the previous modes of ambulation (14).

Perceived Exertion

Another method, through which the intensity of exercise has been quantified with, is the Borg's rate of perceived exertion (RPE) scale (55, 56). In the same meta-analysis by Miller et al. (14), their analysis achieved an average intensity that was marginally below the threshold for “moderate” intensity, required for acquiring the quoted health benefits. Other studies reported a wide range of RPE, varying from “very light” to “somewhat hard” (11, 28, 39, 57, 58). This variation may be due to the fact that the test subjects had different amounts of exposure to their respective exoskeletons, as novelty of the device and anxiety may contribute to a higher RPE (59). However, the confidence of RPE as a valid indicator is debated (56), as the rating can be confounded by other psychological factors, such as mood state, motivation, and exercise experience (60). On the whole, most studies found a decrease in effort and fatigue resulting from the exoskeleton use (11, 48, 57, 58), from the beginning to the end of a training program, which has been suggested to aid in increasing the user compliance with the device (11). The study by Juszczak et al. (11) found a significant decrease in RPE from baseline to the end of the study. However, this decrease was only found to be significant when walking with the exoskeletons indoors, not outdoors. This was likely due to the increased difficulty and time required to achieve a greater proficiency of the exoskeleton outdoors. We believe that it is intuitive that users consume less energy as they become more proficient with their exoskeleton.

Gas Analysis

A more objective means of characterizing exertion is using oxygen uptake, also known as gas analysis. With the increase of physical load, oxygen demand and energy expenditure rise (61, 62). Therefore, the most ideal way of reflecting the metabolic activity is performing a full gas analysis based on the amount of oxygen consumed, represented by VO₂, and carbon dioxide expelled, represented by VCO₂. These parameters were utilized in several studies that we had reviewed (41–45). In particular, a case-control study on the Ekso GT device found that although the energy expenditure was greater in prolonged ambulation, compared with sitting and standing, it was still below guideline intensities necessary to experience the cardiorespiratory benefits (45), which was concordant with results from a previous study (42). Meanwhile, Kwon et al. (44) found no statistically significant difference in VO₂ during ambulation with the Rewalk device, or with a knee-ankle-foot orthoses (KAFO), suggesting that KAFO may be a more cost-effective alternative for cardiorespiratory exercise. It is worth noting, that the measurement of gaseous exchange requires laboratory instrumentation that is not generally available in a clinical setting (32, 62). In our review, other metrics commonly utilized were the Total Heart Beat Index (THBI) (30, 31, 35) and the Physiological Cost Index (PCI) (24, 32, 37, 44). Both of these measures have been shown to be strongly correlated with oxygen uptake. This was reflected in the study by Kwon et al., where the ReWalk exoskeleton was found to have significantly greater energy efficiency than KAFO across all parameters, but VO₂max and PCI (63). However, PCI has the advantage of only requiring a single measurement of the heart rate, rather than a continuous measurement, as necessitated by the THBI (32, 62). Studies using THBI revealed similar results to the (abovementioned) studies using gas analysis, where a decrease in THBI was observed after the first 6 weeks of training, denoting that a reduction in exercise intensity over time (30, 31).

Other Parameters for Cardiometabolic Health

Many studies opted to use a variety of metrics in evaluating the use of exoskeletons on cardiometabolic health. Of note, the case-control study by Faulkner et al. (33) measured the augmentation index (AIx) to evaluate the CVS health of their SCI test subjects—defined as the augmentation pressure expressed as a percentage of central pulse pressure, which is supported by previous literature favoring the use of central blood pressure (BP) over peripheral BP for determining the risk for CVS events (64). In that particular study, 12 SCI individuals were separated into two groups, one which involved a 5-day exoskeleton program with the Ekso exoskeleton, combined with physiotherapy; and another group which received just physiotherapy only; the Ekso group received 60 min of conventional therapy + 90 min of exoskeleton training a day, while the control group received 60 min of conventional therapy + 60 min of home-based rehabilitation exercise session. Their results found a significant decrease in AIx in the group with the Ekso exoskeleton, but not in the control group receiving physiotherapy only. This finding was particularly relevant as a 10% absolute increase in central AIx is associated with a 32% increase in the risk of CVS events and 38% increase in all-cause mortality (64). Nonetheless, the decrease in the risk of CVS among study participants was unknown.

A case-control study by Maher et al. (45) compared the metabolic differences in SCI individuals using the Ekso GT exoskeleton, with normal non-SCI individuals without the exoskeleton. Their results found no significant difference in blood glucose and insulin (after an oral blood glucose tolerance test [OGTT]) and insulin resistance (as measured by Homeostatic Model-2 Assessment of Insulin Resistance [HOMA2-IR]) in the SCI group after 2–4 weeks of training. This was suggested to be due to the lack of impaired glucose tolerance at baseline. The average VO₂ peak and total energy expenditure (TTE) among its participants indicated a “light” exercise intensity.

Some studies opted to evaluate pulmonary-related changes because of their implications on exercise performance (65). These studies evaluated respiratory parameters, such as forced vital capacity (FVC) and forced expiratory volume (FEV1), via the aid of pulmonary spirometry tests (38, 50).

Interestingly, as the proficiency of the user increases over time, combined with the increased metabolic efficiency in the newer models of overground exoskeletons, the metabolic benefits provided by exoskeleton use may be insufficient to provide the health benefits (59). The newer designs of exoskeletons which can provide variable assistance may be useful for addressing this particular problem.

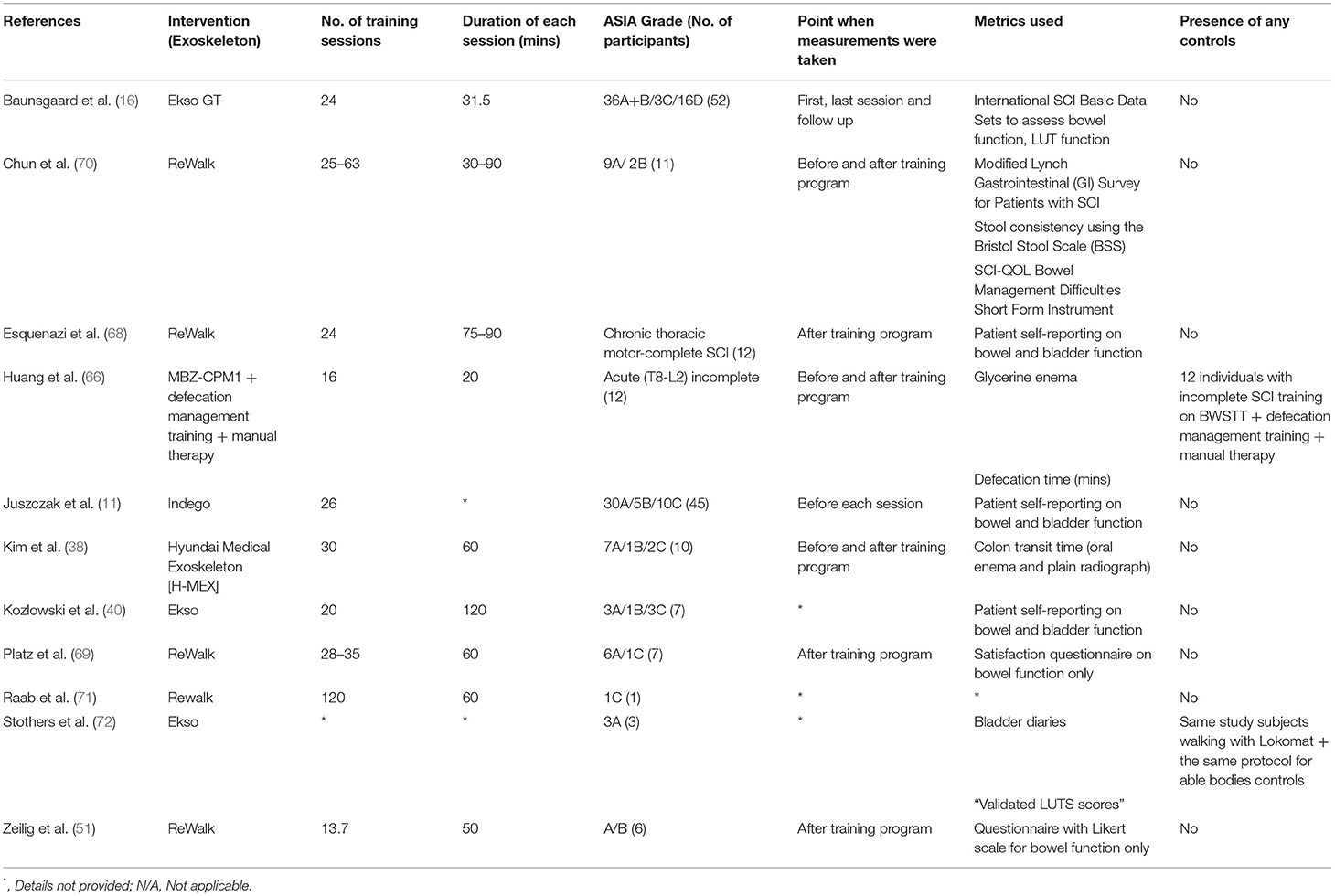

Bowel and Bladder Function

Spinal cord injury can lead to the dysfunctional bowel peristalsis, abnormal defecation patterns, and a variety of urinary voiding dysfunctions (66, 67). Most studies, among 11 found on this topic, that evaluated the effects of exoskeleton use on bowel and bladder function used self-reported data from SCI individuals (11, 40, 68), or specific questionnaires to quantify changes on bladder and bowel habit (17, 51, 69) (Table 2).

Subjective Effects of Exoskeleton Use

Studies that used self-reported data, all showed the mitigation of neurogenic bowel or bladder dysfunctions, though the statistical significance of the bowel habit improvements were unknown. Similarly, the studies that utilized patients questionnaires, all found no significant improvement in bowel habit.

Although some of the individual studies appear to disagree with each other, it should be noted that the results are very much dependent on the metrics chosen for evaluation. For example, in an exploratory study by Baunsgaard et al. (17), although the direct assessments of bowel function and lower urinary tract function showed insignificant changes in the International SCI Bowel and Lower Urinary Tract Basic Dataset over a 4 week follow-up period, an indirect assessment using the Spinal Cord Independence Measure (SCIM) III, showed a marked improvement on the bowel and use of toilet score.

Objective Measurements of Defecation

In one of the case-control studies we identified on this subject, Huang et al. (66) utilized an exoskeleton on a cohort of subjects with incomplete SCI. Subjects were separated into two groups. Subjects in the interventional group received training on the ManBuZhe [Tian Jin] Rehabilitation Equipment Co., Ltd. China exoskeleton; while subjects in the control group received training on a BWSTT. Their results showed that in contrast with the control group, in the interventional group receiving exoskeleton training, there was a significant decrease in glycerin enema use and defecation time from baseline to study endpoint.

Kim et al. (38) used a similar approach by measuring the colon transit time in 10 study subjects. Simple abdominal radiographs were obtained 7 days after the administration of oral radio-opaque markers to evaluate the bowel movement. Out of the three participants with constipation at baseline, only two were found to have a reduced transits times, though one participant was found to have an increased transit time. Another objective measurement included the evaluation of stool consistency, using the Bristol Stool Scale (BSS) by Chun et al. (70). Similar results were achieved where the all but one of the participants has a BSS score of 4 or 5, indicating an ideal stool consistency.

Objective Measurements of Bladder Function

Most studies evaluating bladder function used more subjective parameters by utilizing patient questionnaires. (11, 17, 40, 68). One exception was the study by Stohers et al. (72), where the changes in bladder function were quantified using lower urinary tract symptoms (LUTS) scoring. We did not identify studies which utilized objective measures, such as urodynamic studies to evaluate bladder function after exoskeleton training.

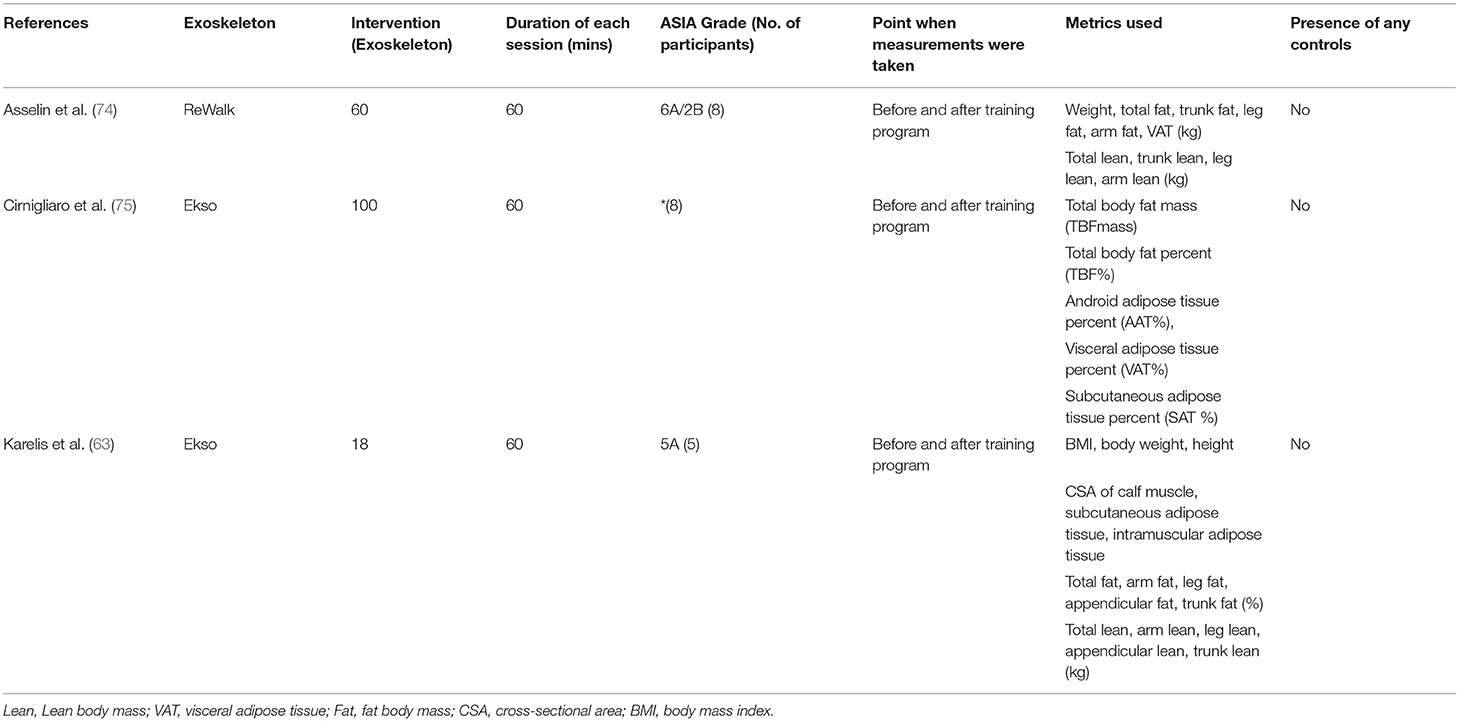

Body Composition

It has been previously shown that the muscle wasting of approximately 30%, and an increase in intramuscular adipose tissue of approximately 100% occurs in individuals with SCI at as early as 6 weeks post-injury (73). These changes in body composition are likely to increase the risk of secondary metabolic complications. A review of 3 articles on this topic is listed in Table 3.

Changes in Body Mass Composition

At the time of the writing of this review, only three studies have evaluated the changes on body composition in SCI individuals with exoskeleton use. One interventional study by Karelis et al. (63) utilized the Ekso device for intervention and DEXA scan for the measurement of body composition, and the study demonstrated significant improvements in body weight, body mass index (BMI), leg lean body mass (LBM), and total fat mass percentage, but not total LBM. The study showed an increase in the cross-sectional area of muscles of the calf, favoring the use of exoskeletons in maintaining healthy body compositions in individuals with SCI, including those with complete (AIS Grade A) SCI. These findings are particularly favorable for exoskeleton use, given that results were demonstrable after only 18 sessions of training.

Another recent interventional study by Asselin et al. (74) found improvements in total fat, trunk fat, and body weight in SCI individuals after 60 session of training, although there was no significant improvement in total or leg LBM. On the other hand, Cirnigliaro et al. (75) were able to elicit a significant decrease in total body fat mass, total body fat percentage, android adipose tissue percentage, and subcutaneous adipose tissue percentage in their study with eight individuals with chronic SCI, after 100 sessions of training. This may suggest that the duration of training may be a limiting factor in eliciting positive effects on body composition.

It is worth noting that some of the results from these studies are supported by similar investigations performed with BWSTT (76–78). One of such studies showed an increase in fatigue-resistant type II muscle fibers, on muscle biopsy, after 6 months of three-time-weekly training, indicating an improvement in the quality of muscle fibers and quantity (79).

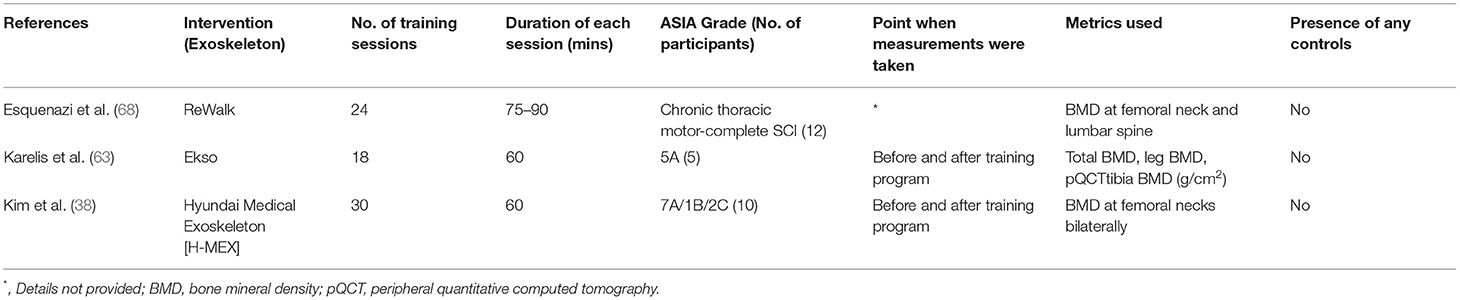

Bone Health

A decrease in BMD, at a rate of 3–4% per month, has been reported within the first year of a SCI. This can increase the risk of fractures by 25–46% (80, 81). Although static standing and resistance training alone are seen to counteract the deterioration in bone health, it has been shown that gravity-derived high-standing loads and impact accompanying low walking speeds, are the superior sources of stimuli for the maintenance of bone health (5, 7).

BMD Changes With Exoskeleton Training

Studies evaluating the changes in BMD in SCI individuals with exoskeleton are rare (38, 63, 68). In a small-scaled interventional study by Karelis et al. (63), researchers found an insignificant increase in BMD by measuring the peripheral quantitative CT (pQCT) of the tibia among 5 SCI individuals. Despite the relatively small study size, the increase of 14.5% in BMD was seen as a particularly remarkable result given that the study subjects only received 6 weeks of training. An improvement in BMD, though not statistically significant, was also seen in the study by Kim et al. (38). Though one participant had a 13.9% increase in BMD in the right femoral neck, which improved the BMD status from osteopenia to normal. Pitfalls in related studies include the heterogeneous measurements for BMD (knee and hip or femoral neck) (82), varying training regimens, and the lack of control for medical treatment for osteoporosis. Further controlled studies are needed in this area to elucidate the actual effects of training dosage and intensity on change in BMD. Data extraction of 3 articles on this topic is listed in Table 4.

Neuropathic Pain

A systematic review by Dijerks et al. (83) reported the prevalence of chronic pain range from 26 to 96% in SCI individuals from 42 individual studies. A prevalence of 5–37% was reported for pain that was refractory to the treatment. A number of studies, among 10 found on this topic, adopted a numerical rating [i.e., visual analog scale (VAS)] for the evaluation of pain (6, 37, 42, 47, 51), whilst some others utilized self-reported data from patients, to identify changes in neuropathic pain after individual training sessions with the exoskeleton (11, 40, 68, 69) (Table 5).

There have been two large-scale studies on the effect of exoskeleton use on the neuropathic pain in SCI individuals, these was a multicenter trial with 52 SCI individuals training with the Ekso GT (17), and another single center with 45 SCI individuals training with the Indego exoskeleton (11). Both trials reported no statistically significant change in pain from the initiation of the intervention till follow-up, though no new pain sensations were provoked. This was attributed to be due to the floor effect, where self-reported pain was low from baseline (11). Another study with 21 SCI individuals supported this claim, where significant pain reduction was only observed in patients who reported pain before the training session (6).

Few small-scale studies found improvements in pain after training with exoskeletons (42, 47, 51). One study, where SCI individuals trained with ReWalk exoskeleton for up to 24 sessions, had 5 out of 12 patients reporting a reduction of pain immediately after a training session (68). Of note, in a case series involving 2 Asian individuals, both of them experienced severe pain requiring pain relief medications at baseline, received 60 training sessions with the hybrid assistive limb (HAL) exoskeleton (84). Monitoring through the study and at 1-year follow-up, found no recurrence of pain and nor the need for the pain relief medications since the initiation of exoskeleton training. Although this study utilized the exoskeleton with BWSTT, compared with the two large-scale studies, with 24 (17) and 26 (11) training sessions, may suggest that the benefits of exoskeleton training on the reduction of neuropathic pain to require longer training durations. Future studies should focus on minimizing selection bias in the terms of psychological states and individual pain thresholds.

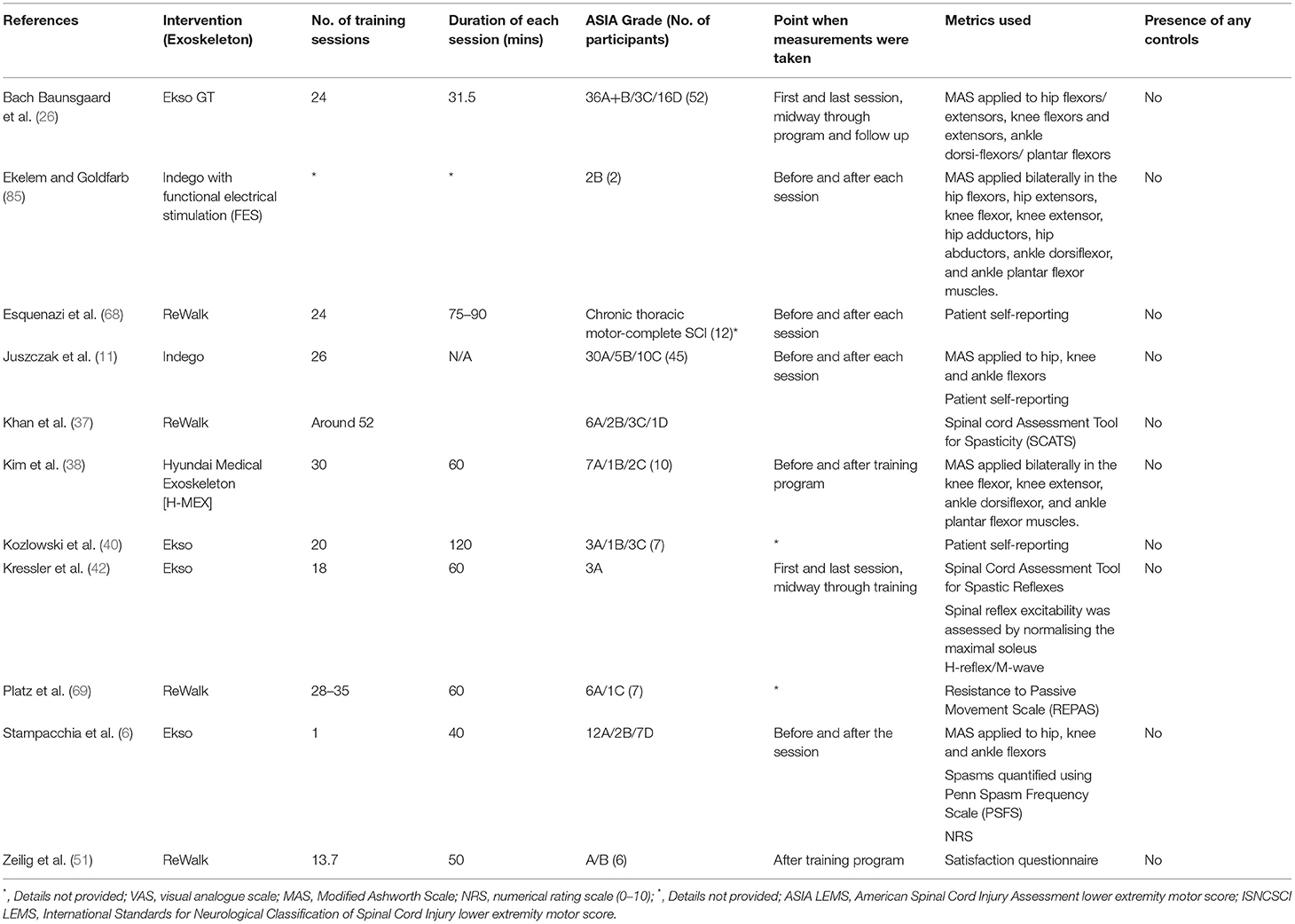

Spasticity

A common method adopted for the evaluation of spasticity was the Modified Ashworth Scale (MAS) (6, 11, 17, 38, 85). A study by Baunsgaard et al. (17) measured the MAS for antagonistic muscle groups at the hips, knees, and ankles. Their results showed a significant decrease in MAS score in all muscle groups after 12 sessions, and after the completion of a total of 24 sessions of training, with the Ekso GT exoskeleton, compared with baseline. This decrease of spasticity, however, was absent at 4 weeks of follow-up after the end of the training program. Juszczak et al. (11) measured MAS scores as the same muscle groups as Baunsgaard et al., pre- and post-trial. They reported that, although 12 out of 45 patients were found to have a decrease in spasticity, 5 were found to have increased spasticity. However, the self-reported data from the same study participants showed a significant decrease in spasticity. Despite its wide adoption, limitations, such as subjective evaluation and simple scoring, should be recognized in the use of MAS (85).

Additionally, in a study with only one training session with the Ekso exoskeleton (6), a significant decrease in spasticity was found among its 21 SCI participants across multiple metrics for spasticity, such as subjective measurements with the numerical rating scale (NRS), the Penn Spasm Frequency Scale (PSFS), and semi-quantitative documentations with MAS. The study by Khan et al. (37) used the Spinal Cord Assessment Tool for Spasticity (SCATS) for the assessment of spasticity in 12 SCI individuals. Their data showed two uniquely different pattern of changes in subjects with low- and high-spasticity scores initially, despite the smallest meaningful change remaining unknown. We suggest that future studies should standardize the timing of assessment with reference to the training period. Data extraction of 11 articles found on this topic is listed in Table 6.

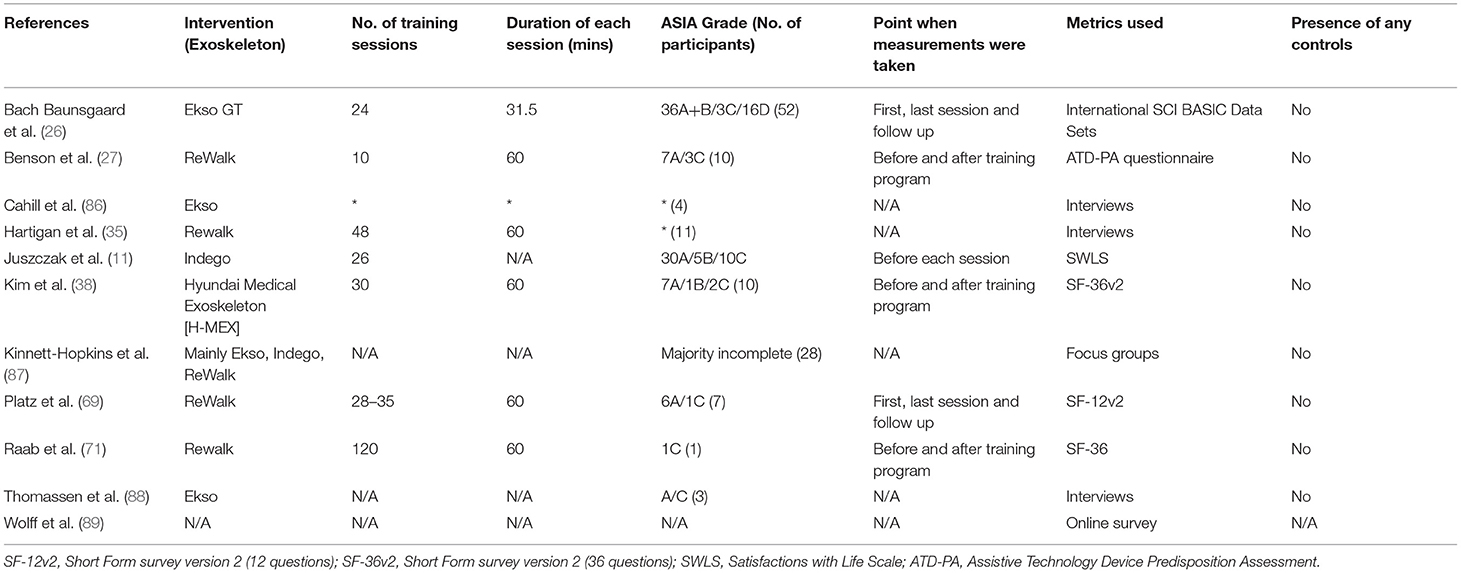

Quality of Life

Studies evaluated the changes in QOL of SCI individuals using different surveys. In the feasibility study by Benson et al. (27), an Assistive Technology Device Predisposition Assessment (ATD-PA) questionnaire was used to evaluate the changes in the QOL of 10 SCI individuals with ReWalk exoskeleton. A small improvement was seen in the QOL subsection of the questionnaire. The rest of the results showed that devices did not meet patients' expectations by study endpoint, with moderate scores for the hypothetical use of exoskeletons in the community.

The study by Baunsgaard et al. (17), using the International SCI Basic Data to assess QOL, found a significant increase in satisfaction with life only in the chronically injured group, but not in the recently injured group, from baseline to the end of the study, as well as to follow-up. On the other hand, the study by Juszczak et al. (11) using the Satisfaction with Life Scale (SWLS) found no significant change in the QOL after training with exoskeletons. Data extraction of the 11 articles found on this topic is listed in Table 7.

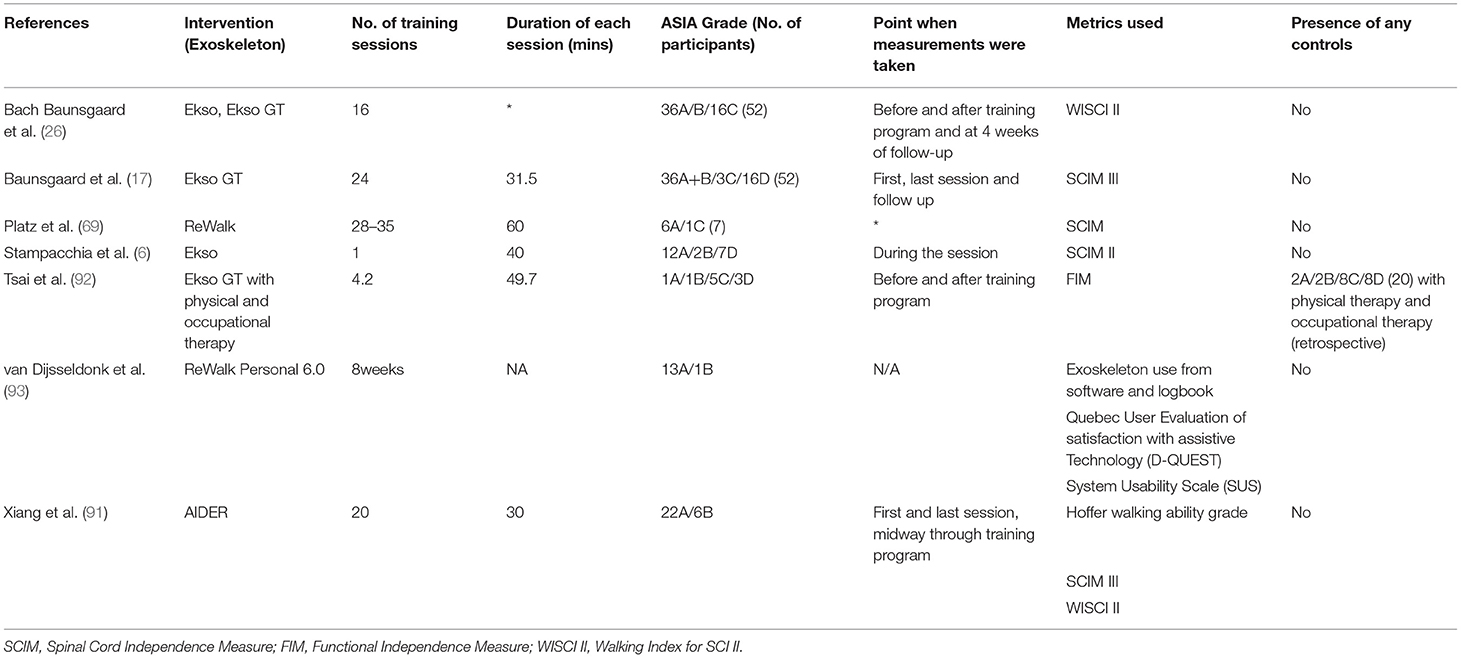

Improving Independence of Individuals With SCI

Independence

One method used to evaluate the independence of individuals with SCI in the community and home setting, is the SCIM. The SCIM evaluates the self-care, respiration, and sphincter management, and mobility (90). Among studies that used the SCIM in its various iterations (17, 69, 91), only a study by Baunsgaard et al. (17) showed a significant improvement in the independence measure, for both recently and chronically injured SCI individuals, after 24 sessions. These results were not replicated in the study by Platz et al. (69), where no systemic change was noted after 28–35 training sessions. Data extraction of 6 articles on this topic is listed in Table 8.

Applicability in Practical Environments

One important aspect of exoskeleton application in daily life is the safe ambulatory speed of its users. It has been shown that an ambulatory speed of 0.49 m/s is necessary for general ambulation across a road junction with traffic lights (94). In a systematic review by Louie et al. (95), it was found that the mean exoskeleton walking speed of persons with complete SCI was 0.26 m/s. Four variables were found in the majority of studies which might influence gait speed within an exoskeleton, such as age, injury duration, injury level, and the number of training sessions. Another aspect of daily use of exoskeletons relates to the ease of donning and doffing the device, Bryce et al. (96) have suggested that individuals should be able to don and doff an exoskeleton independently in 5 min or less for it to be considered viable for community use. Although this requirement was not achieved by all participants in the study conducted by Tefertiller et al. (97) 84% of the study participants could don and doff the exoskeleton by themselves, and the time required decrease from midway assessment to final evaluation, with average don on time being 9:01 min, and doff time being 2:44 min.

In a recent observational study, the study participants, who were deemed to have predefined proficiency with the ReWalk Personal 6.0 exoskeleton, were allowed to use the exoskeleton in their home and community for 8 weeks (93). The study found that most users adopted the device for individual exercise (78%), and the outdoors area was the most common location of use (48%). The overall response by the participants were positive; the main criticism claimed that the necessity for constant supervision by a buddy was a hindrance.

Discussion

The purpose of this review was to summarize the current available literature on health-related benefits of exoskeleton walking for SCI individuals, and to identify gaps in the current knowledge base. Although much research has been devoted for developing and refining the mechanics and kinetics of exoskeletons, this review has highlighted focus areas in the currently available literature that need to be addressed before a strong conviction can be had on the health benefits of exoskeleton use.

Knowledge Gaps Identified by This Scoping Review

This review has revealed that SCI research is still limited in the area of CVS benefits of longer-term exoskeleton use. Although we found 31 studies on this topic, the implementation of a wide range of metrics in measuring CVS health has resulted in vastly heterogeneous studies that are difficult to compare. This heterogeneity is prevalent in the variety of study methods utilized within existing studies, where the amount of training sessions can range from 1 (6) to 60 (58). Variations in the duration of training per session, and selected time points for data collection have also been noted (Tables 1–8). As illustrated by the case of neuropathic pain, the longer periods of training with the exoskeletons may be required to elicit its associated health benefits, and the floor effect has to be considered when choosing suitable subjects for study evaluation (84). Other variables affecting the observed results include rest frequency and duration.

Investigations on the effects of exoskeleton use on BMD and body composition have not received sufficient emphasis. We identified only three studies with a small number of patients which have attempted to elucidate the longer-term benefits with regard to the preservation of BMD after training (38, 63, 68). In addition, we found only three studies investigating changes in body mass composition (63, 74, 75). Given the promising results suggested by the existing data, it may be worthwhile to continue exploring on the benefits of exoskeletons in this area in the future.

The applicability of exoskeleton toward independence and functional gain is another area which we have identified as having significant knowledge gaps. Several studies have attempted to utilize independence measures, and walking indices as proxies for community acceptance of this type of technology. Within the subtopic of the viability of exoskeleton use in the community setting, many studies have utilized methods relying on theoretical situations, via questionnaires, to tackle this dilemma. Additionally, it is intuitive that on a practical level, combining home modifications and exoskeleton use can maximize functional gain and reduce risks. Therefore, it may be more useful for upcoming studies to directly evaluate the use of these devices at home, as was done by van Dijsseldonk et al. (93), for a more accurate appreciation of exoskeleton use beyond the controlled clinical environment.

Recommendations

In the terms of methodology, future studies may benefit from restricting their study populations into cohorts with a narrower range of injury severities and the neurological levels of SCI. Although this may result in a decrease in the size of the study cohort, this can strengthen any findings identified for secondary complications, such as neuropathic pain, bowel, and motor function, which vary greatly depending on the level and severity of the SCI. Factors beyond the type of SCI should also be controlled, as factors such as prior athleticism or hand-eye coordination, can also have an impact on the results demonstrated from exoskeleton training. Increased training time with the exoskeletons may help uncover the benefits in health parameters, such as BMD and body composition, which may require much longer periods of exoskeleton use for the physiological changes to become measurable. One review has provided a recommended duration of 2 h per session, with at least 20 sessions (19), due to the observation that increases in gait speed are correlated with training time (95). This observation is likely to expand beyond gait speed to other secondary complications. Using objective outcome measures for urination, such as urodynamic studies can improve the consistency of study results.

When choosing outcome metrics, we recommend that parameters selected not only need to be able to consistently reflect changes on the development of secondary complications but should also be widely available. For example, in the case of CVS health, adopting PCI may be more advisable than performing gas analysis due to varying access and constraints to resources (32, 62). Patient surveys and reporting, which were utilized by many individual studies, are useful in identifying the impact of the exoskeleton use on factors, such as neuropathic pain and bowel dysfunction, and also allow researchers to evaluate the effects of the use of exoskeleton from the end user perspective. However, it may be more accurate to opt for more measurable metrics, such as the amount of pain killer medication consumed, defecation time, which can aid in making comparison across studies, since their methodologies can be verified and replicated more reliably, and placebo effects can be accounted for. Additionally, data obtained from bread and butter physical tests, such as the 6-min walking test (6MWT), can be further enhanced with the use of accessory devices, to provide greater insight into the functional status of the patient (98).

In this review, we have noticed significant heterogeneity in the timepoint(s) of data collection, irrespective of the parameter, which has made cross-trial comparisons difficult. Some studies obtained their measurements only when the exoskeleton users could ambulate with their exoskeletons continuously (25), while others did not measure any results in the follow-up after the endpoint of the study. Additionally, it will be useful for the studies to measure the same parameters at baseline and study endpoint, for a comparison to be made within the individual subjects. Longer follow-up periods are needed to examine the lasting effects or rebound of symptoms after the cessation of exoskeleton training.

Finally, an important question to answer is the superiority of the exoskeleton over other forms of ambulation for SCI individuals, as done by another trial that has investigated the effect of exoskeletons on patients with stroke (99). It is advisable that future case-control studies compare exoskeleton use directly with other modes of ambulation, such as gait orthoses or BWSTT, as done by Huang et al. (66). Doing so may also allow a comparison of cost-effectiveness of the different devices, beyond that of secondary health benefits. One example would be a case-control study evaluating the effect of exoskeleton training, vs. activity-based training (ABT) (31). Although this study found meaningful clinical change in CVS parameters as early as 6 weeks, it was also discovered that the stimulation of standing in an ABT was also able to achieve a comparable CVS response to exoskeleton training. This may suggest a more cost-effective method of achieving the same CVS benefits.

Limitations

The scope of this review is only limited to overground, lower limb, and powered robotic exoskeletons. Therefore, the criticisms on study methods do not apply to studies conducted on the other forms of exoskeletons, though we believe that the recommendations made can be universally applied.

Conclusion

In summary, overground exoskeletons have much potential in maintaining good health and improving the QOL in individuals with SCI. Existing data suggest noticeable benefits across different types of secondary health complications due to prolonged immobilization, as well as a positive response by individual with SCI for the potential chance to regain their previous roles in the community. This scoping review has identified several focus areas in the need of further investigation, such as CVS health, BMD, body composition changes, and independence and functional applications for exoskeletons. We have identified pitfalls, such as heterogeneous methodologies, disparate study populations, and dissimilar training programs, which need to be overcome in future studies. By improving the body of evidence supporting the positive health benefits of exoskeleton use, health policymakers and healthcare professions may better facilitate its mainstream application for the health maintenance of individuals with SCI (29, 46).

Publisher's Note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
