Serhat V. Okar1
Fengling Hu2
Russell T. Shinohara2
Erin S. Beck1,3
Daniel S. Reich1
Benjamin V. Ineichen1,4,5*- 1Translational Neuroradiology Section, National Institute of Neurological Disorders and Stroke, National Institutes of Health, Bethesda, MD, United States
- 2Department of Biostatistics, Epidemiology, and Informatics, Penn Statistics in Imaging and Visualization Center, University of Pennsylvania, Philadelphia, PA, United States
- 3Department of Neurology, Icahn School of Medicine at Mount Sinai, New York, NY, United States
- 4Department of Neuroradiology, Clinical Neuroscience Center, University Hospital Zurich, University of Zurich, Zurich, Switzerland
- 5Center for Reproducible Science, University of Zurich, Zurich, Switzerland
Objectives: Perivascular spaces have been involved in neuroinflammatory and neurodegenerative diseases. Upon a certain size, these spaces can become visible on magnetic resonance imaging (MRI), referred to as enlarged perivascular spaces (EPVS) or MRI-visible perivascular spaces (MVPVS). However, the lack of systematic evidence on etiology and temporal dynamics of MVPVS hampers their diagnostic utility as MRI biomarker. Thus, the goal of this systematic review was to summarize potential etiologies and evolution of MVPVS.
Methods: In a comprehensive literature search, out of 1,488 unique publications, 140 records assessing etiopathogenesis and dynamics of MVPVS were eligible for a qualitative summary. 6 records were included in a meta-analysis to assess the association between MVPVS and brain atrophy.
Results: Four overarching and partly overlapping etiologies of MVPVS have been proposed: (1) Impairment of interstitial fluid circulation, (2) Spiral elongation of arteries, (3) Brain atrophy and/or perivascular myelin loss, and (4) Immune cell accumulation in the perivascular space. The meta-analysis in patients with neuroinflammatory diseases did not support an association between MVPVS and brain volume measures [R: −0.15 (95%-CI −0.40–0.11)]. Based on few and mostly small studies in tumefactive MVPVS and in vascular and neuroinflammatory diseases, temporal evolution of MVPVS is slow.
Conclusion: Collectively, this study provides high-grade evidence for MVPVS etiopathogenesis and temporal dynamics. Although several potential etiologies for MVPVS emergence have been proposed, they are only partially supported by data. Advanced MRI methods should be employed to further dissect etiopathogenesis and evolution of MVPVS. This can benefit their implementation as an imaging biomarker.
Systematic review registration: https://www.crd.york.ac.uk/prospero/display_record.php?RecordID=346564, identifier CRD42022346564.
1. Introduction
First described in detail by Virchow (1851) and confirmed as a feature of normal brain histology by Robin (1859), the perivascular space (PVS) is an anatomical compartment that follows the pial trajectories of brain vasculature, surrounding the arteries, veins, penetrating arterioles and venules (Troili et al., 2020; Wardlaw et al., 2020; Ineichen et al., 2022). Although PVS are a normal anatomic feature of brain vasculature that can be visualized using histology, they can also become visible on magnetic resonance imaging (MRI) if they exceed a certain diameter (depending on the resolution of the MRI). These macroscopically visible PVS have been referred to as enlarged PVS (EPVS), dilated PVS, or Virchow-Robin spaces (Ineichen et al., 2022) (Figure 1). In this review, we will use the term MRI-visible PVS (MVPVS) to acknowledge that temporal dynamics of PVS are insufficiently understood and thus to retain a more descriptive terminology.
Figure 1. MRI-visible perivascular spaces (MVPVS) on magnetic resonance imaging (MRI). MVPVS are isointense to cerebrospinal fluid (CSF) on MRI on both T1 w (left column, acquired at 7-tesla static magnetic field strength) and T2 w/PD sequences (right column, acquired at 3-tesla static magnetic field strength) (white arrowheads). They commonly occur in the centrum semiovale (A), deep white matter (B), and basal ganglia (C). Insets show higher magnifications. All images have an isotropic voxel size of 0.5 mm.
On MRI, MVPVS show cerebrospinal fluid (CSF) signal characteristics, appearing as linear-shaped signal changes with a parenchymal vessel distribution (Wardlaw et al., 2013a). Typical locations of MVPVS are in the basal ganglia along lenticulostriate vessels, centrum semiovale, and midbrain (ponto-mesencephalic junction) (Kwee and Kwee, 2007). Less frequent MVPVS locations are: insula (Yamaguchi et al., 2021), hippocampus (Zhu et al., 2011), anterior temporal lobe (McArdle et al., 2020), corpus callosum (Manara et al., 2010, 2011), mesencephalon-thalamic junction (Salzman et al., 2005), and cerebellum (Alqahtani et al., 2014). Although many agree that MVPVS should be an imaging component of cerebral vessel disease (Francis et al., 2019), emerging data suggest that it can also be a feature of metabolic (Manara et al., 2011), neurodegenerative (Charidimou et al., 2017), and neuroinflammatory diseases (Granberg et al., 2020).
Since MVPVS can occur in a large spectrum of neurological and systemic diseases affecting the central nervous system (CNS), it is important to better understand MVPVS etiopathogenesis and their longitudinal evolution. Although some pathomechanisms, such as impaired interstitial fluid (ISF) drainage, have been proposed as MVPVS etiology (Wardlaw et al., 2013a,2020; Troili et al., 2020), the biological basis of MVPVS and longitudinal evolution of MVPVS in different diseases remain uncertain.
This systematic review and meta-analysis aims to answer the following two questions: (1) Which etiopathogeneses have been shown and/or proposed for MVPVS? (2) How do MVPVS evolve over time in healthy individuals or in individuals with CNS diseases?
2. Materials and methods
We registered the study protocol in the International prospective register of systematic reviews (PROSPERO, CRD42022346564)1 and used the Preferred Reporting Items for Systematic Reviews and Meta-Analysis (PRISMA) Guidelines for reporting (Moher et al., 2015).
2.1. Search strategy
We searched for original studies published in full up to December 12, 2022, in PubMed, Scopus, and Ovid EMBASE. The search string was created in PubMed and translated to the other databases. It contained two blocks: one with terms for enlarged perivascular spaces and one with terms for etiology or evolution of MVPVS, combined by the Boolean operator “AND”. We searched reference lists of included articles for additional eligible articles.
2.2. Inclusion and exclusion criteria
We included publications on human or animal data that reported on any outcome related to etiology and/or temporal dynamics of MVPVS. Reviews were included if they discussed MVPVS etiologies. We excluded conference abstracts, non-English articles, and publications that reiterated previously reported quantitative data.
2.3. Study selection and data extraction
Titles and abstracts of studies were screened for their relevance in the web-based application Rayyan by two reviewers (SO and BI) (Ouzzani et al., 2016), followed by full-text screening. Subsequently, the following data were extracted: title, authors, publication year, study design, disease, and number of included subjects as well as data on MVPVS definition, etiology, and temporal dynamics.
2.4. Quality assessment
The quality of each study with ≥10 included subjects was assessed against predefined criteria by two reviewers (SO and BI) using an adjusted version of the Joanna Briggs Institute Critical Appraisal Tools. Discrepancies were resolved by discussion.
2.5. Data synthesis and analysis
Only publications reporting correlation coefficients were included in the meta-analysis, and only summary-level data were used. We defined a priori that only diseases/conditions with more than three publications would be considered for a meta-analysis. Since MS and NMOSD are both neuroinflammatory entities, we decided post-hoc to pool MS and NMOSD studies for the meta-analysis to increase its statistical power. A random-effects model was fitted to the data. The amount of heterogeneity (i.e., τ2), was estimated using the DerSimonian-Laird estimator (DerSimonian and Laird, 1986). In addition, the Q-test for heterogeneity (Cochran, 1954) and the I2 statistic (Higgins and Thompson, 2002) are reported. A two-tailed p-value < 0.05 was considered statistically significant.
2.6. Publication bias
We defined a priori that we would assess publication bias if more than 10 studies were eligible for the meta-analysis. Thus, due to the limited number of studies eligible, we did not assess publication bias.
3. Results
3.1. Eligible publications and general study characteristics
3.1.1. Eligible studies
In total, 3,301 original publications were retrieved from our comprehensive database search, and an additional 43 publications from reference lists of reviews on related topics. After abstract and title screening, 303 publications were eligible for full-text search. After screening the full text of these studies, 140 articles (9% of deduplicated references) were included for qualitative synthesis and 6 for quantitative synthesis (Figure 2). 109 publications assessed or discussed potential etiologies of MVPVS (including 19 reviews). 31 publications assessed longitudinal evolution of MVPVS. The median follow-up time of these studies was 36 months (range 1–204 months).

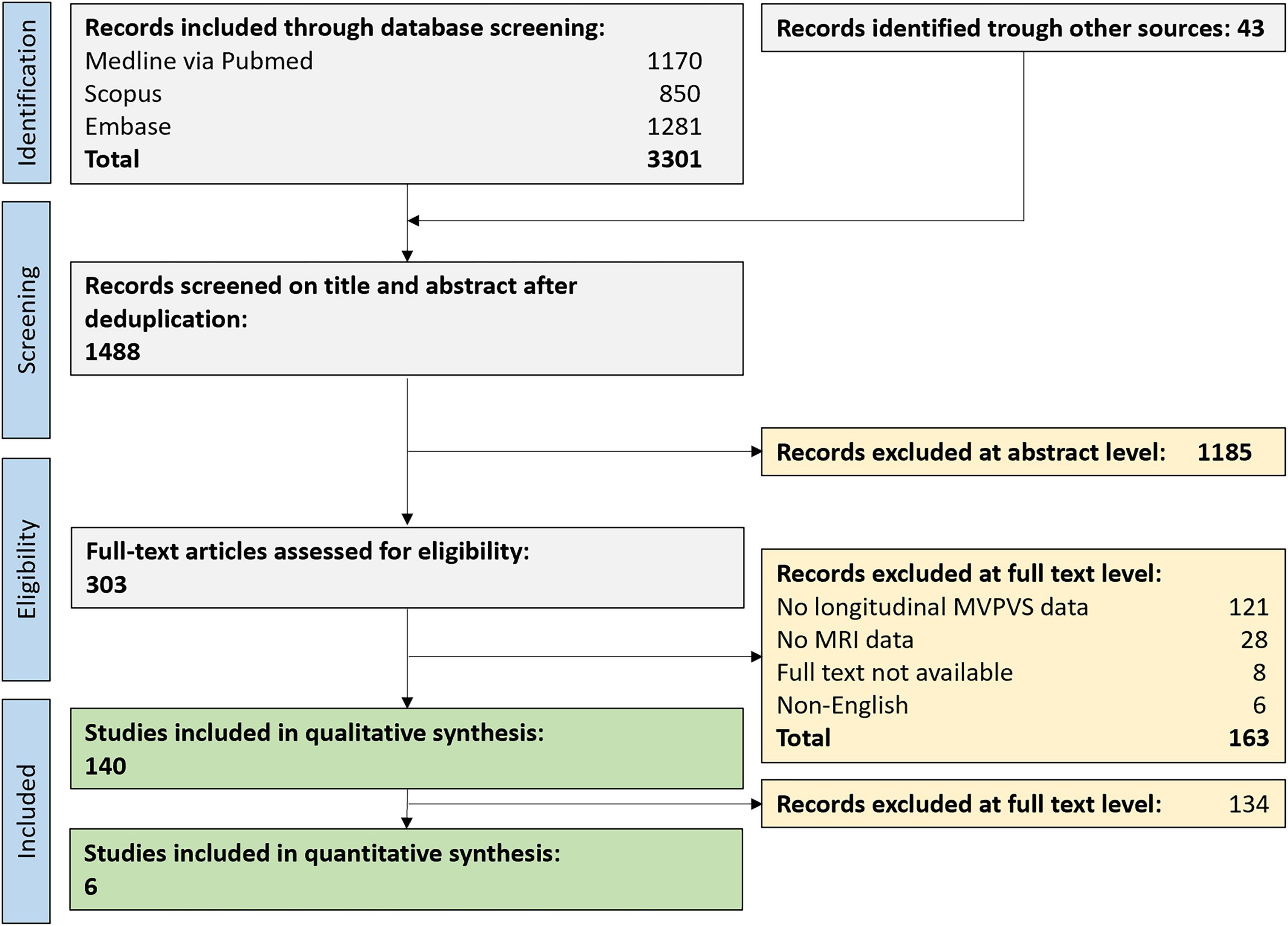

Figure 2. Flow chart of study inclusion. MVPVS, MRI-visible perivascular spaces.
3.1.2. Risk of bias assessment
Most of the publications reported the definition of MVPVS, mostly as being CSF-isointense longitudinal structures (91% of publications), and reported an MRI protocol (92%). Most publications also adjusted their analyses for age and sex (67%). Thus, the overall evidence was at low risk of bias for these domains.
3.2. MVPVS imaging and assessment methods
3.2.1. Magnetic resonance imaging parameters
Eligible publications used a variety of different MRI parameters to visualize MVPVS. Applied static magnetic field strengths were between 1.5 and 7 tesla. Most commonly acquired images were T1-weighted (T1 w) and/or T2-weighted (T2 w), with a concomitant T2 w-FLAIR to distinguish MVPVS from other imaging features such as lacunes of presumed vascular origin (Wardlaw et al., 2013a).
3.2.2. Assessment methods for enlarged perivascular spaces
There was a consensus to define MVPVS as linear to ovoid imaging features with an MRI signal intensity similar to that of CSF. Only one publication (Jiménez-Balado et al., 2020) particularly mentioned that MVPVS were assessed in accordance with the Standards for Reporting Vascular Changes on Neuroimaging (STRIVE) criteria (Wardlaw et al., 2013a). Eight publications did not report how MVPVS were defined. MVPVS were most commonly assessed in the centrum semiovale, the basal ganglia, and the brain stem.
Most studies assessed MVPVS using a manual scoring and/or segmentation. However, a couple of studies used automated segmentation methods using intensity-based thresholding approaches (Ramirez et al., 2015; Wang et al., 2016; Boespflug et al., 2018), vesselness filter approaches (Ballerini et al., 2018; Sepehrband et al., 2019), combination of these two methods (Spijkerman et al., 2022), or approaches based on machine-learning (Park et al., 2016; Hou et al., 2017; Boutinaud et al., 2021; Williamson et al., 2022) [reviewed in Moses et al. (2022)].
3.3. Etiology of MVPVS
We identified four partly overlapping hypothesized MVPVS etiopathogeneses:
3.3.1. Hypothesis of interstitial fluid circulation impairment
According to this proposed etiology, MVPVS emerge due to locally impaired ISF dynamics. Insufficient clearance of ISF via perivascular spaces could lead to fluid retention and thus enlargement of perivascular spaces (Figure 3A). Four partly overlapping mechanisms could lead to impaired ISF drainage via perivascular spaces.

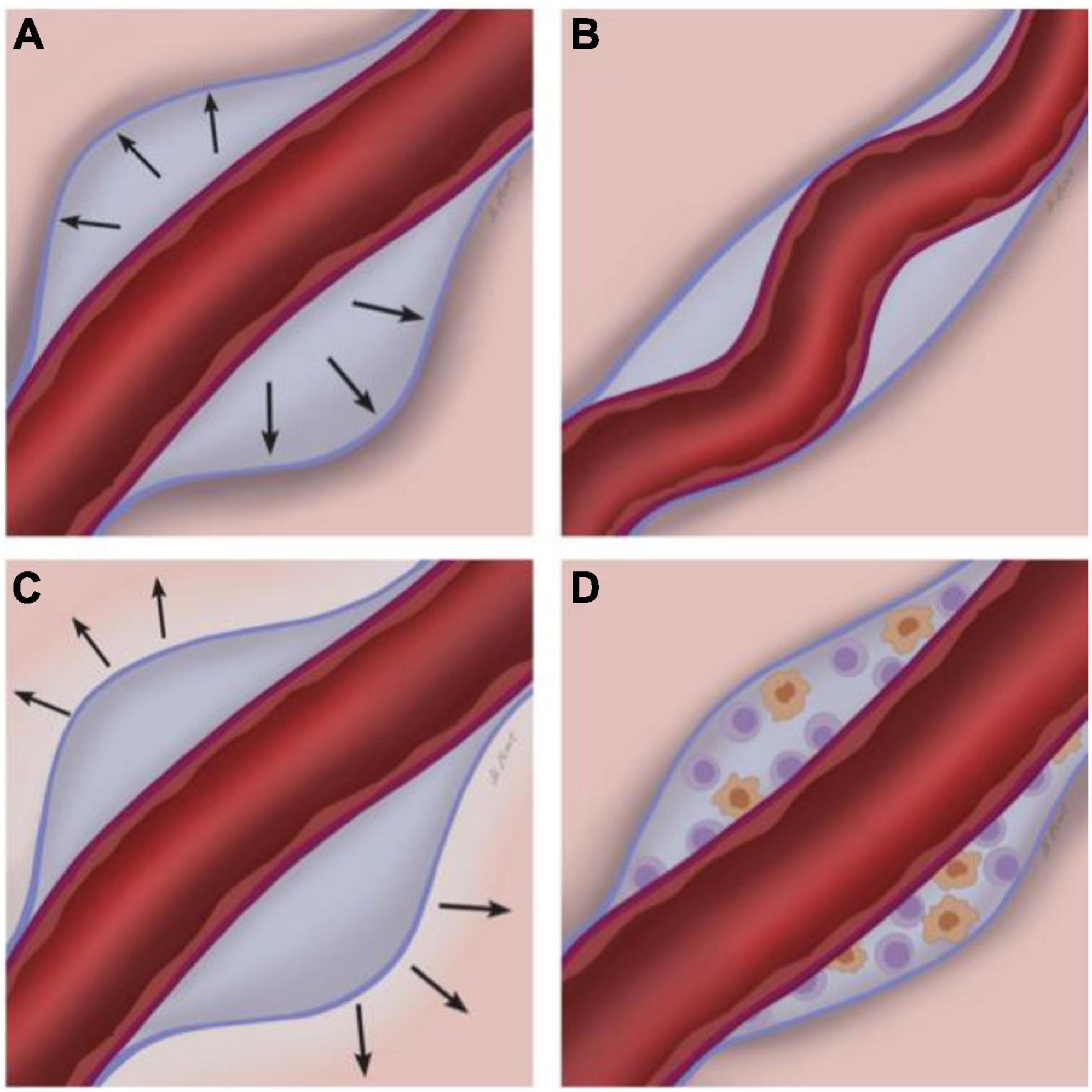

Figure 3. Potential etiopathogenesis of MRI-visible perivascular spaces (MVPVS). Four overarching and partly overlapping etiologies have been suggested for MVPVS: (A) Impairment of ISF circulation, potentially with abnormal blood-brain-barrier leakage (Fisher, 1979; Wardlaw et al., 2013b); (B) spiral elongation of vessels/tortuous vessels; (C) brain atrophy and/or perivascular myelin loss; and (D) immune cell accumulation in the perivascular space. The perivascular spaces are the compartments between the parenchymal basement membrane of the glia limitans (formed by compacted astrocyte foot processes and an overlying parenchymal basement membrane, blue) and the endothelial basement membrane of the blood vessel (purple) [reviewed in Ineichen et al. (2022)].
3.3.1.1. Vascular amyloid deposition hypothesis
Patients with cerebral amyloid angiopathy (CAA) are reported to harbor higher MVPVS burden (i.e., the overall extent of MVPVS) in the centrum semiovale compared to controls (Charidimou et al., 2013; Shams et al., 2016). This observation has been corroborated by data showing a spatial association between EPVS and CAA severity in the overlying cortex (Van Veluw et al., 2016; Perosa et al., 2022) which has led to the hypothesis that MVPVS could be a marker of impaired ISF drainage due to upstream amyloid deposits in the vessel wall. In fact, it has been suggested by DTI-ALPS (diffusion tensor image analysis along the perivascular space), an MRI-based approach (Taoka et al., 2017), that CAA is indeed associated with lower MVPVS diffusivity (Xu et al., 2022). However, by employing 11C-Pittsburgh B compound (PIB) PET (Banerjee et al., 2017) or florbetaben/florbetapir PET (Sepehrband et al., 2021; Wang et al., 2021; Jeong et al., 2022), the association between MVPVS and CAA has not been confirmed in the Alzheimer’s disease continuum, which commonly co-occurs with cerebral amyloid angiopathy. In addition, two studies found an association of MVPVS with tau by employing flortaucipir PET (Sepehrband et al., 2021; Wang et al., 2021) or CSF analysis (Wang et al., 2022). It is also noteworthy that it is still under debate whether MVPVS formation is the consequence or driver of vascular protein deposition (Lynch et al., 2022).
3.3.1.2. Blood-brain-barrier leakage hypothesis
Small vessel disease could be a driver for the enlargement of perivascular spaces. This has been referred to as the blood-brain-barrier (BBB) leakage hypothesis (Fisher, 1979; Wardlaw et al., 2013b; Brown et al., 2018; Bown et al., 2022b). Vascular risk factors, such as hypertension, could lead to endothelial dysfunction potentially resulting in BBB leakage, rarefaction of adjacent white matter, pericyte loss, arteriolar thrombosis, microbleeds, and finally failure of ISF drainage.
Vascular disease can be caused by hypertension, as shown by early MRI and histopathology data (Braffman et al., 1988). This vascular maladaptation could stem from continued pulsatile barotrauma of affected blood vessels (Gutierrez et al., 2015). However, the association between hypertension and centrum semiovale MVPVS is ambiguous: whereas some studies suggest an increased MVPVS burden in hypertension (Hurford et al., 2014; Zhang et al., 2016; Arba et al., 2018; Lara et al., 2022), some studies do not confirm such a relation (Potter et al., 2015b; Riba-Llena et al., 2016) or show a decreased MVPVS burden in hypertension (Charidimou et al., 2014). In fact, accumulating evidence indicates that vascular risk factors such as hypertension are rather associated with basal ganglia MVPVS (Klarenbeek et al., 2013), which was corroborated by a recent meta-analysis (Francis et al., 2019). A potential explanation for this observation stems from imaging studies in hypertensive rats showing abnormal CSF flow dynamics and potentially perivascular clearance (Mortensen et al., 2019).
Hypertension is linked to reduced cerebrovascular reactivity (Hajjar et al., 2010). Cerebrovascular reactivity represents the dynamic ability of cerebral blood vessels to adjust cerebral blood flow in response to vasoactive stimuli (Liu et al., 2019). Reduced cerebrovascular reactivity has been associated with higher MVPVS burden (Blair et al., 2020; Kapoor et al., 2022) which has also been substantiated in rodents (Hadaczek et al., 2006; Kress et al., 2014). A 5-year prospective study employing flow MRI in 122 participants found that white matter lesions and MVPVS precede the increase in arterial pulsatility index, a measure of vascular resistance (Vikner et al., 2022). However, additional data is required to elucidate whether dilation of perivascular spaces are a consequence, cause, or bystander phenomenon to cerebrovascular reactivity deficits (Kapoor et al., 2022).
Whereas amplified vascular pulsations by hypertension could lead to vascular damage (and consequently impaired ISF drainage), reduced vascular pulsation could also lead to impaired ISF dynamics, as shown in rodent studies (Iliff et al., 2013). Interestingly, patients with carotid stenosis and thus potentially lower downstream vascular pulsations show higher basal ganglia MVPVS burden (Sahin et al., 2015) and diffusivity (Liu et al., 2021).
Intracerebral bleeding and stroke are ultimate consequences of vascular disease. Along these lines, intracerebral bleeding has been associated with MVPVS, as shown for symptomatic intracranial hemorrhage (Best et al., 2020), cerebral microbleeds (Wang et al., 2019), and CAA (Boulouis et al., 2017). In CAA, this only seems to apply to centrum semiovale MVPVS (Boulouis et al., 2017), which stands in contrast to basal ganglia MVPVS, as shown by florbetapir PET (Raposo et al., 2019). Thus, this pathomechanism seems to be more specific to CAA, while other factors might be relevant in hypertensive intracerebral hemorrhages (Tsai et al., 2021).
Additional pathomechanisms for the enlargement of PVS have been debated for ischemic pathology. Hemodynamically compromised individuals with atherosclerotic large vessel disease show higher levels of MVPVS (Mikami et al., 2018). Based on this observation, it has been hypothesized that MVPVS could serve as fluid absorbers in such a situation. In acute stroke, the data on MVPVS are less consistent: MVPVS seem to either vanish (Mikami et al., 2018) or increase (Zhang et al., 2016; Yu et al., 2022), possibly depending on the exact timing and/or extent of tissue damage. For example, in rodent stroke models, an early acute fluid inflow into perivascular spaces has been observed, which appears to drive formation of acute edema following ischemia (Mestre et al., 2020). In addition, both post-stroke (Wardlaw et al., 2009) and older age (Bake et al., 2009; Li et al., 2019) seem to be associated with BBB dysfunction, which is in turn associated with MVPVS. This suggests that MVPVS could indicate early BBB malfunction with abnormal ISF dynamics.
3.3.1.3. Venous reflux and CSF-ISF efflux routes
Also, venous pathology has been associated with the enlargement of PVS: disruption of deep medullary veins was associated with increased burden of basal ganglia MVPVS (Zhang et al., 2022). Similarly, cerebral venous reflux after hypertensive intracerebral hemorrhages was associated with a larger number of basal ganglia MVPVS (Tsai et al., 2022).
It has also been speculated that the MVPVS enlargement in long-duration space travelers (Barisano et al., 2022a; Hupfeld et al., 2022) may be caused by venous pathology (Wostyn et al., 2022a,b). Concretely, a cephalad venous fluid shift would result in impaired cerebral venous outflow and thus reduced CSF/ISF dynamics. Consequently, the CSF may stagnate and accumulate at periarterial sites with dilation of the periarterial spaces. Along these lines, a brain upward shift could also obstruct major CSF-ISF efflux routes and/or dural lymphatics such as the superior sagittal sinus or bridging veins (Barisano et al., 2022a,b). Compromised CSF-ISF efflux by clogging of blood degradation might also cause MVPVS enlargement after subarachnoid hemorrhage (Kim J. et al., 2022).
3.3.1.4. Sleep and time of day
Poorer sleep quality has been associated with increased MVPVS burden in a variety of diseases and also healthy adults (Berezuk et al., 2015; Baril et al., 2022; Del Brutto et al., 2022a; Wang et al., 2022). Although the pathomechanism behind this link is still under debate, sleep has been speculated to be a critical factor in CNS fluid dynamics (Brown et al., 2018). With this, poor sleep could contribute to less efficient ISF-CSF drainage (Baril et al., 2022). But also in individuals with stable sleep habits, MVPVS volumes can increase at later times of the day, possibly mediated by higher fluid amount within the MVPVS (Barisano et al., 2021).
3.3.2. Hypothesis on spiral elongation of vessels/tortuous vessels
Although no direct evidence supports this hypothesis, it has been speculated that spiral elongation of arterial vessels could result in MVPVS (Wardlaw et al., 2013b; Ruchoux et al., 2021). Increasing space requirements and/or vascular pulsations of tortuous arteries could lead to dilation of perivascular spaces (Figure 3B). A similar mechanism has been proposed for MVPVS of the anterior temporal lobe: vascular tortuosity could lead to compression of small communicating fluid channels resulting in opercular perivascular cysts (Salzman et al., 2005; McArdle et al., 2020). Here, a tortuous middle cerebral artery branch could compress communicating fluid channels between the subarachnoid and perivascular spaces in the adjacent cortex.
It has also been suggested that ageing is associated with increased vascular tortuosity, which would further emphasize the link between aging and MVPVS (Spangler et al., 1994; Brown et al., 2002; Thore et al., 2007).
3.3.3. Hypothesis on brain atrophy and perivascular myelin loss
MRI-visible perivascular spaces could be a sign of focal ex vacuo atrophy and/or demyelination of adjacent brain tissue (Groeschel et al., 2006; Wardlaw et al., 2013b). Tissue loss surrounding the perivascular compartment would result in secondary dilation of perivascular spaces (Figure 3C). If this were the case, one could expect that higher MVPVS burden would be associated with lower brain volume measures. Such an association has mostly been studied in stroke, Alzheimer’s dementia, multiple sclerosis, and healthy individuals, yet the data across these studies is inconsistent. Whereas some publications report a negative correlation between MVPVS and various brain volume measures, e.g., in stroke (Potter et al., 2015b; Wang et al., 2016; Zhang et al., 2016), Alzheimer’s disease (Gertje et al., 2021), MS (Kilsdonk et al., 2015; Liu et al., 2022), NMOSD (Cacciaguerra et al., 2022), or health (Chen et al., 2011; Sim et al., 2020), several studies do not confirm such an association (stroke (Arba et al., 2018), Alzheimer’s disease (Chen et al., 2011), MS (Wuerfel et al., 2008; Conforti et al., 2014, 2016; Favaretto et al., 2017; Cavallari et al., 2018; Wooliscroft et al., 2020; Kolbe et al., 2022), and health (Huang et al., 2021)).
Based on this inconsistent data, we meta-analyzed correlation in six studies in MS (Conforti et al., 2014; Kilsdonk et al., 2015; Favaretto et al., 2017; Kolbe et al., 2022; Liu et al., 2022) and NMOSD (Cacciaguerra et al., 2022) reporting correlation coefficients between MVPVS and brain volume measures (including a total of 258 MS patients and 14 NMOSD patients). The employed MRI parameters for the included studies are summarized in Table 1 (the remaining studies could not be included, either due to missing quantitative data or an insufficient number of publications per disease). In this meta-analysis, we did not identify a significant (negative) correlation between MVPVS and brain volume [R: −0.15 (95%-CI −0.40–0.11)] (Figure 4). However, there was substantial heterogeneity between studies assessing whole brain MVPVS (I2 = 77%) (Higgins and Thompson, 2002). Of note, age was not a significant moderator for MVPVS in the meta-analysis (p = 0.28) (age range between 35 and 49). The effect size did not change in a meta-analysis only comprising studies in MS [R = −0.12 (95%-CI −0.40–0.17)] or when applying the Knapp-Hartung method for the meta-analysis.

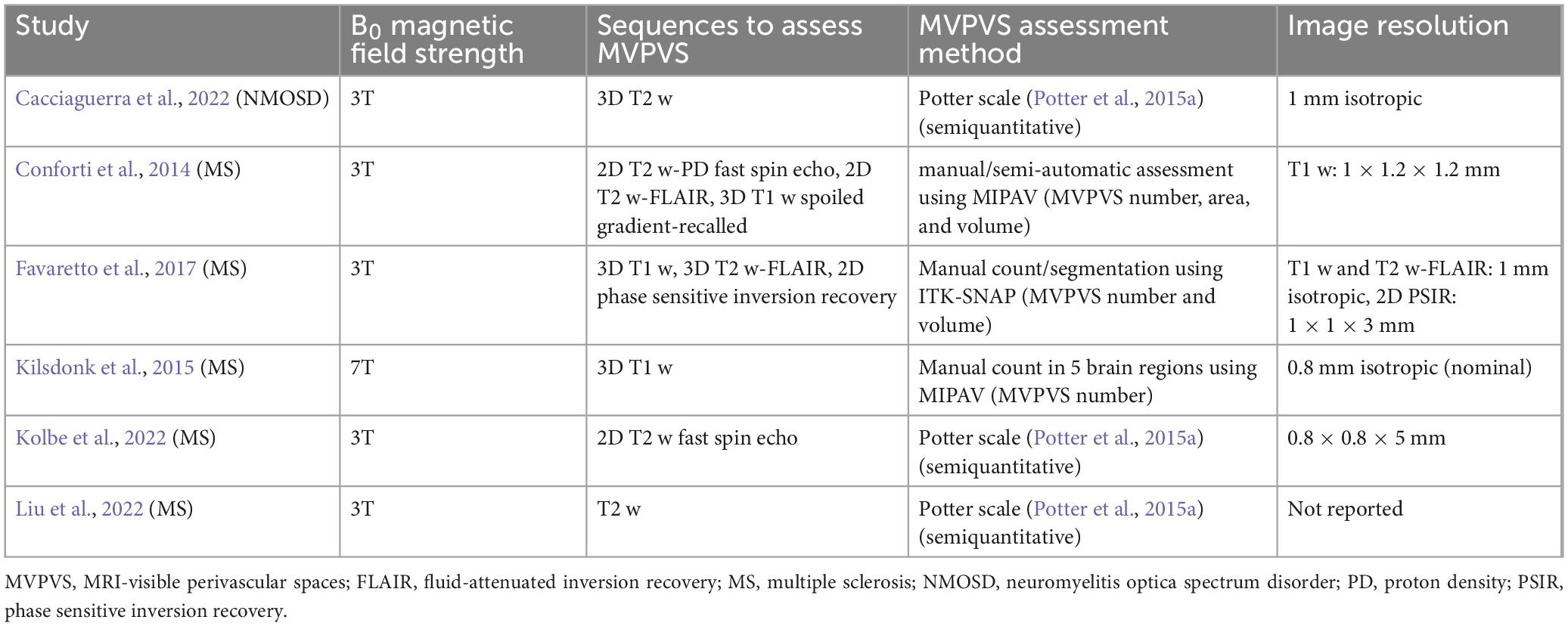

Table 1. Employed magnetic resonance imaging (MRI) parameters of studies included in the meta-analysis.

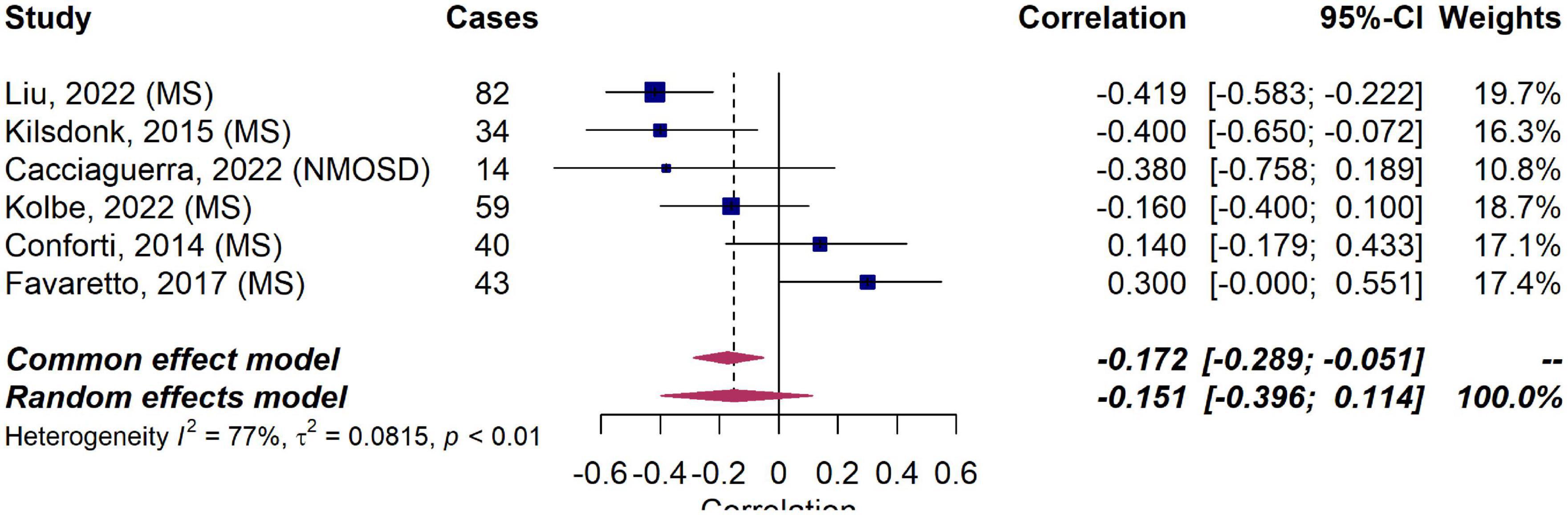

Figure 4. Forest plot of correlation coefficients between MRI-visible perivascular spaces (MVPVS) and brain volume measures. Pooled analyses of studies comparing the correlation between MVPVS and brain volume measures shows no statistically significant correlation (a negative correlation indicates that higher MVPVS levels correlate with lower brain volume measures). Correlation coefficients were extracted and pooled using the random effects DerSimonian-Laird method. CI, confidence interval; MS, multiple sclerosis; NMOSD, neuromyelitis optica spectrum disorder.
3.3.4. Hypothesis on immune cell accumulation in the perivascular space
A relatively small longitudinal study in MS patients has speculated that MVPVS dilation could represent perivascular accumulation of immune cells prior to a neuroinflammatory insult which could result in enlargement of the perivascular space (Wuerfel et al., 2008; Figure 3D). This notion was based on data showing higher MVPVS volumes in MS patients with gadolinium-enhancing MRI lesions. Although MS lesions form in a perivenular configuration that can be imaged via specific types of susceptibility-sensitive MRI (Sati et al., 2016), findings showing perivascular cell accumulation in MVPVS in MS have not been reproduced to date (Achiron and Faibel, 2002; Cavallari et al., 2018; Kolbe et al., 2022) [reviewed in Granberg et al. (2020)].
3.4. Temporal evolution of MVPVS
3.4.1. Neuroinflammatory diseases
Two studies investigated the temporal dynamics of MVPVS in MS. One study had a subset of 18 MS patients who were prospectively followed monthly for 1 year (Wuerfel et al., 2008). These MS patients showed higher MVPVS volumes in MRI scans positive for contrast-enhancing lesions compared to scans without such lesions. MVPVS volumes did not decrease in patients who shifted from a state with to a state without contrast-enhancing lesions. The other study comprised 59 MS patients with a mean follow-up time of 20 months (Kolbe et al., 2022). Across the cohort, the number of MVPVS increased in the centrum semiovale (+4.1 MVPVS per year) but not in the basal ganglia or midbrain, and MVPVS increase in the midbrain was associated with white matter lesion volume change. Higher MVPVS numbers were not associated with prospective brain volume loss, and MVPVS change was not associated with contrast-enhancing lesions, brain volume change, or physical disability of MS patients.
MRI-visible perivascular spaces changes have also been studied in primary angiitis of the central nervous system (PACNS) (Campi et al., 2001). In a small study in patients with contrast-enhancing parenchymal lesions, 4/6 patients showed MVPVS with concomitant contrast enhancement which subsequently regressed during the follow-up (12–60 months).
3.4.2. Vascular diseases
In a cohort with hypertension, 23 of 233 individuals (10%) showed increasing numbers of MVPVS in the basal ganglia over a 4-year follow-up period (Jiménez-Balado et al., 2020). Similar rates of basal ganglia MVPVS progression have been observed after subarachnoid hemorrhage (6%) (Kim J. et al., 2022). Interestingly, the MVPVS progression rates were much higher in the centrum semiovale after subarachnoid hemorrhage (31%).
3.4.3. Metabolic disorders
Two studies investigated MVPVS changes in mucopolysaccharidoses. The initial study found that corpus callosum MVPVS increased in 3 of 18 patients, decreased in 2 patients, and remained stable in the remaining 13 patients during a follow-up period of 37 months (Manara et al., 2011). MVPVS in CNS locations outside the corpus callosum were stable in most patients (17/19 patients, 89%). Similar MVPVS dynamics were reported in the other study (Alqahtani et al., 2014).
3.4.4. Tumefactive MVPVS and opercular perivascular cysts
In contrast to MVPVS, which can be observed in healthy individuals of all age groups, opercular perivascular cysts (type IV MVPVS) are much rarer (Lim et al., 2015). This MVPVS subtype mostly occurs in the anterior temporal lobe and less commonly in the frontal operculum and can be associated with perilesional T2 signal (McArdle et al., 2020). A recent case series reported on 18 individuals with opercular perivascular cysts (McArdle et al., 2020): of 13 subjects with follow-up ranging from 2 months to approximately 10 years, 11 exhibited stable MVPVS dimensions while 1 showed a slight increase in MVPVS volume within a 7-month period.
Very large MVPVS, referred to as giant or tumefactive MVPVS, can also occur in other regions of the CNS, including the basal ganglia (Tsutsumi et al., 2011), the centrum semiovale (Taniguchi et al., 2017), the hippocampus (Rivet et al., 2017), the corpus callosum (Manara et al., 2010), and the midbrain (Rocha et al., 2013). Several case reports have confirmed the mostly stable nature of these structures (Ogawa et al., 1995; Sawada et al., 1999; Flors et al., 2010; Tsutsumi et al., 2011; Sankararaman et al., 2013; Tseng et al., 2013; Taniguchi et al., 2017), some of them with follow-up periods of up to 7 years (Manara et al., 2010). However, a subset of these MVPVS can enlarge over time (Mehta et al., 2013; Gopinath et al., 2018; Yamaguchi et al., 2021). This can result in compression of adjacent CNS structures with concomitant neurological disorders such as non-communicating hydrocephalus (Papayannis et al., 2003), necessitating surgical decompression (Rocha et al., 2013; Rivet et al., 2017). A systematic review summarized MRI findings from 164 cases with tumefactive MVPVS (Kwee and Kwee, 2019): whereas most tumefactive basal ganglia MVPVS remained stable (23/24 cases), 7 of 64 participants (11%) showed enlargement of MVPVS in the pontomesencephalic region.
3.4.5. Healthy individuals
A recent study assessed MVPVS progression in the Atahualpa project cohort, which comprises healthy community-dwelling elderly Ecuadorian (mean age: 66). Within more than 1,700 patient-years and a mean follow-up of 6.5 years, 56 of 263 individuals (21%) showed mostly mild MVPVS progression (Del Brutto et al., 2022b). Another community-based study followed 191 older subjects (mean age: 68) over 7 years; 65 of the study participants (34%) showed MVPVS progression during the follow-up time (Xia et al., 2020).
4. Discussion
4.1. Main findings
This study aimed at systematically summarizing potential etiologies of MVPVS as well as their temporal dynamics. Based on a comprehensive literature search, we identified four major, partly overlapping hypothesized etiologies of MVPVS (Figure 4): (1) Impairment of ISF circulation, potentially driven by deposition of protein aggregates, arterial/venous pathology, sleep disturbances, and disruption of CSF-ISF efflux routes; (2) Spiral elongation of arteries; (3) Brain atrophy and/or perivascular myelin loss; and (4) Immune cell accumulation in the perivascular space. Overall, only a few studies have investigated temporal dynamics of MVPVS. These studies mainly show that MVPVS present with limited evolution over time.
4.2. Findings in the context of existing evidence
Although these four proposed etiologies constitute different pathomechanisms for MVPVS, they are partly overlapping. For example, chronic hypertension can cause both BBB damage (Ungvari et al., 2021) and vascular tortuosity (Ciuricã et al., 2019), and hypertension can also be associated with brain atrophy (Wiseman et al., 2004). Nevertheless, it is likely that these etiologies contribute differently to MVPVS emergence and/or dynamics in different neurological entities. For example, in vascular diseases such as small vessel disease and stroke, impaired dynamics of ISF could be a main driver of MVPVS formation, e.g., via endothelial dysfunction, vessel-wall thickening, luminal occlusion, and BBB leakage (Wardlaw et al., 2013b). In MS or other neuroinflammatory diseases, immune cell accumulation could be a possible etiology (Wuerfel et al., 2008), yet this is a highly controversial hypothesis for which there is insufficient evidence to date (Granberg et al., 2020).
In aging, which has consistently been associated with increased MVPVS burden (Zong et al., 2020; Barisano et al., 2021; Kim H. G. et al., 2022; Lara et al., 2022), ex vacuo brain atrophy (Wardlaw et al., 2020), and vascular tortuosity (Spangler et al., 1994; Brown et al., 2002; Thore et al., 2007) could be more prominent drivers for MVPVS emergence. In addition, increasing exposure to vascular risk factors could also contribute to enlargement of MVPVS in aging (Lara et al., 2022). Of note, however, in our meta-analysis, there was no significant correlation between MVPVS and brain volumes.
MRI-visible perivascular spaces are also a common neuroimaging finding in younger (Piantino et al., 2020; Zou et al., 2022) and healthy individuals (Del Brutto et al., 2022b; Kim H. G. et al., 2022). In this population, tortuosity of arterial blood vessels could be an etiology for MVPVS. Furthermore, a heritable component of MVPVS burden has been suggested (Luo et al., 2017; Barisano et al., 2021) [reviewed in Bown et al. (2022a)].
It is generally assumed that MVPVS mostly adjoin arterial vessels (Ineichen et al., 2022), which is bolstered by small imaging studies (Bouvy et al., 2014; George et al., 2021). However, structural differences between periarterial and perivenous spaces are scarcely investigated, and it thus remains unclear to what degree these presumable etiologies contribute to MVPVS emergence within arteries or veins. It can be speculated that arterial alterations, such as hypertension or vascular tortuosity would contribute to the enlargement of periarterial spaces only, whereas ex vacuo atrophy would contribute to enlargement at both sites. Along these lines, different mechanisms could contribute to MVPVS emergence in the basal ganglia or the supratentorial white matter, but again, structural MVPVS differences between these two anatomical regions are insufficiently understood. Additionally, it has been suggested that basal ganglia MVPVS are associated with vascular pathology such as hypertension (Klarenbeek et al., 2013; Francis et al., 2019) or venous reflux (Tsai et al., 2022; Zhang et al., 2022), whereas centrum semiovale MVPVS are associated with amyloid angiopathy (Boulouis et al., 2017).
Regarding MVPVS evolution over time, only a few and mostly small studies assessed temporal dynamics of MVPVS. Based on these limited data, it seems that number of MVPVS are for the most part stable over relatively long observation periods (median follow-up time of eligible studies was 36 months). However, in a minority of cases, they might increase in number and size with aging. Additional mechanisms could contribute to MVPVS dynamics in neuroinflammatory diseases such as PACNS (Campi et al., 2001).
4.3. Limitations
Our study has some limitations: First, a wide variety of imaging methods and MVPVS evaluation methods have been employed to assess MVPVS. Even within studies, the interrater agreement for MVPVS detection can be moderate to substantial (Cohen’s kappa: 0:58–0.91) (Wang et al., 2019; Best et al., 2020; Javierre-Petit et al., 2020; Ciampa et al., 2021; Song et al., 2021). This heterogeneity could have biased our narrative summary. Second, for assessing the correlation between MVPVS and brain atrophy, we pooled studies with various methodological backgrounds for summary estimates (Table 1), and the meta-analysis could only be conducted for a subgroup of patients with neuroinflammatory diseases. Nonetheless, we mitigated this partly by only including studies that reported correlation coefficients, i.e., uniform outcome measures, and by applying a random effect model meta-analysis. Third, it is noteworthy that only very few studies (Van Veluw et al., 2016) provided pathology data for assessing MVPVS etiopathogenesis, and the hypotheses presented even in these studies were mostly based on imaging data, which could also bias the conclusions drawn. Fourth, only a few animal studies assessing etiopathogenesis of enlarged perivascular spaces were eligible. With this, the proposed MVPVS etiopathogeneses remain speculative and further data is warranted to corroborate their validity.
5. Conclusion
Our study summarizes potential etiologies (Figure 4) and temporal dynamics of MVPVS. Although a variety of etiologies have been proposed, they are only partly supported by actual data. Thus, advanced MRI methods, e.g., to monitor fluid dynamics within perivascular spaces, as well as ultra-high-field MRI to gain high-resolution insights into perivascular spaces, could give more detailed understanding of MVPVS etiopathogenesis (Ineichen et al., 2022). In addition, larger studies with longer follow-up times and harmonized MRI across sites investigating temporal MVPVS dynamics are warranted, preferentially boosted by automated and thus less biased detection of MVPVS. Finally, correlating MVPVS with their corresponding histopathology could give key insights into their pathophysiology.
Data availability statement
The original contributions presented in this study are included in the article/supplementary material, further inquiries can be directed to the corresponding author.
Author contributions
SO and BI: abstract and full text screening as well as data extraction and writing the initial manuscript draft. All authors contributed to the study conception and critical revision of the manuscript.
Funding
BI was supported by the UZH FAN Alumni and the Swiss National Science Foundation (SNSF, 407940_206504 and P400PM_183884). EB was supported by a Career Transition Award from the National Multiple Sclerosis Society. RS was partially funded by R01NS112274. This study was partially supported by the Intramural Research Program of NINDS and NIH.
Acknowledgments
We thank Mirkka Hiort from the University of Münster, Germany for designing Figure 3. We thank the UZH FAN Alumni, the Swiss National Science Foundation (SNSF), and the Intramural Research Program of National Institute of Neurological Disorders and Stroke for the financial support. We also thank Igor Iglesias and Arcadi Volodos for their help in data analysis.
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Publisher’s note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
Abbreviations
BBB, blood-brain-barrier; CAA, cerebral amyloid angiopathy; CNS, central nervous system; EPVS, enlarged perivascular spaces; ISF, interstitial fluid; NMOSD, neuromyelitis optica spectrum disorder; MS, multiple sclerosis; MRI, magnetic resonance imaging; MVPVS, MRI-visible perivascular spaces; PACNS, primary angiitis of the central nervous system.
