ORIGINAL RESEARCH article

Front. Neurosci., 02 September 2024

Sec. Translational Neuroscience

Volume 18 - 2024 | https://doi.org/10.3389/fnins.2024.1440756

Two decades of progress in glioma methylation research: the rise of temozolomide resistance and immunotherapy insights

  • 1. Department of Neurosurgery, General Hospital of Ningxia Medical University, Yinchuan, China

  • 2. Ningxia Key Laboratory of Cerebrocranial Disease, Ningxia Medical University, Yinchuan, China

  • 3. Clinical Medical College, Ningxia Medical University, Yinchuan, China

  • 4. School of Information Engineering, Ningxia University, Yinchuan, China

  • 5. Collaborative Innovation Center for Ningxia Big Data and Artificial Intelligence Co-founded by Ningxia Municipality and Ministry of Education, Ningxia University, Yinchuan, China

  • 6. Basic Medical School, Ningxia Medical University, Yinchuan, China

Article metrics

View details

2

Citations

2,3k

Views

559

Downloads

Abstract

Aims:

This study aims to systematically analyze the global trends in glioma methylation research using bibliometric methodologies. We focus on identifying the scholarly trajectory and key research interests, and we utilize these insights to predict future research directions within the epigenetic context of glioma.

Methods:

We performed a comprehensive literature search of the Web of Science Core Collection (WoSCC) to identify articles related to glioma methylation published from January 1, 2004, to December 31, 2023. The analysis included full-text publications in the English language and excluded non-research publications. Analysis and visualization were performed using GraphPad Prism, CiteSpace, and VOSviewer software.

Results:

The search identified 3,744 publications within the WoSCC database, including 3,124 original research articles and 620 review articles. The research output gradually increased from 2004 to 2007, followed by a significant increase after 2008, which peaked in 2022. A minor decline in publication output was noted during 2020–2021, potentially linked to the coronavirus disease 2019 pandemic. The United States and China were the leading contributors, collectively accounting for 57.85% of the total research output. The Helmholtz Association of Germany, the German Cancer Research Center (DKFZ), and the Ruprecht Karls University of Heidelberg were the most productive institutions. The Journal of Neuro-Oncology led in terms of publication volume, while Neuro-Oncology had the highest Impact Factor. The analysis of publishing authors revealed Michael Weller as the most prolific contributor. The co-citation network analysis identified David N. Louis's article as the most frequently cited. The keyword analysis revealed “temozolomide,” “expression,” “survival,” and “DNA methylation” as the most prominent keywords, while “heterogeneity,” “overall survival,” and “tumor microenvironment” showed the strongest citation bursts.

Conclusions:

The findings of this study illustrate the increasing scholarly interest in glioma methylation, with a notable increase in research output over the past two decades. This study provides a comprehensive overview of the research landscape, highlighting the importance of temozolomide, DNA methylation, and the tumor microenvironment in glioma research. Despite its limitations, this study offers valuable insights into the current research trends and potential future directions, particularly in the realm of immunotherapy and epigenetic editing techniques.

1 Introduction

Glioma, a type of central nervous system neoplasm, is the most prevalent form of malignant intracranial neoplasm, accounting for ~40%−50% of all such tumors (Louis et al., 2021). Gliomas are distinguished by their high invasiveness and malignancy, which contribute to substantial morbidity and mortality. Despite the utilization of a multimodal therapeutic regimen encompassing surgical intervention, radiotherapy, and chemotherapy, the long-term prognosis of glioma is often unfavorable. Glioma management presents a formidable clinical challenge due to its high degree of heterogeneity and resistance to conventional treatments. As such, glioma management is an important topic within the realm of medical research.

Recent scientific inquiry has revealed the pivotal role of epigenetic regulation in the etiology, progression, and therapeutic intervention of malignant neoplasms such as glioma (Capper et al., 2018b; Romani et al., 2018; Pan et al., 2021; Ozair et al., 2023). Methylation modification, a fundamental mechanism in epigenetic regulation, encompasses several components, including DNA methylation, RNA methylation, and histone methylation, each contributing to the intricate biological behaviors exhibited by cancer cells. A growing body of evidence in glioma research has underscored the influence of methylation modification in the malignant phenotype, stemness (Du et al., 2021; Mao et al., 2022; Sharma et al., 2023), and chemosensitivity to agents such as temozolomide (Wick et al., 2014; Zhou et al., 2015; Zhang and Zhu, 2019; Zapanta et al., 2024), as well as in the responsiveness to radiotherapy.

The present study used bibliometric methodologies to systematically analyze the existing literature pertaining to glioma methylation, as indexed within the Web of Science Core Collection (WoSCC) database, spanning a period of two decades. We produced a comprehensive knowledge map to illustrate the trajectory of research in this field and discern the focal points of scholarly interest. The overarching aims of this study are to provide a robust theoretical framework and to offer prescriptive guidance for future glioma research, specifically from an epigenetic vantage point. This approach is anticipated to support the genesis and refinement of innovative therapeutic modalities targeted at this intractable tumor.

2 Materials and methods

Compared with other databases, the WoSCC database excels in the accuracy of document type annotation, making it the optimal choice for literature analysis (Jiang et al., 2023; Mao et al., 2023). Therefore, we performed our literature search within the WoSCC database. On March 2, 2024, we searched the WoSCC database to identify all publications related to the study of glioma methylation published between January 1, 2004, and December 31, 2023, using the following search formula: (((((((((((((TS=(glioma)) OR TS=(Gliomas)) OR TS=(Glial Cell Tumors)) OR TS=(Glial Cell Tumor)) OR TS=(Tumor, Glial Cell)) OR TS=(Tumors, Glial Cell)) OR TS=(Mixed Glioma)) OR TS=(Glioma, Mixed)) OR TS=(Gliomas, Mixed)) OR TS=(Malignant Glioma)) OR TS=(Glioma, Malignant)) OR TS=(Gliomas, Malignant)) OR TS=(Malignant Gliomas)) AND TS=(methylation) (Supplementary material).

Published studies were selected according to the following inclusion criteria: (1) full-text publications on the study of glioma methylation; (2) articles and review manuscripts written in the English language; and (3) documents published between January 1, 2004, and December 31, 2023. The exclusion criteria included (1) topics unrelated to the study of glioma methylation and (2) non-research publications, such as conference abstracts, news articles, and brief reports. The full-text versions of the selected papers were exported. The flow diagram of the study is shown in Figure 1.

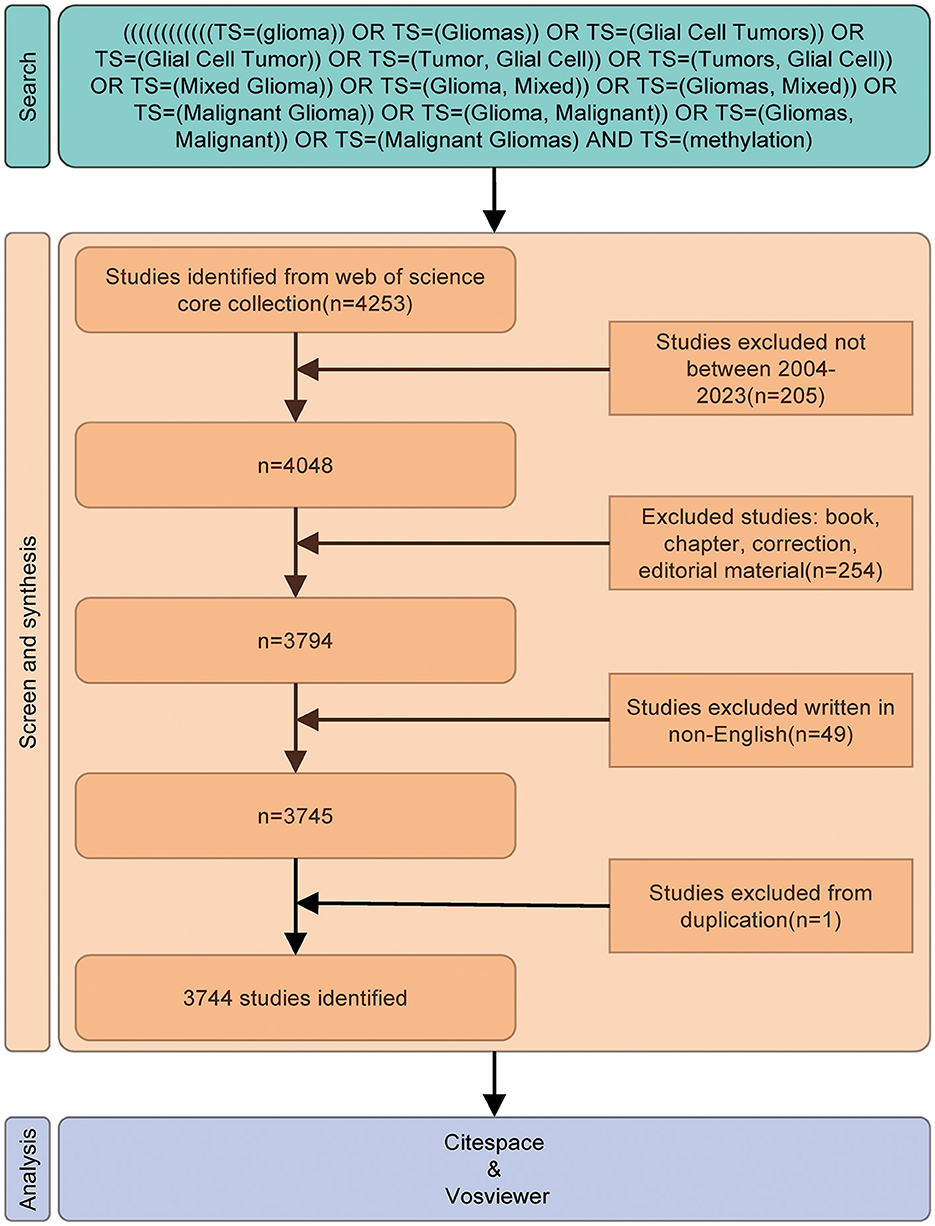

Figure 1

Figure 1

Flowchart of the study. The different colors represent the various stages of the study; green represents the search phase with the key terms identified, orange represents screening, and blue represents the analysis and visualization.

VOSviewer (van Eck and Waltman, 2010) is a free JAVA-based software designed to analyze and graphically display large bibliometric datasets. To visualize research outcomes in a specific field through co-citation network mapping, professor Chen Chaomei developed CiteSpace software (Chen and Leydesdorff, 2014). CiteSpace uses an experimental framework to explore new concepts and evaluate current methodologies, enabling users to gain a deeper understanding of knowledge domains, research frontlines, and trends, and to forecast potential future research directions. Centrality is an important indicator in Citespace, the larger the centrality value, the more important it is in the network.

In the analysis, nodes in the graph represent analyzed objects, such as countries, institutions, journals, authors, and keywords. The links between nodes indicate relationships, with line thickness reflecting the strength of association. Centrality represents the degree of importance of a node which quantified by higher values signifies greater importance. Cluster analysis groups keywords, differentiated by color, with smaller cluster labels indicating a larger number of keywords. Burst detection identifies keywords with sudden increases in frequency, marked by red intervals for the years of surge.

In this study, VOSviewer (version 1.6.18) and CiteSpace (version 6.2.4R, 64-bit, advanced edition) were used to analyze the data and visualize the scientific knowledge map. Moreover, GraphPad Prism (version 8.0.2) was used to analyze and plot the annual publication trends and national distribution ratios.

3 Results

The findings revealed that between January 1, 2004, and December 31, 2023, the WoSCC database had compiled an extensive archive of publications on glioma methylation amounting to 3,744 documents. This included 3,124 original research articles (84.96%) and 620 review articles (15.04%). Global collaborative research efforts were reflected in these publications, with contributions from institutions in 86 distinct countries and regions. The research community was broad, encompassing 3,508 institutions and 19,444 individual authors.

3.1 Analysis of article publishing trends

The annual scholarly publication output was characterized by an upward trajectory from 2004 (Figure 2). The initial phase spanning from 2004 to 2007 was characterized by a gradual increase in the dissemination of academic papers, but the annual count never surpassed 50 publications. After 2008, there was an increase in the publication volume, which peaked in 2022. A transient downturn in publication output was observed during 2020–2021, a deviation potentially linked to the worldwide outbreak of the coronavirus disease 2019 pandemic.

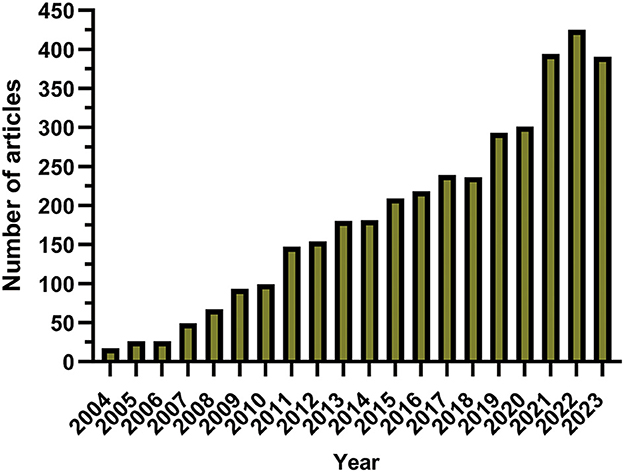

Figure 2

Figure 2

Annual publications related to glioma and methylation from January 1, 2004, to December 31, 2023.

3.2 Analysis of the article origins by country and institution

A comprehensive evaluation identified 86 countries and regions actively engaged in the study of glioma methylation. The annual research output of the top 10 nations over the past 10 years is articulated in Figures 3A, B. An in-depth evaluation of the research productivity of these leading countries is presented in Table 1, which shows their publication volumes and respective shares. The United States, China, Germany, Italy, and Japan emerged as the five leading countries. The aggregate research output of the United States and China accounted for 57.85% of all publications, outstripping that of the other countries by a considerable margin. A detailed analysis of the most productive institutions highlighted the dominance of the Helmholtz Association of Germany, with 253 publications, followed by the German Cancer Research Center (DKFZ) and the Ruprecht Karls University of Heidelberg with 232 and 196 publications, respectively (Table 1).

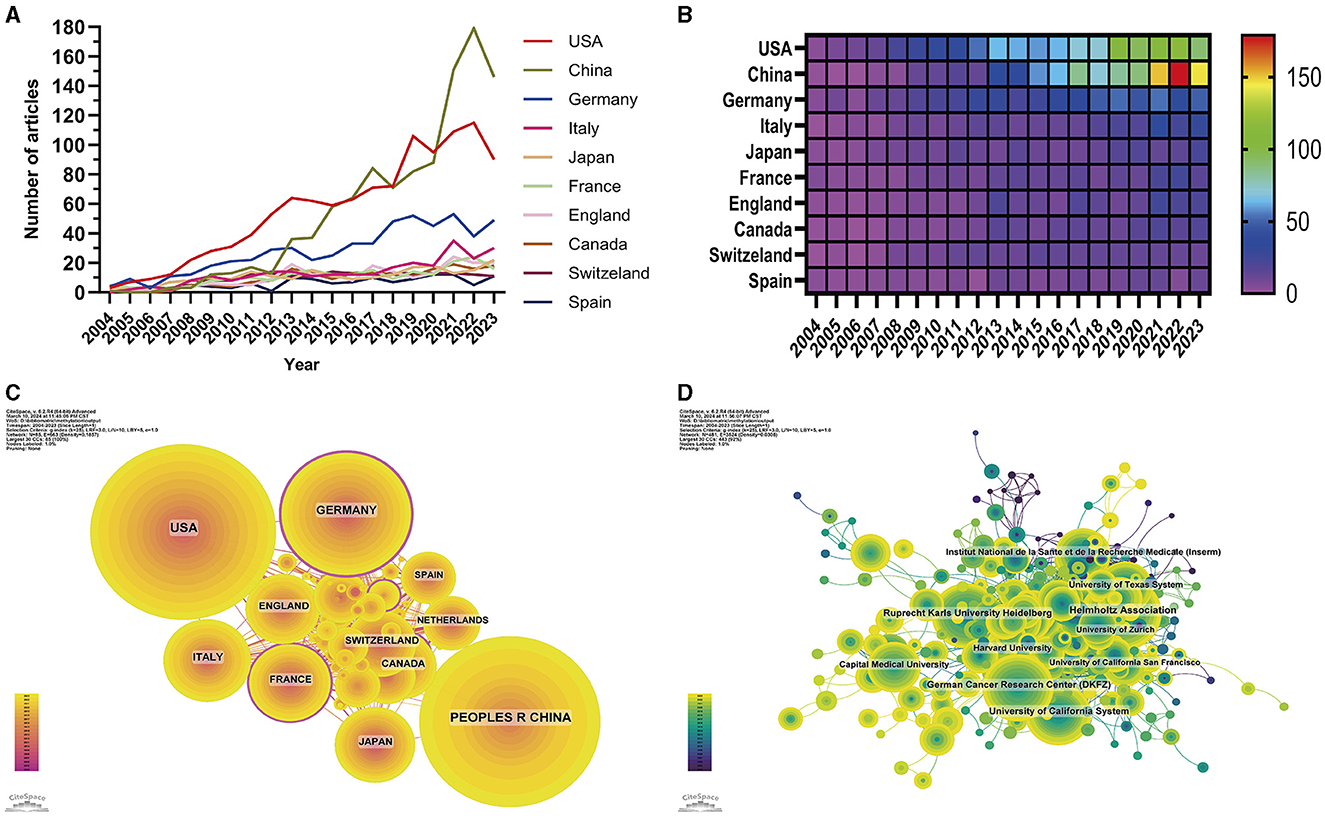

Figure 3

Figure 3

Visualization of the country and institution analysis. Line chart (A) and heatmap (B) of annual publications from the top 10 contributing countries. Collaboration visualization among countries (C) and institutions (D). The node size represents the number of published articles. The connecting lines represent the strengths of the relationships.

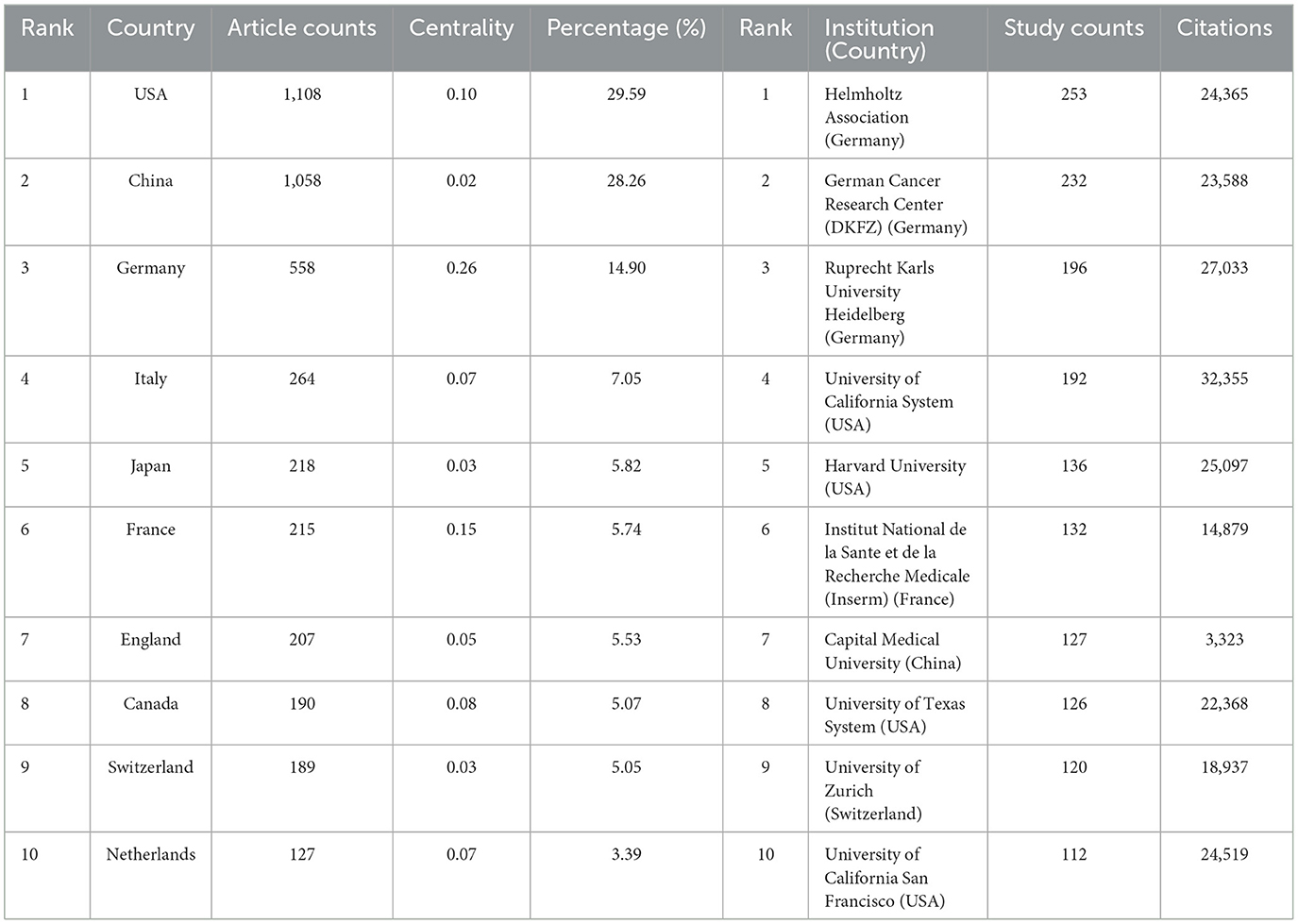

Table 1

Rank Country Article counts Centrality Percentage (%) Rank Institution (Country) Study counts Citations
1 USA 1,108 0.10 29.59 1 Helmholtz Association (Germany) 253 24,365
2 China 1,058 0.02 28.26 2 German Cancer Research Center (DKFZ) (Germany) 232 23,588
3 Germany 558 0.26 14.90 3 Ruprecht Karls University Heidelberg (Germany) 196 27,033
4 Italy 264 0.07 7.05 4 University of California System (USA) 192 32,355
5 Japan 218 0.03 5.82 5 Harvard University (USA) 136 25,097
6 France 215 0.15 5.74 6 Institut National de la Sante et de la Recherche Medicale (Inserm) (France) 132 14,879
7 England 207 0.05 5.53 7 Capital Medical University (China) 127 3,323
8 Canada 190 0.08 5.07 8 University of Texas System (USA) 126 22,368
9 Switzerland 189 0.03 5.05 9 University of Zurich (Switzerland) 120 18,937
10 Netherlands 127 0.07 3.39 10 University of California San Francisco (USA) 112 24,519

Top 10 countries (left) and institutions (right) involved in glioma methylation research.

In terms of the collaborative research patterns among the nations and institutions, we observed a robust and intimate research partnership between the United States and China (Figure 3C). In terms of institutional collaborations, we identified a preference among the majority of research entities for forming alliances with domestic counterparts (Figure 3D), while cross-national collaborations were less frequent.

3.3 Analysis of publishing and co-citing journals

Table 2 shows the leading journals by publication volume, and the corresponding heatmap of their publications is depicted in Figure 4A. Prominent among the journals was the Journal of Neuro-Oncology, which claimed the leading position with 191 publications (5.10% of the total analyzed). This journal was closely followed by Neuro-Oncology with 137 publications (3.66%), and Frontiers in Oncology with 99 publications (4.7%). Notably, within this elite group of journals, Neuro-Oncology had the highest Impact Factor (15.9), and all were recognized within the prestigious Q1 or Q2 ranking categories.

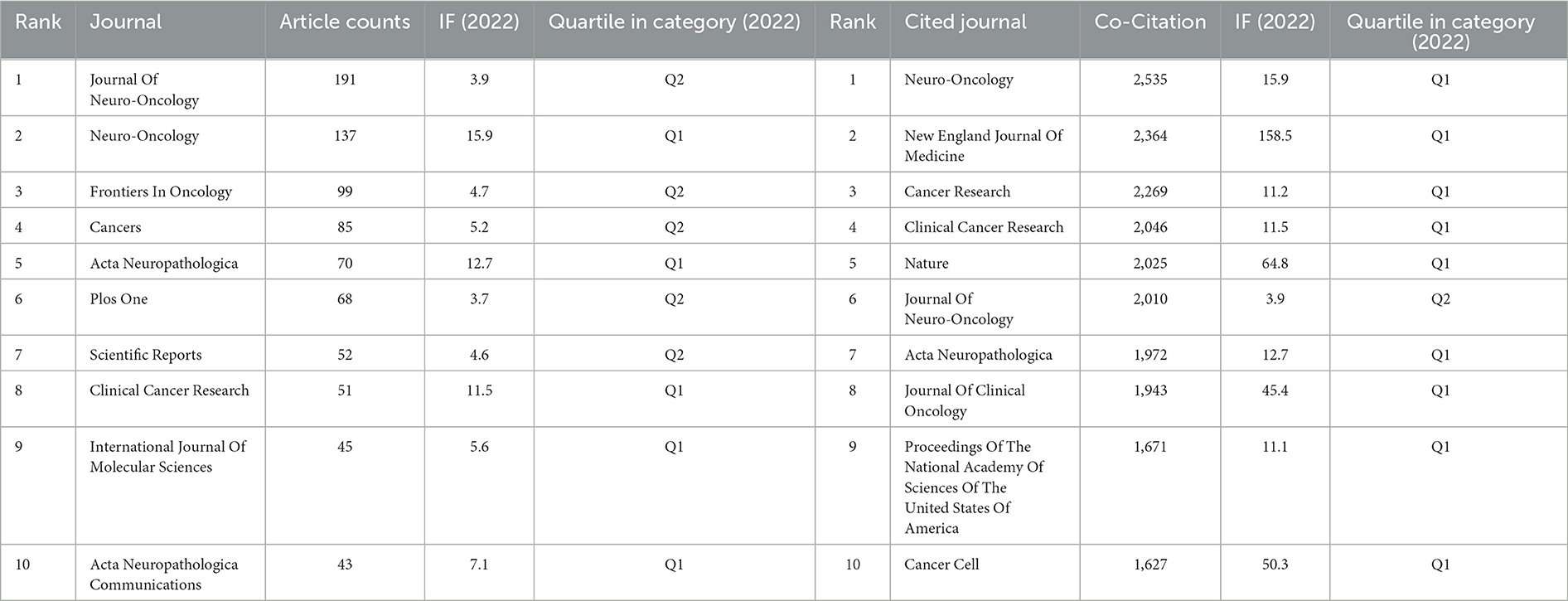

Table 2

Rank Journal Article counts IF (2022) Quartile in category (2022) Rank Cited journal Co-Citation IF (2022) Quartile in category (2022)
1 Journal Of Neuro-Oncology 191 3.9 Q2 1 Neuro-Oncology 2,535 15.9 Q1
2 Neuro-Oncology 137 15.9 Q1 2 New England Journal Of Medicine 2,364 158.5 Q1
3 Frontiers In Oncology 99 4.7 Q2 3 Cancer Research 2,269 11.2 Q1
4 Cancers 85 5.2 Q2 4 Clinical Cancer Research 2,046 11.5 Q1
5 Acta Neuropathologica 70 12.7 Q1 5 Nature 2,025 64.8 Q1
6 Plos One 68 3.7 Q2 6 Journal Of Neuro-Oncology 2,010 3.9 Q2
7 Scientific Reports 52 4.6 Q2 7 Acta Neuropathologica 1,972 12.7 Q1
8 Clinical Cancer Research 51 11.5 Q1 8 Journal Of Clinical Oncology 1,943 45.4 Q1
9 International Journal Of Molecular Sciences 45 5.6 Q1 9 Proceedings Of The National Academy Of Sciences Of The United States Of America 1,671 11.1 Q1
10 Acta Neuropathologica Communications 43 7.1 Q1 10 Cancer Cell 1,627 50.3 Q1

Top 10 journals (left) and co-cited journals (right) involved in glioma methylation research.

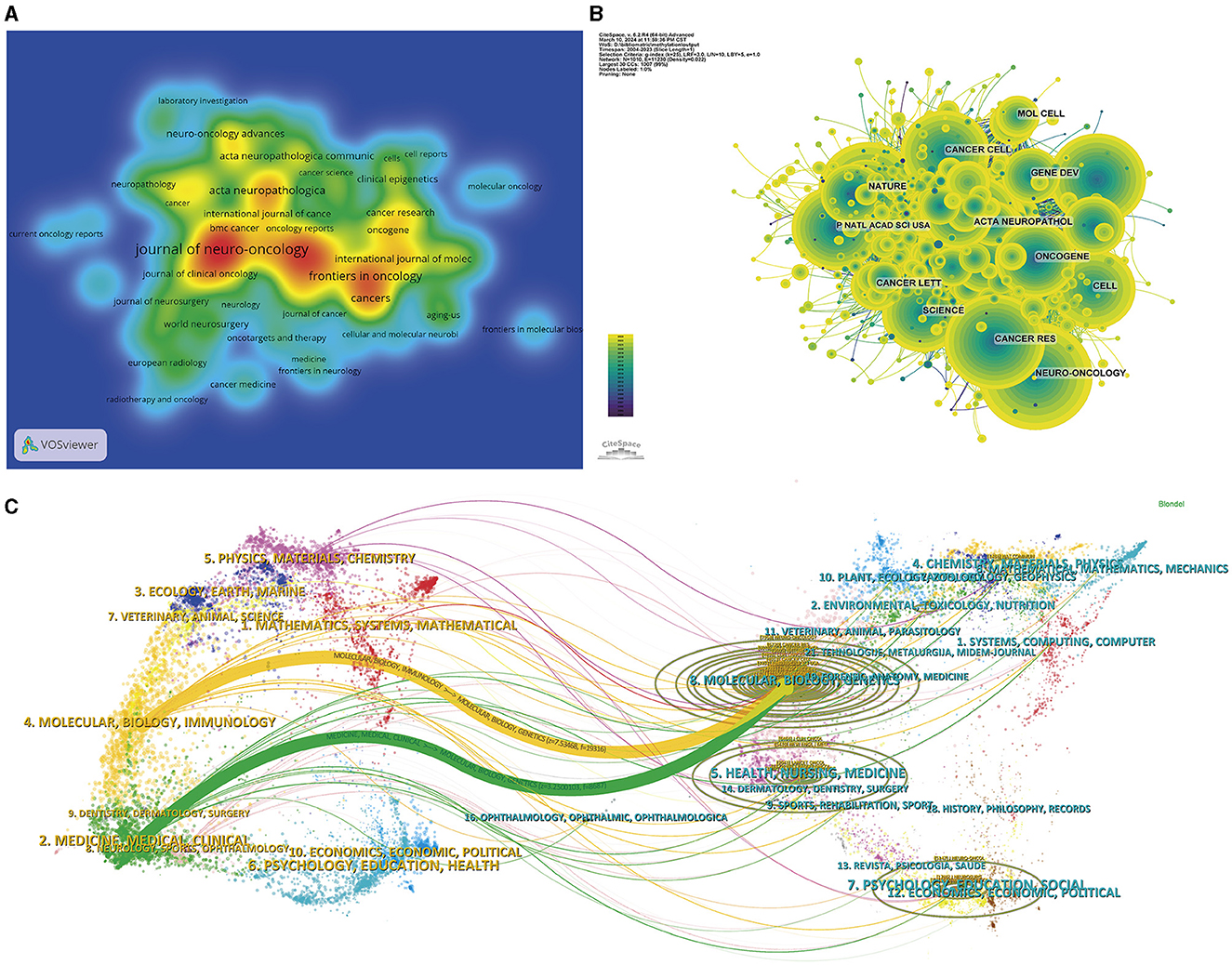

Figure 4

Figure 4

Visualization of the journal analysis. (A) Density graph of journal publications. The red parts represent more publications than the blue parts. (B) Network visualization of the co-cited journals. The node size represents the number of published articles. The connecting lines represent the strengths of the relationships. (C) Dual-map overlays of the cited journals and the citing journals.

The scholarly influence of a journal is often measured by the citation frequency of its publications. Figure 4B, Table 2 show that Neuro-Oncology had the highest co-citation frequency of 2,535, followed by New England Journal of Medicine with 2,364 citations and Cancer Research with 2,269 citations. Among the top 10 journals by citation frequency, New England Journal of Medicine had the second highest citation frequency and the highest Impact Factor (158.5). All journals within this citation frequency hierarchy areplaced within the esteemed Q1 or Q2 quadrant.

The thematic distribution within the field of glioma methylation research is illustrated in Figure 4C. The colored pathways symbolize citation links, with the citing journals on the left and the cited journals on the right. The visual analysis shows two primary citation trajectories. First, research from the molecular/biology/immunology domain was predominantly referenced by research within the molecular/biology/genetics domain. Second, studies within the medicine/medical/clinical domain were also predominantly cited by research from the molecular/biology/genetics domain.

3.4 Analysis of publishing authors

In tribute to the scholars whose contributions have been pivotal to the field of glioma methylation research, we meticulously identified the leading authors, as distinguished by their publication records (Table 3). At the time of writing, these esteemed authors had collectively authored 482 publications, constituting 12.88% of the entire body of research on this topic. Michael Weller led with an impressive 79 publications, succeeded by Guido Reifenberger with 68 publications, Wolfgang Wick with 65, Andreas von Deimling with 57, and Tao Jiang with 43. A geographical survey of these academic leaders identified their origins. There were four from Germany, three from Switzerland, two from China, and one from France. CiteSpace was used to produce a visual representation of the collaborative relationships among these authors (Figure 5A).

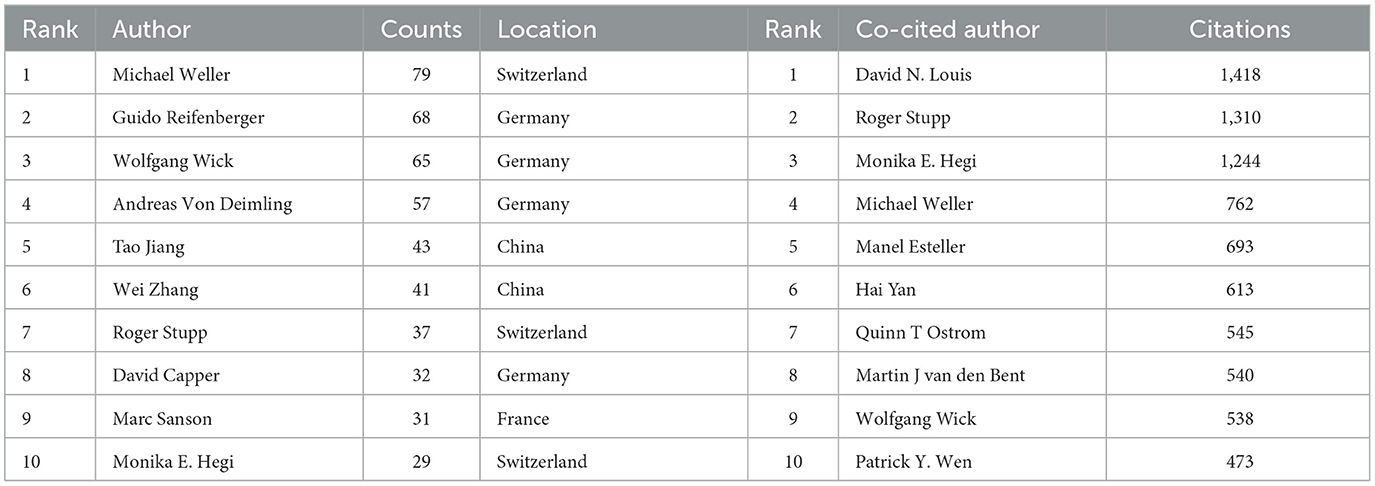

Table 3

Rank Author Counts Location Rank Co-cited author Citations
1 Michael Weller 79 Switzerland 1 David N. Louis 1,418
2 Guido Reifenberger 68 Germany 2 Roger Stupp 1,310
3 Wolfgang Wick 65 Germany 3 Monika E. Hegi 1,244
4 Andreas Von Deimling 57 Germany 4 Michael Weller 762
5 Tao Jiang 43 China 5 Manel Esteller 693
6 Wei Zhang 41 China 6 Hai Yan 613
7 Roger Stupp 37 Switzerland 7 Quinn T Ostrom 545
8 David Capper 32 Germany 8 Martin J van den Bent 540
9 Marc Sanson 31 France 9 Wolfgang Wick 538
10 Monika E. Hegi 29 Switzerland 10 Patrick Y. Wen 473

Top 10 authors (left) and co-cited authors (right) involved in glioma methylation research.

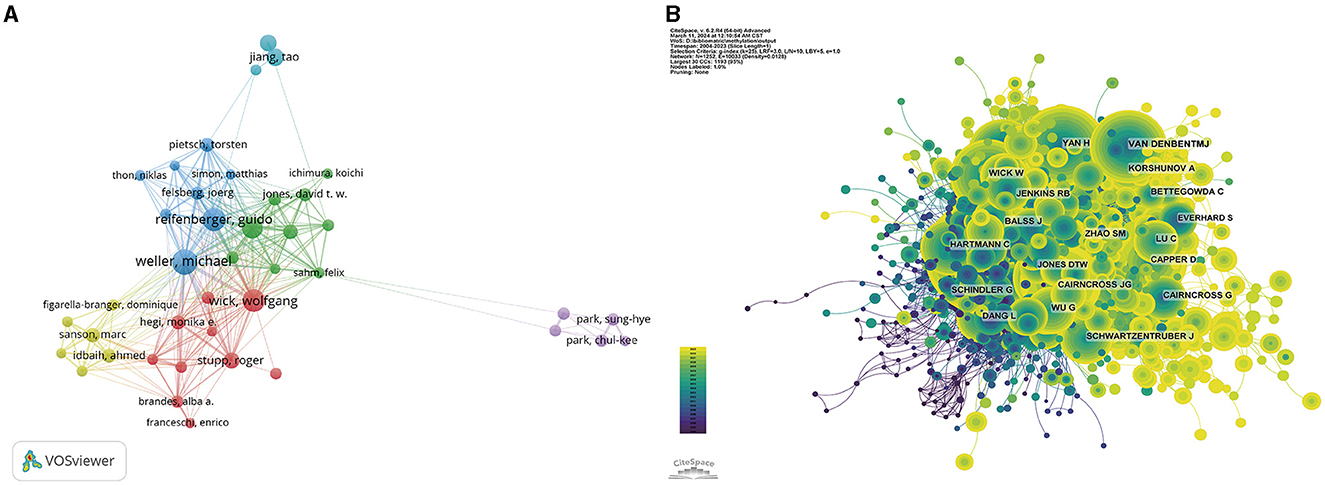

Figure 5

Figure 5

Visualization of the author analysis. Network visualization of the author collaborations (A) and co-cited authors (B). The different colors represent different clusters. Larger nodes represent more articles.

Figure 5B highlights the most co-cited authors based on their citation frequency above 50 citations. Within the co-citation network, the size of each node is proportional to the citation frequency, with the most prominent nodes representing the authors who have been most frequently co-cited, including David N Louis with 1,418 citations, Roger Stupp with 1,310 citations, and Monika E Hegi with 1,244 citations.

3.5 Analysis of references

The co-citation network analysis from 2004 to 2023 produced a comprehensive map of 1,553 nodes interconnected by 8,317 relationships (Figure 6A). Of the most highly co-cited publications presented in Table 3, the dominant position was occupied by David N. Louis's seminal article, “The 2016 World Health Organization Classification of Tumors of the Central Nervous System: A Summary,” published in Acta Neuropathologica, which accumulated a substantial count of 487 citations. A close second was the groundbreaking study by David Capper, titled “DNA methylation-based classification of central nervous system tumors,” published in Nature, which garnered 284 citations (Table 4).

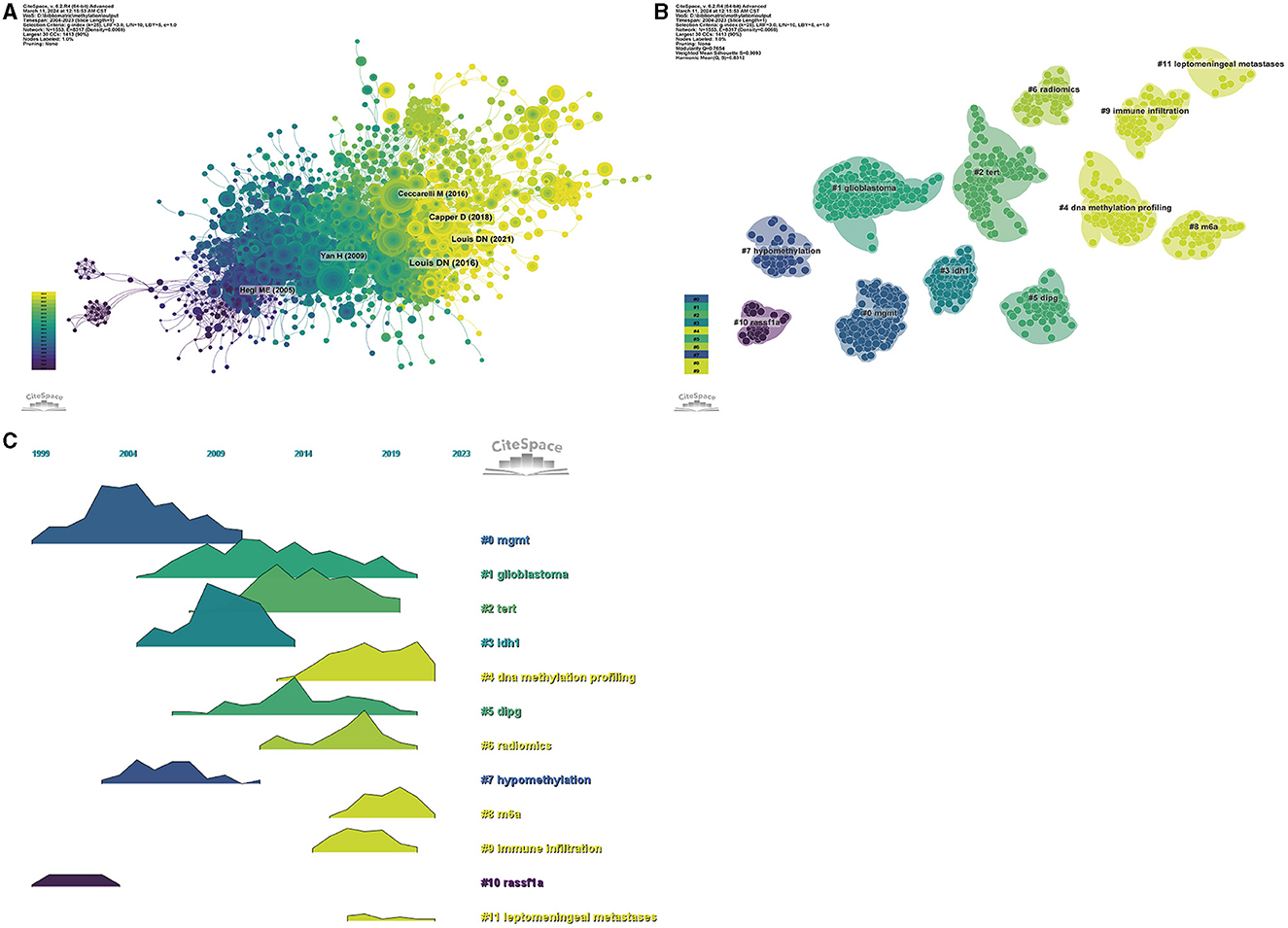

Figure 6

Figure 6

Visualization of the co-cited reference analysis. Network relationship (A), clustering according to publication year (B), and volcano plot of co-cited references (C).

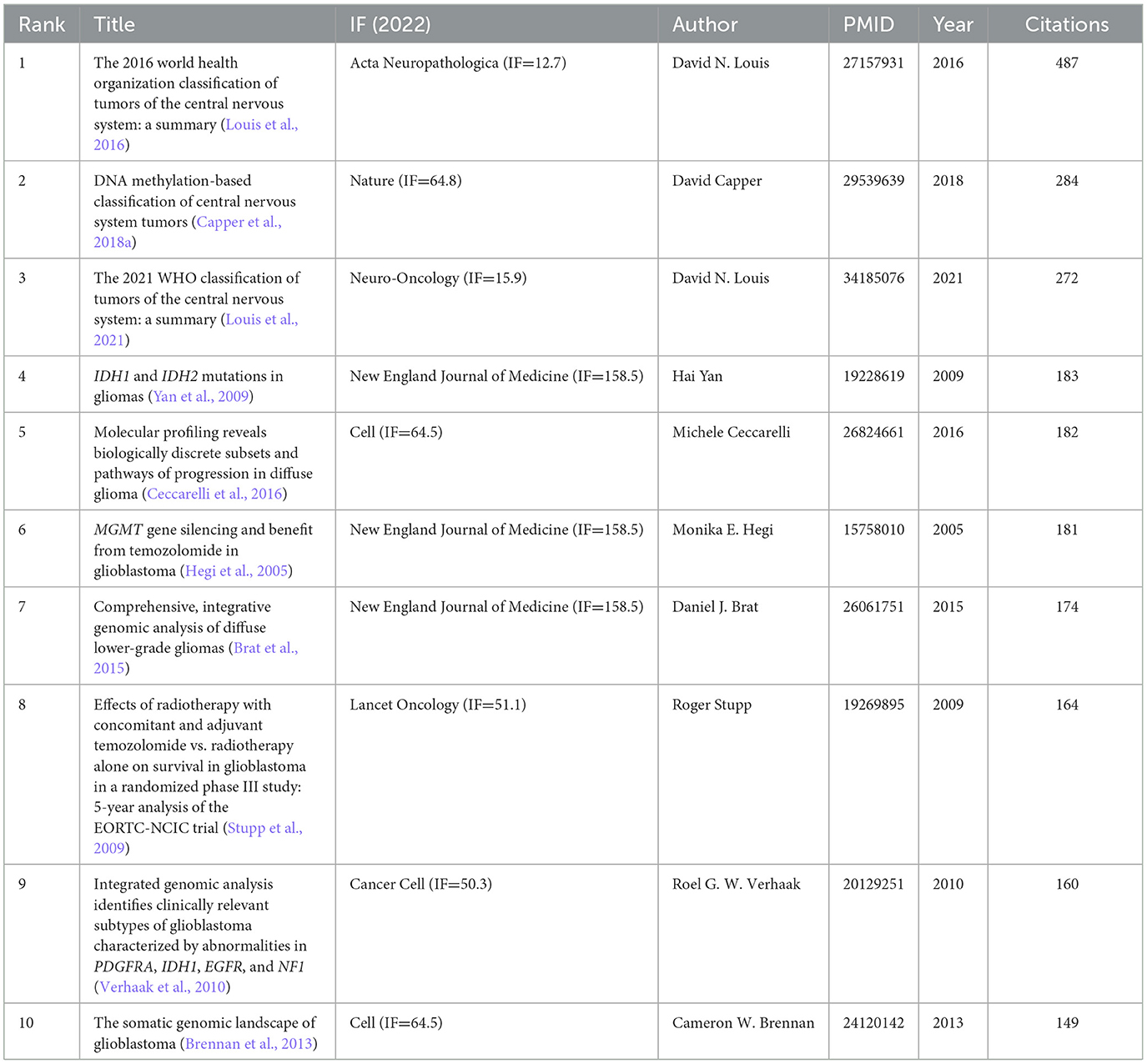

Table 4

Rank Title IF (2022) Author PMID Year Citations
1 The 2016 world health organization classification of tumors of the central nervous system: a summary (Louis et al., 2016) Acta Neuropathologica (IF=12.7) David N. Louis 27157931 2016 487
2 DNA methylation-based classification of central nervous system tumors (Capper et al., 2018a) Nature (IF=64.8) David Capper 29539639 2018 284
3 The 2021 WHO classification of tumors of the central nervous system: a summary (Louis et al., 2021) Neuro-Oncology (IF=15.9) David N. Louis 34185076 2021 272
4 IDH1 and IDH2 mutations in gliomas (Yan et al., 2009) New England Journal of Medicine (IF=158.5) Hai Yan 19228619 2009 183
5 Molecular profiling reveals biologically discrete subsets and pathways of progression in diffuse glioma (Ceccarelli et al., 2016) Cell (IF=64.5) Michele Ceccarelli 26824661 2016 182
6 MGMT gene silencing and benefit from temozolomide in glioblastoma (Hegi et al., 2005) New England Journal of Medicine (IF=158.5) Monika E. Hegi 15758010 2005 181
7 Comprehensive, integrative genomic analysis of diffuse lower-grade gliomas (Brat et al., 2015) New England Journal of Medicine (IF=158.5) Daniel J. Brat 26061751 2015 174
8 Effects of radiotherapy with concomitant and adjuvant temozolomide vs. radiotherapy alone on survival in glioblastoma in a randomized phase III study: 5-year analysis of the EORTC-NCIC trial (Stupp et al., 2009) Lancet Oncology (IF=51.1) Roger Stupp 19269895 2009 164
9 Integrated genomic analysis identifies clinically relevant subtypes of glioblastoma characterized by abnormalities in PDGFRA, IDH1, EGFR, and NF1 (Verhaak et al., 2010) Cancer Cell (IF=50.3) Roel G. W. Verhaak 20129251 2010 160
10 The somatic genomic landscape of glioblastoma (Brennan et al., 2013) Cell (IF=64.5) Cameron W. Brennan 24120142 2013 149

Top 10 co-cited references related to glioma methylation research.

Utilizing a methodological approach that integrates co-citation clustering and temporal analysis (Figures 6A, B), we discerned the temporal trajectory of research focal points. The early research periods were marked by an emphasis on mgmt (cluster 0) and rassf1a (cluster 10). Subsequent periods witnessed a shift toward Idh1 (cluster 3) and hypomethylation (cluster 7). In more recent years, the contemporary research landscape has been dominated by other pivotal topics, including glioblastoma (cluster 1), TERT (cluster 2), DNA methylation profiling (cluster 4), dipg (cluster 5), radiomics (cluster 6), m6A (cluster 8), immune infiltration (cluster 9), and leptomeningeal metastases (cluster 11).

3.6 Analysis of keywords

Keyword analysis is a pivotal methodology that can be used to capture the landscape and evolutionary trajectory of a specific research domain. Utilizing the co-occurrence dataset of keywords from VOSviewer, the most commonly featured terms were “temozolomide” (869 occurrences), “expression” (767 occurrences), “survival” (600 occurrences), and “DNA methylation” (514 occurrences) (Table 5, Figures 7A, B). Following the exclusion of less frequently utilized keywords, a network of 185 keywords, each appearing no fewer than 34 times, was assembled and stratified into four discrete clusters. The initial cluster (red) incorporates an array of keywords, including, but not limited to, “DNA methylation,” “prognosis,” “mechanisms,” “differentiation,” and associated terms. The subsequent cluster (green) encompasses 47 keywords, predominantly related to “temozolomide,” “radiotherapy,” and “mgmt promoter methylation.” The third cluster (blue) comprises 46 keywords, with a focus on “classification,” “central nervous system,” “integrated genomic analysis,” and related terminologies. The fourth cluster (yellow) encompasses 21 keywords, including “association,” “DNA repair gene,” “hypermethylation,” and other pertinent terms. The temporal shifts in the research focal points are depicted as a volcano plot, which was generated using CiteSpace software. The volcano plot intuitively portrays the progression of the research hotspots over time (Figures 7C, D).

Table 5

Rank Keyword Counts Rank Keyword Counts
1 Temozolomide 869 11 Promoter methylation 352
2 Expression 767 12 Mutations 332
3 Survival 600 13 Adjuvant temozolomide 280
4 DNA methylation 514 14 Malignant glioma 252
5 Classification 454 15 Gene-expression 221
6 MGMT 449 16 IDH1 218
7 Radiotherapy 443 17 Chemotherapy 214
8 MGMT Promoter methylation 422 18 Progression 199
9 Central-nervous-system 394 19 Newly-diagnosed glioblastoma 196
10 Prognosis 370 20 Hypermethylation 194

Top 20 keywords related to glioma methylation research.

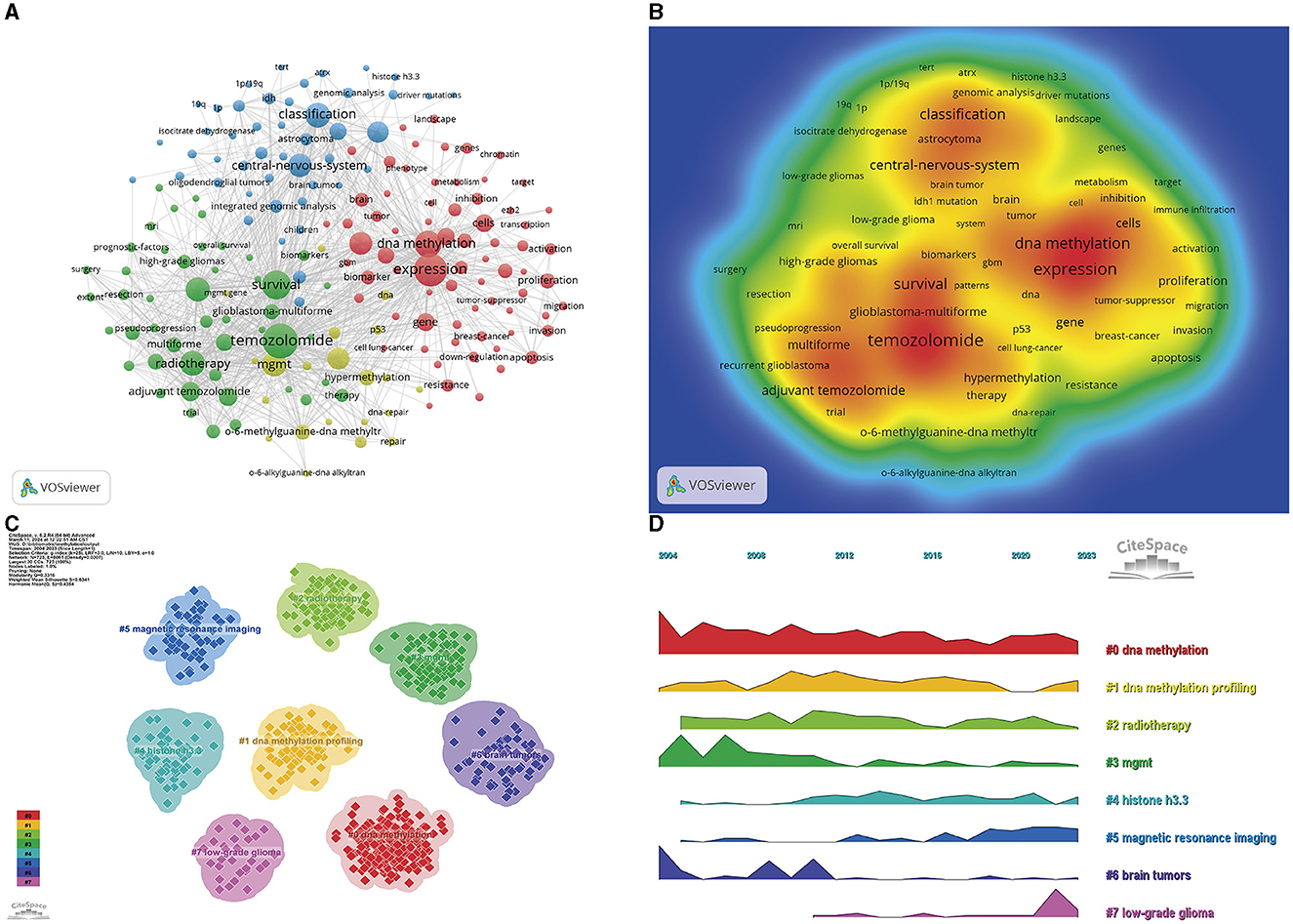

Figure 7

Figure 7

Visualization of the keyword analysis. Network of high-frequency keywords (A), density graph (B), clustering visualization (C), and keyword clustering volcano map (D).

3.7 Analysis of references and keywords with the strongest citation bursts

Utilizing CiteSpace software, we curated a list of the 50 most influential and highly cited publications in glioma methylation research. Among them was the influential publication by David N. Louis published in Acta Neuropathologica, which presents a comprehensive overview of the “The 2016 World Health Organization Classification of Tumors of the Central Nervous System: A Summary”, achieving a citation frequency of 175.16. The temporal distribution of these publications spanning from 2004 to 2023 underscores their sustained relevance and frequent citation over two decades.

Among the 50 publications, six articles remained in an active phase of citation intensity at the time of writing (Figure 8A), which signifies the ongoing and future prominence of glioma methylation research.

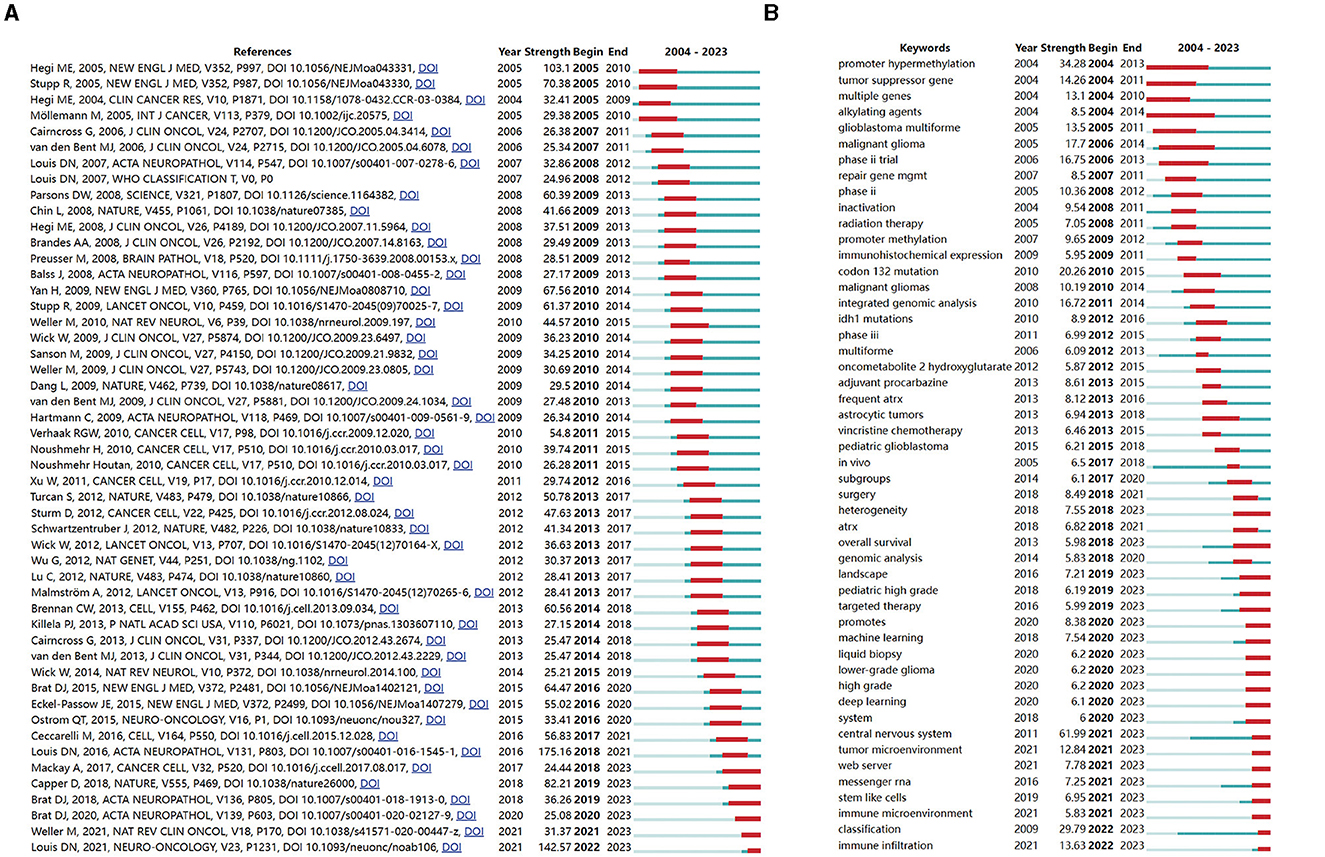

Figure 8

Figure 8

Analysis of the top 50 references (A) and keywords (B) with the strongest citation bursts. The blue line indicates the keyword occurrence and its duration. The red line indicates the burst time and duration.

We evaluated the most salient keywords, focusing on the 50 keywords with the highest burst strength among a total of 867 keywords (Figure 8B). The keywords that had garnered persistent interest as of 2023 included “heterogeneity,” “overall survival,” “landscape,” “pediatric high grade,” “targeted therapy,” “promotes,” “machine learning,” “liquid biopsy,” “lower-grade glioma,” “high grade,” “deep learning,” “system,” “central nervous system,” “tumor microenvironment,” “web server,” “messenger RNA,” “stem-like cells,” “immune microenvironment,” “classification,” and “immune infiltration.” These keywords not only encapsulate the recent focal points of research efforts but also signal the future trajectories of glioma methylation research.

4 Discussion

This study is the first to use bibliometric methodologies to systematically evaluate glioma methylation research. This study constructed a dataset comprising 3,744 publications indexed within the WoSCC database from 2004 to 2023. We performed a detailed visualization analysis using CiteSpace and VOSviewer software to evaluate the contributing authors, affiliated institutions, publishing journals, and pivotal keywords. The synthesis of these data produced a knowledge network map, which shows the landscape of glioma methylation research over the past two decades and offers an insightful perspective into the current research paradigms and the trajectory of future research on this topic.

4.1 Global research trends about methylation and glioma

The numerical growth of publications indicates the engagement of the research community with the topic of glioma methylation. From 2004 to the present, there has been an overall ascending trajectory in publication volume, punctuated by distinct chronological phases. Figure 2 shows that the initial period from 2004 to 2007 was characterized by a gradual increase in annual publications. Subsequently, a pronounced increase in the number of publications was observed from 2008 to 2018. After 2019, the publication volume witnessed a dramatic upsurge, which peaked in 2022, illustrating the heightened interest in this domain in recent years. With regard to national publication output, the United States was the leading contributor, followed by China, Germany, Italy, and Japan, respectively. Notably, the volume of publications from China closely rivaled that of the United States, and from the start of 2020, China secured the leading position in annual publication volume.

In this study, we used the metric of citation-to-publication ratio to appraise the quality of publications across various regions. Our findings unveiled that within the top 10 regions by publication volume, the United States secured the dominant position, with an impressive citation tally of 84,628 (Table 1). The citation-to-publication ratio of the United States, standing at 40.42, was notably high, signifying a high caliber of academic contributions. China, with a publication volume of 1,058, was the runner-up in terms of volume, yet its citation count of 23,152 placed it eighth. The citation-to-publication ratio was 21.88, suggesting a relative quality discrepancy. The recent upsurge in publication retractions by Chinese researchers is a concerning phenomenon that requires attention (Palla et al., 2020; Audisio et al., 2022; Kwee and Kwee, 2023). It is imperative to emphasize the importance of authentic research data and findings in the pursuit of scientific excellence.

On the other side, publications surge may be attributed to the efficacy of the glioma treatment regimen proposed by professor Stupp. This regimen involves the use of temozolomide for chemotherapy, a treatment strategy that targets the methylation status of the gene encoding O6-methylguanine-DNA methyltransferase (MGMT) (Hegi et al., 2004, 2005; Stupp et al., 2005). Furthermore, the advent of The Cancer Genome Atlas (TCGA) (Kim et al., 2010; Stegh et al., 2010) in 2006, a collaborative endeavor between the National Cancer Institute and the National Human Genome Research Institute, provided a genomic roadmap for 33 tumor types, with glioblastoma multiforme being a focal point in the initial 3 years of the study. This initiative has substantially underpinned glioma methylation research. The International Cancer Genome Consortium (Hudson et al., 2010), which was established in 2008, further augmented the omics data for malignant neoplasms. This spurred the progressive increase in research pertaining to tumor methylation (Jones et al., 2012). In China, the Chinese Glioma Genome Atlas (CGGA), initiated by professor Tao Jiang in 2012, has been instrumental in advancing the field of glioma omics (Bao et al., 2013, 2014; Wang and Jiang, 2013). The robust publication volume from the United States and mainland China is likely linked to the extensive utilization of the CGGA and TCGA databases. The advent of innovative analytical techniques has also drawn the attention of researchers to the field of glioma methylation, leading to a more nuanced and in-depth exploration of the field.

The collaboration network (Figure 5) illustrates a robust partnership between the United States and China, the two leading contributors. The United States has also formed close collaborations with Germany, the United Kingdom, Italy, and France, whereas China has shown a propensity for collaborations with Japan, Canada, and the Netherlands. The preeminence of the United States in this field is further accentuated by its substantial publication volume, frequent citations, and centrality score of 0.1. The institutional analysis revealed that 3,508 institutions contributed to glioma methylation research. Among the institutions in the top decile of publication volume, four were from the United States, and three were from Germany, while the others were from France, China, and Switzerland (Table 2, Figure 6). The Helmholtz Association achieved the most prolific publication record, with 253 articles accumulating 24,365 citations, averaging 96.30 citations per article. The German Cancer Research Center (DKFZ) was second, with 232 articles and 23,588 citations, averaging 101.67 citations per article. Ruprecht Karls University Heidelberg ranked third, with 196 articles and 27,033 citations, averaging 137.92 citations per article. The University of California System secured the fourth position, with 192 articles and 32,355 citations, averaging 168.52 citations per article. Our analysis indicated a preference for domestic collaboration among both national and international institutions. We advocate for a concerted effort to bolster cross-border institutional collaborations, which we believe would help to overcome academic silos and foster an environment that is conducive to unrestrained knowledge dissemination.

When deliberating on the most appropriate journal for their manuscripts, researchers frequently consult the body of literature already present within their field. In our analysis of pertinent journals, Journal of Neuro-Oncology was the leading platform, with the highest publication frequency. Among its most recent contributions, one study elucidated that the application of epigenetic editing technologies to modulate MGMT methylation status, or to regulate its methylation patterns in a rhythmic manner, can significantly impact the chemosensitivity of gliomas to temozolomide (Gonzalez-Aponte et al., 2024; Zapanta et al., 2024). These scholarly achievements not only serve as a benchmark for the dissemination of related research, but they also provide a theoretical framework for future translational application of MGMT methylation modulation in clinical glioma treatment.

The analysis of author contributions unveiled a compelling observation; despite the United States having the largest number of publications, the most prolific author did not reside within the research community of the United States. This suggests a robust and diverse research base within the United States, and the achievements were not overly centralized. Professor Michael Weller from Switzerland was the most prolific contributor, achieving seminal breakthroughs in the realm of glioma methylation as far back as 2002 (Watanabe et al., 2002; Baeza et al., 2003; Waltereit and Weller, 2003). Professor Tao Jiang of China was also distinguished among the leading authors, a status likely influenced by his role in establishing the CGGA. Moreover, professor Weller's work was recognized for its authoritative impact, as reflected in his ranking within the top quartile of citations. His research has progressively ventured into the domain of glioma immunotherapy, with an emphasis on the intricate immune microenvironment of glioma and the importance of devising targeted therapeutic strategies (Le Rhun et al., 2019; Hansch et al., 2023; Schmassmann et al., 2023).

4.2 Hot topics and frontiers in glioma and methylation research

One of the most efficacious strategies for discerning the focal points and future trajectories within a research field is the systematic dissection of keywords. Keywords allow the focal points of pertinent literature to be understood, and through the application of cluster analysis on frequently occurring keywords, a targeted examination of emergent terms. This approach clarifies the research hotspots and may predict the avenues along which future investigations are likely to proceed.

Upon analysis of the data provided in Table 5, “temozolomide” was identified as the predominant keyword, accompanied by a spectrum of interrelated keywords, including “survival,” “DNA methylation,” “MGMT,” “radiotherapy,” and “MGMT promoter methylation,” which were also highly ranked in terms of frequency.

Temozolomide is a cornerstone chemotherapeutic agent after surgical intervention for glioma, and its significance in the management of glioblastoma multiforme is particularly notable (Lee, 2016). Temozolomide exerts its tumor-inhibiting action by causing DNA methylation injury, predominantly targeting O6 guanine residues. This subsequently perturbs DNA replication and repair mechanisms. This disruption can initiate double-stranded DNA breaks and induce cellular apoptosis, thereby curtailing the proliferative and growth capacities of neoplastic cells (Strobel et al., 2019). Through its repair capabilities, MGMT plays a critical role in the cellular response to temozolomide-induced DNA damage. Therefore, elevated MGMT expression is commonly correlated with the diminished therapeutic efficacy of temozolomide. In stark contrast, the occurrence of MGMT promoter methylation is associated with diminished enzyme expression, which increases tumor susceptibility to temozolomide (Pegg and Byers, 1992; Kitange et al., 2009). In clinical practice, the methylation status of the MGMT promoter has been affirmed as a prognostic indicator, pivotal in forecasting the sensitivity of patients with glioma to temozolomide, as well as predicting their subsequent clinical outcomes (Melguizo et al., 2012; Mansouri et al., 2019).

In the evolving landscape of glioma research, there is a quest to identify therapeutic strategies that can overcome the resistance of glioma to temozolomide, which would have profound implications for improving patient outcomes. To date, the majority of these research efforts have been anchored within the foundational stages of experimental research (Xue et al., 2022; Nam et al., 2023; Zhou et al., 2023; Wang et al., 2024; Ye et al., 2024), yet they have managed to penetrate various pivotal biological mechanisms. These include the intricate processes of tumor energy metabolism, angiogenesis, the functional role of exosomes, lipid metabolism, and the complex interplay of epigenetic modifications. Innovative drug delivery systems are poised to provide a potential breakthrough in overcoming these therapeutic barriers (Wang et al., 2022).

The keyword burst analysis revealed that the period from 2019 to 2022 yielded a spectrum of keywords, which we systematically classified into two distinct categories. The first category was associated with methodologies, notably highlighting “deep learning” and “machine learning.” The second category pertained to research focus, which included the keywords “tumor microenvironment,” “immuno-microenvironment,” and “immune infiltration.” These keywords not only define the research hotspots of recent years but also underscore the evolving landscape of this field. The application of deep learning and machine learning techniques, with their robust analytical capabilities for complex datasets, has permeated various aspects of glioma management, ranging from diagnostics and differential diagnostics to the stratification and prognostic evaluation of glioma. Notably, the utilization of deep learning in conjunction with radiomics for the differential diagnosis of glioblastoma multiforme from other intracranial lesions (Nakagawa et al., 2018; Zhang et al., 2021) has demonstrated superior diagnostic efficacy. Furthermore, these analytical approaches have been effectively extended to the preoperative staging (Tian et al., 2018; Gutta et al., 2021; Li et al., 2022) and prognostic assessment (Kim et al., 2019; Feng et al., 2020; Metz et al., 2020) of glioma. Therefore, they have helped to enhance preoperative diagnostic precision, grading accuracy, genetic profile prediction, and survival evaluation. Collectively, these sophisticated analytical methodologies have led to significant advancements in the perioperative management of glioma, offering promising avenues for future research and therapeutic development.

The glioma microenvironment, a focal point within tumor immunology, is pivotal for elucidating the etiology, progression, invasive behavior, and mechanisms of chemoresistance. It also serves as a cornerstone for developing targeted therapeutic interventions. As shown in the published literature, the contributions of professor Michael Weller are intricately related to the immunological underpinnings of glioma (Naghavian et al., 2023). Professor Weller's team has spearheaded a therapeutic approach that synergizes the L19 antibody with the L19TNF fusion protein, coupled with the chemotherapeutic agent lomustine (CCNU). This regimen has demonstrated robust therapeutic efficacy in a murine model of orthotopic glioblastoma multiforme. The L19TNF fusion protein, with its specificity for the tumor neovasculature, in tandem with the alkylating properties of CCNU, has been shown to induce DNA damage within the tumor and facilitate tumor cell necrosis. The clinical efficacy of this synergistic therapeutic modality has been corroborated in a study registered under the identifier NCT04573192, where three of five patients with recurrent glioblastoma multiforme exhibited measurable objective remission (Look et al., 2023). In a subsequent investigation led by professor Weller (Hansch et al., 2023), the transmembrane protein CD317 was considered an innovative target for chimeric antigen receptor (CAR) T-cell therapeutics. CAR T-cells endowed with specificity for CD317 have demonstrated pronounced antitumor efficacy against glioma cells, thereby introducing a novel paradigm in the immunotherapeutic arsenal against glioblastoma multiforme. In parallel, the role of DNA methylation in the context of glioma immunotherapy is emerging as a subject of scrutiny. The establishment of a DNA methylation-based predictive model has been instrumental in the stratification of patients with low-grade glioma, and it holds potential as a biomarker for the prognostication of immunotherapeutic responses (Yang et al., 2022). Additionally, the methylation modification mediated by M6A has been identified to exert an influence over the immunological microenvironment of glioma, leading to the dysfunction of tumor-infiltrating T-cells and consequently impacting immunotherapy outcomes (Zhao et al., 2023). These findings underscore the multifaceted and dynamic nature of the glioma microenvironment and highlight the importance of continued exploration into the immunotherapeutic potential against this formidable disease entity.

Collectively, the body of work ranging from professor Weller's seminal studies to the growing potential of DNA methylation in the domain of immunotherapy exemplifies the intensive and innovative pursuit of therapeutic strategies for glioma. These insights have significantly enriched our understanding of the glioma microenvironment and have laid a robust scientific foundation and promising clinical horizon for the development of innovative targeted therapies. The collective impact of these advancements is far-reaching, offering a renewed sense of optimism for patients with glioma and leading toward a therapeutically diverse and efficacious future for glioma. These findings are instrumental in the ongoing quest to enhance the longevity and qualitative aspects of life for individuals battling this aggressive neurological malignancy.

5 Limitations

This study has several limitations that should be considered. First, our data analysis was limited to the WoSCC database, neglecting a broader spectrum of databases that could have been pertinent to our research. Second, aiming to refine the accuracy of our analysis, we elected to include only specific scholarly articles, namely original contributions and comprehensive reviews. Finally, despite the objectivity inherent in VOSviewer and CiteSpace, the subjective perspectives of the analysts may have exerted some influence on the interpretation of the findings. These considerations underscore the necessity for a more expansive and diverse approach in subsequent research endeavors.

6 Conclusions

Methylation is integral to the pathogenesis of glioma, with the epimutations of specific genes exerting a significant regulatory effect on the biological behavior of this type of tumor. Epigenetic editing techniques may be a novel strategic approach in clinical oncology, but although promising, this development presents unprecedented challenges. We exhaustively analyzed the literature on glioma methylation spanning almost two decades within the WoCSS database. Using bibliometric methodologies, we elucidated the origins of these publications, the contributing institutions, authorship, publishing journals, and keywords. This analysis provides an exhaustive overview of the current landscape and identifies the focal points of glioma methylation research. The evolution of novel analytical algorithms and the development of sophisticated research tools are anticipated to invigorate further exploration within this field. Particularly, the investigation into methylation-associated immunotherapies for glioma treatment is expected to be increasingly refined, facilitating an effective transition from basic scientific inquiry to clinical application.

Statements

Data availability statement

Publicly available datasets were analyzed in this study. This data can be found here: all datasets was in Supplementary material.

Ethics statement

Ethical approval was not required for the study involving humans in accordance with the local legislation and institutional requirements. Written informed consent to participate in this study was not required from the participants or the participants' legal guardians/next of kin in accordance with the national legislation and the institutional requirements.

Author contributions

XH: Conceptualization, Data curation, Investigation, Methodology, Software, Visualization, Writing – original draft. HL: Data curation, Investigation, Writing – original draft. YX: Data curation, Investigation, Writing – original draft. WL: Data curation, Investigation, Writing – review & editing. PC: Data curation, Investigation, Writing – review & editing. FD: Methodology, Software, Visualization, Writing – review & editing. LS: Methodology, Software, Visualization, Writing – review & editing. ZY: Methodology, Software, Visualization, Writing – review & editing. XC: Conceptualization, Methodology, Software, Visualization, Writing – review & editing. JT: Conceptualization, Funding acquisition, Project administration, Writing – review & editing.

Funding

The author(s) declare financial support was received for the research, authorship, and/or publication of this article. This research was funded by Ningxia Key Research and Development Program Project (2022BEG03081 and 2023BEG2009), Ningxia Natural Science Foundation (2021AAC03397), Research Program of Ningxia Medical University (XJ2023018901), and the Ningxia Clinical Medical Research Center for Neurological Diseases.

Conflict of interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

Supplementary material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fnins.2024.1440756/full#supplementary-material
