Pre-clinical development of a vaccine for human lymphatic filariasis

Abstract

This study was conducted to optimize a fusion protein vaccine for translational development as a vaccine against the human tropical parasitic infection, lymphatic filariasis (LF). The vaccine candidate, His-tagged rBmHAXT was developed previously in our laboratory and was tested in various animal models including mouse, gerbils and Rhesus macaque where it exhibited significant levels of vaccine-induced protection. However, for commercial manufacturing and for regulatory approval for human use, there was a need to modify the vaccine antigen and its production and analytical release methods. Therefore, the major focus of this study was to develop a process for manufacturing an affinity tag-free rBmHAXT and evaluate its immunogenicity, potency and protective efficacy in both inbred and outbred mouse models, as well as in outbred gerbil models. Our results demonstrate that the tag-free rBmHAXT vaccine produced with a process suitable for cGMP production had protective properties equivalent to the original His-tagged rBmHAXT.

Introduction

Lymphatic filariasis (LF) is a neglected tropical parasitic disease that affects 120 million people in 49 countries worldwide and another 893 million people are at risk of acquiring the disease (1). Commonly known as elephantiasis, the disease impairs the lymphatic system and can cause severe edema of extremities, lowering quality of life (2, 3). LF is a mosquito-transmitted parasitic infection caused by one of three nematodes (Wuchereria bancrofti, Brugia malayi, and Brugia timori) with W. bancrofti being responsible for nearly 90% of the cases. Currently, the only tools we have to control LF are vector control and mass drug administration (MDA). Inadequate program budgeting for vector control has adversely affected the ability to control all vector borne infections including lymphatic filariasis (4). Similarly, the MDA approach, which is aimed at reducing microfilariae in the bloodstream, has little effect on killing the adult worms in patients leading to persistence of the infection once the drug effect wanes (5–7). After 20 years of MDA, it is becoming clear that there is little impact on infections globally for several reasons - including inadequacy of the scale and frequency of drug administration and non-compliance by subjects in adhering to the drug regimen (8, 9). A long-lasting vaccine that prevents or reduces infection – in conjunction with MDA – would be a strong weapon in the fight against this infection and could eliminate or eradicate LF (10). According to the World Health Organization (WHO) estimates, a vaccine that can reduce new helminth infections by at least 50% would reduce overall morbidity and mortality (11).

It has been shown that long-term protective immunity to LF can be induced in humans (12). Immunity against new infections due to antigens released by established parasites increases with age in populations repeatedly exposed to LF (13). A portion of the population in areas where LF is endemic show natural immunity with no existing infection (14). These endemic normal individuals have protective antibodies in their blood that can participate in the immune-mediated killing of the infective larvae (L3) of LF, which can prevent the establishment of the infection (15). Since the completion of the B. malayi genome project, many potential candidate vaccine antigens have been identified and screened for prophylactic efficacy (8). The most promising of these were a combination of four protein domains from B. malayi as a tetravalent fusion protein. The antigens identified included: Heat Shock Protein 12.6 (HSP12.6), Abundant Larval Transcript-2 (ALT-2), Thioredoxin PeroXidase-2 (TPX-2), and the Large Extracellular Loop of TetraSPanin-Large Extracellular Loop (TSP-LEL) (8, 16). Each of these proteins is highly conserved across parasitic nematodes resulting in cross-protection against all three parasites that cause LF. The homologs of the four vaccine antigens cloned from B. malayi and W. bancrofti showed significant antibody cross reactivity and cross protection (unpublished data). A his-tagged version of a fusion protein of these four protein domains - referred to as rBmHAXT - was expressed and purified from E. coli inclusion bodies and purified by immobilized metal ion affinity chromatography (IMAC) (16, 17). Vaccination using this rBmHAXT antigen combined with the AL019 adjuvant (a potent synthetic TLR-4 agonist, glucopyranosyl lipid adjuvant (GLA) adsorbed onto alum) (18), was tested in mouse, gerbil, and non-human primate models. This vaccine formulation demonstrated significant in vivo protection of 88% in mice (16), 65% in gerbils (17) and 57% in Rhesus macaques (18) after an infectious challenge.

A partnership between the University of Illinois and a for-profit company, PAI Life Sciences Inc., was formed to advance this promising vaccine through the initial steps required to file an Investigational New Drug Application (IND) with the US Food and Drug Administration (FDA). Pre-IND enabling activities included the re-design of the rBmHAXT antigen without tags, development of a process for purification of the untagged antigen suitable for transfer to a contract manufacturing organization (CMO) facility, and confirmation of biological potency in vivo. Thus, as reported here, we expressed rBmHAXT without the His-tag (tag-free rBmHAXT) and optimized expression to the 2-5 liter scale with potential for scaling to 30-100 liters. The purified tag-free rBmHAXT antigen was then tested for its ability to confer protection against an infectious challenge in BALB/c mice compared to his-tagged antigen generated previously. Immunogenicity and protection mediated by the tag-free rBmHAXT antigen were further confirmed in a dose escalation study using outbred CD1 mice. A final comparison of the two antigens was done in Mongolian Gerbils (17, 19). Here we also describe early-stage pre-clinical development activities for the tag-free rBmHAXT antigen as the first ever clinical vaccine candidate for human lymphatic filariasis.

Materials and methods

Cloning

To ensure traceability from clone development throughout process development, all cloning, expression, and purification reagents were carefully sourced and documented to ensure the absence of animal-derived products that could introduce adventitious agents into the drug product. The rBmHAXT DNA sequence (1557 nt) was codon optimized for expression in E. coli (Integrated DNA Technologies, Coralville, IA) and cloned into the pET29a(+) expression vector (Millipore Sigma, Burlington, MA). Sequence confirmed pBmHAXT/29a plasmid was transformed into E. coli expression strain HMS174(DE3) (Millipore Sigma, Burlington, MA). Subclones from each plasmid were screened for expression following induction with 1 mM isopropyl β-D-1-thiogalactopyranoside (IPTG) overnight at 37°C with 250 rpm shaking. The following day, 3 mL cells were pelleted by centrifugation and the pellet resuspended in 0.2 mL of B-PER bacterial lysis reagent (Thermo Fisher, Waltham, MA). The insoluble and soluble fractions were isolated separately per manufacturer’s instructions and analyzed on reducing 4-20% Tris-glycine SDS-PAGE gels for presence of a ~60 kDa protein corresponding to the rBmHAXT antigen.

Generation of a traceable seed stock

A research cell bank with 180 vials of the E. coli HMS174 (DE3) strain expressing rBmHAXT protein was laid down. The clone was grown in animal-product free LBK broth. The final cell bank was stored at -80°C. Confirmation of expression was performed, documented, and included in the cell bank production batch record.

Fermentation development

Fermentation development was pursued at the 2L scale and a fermentation batch record was developed. Briefly, a cell bank vial was inoculated into 2 × 200 mL of LBK broth and grown overnight. Cultures were checked for purity and then used to inoculate. Culture was grown in a fermenter in Terrific Broth at 37°C until OD at 600 nm reached 4.0 ± 0.2, induced for 3 hours at a final concentration of 1 mM IPTG, harvested by centrifugation, and cell pellets frozen for future processing.

E. coli cell pellets were thawed and suspended in lysis buffer (50 mM tris/0.5% Triton X-100 pH 8) at 5 mL buffer per 1 g of wet pellet. The suspension was passed 3 times through a LM10 microfluidizer (Microfluidics Corp., Westwood, MA) at 15,000 psi. The lysate was centrifuged at 14,000 × g for 30 min to pellet insoluble material and IB. The IB pellet was washed with 1% CHAPS followed by 25% Isopropanol and centrifuged as before. The resulting pellet – highly enriched for rBmHAXT – was resuspended in 20 mL per g IB of solubilization buffer (50 mM Tris/8 M urea/50 mM DTT pH 8.0). After overnight solubilization at 2 – 8°C, the IB solution was centrifuged at 15,000 × g for 3 hrs at 4°C and the supernatant, containing solubilized tag-free rBmHAXT protein, was stored at 4°C until purification.

Chromatography

rBmHAXT IB solution was passed over a Capto Q ImpRes (Cytiva, Marlborough, MA) column and washed with Q wash buffer (50 mM Tris/8 M urea/180 mM NaCl/10 mM DTT pH 8.0). Bound rBmHAXT was eluted in Q elution buffer (50 mM Tris/8 M urea/300 mM NaCl/10 mM DTT pH 8.0). Eluted protein was then diluted 1/8 in SP loading buffer (20 mM acetate/8 M urea/10 mM DTT pH 4) and loaded onto a Capto SP ImpRes (Cytiva) resin column. After washing off the unbound protein with SP wash buffer (20 mM acetate/8 M urea/300 mM NaCl/10 mM DTT pH 4), tag-free rBmHAXT was eluted with SP elution buffer (20 mM acetate/8 M urea/1 M NaCl/10 mM DTT pH 4). Elution fraction was adjusted to pH 8.0 and urea was removed by buffer exchange with 50 mM Tris pH 8.0. The purified tag-free rBmHAXT was adjusted to 5% glycerol, filter-sterilized through 0.2 µM filters, and stored at -80°C at a final concentration of 1 mg/mL.

Biochemical analysis of rBmHAXT

1µg each of rBmHAXT and bovine serum albumin (BSA) standard were separated on 4-20% Tris-glycine SDS-PAGE gel under reducing conditions and analyzed using ImageJ densitometry to confirm both concentration and purity. Specificity was confirmed by Western blot analysis using monkey anti-rBmHAXT antisera procured as part of a previous vaccination trial in our laboratory (17). The sera was used at 1:5000 and detected with Goat anti-monkey IgG (H+L) HRP antibody at a 1:10,000 dilution (Thermo Fisher Scientific, Waltham, MA). Presence of E. coli host cell proteins was determined by Western blot analysis using anti-E. coli HCP antisera (Rockland Immunochemicals, Inc., Limerick, PA). Residual endotoxin was measured using the Limulus Amoebocyte Lysate (PTS-LAL) assay (Charles River Laboratories, Worcester, MA).

Circular Dichroism

Protein folding and structural studies were done using Jasco J1500 Circular Dichroism (CD) Spectroscopy (Jasco, Easton, MD) at the University of Chicago, IL. CD was used for determining the secondary structure of proteins and composition (% helix, sheet, turns, etc.). Then, 100 µl of both His-tag and Tag-free rBmHAXT protein at 1.5 mg/ml concentration were added separately to high transparency quartz cuvette having 1 mm path-length and placed in cuvette holder. Data was collected in a graph format. TBS buffer with 20% glycerol was used as a blank.

Two web server software was used to analyze the CD data. We implemented K2D3, a publicly available web server method to predict secondary structural content from a CD spectrum. The program accepts the CD spectrum of a protein as input and predicts percentages of alpha helix and beta‐strand content. The other bioinformatic tool we used for CD data analysis was CAPITO (CD Analysis and Plotting Tool), a novel web server-based tool for analyzing and plotting CD data. It allows reliable estimation of secondary structure content utilizing different approaches and gives a graph with curves pertaining to protein secondary structures.

Animals and parasite

Humane use of animals in this study was supervised by the IACUC committee of the University of Illinois Rockford following the National Institutes of Health guidelines for the care and use of laboratory animals. All animals used in this study were purchased from Charles River Laboratories. All animals were monitored for any adverse reactions including injection site reaction, fever, loss of appetite, allergy, hair loss, or weight loss. Animals showing distress were promptly removed from the study. All animal experiments were overseen by a licensed veterinarian. Infective larvae of B. malayi parasites were obtained from the NIAID/NIH Filariasis Research Reagent Resource Center (University of Georgia, Athens, GA) under NIAID supply contract AI#30022.

BALB/c mice. Thirty-seven 8-week-old male BALB/c mice were divided into 6 groups of 5 animals per group and one control group of 7 animals. Three groups received 200 µL injections of tag-free rBmHAXT (PAI) at either low (5 µg), medium (15 µg) or high (40 µg) doses of antigen each formulated with 10 µg AL019 adjuvant. Injections were performed subcutaneously (s.c.), split evenly between the two quadricep muscles. Another three groups of animals received identical doses of His-tagged rBmHAXT in AL019. The final control group (n=7) received AL019 adjuvant (10 µg) only. Each mouse was immunized three times at 15-day intervals with the vaccine plus adjuvant (experimental group) or adjuvant alone (control group). Blood was collected from the submandibular vein of each mouse before and 15 days after each immunization. Fifteen days after the last immunization, mice were challenged with 13-15 B. malayi infective L3 larvae using the micropore chamber method (16). At 72 hours post-challenge, the chambers were collected, and live and dead larvae were identified by microscopical examination. Percent larval death (represented as protection) was calculated. Serum samples were analyzed for anti-rBmHAXT IgG antibody titers and the levels of antibody isotypes (IgG1, IgG2a, IgG2b, IgG3, IgM and IgA) by standard ELISA as described previously (16).

CD1 mice. Twenty-eight 8-week-old male outbred CD1 mice were divided into 7 groups of 4 animals. Each group received an increasing dose of tag-free rBmHAXT ranging from 0 (adjuvant-only control), 0.5, 5, 10, 15, 25 or 40 µg in TBS pH 8.0 each adjuvanted with 10 µg AL019 adjuvant. Mice were injected with 200 µL volume s.c. three times at 15 days intervals. Blood was collected as described above with BALB/c mice before the prime injection and every 15 days thereafter as well as prior to challenge. Mice were challenged with B. malayi L3 larvae as described above (16).

Mongolian gerbils. Twenty-eight 12-week-old male outbred Mongolian Gerbils (Meriones unguiculatus) were divided into 7 groups of 4 animals per group and immunized with tag-free rBmHAXT or his-tagged rBmHAXT antigen with 3 doses of the antigen as described for the BALB/c mice above. Three doses of the antigen given s.c. were administered at 30-day intervals. Blood (0.5 mL) was collected from the retroorbital space before and every 30 days after immunization. Body weights were measured for the first 11 weeks during the immunizations. Antibody titers were measured 30 days after each immunization by ELISA as described previously (20). Ig antibody isotypes (IgG, IgG1, IgG2a, IgG2b, IgG3, IgM and IgA) were evaluated using an indirect ELISA as described previously (20). Thirty days after the final immunization, gerbils were challenged with 80-100 B. malayi L3 larvae and analyzed for worm establishment 180 days later as described previously (20).

Antibody dependent cell-mediated cytotoxicity assay

As a surrogate to the challenge studies, an ADCC assay was performed as described previously (20, 21). Approximately 10 live B. malayi L3s were incubated at 37°C with 5% CO₂ in triplicate wells together with 2×10⁵ peritoneal cells and 50 μl of serum samples. After a 72 h incubation, the viability of the B. malayi L3 larvae were determined. The percentage of larval death was expressed as the ratio of the number of dead L3 larvae to the total number recovered from each well multiplied by 100.

Statistical analysis

GraphPad Prism version 7.0 (GraphPad Software, San Diego, CA) was used to plot all the graphs and statistical analysis of the data was carried out using SPSS v 26.0 (IBM corporation, Armonk, NY). Data were analyzed for normality assumptions using the Shapiro-Wilk Test. The hypothesis of normality will be rejected when the p-value is less than or equal to 0.05. Thus, a probability “p value” of < 0.05 was considered statistically significant.

Results

rBmHAXT was expressed as a tag-free protein

The original rBmHAXT sequence described by Chauhan et al. (16) was used as a starting template. First, the coding sequence was designed in silico by removing the 6 × His tag and codon optimizing the remaining sequence to optimize expression in E. coli. The resulting nucleic acid sequence was 76% identical to the parental sequence while the amino acid sequence remained unchanged. The synthesized gene was subcloned into pET29a(+) and transformed into the E. coli expression strain HMS174(DE3) cells. Subclones from sequence-confirmed plasmids were screened for expression and analyzed for presence of a ~60 kDa protein corresponding to the expected size of rBmHAXT. Western analysis of the fractions using monkey anti-rBmHAXT confirmed the identity of the ~60 kDa band. Clones produced protein at the expected MW in the insoluble fraction (data not shown). Additional experiments performed attempting to promote the protein folding and expression in the soluble fraction including reducing the concentration of IPTG and reducing the expression temperatures to as low as 14°C were unsuccessful (data not shown). Optimal expression of rBmHAXT was determined to be at 37°C with 1 mM IPTG and a 3 hour induction. An isolate with high expression levels was identified and prioritized for cell banking, fermentation, and process development.

Following fermentation, purification begins by resuspension and lysis of the bacterial pellet followed by isolation of the IB fraction (Figure 1A). Analysis of the IB fraction revealed that it is highly enriched for rBmHAXT, with various other E. coli protein and lipid contaminants present as well (data not shown). The IB pellet was washed in 1% CHAPS buffer followed by 25% isopropyl alcohol. These wash steps only minimally reduced the protein contaminants but significantly reduced the endotoxin levels prior to chromatographic purification. The washed IB pellet was solubilized in 8 M urea to denature the rBmHAXT protein and promote binding to the Capto Q ImpRes anion- and Capto SP ImpRes cation-exchange resins.

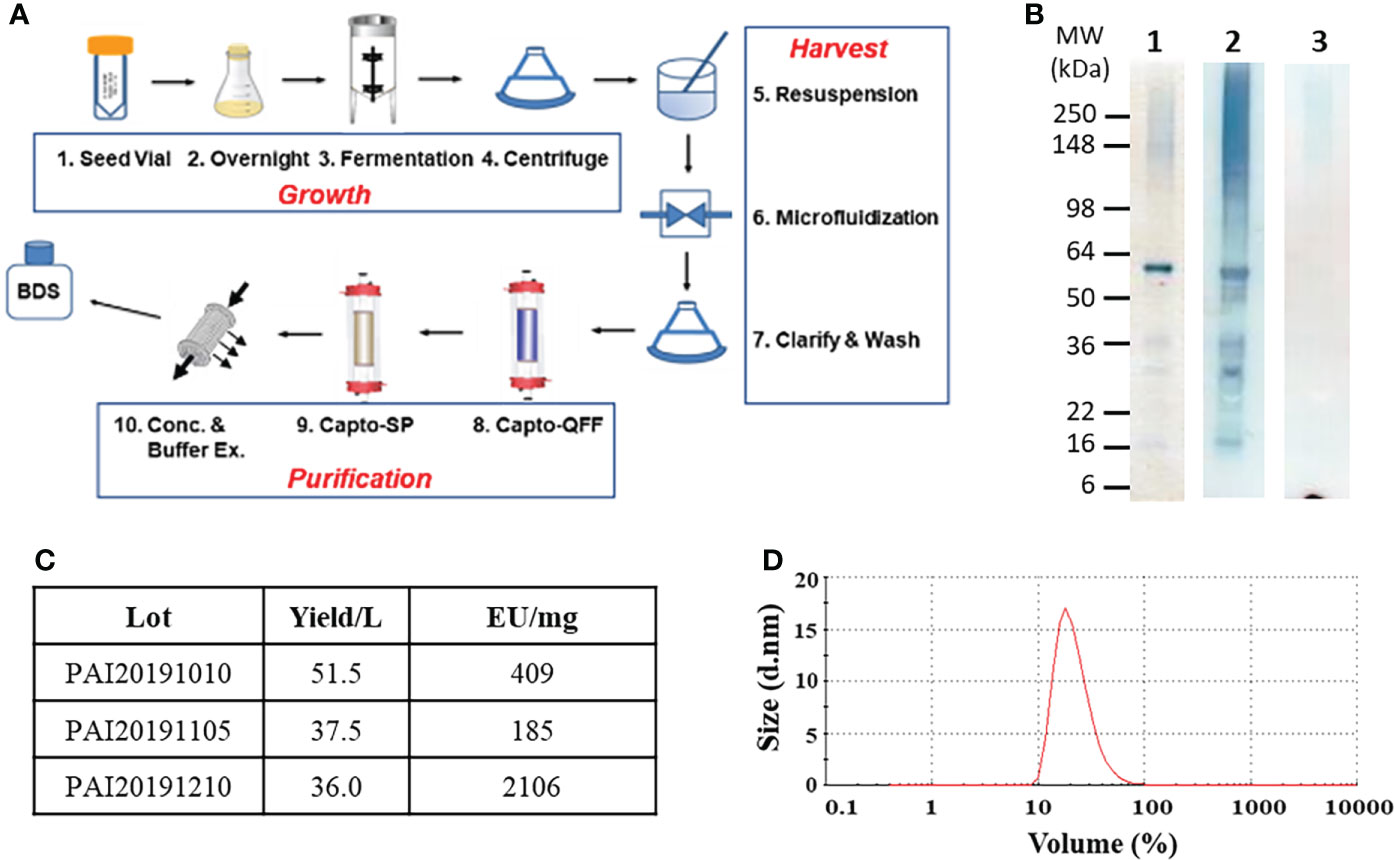

Figure 1

Protein was first bound to Capto Q Imp resin and contaminant proteins eluted by washing with 180 mM NaCl. Bound rBmHAXT was eluted at 300 mM NaCl. Elution fraction was then bound to a Capto SP ImpRes column. Removal of contaminants was performed at 300 mM NaCl, and elution of rBmHAXT at 1 M NaCl. The elution fraction was adjusted to pH 8, buffer exchanged into 50 mM Tris pH 8.0, and concentrated to ~1 mg/mL final concentration. Glycerol was added to 5% before storage at -80°C to promote stability and to reduce aggregation. Lane 1 of Figure 1B shows the final purified rBmHAXT protein resolved by reducing SDS-PAGE analysis. By Image J densitometry analysis, ~70% of rBmHAXT exists as a ~60 kDa monomer with the remaining protein forming aggregates at 100-300 kDa or existing as degradation products in the 16-36 kDa range. By non-reducing SDS-PAGE, the rBmHAXT tends to form small stable aggregates (data not shown). The monkey anti-rBmHAXT Western in Lane 2 and the anti-E. coli HCP Western in Lane 3 of Figure 1B confirm that nearly all of the protein seen in lane 1 is rBmHAXT derived and not E. coli contaminant proteins. Based on 3 independent runs starting with 2 L fermentation, the final process for rBmHAXT purification averages ~42 mg per liter of fermentation with varying levels of endotoxin in each batch (Figure 1C). Protein stability and quality was assessed by dynamic light scattering using a Malvern Zetasizer™ (Figure 1D). All lots were within the acceptable range for particle size (25-100 nm) averaging ~36.1 nm, including lot PAI20191105 which is shown in Figure 1D.

We also performed circular dichroism (CD) studies to determine if there are any structural differences between His-tagged rBmHAXT and tag-free rBmHAXT. These studies showed that the His-tagged rBmHAXT and tag-free rBmHAXT protein had similar percentages of α-helix and β strands (Supplementary Figures S1A, B). These findings suggested that the tag-free rBmHAXT protein is structurally similar to the parent His-tagged protein.

Tag-free rBmHAXT is immunogenic in inbred Balb/c mice

To confirm retention of biological activity, the untagged rBmHAXT was compared in vivo with the previously produced His-tagged protein. Figure 2 shows the titers induced in mice following immunization with 0 (adjuvant only), 5, 15, or 40 μg of either tag-free or His-tagged rBmHAXT adjuvanted with 10 μg AL019. None of the immunized animals developed significant titers of antibodies 15 days after the prime immunization (Figure 2A). After the 1^st boost, a significant increase in titers was observed for both antigens (Figure 2B). After the 2^nd boost, both antigens resulted in a dose-dependent increase in IgG titer with the 15 μg dose of tag-free rBmHAXT generating the highest titers, although not statistically significant (Figure 2C). Using immunoglobulin isotype-specific ELISAs, we measured the levels of IgG1, IgG2a, IgG2b, IgG3, IgA and IgM antibodies elicited by all 3 doses of both antigens after the third injection (Figure 3). Both antigens induced similar subtype profiles, with IgG1 levels being the highest at all three antigen doses. No significant differences were observed with any subtype elicited by either the tag-free or His-tagged rBmHAXT. To confirm protection, we tested the mouse sera in an antibody-dependent cell-mediated cytotoxic (ADCC) assay for their ability to participate in the killing of infective B. malayi L3 larvae. Larvae were considered dead if non-motile, limpid, or with several cells adhered to their surface. Both antigens elicited a strong, dose-dependent ADCC response resulting in the killing of L3 larvae, with the 5 μg dose resulting in ~52% killing and the 40 μg dose resulting in up to 90% killing (Figure 4). Again, there was no difference in killing between the tag-free and His-tagged rBmHAXT antigens, but a significant difference in killing was observed comparing the 5 μg dose to either the 15 or 40 μg doses (p<0.05). We conclude that both antigens generate statistically equivalent titers and that the 15 μg dose is ideal in BALB/c mice. We also noted elicitation of similar immunoglobulin isotypes and levels and nearly identical dose-dependent larvicidal activity with no significant difference noted in BALB/c mice comparing the tag-free or His-tagged rBmHAXT proteins.

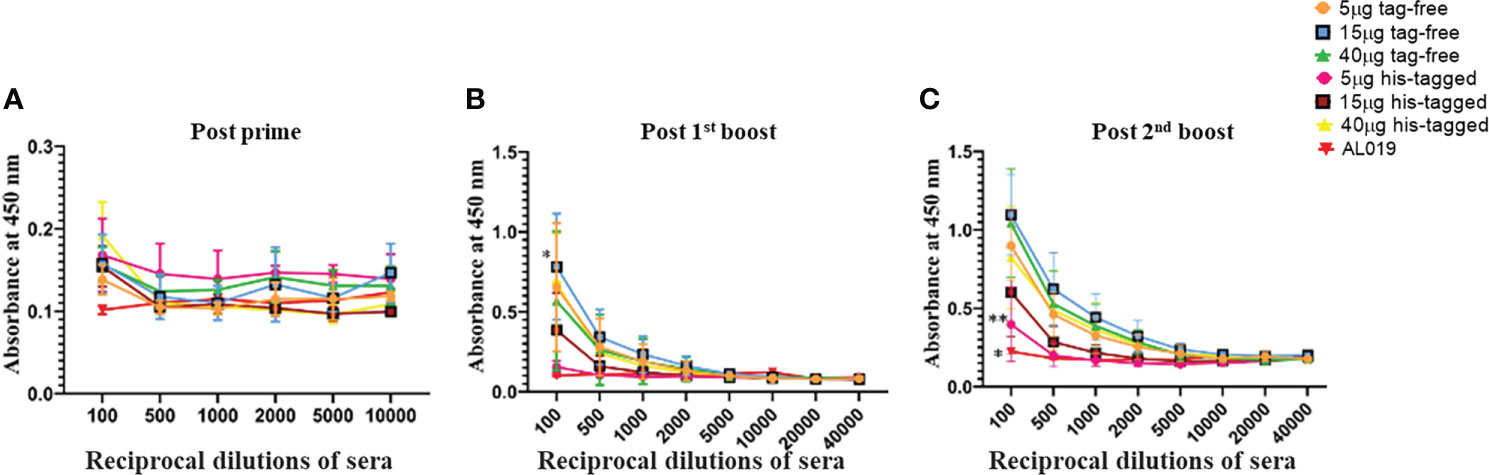

Figure 2

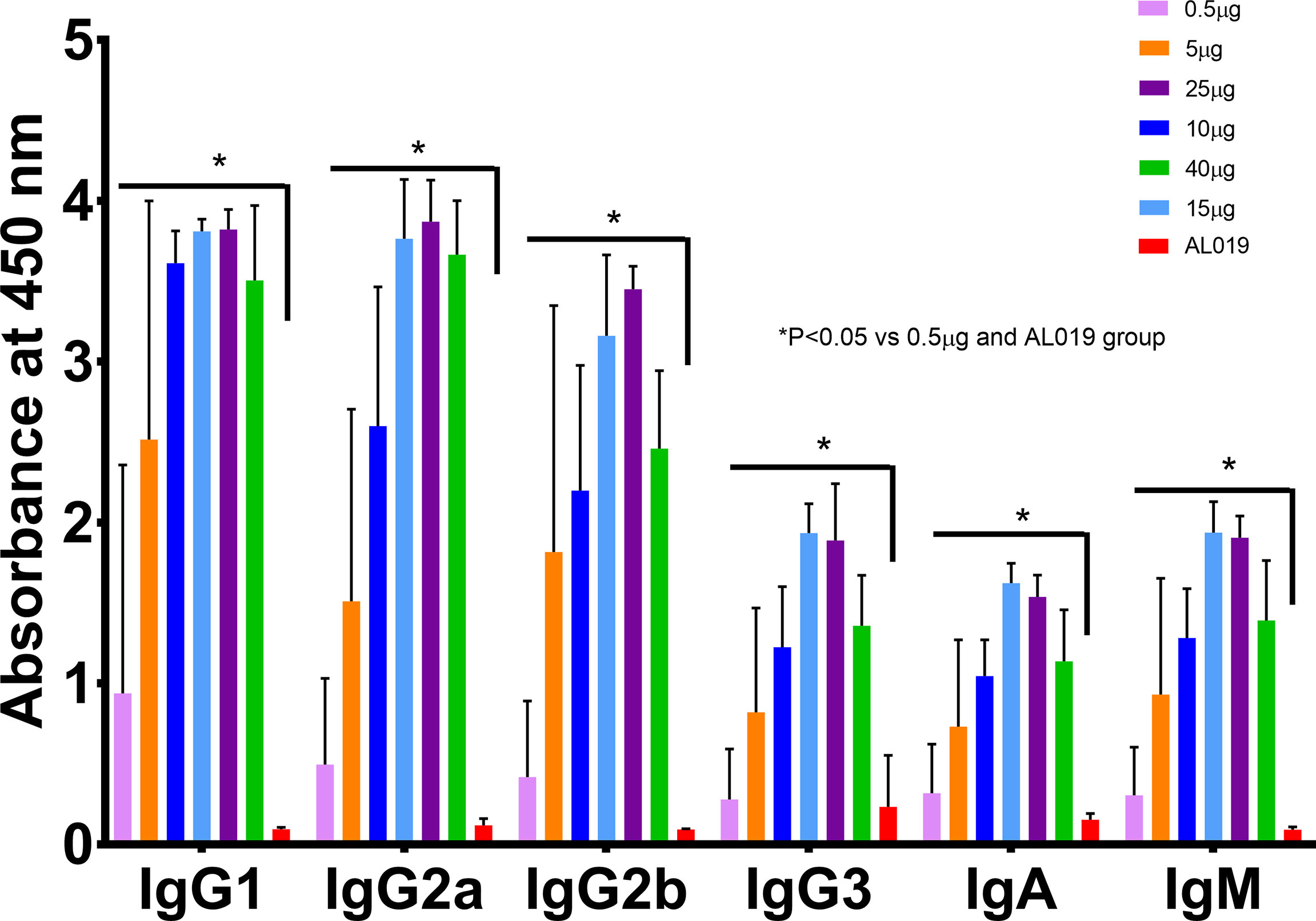

Figure 3

Figure 4

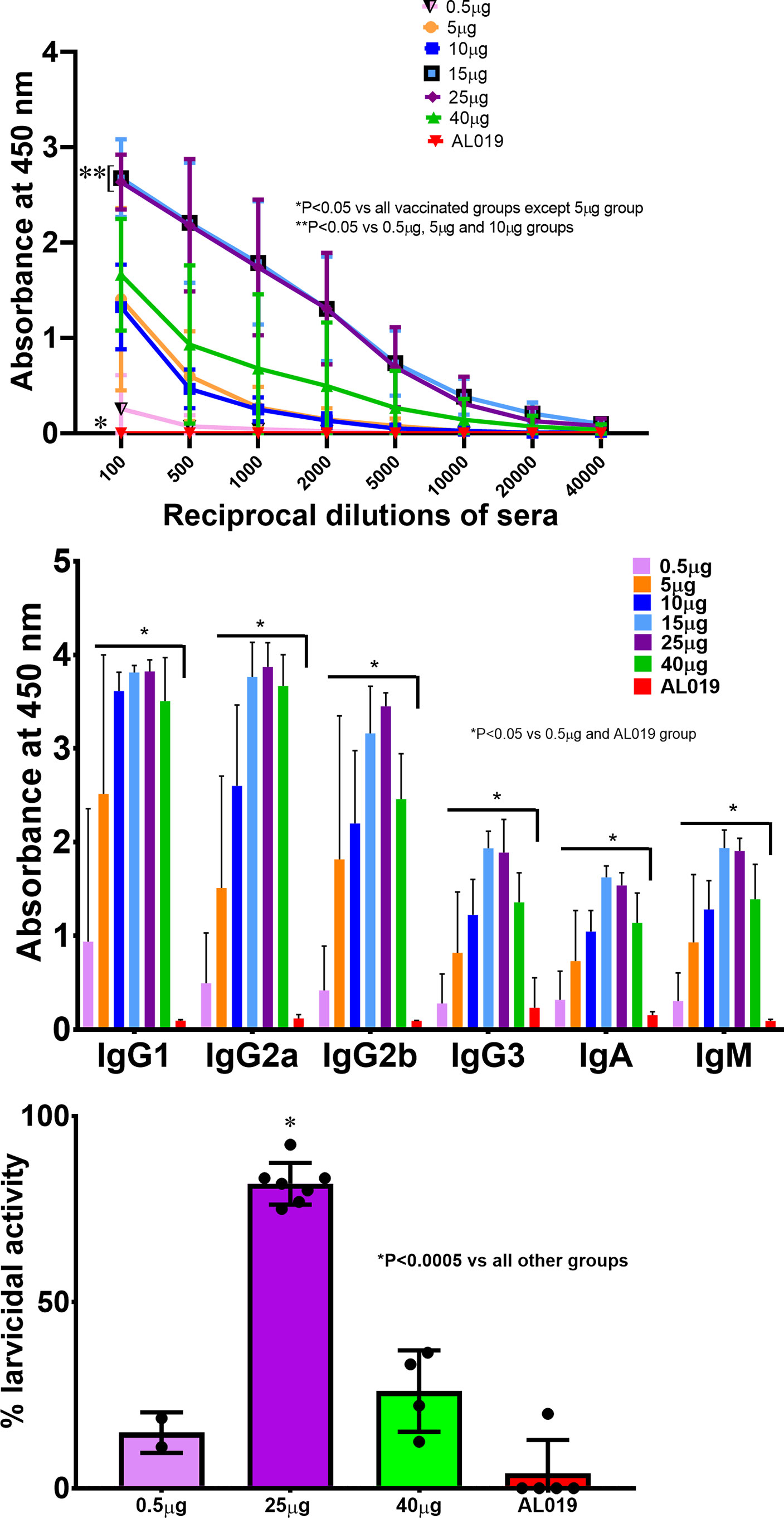

Tag-free rBmHAXT is immunogenic in outbred CD1 mice

Given the known limited genetic diversity in BALB/c mice and seeking a more challenging model, we confirmed protection and dose in outbred male CD1 mice. For this study, we tested only the tag-free rBmHAXT antigen after each of 3 immunizations with 6 doses ranging from 0.5 μg to 40 μg with 10 μg AL019 adjuvant. In contrast to what we observed with BALB/c mice, modest titers were observed after the prime injection (data not shown). After the 3rd injection, we observed significantly higher titers with both the 15 and 25 μg doses (Figure 5A). These titers were statistically (p<0.05) higher than those observed with 40 μg of antigen, which generated titers similar to that of the 5 and 10 μg doses. As with BALB/c mice, we analyzed the immunoglobulin subtype profiles elicited by the different antigen doses (Figure 5B). We found significant dose-dependent increases in all isotypes, especially with IgG1, IgG2a and IgG2b. Again, the 15 and 25 μg doses generated the highest level of all isotypes and the 40 μg dose generated slightly lower levels with every isotype tested. Thirty days after the third injection, CD1 mice immunized with 0 (adjuvant only), 0.5, 25, or 40 ug doses were challenged with B. malayi L3 larvae and examined for ADCC killing 72 hours later (Figure 5C). Once again, the 25 μg dose resulted in ~82% killing of L3 larvae which was substantially higher (p<0.005 for 25 μg versus all other groups) than the ~15% and ~25% killing observed with the 0.5 μg and 40 μg groups, respectively, or the ~4% killing in the adjuvant only group. These studies with CD1 mice confirm the protective potential of the tag-free rBmHAXT antigen and confirm the optimal dose to be 25 μg in outbred mice.

Figure 5

Tag-free rBmHAXT is immunogenic in outbred Mongolian gerbils

In a final bridging study, we compared the His-tagged rBmHAXT and tag-free antigen in a yet more rigorous and relevant animal model – specifically in Mongolian gerbils (Meriones unguiculatus). For B. malayi disease, gerbils are the preferred model for lymphatic filariasis due in part to their outbred nature and the fact that the parasites mature in the jirds and are able to maintain infection for several weeks (19, 20). Gerbils were immunized three times with 5 ug, 15 ug or 40 ug of the tag-free rBmHAXT adjuvanted with 10 μg AL019. Adjuvant only group remained as controls in these studies. All immunizations were given at 30 days interval.

As with mice, total IgG antibody titers were monitored and immunoglobulin isotypes were analyzed following the 3rd immunization dose. IgG titers at 30 days post the 3rd injection with His-tagged and tag-free rBmHAXT are shown in Figures 6A, B. With both antigens, the 40 μg dose generated the highest IgG titers with no statistically significant difference between the two antigens. Analysis of immunoglobulin isotypes showed a dose-dependent increase in all 6 isotypes tested - especially the levels of IgG3 were significantly high (Figure 6C).

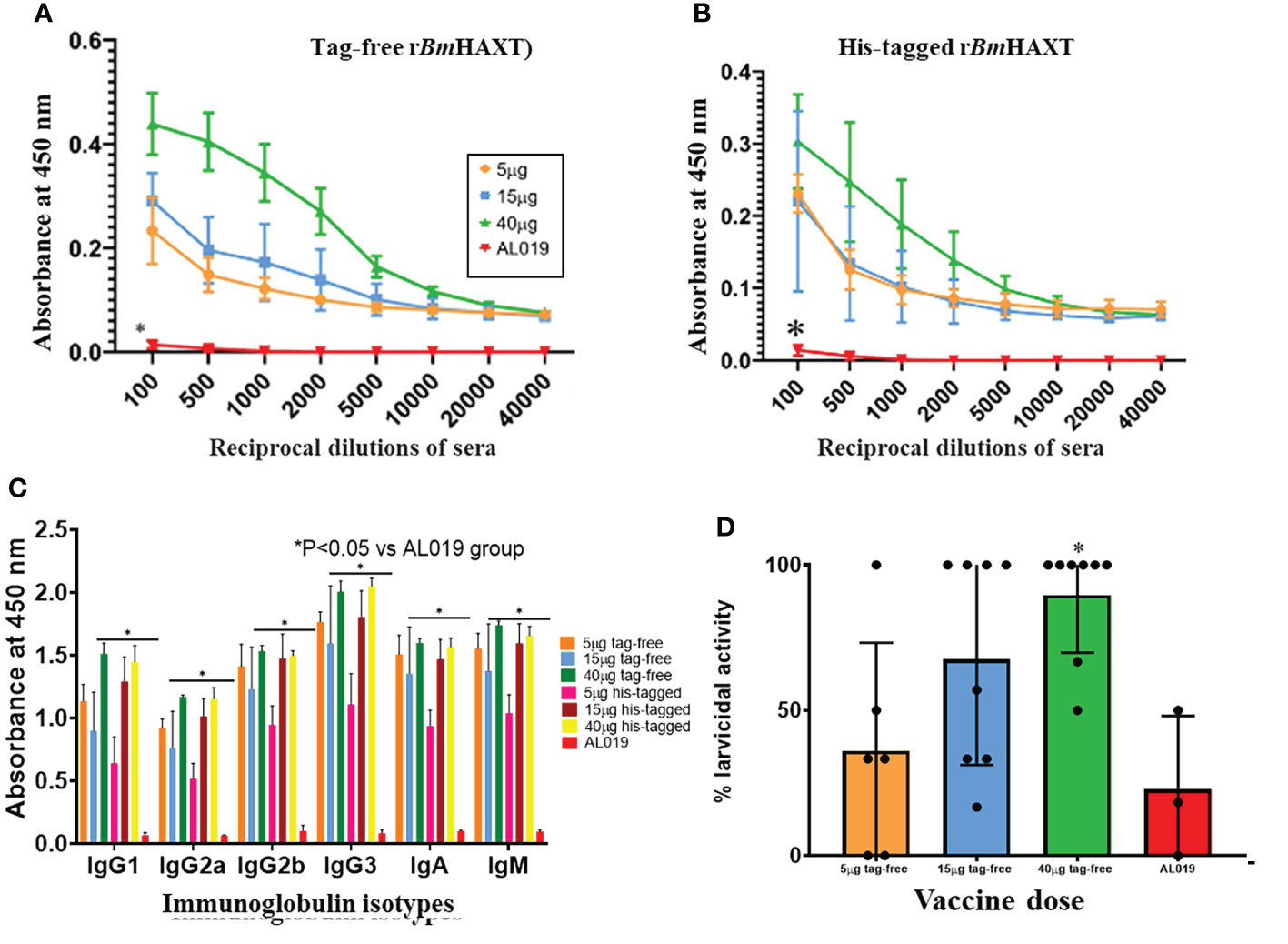

Figure 6

Vaccine-induced antibodies are protective in vitro in an ADCC assay

We evaluated the potential of serum antibodies from immunized gerbils in killing the infective larvae of B. malayi in an ADCC assay as described previously (18). Briefly, 50 ul of immune sera from gerbils immunized with 5 ug, 15 ug or 40 ug of tag-free rBmHAXT along with 1x10⁶ PBMCs from a normal gerbil were incubated with 10 infective larvae of B. malayi for 72 hrs at 37°C and 5% CO₂. At 72 hrs, there was significant killing of the infective larvae (Figure 6D). Sera collected from gerbils immunized with 15 ug and 40 ug of tag-free rBmHAXT showed significant killing (67.54% and 89.58% respectively) of the infective larvae compared to adjuvant controls (22.77%). Sera from gerbils immunized with 5 ug of rBmHAXT showed only 36.1% killing, which was not significant compared to the control (Figure 6D).

Worm establishment was decreased in vaccinated gerbils

Gerbils were immunized three times with 5 ug, 15 ug or 40 ug of the tag-free rBmHAXT at 30 days interval. Thirty (30) days following the last immunization, all gerbils were challenged with 50 L3 larvae of B. malayi. Weekly measurement of the body weight showed no significant differences between the control and vaccinated groups following immunization with any dose of either antigens suggesting that the vaccination had no adverse effect on the body weight (data not shown). Worm establishment was determined 90 days after the challenge. Our results showed that there was a significant decrease in the worm establishment in all vaccinated groups compared to controls (Figure 7). Fewer worms were recovered from gerbils immunized with 5 ug rBmHAXT, similarly no worms were recovered from gerbils immunized with 40 ug rBmHAXT, except for one gerbil that had 14 male and 14 female worms. In general, fewer male worms were recovered from vaccinated animals, compared to controls (Figure 7).

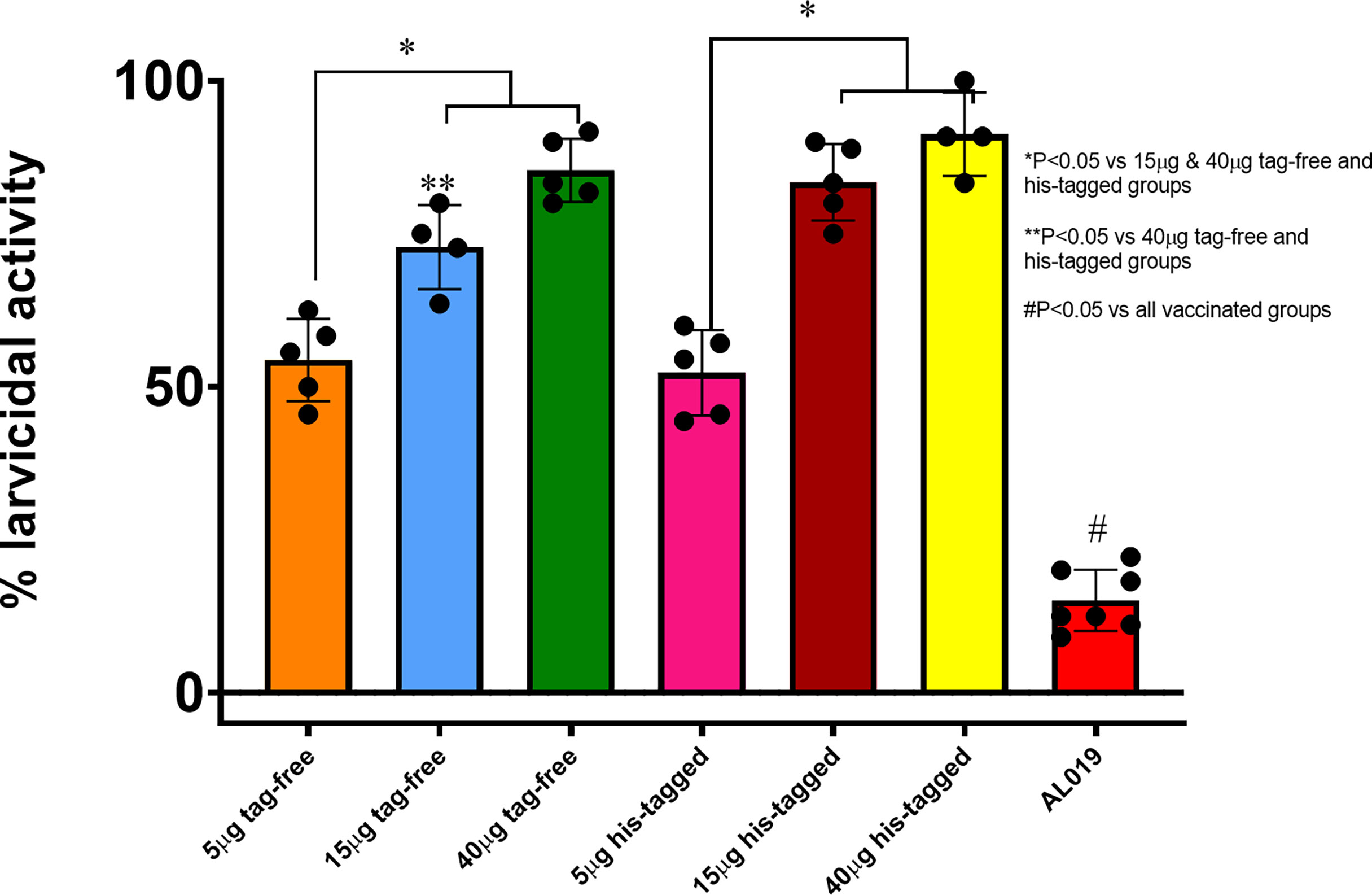

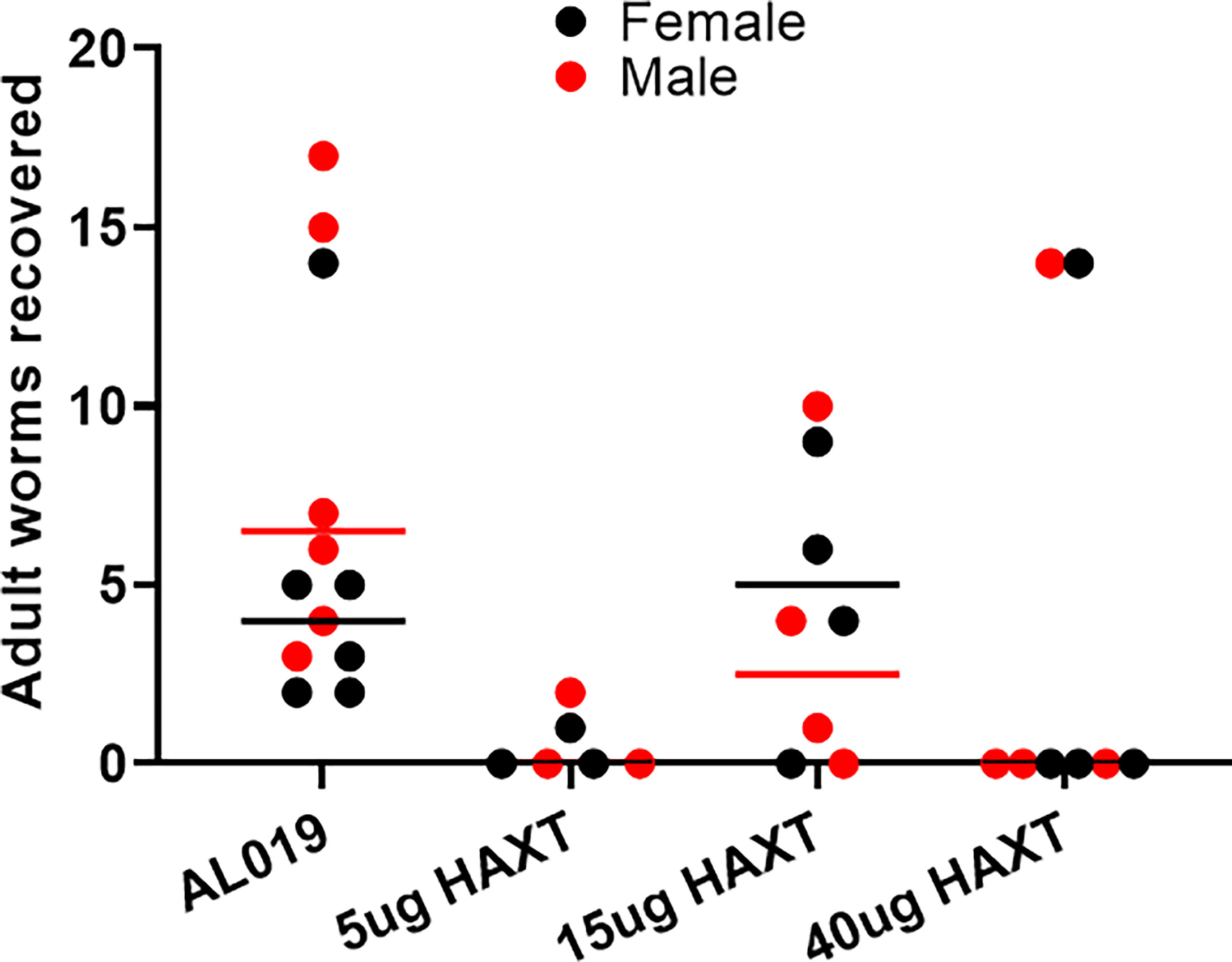

Figure 7

Discussion

The goal of this study was to take a promising research antigen, His-tagged rBmHAXT, which had previously been purified by immobilized metal ion chromatography, and redesign and optimize it for clinical translation and commercial manufacturing. The rBmHAXT was redesigned by removing the 6 × his tag, codon optimizing for E. coli, and cloning it into a commercially compliant plasmid vector and E. coli strain resulting in a research cell bank. A robust, scalable, and transferable process was developed for fermentation, IB isolation, and chromatographic purification of high-quality antigen. Master Batch Records for the production process were written to facilitate technology transfer to a good manufacturing practices (GMP)-compliant contract manufacturing organization. Initial bridging studies in mice comparing the research grade antigen with the redesigned tag-free antigen revealed equivalent antibody titers, immunoglobulin isotypes, and larvicidal killing by the tag-free antigen. Subsequently, the potency of the vaccine was tested in a gerbil model and we were able to demonstrate that the tag-free rBmHAXT antigen is immunogenic and induces protection similar to the original His-tagged rBmHAXT.

Previous vaccination trials in our laboratory in mouse, gerbil and rhesus macaque models demonstrated that rBmHAXT is an excellent vaccine candidate for human lymphatic filariasis (8). Vaccine-induced protection ranged from 57% (7 out of 10 macaques did not show infection) to 88% (in mice) following immunization with His-tagged rBmHAXT (16, 18). In order to get FDA approval and bring the vaccine to human use, there is a need to remove unneeded extraneous sequences like the His-tag from the vaccine antigen and to develop a scalable manufacturing process. Thus, our first goal was to generate tag-free rBmHAXT and optimize the expression of the protein for scale up for commercial manufacturing. Our initial vaccination trials in this study using the tag-free rBmHAXT protein in a mouse model showed that the immunogenicity and vaccine efficacy of tag-free rBmHAXT is not affected by removal of the His-tag. We also performed dose escalation studies to identify an optimal dose. Results from all these studies showed that at lower doses of tag-free rBmHAXT, vaccine efficacy was low, however, at higher doses, significant protection was achieved comparable to His-tagged rBmHAXT in the mouse model. Thus, our initial studies confirmed that tag-free rBmHAXT is as efficient as the original vaccine formulation. Unfortunately, there are no other multivalent vaccine against LF to compare at this stage.

To mimic the genetic diversity that is innate to humans (19, 21, 22) there is a need to test the vaccine antigen in an outbred strain. Numerous studies have suggested that inbred mouse strains - such as BALB/c - will typically result in highly reproducible results while outbred strains often tend to give variable results based on their individual genetic makeup (22). Similarly, the inbred and outbred mice differ in their ability to immunosense antigens that are offered to their immune system. The CD4 and CD8 T cells in outbred mice show equal and higher responses compared to the inbred mice, where CD8 T cell responses seem to predominate in inbred mice. Outbred mice showed peak responses later in the immune responses and these responses were prolonged compared to the inbred mice (23). Thus, immunity is long-lived in outbred mice. Another study by Tuttle et al. (24) demonstrated significant trait variability among inbred mice. Thus, inbred mice are probably not an accurate model for testing immune responses in the human (23, 24). Therefore, in this study we used an outbred strain of mice (CD1) and an outbred strain of gerbil to evaluate the potency and vaccine efficacy of the antigen in genetically diverse animals. Results from our studies confirm that the vaccine efficacy of our tag-free rBmHAXT antigen in CD1 mice and in gerbils are similar to that seen in inbred BALB/c mice. Thus, it can be safely concluded that the tag-free rBmHAXT vaccine has a broad spectrum of efficacy in genetically diverse rodent species. Dose escalation studies in CD1 mice showed that a dose of 15-25 ug gave the highest titer of IgG antibodies suggesting that the optimum range of the vaccine is between 15-25 ug. These findings also correlated with the protection studies after a challenge infection. A dose of 25 ug showed the highest percent of protection in CD1 mice confirming that the optimum dose of vaccine in an outbred strain of mice may be different than in inbred mice.

While mice are useful for early-stage validation, they have limitations for use with lymphatic filariasis due in part to phenotypic manifestations of disease and their short life span. However, they are useful to identify potential correlates of efficacy. It has been shown that while mice can be infected with W. bancrofti and will generate antibody titers, they do not maintain the infection (8). The B. malayi-infected gerbil serves as a laboratory model to mimic some of the aspects of the filarial infection of humans producing chronic parasitism characterized by microfilaremia and a Th2-mediated immune response (19, 20). Analysis of the vaccine in the gerbil model in this study showed that gerbils vaccinated with tag-free rBmHAXT generated significant titers of total IgG and various Ig isotypes. More importantly, the highest dose of antigen resulted in nearly 90% of killing of L3 larvae in an in vitro ADCC assay. This suggested that immunization with the tag-free rBmHAXT also generated protective antibodies as described previously with His-tagged rBmHAXT (20). Our challenge studies in gerbils also confirmed that worm recovery was significantly decreased in vaccinated animals compared to placebo control. Numbers of both male and female worms were substantially decreased. These findings confirm that tag-free rBmHAXT has the potential to be an excellent vaccine candidate for lymphatic filariasis. As such, we are moving the adjuvanted vaccine formulation termed “LFGuard™” forward to human testing.

Currently, there is no commercially licensed prophylactic vaccine available for LF (8). With over 880 million people at risk, there is a greater need for developing a vaccine for LF. An effective prophylactic vaccine should confer long-lasting and robust protective immune responses in the vaccinated individuals (8). Several previous attempts to develop a vaccine against LF resulted in the identification a number of potential vaccine candidates and approach to deliver the vaccines, such as cocktail vaccines (25), chimeric vaccines (26, 27), multi-subunit and multi-epitope vaccines (28–31), and multivalent vaccines (15, 16, 18). Among all these approaches, the multivalent vaccine approach gave slightly better results when tested in experimental rodent models. Subsequently, the best multivalent formulation, rBmHAXT was tested in a non-human primate model and showed great promise. In this manuscript we demonstrate that we could improve the final down selected multivalent formulation without losing its potency and immunogenicity.

Conclusion

From our studies in both inbred and outbred mice and Mongolian gerbils, we conclude that the newly redesigned tag-free rBmHAXT antigen results in equivalent protection compared to the original His-tagged antigen. These studies open the door for the next phase of developing this LFGuard™ vaccine as the first ever vaccine for human lymphatic filariasis. We are currently in the process of cGMP-compliant manufacturing of the vaccine. GLP toxicology studies in rabbits, developing an IND application for the FDA, and a human phase 1 clinical trial are currently being planned.

Funding

This work was supported by an NIH grant (R43 AI140708 and R44 AI140708).

Acknowledgments

The infective larval stage (L3) of B. malayi was obtained from the NIH/NIAID Filariasis Research Reagent Resource Center, College of Veterinary Medicine, University of Georgia, Athens, GA under NIAID supply contract AI no. 30022.

Publisher’s note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
