Abstract
Repetitive transcranial magnetic stimulation (rTMS) technology, which is amongst the most used non-invasive brain stimulation techniques currently available, has developed rapidly from 2009 to 2018. However, reports on the trends of rTMS using bibliometric analysis are rare. The goal of the present bibliometric analysis is to analyze and visualize the trends of rTMS, including general (publication patterns) and emerging trends (research frontiers), over the last 10 years by using the visual analytic tool CiteSpace V. Publications related to rTMS from 2009 to 2018 were retrieved from the Web of Science (WoS) database, including 2,986 peer-reviewed articles/reviews. Active authors, journals, institutions, and countries were identified by WoS and visualized by CiteSpace V, which could also detect burst changes to identify emerging trends. GraphPad Prism 8 was used to analyze the time trend of annual publication outputs. The USA ranked first in this field. Pascual-Leone A (author A), Fitzgerald PB (author B), George MS (author C), Lefaucheur JP (author D), and Fregni F (author E) made great contributions to this field of study. The most prolific institution to publish rTMS-related publications in the last decade was the University of Toronto. The journal Brain Stimulation published most papers. Lefaucheur et al.'s paper in 2014, and the keyword “sham controlled trial” showed the strongest citation bursts by the end of 2018, which indicates increased attention to the underlying work, thereby indicating the research frontiers. This study reveals the publication patterns and emerging trends of rTMS based on the records published from 2009 to 2018. The insights obtained have reference values for the future research and application of rTMS.
Introduction
Repetitive transcranial magnetic stimulation (rTMS) is a variant of transcranial magnetic stimulation (TMS) that can be applied to the modulation of corticospinal excitability from outside the skull via a time-varying magnetic field to generate electric current in the underlying brain tissue, leading to neuronal depolarization (Maeda et al., 2000; Klooster et al., 2016; Barker and Shields, 2017). rTMS is the most widely used non-invasive brain stimulation technique currently available (George and Aston-Jones, 2010; Miniussi et al., 2013; Cirillo et al., 2017; Lowe et al., 2017; Lucena et al., 2019). Numerous studies have investigated the effects and mechanisms underlying various rTMS protocols, which remain incompletely understood (Fitzgerald et al., 2006b; Boonzaier et al., 2018; Zorzo et al., 2019). Low-frequency (≤1.0 Hz) rTMS usually reduces cortical excitability, whereas high-frequency (>1.0 Hz) rTMS (HF-rTMS) raises excitability (Maeda et al., 2000; Rossini et al., 2015). Over the last decade, rTMS has been explored as a tool for the treatment of various neuropsychiatric conditions, including, but not limited to, depression, neuropathic pain, stroke, epilepsy, anxiety, schizophrenia, Parkinson's disease, obsessive compulsive disorder, and autism (Pascual-Leone et al., 1996; Hummel and Cohen, 2006; Hao et al., 2013; Hosomi et al., 2013). Combined strategies, i.e., combination of rTMS with neuroimaging techniques, medication, physiotherapy, or psychotherapy, have also been investigated to optimize the use of the technique (Reithler et al., 2011; Dayan et al., 2013; Kwon et al., 2016; Jansen et al., 2019; Terranova et al., 2019).
Bibliometrics is a quantitative method for analyzing literature in analytical science and assessing trends in research activities over time (Oelrich et al., 2007; Ellegaard and Wallin, 2015; Thompson and Walker, 2015). Bibliometric studies have been used in various areas, such as medical big data, pain, cognitive function, and neuroimaging, in recent years (Yeung et al., 2017; Liao et al., 2018; Wang et al., 2019; Zheng and Wang, 2019). A considerable number of scholars and academic journals have focused on publishing rTMS research over the last decade. However, reports of trends of rTMS using bibliometric analysis are rare.
This study conducts a bibliometric analysis of rTMS on the basis of records published from 2009 to 2018 to identify the publication patterns and emerging trends of this technique and gain new insights to guide future research and application.
Materials and Methods
Source of Data and Search Strategy
Published papers were retrieved via a topic search of the Science Citation Index Expanded (SCI-EXPANDED) index of the WoS database on 6 April 2019. The following search terms were used: topic = (“repetitive transcranial magnetic stimulation” or “rTMS”), index = SCI-EXPANDED and time span = 2009–2018.
Inclusion Criteria
The inclusion criteria are shown in Figure 1. A record was considered relevant if “repetitive transcranial magnetic stimulation” or “rTMS” was found in its title, abstract, or keywords. Only articles and reviews were included; other document types, such as meeting abstracts and letters, were excluded. In addition, the publication language was restricted to English, and no species limitations were set. A total of 2,986 records published during the period 2009–2018 met the inclusion criteria.

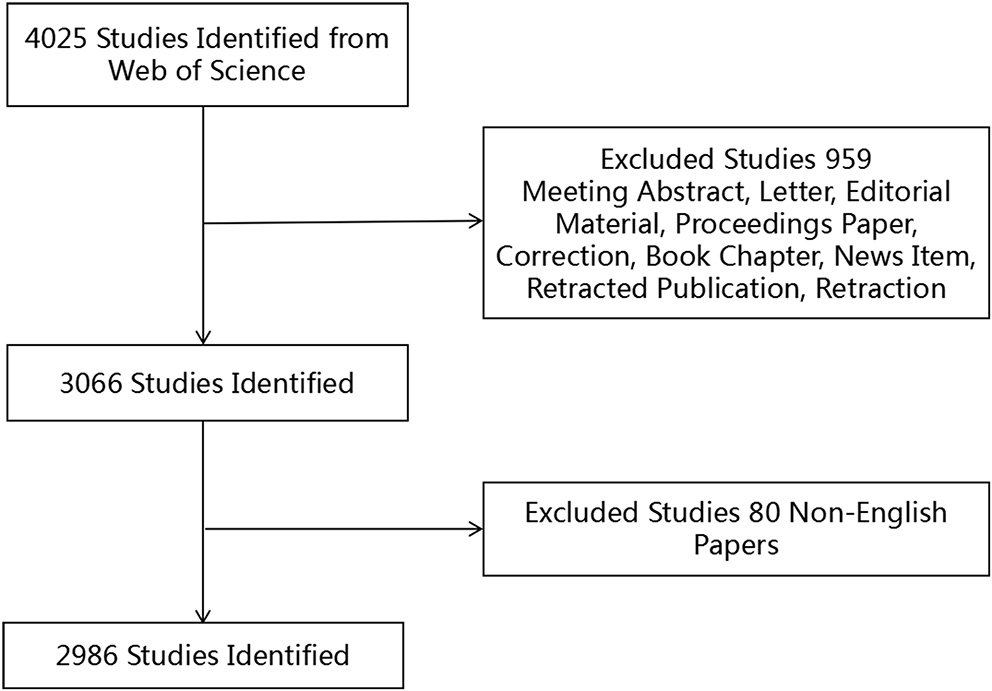

Figure 1
Flow chart of rTMS studies inclusion.
Analytical Methods
WoS provides detailed features of publications, such as number of papers, citations, citations per paper, essential science indicator (ESI) top papers, and Hirsch index (H-index). The number of papers reflects the research productivity. Citations measure the overall impact of the scientific output of a researcher, while the number of citations per paper measures the average impact. ESI top papers represent the most cited papers, including the hot papers and highly cited papers over the last 2 and 10 years, respectively (Fitzpatrick, 2005; Fu et al., 2011). The H-index is defined that a scientist has published h papers that have each been cited at least h times (if the H-index of a given individual is 10, this means that he published at least 10 papers and each of these 10 papers was cited at least 10 times) (Hirsch, 2005; McLean, 2019; Wang et al., 2019). The H-index evaluates the broad impact of the cumulative scientific publications of an author or country (Alonso et al., 2009; Bornmann and Daniel, 2009; da Silva and Dobranszki, 2018). Finally, impact factor (IF), according to Journal Citation Reports (2019), indicates the impact of journals.
CiteSpace V, a visual analytic system, is a good option for performing bibliometric analysis (Chen, 2004, 2006; Synnestvedt et al., 2005; Chen et al., 2012; Miao et al., 2017). CiteSpace V was used to perform co-citation analysis on authors, and synthesize and visualize the collaborations between countries into a network map which consists of a series of points and lines. In the network map, a point represents a country and a line between two points represents the cooperation relationship (Zheng and Wang, 2019). A wider line indicates a stronger relationship. More importantly, CiteSpace V can help detect the keywords and references with citation bursts. A citation burst has two characteristics, namely, strength and duration (Chen, 2006; Chen et al., 2012). A citation burst indicates increased attention to the underlying work over a certain period of time, which is a key indicator for determining emerging trends (Chen et al., 2014; Liang et al., 2017; Miao et al., 2017). GraphPad Prism 8, which has the basic functions of curve fitting and chart display of biological mathematical statistics, was applied to perform linear regression analysis and analyze the time trend of annual publication outputs.
Results
Publication Outputs and Time Trend
A total of 2,986 publications were included in the analysis. The distribution and time trend of annual publication outputs at different time stages are shown in Figure 2. The overall trend is positive, and the publication output was 198 references in 2009 and 375 references in 2018. The time trend of publications indicated a significant correlation (R2 = 0.8537, p = 0.0001) between the annual publication outputs and the publication years in the last 10 years.

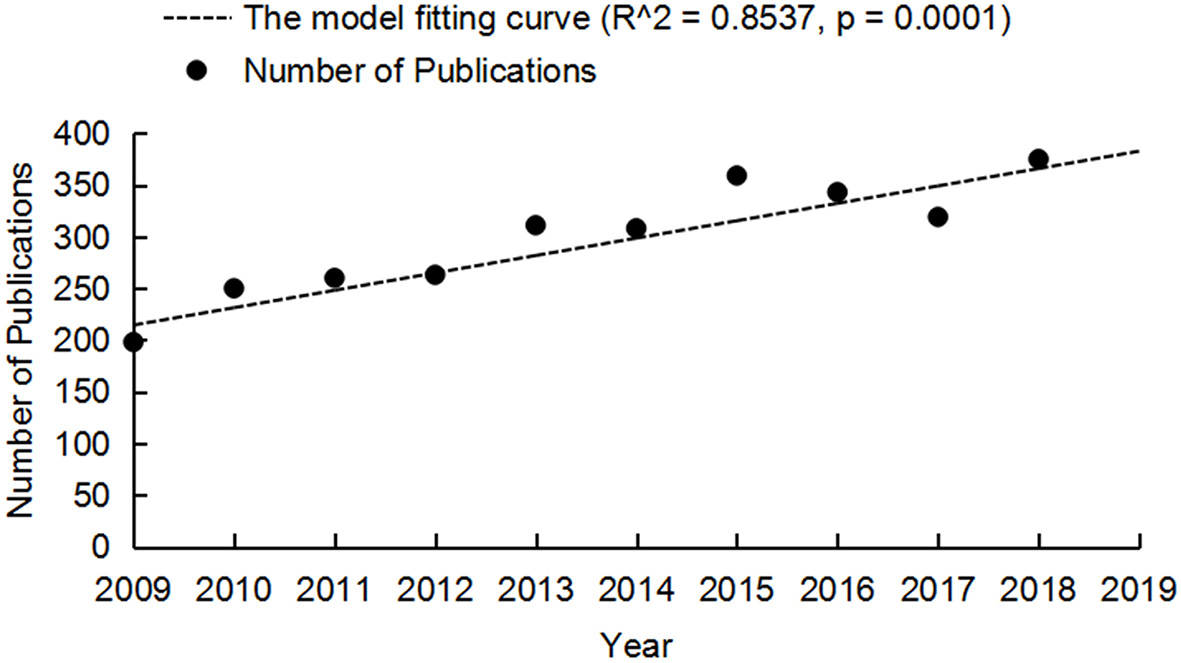

Figure 2
Annual publication outputs and the model fitting curve of time trend of rTMS publications.
Distribution by Journal
The 2,986 publications related to rTMS research were published in 565 scholarly journals. Amongst the top 20 journals shown in Table 1, the average IF was 3.660 (median 3.339, range 1.839–6.919). The journal Brain Stimulation with IF, 2018 = 6.919, published the most number of publications on rTMS research (199) and was cited 4,566 times, followed by PLoS One (publications, 89; IF, 2018 = 2.776; citations, 1269), Clinical Neurophysiology (publications, 66; IF, 2018 = 3.675; citations, 4,000), and Neuropsychologia (publications, 61; IF, 2018 = 2.872; citations, 1,015). Clinical Neurophysiology revealed the largest number of citations per paper published (60.61).
Table 1
| Rank | Journal title | Count | IF 2018 | Citations WoS | Citations per paper | Country |
|---|---|---|---|---|---|---|
| 1 | Brain Stimulation | 199 | 6.919 | 4,566 | 22.94 | USA |
| 2 | PLoS One | 89 | 2.776 | 1,269 | 14.26 | USA |
| 3 | Clinical Neurophysiology | 66 | 3.675 | 4,000 | 60.61 | Ireland |
| 4 | Neuropsychologia | 61 | 2.872 | 1,015 | 16.64 | England |
| 5 | Frontiers in Human Neuroscience | 56 | 2.870 | 986 | 17.61 | Switzerland |
| 6 | Neuroscience Letters | 51 | 2.173 | 542 | 10.63 | Netherlands |
| 7 | Restorative Neurology and Neuroscience | 50 | 1.839 | 761 | 15.22 | Netherlands |
| 8 | Journal of Ect | 49 | 2.280 | 492 | 10.04 | USA |
| 9 | Journal of Affective Disorders | 47 | 4.084 | 799 | 17.00 | Netherlands |
| 10 | Cerebral Cortex | 44 | 5.437 | 1,762 | 40.05 | USA |
| 11 | Neuroimage | 44 | 5.812 | 1,157 | 26.3 | USA |
| 12 | Journal of Neuroscience | 42 | 6.074 | 2,256 | 53.71 | USA |
| 13 | Psychiatry Research | 36 | 2.208 | 507 | 14.08 | Netherlands |
| 14 | European Journal of Neuroscience | 35 | 2.784 | 671 | 19.17 | England |
| 15 | Cortex | 30 | 4.275 | 685 | 22.83 | Italy |
| 16 | Experimental Brain Research | 30 | 1.878 | 791 | 26.37 | Germany |
| 17 | Frontiers in Neuroscience | 25 | 3.648 | 92 | 3.68 | Switzerland |
| 18 | Scientific Reports | 25 | 4.011 | 82 | 3.28 | England |
| 19 | Human Brain Mapping | 24 | 4.554 | 620 | 25.83 | USA |
| 20 | Journal of Cognitive Neuroscience | 24 | 3.029 | 556 | 23.17 | USA |
The top 20 journals that published articles on rTMS research.
IF, impact factor; WoS, Web of Science.
Distribution by Country and Institution
All publications were distributed amongst 43 countries or regions. Amongst the 10 countries shown in Table 2, the USA had the largest number of published papers (764), citations (20,469) and ESI top papers (17) and the highest value of H-index (64). England revealed the largest number of citations per paper (33.91). Figure 3 provides an intuitive comparison of the citations, H-indices and ESI top papers of the top five countries publishing rTMS-related research, and the collaboration network amongst countries/territories is shown in Figure 4. Amongst the 2,986 publications included in this study, 22.67% were published by the top 10 most prolific institutions. University of Toronto (127) ranked first in the number of publications, followed by Harvard University (112), University College London (83), and Ghent University (58), as presented in Table 3.
Table 2
| Rank | Country | Count | Citations WoS | Citations per paper | H-index | ESI top paper* |
|---|---|---|---|---|---|---|
| 1 | USA | 764 | 20,469 | 26.79 | 64 | 17 |
| 2 | Germany | 414 | 12,870 | 31.09 | 51 | 11 |
| 3 | Italy | 411 | 12,122 | 29.49 | 46 | 5 |
| 4 | England | 296 | 10,037 | 33.91 | 46 | 4 |
| 5 | Canada | 273 | 8,477 | 31.05 | 41 | 9 |
| 6 | China | 266 | 2,712 | 10.20 | 28 | 1 |
| 7 | France | 213 | 7,266 | 34.11 | 37 | 6 |
| 8 | Australia | 208 | 4,947 | 23.78 | 37 | 3 |
| 9 | Japan | 145 | 4,641 | 32.01 | 28 | 3 |
| 10 | South Korea | 128 | 1,253 | 9.79 | 19 | 0 |
The top 10 countries of origin of papers in the rTMS research.
ESI, essential science indicators; H-index, Hirsch index; WoS, Web of Science.
There were a total of 33 ESI top papers.

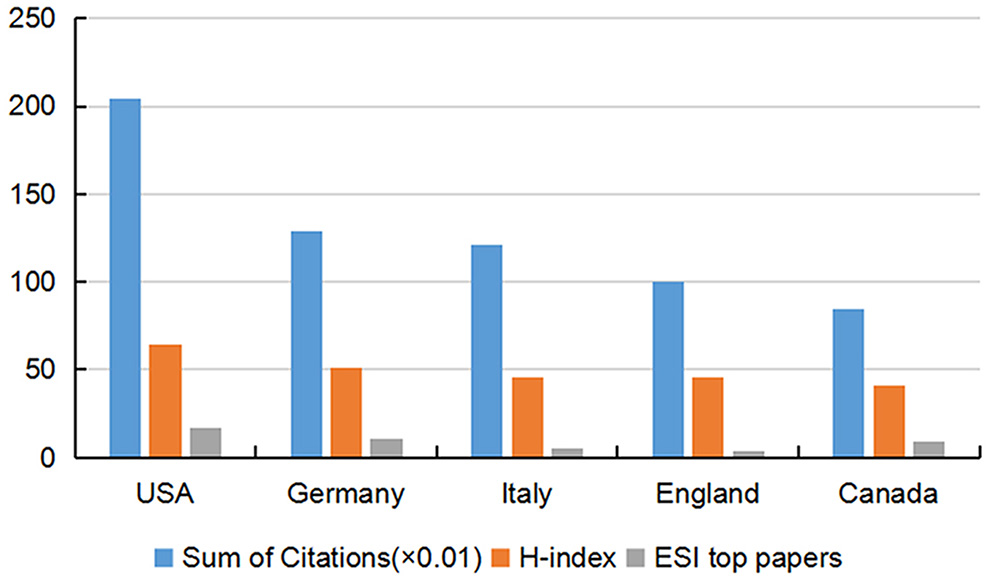

Figure 3
Citation counts (×0.01), H-index, and ESI top papers in the top five countries. ESI, essential science indicators; H-index, Hirsch index.

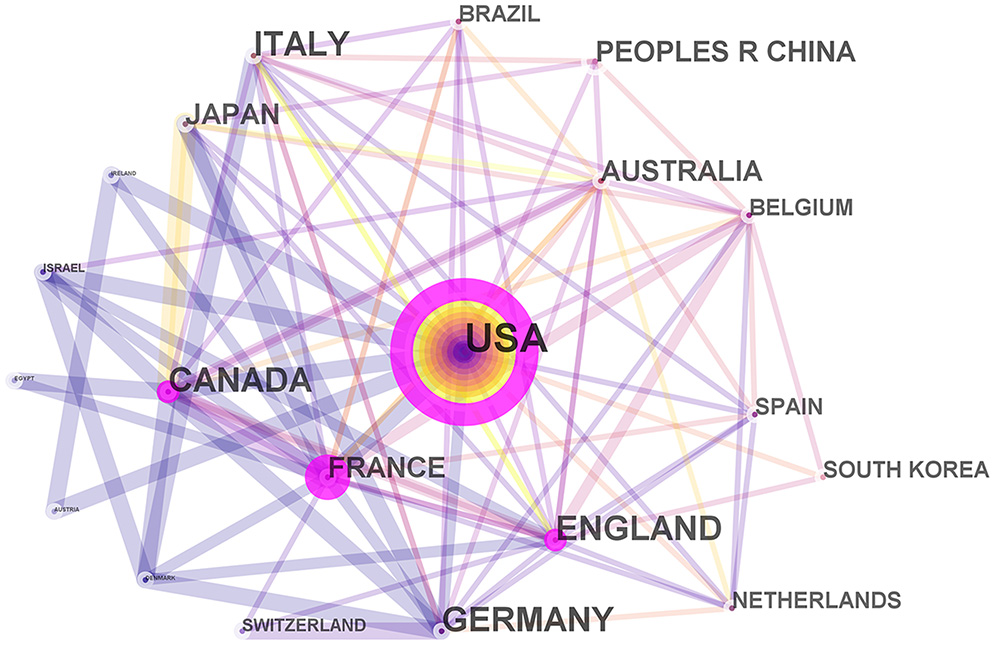

Figure 4
Network map of countries/territories engaged in rTMS research. In the network map, a point represents a country and a line between two points represents the cooperation relationship. A wider line indicates a stronger relationship.
Table 3
| Rank | Institution | Count | Rank | Institution | Count |
|---|---|---|---|---|---|
| 1 | University of Toronto | 127 | 6 | University of São Paulo | 52 |
| 2 | Harvard University | 112 | 7 | McGill University | 50 |
| 3 | University College London | 83 | 8 | Beth Israel Deaconess Medical Center | 49 |
| 4 | Ghent University | 58 | 9 | University of Regensburg | 48 |
| 5 | Monash University | 52 | 10 | Center for Addiction and Mental Health | 46 |
The top 10 institutions contributed to publications on rTMS research.
Distribution by Author
Over 9,600 authors contributed to the total output of rTMS research. The publication count in Table 4 reveals that Daskalakis ZJ published 81 papers, ranking first in terms of number of publications, followed by author A (78 publications), author B (65 publications), and Baeken C (51 publications). In terms of co-citation counts, Rossi S (817 citations) ranked first as the most co-cited author, followed by author B (594 citations), Wassermann EM (574 citations), and author C (518 citations).
Table 4
| Rank | Author | Count | Co-cited author | Count |
|---|---|---|---|---|
| 1 | Daskalakis ZJ | 81 | Rossi S | 817 |
| 2 | Pascual-Leone A | 78 | Fitzgerald PB | 594 |
| 3 | Fitzgerald PB | 65 | Wassermann EM | 574 |
| 4 | Baeken C | 51 | George MS | 518 |
| 5 | George MS | 46 | Fregni F | 477 |
| 6 | Langguth B | 46 | Huang YZ | 449 |
| 7 | Zangen A | 42 | Lefaucheur JP | 426 |
| 8 | Lefaucheur JP | 39 | Chen R | 421 |
| 9 | Rothwell JC | 39 | Pascualleone A | 415 |
| 10 | Fregni F | 38 | Rossini PM | 327 |
The top 10 authors and co-cited authors in rTMS research.
Analysis of References
The evolution of a knowledge domain can be indicated by references with citation bursts (Synnestvedt et al., 2005; Chen et al., 2014). Table 5 shows the references with the strongest citation bursts during the period 2009–2018. Amongst them, citation bursts by the end of 2018 were led by author D's article published in 2014, which had the strongest burst (71.8868), followed by Rossini et al. (2015) and Berlim et al. (2014).
Table 5
| References | Year | Strength | Begin | End | 2009–2018 |
|---|---|---|---|---|---|
| Gershon et al. (2003) | 2003 | 14.0082 | 2009 | 2011 |
|
| Robertson et al. (2003) | 2003 | 6.5016 | 2009 | 2011 |
|
| Huang et al. (2005) | 2005 | 42.1427 | 2009 | 2013 |
|
| Strafella et al. (2003) | 2003 | 6.9683 | 2009 | 2011 |
|
| Siebner and Rothwell (2003) | 2003 | 14.4801 | 2009 | 2011 |
|
| Siebner et al. (2004) | 2004 | 14.9524 | 2009 | 2011 |
|
| Fitzgerald et al. (2006a) | 2006 | 13.4706 | 2010 | 2013 |
|
| Iyer et al. (2003) | 2003 | 11.6128 | 2010 | 2011 |
|
| Herwig et al. (2007) | 2007 | 11.6128 | 2010 | 2011 |
|
| Gross et al. (2007) | 2007 | 12.2034 | 2010 | 2013 |
|
| Herwig et al. (2003) | 2003 | 13.0778 | 2010 | 2011 |
|
| Mansur et al. (2005) | 2005 | 14.0562 | 2010 | 2011 |
|
| Naeser et al. (2005) | 2005 | 12.6206 | 2011 | 2012 |
|
| Fitzgerald et al. (2006b) | 2006 | 18.3944 | 2011 | 2014 |
|
| Oreardon et al. (2007) | 2007 | 4.3588 | 2011 | 2015 |
|
| Fregni et al. (2006) | 2006 | 10.2826 | 2012 | 2014 |
|
| Lam et al. (2008) | 2008 | 13.4243 | 2012 | 2013 |
|
| Hallett (2007) | 2007 | 7.2548 | 2012 | 2015 |
|
| Schutter (2009) | 2009 | 2.4316 | 2012 | 2013 |
|
| George and Post (2011) | 2011 | 11.8953 | 2013 | 2014 |
|
| Pell et al. (2011) | 2011 | 14.6987 | 2013 | 2016 |
|
| Ziemann et al. (2008) | 2008 | 11.8953 | 2013 | 2014 |
|
| Huang et al. (2007) | 2007 | 9.4852 | 2014 | 2015 |
|
| Hamada et al. (2013) | 2013 | 13.524 | 2014 | 2018 |
|
| Cheeran et al. (2008) | 2008 | 12.7504 | 2014 | 2015 |
|
| George et al. (2013) | 2013 | 11.2585 | 2014 | 2015 |
|
| Ridding and Rothwell (2007) | 2007 | 3.7702 | 2014 | 2015 |
|
| Fox et al. (2012) | 2012 | 7.4318 | 2015 | 2016 |
|
| Ridding and Ziemann (2010) | 2010 | 10.7746 | 2015 | 2018 |
|
| Berlim et al. (2014) | 2014 | 20.5935 | 2015 | 2018 |
|
| Cho and Strafella (2009) | 2009 | 12.7212 | 2016 | 2018 |
|
| Deng et al. (2013) | 2013 | 8.4915 | 2016 | 2018 |
|
| Rossini et al. (2015) | 2015 | 28.954 | 2016 | 2018 |
|
| Hsu et al. (2012) | 2012 | 9.7654 | 2016 | 2018 |
|
| Fitzgerald et al. (2009) | 2009 | 11.2418 | 2016 | 2018 |
|
| Guse et al. (2010) | 2010 | 8.6631 | 2016 | 2018 |
|
| Berlim et al. (2013) | 2013 | 12.2245 | 2016 | 2018 |
|
| Lefaucheur et al. (2014) | 2014 | 71.8868 | 2016 | 2018 |
|
| Bakker et al. (2015) | 2015 | 14.4765 | 2016 | 2018 |
|
| Gersner et al. (2011) | 2011 | 9.4134 | 2016 | 2018 |
|
References with the strongest citation bursts on rTMS research.
The red bars mean the references cited frequently; the green bars mean the references cited infrequently. A greater strength indicates a higher frequency of citation. The references in bold were reviewed in this study.
Analysis of Keywords
Burst keywords can also be identified as indicators of emerging trends (Chen et al., 2014). Table 6 presents keywords with the strongest citation bursts in this field. The most recent burst keywords were “spinal cord injury,” “sham-controlled trial,” “recovery,” and “functional connectivity.”
Table 6
| Keywords | Year | Strength | Begin | End | 2009–2018 |
|---|---|---|---|---|---|
| Activation | 2009 | 10.9509 | 2009 | 2014 |
|
| Premotor cortex | 2009 | 8.197 | 2009 | 2010 |
|
| Perception | 2009 | 7.4775 | 2009 | 2011 |
|
| Cortical plasticity | 2009 | 7.346 | 2009 | 2011 |
|
| Human | 2009 | 6.2637 | 2009 | 2011 |
|
| Synaptic plasticity | 2009 | 5.9433 | 2009 | 2010 |
|
| Working memory | 2009 | 3.9615 | 2009 | 2013 |
|
| Paired associative stimulation | 2009 | 3.8581 | 2009 | 2010 |
|
| Corticospinal excitability | 2009 | 8.7584 | 2010 | 2011 |
|
| Intracortical inhibition | 2009 | 8.5027 | 2010 | 2011 |
|
| Cerebral blood flow | 2009 | 8.0015 | 2010 | 2011 |
|
| Treatment | 2009 | 7.5005 | 2010 | 2011 |
|
| Positron emission tomography | 2009 | 3.6267 | 2010 | 2015 |
|
| Aphasia | 2009 | 10.4987 | 2011 | 2013 |
|
| Tinnitus | 2009 | 8.4556 | 2011 | 2012 |
|
| EEG | 2009 | 5.6254 | 2011 | 2012 |
|
| Mechanism | 2009 | 3.662 | 2011 | 2012 |
|
| Primary motor cortex | 2009 | 10.6895 | 2012 | 2014 |
|
| Language | 2009 | 6.7568 | 2012 | 2016 |
|
| Human brain | 2009 | 9.7966 | 2013 | 2014 |
|
| Therapy | 2009 | 6.6686 | 2013 | 2014 |
|
| Neuropathic pain | 2009 | 9.4064 | 2014 | 2015 |
|
| Inhibition | 2009 | 8.5034 | 2014 | 2016 |
|
| Spinal cord injury | 2009 | 11.0035 | 2015 | 2018 |
|
| Sham controlled trial | 2009 | 8.5157 | 2015 | 2018 |
|
| Alzheimers disease | 2009 | 8.105 | 2015 | 2016 |
|
| Recovery | 2009 | 5.5658 | 2015 | 2018 |
|
| Functional connectivity | 2009 | 4.0777 | 2015 | 2018 |
|
Keywords with the strongest citation bursts of publications on rTMS research.
The red bars mean the keywords occurred frequently; the green bars mean the keywords occurred infrequently. A greater strength indicates a higher frequency of occurrence.
EEG, electroencephalogram.
Discussion
General Trends of rTMS From 2009 to 2018
rTMS has received great attention, and research related to the technique has been increasingly performed. It is reasonable to expect a promising future for rTMS based on analyzing the time trend of annual publication outputs.
Amongst the 20 top-performing journals, four journals, namely, Brain Stimulation (IF, 2018 = 6.919), Journal of Neuroscience (IF, 2018 = 6.074), Neuroimage (IF, 2018 = 5.812), and Cerebral Cortex (IF, 2018 = 5.437), had IF scores >5.000, and another seven journals had IF scores between 3.000 and 5.000. Approximately 19.09% (IF, 2018 > 5.000, 11.02%; 5.000 ≥ IF, 2018 ≥ 3.000, 8.07%) of the 2,986 publications involved were published in the top 20 journals with high IF (>3.000). In summary, it was challenging to publish papers related to rTMS in high-IF journals.
Amongst the top 10 countries, nine are developed countries and only one (i.e., China) is a developing country. From this point of view, there was still a wide gap between developed and developing countries in this filed. Although France revealed the largest number of citations per paper (74.6) amongst the top 10 countries publishing rTMS-related research, the USA ranked first in terms of publication count (764), citation count (20,469), and H-index (64). Moreover, the USA had more than half of the ESI top papers (17, 51.52%), which were hot papers and highly cited papers (Fitzpatrick, 2005; Fu et al., 2011). Therefore, the USA is the leading country in terms of the overall influence in this area.
Information on influential authors can help researchers identify potential collaborators. Authors A, B, C, D, and E were the most prolific and influential authors in this field, as determined by a comprehensive analysis of numbers of publications and co-citations. Author A suggested that rTMS of the left dorsolateral prefrontal cortex may be a potential treatment for depression (Pascual-Leone et al., 1996). Author B studied the neurobiological mechanisms of the antidepressant effects of rTMS and explored the use of rTMS for depression (Fitzgerald et al., 2006b; Arns et al., 2012; Fitzgerald and Daskalakis, 2012; Noda et al., 2015; Silverstein et al., 2015). Author C confirmed that daily left prefrontal rTMS is safe and effective for treating major depression (MD) (George et al., 2010). Author D showed extensive experience in treating neuropathic pain with rTMS (Lefaucheur, 2006; Lefaucheur et al., 2008b, 2012). Author E studied the effects of non-invasive brain stimulation, including rTMS and transcranial direct current stimulation on psychiatric disorders, pain, and neurological disorders (Lefaucheur et al., 2008a; Miniussi et al., 2008; Zaghi et al., 2009; Brunoni and Fregni, 2011).
Emerging Trends of rTMS
The evolution of a knowledge domain can be reflected by keywords or references with citation bursts (Fitzpatrick, 2005; Chen, 2006). Therefore, this section analyzes keywords or references showing remarkable bursts by the end of 2018 to reveal emerging trends and provide directions for future research.
Keywords as Indicators of Emerging Trends
Burst keywords are considered indicators of emerging trends. Four emerging trends in rTMS research were determined according to the most recent keyword bursts; these keywords are listed as follows:
Spinal cord injury (SCI): rTMS has emerged as a promising therapeutic technique for SCI patients (de Araújo et al., 2017; Nardone et al., 2017), and the technique has been applied to alleviate some of the main consequences of SCI, including sensory and motor function impairments, spasticity, and neuropathic pain (Tazoe and Perez, 2015; Gunduz et al., 2017). rTMS has also been used in animal experiments on SCI. For example, Krishnan et al. (2019) tested whether rTMS is effective in promoting plasticity and rehabilitation in a rat model of SCI, and their results suggested that rTMS can be used as an early intervention strategy; however, its efficacy and safety in clinical application should be further tested.
Sham controlled trial: The type of stimulation is the key point of a sham-controlled trial. Although many studies have included sham-stimulation as control, realistic sham stimulation cannot be guaranteed in studies today (Mennemeier et al., 2009; Lefaucheur et al., 2014). High-quality sham-controlled trials are needed to design a completely blind research. As a preferential option for realistic sham trials, concomitant electrical skin stimulation may be superior to coil angulation and first-generation sham coils (Hosomi et al., 2013; Berlim et al., 2014; Lefaucheur et al., 2014).
Recovery: rTMS has a positive impact on functional recovery, such as limb motor recovery in stroke patients; however, optimal rTMS parameters and high-quality evidence require further research (Pollock et al., 2014; Boonzaier et al., 2018; Yang et al., 2018; Xiang et al., 2019).
Functional connectivity: Numerous neuropsychiatric conditions are reportedly coupled with network disturbances (Bassett and Bullmore, 2006, 2017; Grefkes and Fink, 2009, 2011; Frantzidis et al., 2014). As a means of modulating cerebral networks, rTMS not only interferes with the target cortex but also with those distant and interconnected areas, thereby restoring or increasing functional connectivity (Grefkes and Fink, 2009). Future studies on functional connectivity may facilitate new insights into the pathophysiology of neuropsychiatric conditions and optimize therapeutic strategies of rTMS (Grefkes and Fink, 2011; Krishnan et al., 2019; Kumru et al., 2019; Xiang et al., 2019).
References With Strong Citation Bursts
References with citation bursts constitute an intellectual base, providing a better understanding of the trends of specific research fields (Fitzpatrick, 2005; Synnestvedt et al., 2005). Instead of discussing all the references with the strongest citation bursts, the following discussions will focus on the top five references by the end of 2018, which are shown in bold in Table 5.
As shown in Table 5, a paper by Lefaucheur et al. (2014) revealed the strongest burst by the end of 2018. In this paper, a group of European experts set up evidence-based guidelines on the clinical applications of rTMS in the neurological, ENT (ear, nose, and throat) and psychiatric domains. They also recommended that future technical developments of rTMS concentrate on the creation of new coil shapes and magnetic field geometries and progress of neuronavigation, especially combined with functional imaging and high-resolution EEG, for individualized rTMS treatment.
Rossini et al. (2015) revealed the second strongest citation burst by the end of 2018. The authors updated basic guidelines for clinical application and research on non-invasive stimulation in neuroscience and listed a number of unresolved issues. For example, they described the therapeutic applications of rTMS in depression and neuropathic pain through paradigmatic examples.
The next paper is Berlim et al. (2014), which represented the first meta-analysis to study response, remission, and dropout rates following HF-rTMS for MD. Some practical advice for future studies on rTMS for MD were also proposed. For instance, the authors recommended verification of the clinical utility of the targeted alternative brain region of HF-rTMS for MD.
Bakker et al. (2015) ranked fourth amongst the strongest citation bursts by the end of 2018. In this study, the authors observed 185 depression cases and found that intermittent theta burst stimulation (iTBS) and 5-fold longer 10 Hz protocols were comparable in terms of safety, tolerability and efficacy for dorsomedial prefrontal rTMS (30 min, 10 Hz vs. 6 min iTBS). Continuation of randomized trials of 10 Hz and iTBS in future work is recommended.
The burst duration in the study of Hamada et al. (2013) lasted 4 years beginning in 2014. In light of the individual variability existing in the after-effects of rTMS, Hamada et al. examined the effects of rTMS in 56 healthy subjects and provided evidence that individual variations in response to rTMS protocols are due to the neuronal networks activated by each TMS pulse.
To the best our knowledge, this study is the first to assess the trends of rTMS on the basis of literature published from 2009 to 2018 through a bibliometric approach. The study provides new insights for clinical and scientific growth and analyzes various aspects of published works. Nevertheless, this work has some limitations. The topic search was only conducted in SCI-EXPANDED of WoS and did not include other databases, such as PubMed and Scopus. Besides, non-English publications, which were few in number and may not change the conclusions, were excluded during retrieval. This study focuses on quantitative analysis but less qualitative analysis.
In conclusion, this study may help investigators discover the publication patterns and emerging trends of rTMS from 2009 to 2018, and presents reference values for the future research and applications of rTMS. The most influential author, institution, journal and country were author A, University of Toronto, Brain Stimulation and the USA, respectively. “Spinal cord injury,” “sham-controlled trial,” “recovery,” and “functional connectivity” may be the latest research frontiers. References with the most recent citation bursts, e.g., Lefaucheur et al. (2014), are worthy of attention and fundamental to emerging trends.
Statements
Data availability statement
All datasets generated for this study are included in the article/supplementary material.
Author contributions
This study was conceptualized by K-YZ, G-YD, YL, and X-QW. K-YZ contributed to collecting data. Analyzing data and drafting the manuscript were by K-YZ and G-YD. K-YZ, G-YD, YL, and X-QW contributed to revising and approving the final version of the manuscript.
Funding
This work was supported by the National Key R&D Program of China (grant number 2018YFC1314700); Fok Ying-Tong Education Foundation of China (grant number 161092); The scientific and technological research program of the Shanghai Science and Technology Committee (grant number 19080503100); the Shanghai Key Lab of Human Performance (Shanghai University of Sport) (grant number 11DZ2261100); the National Science Foundation of China (grant numbers 81772438, 81572230); Guangzhou Municipal Science and Technology Program (grant number 201803010083).
Acknowledgments
We would to thank Linman Weng for assistance with statistical analyses.
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
References
1
Alonso S. Cabrerizo F. J. Herrera-Viedma E. (2009). H-index: a review focused in its variants, computation and standardization for different scientific fields. J. Informetr.3, 273–289. 10.1016/j.joi.2009.04.001
2
Arns M. Drinkenburg W. H. Fitzgerald P. B. Kenemans J. L. (2012). Neurophysiological predictors of non-response to rTMS in depression. Brain Stimul.5, 569–576. 10.1016/j.brs.2011.12.003
3
Bakker N. Shahab S. Giacobbe P. Blumberger D. M. Daskalakis Z. J. Kennedy S. H. et al . (2015). RTMS of the dorsomedial prefrontal cortex for major depression: safety, tolerability, effectiveness, and outcome predictors for 10 Hz versus intermittent theta-burst stimulation. Brain Stimul.8, 208–215. 10.1016/j.brs.2014.11.002
4
Barker A. T. Shields K. (2017). Transcranial magnetic stimulation: basic principles and clinical applications in migraine. Headache57, 517–524. 10.1111/head.13002
5
Bassett D. S. Bullmore E. T. (2006). Small-world brain networks. Neuroscientist12, 512–523. 10.1177/1073858406293182
6
Bassett D. S. Bullmore E. T. (2017). Small-world brain networks revisited. Neuroscientist23, 499–516. 10.1177/1073858416667720
7
Berlim M. T. van den Eynde F. Daskalakis Z. J. (2013). Clinically meaningful efficacy and acceptability of low-frequency repetitive transcranial magnetic stimulation (rTMS) for treating primary major depression: a meta-analysis of randomized, double-blind and sham-controlled trials. Neuropsychopharmacology.38, 543–551. 10.1038/npp.2012.237
8
Berlim M. T. van den Eynde F. Tovar-Perdomo S. Daskalakis Z. J. (2014). Response, remission and drop-out rates following high-frequency repetitive transcranial magnetic stimulation (rTMS) for treating major depression: a systematic review and meta-analysis of randomized, double-blind and sham-controlled trials. Psychol. Med.44, 225–239. 10.1017/S0033291713000512
9
Boonzaier J. van Tilborg G. A. F. Neggers S. F. W. Dijkhuizen R. M. (2018). Noninvasive brain stimulation to enhance functional recovery after stroke: studies in animal models. Neurorehabil. Neural Repair32, 927–940. 10.1177/1545968318804425
10
Bornmann L. Daniel H. D. (2009). The state of h index research. Is the h index the ideal way to measure research performance?EMBO Rep.10, 2–6. 10.1038/embor.2008.233
11
Brunoni A. R. Fregni F. (2011). Clinical trial design in non-invasive brain stimulation psychiatric research. Int. J. Methods Psychiatr. Res.20, e19–e30. 10.1002/mpr.338
12
Cheeran B. Talelli P. Mori F. Koch G. Suppa A. Edwards M. et al . (2008). A common polymorphism in the brain-derived neurotrophic factor gene (BDNF) modulates human cortical plasticity and the response to rTMS. J. Physiol.586, 5717–5725. 10.1113/jphysiol.2008.159905
13
Chen C. M. (2004). Searching for intellectual turning points: progressive knowledge domain visualization. Proc. Natl. Acad. Sci. U.S.A.101, 5303–5310. 10.1073/pnas.0307513100
14
Chen C. M. (2006). CiteSpace II: detecting and visualizing emerging trends and transient patterns in scientific literature. J. Am. Soc. Inf. Sci. Technol.57, 359–377. 10.1002/asi.20317
15
Chen C. M. Dubin R. Kim M. C. (2014). Orphan drugs and rare diseases: a scientometric review (2000-2014). Expert Opin. Orphan Drugs2, 709–724. 10.1517/21678707.2014.920251
16
Chen C. M. Hu Z. G. Liu S. B. Tseng H. (2012). Emerging trends in regenerative medicine: a scientometric analysis in CiteSpace. Expert Opin. Biol. Ther.12, 593–608. 10.1517/14712598.2012.674507
17
Cho S. S. Strafella A. P. (2009). RTMS of the left dorsolateral prefrontal cortex modulates dopamine release in the ipsilateral anterior cingulate cortex and orbitofrontal cortex. PLoS ONE4:e6725. 10.1371/journal.pone.0006725
18
Cirillo G. Di Pino G. Capone F. Ranieri F. Florio L. Todisco V. et al . (2017). Neurobiological after-effects of non-invasive brain stimulation. Brain Stimul.10, 1–18. 10.1016/j.brs.2016.11.009
19
da Silva J. A. T. Dobranszki J. (2018). Multiple versions of the h-index: cautionary use for formal academic purposes. Scientometrics115, 1107–1113. 10.1007/s11192-018-2680-3
20
Dayan E. Censor N. Buch E. R. Sandrini M. Cohen L. G. (2013). Noninvasive brain stimulation: from physiology to network dynamics and back. Nat. Neurosci.16, 838–844. 10.1038/nn.3422
21
de Araújo A. V. L. Barbosa V. R. N. Galdino G. S. Fregni F. Massetti T. Fontes S. L. et al . (2017). Effects of high-frequency transcranial magnetic stimulation on functional performance in individuals with incomplete spinal cord injury: study protocol for a randomized controlled trial. Trials18:522. 10.1186/s13063-017-2280-1
22
Deng Z. D. Lisanby S. H. Peterchev A. V. (2013). Electric field depth-focality tradeoff in transcranial magnetic stimulation: simulation comparison of 50 coil designs. Brain Stimul.6, 1–13. 10.1016/j.brs.2012.02.005
23
Ellegaard O. Wallin J. A. (2015). The bibliometric analysis of scholarly production: how great is the impact?Scientometrics105, 1809–1831. 10.1007/s11192-015-1645-z
24
Fitzgerald P. B. Benitez J. de Castella A. Daskalakis Z. J. Brown T. L. Kulkarni J. (2006a). A randomized, controlled trial of sequential bilateral repetitive transcranial magnetic stimulation for treatment-resistant depression. Am. J. Psychiatry163, 88–94. 10.1176/appi.ajp.163.1.88
25
Fitzgerald P. B. Daskalakis Z. J. (2012). A practical guide to the use of repetitive transcranial magnetic stimulation in the treatment of depression. Brain Stimul.5, 287–296. 10.1016/j.brs.2011.03.006
26
Fitzgerald P. B. Fountain S. Daskalakis Z. J. (2006b). A comprehensive review of the effects of rTMS on motor cortical excitability and inhibition. Clin. Neurophysiol.117, 2584–2596. 10.1016/j.clinph.2006.06.712
27
Fitzgerald P. B. Hoy K. McQueen S. Maller J. J. Herring S. Segrave R. et al . (2009). A randomized trial of rTMS targeted with MRI based neuro-navigation in treatment-resistant depression. Neuropsychopharmacology34, 1255–1262. 10.1038/npp.2008.233
28
Fitzpatrick R. B. (2005). Essential science indicators. Med. Ref. Serv. Q.24, 67–78. 10.1300/J115v24n04_05
29
Fox M. D. Buckner R. L. White M. P. Greicius M. D. Pascual-Leone A. (2012). Efficacy of transcranial magnetic stimulation targets for depression is related to intrinsic functional connectivity with the subgenual cingulate. Biol. Psychiatry72, 595–603. 10.1016/j.biopsych.2012.04.028
30
Frantzidis C. A. Vivas A. B. Tsolaki A. Klados M. A. Tsolaki M. Bamidis P. D. (2014). Functional disorganization of small-world brain networks in mild alzheimer's disease and amnestic mild cognitive impairment: an EEG study using relative wavelet entropy (RWE). Front. Aging Neurosci.6:224. 10.3389/fnagi.2014.00224
31
Fregni F. Boggio P. S. Valle A. C. Rocha R. R. Duarte J. Ferreira M. J. et al . (2006). A sham-controlled trial of a 5-day course of repetitive transcranial magnetic stimulation of the unaffected hemisphere in stroke patients. Stroke37, 2115–2122. 10.1161/01.STR.0000231390.58967.6b
32
Fu H. Z. Chuang K. Y. Wang M. H. Ho Y. S. (2011). Characteristics of research in China assessed with essential science indicators. Scientometrics88, 841–862. 10.1007/s11192-011-0416-8
33
George M. S. Aston-Jones G. (2010). Noninvasive techniques for probing neurocircuitry and treating illness: vagus nerve stimulation (VNS), transcranial magnetic stimulation (TMS) and transcranial direct current stimulation (tDCS). Neuropsychopharmacology35, 301–316. 10.1038/npp.2009.87
34
George M. S. Lisanby S. H. Avery D. McDonald W. M. Durkalski V. Pavlicova M. et al . (2010). Daily left prefrontal transcranial magnetic stimulation therapy for major depressive disorder: a sham-controlled randomized trial. Arch. Gen. Psychiatry67, 507–516. 10.1001/archgenpsychiatry.2010.46
35
George M. S. Post R. M. (2011). Daily left prefrontal repetitive transcranial magnetic stimulation for acute treatment of medication-resistant depression. Am. J. Psychiatry168, 356–364. 10.1176/appi.ajp.2010.10060864
36
George M. S. Taylor J. J. Short E. B. (2013). The expanding evidence base for rTMS treatment of depression. Curr. Opin. Psychiatry26, 13–18. 10.1097/YCO.0b013e32835ab46d
37
Gershon A. A. Dannon P. N. Grunhaus L. (2003). Transcranial magnetic stimulation in the treatment of depression. Am. J. Psychiatry160, 835–845. 10.1176/appi.ajp.160.5.835
38
Gersner R. Kravetz E. Feil J. Pell G. Zangen A. (2011). Long-term effects of repetitive transcranial magnetic stimulation on markers for neuroplasticity: differential outcomes in anesthetized and awake animals. J. Neurosci.31, 7521–7526. 10.1523/JNEUROSCI.6751-10.2011
39
Grefkes C. Fink G. R. (2009). Functional neuroimaging and neuromodulation: effects of transcranial magnetic stimulation on cortical networks in healthy subjects and patients. Klin. Neurophysiol.40, 239–247. 10.1055/s-0029-1242733
40
Grefkes C. Fink G. R. (2011). Reorganization of cerebral networks after stroke: new insights from neuroimaging with connectivity approaches. Brain134, 1264–1276. 10.1093/brain/awr033
41
Gross M. Nakamura L. Pascual-Leone A. Fregni F. (2007). Has repetitive transcranial magnetic stimulation (rTMS) treatment for depression improved? a systematic review and meta-analysis comparing the recent vs. the earlier rTMS studies. Acta Psychiatr. Scand.116, 165–173. 10.1111/j.1600-0447.2007.01049.x
42
Gunduz A. Rothwell J. Vidal J. Kumru H. (2017). Non-invasive brain stimulation to promote motor and functional recovery following spinal cord injury. Neural Regen. Res.12, 1933–1938. 10.4103/1673-5374.221143
43
Guse B. Falkai P. Wobrock T. (2010). Cognitive effects of high-frequency repetitive transcranial magnetic stimulation: a systematic review. J. Neural Transm.117, 105–122. 10.1007/s00702-009-0333-7
44
Hallett M. (2007). Transcranial magnetic stimulation: a primer. Neuron55, 187–199. 10.1016/j.neuron.2007.06.026
45
Hamada M. Murase N. Hasan A. Balaratnam M. Rothwell J. C. (2013). The role of interneuron networks in driving human motor cortical plasticity. Cereb. Cortex23, 1593–1605. 10.1093/cercor/bhs147
46
Hao Z. L. Wang D. R. Zeng Y. Liu M. (2013). Repetitive transcranial magnetic stimulation for improving function after stroke. Cochrane Database Syst. Rev.CD008862. 10.1002/14651858.CD010820.pub2008862
47
Herwig U. Fallgatter A. J. Höppner J. Eschweiler G. W. Kron M. Hajak G. et al . (2007). Antidepressant effects of augmentative transcranial magnetic stimulation: randomised multicentre trial. Br. J. Psychiatry191, 441–448. 10.1192/bjp.bp.106.034371
48
Herwig U. Satrapi P. Schönfeldt-Lecuona C. (2003). Using the international 10–20 EEG system for positioning of transcranial magnetic stimulation. Brain Topogr.16, 95–99. 10.1023/B:BRAT.0000006333.93597.9d
49
Hirsch J. E. (2005). An index to quantify an individual's scientific research output. Proc. Natl. Acad. Sci. U.S.A.102, 16569–16572. 10.1073/pnas.0507655102
50
Hosomi K. Shimokawa T. Ikoma K. Nakamura Y. Sugiyama K. Ugawa Y. et al . (2013). Daily repetitive transcranial magnetic stimulation of primary motor cortex for neuropathic pain: a randomized, multicenter, double-blind, crossover, sham-controlled trial. Pain154, 1065–1072. 10.1016/j.pain.2013.03.016
51
Hsu W. Y. Cheng C. H. Liao K. K. Lee I. H. Lin Y. Y. (2012). Effects of repetitive transcranial magnetic stimulation on motor functions in patients with stroke: a meta-analysis. Stroke43, 1849–1857. 10.1161/STROKEAHA.111.649756
52
Huang Y. Z. Chen R. S. Rothwell J. C. Wen H. Y. (2007). The after-effect of human theta burst stimulation is NMDA receptor dependent. Clin. Neurophysiol.118, 1028–1032. 10.1016/j.clinph.2007.01.021
53
Huang Y. Z. Edwards M. J. Rounis E. Bhatia K. P. Rothwell J. C. (2005). Theta burst stimulation of the human motor cortex. Neuron45, 201–206. 10.1016/j.neuron.2004.12.033
54
Hummel F. C. Cohen L. G. (2006). Non-invasive brain stimulation: a new strategy to improve neurorehabilitation after stroke?Lancet Neurol.5, 708–712. 10.1016/S1474-4422(06)70525-7
55
Iyer M. B. Schleper N. Wassermann E. M. (2003). Priming stimulation enhances the depressant effect of low-frequency repetitive transcranial magnetic stimulation. J. Neurosci.23, 10867–10872. 10.1523/JNEUROSCI.23-34-10867.2003
56
Jansen J. M. van den Heuvel O. A. van der Werf Y. D. de Wit S. J. Veltman D. J. van den Brink W. et al . (2019). The effect of high-frequency repetitive transcranial magnetic stimulation on emotion processing, reappraisal, and craving in alcohol use disorder patients and healthy controls: a functional magnetic resonance imaging study. Front. Psychiatry10:272. 10.3389/fpsyt.2019.00272
57
Klooster D. C. de Louw A. J. Aldenkamp A. P. Besseling R. M. Mestrom R. M. Carrette S. et al . (2016). Technical aspects of neurostimulation: focus on equipment, electric field modeling, and stimulation protocols. Neurosci. Biobehav. Rev.65, 113–141. 10.1016/j.neubiorev.2016.02.016
58
Krishnan V. S. Shin S. S. Belegu V. Celnik P. Reimers M. Smith K. R. Pelled G. (2019). Multimodal evaluation of TMS - induced somatosensory plasticity and behavioral recovery in rats with contusion spinal cord injury. Front. Neurosci.13:387. 10.3389/fnins.2019.00387
59
Kumru H. Kofler M. Valls-Sole J. Vidal J. (2019). Brainstem reflex excitability after high-frequency repetitive transcranial magnetic stimulation in healthy and spinal cord injury subjects. Brain Res. Bull.147, 86–91. 10.1016/j.brainresbull.2019.02.002
60
Kwon T. G. Park E. Kang C. Chang W. H. Kim Y. H. (2016). The effects of combined repetitive transcranial magnetic stimulation and transcranial direct current stimulation on motor function in patients with stroke. Restor. Neurol. Neurosci.34, 915–923. 10.3233/RNN-160654
61
Lam R. W. Chan P. Wilkins-Ho M. Yatham L. N. (2008). Repetitive transcranial magnetic stimulation for treatment-resistant depression: a systematic review and metaanalysis. Can. J. Psychiatry53, 621–631. 10.1177/070674370805300909
62
Lefaucheur J. P. (2006). The use of repetitive transcranial magnetic stimulation (rTMS) in chronic neuropathic pain. Neurophysiol. Clin.36, 117–124. 10.1016/j.neucli.2006.08.002
63
Lefaucheur J. P. André-Obadia N. Antal A. Ayache S. S. Baeken C. Benninger D. H. et al . (2014). Evidence-based guidelines on the therapeutic use of repetitive transcranial magnetic stimulation (rTMS). Clin. Neurophysiol.125, 2150–2206. 10.1016/j.clinph.2014.05.021
64
Lefaucheur J. P. Antal A. Ahdab R. Ciampi de Andrade D. Fregni F. Khedr E. M. et al . (2008a). The use of repetitive transcranial magnetic stimulation (rTMS) and transcranial direct current stimulation (tDCS) to relieve pain. Brain Stimul.1, 337–344. 10.1016/j.brs.2008.07.003
65
Lefaucheur J. P. Ayache S. S. Sorel M. Farhat W. H. Zouari H. G. Ciampi de Andrade D. et al . (2012). Analgesic effects of repetitive transcranial magnetic stimulation of the motor cortex in neuropathic pain: influence of theta burst stimulation priming. Eur. J. Pain16, 1403–1413. 10.1002/j.1532-2149.2012.00150.x
66
Lefaucheur J. P. Drouot X. Ménard-Lefaucheur I. Keravel Y. Nguyen J. P. (2008b). Motor cortex rTMS in chronic neuropathic pain: pain relief is associated with thermal sensory perception improvement. J. Neurol. Neurosurg. Psychiatr.79, 1044–1049. 10.1136/jnnp.2007.135327
67
Liang Y. D. Li Y. Zhao J. Wang X. Y. Zhu H. Z. Chen X. H. (2017). Study of acupuncture for low back pain in recent 20 years: a bibliometric analysis via CiteSpace. J. Pain Res.10, 951–964. 10.2147/JPR.S132808
68
Liao H. C. Tang M. Luo L. Li C. Y. Chiclana F. Zeng X. J. (2018). A bibliometric analysis and visualization of medical big data research. Sustainability10:166. 10.3390/su10010166
69
Lowe C. J. Vincent C. Hall P. A. (2017). Effects of noninvasive brain stimulation on food cravings and consumption: a meta-analytic review. Psychosom. Med.79, 2–13. 10.1097/PSY.0000000000000368
70
Lucena M. F. G. Teixeira P. E. P. Bonin Pinto C. Fregni F. (2019). Top 100 cited noninvasive neuromodulation clinical trials. Expert Rev. Med. Dev.16, 451–466. 10.1080/17434440.2019.1615440
71
Maeda F. Keenan J. P. Tormos J. M. Topka H. Pascual-Leone A. (2000). Modulation of corticospinal excitability by repetitive transcranial magnetic stimulation. Clin. Neurophysiol.111, 800–805. 10.1016/S1388-2457(99)00323-5
72
Mansur C. G. Fregni F. Boggio P. S. Riberto M. Gallucci-Neto J. Santos C. M. et al . (2005). A sham stimulation-controlled trial of rTMS of the unaffected hemisphere in stroke patients. Neurology64, 1802–1804. 10.1212/01.WNL.0000161839.38079.92
73
McLean A. L. (2019). Publication trends in transcranial magnetic stimulation: a 30-year panorama. Brain Stimul.12, 619–627. 10.1016/j.brs.2019.01.002
74
Mennemeier M. Triggs W. Chelette K. Woods A. Kimbrell T. Dornhoffer J. (2009). Sham transcranial magnetic stimulation using electrical stimulation of the scalp. Brain Stimul.2, 168–173. 10.1016/j.brs.2009.02.002
75
Miao Y. Xu S. Y. Chen L. S. Liang G. Y. Pu Y. P. Yin L. H. (2017). Trends of long noncoding RNA research from 2007 to 2016: a bibliometric analysis. Oncotarget8, 83114–83127. 10.18632/oncotarget.20851
76
Miniussi C. Cappa S. F. Cohen L. G. Floel A. Fregni F. Nitsche M. A. et al . (2008). Efficacy of repetitive transcranial magnetic stimulation/transcranial direct current stimulation in cognitive neurorehabilitation. Brain Stimul.1, 326–336. 10.1016/j.brs.2008.07.002
77
Miniussi C. Harris J. A. Ruzzoli M. (2013). Modelling non-invasive brain stimulation in cognitive neuroscience. Neurosci. Biobehav. Rev.37, 1702–1712. 10.1016/j.neubiorev.2013.06.014
78
Naeser M. A. Martin P. I. Nicholas M. Baker E. H. Seekins H. Kobayashi M. et al . (2005). Improved picture naming in chronic aphasia after TMS to part of right broca's area: an open-protocol study. Brain Lang.93, 95–105. 10.1016/j.bandl.2004.08.004
79
Nardone R. Langthaler P. B. Orioli A. Höller P. Höller Y. Frey V. N. et al . (2017). Effects of intermittent theta burst stimulation on spasticity after spinal cord injury. Restor. Neurol. Neurosci.35, 287–294. 10.3233/RNN-160701
80
Noda Y. Silverstein W. K. Barr M. S. Vila-Rodriguez F. Downar J. Rajji T. K. et al . (2015). Neurobiological mechanisms of repetitive transcranial magnetic stimulation of the dorsolateral prefrontal cortex in depression: a systematic review. Psychol. Med.45, 3411–3432. 10.1017/S0033291715001609
81
Oelrich B. Peters R. Jung K. (2007). A bibliometric evaluation of publications in urological journals among European Union countries between 2000–2005. Eur. Urol.52, 1238–1248. 10.1016/j.eururo.2007.06.050
82
Oreardon J. P. Solvason H. B. Janicak P. G. Sampson S. Isenberg K. E. Nahas Z. et al . (2007). Efficacy and safety of transcranial magnetic stimulation in the acute treatment of major depression: a multisite randomized controlled trial. Biol. Psychiatry62, 1208–1216. 10.1016/j.biopsych.2007.01.018
83
Pascual-Leone A. Rubio B. Pallardó F. Catalá M. D. (1996). Rapid-rate transcranial magnetic stimulation of left dorsolateral prefrontal cortex in drug-resistant depression. Lancet348, 233–237. 10.1016/S0140-6736(96)01219-6
84
Pell G. S. Roth Y. Zangen A. (2011). Modulation of cortical excitability induced by repetitive transcranial magnetic stimulation: influence of timing and geometrical parameters and underlying mechanisms. Prog. Neurobiol.93, 59–98. 10.1016/j.pneurobio.2010.10.003
85
Pollock A. Farmer S. E. Brady M. C. Langhorne P. Mead G. E. Mehrholz J. et al . (2014). Interventions for improving upper limb function after stroke. Cochrane Database Syst. Rev.CD010820. 10.1002/14651858.CD010820.pub2
86
Reithler J. Peters J. C. Sack A. T. (2011). Multimodal transcranial magnetic stimulation: using concurrent neuroimaging to reveal the neural network dynamics of noninvasive brain stimulation. Prog. Neurobiol.94, 149–165. 10.1016/j.pneurobio.2011.04.004
87
Ridding M. C. Rothwell J. C. (2007). Is there a future for therapeutic use of transcranial magnetic stimulation?Nat. Rev. Neurosci.8, 559–567. 10.1038/nrn2169
88
Ridding M. C. Ziemann U. (2010). Determinants of the induction of cortical plasticity by non-invasive brain stimulation in healthy subjects. J. Physiol.588, 2291–2304. 10.1113/jphysiol.2010.190314
89
Robertson E. M. Théoret H. Pascual-Leone A. (2003). Studies in cognition: the problems solved and created by transcranial magnetic stimulation. J. Cogn. Neurosci.15, 948–960. 10.1162/089892903770007344
90
Rossini P. M. Burke D. Chen R. Cohen L. G. Daskalakis Z. Di Iorio R. et al . (2015). Non-invasive electrical and magnetic stimulation of the brain, spinal cord, roots and peripheral nerves: basic principles and procedures for routine clinical and research application. An updated report from an IFCN committee. Clin. Neurophysiol.126, 1071–1107. 10.1016/j.clinph.2015.02.001
91
Schutter D. J. (2009). Antidepressant efficacy of high-frequency transcranial magnetic stimulation over the left dorsolateral prefrontal cortex in double-blind sham-controlled designs: a meta-analysis. Psychol. Med.39, 65–75. 10.1017/S0033291708003462
92
Siebner H. R. Lang N. Rizzo V. Nitsche M. A. Paulus W. Lemon R. N. et al . (2004). Preconditioning of low-frequency repetitive transcranial magnetic stimulation with transcranial direct current stimulation: evidence for homeostatic plasticity in the human motor cortex. J. Neurosci.24, 3379–3385. 10.1523/JNEUROSCI.5316-03.2004
93
Siebner H. R. Rothwell J. (2003). Transcranial magnetic stimulation: new insights into representational cortical plasticity. Exp. Brain Res.148, 1–16. 10.1007/s00221-002-1234-2
94
Silverstein W. K. Noda Y. Barr M. S. Vila-Rodriguez F. Rajji T. K. Fitzgerald P. B. et al . (2015). Neurobiological predictors of response to dorsolateral prefrontal cortex repetitive transcranial magnetic stimulation in depression: a systematic review. Depress. Anxiety32, 871–891. 10.1002/da.22424
95
Strafella A. P. Paus T. Fraraccio M. Dagher A. (2003). Striatal swap release induced by repetitive transcranial magnetic stimulation of the human motor cortex. Brain126, 2609–2615. 10.1093/brain/awg268
96
Synnestvedt M. B. Chen C. Holmes J. H. (2005). CiteSpace II: visualization and knowledge discovery in bibliographic databases. AMIA Annu. Symp. Proc.2005, 724–728.
97
Tazoe T. Perez M. A. (2015). Effects of repetitive transcranial magnetic stimulation on recovery of function after spinal cord injury. Arch. Phys. Med. Rehabil.96, S145–S155. 10.1016/j.apmr.2014.07.418
98
Terranova C. Rizzo V. Cacciola A. Chillemi G. Calamuneri A. Milardi D. et al . (2019). Is there a future for non-invasive brain stimulation as a therapeutic tool?Front. Neurol.9:1146. 10.3389/fneur.2018.01146
99
Thompson D. F. Walker C. K. (2015). A descriptive and historical review of bibliometrics with applications to medical sciences. Pharmacotherapy35, 551–559. 10.1002/phar.1586
100
Wang X. Q. Peng M. S. Weng L. M. Zheng Y. L. Zhang Z. J. Chen P. J. (2019). Bibliometric study of the comorbidity of pain and depression research. Neural Plast.2019:1657498. 10.1155/2019/1657498
101
Xiang H. F. Sun J. Tang X. Zeng K. B. Wu X. S. (2019). The effect and optimal parameters of repetitive transcranial magnetic stimulation on motor recovery in stroke patients: a systematic review and meta-analysis of randomized controlled trials. Clin. Rehabil.33, 847–864. 10.1177/0269215519829897
102
Yang C. X. Guo Z. W. Peng H. T. Xing G. Q. Chen H. P. McClure M. A. et al . (2018). Repetitive transcranial magnetic stimulation therapy for motor recovery in parkinson's disease: a Meta-analysis. Brain Behav.8:e01132. 10.1002/brb3.1132
103
Yeung A. W. K. Goto T. K. Leung W. K. (2017). A bibliometric review of research trends in neuroimaging. Curr. Sci.112, 725–734. 10.18520/cs/v112/i04/725-734
104
Zaghi S. Heine N. Fregni F. (2009). Brain stimulation for the treatment of pain: a review of costs, clinical effects, and mechanisms of treatment for three different central neuromodulatory approaches. J. Pain Manag.2, 339–352.
105
Zheng K. Y. Wang X. Q. (2019). Publications on the association between cognitive function and pain from 2000 to 2018: a bibliometric analysis using CiteSpace. Med. Sci. Monit.25, 8940–8951. 10.12659/MSM.917742
106
Ziemann U. Paulus W. Nitsche M. A. Pascual-Leone A. Byblow W. D. Berardelli A. et al . (2008). Consensus: motor cortex plasticity protocols. Brain Stimul.1, 164–182. 10.1016/j.brs.2008.06.006
107
Zorzo C. Higarza S. G. Méndez M. Martínez J. A. Pernía A. M. Arias J. L. (2019). High frequency repetitive transcranial magnetic stimulation improves neuronal activity without affecting astrocytes and microglia density. Brain Res. Bull.150, 13–20. 10.1016/j.brainresbull.2019.05.004
Summary
Keywords
rTMS, frontiers, bibliometrics, citation burst, Web of Science, CiteSpace
Citation
Zheng K-Y, Dai G-Y, Lan Y and Wang X-Q (2020) Trends of Repetitive Transcranial Magnetic Stimulation From 2009 to 2018: A Bibliometric Analysis. Front. Neurosci. 14:106. doi: 10.3389/fnins.2020.00106
Received
03 October 2019
Accepted
27 January 2020
Published
26 February 2020
Volume
14 - 2020
Edited by
Ioan Opris, University of Miami, United States
Reviewed by
Estate M. Sokhadze, University of South Carolina, United States; Kim Drnec, United States Army Research Laboratory, United States
Updates
Copyright
© 2020 Zheng, Dai, Lan and Wang.
This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) and the copyright owner(s) are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.
*Correspondence: Yue Lan bluemooning@163.comXue-Qiang Wang qiang897@163.com
This article was submitted to Neural Technology, a section of the journal Frontiers in Neuroscience
†These authors have contributed equally to this work
Disclaimer
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article or claim that may be made by its manufacturer is not guaranteed or endorsed by the publisher.
