Differential Substrate Usage and Metabolic Fluxes in Francisella tularensis Subspecies holarctica and Francisella novicida

Fan Chen1, Kerstin Rydzewski2, Erika Kutzner1, Ina Häuslein1, Eva Schunder2, Xinzhe Wang1, Kevin Meighen-Berger1, Roland Grunow3, Wolfgang Eisenreich1* and Klaus Heuner2*
  • 1Department of Chemistry, Chair of Biochemistry, Technische Universität München, Garching, Germany
  • 2Working Group “Cellular Interactions of Bacterial Pathogens”, ZBS 2, Robert Koch Institute, Berlin, Germany
  • 3Centre for Biological Threats and Special Pathogens, Division 2 (ZBS 2), Highly Pathogenic Microorganisms, Robert Koch Institute, Berlin, Germany

Francisella tularensis is an intracellular pathogen for many animals causing the infectious disease, tularemia. Whereas F. tularensis subsp. holarctica is highly pathogenic for humans, F. novicida is almost avirulent for humans, but virulent for mice. In order to compare metabolic fluxes between these strains, we performed 13C-labeling experiments with F. tularensis subsp. holarctica wild type (beaver isolate), F. tularensis subsp. holarctica strain LVS, or F. novicida strain U112 in complex media containing either [U-13C6]glucose, [1,2-13C2]glucose, [U-13C3]serine, or [U-13C3]glycerol. GC/MS-based isotopolog profiling of amino acids, polysaccharide-derived glucose, free fructose, amino sugars derived from the cell wall, fatty acids, 3-hydroxybutyrate, lactate, succinate and malate revealed uptake and metabolic usage of all tracers under the experimental conditions with glucose being the major carbon source for all strains under study. The labeling patterns of the F. tularensis subsp. holarctica wild type were highly similar to those of the LVS strain, but showed remarkable differences to the labeling profiles of the metabolites from the F. novicida strain. Glucose was directly used for polysaccharide and cell wall biosynthesis with higher rates in F. tularensis subsp. holarctica or metabolized, with higher rates in F. novicida, via glycolysis and the non-oxidative pentose phosphate pathway (PPP). Catabolic turnover of glucose via gluconeogenesis was also observed. In all strains, Ala was mainly synthesized from pyruvate, although no pathway from pyruvate to Ala is annotated in the genomes of F. tularensis and F. novicida. Glycerol efficiently served as a gluconeogenetic substrate in F. novicida, but only less in the F. tularensis subsp. holarctica strains. In any of the studied strains, serine did not serve as a major substrate and was not significantly used for gluconeogenesis under the experimental conditions. Rather, it was only utilized, at low rates, in downstream metabolic processes, e.g., via acetyl-CoA in the citrate cycle and for fatty acid biosynthesis, especially in the F. tularensis subsp. holarctica strains. In summary, the data reflect differential metabolite fluxes in F. tularensis subsp. holarctica and F. novicida suggesting that the different utilization of substrates could be related to host specificity and virulence of Francisella.

Introduction

Francisella tularensis (Ft) is an intracellular Gram-negative pathogen that causes tularemia in many animals including humans (Ellis et al., 2002; Sjostedt, 2011). Ft has a broader host range order than any other known zoonotic pathogenic bacterium and causes the life-threatening disease in approximately 250 wildlife species including mammals, rodents, ticks and other anthropods (Foley and Nieto, 2010; Santic et al., 2010). Transmission mostly occurs via aerosol ingestion or skin inoculation. Due to the high pathogenicity of some strains against humans, F. tularensis is registered as a biological weapon (Dennis et al., 2001). Doses of as low as 10–20 bacteria of Ft subsp. tularensis (Ftt, Ft-type A, mainly found in North America) are infective and can result in lethal tularemia (Ellis et al., 2002). Ft holarctica (Fth, Ft-type B) is still highly infectious and found throughout the Northern hemisphere. Also in Europe, this strain is typically found in infected animals and humans. The bacterium F. novicida has been classified as a separate species, F. novicida (Fno) or as a F. tularensis subspecies novicida (Busse et al., 2010; Johansson et al., 2010; Kingry and Petersen, 2014). Here, we will utilize the nomenclature Fno.

The Gram-negative Ftt and Fth are specialized to replicate in the cytosol of host cells, especially of macrophages (for reviews, see Santic et al., 2006; Sjostedt, 2006; Keim et al., 2007; Jones et al., 2012). After engulfment of the pathogens into the macrophages, they form Francisella-containing phagosomes (FCPs) and trigger signals for the induction of the Francisella pathogenicity island (FPI). FPI also encodes a Type 6 secretion system (T6SS) (Chong et al., 2008; Clemens et al., 2015; Rigard et al., 2016) which finally leads to the escape of Ft into the cytosol of the host cell. For successful replication in this niche, the bacteria need to efficiently utilize nutrients from this environment, e.g., for energy generation and biosynthesis purposes. However, the cytosol of a host cell is not a nutrient-rich habitat in which every microorganism is able to grow, as show by injection experiments of e.g., Salmonella typhimurium (Goetz et al., 2001). Some intracellular bacteria including Francisella, Listeria monocytogenes, Shigella, and Rickettsia spp. have managed to exploit the limited nutrient supply of the cytosol for multiplication (Santic and Abu Kwaik, 2013). To efficiently utilize carbon substrates from the cytosolic compartment of the host cell, L. monocytogenes has been shown to take advantage from multiple substrates (e.g., glucose phosphate, glycerol and amino acids) which are shuffled in a bipartite metabolic network to serve specific metabolic traits (Grubmüller et al., 2014). Multiple substrate usage might be a general strategy for intracellular bacteria growing in the cytosol, but also in phagosomal compartments (Abu Kwaik and Bumann, 2013, 2015; Schunder et al., 2014; Eisenreich and Heuner, 2016; Gillmaier et al., 2016; Häuslein et al., 2016).

In case of Francisella, the relationship between nutrient usage and the in vivo life cycle is still poorly understood (Checroun et al., 2006; Meibom and Charbit, 2010; Santic and Abu Kwaik, 2013; Barel et al., 2015). It is current evidence that Francisella can also exploit some of the metabolic traits described earlier for Listeria. It was demonstrated that multiple substrates including amino acids (e.g., serine, glycine, cysteine, glutamate, glutamine, asparagine), small peptides and other gluconeogenetic substrates like glycerol or glycerol phosphate can also serve as carbon sources for intracellular Ft (Alkhuder et al., 2009; Raghunathan et al., 2010; Brown et al., 2013; Gesbert et al., 2013, 2015; Barel et al., 2015; Brissac et al., 2015; Ramond et al., 2015) (Figure 1). In agreement with this observation is the reported auxotrophy of Ft for several amino acids (e.g., for the branched chain amino acids, arginine, histidine, lysine, methionine and cysteine) and the apparent presence of several MFS-type and APC-type uptake systems for amino acids as seen in the genomes of Ft strains (Alkhuder et al., 2009; Meibom and Charbit, 2010). Some of these transporters were characterized in detail only recently (Gesbert et al., 2014, 2015; Ramond et al., 2014, 2015). In particular, serine was shown to be important for intracellularly multiplying Francisella strains (Meibom and Charbit, 2010; Raghunathan et al., 2010; Barel et al., 2012; Gesbert et al., 2013, 2015; Brown et al., 2014), which was also corroborated by a report showing that the SLC family of host amino acid transporters is important for intracellular replication of Fth strain LVS (Barel et al., 2012). Furthermore, it was demonstrated that the glycine cleavage system and the glycine dehydrogenase are also important for replication in serine limiting environments and that a gcvT mutant strain is auxotroph for serine. The glycine cleavage system of Ftt is also required in a murine model of infection (Brown et al., 2014). In addition, Ft requires Ser for growth under in vitro conditions, although Ft is not auxotroph for Ser (Meibom and Charbit, 2010; Brown et al., 2014).

FIGURE 1
www.frontiersin.org

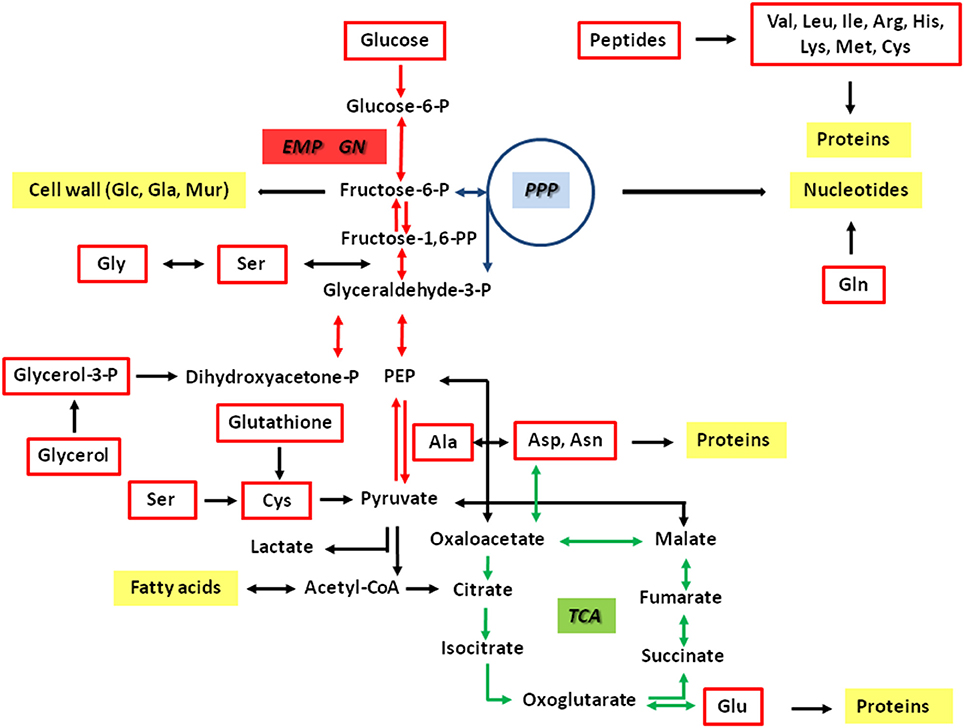

Figure 1. Hypothetical metabolic network of Francisella tularensis. The pathways are predicted on the basis of the genome sequences and earlier biochemical studies (Gyuranecz et al., 2010; Meibom and Charbit, 2010; Raghunathan et al., 2010; Barel et al., 2015). Potential carbon substrates are indicated by red boxes. Major metabolic products are indicated by yellow boxes. Reactions of the glycolytic pathway (EMP) and gluconeogensis (GN) are indicated by red arrows. Reactions of the pentose phosphate pathway (PPP) and the citrate cycle (TCA) are indicated by blue and green arrows, respectively. The interconnection between Gly and Ser includes the glycine cleavage system.

In another agreement with L. monocytogenes, the sequenced genomes of some Francisella also display homologies to glycerol and glycerol phosphate transporters. On this basis, glycerol (and its phosphate) could serve a potential nutrient source at least for some Francisella species and Ft strains. Indeed, glycerol was shown to be metabolized by Ftt, F. hispaniensis, F. philomiragia, Ft subsp. mediasiatica (Huber et al., 2010) and Fno (Brissac et al., 2015). However, all strains of Fth are reported to metabolize glycerol phosphate but not glycerol (Gyuranecz et al., 2010).

In contrast to L. monocytogenes, Ft does neither encode potential uptake systems for glucose phosphate such as UhpT, nor PTS-type or non-PTS-type transporters of glucose. Despite this apparent lack of glucose or glucose phosphate uptake systems, glucose was shown to be metabolized by some Francisella strains. All of the Fth isolates were able to utilize glucose, whereas no strain could metabolize glucose 6-phosphate (Gyuranecz et al., 2010; Gesbert et al., 2014). In contrast to Fth, Fno could use cellobiose, galactose, and sucrose (Huber et al., 2010). On the basis of the genomes, all of these sugars can be degraded by the glycolytic pathway (EMP pathway) and/or the non-oxidative pentose phosphate pathway (PPP), but not via the Entner-Doudoroff pathway (ED) and the oxidative branch of the PPP. Further downstream, a complete citrate cycle (TCA) appears to be important to provide NADH for energy production. Anaplerotic reactions could interconnect the EMP with the TCA. A schematic overview of the key metabolic pathways is given in Figure 1.

These metabolic capacities already point at a highly versatile and maybe species- and strain-dependent substrate usage of Ft. Interestingly, the genetic analysis of the Ftt Schu S4 genome revealed an unusually high amount of disrupted biosynthetic pathways which could indicate that Ftt is an obligate host-dependent bacterium in its natural life cycle (Larsson et al., 2005; Meibom and Charbit, 2010). However, the details of metabolic fluxes in Ft are still rather obscure. It is not known whether the usage of substrates is related to virulence of different Francisella species. In order to shed light onto this item and to study the metabolism of Ft in general, we applied comparative isotopolog profiling experiments with a highly pathogenic Fth strain recovered recently from a beaver (Schulze et al., 2016), an attenuated live vaccine strain (LVS) of Fth, and the (for humans) almost apathogenic Fno strain U112 (Larson et al., 1955; Hollis et al., 1989; Clarridge et al., 1996). Thereby, a rather detailed view into the metabolic network of Fth and Fno could be made with some remarkable metabolic differences between Fth and Fno, suggesting that substrate usage and metabolic fluxes could also trigger pathogenesis of different Francisella species.

Materials and Methods

Strains, Growth Conditions, Media and Buffers

Strains used in this study were Fno strain U112 (ATCC 15482; Larson et al., 1955), Fth strain LVS (ATCC 29684) and Fth wild type strain (“Beaver” isolate; Ft-type B) (Schulze et al., 2016). Francisella strains were cultivated in medium T (Pavlovich and Mishan'kin, 1987; Becker et al., 2016) containing 1% brain heart infusion broth (Difco Laboratories, Inc., Sparks, MD, USA), 1% bacto tryptone (Difco), 1% technical casamino acids (Difco), 0.005 g of MgSO4, 0.01% FeSO4, 0.12% sodium citrate, 0.02% KCl, 0.04% K2HPO4, 0.06% L-cysteine and 1.5% glucose at 37°C.

Labeling Experiments of Francisella Strains

1 L of growth medium (medium T) was supplemented with 2 g of [U-13C6]glucose (11 mM), 2 g of [1,2-13C2]glucose (11 mM), 0.3 g of [U-13C3]Ser (3 mM), or 2.5 g of [U-13C3]glycerol (25 mM), respectively. Volumes of 250 ml of supplemented medium T were inoculated with 2–4 ml of an over-night culture of the Francisella strains. Incubation was carried out at 37°C and 220 rpm. The optical density at 600 nm (OD600) was determined at regular intervals. An OD600 of ~1.8 correlated with stationary growth. Cultures in medium T reached stationary growth at 26 h. Before harvesting, a culture aliquot was plated onto lysogeny broth (LB) agar (Bertani, 1951, 2004) to rule out the possibility of contamination. The bacteria were pelleted at 4,700 g and 4°C for 15 min. The supernatant was discarded and the bacterial pellet was autoclaved at 120°C for 20 min. Then, the pellet was resuspended in 3 ml of water and lyophilized.

Analysis of Medium T

Determination of Free Amino Acids

1 mL of autoclaved medium T was dried under N2 flux. The residue was suspended in 1 mL of methanol and was centrifuged (10,000 g for 20 min, 4°C). 5 μL of a 10 mM norvaline solution (internal standard) was added to the supernatant. The mixture was then dried under N2 flux. The residue was treated with 50 μL of N-(tert-butyldimethylsilyl)-N-methyl-trifluoroacetamide containing 1% tert-butyldimethylsilylchloride and 50 μL of water free acetonitrile at 70°C for 1 h. The TBDMS-derivatives of amino acids were then quantified by GC-MS.

Determination of Protein-Bound Amino Acids

50 μL of autoclaved medium T was dried under N2 flux. The residue was suspended in 0.5 mL of 6 M hydrochloric acid and hydrolyzed for 15 h at 105°C. The hydrolysate was dried under N2 flux. The residue was suspended in 200 μL of 50% acetic acid using an ultrasonic bath for 3 min. The solution was centrifuged and the supernatant was applied onto a small column of Dowex 50W X8 (7 × 10 mm; 200–400 mesh, 34–74 μm, H+-form). The column was first washed with 2 mL H2O, then eluted with 1 mL 4 M aqueous ammonia. 5 μL of 10 mM norvaline solution (internal standard) was added to the eluate and the mixture was dried under N2 flux at 55°C. The residue was treated with 50 μL of N-(tert-butyldimethylsilyl)-N-methyl-trifluoroacetamide containing 1% tert-butyldimethylsilylchloride and 50 μL of water free acetonitrile at 70°C for 30 min. The TBDMS-derivatives of amino acids were then quantified by GC-MS.

Determination of Free Glucose and Glucose from Acid-Labile Polysaccharides

100 μL of 10 mM fructose solution (internal standard) was added to 1 mL of autoclaved medium T, the mixture was dried under N2 flux. 1 mL of a solution of acetone containing 2% sulfuric acid was added. After 1 h at room temperature, 2 mL of saturated NaCl solution and 2 mL of saturated NaCO3 solution were added. The reaction mixture was extracted two times with 3 mL of ethyl acetate. The organic phase was collected and dried under N2 flux. The residue was reacted with 100 μL of acetyl anhydride at 60°C in 100 μL of water free ethyl acetate for 16 h. The reaction mixture was dried under N2 flux, dissolved in 100 μL of water free ethyl acetate and subjected to GC-MS analysis.

Workup of Francisella Cells

Aqueous Cell Extraction and Analysis of Free Fructose

About 30 mg of bacterial sample (lyophilized cell pellet) and 500 μL of glas beads (0.25–0.5 mm) were suspended in 1 mL of H2O. The mixture was subjected to mechanical disruption using a ribolyser system (6.5 s−1, 20 s, 27°C, three times). The mixture was centrifuged (10,000 g for 20 min, 4°C) and the supernatant was then dried under N2 flux. The residue was treated with 100 μL of methoxamine hydrochloride pyridine solution (40 mg/mL) at 30°C for 90 min. The reaction mixture was dried under N2 flux. Finally, the residue was treated with 100 μL of N-methyl-N-trifluoroacetamide at 37°C for 45 min and subjected to GC-MS analysis.

Methanolic Cell Extraction and Analysis of Polar Metabolites

About 30 mg of bacterial sample (lyophilized cell pellet) and 500 μL of glass beads (0.25–0.5 mm) were suspended in 1 mL of methanol. The mixture was subjected to mechanical disruption using a ribolyser system (6.5 s−1, 20 s, 27°C, three times). The mixture was centrifuged (10,000 g for 20 min, 4°C) and the supernatant was then dried under N2 flux. The residue was treated with 50 μL of N-(tert-butyldimethylsilyl)-N-methyl-trifluoroacetamide containing 1% tert-butyldimethylsilylchloride and 50 μL acetonitrile at 70°C for 1 h. The resulting TBDMS-derivatives were then analyzed by GC-MS.

Total Hydrolysis and Analysis of Protein-Derived Amino Acids

About 2 mg of bacterial sample (lyophilized cell pellet) were suspended in 1 mL of 6 M hydrochloric acid and hydrolyzed for 15 h at 105°C. The reaction mixture was dried under N2 flux. The residue was suspended in 200 μL of 50% acetic acid using an ultrasonic bath for 3 min. The solution was centrifuged and the supernatant was applied onto a small column of Dowex 50W X8 (7 × 10 mm; 200–400 mesh, 34–74 μm, H+-form). The column was first washed with 2 mL H2O, then eluted with 1 mL 4 M aqueous ammonia. 5 μL of 10 mM norvaline solution (internal standard) was added to the eluate and the mixture was dried under N2 flux at 55°C. The residue was treated with 50 μL of N-(tert-butyldimethylsilyl)-N-methyl-trifluoroacetamide containing 1% tert-butyldimethylsilylchloride and 50 μL of water free acetonitrile at 70°C for 30 min. The TBDMS-derivatives of amino acids were then quantified by GC-MS (Eylert et al., 2010).

Hydrolysis of Polysaccharides and Analysis of Glucose

About 5 mg of bacterial sample (lyophilized cell pellet) was hydrolyzed for 15 h with 0.5 mL of 3 M methanolic HCl at 80°C. The reaction mixture was centrifuged (10,000 g for 20 min, 4°C) and the supernatant was dried using a stream of dry N2 gas. 1 mL of a solution of acetone containing 2% sulfuric acid was added. After 1 h at room temperature, 2 mL of saturated NaCl solution and 2 mL of saturated NaCO3 solution were added. The reaction mixture was extracted two times with 3 mL of ethyl acetate. The organic phase was collected and dried under N2 flux. The residue was reacted with 100 μL of acetyl anhydride at 60°C in 100 μL of water-free ethyl acetate for 16 h. The reaction mixture was dried under N2 flux and resolved in 100 μL of water free ethyl acetate for GC-MS analysis.

Hydrolysis of Cell Wall and Analysis of Cell-Wall Sugars

About 15 mg of bacterial sample (lyophilized cell pellet) was hydrolyzed for 15 h in 0.5 mL of 6 M hydrochloric acid at 105°C. The reaction mixture was filtered and the filtrate was dried under N2 flux. The residue was treated with 100 μL hexamethyldisilazane at 120°C for 3 h. The resulting TMS-derivatives were analyzed by GC-MS.

GC-MS and Isotopolog Analysis

All derivatives mentioned above were analyzed by GC-MS using a GCMS-QP 2010 Plus spectrometer (Shimadzu, Duisburg, Germany) as described earlier (Häuslein et al., 2016). All data were collected using LabSolution software (Shimadzu). The samples were analyzed three times as technical replicates. The overall 13C excess (mol-%) and the relative contributions of isotopomers (%) were computed by an Excel-based in-house software package (Eylert et al., 2008) according to Lee et al. (1991).

Analysis of MEOX-TMS-Fructose and TBDMS-Derivatives of Polar Metabolite Mixtures

The column was first developed at 100°C for 2 min, then using a gradient of 3°C min−1 to 234°C, followed by 1°C min−1 to 237°C and 3°C min−1 to 260°C. Finally, the column was heated at a gradient of 10°C min−1 to a final temperature of 320°C where it was hold for 2 min.

Analysis of TBDMS-Amino Acids

The column was first developed at 150°C for 3 min, then using a gradient of 7°C min−1 to 280°C where it was hold for 3 min.

Analysis of Diisopropylidene/Acetate Derivatives of Glucose

The column was first developed at 150°C for 3 min, then using a gradient of 10°C min−1 to 220°C, then by 50°C min−1 to 280°C where it was hold for 3 min.

Analysis of TMS-Sugars

The column was first developed at 70°C for 5 min, then using a gradient of 5°C min−1 to 310°C where it was hold for 1 min.

Results

Experimental Approach

To investigate the usages of possible substrates, i.e., of glucose, serine or glycerol, we performed labeling experiments with different Francisella strains growing in medium T in the presence of [U-13C6]glucose, [1,2-13C2]glucose, [U-13C3]serine, or [U-13C3]glycerol as tracers. More specifically, we supplemented the highly pathogenic Fth WT strain (beaver isolate) (Schulze et al., 2016), the Fth life vaccine strain LVS, or the less pathogenic Fno strain U112 with 11 mM [U-13C6]glucose, 11 mM [1,2-13C2]glucose, 3 mM [U-13C3]serine, or 25 mM [U-13C3]glycerol, respectively. In each of the labeling experiments, the strains were grown at 37°C for 26 h. The growth curves of Fth and Fno were apparently identical in each of the labeling experiments (data not shown). The cells were harvested at final optical densities (OD600) of approximately 1.8 (stationary phase). The bacteria were pelleted, autoclaved and lyophilized affording about 100 mg of dry cell pellet from a given experiment. From the dried cell pellets, polar metabolites including free fructose were extracted. Proteins, cell wall, or acid-labile polysaccharides were then hydrolyzed and amino acids, glucosamine, muramic acid and glucose were isolated from the respective hydrolysates. The isolated metabolites were converted into appropriate derivatives which were finally analyzed by GC/MS spectrometry (for details, see Materials and Methods). Each of the labeling experiments was done at least two times, in most of the settings three times (biological replicates). Each of the GC-MS samples was analyzed three times (technical replicates). On this basis, the data given below represent mean values and standard deviations using six to nine experimental values for each metabolite under study (see also Supplemental Tables S1–S27 for numerical data). This provided a robust basis for the comparative approach.

Labeling Experiments with [U-13C6]Glucose

Isotopolog Profiles of Free Fructose, Glucose from Acid-Labile Polysacharides, and Amino Sugars from the Cell Wall

Hexoses could be isolated in form of free fructose (isolated from the aqueous cell extracts), polysaccharide-derived glucose obtained by mild acidic hydrolysis and cell wall-derived amino sugars (i.e., glucosamine and muramic acid) by harsh acidic treatment. Each of the sugars displayed high 13C-enrichments (about 10–12%, Figure 2A) reflecting efficient uptake and usage of exogenous glucose by any of the Fth and Fno strains under study. The incorporation rates were slightly higher in the Fth strains (11.2 ± 0.9% averaged over the four hexoses) in comparison to Fno (10.5 ± 1.1%) (See also Supplemental Table S9). The major isotopolog in free fructose was M+6 (Figure 2B) by conversion of [U-13C6]glucose into [U-13C6]fructose probably via glucose 6-phosphate and fructose 6-phosphate. However, significant metabolic turnover in hexose metabolism (i.e., degradation to triose phosphates and subsequent reformation of hexoses) became evident on the basis of the detected M+1 to M+5 isotopologs in free fructose (20–30%) and glucose from the polysaccharides (20–50%) and even more pronounced in glucosamine and muramic acid from the cell wall (60–90%) (Figure 2B). The relative fractions of the isotopologs reflecting this glycolytic cycling were apparently similar for Fth and Fno, with the notable exception of polysaccharide-derived glucose from Fno showing significantly lower rates.

FIGURE 2
www.frontiersin.org

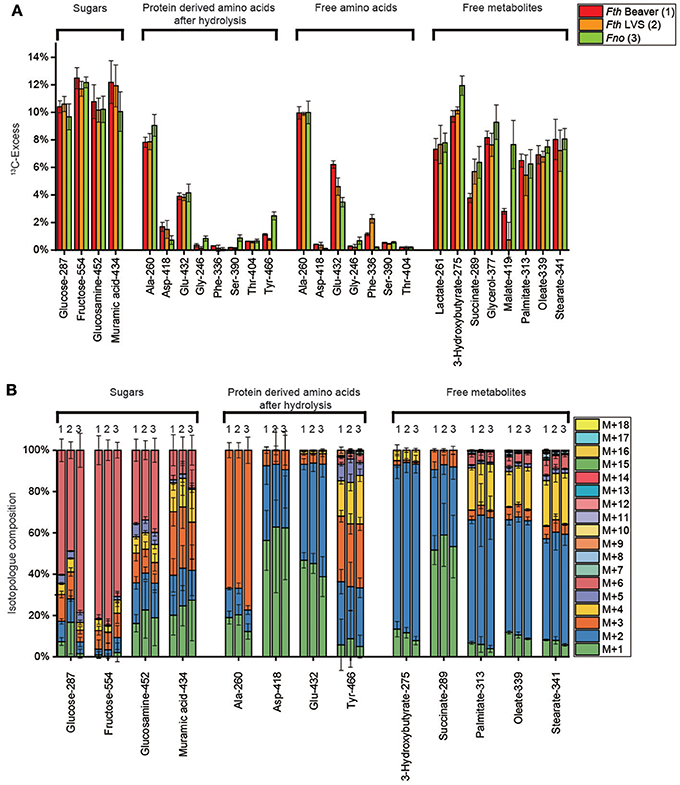

Figure 2. (A) 13C-Excess (mol%) and (B) the fractional isotopolog distributions (%) in key metabolites of Francisella tularensis subspecies holartica WT strain (beaver isolate) (Fth Beaver, 1), the Francisella tularensis subspecies holartica life vaccine strain LVS (Fth LVS, 2), or the less pathogenic Francisella novicida strain U112 (Fno, 3) grown in medium T supplied with 11 mM [U-13C6]glucose. 13C-Excess (mol%) and relative fractions of isotopologs (%) were determined by GC/MS of silylated derivatives at the indexed m/z values. Error bars indicate standard deviations from the means of 6 to 9 values 2–3 × biological replicates, 3 × technical replicates. M+1, M+2, M+3, etc. indicate isotopologs carrying 1, 2, 3, etc. 13C-atoms. For numerical values, see Supplemental Tables S1, S5, S9, S13, S17, S21.

Isotopolog Profiles of Protein-Derived Amino Acids

Harsh acidic hydrolysis of the bacterial pellet afforded a mixture of amino acids mostly (>90 %) derived from the protein fraction. By silylation, these amino acids were converted into TBDMS-derivatives that could be analyzed by GC/MS following our standard protocols. Since Trp and Cys were destroyed during the acidic hydrolysis, we could not obtain data for these amino acids. Asn and Gln were converted into Asp and Glu, respectively, and the reported values for Asp and Glu therefore represent averages for Asn/Asp and Gln/Glu, respectively. GC/MS analysis of 15 TBDMS-amino acids revealed 13C enrichments (and therefore de novo biosynthesis) in 7 amino acids from the Fth strains: Ala > Glu > Asp > Tyr > Thr > Phe > Gly = Ser (8–0.1%) and in Fno: Ala > Glu > Tyr >> Thr = Asp = Gly = Ser > Phe) (9–0.1%) (Figure 2A). His, Ile, Leu, Val, Lys, and Pro were apparently unlabeled (Supplemental Table S1) demonstrating that these amino acids were derived from unlabeled substrates (e.g., amino acids or peptides) present in brain heart infusion broth, bacto trypton and casamino acids of medium T (see also Supplemental Tables S25, S26).

In any of the detected amino acids, there were no significant differences in the overall 13C-enrichments (Figure 2A) and the isotopolog profiles as well (Figure 2B) between Fth LVS and the highly pathogenic beaver isolate of Fth. In contrast, significant differences could be noticed when comparing the Fth strains with Fno. More specifically, the 13C excess values from protein-derived amino acids (especially of Ala, Ser, and Tyr) using glucose as the substrate were higher in Fno than in the Fth strains. From the MS traces, the relative fractions of 13C-isotopologs in the 13C-enriched amino acids could be determined (Figure 2B). Again, the relative fractions of the isotopologs were highly similar when comparing the Fth strains, but significantly different for some amino acids when comparing Fth with Fno.

The high fractions of [U-13C3]-Ala (M+3) in the fragment containing all three carbon atoms of the original alanine molecule (Ala-260) indicated efficient usage of glucose present in the complex medium and the formation of [U-13C3]pyruvate by degradation of [U-13C6]glucose (see below). Genes encoding enzymes for the usage of glucose by glycolysis (EMP pathway) and the non-oxidative PPP are present in the genomes of the sequenced Francisella strains (Figure 1). Surprisingly, however, genes encoding alanine dehydrogenase and Glu/Asp transaminase converting [U-13C3]pyruvate into [U-13C3]-Ala are not annotated in the Francisella genomes. The lower relative amounts of 13C2- and 13C1-Ala can be explained by the expected pyruvate formation via Asp by an aspartate 4-decarboxylase as also reflected in the genomes (Figure 1). The observed ratio of 13C2- and 13C1-Ala in the global 13C-excess of Ala-260 suggested that approximately 35% of Ala were synthesized from Asp, and 65% from pyruvate in Fth, whereas the pyruvate contribution was slightly higher in Fno (about 75%). Subsequently, 13C from pyruvate could enter the TCA cycle mainly via [U-13C2]acetyl-CoA as reflected by the detected 13C2-Glu (M+2, Figure 2B) formed from 13C2-α-ketoglutarate, and 13C2-Asp (M+2) formed from 13C2-oxaloacetate. The labeling profiles of Tyr were more complex and contained a large fraction of M+4 that could be explained by the shikimate/chorismate pathway using [U-13C4]erythrose 4-phosphate as a precursor which could be synthesized via the PPP (forming [U-13C4]erythrose 4-phosphate from [U-13C6]fructose 6-phosphate by the transketolase reaction). The M+2 and M+3 fraction could arise by incorporation of [U-13C3]PEP, one of which becomes decarboxylated during the chorismate route.

Isotopolog Profiles of Free Polar Metabolites

In the aqueous and methanolic cell extracts, we focused on about 20 metabolites including free amino acids, lactate, glycerol, succinate, malate, and fatty acids. Generally, the 13C-enrichments and isotopolog profiles of free amino acids resembled those from the protein-bound amino acids (Figure 2A). The 13C-excess values and isotopolog compositions of lactate and glycerol resembled that of alanine indicating a quasi-equilibrium state of isotope distribution between these related metabolites.

Fatty acids and 3-hydroxybutyrate were also highly 13C-enriched (6–12%) suggesting efficient usage of [U-13C6]glucose for fatty acids biosynthesis by glucose degradation leading to [U-13C2]acetyl-CoA precursors. Carbon flux via [U-13C2]acetyl-CoA into the TCA cycle is also seen in the labeling profiles of succinate and malate with high fractions of M+2 (like in the TCA-derived amino acid aspartate). As shown in Figure 2, the values for the metabolites from Fth or Fno were again very similar, with a slight tendency of higher incorporation into metabolites from Fno.

In total, the labeling patterns of multiple metabolites obtained from the labeling experiment with 11 mM [U-13C6]glucose suggested its efficient uptake and direct usage for polysaccharide synthesis, but also its degradation via the glycolytic pathway to pyruvate/Ala and, at lower rates, to acetyl-CoA as a precursor for fatty acids or as a substrate for the TCA cycle. Moreover, the observed complex isotopolog compositions in cell wall sugars, glucosamine and muramic acid, indicated direct incorporation of the intact hexose tracer, but also glycolytic turnover e.g., via the PPP and/or gluconeogenesis. In comparison of the strains, usage of glucose appears to be more directed for cell wall synthesis in the Fth strains, whereas degradation and downstream usage seems to be more pronounced in Fno.

Labeling Experiments with [1,2-13C2]Glucose

Since the labeling profiles in metabolites from [U-13C6]glucose could not discriminate between glucose degradation via glycolysis, the PPP or the Entner-Doudoroff pathway, we performed additional experiments with [1,2-13C2]glucose. As a key analyte to distinguish between these routes, we had a detailed look at Ala which displayed in the mass spectrum of its TBDMS-derivative a fragment at m/z of 232 which is devoid of C-1 (Figure 3A). In comparison to the mass trace at m/z of 260 showing all three carbon atoms of the original alanine molecule, some positional 13C-assignment can be made on this basis. As expected, the Ala-derivative carrying all three C-atoms (Ala-260) displayed high fractions of M+2. The fragment with the smaller mass (Ala-232) carrying C-2 and C-3 of Ala showed a similarly high fraction for M+2 which is only possible when C-1 of Ala was not 13C-labeled (Figure 3A). It can therefore be concluded that 13C from [1,2-13C2]glucose was predominantly, if not entirely, transferred into the positions 2 and 3 of Ala (Figure 3A). This pattern excludes the Entner-Doudoroff pathway, since cleavage of [1,2-13C2]glucose would then lead to [1,2-13C2]pyruvate and [1,2-13C2]Ala finally affording M+1 in the Ala-232 fragment, but not M+2 (Figure 3B). However, glycolysis yields [2,3-13C2]pyruvate/Ala from [1,2-13C2]glucose, in line with our experimental data (Figure 3B). Degradation of [1,2-13C2]glucose via the PPP would results in single labeled or unlabeled triose phosphates and subsequently pyruvate/Ala. On this basis, a major contribution of the PPP in the formation of the precursors of Ala can also be excluded. Thus, glycolysis (EMP pathway) is the predominant route for glucose usage in Francisella.

FIGURE 3
www.frontiersin.org

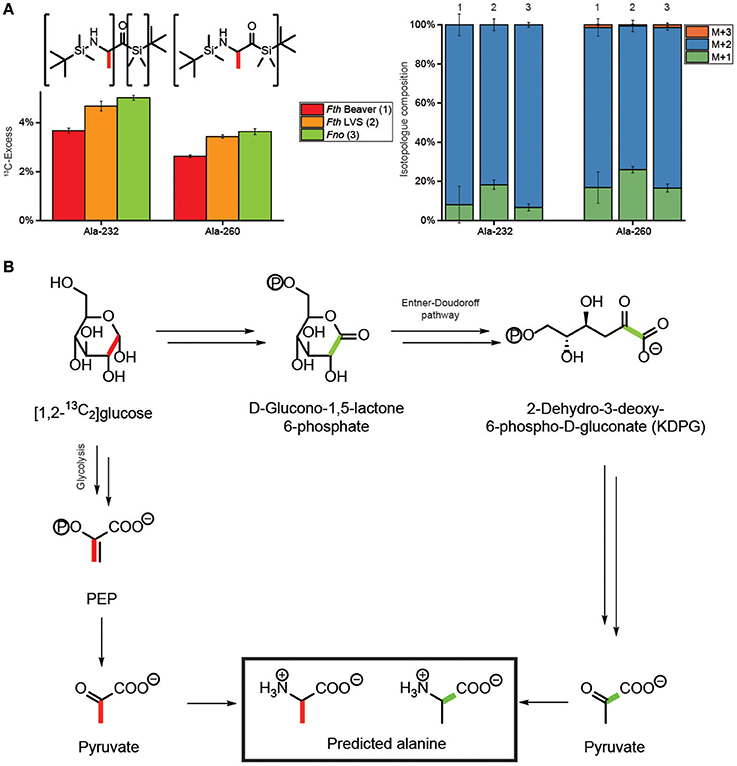

Figure 3. Transfer of 13C-label from [1,2-13C2]glucose into alanine of Fth Beaver (1), Fth LVS (2), or Fno (3). (A) 13C-Excess (mol%) and the fractional isotopolog distributions (%) in the silylated fragments Ala-260 and Ala-232 carrying C1-C3 and C2-C3 of the original alanine carbon chain, respectively. (B) Conversion of [1,2-13C2]glucose into pyruvate and alanine via glycolysis (EMP) (left, with red bars indicating the 13C-labels) or the Entner-Doudoroff pathway (ED) (right, with green bars indicating the 13C-labels). The observed label distribution with 13C at C2 and C3 (indicated by red bars in panel A), only matches the predicted pattern via the EMP in panel (B). For more details, see also text.

Labeling Experiments with [U-13C3]Serine

Using our experimental system, we showed that exogenous 3 mM [U-13C3]serine is taken up by Fth and Fno as reflected by the 13C-enrichments in serine isolated from the methanolic cell extracts (Fth beaver isolate, 10%; Fth LVS, 6%, Fno, 20%) (See also Supplemental Table S7) (Figure 4A). The usage of serine for protein biosynthesis was also gleaned from the 13C-enrichments in protein-bound Ser (Fth strains, 12%; Fno, 16%) (See also Supplemental Table S3). The predominant isotopologs in any of the serine samples were the M+3 species indicating less metabolic turnover leading to M+1 or M+2 serine (Figure 4B).

FIGURE 4
www.frontiersin.org

Figure 4. (A) 13C-Excess (mol%) and (B) the fractional isotopolog distributions (%) in key metabolites of Fth Beaver (1), Fth LVS (2), or Fno (3) grown in medium T supplied with 3 mM [U-13C3]serine. For numerical values, see Supplemental Tables S3, S7, S11, S15, S19, S23. For more details, see also legend to Figure 2.

However, the metabolic degradation of serine became evident from the detected 13C-enrichments in a set of metabolites including glycine (Figure 4A) that can be derived from serine by a hydroxymethytransferase. Amino acids derived from pyruvate (Ala) and the TCA (Asp and Glu), fatty acids (derived from acetyl-CoA), and some polar metabolites directly related to pyruvate (lactate from the Fno strain) or fatty acid metabolism (3-hydroxybutyrate) also acquired significant 13C-label from serine (Figure 4A). However, amino acids derived from the PPP (Phe and Tyr) and any of the analyzed sugars (free fructose, glucose from glycogen and amino sugars from the cell wall) were apparently unlabeled (Supplemental Tables S3, S7, S11) suggesting that serine is not serving as a glucogenic substrate, under our experimental conditions.

Compared to the Fth strains, Fno exhibited a different pattern of 13C-excess with [U-13C3]-Ser as a substrate. In the Fth strains, there was more flux from Ser directly into the biosynthesis of proteins (with the exception of glycine), via the precursors, pyruvate and oxaloacetate used for amino acid biosynthesis, and into acetyl-CoA used for fatty acid biosynthesis. In Fno, however, the free amino acids Ala, Ser and Gly, as well as lactate acquired much more (> factor 3) 13C-label from [U-13C3]-Ser. Interestingly, in Fth there was less 13C flux from Ser to Gly, than from Ser to Ala, in Fno it was vice versa (Figure 4A). Probably, in Fth, Ser is more effectively used as a substrate during the exponential phase of growth with high rates of protein and lipid biosynthesis, but less in post-exponential or stationary phase of growth (sampling point), as reflected by the lower enrichments in the free short living metabolites, probably because no further 13C-Ser was available at this late growth phase of Fth.

Labeling Experiments with [U-13C3]Glycerol

Using 25 mM [U-13C3]glycerol as a substrate, GC/MS analysis suggests efficient incorporation into the cell on the basis of 93% and 59% 13C excess in glycerol (Figure 5A) (mainly as M+3 isotopologs, Figure 5B) from the methanolic cell extracts of the Fth strains and Fno, respectively. Conversion of labeled glycerol into [U-13C3]pyruvate could be demonstrated by 13C-incorporation into Ala (protein-bound and in the free form) mainly as M+3 isotopologs. Carbon flux via [U-13C2]-acetyl-CoA into the TCA and fatty acid biosynthesis is also clearly reflected by the M+2 isotopologs of Glu (derived from α-ketoglutarate), Asp (derived from oxaloacetate), succinate, malate, fatty acids, and 3-hydroxybutyrate. Generally, the 13C-enrichment values of these metabolites were much higher in Fno (by a factor of 2–5) in comparison to Fth. This is a clear indication for the better usage of glycerol by the less pathogenic Francisella strain Fno. The same holds true for products derived via glucogenesis and the PPP. In Fno, significant incorporation was found in Tyr (mainly as M+3 and M+2 from either PEP or the erythrose 4-phosphate precursor, respectively), in Ser and Gly (via the glucogenic intermediate, 3-phosphoglycerate), in glucosamine and muramic acid and, at lower rates, in free fructose and glucose from acid-labile polysaccharides. Again, the M+3 isotopologs were the most prominent ones, but M+1 and M+2 also made substantial fractions in the amino sugars (Figure 5B) again indicating metabolic turnover during the amino sugar biosynthesis using glycerol as a precursor. In summary, the results demonstrate that glycerol is used for gluconeogenesis quite efficiently in Fno, but only at minor rates in Fth.

FIGURE 5
www.frontiersin.org

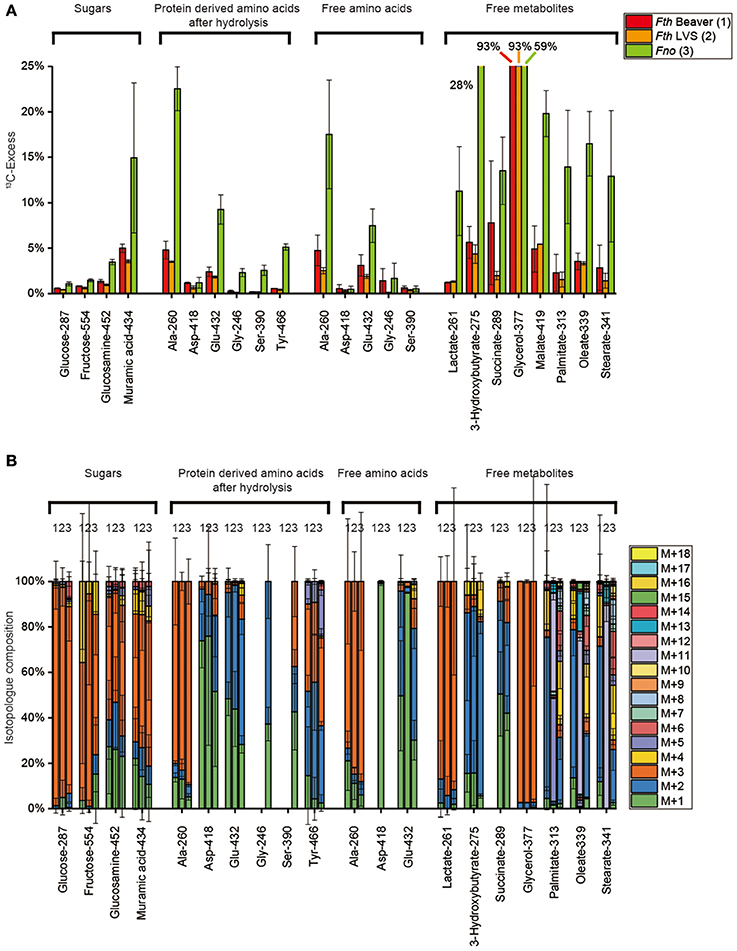

Figure 5. (A) 13C-Excess (mol%) and (B) the fractional isotopolog distributions (%) in key metabolites of Fth Beaver (1), Fth LVS (2), or Fno (3) grown in medium T supplied with 25 mM [U-13C3]glycerol. For numerical values, see Supplemental Tables S4, S8, S12, S16, S20, S24. For more details, see also legend to Figure 2.

Differential Substrate Usage

Since medium T (see also Supplemental Tables S25, S26) contains poorly defined components such as bacto trytone (10 g/L), casamino acids (10 g/L), and brain heart infusion broth (10 g/L), it was necessary to experimentally determine the amounts of glucose, serine and glycerol in this medium. These values were important in order to normalize the incorporation rates described above for the respective 13C-tracers. For this purpose, medium T (without the 13C-tracers) was prepared following the same protocol described for the labeling experiments (with the exception of not adding the 13C-labeled substrates) and autoclaved. After lyophilization, a fraction was silylated as described in the Materials Methods section and analyzed by GC-MS for quantifying the amounts of free glucose, glycerol, and amino acids, e.g., serine, respectively. Another fraction of the lyophilized medium was dissolved and heated in 6 M HCl in order to hydrolyze proteins and peptides present in the medium. Subsequently, the hydrolysate was lyophilized, derivatized and again analyzed by GC-MS.

Glycerol could not be detected in any of these fractions, whereas glucose was found, in free form, in amounts of 75.3 mM. Free serine was present at a concentration of 0.5 mM, after total hydrolysis of medium T, the concentration raised to 3.1 mM. On this basis, in the labeling experiments the total concentration of glycerol was 25 mM (with 100% [U-13C3]glycerol), glucose was present at a total concentration of 94.4 mM (with 11.8% [U-13C6]glucose), and the overall concentration of serine (free form and in peptides) was 3.4 mM (with 84.3% [U-13C3]serine) (Supplemental Tables S25, S26).

On the basis of these findings, the 13C-enrichment values were normalized. For the 13C-glucose experiment, the measured 13C-enrichments values were multiplied by a factor of 8.5, for the 13C-serine experiment by a factor of 1.15, and for the 13C-glycerol experiment by a factor of 1. The normalized values are shown in Figures 6A,B for Fth and Fno, respectively. The relative fluxes are also indicated in Figures 6A,B by the arrow widths. It is immediately obvious that the cell wall sugars of Fth and Fno were predominantly (>85%) derived from the glucose supply present in medium T. Major fluxes were also observed from glucose to alanine and fatty acids (>50%). In Fth and Fno, exogenous serine (in free form or from the peptides present in medium T) was incorporated into the metabolic network only at lower rates (<10%). Similar low fluxes (<5%) were found from exogenous glycerol into the network of Fth. In Fno, however, glycerol contributed to biosynthesis at higher rates (up to 55% in cell wall sugars).

FIGURE 6
www.frontiersin.org

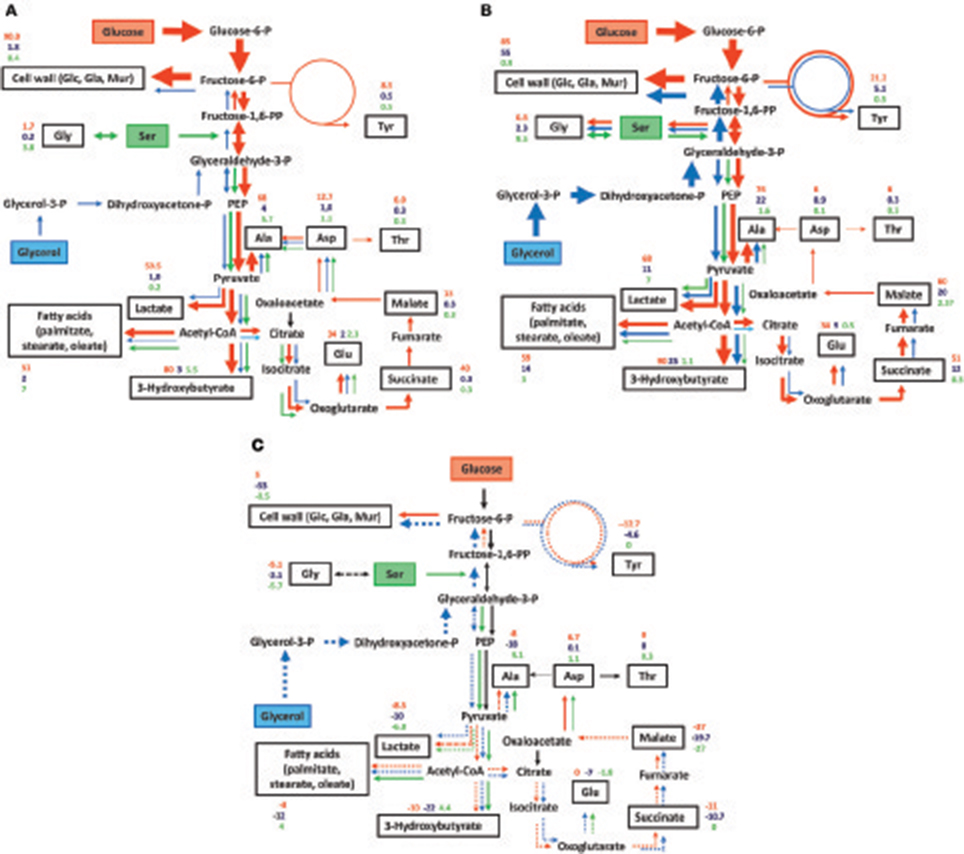

Figure 6. Observed metabolic pathways and fluxes in (A) Fth Beaver/Fth LVS, and (B) Fno from exogenous glucose (red arrows), serine (green arrows), and glycerol (blue arrows). (C) Differences in the metabolic fluxes between Fth and Fno (FthFno). Metabolites studied by GC-MS-based isotopolog profiling are indicated by black boxes. The numbers indicate normalized overall 13C-enrichments (from labeled glucose, glycerol and serine in red, blue and green, respectively). The arrow widths roughly indicate the relative fluxes. Fluxes conducive to enrichments <1% are not shown. In (C) the numbers indicate the differences in the normalized overall 13C-enrichments (FthFno). Higher fluxes in Fth are indicated by normal arrows, lower fluxes by dashed arrows.

Differences in the metabolic fluxes are displayed in Figure 6C. The numbers indicate the differences between the normalized 13C-enrichments in Fth and Fno (FthFno). Higher fluxes in Fth are indicated by normal arrows, whereas lower fluxes are shown by dashed arrows. It becomes evident that Fth is characterized by a slightly higher flux of glucose into the cell wall, but reduced fluxes (with the exception of Asp for unknown reasons) into any other metabolite under study. Moreover, higher fluxes were gleaned from serine into the downstream pathways of Fth (i.e., the lower part of EMP, formation of acetyl-CoA and fatty acids), but not into cell wall sugars. This points at a more bipartite metabolic network in Fth (i.e., with glucose feeding directly the formation of polysaccharides, and serine adding more carbon for pyruvate and actyl-CoA metabolism) in comparison to the less human-pathogenic Fno. Glycerol was a generally less efficient substrate in Fth than in Fno. This was especially true for cell wall sugars indicating that glucogenesis from glycerol is not a major process in Fth under the experimental conditions.

Discussion

Pathogenic intracellular bacteria of the family Francisella can grow in the cytosolic compartments of different cell types (e.g., macrophages) in a high variety of host organisms (Santic et al., 2006; Sjostedt, 2006; Keim et al., 2007). It can be assumed that these different environments provide versatile and changing nutrient supplies. This host plasticity points at a high degree of metabolic robustness and adaptation capacities of the bacteria. The highly conserved genomes of Francisella strains reflect the potential usage of amino acids, glucose and glucogenetic substrates (e.g., glycerol or pyruvate) as major carbon substrates feeding a highly interconnected metabolic network. Earlier studies have indeed confirmed the role of amino acids, glucose, and glycerol as nutrients (Checroun et al., 2006; Meibom and Charbit, 2010; Santic and Abu Kwaik, 2013; Barel et al., 2015). On the other hand, the metabolic network structure of Fth and Fno could in principle allow the usage of a single carbon substrate to satisfy all metabolic demands (i.e., as a source for the generation of energy and biomass). Since multiple substrate usages have been shown in other intracellular bacterial pathogens characterized by similar metabolic capacities, it was therefore in order to analyze metabolite fluxes from the carbon sources glucose, serine, and glycerol. To this aim, we used isotopolog profiling experiments with three Francisella strains, i.e., the highly pathogenic F. tularensis subsp. holarctica wild type (isolated from a beaver deceased from tularemia), the attenuated live vaccine F. tularensis subsp. holarctica strain LVS, or the for humans less pathogenic F. novicida strain U112. As a benefit of the 13C-method, metabolic pathways and fluxes can be rather directly determined in contrast to transcriptomic, proteomic or metabolomic methods. Comparing the labeling profiles between the strains under study, the method should also be conducive to correlate metabolism with pathogenicity.

Glucose

From the analysis of genome data, it was speculated that gluconeogenesis and not glycolysis is important for intracellular replication, because no phosphofructokinase was annotated within the genomes of Ftt, Fth, and Fno until recently, and genes of gluconeogenesis/glycolysis pathways have been shown to be expressed and important for intracellular growth (Meibom and Charbit, 2010; Raghunathan et al., 2010). Mutant strains of glpX encoding the fructose-1,6-bisphosphatase, were shown to be hampered in growth under in vitro and in vivo conditions (Kadzhaev et al., 2009; Brissac et al., 2015). On the other hand, there are general differences between the human pathogenic Ftt and Fth species and the mice pathogenic Fno species in carbohydrate metabolism (for review, see Kingry and Petersen, 2014). More specifically, Fth strains seem to metabolize glucose, but not glucose-6-phosphate in vitro. Only F. hispaniensis and F. philomiragia were shown to be able to metabolize glucose-1-phosphate and glucose-6-phosphate (Gyuranecz et al., 2010). Only in 2012, a gene encoding a phosphofructokinase (FTN_1210) was identified in Fno (Enstrom et al., 2012) providing evidence for the role of glycolysis at least in Fno, also confirmed by elegant labeling studies (Brissac et al., 2015).

We could now demonstrate by isotopolog profiling that exogenous glucose is by far the most efficient carbon substrate not only in Fno, but also in Fth when growing in the complex medium T. There were no significant differences between the Fth LVS and the Fth wild-type strain indicating that the reduced virulence of Fth LVS is not (strongly) related to glucose usage. However, as pointed out above, the direct transfer of exogenous glucose into cell wall sugars is slightly higher in Fth than in Fno (Figure 6C). The pathways of glucose degradation follow the same routes in Fth and Fno, i.e., via the EMP, but not the ED or PPP. Carbon flux from glucose to amino acids via pyruvate and intermediates of the TCA is lower in Fth than in Fno with the exception of Asp (Figure 6C). This could indicate that Fth utilizes additional carbon substrates for the energy generating sections of metabolism (see below) following the concepts of a bipartite metabolism in L. pneumophila (Gillmaier et al., 2016; Häuslein et al., 2016) and Chlamydia trachomatis (Mehlitz et al., 2017). Although not annotated within the genome, we could provide evidence for the presence of a putative Ala dehydrogenase or Glu/Pyr transaminase. Nevertheless, the results also demonstrate the expected activity of an aspartate 4-decarboxylase (see Figure 1).

Glycerol

It was recently shown that glycerol is metabolized by Fno, mainly for gluconeogenesis during intracellular replication (Kadzhaev et al., 2009; Brissac et al., 2015). Indeed, glpD (glycerol-3-P dehydrogenase) is necessary for the utilization of glycerol in Fno (Brissac et al., 2015).

Our results confirmed these and earlier data (Petersen and Schriefer, 2005; Marinov et al., 2009; Gyuranecz et al., 2010; Huber et al., 2010), but also provided additional insights into details of species-specific differences in glycerol metabolism. As expected, carbon flux from glycerol was much higher in Fno than in Fth, and glycerol was efficiently used for gluconeogenesis, also in the presence of (unlabeled) glucose in the medium T (Figure 6C).

13C-Excess values of 4–5% in muramic acid and Ala from Fth grown in the presence of [U-13C3]glycerol clearly demonstrated that glycerol was also metabolized by Fth. This is noteworthy since Fth is known to be negative for the fermentation and metabolism of glycerol (Biolog system), but able to metabolize glycerol phosphate (Petersen and Schriefer, 2005; Gyuranecz et al., 2010; Huber et al., 2010) probably due to the presence of a glycerol phosphate transporter GlpT (see also Supplemental Figure S1) which is also necessary for the uptake of fosmidomycin (Mackie et al., 2012). However, there is also a glpF gene annotated in the genomes of Francisella, coding for an aquaglyceroporin involved in glycerol and water transport (Raghunathan et al., 2010). Moreover, three strains of Fth were reported to be able to produce acid from glycerol as a substrate (Marinov et al., 2009). On this basis, it is not surprising that Fth is using glycerol, rather it remains unclear, why Fth strains are only less able to utilize glycerol, also taking into account that all genes for the metabolism of glycerol are present in the genomes of Fth (see Supplemental Figure S1). In F. tularensis subsp. tularensis (Ftt), gfpK and glpD are separated by an IS-Ftu1 element, as well as in Fth LVS, but there, the operon is also disconnected spatially. Nevertheless, in all strains analyzed in this study, the genes for glycerol uptake and usage are present and seem to encode putative functional enzymes. Further experiments are therefore necessary to elucidate the reason for the low rate of glycerol utilization in Fth.

Serine

Amino acids (Ser) are well-known to be important for intracellular multiplying Francisella (Meibom and Charbit, 2010; Raghunathan et al., 2010; Barel et al., 2012, 2015; Steele et al., 2013; Brown et al., 2014; Ramond et al., 2014; Gesbert et al., 2015). This was strongly supported by a report showing that the SLC family of host amino acid transporters is important for intracellular replication of Fth strain LVS (Barel et al., 2012). Interestingly, although Fth replicates in the cytosol, a similar finding of the usage of amino acids during intracellular growth and the involvement of SLC proteins of the host cell was found for L. pneumophila, a human pathogenic bacterium which replicates within a vacuole in alveolar macrophages (Wieland et al., 2005; Eisenreich and Heuner, 2016).

Under the in vitro growth conditions used in our experiments, there was only a very low flux from 13C-Ser into the downstream metabolites in Fth and especially in Fno, as well as a very low (if at all) flux via gluconeogenesis in both species (as gleaned e.g., from the apparently unlabeled cell wall-derived carbohydrates). This also came as a surprise, since gluconeogenesis is present under the in vitro growth conditions used here as gleaned from the glycerol experiments (Figures 6A,B).

Carbon flux from Ser to some protein-derived amino acids (e.g., Ala and Asp) was higher in Fth than in Fno. The carbon flux from Ser to Gly, however, was much higher in Fno than in Fth. For Fth, it was shown that the glycine cleavage system (GCS) is important for replication in Ser-limiting environments and that a gcvT mutant strain is auxotrophic for Ser, indicating the importance of the Ser to Gly (and vice versa) converting systems (Meibom and Charbit, 2010; Brown et al., 2014). Glycine-dependent Ser production in E. coli is only apparent when the Ser biosynthesis pathway (serABC) is disrupted (Ravnikar and Somerville, 1987). In addition, the GCS is the only source of Ser biosynthesis in Fth, but surprisingly also in Ftt containing a complete serABC pathway (Brown et al., 2014). In Fth, the Ser synthesis pathway (from 3-PG) is incomplete, due to a pseudo serB gene (P-serine phosphatase [serB]). This is in agreement with our results of no 13C flux to Ser using glucose or glycerol as a substrate.

We could now demonstrate that this is not true for Fno, since we obtained carbon flux from glucose and glycerol to Ser. Isotopolog profiles of protein derived Ser using 13C-Ser as a substrate indicated synthesis of Ser from Gly (i.e., displaying M+1 and M+2 fractions), but this was not true for free Ser collected at the stationary phase (Figure 4B). In addition, the free amino acids Ala, Ser, and Gly, as well as lactate, acquired much more 13C-label from Ser in Fno. In Fth, label from serine was more effectively transferred into most amino acids from the protein fraction. This may indicate that amino acids (Ser) are more efficiently used in the replicative phase of growth of Fth, but less in stationary phase of growth. Similar results were obtained recently for L. pneumophila (Gillmaier et al., 2016).

This could point again at a shift to a bipartite metabolism in Fth as in L. pneumophila, using amino acids as carbon and energy source in the exponential phase and more glucose during the post-exponential phase of growth (Eisenreich and Heuner, 2016; Gillmaier et al., 2016; Häuslein et al., 2016). In this context, it is noteworthy that species-specific differences in the metabolism of glucose were also found for different Legionella species (Brzuszkiewicz et al., 2013) in analogy to Francisella strains (Gyuranecz et al., 2010; Huber et al., 2010).

In conclusion, our findings are in agreement with multiple substrate usage by Francisella and species-dependent carbon fluxes from exogenous glucose, serine and glycerol. It is tempting to speculate whether the detected metabolic differences between Fth and Fno are also related to host-specific virulence, and whether the concept of metabolic virulence is a key feature for the pathogenicity of Francisella. Further metabolic analyses of Francisella strains during replication in different host cells could finally elucidate the different nutrition strategies of Francisella strains.

Author Contributions

KH, WE, and RG designed the study and provided facility and equipment. FC, KR, EK, IH, ES, XW, and KM performed the experiments. KH and WE wrote the paper.

Conflict of Interest Statement

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Funding

This work was supported by the Deutsche Forschungsgemeinschaft (EI 384/11) and the Robert Koch Institute. WE and IH were also supported by the Bundesministerium für Bildung und Forschung (BMBF) through ERA-NET Infect-ERA in the context of the EUGENPATH network.

Supplementary Material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/article/10.3389/fcimb.2017.00275/full#supplementary-material

References
