Novel Molecular Therapeutics Targeting Signaling Pathway to Control Hepatitis B Viral Infection
Yan Yan
Yuanwang Qiu
Chantsalmaa Davgadorj1
Chunfu Zheng- 1Laboratory for Infection and Immunity, Hepatology Institute of Wuxi, The Fifth People’s Hospital of Wuxi, Affiliated Hospital of Jiangnan University, Wuxi, China
- 2Department of Microbiology, Immunology and Infectious Diseases, University of Calgary, Calgary, AB, Canada
Numerous canonical cellular signaling pathways modulate hepatitis B virus (HBV) replication. HBV genome products are known to play a significant role in regulating these cellular pathways for the liver’s viral-related pathology and physiology and have been identified as the main factor in hepatocarcinogenesis. Signaling changes during viral replication ultimately affect cellular persistence, multiplication, migration, genome instability, and genome damage, leading to proliferation, evasion of apoptosis, block of differentiation, and immortality. Recent studies have documented that numerous signaling pathway agonists or inhibitors play an important role in reducing HBV replication in vitro and in vivo, and some have been used in phase I or phase II clinical trials. These optional agents as molecular therapeutics target cellular pathways that could limit the replication and transcription of HBV or inhibit the secretion of the small surface antigen of HBV in a signaling-independent manner. As principle-based available information, a combined strategy including antiviral therapy and immunomodulation will be needed to control HBV infection effectively. In this review, we summarize recent findings on interventions of molecular regulators in viral replication and the interactions of HBV proteins with the components of the various targeting cellular pathways, which may assist in designing novel agents to modulate signaling pathways to prevent HBV replication or carcinogenesis.
Introduction
Hepatitis B virus (HBV) is a DNA virus with a partially double-stranded DNA genome that is circular and contains ~3.2 kb genome in length, encoding seven different proteins, such as HBV surface antigen (HBsAg), HBV core antigen (HBcAg), HBV e antigen (HBeAg), and the transcriptional transactivator HBV X protein (HBx), which controls HBV transcription from covalently closed circular DNA (cccDNA) (Tu et al., 2017). As many as 887,000 deaths are caused by HBV infection worldwide each year (Revill et al., 2019). HBV infection is very different from other viral infections. HBV is a “stealth virus” that induces negligible immune responses in the initial stages of infection, involving type I interferons (IFN-I) (Wieland et al., 2004). Patients with chronic hepatitis B (CHB) infection generally begins with an asymptomatic non-inflammatory (or immune tolerant) phase and poorly-activated HBV-specific CD8+ T cells (Tu et al., 2017; Yan et al., 2021), while the hepatitis C virus (HCV) can stimulate IFNs early in infection (Su et al., 2002). Chronic HBV infection is a major global public health threat, with more than 250 million people worldwide, causing almost 40% of liver cancer (hepatocellular carcinoma, HCC) (Meng et al., 2019; Revill et al., 2019; Lee et al., 2021). The incidence of liver cancer in patients with chronic HBV infection is usually 10-25 times that in non-infected patients (Tang et al., 2018). The recent “Global Burden of Disease” study highlights that the total number of viral hepatitis deaths, including HCC, now exceeds the number of deaths from tuberculosis, HIV/AIDS, and malaria (Collaborators, 2017).
Currently recommended therapeutic agents for the treatment of chronic HBV infection, including current agents, nucleos(t)ide analogs (NAs), and pegylated-interferon alfa (peg-IFN-α), have been approved to inhibit HBV DNA replication, which can interrupt or prevent the risk of developing cirrhosis and hepatocellular carcinoma (European Association for the Study of the Liver, 2017). However, both of them have limitations. The NAs have little effect on the cccDNA pool, and the loss of HBsAg (functional cure) is rare. For the peg-IFN-α, the processing time is limited and acts at different stages of the HBV life cycle. However, only people with certain conditions have a good response rate in HBsAg loss (Brouwer et al., 2019). Because cccDNA is difficult to clear and may cause recurrence, experts recommend that monitoring disease progression and HCC risk in all patients is still necessary (European Association for the Study of the Liver, 2017). As immunomodulatory drugs, including compounds that block HBV from entering hepatocytes, prevent cccDNA amplification and viral spread; Other compounds that affect core assembly, drugs that target HBV RNase-H, interfere with RNA molecules and nucleic acid polymers may be interventions in the viral life cycle (Alexopoulou et al., 2020). Traditional therapeutic vaccines trials have not shown ideal effects in HBV chronically infected individuals (Michel and Tiollais, 2010), so a “functional cure” is currently an ideal state for treatment with peg-IFN-α, characterized by the complete loss of HBsAg regardless of the presence or absence of anti-HBs antibodies. Nevertheless, recent studies have shown that less than 10% of people achieve the desired clinical HBV cure (Meng et al., 2019). Thus now, we also need to find more effective therapeutics.
Future therapeutic strategies are being studied to achieve a “cure” for the diseases, such as combining drugs that target the viral life cycle. The underlying mechanism of HBV replication is multifactorial. Research and practice have demonstrated that HBV targets innate immune signaling pathways to evade or inhibit the host’s antiviral responses (Luangsay et al., 2015; Cheng et al., 2017; Tu et al., 2017; Meng et al., 2019). In addition, viral gene expression inhibits signaling pathways during HBV replication, such as Toll-like receptor (TLR)-signaling cascade (Vincent et al., 2011; Luangsay et al., 2015). For example, HBsAg, HBeAg, and HBV virions were found to contribute to reducing the expression of TLR-induced antiviral activity and impairing the production of tumor necrosis factor-a (TNF-α), interferons-α (IFN-α), and pro-inflammatory cytokines in hepatocyte lines, associated with the activation of interferon-regulated transcription factor 3 (IRF3) in hepatic non-parenchymal cells (NPCs), nuclear factor kappa B (NF-κB), and extracellular signal-modulated kinase (ERK)1/2 of transcription factor reduction. (Vincent et al., 2011; Huang et al., 2015; Cheng et al., 2017). TNF-α and IFN-I play an essential role in killing virus-infected hepatocytes in the process of eradicating HBV (Lu et al., 2021). The innate immune system recognizes pathogens via pattern recognition receptors (PRR), including TLRs and retinoic acid-inducible gene I (RIG-I)-like receptors (RLRs) or checkpoint inhibitor stimuli. Studies have shown that it is necessary to rely on cytokines and chemokines in tissue cells to recruit active immune cells (CD8+ T cells) into the appropriate immune microenvironment to regulate Ag-specific apoptosis and virus antigen degradation, which helps to eliminate HBV-infected and damaged hepatocytes, like IFN-α (Li et al., 2016; Zhang et al., 2021). When Ag-specific apoptosis and viral antigen degradation occur, it will drive Ag-presenting cells to induce inflammation and cytokines by modulating cell signaling pathways and cell cycles (Cheng et al., 2017).
Therefore, to study the roles of cellular signaling pathways and their associated intervention agents in modulating HBV replication, like the TLR signaling pathways, chemokine receptor (CKR) signaling pathways, and the phosphatidylinositol 3-kinases/protein-serine-threonine kinase (PI3K/AKT), RAS/MEK/ERK, Janus family tyrosine kinases/signal transducer and activators of transcription (JAK/STAT) signaling pathways, will help provide valuable information on the effectiveness of individualized therapeutic approaches by inhibiting or restoring signaling functions.
TLR Agonist-Mediated Therapeutics for Controlling HBV Replication
The outcome of HBV infection is influenced by the early viral interactions with hepatocyte innate immune responses, but the study on early interactions of viral infections remains very limited. On the other hand, few data are obtained from acute infection models that indicate that activation of innate reactions during natural HBV infection is predominantly weak or absent (Luangsay et al., 2015). Previous studies have demonstrated that TLRs play an important role in viral recognition and inducing appropriate immune responses. Therefore, TLRs can be considered key sensors for inducing immune responses against HBV (Bagheri et al., 2014). The TLR subgroups of TLR3, TLR7, TLR8, and TLR9 recognize nucleic acids, particularly viral DNA/RNA, while the other subgroups detect bacterial, fungal cell wall components, and some viral proteins (Xiaoyong et al., 2012). Thus, small synthetic molecules can mimic TLR ligands, activate TLR downstream signal pathways and inhibit HBV replication.
TLR7, TLR8, and TLR9 agonists have been used in phase I or phase II clinical trials to treat chronic HBV infection (Xiaoyong et al., 2012; Ma et al., 2015). In the preclinical study, TLR7 agonists were found to induce sustained anti-HBV activity in AAV/HBV mice via non-cytolytic mechanisms (Herschke et al., 2021). The stimulation of TLR7 agonist has a similar effect on serum viral DNA and Ags clearance in the chimpanzee and woodchuck models of CHB (Menne et al., 2015; Li et al., 2018). In a clinical study, TLR7 was an activator of innate and adaptive immune responses, Vesatolimod (GS-9620) acted as an oral agonist for TLR7, and an oral antiviral regimen similar to TLR8 study lasted up to 12 weeks. However, serum IFN-a was not significantly expressed. The results showed that HBsAg was not significantly reduced despite patients exhibiting targeted biomarker responses and viral suppression (Janssen et al., 2018). At the same time, TLR8 is an endosomal innate immune receptor that can be used as a target for the treatment of viral infections. In vivo studies have shown that Selgantolimod is a novel TLR8 agonist that plays a more important role in inducing the antiviral response for the treatment of CHB, inducing 40% curative treatment in a woodchuck CHB model (Daffis et al., 2017). Furthermore, Selgantolimod-induced human PBMC cytokines help reduce viral parameters in HBV-infected human hepatocytes (Mackman et al., 2020). The clinical study investigated the safety, tolerability, and pharmacokinetics of selgantolimod in healthy volunteers. Selgantolimod induces an immediate dose-dependent increase in serum antiviral cytokines, chemokines, and acute-phase proteins, which is important for the expansion and activity of T-cell subsets and innate immunity (Reyes et al., 2020). In vivo, a weekly dose of oral selgantolimod induced a dose-dependent increase in serum IL-12p40 and IL-1 receptor antagonists in cynomolgus monkeys, which responded similarly in healthy volunteers (Reyes et al., 2020). TLR9 recognizes DNA sequences from bacteria or viruses in the form of unmethylated cytidine phosphate guanosine (CpG) motifs (Ruslan and Charles, 2000). In addition, studies have shown that specific antiviral treatment against HBV can help restore the function of TLRs in chronic HBV infection (Zhang and Lu, 2015), except for lamivudine (Chin et al., 2008). Combination therapy, including the TLR9 agonist [CpG oligodeoxynucleotides (ODNs)] and entecavir, induce early antiviral responses and enhance inhibition of viral replication in a woodchuck model of chronic hepadnaviral infection, but neither of these agents can be used alone, suggesting that they are synergistic (Meng et al., 2016). The other two TLR9 agonists of class B CpG ODNs are called CPG 7909, and 1018 ISS combined with HBsAg to induce high titers of HBsAb with higher affinity effective in immune-compromised individuals (Cooper et al., 2004; Curtis and David, 2011). The effects of the TLR9 agonists CPG-ODNs are restricted to plasmacytoid dendritic cells (pDCs) and B lymphocytes (Vincent et al., 2011). In CHB patients, TLR7/9 agonists help promote the production of IFN-α from patients’ pDCs (Vincent et al., 2011; Xu et al., 2012) (Table 1 and Figure 1).

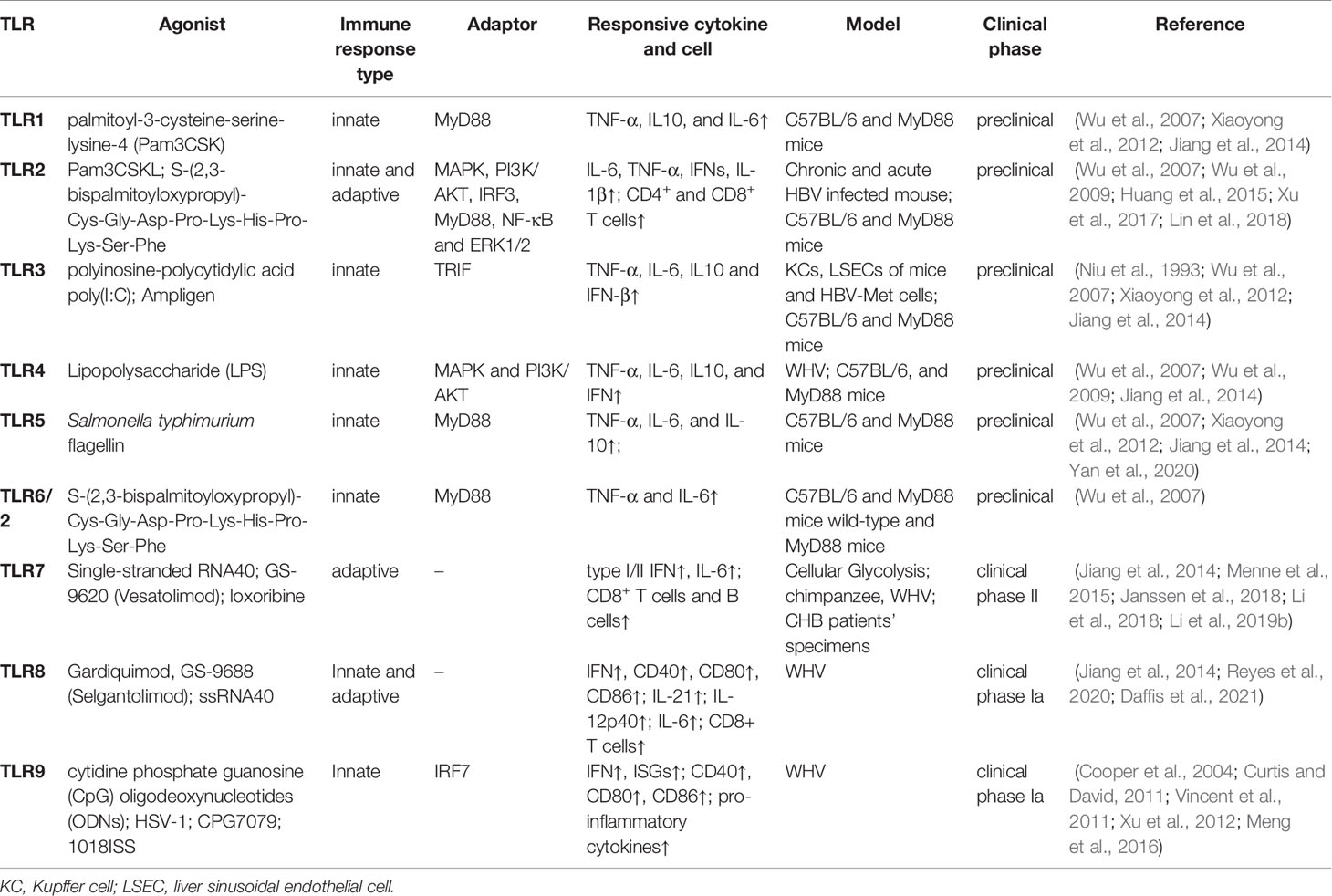

Table 1 TLR agonists as clinical molecular therapeutics for controlling HBV replication.

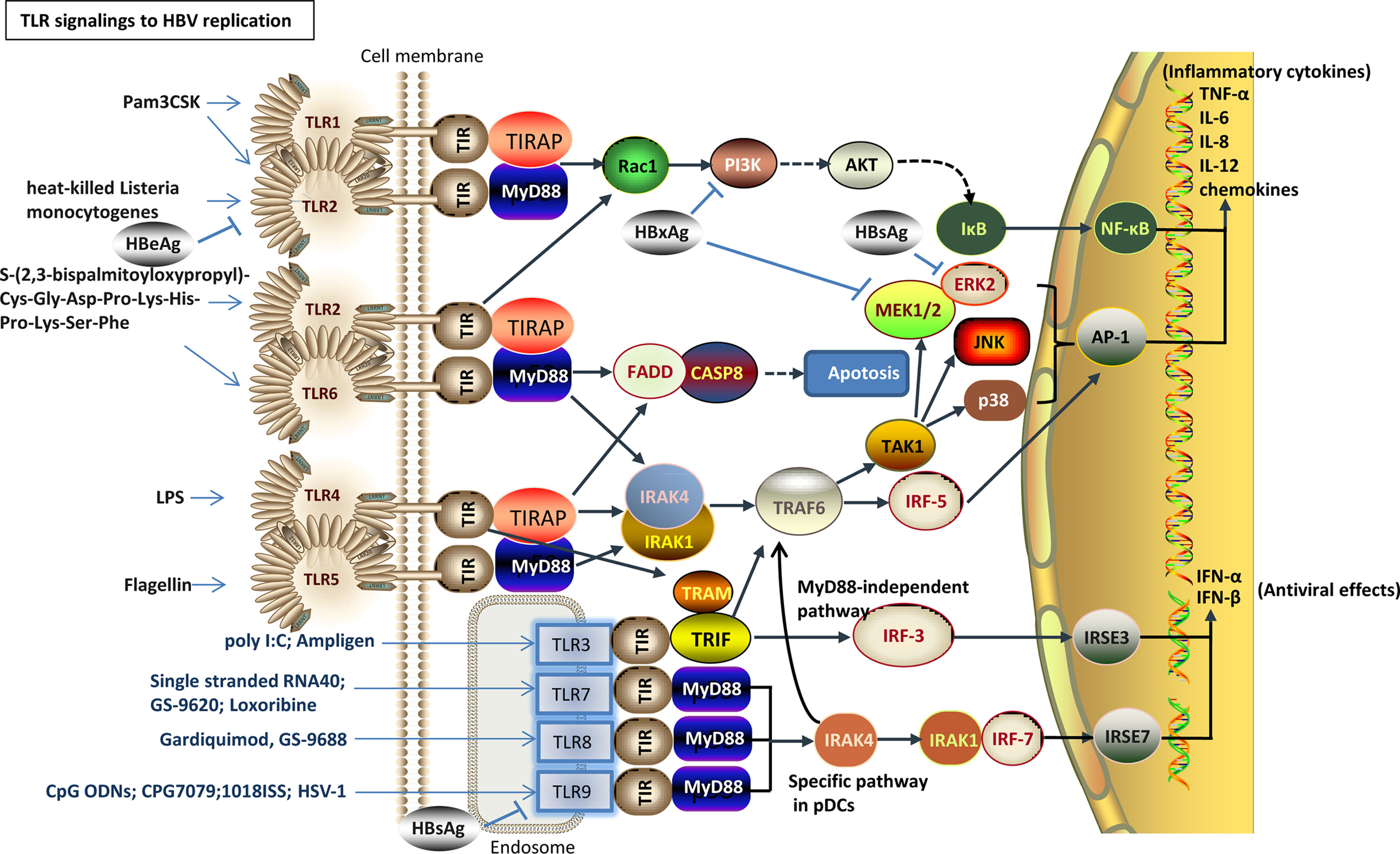

Figure 1 TLR agonists as promising agents against HBV infection. After the agonist activates the corresponding TLR signaling pathway, downstream signaling molecules are activated, such as PI3K/AKT, MEK1/2, ERK2, JNK, NF-κB or IRF3, promote the antiviral cytokine IFN-α/β and the secretion of pro-inflammatory or inflammatory cytokines IL-6, IL-8, IL-12, and chemokines, and promote anti-HBV replication. HBsAg and HBxAg inhibit the activity of the TLR downstream signaling molecules.
In addition to some TLRs that have been found to play an important role in inhibiting HBV replication in vivo and are undergoing clinical trials, activation of the TLR3 pathway follows in the production of IFN-β, which also inhibits HBV replication in mouse livers (Honda and Taniguchi, 2006; Broering et al., 2011). TLR2 or TLR4 signaling activates intracellular pathways in hepatocytes and peripheral CD4+ T cells, including mitogen-activated protein kinase (MAPK) and PI3K/AKT signaling molecules, and reduces HBV replication in an IFN-independent manner (Wu et al., 2009; Zhang et al., 2009; Zhang and Lu, 2015). For example, the pre-activation of a TLR2 agonist (lipopolysaccharide, LPS) helps enhance the adaptive immune response of CD8+ T cells and accelerates HBV clearance in a mouse model (Lin et al., 2018) and woodchuck hepatitis virus (WHV) model (Zhang et al., 2009). In an acute HBV replication mouse model, flagellin protein as a bacterial PAMP plays a pivotal role in regulating intrahepatic CD8+ T-cell responses by activating the TLR5 pathway (Yan et al., 2020). TLR6 overcome HBV tolerance in the CHB mouse models by enhancing HBV-specific antibody levels and follicular-assisted T-cell responses (He et al., 2017). This study proposes a novel mechanism by which TLR6 acts on the immune response and a therapeutic approach that breaks down the tolerance of HBV. Therefore, in addition to the agonists that have entered clinical trials, these TLR agonists are promising candidates as immunomodulators or combination therapies for inducing anti-HBV activity in chronic HBV animal models (Table 1 and Figure 1).
Therapeutics That Modulate RIG-I-Like Signaling Pathways to Control HBV Replication
Acute viral infections usually trigger intracellular innate immune activation, leading to intracellular antiviral defenses. In addition to TLRs, RLRs (RIG-I-like receptors), NOD-like receptors (NDRs), and intracellular DNA sensors cGAS-STING are involved in sensing viral infections (Lee et al., 2021). A study showed that strategies to activate RIG-I signaling helped enhance antiviral defense against HBV, which also meant that RIG-I signal activation could mediate the innate immune system to control HBV replication (Lee et al., 2021). A small-molecule compound, F7, and 5′-triphosphate-poly-U/UC PAMP RNA agonists of RIG-I can suppress the formation of HBV cccDNA and accelerated decay of established cccDNA and are additives to the actions of entecavir. It has been highlighted that activating the RIG-I pathway and IRF3 to induce innate immune action provides therapeutic benefits toward eliminating cccDNA in hepatocytes (Lee et al., 2021). It has been shown that the nuclear factors of activated T cells 3 (NFATc3) inhibit hepatocarcinogenesis and HBV replication by positively regulating RIG-I-mediated IFN transcription (Zao et al., 2021). Together, these findings collectively reveal a novel regulatory signaling cascade, the RIG-I/NFATc3/IFNs axis, which inhibits HBV replication and hepatocarcinogenesis by enhancing the hepatocytes functional axis’s immune responses, which might potentially be exploited for therapeutic benefits in the clinical treatment of HBV-related HCC.
In a clinical trial, Inarigivir (SB 9200) is a RIG-I or RLR agonist that can reduce HBV DNA/RNA, which is more potent than NAs and induces 26% of patients’ HBsAg loss (Smolders et al., 2020). A recent study showed that activated RIG-I-induced transcription factors lead to IFN-I and pro-inflammatory cytokines production. The secreted IFN-I binds to the cognate IFN-α/β receptor (IFNAR) on the surface of most nucleated cells, then initiates JAK/STAT signaling and induces hundreds of ISGs to exert a direct antiviral effect (Zhou et al., 2021). Another in vivo study showed that low-dose oral Inarigivir was well tolerated in HBV infected patients and was associated with a decrease in HBV DNA, RNA, and HBsAg (Smolders et al., 2020). In the absence of a fully activated immune response, this effect is visible and consistent with direct antiviral effects that may reflect targeted HBV RNA encapsulation (Yuen et al., 2018) (Table 2 and Figure 2).

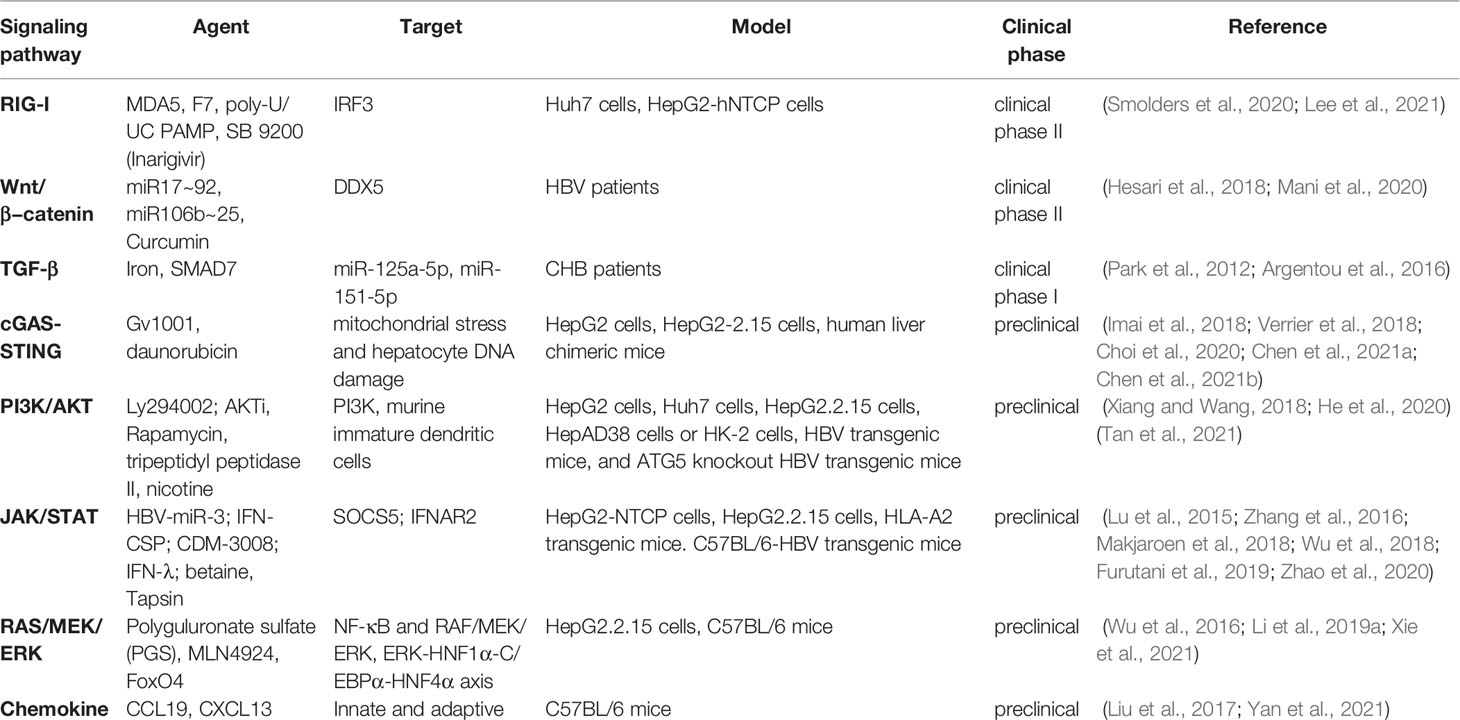

Table 2 The replication of HBV modulated by cellular signaling pathways.
Figure 2 The interaction between HBV replication and the cellular signaling pathways. HBV infection activates downstream RIG-I-like, Wnt/β-catenin, TGF-β, GAS-STING signaling pathways, PI3K/AKT, JAK/STAT, RAS/MEK/ERK, promotes the secretion of antiviral cytokines (IFN-α, IFN-β) and inflammatory cytokines (IL-1, IL-6) inhibits the production of HBV cccDNA, and transcription assembly of viruses inhibits tumor growth. However, HBxAg can activate certain cellular signaling pathways and promote HBV replication. HBV replication inhibits apoptosis, differentiation, and transformation and is closely related to tumorigenesis.
Therapeutics That Modulate Wnt/β-Catenin Signaling Pathways to Control HBV Replication
It is known that viral-associated proteins in the course of viral infection are involved in multiple cellular pathways, including Wnt/β-catenin, transforming growth factor (TGF)-β, and RAF/MAPK, which also regulate replication of the virus itself. This activation process affects cell persistence, reproduction, migration, alteration, and genomic instability (Daud et al., 2017). The previous study has shown that HBV genomic products are involved in the induction of the Wnt/β-catenin signaling pathway, enhancing this pathway and leading to the development of liver cancer (Daud et al., 2017). HBx has been demonstrated to be involved in the initiation and progression of HCC via the COX−2/Wnt/β−catenin pathway (Zheng et al., 2018). The interplay of the Wnt/β-catenin pathway and miRNAs (such as miR-26a, miR-15a, miR-16-1, miR-148a, miR-132, miR-122, miR-34a, miR-21, miR-29a, miR-222, and miR-199a/b-3p) in HBV pathogenesis results in HCC (Rana et al., 2019). From an evolutionary perspective, these non-coding RNAs are highly conserved, and the regulation of different genes mediated by miRNAs involves complementary interactions with their mRNAs (Liu et al., 2011). They play a crucial role in basic cellular life processes, from cell proliferation to apoptosis. These HBV-mediated miRNAs may demonstrate future treatment options for HBV-Wnt/β-catenin-associated HCC (Rana et al., 2019). Furthermore, inhibitors of miR17-92 and miR106b-25 (anti-avian) have been shown to restore DDX5 levels, reduce DVL1 expression, and suppress HBV replication and Wnt signaling in HBV-related hepatocellular carcinoma (Mani et al., 2020). Therefore, the Wnt signaling is inextricably linked to HBV replication
Curcumin is a yellow-orange powder derived from the Curcuma longa plant and grown in India, Southeast Asia, and other tropical regions (Tutanov et al., 2016). Curcumin has been extensively used in traditional medicine for centuries. This component is non-toxic and has different therapeutic properties such as anti-inflammatory, anti-cancer, antiviral, antibacterial, anti-fungal, anti-parasites, and anti-oxidants (Hesari et al., 2018). It has been reported to inhibit tumor growth and apoptosis of gastric carcinoma in vitro and in vivo through inhibition of Wnt/β-catenin signaling and reduced expression of Wnt target genes (Zheng et al., 2017). In a clinical trial, curcumin also showed its therapeutic effect on HBV patients by targeting various cellular and molecular pathways such as Wnt/β-catenin, Ap1, STAT3, MAPK, and NF-κB signaling (Hesari et al., 2018) (Table 2 and Figure 2).
Therapeutics That Modulate TGF-β Signaling Pathways to Control HBV Replication
It has been defined that the effects of iron or TGF-β-induced TGF-β/BMP signaling in the HepG2 2.2.15 cell model of hepatitis B virus replication. The results showed that iron increased, but TGF-β decreased HBV mRNA expression. Iron or TGF-β alter microRNA expression in the opposite direction, but iron can significantly induce a decrease in HBV replication (Park et al., 2012). On the other hand, chronic liver injury induced by HBV infection includes the development of liver fibrosis, cirrhosis, and liver cancer, and cytokines that regulate the inflammatory response are involved in the induction of such injury (Tu et al., 2017). In animal models, blocking the TGF-β signaling pathway inhibits the occurrence of fibrosis (Argentou et al., 2016). In a clinical trial, TGF-β signaling was activated in patients with chronic HBV infection and suppressed by SMAD7 overexpression after successful antiviral treatment. Therefore, SMAD7 induction likely represents a candidate for novel therapeutic approaches (Argentou et al., 2016) (Table 2 and Figure 2).
Therapeutics That Modulate cGAS-STING Signaling Pathways to Control HBV Replication
Cyclic guanosine monophosphate–adenosine monophosphate (GMP-AMP) synthase (cGAS), considered a PRR and direct cytoplasmic dsDNA sensor. When cGAS binds to dsDNA, the cGAS-STING signaling pathway is activated and then induces the expression of IFN-I and other inflammatory cytokines, triggering innate immune responses (Barber, 2015). Because STING is widely expressed in various cell types and can regulate different programmed cell death pathways, a deeper understanding of the cGAS–STING signaling pathway could lead to a new light for treating infections, chronic inflammatory diseases, and even cancer (Chen et al., 2021a). Verrier et al. showed that HBV infection could suppress the expression of cGAS and its effector gene in both cell and mouse models (Verrier et al., 2018). Stimulator of IFN genes (STING; also known as MITA and MPYS, and encoded by TMEM173) is a signaling molecule associated with the endoplasmic reticulum (ER) and is essential for controlling the transcription of numerous host defense genes, including IFN-I and pro-inflammatory cytokines, following the recognition of aberrant DNA species or cyclic dinucleotides (CDNs) in the cytosol of the cell (Barber, 2015). Here, STING recruits and activates TANK-binding kinase 1 (TBK1) and IRF3 through serial phosphorylation events. NF-κB is also activated by STING in a TBK1-dependent manner in response to cytosolic dsDNA and collaborates with IRF3 to mediate dsDNA-induced gene expression of type I IFN (Khoo and Chen, 2018). To overcome the problem of low hepatocyte STING expression and HBV DNA cloaking (Guo et al., 2015), potential therapeutic agents for cGAS-STING signaling in liver diseases are developing. In preclinical trials, Gv1001 and daunorubicin can be used to inhibit the replication of HBV by eliciting mitochondrial stress and hepatocyte DNA damage, respectively (Imai et al., 2018; Choi et al., 2020; Chen et al., 2021b). Gv1001 and daunorubicin inhibit the replication of HBV by eliciting mitochondrial stress (mtDNA) and hepatocyte DNA damage (dsDNA) and develop inhibition of cccDNA, pgRNA, and nucleocapsid formation (Khoo and Chen, 2018). The cGAS-STING signals generate IL-6, IFN-I, and IFN-III to prevent HBV from evasion of IFN-I-induced cell response (Guo et al., 2015; Dansako et al., 2019; Choi et al., 2020). Thereby, the agonist of the cGAS-STING signaling pathway can be used in liver disease treatment, providing a new idea for understanding and treating liver diseases. cGAS-STING signaling activation also induces the expression of ISG56 (IFN-stimulated gene 56), which directly impairs HBV assembly and inhibits HBV RNA synthesis (Dansako et al., 2016). Altogether, the above studies support the mechanism that activating the cGAS-STING signaling pathway can significantly inhibit HBV replication in vivo (Chen et al., 2021a) (Table 2 and Figure 2).
Therapeutics That Modulate PI3K/AKT Signaling Pathways to Control HBV Replication
Many studies have shown that the HBV entry process might activate cellular signaling pathways. HBx can stimulate the PI3K/AKT signaling pathway in hepatocyte models, reduce HBV replication and increase HBV mRNA and core protein expression (Rawat and Bouchard, 2015). In addition, HBx also plays a critical role in activating signals and inhibiting hepatocyte apoptosis at the expense of higher levels of HBV replication (Rawat and Bouchard, 2015). Wang et al. demonstrated that HBxAg suppresses apoptosis of human placental trophoblastic cell lines via activating the PI3K/Akt signaling pathway (Wang et al., 2016). Consequently, the effects of HBx on apoptosis may be important for the establishment of HBV chronic infection and the development of HCC (Arbuthnot et al., 2000 ). AKT-regulated factors may provide therapeutic targets for inhibiting HBV replication (Rawat and Bouchard, 2015). It has been shown that prolonged treatment with PI3K-AKT-mechanistic target of rapamycin (mTOR) signaling pathway inhibitors markedly promote HBV copies in HBV replication and natural infection models (Xiang and Wang, 2018). The PI3K-AKT-mTOR pathway is therefore identified to be a negative regulator of HBV replication. These inhibitors enhance the replication and transcription of HBV in an HBx-dependent way. The results counterintuitively suggest that a PI3K inhibitor, Ly294002, inhibits the secretion of the small surface antigens of HBV in a PI3K-AKT-independent manner. Thus, the inhibitor Ly294002 can be developed as a drug against surface Ag secretion inhibitors (Xiang and Wang, 2018).
Autophagy and tripeptidyl peptidase II (TPPII) are associated with HBV infection. Tan’s study showed that adenovirus vector-HBcAg-TPPII promotes autophagy of CD8+ T cells, and inhibits HBV DNA replication and HBsAg expression in HBV transgenic mice, and elucidated that the PI3K/AKT signaling pathway may be involved in this autophagy process, and this theoretical basis provides a potential candidate for HBV immunotherapy (Tan et al., 2021). A similar effect was found on immature dendritic cells (imDCs) stimulated by nicotine. Nicotine-stimulated DCs induce HBV-specific cytotoxic T lymphocyte (CTL) priming by activating the PI3K/AKT pathway in vivo (Jin et al., 2012) (Table 2 and Figure 2).
Therapeutics That Modulate JAK/STAT Signaling Pathways to Control HBV Replication
During HBV infection, it has been shown that matrix metalloproteinase 9 (MMP-9) facilitates HBV replication by repressing the IFN/JAK/STAT pathway, IFN action, STAT1/2 phosphorylation, and IFN-stimulated gene (ISG) expression (Chen et al., 2017). Therefore, regulating the JAK/STAT pathway may develop novel molecular therapeutics against HBV replication. HBV encodes a microRNA (HBV-miRNA-3) that activates the JAK/STAT signaling pathway by down-regulating the inhibitory factor of cytokine 5 (SOCS5) in hepatocytes, thereby influencing host innate immunity to regulate HBV replication, enhancing the anti-HBV effect induced by IFN-I (Zhao et al., 2020). A novel liver-targeted interferon (IFN-CSP) (Lu et al., 2015), IFN-like small chemical compound CDM-3008 (Furutani et al., 2019), IFN-λ3 (Makjaroen et al., 2018), betaine (Zhang et al., 2016) and Tapasin (Wu et al., 2018) have significant activities in suppressing HBV replication through the JAK/STAT pathway in vitro and in vivo (Table 2 and Figure 2).
Therapeutics That Modulate RAS/MEK/ERK Signaling Pathways to Control HBV Replication
RAS/MEK/ERK (also known as the MAPK pathway) axis is recognized as the downstream pathway of vascular endothelial growth factor receptor 2 (VEGFR2). RAS is the first intracellular effector of the MEK/ERK pathway, and ERK is the main substrate of MEK (Zhao et al., 2021). Polyguluronate sulfate (PGS) enhances the secretion of IFN-β by upregulating the NF-κB and RAF/MEK/ERK pathways, which effectively inhibits the expression and secretion of HBsAg and HBeAg in HepG2.2.15 cells, as well as the replication of HBV (Wu et al., 2016). PGS could bind to and enter HepG2.2.15 cells to interfere with HBV transcription rather than block viral DNA replication. PGS as a novel anti-HBV agent deserves further investigation to modulate the host innate immune system in the future.
In preclinical trials, studies demonstrated that MLN4924 could block neddylation and activates the ERK signaling pathway to inhibit the expression of several transcription factors required for HBV replication (Xie et al., 2021), and the Forkhead box O 4 (FoxO4) transcription factor plays an important role in inhibiting HBV core promoter activity through ERK-mediated hepatocyte nuclear factor-4α (HNF4α) down-regulation in vivo (Li et al., 2019a). These agents may provide novel antiviral therapies against HBV infection (Table 2 and Figure 2).
Therapeutics That Modulate Chemokine Signaling Pathways to Control HBV Replication In Vivo
Previous studies have shown that the trafficking of myelin DC cells (mDCs), antigen-presenting cells (APCs), and T cells are regulated by chemokine receptor expression and chemokine responsiveness (Palomino and Marti, 2015; Yan et al., 2019). There is growing evidence that certain chemokines in the liver, such as chemokine (C-X-C motif) ligand 13 (CXCL13) and chemokine (C-C motif) ligand 19 (CCL19), are necessary for naïve lymphocyte activation and expansion in the HBV clearance and provide an appropriate environment (Liu et al., 2017; Yan et al., 2021). In the context of chronic HBV infection, mDCs are more efficient than other APCs (Matsuno et al., 1996). Upon migrating, hepatic mDCs upregulate C-C chemokine receptor type 7 (CCR7) expression and increase its responsiveness to CCL19 (Abe et al., 2004). Many studies have demonstrated that hepatic mDCs play a critical role in promoting immune tolerance by producing IL-10 and TGF-β, activating regulatory T (Treg) cells or regulatory B (Breg) cells, and suppressing effector T (Teff) cell proliferation (Abe et al., 2004; Liu et al., 2018). Hepatocytes’ immune tolerance is a major factor in the formation of HBV chronic infections. In acute inflammation, mDCs show a non-immune tolerance phenotype, which helps to promote the activation of T cells (Abe et al., 2004). However, some chemokines can activate immune cells in the liver. For example, CCL19 plays an important role in activating intrahepatic cells, such as CD8+ T cells, and promoting HBV clearance in the CHB mouse model (Yan et al., 2019; Yan et al., 2021). In CHB patients, high expression of follicular helper T (Tfh) cell and CD4+ T cell C-X-C chemokine receptor type 5 (CXCR5) has been identified as positively correlated with immune activation. However, the understanding of the increased expression of chemokine receptors is limited (Huang et al., 2018). It has been shown that HBV infection does not affect the overall frequency of CD8+ CXCR5+ cells, while chronically infected patients accompanied with CD8+ CXCR5- cells increased. In addition, the number of CD8+ CXCR5+ T cells was significantly associated with a decrease in HBsAg and HBV-DNA and the production of HBV-specific cytokines, although accompanied by an increase in PD-1 expression (Khanam et al., 2021). Altogether, there is considerable knowledge about the molecular virology of viral proteins that provide highly efficient strategies to modulate and prevent apoptotic signals’ transduction and favor virus infection, such as the HBx gene of HBV (Hauser and Legler, 2016; Shin et al., 2016). We have searched CCR7-associated chemokine signaling pathways on KEGG PATHWAY Database and discussed the multiple regulatory mechanisms of chemokine signaling and the impact on the downstream function of CCR7 during viral infection. (Yan et al., 2019) (Table 2 and Figure 3).

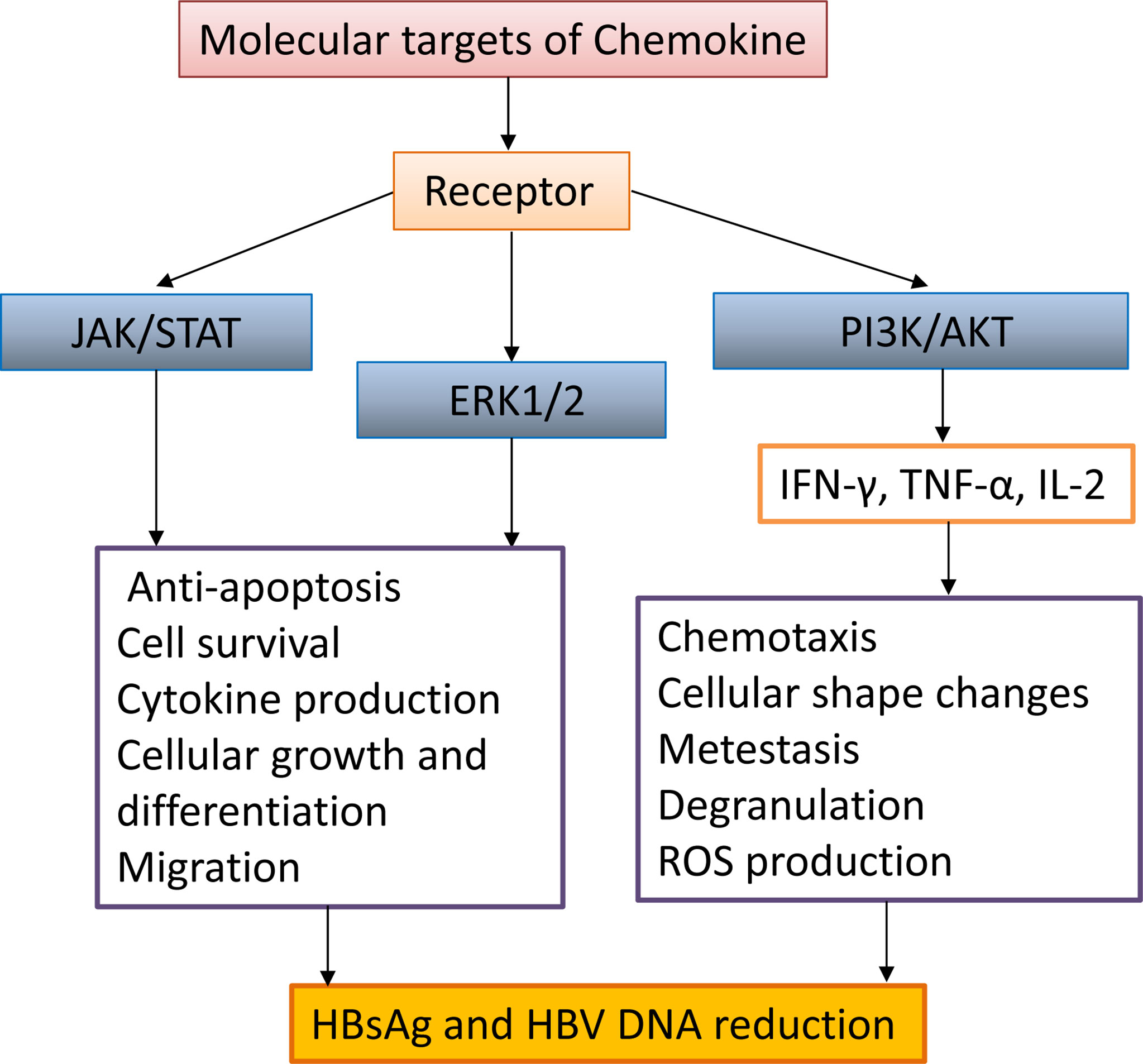

Figure 3 The interaction between chemokine signaling pathways and HBV infection. Chemokines activate intracellular JAK/STAT, ERK1/2, and PI3K/AKT signaling pathways, promote the secretion of antiviral proteins (IFN-γ, TNF-α, IL-2), promote activated cell migration, cell morphology change, survival, anti-apoptosis, and decrease HBsAg and HBV DNA.
Conclusions
Treatment options for chronic HBV infection remain limited, and some of the available therapies can produce drug-resistant HBV mutants. Since the rarity of the complete treatment response and the difficulty of obtaining liver biopsy specimens from CHB patients have hindered the recognition of the characterization of immune determinants of viral control, animal models are widely used to identify potential mechanisms of HBV clearance. As a result, there is continuing interest in understanding the molecular mechanisms that regulate HBV replication, and new molecular agents are constantly being pushed into clinical trials. In addition, intracellular molecules associated with the development of chronic HBV infection can serve as potential therapeutic targets.
Altogether, this review suggests that clinical studies on the effects of signaling molecular interventions on HBV replication other than TLR agonists are still relatively rare and that studies of some PRR signaling molecules are still at preclinical levels and limited in number. Therefore, novel drugs targeting cell signaling pathways to control HBV infection must be explored in more CHB animal models or patients.
Author Contributions
YY, YQ, CD, and CZ conceived the paper and generated the figures. All authors read and approved the final manuscript.
Funding
This work was funded by the National Natural Science Foundation of China (81701550), the Top Talent Support Program for young and middle-aged people of Wuxi Health Committee (BJ2020094), the Wuxi Key Medical Talents Program (ZDRC024).
Conflict of Interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Publisher’s Note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
References
Abe, M., Zahorchak, A., Colvin, B., Thomson, A. (2004). Migratory Responses of Murine Hepatic Myeloid, Lymphoid-Related, and Plasmacytoid Dendritic Cells to CC Chemokines. Transplantation 78, 762–765. doi: 10.1097/01.TP.0000130450.61215.3B
Alexopoulou, A., Vasilieva, L., Karayiannis, P. (2020). New Approaches to the Treatment of Chronic Hepatitis B. J. Clin. Med. 9, 3187. doi: 10.3390/jcm9103187
Arbuthnot, P., Capovilla, A., Kew, M. (2000). Putative Role of Hepatitis B Virus X Protein in Hepatocarcinogenesis: Effects on Apoptosis, DNA Repair, Mitogen-Activated Protein Kinase and JAK/STAT Pathways. J. Gastroenterol. Hepatol. 15, 357–368. doi: 10.1046/j.1440-1746.2000.02069.x
Argentou, N., Germanidis, G., Hytiroglou, P., Apostolou, E., Vassiliadis, T., Patsiaoura, K., et al. (2016). TGF-Beta Signaling Is Activated in Patients With Chronic HBV Infection and Repressed by SMAD7 Overexpression After Successful Antiviral Treatment. Inflamm. Res. 65, 355–365. doi: 10.1007/s00011-016-0921-6
Bagheri, V., Askari, A., Arababadi, M. K., Kennedy, D. (2014). Can Toll-Like Receptor (TLR) 2 Be Considered as a New Target for Immunotherapy Against Hepatitis B Infection? Hum. Immunol. 75, 549–554. doi: 10.1016/j.humimm.2014.02.018
Barber, G. N. (2015). STING: Infection, Inflammation and Cancer. Nat. Rev. Immunol. 15, 760–770. doi: 10.1038/nri3921
Broering, R., Lu, M., Schlaak, J. F. (2011). Role of Toll-Like Receptors in Liver Health and Disease. Clin. Sci. (Lond). 121, 415–426. doi: 10.1042/CS20110065
Brouwer, W. P., Chan, H. L. Y., Lampertico, P., Hou, J., Tangkijvanich, P., Reesink, H. W., et al. (2019). Genome-Wide Association Study Identifies Genetic Variants Associated With Early and Sustained Response to (Pegylated) Interferon in Chronic Hepatitis B Patients: The GIANT-B Study. Clin. Infect. Dis. 69, 1969–1979. doi: 10.1093/cid/ciz084
Chen, R., Du, J., Zhu, H., Ling, Q. (2021b). The Role of cGAS-STING Signalling in Liver Diseases. JHEP Rep. 3, 100324. doi: 10.1016/j.jhepr.2021.100324
Cheng, X., Xia, Y., Serti, E., Block, P. D., Chung, M., Chayama, K., et al. (2017). Hepatitis B Virus Evades Innate Immunity of Hepatocytes But Activates Cytokine Production by Macrophages. Hepatology 66, 1779–1793. doi: 10.1002/hep.29348
Chen, B., Rao, X., Wang, X., Luo, Z., Wang, J., Sheng, S., et al. (2021a). cGAS-STING Signaling Pathway and Liver Disease: From Basic Research to Clinical Practice. Front. Pharmacol. 12, 719644. doi: 10.3389/fphar.2021.719644
Chen, J., Xu, W., Chen, Y., Xie, X., Zhang, Y., Ma, C., et al. (2017). Matrix Metalloproteinase 9 Facilitates Hepatitis B Virus Replication Through Binding With Type I Interferon (IFN) Receptor 1 to Repress IFN/JAK/STAT Signaling. J. Virol. 91, e01824–e01816. doi: 10.1128/JVI.01824-16
Chin, R., Earnest-Silveira, L., Koeberlein, B., Franz, S., Zentgraf, H., Bowden, S., et al. (2008). Failure of Lamivudine to Reverse Hepatitis B Virus-Associated Changes in ERK, Akt and Cell Cycle Regulatory Proteins. Antivir. Ther. 13, 221–230.
Choi, Y. M., Kim, H., Lee, S. A., Lee, S. Y., Kim, B. J. (2020). A Telomerase-Derived Peptide Exerts an Anti-Hepatitis B Virus Effect via Mitochondrial DNA Stress-Dependent Type I Interferon Production. Front. Immunol. 11, 652. doi: 10.3389/fimmu.2020.00652
Collaborators, G.C.O.D. (2017). Global, Regional, and National Age-Sex Specific Mortality for 264 Causes of Deat–2016: A Systematic Analysis for the Global Burden of Disease Study 2016. Lancet 390, 1151–1210. doi: 10.1016/S0140-6736(17)32152-9
Cooper, C. L., Davis, H. L., Morris, M. L., Efler, S. M., Adhami, M. A., Krieg, A. M., et al. (2004). CPG 7909, an Immunostimulatory TLR9 Agonist Oligodeoxynucleotide, as Adjuvant to Engerix-B® HBV Vaccine in Healthy Adults: A Double-Blind Phase I/II Study. J. Clin. Immunol. 24, 693–701. doi: 10.1007/s10875-004-6244-3
Curtis, C., David, M. (2011). Hepatitis B Surface Antigen-1018 ISS Adjuvant-Containing Vaccine: A Review of HEPLISAV Safety and Efficacy. Expert Rev. Vaccines 10, 417–427. doi: 10.1586/erv.10.162
Daffis, S., Balsitis, S., Chamberlain, J., Zheng, J., Santos, R., Rowe, W., et al. (2021). Toll-Like Receptor 8 Agonist GS-9688 Induces Sustained Efficacy in the Woodchuck Model of Chronic Hepatitis B. Hepatology 73, 53–67. doi: 10.1002/hep.31255/suppinfo
Daffis, S., Chamberlain, J., Zheng, J., Santos, R., Rowe, W., Mish, M., et al. (2017). Sustained Efficacy and Surface Antigen Seroconversion in the Woodchuck Model of Chronic Hepatitis B With the Selective Toll-Like Receptor 8 Agonist GS-9688. J. Hepatol. 66, S692–S693. doi: 10.1016/s0168-8278(17)31859-7
Dansako, H., Imai, H., Ueda, Y., Satoh, S., Shimotohno, K., Kato, N. (2019). High-Level Expression of STING Restricts Susceptibility to HBV by Mediating Type III IFN Induction. FASEB Bioadv. 1, 67–80. doi: 10.1096/fba.1022
Dansako, H., Ueda, Y., Okumura, N., Satoh, S., Sugiyama, M., Mizokami, M., et al. (2016). The Cyclic GMP-AMP Synthetase-STING Signaling Pathway Is Required for Both the Innate Immune Response Against HBV and the Suppression of HBV Assembly. FEBS J. 283, 144–156. doi: 10.1111/febs.13563
Daud, M., Rana, M. A., Husnain, T., Ijaz, B. (2017). Modulation of Wnt Signaling Pathway by Hepatitis B Virus. Arch. Virol. 162, 2937–2947. doi: 10.1007/s00705-017-3462-6
Furutani, Y., Toguchi, M., Shiozaki-Sato, Y., Qin, X. Y., Ebisui, E., Higuchi, S., et al. (2019). An Interferon-Like Small Chemical Compound CDM-3008 Suppresses Hepatitis B Virus Through Induction of Interferon-Stimulated Genes. PloS One 14, e0216139. doi: 10.1371/journal.pone.0216139
Guo, F., Han, Y., Zhao, X., Wang, J., Liu, F., Xu, C., et al. (2015). STING Agonists Induce an Innate Antiviral Immune Response Against Hepatitis B Virus. Antimicrob. Agents Chemother. 59, 1273–1281. doi: 10.1128/AAC.04321-14
Hauser, M. A., Legler, D. F. (2016). Common and Biased Signaling Pathways of the Chemokine Receptor CCR7 Elicited by Its Ligands CCL19 and CCL21 in Leukocytes. J. Leukoc. Biol. 99, 869–882. doi: 10.1189/jlb.2MR0815-380R
He, P., Lei, J., Miao, J. N., Wu, D., Wang, C. (2020). Cordyceps Sinensis Attenuates HBxinduced Cell Apoptosis in HK2 Cells Through Suppressing the PI3K/Akt Pathway. Int. J. Mol. Med. 45, 1261–1269. doi: 10.3892/ijmm.2020.4503
Herschke, F., Li, C., Zhu, R., Han, Q., Wu, Q., Lu, Q., et al. (2021). JNJ-64794964 (AL-034/TQ-A3334), a TLR7 Agonist, Induces Sustained Anti-HBV Activity in AAV/HBV Mice via non-Cytolytic Mechanisms. Antiviral Res. 196, 105196. doi: 10.1016/j.antiviral.2021.105196
Hesari, A., Ghasemi, F., Salarinia, R., Biglari, H., Tabar Molla Hassan, A., Abdoli, V., et al. (2018). Effects of Curcumin on NF-Kappab, AP-1, and Wnt/Beta-Catenin Signaling Pathway in Hepatitis B Virus Infection. J. Cell Biochem. 119, 7898–7904. doi: 10.1002/jcb.26829
He, M., Su, D., Liu, Q., Gao, W., Kang, Y. (2017). Mushroom Lectin Overcomes Hepatitis B Virus Tolerance via TLR6 Signaling. Sci. Rep. 7, 5814. doi: 10.1038/s41598-017-06261-5
Honda, K., Taniguchi, T. (2006). IRFs: Master Regulators of Signalling by Toll-Like Receptors and Cytosolic Pattern-Recognition Receptors. Nat. Rev. Immunol. 6, 644–658. doi: 10.1038/nri1900
Huang, Z., Ge, J., Pang, J., Liu, H., Chen, J., Liao, B., et al. (2015). Aberrant Expression and Dysfunction of TLR2 and Its Soluble Form in Chronic HBV Infection and Its Regulation by Antiviral Therapy. Antiviral Res. 118, 10–19. doi: 10.1016/j.antiviral.2015.03.004
Huang, Y.-X., Zhao, Q.-Y., Wu, L.-L., Xie, D.-Y., Gao, Z.-L., Deng, H. (2018). Increased CCR7loPD-1hicxcr5+CD4+ T Cells in Peripheral Blood Mononuclear Cells Are Correlated With Immune Activation in Patients With Chronic HBV Infection. Can. J. Gastroenterol. Hepatol. 2018, 1020925. doi: 10.1155/2018/1020925
Imai, H., Dansako, H., Ueda, Y., Satoh, S., Kato, N. (2018). Daunorubicin, a Topoisomerase II Poison, Suppresses Viral Production of Hepatitis B Virus by Inducing cGAS-Dependent Innate Immune Response. Biochem. Biophys. Res. Commun. 504, 672–678. doi: 10.1016/j.bbrc.2018.08.195
Janssen, H. L. A., Brunetto, M. R., Kim, Y. J., Ferrari, C., Massetto, B., Nguyen, A. H., et al. (2018). Safety, Efficacy and Pharmacodynamics of Vesatolimod (GS-9620) in Virally Suppressed Patients With Chronic Hepatitis B. J. Hepatol. 68, 431–440. doi: 10.1016/j.jhep.2017.10.027
Jiang, M., Broering, R., Trippler, M., Poggenpohl, L., Fiedler, M., Gerken, G., et al. (2014). Toll-Like Receptor-Mediated Immune Responses Are Attenuated in the Presence of High Levels of Hepatitis B Virus Surface Antigen. J. Viral. Hepat. 21, 860–872. doi: 10.1111/jvh.12216
Jin, H. J., Li, H. T., Sui, H. X., Xue, M. Q., Wang, Y. N., Wang, J. X., et al. (2012). Nicotine Stimulated Bone Marrow-Derived Dendritic Cells Could Augment HBV Specific CTL Priming by Activating PI3K-Akt Pathway. Immunol. Lett. 146, 40–49. doi: 10.1016/j.imlet.2012.02.015
Khanam, A., Tang, L. S. Y., Kottilil, S. (2021). Programmed Death 1 Expressing CD8 + CXCR5 + Follicular T Cells Constitute Effector Rather Than Exhaustive Phenotype in Patients With Chronic Hepatitis B. Hepatology. doi: 10.1002/hep.32210
Khoo, L. T., Chen, L. Y. (2018). Role of the cGAS-STING Pathway in Cancer Development and Oncotherapeutic Approaches. EMBO Rep. 19, e46935. doi: 10.15252/embr.201846935
Lee, S., Goyal, A., Perelson, A. S., Ishida, Y., Saito, T., Gale, M., Jr. (2021). Suppression of Hepatitis B Virus Through Therapeutic Activation of RIG-I and IRF3 Signaling in Hepatocytes. iScience 24, 101969. doi: 10.1016/j.isci.2020.101969
Li, L., Barry, V., Daffis, S., Niu, C., Huntzicker, E., French, D. M., et al. (2018). Anti-HBV Response to Toll-Like Receptor 7 Agonist GS-9620 Is Associated With Intrahepatic Aggregates of T Cells and B Cells. J. Hepatol. 68, 912–921. doi: 10.1016/j.jhep.2017.12.008
Li, L., Li, Y., Xiong, Z., Shu, W., Yang, Y., Guo, Z., et al. (2019a). FoxO4 Inhibits HBV Core Promoter Activity Through ERK-Mediated Downregulation of HNF4alpha. Antiviral. Res. 170, 104568. doi: 10.1016/j.antiviral.2019.104568
Lin, Y., Huang, X., Wu, J., Liu, J., Chen, M., Ma, Z., et al. (2018). Pre-Activation of TLR2 Enhances CD8+ T-Cell Responses and Accelerates HBV Clearance in the Mouse Models. Front. Immunol. 9, 1495. doi: 10.3389/fimmu.2018.01495
Liu, C., Huang, X., Werner, M., Broering, R., Ge, J., Li, Y., et al. (2017). Elevated Expression of Chemokine CXCL13 in Chronic Hepatitis B Patients Links to Immune Control During Antiviral Therapy. Front. Immunol. 8, 323. doi: 10.3389/fimmu.2017.00323
Liu, J., Wang, Z., Tang, J., Tang, R., Shan, X., Zhang, W., et al. (2011). Hepatitis C Virus Core Protein Activates Wnt/beta-Catenin Signaling Through Multiple Regulation of Upstream Molecules in the SMMC-7721 Cell Line. Arch. Virol. 156, 1013–1023. doi: 10.1007/s00705-011-0943-x
Liu, J., Yu, Q., Wu, W., Huang, X., Broering, R., Werner, M., et al. (2018). TLR2 Stimulation Strengthens Intrahepatic Myeloid-Derived Cell-Mediated T Cell Tolerance Through Inducing Kupffer Cell Expansion and IL-10 Production. J. Immunol. 200, 2341–2351. doi: 10.4049/jimmunol.1700540
Liver, E.a.F.T.S.O.T. (2017). EASL 2017 Clinical Practice Guidelines on the Management of Hepatitis B Virus Infection. J. Hepatol. 67, 370–398. doi: 10.1016/j.jhep.2017.03.021
Li, Y., Wu, Y., Zheng, X., Cong, J., Liu, Y., Li, J., et al. (2016). Cytoplasm-Translocated Ku70/80 Complex Sensing of HBV DNA Induces Hepatitis-Associated Chemokine Secretion. Front. Immunol. 7, 569. doi: 10.3389/fimmu.2016.00569
Li, Q., Yan, Y., Liu, J., Huang, X., Zhang, X., Kirschning, C., et al. (2019b). Toll-Like Receptor 7 Activation Enhances CD8+ T Cell Effector Functions by Promoting Cellular Glycolysis. Front. Immunol. 10, 2191. doi: 10.3389/fimmu.2019.02191
Luangsay, S., Gruffaz, M., Isorce, N., Testoni, B., Michelet, M., Faure-Dupuy, S., et al. (2015). Early Inhibition of Hepatocyte Innate Responses by Hepatitis B Virus. J. Hepatol. 63, 1314–1322. doi: 10.1016/j.jhep.2015.07.014
Lu, X., Wang, J., Jin, X., Huang, Y., Zeng, W., Zhu, J. (2015). IFN-CSP Inhibiting Hepatitis B Virus in HepG2.2.15 Cells Involves JAK-STAT Signal Pathway. Biomed. Res. Int. 2015, 959684. doi: 10.1155/2015/959684
Lu, Y. Q., Wu, J., Wu, X. J., Ma, H., Ma, Y. X., Zhang, R., et al. (2021). Interferon Gamma-Inducible Protein 16 of Peripheral Blood Mononuclear Cells May Sense Hepatitis B Virus Infection and Regulate the Antiviral Immunity. Front. Cell. Infect. Microbiol. 11, 790036. doi: 10.3389/fcimb.2021.790036
Mackman, R. L., Mish, M., Chin, G., Perry, J. K., Appleby, T., Aktoudianakis, V., et al. (2020). Discovery of GS-9688 (Selgantolimod) as a Potent and Selective Oral Toll-Like Receptor 8 Agonist for the Treatment of Chronic Hepatitis B. J. Med. Chem. 63, 10188–10203. doi: 10.1021/acs.jmedchem.0c00100
Makjaroen, J., Somparn, P., Hodge, K., Poomipak, W., Hirankarn, N., Pisitkun, T. (2018). Comprehensive Proteomics Identification of IFN-Lambda3-Regulated Antiviral Proteins in HBV-Transfected Cells. Mol. Cell. Proteomics 17, 2197–2215. doi: 10.1074/mcp.RA118.000735
Mani, S. K. K., Yan, B., Cui, Z., Sun, J., Utturkar, S., Foca, A., et al. (2020). Restoration of RNA Helicase DDX5 Suppresses Hepatitis B Virus (HBV) Biosynthesis and Wnt Signaling in HBV-Related Hepatocellular Carcinoma. Theranostics 10, 10957–10972. doi: 10.7150/thno.49629
Matsuno, K., Ezaki, T., Kudo, S., Uehara, Y. (1996). A Life Stage of Particle-Laden Rat Dendritic Cells In Vivo: Their Terminal Division, Active Phagocytosis, and Translocation From the Liver to the Draining Lymph. J. Exp. Med. 18, 1865–1878. doi: 10.1084/jem.183.4.1865
Ma, Z., Zhang, E., Yang, D., Lu, M. (2015). Contribution of Toll-Like Receptors to the Control of Hepatitis B Virus Infection by Initiating Antiviral Innate Responses and Promoting Specific Adaptive Immune Responses. Cell Mol. Immunol. 12, 273–282. doi: 10.1038/cmi.2014.112
Meng, Z., Chen, Y., Lu, M. (2019). Advances in Targeting the Innate and Adaptive Immune Systems to Cure Chronic Hepatitis B Virus Infection. Front. Immunol. 10, 3127. doi: 10.3389/fimmu.2019.03127
Meng, Z., Zhang, X., Pei, R., Zhang, E., Kemper, T., Vollmer, J., et al. (2016). Combination Therapy Including CpG Oligodeoxynucleotides and Entecavir Induces Early Viral Response and Enhanced Inhibition of Viral Replication in a Woodchuck Model of Chronic Hepadnaviral Infection. Antiviral Res. 12, 514-, 24. doi: 10.1016/j.antiviral.2015.11.001
Menne, S., Tumas, D. B., Liu, K. H., Thampi, L., Aldeghaither, D., Baldwin, B. H., et al. (2015). Sustained Efficacy and Seroconversion With the Toll-Like Receptor 7 Agonist GS-9620 in the Woodchuck Model of Chronic Hepatitis B. J. Hepatol. 62, 1237–1245. doi: 10.1016/j.jhep.2014.12.026
Michel, M. L., Tiollais, P. (2010). Hepatitis B Vaccines: Protective Efficacy and Therapeutic Potential. Pathol. Biol. (Paris) 58, 288–295. doi: 10.1016/j.patbio.2010.01.006
Niu, J., Wang, Y., Dixon, R., Bowden, S., Qiao, M., Einck, L., et al. (1993). The Use of Ampligen Alone and in Combination With Ganciclovir and Coumermycin A1 for the Treatment of Ducks Congenitally-Infected With Duck Hepatitis B Virus. Antiviral Res. 21, 155–171. doi: 10.1016/0166-3542(93)90051-j
Palomino, D. C. T., Marti, L. C. (2015). Chemokines and Immunity. Einstein (São Paulo) 13, 469–473. doi: 10.1590/s1679-45082015rb3438
Park, S. O., Kumar, M., Gupta, S. (2012). TGF-Beta and Iron Differently Alter HBV Replication in Human Hepatocytes Through TGF-Beta/BMP Signaling and Cellular microRNA Expression. PloS One 7, e39276. doi: 10.1371/journal.pone.0039276
Rana, M. A., Ijaz, B., Daud, M., Tariq, S., Nadeem, T., Husnain, T. (2019). Interplay of Wnt Beta-Catenin Pathway and miRNAs in HBV Pathogenesis Leading to HCC. Clin. Res. Hepatol. Gastroenterol. 43, 373–386. doi: 10.1016/j.clinre.2018.09.012
Rawat, S., Bouchard, M. J. (2015). The Hepatitis B Virus (HBV) HBx Protein Activates AKT to Simultaneously Regulate HBV Replication and Hepatocyte Survival. J. Virol. 89, 999–1012. doi: 10.1128/JVI.02440-14
Revill, P. A., Chisari, F. V., Block, J. M., Dandri, M., Gehring, A. J., Guo, H., et al. (2019). A Global Scientific Strategy to Cure Hepatitis B. Lancet Gastroenterol. Hepatol. 4, 545–558. doi: 10.1016/s2468-1253(19)30119-0
Reyes, M., Lutz, J. D., Lau, A. H., Gaggar, A., Grant, E. P., Joshi, A., et al. (2020). Safety, Pharmacokinetics and Pharmacodynamics of Selgantolimod, an Oral Toll-Like Receptor 8 Agonist: A Phase Ia Study in Healthy Subjects. Antivir. Ther. 25, 171–180. doi: 10.3851/IMP3363
Ruslan, M., Charles, J., Jr. (2000). The Toll Receptor Family and Microbial Recognition. Trends Microbiol. 8, 452–456. doi: 10.1016/s0966-842x(00)01845-x
Shin, G. C., Kang, H. S., Lee, A. R., Kim, K. H. (2016). Hepatitis B Virus–Triggered Autophagy Targets TNFRSF10B/death Receptor 5 for Degradation to Limit TNFSF10/TRAIL Response. Autophagy 12, 2451–2466. doi: 10.1080/15548627.2016.1239002
Smolders, E. J., Burger, D. M., Feld, J. J., Kiser, J. J. (2020). Review Article: Clinical Pharmacology of Current and Investigational Hepatitis B Virus Therapies. Aliment. Pharmacol. Ther. 51, 231–243. doi: 10.1111/apt.15581
Su, A. I., Pezacki, J. P., Wodicka, L., Brideau, A. D., Supekova, L., Thimme, R., et al. (2002). Genomic Analysis of the Host Response to Hepatitis C Virus Infection. Proc. Natl. Acad. Sci. U.S.A. 99, 15669–15674. doi: 10.1073/pnas.202608199
Tan, Q., Chen, J., Gao, G., Yizhang, Chen, X., Yu, Y., et al(2021). Adenovirus Vector Encoding TPPII Ignites HBV-Specific CTL Response by Activating Autophagy in CD8+ T Cell. J. Viral. Hepat. doi: 10.1111/jvh.13638
Tang, A., Hallouch, O., Chernyak, V., Kamaya, A., Sirlin, C. B. (2018). Epidemiology of Hepatocellular Carcinoma: Target Population for Surveillance and Diagnosis. Abdom. Radiol. (NY) 43, 13–25. doi: 10.1007/s00261-017-1209-1
Tu, T., Budzinska, M. A., Shackel, N. A., Urban, S. (2017). HBV DNA Integration: Molecular Mechanisms and Clinical Implications. Viruses 9, 75. doi: 10.3390/v9040075
Tutanov, O. S., Tamkovich, S. N., Grigoryeva, A., Ryabchikova, E., Duzhak, T., Tsentalovich, Y., et al. (2016). Curcumin Oleoresin Inhibits Cell Growth and Migratory Properties of Breast Cancer Cells Through Inhibition of NF-kB Pathway. Ann. Oncol. 27, 75, ix1. doi: 10.1093/annonc/mdw573
Verrier, E. R., Yim, S. A., Heydmann, L., El Saghire, H., Bach, C., Turon-Lagot, V., et al. (2018). Hepatitis B Virus Evasion From Cyclic Guanosine Monophosphate-Adenosine Monophosphate Synthase Sensing in Human Hepatocytes. Hepatology 68, 1695–1709. doi: 10.1002/hep.30054
Vincent, I. E., Zannetti, C., Lucifora, J., Norder, H., Protzer, U., Hainaut, P., et al. (2011). Hepatitis B Virus Impairs TLR9 Expression and Function in Plasmacytoid Dendritic Cells. PloS One 6, e26315. doi: 10.1371/journal.pone.0026315
Wang, W., Shi, Y., Bai, G., Tang, Y., Yuan, Y., Zhang, T., et al. (2016). HBxAg Suppresses Apoptosis of Human Placental Trophoblastic Cell Lines via Activation of the PI3K/Akt Pathway. Cell Biol. Int. 40, 708–715. doi: 10.1002/cbin.10608
Wieland, S., Thimme, R., Purcell, H. R., Francis, C. V. (2004). Genomic Analysis of the Host Response to Hepatitis B Virus Infection. Proc. Natl. Acad. Sci. U.S.A. 101, 6669–6674. doi: 10.1073/pnas.0401771101
Wu, S., Chen, X., Tang, Y., Zhang, Y., Li, D., Chen, J., et al. (2018). Delivery of Tapasin-Modified CTL Epitope Peptide via Cytoplasmic Transduction Peptide Induces CTLs by JAK/STAT Signaling Pathway In Vivo. Acta Biochim. Biophys. Sin. (Shanghai) 50, 181–190. doi: 10.1093/abbs/gmx133
Wu, J., Lu, M., Meng, Z., Trippler, M., Broering, R., Szczeponek, A., et al. (2007). Toll-Like Receptor-Mediated Control of HBV Replication by Nonparenchymal Liver Cells in Mice. Hepatology 46, 1769–1778. doi: 10.1002/hep.21897
Wu, J., Meng, Z., Jiang, M., Pei, R., Trippler, M., Broering, R., et al. (2009). Hepatitis B Virus Suppresses Toll-Like Receptor-Mediated Innate Immune Responses in Murine Parenchymal and Nonparenchymal Liver Cells. Hepatology 49, 1069–1082. doi: 10.1002/hep.22773
Wu, L., Wang, W., Zhang, X., Zhao, X., Yu, G. (2016). Anti-HBV Activity and Mechanism of Marine-Derived Polyguluronate Sulfate (PGS) In Vitro. Carbohydr. Polym. 143, 139–148. doi: 10.1016/j.carbpol.2016.01.065
Xiang, K., Wang, B. (2018). Role of the PI3K-AKT-mTOR Pathway in Hepatitis B Virus Infection and Replication. Mol. Med. Rep. 17, 4713–4719. doi: 10.3892/mmr.2018.8395
Xiaoyong, Z., Anke, K., Ruth, B., Schlaak, F. J., Ulf, D., Mengji, L. (2012). Preclinical Development of TLR Ligands as Drugs for the Treatment of Chronic Viral Infections. Expert Opin. Drug Discovery 7, 597–611. doi: 10.1517/17460441.2012.689281
Xie, M., Guo, H., Lou, G., Yao, J., Liu, Y., Sun, Y., et al. (2021). Neddylation Inhibitor MLN4924 Has Anti-HBV Activity via Modulating the ERK-HNF1alpha-C/EBPalpha-HNF4alpha Axis. J. Cell Mol. Med. 25, 840–854. doi: 10.1111/jcmm.16137
Xu, C., Lu, Y., Zheng, X., Feng, X., Yang, X., Timm, J., et al. (2017). TLR2 Expression in Peripheral CD4+ T Cells Promotes Th17 Response and Is Associated With Disease Aggravation of HBV-Related Acute-on-Chronic Liver Failure. Front. Immunol. 8, 1609. doi: 10.3389/fimmu.2017.01609
Xu, N., Yao, H. P., Lv, G. C., Chen, Z. (2012). Downregulation of TLR7/9 Leads to Deficient Production of IFN-Alpha From Plasmacytoid Dendritic Cells in Chronic Hepatitis B. Inflamm. Res. 61, 997–1004. doi: 10.1007/s00011-012-0493-z
Yan, Y., Chen, R., Wang, X., Hu, K., Huang, L., Lu, M., et al. (2019). CCL19 and CCR7 Expression, Signaling Pathways, and Adjuvant Functions in Viral Infection and Prevention. Front. Cell Dev. Biol. 7, 212. doi: 10.3389/fcell.2019.00212
Yan, Y., Zhao, W., Liu, W., Li, Y., Wang, X., Xun, J., et al. (2021). CCL19 Enhances CD8+ T-Cell Responses and Accelerates HBV Clearance. J. Gastroenterol. 56, 769–785. doi: 10.1007/s00535-021-01799-8
Yan, H., Zhong, M., Yang, J., Guo, J., Yu, J., Yang, Y., et al. (2020). TLR5 Activation in Hepatocytes Alleviates the Functional Suppression of Intrahepatic CD8(+) T Cells. Immunology 161, 325–344. doi: 10.1111/imm.13251
Yuen, M. F., Elkashab, M., Chen, C. Y., Coffin, C., Fung, S., Greenbloom, S., et al. (2018). Dose Response and Safety of the Daily, Oral RIG-I Agonist Inarigivir (SB 9200) in Treatment Naïve Patients With Chronic Hepatitis B: Results From the 25mg and 50mg Cohorts in the ACHIEVE Trial. J. Hepatol. 68, S509–S510. doi: 10.1016/s0168-8278(18)31267-4
Zao, X., Cheng, J., Shen, C., Guan, G., Feng, X., Zou, J., et al. (2021). NFATc3 Inhibits Hepatocarcinogenesis and HBV Replication via Positively Regulating RIG-I-Mediated Interferon Transcription. Oncoimmunology 10, 1869388. doi: 10.1080/2162402X.2020.1869388
Zhang, C., Gao, Y., Du, C., Markowitz, G. J., Fu, J., Zhang, Z., et al. (2021). Hepatitis B-Induced IL8 Promotes Hepatocellular Carcinoma Venous Metastasis and Intrahepatic Treg Accumulation. Cancer Res. 81, 2386–2398. doi: 10.1158/0008-5472.CAN-20-3453
Zhang, E., Lu, M. (2015). Toll-Like Receptor (TLR)-Mediated Innate Immune Responses in the Control of Hepatitis B Virus (HBV) Infection. Med. Microbiol. Immunol. 204, 11–20. doi: 10.1007/s00430-014-0370-1
Zhang, X., Meng, Z., Qiu, S., Xu, Y., Yang, D., Schlaak, J. F., et al. (2009). Lipopolysaccharide-Induced Innate Immune Responses in Primary Hepatocytes Downregulates Woodchuck Hepatitis Virus Replication via Interferon-Independent Pathways. Cell Microbiol. 11, 1624–1637. doi: 10.1111/j.1462-5822.2009.01353.x
Zhang, M., Wu, X., Lai, F., Zhang, X., Wu, H., Min, T. (2016). Betaine Inhibits Hepatitis B Virus With an Advantage of Decreasing Resistance to Lamivudine and Interferon Alpha. J. Agric. Food Chem. 64, 4068–4077. doi: 10.1021/acs.jafc.6b01180
Zhao, X., Sun, L., Mu, T., Yi, J., Ma, C., Xie, H., et al. (2020). An HBV-Encoded miRNA Activates Innate Immunity to Restrict HBV Replication. J. Mol. Cell. Biol. 12, 263–276. doi: 10.1093/jmcb/mjz104
Zhao, Z., Zhang, D., Wu, F., Tu, J., Song, J., Xu, M., et al. (2021). Sophoridine Suppresses Lenvatinib-Resistant Hepatocellular Carcinoma Growth by Inhibiting RAS/MEK/ERK Axis via Decreasing VEGFR2 Expression. J. Cell Mol. Med. 25, 549–560. doi: 10.1111/jcmm.16108
Zheng, R., Deng, Q., Liu, Y., Zhao, P. (2017). Curcumin Inhibits Gastric Carcinoma Cell Growth and Induces Apoptosis by Suppressing the Wnt/Beta-Catenin Signaling Pathway. Med. Sci. Monit. 23, 163–171. doi: 10.12659/msm.902711
Zheng, B. Y., Gao, W. Y., Huang, X. Y., Lin, L. Y., Fang, X. F., Chen, Z. X., et al. (2018). HBx Promotes the Proliferative Ability of HL7702 Cells via the COX2/Wnt/betacatenin Pathway. Mol. Med. Rep. 17, 8432–8438. doi: 10.3892/mmr.2018.8906
Keywords: HBV, infection, TLR, signaling pathway, carcinogenesis, therapeutics
