Abstract
Exosomes mediate intercellular communication and participate in many cell processes such as cancer progression, immune activation or evasion, and the spread of infection. Exosomes are small vesicles secreted to the extracellular environment through the release of intraluminal vesicles contained in multivesicular bodies (MVBs) upon the fusion of these MVBs with the plasma membrane. The composition of exosomes is not random, suggesting that the incorporation of cargo into them is a regulated process. However, the mechanisms that control the sorting of protein cargo into exosomes are currently elusive. Here, we review the post-translational modifications detected in exosomal proteins, and discuss their possible role in their specific sorting into exosomes.
Introduction
Post-translational modifications (PTMs) of proteins are biochemical changes generated after the synthesis of polypeptides on ribosomes. PTMs include changes to the chemical nature of aminoacid residues and also structural modifications that affect the interactive ability of proteins, and consequently their stability, subcellular localization, and activation state (1, 2). There are many types of PTM that can be classified according to the nature of the materials added: (1) a chemical group (phosphate, acetate, etc.), (2) carbohydrates, (3) lipids, (4) aminoacids, (5) other polypeptides, and (6) an isoprenyl group (Table 1). A protein can undergo many PTMs, changing its properties and broadening its capacity to adapt to cellular needs (2). Some modifications are reversible and are strictly regulated by the enzymes responsible for their addition or removal, acting as a dynamic switch that allows the cell to adjust protein functions according to requirements. Dysregulation of PTMs or mutation of modified residues are linked to disease, including cancer, neurodegenerative disorders such as Alzheimer, and cardiovascular disease, highlighting the importance of these protein modifications (3–7).
Table 1
| Groups of PTMs | Modification | Added group | Modified residues of target proteins | PTM in exosomal proteins | Biological relevance conferred by the PTMs | Reference |
|---|---|---|---|---|---|---|
| POST-TRANSLATIONAL MODIFICATIONS OF EUKARYOTIC PROTEINS | ||||||
| Addition of a chemical group | Phosphorylation | Phosphate group | Tyr, Thr, Ser, His | FasL; AnnexinA2; tau; γ-synuclein | Sorting into exosomes; incorporation into exosomal membrane; spreading of toxic aggregates through exosomes; spreading of toxic aggregates through exosomes | (8–11) |
| Acetylation | Acetyl group | Lys | – | – | – | |
| Methylation | Methyl group | Lys, Arg | – | – | – | |
| Oxidation | Different oxygen species | All amino acids, but preferentially Tyr, Phe, Trp, His, Met, Cys | γ-Synuclein | Spreading of toxic aggregates through exosomes | (11) | |
| Nitrosylation | Nitric oxide (NO) | Cys, Met | – | – | – | |
| Addition of carbohydrates or glycosylation | N-linked glycosylation | Glycosyl group | Asn, Arg, and N-terminus | Several glycoproteins | Sorting of particular glycoproteins into exosomes (?) | (12–14) |
| O-linked glycosylation | Glycosyl group | Ser, Thr, and amino acids in close proximity to Tyr phosphorylation sites | Several glycoproteins | Sorting of particular glycoproteins into exosomes (?) | (12–14) | |
| C-linked mannosylation and glypiation [glycosylphosphatidylinositol (GPI)anchor] | Glycosylpho sphatidylinositol (GPI) group | Carbon on a tryptophan side-chain and C-terminus, respectively | Several glycoproteins | Sorting of particular glycoproteins into exosomes (?) | (12, 13) | |
| Addition of lipids (lipidation) | Palmitoylation | Palmitic acid | Cys | – | – | – |
| N-myristoylation | Myristoyl group | N-terminal glycine residue | Artificial conjugation of TyA protein to myristoyl group | Sorting of TyA into shedding vesicles | (15) | |
| Addition of amino acids | Polyglutamylation | Glutamic acid | Gly | – | – | – |
| Addition of other polypeptides | Ubiquitination | Ubiquitin protein | Lys, N-terminus, non-lysine residues (Cys, Thr, Ser) | Several proteins, some examples: LMP2A; PTEN; SIMPLE; HSP70; ARRDC1 | Exosomal LMP2A loading; Sorting of PTEN into exosomes; Unknown function; Unknown function; Secretion into shedding vesicles | (16–20) |
| SUMOylation (Small ubiquitin-related modifier addition) | SUMO1-4 proteins | Tetrapeptide consensus motif Ψ-K-x-D/E (Ψ: hydrophobic residue, K: lysine conjugated to SUMO, x: any amino acid, D or E: acidic residue) | hnRNPA2B1 | Regulate the binding of miRNAs to hnRNPA2B1 | (21) | |
| NEDDylation (neural-precursor-cell-expressed developmentally down-regulated 8 addition) | NEDD8 protein | Lys | – | – | – | |
| ISGylatyon (Interferon-stimulated gene 15 addition) | ISG15 protein | Lys | – | – | – | |
| Isoprenylation | Farnesylation | Farnesyl group | Cys and sequence motifs CAAX, CC, or CAC at C-terminus (C: Cys, A: alanine, X: any amino acid) | – | – | – |
| Geranylgeranylation | Geranylgeranyl isoprene unit | Cys and sequence motifs CAAX, CC or CAC at C-terminus (C: Cys, A: alanine, X: any amino acid) | – | – | – | |
Post-translational modification of eukaryotic proteins.
A specific pattern of PTMs is detected in exosomes, 50–200 nm diameter vesicles secreted by most cells to the extracellular environment. Once released, exosomes can adhere to or be internalized by recipient cells, and in this way mediate cell-to-cell communication in a variety of contexts. Exosomes form through the invagination of the limiting membrane of specific endosomic compartments called multivesicular bodies (MVBs) (22). The resulting intraluminal vesicles (ILVs) are released as exosomes upon fusion of MVBs with the plasma membrane. Alternatively, MVBs can fuse with lysosomes, leading to degradation of their content. Exosomes have a specific composition of lipids, proteins, and RNAs; however, the mechanisms that control the sorting of molecules into these exosomal-proteins vesicles remain elusive. Here, we review the PTMs detected in exosomal proteins, and discuss their possible role in their specific sorting into exosomes.
Ubiquitination and SUMOylation
Post-translational modifications increase the versatility of proteins by influencing their activation state, stability, subcellular localization, and ability to interact with other proteins. A particularly effective means of increasing protein versatility is the addition of ubiquitin, which can be attached to a target protein at a number of positions and in a variety of ways. The C-terminal glycine of ubiquitin usually forms an isopeptide bond with the ε-amino group of a lysine residue present in the target protein, resulting in mono-ubiquitination. In some cases, E4 ubiquitin ligases can add a poly-ubiquitin chain to a mono-ubiquitinated site (23). The equation becomes even more complicated considering that ubiquitin has seven lysines, and the fate of the target protein is determined by which lysine forms the link in the poly-ubiquitin chain: chains linked through lysine-48 (Ub-K48) label target proteins for degradation in the proteasome; Ub-K63 chains seem to be important for the DNA-damage response, endocytosis, autophagy, and signal transduction; Ub-K11 chains are implicated in endoplasmic-reticulum-associated degradation (ERAD); and Ub-K29 chains are involved in lysosomal degradation (24–33). Moreover, in some cases, ubiquitin can be linked through residues other than lysine, such as the N-terminal through the free amino group or the sulfhydryl group of cysteine residues (34).Ubiquitination can also compete with other PTMs, such as sumoylation or acetylation, and can enhance others such as phosphorylation (35–37).
Ubiquination, thus denotes a complex network of PTMs, and its role in the sorting of proteins into exosomes is far from understood. There seems to be consensus that ubiquitination is necessary for sorting proteins into ILVs destined for degradation through the fusion of the encompassing MVB with lysosomes. This process is mediated by the endosomal sorting complex required for transport machinery (ESCRT complex) and affects proteins such as epithelial growth factor receptor (EGFR) (38) (Figure 1). This machinery recognizes ubiquitinated cargoes and catalyzes the abscission of endosomal invaginations, forming ILVs that contain the sorted cargo [reviewed in Raiborg and Stenmark (39)]. The ESCRT complex consists of four subcomplexes, ESCRT-0, -I, -II, and -III, and several accessory proteins. ESCRT-0, -I, and -II contain ubiquitin-binding subunits that interact directly with ubiquitinated cargo. The directional flow of cargo from ESCRT-0 to ESCRT-I and -II might be regulated by PTMs. In fact, the ESCRT-0 subunits are known to be phosphorylated and to be mono-ubiquitinated (40–42). The latter modification keeps these subunits in an inactive form owing to intramolecular interactions between their ubiquitin interacting motifs and the appended ubiquitin (43, 44). However, the role of ubiquitin and the ESCRT complex in the sorting of proteins into ILVs for exosome secretion is still unclear, and MVB biogenesis, exosome secretion, and exosomal-protein sorting have been reported in an ESCRT/ubiquitin-independent manner [reviewed at Villarroya-Beltri et al. (45)].

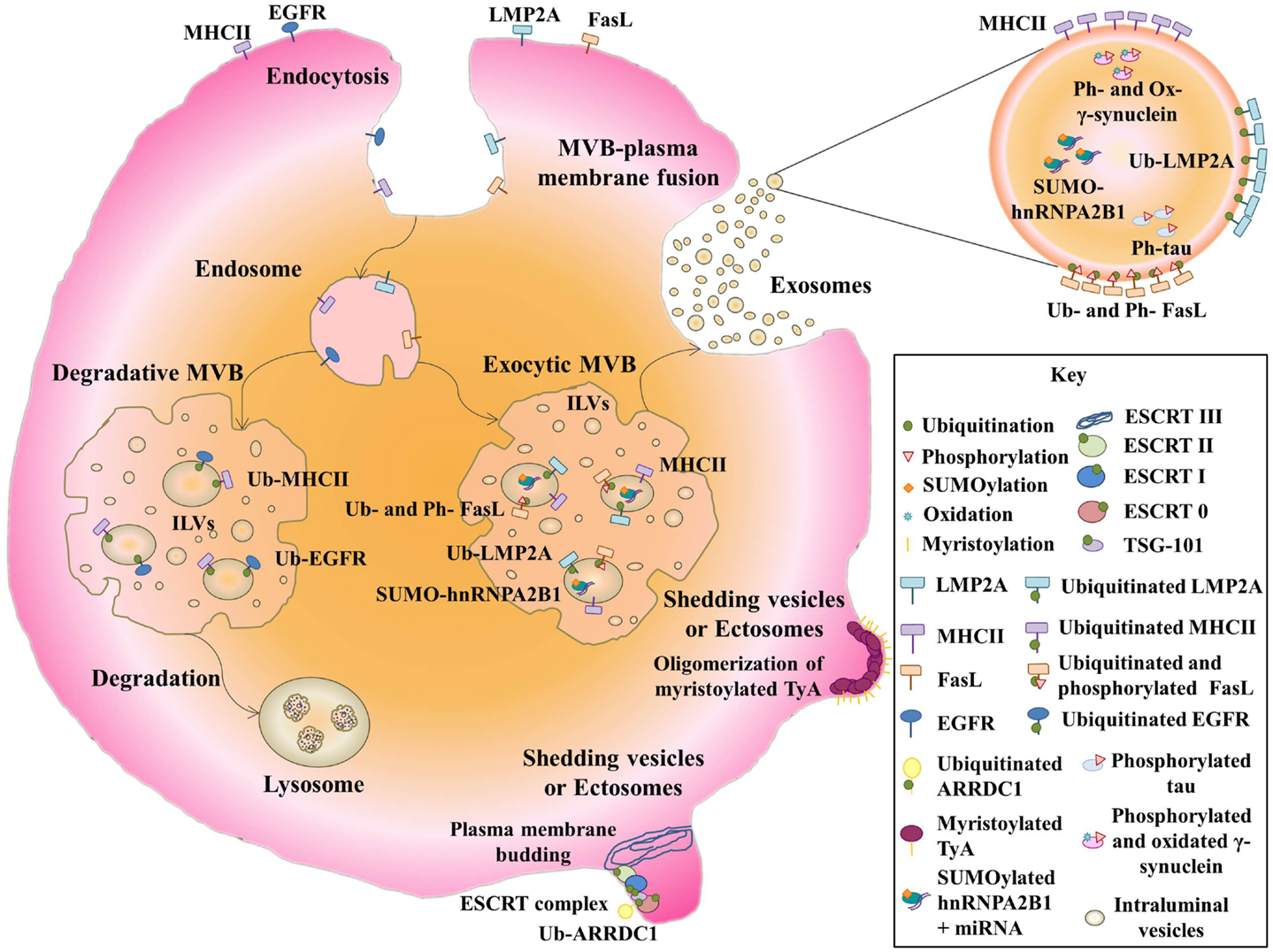

Figure 1
The Epstein-Barr virus (EBV) protein LMP2A (latent membrane protein 2A) is ubiquitinated in exosomal fractions (16). LMP2A contains two PXYY motifs, through which it associates with neural precursor cell expressed developmentally down-regulated protein 4 (Nedd4)-family ubiquitin ligases (16). Ubiquitination of LMP2A leads to endocytic transport of the protein from the plasma membrane to MVBs. Nedd4 E3 ubiquitin ligases are able to bind directly to target proteins though the PPXY motif, but proteins lacking this motif can bind Nedd4 through the adaptor Nedd4-family-interacting protein 1(Ndfip1), leading to their ubiquitination (46). Ndfip1 is involved not only in protein degradation, but also in protein traffic to exosomes (46). Ndfip1 overexpression increases the protein content of exosomes and enhances exosomal sorting of normally absent proteins, such as Nedd4, Nedd4-2, and Itch. These exosomal proteins moreover appear to be highly ubiquitinated, suggesting that Ndfip1 transfers other ubiquitinated proteins to exosomes (46) (Figure 1). For example, the Ndfip1 adaptor function is required for exosomal export of phosphatase and tensin homolog deleted on chromosome 10 protein (PTEN) ubiquitinated on lysine 13 (17).
With other proteins, however, ubiquitination appears to be unimportant or inhibitory to exosomal export. Secretion into exosomes of small integral membrane protein of the lysosome/late endosome (SIMPLE) is enhanced by mutations in its PPXY motif, which mediates its binding to E3 ubiquitin ligases (18). Ubiquitination is also not required for the packaging of major histocompatibility complex II (MHC-II) into exosomes (47). The use of a chimeric-ubiquitinated-MHC-II molecule does not specifically lead these molecules into exosomes, and forcing MHC-II ubiquitination by expression of membrane-associated ring finger (C3HC4) 8 (MARCH) E3 ubiquitin ligase does not enrich MHC-II molecules in exosomes, though it does completely deplete them from the plasma membrane. Moreover, directed-mutagenesis of all MHC-II lysine residues does not impair the exosome sorting of these receptors (47). However, ubiquitination of the MHC-II cytoplasmic domain, required for recognition by the ESCRT complex, is important for sorting membrane MHC-II to MVBs for lysosomal degradation (48). The non-ubiquitination of MHC-II molecules present in exosomes suggests that this PTM is not involved in sorting to these vesicles. The two mechanisms for loading MHC-II into MVBs are engaged for different physiological functions. Thus, whereas ubiquitin-dependent sorting takes place in immature DCs, in which ubiquitinated receptors are degraded in lysosomes, in activated-DCs, non-ubiquitinated MHC-II-containing exosomes are efficiently delivered to interact with T cells, enhancing antigen specific MHC-II-mediated presentation (48) (Figure 1). Heat shock protein 70 (HSP70) also seems to be sorted into exosomes independently of its ubiquitination. Thus, although deletion of the deubiquitin domain of COP9 signalosome complex subunit 5 (CSN5) enhances packing of ubiquitinated HSP70 into exosomes, knockdown of the entire CSN5 protein increases the levels of both modified and non-modified HSP70 in exosomes (19).
Mass spectrometry analysis of PTMs in extracellular vesicles released by insulinoma cells identified multiple poly-ubiquitinated proteins (49). Enrichment of exosomes in poly-ubiquitinatied proteins was also demonstrated by an approach based on the use of FK1 antibody (which only binds poly-ubiquitinated proteins) and P4D1 (which labels poly- and mono-ubiquitinated proteins) (50). Other studies suggest that exosomal proteins are preferentially mono-ubiquitinated or de-ubiquitinated, based on western analysis showing discrete ubiquitinated protein bands rather than smeared bands (19).
Ubiquitination has been shown to be important for the secretion of a novel type of extracellular vesicle, distinct from exosomes, called arrestin-domain-containing protein 1(ARRDC1)-mediated microvesicles (ARMMs). ARMMs directly bud from the plasma membrane upon interaction of the tumor susceptibility gene 101 protein (TSG101) with a PSAP motif in ARRDC1, which is localized through its arrestin domain at the plasma membrane (20). ARRDC1 in vesicles is ubiquitinated by the E3 ligase WW domain-containing protein 2 (WWP2). Down-regulation of WWP2 decreases ARRDC1 protein level in vesicles, and a PPXY-mutant of ARRDC1 strongly inhibits ARMM secretion, suggesting that ARRDC1 ubiquitination promotes ARRDC1 sorting into vesicles and ARMM secretion (20) (Figure 1).
Another ubiquitin-like modifier called small ubiquitin-related modifier (SUMO) has been found to modify the exosomal-protein heterogeneous nuclear ribonucleoprotein A2B1 (hnRNPA2B1). This modification affects the ability of this protein to export micro ribonucleic acids (miRNAs) into exosomes, probably by affecting its binding to miRNAs (21). hnRNPA1 in exosomes was also found to be modified, increasing its molecular weight by about 12 kDa on gel electrophoresis (21) (Figure 1). This change in molecular weight of hnRNPA2B1 and other proteins has been shown before (49).
Other PTMs: Phosphorylation and Glycosylation
Mass spectrometry analysis of extracellular vesicles also detects phosphorylated proteins (49). Phosphorylation and ubiquitination co-regulate sorting of Fas ligand (FasL) into secretory lysosomes by controlling its entry into MVBs (8). FasL contains a proline-rich domain (PRD) in the cytosolic tail to which tyrosine kinases, such as FGR, FYN, and LYN bind, and phosphorylation of tyrosine residues by these kinases enhances internalization to MVBs. The flanking regions of the PRD contain lysines, which are mono-ubiquitinated. Mutation of these lysines impairs the localization of FasL in MVBs, but mutation of the tyrosines does not affect mono-ubiquitination. Phosphorylation is thus not required for ubiquitination, but both PTMs are necessary for incorporation of FasL into to MVBs (8) (Figure 1).
Phosphorylation is also involved in incorporation of the Ca2+-dependent phospholipid-binding protein Annexin A2 into exosomal membranes, through the action of raft-resident kinases, such as SRC or LYN on Tyr-23 (9). Aberrant phosphorylation of the protein tau on threonine-181 promotes its incorporation into exosomes, resulting in the spreading of this abnormally processed protein in Alzheimer disease patients (10).
The protein γ-synuclein is transported in exosomes in its modified form. This modification consists of oxidation of Met-38 and Tyr-39, which confers prion-like properties and causes the formation of toxic aggregates. The spreading of these aggregates is in part mediated by the exosomal transport of oxidated-γ-synuclein to glial cells (11) (Figure 1).
Carbohydrate modifications, involved in protein trafficking, cellular recognition, and communication of cells with their extracellular environment, have also been studied in extracellular vesicles (12, 13, 51). Vesicles of diverse cells types are enriched in proteins with high mannose, polylactosamine, α-2,6-sialic acid, and complex N-linked glycans adjuncts; in contrast, there is a comparative under-representation of specific glycan epitopes, such as terminal blood group A and B antigens (12, 13). Exosome glycan profiles of different cell sources, such as T-cells, melanoma and colon cancer cells, and biological fluids like breast milk, are very similar, although they conserve some features of their parent membranes (13). The carbohydrate fingerprint detected in exosomes is less diverse than that observed in parent cells, but correspond to a conserved fraction of the parent cellular membrane that display a particular glycan profile (13). The variability observed between cellular and exosomal carbohydrate signatures has been suggested to indicate different membrane microdomain origins of these vesicles (13). It has been described that polyLacNac and high mannose modifications associated with galectins and VIP36 are responsible for the oligomerization of glycoproteins that mediate their sorting into Golgi-derived vesicles (12, 52–55). Galectins and galectin-associated proteins have also been detected in exosomes so it is possible that glycosylation may also play a role in the sorting cargo into extracellular vesicles (12, 13).
Membrane anchors have also been shown to be important for the budding of vesicles derived from the plasma membrane. An N-terminal acylation tag serves as a signal for the import of highly oligomeric cytoplasmic proteins, like the yeast protein TyA, into shedding vesicles (56). The membrane anchor that most effectively promotes TyA budding is myristoylation. However, targeting of TyA to the endosomal membrane by fusion to a Phosphatidylinositol-3-phosphate (PI3P) binding domain does not produce the same effect (15) (Figure 1).
Concluding Remarks
Post-translational modifications decorate proteins and drive their fate in cells by affecting multiple parameters including stability and localization. Different modifications can affect the same protein; sometimes competing with each other or being mutually exclusive, but in other cases can promote other modifications. Enzymes controlling PTMs additionally show very specific patterns of expression, activation, and subcellular localization, exponentially increasing the diversity and potentiality of cellular proteomes.
Different types of PTMs have been found in exosomal proteins; however, the role of these modifications in the localization of proteins into exosomes is not clear. The enigmatic role of ubiquitination, whose final consequences seem to differ depending on the target protein, is a particular case in point. The type of ubiquitination may also account for the fate of the modified protein, and could be a key determinant for its loading in exosomes. In some cases, ubiquitination seems to target the protein into MVBs destined for degradation, whereas sorting of proteins into MVBs that fuse with the plasma membrane to release exosomes seems to be ubiquitin-independent, clearly pointing to the existence of different types of MVB with different sorting mechanisms.
Specific protein modifications can reflect a particular pathological condition. The presence of modified proteins in exosomes can therefore make them invaluable tools for diagnosis, since modifications could be easily detected in exosomes obtained from body fluids without the need for invasive tissue biopsies.
Statements
Acknowledgments
The authors thank Dr. S. Bartlett for assistance with English editing. This work was supported by SAF2011-25834 from the Spanish Ministry of Science and Innovation. INDISNET-S2011/BMD-2332 from the Comunidad de Madrid, Red Cardiovascular RD 12-0042-0056 from Instituto Salud Carlos III (ISCIII), ERC-2011-AdG 294340-GENTRIS, and COST-Action BN1202. Olga Moreno-Gonzalo and Carolina Villarroya-Beltri were supported by FPU program (Spanish Ministry of Education).
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
References
1
UyRWoldF. Posttranslational covalent modification of proteins. Science (1977) 198(4320):890–6.10.1126/science.337487
2
XinFRadivojacP. Post-translational modifications induce significant yet not extreme changes to protein structure. Bioinformatics (2012) 28(22):2905–13.10.1093/bioinformatics/bts541bts541
3
BodeAMDongZ. Post-translational modification of p53 in tumorigenesis. Nat Rev Cancer (2004) 4(10):793–805.10.1038/nrc1455
4
GongCXLiuFGrundke-IqbalIIqbalK. Post-translational modifications of tau protein in Alzheimer’s disease. J Neural Transm (2005) 112(6):813–38.10.1007/s00702-004-0221-0
5
MartinLLatypovaXTerroF. Post-translational modifications of tau protein: implications for Alzheimer’s disease. Neurochem Int (2011) 58(4):458–71.10.1016/j.neuint.2010.12.023S0197-0186(10)00401-8
6
TohKLJonesCRHeYEideEJHinzWAVirshupDMet alAn hPer2 phosphorylation site mutation in familial advanced sleep phase syndrome. Science (2001) 291(5506):1040–3.10.1126/science.1057499
7
Van EykJE. Overview: the maturing of proteomics in cardiovascular research. Circ Res (2011) 108(4):490–8.10.1161/CIRCRESAHA.110.226894108/4/490
8
ZuccatoEBlottEJHoltOSigismundSShawMBossiGet alSorting of Fas ligand to secretory lysosomes is regulated by mono-ubiquitylation and phosphorylation. J Cell Sci (2007) 120(Pt 1):191–9.10.1242/jcs.03315
9
ValapalaMVishwanathaJK. Lipid raft endocytosis and exosomal transport facilitate extracellular trafficking of annexin A2. J Biol Chem (2011) 286(35):30911–25.10.1074/jbc.M111.271155
10
SamanSKimWRayaMVisnickYMiroSJacksonBet alExosome-associated tau is secreted in tauopathy models and is selectively phosphorylated in cerebrospinal fluid in early Alzheimer disease. J Biol Chem (2012) 287(6):3842–9.10.1074/jbc.M111.277061
11
SurguchevaISharovVSSurguchovA. Gamma-Synuclein: seeding of alpha-synuclein aggregation and transmission between cells. Biochemistry (2012) 51(23):4743–54.10.1021/bi300478w
12
EscreventeCGrammelNKandziaSZeiserJTranfieldEMConradtHSet alSialoglycoproteins and N-glycans from secreted exosomes of ovarian carcinoma cells. PLoS One (2013) 8(10):e78631.10.1371/journal.pone.0078631
13
BatistaBSEngWSPilobelloKTHendricks-MunozKDMahalLK. Identification of a conserved glycan signature for microvesicles. J Proteome Res (2011) 10(10):4624–33.10.1021/pr200434y
14
MarimpietriDPetrettoARaffaghelloLPezzoloAGaglianiCTacchettiCet alProteome profiling of neuroblastoma-derived exosomes reveal the expression of proteins potentially involved in tumor progression. PLoS One (2013) 8(9):e75054.10.1371/journal.pone.0075054
15
ShenBWuNYangJMGouldSJ. Protein targeting to exosomes/microvesicles by plasma membrane anchors. J Biol Chem (2011) 286(16):14383–95.10.1074/jbc.M110.208660
16
IkedaMLongneckerR. Cholesterol is critical for Epstein-Barr virus latent membrane protein 2A trafficking and protein stability. Virology (2007) 360(2):461–8.10.1016/j.virol.2006.10.046
17
PutzUHowittJDoanAGohCPLowLHSilkeJet alThe tumor suppressor PTEN is exported in exosomes and has phosphatase activity in recipient cells. Sci Signal (2012) 5(243):ra70.10.1126/scisignal.2003084
18
ZhuHGuarigliaSYuRYLiWBranchoDPeinadoHet alMutation of SIMPLE in Charcot-Marie-Tooth 1C alters production of exosomes. Mol Biol Cell (2013) 24(11):1619–37.10.1091/mbc.E12-07-0544
19
LiuYShahSVXiangXWangJDengZBLiuCet alCOP9-associated CSN5 regulates exosomal protein deubiquitination and sorting. Am J Pathol (2009) 174(4):1415–25.10.2353/ajpath.2009.080861
20
NabhanJFHuROhRSCohenSNLuQ. Formation and release of arrestin domain-containing protein 1-mediated microvesicles (ARMMs) at plasma membrane by recruitment of TSG101 protein. Proc Natl Acad Sci U S A (2012) 109(11):4146–51.10.1073/pnas.1200448109
21
Villarroya-BeltriCGutierrez-VazquezCSanchez-CaboFPerez-HernandezDVazquezJMartin-CofrecesNet alSumoylated hnRNPA2B1 controls the sorting of miRNAs into exosomes through binding to specific motifs. Nat Commun (2013) 4:2980.10.1038/ncomms3980
22
TheryCOstrowskiMSeguraE. Membrane vesicles as conveyors of immune responses. Nat Rev Immunol (2009) 9(8):581–93.10.1038/nri2567nri2567
23
TannoHKomadaM. The ubiquitin code and its decoding machinery in the endocytic pathway. J Biochem (2013) 153(6):497–504.10.1093/jb/mvt028mvt028
24
PengDJZengMMuromotoRMatsudaTShimodaKSubramaniamMet alNoncanonical K27-linked polyubiquitination of TIEG1 regulates Foxp3 expression and tumor growth. J Immunol (2011) 186(10):5638–47.10.4049/jimmunol.1003801
25
ArimotoKFunamiKSaekiYTanakaKOkawaKTakeuchiOet alPolyubiquitin conjugation to NEMO by triparite motif protein 23 (TRIM23) is critical in antiviral defense. Proc Natl Acad Sci U S A (2010) 107(36):15856–61.10.1073/pnas.1004621107
26
ChastagnerPIsraelABrouC. Itch/AIP4 mediates Deltex degradation through the formation of K29-linked polyubiquitin chains. EMBO Rep (2006) 7(11):1147–53.10.1038/sj.embor.7400822
27
Wu-BaerFLagrazonKYuanWBaerR. The BRCA1/BARD1 heterodimer assembles polyubiquitin chains through an unconventional linkage involving lysine residue K6 of ubiquitin. J Biol Chem (2003) 278(37):34743–6.10.1074/jbc.C300249200
28
MatsumotoMLWickliffeKEDongKCYuCBosanacIBustosDet alK11-linked polyubiquitination in cell cycle control revealed by a K11 linkage-specific antibody. Mol Cell (2010) 39(3):477–84.10.1016/j.molcel.2010.07.001
29
HuangHJeonMSLiaoLYangCEllyCYatesJRIIIet alK33-linked polyubiquitination of T cell receptor-zeta regulates proteolysis-independent T cell signaling. Immunity (2010) 33(1):60–70.10.1016/j.immuni.2010.07.002
30
BagolaKvon DelbruckMDittmarGScheffnerMZivIGlickmanMHet alUbiquitin binding by a CUE domain regulates ubiquitin chain formation by ERAD E3 ligases. Mol Cell (2013) 50(4):528–39.10.1016/j.molcel.2013.04.005
31
NathanJAKimHTTingLGygiSPGoldbergAL. Why do cellular proteins linked to K63-polyubiquitin chains not associate with proteasomes?EMBO J (2013) 32(4):552–65.10.1038/emboj.2012.354
32
OriDKatoHSanjoHTarteySMinoTAkiraSet alEssential roles of K63-linked polyubiquitin-binding proteins TAB2 and TAB3 in B cell activation via MAPKs. J Immunol (2013) 190(8):4037–45.10.4049/jimmunol.1300173
33
ErpapazoglouZDhaouiMPantazopoulouMGiordanoFMariMLeonSet alA dual role for K63-linked ubiquitin chains in multivesicular body biogenesis and cargo sorting. Mol Biol Cell (2012) 23(11):2170–83.10.1091/mbc.E11-10-0891
34
McDowellGSPhilpottA. Non-canonical ubiquitylation: mechanisms and consequences. Int J Biochem Cell Biol (2013) 45(8):1833–42.10.1016/j.biocel.2013.05.026
35
LiHWittwerTWeberASchneiderHMorenoRMaineGNet alRegulation of NF-kappaB activity by competition between RelA acetylation and ubiquitination. Oncogene (2012) 31(5):611–23.10.1038/onc.2011.253
36
LangVJanzenJFischerGZSonejiYBeinkeSSalmeronAet albetaTrCP-mediated proteolysis of NF-kappaB1 p105 requires phosphorylation of p105 serines 927 and 932. Mol Cell Biol (2003) 23(1):402–13.10.1128/MCB.23.1.402-413.2003
37
BiesJMarkusJWolffL. Covalent attachment of the SUMO-1 protein to the negative regulatory domain of the c-Myb transcription factor modifies its stability and transactivation capacity. J Biol Chem (2002) 277(11):8999–9009.10.1074/jbc.M110453200
38
TrajkovicKHsuCChiantiaSRajendranLWenzelDWielandFet alCeramide triggers budding of exosome vesicles into multivesicular endosomes. Science (2008) 319(5867):1244–7.10.1126/science.1153124319/5867/1244
39
RaiborgCStenmarkH. The ESCRT machinery in endosomal sorting of ubiquitylated membrane proteins. Nature (2009) 458(7237):445–52.10.1038/nature07961
40
KomadaMKitamuraN. Growth factor-induced tyrosine phosphorylation of Hrs, a novel 115-kilodalton protein with a structurally conserved putative zinc finger domain. Mol Cell Biol (1995) 15(11):6213–21.
41
TakeshitaTAritaTAsaoHTanakaNHiguchiMKurodaHet alCloning of a novel signal-transducing adaptor molecule containing an SH3 domain and ITAM. Biochem Biophys Res Commun (1996) 225(3):1035–9.10.1006/bbrc.1996.1290
42
PoloSSigismundSFarettaMGuidiMCapuaMRBossiGet alA single motif responsible for ubiquitin recognition and monoubiquitination in endocytic proteins. Nature (2002) 416(6879):451–5.10.1038/416451a
43
HoellerDCrosettoNBlagoevBRaiborgCTikkanenRWagnerSet alRegulation of ubiquitin-binding proteins by monoubiquitination. Nat Cell Biol (2006) 8(2):163–9.10.1038/ncb1354
44
KimBYOlzmannJABarshGSChinLSLiL. Spongiform neurodegeneration-associated E3 ligase Mahogunin ubiquitylates TSG101 and regulates endosomal trafficking. Mol Biol Cell (2007) 18(4):1129–42.10.1091/mbc.E06-09-0787
45
Villarroya-BeltriCBaixauliFGutierrez-VazquezCSanchez-MadridFMittelbrunnM. Sorting it out: regulation of exosome loading. Semin Cancer Biol (2014).10.1016/j.semcancer.2014.04.009
46
PutzUHowittJLackovicJFootNKumarSSilkeJet alNedd4 family-interacting protein 1 (Ndfip1) is required for the exosomal secretion of Nedd4 family proteins. J Biol Chem (2008) 283(47):32621–7.10.1074/jbc.M804120200
47
GauvreauMECoteMHBourgeois-DaigneaultMCRivardLDXiuFBrunetAet alSorting of MHC class II molecules into exosomes through a ubiquitin-independent pathway. Traffic (2009) 10(10):1518–27.10.1111/j.1600-0854.2009.00948.x
48
BuschowSINolte-‘t HoenENvan NielGPolsMSten BroekeTLauwenMet alMHC II in dendritic cells is targeted to lysosomes or T cell-induced exosomes via distinct multivesicular body pathways. Traffic (2009) 10(10):1528–42.10.1111/j.1600-0854.2009.00963.x
49
LeeHSJeongJLeeKJ. Characterization of vesicles secreted from insulinoma NIT-1 cells. J Proteome Res (2009) 8(6):2851–62.10.1021/pr900009y
50
BuschowSILiefhebberJMWubboltsRStoorvogelW. Exosomes contain ubiquitinated proteins. Blood Cells Mol Dis (2005) 35(3):398–403.10.1016/j.bcmd.2005.08.005
51
RapoportEMKurmyshkinaOVBovinNV. Mammalian galectins: structure, carbohydrate specificity, and functions. Biochemistry (Mosc) (2008) 73(4):393–405.10.1134/S0006297908040032
52
DelacourDGouyerVZanettaJPDrobecqHLeteurtreEGrardGet alGalectin-4 and sulfatides in apical membrane trafficking in enterocyte-like cells. J Cell Biol (2005) 169(3):491–501.10.1083/jcb.200407073
53
DelacourDCramm-BehrensCIDrobecqHLe BivicANaimHYJacobR. Requirement for galectin-3 in apical protein sorting. Curr Biol (2006) 16(4):408–14.10.1016/j.cub.2005.12.046
54
DelacourDGrebCKochASalomonssonELefflerHLe BivicAet alApical sorting by galectin-3-dependent glycoprotein clustering. Traffic (2007) 8(4):379–88.10.1111/j.1600-0854.2007.00539.x
55
MishraRGrzybekMNikiTHirashimaMSimonsK. Galectin-9 trafficking regulates apical-basal polarity in Madin-Darby canine kidney epithelial cells. Proc Natl Acad Sci U S A (2010) 107(41):17633–8.10.1073/pnas.1012424107
56
FangYWuNGanXYanWMorrellJCGouldSJ. Higher-order oligomerization targets plasma membrane proteins and HIV gag to exosomes. PLoS Biol (2007) 5(6):e158.10.1371/journal.pbio.0050158
