Original Research ARTICLE
Staphylococcus aureus PSM Peptides Modulate Human Monocyte-Derived Dendritic Cells to Prime Regulatory T Cells
- Department of Internal Medicine II, University of Tübingen, Tübingen, Germany
Staphylococcus aureus (Sa), as one of the major human pathogens, has very effective strategies to subvert the human immune system. Virulence of the emerging community-associated methicillin-resistant Sa (CA-MRSA) depends on the secretion of phenol-soluble modulin (PSM) peptide toxins e.g., by binding to and modulation of innate immune cells. Previously, by using mouse bone marrow-derived dendritic cells we demonstrated that PSMs in combination with various Toll-like receptor (TLR) ligands induce a tolerogenic DC phenotype (tDC) characterized by the production of IL-10 and impaired secretion of pro-inflammatory cytokines. Consequently, PSM-induced tDCs favored priming of CD4+CD25+FoxP3+ Tregs with suppressor function while impairing the Th1 response. However, the relevance of these findings for the human system remained elusive. Here, we analyzed the impact of PSMα3 on the maturation, cytokine production, antigen uptake, and T cell stimulatory capacity of human monocyte-derived DCs (moDCs) treated simultaneously with either LPS (TLR4 ligand) or Sa cell lysate (TLR2 ligand). Herein, we demonstrate that PSMs indeed modulate human moDCs upon treatment with TLR2/4 ligands via multiple mechanisms, such as transient pore formation, impaired DC maturation, inhibited pro- and anti-inflammatory cytokine secretion, as well as reduced antigen uptake. As a result, the adaptive immune response was altered shown by an increased differentiation of naïve and even CD4+ T cells from patients with Th1/Th17-induced diseases (spondyloarthritis and rheumatoid arthritis) into CD4+CD127−CD25hiCD45RA−FoxP3hi regulatory T cells (Tregs) with suppressor function. This Treg induction was mediated most predominantly by direct DC-T-cell interaction. Thus, PSMs from highly virulent Sa strains affect DC functions not only in the mouse, but also in the human system, thereby modulating the adaptive immune response and probably increasing the tolerance toward the bacteria. Moreover, PSMα3 might be a novel peptide for tolerogenic DC induction that may be used for DC vaccination strategies.
Dendritic cells (DCs) are specialized antigen presenting cells (APCs) able to prime naïve T cells thereby inducing a primary immune response and maintaining self-tolerance (1). Initially DCs occur in an immature state, specialized for antigen uptake with a high endocytic capability (2). The recognition of pathogens via germ-line encoded pattern-recognition receptors, like Toll-like Receptors (TLRs), leads to DC maturation (3). This event is characterized by the loss of their endocytic capacities and the upregulation of CCR7, co-stimulatory molecules, and HLA-DR, necessary for homing into the draining lymph node and T-cell priming (4). Furthermore, DCs secrete pro-inflammatory cytokines, such as TNF-α, IL-6 or IL-12, which recruit other immune cells for pathogen clearance and contribute to T helper cell (Th) differentiation (5). Apart from inducing an efficient immune response, DCs are also crucial for maintaining immune tolerance in the steady-state. Although the specific phenotype of so-called tolerogenic DCs (tDCs) and the molecular mechanism involved in tolerance induction by these cells are not entirely defined (6–9) they are characterized by an immature phenotype and produce high amounts of anti-inflammatory cytokines, e.g., IL-10 and TGF-ß, which possess critical immunoregulatory functions like controlling/regulating the production of pro-inflammatory cytokines. They have the potential to induce regulatory T cell (Treg) expansion thereby impairing effector T cell responses (8, 10–12).
Various pathogens and tumors can induce tDCs and subsequent Treg differentiation as immune escape strategy to impair clearance. This process is mediated by pathogenic products from e.g., C. albicans, S. mansoni and V. cholerae, which are partially used for the production of immunosuppressive drugs. These are widely used for therapy of autoimmune diseases or transplant rejections even though they have severe side effects by suppressing the entire host immune system (11, 13). Therefore, DC vaccination strategies by applying tDCs are an attractive alternative (8, 9, 13). Several clinical trials started to analyze the effect of tDCs as treatment option for patients with autoimmune disorders (8).
Phenol-soluble modulins (PSMs) are short amphipathic α-helical peptides, which are produced by highly virulent Staphylococci, such as community-associated Methicillin-resistant Staphylococcus aureus (Sa) promoting, e.g., cell lysis thereby evading clearance by immune cells (14, 15). Two types of PSMs are distinguished according to their length: α-type PSMs (~20–25 AA) and β-type PSMs (~44 AA) (16). The PSMα peptides are the most potent PSMs regarding cytolysis and highly contribute to the virulence of Sa (16, 17). Own previous studies with mouse bone-marrow derived DCs (BM-DCs) showed that PSMα3 prime tDCs when co-incubated with various TLR ligands (TLRL), regardless which TLR was activated. Molecularly, this event is characterized by the increased activation of the p38-CREB pathway, which in consequence leads to diminished pro-inflammatory cytokine production but increased IL-10 secretion. These PSM-induced tDCs favored priming of CD4+CD25+FoxP3+ Tregs with suppressor function (10, 12, 18). Thus, we hypothesized that PSMs of Sa likewise induce tDCs in the human system.
Herein, we show that PSMα3 penetrates and modulates human monocyte-derived DCs (moDCs) by altering the TLR2- or TLR4-induced maturation, inhibiting pro- and anti-inflammatory cytokine production and reducing antigen uptake, but producing indolamin-2,3-dioxygenase (IDO). As a result, the frequency of CD4+CD127−CD25hiCD45RA−Foxp3hi Tregs is increased, while Th1 responses are diminished. Moreover, PSMα3-induced tDCs from healthy donors even enhanced differentiation of CD4+ T cells from patients with Th17-associated autoimmune diseases to Tregs. Thus, PSMα3 might be a novel peptide for manipulating DCs to become tolerogenic for DC vaccination strategies.
Materials and Methods
Buffy coats from healthy volunteers were obtained from the ZKT Tübingen GmbH. Fresh blood was obtained from healthy volunteers with informed consent. This was approved by the ethical review committee of the medical faculty of the Eberhard-Karls-University of Tübingen with the project number 633/2012BO2. Blood from patients with TH17-associated autoimmune diseases were obtained from the division of Rheumatology, Department of Internal Medicine II, University Hospital Tübingen. This was approved by the ethical review committee of the medical faculty of the Eberhard-Karls-University of Tübingen with the project number 046/2015BO2.
Formylated PSM peptides (PSMα3, δ-Toxin) were synthesized at the Interfaculty Institute of Cell Biology, Department of Immunology, University of Tübingen. FITC-labeled PSMα2 was synthesized at the Group of Hubert Kalbacher, Interfaculty Institute of Biochemistry, University of Tübingen. Sa cell lysate (Sa lysate) containing lipopeptides and specifically activating TLR2 was prepared from a protein A-deficient Sa mutant strain (SA113) and provided by Andreas Peschel, Interfaculty Institute of Microbiology and Infection Medicine, University of Tübingen.
Isolation of Peripheral Blood Mononuclear Cells
Buffy coats or fresh blood was diluted with Dulbecco's PBS (Life Technologies) (Buffy Coats 1:7 blood: PBS; Fresh blood 1:1 blood: PBS). Peripheral blood mononuclear cells (PBMCs) were obtained by density gradient centrifugation at 2000 rpm for 20 min at room temperature with 35 mL cell suspension stacked on 15 mL Biocoll separation solution (Biochrom). The interphase containing the PBMCs was abstracted and washed twice with PBS. PBMCs were further used to generate human moDCs and for the isolation of naïve CD4+ T cells and CD4+ T cells.
Generation of Human Monocyte-Derived DCs
PBMCs were plated in a tissue-treated 6-well plate (6 × 106 cells per well) in DC medium [RPMI1640 (Merck), 10% FBS (Sigma), 2 mM L-Glutamine (Life Technologies), 100 U/mL Penicillin-Streptomycin (Life Technologies), 1 × non-essential amino acids (Merck), 1 mM sodium pyruvate (Merck) and 50 μM 2-mercaptoethanol (Roth)] and incubated for 1 h at 37°C, 5% CO2. After that, wells were washed with medium and PBS discarding the non-adherent cells. 3 mL/well DC medium containing 50 ng IL-4 and 100 ng GM-CSF (both from Miltenyi) was added to the remaining cells. Cells were incubated for 6 d at 37°C, 5% CO2. Cytokines were again added on day 2 and day 4. At day 6 the cells were used for the following experiments. The purity of the moDC culture was always >90% of leukocytes (Figure S1).
Cytokine/Indolamin-2,3-Dioxygenase Production by moDCs
MoDCs (2.5 × 105) were seeded in a 96-well plate and treated with 3 μg/mL Sa lysate or 100 ng/mL LPS in combination with or without PSMα3 (10 μM). For some experiments moDCs were treated with different concentrations of PSMα3 or additionally stimulated with 100 ng/mL Pam2CSK4 (for TLR2/TLR6; InvivoGen), 1 μg/mL Pam3CSK4 (for TLR1/TLR2; InvivoGen), 1 μg/mL CpG ODN 2395 (for TLR9; InvivoGen), 5 μg/mL Imiquimod (for TLR7; InvivoGen), 2 μg/mL Flagellin (for TLR5; InvivoGen) or 10 μg/mL LTA (for TLR2/TLR4; InvivoGen) in combination with or without PSMα3 (10 μM). Supernatants were collected after 6 h, 24 h or 48 h and analyzed for TNF, IL-10, IL-12 and IDO production, respectively. Cytokines and IDO in the supernatants were determined by sandwich ELISA [eBioscience (TNF, IL-10, IL-12), R&D Systems (IDO)] according to the manufacturer's instructions.
For moDC surface marker analysis of the costimulatory and inhibitory molecules, moDCs (2 × 105) were seeded in a 96-well plate and stimulated with 3 μg/mL Sa lysate or 100 ng/mL LPS with or without PSMα3 (10 μM) or PSMα3 alone for 6 h or 24 h. Cells were removed from the plate using Accutase (Sigma-Aldrich) and treated with IgG from human serum (1 μg of human IgG per 100,000 cells; Sigma-Aldrich) for 20 min at room temperature to avoid unspecific binding via Fc receptors. Cells were stained with ZombieAqua (BioLegend) to exclude dead cells and fluorochrome conjugated extracellular antibodies: HLA-DR BV650 (L243, BioLegend), CD11b BV510 (ICRF44, BioLegend), CD11c APC (MJ4-27G121, Miltenyi), CD11c PE-Cy7 (Bu15, BioLegend), CD40 FITC (5C3, eBioscience), CD80 PE-Cy7 (2D10, BioLegend), CD83 PE-Dazzle 594 (HB15e, BioLegend), CD86 BV605 (IT2.2, BioLegend), PD-L1 PE (29E.2A3, BioLegend), PD-L2 PE (MIH18), ILT3 PE (ZM4.1, BioLegend) for 20 min at 4°C. FACS buffer [PBS containing 1% FBS, 2 mM EDTA (Merck) and 0.09% NaN3 (Sigma-Aldrich)] was used for all incubations and washing steps. At least 50,000 cells were acquired using a LSR Fortessa flow cytometer (BD Biosciences) with the DIVA software (BD Biosciences) and were further analyzed using FlowJo 10.4.2 software (Tree Star).
For the experiments analyzing phosphorylation of signaling cascades, moDCs (2 × 105) were seeded in a 96-well plate and treated for 1 h with 100 ng/mL LPS with or without PSMα3 (10 μM) or PSMα3 alone. Cells were removed from the plate using Accutase and treated with IgG from human serum (1 μg of human IgG per 100,000 cells) for 20 min at room temperature to avoid unspecific binding via Fc receptors. Cells were stained with ZombieAqua (BioLegend) to exclude dead cells and fluorochrome conjugated extracellular antibodies: HLA-DR PE (L243; BD Biosciences) and CD11c APC/Cy7 (Bu15; BioLegend) for 20 min at 4°C. To detect intracellular p-p38 and p-NF-κB cells were fixed with 2% paraformaldehyde (VWR) in PBS, permeabilized with 90% freezing methanol (Applichem) overnight and stained with the primary Abs to phospho-p38 MAPK (Thr180/Tyr182; clone 12F8) or phospho-NF-κB p65 (Ser536; clone: 93H1) (both from Cell Signaling) for 1 h in the dark at room temperature followed by DyLight649-conjugated AffiniPure Goat At-Rabbit IgG (Jackson ImmunoResearch) for 15 min at 4°C. PBS with 0.5% BSA (Biomol) was used for incubation and washing steps of intracellular antibody stainings. At least 50,000 cells were acquired using a Canto-II (BD Biosciences) with DIVA software (BD Biosciences) and were further analyzed using the FlowJo 10.4.2 software (Tree Star).
Measurement of Antigen Uptake by Flow Cytometry or Multispectral Imaging Flow Cytometry
MoDCs (5 × 105) were seeded in a 48-well plate and stimulated for 24 h with 3 μg/mL Sa lysate or 100 ng/mL LPS with or without PSMα3 (10 μM) or PSMα3 alone prior to the incubation with Ovalbumin (OVA)-AlexaFluor647 (5 μg/mL, Invitrogen) together with PSMα2 FITC (0.5 μM) for 30 min at 37°C, 5% CO2. Unspecific binding of OVA/PSMα2 was assessed by incubating the cells on ice. Cells were washed twice with ice-cold PBS containing 2% FBS. Subsequently, cells were blocked and stained with ZombieAqua (BioLegend), HLA-DR BV650 (L243, BioLegend), HLA-DR APC-Cy7 (L243, BioLegend) and CD11c PE-Cy7 (Bu15, BioLegend) as described above and analyzed by flow cytometry or by multispectral imaging flow cytometry. For the latter, images of 10,000 living moDCs were acquired using the Image-Stream mkII (Amnis) with the INSPIRE instrument controller software. The data were analyzed using the IDEAS analysis software (Merck Millipore).
Lactate Dehydrogenase Release
MoDCs (2 × 105) were seeded in a 96-well plate and treated with Triton X100 (1%; Sigma-Aldrich), DMSO (2%, Fluka), PSMα2 (10 μM), PSMα3 (2.5, 5, 7.5, and 10 μM), δ-Toxin (10 μM) or OVA (10 μg, Sigma-Aldrich) for 10 min at 37°C, 5% CO2. Cell death was determined using 7-aminoactinomycin D (7-AAD, Biomol) staining and acquisition on a Canto II flow cytometer. Supernatants were used for the analysis of lactate dehydrogenase (LDH) release using the Cytotoxicity Detection Kit (Roche) according to the manufacturer's instructions. Absorbance was measured at 492 nm and 620 nm over a period of 1 h with an interval of 5 min using the Spark 10 M microplate reader (Tecan).
MoDCs (5 × 104) were seeded in a 96-well plate and stimulated with 3 μg/mL Sa lysate or 100 ng/mL LPS with or without PSMα3 (10 μM) or PSMα3 alone for 24 h. For some experiments moDCs were pre-treated with 200 μM 1-Methyl-D-tryptophan (1-DMT) for 1 h prior to the stimulation. Human naïve CD4+ T cells were isolated from PBMCs using the MojoSort™ Human CD4 Naïve T Cell Isolation Kit (BioLegend) according to the manufacturer's instructions. For the magnetic cell separation, a LS column (Miltenyi Biotech) was placed into the QuadroMACS Separator (Miltenyi Biotech) and rinsed with MACS buffer (PBS containing 0,5% BSA (Biomol) and 2 mM EDTA). The cell suspension was applied to the column, and the column was washed three times with 3 mL MACS buffer. The untouched naïve CD4+ T cells were collected in the flow through. The purity of isolated (naïve) CD4+ T cells was always ≈85% (Figure S4). The naïve CD4+ T cells were labeled with CFSE (5 μM, BioLegend) according to the manufacturer's instructions. 2 × 105 T cells diluted in 100 μL T cell medium [RPMI1640 (Merck), 10% FBS (Sigma), 2 mM L-Glutamine (Life Technologies), 100 U/mL penicillin-streptomycin (Life Technologies), 1 × non-essential amino acids (Merck), 1 mM sodium pyruvate (Merck), 10 mM HEPES (Biochrom) and 50 μM 2-mercaptoethanol (Roth)] were added to the moDCs. To investigate whether secreted factors from DCs upon PSM-treatment mediate Treg priming, T cells were co-cultured with untreated moDCs adding conditioned medium from LPS or LPS + PSMα3 stimulated DCs. In a second assay moDCs treated as described above were splitted using Accutase (Sigma-Aldrich) for 5 min at room temperature and again sowed with either fresh or conditioned DC medium (TLRL or TLRL + PSMα3). In some conditions, DC were fixed with 1% paraformaldehyde for 10 min at 4°C to address the impact of newly secreted factors on Treg priming by DCs. 3–4 d after co-culture T cells were blocked with IgG from human serum for 15 min at room temperature and subsequently stained with ZombieAqua, CD4 APC-Vio770 (REA623, Miltenyi), CD3 Pacific Blue (SK7, BioLegend), CD25 PE-Cy7 (BC96, eBiosciences), CD127 PE (eBioRDR5, eBiosciences) and CD45RA BV605 (HI100, BioLegend) for 20 min at 4°C. For intracellular staining, cells were fixed and permeabilized with the Foxp3/ Transcription Factor Staining Buffer Set (eBiosciences), blocked and stained with CD4 APC-Vio770, CD3 Pacific Blue, FoxP3 AlexaFluor647 (259D, BioLegend), T-bet PE-Dazzle 594 (4B10, BioLegend), GATA3 PerCP-Cy5.5 (16E10A23, BioLegend) and RORγt BV650 (Q21-559, BD Biosciences) for 45 min at 4°C. FACS buffer was used for all incubations and washing steps for the extracellular staining, and 1 × permeabilization buffer (Foxp3/Transcription Factor Staining Buffer Set (eBiosciences) was used for all incubations and washing steps for the intracellular staining. At least 70,000 cells were acquired using an LSR Fortessa flow cytometer (BD Biosciences) with the DIVA software (BD Biosciences) and were further analyzed using FlowJo 10.4.2 software (Tree Star).
Autologous T-Cell Assay
CD14+ cells from PBMCs of patients with TH17-associated autoimmune diseases were isolated by MACS using CD14 MicroBeads (Miltenyi Biotech) and plated in a tissue-treated 6-well plate (1.3 × 106 cells per well) in DC medium containing 50 ng IL-4 and 100 ng GM-CSF for 6 d to generate moDCs. The remaining CD14− cells were frozen at −80°C in RPMI1640 supplemented with 20 % FBS and 10% DMSO. After 6 d moDCs (5 × 104) were seeded in a 96-well plate and stimulated with 100 ng/mL LPS with or without PSMα3 (10 μM) for 24 h. The CD14− cells were thawed and used to isolate CD4+ T cells by MACS with CD4 MicroBeads (Miltenyi Biotech). The CD4+ T cells were labeled with CFSE (5 μM, BioLegend) according to the manufacturer's instructions and 2 × 105 T cells diluted in 100 μL T cell medium were added to the moDCs. 3–4 days after co-culture T cells were stained as above and iTregs were analyzed by flow cytometry using an LSR Fortessa flow cytometer (BD Biosciences) with the DIVA software (BD Biosciences) and were further analyzed using FlowJo 10.4.2 software (Tree Star).
Cytokine Production in the moDC T Cell Co-culture
Fifty microliter cell culture supernatants from the T cell assay were taken on day 1, 2 and 3 and cytokine production from 15 μL was analyzed by performing bead-based immunoassays in a 96-well plate [LEGENDplex human B cell Panel (13-Plex) and LEGENDplex Free Active/Total TGF-β1 (BioLegend)] according to the manufacturer's instructions, using the Lyric flow cytometer with autosampler (BD Bioscience).
T Cell Suppression Assay
MoDCs (2 × 105) were seeded in a 48-well plate and stimulated with 100ng/mL LPS and 10 μM PSMα3 for 24 h. Human CD4+ T cells were isolated from PBMCs using the human CD4 MicroBeads Kit (Miltenyi) according to the manufacturer's instructions using LS columns. 8 × 105 T cells were added to the stimulated moDCs and cultured for 4 d at 37°C, 5% CO2. T cells were stained with CD4 APC-Vio770, CD25 PE-Cy7, CD127 PE and CD45RA PerCP (HI100, BioLegend) as described above and dead cells were excluded using DAPI (Sigma-Aldrich,16,7 ng/mL). Tregs were purified by FACS sorting using an ARIA IIu cell sorter (BD Bioscience), according to the surface molecule expression (CD4+CD127−CD25hiCD45RA−, see Figure S7). CD4+ T cells isolated from PBMCs from a different donor were used as T effector (Teff) cells purified with CD4 MicroBeads Kit (Miltenyi). The Teffs were labeled with CFSE (5 μM), and 8 × 104 cells were seeded in a 96- well plate in T cell medium together with the indicated numbers of sorted Tregs. For T cell activation of the Teffs Dynabeads (Human T-Activator CD3/CD28Proliferation; Gibco) were added according to the manufacturer's instructions. The proliferation of Teffs was assessed after 3 d by flow cytometry. Dead cells were excluded by staining the cells with ZombieAqua. 20,000 cells were acquired at the Canto II with the DIVA software (BD Biosciences) and were further analyzed using the proliferation tool in FlowJo 10.4.2 software (Tree Star).
Statistical analysis was performed using GraphPad Prism 7.0a software (GraphPad, San Diego, CA). Statistical differences were determined using one-way ANOVA with Turkey's posttest in case data were normally distributed (Shapiro-Wilk normality test). Otherwise, data were analyzed using the Kruskal-Wallis nonparametric test. The differences were considered as statistically significant if p < 0.05 (*), p < 0.005 (**), p < 0.001 (***), or p < 0.0001 (****).
PSMs Modulate Surface Molecule Expression of TLR-Treated moDCs
The maturation of DCs is an essential event for successful T-cell activation comprising the upregulation of maturation markers (e.g., CD83 and HLA-DR), co-stimulatory (e.g., CD80, CD86, CD40) and co-inhibitory molecules (e.g., PD-L1, PD-L2 or ILT3). To investigate if the Sa-derived toxin PSMα3 has an impact on DC maturation, moDCs were treated with either the TLR2 ligand Sa lysate (12) or the TLR4 ligand LPS with or without PSMα3. Surface marker expression was analyzed by flow cytometry after 6 or 24 h (Gating see Figure S1). All surface molecules analyzed were increased upon TLRL treatment compared to untreated moDCs at 6 and 24 h with the exception of CD80 after 6 h (Figure 1) confirming DC maturation (mDCs – mature DCs). Simultaneous treatment of moDCs with TLRLs and PSMα3 for 6h revealed a tendency, but no significant increase of the maturation marker CD83 and CD86 compared to treatment with TLRLs alone (Figure 1A). In contrast, HLA-DR was significantly increased 6h (Sa p = 0.0081; LPS p = 0.0226) after TLRL treatment in combination with PSMα3 whereas CD40 was less expressed on mDCs treated with LPS in combination with PSMα3 compared to LPS treated cells after 6 h (LPS p < 0.0001) and 24 h (LPS p < 0.0049) (Figures 1A,B). Similarly, CD80 up-regulation on TLR4-stimulated mDCs was impaired when the cells were treated with PSMα3 for 24 h (LPS p = 0.0135) (Figure 1B). The analysis of co-inhibitory molecule expression revealed no significant differences after 24 h; however, PSMα3 showed a tendency to prevent the upregulation of the co-inhibitory molecule PD-L1 in TLR4-stimulated moDCs (LPS p = 0.0615) (Figure 1C). In summary, PSMα3 enhanced the early upregulation of HLA-DR on DCs but prevented that of the co-stimulatory molecules CD40 and CD80 especially upon TLR4 stimulation.
Figure 1. PSMs modulate surface molecule expression of TLR-treated moDCs. MoDCs were treated with Sa lysate or LPS with or without PSMα3 for 6 h (A) or 24 h (B,C) and analyzed by flow cytometry. MoDCs were characterized as living CD11c+HLA-DR+ cells and the expression of the indicated costimulatory (A,B) and inhibitory molecules (C) was determined. The graphs show the mean fluorescence intensity of the respective marker expression as fold change of untreated cells. The graphs show n ≥ 3 independent experiments (mean ± SEM) performed in triplicates. Representative histogram overlays of HLA-DR and CD40 after 6 h (A), CD80, CD40 (B), and PD-L1 (C) after 24 h. *p < 0.05, **p < 0.005 or ****p < 0.0001, one-way ANOVA with Turkey's posttest or Kruskal-Wallis with Dunn's posttest.
PSMs Impair Pro- and Anti-inflammatory Cytokine Secretion by TLR4-Treated moDCs
Stimulation of TLRs not only leads to DC maturation but also to the expression of cytokines to initiate an immune response. Previously, we showed that PSMα3 impaired the pro-inflammatory cytokine production triggered by various TLRLs in mouse BM-DCs, whereas it induced the expression of the anti-inflammatory cytokine IL-10 (12, 18). Therefore, cell culture supernatants from moDCs treated with Sa lysate or LPS with or without PSMα3 were analyzed after 6 h for TNF (Figure 2A) and after 24 h for IL-12 (Figure 2B), IL-10 (Figure 2C) or TNF production (Figure S2A). TLRL treatment led to an overall induction of cytokine secretion with the exception of IL-12 (Figure 2B) in TLR2-ligand treated mDCs (Figure 2). The production of TNF, IL-12 and IL-10 was impaired by PSMα3 in LPS treated mDCs (TNF 1.800 vs. 13.500 pg/ml, p = 0.0082; IL-12 550 vs. 4.500 pg/ml, p = 0.021; IL-10 1090 vs. 3850 pg/ml, p = 0.0080) (Figure 2) the latter in a concentration dependent manner (Figure S2B), but not in Sa lysate treated mDCs. The treatment of DCs with PSMα3 in combination with other TLR-ligands like Pam2CSK4, Pam3CSK4, LTA, Flagellin, CpG, and Imiquimod showed no significant differences in the production of TNF and IL-10 compared to TLR-L treatment alone (Figure 2 and Figure S2C). In summary, PSMα3 inhibited pro- as well as anti-inflammatory cytokine production by LPS-treated mDCs.
Figure 2. PSMs impair pro- and anti-inflammatory cytokine secretion by moDCs. (A–C) MoDCs were treated with Sa lysate or LPS with or without PSMα3 for 6 h (A) or 24 h (B,C). The cell culture supernatants were collected and analyzed for TNF (A), IL-12 (B) and IL-10 (C) production by sandwich ELISA. The graphs show n ≥ 10 independent experiments (mean ± SD/SEM) performed in triplicates. (D,E) MoDCs were treated with LPS with or without PSMα3 or PSMα3 alone for 60 min. Thereafter, the cells were stained extracellularly with anti-CD11c and anti-HLA-DR antibodies, followed by fixation, permeabilization and subsequent intracellular staining using anti-phospho-NF-κB (D) and anti-phospho-p38 antibodies (E). Representative histogram overlays of p-NF-κB (D) and p-p38 (E) in DCs (gated on CD11c+HLA-DR+ cells). The heat map shows fold-change of p-NF-κB (D) and p-p38 (E) normalized to untreated DCs (unst.). The graphs show the statistical analysis of p-NF-κB (D) and p-p38 (E) from n = 5 different donors. *p < 0.05 or **p < 0.005, Kruskal-Wallis with Dunn's posttest or one-way ANOVA with Turkey's posttest.
PSMs Impair NF-κB and p38 Phosphorylation in LPS-Treated moDCs
To investigate the signaling pathways involved in the cytokine modulation by PSMs, DCs were treated with LPS in the presence or absence of PSMα3 for 60 min and phosphorylation of NF-κB p65 (p-NF-κB) (Figure 2D) and p38 MAPK (p-p38) (Figure 2E) was analyzed by flow cytometry. Treatment of DCs with PSMα3 did not affect p- NF-κB or p-p38 compared to untreated DCs (Figures 2D,E heatmap), whereas after LPS treatment a 2.5-fold and 2-fold increase of p- NF-κB and p-p38, respectively, was observed compared to untreated DCs (Figures 2D,E). DCs incubated with LPS combined with PSMα3 revealed a 2.0-fold and 1.5-fold increase of NF-κB or p38 phosphorylation (Figures 2D,E). Analyzing signaling pathways in moDCs from 5 donors revealed by trend a reduced, but not significant, NF-κB or p38 phosphorylation upon PSMα3 treatment. These data indicate that impaired phosphorylation of both NF-κB and p38 pathways by PSMα3 may account for impaired cytokine production as well as co-stimulatory molecule expression by moDCs upon LPS treatment.
PSMs Inhibit Antigen Uptake by moDCs
Antigen uptake is a pivotal task of DCs and necessary for T-cell activation. To elucidate possible effects of PSMs on this event, moDCs were treated with or without either Sa lysate or LPS in the presence or absence of PSMα3 for 24 h. Subsequently cells were incubated with the fluorescently-labeled (AlexaFluor647) model antigen OVA in combination with FITC-labeled PSMα2 for 30 min. Immature DCs (iDCs – immature DCs) take up OVA mainly by clathrin-mediated endocytosis and macropinocytosis, whereas mature DCs retain antigen uptake by receptor-mediated endocytosis (12, 19–21). This effect was observed when moDCs matured after treatment with either Sa lysate or LPS by ~68 or ~63%, respectively (Figure 3A). OVA uptake was reduced by ~48% after solely treatment with PSMα3 (p < 0.0001) (Figure 3A), showing that iDCs are affected in their task to take up antigen by PSMs. A trend to further impaired antigen uptake by TLRL and PSMα3 treated moDCs was observed (Sa p = 0.6603, LSP p = 0.9054) (Figure 3A). Incubation of iDCs with OVA on ice was used to exclude unspecific binding (Figure 3A) thereby preventing remodeling of the actin cytoskeleton, which is required for clathrin-mediated endocytosis and micropinocytosis (22). In conclusion, PSMα3 affects moDCs in their antigen uptake capacity.
Figure 3. PSMs inhibit antigen uptake by moDCs and penetrate the membrane via transient pore formation. (A–C) MoDCs treated for 24 h with Sa lysate or LPS with or without PSMα3 or PSMα3 alone were incubated with AlexaFluor647-labeled OVA and FITC-labeled PSMα2 at 37°C or on ice for 30 min. (A,B) The uptake of OVA and PSMα2 by living CD11c+HLA-DR+ moDCs was assessed by flow cytometry. The histogram overlays (left) and the bar graphs (right, collected data) show the mean fluorescence intensity of OVA-AlexaFluor647 (A) or PSMα2-FITC (B), in case of the collected data as fold change of unstimulated cells (n ≥ 5, performed in triplicates, mean ± SEM). (C) The localization of OVA-AlexaFluor647 and PSMα2-FITC in CD11c+HLA-DR+ moDCs was analyzed by multispectral imaging flow cytometry (one representative experiment of n = 3 independent experiments; mean ± SEM). Representative bright field (BF) and fluorescence images of moDCs are shown for the different treatments. (D) MoDCs were either not treated (unst.) or incubated with 1% Triton X-100, 2% DMSO, PSMα3 (2.5 μM, 5 μM, 7.5 μM or 10 μM), 10 μM PSMα2, 10 μM δ-Toxin or 5 μg/mL OVA for 10 min. The LDH release was determined in the cell culture supernatants (one representative experiment of n = 3 independent experiments; mean ± SEM). ****p < 0.0001, one-way ANOVA with Turkey's posttest or Kruskal-Wallis with Dunn's posttest.
PSMs Penetrate the Membrane of moDCs Via Transient Pore Formation
Previously, we and others showed that PSMs form transient pores into the cell membrane thereby entering the cytosol (10, 15). To address whether PSMs are internalized by human moDCs via mechanisms of antigen uptake or by pore formation iDCs were incubated with fluorescently-labeled PSMα2 as described above and analyzed by flow cytometry and multispectral imaging flow cytometry. Despite the uptake of OVA-AlexaFluor647, PSMα2-FITC was observed in moDCs regardless of their maturation status (Figure 3B). Moreover, PSMα2-FITC was also detected in moDCs incubated on ice but reduced by ~54% (p = 0.0003), indicating that the uptake was not an active process requiring actin remodeling (Figure 3B). These observations were confirmed by multispectral imaging flow cytometry, showing PSMα2-FITC located at the membrane when actin-cytoskeleton rearrangement is blocked (ice control) as well as co-localized with OVA most likely in the phagosome when moDCs were incubated at 37°C regardless of the treatment (Figure 3C).
Transient pore formation in the membrane of moDCs mediated by PSMα3 was demonstrated by measuring L-lactate dehydrogenase (LDH) in the supernatant of moDCs treated with PSMα2 various concentrations of PSMα3 (Figure 3D). Triton-X, which disrupts the membrane completely as well as δ-Toxin, which is known to form transient pores (23) were used as positive controls (Figure 3D). Neither treatment of moDCs with OVA, the peptide-dissolvent DMSO or medium alone had any effects on LDH release (Figure 3D), whereas PSMα3 significantly induced LDH release in a concentration-dependent manner. Further, flow cytometric analysis of the moDCs showed that apart from treatment with Triton-X, none of the reagents affected their viability (Figure S3). Together the data show that PSMs enter moDCs via transient pore formation without cytolytic effects.
Polarization of T Helper1 Cells Is Impaired by PSMs
DCs play a crucial role in the activation and polarization of T cells. Not only the direct interaction, but also the local cytokine milieu is important for the outcome and distinct transcription factors control the differentiation of the T cell subsets (24, 25). To assess the impact of PSMα3-treated moDCs on the polarization of T helper (Th) cell subsets, moDCs were treated with or without Sa lysate or LPS in combination with PSMα3 for 24 h. Subsequently, the cells were co-cultured with naive CD4+ T cells for 3–4 d. Flow cytometry analysis of the Th subsets showed that TLRL-treated mDCs primed significantly more T-bet+ Th1 cells whereas mDCs co-treated with PSMα3 prevented Th1 priming (Sa 11.2 vs. 7.8%, p < 0.0001; LPS 8.2 vs. 4.7%, p < 0.0001) (Figures 4A,B). In contrast, stimulation of iDCs with PSMα3 alone did not show any difference compared to untreated cells (Figure 4B), indicating that PSMα3 without TLRL has no influence on the priming capacity of moDCs. Analyzing Th2 cells by GATA3 expression after co-culture with moDCs treated with TLRL alone or in combination with PSMα3 revealed the same tendency as T-bet expression, but no significant differences (Sa 1.32 vs. 1.1%, p = 0.27; LPS 1.25 vs. 1.1%, p = 0.8) (Figures 4A,B and Figure S6B). However, no difference in the frequency of RORγt+CD4+ T cells was observed (data not shown).
Figure 4. Polarization of Th1 is impaired by PSMs. MoDCs treated for 24 h with Sa lysate or LPS with or without PSMα3 or PSMα3 alone were co-cultured with CFSE-labeled naïve CD4+ T cells for 3 d. The different Th subsets were analyzed by flow cytometry; Th1 cells were characterized as CD3+CD4+T-bet+ T cells, Th2 cells were characterized as CD3+CD4+GATA3+ T cells (A). (B) The bar graphs show the frequency of T-bet+ Th1 and GATA3+ Th2 cells from CD4+ T cells (one representative of n = 4 independent experiments performed in triplicates, mean ± SEM). (C) Cell culture supernatants from the DC T cell co-culture were collected after 1 d, 2 d or 3 d and analyzed for Th-associated cytokine production (n ≥ 3 performed in triplicates; mean ± SEM). *p < 0.05, **p < 0.005, or ****p < 0.0001, one-way ANOVA with Turkey's posttest or Kruskal-Wallis with Dunn's posttest.
Cytokine secretion analysis of the major Th1, Th2, and Th17 cytokines in co-culture after 1–3 days showed that IFN-γ secretion was completely prevented when TLR4 ligand-treated mDCs were co-treated with PSMα3 (LPS day 1 1.800 vs. 80 pg/ml, p = 0.5617; day 2 5.600 vs. 120 pg/ml, p = 0.0146, day 3 9.400 vs. 330 pg/ml, p < 0.0001), which in part, but not significant, was also seen for TLR2-stimulated mDCs (Sa day 1 60 vs. 40 pg/ml, p>0.999; day 2 6.500 vs. 3.000 pg/ml, p = 0.2534, day 3 7.500 vs. 5,800 pg/ml, p = 0.9105) (Figure 4C). Comparable results, but without significance, were observed for IL-17A secretion at day 2 and 3 by TLR4 ligand-treated mDCs together with PSMα3 (LPS day 2 10.8 vs. 5.1 pg/ml, p = 0.9658, day3 24.4 vs. 5.7 pg/ml, p = 0.4336). Similarly, no significant effects of PSMα3 were observed for IL-17A secretion after co-culture of CD4+ T cells with mDCs treated with Sa lysate. Further, IL-4 secretion showed no difference after treatment with either Sa lysate or LPS, respectively (Figure 4C). However, the expression of the closely related cytokine IL-13 significantly increased 3 days after coculture of CD4+ T cells with moDCs treated with TLRLs and PSMα3 (Sa 500 vs. 1.000 pg/ml, p = 0.0327; LPS 65 vs. 680 pg/ml, p = 0.0057) (Figure 4C). This Th cytokine expression is connected with the impaired production of pro-inflammatory cytokines in co-cultures of CD4+ T cells with moDCs treated with TLRLs and PSMα3 (Figures S5A–C).
Thus, PSMα3-treated TLR2- and TLR4- stimulated mDCs decreased the frequency of T-bet+ Th1 cells, as well as IFN-γ secretion.
PSMα3-Treated moDCs Induce Treg Priming Via Direct Cell Interaction and IDO Production
Previously, our group showed that PSMα3 primes mouse tDCs thereby enhancing the frequency and proliferation of Tregs (10, 12). Further, as PSMα3 treatment of moDCs attenuated the priming of Th1 cells, we investigated whether PSMα3-treated moDCs also increased Treg priming. Therefore, moDCs were treated with or without Sa lysate or LPS in combination with PSMα3 for 24 h. Next, the cells were co-cultured with naïve CFSE-labeled CD4+ T cells for 3–4 d and analyzed by flow cytometry. Newly primed Tregs were characterized as CD4+CD127−CD25hiCD45RA−FoxP3hi induced Tregs [iTregs; (26)]. PSMα3 increased the frequency of iTregs upon co-culture with moDCs after TLR2 or TLR4 ligand treatment (Sa day 3 0.17 vs. 0.31%, p < 0.0033; Sa day 4 0.43 vs. 0.86%, p = 0.0054; LPS day 3 0.08 vs. 0.29%, p < 0.0001; LPS day 4 0.75 vs. 1.07%, p = 0.0204) (Figures 5A,B). Treating CD4+ T cells with PSMα3 in combination with TLRLs without moDCs did not result in CD4+ T cell activation or priming of iTregs (Figure S6).

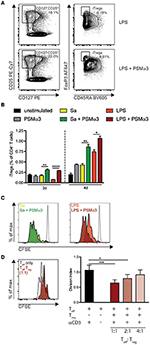

Figure 5. PSMα3-treated moDCs increase the proliferation and frequency of iTregs. (A–C) MoDCs treated for 24 h with Sa lysate or LPS with or without PSMα3 or PSMα3 alone were co-cultured with CFSE-labeled naïve CD4+ T cells for 3 d or 4 d. iTregs were analyzed by flow cytometry and characterized as CD4+CD127−CD25hiCD45RA−Foxp3hi cells (A). The frequency of iTregs from CD4+ T cells (B) and the proliferation of iTregs (C) co-cultured with TLRL-only or in combination with PSMα3-treated mDCs was analyzed (n ≥ 5 performed in triplicates, mean ± SEM). Proliferation was compared to T cells cultured without DCs (gray dotted line). (D) Allogenic suppression assay of CFSE-labeled Teffs cultured in different ratios with or without sorted Tregs (CD4+CD127−CD25hiCD45RA−, Figure S7) from DC T cell co-culture described in (A). Proliferation of the CFSE-labeled Teffs with or without activation via αCD3-beads was assessed after 3 d (n = 2 performed in triplicates; mean ± SEM). *p < 0.05, **p < 0.005, ***p < 0.001, or ****p < 0.0001, one-way ANOVA with Turkey's posttest or Kruskal-Wallis with Dunn's posttest.
Further, these iTregs showed a greater proliferation potential than the iTregs primed without PSMα3 (Figure 5C). To test the functionality of these iTregs, we sorted iTregs (CD4+CD127−CD25hiCD45RA−) after 4 d of co-culture with LPS + PSMα3-treated moDCs (Figure S7). Sorted iTregs were again cultured with CFSE-labeled CD4+ T cells (Teff) in the presence of anti-CD3/CD28 coated beads to induce Teff proliferation for 4 d. Tregs significantly decreased Teff proliferation analyzed by CFSE-dilution in a concentration-dependent manner (1:1 reduction ~38%, p = 0.0004; 1:2 reduction ~25%, p = 0.0176; 1:4 reduction ~12%, p = 0.2603) (Figure 5D), demonstrating that PSMα3-induced iTregs suppress Teff proliferation.
To investigate whether secreted factors from DCs upon PSM-treatment mediate iTreg priming, T cells were co-cultured with iDCs simultaneously adding medium from LPS or LPS with PSMα3-treated moDCs (conditioned medium) (Figure 6A condition 2). As described above, PSMα3 increased the frequency of iTregs upon co-culture of naïve CD4+ T cells with moDCs (Figure 6A condition 1 and Figure 6B). A similar increase of iTregs was mediated by iDCs incubated with conditioned medium from LPS + PSMα3, whereas LPS conditioned medium had no effect (0.31% compared to 0.09%, respectively, p = 0.0757) Figure 6A condition 2 and Figure 6B). These observations show that PSM-induced secretion of soluble factors by mDCs modulate iDCs to prime iTregs.
Figure 6. PSMα3-treated moDCs increase the proliferation and frequency of iTregs by direct interaction and IDO production. (A) Schematic overview of the experimental setting: T cells were co-cultured for 3–4 d (1) with mDCs (LPS or LPS + PSMα3 for 24 h), with (2) untreated moDCs (iDCs) in the presence of conditioned medium from LPS or LPS + PSMα3 treated DCs, with (3) washed and re-seeded mDCs together with new medium or (4) with fixed moDCs together with either new medium or conditioned medium. (B) The bar graphs show the frequency of iTregs from CD4+ T cells analyzed by flow cytometry from the experiments described in (A) (one representative of n ≥ 3 independent experiments performed in triplicates). (C,D) Cell culture supernatants from the DC T cell co-culture (n ≥ 3 performed in triplicates; mean ± SEM) were analyzed for IL-10 (C) and TGF-β production (D) after 1 d, 2 d or 3 d by a bead-based immunoassay. (E) Cell culture supernatants (n = 2 performed in triplicates; mean ± SEM) from moDCs treated with Sa lysate or LPS with or without PSMα3 were analyzed for IDO production by sandwich ELISA. *p < 0.05, ***p < 0.001 or ****p < 0.0001, one-way ANOVA with Turkey's posttest or Kruskal-Wallis with Dunn's posttest.
In another assay DCs were washed 24 h after treatment with LPS or LPS + PSMα3 (mDCs) and further cultured for 3–4 days with CD4+ T cells in fresh medium. These conditions revealed an even higher frequency of iTregs (0.52 or 1.32%, respectively; p < 0.0001) compared to mDCs without medium change (Figure 6A condition 3 and Figure 6B) and suggest that the interaction of mDCs with CD4+ T cells as well as secreted factors produced by mDCs after interaction with T cells are important for iTreg priming.
To further address the impact of direct DC-T-cell interaction on Treg priming, mDCs were fixed and either cultured with naïve CD4+ T cells in fresh or conditioned medium. Fixation of mDCs treated with or without PSMα3 led to low frequencies of iTregs after co-culture with naïve CD4+ T cells in fresh medium (0.08% vs. 0.2%, p = 0.6038) (Figure 6A condition 4 and Figure 6B). Similar results were obtained by the addition of conditioned medium to this co-culture showing that mainly direct interaction of mDCs with naïve CD4+ T cells is essential for iTreg induction. However, in this experimental setting we cannot exclude that soluble factors produced by mDCs after DC-T cell interaction are involved in iTreg priming. To address this issue, culture supernatants of mDCs with naïve CD4+T cells were analyzed over time for soluble factors, which were shown to be responsible for iTreg priming and proliferation, like TGF-β, IL-10, IL-2, CD40L and IDO. Neither, IL-10 (Figure 6C), TGF-ß (Figure 6D), CD40L nor IL-2 (Figure S5 were increased in the co-culture of PSMα3-treated mDCs with naïve CD4+ T cells compared to mDCs independently of the TLRL used. Moreover, T helper cell priming cytokines like IL-4, IL-6, IL-12p70, IL17A and IFN-γ were hardly detectable in the co-culture supernatants of LPS + PSMα3 treated mDCs with CD4+ T cells (Figure 4C and Figure S5) as described above.
In contrast, secretion of the enzyme IDO, which is important for Treg differentiation from naïve T cells (8), was significantly increased by mDCs in response to PSMα3 treatment after 1 (11.000 vs. 1.440 pg/ml, p < 0.0001) and 2 days (42.000 vs. 33.800 pg/ml, p = 0.0006) compared to mDCs alone (Figure 6E). As previously described, LPS treatment alone also led to IDO secretion by moDCs (27). We addressed the impact of IDO on iTreg priming by mDCs using the specific IDO inhibitor 1-Methyl-D-Tryptophan (1-DMT) prior to treatment of iDCs with LPS or LPS + PSMα3. These mDCs were then co-cultured with CD4+ T cells and the frequency of iTregs determined as described above. Surprisingly, IDO inhibition revealed increased frequencies of iTregs by 2 fold independently whether cells were treated with LPS + PSMα3 or the inhibitor alone (see Figure S8). No difference in the proliferation of CD4+ T cells was observed upon IDO inhibition. Moreover, IDO inhibition had hardly any effect on the frequency of Th1, Th2 and Th17 cells in the culture (data not shown). Thus, the increased IDO production by PSM-treated DCs seems not to be essential for iTreg induction.
Together, these data indicate that PSMα3 modulates moDCs to prime predominantly Tregs via mechanisms involving mainly direct DC-T cell interaction in combination with DC-secreted yet unknown factors.
PSMα3-Treated moDCs Induce Tregs From CD4+ T Cells of Patients With Autoimmune Diseases
In order to address whether PSMα3 can be used for therapeutic approaches by modulating moDCs for iTreg priming in a setting of T cell associated autoimmune diseases, moDCs from healthy donors were co-cultured after treatment with LPS or LPS + PSMα3 with CD4+ T cells from patients with spondyloarthritis (Figure 7A) and rheumatoid arthritis (RA) (data not shown). These patients suffer from spondylitis/enthesitis of the spine or peripheral arthritis with pain, morning stiffness and consecutive ankylosing of the spine and/or joint destruction. These diseases display a high frequency of pro-inflammatory Th1 and Th17 cells. As shown for T cells from healthy donors, PSMα3 increased the frequency of iTregs upon co-culture with LPS-treated mDCs by > 10-fold compared to LPS treatment alone (p = 0.024), whereas no effects were observed for Th1, Th2, and Th17 priming of T cells from patients with spondylitis (Figure 7A). Moreover, similar, but not significant results (p = 0.0919) could be observed in an autologous setting using mDCs and CD4+ T cells from patients with spondyloarthritis (Figure 7B and Figure S9). This shows that PSMα3 indeed modulates moDCs to prime iTregs even in allogenic and autologous disease settings, indicating its potential for DC therapy in chronic inflammatory diseases.
Figure 7. PSMα3-treated moDCs induce Tregs from CD4+ T cells of patients with autoimmune diseases. (A) Allogenic T-cell assay: MoDCs from healthy donors were treated for 24 h with LPS with or without PSMα3 and co-cultured with CFSE-labeled CD4+ T cells from patients with Th17-associated spondyloarthritis for 3 d or 4 d. The different T cell subsets were analyzed by flow cytometry. The graph shows the frequency of the T-bet+ Th1, GATA3+ Th2, RORγt+ Th17 cells and CD127−CD25hiCD45RA−Foxp3hi iTregs from CD4+ T cells (n = 6 patients; mean ± SEM). *p < 0.05, one-way ANOVA with Turkey's posttest or Kruskal-Wallis with Dunn's posttest. (B) Autologous T-cell assay: MoDCs from spondyloarthritis patients were treated as described in (A) and co-cultured with CFSE-labeled CD4+ T cells from the same patient. CD127−CD25hiCD45RA−Foxp3hi iTregs were analyzed by flow cytometry. The graph shows the frequency of iTregs as fold change from LPS-treated cells of 4 different spondyloarthritis patients. Data were analyzed by unpaired student's T-test.
There is a need for particular therapeutic approaches preventing or inhibiting immune activation in autoimmune diseases, allograft rejection, allergies, asthma and various forms of hyper-sensitivity. Current therapies, which mainly use nonspecific systemic immunosuppressants, are associated with severe side effects. Thus, ex vivo generated tDCs are an attractive alternative to enhance, maintain or restore immunological tolerance.
Here, we addressed the possibility of PSMα3, which is secreted by highly virulent CA-MRSA strains, to induce human tDCs as potential therapeutic for DC vaccination strategies. PSMs form transient pores into the membrane of neutrophils (15), and DCs thereby getting access to the cytosol, in the case of DCs without cell lysis (Figure 3) (10). Molecularly, PSMα3 enhanced the activation of the p38-CREB pathway upon TLR ligation, which in consequence diminished pro-inflammatory cytokine production but induced IL-10 secretion by mouse bone marrow-derived DCs (10). Here, we show that PSMα2 enters human moDCs via endocytosis and transient pore formation and is located in the cytosol as well as close to the membrane. Indeed, NF-κB as well as p38 activation are necessary for DC maturation including upregulation of CD80, CD86, and CD40, but also cytokine production (28–30). We believe that PSMα3 prevents TLR-activation either extracellularly and/or intracellularly thereby inducing tDCs. Direct extracellular interaction of PSMα1–3 with TLR4 was shown to prevent binding of HMGB1 to TLR4 and thus downstream activation of NF-κB (31). Similarly, we here show that PSMα3 prevents activation of NF-κB as well as p38 MAPK signaling. Whether PSMα3 also blocks binding of LPS to TLR4 remains to be shown. Moreover, our findings are in agreement with several studies showing that NF-κB inhibition favors an immature or tolerogenic DC phenotype, which stimulates the expansion of Foxp3 expressing regulatory T cells (32–35).
A hallmark of tDCs is their immature phenotype characterized by low surface levels of MHC class II and costimulatory molecules, such as CD86, CD40, CD54, and PD-L2, but increased expression of TLRs, chemokine receptors and PD-L1. In vivo studies showed that the tissue or even tumor microenvironment is important for regulating the development and function of tDCs (36). Although PSMα3 had little influence on TLR–induced up-regulation of HLA-DR, CD83, CD86, and PD-L2, up-regulation of costimulatory molecules CD80, PD-L1, and CD40 was inhibited, preventing full DC-maturation. Likewise, cholera toxin in combination with LPS induced CD80 and CD86 but reduced CD40 and CD54 expression by DCs (37). Mechanistically, the inhibition of TNFα production, which among others regulates CD40 expression, upon synergistic treatment with TLRLs and PSMα3 could explain the impaired up-regulation of CD40 (38). This fits to the fact that the lack of CD40 expression on DCs was shown to be important for the generation of Tregs while suppressing primary immune responses (39). Moreover, some studies have shown that phenotypically mature DCs are also able to promote Tregs and act superior in activating their suppressor function (40, 41).
In addition, PSMα3 dramatically changed the cytokine secretion pattern of moDCs upon TLRL treatment by preventing the secretion of the pro-inflammatory cytokines TNF, IL-12, but also of anti-inflammatory IL-10, which is produced by DCs in response to TLR-stimulation. This is in contrast to the data observed by mouse bone-marrow derived DC, where IL-10 secretion is even increased upon PSM and TLRL treatment compared to TLRL treatment alone (12). However, PSM-treated moDCs still impair Th1 but promote Treg priming. Tolerogenic DCs are defined by their capacity to induce Tregs via production of anti-inflammatory molecules that may be secreted, membrane bound, or both. A variety of studies demonstrated the necessity of IL-10 secretion by tDCs for Treg induction (42–45) and for the maintenance of suppressive Tregs upon strong inflammatory signals (12, 44, 46, 47). The data described herein raise the question whether IL-10 secretion is a hallmark of tDCs.
As T-cell differentiation is mainly controlled by cytokines mediating polarizing signals (48) we addressed other factors as mediators for Treg induction. IDO, an immune-regulatory enzyme, which is mainly expressed in DCs, was shown to modulate adaptive immune responses by promoting immune-suppression and tolerance (49–51). IDO expression in DCs is induced either by IFN-γ or by TLR activation via the non-canonical NF- κB pathway. IDO acts through tryptophan (TRP) depletion and production of TRP metabolites thereby inducing differentiation of new Tregs from naïve T cells (27, 51–55). PSM treatment of moDCs resulted in an even enhanced IDO expression as compared to Sa lysate or LPS treatment alone. The latter was recently shown to induce IDO together with the transcription factor aryl-hydrocarbon receptor (AhR) (27). However, our results obtained with IDO inhibition by 1-DMT argue against a mechanistically role of IDO in PSM-mediated Treg induction. Thus, it is tempting to speculate that PSMα3 modulated moDCs prime Tregs via mechanisms involving predominantly direct DC-T cell interaction in combination with the absence of Th-priming cytokines and probably yet unknown DC-secreted factors.
The data from this study are a proof of concept of the potential use of Sa-derived PSMα3 to induce tolerogenic human DCs with the ability to prime iTregs. Especially, when using PSMα3-induced tDCs to prime iTregs in allogenic and autologous settings of CD4+ T cells from spondylitis patients. It is believed that tolerogenic DCs may induce tolerance to the pathologic immune responses in a patient without affecting the immune defense against pathogens or tumors. There are two strategies to restore tolerance in autoimmunity: improve the induction and function of tolerogenic DC or generating tolerogenic DC in vitro for subsequent administration in vivo as cell therapy (13, 56, 57). Different immune-modulatory agents such as dexamethasone, vitamin D3, TNF or IL-10, but also pathogen-derived products have been used in order to modify the phenotype, cytokine profiles and activity of DCs (58–65). Pre-clinical models of arthritis (65), EAE (66), and type 1 diabetes [T1D; (67)] have demonstrated the efficacy of in vitro induced tolerogenic DC-based cell therapy.
There is a need for the complete understanding of the mechanisms that control tolerance and immunity in the context of the complexity and heterogeneity of autoimmune diseases, in which multiple cell types are affected and various genetic backgrounds are involved.
SA, JR, and NA contributed to the conception and design of the study. JR and MG performed the experiments and statistical analysis. SA and JR wrote the first draft of the manuscript. SA, JR, NA, MG, and JH wrote sections of the manuscript. All authors read and approved the submitted version of the manuscript.
This work was financed by the German Research Foundation grant SFB685-TP3 and the European Social Fund of Baden-Württemberg (Margarete von Wrangell Program) to SA.
Conflict of Interest Statement
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
We thank Johannes Morschl for technical assistance and Peter Richardson for critical reading of the manuscript. Cell sorting and flow cytometry sample acquisition was done on shared instruments of the Flow Cytometry Core Facility Tübingen. Imaging flow cytometry sample acquisition, and data analysis was done on shared instruments of the Imaging Flow Cytometry Core Facility Tübingen. The Imaging Flow Cytometry Core Facility was supported by a grant from the Ministry of Science, Research and Arts of Baden Württemberg (Az.: SI-BW 01222-91) and the Deutsche Forschungsgemeinschaft DFG (German Research Foundation) (Az.: INST 2388/33-1).
The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fimmu.2018.02603/full#supplementary-material
APC, antigen presenting cell; BM-DCs, bone-marrow derived DCs; CA-MRSA, community-associated methicillin-resistant Sa; DCs, dendritic cells; IDO, indolamin-2,3-dioxygenase; iTregs, induced regulatory T cells; LDH, L-lactate dehydrogenase; moDCs, monocyte-derived DCs; PBMCs, peripheral blood mononuclear cells; PSM, phenol-soluble modulin peptides; Sa, Staphylococcus aureus; Sa lysate, Staphylococcus aureus cell lysate; tDCs, tolerogenic DCs; Th, T helper cell; TLR, Toll-like receptor; TLRL, Toll-like receptor ligand; Tregs, regulatory T cells.
1. Merad M, Sathe P, Helft J, Miller J, Mortha A. The dendritic cell lineage: ontogeny and function of dendritic cells and their subsets in the steady state and the inflamed setting. Annu Rev Immunol. (2013) 31:563–604. doi: 10.1146/annurev-immunol-020711-074950
10. Armbruster NS, Richardson JR, Schreiner J, Klenk J, Günter M, Kretschmer D, et al. PSM peptides of Staphylococcus aureus activate the p38-CREB pathway in dendritic cells, thereby modulating cytokine production and T cell priming. J Immunol. (2016) 196:1284–92. doi: 10.4049/jimmunol.1502232
11. Ouyang W, Rutz S, Crellin NK, Valdez PA, Hymowitz SG. Regulation and functions of the IL-10 family of cytokines in inflammation and disease. Annu Rev Immunol. (2011) 29:71–109. doi: 10.1146/annurev-immunol-031210-101312
12. Schreiner J, Kretschmer D, Klenk J, Otto M, Bühring H-J, Stevanovic S, et al. Staphylococcus aureus phenol-soluble modulin peptides modulate dendritic cell functions and increase in vitro priming of regulatory T cells. J Immunol. (2013) 190:3417–26. doi: 10.4049/jimmunol.1202563
15. Wang R, Braughton KR, Kretschmer D, Bach T-HL, Queck SY, Li M, et al. Identification of novel cytolytic peptides as key virulence determinants for community-associated MRSA. Nat Med. (2007) 13:1510–4. doi: 10.1038/nm1656
17. Cheung GYC, Kretschmer D, Duong AC, Yeh AJ, Ho TV, Chen Y, et al. Production of an attenuated phenol-soluble modulin variant unique to the MRSA clonal complex 30 increases severity of bloodstream infection. PLoS Pathog. (2014) 10:e1004298. doi: 10.1371/journal.ppat.1004298.s002
18. Armbruster NS, Richardson JR, Schreiner J, Klenk J, Günter M, Autenrieth SE. Staphylococcus aureus PSM peptides induce tolerogenic dendritic cells upon treatment with ligands of extracellular and intracellular TLRs. Int J Med Microbiol. (2016) 306:666–74. doi: 10.1016/j.ijmm.2016.09.002
19. Autenrieth SE, Soldanova I, Rösemann R, Gunst D, Zahir N, Kracht M, et al. Yersinia enterocolitica YopP inhibits MAP kinase-mediated antigen uptake in dendritic cells. Cell Microbiol. (2007) 9:425–37. doi: 10.1111/j.1462-5822.2006.00800.x
20. Burgdorf S, Kautz A, Böhnert V, Knolle PA, Kurts C. Distinct pathways of antigen uptake and intracellular routing in CD4 and CD8 T cell activation. Science (2007) 316:612–6. doi: 10.1126/science.1137971
21. Platt CD, Ma JK, Chalouni C, Ebersold M, Bou-Reslan H, Carano RAD, et al. Mature dendritic cells use endocytic receptors to capture and present antigens. Proc Natl Acad Sci USA. (2010) 107:4287–92. doi: 10.1073/pnas.0910609107
22. West MA, Wallin RPA, Matthews SP, Svensson HG, Zaru R, Ljunggren H-G, et al. Enhanced dendritic cell antigen capture via toll-like receptor-induced actin remodeling. Science (2004) 305:1153–7. doi: 10.1126/science.1099153
23. Pokorny A, Yandek LE, Elegbede AI, Hinderliter A, Almeida PFF. Temperature and composition dependence of the interaction of δ-lysin with ternary mixtures of sphingomyelin/cholesterol/POPC. Biophys J. (2006) 91:2184–97. doi: 10.1529/biophysj.106.085027
26. Santegoets SJAM, Dijkgraaf EM, Battaglia A, Beckhove P, Britten CM, Gallimore A, et al. Monitoring regulatory T cells in clinical samples: consensus on an essential marker set and gating strategy for regulatory T cell analysis by flow cytometry. Cancer Immunol Immunother. (2015) 64:1271–86. doi: 10.1007/s00262-015-1729-x
27. Salazar F, Awuah D, Negm OH, Shakib F, Ghaemmaghami AM. The role of indoleamine 2,3-dioxygenase-aryl hydrocarbon receptor pathway in the TLR4-induced tolerogenic phenotype in human DCs. Sci Rep. (2017) 7:43337. doi: 10.1038/srep43337
28. Ardeshna KM, Pizzey AR, Devereux S, Khwaja A. The PI3 kinase, p38 SAP kinase, and NF-kappaB signal transduction pathways are involved in the survival and maturation of lipopolysaccharide-stimulated human monocyte-derived dendritic cells. Blood (2000) 96:1039–46.
29. Dalod M, Chelbi R, Malissen B, Lawrence T. Dendritic cell maturation: functional specialization through signaling specificity and transcriptional programming. EMBO J. (2014) 33:1104–16. doi: 10.1002/embj.201488027
31. Chu M, Zhou M, Jiang C, Chen X, Guo L, Zhang M, et al. Staphylococcus aureus phenol-soluble modulins α1–α3 act as novel toll-like receptor (TLR) 4 antagonists to inhibit HMGB1/TLR4/NF-κB signaling pathway. Front Immunol. (2018) 9:862. doi: 10.3389/fimmu.2018.00862
32. Iruretagoyena MI. Inhibition of nuclear factor- B enhances the capacity of immature dendritic cells to induce antigen-specific tolerance in experimental autoimmune encephalomyelitis. J Pharmacol Exp Therapeut. (2006) 318:59–67. doi: 10.1124/jpet.106.103259
33. Li M, Zhang X, Zheng X, Lian D, Zhang ZX, Ge W, et al. Immune modulation and tolerance induction by RelB-silenced dendritic cells through RNA interference. J Immunol. (2007) 178:5480–7. doi: 10.4049/jimmunol.178.9.5480
34. Martin E, Capini C, Duggan E, Lutzky VP, Stumbles P, Pettit AR, et al. Antigen-specific suppression of established arthritis in mice by dendritic cells deficient in NF-kappaB. Arthritis Rheum. (2007) 56:2255–66. doi: 10.1002/art.22655
35. Thompson AG, O'Sullivan BJ, Beamish H, Thomas R. T cells signaled by NF-kappa B- dendritic cells are sensitized not anergic to subsequent activation. J Immunol. (2004) 173:1671–80. doi: 10.4049/jimmunol.173.3.1671
37. Lavelle EC, McNeela E, Armstrong ME, Leavy O, Higgins SC, Mills KHG. Cholera toxin promotes the induction of regulatory T cells specific for bystander antigens by modulating dendritic cell activation. J Immunol. (2003) 171:2384–92. doi: 10.4049/jimmunol.171.5.2384
38. Danese S, Sans M, Scaldaferri F, Sgambato A, Rutella S, Cittadini A, et al. TNF- blockade down-regulates the CD40/CD40L pathway in the mucosal microcirculation: a novel anti-inflammatory mechanism of infliximab in Crohn's disease. J Immunol. (2006) 176:2617–24. doi: 10.4049/jimmunol.176.4.2617
40. Pletinckx K, Döhler A, Pavlovic V, Lutz MB. Role of dendritic cell maturity/costimulation for generation, homeostasis, and suppressive activity of regulatory T cells. Front Immun. (2011) 2:39. doi: 10.3389/fimmu.2011.00039
41. Spörri R, Reis e Sousa C. Inflammatory mediators are insufficient for full dendritic cell activation and promote expansion of CD4+ T cell populations lacking helper function. Nat Immunol. (2005) 6:163–70. doi: 10.1038/ni1162
43. McGuirk P, McCann C, Mills KHG. Pathogen-specific T regulatory 1 cells induced in the respiratory tract by a bacterial molecule that stimulates interleukin 10 production by dendritic cells: a novel strategy for evasion of protective T helper type 1 responses by Bordetella pertussis. J Exp Med. (2002) 195:221–31. doi: 10.1084/jem.20011288
44. Murai M, Turovskaya O, Kim G, Madan R, Karp CL, Cheroutre H, et al. Interleukin 10 acts on regulatory T cells to maintain expression of the transcription factor Foxp3 and suppressive function in mice with colitis. Nat Immunol. (2009) 10:1178–84. doi: 10.1038/ni.1791
45. Wakkach A, Fournier N, Brun V, Breittmayer J-P, Cottrez F, Groux H. Characterization of dendritic cells that induce tolerance and T regulatory 1 cell differentiation in vivo. Immunity (2003) 18:605–17. doi: 10.1016/S1074-7613(03)00113-4
46. Bonifazi P, Zelante T, D'Angelo C, De Luca A, Moretti S, Bozza S, et al. Balancing inflammation and tolerance in vivo through dendritic cells by the commensal Candida albicans. Mucosal Immunol. (2009) 2:362–74. doi: 10.1038/mi.2009.17
47. Falcón C, Carranza F, Martínez FF, Knubel CP, Masih DT, Motrán CC, et al. Excretory-secretory products (ESP) from Fasciola hepatica induce tolerogenic properties in myeloid dendritic cells. Vet Immunol Immunopathol. (2010) 137:36–46. doi: 10.1016/j.vetimm.2010.04.007
49. Bubnoff Von D, Scheler M, Wilms H, Fimmers R, Bieber T. Identification of IDO-positive and IDO-negative human dendritic cells after activation by various proinflammatory stimuli. J Immunol. (2011) 186:6701–9. doi: 10.4049/jimmunol.1003151
52. Baban B, Chandler PR, Sharma MD, Pihkala J, Koni PA, Munn DH, et al. IDO activates regulatory T cells and blocks their conversion into Th17-like T cells. J Immunol. (2009) 183:2475–83. doi: 10.4049/jimmunol.0900986
53. Chen W, Liang X, Peterson AJ, Munn DH, Blazar BR. The indoleamine 2,3-dioxygenase pathway is essential for human plasmacytoid dendritic cell-induced adaptive T regulatory cell generation. J Immunol. (2008) 181:5396–404. doi: 10.4049/jimmunol.181.8.5396
54. Hwu P, Du MX, Lapointe R, Do M, Taylor MW, Young HA. Indoleamine 2,3-dioxygenase production by human dendritic cells results in the inhibition of T cell proliferation. J Immunol. (2000) 164:3596–9. doi: 10.4049/jimmunol.164.7.3596
55. Salazar F, Hall L, Negm OH, Awuah D, Tighe PJ, Shakib F, et al. The mannose receptor negatively modulates the toll-like receptor 4-aryl hydrocarbon receptor-indoleamine 2,3-dioxygenase axis in dendritic cells affecting T helper cell polarization. J Allergy Clin Immunol. (2016) 137:1841–51.e2. doi: 10.1016/j.jaci.2015.10.033
58. Gregori S, Tomasoni D, Pacciani V, Scirpoli M, Battaglia M, Magnani CF, et al. Differentiation of type 1 T regulatory cells (Tr1) by tolerogenic DC-10 requires the IL-10-dependent ILT4/HLA-G pathway. Blood (2010) 116:935–44. doi: 10.1182/blood-2009-07-234872
59. Penna G, Adorini L. 1 Alpha,25-dihydroxyvitamin D3 inhibits differentiation, maturation, activation, and survival of dendritic cells leading to impaired alloreactive T cell activation. J Immunol. (2000) 164:2405–11. doi: 10.4049/jimmunol.164.5.2405
61. Sato M, Takayama T, Tanaka H, Konishi J, Suzuki T, Kaiga T, et al. Generation of mature dendritic cells fully capable of T helper type 1 polarization using OK-432 combined with prostaglandin E(2). Cancer Sci. (2003) 94:1091–8. doi: 10.1111/j.1349-7006.2003.tb01405.x
62. Steinbrink K, Graulich E, Kubsch S, Knop J, Enk AH. CD4+ and CD8+ anergic T cells induced by interleukin-10-treated human dendritic cells display antigen-specific suppressor activity. Blood (2002) 99:2468–76. doi: 10.1182/blood.V99.7.2468
64. Van Brussel I, Lee WP, Rombouts M, Nuyts AH, Heylen M, De Winter BY, et al. Tolerogenic dendritic cell vaccines to treat autoimmune diseases: can the unattainable dream turn into reality? Autoimmun Rev. (2014) 13:138–50. doi: 10.1016/j.autrev.2013.09.008
65. van Duivenvoorde LM, Han WGH, Bakker AM, Louis-Plence P, Charbonnier L-M, Apparailly F, et al. Immunomodulatory dendritic cells inhibit Th1 responses and arthritis via different mechanisms. J Immunol. (2007) 179:1506–15. doi: 10.4049/jimmunol.179.3.1506
66. Menges M, Rößner S, Voigtländer C, Schindler H, Kukutsch NA, Bogdan C, et al. Repetitive injections of dendritic cells matured with tumor necrosis factor alpha induce antigen-specific protection of mice from autoimmunity. J Exp Med. (2002) 195:15–21. doi: 10.1084/jem.20011341
