Original Research ARTICLE
Iron-Dependent Trafficking of 5-Lipoxygenase and Impact on Human Macrophage Activation
- 1Faculty of Bioscience and Technology for Food Agriculture and Environment, University of Teramo, Teramo, Italy
- 2Faculty of Veterinary Medicine, University of Teramo, Teramo, Italy
- 3European Center for Brain Research (CERC)/IRCCS Santa Lucia Foundation, Rome, Italy
- 4Institute of Pharmaceutical Chemistry, Goethe-University Frankfurt, Frankfurt, Germany
- 5Department of Medicine, Campus Bio-Medico University of Rome, Rome, Italy
5-lipoxygenase (5-LOX) is a non-heme iron-containing dioxygenase expressed in immune cells that catalyzes the two initial steps in the biosynthesis of leukotrienes. It is well known that 5-LOX activation in innate immunity cells is related to different iron-associated pro-inflammatory disorders, including cancer, neurodegenerative diseases, and atherosclerosis. However, the molecular and cellular mechanism(s) underlying the interplay between iron and 5-LOX activation are largely unexplored. In this study, we investigated whether iron (in the form of Fe3+ and hemin) might modulate 5-LOX influencing its membrane binding, subcellular distribution, and functional activity. We proved by fluorescence resonance energy transfer approach that metal removal from the recombinant human 5-LOX, not only altered the catalytic activity of the enzyme, but also impaired its membrane-binding. To ascertain whether iron can modulate the subcellular distribution of 5-LOX in immune cells, we exposed THP-1 macrophages and human primary macrophages to exogenous iron. Cells exposed to increasing amounts of Fe3+ showed a redistribution (ranging from ~45 to 75%) of the cytosolic 5-LOX to the nuclear fraction. Accordingly, confocal microscopy revealed that acute exposure to extracellular Fe3+, as well as hemin, caused an overt increase in the nuclear fluorescence of 5-LOX, accompanied by a co-localization with the 5-LOX activating protein (FLAP) both in THP-1 macrophages and human macrophages. The functional relevance of iron overloading was demonstrated by a marked induction of the expression of interleukin-6 in iron-treated macrophages. Importantly, pre-treatment of cells with the iron-chelating agent deferoxamine completely abolished the hemin-dependent translocation of 5-LOX to the nuclear fraction, and significantly reverted its effect on interleukin-6 overexpression. These results suggest that exogenous iron modulates the biological activity of 5-LOX in macrophages by increasing its ability to bind to nuclear membranes, further supporting a role for iron in inflammation-based diseases where its homeostasis is altered and suggesting further evidence of risks related to iron overload.
Lipoxygenases (LOXs) catalyze the regio- and stereo-specific insertion of molecular oxygen into polyunsaturated fatty acids (1). In humans, 5-LOX, 12-LOX, and 15-LOX1 constitute the most studied enzymes with specific distribution in hematopoietic cells (2). Among them, 5-LOX is of major patho-physiological relevance, since it has been implicated in the biosynthesis of important inflammatory bioactive lipid mediators (3). In particular, arachidonic acid (AA) released upon hydrolysis catalyzed by phospholipase A2 (cPLA2), serves as the 5-LOX substrate for leukotrienes (LTs) and lipoxins biosynthesis. These bioactive lipids act as hormone-like factors in biological processes and display diverse functions in the immune system serving as important molecules for effective regulatory functions in macrophages, acting in both innate immunity and adaptive response (4).
The subcellular localization of 5-LOX in unstimulated cells differs within cell types (5, 6). In peripheral blood neutrophils (7), differentiated HL-60 cells (8), and peritoneal macrophages (9), 5-LOX is mainly localized in the cytosol, whereas in resting alveolar macrophages (10), rat basophilic leukemia cells (11), bone marrow–derived mast cells (12), and Langerhans cells of human skin (13), the same enzyme is either partly or predominantly present in the soluble compartment of the nucleus. Upon stimulation, both cytosolic and nuclear 5-LOXs translocate to the nuclear envelope, leading to interaction with the 5-LOX activating protein (FLAP), a small protein localized in internal cell membranes that is essential in the functional processing of endogenous AA (3, 14). In particular, the translocation from the cytosol to the nuclear membrane of 5-LOX and its co-localization with FLAP is clearly emerging as an early and rate-limiting mechanism of activation that triggers different signaling pathways leading to the synthesis of different classes of pro-inflammatory LTs (LTA4 and LTC4) (14, 15).
In this context, the available crystal structures of LOXs indicate single polypeptide chain proteins adopting a two-domain folding: the N-terminal “C2-like” domain (~120 amino acids), which confers Ca2+-dependent membrane binding ability to 5-LOX, and is crucial for bringing the enzyme in proximity to its AA substrate within the nuclear membranes (16) and the larger catalytic C-terminal domain, that is primarily α-helical and harbors the non-heme catalytic iron (17). In a site-directed mutagenesis study aimed at investigating the intracellular distribution of 5-LOX, mutations known to abolish enzyme activity, and affecting the binding to iron in the active site, induced a graded distribution of 5-LOX in the nucleus and cytosol, depending on the iron content (12). Trypsin cleavage of soybean-LOX1 at Lys 277 yields a “mini-LOX” that roughly represents the catalytic subunit, with enhanced catalytic efficiency and higher membrane binding ability compared to the full-length native enzyme (18, 19). Extraction, reconstitution and substitution of iron revealed a non-catalytic role for it in modulating the membrane-binding ability of mini-LOX (20). In particular, it was shown that the correct coordination geometry of iron in the active site stabilizes an enzyme conformation that becomes more competent for the selective targeting and binding to the membrane surface, thus allowing more effective substrate recognition (20).
More recently, we have analyzed by molecular dynamics simulations the conformational changes induced by iron removal in 5-LOX indicating that the degree of enzyme flexibility is related to the presence of iron into the active site (21). These data provide further evidence on the functional role of iron in the activation of LOX, but little is known about 5-LOX activity and intracellular localization after iron exposure in innate immunity cells.
In this study we firstly studied by FRET the effect of iron removal in modulating the activity and membrane binding of human recombinant 5-LOX to synthetic membranes. Then we assessed in vitro the effects on membrane binding, nuclear translocation, and activity of 5-LOX of acute exposure of exogenous iron or hemin (ferriprotoporphyrin IX chloride) in THP-1 macrophages and human macrophages. We found that in vitro iron removal decreases membrane binding of 5-LOX and, that acute iron treatment of macrophages yields a substantial increase of 5-LOX activity and its association along with FLAP with the nuclear envelope.
Materials and Methods
RPMI 1640 medium was from Gibco BRL (Life Technologies, Rockville, MD); fetal bovine serum (FBS), adenosine triphosphate (ATP), arachidonic acid (AA), ferric chloride (FeCl3), hemin, phorbol-12-myristate-13-acetate (PMA), protease inhibitor cocktail, and phenylmethylsulfonyl fluoride (PMSF) were purchased from Sigma (St. Louis, MO, USA). For immunological studies we used the following antibodies: anti-5-LOX (Becton Dickinson, Franklin Lakes, NJ, USA), anti-β-actin (Millipore, Billerica, MA, USA), anti-lamin (Santa Cruz Biotechnology, Santa Cruz, CA, USA), and anti-FLAP (Abcam, Cambridge, UK). Goat Alexa Fluor-conjugated secondary antibodies and Prolong Gold anti-fade kit were purchased from Molecular Probes (Eugene, OR, USA). Macrophage colony-stimulating factor (M-CSF) and human serum were purchased from Miltenyi Biotec (Bergisch Gladbach, Germany). All other chemicals were from Sigma Chemical Co. (St. Louis, MO, USA), unless otherwise indicated.
Enzyme Preparations and Enzymatic Assay
Recombinant human 5-LOX was expressed in E. coli from the plasmid pT3-5-LOX and purified (purity was >95%, see Supplementary Figure 1) on ATP-agarose (Sigma A2767) followed by anion exchange chromatography, as previously reported (22). Apo-5-LOX enzyme was obtained by metal removal using the iron chelator deferoxamine (DFO). To this aim enzyme solutions were dialyzed overnight against 50 mM Tris/HCl pH 7.5 buffer using a 5-LOX:DFO stoichiometry of 1:5, followed by dialysis against the same buffer containing 2 mM EDTA for 48 h. All experiments were performed using iron-free water, dialysis bags, and plastics. 5-LOX activity was assayed spectrophotometrically at 25°C in 50 mM Tris/HCl pH 7.5 buffer by recording the formation of conjugated hydroperoxides from AA at 234 nm.
Liposomes Preparations and FRET Studies
Large unilamellar vesicles mimicking the biophysical properties of nuclear membranes were prepared using 1-palmitoyl-2-oleoyl-sn-glycero-3-phosphocholine (POPC) as described previously (23). Fluorescence spectra were recorded at 25°C using a PerkinElmer LSB50 fluorimeter and 10 × 2 mm path length quartz fluorescence microcuvettes (Hellma, Concord, ON). The pyrene bound liposomes used in FRET studies contained 5% (w/w) Py-PE (1,2-dioleoyl-sn-glycero-3-phosphoethanolamine-N-1–pyrenesulfonyl) purchased from Molecular Probes. 5-LOX was used at a final concentration of 0.2 μM, whereas the liposome concentration varied between 10 and 600 μM in a final volume of 100 μL. The membrane binding measurements of both apo- and holo-5-LOX were carried out in Ca2+ free solutions after an incubation of the enzyme at different liposome concentrations for 5 min.
The human THP-1 cells were maintained in RPMI 1640 medium containing glutamine and supplemented with 10% FBS, 100 mg/mL streptomycin, 100 U/mL penicillin, 1 mM sodium pyruvate. For monocyte to macrophage differentiation, THP-1 cells were seeded at a density of 2–3 × 105 cells/mL and treated with 100 ng/mL PMA for 2 days (24).
Human Primary Macrophages
To obtain human macrophages, peripheral blood mononuclear cells, isolated after venous puncture from healthy donors, were cultured in 1640 RPMI medium supplemented with 10% FBS, 5% human serum, 100 U/mL penicillin/streptomycin, and differentiated with 25 ng/mL M-CSF for 6–7 days at 37°C in a humidified 5% CO2 atmosphere.
Real-Time PCR Analysis
Messenger RNA was extracted from macrophages using Qiagen minikits (Qiagen, Mississauga, ON, Canada), as per manufacturer's instructions, and was quantitated spectrophotometrically. One μg of total mRNA was reverse transcribed to cDNA, using iScriptTM cDNA synthesis kit (Bio-Rad, Hercules, CA, USA). cDNA (50 ng) was taken for real-time PCR using iTaqTM Fast SYBR® Green supermix with ROX (Bio-Rad, Hercules, CA, USA) on an DNA Engine Opticon 2 Continuous Fluorescence Detection System (MJ Research, Waltham, MA, USA). Intron-spanning primers to amplify ~200 bp were designed using Primer Express v.2.0 Software (Applied Biosystems, Foster City, CA, USA). Primer sequences were: 5-LOX forward 5′-TGCCAAATGCCACAAGGATT-3′ and reverse 5′-TGCATGAAGCGGTTGATGAA-3′; p12-LOX forward 5′-TGGTCATCCAGATTCAGCCTC-3′ and reverse 5′-TGGATCTCGTGCAGTTGGAA-3′; 15-LOX1 forward 5′-TGTGAAAGACGACCCAGAGCT-3′ and reverse 5′-TGACAAAGTGGCAAACCTGGT-3′; GADPH forward 5′-GTGAAGGTCGGAGTCAACGGA-3′ and reverse 5′-GAGGGATCTCGCTCCTGGAAGA-3′. Dissociation curve analysis following each amplification reaction was carried out to confirm the amplification of primer-specific products. All data were normalized to the endogenous reference gene glyceraldehyde-3-phosphate dehydrogenase (GAPDH). Differences in threshold cycle (Ct) number were used to quantify the relative amount of PCR targets contained in each tube. Relative amounts of different gene transcripts were calculated by the ΔΔCt method, and were converted to relative transcription ratio (2−ΔΔCt) for statistical analysis (25).
LOX Activity in THP-1 Macrophages
The 5-LOX activity was assayed partially modifying the already described procedure (26). For assays of cells, THP-1 monocytes were seeded for 48 h in 96-well microtiter plates at 1 × 105 cells/mL (100 μL/well) and differentiated into macrophages as described above. LOX inhibitors dissolved in DMSO (final concentration, 0.1%, v/v) were added at different concentrations to each well along with H2DCFDA (10 μM) and incubated for 30 min in the dark at 37°C in a CO2 incubator (5% CO2/95% air). Similarly, vehicle (DMSO) was added for control samples. The cell-permeant 2′,7′-dichlorodihydrofluorescein diacetate (H2DCFDA) was freshly prepared in ethanol for each assay. After careful removal of the loading medium, the cells were washed briefly with GIBCO Hanks' buffered salt solution (HBSS) (Invitrogen, CA, USA) before adding a reaction buffer containing 2.5 mM CaCl2, 2 mM ATP and AA (70 μM), the substrate for lipoxygenase in HBSS. After adding reaction buffer, the fluorescence product of H2DCFDA was analyzed using a microplate reader (Thermo Scientific, USA) for 30 min at 37° at excitation and emission wavelengths of 485 and 528 nm, respectively. The increase in fluorescence per well was calculated by the formula F30-F0, where F30 = fluorescence at time 30 min and F0 = fluorescence at time 0 min (taken immediately after adding substrate). This method avoids background fluorescence and the need to include blank wells in experiments. The percentage activity was calculated by considering fluorescence of control cells as 100% activity. All the experiments were performed at least in triplicates.
Cell Treatments and Subcellular Fractionation by Detergent Lysis
THP-1 macrophages (1 × 107 cells) were treated in the presence or absence of Fe3+ or hemin at indicated concentrations, at 37°C in a cell incubator (5% CO2/95% air). After a 5 min incubation period, the monolayers of cells were chilled on ice and briefly washed with HBSS before adding 1 mL of ice-cold NP-40-lysis buffer (10 mM Tris-HCl, pH 7.4, 10 mM NaCl, 3 mM MgCl2, 1 mM EDTA, 0.1% NP-40, 1 mM PMSF, 60 mg/mL soybean trypsin inhibitor, and 10 mg/mL leupeptin), kept on ice for 10 min, and gently scraped and centrifuged (800 g, 10 min, at 4°C). Supernatants (non-nuclear fractions) were transferred to a new tube, and pellets (nuclear fractions) were resuspended in 200 μL ice-cold relaxation buffer (50 mM Tris-HCl, pH 7.4, 250 mM sucrose, 25 mM KCl, 5 mM MgCl2, 1 mM EDTA, 1 mM PMSF, 60 mg/mL soybean trypsin inhibitor, 10 mg/mL leupeptin). Both nuclear and non-nuclear fractions were centrifuged again (800 g, 10 min, at 4°C) for further purification. Lysis of cells and integrity of nuclei were confirmed by light microscopy with trypan blue exclusion. Nuclei in relaxation buffer were disrupted by sonication (3 × 5 s). Aliquots of nuclear and non-nuclear fractions were immediately mixed with the same volume of Laemli sample buffer, heated for 5 min at 95°C, and analyzed for 5-LOX protein content by sodium dodecyl sulfate–polyacrylamide gel electrophoresis (SDS-PAGE) followed by immunoblotting. Lamin, a ubiquitous protein exclusively present in the nuclear membrane, was used as a marker of the nuclear fraction.
Immunoblot Analysis of Subcellular Fractions
Aliquots (25 μL) of pair-wise subcellular fractions (cytosol and nucleus), corresponding to equal amounts of cells, were mixed with 4 mL glycerol/ 0.1% bromphenol blue (1:1, V/V) and analyzed by SDS-PAGE using a Mini Protean III system (Bio-Rad, Hercules, CA, USA) on a 4 to 15% linear gradient gel. After electroblotting to PVDF membrane (GE-Healthcare, Pollards Woods, UK), proteins were blocked with 5% non-fat dry milk in Tris-buffered saline in the presence of 0.1% Tween (TBS-T) for 1 h at room temperature. Membranes were washed and incubated with primary antibodies overnight at 4°C. Then, membranes were washed with TBS-T and incubated with 1:1,000 dilution of HRP–conjugated secondary antibodies (Sigma, St. Louis, MO, USA) for 1 h at room temperature. After washing with TBS-T, 5-LOX protein was visualized using the HRP substrate ECL Prime (GE-Healthcare, Pollards Woods, UK). Densitometry was performed with a Gel Doc 1000 instrument and the Molecular Analyst software (Bio-Rad, Hercules, CA, USA).
For assess the subcellular distribution of FLAP and 5-LOX and their co-localization, THP-1 macrophages, and human primary macrophages were plated on glass coverslips in 12-well plates. Cells were left untreated (Ctrl) or treated with 10 μM hemin or 10 μM FeCl3 for 5 min, fixed with ice-cold acetone for 5 min and then double stained with rabbit anti-FLAP (1:100; Abcam, Cambridge, UK) and mouse anti-5-LOX primary antibodies (1:100; Becton Dickinson). As positive control, cells were treated for 5 min with 5 μM A23187, a Ca2+ ionophore that is successfully used to stimulate the translocation of 5-LOX to the nuclear envelop. After incubation with the cocktail of primary antibodies for 24 h, samples were incubated for 1 h at room temperature in a mixture of secondary antibodies including Alexa Fluor 488-conjugated goat anti-rabbit IgG (1:200; Molecular Probes) and Alexa Fluor 568-conjugated goat anti-mouse IgG (1:200; Molecular Probes). Cells were then DAPI (Sigma) counterstained, air-dried and coverslipped with Prolong Gold anti-fade. Images were acquired with an Ultraview Vox Spinning Disk (PerkinElmer, Milan, Italy) equipped with a 63 × 1.4-NA Plan-Apochromat oil immersion objective and an EMCCD C9100-50 camera. FLAP and 5-LOX fluorescence intensities were calculated through the NIH ImageJ software on 20 cells in different fields of two independent experiments. Overlap coefficient was measured by using JACOP plugin of ImageJ software. Apparent co-localization due to random staining, or very high intensity, in one window will have values of overlap coefficient near to zero, while if the two signal intensities are interdependent (co-localized) these values will be positive with a maximum of 1. We restricted the co-localization analysis to strip-like (curvilinear) regions-of-interest, which were 1.7 μm in width and had contour lengths from 10 to 70 μm, circumscribing part or all of the nuclear envelope. Thresholds were not set by the operator, but automatically calculated by the software to avoid biased data. All microscope quantifications shown in the article were performed by a blind approach. For presentation purposes, pictures were exported in TIFF format and processed with Adobe Photoshop CS5 (Adobe), for adjustments of brightness and contrast.
Functional Analysis of THP-1 Macrophages by ELISA Assay
THP-1-derived macrophages were treated in the presence or absence of 10 μM Fe3+ for 5 min, 10 μM hemin for 5 min, and 20 μM DFO for 2 h, before 10 μM hemin exposure. After treatments the medium were replaced, and the supernatants collected after 24 h. The concentration of interleukin-6 (IL-6) in the cellular supernatants were determined using the Human IL-6 Uncoated Invitrogen ELISA Kit assay (ThermoFisher, San Diego, USA) applying the manufacturer's directions. The plates were read at 450 nm and the sensitivity of the used ELISA assay was in the range 2–200 pg/mL.
Data reported in this paper are the mean ± SE of at least three independent experiments, each performed in triplicate. For each experimental setting, data are expressed as percentage of the control value of that specific experiment. A treatment was significant when p was <0.05 by analysis of variance, and subsequently by Student's unpaired two-tailed t-test in the Prism 5 program (GraphPAD Software for Science, San Diego, CA, USA).
Membrane Binding Properties of Holo- and Apo-5-LOX
We recently reported an unprecedented role for iron in modulating catalytic activity, structural stability, and membrane binding properties of soybean LOX-1 (20), supporting the notion that iron is not only essential for maintaining a proper structural integrity of the enzyme activity but also for its membrane association. To assess whether these effects can be also extended to the human LOXs, and to gain insight into the mechanism(s) by which iron may modulate 5-LOX membrane binding, we investigated by FRET the membrane binding properties of apo-5-LOX and holo-5-LOX. As expected, the apo-5-LOX obtained by iron removal led to an almost complete loss of its enzymatic activity (~95% decrease) (Figure 1A). More interestingly, we found that iron removal induced a significant decrease (~2-fold over the holo-5-LOX) in the affinity of the apo-form of the enzyme for POPC membranes, as indicated by an increase in [L]1/2 (49.4 ± 2.8 μM) of the apo-enzyme with respect to the value calculated for holo-5-LOX (Figure 1B).
Figure 1. Iron removal impairs activity and reduces membrane binding of 5-LOX. (A) Generation of apo-5-LOX by iron chelation leads to a significant reduction (~90%) of its enzymatic activity (100% of holo-5-LOX form specific activity corresponding to 225.15 ± 6.18 μmol/min per mg of protein). (B) The binding isotherm analyzed as tryptophan FRET quenching at different concentrations of POPC liposomes demonstrated a significant decrease of the membrane affinity of apo- (filled circles) with respect to holo-5-LOX (empty squares). (***p < 0.001 vs. 5-LOX wt).
LOX Activity in THP-1 Macrophages Increases After Acute Fe3+ Exposure in a Concentration-Dependent Manner
Real-time PCR analysis of 5-LOX, 12-LOX, and 15-LOX revealed that 5-LOX was the most expressed gene in THP-1 macrophages (Figure 2). In particular ΔCt values, normalized to GAPDH levels, were as follows: 5-LOX 7.15 ± 0.18; 12-LOX 19.75 ± 1.85; 15-LOX 13.73 ± 1.66. LOX activity was assayed in THP-1 macrophages with different AA concentrations (from 25 to 100 μM). Seventy μM was found to be the optimal concentration for the cellular assay (data not shown). Cells exposed to increasing concentrations of Fe3+ for 5 min, and then stimulated with 70 μM AA, showed a dose-dependent increase of LOX activity. Fe3+ at concentrations from 10 to 100 μM led to a significant 1.5- to 2-fold increase of enzyme activity (Figure 3A). Pre-incubation with NDGA (0.5 μM) or MK-886 (1 μM), a FLAP inhibitor, completely reversed the effect of Fe3+ (Figure 3B).
Figure 2. Quantitative real-time PCR analysis of 5-LOX, p12-LOX, and 15-LOX1 mRNAs in human THP-1 macrophages. The gene of 5-LOX was the most expressed in PMA-differentiated macrophages. GAPDH was used as an endogenous control, and the expression of LOX isoforms was represented using 5-LOX as calibrator. Each bar represents the mean ± SE of three independent experiments (***p < 0.001 vs. 5-LOX).
Figure 3. Iron increase 5-LOX activity. (A) Effect of exogenous iron (FeCl3) on 5-LOX activity tested by a cell-based fluorescence assay. To determine the effect of Fe3+ on 5-LOX activity different concentrations of FeCl3 were added to each well and incubated for 5 min in the dark at 37° in a CO2 incubator (5% CO2/95% air). Enzyme assays were started by the addition of 2.5 mM CaCl2, 2 mM ATP, and 70 μM AA (*P < 0.05 vs. control). (B) Pharmacological blockade of 5-LOX activation prevented induction of 5-LOX activity by FeCl3. THP-1 macrophages were incubated with 0.5 μM NDGA or 1μM MK-886 for 30 min and then treated with 1 mM FeCl3 or vehicle. The results represent the means of RFU ± SE of three independent experiments. relative to the control activity (no FeCl3) assumed as 100% (***p < 0.001 vs. control; §§§p < 0.001 vs. control; while ###p < 0.001 vs. control with FeCl3).
Acute Fe3+ Exposure Induces 5-LOX Nuclear Translocation in THP-1 Macrophages
To ascertain whether Fe3+ can modulate the 5-LOX translocation from cytosol to nuclear envelope, we assessed the localization of 5-LOX by means of subcellular fractionation, using a lysis buffer containing the NP-40 detergent (0.1%) and 5-LOX immunoblotting. This technique yields a nuclear fraction with intact nuclei, and a non-nuclear fraction containing cytosol, plasma membrane, endoplasmic reticulum, Golgi apparatus, and cytoskeletal proteins (11). In untreated THP-1 macrophages, 5-LOX protein was found both in the cytoplasm and nucleus fractions (Figures 4A,B). Acute exposure of cells with exogenous Fe3+ (10–100 μM) for 5 min led to a significant redistribution (from ~45 to 75%; p < 0.05) of the cytosolic 5-LOX to the nuclear envelope, as determined by densitometric analysis (Figure 4B). By contrast, the expression and cellular localization of FLAP were not altered by Fe3+ treatment (Figure 4C).
Figure 4. Western blot analysis of 5-LOX in subcellular fractions from THP-1 macrophages. (A) 5-LOX protein was found predominantly in the nuclear fraction of resting THP-1 macrophages. However, priming cells with exogenous Fe3+ (10–100 μM) for 5 min led to a redistribution of the cytosolic 5-LOX to the nuclear compartment. (B) The relative intensities of the same bands shown in (A) were determined by densitometry (arbitrary units, AU). Similar results were obtained in two additional experiments (not shown). The results are given as mean ± SE of three independent experiments (*p < 0.05 vs. control). (C) The expression and cellular localization of FLAP were not altered by iron treatment. β-actin and lamin were used as housekeeping proteins for data normalization.
Acute Hemin Exposure Recapitulates the Effects of Fe3+ on 5-LOX Translocation in THP-1 Macrophages
To investigate whether Fe3+ arising from heme degradation can modulate 5-LOX intracellular localization, we exposed THP-1 macrophages to free hemin. As shown in Figure 5A hemin treatment induce an increase of LOX-activity (~100%). Western blot analysis of subcellular fractions revealed that hemin, much alike Fe3+, produced a nuclear translocation of 5-LOX (Figures 5B,C). To test whether this effect was mediated by Fe3+ itself, we treated THP-1 macrophages with the Fe3+-chelating agent DFO, at 20 μM, for 2 h before hemin exposure. As shown in Figure 5D, DFO completely abolished the hemin-dependent translocation of 5-LOX to the nuclear fraction, underlying the pivotal role of Fe3+ in mediating 5-LOX activity and intracellular redistribution.

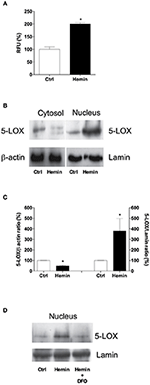

Figure 5. Effects of hemin administration on activity and subcellular localization of 5-LOX in THP-1 macrophages. Treatment with hemin (10 μM) for 5 min caused an overt increase in 5-LOX activity (A), paralleled by a nuclear translocation of the enzyme (B,C). Pre-incubation with deferoxamine (DFO, 20 μM) completely abolished the localization of 5-LOX in the nuclear fraction (D). Results are given as mean ± SE of 3 independent experiments (*p < 0.05 vs. control). Lamin was used as a housekeeping protein for data normalization.
Acute Exposure With Fe3+ or Hemin Regulates 5-LOX Translocation on Nuclear Envelope to Co-localize With FLAP in THP-1 Macrophages and Primary Human Macrophages
The effect of Fe3+ and hemin on the subcellular localization of 5-LOX and FLAP in THP-1 macrophages and primary human macrophages was also investigated by confocal microscopy. Fluorescence micrographs of untreated cells confirmed the presence of 5-LOX in both cytosol and nucleus, with a prevalence of the cytosolic localization, while FLAP displayed a prominent distribution in the nuclear envelope (Figures 6A,B). The Ca2+ ionophore A23187 was used as positive control to stimulate the translocation of 5-LOX to the nuclear envelop. Furthermore, in both cell lines exposure to Fe3+ or hemin induced a translocation of 5-LOX to co-localize with FLAP on nuclear envelope, the protein necessary for the enzyme activation (Figure 6 and Table 1).
Figure 6. Effect of hemin or FeCl3 on 5-LOX subcellular distribution and its co-localization with FLAP in THP-1 cells (A) and human macrophages (B). Cells were left untreated (Ctrl) or treated with A23187 (A23), hemin or FeCl3, then double stained with anti-5-LOX (red, panels on the left) and anti-FLAP (green, panels in the center). Details are given under Materials and Methods, and parameter values are summarized in Table 1. Merged images, along with specific 2X magnified regions, are shown in the panels on the right. For quantification of the overlap coefficient, the co-localization analysis of the two stainings was restricted to the region of interest which delimitates the nuclear envelop (yellow dotted lines). Images are representative of two independent experiments, for a total of 20 cells. Scale bars, 10 μm.
Acute Exposure With Fe3+ and Hemin Induces Functional Activation of THP-1 Macrophages
To test whether Fe3+ and hemin can affect the functional activation of THP-1-derived macrophages, an ELISA assay was performed to determine the expression of IL-6, a soluble cytokine that is synthesized by activated macrophages (27). The control medium from THP-1-derived macrophages presented an IL-6 concentration of 11.1 ± 0.9 pg/mL. The acute exposure of cells to Fe3+ and hemin significantly increased the levels of IL-6 in the supernatants showing values of 120.2 ± 6.6 and 129.9 ± 4.3 pg/mL, respectively (Figure 7). Furthermore, pre-treatment THP-1-derived macrophages with DFO leads to a significant reduction of hemin-induced IL-6 levels to 74.8 ± 6.0 pg/mL (Figure 7).
Figure 7. Iron, hemin, and DFO effects on IL-6 concentrations in supernatants of THP-1-derived macrophages. Effect of FeCl3 (10 μM for 5 min) and hemin (10 μM for 5 min) on IL-6 levels in THP-1 macrophages evaluated by ELISA. To determine the effect of exogenous iron and hemin on functional activation of macrophages, the IL-6 levels in supernatants were analyzed after 24 h by ELISA (n = 6). Pre-incubation with DFO (20 μM for 2 h) reduced IL-6 levels induced by hemin treatment. The results represent the means of RFU ± SE of three independent experiments (***p < 0.0001).
Increasing evidence demonstrates that iron homeostasis must be tightly regulated to maintain erythropoietic functions, redox reactions and cellular immune responses and that excessive iron levels could act as primary pro-oxidant leading to cellular damage and death (28–30). In addition, the effect of inflammation on the regulation of iron metabolism is widely recognized (31), and a dysregulated iron homeostasis or iron overload are a cornerstone of acute and chronic inflammatory processes involving cell-mediated immunity (32). According to this, macrophages play key roles in iron metabolism, in particular by recycling and storing heme iron from phagocytosed red blood cells (33, 34). Heme iron has several proinflammatory activities, including production of cytokines and acute-phase proteins, and is endowed with the ability to induce neutrophil migration and activation (35, 36). Noteworthy, it was previously reported a heme-induced biosynthesis of LTB4 in the nuclear membrane by the combined action of 5-LOX and LTA4 hydrolase (37). Moreover, it is to underline that iron-associated pro-inflammatory conditions with 5-LOX macrophage activation is intimately related to different diseases, from atherosclerosis (38), to Alzheimer's disease (39, 40), multiple sclerosis (41), and cancer (42, 43). However, the precise mechanism(s) underlying the relationship between iron and 5-LOX are as yet unclear.
In this work, combining molecular approaches with cellular and biochemical analyses, we provide clear evidence that: (i) the apo-form of 5-LOX obtained removing Fe3+ with chelators is completely inactive and shows a lower membrane binding affinity with respect to the holo-5-LOX; (ii) the presence of iron in the active site stabilizes an active conformation of 5-LOX more suitable for the association with membranes; (iii) acute treatment of macrophages with both Fe3+ and hemin induces a rapid translocation of 5-LOX from cytosol to nucleus leading to a specific interaction with FLAP; (iv) chelation of Fe3+ is able to revert the subcellular localization of 5-LOX; (v) Fe3+ and hemin induces a functional activation of THP-1 derived macrophages increasing levels of IL-6 and chelation of Fe3+ is able to significantly revert this effect.
Here we focused on the evaluation of the spontaneous membrane binding properties of 5-LOX in the presence and in the absence of iron within the active site (without other known effectors, such as Ca2+) and on the 5-LOX nuclear translocation only due to an acute iron (or hemin) treatment in macrophage cells. The membrane binding data reported in this study are in line with previous results obtained with LOX-1 from soybean seeds (20) and confirm a crucial general role for Fe3+ in preserving the structural stability and membrane binding ability of LOXs. In this context, the already reported presence of an apo-form of the enzyme in several mammalian cells (44, 45), strongly suggest a general mechanism of LOX cellular activation where excess of iron induces an enzyme translocation to the nuclear membrane and a functional interaction with FLAP, that in the case of 5-LOX is a necessary prerequisite for the pro-inflammatory LTs biosynthesis (15, 16). Indeed, we demonstrated that Fe3+ and hemin promote the co-localization of 5-LOX and FLAP in the nuclear envelope of both THP-1 and human macrophages that is accompanied with an overexpression of IL-6 in THP-1 derived macrophages (Figure 7).
In general, the regulatory mechanisms that facilitate the transient activation of enzymes like 5-LOX may include modulation of their transcription and/or translation, targeted degradation of the protein, phosphorylation, and/or allosteric control of their catalytic activity (15, 16, 46). On the basis of the present data, we can speculate the presence of a fraction of 5-LOX in the apo-form in human macrophages. Thus, being the biosynthesis and maintenance of a catalytically inactive apo-5-LOX an event energetically unfavorable for a cell, our results suggest that this apo-forms may function as “stand by” inactive forms able to readily incorporate Fe3+ in the active site, and thus to rapidly respond to specific physiological or pathological cellular stimuli. In this way, 5-LOX activity could be readily increased post-translationally without waiting for (slower) transcriptional and/or translational processes. To our knowledge, as yet only one apo-enzyme has been reported to be activated by an immediate post-translational mechanism, namely human Cu, Zn-superoxide dismutase (47).
As above discussed, our study clearly evidenced an iron-induced mechanism of 5-LOX activation that could have a physiological relevance but it could be also related to an iron overload condition occurring with iron supplementation or excess of bioavailable iron in the diet. Indeed, from a clinical point of view, our results suggest a more careful evaluation of the already evidenced risks related to iron overloading and supplementation reported by different iron intake recommendations (e.g., US Food and Nutrition Board, FAO/WHO, and the EU Scientific Committee). In line with this, our study underlines the importance of using different clinical biomarkers (e.g., the ferritin plasma levels, the apo- and holo-transferrin ratio, the apo-heme concentration in erythrocytes, the mean corpuscular volume, etc.) for a proper assessment of iron deficiency—and thus anemia—before administering a therapy of iron supplementation that here we are speculating that could be associated to a chronic activation of macrophages, possibly explaining the already described risks of iron overload (48) and linked to inflammatory-related diseases (38–43, 49).
As a final note, Fe3+ chelators, such as the FDA-approved drugs deferiprone or DFO, have been shown to inhibit the progression and the proliferation of cancer cells through a variety of mechanisms such as the inhibition of iron-dependent activation of translational and enzymatic processes (50–53). Moreover, it has been shown that the iron content of macrophages affects the associated infiltration capacity; the high-Fe3+ macrophages are the most able to infiltrate the tumor compared to the general macrophage populations found in the tumor (54). In fact, recruitment of tumor-associated macrophages (TAMs) -usually associated with advanced tumor progression and metastasis- is one of the key events in tumor and a correlation between 5-LOX and FLAP levels and the density of TAMs has been found in ovarian cancer (55, 56). The functional effects that we here reported using DFO suggest that the therapeutic potential of iron chelators could be due, at least in part, by modulating the cellular distribution and activity of 5-LOX.
Taken together, these results indicate that iron modulates 5-LOX intracellular localization by increasing the ability of the enzyme to bind to nuclear membranes thus activating the 5-LOX-mediated inflammatory processes. Our data also identify a potentially important mechanism regarding the role of 5-LOX in the functional activation of macrophages, and may advance our understanding of the risks associated to iron overloading.
The raw data supporting the conclusions of this manuscript will be made available by the authors, without undue reservation, to any qualified researcher.
BD and AD performed cell cultures, molecular biology studies, subcellular fractionation, localization analyses and BD and A-KH did functional studies. CA performed membrane binding experiments and enzyme measurements. LS and SO performed cell isolation and cultures and confocal analyses. MM and ED conceived the project. AD, BD, SO, MS, MM, and ED analyzed the data and wrote the paper with relevant inputs from all co-authors.
This work was supported by the EU Framework grant agreement n. 283570 to MM and ED, by the national Project financed by Italian Ministry of Health (IZS LT 14/11 RC) to ED. AD was supported by a Fondazione TERCAS-Progetto Speciale Assegni di Ricerca 2011–2013 fellowship.
Conflict of Interest Statement
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
We are thankful to Dr. Colin D. Funk (Queen's University, Kingston, Canada) for critical reading of the manuscript.
The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fimmu.2019.01347/full#supplementary-material
Supplementary Figure 1. SDS-PAGE analysis of human 5-LOX purification. Lane M: Protein molecular weight standards; lane 1: Cell extracts of E. coli transformed with plasmid pT3-5-LOX after ATP-agarose purification.
LOXs, lipoxygenases; FLAP, 5-LOX activating protein; LT, leukotrienes; PMA, phorbol-12-myristate-13-acetate; AA, arachidonic acid; NDGA, nordihydroguaiaretic acid; DFO, deferoxamine; FBS, fetal calf serum; FRET, fluorescence resonance energy transfer; cPLA2, cytosolic phospholipase A2; ROS, reactive oxygen species; Hb, hemoglobin.
1. Kuhn H, Saam J, Eibach S, Holzhutter HG, Ivanov I, Walther M. Structural biology of mammalian lipoxygenases: enzymatic consequences of targeted alterations of the protein structure. Biochem Biophys Res Commun. (2005) 338:93–101. doi: 10.1016/j.bbrc.2005.08.238
7. Brock TG, McNish RW, Peters-Golden M. Translocation and leukotriene synthetic capacity of nuclear 5-lipoxygenase in rat basophilic leukemia cells and alveolar macrophages. J Biol Chem. (1995) 270:21652–8. doi: 10.1074/jbc.270.37.21652
8. Hanaka H, Shimizu T, Izumi T. Nuclear-localization-signal-dependent and nuclear-export-signal-dependent mechanisms determine the localization of 5-lipoxygenase. Biochem J. (2002) 361:505–14. doi: 10.1042/bj3610505
9. Peters-Golden M, McNish R. Redistribution of 5-lipoxygenase and cytosolic phospholipase A2 to the nuclear fraction upon macrophage activation. Biochem. Biophys Res Commun. (1993) 196:147–53. doi: 10.1006/bbrc.1993.2227
10. Woods J, Coffey M, Brock T, Singer I, Peters-Golden M. 5-Lipoxygenase is located in the euchromatin of the nucleus in resting human alveolar macrophages and translocates to the nuclear envelope upon cell activation. J Clin Invest. (1995) 95:2035–40. doi: 10.1172/JCI117889
12. Chen XS, Zhang YY, Funk CD. Determinants of 5-lipoxygenase nuclear localization using green fluorescent protein 5-lipoxygenase fusion proteins. J Biol Chem. (1998) 273:31237–44. doi: 10.1074/jbc.273.47.31237
13. Spanbroek R, Stark HJ, Janssen-Timmen U, Kraft S, Hildner M, Andl T, et al. 5-Lipoxygenase expression in Langerhans cells of normal human epidermis. Proc Natl Acad Sci USA. (1998) 95:663–8. doi: 10.1073/pnas.95.2.663
14. Basavarajappaa D, Wana M, Lukica A, Steinhilberg D, Samuelsson B, Rådmark O. Roles of coactosin-like protein (CLP) and 5-lipoxygenase-activating protein (FLAP) in cellular leukotriene biosynthesis. Proc Natl Acad Sci USA. (2014) 111:11371–6. doi: 10.1073/pnas.1410983111
16. Kulkarni S, Das S, Funk CD, Murray D, Cho W. Molecular basis of the specific subcellular localization of the C2-like domain of 5-lipoxygenase. J Biol Chem. (2002) 277:13167–74. doi: 10.1074/jbc.M112393200
18. Maccarrone M, Salucci ML, van Zadelhoff G, Malatesta F, Vliegenthart JF, Finazzi-Agrò A. Tryptic digestion of soybean lipoxygenase-1 generates a 60 kDa fragment with improved activity and membrane binding ability. Biochemistry. (2001) 40:6819–27. doi: 10.1021/bi010187m
19. Di Venere A, Salucci ML, van Zadelhoff G, Veldink G, Rosato N, Finazzi-Agrò A, et al. Structure-to-function relationship of mini-lipoxygenase, a 60-kDa fragment of soybean lipoxygenase-1 with lower stability but higher enzymatic activity. J Biol Chem. (2003) 278:18281–8. doi: 10.1074/jbc.M212122200
20. Dainese E, Angelucci CB, Sabatucci A, De Filippis V, Mei G, Maccarrone M. A novel role for iron in modulating the activity and membrane-binding ability of a trimmed soybean lipoxygenase-1. FASEB J. (2010) 24:1725–36. doi: 10.1096/fj.09-141390
23. Dainese E, De Fabritiis G, Sabatucci A, Oddi S, Angelucci CB, Di Pancrazio C, et al. Membrane lipids are key modulators of the endocannabinoid-hydrolase FAAH. Biochem J. (2014) 457:463–72. doi: 10.1042/BJ20130960
24. Daigneault M, Preston JA, Marriott HM, Whyte MK, Dockrell DH. The identification of markers of macrophage differentiation in PMA-stimulated THP-1 cells and monocyte-derived macrophages. PLoS ONE. (2010) 5:e8668. doi: 10.1371/journal.pone.0008668
27. Anderson AP, Kay JG, Hammond LA, Brown DL, Stow JL. Subcompartments of the macrophage recycling endosome direct the differential secretion of IL-6 and TNFα. J Cell Biol. (2007) 178:57–69. doi: 10.1083/jcb.200612131
31. Theurl I, Theurl M, Seifert M, Mair S, Nairz M, Rumpold H, et al. Autocrine formation of hepcidin induces iron retention in human monocytes. Blood. (2008) 111:2392–9. doi: 10.1182/blood-2007-05-090019
33. Zhang Z, Zhang F, An P, Guo X, Shen Y, Tao Y, et al. Ferroportin1 deficiency in mouse macrophages impairs iron homeostasis and inflammatory responses. Blood. (2011) 18:1912–22. doi: 10.1182/blood-2011-01-330324
34. Delaby C, Rondeau C, Pouzet C, Willemetz A, Pilard N, Desjardins M, et al. Subcellular localization of iron and heme metabolism related proteins at early stages of erythrophagocytosis. PLoS ONE. (2012) 7:e42199. doi: 10.1371/annotation/d301d160-bbe0-4d48-847f-b8a57aa853c0
36. Graça-Souza AV, Arruda MA, de Freitas MS, Barja-Fidalgo C, Oliveira PL. Neutrophil activation by heme: implications for inflammatory processes. Blood. (2002) 99:4160–5. doi: 10.1182/blood.V99.11.4160
37. Monteiro AP, Pinheiro CS, Luna-Gomes T, Alves LR, Maya-Monteiro CM, Porto BN, et al. Leukotriene B4 mediates neutrophil migration induced by heme. J Immunol. (2011) 186:6562–7. doi: 10.4049/jimmunol.1002400
38. Bäck M, Yurdagul A Jr, Tabas I, Öörni K, Kovanen PT. Inflammation and its resolution in atherosclerosis: mediators and therapeutic opportunities. Nat Rev Cardiol. (2019) 7:2. doi: 10.1038/s41569-019-0169-2
39. Schröder N, Figueiredo LS, de Lima MN. Role of brain iron accumulation in cognitive dysfunction: evidence from animal models and human studies. J Alzheimers Dis. (2013) 34:797–812. doi: 10.3233/JAD-121996
43. Kumar R, Singh AK, Kumar M, Shekhar S, Rai N, Kaur P, et al. Serum 5-LOX: a progressive protein marker for breast cancer and new approach for therapeutic target. Carcinogenesis. (2016) 37:912–7. doi: 10.1093/carcin/bgw075
44. Wecksler AT, Kenyon V, Garcia NK, Deschamps JD, van der Donk WA, Holman TR. Kinetic and structural investigations of the allosteric site in human epithelial 15-lipoxygenase-2. Biochemistry. (2009) 48:8721–30. doi: 10.1021/bi9009242
47. Brown NM, Torres AS, Doan PE, O'Halloran TV. Oxygen and the copper chaperone CCS regulate posttranslational activation of Cu, Zn superoxide dismutase. Proc Natl Acad Sci USA. (2004) 101:5518–23. doi: 10.1073/pnas.0401175101
48. Schümann K, Ettle T, Szegner B, Elsenhans B, Solomons NW. On risks and benefits of iron supplementation recommendations for iron intake revisited. J Trace Elem Med Biol. (2007) 21:147–68. doi: 10.1016/j.jtemb.2007.06.002
49. Vinchi F, Porto G, Simmelbauer A, Altamura S, Passos ST, Garbowski M, et al. Atherosclerosis is aggravated by iron overload and ameliorated by dietary and pharmacological iron restriction. Eur Heart J. (2019) 20:ehz112. doi: 10.1093/eurheartj/ehz112
52. Simões R, Veeraperumal S, Serganova IS, Kruchevsky N, Varshavsky J, Blasberg RG, et al. Inhibition of prostate cancer proliferation by Deferiprone. NMR Biomed. (2017) 30:10.1002/nbm.3712. doi: 10.1002/nbm.3712
54. Leftin A, Zhao H, Turkekul M, de Stanchina E, Manova K, Koutcher JA. Iron deposition is associated with differential macrophage infiltration and therapeutic response to iron chelation in prostate cancer. Sci Rep. (2017) 7:11632 doi: 10.1038/s41598-017-11899-2
Keywords: 5-lipoxygenase, macrophages, iron, enzyme activation, nuclear translocation, macrophage activation
Citation: Dufrusine B, Di Francesco A, Oddi S, Scipioni L, Angelucci CB, D'Addario C, Serafini M, Häfner A-K, Steinhilber D, Maccarrone M and Dainese E (2019) Iron-Dependent Trafficking of 5-Lipoxygenase and Impact on Human Macrophage Activation. Front. Immunol. 10:1347. doi: 10.3389/fimmu.2019.01347
Received: 19 March 2019; Accepted: 28 May 2019;
Published: 28 June 2019.
Edited by:Jia Sun, Jiangnan University, China
Reviewed by:Dayong Wu, Tufts University, United States
Lei Shi, Georgia State University, United States
Copyright © 2019 Dufrusine, Di Francesco, Oddi, Scipioni, Angelucci, D'Addario, Serafini, Häfner, Steinhilber, Maccarrone and Dainese. This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) and the copyright owner(s) are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.
*Correspondence: Enrico Dainese, firstname.lastname@example.org
†These authors have contributed equally to this work
‡Equally senior authors
