Original Research ARTICLE

Front. Immunol., 26 November 2019 | https://doi.org/10.3389/fimmu.2019.02779

Monocytes and Monocyte-Derived Antigen-Presenting Cells Have Distinct Gene Signatures in Experimental Model of Multiple Sclerosis

Kelly L. Monaghan1, Wen Zheng1, Gangqing Hu1,2* and Edwin C. K. Wan1,3,4*
  • 1Department of Microbiology, Immunology, and Cell Biology, West Virginia University, Morgantown, WV, United States
  • 2Bioinformatics Core, West Virginia University, Morgantown, WV, United States
  • 3Department of Neuroscience, West Virginia University, Morgantown, WV, United States
  • 4Rockefeller Neuroscience Institute, West Virginia University, Morgantown, WV, United States

Multiple sclerosis (MS) is a chronic inflammatory disease mediated by a complex interaction between the autoreactive lymphocytes and the effector myeloid cells within the central nervous system (CNS). In a murine model of MS, experimental autoimmune encephalomyelitis (EAE), Ly6Chi monocytes migrate into the CNS and further differentiate into antigen-presenting cells (APCs) during disease progression. Currently, there is no information about gene signatures that can distinguish between monocytes and the monocyte-derived APCs. We developed a surface marker-based strategy to distinguish between these two cell types during the stage of EAE when the clinical symptoms were most severe, and performed transcriptome analysis to compare their gene expression. We report here that the inflammatory CNS environment substantially alters gene expression of monocytes, compared to the monocyte differentiation process within CNS. Monocytes in the CNS express genes that encode proinflammatory cytokines and chemokines, and their expression is mostly maintained when the cells differentiate. Moreover, monocyte-derived APCs express surface markers associated with both dendritic cells and macrophages, and have a significant up-regulation of genes that are critical for antigen presentation. Furthermore, we found that Ccl17, Ccl22, and Ccr7 are expressed in monocyte-derived APCs but not the Ly6Chi monocytes. These findings may shed light on identifying molecular signals that control monocyte differentiation and functions during EAE.

Introduction

Multiple sclerosis (MS) is one of the most common neurological disorders among young adults. The etiology of MS is not known but it is widely accepted that it is autoimmune in nature. Current disease modifying agents (DMAs) for MS treatments reduce the rate of relapses, but these treatments do not effectively prevent disease progression (1, 2). This suggests that more effective therapeutic strategies are needed to prevent the progression of MS. Brain autopsy studies revealed that mononuclear myeloid cells are abundantly found in the active demyelinating lesions of patients with MS (3). It has also been demonstrated that mononuclear myeloid cells can directly mediate inflammation, demyelination, and axonal damage (4, 5). Consequently, these cells are an ideal target for novel MS therapies.

The role of mononuclear myeloid cells in neuroinflammation has been elucidated using experimental autoimmune encephalomyelitis, a murine model for MS research (4, 5). Under homeostatic conditions, parenchymal-resident microglia and the non-parenchymal CNS-associated macrophages, including perivascular, meningeal, and choroid plexus macrophages, are responsible for sensing pathogen invasion within the CNS. The phagocytic capability of these cells allows the clearance of pathogens, and cell debris following tissue damage. During the onset of aberrant inflammation in EAE, monocytes migrate to the CNS from the periphery and become the dominant myeloid cell type that promotes inflammation (6, 7). Monocytes are of hematopoietic origin and can be broadly divided into the classical Ly6Chi CCR2+ CX3CR1low and the non-classical Ly6Clow CCR2 CX3CR1hi types (8, 9). Classical monocytes are known to play a critical role in the pathogenesis of EAE, given that the CCR2-deficient mice do not develop the disease (10, 11). Upon arrival to the CNS, classical monocytes differentiate into antigen-presenting cells (APCs), via an unidentified signal (12). Unlike monocytes cultured in vitro with granulocyte-macrophage colony-stimulating factor (GM-CSF) and M-CSF, which differentiate into dendritic cells (moDCs) and macrophages (moMs), respectively, monocyte differentiation under inflammatory conditions in vivo is likely controlled by multiple signals (1214). Although morphologically undistinguishable from microglia, recent studies suggest that the monocyte-derived APCs promote neuroinflammation during the course of EAE, whereas microglia protect the CNS by clearing debris (15). Therefore, identifying key molecules and pathways that potentially trigger monocyte differentiation into APCs, or distinguish these two cell types may help develop novel therapeutic strategies.

Using fluorescence activated cell sorting coupled with RNA-Seq analysis, we compared the transcriptomes of monocytes isolated from the bone marrow, and monocytes and monocyte-derived APCs from the spinal cords of mice during the peak stage of EAE when the clinical symptoms were most severe. Our primary focus was on the expression of cytokines, chemokines and their respective receptors, immunoregulatory molecules, and transcription factors. Here we report a substantial difference in gene expression profiles in the bone marrow monocytes compared to the CNS-infiltrated monocytes. In addition, CNS-infiltrated monocytes have a gene signature that is distinct from the monocyte-derived APCs. Furthermore, we propose that the expression of Ccl17, Ccl22, and Ccr7 may serve as marker genes to distinguish between monocytes and the monocyte-derived APCs in the CNS.

Materials and Methods

Animals

Ten to twelve-week-old female mice on a C57BL/6J background were used. The mice were housed and bred under specific-pathogen-free conditions in the vivarium at West Virginia University Health Sciences Center. Mice were housed according to the Institutional Animal Care and Use Committee (IACUC) guidelines. Mice were maintained on a 12-h light/dark cycle and were fed/watered ad libitum. All protocols and procedures performed were approved by the IACUC of West Virginia University, protocol number 1609003850.

Active Immunization for EAE Induction

Mice were lightly anesthetized with 2% isoflurane, then injected subcutaneously at the upper and lower back with a total of 200 μg of myelin oligodendrocyte glycoprotein (MOG) peptide emulsified in complete Freund's adjuvant (CFA) (Hooke Laboratories, Lawrence, MA, USA). Pertussis toxin (250 ng) was injected intraperitoneally at 2- and 24-h following the injection of emulsion. Clinical scores measured physical disability. A 5-point scale was used (Supplementary Figure 1).

Isolation of Monocytes and Monocyte-Derived APCs From the Spinal Cord and the Bone Marrow

Mice were sacrificed at the peak of EAE (14–15 days post-induction). Spinal cords were isolated from the mice using the previously described ejection method (16). Briefly, the skull was removed from the mice exposing the brain. The lumbar column was then exposed and cut transversely at the lower portion just above the iliac crest. Ten milliliters of RPMI-10 medium was rapidly injected from the lumen of the spinal canal using a 22G needle. Spinal cords were digested with 1 mg/ml collagenase D and 20 mg/ml DNase I (MilliporeSigma, St. Louis, MO, USA) at 37°C for 30 min, then subjected to a discontinuous 30/70% Percoll gradient centrifugation. Cells in the interphase were collected, combined, and stained with the following antibodies: CD45-PE/Cy7 (30-F11); CD11b-FITC (M1/70); CD64-APC (X54-5/7.1); Ly6C-PE (HK1.4); and Ly6G-BV510 (1A8), all from Biolegend, San Diego, CA, USA. Dead cells were excluded by the LIVE/DEAD Fixable Near-IR stain (ThermoFisher Scientific, Waltham, MA, USA). Monocytes, characterized as CD45+ CD11b+ CD64+ Ly6Chi Ly6G, and monocyte-derived cells, characterized as CD45+ CD11b+ CD64+ Ly6Clow/− Ly6G were sorted using the BD FACSAria III sorter.

To isolate monocytes from the bone marrow of the mice, femurs and tibias were flushed with RPMI-10 medium. Monocytes were first enriched using the monocyte isolation kit (Miltenyi Biotec, Bergisch Gladbach, Germany), then stained with CD45-PE/Cy7 (30-F11), CD11b-FITC (M1/70), Ly6C-PE (HK1.4), Ly6G-BV510 (1A8), and CD11c-Percp/Cy5.5 (N418). Bone marrow monocytes characterized as CD45+ CD11b+ Ly6Chi Ly6G CD11c were sorted using the BD FACSAria III sorter.

Assessing Monocyte Differentiation During EAE

Mice were sacrificed at the priming phase (7 days post-induction) or at the peak of EAE (14–15 days post-induction). Blood (~200 μl) was collected, and red blood cells were removed by incubating with ACK lysis buffer. Cells from the spinal cord and the bone marrow were obtained as described above. Isolated cells were first incubated with anti-mouse CD16/CD32 (2.4G2, Fc block), then stained with the following antibodies to identify monocytes and monocyte-derived APCs using BD LSRFortessa: CD45-PE/Cy7 (30-F11), CD11b-FITC (M1/70), CD64-APC (X54-5/7.1), Ly6C-PE (HK1.4), Ly6G-BV510 (1A8), CCR2-BV421 (SA203G11), CD11c-Percp/Cy5.5 (N418), MHC II-BV510 (M5/114.15.2), MerTK-APC (DS5MMER), and CD24-BV421 (M1/69).

RNA Isolation, RNA-Seq Library Preparation and Sequencing

RNA from the purified monocytes and monocyte-derived cells was isolated using RNeasy Plus Mini Kit (Qiagen, Hilden, Germany). Library preparation and sequencing were performed at the Genomics Core Facility of West Virginia University and Marshall University, respectively. RNA-Seq libraries were built using KAPA mRNA HyperPrep Kit (KAPA Biosystems, Wilmington MA, USA) with 300 ng of total RNA and 11 cycles of PCR according to manufacturer's recommendation. The libraries were quantified using Qubit Fluorometer, and the quality of the libraries was determined by Bioanalyzer High Sensitivity DNA Analysis (Agilent, Santa Clara, CA, USA). The libraries were sequenced using the HiSeq 1500 system in high output mode to generate 50 bp paired-end reads (Illumina, San Diego, CA, USA).

Bioinformatics Analysis

The SALMON package (17) was used to estimate expression values using whole transcripts annotation from Gencode (vM22) as a reference (18). Expression level of a protein-coding gene was measured by TPM (transcripts per million) by pooling all annotated transcript isoforms of the gene with an option “-g” in SALMON. The TPM (log2) follows a bimodal distribution and a threshold of two separated actively expressed genes from those expressed at background level. A gene was defined as differentially expressed by GFold (19) if a “Gfold” value (log2) is higher than one, meaning that the probability of fold change in expression being larger than two is 0.99 with default settings. We further required DE gene to be actively expressed in at least one of the compared conditions. Heat map visualization of gene expression values were done by MeV (20).

Gene ontology enrichment analysis was done with the online DAVID bioinformatics resource 6.8 (21). Genes that were actively expressed in at least one of the analyzed cell types was included as background. Redundant GO terms output from DAVID were filtered by REVIGO (22) with default settings.

Statistical Analyses

Statistical comparison between samples was done by student's t-test. *P < 0.05; **P < 0.01; ***P < 0.001. NS, not statistically different.

Results

Identification of Monocytes and the Monocyte-Derived APCs During EAE

During inflammation in the CNS, monocytes and monocyte-derived APCs cannot be morphologically distinguished from microglia, non-parenchymal CNS-associated macrophages, and conventional dendritic cells (cDCs). To address this, we isolated spinal cords from the EAE-induced mice at days 14–15 post-immunization, in which the mice developed severe paralysis (score = 3, Figure 1A). Using the ejection method for spinal cord isolation we removed the leptomeninges and presumably also the non-parenchyma CNS-associated macrophages (16). Additionally, we isolated monocytes and monocyte-derived cells using antibody-based cell sorting (Figure 1B). We first gated on viable cells that highly expressed CD45, which represented the hematopoietic-derived immune cells, but not microglia. We then selected cells that expressed CD11b and CD64 (FcγRI). Selection of the CD64-positive cells excluded cDCs as CD64 is expressed in monocytes and monocyte-derived APCs, but not in cDCs (23). Since neutrophils also express CD64, the CD64-positive cells were further selected with the neutrophil marker, Ly6G. Finally, we distinguished monocytes and monocyte-derived cells by the level of Ly6C expression, since the expression of Ly6C is down-regulated during monocyte differentiation (24). Cell that expressed an intermediate level of Ly6C, which represented the partially differentiated monocytes, were excluded. Without immunization, the percentage of cells in the spinal cords that highly expressed CD45 was <0.3% (Supplementary Figures 2A,B), and among those cells the CD11b+ CD64+ monocytes and monocyte-derived cells were nearly undetectable (Supplementary Figures 2A,C). This observation indeed is reasonable because we do not expect monocyte infiltration into the CNS without immunization. To obtain a sufficient number of monocytes and monocyte-derived cells for constructing RNA-Seq libraries, sorted cells from a total of 18 mice from three independent experiments were combined.

FIGURE 1
www.frontiersin.org

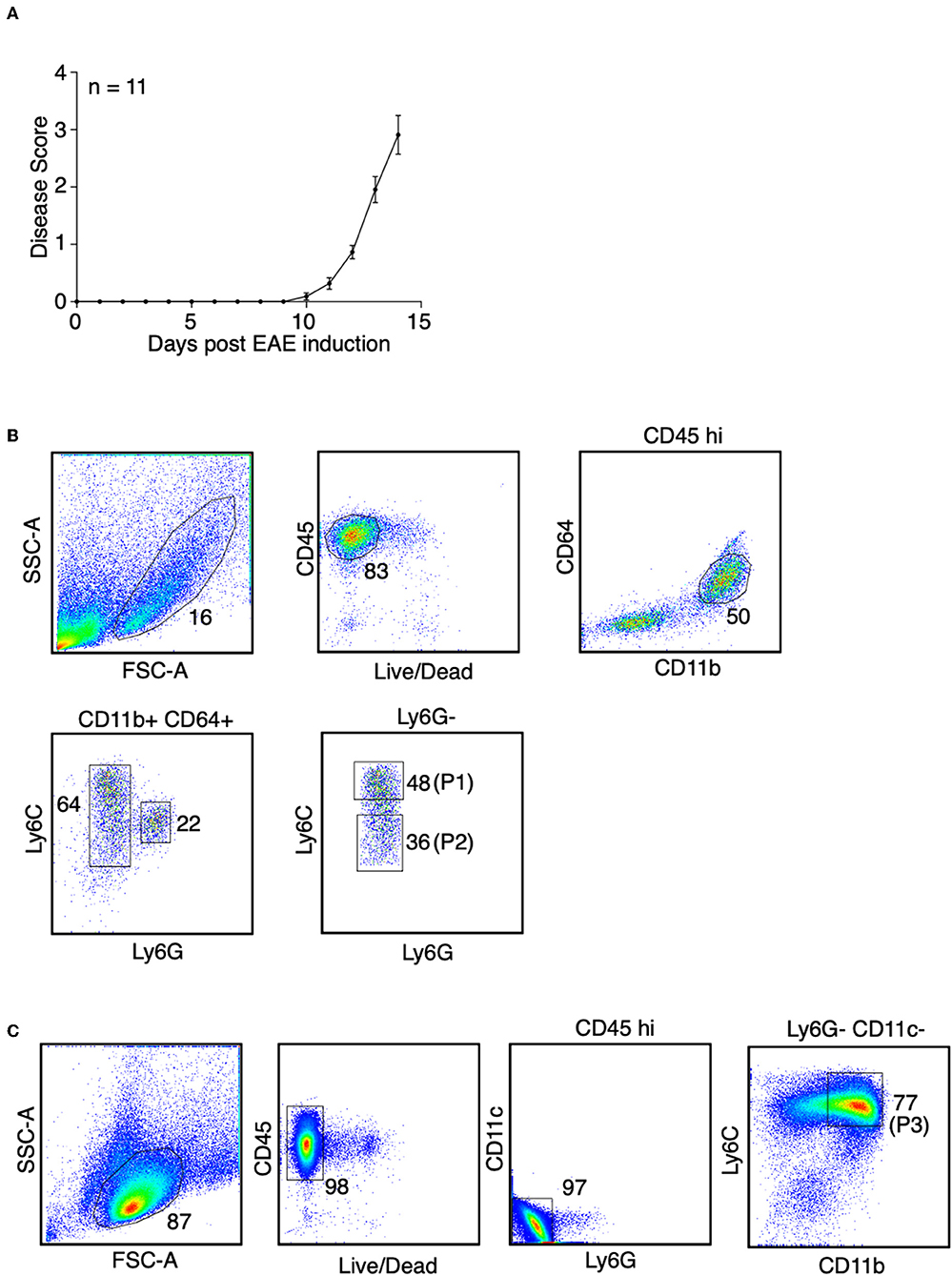

Figure 1. Identification of monocytes and the monocyte-derived APCs during EAE. (A) EAE was induced in female mice in C57BL/6J background by active immunization. Disease severity, as determined by physical disability of the mice, was measured. Shown is a combine of three independent experiments with n = 11. (B) At the peak of EAE (days 14–15), spinal cords were removed from the mice. Spinal cord monocytes (CD45+ CD11b+ CD64+ Ly6Chi Ly6G, P1) andmonocyte-derived APCs (CD45+ CD11b+ CD64+ Ly6Clow/− Ly6G, P2) were purified by sorting. Shown are representative plots from three independent experiments, with a total of 18 mice. (C) At the peak of EAE (days 14–15), bone marrow cells were isolated from the femurs and tibias from the mice. Bone marrow monocytes (CD45+ CD11b+ Ly6Chi Ly6G CD11c, P3) were purified by sorting. Shown are representative plots from two independent experiments, with bone marrow cells from 13 mice were combined.

To identify monocytes from the bone marrow during EAE, viable CD45-positive cells were selected, followed by exclusion of neutrophils and cDCs using antibodies against Ly6G and CD11c. Monocytes were defined as CD11bhi Ly6Chi population (Figure 1C). Sorted cells from a total of 13 mice from two independent experiments were combined.

Monocytes and Monocyte-Derived APCs Express Signature Genes That Do Not Overlap With the CNS-Associated Macrophages and cDCs

Previous transcriptome analysis studies identified signature genes that broadly characterize a mixed population of monocytes and monocyte-derived cells, CNS-associated macrophages, non-monocyte-derived cDCs, and microglia in healthy mice, during EAE, or other neuroinflammatory conditions (2533). A recent study using single-cell RNA-Seq analysis demonstrated that cells in the CNS expressing Ly6c2, Ccr2, Cd44, and Fcgr1 during EAE are likely from the monocytic origin (30). We found that these four genes were highly expressed in monocytes and the monocyte-derived APCs, together with two additional signature genes that define the monocytes/monocyte-derived cells, Plac8 and Nr4a1 (Figure 2). Specifically, the expression of Cd44 distinguishes between monocyte-derived cells and microglia (31). In addition, the expression level of signature genes that identify CNS-associated macrophages (Mrc1, Lyve1, Cd163, Siglec1, Pf4, Cbr2) and the non-monocyte-derived cDCs (Flt3, Zbtb46, Batf3, Itgae, Clec9a), was either very low or absent in our population identified as monocytes or monocyte-derived APC. This suggests that our strategy for isolating monocytes and monocyte-derived cells excluded CNS-associated macrophages and cDCs (Figure 2). However, we noted that although the expression level of macroglia-associated markers Sall1, Slc2a5, Siglech, Bhlhe41, Gpr34, and Serpine2 was low in monocytes and the monocyte-derived APCs, the expression of Tmem119 and P2ry12 was slightly increased in our monocyte-derived APC population (Figure 2). Therefore, the presence of a small number of microglia in this population of cells could not be excluded. Indeed, when we compared the expression of Tmem119 in our monocyte-derived APC population with the gene expression profile of microglia that was previously reported (31), the estimated microglia contamination in our monocyte-derived APC population was up to 3.5% (Supplementary Figure 3). Hexb and Trem2 were used previously to identify microglia but they were also highly expressed in monocytes and monocyte-derived APCs (Figure 2). Trem2 was shown to be expressed in the inflammatory macrophages and has a detrimental role in Alzheimer's disease pathology (34). The role of Hexb in monocytes is not clear, but we detected that Hexb was highly expressed in the Ly6C+ monocytes isolated from the bone marrow. These findings suggested that both Trem2 and Hexb are not good markers to identify microglia during EAE.

FIGURE 2
www.frontiersin.org

Figure 2. Monocytes and monocyte-derived cells express signature genes that are not overlapped by CNS-associated macrophages and cDCs. Heatmap showing the expression of signature genes in monocyte/monocyte-derived APCs, CNS-associated macrophages, cDCs, and microglia. Signature genes for each cell type were identified based on previous studies. Colors on the heatmap represent log2 values of TPM.

Monocyte-Derived APCs Express Gene Signatures for Both Dendritic Cells and Macrophages

Based on the expression of surface markers, monocytes can differentiate into a heterogenous population of dendritic cells and macrophages upon stimulation with GM-CSF in vitro (9, 35, 36). We compared the signature genes for monocytes, dendritic cells, and macrophages in three populations of cells that we have isolated during EAE. Monocytes showed a high expression of Ly6c and Ccr2 in the bone marrow. This expression was reduced when these cells migrated to the spinal cord. Expression of Ly6c and Ccr2 was further reduced when these cells differentiated into APCs (Figures 3A,B). Correspondingly, we observed a reduction in the surface marker expression of Ly6C and CCR2 in the CD45hi CD11b+ CD64+ Ly6G cells isolated from the spinal cord at the peak of EAE, suggesting that these cells were differentiating monocytes (Figure 3C,E). Interestingly, during the early phase of EAE when the mice did not yet develop any disease symptoms, monocytes expressed high level of Ly6C and CCR2 compared to the stage when EAE symptoms were severe (Figures 3D,E).

FIGURE 3
www.frontiersin.org

Figure 3. The expression of Ly6C and CCR2 in monocytes is reduced during differentiation in the CNS. (A,B) The gene expression level of Ly6c1 (A) and Ccr2 (B) in monocytes isolated from the bone marrow (BM-Mono) or spinal cords (SC-Mono), and the monocyte-derived APCs isolated from the spinal cords (SC-APC) at days 14–15 following EAE induction. Shown are TPM values from RNA-Seq analysis. (C–E) Spinal cord cells were isolated at days 14–15 (C) or day 7 (D) following EAE induction. The expression of Ly6C and CCR2 in the CD45hi CD11bhi CD64+ Ly6G cells was determined. Shown are representative plots from three independent experiments, with a total of 10–11 animals in each time point. (E) Percentage of cells expressing Ly6C and CCR2 from individual animals is shown. ***P < 0.001.

In contrast to the reduced expression of signature genes for monocytes, expression of signature genes for dendritic cells (Itgax, H2-Ab1, H2-Aa) and macrophages (Cd68, Mertk) increased only during monocyte differentiation in the spinal cord (Figures 4A–E). In addition, the expression of Cd74 was increased in the spinal cord monocytes compared to the bone marrow monocytes, and was further increased in the monocyte-derived APCs (Figure 4F). CD74 plays a critical role in antigen presentation because it mediates the assembly and trafficking of the MHC II complexes (37). Consistent with the role of CD74, recently studies demonstrated that the monocyte-derived cells have prolonged T-cell interactions compared to the CNS-resident macrophages and macroglia during EAE (30). Our results suggest that the differentiation of monocytes into APCs in the spinal cord likely increases their antigen-presenting capability.

FIGURE 4
www.frontiersin.org

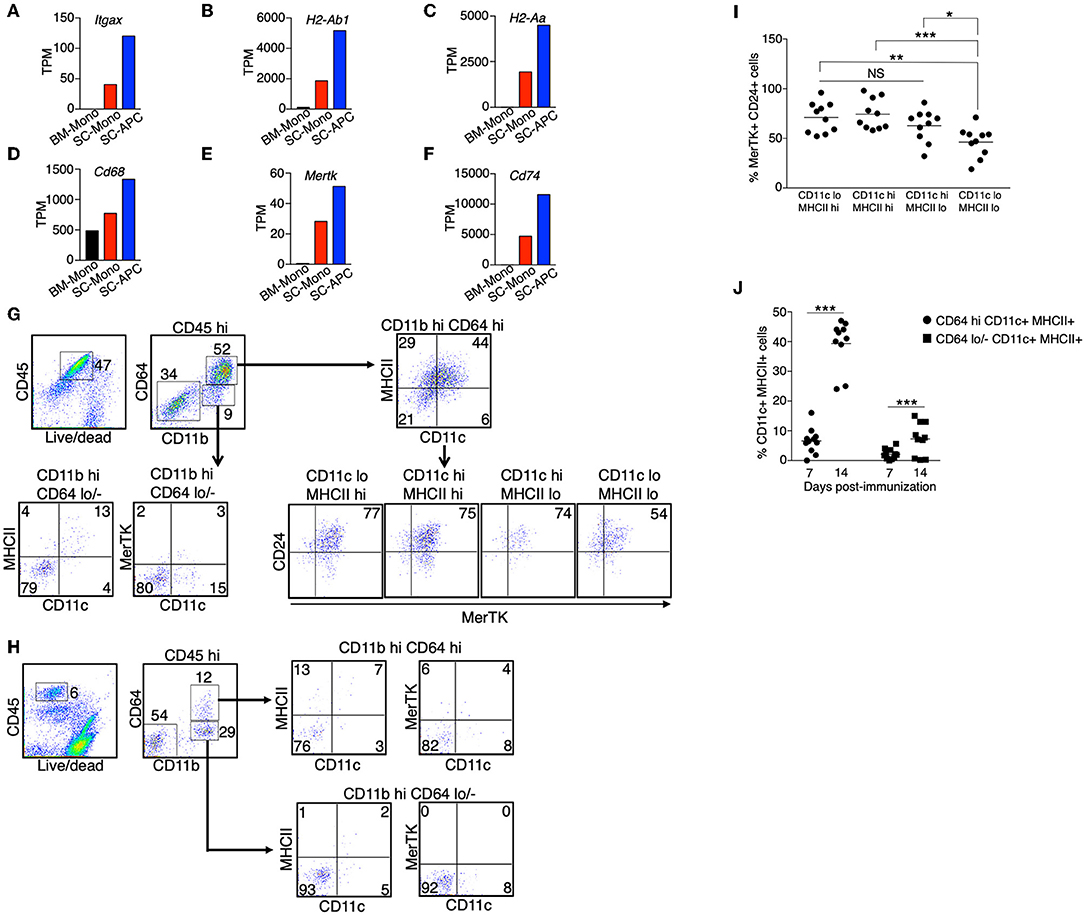

Figure 4. Monocyte-derived APCs expressed gene signatures for both dendritic cells and macrophages. (A–F) The gene expression level of Itgax (A), H2-Ab1 (B), H2-Aa (C), Cd68 (D), Mertk (E), and Cd74 (F) in monocytes isolated from the bone marrow (BM-Mono) or spinal cords (SC-Mono), and the monocyte-derived APCs isolated from the spinal cords (SC-APC) at days 14–15 following EAE induction. Shown are TPM values from RNA-Seq analysis. (G–J) Spinal cord cells were isolated at days 14–15 (G) or day 7 (H) following EAE induction. The expression of surface markers for dendritic cells (CD11c, MHC II) and macrophages (MerTK, CD24) in the CD45hi CD11bhi CD64+ Ly6G cells or the CD45hi CD11bhi CD64 Ly6G cells was determined. Shown are representative plots from three independent experiments, with a total of 10–11 animals in each time point. (I) Percentage of cells expressing MerTK and CD24 within the CD11c/MHCII subpopulations from individual animals is shown. (J) Percentage of cells expressing CD11c and MHCII within the CD64hi or CD64lo/− populations from individual animals is shown. *P < 0.05; **P < 0.01; ***P < 0.001. NS, not statistically different.

Since we detected an increased expression of genes that are characteristic of dendritic cells and macrophages, we asked if the monocyte-derived APCs we identified from the spinal cord were a heterogenous population of dendritic cells and macrophages, or if they were a single population of cells that contain a mixed dendritic cell and macrophage phenotype. We isolated immune cells from the spinal cords at the peak of EAE (day 14–15). We used the expression CD11c and MHC II as markers for dendritic cells, and the expression MerTK and CD24 as markers for macrophages, as previously described (38). The expression of MerTK has also been recently suggested to be a marker for the ongoing differentiation of monocyte-derived macrophages during EAE (30). We found that the majority of the CD45hi CD64hi cells, representing cells from the monocyte origin, expressed CD11c and/or MHCII (Figure 4G). Among these cells, over 75% also expressed MerTK and CD24 (Figures 4G,I), suggesting these are cells that display both dendritic cell and macrophage phenotype. In contrast, only some of the CD45hi CD64lo/− cells expressed CD11c and MHC II, and these cells did not express MerTK, suggesting that they were cDCs. Intriguingly, when we analyzed the CD45hi CD64hi cells isolated from the spinal cord at day 7 following EAE induction, in which the mice did not start to have disease symptoms, the majority of the cells (>75%) did not express CD11c, MHC II, and MerTK (Figures 4H,J), suggesting that monocyte differentiation correlates with disease severity.

The Inflammatory CNS Environment Substantially Induces Monocyte Activation

We performed a global gene expression analysis of monocytes in the bone marrow, along with monocytes and monocyte-derived APCs, which migrated into the spinal cord during the peak of EAE. We found that the gene expression profile of monocytes was substantially changed from the bone marrow to the spinal cord, with up-regulation of 1,140 and down-regulation of 1,322 genes (fold-change > 2) (Figure 5A, Supplementary Tables 1, 2). Gene ontology enrichment analysis on biological processes revealed that the genes that were up-regulated were related to receptor signaling, cellular response to cytokines, cell migration, and cell activation (Figure 5B), whereas the genes that were down-regulated in the spinal cord were mostly related to cell division and proliferation (Figure 5C). Within the CNS, there were relatively fewer changes in gene expression when monocytes differentiated into APCs, with up-regulation of 152 and down-regulation of 96 genes (Figure 5D, Supplementary Tables 3, 4). Interestingly, the top categories of genes that were up-regulated in the monocyte-derived APCs compared to the monocytes were also related to cell activation, receptor signaling, and cell migration (Figure 5E). In addition, genes related to antigen processing and presentation, as well as cell differentiation were also up-regulated in the APCs (Figure 5E). Genes that were down-regulated during monocyte differentiation were related to chemotaxis and defense response (Figure 5F). These data suggest that cellular signals within an inflammatory CNS environment induce a significant change in monocyte function, followed by additional signals that initiate their differentiation. In support to this notion, monocyte differentiation was not observed in the bone marrow and the blood during the peak of EAE (Figures 6A,B).

FIGURE 5
www.frontiersin.org

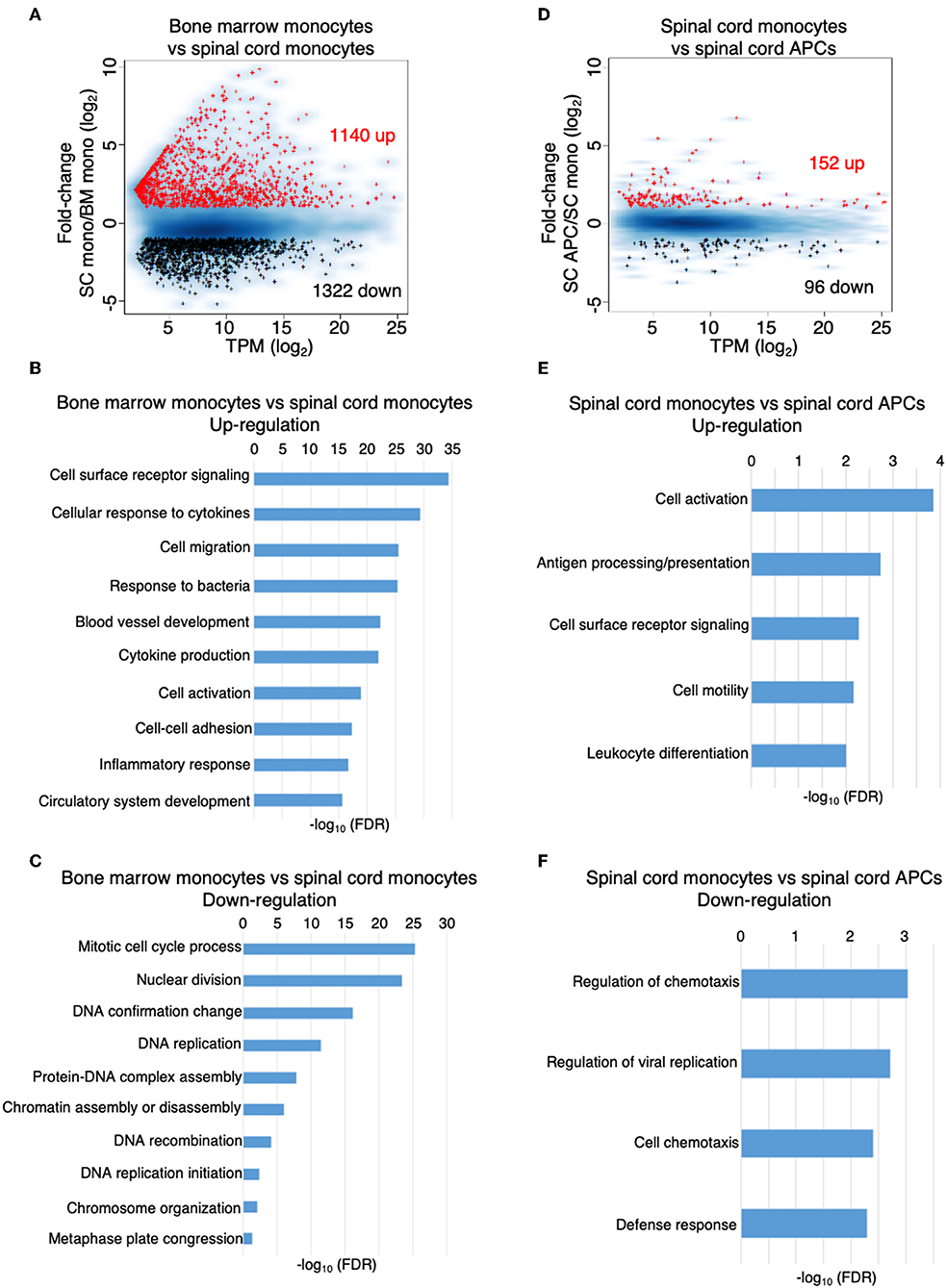

Figure 5. The inflammatory CNS environment substantially induces monocyte activation. (A–C) Comparison of the gene expression profile of the monocytes isolated from the bone marrow and the spinal cords at the peak of EAE by RNA-Seq analysis. (A) MA-plot of differentially expressed genes in bone marrow monocytes vs. spinal cord monocytes, with fold change ≥2 and FDR < 0.05. (B,C) DAVID gene ontology enrichment analysis on biological processes for genes that were up-regulated (B) or down-regulated (C) in the spinal cord monocytes compared to the bone marrow monocytes, using DAVID bioinformatics resource. (D–F) Comparison of the gene expression profile of the monocytes and monocyte-derived APCs isolated from the spinal cords at the peak of EAE by RNA-Seq analysis. (D) MA-plot of differentially expressed genes in spinal cord monocytes vs. spinal cord monocyte-derived APCs, with fold change ≥2 and FDR < 0.05. (E,F) DAVID gene ontology enrichment analysis on biological processes for genes that were up-regulated (E) or down-regulated (F) in the spinal cord monocyte-derived APCs compared to the spinal cord monocytes, using DAVID bioinformatics resource.

FIGURE 6
www.frontiersin.org

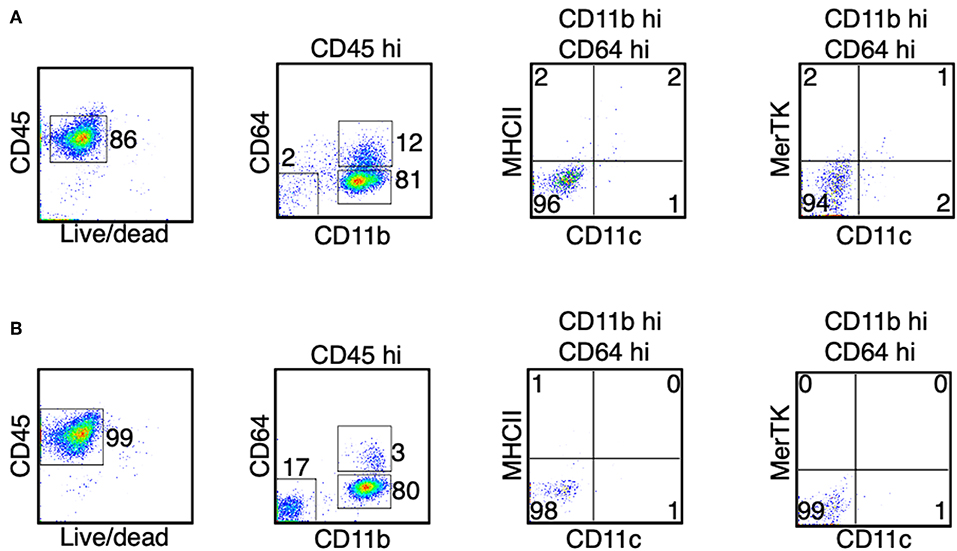

Figure 6. Monocytes do not differentiate in the bone marrow and the blood during the peak of EAE. (A,B) At the peak of EAE (days 14–15), cells from the bone marrow (A) and the blood (B) were isolated. The expression of CD11c, MHC II, and MerTK was determined in the CD45hi CD11bhi CD64+ cells. Shown are representative plots from three independent experiments, with a total of 10–11 animals in each time point.

The Expression of Ccl17, Ccl22, and Ccr7 Distinguishes Monocytes From Monocyte-Derived APCs

Monocyte migration into the CNS is critical for the pathogenesis of EAE, which is demonstrated by studies showing that mice lacking the major chemokine receptor for monocytes, CCR2, are completely resistant to the disease (10, 11). We sought to predict the pathological role of monocytes and monocyte-derived cells in the CNS by examining the expression of cytokines, chemokines, and their receptors, as well as other key immunomodulatory molecules in these cells. Compared to the monocytes in the bone marrow, the expression of Il1a, Il1b, Il1rn, Osm, and Tnf were the most significantly increased in the spinal cord monocytes and the expression was maintained during their differentiation (Figure 7A). The expression of Il6, Il18, and Il18bp was also increased, albeit to a lesser extent (Figure 7A). This result is consistent with the proinflammatory role of monocytes and the monocyte-derived cells during EAE. The expression of several cytokine receptors was also induced. Notably, the expression of Csf1r and Csf2rb was induced in monocytes and monocyte-derived APCs, and the expression Csf2ra was maintained at a high level in the three populations of cells that we analyzed (Figure 7B). Csf2ra and Csf2rb are subunits of the GM-CSF receptor. Several studies have confirmed a critical role of GM-CSF signaling in monocytes during EAE and MS. In addition, the receptors of several common gamma chain (γc) cytokines were induced in the spinal cord monocytes and monocyte-derived APCs, including Il2rg, Il4r, Il7r, Il15r, and Il21r. This suggests that IL-4, IL-7, IL-15, and IL-21 potentially play a role in these cells. Interestingly, the expression of Ifngr1, Il17ra, Il6ra, and Il6st was reduced in the spinal cord monocytes compared to the monocytes in the bone marrow (Figure 7B).

FIGURE 7
www.frontiersin.org

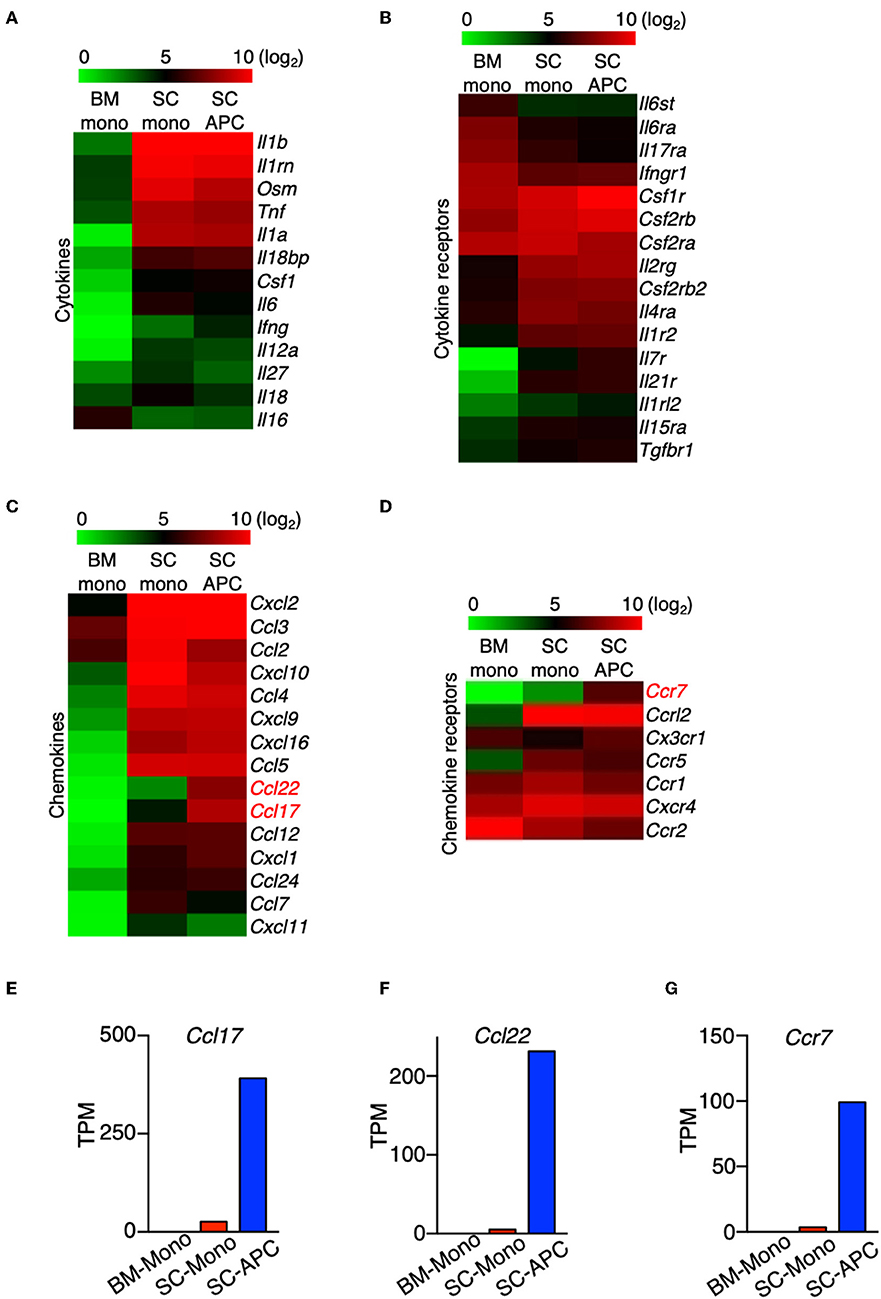

Figure 7. The expression of Ccl17, Ccl22, and Ccr7 distinguishes monocytes from monocyte-derived APCs. (A–D) Heatmaps showing the differential expression of genes that encode cytokines (A), cytokine receptors (B), chemokines (C), and chemokine receptors (D) from bone marrow monocytes relative to the spinal cord monocytes, and/or spinal cord monocytes relative to the spinal cord monocyte-derived APCs. Colors on the heatmap represent log2 values of TPM. (E–G) Gene expression level of Ccl17 (E), Ccl22 (F), Ccr7 (G) in monocytes isolated from the bone marrow (BM-Mono) or spinal cords (SC-Mono), and the monocyte-derived APCs isolated from the spinal cords (SC-APC) at days 14–15 following EAE induction. Shown are TPM values from RNA-Seq analysis.

A number of chemokine genes were up-regulated in the monocytes following migration to the CNS, with the most significant being Ccl2, Ccl3, Ccl4, Ccl5, Cxcl2, Cxcl9, Cxcl10, Cxcl16 (Figure 7C). The expression levels of these genes were maintained in the monocyte-derived APCs, with the exception of Ccl2 and Cxcl10, which were down-regulated. Importantly, the expression of Ccl17 and Ccl22 was absent in the bone marrow monocytes and was only expressed at low levels in the spinal cord monocytes, but the expression of these genes was significantly induced in the monocyte-derived APCs (Figures 7E,F). A recent study has shown that GM-CSF mediates CCL17 production in human monocytes and murine macrophages (39). In addition, mice lacking CCL17, CCL22, or their receptor, CCR4, develop less severe EAE (4042). Our data suggest that Ccl17 and Ccl22 can distinguish between monocytes and monocyte-derived cells in the CNS during EAE. In addition, several chemokine receptor genes were up-regulated in the spinal cord during the peak of EAE, including Ccr1, Ccr5, Ccrl2, and Cxcr4 (Figure 7D). Notably, similar to the expression of Ccl17 and Ccl22, Ccr7 was minimally expressed in the bone marrow and spinal cord monocytes, but its expression was induced in monocyte-derived APCs (Figure 7G). Although Ccr7 is also expressed in cDCs, contamination with cDCs in our APC population is unlikely as the expression of the cDC marker Zbtb46 was very low (Figure 2). Together, our data suggest that the expression of Ccl17, Ccl22, and Ccr7 distinguishes between monocytes and monocyte-derived APCs in the CNS during the peak of EAE.

We compared the expression of key immunomodulatory molecules that may be critical to distinguish differences in function between monocytes and monocyte-derived APCs. In both cell types, the expression of Cd40, Cd74, Cd80, and Cd86 was high compared to monocytes isolated from the bone marrow (Figure 8A). This result is consistent with a recent study showing that these four genes are considered as APC signature genes (30). In addition, we found that the expression of Cd14, Cd24a, Cd38, Cd69, Cd83, Cd164, Cd274, and Cd300lf was high in the monocytes isolated from the spinal cord, and the expression was maintained in the monocyte-derived APCs (Figure 8A). Moreover, similar to the expression of Cd74 (Figure 4F), expression of Cd9, Cd63, and Cd81 was higher in the spinal cord monocytes compared to the monocytes from the bone marrow, and these genes were further up-regulated when differentiation occurred (Figures 8B–D). All three genes encode tetraspanins that were previously described to control monocyte fusion to form multinucleate giant cells (43). Taken together, our data suggest that monocytes and monocyte-derived cells commonly express several proinflammatory cytokine and chemokine genes during the peak of EAE, and the expression of genes related to antigen-presentation are further up-regulated when differentiation occurs.

FIGURE 8
www.frontiersin.org

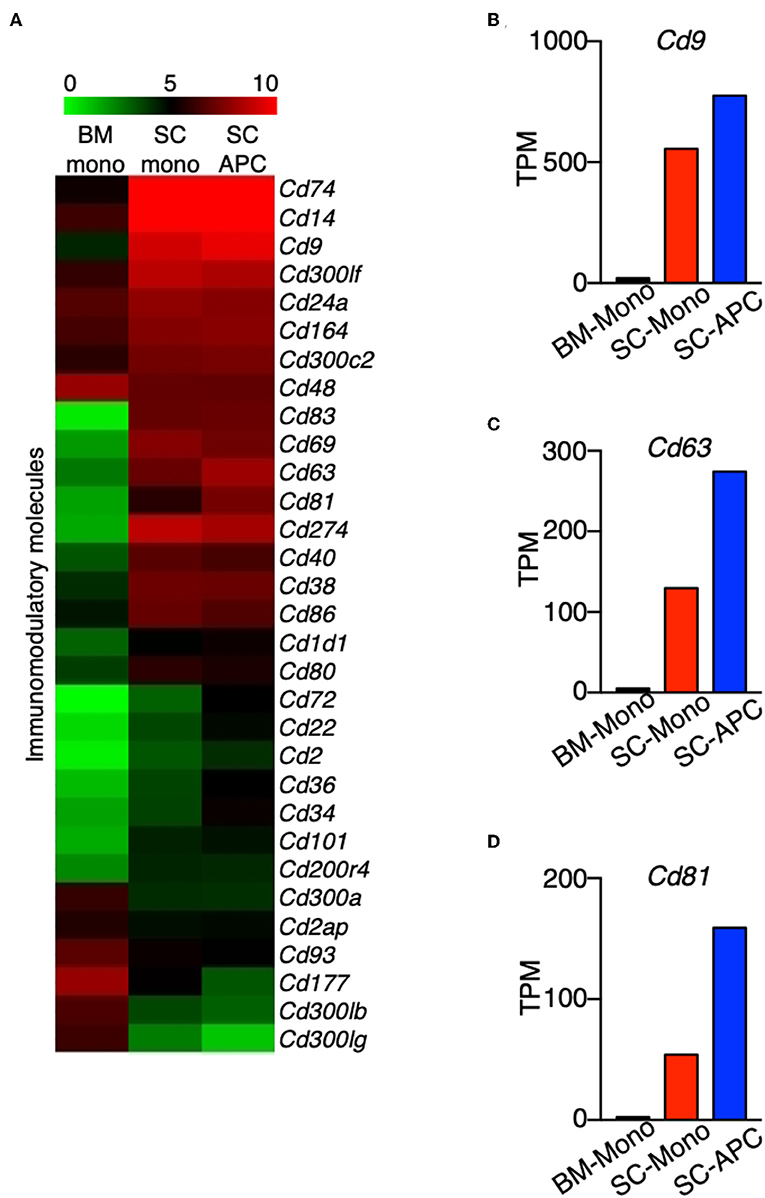

Figure 8. Genes encoding tetraspanins are regulated during monocyte differentiation in the CNS. (A) Heatmap showing the differential expression of genes that encode a selected group of immunomodulatory molecules from bone marrow monocytes relative to the spinal cord monocytes, and/or spinal cord monocytes relative to the spinal cord monocyte-derived APCs. Colors on the heatmap represent log2 values of TPM. (B–D) Gene expression level of Cd9 (B), Cd63 (C), Cd81 (D) in monocytes isolated from the bone marrow (BM-Mono) or spinal cords (SC-Mono), and the monocyte-derived APCs isolated from the spinal cords (SC-APC) at days 14–15 following EAE induction. Shown are TPM values from RNA-Seq analysis.

Atf3 Is Induced in Monocytes That Migrated Into the CNS During EAE

We identified transcription factors that had altered expression during monocyte differentiation in the CNS. The expression of 13 transcription factors was reduced during monocyte differentiation, but only two (Bhlhe41, Mef2c) were increased. Atf3 was among the transcription factors that was most significantly expressed in the monocytes from the spinal cord. Its expression was reduced by half in monocyte-derived APCs (Figure 9). A recent study has shown that ATF3 promotes M2 polarization of macrophages in vitro (44). Whether ATF3 controls monocyte differentiation during EAE is not known. The expression of several transcription factors, including Daxx, Id1, Id3, Nrg1, and Tet1, followed the same pattern as Atf3, whereas the expression level of Bach1, Camta1, Esrra, Hopx, Jarid2, Rara, and Zfp961 was similar in the bone marrow and spinal cord monocytes, but was reduced during monocyte differentiation. Comparing the expression of transcription factors between these cell subsets may shed light on molecular signals that control monocyte differentiation in the CNS during EAE.

FIGURE 9
www.frontiersin.org

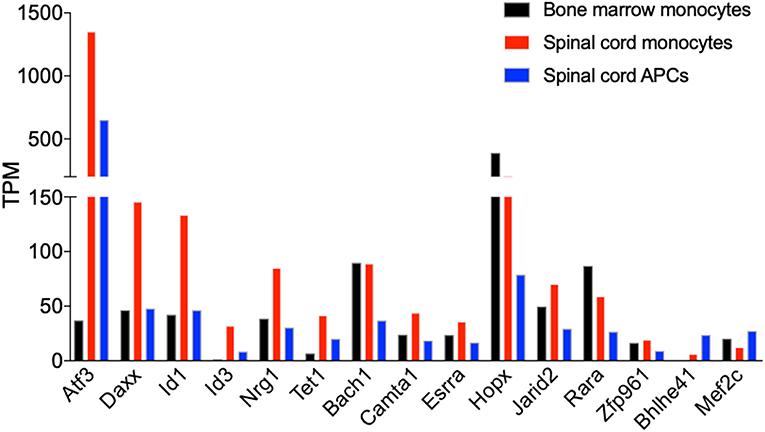

Figure 9. Atf3 is induced in CNS-infiltrated monocytes during EAE. Graph shows the differential expression of genes that encode transcription factors, which are differentially expressed in monocytes relative to the monocyte-derived APCs isolated from the spinal cords at days 14–15 following EAE induction. Shown are TPM values from RNA-Seq analysis.

Discussion

To our knowledge, this is the first report to identify distinct gene signatures that can be used to distinguish between monocytes and monocyte-derived APCs in the CNS during inflammation. Although previous studies identified gene signatures that represent the subsets of myeloid cells in the CNS during EAE, those studies most often used the expression of Ly6c and Ccr2 to identity monocytes and monocyte-derived cells as a single population of cells, and utilized the CCR2-repoter mouse strain to determine the locations and functions of these cells in vivo. Here we show that the expression of Ccl17, Ccl22, and Ccr7 can be used to further distinguish between these cell types. Monocyte infiltration into the CNS is thought to solely promote inflammation and tissue damage during EAE. As such, a CCR2 antagonist, MK-0812, had entered a phase 2 clinical trial for treating patients with relapsing-remitting MS (NCT00239655). However, the trial was terminated and no positive results have been reported. Two recent studies have demonstrated that during the course of EAE, CNS-infiltrated monocytes differentiate first into an inducible nitric oxide synthase (iNOS)-expressing, proinflammatory state, followed by a further shift into an arginase-1 (Arg1)-expressing immune modulatory state, which may facilitate tissue repair (45, 46). This suggests that completely blocking monocyte migration into the CNS may eliminate their beneficial role in resolving inflammation. Thus, understanding the molecular signals that trigger monocyte differentiation is critical for developing immunomodulatory strategies to specifically target the deleterious effect of monocytes.

Molecular signals that control monocyte differentiation are not well-understood but are believed to be multifactorial and likely include general inflammatory mediators and those mediators which are tissue-specific. In this regard, comparison of our data with other published gene expression studies of the Ly6C+ cells isolated from various inflammatory conditions may provide insight on the tissue-specific monocyte differentiation. We showed that the expression of Csf1r and Csf2r was high in the monocytes and further increased following their differentiation. CSF1 receptor signaling is critical for the tissue non-specific differentiation of monocytes under various inflammatory conditions and is defined by the expression of CD11c and MHC II. GM-CSF, which acts through CSF2 receptor, is dispensable for the production of iNOS and TNF-α in monocytes (47). However, several lines of evidence support the notion that GM-CSF signaling in monocytes is critical for CNS pathogenicity during EAE (48, 49). The combined impact of CSF1 and CSF2 receptor signaling on monocyte differentiation and function requires further investigation. Moreover, the expression of several γc family receptors were detected in the monocytes and monocyte-derived APCs in the CNS, including receptor for IL-4, IL-7, IL-15, and IL-21. The combination of GM-CSF and IL-4 is known to induce the differentiation of monocytes into dendritic cells in vitro (50, 51). In addition, GM-CSF-induced monocyte differentiation into dendritic cells is enhanced by IL-15 but inhibited by IL-21 (52). The role of these γc cytokines and their cellular source during EAE remains to be elucidated.

Our findings suggest that Ccl17 and Ccl22 may serve as signature genes for the monocyte-derived APCs. These chemokines were also demonstrated to promote EAE pathology (41). Mice lacking CCL17, CCL22, or their receptor, CCR4, are partially resistant to the development of EAE (40, 42, 53). These chemokines seem to promote EAE by enhancing myeloid cell migration and their production of TNF (40, 53). GM-CSF was found to be the main stimulant for the production of CCL17 in monocytes (39). Indeed, we found that GM-CSF induces the expression of CCL17 and CCL22 in monocytes, which is dependent on the activation of STAT5 tetramerization (Monaghan et al., manuscript in preparation). Future research can explore the possibility of targeting CCL17 and CCL22 for treating EAE and MS.

An important question that remains to be addressed is whether all monocyte-derived APCs defined by our gating strategy express Ccl17, Ccl22, and Ccr7, given that this population of cells may be heterogenous in nature. One possibility is that some cells within the monocyte-derived APC population express high levels of these genes, whereas other cells do not. In this regard, single-cell gene expression analysis or the use of reporter mice (e.g., Ccl17-reporter mice) may provide further insight.

Our RNA-Seq analysis has shown that monocytes, once migrated to the CNS and prior cell differentiation, highly expressed proinflammatory cytokines, such as Il1b, Osm, and Tnf, and chemokines, such as Cxcl2 and Cxcl10 that have been shown to promote the pathogenesis of EAE (54, 55). The expression of genes that are critical for antigen presentation, such as H2-Ab1, H2-Aa, Cd74 were significantly induced in the differentiated APCs. This suggests that differentiation of monocytes increases their antigen-presentation capability, which is known to be a critical and distinctive function of the monocyte-derived APCs compared to the CNS-resident macrophages and macroglia (30). Based on surface marker expression, these cells co-expressed markers for dendritic cells and macrophages, although cells that only expressed markers of either cell type could not be excluded.

Conclusion

In summary, we have shown that monocytes and monocyte-derived APCs in the CNS have distinct gene expression profiles during EAE, and found that expression of Ccl17, Ccl22, and Ccr7 can be used to distinguish between monocyte-derived APCs and the undifferentiated monocytes. In the past, the monocyte-derived APCs are often described in the literature as monocyte-derived macrophages, monocytes/macrophages, or simply monocyte-derived myeloid cells. We propose that this population of cells can be better named as monocyte-derived inflammatory APCs.

Data Availability Statement

The datasets generated for this study can be found in the RNA-Seq data deposited in GEO, under the accession number GSE137801, https://www.ncbi.nlm.nih.gov/geo/query/acc.cgi?acc=GSE137801. The data that support the findings of this study are available from the corresponding author upon reasonable request.

Ethics Statement

The animal study was reviewed and approved by IACUC of West Virginia University, protocol number 1609003850.

Author Contributions

KM and EW designed and performed experiments, analyzed data, and wrote the manuscript. WZ performed experiments. GH designed and implemented RNA-Seq data analysis. EW supervised the project. All authors approved the final manuscript.

Funding

This work was supported by NIH grant P20 GM109098 and the Innovation Award Program from Praespero to EW, and NIH grant 5U54 GM104942-04 to GH. Flow Cytometry experiments were performed in the WVU Flow Cytometry and Single Cell Core Facility, which is supported by NIH grants S10 OD016165, U57 GM104942, P30 GM103488, and P20 GM103434. RNA-Seq experiments were performed in the WVU and Marshall University Genomics Cores, which are supported by NIH grants U54 GM104942, P20 GM103434 and P20 GM121299.

Conflict of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Supplementary Material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fimmu.2019.02779/full#supplementary-material

Supplementary Figure 1. Disease symptoms and criteria for determining the clinical scores of EAE.

Supplementary Figure 2. CD64+ monocytes are not detected in mice without EAE induction. (A,B) Spinal cords from the naïve C57BL/6J mice were removed. Percentage of the CD45+ CD11b+ CD64+ and the CD45+ CD11b+ CD64lo/− cells was determined. (A) Shown are representative plots from two independent experiments with a total of six mice. (B) Data from individual animals are shown.

Supplementary Figure 3. Comparison of the expression levels of Tmem119, Ccl17, Ccl22, and Ccr7 in the monocytes and the monocyte-derived APCs to microglia. Shown are TPM values normalized with the expression of Actb across datasets. Percentage of microglia contamination is calculated by the expression of Tmem119 in the microglia over spinal cord monocytes or spinal cord APCs. Gene expression data of microglia were obtained from results published previously (31).

Supplementary Table 1. A subset of genes that were up-regulated in the spinal cord monocytes compared to the bone marrow monocytes.

Supplementary Table 2. A subset of genes that were down-regulated in the spinal cord monocytes compared to the bone marrow monocytes.

Supplementary Table 3. A subset of genes that were up-regulated in the spinal cord APCs compared to the spinal cord monocytes.

Supplementary Table 4. A subset of genes that were down-regulated in the spinal cord APCs compared to the spinal cord monocytes.
