ORIGINAL RESEARCH article
Sec. Immunological Tolerance and Regulation
Has2 Regulates the Development of Ovalbumin-Induced Airway Remodeling and Steroid Insensitivity in Mice
- Department of Respiratory Medicine, Faculty of Medicine, University of Tsukuba, Tsukuba, Japan
HAS2 is a member of the gene family encoding the hyaluronan synthase 2, which can generate high-molecular-weight hyaluronan (HMW-HA). Our previous study identified HAS2 as a candidate gene for increased susceptibility to adult asthma. However, whether HAS2 dysfunction affects airway remodeling and steroid insensitivity is still limited. Therefore, this study aimed to clarify the Has2 dysfunction, triggering severe airway remodeling and steroid insensitivity in a murine model of asthma. Has2 heterozygous-deficient (Has2+/−) mice and their wild-type littermates have been evaluated in a model of chronic ovalbumin (OVA) sensitization and challenge. Mice present a higher sensitivity to OVA and higher IL-17 release as well as eosinophilic infiltration. RNA sequencing demonstrated the downregulation of EIF2 signaling pathways, TGF-β signaling pathways, and heat shock proteins with Th17 bias in Has2+/−-OVA mice. The combined treatment with anti-IL-17A antibody and dexamethasone reduces steroid insensitivity in Has2+/−-OVA mice. Has2 attenuation worsens eosinophilic airway inflammation, airway remodeling, and steroid insensitivity. These data highlight that HAS2 and HMW-HA are important for controlling intractable eosinophilic airway inflammation and remodeling and could potentially be exploited for their therapeutic benefits in patients with asthma.
Airway remodeling is an important feature of asthma characterized by goblet cell hyperplasia, subepithelial collagen, and smooth muscle hyperplasia and is known to play a role in persistent airflow obstruction (1). Because airway remodeling is minimally affected by current treatments, prevention of accelerated airway remodeling is one of the important therapeutic targets of asthma (2). Our previous genome-wide association study reported that hyaluronan synthase 2 gene (HAS2) is a novel candidate gene for susceptibility to adult asthma (3). Hyaluronan (HA) is an integral component of the extracellular matrix (4). HA synthases synthesize large HA polymers of various sizes. HAS1 and HAS2 produce HA of larger molecular size (2 × 104 kDa), whereas HAS3 synthesizes small-sized HA (2 × 102 kDa) (4). Because high-molecular-weight hyaluronan (HMW-HA) is thought to have an anti-inflammatory function, HAS2 dysfunction was thought to exacerbate asthma. Based on these backgrounds, mouse HAS2 gene (Has2) attenuation was recently reported to worsen acute eosinophilic airway inflammation and increase airway hyperresponsiveness (AHR) using Has2 heterozygous-deficient (Has2+/−) mice (5). However, the severity of chronic eosinophilic airway inflammation, airway remodeling, and underlying pathogenesis in Has2+/− mice remains unclear. In this study, the development of airway remodeling after repeated allergen challenges in Has2+/− mice was analyzed to clarify the role of Has2 in the pathogenesis of airway remodeling in asthma. Has2+/− mice exhibit a more intense allergic eosinophilic airway inflammatory reaction, severe goblet cell hyperplasia, and increased IL-17 level with steroid insensitivity. IL-17 cytokines have been implicated in asthma, and recent studies have suggested activation of steroid-resistant IL-17 pathways in severe asthma patients (6–8). This intractable eosinophilic airway inflammation phenotype can be treated by combined treatment with dexamethasone and anti-IL-17A Ab.
Because Has2 homozygous deficient mice are embryonic lethal with severe cardiac and vascular abnormality (9), 6- to 8-week-old female Balb/c mice wild type (WT) and Has2 heterozygous (Has+/−) were used in the experiments. Breeding sets of Has2+/− mice (Jackson Laboratory, Bar Harbor, ME, USA) were backcrossed to Balb/c background for at least eight generations (5, 9). All animal studies were approved by the Institutional Review Board of the University of Tsukuba (approval number: 19-159, 20-125, and 21-028).
Mice were sensitized intraperitoneally with 100 µg of ovalbumin (OVA; Sigma-Aldrich, St. Louis, MO, USA) adsorbed in 1.6 mg of aluminum hydroxide on days 1 and 15. Starting on day 22, mice were challenged intranasally with 10 µg of OVA for 5 days each for eight consecutive weeks (Figure 1A). Control mice were injected and challenged with saline. The steroid-treated group received 1 mg/kg dexamethasone (Sigma Aldrich) intraperitoneally into OVA-stimulated WT (WT-OVA) mice and that of Has2+/− (Has2+/−-OVA) mice at 24 and 2 h prior to the final intranasal OVA challenge (Figure 6A). The combined treatment group received anti-IL-17A monoclonal antibody (100 μg/body, BioLegend, San Diego, CA, USA) intraperitoneally into WT-OVA mice and Has2+/−-OVA at 24 and 2 h before final intranasal OVA challenge (Figure 6A). Isotype IgG (BioLegend, San Diego, CA, USA) was used as control.

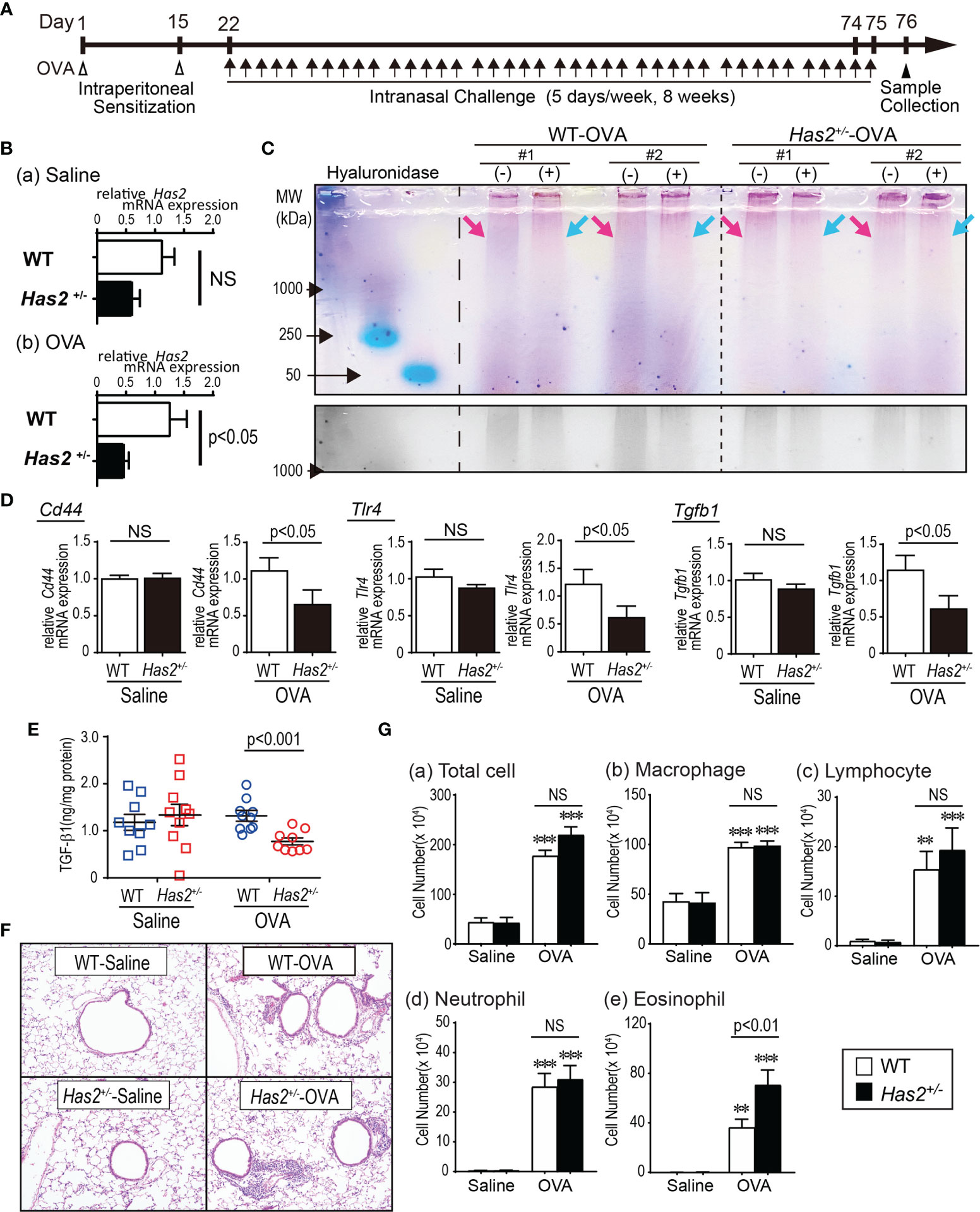

Figure 1 Has2 attenuation downregulates the HMW-HA, HA-binding protein, and exacerbates airway inflammation in a chronic ovalbumin (OVA)-induced mouse model of asthma. (A) Schematic illustration of the experimental design. (B) Levels of mRNA transcripts encoding Has2 (n = 6–9). (C) (Upper lane) HA size analysis with hyaluronidase treatment. (Lower lane) Grayscale in the high-molecular-weight area. (D) Levels of mRNA transcripts encoding Cd44, Tlr4, and Tgfb1 (n = 9–10). (E) Protein-adjusted levels of TGF-β1 in lung homogenates (n = 9–10). (F) Lung tissue HE staining. (G) BALF cytology of each indicated cell type (n = 13–14). All samples are obtained 24 h after the final challenge with saline or OVA. Statistical significance was determined using the Mann–Whitney U test (B, D, E) or Tukey’s multiple comparison test (G). **P < 0.01, ***P < 0.001 relative to the WT-saline control mice. Horizontal bars indicate direct statistical comparisons between WT and Has2+/− mice. NS, not significant.
Quantitative Real-Time RT-PCR
Total RNA was extracted from the snap-frozen lung tissue using a RNeasy® Mini Kit (QIAGEN, Hilden, Germany) according to the protocol of the manufacturer. mRNA expression levels were quantified by the 7500 FAST real-time PCR system (Thermo Fisher Scientific, Waltham, MA, USA). The sequences for the Has2+/− mice-specific TaqMan®-MGB probes and primers (Thermo Fisher Scientific) were as follows: Has2F 5′-TGCTTGACCCTGCCTCATC-3′, Has2R 5′-CCCATGAATTCCTGATTGTACCA-3′, MGB probe 5′-TGTCCAGATTTTAAACAAG-3′ (5). Mouse primers and probes were purchased pre-mixed from Thermo Fisher Scientific: CD44 (Cd44; Mm01277163_m1), TLR4 (Tlr4; Mm00445273_m1), TGF-β1 (Tgfb1; Mm01178820_m1), Hsp40 (Dnajb1; Mm00444519_m1), Hsp70 (Hspa1a; Mm01159846_s1), Herp (Herpud1; Mm00445600_m1), PERK (Eif2ak3; Mm00438700_m1), ATF4 (Atf4; Mm00515325_g1), and GAPDH (Gapdh; Mm99999915_g1). All mRNA levels were normalized to Gapdh mRNA levels.
HA Size Analysis
HA size was analyzed as previously described (5, 10). Briefly, right whole lung tissues were digested by incubation in proteinase K (MilliporeSigma, Burlington, MA, USA) at 1 mg/ml in 100 mM ammonium acetate (1 ml/25 mg tissue weight). The samples were then precipitated using ethanol after which nucleic acid digestion followed by second ethanol precipitation was done. After digesting half the samples with hyaluronidase, the samples were resuspended in formamide and then run on agarose gel at a constant voltage. Finally, the gel was stained with Stains-All (Sigma-Aldrich).
Bronchoalveolar Lavage Fluid Cell Counting
Mouse lungs were lavaged using five repeated instillations of 0.6 ml of saline each through the tracheal cannula. The first 1.2 ml of bronchoalveolar lavage fluid (BALF) was centrifuged, and the supernatant was used for the measurements of various cytokines and chemokines as described (5, 11). Centrifuged cells were redissolved in the remaining BALF sample. Cells were counted using a hemocytometer, and a differential cell count was performed based on count of 300 cells, which morphologically classified the cells based on staining with Diff-Quik (Polysciences, Inc., Warrington, PA, USA), using standard light microscopic techniques.
Lung paraffin sections were stained with hematoxylin and eosin (HE) staining to assess airway inflammatory cell infiltration, with periodic acid Schiff (PAS) to demonstrate the presence of mucin within goblet cells, and with Masson’s trichrome (MT) to demonstrate the presence of extracellular matrix. The sections were also stained immunohistochemically using anti-α-smooth muscle actin (α-SMA) antibody (Cell Signaling Technology, Danvers, MA, USA) to identify contractile elements. Morphological analyses of MT and ⍺-SMA-stained regions and %PAS positive cells were performed as described previously (12, 13).
Airway Hyperresponsiveness to Methacholine
Airway hyperresponsiveness (AHR) to inhaled methacholine (Sigma-Aldrich) in unrestrained mice was measured 24 h after the last intranasal challenge by barometric plethysmography using a whole-body plethysmograph (FinePointe RC System, Buxco, Wilmington, NC, USA). AHR was measured as changes in airway resistance with increasing dose of methacholine (0–50 mg/ml) via a jet nebulizer (5).
Multiplex Cytokine Assay
Cytokines and chemokines in BAL fluids and lung homogenates were measured using MILLIPLEX MAP Kit (MilliporeSigma) according to the instructions of the manufacturer. Twice the recommended sample volume was used for BAL fluid testing as described previously (5).
Enzyme-Linked Immunosorbent Assay
Quantification of OVA-specific IgE and IgG1 in serum was performed using commercially available ELISA kits (Cayman Chemical, Ann Arbor, MI, USA), whereas TGF-β1 and IL-17F in lung homogenate were measured using ELISA kits (R&D Systems, Minneapolis, MN, USA).
Lung RNA Extraction and RNA Sequencing
Total RNA was extracted from mouse lungs using the TRIzol® reagent (Thermo Fisher Scientific) according to the instructions of the manufacturer (n = 4–5, each group). The concentration and purity of the RNA samples were determined by automated optical density evaluation (OD260/OD280 ≥ 1.8 and OD260/OD230 ≥ 1.8) using a NanoDrop spectrophotometer (Thermo Fisher Scientific). RNA sequencing (RNA-seq) libraries were prepared using a NEBNext rRNA Depletion Kit (New England Biolabs, Ipswich, MA, USA) and an ENBNext Ultra Directional RNA Library Prep Kit (New England Biolabs) according to the instructions of the manufacturer using 500 ng of the total RNA samples. Next, 2 × 36 base paired-end sequencing was performed using a NextSeq 500 sequencer (Illumina, San Diego, CA, USA) by Tsukuba i-Laboratory LLP (Tsukuba, Japan). Sequences were mapped to the mm10 mouse genome and quantified using CLC Genomics Workbench version 10.1.1 (QIAGEN). An adjusted P-value <0.01 (Benjamini–Hochberg FDR method for multiple testing corrections) and relative changes in transcription levels >1.2-fold were used as the cutoff criterion (Supplemental Figure 1). The data are available under GEO series accession number GSE181966.
Pathway Analysis of Differentially Expressed Genes and CIBERSORT Analysis
Identification of the unique differentially expressed genes (DEGs) between WT-saline vs. WT-OVA and WT-saline vs. Has2+/−-OVA was done by using Venny (v2.0; http://bioinfogp.cnb.csic.es/tools/venny/index.html). Biological pathways enriched in the data were identified with Ingenuity Pathway Analysis (IPA) software (QIAGEN) using Fisher’s exact test (P < 0.05 indicates statistical significance). CIBERSORT analysis was performed on RNA-seq data by using the analytical tool (https://cibersort.stanford.edu/) (14). Previously published mouse reference signature matrix, consisting of 511 distinguishing genes for 25 immune cell types, was used as the reference profile (15).
Data are shown as means ± SEMs or individual dot plots with means ± SEMs. Statistical significance between groups was evaluated using Mann–Whitney U test or ANOVA with Tukey’s multiple comparison test. P-values <0.05 were considered statistically significant.
The Expression Level of Has2 mRNA and HMW-HA Is Reduced in Lung Tissues of OVA-Challenged Has2+/− Mice
To establish the role of Has2 in chronic allergic airway inflammation, mice were intranasally stimulated with OVA for 8 weeks (Figure 1A). Has2 mRNA expression was significantly lower in the OVA-stimulated Has2+/− (Has2+/−-OVA) mice than those in the OVA-stimulated WT (WT-OVA) mice (Figure 1B). The genetic modulation of Has2 did not affect the expression of Has2 mRNA in the saline control group (Figure 1B). Next, to elucidate whether Has2 mRNA attenuation affects the HMW-HA levels, HA size analysis was performed. Hyaluronidase-sensitive HMW-HA band was less abundant in the lung extracts of Has2+/−-OVA mice than in the lung tissues of WT-OVA mice (Figure 1C). These results supported the hypothesis that the expression level of Has2 mRNA in Has2+/− mice was downregulated during chronic eosinophilic airway inflammation, and Has2 dysfunction impaired the HMW-HA production.
Has2 Attenuation Results in the Downregulation of HA-Binding Proteins and TGF-β1
CD44 and TLR4 are known as HA-binding proteins and decreased CD44 downregulates the TGF-β (16). To determine whether Has2 mRNA attenuation affects the expression of HA-binding protein and downstream molecules, mRNA expression levels of Cd44, Tlr4, and Tgfb1 were evaluated. After the OVA stimulation, expression levels of Cd44, Tlr4, and Tgfb1 mRNA were significantly lower in the lungs from Has2+/−-OVA mice than those from WT-OVA mice (Figure 1D). TGF-β1 levels in the lung homogenate were significantly lower in Has2+/−-OVA mice than those in WT-OVA mice (Figure 1E). These results supported the hypothesis that Has2 attenuation impaired the expression of HA-binding protein and TGF-β signaling.
Has2 Attenuation Enhances OVA-Induced Eosinophilic Airway Inflammation in Mice
Increased inflammatory cells were demonstrated after a repeated OVA exposure, especially in the peribronchial and perivascular areas of both Has2+/− mice and WT mice (Figure 1F). To clarify the roles of Has2 attenuation in the development of OVA-induced chronic airway inflammation, the number of inflammatory cells in BALF was determined (Figure 1G). The number of eosinophils was significantly higher in Has2+/−-OVA mice than that in WT-OVA mice (Figure 1G). These results indicate that Has2 attenuation worsens the OVA-induced chronic airway inflammation.
Airway Goblet Cell Hyperplasia Is Significantly Increased in Chronic OVA-Stimulated Has2+/− Mice
We next evaluated the role of Has2 in goblet cell hyperplasia, one of the characteristic features of airway remodeling, in WT and Has2+/− mice after repeated challenges with OVA or saline. Only a few epithelial cells were positive for PAS staining in the airway of both mouse genotypes after the saline challenge (Figure 2A, panel a). Morphometric analysis showed that %PAS-positive mucus production cells were significantly higher in Has2+/−-OVA mice airways than in WT-OVA mice airways (Figure 2A, panel b). These results indicate that Has2 attenuation induces goblet cell hyperplasia and mucus hyperproduction.

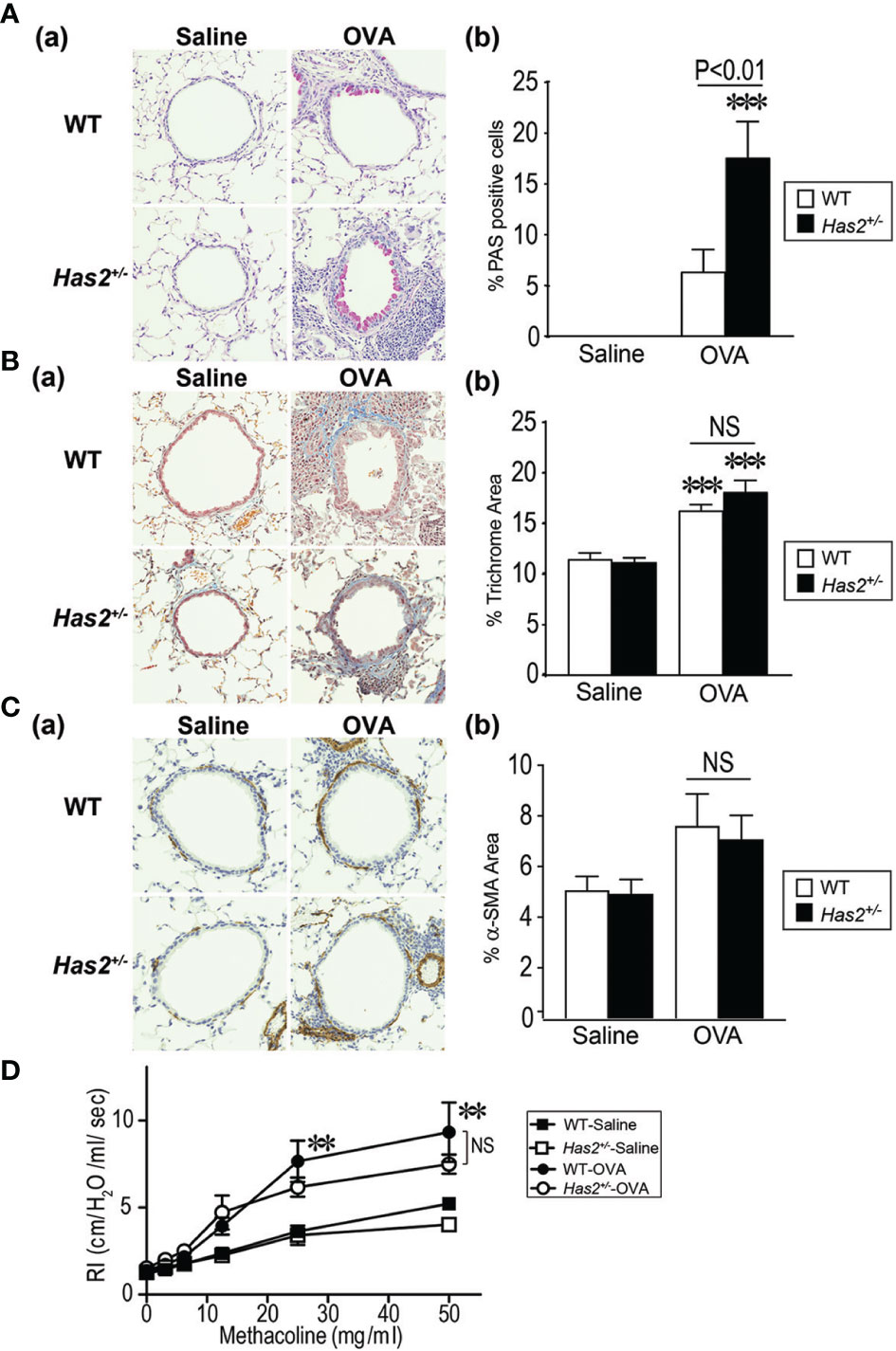

Figure 2 Airway remodeling phenotype of Has2+/− mice after chronic OVA stimulation. (A) Periodic acid Schiff (PAS) stain in WT and Has2+/− mice (panel a). Percentage of PAS-positive cells in the airway epithelium of WT and Has2+/− mice (panel b, n = 8–9). (B) Masson’s trichrome stain in WT and Has2+/− mice (panel a). Percentage of trichrome staining area in the 20-μm region beneath the epithelium in the airways of WT and Has2+/− mice (panel b, n = 8–9). (C) Alpha smooth muscle actin (⍺-SMA) stain in WT and Has2+/− mice (panel a). Percentage of ⍺-SMA staining area in the 20-μm region beneath the epithelium in the airways of WT and Has2+/− mice (panel b, n = 5). (D) Airway hyperresponsiveness to methacholine in WT and Has2+/− mice (n = 5–9). All samples are obtained 24 h after the final challenge with saline or OVA. Statistical significance is determined using Tukey’s multiple comparison test (A–C, panel b) or two-way ANOVA (D). **P < 0.01, ***P < 0.001 relative to the WT-saline mice. Horizontal bars indicate direct statistical comparisons between WT-OVA and Has2+/−-OVA mice. NS, not significant.
Parameters of Airway Fibrosis, Airway Smooth Muscle Hyperplasia, and AHR Are not Significantly Different Between OVA-Stimulated WT and Has2+/− Mice
To further evaluate the characteristic features of airway remodeling, mice lung sections were stained with MT staining or immunohistochemically stained with anti-α-SMA antibody (Figures 2B, C). Substantial subepithelial deposition of extracellular matrix was strongly observed after repeated OVA challenges in MT-stained lungs of both WT and Has2+/− mice (Figure 2B, panel a). Morphometric analysis revealed that the area percentage of extracellular matrix in the 20-mm region beneath the epithelium was significantly higher after OVA challenges as compared with saline challenges in both mouse genotypes (Figure 2B, panel b). However, increased airway fibrosis was not significantly different between the WT-OVA and Has2+/−-OVA groups. We next evaluated the degree of smooth muscle cell hypertrophy in the airways of both WT and Has2+/− mice. Although thin smooth muscle cell layer that was stained positive for anti-α-SMA antibody was observed in the airways of both genotypes (Figure 2C, panel a), the levels of airway smooth muscle hyperplasia were not significantly different between the WT-OVA and Has2+/−-OVA groups (Figure 2C, panel b). Furthermore, to determine whether the attenuation of Has2 worsens airway hyperreactivity in chronic OVA-stimulated conditions, airway resistance (RI) with an increasing dose of methacholine was measured. Although RI values were higher in both WT-OVA and Has2+/−-OVA mice than the WT-saline mice in a methacholine dose-dependent manner, RI values were not significantly different between the WT-OVA and Has2+/−-OVA mice (Figure 2D).
OVA-Stimulated Has2+/− Mice Demonstrate Increased IL-17 Level
To test the hypothesis that eosinophilic airway inflammation increases in Has2+/− mice due to altered allergic cytokine and chemokine responses, the levels of several inflammatory mediators were measured in lung homogenate and BALF samples (Figure 3 and Supplemental Figures 2, 3). IL-17A levels in lung homogenate were significantly higher in Has2+/−-OVA mice than that in WT-OVA mice (Figure 3A, panel e). ELISA assay also revealed that IL-17F was significantly higher in Has2+/−-OVA mice than that in WT-OVA mice (Figure 3A, panel f). Interestingly, IL-9 and IL-13 were significantly lower in Has2+/−-OVA mice than those in WT-OVA mice (Figures 3A, panels c, b, f). In BALF samples, only MCP-1 and RANTES were significantly higher in Has2+/−-OVA mice than those in WT-OVA mice (Supplemental Figure 3). These results indicate Has2 attenuation induced severe eosinophilic airway inflammation and mucus hypersecretion due to increased IL-17.

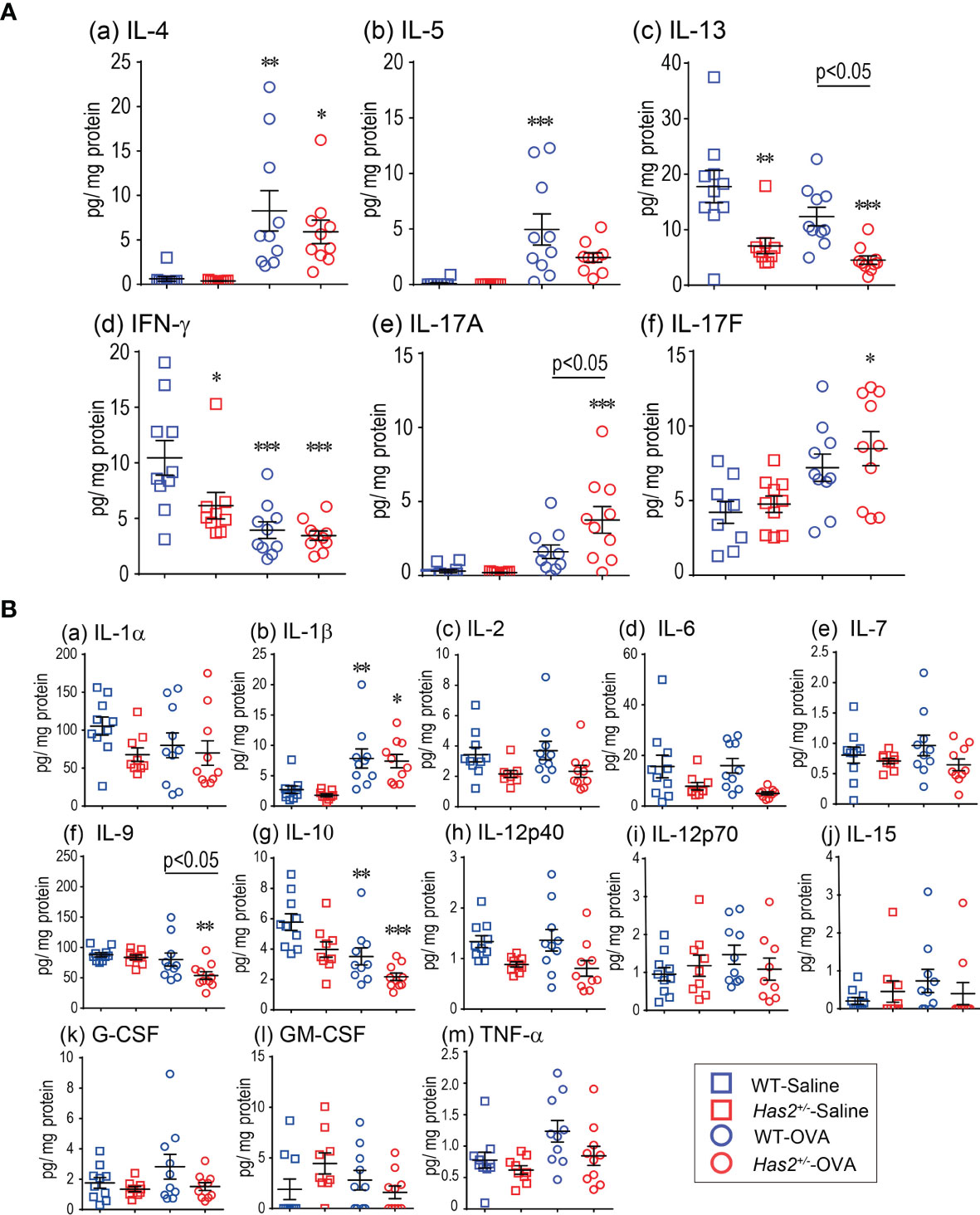

Figure 3 Effects of Has2 attenuation on various cytokine and chemokine levels in lung homogenate. (A) Protein-adjusted levels of the indicated Th1/Th2- and Th17-related cytokines in lung homogenates (n = 9–10). (B) Protein-adjusted levels of inflammatory cytokines and chemokines in lung homogenates (n = 9–10). All samples are obtained 24 h after the final challenge with saline or OVA. Statistical significance was determined using Tukey’s multiple comparison test. *P < 0.05, **P < 0.01, and ***P < 0.001 relative to WT-saline mice. Horizontal bars indicate direct statistical comparisons between WT-OVA and Has2+/−-OVA mice.
Attenuation of Has2 Does not Affect Serum Immunoglobulin Levels in Chronic OVA-Stimulated Condition
To examine whether the Has2+/− mice displayed any other evidence of enhanced systemic allergic response, serum OVA-specific IgE and IgG1 were measured. Chronic OVA challenge significantly increased the serum OVA-specific IgE and IgG1 levels in both Has2+/− and WT mice as compared with the saline control mice, respectively (Supplemental Figure 4). When the levels of these antibodies were directly compared between WT-OVA and Has2+/−-OVA mice, no significant differences were observed (Supplemental Figure 4), indicating that Has2 attenuation did not cause systemic allergic responses.
Attenuation of Has2 Impairs TGF-β and Endoplasmic Reticulum Stress Response-Related Signaling
To understand gene expression changes after a chronic OVA challenge in WT and Has2+/− mice, RNA-seq was performed. Seven genes were found to have significantly different expressions between the lungs of WT-OVA mice and Has2+/−-OVA mice (Figure 4A). Gene ontology analyses identified a significant biological process, such as “protein processing in the endoplasmic reticulum (ER)” and “regulation of proteolysis” by three downregulated genes (Figure 4B). Although a significant attenuation of Spink5 was thought to be involved in childhood asthma through the interaction with TSLP in Has2+/−-OVA mice (17), the expression levels of Tslp were not significantly different between WT-OVA and Has2+/−-OVA mice. Next, we focused our analysis on specifically altered genes in WT-OVA and Has2+/−-OVA mice as compared with WT-saline mice (Figure 4C). A total of 515 genes were uniquely altered in WT-OVA mice (WT-OVA unique genes, Figure 4C), whereas 307 genes were uniquely altered in Has2+/−-OVA mice (Has2+/−-OVA unique genes, Figure 4C). Pathway analysis revealed that the “EIF2 signaling” pathway was the most significantly activated pathway in WT-OVA unique genes (Figure 4D, upper panel, and Supplemental Table 1). Conversely, “TGF-β signaling” was significantly inhibited in Has2+/−-OVA unique genes. Pathways, such as “Wnt/β-catenin signaling” and “PCP pathway”, were significantly inhibited in both WT-OVA unique genes and Has2+/−-OVA unique genes (Figure 4D, lower panel, and Supplemental Table 2). EIF2 signaling is known as one of the major ER stress responses. A comparison of DEGs revealed that not only EIF2 signaling-related genes in WT-OVA mice but also significant changes of heat shock protein (Hsp)-related genes, such as Hspa1a (Hsp70) and Dnajb1 (Hsp40), were found in the genes of Has2+/−-OVA mice (Figure 4E). To account for the striking cytokine changes in the lungs between WT-OVA and Has2+/−-OVA, CIBERSORT analysis was performed. In this analysis, % Treg cell was significantly decreased in Has2+/−-OVA mice (Figure 5A). Conversely, we observed an increasing trend of %Th17 population in Has2+/−-OVA mice (Figure 5A). Thus, the Treg/Th17 ratio significantly decreased in Has2+/−-OVA mice after repeated allergen challenges (Figure 5B). These results indicate that Th17 bias occurs in Has2+/−-OVA under these conditions. Furthermore, quantitative reverse transcription-polymerase chain reaction was performed to confirm these DEG changes. Hspa1a, Dnajb1, and Herpud1 mRNA expression levels were significantly lower in the lungs of Has2+/−-OVA mice (Figure 5C). However, gene expression of Eif2ak3 and Atf4, known to be important in the EIF2 signaling pathway, was not significantly different between the two groups.

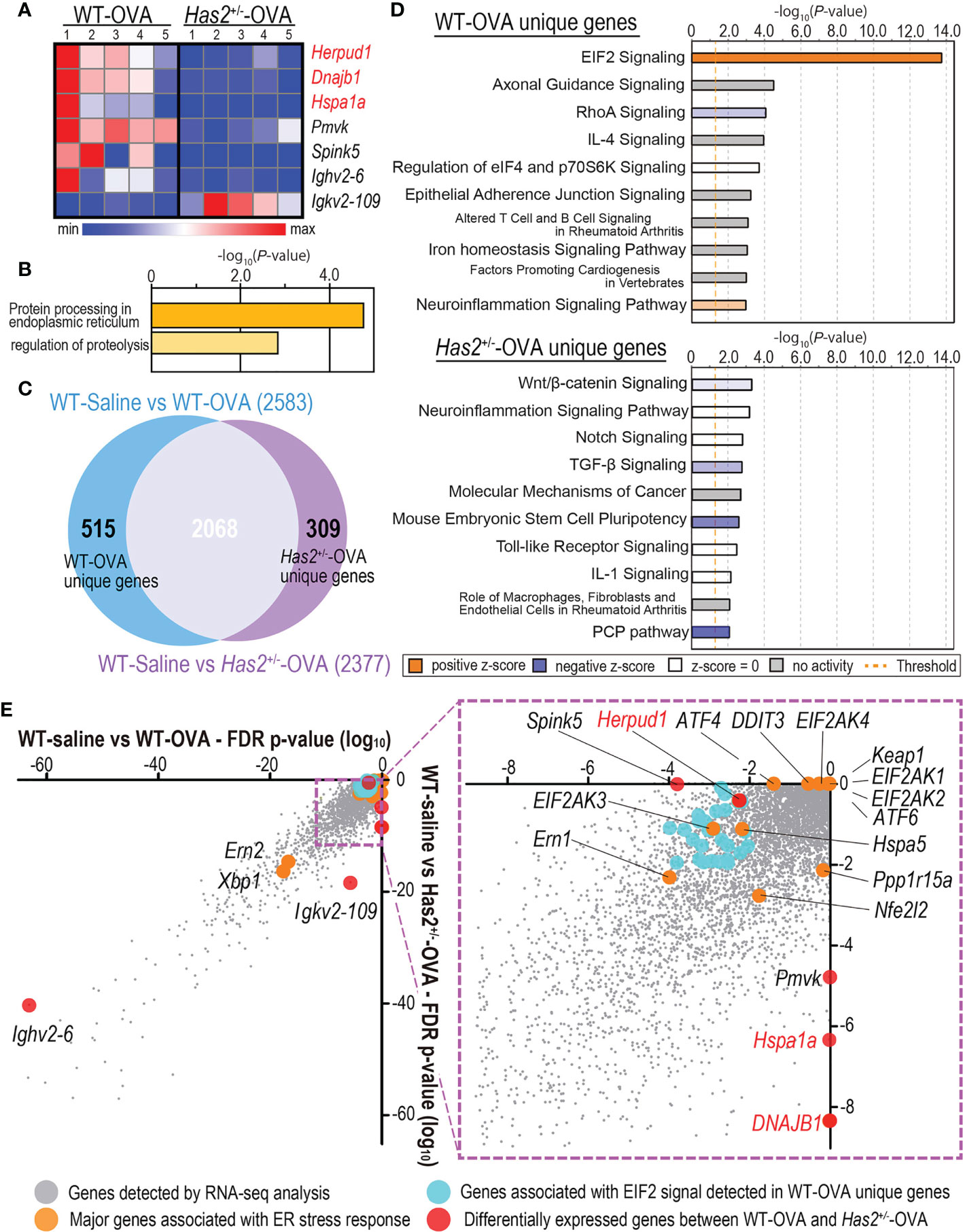

Figure 4 DEG analysis between the lungs from WT-saline, WT-OVA, and Has2+/−-OVA mice. (A) Heatmap of DEGs between the lungs of WT-OVA and Has2+/−-OVA mice (n = 5, cutoff: adjusted P < 0.01; log2 fold change > 1.2). Hierarchical clustering was performed based on the mean log2 fold change. Gene symbols in red are associated with endoplasmic reticulum stress response. (B) Significant biological process terms detected by GO analysis from WT-OVA and Has2+/−-OVA mice. (C) Identification of the unique DEGs between WT-saline vs. WT-OVA and WT-saline vs. Has2+/−-OVA using the Venn diagram. (D) Top 10 significant terms detected by pathway analysis in WT-OVA unique (upper panel) and Has2+/−-OVA unique genes (lower panel). (E) DEG P-value correlation plot between WT-saline vs. WT-OVA and WT-saline vs. Has2+/−-OVA. DEGs, differentially expressed genes.

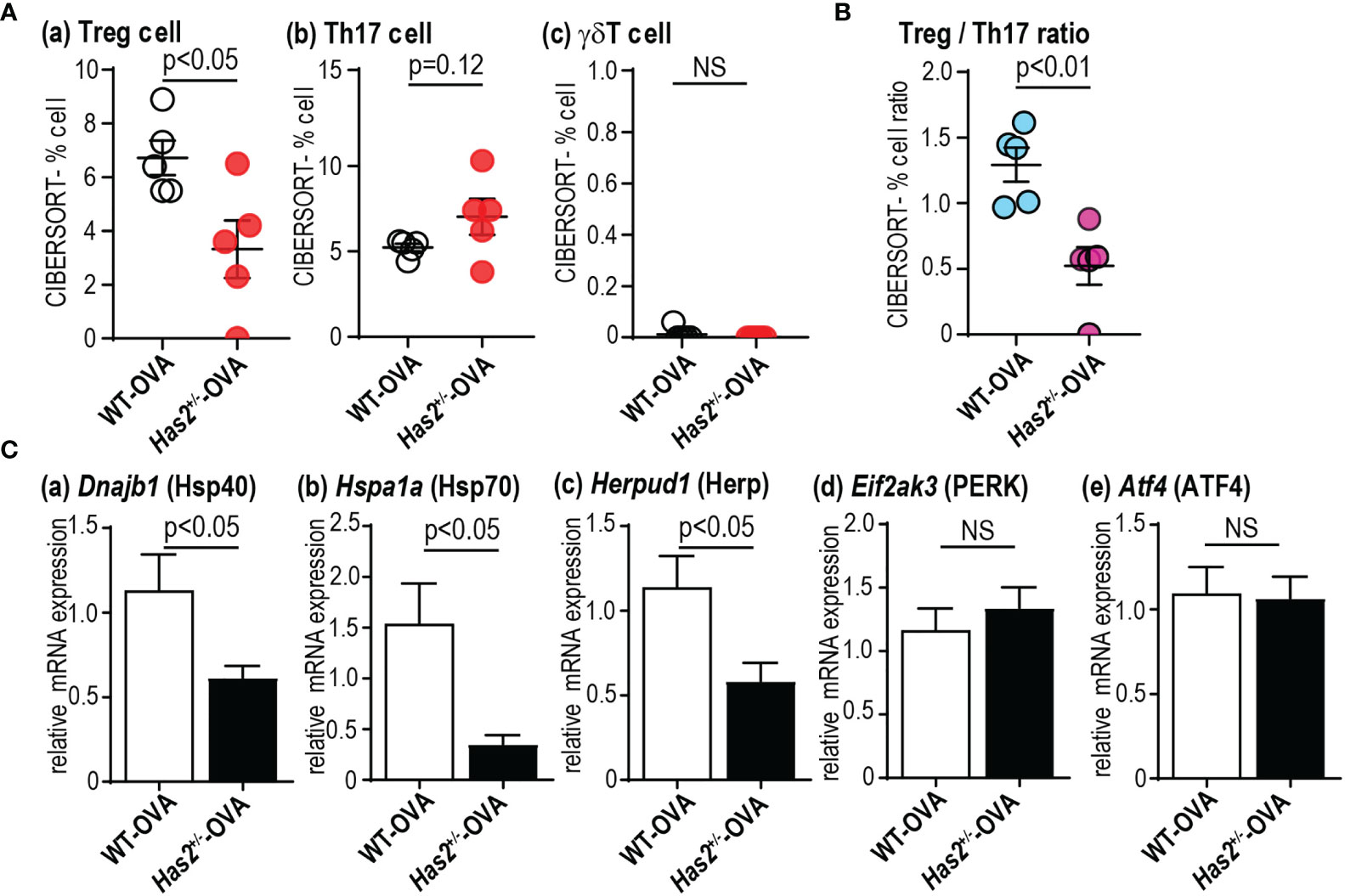

Figure 5 Has2 attenuation induces Th17/Treg imbalance and attenuation of ER stress response-related molecules. Semiquantitative evaluation of immune cell infiltrates (A) and Treg/Th17 ratio (B) after the OVA stimulation as determined by CIBERSORT analysis on whole-lung RNA-seq data (n = 5). (C) Levels of mRNA transcripts encoding Dnajb1, Hspa1a, Herpud1, Eif2ak3, and Atf4 (n = 9–10). All samples are obtained 24 h after the final challenge with OVA. Statistical significance was determined using the Mann–Whitney U test. Horizontal bars indicate direct statistical comparisons between WT and Has2+/− mice. NS, not significant.
Has2 Attenuation Induces Steroid Resistance but Anti-IL-17A Ab Effective Intractable Airway Inflammation
Increased IL-17A level is known to mediate the development of neutrophilic airway inflammation via corticosteroid resistance. To clarify the effects of Has2 attenuation on steroid-resistant phenotype in Has2+/− mice, Dexa was administered to both WT-OVA and Has2+/−-OVA mice (Figure 6A). The number of total cells and macrophages in BALF decreased in both Dexa-treated WT-OVA (WT-OVA-Dexa) and Has2+/−-OVA (Has2+/−-OVA-Dexa) mice as compared with Dexa-untreated mice (Figure 6B). However, a significant increase in the number of neutrophils remained in BALF of Has2+/−-OVA-Dexa mice than that of WT-OVA-Dexa mice (Figure 6B). These results indicate that Has2 attenuation induces a steroid-insensitive airway inflammation phenotype. To confirm whether increased IL-17 level induces steroid resistance in phenotypes of Has2+/−-OVA-Dexa mice, anti-IL-17A-neutralizing antibodies were administered to both WT-OVA-Dexa and Has2+/−-OVA-Dexa mice (Figure 6A). Treatment with anti-IL-17A significantly attenuated macrophages and neutrophil counts in the lungs of Has2+/−-OVA-Dexa mice than those of isotype control Ab-treated Has2+/−-OVA-Dexa mice (Figure 6C). Conversely, anti-IL-17A treatment did not demonstrate an additional attenuation of neutrophil counts in the lungs of WT-OVA-Dexa mice than that of isotype control Ab-treated WT-OVA-Dexa mice (Figure 6C). Collectively, these results indicate that IL-17 is required to drive steroid resistance intractable to asthma development in Has2+/− mice.

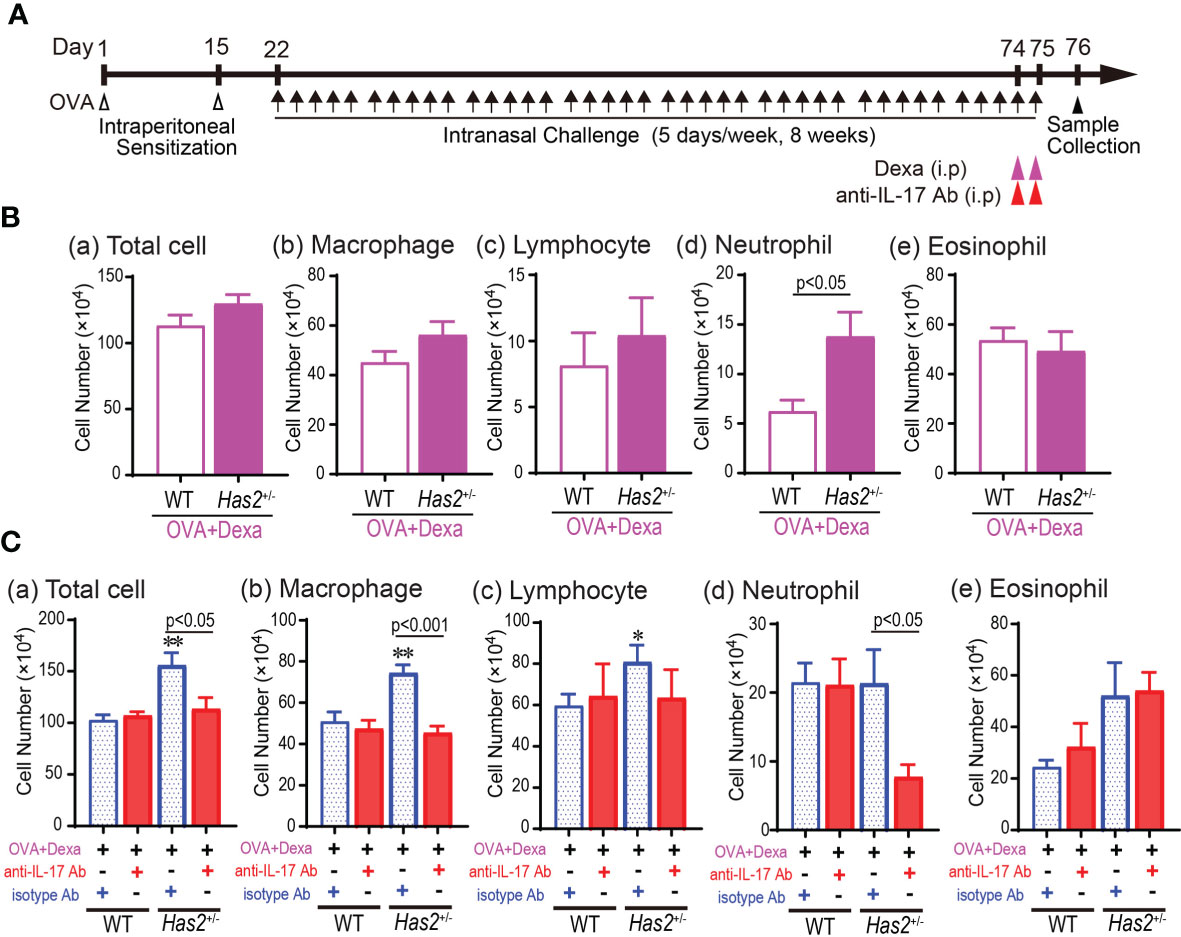

Figure 6 Combined treatment with dexamethasone and anti-IL-17A Ab is effective for steroid-insensitive airway inflammation in Has2+/− mice. (A) Schematic illustration of the experimental design for steroid insensitivity and neutralization experiment. (B) BALF cytology of each indicated cell type after the dexamethasone treatment from WT-OVA mice and Has2+/−-OVA mice (n = 8–11). (C) BALF cytology of each indicated cell type after a combined treatment with dexamethasone and anti-IL-17A Ab from WT-OVA and Has2+/−-OVA mice (n = 7–11). All samples are obtained 24 h after the final challenge with OVA. Statistical significance was determined using the Mann–Whitney U test. *P < 0.05 and **P < 0.01 relative to WT-OVA-Dexa mice. Horizontal bars indicate direct statistical comparisons between WT-OVA and Has2+/−-OVA mice. Dexa, dexamethasone; i.p., intraperitoneal injection; NS, not significant.
This study found several novel findings. First, the results confirm and extend the findings of Yatagai et al. by showing insufficient mRNA expression of Has2 in the lungs of Has2+/− mice (Figure 1B) and decreased HMW-HA in Has2+/− mice lung after chronic OVA stimulation (Figure 1C) (3). Although our previous study on acute OVA stimulation reported a significant decrease of Has2 mRNA level in the lungs of Has2+/− mice, HMW-HA levels were increased in both WT and Has2+/− mice that might be affected by Has1 at the early phase of OVA stimulation (5, 18, 19). In this study, a significant attenuation of both Has2 mRNA expression and HMW-HA levels was observed in the lungs of Has2+/− mice after a chronic OVA stimulation. This finding was consistent with our hypothesis that Has2 heterozygous deficiency results in the attenuation of Has2 expression and HMW-HA, which have anti-inflammatory activity, during chronic eosinophilic airway inflammation. CD44 and TLR4 are known as HA-binding proteins, and a decrease of CD44 downregulates TGF-β (16, 20–22). As we previously found, a significant downregulation of Cd44, Tlr4, and Tgfb1 mRNA levels was also observed in the lungs of Has2+/−-OVA mice (Figure 1D) (5). Furthermore, we found a significant decrease of lung TGF-β levels in Has2+/−-OVA mice (Figure 1E). Collectively, our results suggest that Has2 gene abnormalities cause downregulation of Has2 mRNA expression, HMW-HA, and HA-binding protein levels during chronic eosinophilic airway inflammation. Thus, these Has2 genetic abnormalities impair hyaluronic-acid-induced homeostasis in the asthmatic mouse airway.
Second, this study firstly demonstrated that attenuation of Has2 mRNA affects the severity of pulmonary eosinophilic inflammation and distinctive phenotype airway remodeling using Has2+/− mice. Has2+/− mice showed an increased number of BALF eosinophils after an OVA stimulation (Figure 1G). Severe goblet cell hyperplasia was also observed in Has2+/−-OVA mice (Figure 2A). However, no changes in subepithelial fibrosis, airway smooth muscle hypertrophy, and AHR were observed (Figures 2B–D). In the cytokine and chemokine analyses, not only a significant decrease of TGF-β levels in the Has2+/−-OVA mice lung but also increased IL-17 levels were observed (Figure 3A). However, no significant increases were observed in Th2-type cytokines and airway epithelium-related cytokine levels in the lung homogenates nor in serum OVA-specific immunoglobulin levels in Has2+/−-OVA mice (Figure 3 and Supplemental Figures 2–4). IL-17 is known to enhance airway eosinophilia, AHR, and mucus hypersecretion (23–25). Furthermore, TGF-β has a protective role for airway inflammation and AHR (26, 27), but worsens the airway fibrosis and airway muscle hyperplasia (28). Collectively, these results suggested that Has2 attenuation induced distinctive phenotype of OVA-induced airway remodeling by mediating IL-17 and TGF-β signaling.
RNA-seq analysis provided further pathophysiological insights into enhanced eosinophilic airway inflammation when Has2 expression was attenuated. Although only seven DEGs were identified between WT-OVA and Has2+/−-OVA mice, Dnajb1, Hspa1a, and Herpud1 were related to the ER stress response and Hsp (Figures 4A, E). Pathway analysis revealed that “EIF2 signaling” was the most significant activated pathway in WT-OVA unique genes, whereas “TGF-β signaling” was significantly inhibited in Has2+/−-OVA unique genes (Figure 4D). EIF2 signaling is one of the major ER stress sensor pathways associated with unfolded protein response (UPR). A previous study reported that EIF2 signaling was downregulated in patients with childhood asthma (29). Moreover, pathways associated with ER stress and UPR play a role in modulating inflammatory and immune responses in the development of severe asthma (30). Furthermore, administration of the ER stress inhibitor decreased the IL-17 expression (31). These results suggest that impaired ER stress response might be implicated in Has2-dysfunction-induced asthma. Interestingly, in CIBERSORT analysis, Th17/Treg balance was significantly Th17 biased in Has2+/−-OVA mice than that in WT-OVA mice (Figures 5A, B). A recent study revealed that TGF-β regulates iTreg and Th17 cell differentiation by both Smad3- and TAK1-dependent pathways in OVA-induced airway inflammation (32). Conversely, evidence suggests the involvement of Hsp, including Hsp70, in the development of psoriasis, characterized by impaired immunological cell function with altered Th17/Treg balance, autoreactive T cells, and dysregulation of keratinocyte proliferation (33, 34). Furthermore, Dnajb1 controls the substrate targeting HSP70 (35), and Dnajb1 overexpression downregulates Th17 differentiation in mouse spleen lymphocytes (36). In this study, we found a significant decrease of TGF-β, Hspa1a, and Dnajb1 mRNA expressions in the lungs of Has2+/−-OVA mice (Figure 5C). These decreases may induce the development of a Th17-dominant phenotype.
Although the role of IL-17 in asthma is unclear, IL-17 is thought to be related to asthma severity (37, 38), exacerbations (39, 40), and steroid insensitivity (6–8, 37, 41), particularly in neutrophilic asthma (6). In our previous acute OVA-induced eosinophilic airway model, we also observed more severe lung neutrophilia with IL-17A signaling modification in OVA-stimulated Has2+/− mice (5). However, both neutrophils were similarly elevated in this study. The most likely reason was that both groups were saturated with neutrophil-inducing stimuli due to the daily stimulation of OVA. The present study revealed that OVA-induced airway inflammation in Has2+/−-OVA mice was resistant to steroid treatment (Figure 6B). Notably, this refractory airway inflammation was relieved by combined therapy with steroid and anti-IL-17A antibodies (Figure 6C). Recent literature reported that combined administration of anti-IL-17A Ab and corticosteroid significantly attenuated steroid-insensitive airway inflammation, AHR, and body weight loss (42). Furthermore, Pathinayake et al. reported that heightened ER stress is associated with severe eosinophilic and neutrophilic inflammation in asthma and ER stress genes displayed a significant correlation with classic Th2 genes and Th17 (IL-17F/CXCL1) genes (43). These results indicate that both anti-IL-17A and anti-IL-17F antibodies are potential candidates for the treatment of refractory asthma with ER stress response abnormalities. The reason for the neutrophil increase in WT-OVA mice treated with steroid and isotype control Ab (Rat IgG1, κ) is unknown but could be due to induced non-specific inflammation by the isotype Ab itself.
Several potential shortcomings of the current work should be addressed. For instance, the airway glycan ligand that acts on CD44 or ER stress response may be reduced in Has2+/− mice. However, this reduction has not been confirmed. The deletion of Has2 might affect these mice in other ways. Future experiments are needed, for example, to determine whether the Has2 genetic deletion directly affects inflammatory cells and whether the supply of HAS2 enzyme, HMW-HA, and Hsp into the airway abrogates the lung eosinophilia. Moreover, the evaluation of ER stress and Hsp responses in each tissue and cell was insufficient; therefore, detailed tissue- or cell-specific examination, such as single-cell RNA-seq analysis, will be needed. In addition, to clarify the efficacy of treatment, it is necessary to study the effect of anti-IL-17A antibody alone, but this has not been done.
Nevertheless, the fact that Has2+/−mice have more severe airway remodeling, steroid insensitivity, and fewer HMW-HA in their airways strongly suggests that reduced levels of Has2 impair extracellular matrix homeostasis for controlling chronic airway eosinophilia. Furthermore, disorders associated with reduced HAS2 function in the lungs might manifest intractable airway inflammation and remodeling with the Th17 bias. These data also support the notion that HAS2 and HMW-HA are important for controlling steroid-resistant eosinophilic airway inflammation and remodeling and could potentially be exploited for therapeutic benefits.
Data Availability Statement
The datasets presented in this study can be found in online repositories. The names of the repository/repositories and accession number(s) can be found below: https://www.ncbi.nlm.nih.gov/geo/, GSE181966.
The animal study was reviewed and approved by the Institutional Review Board of the University of Tsukuba.
MS, TK, MM, YI, and NH conceived, designed, and performed the experiments. MS, MM, and TK analyzed the data. MS, YT, KYa, KYo, MN, YMa, and YMo contributed the reagents, materials, and/or analysis tools. MS and TK wrote the manuscript. All authors contributed to the article and approved the submitted version.
This research was supported in part by grants-in-aid from the Ministry of Education, Culture, Sports, Science, and Technology of Japan (18K08139 and 21K08150 to TK) and the Basic Research Support Program from Japanese Society of Allergology (to TK).
Conflict of Interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fimmu.2021.770305/full#supplementary-material
1. Prakash YS, Halayko AJ, Gosens R, Panettieri RA Jr., Camoretti-Mercado B, Penn RB, et al. An Official American Thoracic Society Research Statement: Current Challenges Facing Research and Therapeutic Advances in Airway Remodeling. Am J Respir Crit Care Med (2017) 195(2):e4–19. doi: 10.1164/rccm.201611-2248ST
2. Menzies-Gow A, Bafadhel M, Busse WW, Casale TB, Kocks JWH, Pavord ID, et al. An Expert Consensus Framework for Asthma Remission as a Treatment Goal. J Allergy Clin Immunol (2020) 145(3):757–65. doi: 10.1016/j.jaci.2019.12.006
3. Yatagai Y, Sakamoto T, Yamada H, Masuko H, Kaneko Y, Iijima H, et al. Genomewide Association Study Identifies HAS2 as a Novel Susceptibility Gene for Adult Asthma in a Japanese Population. Clin Exp Allergy (2014) 44(11):1327–34. doi: 10.1111/cea.12415
4. Karamanos NK, Piperigkou Z, Theocharis AD, Watanabe H, Franchi M, Baud S, et al. Proteoglycan Chemical Diversity Drives Multifunctional Cell Regulation and Therapeutics. Chem Rev (2018) 118(18):9152–232. doi: 10.1021/acs.chemrev.8b00354
5. Tsunoda Y, Sherpa MT, Kiwamoto T, Matsuyama M, Osawa H, Sakurai H, et al. Has2 Deficiency Enhances OVA-Induced Airway Inflammation and Hyperresponsiveness in Mice. Allergy (2021) 76(7):2214–8. doi: 10.1111/all.14715
7. Singhania A, Wallington JC, Smith CG, Horowitz D, Staples KJ, Howarth PH, et al. Multitissue Transcriptomics Delineates the Diversity of Airway T Cell Functions in Asthma. Am J Respir Cell Mol Biol (2018) 58(2):261–70. doi: 10.1165/rcmb.2017-0162OC
8. Ostling J, van Geest M, Schofield JPR, Jevnikar Z, Wilson S, Ward J, et al. IL-17-High Asthma With Features of a Psoriasis Immunophenotype. J Allergy Clin Immunol (2019) 144(5):1198–213. doi: 10.1016/j.jaci.2019.03.027
9. Camenisch TD, Spicer AP, Brehm-Gibson T, Biesterfeldt J, Augustine ML, Calabro A Jr, et al. Disruption of Hyaluronan Synthase-2 Abrogates Normal Cardiac Morphogenesis and Hyaluronan-Mediated Transformation of Epithelium to Mesenchyme. J Clin Invest (2000) 106(3):349–60. doi: 10.1172/JCI10272
10. Matuska B, Comhair S, Farver C, Chmiel J, Midura RJ, Bonfield T, et al. Pathological Hyaluronan Matrices in Cystic Fibrosis Airways and Secretions. Am J Respir Cell Mol Biol (2016) 55(4):576–85. doi: 10.1165/rcmb.2015-0358OC
11. Kiwamoto T, Brummet ME, Wu F, Motari MG, Smith DF, Schnaar RL, et al. Mice Deficient in the St3gal3 Gene Product Alpha2,3 Sialyltransferase (ST3Gal-III) Exhibit Enhanced Allergic Eosinophilic Airway Inflammation. J Allergy Clin Immunol (2014) 133(1):240–7.e1-3. doi: 10.1016/j.jaci.2013.05.018
12. Kiwamoto T, Ishii Y, Morishima Y, Yoh K, Maeda A, Ishizaki K, et al. Transcription Factors T-Bet and GATA-3 Regulate Development of Airway Remodeling. Am J Respir Crit Care Med (2006) 174(2):142–51. doi: 10.1164/rccm.200601-079OC
13. Cho JY, Miller M, Baek KJ, Castaneda D, Nayar J, Roman M, et al. Immunostimulatory DNA Sequences Inhibit Respiratory Syncytial Viral Load, Airway Inflammation, and Mucus Secretion. J Allergy Clin Immunol (2001) 108(5):697–702. doi: 10.1067/mai.2001.119918
14. Newman AM, Steen CB, Liu CL, Gentles AJ, Chaudhuri AA, Scherer F, et al. Determining Cell Type Abundance and Expression From Bulk Tissues With Digital Cytometry. Nat Biotechnol (2019) 37(7):773–82. doi: 10.1038/s41587-019-0114-2
17. Biagini Myers JM, Martin LJ, Kovacic MB, Mersha TB, He H, Pilipenko V, et al. Epistasis Between Serine Protease Inhibitor Kazal-Type 5 (SPINK5) and Thymic Stromal Lymphopoietin (TSLP) Genes Contributes to Childhood Asthma. J Allergy Clin Immunol (2014) 134(4):891–9.e3. doi: 10.1016/j.jaci.2014.03.037
18. Cheng G, Swaidani S, Sharma M, Lauer ME, Hascall VC, Aronica MA. Hyaluronan Deposition and Correlation With Inflammation in a Murine Ovalbumin Model of Asthma. Matrix Biol: J Int Soc Matrix Biol (2011) 30(2):126–34. doi: 10.1016/j.matbio.2010.12.003
19. Cheng G, Swaidani S, Sharma M, Lauer ME, Hascall VC, Aronica MA. Correlation of Hyaluronan Deposition With Infiltration of Eosinophils and Lymphocytes in a Cockroach-Induced Murine Model of Asthma. Glycobiology (2013) 23(1):43–58. doi: 10.1093/glycob/cws122
20. Garantziotis S, Savani RC. Hyaluronan Biology: A Complex Balancing Act of Structure, Function, Location and Context. Matrix Biol: J Int Soc Matrix Biol (2019) 78-79:1–10. doi: 10.1016/j.matbio.2019.02.002
22. Liang J, Jiang D, Griffith J, Yu S, Fan J, Zhao X, et al. CD44 Is a Negative Regulator of Acute Pulmonary Inflammation and Lipopolysaccharide-TLR Signaling in Mouse Macrophages. J Immunol (2007) 178(4):2469–75. doi: 10.4049/jimmunol.178.4.2469
23. Jirmo AC, Busse M, Happle C, Skuljec J, Daluge K, Habener A, et al. IL-17 Regulates DC Migration to the Peribronchial LNs and Allergen Presentation in Experimental Allergic Asthma. Eur J Immunol (2020) 50(7):1019–33. doi: 10.1002/eji.201948409
24. Kinyanjui MW, Shan J, Nakada EM, Qureshi ST, Fixman ED. Dose-Dependent Effects of IL-17 on IL-13-Induced Airway Inflammatory Responses and Airway Hyperresponsiveness. J Immunol (2013) 190(8):3859–68. doi: 10.4049/jimmunol.1200506
25. Fujisawa T, Velichko S, Thai P, Hung LY, Huang F, Wu R. Regulation of Airway MUC5AC Expression by IL-1beta and IL-17A; The NF-kappaB Paradigm. J Immunol (2009) 183(10):6236–43. doi: 10.4049/jimmunol.0900614
26. Nakao A, Miike S, Hatano M, Okumura K, Tokuhisa T, Ra C, et al. Blockade of Transforming Growth Factor Beta/Smad Signaling in T Cells by Overexpression of Smad7 Enhances Antigen-Induced Airway Inflammation and Airway Reactivity. J Exp Med (2000) 192(2):151–8. doi: 10.1084/jem.192.2.151
27. Hansen G, McIntire JJ, Yeung VP, Berry G, Thorbecke GJ, Chen L, et al. CD4(+) T Helper Cells Engineered to Produce Latent TGF-Beta1 Reverse Allergen-Induced Airway Hyperreactivity and Inflammation. J Clin Invest (2000) 105(1):61–70. doi: 10.1172/JCI7589
28. Liu G, Philp AM, Corte T, Travis MA, Schilter H, Hansbro NG, et al. Therapeutic Targets in Lung Tissue Remodelling and Fibrosis. Pharmacol Ther (2021) 225:107839. doi: 10.1016/j.pharmthera.2021.107839
29. Wesolowska-Andersen A, Everman JL, Davidson R, Rios C, Herrin R, Eng C, et al. Dual RNA-Seq Reveals Viral Infections in Asthmatic Children Without Respiratory Illness Which are Associated With Changes in the Airway Transcriptome. Genome Biol (2017) 18(1):12. doi: 10.1186/s13059-016-1140-8
31. Kim SR, Kim DI, Kang MR, Lee KS, Park SY, Jeong JS, et al. Endoplasmic Reticulum Stress Influences Bronchial Asthma Pathogenesis by Modulating Nuclear Factor kappaB Activation. J Allergy Clin Immunol (2013) 132(6):1397–408. doi: 10.1016/j.jaci.2013.08.041
32. Joetham A, Schedel M, Ning F, Wang M, Takeda K, Gelfand EW. Dichotomous Role of TGF-Beta Controls Inducible Regulatory T-Cell Fate in Allergic Airway Disease Through Smad3 and TGF-Beta-Activated Kinase 1. J Allergy Clin Immunol (2020) 145(3):933–46.e4. doi: 10.1016/j.jaci.2019.09.032
34. Tukaj S, Mantej J, Sobala M, Potrykus K, Tukaj Z, Zillikens D, et al. Therapeutic Implications of Targeting Heat Shock Protein 70 by Immunization or Antibodies in Experimental Skin Inflammation. Front Immunol (2021) 12:614320. doi: 10.3389/fimmu.2021.614320
35. Faust O, Abayev-Avraham M, Wentink AS, Maurer M, Nillegoda NB, London N, et al. HSP40 Proteins Use Class-Specific Regulation to Drive HSP70 Functional Diversity. Nature (2020) 587(7834):489–94. doi: 10.1038/s41586-020-2906-4
36. Mycko MP, Cichalewska M, Cwiklinska H, Selmaj KW. miR-155-3p Drives the Development of Autoimmune Demyelination by Regulation of Heat Shock Protein 40. J Neurosci (2015) 35(50):16504–15. doi: 10.1523/JNEUROSCI.2830-15.2015
38. Al-Ramli W, Prefontaine D, Chouiali F, Martin JG, Olivenstein R, Lemiere C, et al. T(H)17-Associated Cytokines (IL-17A and IL-17F) in Severe Asthma. J Allergy Clin Immunol (2009) 123(5):1185–7. doi: 10.1016/j.jaci.2009.02.024
39. Ricciardolo FLM, Sorbello V, Folino A, Gallo F, Massaglia GM, Favata G, et al. Identification of IL-17F/Frequent Exacerbator Endotype in Asthma. J Allergy Clin Immunol (2017) 140(2):395–406. doi: 10.1016/j.jaci.2016.10.034
40. Alnahas S, Hagner S, Raifer H, Kilic A, Gasteiger G, Mutters R, et al. IL-17 and TNF-Alpha Are Key Mediators of Moraxella Catarrhalis Triggered Exacerbation of Allergic Airway Inflammation. Front Immunol (2017) 8:1562. doi: 10.3389/fimmu.2017.01562
41. Nanzer AM, Chambers ES, Ryanna K, Richards DF, Black C, Timms PM, et al. Enhanced Production of IL-17A in Patients With Severe Asthma Is Inhibited by 1alpha,25-Dihydroxyvitamin D3 in a Glucocorticoid-Independent Fashion. J Allergy Clin Immunol (2013) 132(2):297–304.e3. doi: 10.1016/j.jaci.2013.03.037
42. Menson KE, Mank MM, Reed LF, Walton CJ, van der Vliet KE, Ather JL, et al. Therapeutic Efficacy of IL-17A Neutralization With Corticosteroid Treatment in a Model of Antigen-Driven Mixed-Granulocytic Asthma. Am J Physiol Lung Cell Mol Physiol (2020) 319(4):L693–709. doi: 10.1152/ajplung.00204.2020
Keywords: ER stress response, HAS2, IL-17, TGF-β1, airway remodeling, asthma, mouse model
Citation: Sherpa MT, Kiwamoto T, Matsuyama M, Tsunoda Y, Yazaki K, Yoshida K, Nakajima M, Matsuno Y, Morishima Y, Ishii Y and Hizawa N (2022) Has2 Regulates the Development of Ovalbumin-Induced Airway Remodeling and Steroid Insensitivity in Mice. Front. Immunol. 12:770305. doi: 10.3389/fimmu.2021.770305
Received: 03 September 2021; Accepted: 14 December 2021;
Published: 07 January 2022.
Edited by:Maria M. Escribese, CEU San Pablo University, Spain
Reviewed by:Elba Mónica Vermeulen, Instituto de Biología y Medicina Experimental (CONICET), Argentina
Teresa Zelante, University of Perugia, Italy
Copyright © 2022 Sherpa, Kiwamoto, Matsuyama, Tsunoda, Yazaki, Yoshida, Nakajima, Matsuno, Morishima, Ishii and Hizawa. This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) and the copyright owner(s) are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.
*Correspondence: Takumi Kiwamoto, email@example.com
