Original Research ARTICLE
Diversity of Cultivable Protease-Producing Bacteria in Laizhou Bay Sediments, Bohai Sea, China
- 1Key Laboratory of Coastal Biology and Utilization, Yantai Institute of Coastal Zone Research, Chinese Academy of Sciences, Yantai, China
- 2School of Chemical and Biological Engineering, Lanzhou Jiaotong University, Lanzhou, China
- 3School of Chemistry and Pharmaceutical Engineering, Qilu University of Technology, Jinan, China
- 4Departamento de Microbiología, Escuela Nacional de Ciencias Biológicas, Instituto Politécnico Nacional, Mexico City, Mexico
Protease-producing bacteria are widespread in ocean sediments and play important roles in degrading sedimentary nitrogenous organic materials. However, the diversity of the bacteria and the proteases involved in such processes remain largely unknown especially for communities in enclosed sea bays. Here, we investigated the diversity of the extracellular protease-producing bacteria and their protease types in Laizhou Bay. A total of 121 bacterial isolates were obtained from sediment samples in 7 sites and their protease types were characterized. The abundance of cultivable protease-producing bacteria was about 104 CFU g−1 of sediment. Phylogenetic analysis based on 16S rRNA gene sequences suggest that the isolates belonged to 17 genera from 4 phyla including Firmicutes, Actinobacteria, Proteobacteria and Bacteroidetes, and mainly dominated by the genera Pseudoalteromonas (40.5%), Bacillus (36.3%), and Photobacterium (5.8%). The diversity and community structure varied among different sampling sites but no significant correlation was observed with soil sediment's characteristics. Enzyme activity and inhibition tests further revealed that all isolates secreted proteases that were inhibited by serine and/or metalloprotease inhibitors, and a smaller proportion was inhibited by inhibitors of cysteine and/or aspartic proteases. Furthermore, all isolates effectively degraded casein and/or gelatin with only a few that could hydrolyze elastin, suggesting that the bacteria were producing different kinds of serine proteases or metalloproteases. This study provided novel insights on the community structure of cultivable protease-producing bacteria near the Yellow River estuary of an enclosed sea bay.
Polymeric and particulate materials, which carry abundant organic nitrogen (OrgN), are the main nitrogen sources in marine environments. These materials usually precipitate in ocean sediments and are thus, involved in the global nitrogen biogeochemical cycle (Thamdrup and Dalsgaard, 2008). In the nitrogen cycle, the particulate OrgN decomposes into dissolved OrgN before it undergoes ammonification, nitrification and denitrification resulting to its release into the atmosphere as nitrogen gas. These processes are mainly carried out by bacteria that produce degradation enzymes (Brunnegård et al., 2004; Hunter et al., 2006). Since proteins comprise the main component of biomass of marine organisms (Thamdrup and Dalsgaard, 2008; Lloyd et al., 2013; Moore et al., 2014), protease-producing bacteria are considered as the main degraders of organic nitrogen in the marine environment (Chen et al., 2003; Zhao et al., 2012). These protease-producing bacteria usually secrete extracellular proteases that degrade protein materials, for example, by hydrolyzing the OrgN into peptides and amino acids, with the latter easily taken up by bacteria for subsequent catabolism (Zhao et al., 2012). Although, protease-producing bacteria play key roles on ecological and biochemical cycles in marine sediments, few studies have been done to understand the diversity of these species and of their extracellular proteases. Nineteen protease-producing bacteria isolated from the sub-Antarctic sediments were classified into five genera, namely Proteobacteria (Pseudoalteromonas, Shewanella, Colwellia), Firmicutes (Planococcus), and Bacteroidetes (Olleya), with Pseudoalteromonas as the dominant one (Olivera et al., 2007). Among 98 strains isolated from Southern Okinawa Trough, 30 of them possessed protease-producing abilities, which belong to the genus of Bacillus, Cobetia, Halomonas, Pseudomonas, Psychrobacter, Myroides, Planococcus, Sporosarcina, and Wangia. Among them, strains belong to Bacillus and Psychrobacter showed excellent abilities to produce neutral, acidic, and alkaline proteases at low temperature conditions (Dang et al., 2009). Out of the 78 protease-producing bacteria isolated from the sediments of the deep South China Sea, 77 isolates belonged to Gammaproteobacteria under Alteromonas, Pseudoalteromonas, Marinobacter, Idiomarina, Halomonas, Vibrio, Shewanella, Pseudomonas, and Rheinheimera; while a single isolate belonged to Firmicutes (Bacillus), and dominated mostly by Alteromonas and Pseudoalteromonas accounting for 34.6 and 28.2% of the total relative abundance, respectively (Zhou et al., 2009). Strains with extracellular proteolytic activities from the coastal sediments of King George Island, Antarctica showed high diversity, with the 105 isolates belonging to four major phyla Actinobacteria, Firmicutes, Bacteroidetes, and Proteobacteria and dominated by Bacillus, Flavobacterium, and Lacinutrix (Zhou et al., 2013). Nearly all of the extracellular proteases secreted by these bacteria were serine and/or metalloproteases (Zhou et al., 2009, 2013). A similar community profile was observed in marine sediments of the eutrophied Jiaozhou Bay, China, where 69 protease-producing bacteria belonging to 9 genera from three phyla were isolated, including Bacteroidetes, Firmicutes, and Proteobacteria, in which Photobacterium, Bacillus and Vibrio were the dominant groups, also mainly producing serine and/or metalloproteases with relatively low proportions of cysteine proteases (Zhang et al., 2015).
Laizhou Bay, located between 37.05° ~37.80° N and 118.9° ~120.35° E (WGS84 reference system) is a typical semi-enclosed inner sea, located in the southern coast of Bohai Sea, North China, occupying around 10% of the total area of the Bohai Sea (Zhang et al., 2012; Wang et al., 2015). The bay is a traditional fishing ground of China. However, increased intensities in fishing activity, industrial discharges, agricultural and domestic sewage, and human disturbances in the last decades resulted to deteriorated water quality, decreased biomass and fish biodiversity in the Bay (Zhang et al., 2012; Jin et al., 2013; Wang et al., 2015). With the corresponding water pollution, the associated microbial community in this aquatic ecosystem, especially the degrading bacteria, are also expected to vary. Further, the population structure of protease producing bacteria in disturbed ecosystems like that of Bohai Sea, would significantly differ compared to Antarctic sediment samples which are less disturbed by human activities. However, the protease-producing bacteria and their extracellular protease in the sediments of Laizhou Bay have not yet been investigated. This study then aims to uncover the diversity of protease-producing bacterial community in Laizhou Bay and characterize their extracellular proteases using inhibitor tests.
Materials and Methods
Sediment Collection and Physiochemical Characteristics
A total of seven sediment samples were collected from different sites of Laizhou Bay (Figure 1 and Table 1) using a 0.05 m2 stainless steel Gray O'Hara box corner. Collection was carried out on September 2013. Six of the stations were near the shore and only Station 5 was located offshore. Triplicate surface sediment sub-core samples (0–5 cm depth) were collected using sterilized 60 ml syringes (without luer end) and then transferred to airtight sterile plastic bags at 4°C until analysis in the laboratory (Zhou et al., 2009). For physiochemical analyses, samples were collected with the same procedure and stored in sterilized plastic bags at −20°C during the cruise and were transferred to −80°C upon arrival in the laboratory. Surface temperature and pH of sediment samples were detected in situ using a pH meter. Organic carbon and nitrogen concentrations were determined using a PE 2400 series II CHNS/O analyzer (Perkin Elmer, USA).
Figure 1. Map of the Laizhou Bay, China showing the sampling sites (•). The corresponding position of the Laizhou Bay in China is shown in the inset. The two maps were created using DIVA-GIS software (http://www.diva-gis.org), and the sampling sites were added according to GPS records.
Table 1. Characteristics of the sampling stations and the distribution of different genera in these stations.
Screening of Protease-Producing Bacteria from Sediment Samples
Protease-producing bacteria were screened as previously described (Zhou et al., 2009; Zhang et al., 2015). Briefly, 1 g (fresh weight, triplicate samples collected from the same station were weighed equally before mixing) of each sediment sample was serially diluted to 10−6 with artificial sea water. Aliquots of 100 μl of the serially diluted samples (10−1–10−6) were separately spread on the screening plates composed of 0.2% (w/v) yeast extract, 0.3% (w/v) casein, 0.5% (w/v) gelatin, 1.5% (w/v) agar powder, in 1 L artificial seawater at pH 8.0. All plates with inoculum were incubated at 25°C until colonies with clear hydrolysis zones were detected. Colonies with different morphological characteristics (e.g., colony color, size and surface polysaccharides) were selected and further purified by repeated streaking on the same plate until uniform or pure colonies were observed. Pure cultures were preserved at −80°C in 20% (v/v) glycerol.
16S rRNA Gene Amplification and Phylogeny
Each pure isolate was first incubated in the liquid medium (screening media without agar) at 25°C with shaking of 200 rpm. The biomass of each isolate was collected through centrifugation and the genomic DNA was extracted using a TIANGEN genomic DNA extraction kit (TIANGEN, China) for bacteria, following the manufacturer's instructions. Both DNA quality and quantity were determined in Nano OD2000C (Thermo). The 16S rRNA gene of all the isolates were amplified and sequenced from genomic DNA using the universal primer pair 27F-1492R following the PCR conditions described by Engel et al. (2004). Samples were sent to the Beijing AuGCT DNA-SYN Biotechnology Co., Ltd for sequencing using the Sanger method (Sanger et al., 1977). Identification of the sequences generated in this study was carried out by searching for their most similar sequences in the NCBI GenBank using the BLASTn approach. Then, a 16S rRNA gene phylogenetic tree was reconstructed using the neighbor-joining method (Saitou and Nei, 1987) with Kimura's two-parameter model in MEGA version 5.05 (Tamura et al., 2011). The topology of phylogenetic trees was evaluated by bootstrap method with 1,000 replications, also in MEGA version 5.05. All sequences were deposited in GenBank database.
Due to the limitation in the resolution of the 16S rRNA gene and since some species may have identical 16S rRNA gene sequences (Figure 2), not all sequences were identified at the species level. Alpha diversity of the community based on genera in each sample was investigated three indices that have specific targets, namely the Shannon–Wiener index (H′), which explains the species richness of a sample site, the Simpson index (D) that shows the dominance species, and the Pielou index (J), which indicates species evenness in a community (Hill et al., 2003). These diversity indices were estimated from each sample using the Vegan package (version 1.17-4) implemented in the R environment (version3.1.2; http://www.r-project.org/) (R-Core Team, 2014).

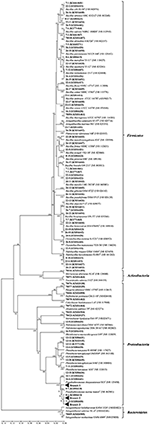

Figure 2. Phylogenetic tree of the protease-producing bacteria isolated from Laizhou Bay, China based on 16S rRNA gene sequences. Taxa and GenBank accession numbers in boldface were generated in this study. The tree was constructed by neighbor-joining method using MEGA version 5.05. Only bootstrap values greater than 50% are presented in the nodes. The scale bar represents 2% nucleotide substitution.
Hydrolysis of Casein, Elastin, and Gelatin by Bacteria Extracellular Proteases
Solid basic media (0.2% (w/v) yeast extract, 0.5% (w/v) gelatin, 1.5% (w/v) agar powder, artificial seawater, pH 8.0) supplemented with 0.5% (w/v) of casein, 0.5% (w/v) gelatin or 0.5% (w/v) elastin powder (Zhou et al., 2009), were used in this particular analysis. Isolates were inoculated with sterilized tooth stick on the plates in the medium and incubated at 25°C for 3 days. The diameter of colony and the hydrolyzed zone were measured for each strain, and a ratio of the hydrolytic zone diameter vs. the colony diameter (hydrolytic zone/colony, H/C) was calculated as a proxy for enzyme activity for each substrate (Zhou et al., 2009).
Inhibition Ratio (%) of Different Inhibitors on the Protease Activity
Each protease-producing isolate was cultivated in the liquid screening medium (screening media without agar), and incubated at 25°C with shaking of 200 rpm for 3 days. The culture was centrifuged at 12,000 rpm for 2 min to collect the supernatant (Chen et al., 2003), which was subsequently used to measure the protease activity as previously described (Chen et al., 2003). In brief, 1 ml of the supernatants were diluted with 1 ml of 2.0% (w/v) casein in 50 mM Tris-HCl (pH 8.0) and incubated with the same volume of 1.0 mM phenylmethylsulfonyl fluoride (PMSF, Sigma; serine protease inhibitor), 1.0 mM 1, 10-phenanthroline (OP, Sigma; metalloprotease inhibitor), 0.1 mM E-64 (Merk; cysteine protease inhibitor) and 0.1 mM pepstatin A (P-A, Sigma; aspartic protease inhibitor) at 40°C for 20 min. After incubation, the reaction was stopped by the addition of 2 ml of 0.4 M trichloroacetic acid and incubated at 40°C for 10 min. Then, 1 ml of supernatant was neutralized with 5 ml of 0.4 M sodium carbonate and incubated with 1 ml of Folin–Ciocalteu's reagent solution (Sigma) at 40°C for 20 min. Finally, the protease activity was separately measured at 660 nm for each sample (Chen et al., 2003; Zhou et al., 2009; Zhang et al., 2015). One unit of enzyme activity was defined as the formation of 1 μmole tyrosine in 1 min. The protease activity of the sample without any inhibitor, characterized by 100% degradation, was designated as the control. The inhibition ratio (%) was determined as the result of control activity (without any inhibitor) minus the relative activity of a sample (Zhou et al., 2009; Zhang et al., 2015).
Station Location and Sample Characteristics
All the sampled sediments had slight alkaline pH values, which varied from 8.15 to 8.28 (Table 1). The water depths ranged from 7.0 to 14.4 m. The contents of OrgC in the sediments ranged from 0.29 to 1.82% (w/w) and OrgN from 0.01 to 0.10% (w/w). The highest values for both OrgC and OrgN were observed in station S7. However, the highest C/N ratio (95.00) was found in station S13 and the lowest (14.13) was in station S22.
Quantification and Isolation of Protease-Producing Bacteria
Colonies with different colors, morphologies and sizes appeared on the screening plates inoculated with 10−1–10−4 dilutions after incubating at 25°C for 1–5 days. Colony counts in the plates indicated that the abundance of cultivated bacteria in each sample reached around 104 CFU (colony forming unit) per gram of sediment samples, and nearly 60% colonies exhibited formation of hydrolytic zones in all the samples. Although OrgC and OrgN contents varied among the stations, no obvious correlation between the abundance of protease-producing bacteria and OrgC/OrgN contents was observed. One hundred twenty-one hydrolytic colonies were finally selected for subsequent analysis.
Diversity of the Protease-Producing Bacteria Isolated from Sediments
The 16S rRNA gene sequences (>1,400 bp) obtained from all 121 isolates were classified into 17 genera (Table 1). Except for a single isolate (70409) from station S5 belonging to Salegentibacter in the phylum Bacteroidetes, and two isolates belonging to Micrococcus (70016 also from station S5) and Nocardioides (70071 from station S13) in the phylum of Actinobacteria, the rest of the isolates were classified to 14 genera within phyla Firmicutes and Proteobacteria. These include Bacillus, Jeotgalibacillus, Halobacillus, Planococcus, and Oceanobacillus in Firmicutes; and Pseudoalteromonas, Photobacterium, Halomonas, Rheinheimera, Alcanivorax, Celeribacter, Sulfitobacter, Marinobacter and Ruegeria in Proteobacteria. Bacillus (36.4%), Pseudoalteromonas (40.5%) and Photobacterium (5.8%) were the predominant genera while Jeotgalibacillus, Planococcus, Halomonas, Rheinheimera, Celeribacter, Salegentibacter, Micrococcus, Nocardioides, Alcanivorax and Sulfitobacter were represented only by one isolate each, in total (10 isolates) corresponding to 8.3% of the total isolates. Pseudoalteromonas was isolated in all stations but most dominant in stations S5, S8, and S16 (Table 1). Bacillus was found in 5 stations and dominated in S7, S22, and S26 (Table 1). Bacillus and Pseudoalteromonas were the most abundant groups (93/121), both accounting for 76.9% of the cultivated protease-producing bacteria in Laizhou Bay sediments. Furthermore, the protease-producing bacteria isolated from S26 belonged to 6 genera, which showed higher diversity than those isolated from other sites. Only three genera were identified from S8 and S16, representing the least diverse community among the samples (Table S1).
As shown in Table 1, out of the 49 Pseudoalteromonas isolates, 22 isolates from 5 stations formed Branch 1 in Figure 2 and Figure S1, with 100% sequence similarity with Pseudoalteromonas lipolytica LMEB39T, a strain isolated from seawater of Yangtze River estuary in China. Nine Pseudoalteromonas isolates (Branch 2 from 4 stations) (Figure 2 and Figure S2) clustered with Pseudoalteromonas spiralis Te-2-2T and Pseudoalteromonas tetraodonis IAM 14160T with 99.7~99.9% similarity. Twelve isolates (from two sites) on the other hand formed Branch 3 (Figure 2 and Figure S3) that was closest to Pseudoalteromonas hodoensis H7T and Pseudoalteromonas atlantica NBRC 103033T (99.0 ~ 100%). Three isolates (13-18, 16-1, and 16-6) were identical to Pseudoalteronomas shioyasakiensis SE3T, and strains 8-9 with Pseudoalteromonas marina mano4T. Among the seven Photobacterium isolates, except isolate 7-11 that shared high similarity with Photobacterium aquae AE6T, the other two clusters with four (13-4, 13-12, 13-13, and 13-16) and two (13-5, 13-20) isolates, respectively could be potential novel species, since they had low similarities (95.7–97.1% similarities aligned on EzTaxon website) with their closest related species Photobacterium jeanii R-40508T and Photobacterium aplysiae GMD509T, respectively (Figure 2). High diversity was detected among the 44 isolates of Bacillus (Table 1 and Figure 2) and most of them showed high similarities (>99%) in 16S rRNA gene sequences with known species. However, the branches included three isolates (8-17, 22-11, and 26-9) that showed low similarities (96.42–97.27%) with all recognized Bacillus species and may represent novel taxa needing further taxonomic studies (Figure 2). For the less abundant groups, all the isolates were highly similar or identical with the 16S rRNA gene sequences of some known or established species.
Shannon–Weiner (H′) index was highest in station S22 (1.14), followed by station S13 (1.12) and S7 (1.09) (Table 1). The lowest (0.66) was observed in station S16 where only three genera were found. The highest Simpson index (D) value (0.61) was found in stations S7 and S13, followed by stations S22 (0.58) and S5 (0.50). The lowest value (0.66) was observed in S16 (0.36). Pielou (J) ranged from 0.58 in the station S26 to 0.81 in S13. These results indicate that the diversity and composition of protease producing bacterial communities varied among different sampling sites (Table 1).
Diversity of the Extracellular Proteases Produced by the Bacteria
The diversity of bacterial extracellular proteases evaluated through inhibitor analyses are shown in Table 2. Out of the 121 isolates, only 62 produced enough proteases for enzymatic inhibition tests. PMSF inhibited all the protease activities of all 62 isolates but with varying levels ranging from 19.36 to 100%, indicating that all the isolates produced serine proteases but in different proportions. Furthermore, the enzyme activities of 11 isolates were inhibited by PMSF by more than 90%, indicating that they mainly or only produced serine protease. The enzyme activities of 27 isolates were inhibited by OP with an efficiency ranging from 21.12 to 66.37% and slight inhibition (2.5–19.04%) in 25 isolates, while no inhibitory effect was observed in 10 isolates, suggesting that most isolates produced metalloproteases. Meanwhile, 52 out of 62 (83.87%) isolates were inhibited by both PMSF and OP at different levels, illustrating that most isolates tested in this study produced serine proteases and metalloproteases. E-64 inhibited the proteolytic activities of 7 isolates by 12.14–65.11%, and PA inhibited 7 isolates with 12.91–34.5% success. These indicate that around 11% of the isolates produced cysteine and/or aspartic proteases. Therefore, nearly all the extracellular proteases excreted by the bacteria isolated from the sediment samples belonged to serine protease and/or metalloproteases, and only a small portion produced cysteine proteases or/and aspartic proteases.
Table 2. Summary of the diversity analysis of the extracellular proteases of the screened strains isolated from Laizhou Bay.
The protease diversity of all the bacteria isolated from Laizhou Bay sediments was also evaluated through their hydrolytic abilities (H/C ratio) against different types of proteins including casein, gelatin and elastin supplemented on solid media. As shown in Table 2 (also Table S2), most of the isolates formed apparent hydrolytic zones on the plates containing casein or gelatin, except 22-14, 70019, 70406, 70422, and 70423, which could not hydrolyze casein, and 7-6, 22-6, 70017, 70018, and 70334 that were not capable of hydrolyzing gelatin. Isolates belonging to Bacillus 22-21, Photobacterium (13-4) and Rheinheimera (16-9) showed high caseinolytic activity with H/C ratio greater than 5.0, and isolates of Bacillus (7-2, 7-3, 7-5, 7-7, 7-12, 8-17, 16-3, 16-10, 22-10, 22-11, 22-17, 22-21, 26-9, 26-10, 26-12, 26-17, and 26-18), Planococcus (26-20), Rheinheimera (16-9) and Pseudoalteromonas (16-4) exhibited strong gelatinolytic activity with H/C ratio greater than 5.0, in which the isolate 7-5 presented the highest H/C ratio 9.8 on gelatin plate. However, only 42 isolates (34.71% of the total isolates) possessed the ability to hydrolyze elastin. Bacillus isolates 26-12, 7-5, and 26-3 showed the highest elastinolytic activity with H/C ratio greater than 5.0. All elastinolytic isolates also showed caseinolytic and gelatinolytic activities, especially Bacillus strains 26-12 and 7-5 that actively degraded both elastin and gelatin. In general, the Bacillus isolates showed higher caseinolytic, gelatinolytic and elastinolytic activities than the other isolates from the other genera in this study. Furthermore, varied levels of degradation were observed among the isolates, even for isolates belonging to the same genus.
Protease-producing bacteria play essential roles in the decomposition and recycling of organic nitrogen in marine ecosystems but knowledge on their diversity information is rare, especially in China's coastal environments (Zhang et al., 2015). In this study, the phylogenetic diversity of cultivable protease-producing bacteria isolated from the sediments of Laizhou Bay, China, and the diversity of the extracellular proteases secreted by these bacteria were investigated.
This is the first report focused on protease-producing bacteria in Laizhou Bay, the most abundant of which was found to have 10−4 CFU g−1 in the seven sediment samples, which was similar to the community of protease producing bacteria isolated in Jiaozhou Bay (Zhang et al., 2015) but lower than the isolates from South China Sea (106 cells/g) and sub-Antarctic sediments (105 cells/g) (Zhou et al., 2009, 2013). The 121 isolates belonged to 17 genera from four phyla. Compared with previous studies (Zhou et al., 2009, 2013; Zhang et al., 2015), this is the first time that bacteria belonging to Jeotgalibacillus, Oceanobacillus, Sulfitobacter, Celeribacter, Ruegeria, Alcanivorax, Nocardioides, and Salegentibacter were reported to possess protease-producing abilities. Bacterial diversity has been rarely investigated in Laizhou Bay, and a recent investigation based on culture-independent pyrosequencing (FLX 454) method revealed extremely diverse communities in the sediments of Laizhou Bay (Wang et al., 2014). The authors identified at least 36 phyla with Proteobacteria (>40%) as the dominant phylum and Gammaproteobacteria as the dominant class. Gammaproteobacteria is an important class that has universal distribution in marine sediments (Polymenakou et al., 2005; Hunter et al., 2006; Xu et al., 2008). Similarly, in our study, Proteobacteria was the most abundant cultivable protease-producing bacterial phyla (54.7%) with Gammaproteobacteria as the dominating class (50.4%) (Table 1, Table S1, and Figure 2). This result is consistent with previous findings that Gammaproteobacteria was the predominant cultivable protease-producing bacteria in sediments, also reported in South China Sea, Jiaozhou Bay in China and sub-Antarctic samples (Olivera et al., 2007; Zhou et al., 2009; Zhang et al., 2015). This suggests that Gammaproteobacteria might be one the main protease-producing bacteria widely distributed in different marine environments. Phylogenetically, the 61 Gammaproteobacteria isolates were subdivided into different genera including Pseudoalteromonas, Photobacterium, Marinobacter, Halomonas, Alcanivorax, and Rheinheimera, in which Pseudoalteromonas (49 strains, accounting for 80.3% of all the Gammaproteobacteria strains) was dominant and widespread, being found in all seven samples.
Firmicutes was the second most abundant phylum, with Bacillus as the dominant genus (Table 1 and Figure 2). This was consistent with reports using culture-independent methods (Zhu et al., 2013), demonstrating that Firmicutes or Bacillus might play important roles in biodegradation of coastal sediments and warrant further studies. Furthermore, Bacillus strains are widely distributed and could easily adapt in terrestrial and coastal environments, with some presumed to have originated from terrestrial environments and became adapted to marine conditions. Consistent with this was the presence of protease-producing Bacillus being dominant in both Jiaozhou Bay and sub-Antarctic coastal sediment coastal sediment samples (Zhou et al., 2013; Zhang et al., 2015).
As a semi-enclosed bay, Laizhou Bay is a traditional area for aquaculture (e.g., fish, shrimp, trepan and crab). Bacillus could degrade wastes from these farms such as shrimp shell (Sorokulova et al., 2009), while Pseudoalteromonas and Photobacterium were reported to be associated with marine animals such as fish (Belchior and Vacca, 2006; Urbanczyk et al., 2011). The high proportions of Pseudoalteromonas and Bacillus in sediments of Laizhou Bay imply that they maybe interacting with marine animals or could also be degrading wastes from fisheries. In addition, they could regulate proliferation of other species through the production of inhibitory/antibiotic secondary metabolites, thus, also influencing the overall structure of the community (Bowman, 2007; Mondol et al., 2013).
Although species composition or abundance differed among sites, no significant correlations were detected between bacterial diversity indices or composition and the OrgC and OrgN levels or C/N ratios. However, abundance of the dominant protease-producing bacterial species seemed to vary with the depth of the sampling sites except in S8. For example, Bacillus was found to be more abundant in the shallower sampling sites (S7, S22, and S26) where the depth was less than 10.5 m but were not found in the deeper sites using high throughout sequencing (Zinger et al., 2011). The abundant Bacillus in the sediments of Laizhou Bay located near China's second longest river, the Yellow River's estuary, could have terrestrial origins (Zhang et al., 2015), and could partially explain why these bacteria were dominant in the shallow sea sediment samples. In contrast, Pseudoalteromonas only dominated in sediments deeper than 11.4 m, particularly from sites S5, S13, and S16 in this study. It seems that Pseudoalteromonas was more suitable to propagate in deeper environments.
Similar to studies in South China Sea (Zhou et al., 2009), sub-Antarctic coastal sediments (Zhou et al., 2013) and Jiaozhou Bay, China (Zhang et al., 2015), strains isolated in this study mainly produced serine and/or metallo-proteases. Also, among the three protein substrates tested in this study, elastin was the most insoluble due to its high molecular protein polymer, and thus the most difficult to degrade. This resulted to only a small portion of isolates exhibiting degradation activity. Although some isolates possessed identical 16S rRNA gene sequences, indicating same species such as isolates 26-4 and 26-19, 7-1, and 22-2 belonging to Bacillus or 8-10, 22-6, 22-14, and 26-21 belonging to Halobacillus, they still showed different levels of degradation activities for different substrates. Thus, the high enzymatic strain selection should not just select representative strains according to taxonomy but should include screening of each strain. Furthermore, the higher proteolytic activities for casein, gelatin and/or elastin of Bacillus isolates in this study differed from the protease-producing bacteria from those in South China Sea, which indicate that Bacillus isolates possess low protease-producing abilities (Zhou et al., 2009). Strains with different enzyme types (e.g., inhibited by different inhibitors such as E64, P-A) and possessing different specificity for substrates were observed in the same sample (Table 2 and Table S2) as suggested by Obayashi and Suzuki (2008), which may allow the bacterial community to more effectively hydrolyze diverse and complex organic nitrogen present in the sediments of Laizhou Bay.
In conclusion, this study investigated the community structure of the cultivable extracellular protease-producing bacteria and their protease types in sediments of Laizhou Bay. Bacillus, Pseudoalteromonas and Photobacterium dominated the communities with serine- and/or metallo-proteases as the major extracellular proteases secreted by these bacteria. In addition, most strains showed high activities in degrading casein and/or gelatin but only small proportion showed elastinolytic activity. As the first systematic study that investigated the protease-producing bacteria in Laizhou Bay even in Bohai Sea, our study provided new insights on protease-producing bacteria and their extracellular protease diversity. Furthermore, some candidate novel bacteria showed high protease degradation activities. This is also the first time that species belonging to Jeotgalibacillus, Oceanobacillus, Sulfitobacter, Celeribacter, Ruegeria, Alcanivorax, Nocardioides, and Salegentibacter were reported to possess proteolytic activities, implying that sediment bacteria may be a reservoir for novel proteases, as well as for novel bacteria.
YL responsible for setting all the experiment, bacterial isolation, enzyme activity test and prepare the manuscript. CW determined all the enzyme activities and ihibiton test. MZ isolated most of the bacteria isolates. EW revised the manuscript and produced constructive suggestions. ZZ and WL participate in part of the all experiment. JN depicted the figures for this paper. ZX responsible for the experiment setting and the funding support.
Conflict of Interest Statement
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
This work was financed by the Strategic Priority Research Program of the Chinese Academy of Sciences (Grant No. XDA11020403), the National Natural Science Foundation of China (31600009, 31370108 and 31570063), the Strategic Priority Research Program of the Chinese Academy of Sciences (Grant No. XDA11020403), the Key Research Program of the Chinese Academy of Sciences (Grant NO. KZZD-EW-14), One Hundred-Talent Plan of Chinese Academy of Sciences (CAS), and Shandong Independent Innovation and Achievement Transformation Program (2014ZZCX07303). EW was supported by the projects SIP 20150597 and 20160883 authorized by IPN, Mexico.
The Supplementary Material for this article can be found online at: https://www.frontiersin.org/article/10.3389/fmicb.2017.00405/full#supplementary-material
Belchior, S. G., and Vacca, G. (2006). Fish protein hydrolysis by a psychrotrophic marine bacterium isolated from the gut of hake (Merluccius hubbsi). Can. J. Microbiol. 52, 1266–1271. doi: 10.1139/w06-083
Brunnegård, J., Grandel, S., Ståhl, H., Tengberg, A., and Hall, P. O. (2004). Nitrogen cycling in deep-sea sediments of the Porcupine Abyssal Plain, NE Atlantic. Prog. Oceanogr. 63, 159–181. doi: 10.1016/j.pocean.2004.09.004
Chen, X. L., Zhang, Y. Z., Gao, P. J., and Luan, X. W. (2003). Two different proteases produced by a deep-sea psychrotrophic bacterial strain, Pseudoaltermonas sp. SM9913. Mar. Biol. 143, 989–993. doi: 10.1007/s00227-003-1128-2
Dang, H., Zhu, H., Wang, J., and Li, T. G. (2009). Extracellular hydrolytic enzyme screening of culturable heterotrophic bacteria from deep-sea sediments of the Southern Okinawa Trough. World J. Microbiol. Biotechnol. 25, 71–79. doi: 10.1007/s11274-008-9865-5
Engel, A. S., Porter, M. L., Stern, L. A., Quinlan, S., and Bennett, P. C. (2004). Bacterial diversity and ecosystem function of filamentous microbial mats from aphotic (cave) sulfidic springs dominated by chemolithoautotrophic “Epsilonproteobacteria”. FEMS Microbiol. Ecol. 51, 31–53. doi: 10.1016/j.femsec.2004.07.004
Hill, T. C., Walsh, K. A., Harris, J. A., and Moffett, B. F. (2003). Using ecological diversity measures with bacterial communities. FEMS Microbiol. Ecol. 43, 1–11. doi: 10.1111/j.1574-6941.2003.tb01040.x
Hunter, E. M., Mills, H. J., and Kostka, J. E. (2006). Microbial community diversity associated with carbon and nitrogen cycling in permeable shelf sediments. Appl. Environ. Microb. 72, 5689–5701. doi: 10.1128/AEM.03007-05
Jin, X., Shan, X., Li, X., Wang, J., Cui, Y., and Zuo, T. (2013). Long-term changes in the fishery ecosystem structure of Laizhou Bay, China. Sci. China Earth Sci. 56, 366–374. doi: 10.1007/s11430-012-4528-7
Lloyd, K. G., Schreiber, L., Petersen, D. G., Kjeldsen, K. U., Lever, M. A., Steen, A. D., et al. (2013). Predominant archaea in marine sediments degrade detrital proteins. Nature 496, 215–218. doi: 10.1038/nature12033
Mondol, M. A., Shin, H. J., and Islam, M. T. (2013). Diversity of secondary metabolites from marine bacillus species: chemistry and biological activity. Mar. Drugs 11, 2846–2872. doi: 10.3390/md11082846
Moore, E. K., Harvey, H. R., Faux, J. F., Goodlett, D. R., and Nunn, B. L. (2014). Electrophoretic extraction and proteomic characterization of proteins buried in marine sediments. Chromatography 1, 176–193. doi: 10.3390/chromatography1040176
Olivera, N. L., Sequeiros, C., and Nievas, M. L. (2007). Diversity and enzyme properties of protease-producing bacteria isolated from sub-Antarctic sediments of Isla de Los Estados, Argentina. Extremophiles 11, 517–526. doi: 10.1007/s00792-007-0064-3
Polymenakou, P. N., Bertilsson, S., Tselepides, A., and Stephanou, E. G. (2005). Bacterial community composition in different sediments from the Eastern Mediterranean Sea: a comparison of four 16S ribosomal DNA clone libraries. Microb. Ecol. 50, 447–462. doi: 10.1007/s00248-005-0005-6
Sorokulova, I., Krumnow, A., Globa, L., and Vodyanoy, V. (2009). Efficient decomposition of shrimp shell waste using Bacillus cereus and Exiguobacterium acetylicum. J. Indu. Microbiol. Biotechnol. 36, 1123–1126. doi: 10.1007/s10295-009-0587-y
Tamura, K., Peterson, D., Peterson, N., Stecher, G., Nei, M., and Kumar, S. (2011). MEGA5: molecular evolutionary genetics analysis using maximum likelihood, evolutionary distance, and maximum parsimony methods. Mol. Biol. Evol. 28, 2731–2739. doi: 10.1093/molbev/msr121
Wang, L., Zheng, B., Nan, B., and Hu, P. (2014). Diversity of bacterial community and detection of nirS-and nirK-encoding denitrifying bacteria in sandy intertidal sediments along Laizhou Bay of Bohai Sea, China. Mar. Pollut. Bull. 88, 215–223. doi: 10.1016/j.marpolbul.2014.09.002
Wang, X., Li, H., Jiao, J. J., Barry, D. A., Li, L., Luo, X., et al. (2015). Submarine fresh groundwater discharge into Laizhou Bay comparable to the Yellow River flux. Sci. Rep. U.K. 5:8814. doi: 10.1038/srep08814
Xu, H. X., Min, W., Wang, X. G., Yang, J. Y., and Wang, C. S. (2008). Bacterial diversity in deep-sea sediment from northeastern Pacific Ocean. Acta Ecol. Sin. 28, 479–485. doi: 10.1016/S1872-2032(08)60026-8
Zhang, R., Zhang, G., Zheng, Q., Tang, J., Chen, Y., Xu, W., et al. (2012). Occurrence and risks of antibiotics in the Laizhou Bay, China: impacts of river discharge. Ectox Environ. Safe 80, 208–215. doi: 10.1016/j.ecoenv.2012.03.002
Zhang, X. Y., Han, X. X., Chen, X. L., Dang, H. Y., Xie, B. B., Qin, Q. L., et al. (2015). Diversity of cultivable protease-producing bacteria in sediments of Jiaozhou Bay, China. Front. Microbiol. 6:1021. doi: 10.3389/fmicb.2015.01021
Zhao, H. L., Chen, X. L., Xie, B. B., Zhou, M. Y., Gao, X., Zhang, X. Y., et al. (2012). Elastolytic Mechanism of a Novel M23 Metalloprotease Pseudoalterin from Deep-sea Pseudoalteromonas sp. CF6-2 cleaving not only glycyl bonds in the hydrophobic regions but also peptide bonds in the hydrophilic regions involved in cross-linking. J. Biol. Chem. 287, 39710–39720. doi: 10.1074/jbc.M112.405076
Zhou, M. Y., Chen, X. L., Zhao, H. L., Dang, H. Y., Luan, X. W., Zhang, X. W., et al. (2009). Diversity of both the cultivable protease-producing bacteria and their extracellular proteases in the sediments of the South China Sea. Microb. Ecol. 58, 582–590. doi: 10.1007/s00248-009-9506-z
Zhou, M. Y., Wang, G. L., Li, D., Zhao, D. L., Qin, Q. L., Chen, X. L., et al. (2013). Diversity of both the cultivable protease-producing bacteria and bacterial extracellular proteases in the coastal sediments of King George Island, Antarctica. PLoS ONE 8:e79668. doi: 10.1371/journal.pone.0079668
Zhu, D. C., Tanabe, S. H., Yang, C., Zhang, W. M., and Sun, J. Z. (2013). Bacterial community composition of South China Sea sediments through pyrosequencing-based analysis of 16S rRNA genes. PLoS ONE 8:e78501. doi: 10.1371/journal.pone.0078501
Zinger, L., Amaral-Zettler, L. A., Fuhrman, J. A., Horner-Devine, M. C., Huse, S. M., Welch, D. B., et al. (2011). Global patterns of bacterial beta-diversity in seafloor and seawater ecosystems. PLoS ONE 6:e24570. doi: 10.1371/journal.pone.0024570
Keywords: protease-producing bacteria, diversity, Laizhou Bay, inhibition test, extracellular protease diversity
Citation: Li Y, Wu C, Zhou M, Wang ET, Zhang Z, Liu W, Ning J and Xie Z (2017) Diversity of Cultivable Protease-Producing Bacteria in Laizhou Bay Sediments, Bohai Sea, China. Front. Microbiol. 8:405. doi: 10.3389/fmicb.2017.00405
Received: 19 October 2016; Accepted: 27 February 2017;
Published: 16 March 2017.
Edited by:Hongyue Dang, Xiamen University, China
Reviewed by:Andrew Decker Steen, University of Tennessee, Knoxville, USA
David A. Dougan, La Trobe University, Australia
Ana Cristina Esteves, University of Aveiro, Portugal
Copyright © 2017 Li, Wu, Zhou, Wang, Zhang, Liu, Ning and Xie. This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) or licensor are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.
*Correspondence: Zhihong Xie, firstname.lastname@example.org
†These authors have contributed equally to this work.
