Hypothesis and Theory ARTICLE

Front. Microbiol., 30 June 2017 | https://doi.org/10.3389/fmicb.2017.01220

Engineering Strategies to Decode and Enhance the Genomes of Coral Symbionts

  • 1Centre for Marine Bio-Innovation, The University of New South Wales, Sydney, NSW, Australia
  • 2School of Biological, Earth and Environmental Sciences, The University of New South Wales, Sydney, NSW, Australia
  • 3Climate Change Cluster, University of Technology Sydney, Ultimo, NSW, Australia
  • 4Red Sea Research Center, Division of Biological and Environmental Science and Engineering (BESE), King Abdullah University of Science and Technology (KAUST), Thuwal, Saudi Arabia
  • 5Sydney Institute of Marine Science, Mosman, NSW, Australia
  • 6Australian Institute of Marine Science, Townsville, QLD, Australia
  • 7School of BioSciences, The University of Melbourne, Parkville, VIC, Australia

Elevated sea surface temperatures from a severe and prolonged El Niño event (2014–2016) fueled by climate change have resulted in mass coral bleaching (loss of dinoflagellate photosymbionts, Symbiodinium spp., from coral tissues) and subsequent coral mortality, devastating reefs worldwide. Genetic variation within and between Symbiodinium species strongly influences the bleaching tolerance of corals, thus recent papers have called for genetic engineering of Symbiodinium to elucidate the genetic basis of bleaching-relevant Symbiodinium traits. However, while Symbiodinium has been intensively studied for over 50 years, genetic transformation of Symbiodinium has seen little success likely due to the large evolutionary divergence between Symbiodinium and other model eukaryotes rendering standard transformation systems incompatible. Here, we integrate the growing wealth of Symbiodinium next-generation sequencing data to design tailored genetic engineering strategies. Specifically, we develop a testable expression construct model that incorporates endogenous Symbiodinium promoters, terminators, and genes of interest, as well as an internal ribosomal entry site from a Symbiodinium virus. Furthermore, we assess the potential for CRISPR/Cas9 genome editing through new analyses of the three currently available Symbiodinium genomes. Finally, we discuss how genetic engineering could be applied to enhance the stress tolerance of Symbiodinium, and in turn, coral reefs.

Introduction

Photosynthetic dinoflagellates are critical primary producers in the aquatic environment, yet, their functional genomics are largely unexplored (Leggat et al., 2011; Murray et al., 2016). Symbiodinium is considered one of the most important dinoflagellate genera given its role as the essential photosymbiont of many tropical reef invertebrates, notably reef-building corals (Trench and Blank, 1987). Provision of photosynthetically derived metabolites from Symbiodinium to the coral host drives coral calcification and growth that forms the foundation of coral reef ecosystems (Muscatine and Porter, 1977; Muscatine, 1990; Kirk and Weis, 2016). Thermal and light stress cause photosynthetic dysfunction of Symbiodinium and increased leakage of harmful reactive oxygen species from their cells, a process considered largely responsible for the dissociation of Symbiodinium from corals characterized as “coral bleaching” (Warner et al., 1999; Suggett et al., 2008; Weis, 2008; Levin et al., 2016). Symbiodinium has therefore become established as a major focus for research globally, and in effect, a model genus for dinoflagellates.

Dinoflagellates evolved an estimated 520 million years ago (Moldowan and Talyzina, 1998) and exhibit substantial evolutionary divergence from model eukaryotic organisms including other microalgae such as Chlamydomonas and diatoms (Shoguchi et al., 2013). Consequently, dinoflagellates possess unusual biological features that have hindered research progress, such as some of the largest known nuclear genomes (1.5–112 Gbp, typically exceeding the size of the human haploid genome), permanently condensed liquid-crystalline chromosomes, trans-splicing of polycistronic mRNAs, and plastid genomes that are divided up into minicircles (Shoguchi et al., 2013; Zhang et al., 2013; Lin et al., 2015; Murray et al., 2016). The Symbiodinium genus evolved an estimated 50 million years ago and is highly diverse, containing nine major evolutionary lineages or “clades” (A–I; Coffroth and Santos, 2005; Pochon et al., 2006; Pochon and Gates, 2010) with hundreds of genetically distinct “types/sub-clades” considered to be different species1 (Tonk et al., 2013). Genetic factors that promote differences in stress tolerance between Symbiodinium variants (both inter- and intra-specific) strongly influence coral gene expression and bleaching susceptibility (Berkelmans and van Oppen, 2006; DeSalvo et al., 2010; Yuyama et al., 2012; Levin et al., 2016). However, the capacity to fully explore Symbiodinium genetics is currently restricted by a lack of genetic engineering capability. Genetic engineering has been central to the study of gene function and phenotypic enhancement in organisms ranging from microbes to mammals and a key platform for socioeconomic industries and biotechnologies; yet only two cases of transgene expression in Symbiodinium have ever been validated (ten Lohuis and Miller, 1998; Ortiz-Matamoros et al., 2015a).

In 1998, a type A1 strain was transformed at very low efficiencies using silicon carbide whiskers with plasmids encoding expression constructs with plant, plant-viral, and agrobacterial promoters (nos, CaMV 35S, and p1′2′) to drive transcription of antibiotic resistance genes (nptII and hptII) and a reporter gene (GUS) (ten Lohuis and Miller, 1998); however, these results have yet to be reproduced. It was not until 2015 that another case of transgene expression in Symbiodinium was reported (Ortiz-Matamoros et al., 2015b). Plasmids encoding expression constructs with plant and plant-viral promoters (nos and double CaMV 35S) to drive transcription of a herbicide resistance gene (bar) and a reporter gene (GFP) were introduced to type A1, B1, and F1 strains using glass beads. Whilst cells transiently exhibited improved herbicide resistance and suggestive GFP signal, transformations were not validated through DNA, RNA, or protein analysis (Ortiz-Matamoros et al., 2015b). Further transformation of these strains was attempted using Agrobacterium carrying plasmids with the same expression constructs, but the transformants were transient and unable to divide (Ortiz-Matamoros et al., 2015a). Of these studies, none attempted manipulation of ecologically relevant genes thereby limiting new insight gained into Symbiodinium biology.

Therefore, in an attempt to overcome the bottleneck that has become established in transforming Symbiodinium (and other dinoflagellates), we recommend a new approach that capitalizes on the recent surge in “omics” breakthroughs (Figure 1). By evaluating the rapidly increasing supply of next-generation sequencing (NGS) data, we propose a genetic engineering framework for Symbiodinium that may markedly advance our understanding of these important dinoflagellates. Furthermore, genetic manipulation of Symbiodinium in order to reduce coral bleaching has been hypothesized as a strategy to facilitate coral management as reefs continue to rapidly deteriorate under climate change (van Oppen et al., 2017). Combatting the impacts of climate change and conserving marine organisms are both key goals for sustainable development set forth by the United Nations2. Thus, we believe genetic engineering of Symbiodinium may open a novel avenue to achieve these goals by protecting corals from climate change.

FIGURE 1
www.frontiersin.org

FIGURE 1. Breakthroughs in NGS of Symbiodinium. A timeline highlighting the key genomic (gray), transcriptomic (blue), and virus RNA (red) findings from recent NGS studies of Symbiodinium.

Tailoring a Genetic Engineering Framework for Symbiodinium

Fundamental components of Symbiodinium biology have recently been uncovered through a boom in NGS (Figure 1), particularly the assembly of the first Symbiodinium genomes and transcriptomes, direct correlation between Symbiodinium transcriptional and physiological states, and discovery of genes from viruses actively infecting Symbiodinium cells. Furthermore, NGS of Symbiodinium has revealed genetic elements that may allow for transformation of Symbiodinium. In the following sections, we detail how unique Symbiodinium promoters, specific Symbiodinium genes underpinning important phenotypes, and a viral internal ribosomal entry site recognized by Symbiodinium ribosomes could be integrated to build expression constructs for Symbiodinium.

Transcriptional Promoters and Terminators

Currently, dinoflagellate nuclear genome assemblies are all from the genus Symbiodinium (types A1, B1, and F1; Shoguchi et al., 2013; Lin et al., 2015; Aranda et al., 2016), emphasizing the importance of Symbiodinium to dinoflagellate research. The assemblies have revealed the immense size of Symbiodinium genomes with 36,850–49,109 genes, unidirectional gene orientation, prevalent gene tandem arrays, microRNAs along with putative gene targets, and unique promoter architecture (Shoguchi et al., 2013; Lin et al., 2015; Aranda et al., 2016). Rather than the traditional TATA-box of eukaryotic promoters, Symbiodinium promoters appear to have a TTTT-box that is followed by a unique transcription start site (YYANWYY), branch point (YTNAY), and acceptor for the dinoflagellate spliced leader (AG) (Lin et al., 2015). Additionally, instead of the typical eukaryotic polyadenylation signal AAUAAA, dinoflagellate terminators use AAAAG/C (Bachvaroff and Place, 2008). Hence, utilization of endogenous Symbiodinium promoters and terminators (as opposed to promoters and terminators from other organisms) would likely improve expression and stability of transgenes introduced into Symbiodinium. By chance, the CAMV 35S (plant-viral) promoter happens to contain all of the described Symbiodinium promoter elements, and the CAMV 35S (plant-viral) and nos (plant) terminators both contain the dinoflagellate polyadenylation signal; this may have contributed to their ability to drive transgene expression in Symbiodinium previously (ten Lohuis and Miller, 1998; Ortiz-Matamoros et al., 2015a).

Recent transcriptomic studies have identified highly expressed Symbiodinium nuclear genes that can be genome-mapped to uncover strong, endogenous promoters and their corresponding terminators. These promoters and terminators can be isolated from purified genomic DNA (gDNA) through PCR and incorporated into custom DNA expression constructs for Symbiodinium (Figure 2). Among the most highly expressed transcripts in Symbiodinium transcriptomes are genes for peridinin-chlorophyll a-binding protein, caroteno-chlorophyll a-c-binding protein, major basic nuclear protein 2, dinoflagellate viral nucleoprotein, and glyceraldehyde-3-phosphate dehydrogenase (Baumgarten et al., 2013; Levin et al., 2016; Parkinson et al., 2016); though all are multi-copy genes (Shoguchi et al., 2013; Lin et al., 2015; Aranda et al., 2016). Ideally, highly expressed nuclear genes chosen for promoter selection should not have high copy numbers, as their expression levels may largely be due to prevalence in the genome rather than strong promoters. Constitutively expressed nuclear genes are also desirable for selection of promoters that drive consistent transcription regardless of experimental conditions, and thus, drive reliable transgene expression.

FIGURE 2
www.frontiersin.org

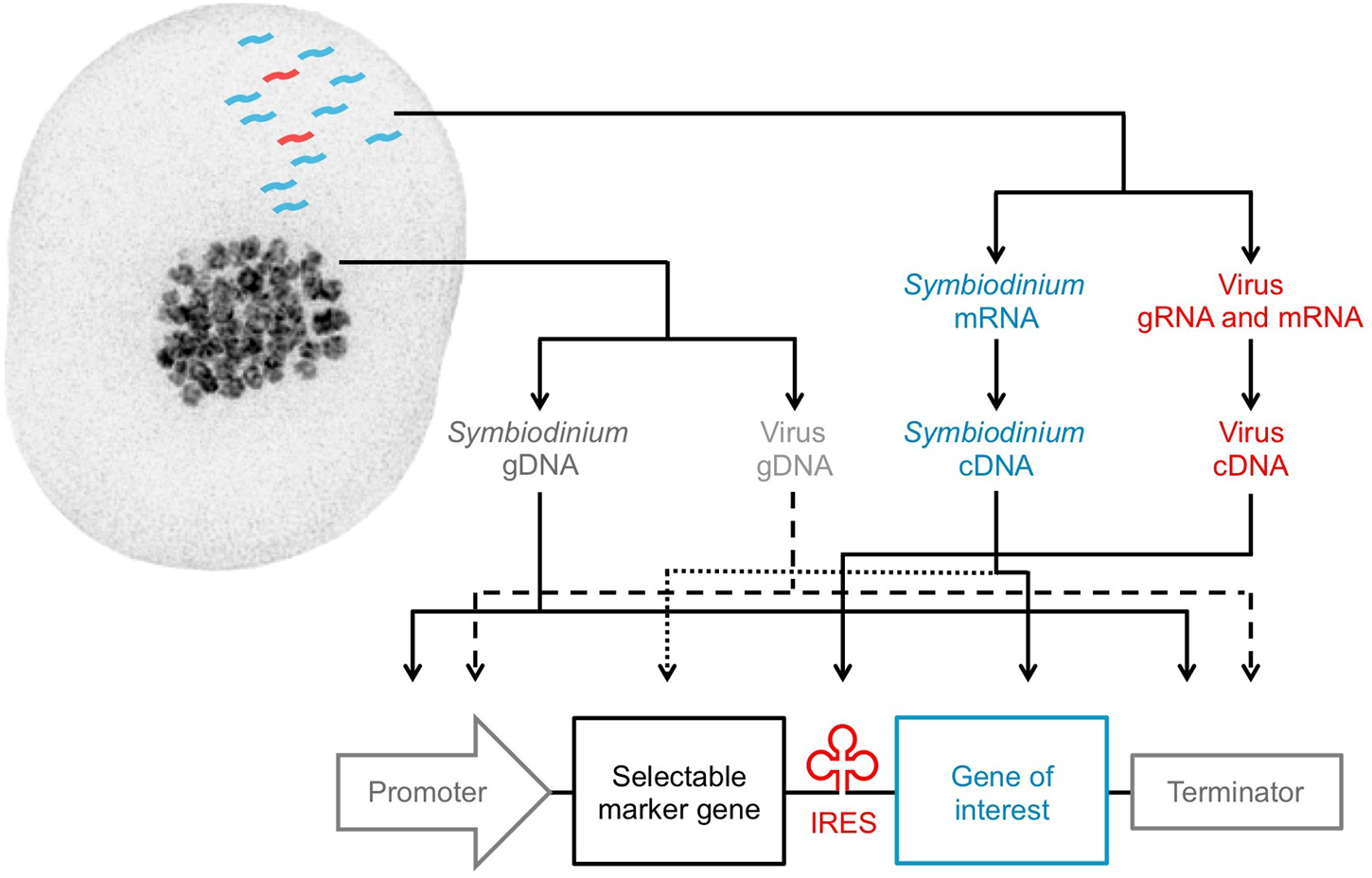

FIGURE 2. Design of a tailored expression construct for Symbiodinium. Genetic elements that can be isolated from Symbiodinium cells: Symbiodinium genomic DNA (dark gray), Symbiodinium messenger RNA (blue), resident virus genomic DNA (light gray), resident virus genomic or messenger RNA (red). Solid lines (identified elements) and dashed or dotted lines (unidentified elements) are used to arrange the elements into a Symbiodinium expression construct. The pictured Symbiodinium cell (type C1) was stained with DAPI for imaging on a DeltaVision OMX Blaze microscope (excitation/emission: 405 nm/419–465 nm).

To illustrate this approach of Symbiodinium promoter selection, we examined NGS data from a type A1 Symbiodinium strain for which the nuclear genome has been recently sequenced (Aranda et al., 2016) and the transcriptional responses to various conditions (temperatures, ionic stress, dark stress, and contrasting circadian rhythm time points) have been determined (Baumgarten et al., 2013). Locus 144 and Locus 1768 in the type A1 transcriptome, a subunit of a large neutral amino acids transporter and a putative ATP-binding cassette transporter gene, both show high expression across all conditions (average expression in the top 2% of all genes; Baumgarten et al., 2013) and map tightly to the type A1 genome scaffolds 710 and 484, respectively. No significant open reading frames are found >5 kb up- or down-stream of either gene, confirming that they are not part of tandem arrays. For each gene, all Symbiodinium promoter elements are within 1 kb of the start codon, and the dinoflagellate polyadenylation signal is found ∼300 bp after the stop codon. These promoter and terminator regions could therefore be isolated and utilized to drive high and consistent expression of transgenes in a Symbiodinium expression construct.

Genes of Interest

Recent transcriptomic studies have been fundamental in the discovery of Symbiodinium nuclear genes that underpin phenotypic traits, such as those related to cell adhesion (e.g., GspB, Svep1, Slap1; Xiang et al., 2015), sexual reproduction (e.g., Msh4, Msh5, Spo11-2; Chi et al., 2014; Levin et al., 2016; Gierz et al., 2017), antiviral response (e.g., Birc3, Ns1bp, Ifih1; Levin et al., 2017a), and antioxidant activity/thermal tolerance (e.g., Fe-sod, Mn-sod, Pxrd, Hsp70; Levin et al., 2016; Gierz et al., 2017). Symbiodinium antioxidant genes are of particular interests because of their potential role in defining bleaching susceptibility of the coral host (Krueger et al., 2015; Levin et al., 2016). For instance, iron-type superoxide dismutase (Fe-sod) genes are believed to minimize thermally induced oxidative damage to photosynthetic apparatuses and leakage of harmful reactive oxygen species from type C1 Symbiodinium cells—determinants of coral bleaching (Weis, 2008); however, these genes are not expressed at detectable levels in all Symbiodinium variants (Krueger et al., 2015; Levin et al., 2016). A Fe-sod gene could therefore be inserted after a strong Symbiodinium promoter in an expression construct to drive its over-expression for evaluation of its phenotypic influence on Symbiodinium. Endogenous genes of interest should be isolated through PCR of complementary DNA (cDNA) reverse transcribed from purified mRNA, since gDNA introns may prevent proper expression in constructs (Figure 2).

Expression of exogenous genes of interest in Symbiodinium could also greatly advance investigations of ecological processes central to coral reef health. For instance, documenting competition between Symbiodinium types, transmission and acquisition of Symbiodinium types by the coral host, and shuffling of Symbiodinium types within host tissues (Toller et al., 2001; van Oppen et al., 2001; Little et al., 2004; Berkelmans and van Oppen, 2006; Byler et al., 2013; Boulotte et al., 2016) is currently reliant upon sequencing since it is not possible to visually differentiate many types. As a result, studies have been restricted to low temporal and spatial resolution relative to real-time imaging. Instead, the ability to color-code Symbiodinium types through genetic transformation with various fluorescent proteins could illuminate these phenomena by enabling real-time imaging for visually differentiating types. Additionally, tagging endogenous genes of interest through fluorescent protein fusions would permit imaging of protein localization within Symbiodinium cells and potential protein secretion out of Symbiodinium cells (Xiang et al., 2015). When selecting appropriate fluorescent proteins, it will be imperative to consider the extreme autofluorescence of Symbiodinium (Shaner et al., 2005); for example, venus (excitation/emission: 515/528 nm), tdTomato (excitation/emission: 554/581 nm), and mCherry (excitation/emission: 587/610 nm) are promising candidates as their fluorescence properties are off-peak of the Symbiodinium excitation and emission spectra (Hennige et al., 2009; Jiang et al., 2012). Finally, codon optimization may be necessary for optimal exogenous gene expression in Symbiodinium since codon usage of Symbiodinium genes can be divergent from foreign genes (Levin et al., 2017a) and even between Symbiodinium nuclear and minicircle genes (Bayer et al., 2012).

Selectable Marker Genes

Although antibiotics have previously been used to select transformed Symbiodinium (ten Lohuis and Miller, 1998; Ortiz-Matamoros et al., 2015a), their use is problematic for two main reasons. Firstly, eliminating wild-type Symbiodinium in culture requires high concentrations of antibiotics (e.g., 3 mg/ml of G418 or hygromycin; ten Lohuis and Miller, 1998), making experimentation and long-term maintenance of transformed cell lines extremely costly. It is also important to note that natural antibiotic resistances are not uniform across all strains (Supplementary Table 1), so dosage curves are necessary before conducting transformation trials. Secondly, dinoflagellates including Symbiodinium require symbiotic bacteria to grow optimally (Alavi et al., 2001; Croft et al., 2005; Miller and Belas, 2006; Ritchie, 2012). Since eukaryotic antibiotics can also be toxic to prokaryotes (Gonzalez et al., 1978; Colanduoni and Villafranca, 1986; Pline et al., 2001; Vicens and Westhof, 2003), bacterial communities in Symbiodinium cultures are removed during antibiotic selection.

To preserve symbiotic bacteria, alternatives to antibiotic selection markers should be considered, such as genes that provide growth advantages under specific conditions by increasing pathogen resistance, increasing thermal tolerance, or allowing for utilization of non-metabolized carbohydrates (Breyer et al., 2014). The precise functions of these alternative marker genes (e.g., phosphomannose isomerase) are well defined and shown to be applicable to many photosynthetic species (Stoykova and Stoeva-Popova, 2011), though their compatibilities with dinoflagellates are unknown. Discovery of endogenous selectable markers should therefore also be pursued. Recent Symbiodinium transcriptomic studies have uncovered genes involved in selection-relevant phenotypes like photosynthetic ability at unique light regimes (Parkinson et al., 2016) or tolerance to increased temperature regimes (Levin et al., 2016). These Symbiodinium genes could first be expressed in more easily transformed microalgae like Chlamydomonas and diatoms to gauge the potential for their up-regulation to grant a significant selectable advantage under specific conditions.

Viral Elements

Viral promoters and terminators, internal ribosome entry sites (IRES), and 2A peptides are staple regulatory elements incorporated in expression constructs since they have evolved to be recognized by eukaryotic machinery for efficient and stable foreign gene expression (Benfey and Chua, 1990; Martínez-Salas, 1999; Levin et al., 2014). Symbiodinium transcriptomics have led to the discovery of genes, as well as an entire RNA genome, from novel eukaryotic viruses that infect Symbiodinium (Correa et al., 2013; Levin et al., 2017a). A putative viral IRES, which allows cap-independent translation to produce separate proteins from one mRNA transcript, was found between the two open reading frames in the RNA genome of the +ssRNA virus infecting type C1 Symbiodinium (GenBank accession: KX538960 and KX787934; Levin et al., 2017a). The +ssRNA virus transcripts were extremely abundant in a type C1 Symbiodinium transcriptome (Levin et al., 2017a), and such rampant +ssRNA virus replication indicates that Symbiodinium ribosomes have high affinity to this IRES.

IRES sequences enable the creation of polycistronic constructs transcriptionally controlled by a single promoter (Martínez-Salas, 1999). By permitting simultaneous expression of two independent proteins from one mRNA, a bicistronic construct can achieve long-term expression of a gene of interest because the gene of interest is transcriptionally fused to the selectable marker gene (Gurtu et al., 1996; Figure 2). Conversely, in monocistronic constructs, the selectable marker gene often maintains expression, while the gene of interest becomes transcriptionally repressed over time if it does not increase fitness of the cell (Allera-Moreau et al., 2007). Therefore, the IRES from the Symbiodinium +ssRNA virus is a valuable viral element that is recognized by Symbiodinium ribosomes and may improve the stability of transgene expression in Symbiodinium. Moving forward, NGS data of viruses in Symbiodinium cultures (Weynberg et al., 2017) and the coral holobiont (Weynberg et al., 2014; Correa et al., 2016) should be mined for promoter, terminator, and other regulatory elements from Symbiodinium viruses, given the proven benefits of viral elements to genetic engineering. Once assembled, the Symbiodinium expression construct (Figure 2) can be combined with the backbone of a standard cloning plasmid; added into an artificial, replicating minicircle (Nehlsen et al., 2006; Karas et al., 2015); or serve as a repair template for CRISPR/Cas9 genome editing (Cong et al., 2013).

Crispr/Cas9 Genome Editing and Symbiodinium

Within the past 5 years, CRISPR/Cas9 has revolutionized genome editing by allowing precise changes to be made to target sites in the genome (Cong et al., 2013; Baek et al., 2016; Nymark et al., 2016). In short, a single guide RNA (sgRNA) is designed to recruit the Cas9 endonuclease protein and to match a specific, desired target site in the genome that must be immediately followed by a protospacer adjacent motif (PAM) sequence (5′-NGG-3′). Once complexed with Cas9, the sgRNA guides Cas9 to the target genome site. Cas9 then interacts with the PAM sequence and creates a double-strand break in the target site. The cell can either repair the double stranded break through non-homologous end joining (NHEJ) or homology-directed repair (HDR) (Ran et al., 2013). NHEJ genome editing arises from introduction of a random mutation/insertion/deletion when the broken ends of DNA are directly ligated, which can cause the target gene to be knocked out (i.e., non-functional). Gene knockout provides insight into the role and criticality of a gene by assessing the effect of its absence. Alternatively, HDR genome editing uses a repair template flanked by 5′ and 3′ homologous arm sequences that match the up- and down-stream regions of the double-strand break. The repair template can be designed for gene knockout, introduction of a specific mutation/insertion/deletion, or genomic integration of a transgene(s)/entire expression construct (Ran et al., 2013).

Symbiodinium exhibits an asexual haploid vegetative stage (Santos and Coffroth, 2003) with sister chromatids developing in S-phase of the cell cycle (Watrin and Legagneux, 2003), but HDR has yet to be directly observed in Symbiodinium. Therefore, CRISPR/Cas9 genome editing of Symbiodinium may be restricted to NHEJ. Ku70, Ku80, and DNA ligase IV (genes central to NHEJ; Chu et al., 2015) are all expressed in Symbiodinium transcriptomes (Levin et al., 2016). That said, some evidence does suggest Symbiodinium can enter a transient sexual diploid stage (Chi et al., 2014; Wilkinson et al., 2015; Levin et al., 2016), which has been documented in other dinoflagellates (Figueroa et al., 2015). In yeast, ploidy shifts the dominant double-stranded break repair mechanism—diploid cells favor HDR, while haploid cells favor NHEJ (Lee et al., 1999). Moreover, genes specific to meiosis, a process during which HDR occurs (Thacker and Keeney, 2016), have been found in Symbiodinium genomes and transcriptomes (Chi et al., 2014; Lin et al., 2015; Rosic et al., 2015; Levin et al., 2016). Msh4, Msh5, and Spo11-2 are all highly up-regulated at elevated temperatures (Levin et al., 2016), suggesting that HDR pathways in Symbiodinium are activated. Brca2, a gene that controls HDR (Holloman, 2011), is likewise up-regulated in heat stressed Symbiodinium (SM population: TR74441| c0_g1; MI population: TR63986| c0_g1; Levin et al., 2016). Hence, the potential for genomic integration of transgenes through HDR may improve if Symbiodinium are pre-stressed. HDR in Symbiodinium may also be increased by suppression of Ku70, Ku80, or DNA ligase IV (Chu et al., 2015).

The permanently condensed chromosomes of Symbiodinium could present an obstacle for CRISPR/Cas9 genome editing by possibly limiting access of sgRNAs to certain target sites. An additional challenge for genome editing is the abundance of multi-copy genes in the large Symbiodinium genomes. Gene redundancy can prevent knockout of gene function since the CRISPR/Cas9 system is not 100% efficient, meaning uncleaved functional gene copies can remain. Additionally, CRISPR/Cas9 targeting of genes with high copy numbers has been found to decrease cell proliferation and survival likely due to an increased frequency of DNA damage events (Aguirre et al., 2016). Also, design of sgRNAs requires a sequenced genome, but only three Symbiodinium genomes—each from a separate evolutionary lineage—are currently available.

As a first step to overcome some of these limitations, we analyzed the three published Symbiodinium genomes (types A1, B1, and F1; Shoguchi et al., 2013; Lin et al., 2015; Aranda et al., 2016) to identify conserved single copy genes. We then predicted a target site in each conserved gene with high sgRNA efficiency and specificity across the genomes (Supplementary Materials and Methods). Conserved target sites may permit CRISPR/Cas9 genome editing of Symbiodinium types that have yet to be sequenced. Our analysis revealed 1792 conserved single copy orthologs, 261 of which have an optimal target site compatible with all genomes (Supplementary Dataset 1a). The 261 single copy orthologs for CRISPR/Cas9 genome editing were enriched for a wide array of functional gene groups of interest, including cellular components for photosynthesis and biological pathways for oxidation-reduction and for response to UV-B (Supplementary Figure 1 and Supplementary Tables 2–4). Knockout of these genes would critically improve our understanding of Symbiodinium gene function, and if HDR is present in Symbiodinium, these sgRNA target sites could also be used to introduce genes of interest or entire Symbiodinium expression constructs into the genome. Furthermore, we identified sgRNA target sites in the type A1 genome scaffolds 710 and 484 (Aranda et al., 2016) immediately downstream from the potentially strong, constitutive Symbiodinium promoters discussed earlier (Supplementary Dataset 1b). Assuming HDR, reporter genes such as fluorescent proteins could be introduced at these sites to measure promoter activity.

The CRISPR/Cas9 system can be carried by plasmids that contain expression constructs for the Cas9, sgRNA, and in the case of HDR, the repair template with homologous arms. Target site cleavage is improved by increased CRISPR/Cas9 construct expression (Hsu et al., 2013), so strong endogenous promoters and terminators from Symbiodinium discussed earlier could be employed to drive transcription of Cas9 by Symbiodinium. However, transcription of sgRNAs requires RNA polymerase III (Pol III) rather than RNA polymerase II. Therefore, promoters specifically recognized by Pol III (e.g., promoter of the U6 snRNA gene) are needed. Such promoters have been isolated from other eukaryotes for sgRNA transcription; but, as discussed earlier, they contain motifs (e.g., TATA-box) that Symbiodinium lack (Goomer and Kunkel, 1992; Clarke et al., 2013). In Symbiodinium, 26 U6 snRNA gene copies have been identified (see Supplementary Table 5 in Shoguchi et al., 2013), one of which is unusually located in a cluster with U1, U2, U4, U5, 5S, and spliced leader snRNA genes (type B1 genome scaffold 8131; Shoguchi et al., 2013). Thus, genomic sequences found upstream and downstream of these Symbiodinium U6 snRNA genes could be isolated and trialed in sgRNA expression constructs as potential promoters and terminators recognized by Symbiodinium Pol III. Alternatively, the CRISPR/Cas9 system can be introduced to cells as pre-complexed sgRNA and purified Cas9 protein, which can achieve higher genome editing specificity by ∼10-fold compared to CRISPR/Cas9 plasmids and also removes the need to optimize Cas9 codon usage or to find appropriate promoters that will express Cas9 or sgRNAs (Zuris et al., 2015).

Intracellular Delivery of Constructs and Complexes

Verified delivery of expression constructs into Symbiodinium was previously achieved using silicon carbide whiskers, which yielded very few transformants (ten Lohuis and Miller, 1998), and with Agrobacterium, which produced transient transformants that were unable to divide (Ortiz-Matamoros et al., 2015a). Low efficiency foreign DNA delivery may be due to obstruction by the thick, multilayer Symbiodinium cell covering comprised of an external polysaccharide or glycoprotein layer atop an internal cell wall (thecal plates and the pellicle) then finally the plasma membrane (Markell et al., 1992; Wakefield et al., 2000). To overcome this barrier, methods including high-voltage electroporation, bioballistics, microinjection, and viral transduction should be trialed. Continued exploration into Symbiodinium viruses may facilitate development of a compatible transduction system. Additionally, the first method to produce viable Symbiodinium protoplasts (cells with their cell wall removed) was developed (Levin et al., 2017b). Protoplasts have been instrumental in genetic manipulation of cell-walled organisms through somatic hybridization as well as by allowing for alternate DNA delivery methods (Davey et al., 2005). Protoplast-dependent methods such as polyethylene glycol-mediated transformation (Mathur and Koncz, 1998) and liposome-mediated transformation (Caboche, 1990) may improve efficiency of construct delivery into Symbiodinium. Cell walls also serve as a barrier to RNA/protein complexes like pre-complexed sgRNA and Cas9 protein. Thus, genome editing of Symbiodinium with pre-complexed sgRNA and Cas9 protein may require the use of protoplasts (Woo et al., 2015). Polyethylene glycol-mediated transformation (Woo et al., 2015), cationic lipid transformation (Zuris et al., 2015), and electroporation (Baek et al., 2016) have all been used to effectively deliver pre-complexed sgRNA and Cas9 protein through cell membranes of other eukaryotes that lacked cell walls.

Can We Reduce Coral Bleaching with Genetically Enhanced Symbiodinium?

Coral reefs are the most diverse marine habitat per unit area (Reaka-Kudla et al., 1996; Knowlton et al., 2010) and provide world economies with nearly US$30 billion in net benefits from goods and services annually (Cesar et al., 2003). Climate change impact models predict that most reefs will be severely damaged or lost in this century unless immediate protection efforts are made (Hoegh-Guldberg et al., 2007; Pandolfi et al., 2011; Mora et al., 2016; Hughes et al., 2017) prompting calls for the development of novel mitigation and restoration approaches (Rinkevich, 2014; van Oppen et al., 2015, 2017; Piaggio et al., 2016). Exceptional genetic variability naturally exists within the genus Symbiodinium, suggesting that seeding vulnerable corals with more climate-change tolerant Symbiodinium variants could provide a means to reduce bleaching susceptibility of corals (van Oppen et al., 2015). Although, uptake of non-native Symbiodinium variants by corals may not be widely achievable since many coral species only associate with specific Symbiodinium types (LaJeunesse et al., 2004). Furthermore, shifts from innately less stress tolerant Symbiodinium types to more stress tolerant Symbiodinium types (e.g., from type C2 to D) can have negative impacts on a number of coral fitness traits including growth and fecundity (Little et al., 2004; Jones and Berkelmans, 2011).

Environmental bioengineering is an alternative strategy to safeguard against climate change (Solé, 2015; Piaggio et al., 2016). Microalgae, such as Symbiodinium, are clear and promising candidates for genetic engineering with the aim of regaining and preserving ecosystem-climate homeostasis (Solé, 2015) because they can significantly influence the health of entire ecosystems (Berkelmans and van Oppen, 2006; Kirk and Weis, 2016; Murray et al., 2016). Genetic engineering to increase stress tolerance of the Symbiodinium variants that are naturally harbored by at-risk corals holds potential to reduce bleaching susceptibility without negatively impacting the fitness of the coral host since existing Symbiodinium-coral partnerships would be preserved. Fe-sod, Mn-sod Prxd, and Hsp70 genes from Symbiodinium (Levin et al., 2016; Gierz et al., 2017; Goyen et al., 2017) are standout candidates whose engineered up-regulation may enhance thermal and bleaching tolerance by reducing heat-induced oxidative damage, but thorough evaluation of how this artificial up-regulation contributes to long term fitness and the Symbiodinium-coral symbiosis would be mandatory.

Application of genetic engineering to support environmental management practices has been gaining momentum. Notably, sterile male mosquitoes have been engineered to control mosquito-borne diseases (Gabrieli et al., 2014). Field releases of the sterile males significantly reduced wild mosquito populations, supporting their value to disease control (Harris et al., 2012). Similarly, fungus-resistance has been engineered in American chestnut trees in order to restore the natural population that was nearly eradicated from the spread of a foreign fungus. Introduction of these transgenic trees into the wild may receive federal approval in just the next few years, which would make them the first threatened plant species to be restored through genetic engineering (Jacobs et al., 2013; Powell, 2014).

Considering the great promise shown by genetic engineering-based approaches to promote environmental health (Jacobs et al., 2013; Powell, 2014) and human health (Paine et al., 2005; Harris et al., 2012; Gabrieli et al., 2014), as well as to sustain food security (Schroeder et al., 2013), it is logical for genetic engineering to be proposed as an important component of the growing repertoire of forward-looking coral reef management approaches (van Oppen et al., 2015; Piaggio et al., 2016). Due to the urgent need to protect coral reefs from climate change, the Symbiodinium research community must commit to an all-hands-on-deck attitude to achieve and extensively test genetic enhancement of Symbiodinium and other novel reef restoration strategies in the laboratory setting. In parallel, comprehensive cost-benefit-risk evaluation of the potential ecological and socioeconomic impacts from implementation of such strategies in the natural environment must be exhaustive before field-based trials are initiated. Additionally, transparent dialogs with policy makers, coral reef managers, and the general public need to be initiated now to begin the process of education and public acceptance of genetic engineering approaches for coral reef mitigation and restoration.

As we have discussed here, recent NGS breakthroughs have revealed natural genetic elements of Symbiodinium and their viruses (Figure 1). Based on these discoveries, we have developed a tailored genetic engineering framework for Symbiodinium based on empirical data that may also be applicable to other dinoflagellate genera. In doing so, we have opened a new prospective avenue to decode Symbiodinium functional genomics that may ultimately allow for engineering increased stress tolerance of Symbiodinium to reduce coral bleaching.

Author Contributions

RL conceived the manuscript concept, analyzed NGS data, and wrote the manuscript. CRV analyzed NGS data and critically edited the theory and writing of the manuscript. SA analyzed NGS data. PS, DS, and MvO critically edited the theory and writing of the manuscript.

Funding

Funding from the University of New South Wales and King Abdullah University of Science and Technology (KAUST) supported the analyses presented here.

Conflict of Interest Statement

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

The reviewer AWL declared a shared affiliation, though no other collaboration, with one of the authors DS to the handling Editor, who ensured that the process nevertheless met the standards of a fair and objective review.

Acknowledgments

We thank the Aranda and Voolstra lab for providing the type A1 (Symbiodinium microadriaticum) genome prior to its publication.

Supplementary Material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/article/10.3389/fmicb.2017.01220/full#supplementary-material
