ORIGINAL RESEARCH article
Volume 9 - 2018 | https://doi.org/10.3389/fmicb.2018.00457
Transmission of Turnip yellows virus by Myzus persicae Is Reduced by Feeding Aphids on Double-Stranded RNA Targeting the Ephrin Receptor Protein
- 1SVQV, Université de Strasbourg, Institut National de la Recherche Agronomique, Colmar, France
- 2Department of Plant Protection, Shiraz University, Shiraz, Iran
Aphid-transmitted plant viruses are a threat for major crops causing massive economic loss worldwide. Members in the Luteoviridae family are transmitted by aphids in a circulative and non-replicative mode. Virions are acquired by aphids when ingesting sap from infected plants and are transported through the gut and the accessory salivary gland (ASG) cells by a transcytosis mechanism relying on virus-specific receptors largely unknown. Once released into the salivary canal, virions are inoculated to plants, together with saliva, during a subsequent feeding. In this paper, we bring in vivo evidence that the membrane-bound Ephrin receptor (Eph) is a novel aphid protein involved in the transmission of the Turnip yellows virus (TuYV, Polerovirus genus, Luteoviridae family) by Myzus persicae. The minor capsid protein of TuYV, essential for aphid transmission, was able to bind the external domain of Eph in yeast. Feeding M. persicae on in planta- or in vitro-synthesized dsRNA targeting Eph-mRNA (dsRNAEph) did not affect aphid feeding behavior but reduced accumulation of TuYV genomes in the aphid's body. Consequently, TuYV transmission efficiency by the dsRNAEph-treated aphids was reproducibly inhibited and we brought evidence that Eph is likely involved in intestinal uptake of the virion. The inhibition of virus uptake after dsRNAEph acquisition was also observed for two other poleroviruses transmitted by M. persicae, suggesting a broader role of Eph in polerovirus transmission. Finally, dsRNAEph acquisition by aphids did not affect nymph production. These results pave the way toward an ecologically safe alternative of insecticide treatments that are used to lower aphid populations and reduce polerovirus damages.
To circumvent plant immobility, and escape before the plant dies, the majority of plant viruses rely on mobile vectors for their dissemination. Among these vectors, phloem-feeding aphids are by far the most prevalent vectors that can transmit almost half of the insect-borne plant viruses (Hogenhout et al., 2008; Dedryver et al., 2010). Different modes of virus transmission have been described. The non-persistent and non-circulative mode of transmission relies on a transient and brief retention of virions at specific sites in the vector's mouthparts, or in close proximity. In contrast, the persistent, circulative and non-propagative mode of transmission requires endocytosis of virions into aphid cells (Ng and Falk, 2006; Hogenhout et al., 2008; Ammar el et al., 2009; Blanc et al., 2014; Gray et al., 2014; Drucker and Then, 2015; Whitfield et al., 2015). In the latter mode of transmission, viruses may persist in the aphid's body during the whole insect life with (propagative mode) or without (non-propagative mode) replication.
Members of the Luteoviridae family (referred to as luteovirids) are single-stranded RNA positive strand viruses, phloem-limited and strictly transmitted by aphids in a circulative, persistent, and non-propagative mode (Gildow, 1999; Gray and Gildow, 2003; Brault et al., 2007). Luteovirid transmission is highly specific because each virus species is usually transmitted efficiently by only one or a few aphid species (Herrbach, 1999). Luteovirid particles are acquired during the prolonged sap ingestion by aphids while feeding on infected plants. Virions are then transported through the gut cells via a transcytosis mechanism that is thought to be initiated by clathrin-mediated endocytosis (Gildow, 1999; Brault et al., 2007). Virus uptake into intestinal cells occurs either at the posterior midgut, the hindgut or both, depending on the virus species (Brault et al., 2007). Once released into the hemocoel, virions may be protected from degradation by binding to symbionin, an endosymbiotic protein, but this interaction, as well as its implication in luteovirid transmission, remains controversial (van den Heuvel et al., 1994, 1997; Filichkin et al., 1997; Liu et al., 2009; Bouvaine et al., 2011; Cilia et al., 2011). From there, luteovirid particles reach the accessory salivary glands (ASG) and are transported through the ASG cells by a transcytosis mechanism before being released into the salivary canal (Brault et al., 2007). These transcytosis events are suspected to rely on the presence of membrane virus-specific receptors at the gut and ASG levels. The apical plasmalemma of the intestinal cells together with the basal lamina and the basal plasmalemma of the ASG cells have been identified as luteovirid transmission barriers in aphids suggesting that specific interactions between virus structural proteins and cellular partners must exist at these locations to allow virus transmission (Gildow, 1999).
Luteovirid capsids are composed of two structural viral proteins namely the major coat protein (CP of about 22 kDa) and the minor capsid protein (readthrough protein or RT* of about 55 kDa) which is not required for virus particle assembly. Both proteins are involved in aphid transmission. Some mutations in the CP sequence of luteovirids affected aphid transmission without impacting virion formation (Torrance, 1992; Brault et al., 2003; Kaplan et al., 2007; Doumayrou et al., 2016). Point mutations or deletions in the RT* are deleterious for efficient transport of virions through the gut cells (Gildow et al., 2000; Reinbold et al., 2001) and for virus uptake into the ASG cells (Brault et al., 1995, 2000; Chay et al., 1996; Bruyère et al., 1997; Peter et al., 2008). Moreover, RT* is responsible for luteovirid vector specificity (Brault et al., 2005).
Identifying luteovirid cellular partners, and in particular virus receptors in aphids, is a major challenge that could ultimately result in the development of innovative technologies aimed at inhibiting virus transmission. Up to now only insecticide treatments and aphid- or virus-tolerant or -resistant plants can be deployed to control luteovirid diseases (Walkey and Pink, 1990; Dogimont et al., 1996; Barker and Waterhouse, 1999; Dreyer et al., 2001). The gut membrane protein alanyl aminopeptidase N (APN), was identified previously as a potential receptor of pea enation mosaic virus (PEMV, Enamovirus genus, Luteoviridae family) in the aphid species A. pisum using an array of in vitro-based techniques and insect cells experiments (Linz et al., 2015). APN was isolated from a phage display peptide screen and evidence of its role in PEMV transmission by A. pisum was provided by competition experiments between the virus and a peptide potentially mimicking the viral determinant binding to the aphid receptor (Liu et al., 2010). Other aphid proteins exhibiting the ability to bind purified luteovirids in vitro have been reported but their precise role in virus transmission has not been identified. This includes several proteins extracted from Myzus persicae or heads of Sitobion avenae which exhibited the capacity to bind to virions of Turnip yellows virus (TuYV), previously designated Beet western yellows virus (Seddas et al., 2004), or of Barley yellow dwarf virus (BYDV) (Li et al., 2001). Another uncharacterized protein located in the ASG cells of S. avenae and Schizaphis graminum has also been suspected to be involved in luteovirid transmission, as acquisition of antibodies directed against this protein together with BYDV greatly reduced virus transmissibility (Wang and Zhou, 2003). Finally, by coupling quantitative proteomics with aphid genetics, several proteins from S. graminum, including a luciferase and a cyclophilin-like protein, were associated with the ability to transmit Cereal yellow dwarf virus (CYDV) (Yang et al., 2008). Subsequently, differential gel electrophoresis (DIGE) coupled to mass spectrometry on an F2 population originating from a cross between vector and non-vector biotypes of S. graminum exhibiting different barriers to transmission of CYDV-RPV (gut or ASG) revealed eight proteins under-represented in genotypes with a strong gut barrier (Cilia et al., 2011). Genetics studies of BYDV and CYDV transmission by aphids inferred that transmission capacity is a multigenic trait with some of the aphid genes being shared by the two viruses and some others being specific for one virus species (Papura et al., 2002; Dedryver et al., 2005; Burrows et al., 2006, 2007). Importantly, the aphid proteins predicted to function at specific transmission barriers were expressed as two isoforms with distinct charges (Papura et al., 2002; Cilia et al., 2011). Although the aforementioned studies have identified potential luteovirid partners in aphids, they did not link these proteins to the virus aphid-transmission phenotype.
We performed a yeast two-hybrid screen of a total M. persicae cDNA library to identify interactions between aphid cellular components and the structural proteins of the Cucurbit aphid borne yellows virus (CABYV) (Polerovirus genus, Luteoviridae family), which is transmitted efficiently by M. persicae. The membrane ephrin receptor (Eph) was identified as a potential binding partner of the RT*s of CABYV and TuYV, another polerovirus efficiently transmitted by this aphid species. Functional validation tests were conducted with TuYV in M. persicae using techniques based on RNA interference. Feeding aphids on various sources of dsRNA targeting Eph-mRNA resulted in reduced internalization of TuYV genomes into the aphid's body and reduced transmission of TuYV, without affecting aphid's fitness. Taken together, these results implicate Eph in the transmission process of TuYV and suggest involvement of this protein in transmission of other poleroviruses by M. persicae.
Materials and Methods
Aphid Library Construction
Total RNA was isolated from 35 mg of all instars of M. persicae using the RNeasy Plant Mini Kit (Qiagen) following the RNeasy Fibrous Tissue Mini Kit protocol. The purification of poly A+ RNA from total RNA was performed with the Oligotex™ mRNA Mini Kit (Qiagen) following the Batch protocol. The reverse transcription was performed starting from 1 μg of mRNA using an Oligo(dT)20 primer with an adaptor extension and following the MMLV High Performance Reverse Transcriptase procedure (EPICENTRE® BIOtechnologies). The protocol was modified by the addition of a template switching primer (adaptor) after 30 min of incubation for a 3′ cDNA extension (Table S1). The cDNA molecules were amplified using a single adaptor primer with the GoldStar® DNA polymerase (Eurogentec). The cycles were as follows: 95°C 1 min, 95°C 15 s, 65°C 20 s, 72°C 3 min (23 cycles), and 65°C 20 s, 72°C 6 min. The cDNA fragments were further purified with QIAquick PCR Purification Kit (QIAGEN) and subjected to an over-night digestion at 50°C with the restriction enzyme SfiI. Alongside, the pGADT7 vector (Clontech) was modified by the introduction of SfiI sites using a specific pair of complementary oligonucleotides with NcoI and EcoRI sites (Table S1) leading to pGADT7-SfiI. This plasmid was digested with SfiI before being dephosphorylated using the Thermosensitive Alkaline Phosphatase (Promega). A short run electrophoresis of SfiI-cDNA digestion products was performed on low melting point agarose gel to collect the DNA fragments above 400 bp. DNA fragments were recovered after hot-phenol extraction and DNA precipitation. Insert ligation into pGADT7-SfiI was performed at 16°C for 8 h with a molar ratio vector:insert of 1:30. The ligation mixture was further introduced by electroporation into Escherichia coli XL10-Gold Ultracompetent Cells (Stratagene, Agilent Technologies). After streaking the bacteria on LB agar containing ampicillin for 19 h at 37°C, colonies were collected in liquid LB medium complemented with glycerol solution (25% final) and stored at −80°C. The cDNA library was then amplified by inoculating 100 ml of LB containing ampicillin with an aliquot of the glycerol stock and cultivating the bacteria for 3 h at 37°C. Plasmids were then purified using QIAfilter Plasmid Maxi Kit (QIAGEN) and used in the yeast two hybrid screen.
Viral Constructs for the Yeast Two Hybrid Screen
The major (CP) and the minor (RT*) capsid proteins of TuYV (NC_003743) and CABYV (NC_003688) were used in the yeast two hybrid experiments. The CP sequences of TuYV and CABYV were amplified by PCR (Expand High Fidelity PCR System, Roche Applied Science) using appropriate primers (Table S1) from the full-length viral sequences described in Veidt et al. (1992) and Guilley et al. (1994). To clone the RT* sequence of TuYV and CABYV, two overlapping mutagenic oligonucleotides were used in the PCR reaction together with external primers (Table S1) to replace the CP-stop codon by a tyrosine codon in the TuYV and CABYV sequences. The 5′-terminal nucleotide of TuYV- and CABYV-RT* sequence was positioned, respectively, at nt 4793 and nt 4896 on the viral genomes. After digestion with the appropriate restriction enzymes (Promega), CP and RT* from CABYV were purified on column (MSB® Spin PCRapace, Invitek GmbH) and cloned downstream the GAL4 DNA binding domain (BD) into the pGBKT7 vector (Clontech). The CP sequence from CABYV was also introduced downstream the GAL4 activation domain (AD) into the pGADT7 vector (Clontech). In addition, CP, RT* from CABYV together with CP and RT* from TuYV were introduced into pLexA-N vector downstream the LexA binding domain (Dualsystems Biotech). Ligations were performed overnight at 16°C in a 10 μL final volume using a molar ratio vector:insert of 1:5 with the T4 DNA Ligase from Promega. Ligation products were introduced by heat-shock into E. coli XL10-Gold competent cells.
The recombinant constructs were referred to as pGBKT7-CPCA, pGADT7-CPCA, pGBKT7-, pLexAN-CPCA, pLexAN-, pLexAN-CPTu, and pLexAN-. The pGBKT7-derived plasmids were introduced into the Y2HGold yeast strain and the pLexAN-derived plasmids were introduced into the NMY51 yeast strain. Y2HGold and NMY51 yeast strains contain the reporter genes HIS3 and ADE2.
Yeast Two Hybrid Assays
The M. persicae cDNA library was screened against the baits following the procedures described in the DUALhunter kit user manual (Dualsystems Biotech). The colonies were plated onto a stringent medium lacking leucine, tryptophan, histidine, and adenine [-LWHA] and cultivated at 28°C for 3–14 days. The colonies developing on the [-LWHA] medium were selected and the recombinant pGADT7 plasmid containing the aphid cDNA was recovered following a yeast DNA extraction method. Briefly, yeast cells from a 2 ml overnight culture were suspended in 100 μl of a buffer (67 mM Potassium Phosphate, pH 7.5) containing 50 units of Lyticase (L2524, Sigma-Aldrich) and incubated 1 h at 37°C before proceeding with the common alkaline lysis E. coli plasmid purification. Recombinant plasmids were introduced into E. coli to obtain a sufficient amount of plasmids for sequencing.
Aphid Acquisition of dsRNA From Transgenic A. thaliana and From in Vitro-Synthesized dsRNA
Arabidopsis thaliana expressing a hairpin RNA targeting Eph or LacZ as a control (Ara:Hp-Eph and Ara:Hp-LacZ) were described in Mulot et al. (2016) and were grown in an environment-controlled chamber at 23°C day and 20°C night with a 10 h photoperiod as well as Col-0 non-transformed plants. In vitro-synthesized dsRNA targeting Eph or LacZ (dsRNAEph and dsRNALacZ) were obtained as described previously in Mulot et al. (2016).
M. persicae (Sulzer) colonies were reared on pepper (Capsicum annuum) at 20°C with a 16 h photoperiod. Aphids were fed on transgenic A. thaliana or artificially on in vitro-synthesized dsRNA as described in Mulot et al. (2016) except that the acquisition time on the artificial medium containing the dsRNA was extended to 5 days in some experiments and the final dsRNA concentration in the feeding medium was set up to 400 ng/μl in all experiments. When a 5-day acquisition period was performed, the dsRNA-containing medium was replaced after 3 days by a fresh medium containing the dsRNA.
Virus Transmission by M. persicae
In the virus transmission experiments, aphids previously fed for 10 days on transgenic A. thaliana (Ara:Hp-Eph or Ara:Hp-LacZ) were transferred for 24 h on purified TuYV prepared as described in Van den Heuvel et al. (1991). The viral concentration was set up at 25 μg/ml in the artificial diet (Bruyère et al., 1997). Aphids fed artificially on dsRNA were either transferred onto purified virus (same set-up as described above) or on TuYV-infected M. perfoliata inoculated by agroinfiltration as described in Hipper et al. (2014). After a 24 h acquisition access period of the virus, two potentially viruliferous aphids were transferred on Col-0 test plants for 72 h. After this inoculation access period, some aphids were collected for further analysis (see below) while the remaining aphids were eliminated by an insecticide treatment. The plants were tested by DAS-ELISA 3 weeks later using virus-specific antibodies as described in Bruyère et al. (1997). In this assay, samples from several young leaves were collected on each plant and pooled before grinding.
Eph-mRNA and Viral RNA Accumulation Analysis in Aphids by Real-Time Reverse Transcription Polymerase Chain Reaction (qRT-PCR)
Total RNA was extracted from whole M. persicae (20 aphids per sample) as described in Mulot et al. (2016). Total RNA was also extracted from 100 dissected guts using the RNeasy Plant Mini Kit (QIAGEN) as described in Mulot et al. (2016) or alternatively from 35 dissected guts using NucleoSpin® RNA XS (Macherey-Nagel). To evaluate Eph-mRNA accumulation, qRT-PCR was performed as in Mulot et al. (2016). As mentioned in Mulot et al. (2016), the relative expression levels were normalized to Rpl7 and L27. To determine the copy number of TuYV genomes internalized into M. persicae, total RNA was extracted from whole aphids after transferring them for 3 days on non-infected Col-0 (inoculation access period or IAP) to clear the gut lumen. The viral RNA was converted into cDNA using the reverse primer BPqtR1 and the M-MLV reverse transcriptase kit (Promega). The forward primer BPqtF0 and the reverse primer BPqtR1 (Table S1) were used to amplify by real-time PCR (qRT-PCR) the cDNA corresponding to nts 3694–3830 on TuYV genomic sequence (accession number NC_003743) using the same set-up as described in Mulot et al. (2016). Alongside, viral RNA genomes were extracted from purified virions using the RNeasy Plant Mini Kit (QIAGEN). After quantification at 260 nm (Nanodrop 2000; Thermo Fischer Scientific), the viral RNA was converted to cDNA as described above. Dilution series of 109 to 104 viral cDNA copies obtained from RNA extracted from purified virions were used to calibrate the CFX cycler and comparison between calibrate standard Ct values and samples Ct values provided an absolute quantification of TuYV genomes.
Aphid Fecundity and Feeding Behavior Tests
Aphid fecundity after feeding on transgenic A. thaliana (Ara:Hp-Eph or Ara:Hp-LacZ) was assessed by depositing individual fourth instars or adults onto these plants for 2 days. After this period, only one nymph was kept on the plant for 10 days to reach the adult stage before being transferred individually onto non-transformed Col-0 plants. Nymph production was recorded after 5 days. Aphid fecundity was also recorded after feeding fourth instars or adults for 5 days on in vitro-synthesized dsRNA. Four aphids were then transferred onto each non-transformed Col-0. Nymph production was monitored during 5 days. A Student t-test was applied to the values after controlling that the data followed a linear model.
To evaluate the feeding activity of aphids, fourth instars or adults M. persicae fed for 5 days on in vitro-synthesized dsRNA, were transferred to an artificial feeding medium (MP148, Harrewijn, 1983) for 48 h. Pools of 9–10 aphids were enclosed in individual boxes (10 or 11 boxes per condition) that were internally covered with a pH-indicator paper prepared in 0.2% bromocresol green dissolved in ethanol. The number of honeydew droplets produced by the aphids and which appear as purple dots on the indicator paper was counted manually or evaluated by image analysis (ImageJ). After determining that the data followed a linear model and variance was equal between samples, a Student t-test was applied to the values.
The Ephrin Receptor Protein From M. persicae Is a Potential Partner of Polerovirus Structural Proteins
In order to identify partners of polerovirus particles in the aphid M. persicae, we looked for cellular partners of the structural proteins of CABYV which is efficiently transmitted by this aphid species (Lecoq et al., 1992). An aphid cDNA library was obtained from mRNA extracted from whole aphids. The cDNA library was cloned into the pGADT7 vector and the average insert size was about 400 bp. The major and the minor capsid protein sequences of CABYV (CPCA and ) were introduced into the pGBKT7 vector and expressed as fusion proteins with the GAL4 DNA binding domain (BD) in the Y2HGold yeast strain in which the HIS3 and ADE2 reporter genes are under the control of the GAL4 promoter. Screening the M. persicae cDNA library with the baits was performed by introducing the cDNA library into the yeast cells previously transformed with each bait. 6.2 × 106 and 4.6 × 106 double transformed yeast cells were obtained for the CPCA and screens, respectively. When plated onto the [-LWHA] medium to select yeast cells in which in vivo interactions occurred, 171 and 5 colonies developed for the CPCA and screens, respectively. A similar cDNA prey sequence, encoding a 244 amino acid peptide, was found in 4 of 13 colonies analyzed for the CPCA screen and in 3 of the 5 colonies which emerged from the screen. When blasted on the M. persicae genome (M. persicae clone G006 assembly v2, blast server, Aphidbase.com), one scaffold (MYZPE13164 G006 v1.0 000015980) contained the identified sequence which is annotated as ephrin type-B receptor 1-B (LOC111037473) and referred thereafter in the document as Eph (Figure S1).
Ephrin receptors are activated upon binding to their membrane-associated ephrin ligands and plays important roles in developmental processes in mammalian and in pathological diseases like brain and lungs cancers (for review see Pasquale, 2005; Himanen et al., 2007; Genander and Frisen, 2010; Pitulescu and Adams, 2010; Perez White and Getsios, 2014; Kania and Klein, 2016). Interaction of Ephs with ephrin ligands on the surface of neighboring cells triggers Eph kinase-dependent signaling in a bidirectional process. Ephrin receptor family is divided into two subclasses, EphA and EphB, based on amino acid sequence homology and binding affinities to glycosylphosphatidylinositol (GPI)-linked ephrin-A or transmembrane ephrin-B ligands. Interestingly, Eph or ephrin ligand have been shown to display receptor functions for mammalian viruses, bacteria and protozoan parasites (Bonaparte et al., 2005; Lupberger et al., 2011; Kaushansky et al., 2015; Subbarayal et al., 2015).
The extracellular domain of Ephs contains a globular ligand-binding domain and two fibronectin type III repeats (Figure 1). A short transmembrane domain separates the extracellular part from the intracellular cytoplasmic part consisting of the protein kinase domain and a sterile alpha motif domain responsible for Eph clustering (Stapleton et al., 1999) (Figure 1). The identified candidate peptide from the M. persicae cDNA library covers the two fibronectin type III repeats (Figure 1).
Figure 1. Ephrin receptor schematic representation. The different boxes represent the following domains: LBD: Ephrin receptor Ligand-Binding Domain; FN3: Fibronectin type-III domain; KIN: Protein kinase domain; SAM: Sterile alpha motif domain. The external (Ext.), transmembrane (Trans.), and internal (Int.) domains are indicated. Numbers above the representation stand for amino acids. The double line represents the amino acid sequence encoded by the cDNA clone identified by the yeast two hybrid (Y2H) screen.
To address the ability of the plasmid bearing the partial Eph cDNA sequence (referred to hereafter as pGAD-Eph) to activate by itself the transcription of the reporter genes (HIS3 and ADE2), the pGAD-Eph plasmid was introduced together with the empty pGBKT7 vector into Y2HGold yeast strain in which the reporter genes were controlled by the GAL4-responsive promoter. The yeast double-transformed colonies were plated onto medium lacking histidine [-LWH] or histidine and adenine [-LWHA]. Yeast growth was observed on both medium showing the capacity of the Eph partial domain to activate transcription of the reporter genes in the absence of luteovirid CP or RT* (Figure S2). Interaction of the Eph domain with the GAL4-promoter can be considered as a false positive reaction, but could also mask a true interaction with the viral baits. Considering the function of Eph as human virus receptors, we pursued the yeast two hybrid binding assays and addressed whether the Eph domain was able to interact with another promoter, the LexA promoter. Interestingly, no autoactivation of the transcription of the reporter genes HIS3 and ADE2 was observed when the pGAD-Eph and the empty pLexAN plasmids were introduced into the NMY51 yeast strain in which the reporter genes are under the control of the LexA promoter and when the doubled-transformed cells were plated onto [-LWHA] medium for 7 days (Figure S3). A low yeast growth was however observed, in one out of the three colonies, when the growth was extended to 14 days (Figure 2), implying that a low yeast development should not be considered as a true interaction between the prey and baits.
Figure 2. Interaction between CABYV and TuYV structural proteins and Eph partial domain. The yeast strain NMY51 was co-transformed with pGAD-Eph and one of the following constructs: pLexAN-CPCA, pLexAN-RT*CA, pLexAN-CPTu, pLexAN-RT*Tu, or the empty pLexAN. In parallel, yeast cells were co-transformed with the empty pGAD and one of the viral pLexAN-derived plasmids mentioned above. Three colonies were allowed to grow on a medium lacking leucine and tryptophan [-LW] before being transferred onto a selective medium deprived of leucine, tryptophan, histidine and adenine [-LWHA]. Yeast cells were grown at 28°C for 3 days on [-LW] and for 14 days on [-LWHA] media.
Therefore, the interactions between CABYV baits and the Eph partial domain were confirmed using the NMY51 yeast strain. The viral structural protein sequences were cloned into the pLexAN yeast vector as fusion proteins with the LexA DNA binding domain (BD). The resulting plasmids referred to as pLexAN-CPCA and pLexAN- were introduced into the NMY51 yeast strain together with the pGAD-Eph. Three colonies of the double-transformed yeast cells were plated onto the [-LW] to control yeast growth and on the [-LWHA] stringent medium to select yeast cells in which in vivo interaction occurred. We observed that was able to interact with the partial domain of Eph since 2 out of 3 colonies developed on the [-LWHA] medium after 14 days of growth. Interaction between the Eph domain and CPCA was less clear as only one out of the 3 colonies grew well on the [-LWHA] medium after 14 days (Figure 2). To control whether Eph could be a potential partner of other polerovirus structural proteins, we tested TuYV, which is also transmitted efficiently by M. persicae (Leiser et al., 1992). The TuYV CP and RT* sequences were introduced into the pLexAN vector leading to the pLexAN-CPTu and pLexAN-. Similarly as described above, the pLexAN recombinant plasmids were introduced into NMY51 yeast cells together with pGAD-Eph and plated onto the [-LWHA] medium. Interestingly, interaction of the Eph domain with the was clearly observed (all the three colonies developed well on the [-LWHA] medium after 14 days of growth) and an interaction with the CPTu was also suggested since two out of the three colonies grew on the selective medium (Figure 2). The reason for the uneven growth of the three double-transformed colonies on the stringent medium is unknown but is likely due to a tendency of the CP-fusion proteins to self-assemble in yeast (Figure S4) rather than to interact with the prey. No yeast growth was observed on the [-LWHA] medium when the viral pLexAN-derived plasmids were co-transformed with the empty pGAD vector (Figure 2). Binding of Eph domain to the TuYV baits were controlled in an additional experiment (Figure S3). No yeast growth was observed for the control combinations.
In conclusion, we observed an unambiguous interaction between the Eph domain isolated from the M. persicae cDNA library and the RT* from TuYV (). In contrast, interaction of Eph domain with the RT* () and the CP from CABYV (CPCA) and from TuYV (CPTu) was less clear due to uneven or low growth of the double transformed yeast cells on the selective medium.
Feeding M. persicae on Transgenic A. thaliana Expressing dsRNAEph or on in Vitro-Synthesized dsRNAEph Reduces Aphid's Ability to Transmit TuYV
We first analyzed the function of Eph in TuYV transmission by M. persicae since a clear interaction was observed in yeast between the Eph domain picked up from the yeast two hybrid screen and . A way to address whether Eph could be involved in TuYV transmission by M. persicae is to silence Eph expression in aphids and evaluate the ability of the modified aphids to transmit the virus. We previously compared five different techniques based on the ingestion by aphids of dsRNA molecules targeting Eph (Mulot et al., 2016). We selected the two most efficient techniques i.e., feeding aphids (i) on transgenic plants expressing an RNA hairpin of 249 bp corresponding to a central sequence of Eph (Hp-Eph) or (ii) on in vitro-synthesized dsRNA of similar sequence. This sequence did not share any sequence identity more than 16 bp with other M. persicae expressed genes.
M. persicae were first fed for 10 days on T1 lines of transgenic A. thaliana expressing the Hp-Eph. Acquisition of dsRNAEph and/or siRNAEph from transgenic plants reproducibly inhibited accumulation of Eph-mRNA in whole aphids (53–61% reduction of Eph-mRNA accumulation in two independent experiments) when compared with aphids fed on control plants (transgenic A. thaliana expressing a 276 bp hairpin RNA targeting the bacterial gene LacZ, Hp-LacZ) (Table 1). Depending on the dsRNA sources (Hp-Eph or Hp-LacZ), the aphids were thereafter referred to as dsRNAEph-treated aphids or dsRNALacZ-treated aphids. After the dsRNA acquisition from plants, aphids were transferred onto an artificial medium containing purified virus for 24 h. After feeding on virus, the potentially viruliferous dsRNA-treated aphids were then deposited onto Col-0 test plants for virus inoculation and infection of the test plants was assessed by DAS-ELISA 3 weeks later. Interestingly, viruliferous dsRNAEph-treated aphids transmitted TuYV with a significantly lower efficiency than dsRNALacZ-treated aphids (Table 1). Moreover, the lower ability of the viruliferous dsRNAEph-treated aphids to transmit TuYV was correlated with a statistically reduced accumulation of the viral genomes (6–11 times less) in the dsRNAEph-treated aphids when compared to dsRNALacZ-treated aphids (Table 1).
Table 1. Effect of dsRNAEph acquisition from transgenic A. thaliana on TuYV transmission by M. persicae and genome internalization in aphids.
To confirm these results, M. persicae were fed artificially on in vitro-synthesized dsRNA targeting Eph, since this technique reduces Eph-mRNA accumulation in the aphid gut (Mulot et al., 2016). In the first two experiments, using an experimental set-up (72 h AAP on dsRNA-Eph at 200 or 400 ng/μl) described in Mulot et al. (2016), we observed a reduction in the accumulation of Eph-mRNA in the aphid gut (53 and 20% inhibition of Eph-mRNA accumulation in guts) (Table 2, Exp. 1 & 2). However, no reduction in TuYV transmission efficiency was observed after feeding the dsRNAEph-treated aphids on purified virus (Table 2, Exp. 1 and 2). While maintaining the dsRNA concentration in the artificial feeding medium at 400 ng/μl, the acquisition time was then extended to 5 days and the virus transmission assay was performed as before. In three independent experiments (Table 2, Exp. 3–5), a significant reduction in TuYV transmission efficiency (from 38 to 81% of reduction) by the dsRNAEph-treated aphids was observed. Again, the reduction in the virus transmission efficiency was correlated with a significant lower TuYV genome accumulation in the dsRNAEph-treated aphids after gut clearing (Table 2, Exp. 4 & 5). In these two experiments, TuYV accumulated about 4 times less in the dsRNAEph-treated aphids compared to dsRNALacZ-treated aphids. In order to see whether the nature of the virus source could impact the virus transmission efficiency of the dsRNAEph-treated aphids, virus acquisition was performed on TuYV-infected Montia perfoliata. Again, TuYV transmission rate was reduced by 50 and 47% when using the dsRNAEph-treated aphids (Table 2, Exp. 5 & 6) although the difference in virus transmission was not statistically significant compared with dsRNALacZ-treated aphids. Nevertheless, this reduction in the TuYV transmission efficiency by the dsRNAEph-treated aphids correlated with a statistically significant decrease of viral genomes internalized (1.3- and 2.3-fold fewer viral genomes in dsRNAEph-treated aphids than in dsRNALacZ-treated aphids) (Table 2, Exp. 5 & 6).
Table 2. Effect of in vitro-synthesized dsRNAEph acquisition on TuYV transmission by M. persicae and genome internalization in aphids.
Surprisingly, the virus transmission reduction observed in the five experiments (Table 2, Exp. 3–6) was not always correlated with a reduction of Eph-mRNA accumulation in the gut cells and, in two experiments, a higher accumulation of Eph-mRNA was observed in the dsRNAEph-treated aphids compared to dsRNALacZ-treated aphids (Table 2, Exp. 3 & 5). To evaluate whether the artificial feeding step of aphids on an artificial medium for 5 days could affect Eph expression stability, we compared Eph-mRNA accumulation in the digestive tubes of aphids fed for 5 days on artificial medium with those of aphids fed on C. annuum (plant species used to rear M. persicae). Unexpectedly, accumulation of Eph-mRNA (normalized to the expression of the two housekeeping genes L27 and Rpl7) in gut cells varied significantly when the aphids were fed on artificial medium (Figures 3A, S5). Expression of L27 and Rpl7 was however stable in similar conditions (Figure 3B). In contrast, expression of Eph as well as L27 and Rpl7 was stable in gut samples collected from aphids fed on plants (Figures 3A,C, S5). The high variation of Eph-mRNA accumulation in aphids fed on artificial medium may account for our inability to reproducibly observe a reduction of Eph-mRNA accumulation in aphids fed during 5 days on an artificial diet containing the dsRNAEph.
Figure 3. Eph-mRNA accumulation in guts from aphids fed on plants or on artificial medium. (A) Guts (35 per sample) were dissected from M. persicae reared on pepper plants (five samples) or fed during 5 days on the artificial medium MP148 (Harrewijn, 1983) (six samples). The data represent the relative expression of Eph in each sample normalized to the accumulation of the two reference genes L27 and Rlp7 ± standard deviation of triplicates. The first sample for each condition was arbitrarily fixed to 1. CV: coefficient of variation. Eph, L27, and Rpl7 expression without normalization in aphids fed on an artificial medium (B) or on plants (C). Similar numbers referred to the same biological samples.
Feeding M. persicae on in Vitro-synthesized dsRNAEph Impacts Internalization of Other Poleroviruses into the Aphid's Body
The specific reduction of virus transmission after acquisition of dsRNAEph was evaluated with two other poleroviruses transmitted by M. persicae (Lecoq et al., 1992; Stevens et al., 2005), Beet mild yellowing virus (BMYV) and CABYV. After in vitro acquisition of dsRNA, dsRNAEph-treated aphids transmitted less efficiently BMYV in two independent experiments (38 and 31% transmission inhibition in Exp. 1 and 2, respectively, Table 3), but the transmission inhibition was not statistically significant when compared to the control condition using dsRNALacZ-treated aphids. However, a statistically significant decrease of BMYV genomes internalized into the dsRNAEph-treated aphids was measured (1.8 and 1.4 times less viral genomes in dsRNAEph-treated aphids than in dsRNALacZ-treated aphids; Exp. 1 and 2, respectively, Table 3). When CABYV was used as a virus source, the number of infected plants was particularly low, which makes it difficult to draw a clear conclusion on the effect of dsRNAEph acquisition on the CABYV transmission efficiency (Table 3, Exp. 3). Such low transmission efficiency of CABYV from purified virus has previously been observed in our laboratory even with high concentrations of virus in the artificial medium (V. Brault, unpublished), and could be explained by instability of the particles after the purification procedure. Nevertheless, a moderate, but still significant, reduction of the number of CABYV genomes internalized was observed in the dsRNAEph-treated aphids (Table 3, Exp. 3). These results suggest that Eph could have a broader role in poleroviruses transmission by M. persicae.
Table 3. Effect of in vitro-synthesized dsRNAEph acquisition on BMYV and CABYV transmission by M. persicae and genome internalization in aphids.
The Inhibition of TuYV Transmission by dsRNAEph-Treated Aphids Is Not Due to a Reduction in Feeding Activity
The lower virus transmission efficiency of dsRNAEph-treated aphids could be due to a reduced feeding activity on the virus source. Since the majority of the virus transmission experiments presented in this manuscript (9 out of 11 in total) were performed using purified virus as the virus source, we measured the feeding activity of the dsRNA-treated aphids when placed onto the artificial diet. Electropenetrography could not be developed to measure the feeding phases of aphids because this technique is not adapted to evaluate sustained ingestion activity of aphids from an artificial medium (Tjallingii, 1985). Therefore, we measured honeydew excretion of the dsRNAEph-treated aphids after transferring them onto a fresh artificial medium for 48 h. The aphid feeding activity on plants infected with luteovirids has been previously correlated with the efficiency of virus transmission (Sylvester, 1967; Van den Heuvel and Peters, 1990). The surface area covered by honeydew droplets produced by dsRNAEph-treated aphids was slightly higher, than the one secreted by dsRNALacZ-treated aphids (Figures 4A, S6). In another experiment, no difference in honeydew excretion was observed between dsRNAEph- and dsRNALacZ-treated aphids (Figure S7). These results show that the reduction of TuYV transmission by dsRNAEph-treated aphids is not correlated with a lower feeding activity of these aphids on the artificial medium and therefore not linked to a reduced ingestion of virus particles.

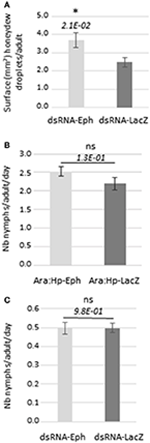

Figure 4. Feeding activity and fecundity of dsRNA-treated aphids. (A) Honeydew excretion from dsRNA-treated aphids (after 5 days of acquisition) placed onto feeding artificial medium for 48 h; the bars represent the average of the surface of droplets (surface in mm2) produced per adult or nymph during 48 h. n = 99 for each condition (B) M. persicae fecundity after feeding first instars on Ara:Hp-Eph or Ara:Hp-LacZ for 10 days. After this period, individual adults were transferred to non-transformed Col-0 (n = 18 for Ara:Hp-Eph and n = 10 for Ara:Hp-LacZ) and nymph production was recorded after 5 days. (C) M. persicae fecundity after feeding fourth instars or adults on in vitro-synthesized dsRNAEph or dsRNALacZ for 5 days before transferring 4 adults on individual Col-0 (n = 28). Nymph production was recorded after 5 days. n = 1 12 for each condition. Data from (B) and (C) are from one experiment and represent the mean value of nymphs produced daily per adult ± standard deviation; ns: non-significant after Student t-test (p-value > 0.05); *: p-value < 0.05 after Student t-test. p-values are indicated.
Fecundity of dsRNAEph-Treated Aphids Is Not Affected by Ingestion of dsRNA and/or siRNA From Transgenic A. thaliana:Hp-Eph or From in Vitro-synthesized dsRNAEph
In order to investigate the impact of dsRNA and/or siRNA acquisition from transgenic plants or from in vitro-synthesized dsRNA on aphid's fecundity, nymph production by the dsRNA-treated aphids was analyzed. Feeding aphids during 10 days on the transgenic plants (Ara:Hp-Eph or Ara:Hp-LacZ) (Figure 4B) or during 5 days on the dsRNA targeting Eph-mRNA or LacZ-mRNA (Figure 4C) did not affect aphid's fecundity. These results suggest that acquisition of dsRNA or siRNA from either source did not significantly impact aphid physiology. A low fecundity of aphids fed during 5 days on the artificial medium containing the dsRNA can be observed (Figure 4C). The artificial medium composition may affect aphid fecundity but the amount of dsRNA ingested by aphids from the artificial diet may also have an impact on the aphid physiology.
To be transmitted by aphids luteovirids acquired in the phloem of infected plants must cross several epithelia at the gut and salivary gland levels in the vector before being inoculated into a plant during feeding. Virion transport through the epithelia requires virus particle recognition by specific receptors (Mercer et al., 2010). In the present study, we identified Eph as a potential receptor of TuYV in M. persicae. Part of the external domain of Eph, corresponding to the fibronectin type III repeats, was able to bind in yeast to the minor capsid protein (RT*) of TuYV, which is strictly required for aphid transmission (Brault et al., 1995). RT* protein is involved in the transcytosis of TuYV through the posterior midgut cells and strictly required for virus internalization into the ASG cells (Brault et al., 1995; Reinbold et al., 2001). We showed that feeding M. persicae with siRNA/dsRNA targeting Eph-mRNA, produced in planta or in vitro, prior to TuYV acquisition, consistently reduced TuYV accumulation in aphids and subsequently virus transmission to plants. Since siRNA/dsRNA ingestion by aphids did not affect aphid feeding behavior, we concluded that ingestion of siRNA/dsRNA targeting Eph-mRNA likely affected TuYV acquisition by M. persicae. A lower accumulation of two other poleroviruses, BMYV and CABYV, in similarly treated aphids, was also observed, suggesting a broader implication of Eph in the internalization of poleroviruses into M. persicae.
Virus transmission reduction was sometimes correlated with a reduction in the accumulation of Eph-mRNA in aphids, in particular after feeding aphids on transgenic plants expressing the dsRNAEph during 10 days. However, we observed Eph-mRNA instability in aphids fed on an artificial medium. This instability could be potentially intensified, in these non-natural conditions, by fluctuations in dsRNA ingestion along the acquisition period, or alternatively, by dsRNA stability that could be altered during this 5-day period. Nevertheless, it is important to mention that virus transmission inhibition was always linked to a reduction of virus accumulation in aphids. Although we show that Eph is involved in polerovirus transmission by M. persicae, we cannot conclude from our experiments whether Eph is acting at the gut, at the ASG, or at both levels in M. persicae. Nevertheless, considering that oral acquisition of dsRNA targeting Eph preferentially affects gene expression in the gut level (Mulot et al., 2016), and reduces virus accumulation into the aphid's body, it is likely that Eph, at least, is acting at the gut level.
Ephrin receptors are good candidates to be involved in polerovirus transmission by M. persicae. In most of the cases, Ephs and their ephrin ligands control a wide array of cell-to-cell interactions in mammals without involving internalization of both proteins. In contrast, in some instances the interaction between Ephs and ligands results in the endocytosis of the complex (Marston et al., 2003; Zimmer et al., 2003; Pitulescu and Adams, 2010), a phenomenon that clearly resembles polerovirus internalization into aphid cells. Moreover, there is evidence that Eph receptors can also be activated by soluble ephrin ligands present in the environment (Alford et al., 2010). In this regard, it is interesting to point out that Eph receptors are involved in human and simian virus uptake. Eph A2 was identified as a host co-factor for Hepatitis C virus entry in liver cells (Lupberger et al., 2011). Internalization of this enveloped virus by clathrin-dependent endocytosis requires several cell-surface molecules, some thought to be essential receptors while others facilitating virus uptake (von Hahn and Rice, 2008). Another human virus, the Kaposi's sarcoma-associated herpesvirus (KSHV) also relies on the presence of Eph A2 to enter epithelial cells, but by micropinocytosis rather than endocytosis (Chakraborty et al., 2012; Hahn et al., 2012). Finally, the Rhesus monkey rhadinovirus, a closely relative to KSHV, use a wide array of Ephs to be endocytosed into monkey endothelial cells (Hahn and Desrosiers, 2013).
It is also interesting to mention that several Eph receptors are known to bind to caveolin-1, a protein involved in endocytosis of non-enveloped viruses like simian virus 40 (Pelkmans et al., 2001), echovirus 1 (Marjomaki et al., 2002), and Junonia coenia densovirus (Wang et al., 2013). Although luteovirids are thought to be internalized into aphid cells by clathrin-mediated endocytosis, an alternative route for virus uptake based on caveolae is still conceivable (Gildow, 1999; Brault et al., 2007). Indeed, compared to clathrin-mediated endocytosis, caveolae entry results in the formation of vesicles that do not enter the traditional acidic endosome/lysosome system (Thomsen et al., 2002). By avoiding acidification, virus internalization into caveolae might be beneficial for non-replicating viruses, like poleroviruses. In the light of these results, it could be interesting to reassess the mechanism of polerovirus internalization into aphid cells by targeting Cav-1 expression in aphids by RNA interference or by using caveolin-specific inhibitors (Rejman et al., 2005).
The ephrin type-B receptor 1-B could be the second aphid protein identified as a potential luteovirid receptor. APN was previously shown to be involved in PEMV (Enamovirus genus) internalization into A. pisum (Liu et al., 2010; Linz et al., 2015). Here, we bring evidence that Eph is another aphid protein involved in polerovirus acquisition and transmission by M. persicae. Determining whether these two proteins act in concert in both aphid species, or are specific for one aphid species, will be a challenge for future studies. As already mentioned, implication of several proteins in the internalization process of mammalian viruses into cells is more likely a general mechanism: viral surface components must first bind to attachment factors on the cell surface before interacting with receptors that drive reactions leading to entry (Mercer et al., 2010; Grove and Marsh, 2011; Cossart and Helenius, 2014). One extreme example is HCV which has been shown to require about ten different molecules for cell entry (Grove and Marsh, 2011). Interestingly, some of them are responsible for virus non-specific attachment on the cell surface while interaction with the liver specific intercellular adhesion molecule-3-grabbing non-integrin (L-SIGN) is thought to confer tissue tropism in vivo (Gardner et al., 2003). Analyzing Eph-mRNA distribution along the digestive tube of M. persicae will show whether this protein is responsible for TuYV gut tropism at the posterior midgut.
In this study, we showed that acquisition by aphids of dsRNA molecules targeting Eph can reduce TuYV transmission. Aphid survival and fecundity were not affected by Eph-mRNA targeting. Eph may therefore be an ecologically safe target to reduce luteovirids impacts by inhibiting their dispersion by aphids. The dsRNAEph molecules could be expressed in transgenic plants (as in this study), but could also alternately be sprayed on cultures. This innovative delivery system has been assayed on different aphid species by aerosolizing siRNA targeting a carotene dehydrogenase and a branched chain-amino acid transaminase (Thairu et al., 2017). A moderate inhibition of gene expression was observed but the effect varied upon the targeted gene and the aphid species. Before applying this technology to inhibit expression of Eph in aphids, additional experiments are required to address dsRNAEph stability in the environment and efficacy when aerosolized on aphids. However, at this point, it is tempting to make a parallel with the new strategies that are developed to curtail viral human diseases, and in particular Human immunodeficiency virus infection. Indeed, among the therapies to inhibit Human immunodeficiency virus cell entry, a simultaneous knock down of the CCR5 co-receptor by small RNA hairpins together with the expression of an antiviral fusion inhibitor peptide is under a clinical trial (Wolstein et al., 2014; Hutter et al., 2015).
The results presented in this paper pave the way toward a better comprehension of the molecular mechanisms governing poleroviruses transmission by aphids. Expression and localization of the Eph in aphid species differing in their ability to transmit poleroviruses together with the identification of Eph viral ligands and cellular partners need to be addressed in the future.
VB, BM, MM, and SB: designed the experiments; MM, BM, SB, MR, SM, and NB: performed the experiments; VB, BM, MM, and SB wrote the paper.
Conflict of Interest Statement
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
The reviewer TT and handling Editor declared their shared affiliation.
We would like to thank the members of the experimental unit of INRA-Colmar for their valuable technical assistance with plant production. BM was financed by the French National Agency for Research (ANR) in the frame of the project (Virus-vection ANR-07-BLANC-0230). MM was financed by the SPE division of INRA and the Alsace Region. We greatly thank Véronique Ziegler-Graff (IBMP, Strasbourg, France) and W. Allen Miller for critical review of the manuscript and English proofreading.
