Genome Sequencing and Comparative Analysis of Stenotrophomonas acidaminiphila Reveal Evolutionary Insights Into Sulfamethoxazole Resistance

Yao-Ting Huang1, Jia-Min Chen1, Bing-Ching Ho2, Zong-Yen Wu3,4, Rita C. Kuo3 and Po-Yu Liu5,6,7*
  • 1Department of Computer Science and Information Engineering, National Chung Cheng University, Chiayi, Taiwan
  • 2Department of Clinical Laboratory Sciences and Medical Biotechnology, National Taiwan University Hospital, Taipei, Taiwan
  • 3DOE Joint Genome Institute, Walnut Creek, CA, United States
  • 4Department of Veterinary Medicine, National Chung Hsing University, Taichung, Taiwan
  • 5The Department of Nursing, Shu-Zen Junior College of Medicine and Management, Kaohsiung, Taiwan
  • 6Rong Hsing Research Center for Translational Medicine, College of Life Sciences, National Chung Hsing University, Taichung, Taiwan
  • 7Division of Infectious Diseases, Department of Internal Medicine, Taichung Veterans General Hospital, Taichung, Taiwan

Stenotrophomonas acidaminiphila is an aerobic, glucose non-fermentative, Gram-negative bacterium that been isolated from various environmental sources, particularly aquatic ecosystems. Although resistance to multiple antimicrobial agents has been reported in S. acidaminiphila, the mechanisms are largely unknown. Here, for the first time, we report the complete genome and antimicrobial resistome analysis of a clinical isolate S. acidaminiphila SUNEO which is resistant to sulfamethoxazole. Comparative analysis among closely related strains identified common and strain-specific genes. In particular, comparison with a sulfamethoxazole-sensitive strain identified a mutation within the sulfonamide-binding site of folP in SUNEO, which may reduce the binding affinity of sulfamethoxazole. Selection pressure analysis indicated folP in SUNEO is under purifying selection, which may be owing to long-term administration of sulfonamide against Stenotrophomonas.

Introduction

Bacteria within the genus Stenotrophomonas species are aerobic, glucose non-fermentative, Gram-negative bacilli which inhabit diverse marine and terrestrial environments. The genus Stenotrophomonas currently comprises of 14 species1. Stenotrophomonas acidaminiphila was identified in 2002 (Assih et al., 2002). Initially isolated from sewage sludge from wastewater treatment, it isolated mostly from aquatic environments. Reports of S. acidaminiphila human isolates are limited. To our best knowledge, no case of S. acidaminiphila infections has ever been reported to date. However, studies of environmental isolates revealed highly resistant to multiple antibiotics (Assih et al., 2002; Vinuesa and Ochoa-Sanchez, 2015).

The antimicrobial options for Stenotrophomonas infections are limited because of its inherent resistance to most antibiotics, where trimethoprim-sulfamethoxazole (trimethoprim and sulfonamide combination in a 1:5 ratio) has long been regarded as the agent of choice (Sanchez, 2015). The main component, sulfamethoxazole interrupts the biosynthesis of tetrahydrofolic acid in both bacteria and primitive eukaryotes by targeting the dihydropteroate synthase (DHPS) catalyses, which catalyzes the condensation of 6-hydroxymethyl-7,8-dihydropterin monophosphate (DHPP) with p-aminobenzoic acid (PABA) (Skold, 2000). However, the resistance to sulfamethoxazole is increasing and is mainly caused by single amino acid mutations in the chromosomal gene encoding DHPS or by the acquisition of sul genes encoding alternative drug-resistance variants of the DHP via mobile genetic elements (Toleman et al., 2007).

To date, only two environmental strains of S. acidaminiphila genomes have been sequenced, all of which were isolated from river sediments (Assih et al., 2002; Vinuesa and Ochoa-Sanchez, 2015). However, the genome, pathogenome, and antimicrobial resistome of clinical isolate can still differ a lot in comparison with those of environmental strains, owing to the adaptation to host immune system and antibiotic pressure. Therefore, a complete genome from clinical isolates is valuable for designing effective treatment strategies.

Here, we sequenced the genome of the S. acidaminiphila strain SUNEO, a first clinical isolate that possessed trimethoprim-sulfamethoxazole resistance. We propose a scenario for the origin and evolution of S. acidaminiphila SUNEO, based on its genomic features. Gene annotation and comparative analysis further revealed a unique profile of folP mutation that could play a role in drug resistance.

Materials and Methods

Bacterial Strain Isolation, Identification, and Antimicrobial Susceptibility Testing

Strain SUNEO was isolated from the bile of a cholangiocarcinoma patient with obstructive jaundice and cholangitis. The bile sample was inoculated on trypticase soy agar with 5% sheep blood (Becton–Dickinson, Franklin Lakes, NJ, United States) and incubated aerobically at 37°C overnight. The isolate was identified through 16S rRNA gene sequencing as previously described (Assih et al., 2002; Mangwani et al., 2014). Antibiotic susceptibility tests for the strain SUNEO was performed by the automated Vitek 2 system (bioMérieux, Inc., Durham, NC, United States) according to the manufacturer’s instructions.

Library Preparation and Whole-Genome Sequencing

Overnight cultures were grown in Luria-Bertani broth overnight at 37°C. Genomic DNA was extracted using DNeasy blood and tissue kit (Qiagen, Valencia, CA, United States) as per the manufacturer’s instructions. High-molecular-weight gDNA was sheared to 10-kb lengths using g-TUBES (Covaris, Woburn, MA, United States). Sheared DNA was processed into PacBio sequencing library. DNA damage repair, end repair, and ligation of SMRT adapters were performed using PacBio SMRTbell Template Prep Kit (Pacific Biosciences). Whole genome sequencing was performed using PacBio sequencing platform (Pacific Biosciences, Menlo Park, CA, United States). Sequence runs of three single-molecule real-time (SMRT) cells were performed on the PacBio RS II sequencer with a 120-min movie time/SMRT cell. SMRT Analysis portal version 2.1 was used for read filtering and adapter trimming, with default parameters, and post-filtered data of 1.479 Gb (∼404X coverage) with an average read length of ∼6.2 kb was used for subsequent assembly (Supplementary Table 1).

Genome Assembly and Gene Annotation

The post-filtered genome reads were de novo assembled by Canu (v1.4) (Koren et al., 2017), which produced one single large contig (∼3.6 Mb). Circlator was used to circularize this contig into a complete circular genome (Hunt et al., 2015). Protein-coding and non-coding genes in the SUNEO genome were annotated using National Center for Biotechnology Information (NCBI) Prokaryotic Genomes Automatic Annotation Pipeline (PGAAP). Functional classification of these annotated genes was carried out by RPSBLAST version 2.2.15 in conjunction with Clusters of Orthologous Groups (COGs) of proteins databases (E-values < 0.001).

Comparative Genomics Analysis and Classification of Pan-Genomic Core Genes and Strain-Specific Genes

To study the comparative genomics of S. acidaminiphila, three whole genome sequences of S. acidaminiphila strains; S. acidaminiphila SUNEO, JCM 13310 (Assih et al., 2002), and ZAC14D2_NAIMI4_2 (Vinuesa and Ochoa-Sanchez, 2015) were downloaded from the NCBI database (Table 1). The protein sequences of all three strains were BLAST-aligned against each other (E-value < 0.001). However, BLAST may identify false homologs due to repeat sequences commonly shared by multiple genes. Thus, a gene is considered to be shared by both strains if the alignment coverage of both genes is at least 60%. The cutoff was determined by the statistics of alignment coverage of all gene-pairs. We observed that 60% act as a good cutoff for balancing sensitivity and specificity. We consider each gene to be strain-specific if it is presented in only one strain and lost in all other strains. On the other hand, the genes shared by all strains are considered to be pan-genomic core genes.

TABLE 1
www.frontiersin.org

TABLE 1. Overview of the S. acidaminiphila strains in this study.

16S rRNA Phylogenetic Analysis

The publicly available 16S rRNA sequences of type strains of Stenotrophomonas spp. (including the S. acidaminiphila strain SUNEO) were retrieved from the National Center for Biotechnology Information (NCBI) nucleotide database (Supplementary Table 2) (Pruitt et al., 2007; Alavi et al., 2014; Davenport et al., 2014; Patil et al., 2016). In particular, two S. acidaminiphila strains (i.e., JCM 13310 and ZAC14D2 NAIMI4) were included in order to confirm the phylogenetic status of SUNEO. At first, multiple sequence alignment of the 16S rRNA gene sequences of all strains was first performed by MEGA (v7). Specifically, ClustalW was used for multiple sequence alignment. Evolution history was reconstructed using the built-in maximum-likelihood method with 1,000 bootstraps.

Multi-Locus Sequence Typing Using Multiple Housekeeping Genes

To further validate these clade assignments, multilocus sequence analysis (MLSA) was performed by concatenation of housekeeping genes: atpD, guaA, mutM, nuoD, ppsA, and recA (Kaiser et al., 2009). Multiple sequence alignment of these housekeeping genes in 15 Stenotrophomonas genomes was performed using MEGA in order to infer their phylogeny (Alavi et al., 2014; Davenport et al., 2014; Patil et al., 2016; Sanchez-Castro et al., 2017). Two conventional gyrB and gapA were not included because gyrB is completely absent in S. acidaminiphila JCM 13310 and only very short piece of gapA is found in S. ginsengisoli DSM 24757. Additional MLSA using the six housekeeping genes plus 16S rRNA is also performed using MEGA (v7) to confirm the phylogenetic position of SUNEO.

Whole-Genome Average Nucleotide Identity Analysis

To measure the nucleotide-level genomic similarity between SUNEO and related Stenotrophomonas genomes (Alavi et al., 2014; Davenport et al., 2014; Patil et al., 2016), the Average Nucleotide Identity (ANI) (Konstantinidis and Tiedje, 2005) was calculated by the USEARCH program (Yoon et al., 2017) based on modified OrthoANI algorithm (Lee et al., 2016). A radial phylogram was constructed using distance matrix computations using the Integrated Microbial Genomes pipeline (Chen et al., 2017).

Annotation of Antibiotic-Resistance Genes

The SUNEO resistome is annotated by using both the Resistance Gene Identifier from the Comprehensive Antibiotic Resistance Database (McArthur et al., 2013) and the IMG database (Markowitz et al., 2012). RGI prediction of resistome is based on homology and SNP models, where the strict criteria were chosen for prediction. In homolog models, BLAST is used to detect functional homologs of antimicrobial resistance genes. In contrast, SNP models identify candidate genes which acquire mutations conferring antimicrobial resistance genes based on curated SNP matrices. The SUNEO resistome is predicted through alignment against the IMG database using BLASTN with a 95% sequence identity threshold.

Sequence, Structural, and Selection Analysis of folP Gene

The phylogeny of the DHPS protein was constructed by MEGA7. The publicly available folP homolog gene sequences of 18 Stenotrophomonas strains (including S. acidaminiphila strain SUNEO) were retrieved from the National Center for Biotechnology Information (NCBI) nucleotide database (Supplementary Table 3). The amino acid sequences of DHPS from SUNEO and JCM 13310 were BLAST-aligned against each other in order to identify the mutation loci and annotate the conservative loop regions. To probe its topological structure, the 3D structure of DHPS proteins were predicted by Robetta2, and subsequently visualized by NOC 3.013. In conjunction with the annotated loop regions in the sequence level, we were able to compare the local substructure of Loop2 between the two strains. The ratio of non-synonymous to synonymous substitutions (i.e., Ka/Ks) is used to estimate positive and purifying selection at each amino-acid site in folP for SUNEO, JCM 13310, and ZAC14D2_NAIMI4_2. The M8 site model (with ω allowed to > 1) with intermediate precision level (𝜀 = 0.1, which defines when two likelihood values converged) is used to compute the Ka/Ks ratio4.

Results

Genome Overview and Annotation

The total size of the genome is 3,660,864 bp with a G+C content of 69.8%. An illustration of the genomic contents in the genome of SUNEO is shown in Figure 1. A total of 3,173 Coding Sequences (CDSs) were predicted (Table 2). In addition, 70 RNAs including rRNA and tRNA were identified. No extrachromosomal elements were found in SUNEO.

FIGURE 1
www.frontiersin.org

FIGURE 1. Circular representation of the S. acidaminiphila strain SUNEO genome. Predicted Coding Sequences (CDSs) are assigned various colors with respect to cellular functions. The Circles display from the outermost to the innermost: (1) DNA coordinates. (2,3) Function-based color coded mapping of the CDSs predicted on the forward and reverse strands, respectively. (4,5) tRNA and rRNA genes, respectively. (6) GC plot with regions above and below average in green and violet, respectively. (window size: 10,000 bp). (7) GC skew showing regions above and below average in yellow and light blue, respectively. (window size: 10,000 bp).

TABLE 2
www.frontiersin.org

TABLE 2. Genomic features of S. acidaminiphila strain SUNEO, ZAC14D2_NAIMI4_2, and JCM 13310.

Comparative Genomic Study and Identification of Core and Strain-Specific Genes of S. acidaminiphila Genomes

General genomic features of S. acidaminiphila SUNEO were compared to the S. acidaminiphila JCM 13310 and ZAC14D2_NAIMI4_2 (Table 2). The genome size of the S. acidaminiphila strain ZAC14D2_NAIMI4_2 was the largest (4,138,297 bp) amongst all genomes (ranging from 3,660,864 to 3,942,520 bp). The highest genomic G+C content (69.8%) was from the S. acidaminiphila strain SUNEO followed by the S. acidaminiphila strain JCM 13310 (68.8%), and the S. acidaminiphila strain ZAC14D2_NAIMI4_2 (68.5%).

The protein-coding genes of SUNEO were compared with those of S. acidaminiphila JCM 13310 and ZAC14D2_NAIMI4_2, in order to identify orthologous core genes which are shared across all strains and strain-specific genes. Figure 2 depicts both the positions and the color-coded functions of S. acidaminiphila SUNEO genes in comparison with all other strains, whereas the number of orthologous and strain-specific genes is shown in Figure 3. In summary, the core genome of S. acidaminiphila consisted of 2,736 core genes shared across all strains, whereas 807 genes are specific only to S. acidaminiphila SUNEO (Figure 3A). Functional analysis of SUENO-specific genes revealed that, in addition to hypothetical proteins, a relative abundance of the gene is involved in carbohydrate transport, along with metabolism and cell wall/membrane/envelop biogenesis (Figure 3B). DHPS encoding folP homologs genes are presented in all strains.

FIGURE 2
www.frontiersin.org

FIGURE 2. Comparative genome representation of S. acidaminiphila strain SUNEO, JCM 13310, and ZAC14D2_NAIMI4_2. Predicted Coding Sequences (CDSs) are assigned various colors with respect to cellular functions. The Circles display from the outermost to the innermost: (1) DNA coordinates. (2,3) Function-based color coded mapping of the CDSs predicted on the forward and reverse strands, respectively. (4) Orthologous CDSs shared between S. acidaminiphila strain SUNEO and S. acidaminiphila strain JCM 13310. (5) Specific CDSs in S. acidaminiphila strain SUNEO, compared with S. acidaminiphila strain JCM 13310. (6) Orthologous CDSs shared between S. acidaminiphila strain SUNEO and S. acidaminiphila strain ZAC14D2_NAIMI4_2. (7) Specific CDSs in S. acidaminiphila strain SUNEO, compared with S. acidaminiphila strain ZAC14D2_NAIMI4_2. (8) GC plot with regions above and below average in green and Violet, respectively. (window size: 10,000 bp). (9) GC skew showing regions above and below average in yellow and light blue, respectively. (window size: 10,000 bp).

FIGURE 3
www.frontiersin.org

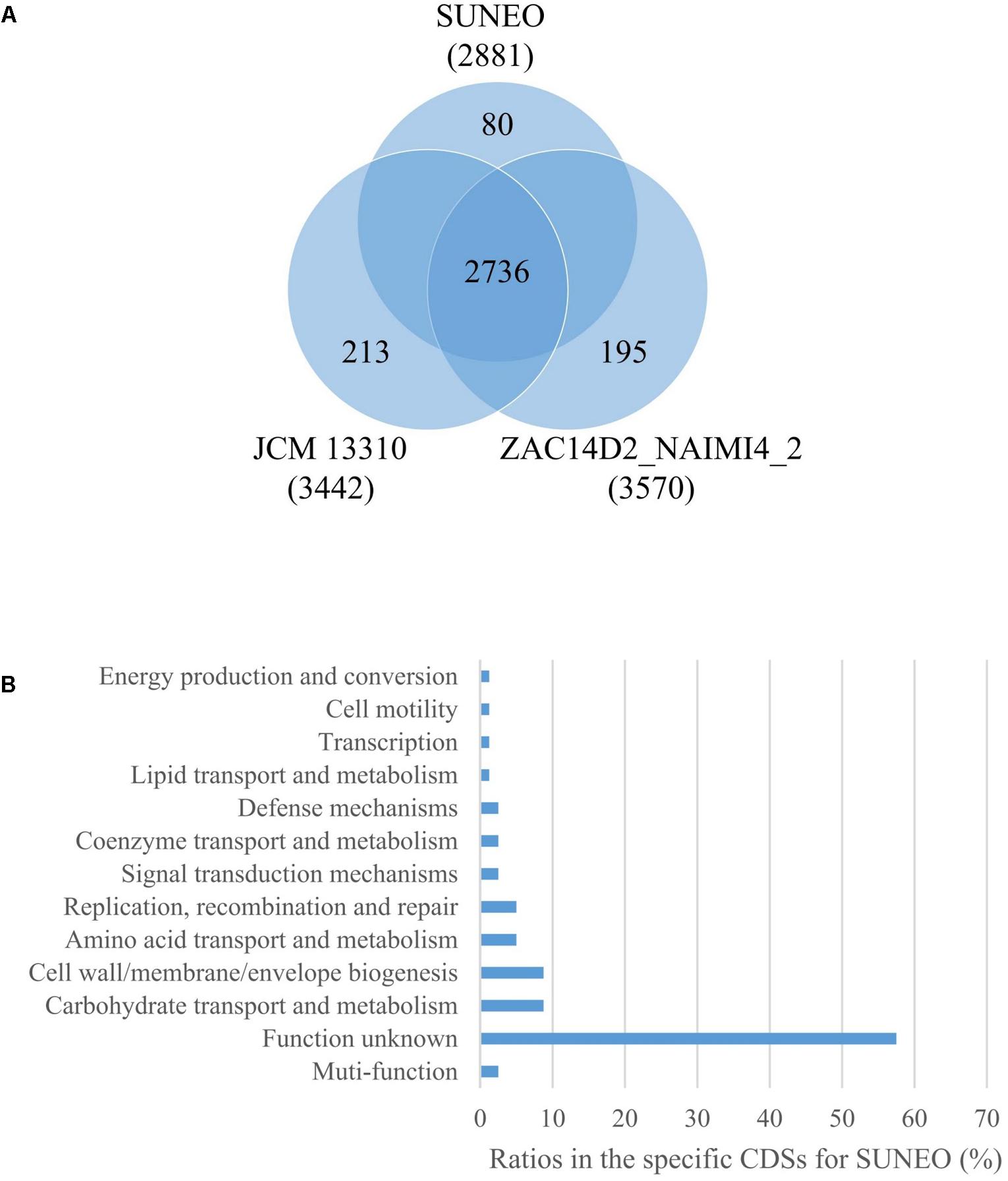

FIGURE 3. Comparison of the gene contents among Stenotrophomonas acidaminiphila strain SUNEO, JCM 13310, and ZAC14D2_NAIMI4_2. (A) Partial Venn diagram showing the numbers of shared (core) and strain-specific CDSs. (B) Diagram showing the COG category-based functional analysis of SUNEO-specific CDSs.

Phylogenetic Analysis of S. acidaminiphila

A maximum-likelihood tree of the three S. acidaminiphila genomes and 12 reported Stenotrophomonas strains (comprising of S. daejeonensis, S. humi, S. pictorum, S. terrae, S. nitritireducens, S. ginsengisoli, S. koreensis, S. maltophilia, S. pavanii, S. chelatiphaga, S. panacihumi, and S. rhizophila) was created based on 16S rRNA gene sequences (Supplementary Figure 1). This phylogenetic tree shows S. acidaminiphila SUNEO, JCM 13310, and ZAC14D2_NAIMI4_2 grouped together. The result was further supported by Alignment Fraction analysis, which showed SUNEO was included in the S. acidaminiphila JCM 13310 and ZAC14D2_NAIMI4_2 phylogenetic subgroup (Supplementary Figure 2).

The MLSA using conventional housekeeping genes (with or without 16S RNA) both revealed high phylogenetic similarities higher than 99% among SUNEO, JCM 13310, and ZAC14D2_NAIMI4_2 (Figure 4 and Supplementary Figure 3), which was the accepted species threshold (Kaiser et al., 2009). Genomic-wide relatedness comparison was calculated with the OrthoANI program using publicly available genomes from type strains of Stenotrophomonas species (Alavi et al., 2014; Davenport et al., 2014; Patil et al., 2016; Sanchez-Castro et al., 2017). As the ANI value of SUNEO to S. acidaminiphila strain is 92.94–92.83% (Supplementary Table 4), indicated a taxonomic outlier (Gomila et al., 2015). Together, all these analysis (from single gene, multiple genes, to entire genome) concordantly concluded that the phylogenetic position of SUNEO is indeed belonging to S. acidaminiphila.

FIGURE 4
www.frontiersin.org

FIGURE 4. Phylogenetic tree of S. acidaminiphila SUNEO and related type strains of Stenotrophomonas species based on the phylogenetic analysis of seven housekeeping genes (16S rRNA, atpD, guaA, mutM, nuoD, ppsA, and recA).

Comparative Analysis of Antibiotic Resistance Genes in SUNEO

Antimicrobial susceptibility test showed that SUNEO is resistant to both imipenem and trimethoprim/sulfamethoxazole (Table 3). Comparative analysis was performed on the three S. acidaminiphila genomes, among which JCM 13310 is trimethoprim/sulfamethoxazole susceptible (Table 3). All three strains harbor similar resistance genes. There are Ambler class B β-lactamase L1 and Ambler class A β-lactamase L2 in all of the three strains. The resistance-nodulation-division (RND) family efflux pump, consisting of the smeDEF and smeOP genes, along with the efflux pumps genes that are homologous to efflux pumps encoded in S. maltophilia and Escherichia coli were also identified in all of the tested strains (Table 4).

TABLE 3
www.frontiersin.org

TABLE 3. Antimicrobial susceptibility profiles of S. acidaminiphila SUNEO and JCM 13310.

TABLE 4
www.frontiersin.org

TABLE 4. Summary of the antibiotic resistance genes among the three strains of S. acidaminiphila and their related locus tag.

Phylogeny of folP Homologs in Stenotrophomonas Strains

Comparative genomic analysis has revealed the gene folP is commonly presented among S. maltophilia strains. folP encodes DHPS and is the target of sulfonamides, to which SUNEO is resistant. A BLASTP search in Stenotrophomonas strains with folP as the primer sequence returned a collection of related homologs with the annotation of DHPS (Baker and Sali, 2001). We retrieved 18 protein sequence candidates with available MIC data for each strain. The phylogeny of the DHPS protein constructed by MEGA7 (Kumar et al., 2016) clearly presented two distinct groups: one denotes a family of folP homologs from S. maltophilia whereas the other comprises a series of folP homologs from non-maltophilia Stenotrophomonas strains (Figure 5). Of particular note, folP homologs between SUNEO and JCM 13310 are highly similar in comparison with other distant-related strains. This implies that the resistance of SUNEO to sulfonamides is due to few/key mutations acquired occasionally instead of continual accumulation of resistant alleles after speciation.

FIGURE 5
www.frontiersin.org

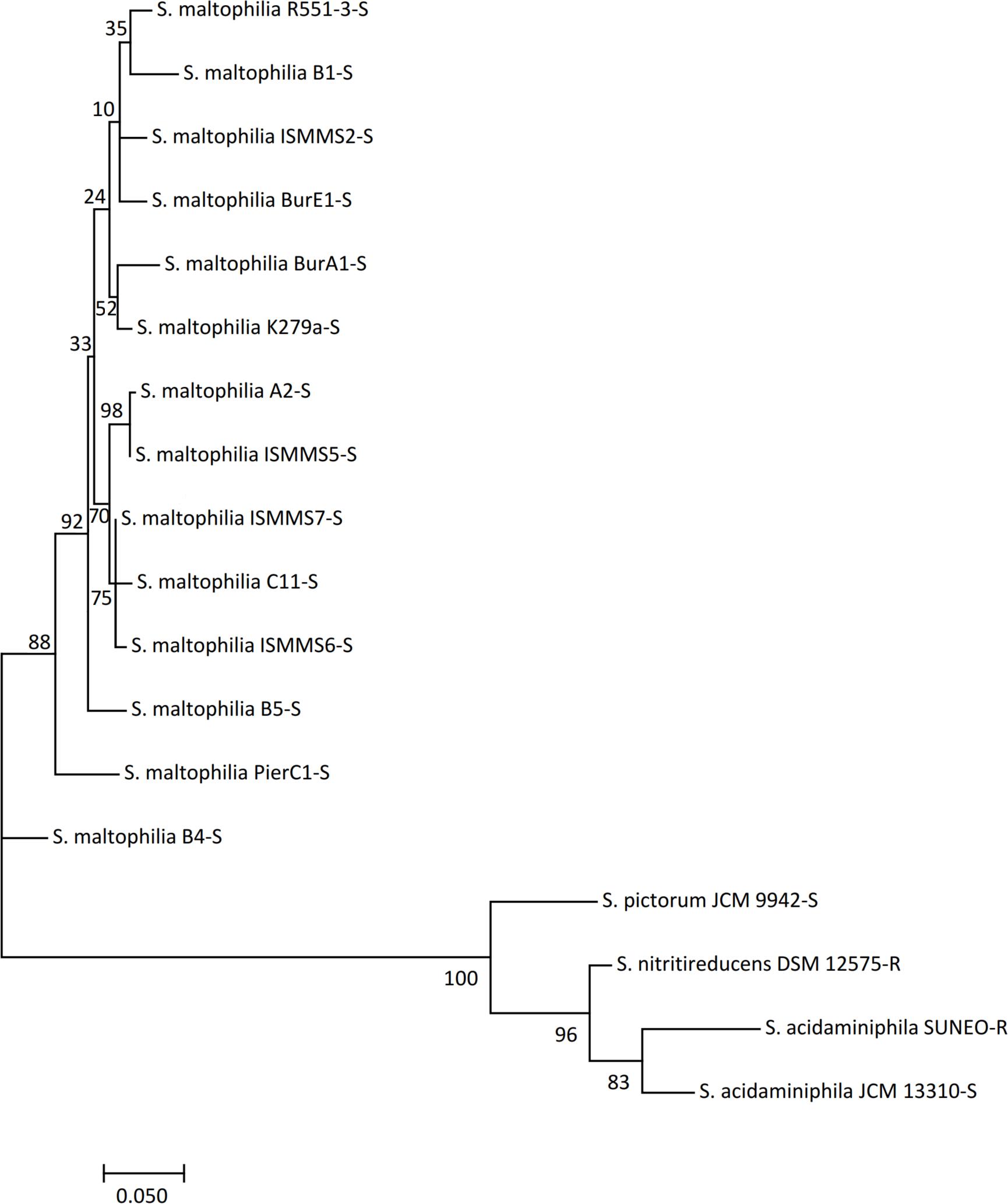

FIGURE 5. Phylogenetic tree of the amino acid sequences of dihydropteroate synthase homologs from Stenotrophomonas strains. Evolutionary history was inferred by using the maximum likelihood method. The bootstrap consensus tree inferred from 1,000 replicates is taken to represent the evolutionary history of the taxa analyzed. R: resistant to TMP-SMX. S: susceptible to TMP-SMX.

Sulfonamide-Binding Site Mutation Revealed by Structural Analysis

In order to identify key mutation in folP leading to resistance of SUNEO, sequence composition of DHPS between JCM 13310 and SUNEO was compared, which exhibited an amino acid change (Gly72 → Glu72) in one highly conservative region (termed Loop2) (Figure 6). Structural modeling allows us to visualize the difference in DHPS architecture between these two strains. This conservative region stabilizes the binding of PABA and variation at this region has been shown to contribute to resistance to sulfonamide (Yun et al., 2012). We further reconstruct their protein 3D structures to verify the difference of DHPS architecture between these two strains. The protein substructure at Loop2 in SUNEO appears disordered in comparison with that of JCM 13310 (Figure 7), which may reduce the binding stability of sulfonamide and lead to resistance.

FIGURE 6
www.frontiersin.org

FIGURE 6. Alignment result of the folPs in the S. acidaminiphila strain SUNEO and JCM 13310. Residues marked with red dots are sites of common sulfa drug (sulfonamide) resistance mutations. The last line in the data means the consensus amino acid symbol of the residue in the corresponding position for all strains: an asterisk indicates positions which have a single, fully conserved residue; a colon indicates conservation between groups of strongly similar properties; a period indicates conservation between groups of weakly similar properties.

FIGURE 7
www.frontiersin.org

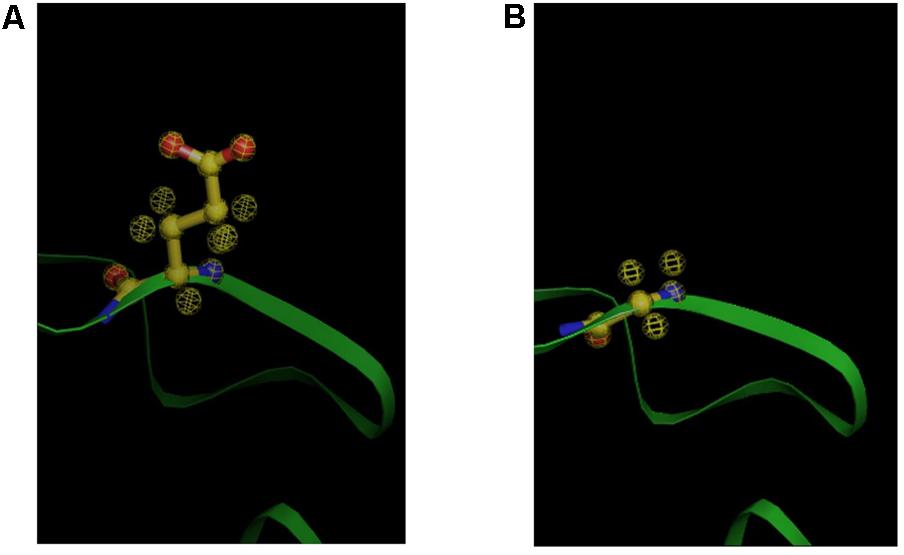

FIGURE 7. Structure predication for the folP gene products (dihydropteroate synthase) of S. acidaminiphila SUNEO and JCM 13310. (A) Glu72 in the SUNEO dihydropteroate synthase. (B) Gly72 in the JCM 13310 dihydropteroate synthase.

The selection pressure (Ka/Ks) was measured along the entire folP (Figure 8). The results indicated that strong signals of purifying selection (Ka/Ks < 0.08) are widely spread in folP. This implies evolution of folP in SUNEO is probably constrained by high selection pressure from long-term exposure of sulfonamide.

FIGURE 8
www.frontiersin.org

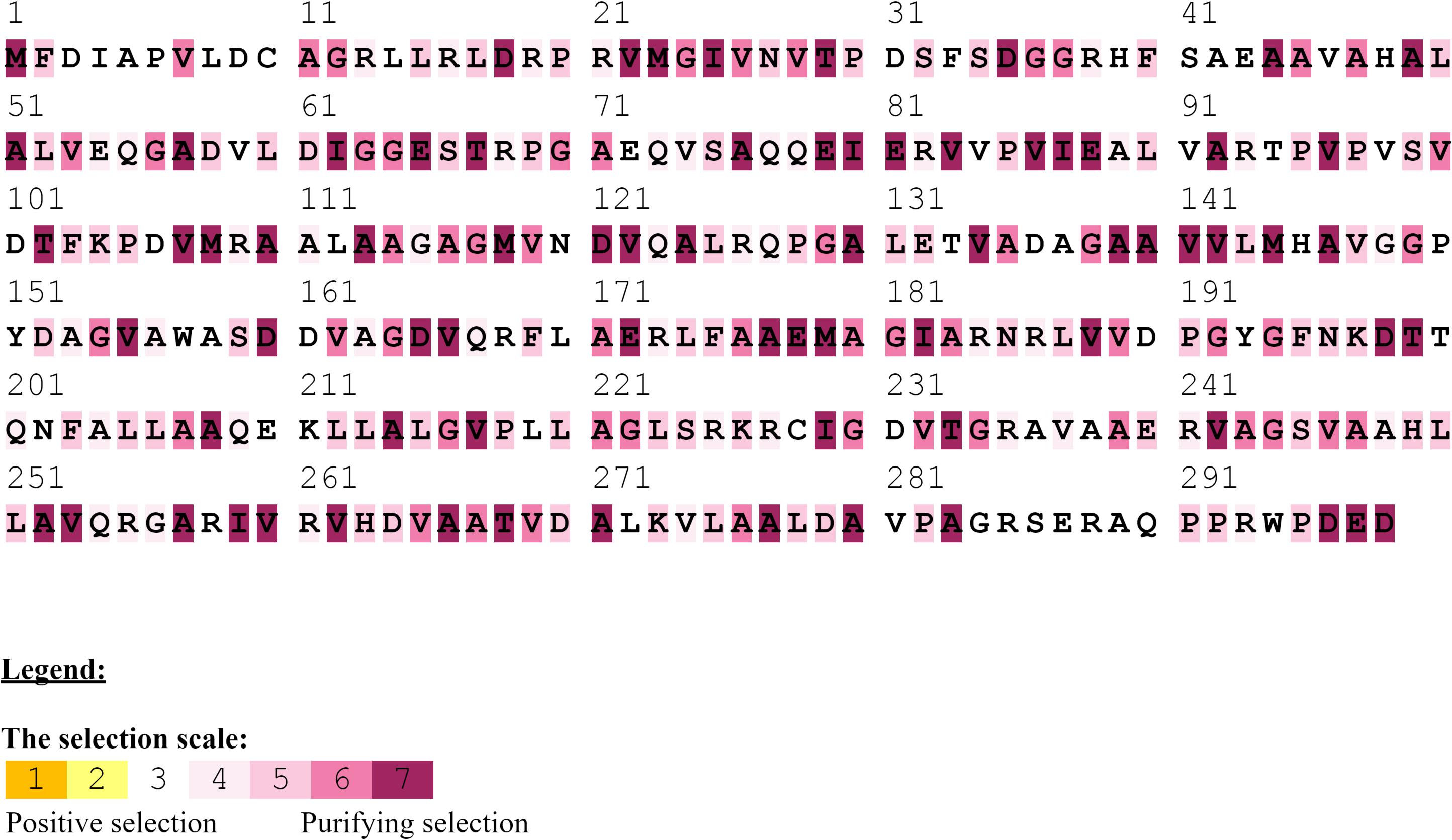

FIGURE 8. Selection pressure (Ka/Ks) measured along folP among S. acidaminiphila strains. The strong signals of purifying selection are defined as the loci with Ka/Ks < 0.8. Overall, 72 loci of strong signals of purifying selection is wide-spread across the entire gene sequence.

Discussion

The data we present represents a first glimpse into the evolution and mechanism for sulfamethoxazole resistance in S. acidaminiphila. Our discovery of novel mutations in DHPS offers new insight into the newly emerging field of Stenotrophomonas infections, furthering our understanding of the diversity in the dissemination of sulfamethoxazole resistance. Sulfamethoxazole interrupt the essential folate pathway in bacteria by targeting the enzyme DHPS, which in turn catalyzes the condensation of DHPP with PABA in the production of the folate intermediate. The locus of the mutation is consistent with earlier observations that many sulfamethoxazole resistance mutations are located within two conserved loops (called Loop1 and Loop2) of DHPS, which creates a specific binding pocket for PABA (Estrada et al., 2016).

To gain further structural insight of the DHPS homologs in SUNEO and JCM 13319, structural modeling was performed, where the ribbon structures of their DHPS were generated. The 3D structural DHPS proteins in SUNEO illustrated that the substructure at Loop2 is disordered. Further structural comparisons of DHPS also indicated that the resistant (SUNEO) and sensitive (JCM 13310) strains display a different substructure around the PABA-binding pockets. In agreement with the earlier proposal by Yun et al. (2012), sulfonamide resistance is associated with the Loop2 mutation and subsequent DHPS substructure disorder affected the binding of PABA. It was also reported that mutations in DHPS were associated with sulfamethoxazole resistance in both prokaryotes (Huovinen, 2001) and primitive eukaryotes (Triglia et al., 1997), where associated structural changes in Loop1–Loop2 PABA binding sites occurred (Capasso and Supuran, 2014). As sulfa drugs interrupt the folate pathway by competing with PABA as DHPS substrates, mutation at both the sequence and the structure of DHPS in SUNEO could be attributed to its resistance to sulfamethoxazole.

The selection pressure measured along the DHPS-encoding gene folP reveals strong signals of purifying selection, implying the evolution of folP is constrained by high selection pressure. Sulfamethoxazole has been the first-line antibiotic agent against Stenotrophomonas for decades and is widely use in agriculture. The usage of specific antibiotic agent has been shown to result in purifying selection in certain genes of resistant strains (Mortimer et al., 2018), because purifying selection on a subset of genes can be intensified in the setting of resistance. After sufficiently long-term usage of the same antibiotic agent, resistance may even reach a point of stabilizing evolution, completely reducing or invaliding the efficiency of the drug (Cornick et al., 2014). As folP in S. acidaminiphila already exhibited purifying selection, the administration of sulfamethoxazole for S. acidaminiphila infections in the future should be taken with caution.

Stenotrophomonas acidaminiphila SUNEO is also resistant to various antibiotics, suggesting multiple resistance mechanisms. Current understanding of the resistance determinants of S. acidaminiphila is limited. Vinuesa and Ochoa-Sanchez (2015) reported on predicted antibiotic resistant genes (without phenotypic resistance) in S. acidaminiphila ZAC14D2_NAIMI4_2 isolated from river sediment in Mexico, while Assih et al. (2002) reported on phenotypic resistance (without genotypic changes) in S. acidaminiphila JCM 13310. To address this concern, we conducted resistome analysis of S. acidaminiphila SUNEO and predicted multiple efflux pumps, which have also been detected in S. maltophilia strains (Crossman et al., 2008). In particular, we identified the RND efflux pump genes smeDEF, which was associated with trimethoprim/sulfamethoxazole resistance (Sanchez and Martinez, 2015). The resistance of trimethoprim/sulfamethoxazole in SUNEO could be a combination effect related to DHPS mutation and efflux pumps.

Stenotrophomonas acidaminiphila is able to degrade a number of organic pollutants, including Fomesafen [5-(2-chloro-4-[trifluoromethyl]phenoxy)-N-methylsulfonyl-2-nitrobenzamide] (Huang et al., 2017), Diuron [3-(3,4-dichlorophenyl)-1,1-dimethylurea] (Egea et al., 2017), and azo dye crystal violet (Kim et al., 2002). Our comparative analysis of resistome in S. acidaminiphila revealed that the efflux pumps genes presented in all examined S. acidaminiphila strains. Efflux pumps play a major role in both solvent tolerance and bioremediation (Fernandes et al., 2003), which is consistent with recent observations of the biodegradation of sulfonamide (Liao et al., 2016) and aminoglycoside (Selvaraj et al., 2018) in S. acidaminiphila. The mechanistic insight we gained further raises the possibility of cross-resistance to both environmental toxic compounds and antibiotics which would have a major impact on the use of disinfectants and disinfecting procedures.

Currently, most of the reported Stenotrophomonas infections are caused by S. maltophilia which is frequently recovered from clinical samples and is an emerging opportunistic pathogen associated with substantial morbidity and mortality, particularly in immunocompromised patients (Falagas et al., 2009). Incidences of human infection appear to have increased recently, where a variety of clinical syndromes have been described, including pneumonia, bacteremia, and peritonitis (Denton and Kerr, 1998; Sattler et al., 2000). However, biliary tract infections remain uncommon. Our report outlines the first human biliary infection caused by S. acidaminiphila. The virulence factors of S. acidaminiphila are largely unknown. Our data has revealed RND pump homologs of the acrAB in SUNEO. acrAB encodes a bile-induced efflux system and is expressed in both animal models and infected patients (Gunn, 2000; Piddock, 2006). Additional studies are required in order to clarify its role in S. acidaminiphila pathogenesis.

Conclusion

Our analysis reveals a possible core genome of S. acidaminiphila, along with accessory genomes specific to each strain, providing insights into the resistant potential of the clinical isolate. We propose a scenario for the origin and evolution of S. acidaminiphila, based on its genomic features. Gene annotation and comparative analysis further revealed a unique profile of folP mutation. The mechanism for sulfonamide resistance in S. acidaminiphila SUNEO appears to involve the mutation of the Loop2 region of DHPS, thereby leading to alterations in the structural conformation of the site and the multi-drug efflux pumps.

Data Availability

This genome project, which includes the raw read data, assembly, and annotation, has been deposited at NCBI/GenBank as BioProject PRJNA374779. The assembly is available under accession CP019797; the version described in this paper is the first version.

Author Contributions

Y-TH, J-MC, and P-YL designed and coordinated the study and carried out the data analysis. Y-TH, J-MC, and P-YL performed the bioinformatics analysis. Z-YW, B-CH, and P-YL carried out the experiments and interpreted data for the work. Y-TH, Z-YW, RK, and P-YL wrote the manuscript. Y-TH, RK, and P-YL checked and edited the manuscript. All authors have read and approved the manuscript.

Funding

Y-TH was supported in part by the Ministry of Science and Technology (MOST) with 106-2221-E-194-056-MY3. P-YL was supported by the Taichung Veterans General Hospital with TCVGH-1073901B and TCVGH-NK1079003.

Conflict of Interest Statement

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Supplementary Material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fmicb.2018.01013/full#supplementary-material

Footnotes

  1. ^ http://www.bacterio.net/stenotrophomonas.html
  2. ^ http://robetta.bakerlab.org/
  3. ^ http://noch.sourceforge.net
  4. ^ http://selecton.tau.ac.il

References

Alavi, P., Starcher, M. R., Thallinger, G. G., Zachow, C., Muller, H., and Berg, G. (2014). Stenotrophomonas comparative genomics reveals genes and functions that differentiate beneficial and pathogenic bacteria. BMC Genomics 15:482. doi: 10.1186/1471-2164-15-482

PubMed Abstract | CrossRef Full Text | Google Scholar

Assih, E. A., Ouattara, A. S., Thierry, S., Cayol, J. L., Labat, M., and Macarie, H. (2002). Stenotrophomonas acidaminiphila sp. nov., a strictly aerobic bacterium isolated from an upflow anaerobic sludge blanket (UASB) reactor. Int. J. Syst. Evol. Microbiol. 52(Pt 2), 559–568. doi: 10.1099/00207713-52-2-559

PubMed Abstract | CrossRef Full Text | Google Scholar

Baker, D., and Sali, A. (2001). Protein structure prediction and structural genomics. Science 294, 93–96. doi: 10.1126/science.1065659

PubMed Abstract | CrossRef Full Text | Google Scholar

Capasso, C., and Supuran, C. T. (2014). Sulfa and trimethoprim-like drugs - antimetabolites acting as carbonic anhydrase, dihydropteroate synthase and dihydrofolate reductase inhibitors. J. Enzyme. Inhib. Med. Chem. 293, 379–387. doi: 10.3109/14756366.2013.787422

PubMed Abstract | CrossRef Full Text | Google Scholar

Chen, I. A., Markowitz, V. M., Chu, K., Palaniappan, K., Szeto, E., Pillay, M., et al. (2017). IMG/M: integrated genome and metagenome comparative data analysis system. Nucleic Acids Res. 45, D507–D516. doi: 10.1093/nar/gkw929

PubMed Abstract | CrossRef Full Text | Google Scholar

Cornick, J. E., Harris, S. R., Parry, C. M., Moore, M. J., Jassi, C., Kamng’ona, A., et al. (2014). Genomic identification of a novel co-trimoxazole resistance genotype and its prevalence amongst Streptococcus pneumoniae in Malawi. J. Antimicrob. Chemother. 692, 368–374. doi: 10.1093/jac/dkt384

PubMed Abstract | CrossRef Full Text | Google Scholar

Crossman, L. C., Gould, V. C., Dow, J. M., Vernikos, G. S., Okazaki, A., Sebaihia, M., et al. (2008). The complete genome, comparative and functional analysis of Stenotrophomonas maltophilia reveals an organism heavily shielded by drug resistance determinants. Genome Biol. 94:R74. doi: 10.1186/gb-2008-9-4-r74

PubMed Abstract | CrossRef Full Text | Google Scholar

Davenport, K. W., Daligault, H. E., Minogue, T. D., Broomall, S. M., Bruce, D. C., Chain, P. S., et al. (2014). Complete genome sequence of Stenotrophomonas maltophilia type strain 810-2 (ATCC 13637). Genome Announc. 25, e00974-14. doi: 10.1128/genomeA.00974-14,

PubMed Abstract | CrossRef Full Text | Google Scholar

Denton, M., and Kerr, K. G. (1998). Microbiological and clinical aspects of infection associated with Stenotrophomonas maltophilia. Clin. Microbiol. Rev. 111, 57–80.

Google Scholar

Egea, T. C., da Silva, R., Boscolo, M., Rigonato, J., Monteiro, D. A., Grunig, D., et al. (2017). Diuron degradation by bacteria from soil of sugarcane crops. Heliyon 312:e00471. doi: 10.1016/j.heliyon.2017.e00471

PubMed Abstract | CrossRef Full Text | Google Scholar

Estrada, A., Wright, D. L., and Anderson, A. C. (2016). Antibacterial antifolates: from development through resistance to the next generation. Cold Spring Harb. Perspect. Med. 68:a028324. doi: 10.1101/cshperspect.a028324

PubMed Abstract | CrossRef Full Text | Google Scholar

Falagas, M. E., Kastoris, A. C., Vouloumanou, E. K., Rafailidis, P. I., Kapaskelis, A. M., and Dimopoulos, G. (2009). Attributable mortality of Stenotrophomonas maltophilia infections: a systematic review of the literature. Future Microbiol. 49, 1103–1109. doi: 10.2217/fmb.09.84

PubMed Abstract | CrossRef Full Text | Google Scholar

Fernandes, P., Ferreira, B. S., and Cabral, J. M. (2003). Solvent tolerance in bacteria: role of efflux pumps and cross-resistance with antibiotics. Int. J. Antimicrob. Agents 223, 211–216.

Gomila, M., Pena, A., Mulet, M., Lalucat, J., and Garcia-Valdes, E. (2015). Phylogenomics and systematics in Pseudomonas. Front. Microbiol. 6:214. doi: 10.3389/fmicb.2015.00214

CrossRef Full Text | Google Scholar

Gunn, J. S. (2000). Mechanisms of bacterial resistance and response to bile. Microbes Infect. 28, 907–913.

Google Scholar

Huang, X., He, J., Yan, X., Hong, Q., Chen, K., He, Q., et al. (2017). Microbial catabolism of chemical herbicides: microbial resources, metabolic pathways and catabolic genes. Pestic. Biochem. Physiol. 143, 272–297. doi: 10.1016/j.pestbp.2016.11.010

PubMed Abstract | CrossRef Full Text | Google Scholar

Hunt, M., Silva, N. D., Otto, T. D., Parkhill, J., Keane, J. A., and Harris, S. R. (2015). Circlator: automated circularization of genome assemblies using long sequencing reads. Genome Biol. 16:294. doi: 10.1186/s13059-015-0849-0

PubMed Abstract | CrossRef Full Text | Google Scholar

Huovinen, P. (2001). Resistance to trimethoprim-sulfamethoxazole. Clin. Infect. Dis. 3211, 1608–1614. doi: 10.1086/320532

PubMed Abstract | CrossRef Full Text | Google Scholar

Kaiser, S., Biehler, K., and Jonas, D. (2009). A Stenotrophomonas maltophilia multilocus sequence typing scheme for inferring population structure. J. Bacteriol. 1919, 2934–2943. doi: 10.1128/JB.00892-08

PubMed Abstract | CrossRef Full Text | Google Scholar

Kim, J.-D., Yoon, J.-H., Park, Y.-H., Fusako, K., Kim, H.-T., Lee, D.-W., et al. (2002). Identification of Stenotrophomonas maltophilia LK-24 and its degradability of crystal violet. J. Microbiol. Biotechnol. 123, 437–443.

Google Scholar

Konstantinidis, K. T., and Tiedje, J. M. (2005). Genomic insights that advance the species definition for prokaryotes. Proc. Natl. Acad. Sci. U.S.A. 1027, 2567–2572. doi: 10.1073/pnas.0409727102

PubMed Abstract | CrossRef Full Text | Google Scholar

Koren, S., Walenz, B. P., Berlin, K., Miller, J. R., Bergman, N. H., and Phillippy, A. M. (2017). Canu: scalable and accurate long-read assembly via adaptive k-mer weighting and repeat separation. Genome Res. 275, 722–736. doi: 10.1101/gr.215087.116

PubMed Abstract | CrossRef Full Text | Google Scholar

Kumar, S., Stecher, G., and Tamura, K. (2016). MEGA7: molecular evolutionary genetics analysis version 7.0 for bigger datasets. Mol. Biol. Evol. 337, 1870–1874. doi: 10.1093/molbev/msw054

PubMed Abstract | CrossRef Full Text | Google Scholar

Lee, I., Ouk Kim, Y., Park, S. C., and Chun, J. (2016). OrthoANI: an improved algorithm and software for calculating average nucleotide identity. Int. J. Syst. Evol. Microbiol. 662, 1100–1103. doi: 10.1099/ijsem.0.000760

PubMed Abstract | CrossRef Full Text | Google Scholar

Liao, X., Li, B., Zou, R., Xie, S., and Yuan, B. (2016). Antibiotic sulfanilamide biodegradation by acclimated microbial populations. Appl. Microbiol. Biotechnol. 1005, 2439–2447. doi: 10.1007/s00253-015-7133-9

PubMed Abstract | CrossRef Full Text | Google Scholar

Mangwani, N., Shukla, S. K., Kumari, S., Rao, T. S., and Das, S. (2014). Characterization of Stenotrophomonas acidaminiphila NCW-702 biofilm for implication in the degradation of polycyclic aromatic hydrocarbons. J. Appl. Microbiol. 1174, 1012–1024. doi: 10.1111/jam.12602

PubMed Abstract | CrossRef Full Text | Google Scholar

Markowitz, V. M., Chen, I.-M. A., Palaniappan, K., Chu, K., Szeto, E., Grechkin, Y., et al. (2012). IMG: the integrated microbial genomes database and comparative analysis system. Nucleic Acids Res. 40, D115–D122. doi: 10.1093/nar/gkr1044

PubMed Abstract | CrossRef Full Text | Google Scholar

McArthur, A. G., Waglechner, N., Nizam, F., Yan, A., Azad, M. A., Baylay, A. J., et al. (2013). The comprehensive antibiotic resistance database. Antimicrob. Agents Chemother. 577, 3348–3357. doi: 10.1128/AAC.00419-13

PubMed Abstract | CrossRef Full Text | Google Scholar

Mortimer, T. D., Weber, A. M., and Pepperell, C. S. (2018). Signatures of selection at drug resistance loci in Mycobacterium tuberculosis. mSystems 3, e108–e117. doi: 10.1128/mSystems.0010817

PubMed Abstract | CrossRef Full Text | Google Scholar

Patil, P. P., Midha, S., Kumar, S., and Patil, P. B. (2016). Genome sequence of type strains of genus Stenotrophomonas. Front. Microbiol. 7:309. doi: 10.3389/fmicb.2016.00309

CrossRef Full Text | Google Scholar

Piddock, L. J. (2006). Multidrug-resistance efflux pumps - not just for resistance. Nat. Rev. Microbiol. 48, 629–636. doi: 10.1038/nrmicro1464

PubMed Abstract | CrossRef Full Text | Google Scholar

Pruitt, K. D., Tatusova, T., and Maglott, D. R. (2007). NCBI reference sequences (RefSeq): a curated non-redundant sequence database of genomes, transcripts and proteins. Nucleic Acids Res. 35, D61–D65. doi: 10.1093/nar/gkl842

PubMed Abstract | CrossRef Full Text | Google Scholar

Sanchez, M. B. (2015). Antibiotic resistance in the opportunistic pathogen Stenotrophomonas maltophilia. Front. Microbiol. 6:658. doi: 10.3389/fmicb.2015.00658

CrossRef Full Text | Google Scholar

Sanchez, M. B., and Martinez, J. L. (2015). The efflux pump SmeDEF contributes to trimethoprim-sulfamethoxazole resistance in Stenotrophomonas maltophilia. Antimicrob. Agents Chemother. 597, 4347–4348. doi: 10.1128/AAC.00714-15

PubMed Abstract | CrossRef Full Text

Sanchez-Castro, I., Bakkali, M., and Merroun, M. L. (2017). Draft Genome Sequence of Stenotrophomonas bentonitica BII-R7(T), a selenite-reducing bacterium isolated from Spanish bentonites. Genome Announc. 5, e00719-17. doi: 10.1128/genomeA.00719-17,

PubMed Abstract | CrossRef Full Text | Google Scholar

Sattler, C. A., Mason, E. O. Jr., and Kaplan, S. L. (2000). Nonrespiratory Stenotrophomonas maltophilia infection at a children’s hospital. Clin. Infect. Dis. 316, 1321–1330. doi: 10.1086/317473

PubMed Abstract | CrossRef Full Text | Google Scholar

Selvaraj, G. K., Tian, Z., Zhang, H., Jayaraman, M., Yang, M., and Zhang, Y. (2018). Culture-based study on the development of antibiotic resistance in a biological wastewater system treating stepwise increasing doses of streptomycin. AMB Express 81:12. doi: 10.1186/s13568-018-0539-x

PubMed Abstract | CrossRef Full Text | Google Scholar

Skold, O. (2000). Sulfonamide resistance: mechanisms and trends. Drug Resist. Updat. 33, 155–160. doi: 10.1054/drup.2000.0146

PubMed Abstract | CrossRef Full Text | Google Scholar

Toleman, M. A., Bennett, P. M., Bennett, D. M., Jones, R. N., and Walsh, T. R. (2007). Global emergence of trimethoprim/sulfamethoxazole resistance in Stenotrophomonas maltophilia mediated by acquisition of sul genes. Emerg. Infect. Dis. 134, 559–565. doi: 10.3201/eid1304.061378

PubMed Abstract | CrossRef Full Text | Google Scholar

Triglia, T., Menting, J. G., Wilson, C., and Cowman, A. F. (1997). Mutations in dihydropteroate synthase are responsible for sulfone and sulfonamide resistance in Plasmodium falciparum. Proc. Natl. Acad. Sci. U.S.A. 9425, 13944–13949.

PubMed Abstract | Google Scholar

Vinuesa, P., and Ochoa-Sanchez, L. E. (2015). Complete genome sequencing of Stenotrophomonas acidaminiphila ZAC14D2_NAIMI4_2, a multidrug-resistant strain isolated from sediments of a polluted river in Mexico, uncovers new antibiotic resistance genes and a novel class-II lasso peptide biosynthesis gene cluster. Genome Announc. 36, e1433-1415. doi: 10.1128/genomeA.01433-15

PubMed Abstract | CrossRef Full Text | Google Scholar

Yoon, S. H., Ha, S. M., Lim, J., Kwon, S., and Chun, J. (2017). A large-scale evaluation of algorithms to calculate average nucleotide identity. Antonie Van Leeuwenhoek 110, 1281–1286. doi: 10.1007/s10482-017-0844-4

PubMed Abstract | CrossRef Full Text | Google Scholar

Yun, M. K., Wu, Y., Li, Z., Zhao, Y., Waddell, M. B., Ferreira, A. M., et al. (2012). Catalysis and sulfa drug resistance in dihydropteroate synthase. Science 335, 1110–1114. doi: 10.1126/science.1214641

PubMed Abstract | CrossRef Full Text | Google Scholar

Keywords: genome sequencing, Stenotrophomonas acidaminiphila, sulfamethoxazole resistance, Stenotrophomonas, comparative genomics, dihydropteroate synthase
