Original Research ARTICLE

Front. Microbiol., 04 June 2018 | https://doi.org/10.3389/fmicb.2018.01133

Rhizosphere Microbiomes Modulated by Pre-crops Assisted Plants in Defense Against Plant-Parasitic Nematodes

Ahmed Elhady1,2, Shimaa Adss1, Johannes Hallmann1 and Holger Heuer1*
  • 1Department of Epidemiology and Pathogen Diagnostics, Julius Kühn-Institut – Federal Research Centre for Cultivated Plants, Braunschweig, Germany
  • 2Department of Plant Protection, Faculty of Agriculture, Benha University, Benha, Egypt

Plant-parasitic nematodes cause considerable damage to crop plants. The rhizosphere microbiome can affect invasion and reproductive success of plant-parasitic nematodes, thus affecting plant damage. In this study, we investigated how the transplanted rhizosphere microbiome from different crops affect plant-parasitic nematodes on soybean or tomato, and whether the plant’s own microbiome from the rhizosphere protects it better than the microbiome from fallow soil. Soybean plants growing in sterilized substrate were inoculated with the microbiome extracted from the rhizosphere of soybean, maize, or tomato. Controls were inoculated with extracts from bulk soil, or not inoculated. After the microbiome was established, the root lesion nematode Pratylenchus penetrans was added. Root invasion of P. penetrans was significantly reduced on soybean plants inoculated with the microbiome from maize or soybean compared to tomato or bulk soil, or the uninoculated control. In the analogous experiment with tomato plants inoculated with either P. penetrans or the root knot nematode Meloidogyne incognita, the rhizosphere microbiomes of maize and tomato reduced root invasion by P. penetrans and M. incognita compared to microbiomes from soybean or bulk soil. Reproduction of M. incognita on tomato followed the same trend, and it was best suppressed by the tomato rhizosphere microbiome. In split-root experiments with soybean and tomato plants, a systemic effect of the inoculated rhizosphere microbiomes on root invasion of P. penetrans was shown. Furthermore, some transplanted microbiomes slightly enhanced plant growth compared to uninoculated plants. The microbiomes from maize rhizosphere and bulk soil increased the fresh weights of roots and shoots of soybean plants, and microbiomes from soybean rhizosphere and bulk soil increased the fresh weights of roots and shoots of tomato plants. Nematode invasion did not affect plant growth in these short-term experiments. In conclusion, this study highlights the importance of the rhizosphere microbiome in protecting crops against plant-parasitic nematodes. An effect of pre-crops on the rhizosphere microbiome might be harnessed to enhance the resistance of crops towards plant-parasitic nematodes. However, nematode-suppressive effects of a particular microbiome may not necessarily coincide with improvement of plant growth in the absence of plant-parasitic nematodes.

Introduction

Cultivated plants in agroecosystems are part of multi-organismal associations called phytobiomes that may support them in nutrient acquisition, production of growth factors, and defense against pathogens depending on its composition (Sánchez-Cañizares et al., 2017). Plant-parasitic nematodes are microscopic worms that migrate through soil in search of a host plant where they feed from the liquid content of root cells. Root damage in association with the withdrawal of plant nutrients finally leads to plant damage and yield losses. Globally, crop losses associated with plant-parasitic nematodes are estimated to be 12.6% corresponding to $216 billion per year (Nyaku et al., 2017). However, damage by plant-parasitic nematodes often remains unnoticed as aboveground symptoms are rare and a proper diagnosis for nematodes is lacking. Plant-parasitic nematodes vary in their life cycle and type of parasitism. The root lesion nematode Pratylenchus penetrans is an endoparasite that invades and migrates through roots as juvenile or adult without becoming sedentary, and escapes to soil under adverse conditions inside roots. In contrast, the root-knot nematode Meloidogyne incognita is a sedentary endoparasite, where the infectious second-stage juveniles (J2) enter the root near the tip and establish a feeding site near the vascular system. Once done, the juvenile loses its motility and completes its life cycle within the root.

Management of plant-parasitic nematodes is a challenge because nematicides have been mostly banned, and resistant varieties or non-host crops are often not available or not profitable. Novel methods with high potential and sustainability have become an urgent need. Biocontrol agents are quite expensive and often do not provide consistent control. Interestingly, there is mounting evidence that the indigenous plant microbiome plays a vital role in suppressing soil-borne diseases (Besset-Manzoni et al., 2018). Soil microbiomes that suppressed root invasion and reproduction of plant-parasitic nematodes have been described (Bent et al., 2008; Adam et al., 2014; Elhady et al., 2017). It has been suggested to harness synthetic consortia of microbes (Julien-Laferrière et al., 2016), or beneficial microbiomes (Nyaku et al., 2017) to increase the sustainability and productivity of agriculture. To avoid expensive and inconsistently efficient inoculation of plants with microbes for improvement of plant growth and health, engineering of the soil microbiome was suggested (Finkel et al., 2017). Naturally, the plants itself modulate the microbiome in the rhizosphere (Venturi and Keel, 2016). This may be effective for a prolonged period of time and affect the next plant growing in the same soil (Lapsansky et al., 2016). Agronomically, a preceding crop can affect the yield of a following crop (Jacobs et al., 2018). Understanding plant-microbiome feedbacks was suggested to be one of the keys for exploiting the yield potential of cropping systems (Ahkami et al., 2017). It is yet unclear how different crops affect each other by their specific microbiomes. In monoculture systems soils eventually become disease-suppressive to plant-parasitic nematodes over time (Hamid et al., 2017). However, it was not investigated whether plants enrich a microbiome in their rhizosphere that is more beneficial to them than the microbiome from bulk soil or a different pre-crop.

In this study, we investigated how the rhizosphere microbiomes of different plants affect root invasion of plant-parasitic nematodes on soybean and tomato, and whether the plant’s own microbiome protects it better than the microbiome from bulk soil or a different pre-crop. It was analyzed in split-root systems whether observed effects of the microbiome on the nematodes were plant-mediated, and whether induced resistance against the plant-parasitic nematodes has a trade-off in plant growth.

Materials and Methods

Plants, Growth Conditions, and Microbiome Inocula

In order to obtain the soil and rhizosphere microbiome inocula, soybean (Glycine max) cv. Primus; maize (Zea mays) cv. Colisee and tomato (Solanum lycopersicum) cv. Moneymaker were grown in 12 cm diameter plastic pots filled with 500 ml field soil as donor crop. The soil was a loamy sand, braunerde, pH 6.5, from a field in Braunschweig, Germany (52°1757′′ N, 10°2614′′ E). Cultivation of soybean in the previous year (tillage, NPK fertilization) resulted in a density of Pratylenchus of 599 ± 11 infective stages per 100 ml soil, while other plant-parasitic nematodes had low adundances (Paratylenchus 76 ± 29 per 100 ml, Tylenchorhynchus 140 ± 21 per 100 ml). The field soil was sampled in May before planting and kept at 4°C until preparation of rhizosphere and bulk soil microbiomes. Five plants per pot were grown to guarantee sufficient root biomass and raise the potential of modulating the tested soil by the donor crops. Pots with only field soil were left fallow to provide the microbiome of bulk soil serving as non-modulated control. All pots were watered as needed every 2–3 days and fertilized weekly with 5 ml per 100 ml substrate with commercial fertilizer (WUXAL Super NPK fertilizer, 8-8-6 with micronutrients, 2.5 g/l, AGLUKON, Düsseldorf, Germany). Pots were kept in the greenhouse at 24°C and 16 h photoperiod. Two weeks after the donor crops were planted, soybean and tomato was planted as recipient hosts for the rhizosphere and bulk soil microbiomes. The soybean and tomato seeds were surface sterilized with 1.5% sodium hypochlorite for 15 min and then rinsed 5 times with sterile deionized water. The seeds were germinated for 5 days on paper tissue under sterile conditions. Seedlings were then planted into two times autoclaved sand as an artificial growth substrate, i.e. in pots containing 100 ml sand for the nematode penetration assay and in pots containing 500 ml sand for the reproduction assay. Recipient plants were grown for 10 days before inoculation of a microbiome suspension from donor crops or bulk soil. For that, the microbiomes of roots with 15 g rhizosphere soil of 6 week-old donor crops, or 15 g bulk soil were extracted in a Stomacher blender (Seward, London, United Kingdom) three times with 15 ml sterile 0.85% NaCl at high speed for 60 s. Soil particles were sedimented and the microbial suspensions of the supernatant were passed through a 5 μm sieve to remove remaining particles, nematodes, and root debris. The microbes were pelleted for 10 min at 4000 g and re-suspended in 45 ml sterile tap water. Each pot with the recipient plant received 15 ml of this suspension per 100 ml autoclaved sand. The transplanted microbiomes were established for 2 weeks in the rhizosphere of the recipient plants before plant-parasitic nematodes were inoculated.

Growth and Surface Sterilization of Plant-Parasitic Nematodes

Adults and juveniles of P. penetrans were multiplied for 2–4 months on carrot disks and extracted by Baermann funnel (EPPO, 2013). The root knot nematode M. incognita was multiplied on tomato cv. Moneymaker for 2 months in the greenhouse at 16 h photoperiod and 26°C. Second-stage juveniles (J2) were collected by picking egg masses from tomato roots and transferring them into sterile tap water at room temperature to facilitate hatch of J2. For surface disinfection, nematodes were placed first on 5 μm sieves (Cell-Trics1 filters, Sysmex, Norderstedt, Germany) and washed with 10 ml sterilized tap water. Nematodes were then treated with 0.02% HgCl2 for 3 min and with 4000 ppm streptomycin sulfate for another 3 min. Next, nematodes were incubated for 4 h in 5 ml 1x CellCultureGuard (AppliChem, Darmstadt, Germany) on a rotary shaker at 150 rpm. Finally, the nematodes were washed on a 5 μm sieve and incubated overnight in sterilized tap water. Prior to use in the experiments, nematodes were checked for their sterility by plating them on R2A (Merck, Darmstadt, Germany) for bacterial growth and on potato extract glucose agar (Carl Roth, Karlsruhe, Germany) for fungal growth. Inoculation of plants with nematodes was done by digging eight ca. 5 cm deep half an inch wide holes in 5 cm distance around the shoot, and equally distributing the nematode suspension.

Nematode Invasion and Reproduction Assays

Ten days after nematode inoculation, roots were sampled and washed to remove soil. Nematode invasion was quantified by staining the roots with 1% acid fuchsin (Bybd et al., 1983). Roots were stored in the staining solution at 4°C until counting of nematodes at 20× magnification under a stereomicroscope. To determine the number of living and dead nematodes in the growth substrate, 250 g soil was washed over a sieve combination of 100 μm and 5 μm. The soil particles on the 100 μm sieve were discarded and the nematodes on the 5 μm sieve counted under a stereomicroscope. Alive and dead nematodes were distinguished based on their active mobility and body style.

To determine the reproduction of M. incognita, roots were sampled 2 months after nematode inoculation. Roots were gently washed to clean them from adhering soil. The number of galls on the root was determined. To estimate the number of eggs, roots were cut to 2 cm pieces and macerated in 1.5% sodium hypochlorite twice for 15 s each with a commercial blender (Waring, Torrington, CT, United States). The macerate was passed through a 100 μm sieve nested over a 5 μm sieve. Plant debris collected on the 100 μm sieve was discarded and eggs collected on the 5 μm sieve were washed with tap water into 50 ml falcon tubes. A 1 ml aliquot was transferred into a nematode-counting slide and nematodes were counted at 40× magnification under a stereomicroscope.

Invasion of P. penetrans Into Soybean Roots Affected by Transplanted Microbiomes

In order to investigate how the transplanted rhizosphere microbiome from different crops affect invasion of P. penetrans into roots, soybean plants were grown in two times steam-sterilized sand. Two weeks old soybean plants were inoculated with microbiomes from soybean, tomato, or maize rhizosphere, or from bulk soil in randomized complete block design with 12 replicates. Plants were kept for 2 weeks for microbiome establishment and colonization before each pot was inoculated with 1000 mixed stages of P. penetrans. The number of P. penetrans in roots, and the living and dead P. penetrans in soil were determined 10 days after inoculation.

Susceptibility of Tomato to P. penetrans and M. incognita Affected by Transplanted Microbiomes

An analogous experiment with tomato was used to confirm whether the plant’s own microbiome protects it better than the microbiome from bulk soil or a different pre-crop. Each pot was inoculated with 500 mixed stages of P. penetrans or J2 of M. incognita. The invasion of both nematodes was determined after 10 days while the reproduction of M. incognita and their galls was determined 2 months after incubation. Each treatment had 10 replicates.

Split-Root Experiment

The potential of the rhizosphere microbiome to induce systemic resistance was studied in a split-root system as described by Dababat and Sikora (2007). Three square pots of 7 cm × 7 cm × 8 cm were arranged as follows: Two pots were attached to each other (inducer pot and responder pot, respectively) and one pot was placed in the center above those two pots. Two-week old seedlings of tomato or soybean were transplanted in the center of the upper pot, which was half filled with sterile sand. The number of replicates was 10 for tomato and 12 for soybean. The inducer pot was inoculated with the microbiomes of the donor crops. After establishment of the microbiome, the responder pot was inoculated with 500 mixed stages of P. penetrans. The plants were watered and fertilized. The roots were weighted and the number of invaded P. penetrans was determined. Roots of the inducer side were frozen in liquid nitrogen for later determination of phenolic compounds. The total phenolic compounds in 0.5 g root were quantified using a Folin Ciocalteu assay (Ainsworth and Gillespie, 2007), with gallic acid (Sigma-Aldrich, Darmstadt, Germany) as reference for quantification.

Statistical Analysis

Analysis of variance was done using the procedure GENMOD of the statistical software SAS 9.4 (SAS Institute Inc., Cary, NC, United States) to fit generalized linear models. For count data (numbers of galls, eggs, nematodes) the procedure was used to perform a Poisson regression analysis with a log link function and specification of a scale parameter (Pearson) to fit overdispersed distributions. Class variables were treatment (microbiome or uninoculated control) and block (accounting for the randomized block design of experiments). For multiple comparisons, the p-value was adjusted by the method of Tukey. Graphs were generated using Prism 7 (GraphPad Software, La Jolla, CA, United States).

Results

Rhizosphere Microbiomes of Different Crops Affected the Invasion of P. penetrans Into Soybean Roots

Microbes extracted from the rhizosphere of soybean, maize, tomato and from bulk soil were inoculated to the roots of soybean to investigate their effect on root invasion by P. penetrans. The type of inoculated microbiome significantly affected the number of nematodes that penetrated the root (Figure 1). Compared to the sterile control the microbiomes from soybean, maize and bulk soil all significantly reduced the invasion of P. penetrans (Figure 1). The tomato microbiome showed a similar trend, although not significantly. The inoculated microbiomes from soybean and maize rhizospheres affected the nematodes stronger than the microbiome from bulk soil, while the effect of the tomato microbiome did not significantly differ from that of bulk soil. The strongest effect on P. penetrans was exerted by the microbiome of the maize rhizosphere that reduced invasion significantly more than the microbiome from the soybean rhizosphere. Regarding dead and alive specimen of P. penetrans outside the root, dead nematodes were relatively higher in the substrates treated with the microbiomes of bulk soil, maize rhizosphere and soybean rhizosphere than in the uninoculated control, suggesting a role of direct antagonism of the microbiome to the nematode (Figure 2). For the microbiome of the tomato rhizosphere such an effect was not observed. The numbers of live P. penetrans in the substrate were significantly higher in the pots with microbiomes from maize and soybean compared to all other treatments. Thus, the lower invasion rates of these treatments could not be explained by microbe-induced death of P. penetrans outside the root but rather by preferential partitioning of the active nematodes.

FIGURE 1
www.frontiersin.org

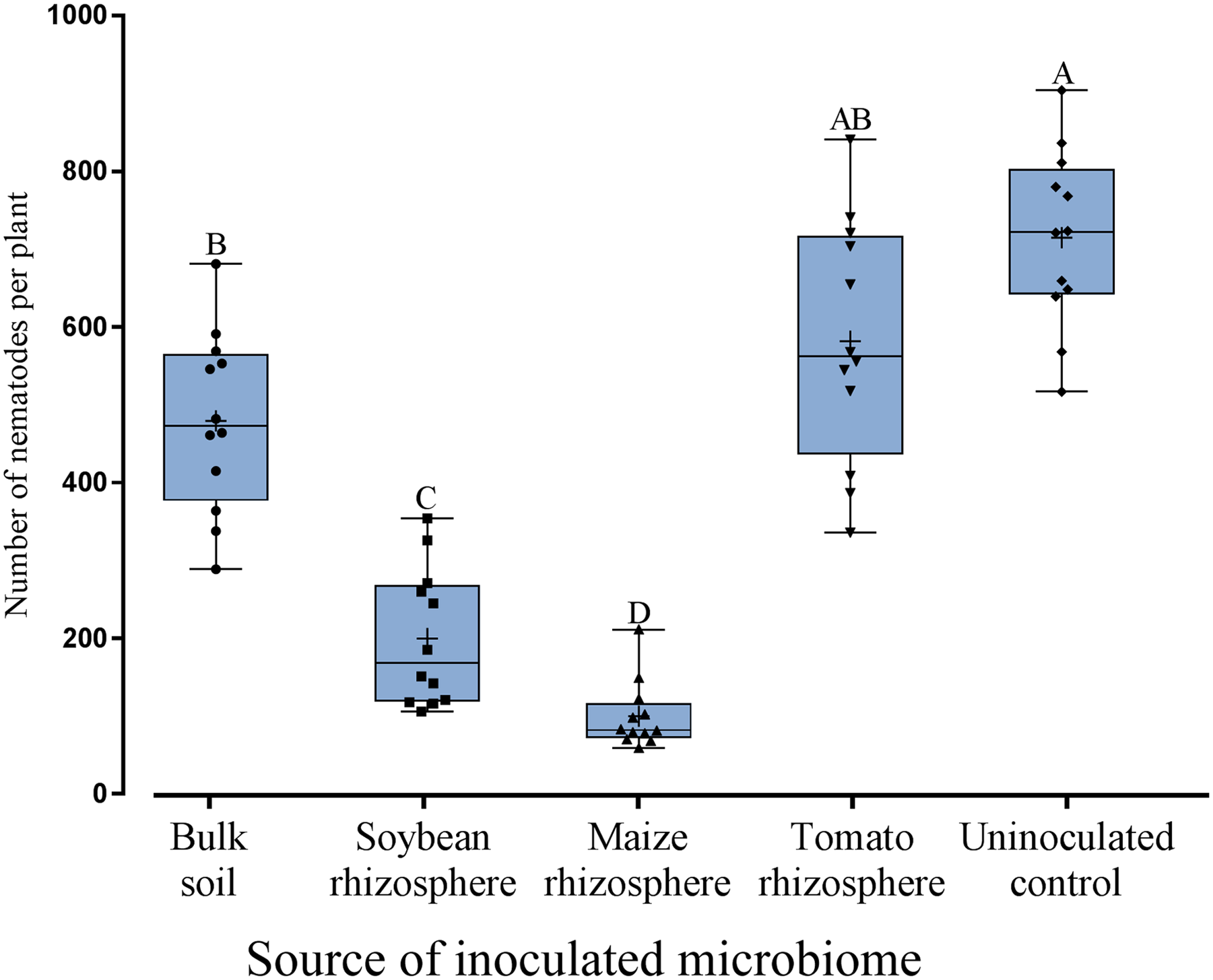

FIGURE 1. Effect of different microbiomes transplanted from the rhizosphere of different donor crops or bulk soil to the rhizosphere of soybean on the invasion of Pratylenchus penetrans into roots. Mean numbers of P. penetrans in the root 10 days after inoculation of the nematodes into soil are shown as (+) for each treatment, the medians are shown as (—), whiskers indicate quartiles. Different letters above whiskers indicate significant differences among treatments in Tukey’s test (n = 12).

FIGURE 2
www.frontiersin.org

FIGURE 2. Densities of living and dead Pratylenchus penetrans in the soil fraction of pots with soybean plants that were inoculated with microbiomes from different sources, or not inoculated with microbes, 10 days after inoculation of the nematodes. Percentages of dead P. penetrans in each treatment are shown above the blue bars, different letters indicate significant differences in Tukey’s test (n = 12). Error bars represent standard deviations.

Effect of Different Rhizosphere Microbiomes on Invasion of P. penetrans and M. incognita Into Tomato Roots

To investigate whether the defense supportive effect of a plant’s own microbiome in the rhizosphere is specific to soybean, tomato plants were used as a microbiome recipient instead of soybean. The effect of transplanted microbiomes on tomato root invasion was analyzed for two species of plant-parasitic nematodes that differ in their parasitism and life cycles, i.e., the migratory endoparasite P. penetrans and the sedentary endoparasite M. incognita. The invasion of tomato roots by both nematodes significantly depended on the inoculated microbiome (Figure 3). The trend of the interactions with the different microbiomes was similar for both nematodes. All inoculated microbiomes except from soybean significantly reduced the invasion of P. penetrans and M. incognita into tomato roots compared to the uninoculated control (Figure 3). The soybean rhizosphere microbiome failed to hamper both P. penetrans and M. incognita to invade into tomato roots. The microbiomes from maize and tomato rhizospheres significantly reduced the invasion of P. penetrans into the tomato roots compared to the bulk soil microbiome. For M. incognita only the treatment with maize microbiome and not tomato microbiome differed from the effect of the bulk soil microbiome on root invasion of the nematode. The microbiome extracted from maize rhizosphere had the highest suppressive effect among the tested microbiomes against both P. penetrans and M. incognita. Comparison with the previous experiment showed that soybean plants are better protected from invasion of the nematodes by the soybean microbiome rather than the tomato microbiome, and that tomato plants are better protected by the tomato microbiome rather than the soybean microbiome.

FIGURE 3
www.frontiersin.org

FIGURE 3. Effect of transplanted microbiomes from the rhizosphere of different donor crops or bulk soil on the number of Pratylenchus penetrans (migratory endoparasitic nematodes) or Meloidogyne incognita (sedentary endoparasitic nematodes) in tomato roots 10 days after inoculation of the nematodes into soil. Mean numbers are shown as (+) for each treatment, medians are shown as (—), whiskers represent quartiles. Different letters indicate significant differences among treatments in Tukey’s test (n = 10).

To investigate the effect of different rhizosphere microbiomes of tomato plants on the reproduction of M. incognita, the number of galls and eggs were determined 2 months after nematode inoculation of tomato plants previously inoculated with the microbiome from soybean rhizosphere, maize rhizosphere, tomato rhizosphere, bulk soil, or uninoculated. The number of galls on tomato roots was significantly reduced in the treatments with transplanted microbiomes compared to the control, except for the microbiome from soybean rhizosphere (Figure 4). The number of eggs was only on those tomato plants significantly reduced which received the rhizosphere microbiome from tomato plants (Figure 4). On tomato plants that received the microbiome from soybean plants the largest offspring was produced by M. incognita.

FIGURE 4
www.frontiersin.org

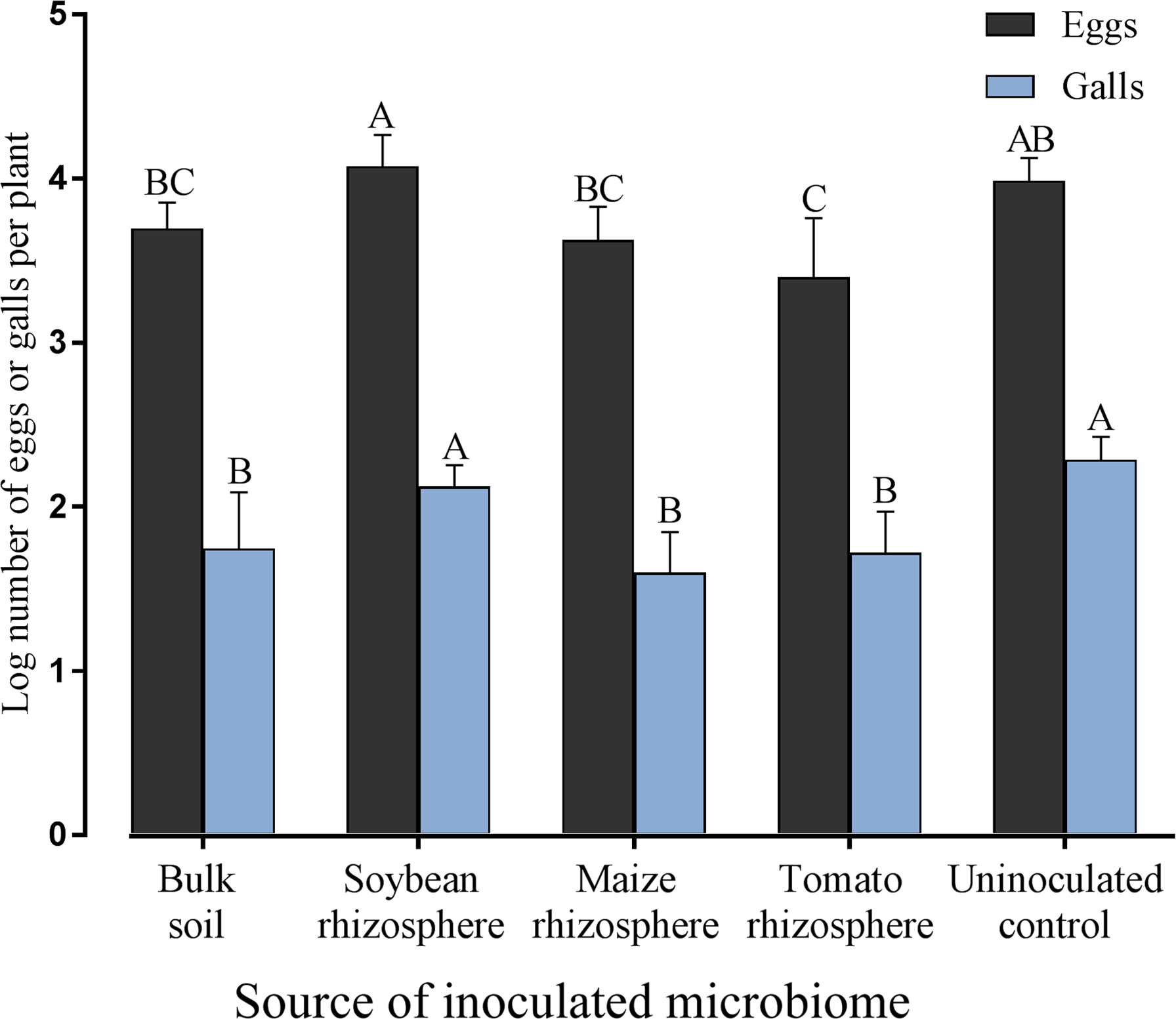

FIGURE 4. Effect of transplanted microbiomes from the rhizosphere of different donor crops or bulk soil on galls and eggs produced by Meloidogyne incognita on tomato plants two months after inoculation of the nematodes. Different letters indicate significant differences among treatments in Tukey’s test (n = 10). Error bars represent standard deviations.

Plant-Mediated Effect of Microbiomes on P. penetrans Invasion Into Soybean and Tomato Roots Analyzed in Split-Root Systems

To investigate whether the observed effect of some microbiomes on nematode invasion of roots is plant-mediated or rather based on a direct antagonism of microbes towards the nematodes, microbes and P. penetrans were inoculated spatially separated in split root systems of tomato and soybean plants. Again, the microbiomes extracted from the rhizospheres of plants of the receiving crop or maize significantly reduced the number of invaded P. penetrans in the roots compared to the treatment with the microbiome from bulk soil (Figure 5). This suggested an involvement of systemic resistance of the plant specifically induced by these microbiomes as a basis for the observed effects. The invasion rates of nematodes into the roots did not differ between the treatments with host and maize microbiomes. Soybean and tomato plants showed the same trend to stronger suppress root invasion by nematodes when inoculated with the rhizosphere microbiome from the same plant species compared to inoculation with the bulk soil microbiome.

FIGURE 5
www.frontiersin.org

FIGURE 5. Systemic effect of microbiomes transplanted from the rhizosphere of the host plant (tomato or soybean) or maize, or bulk soil on the number of Pratylenchus penetrans in the root of the host plant 10 days after inoculation of the nematodes. Microbiomes were inoculated on one side of a split-root system and nematodes on the opposite side. Different letters indicate significant differences among treatments in Tukey’s test (n = 10). Error bars represent standard deviations.

Effect of Rhizosphere Microbiomes on Plant Growth

Although treatment effects on plant growth could not be expected due to the short experimental period, a trend for higher plant weight was observed for tomato and soybean plants inoculated with microbiomes compared to the uninoculated control (Figure 6). A slightly better growth than in the uninoculated control was determined for tomato with microbiomes from bulk soil or from soybean rhizosphere, and for soybean with microbiomes from bulk soil or maize rhizosphere (Figure 6). Overall, by applying a generalized linear model, the type of microbiome had a statistically significant effect on plant weight but this effect was rather weak when looking at the root and shoot weights of the single experiments (Supplementary Table S1). Numbers of leaves per plant showed no significant differences among all the treatments. Notably, the microbiome from maize rhizosphere supported the least growth of tomato plants while it well protected tomato plants from nematodes, suggesting a trade-off between growth and defense. The plant weight was not negatively influenced by the number of nematodes in the root but showed rather a slight positive correlation.

FIGURE 6
www.frontiersin.org

FIGURE 6. Effect of microbiomes transplanted from the rhizospheres of different donor crops or bulk soil on the weight of tomato plants (upper panel, n = 10) or soybean plants (lower panel, n = 12). Mean numbers are shown as (+) for each treatment, medians are shown as (—), whiskers represent quartiles. Different letters indicate significant differences among treatments in Tukey’s test.

In the split-root experiment, the root weight of tomato was significantly increased on the side of the inoculated microbiomes compared to the side without inoculated microbiome (Table 1). The tomato microbiome supported root growth of tomato significantly better than microbiomes from maize rhizosphere or bulk soil on the inoculated side of the root system, while no significant difference was observed on the other side, which was inoculated with nematodes instead of microbiome. For soybean root weight determined on the nematode side, no significant difference was found between treatments. To investigate whether the microbiomes induced stress responses of the root that might affect growth of the plant, the concentration of total phenolic compounds in the roots on the microbiome side was determined. The type of the inoculated microbiome and the recipient plant had a statistically significant effect on the concentration of total phenolics (Table 1). However, the means differed by maximally 7%. In tomato roots, the total phenolics were increased by its own microbiome compared to bulk soil and maize microbiomes. In soybean, the maize microbiome increased the accumulated phenolics more than other microbiomes. Overall, the rhizosphere microbiomes showed a trend for higher induction of phenolic compounds production than the bulk soil microbiome (Table 1).

TABLE 1
www.frontiersin.org

TABLE 1. Total phenolics and root fresh weight of soybean and tomato inoculated with different microbiomes from the rhizosphere of different donor crops or bulk soil, and uninoculated control (different letters in a column indicate significant differences in Tukey’s test).

Discussion

In this study, rhizosphere microbiomes of different plants affected the invasion of the plant-parasitic nematodes P. penetrans and M. incognita into roots of soybean and tomato plants, and reduced reproduction of M. incognita in tomato roots. This suppressive effect depended on the plant species from which the microbiome was transplanted. Most efficient in suppression of the nematodes on both plants was the microbiome enriched in the rhizosphere of maize. We tested the effect of the different microbiomes in a standardized pot system containing sterile substrate to avoid confounding factors of physico-chemical soil properties. Indigenous plant-parasitic nematodes were removed by sieving because inter-species competition might affect root invasion and reproduction assays (Umesh et al., 1994). Some evidences of an effect of soil microbiota on root-knot nematodes were reported in earlier studies (Pyrowolakis et al., 2002; McSorley et al., 2006). Adam et al. (2014) found significantly lower reproduction of Meloidogyne hapla on tomato plants growing in native soils compared to disinfected soils which showed the importance of soil microbiota in the process. The suppressive effect of the soil microbiota differed between soils from several fields with different crop rotations, and a soil with maize as pre-crop was most suppressive. However, it remained unclear in how far the effect was due to an influence of the pre-crop on the microbiome. In addition, a bias by differing abiotic properties of the soils or native plant-parasitic nematodes could not be ruled out. In our study, the suppressive effect of rhizosphere microbiota was more pronounced than that of bulk soil microbiota. This might be explained by the composition of the microbiome in the plant rhizosphere but also by the higher density of microbes with a higher metabolic activity compared to the microbiome of the bulk soil (Philippot et al., 2013).

For tomato and soybean plants we showed that the plant’s own microbiome protected it better from plant-parasitic nematodes than the microbiomes from bulk soil or from the respective other plant. Each plant species recruits a specific set of root associated microbes when planted in the same soil (Turner et al., 2013; Haichar et al., 2014; Ofek et al., 2014). The plant’s own specific rhizosphere microbiome might have coevolved with the plant to assist in growth and defense (Sánchez-Cañizares et al., 2017). Enrichment of the plant’s own microbiome in mono-cropping soils might explain the often observed development of suppressiveness to specific pathogens of that crop (Zhu et al., 2013; Hamid et al., 2017). However, in our study not the plant’s own microbiome but the microbiome from the maize rhizosphere had the most suppressive effect against P. penetrans and M. incognita on soybean and tomato plants. This leads to the conclusion that maize might be a good pre-crop in rotations with soybean and tomato with respect to managing the soil microbiome. The rhizosphere microbiome of maize was shown to harbor a higher functional diversity than bulk soil (Li et al., 2014a,b) and is enriched with bacterial taxa of the orders Burkholderiales, Oceanospirillales, Sphingobacteriales, Actinobacteria, and Bacteroidetes containing several beneficial species (Chauhan et al., 2011; Peiffer et al., 2013). Furthermore, it was shown that root exudates of maize can stimulate rhizosphere colonization by Bacillus amyloliquefaciens SQR9 resulting in enhanced plant growth and reduced infestation by soil pathogens (Zhang et al., 2015). In addition, secondary metabolites of maize like benzoxazinoid induce plant defense mechanisms against soil pathogens and contribute to the recruitment of plant beneficial bacteria in the maize rhizosphere (Neal et al., 2012).

Plant-parasitic nematodes migrate through the soil in search of roots, directed by communication signaling, and thereby interfere with indigenous microbes. This could be a direct antagonism, or microbes in the rhizosphere can stimulate plant defenses and thus interfere with plant-parasitic nematodes indirectly. In this study, we observed that the suppressive effect of the microbiome on P. penetrans was at least partially mediated by the plant as shown in the split-root experiment. This was also evidenced by the observation that P. penetrans partitioned more into the compartment outside the root in the pots with suppressive microbiomes, and less into the root, compared to less suppressive treatments. At the same time the death rate of P. penetrans in soil did not contribute to suppressiveness. The plant-mediated effect of the rhizosphere microbiomes could be caused by stimulation of the biosynthesis of phytohormones, defense proteins and secondary metabolites that are involved in plant defense responses (Pieterse et al., 2014; Rashid and Chung, 2017). A major role in the regulation of plant defenses play phenolic compounds (Ma et al., 2016). Our results showed that the type of the inoculated microbiome significantly affected accumulation of total phenolics in the roots, i.e., accumulation of phenolic compounds was highest in soybean roots treated with the rhizosphere microbiome of maize and in tomato roots treated with the microbiome of tomato. In a recent study, the microbiome of a suppressive soil increased resistance of tomato plants against Fusarium oxysporum f. sp. lycopersici compared to steam disinfected soil by inducing a state of alert which included increased levels of phenolic compounds in the roots (Chialva et al., 2018).

In our study, the plant-mediated effect on the parasitic nematodes depended on the plant species from which the microbiome was transplanted. This effect might be harnessed to engineer soil microbiomes by selected crops towards increased plant resistance against plant-parasitic nematodes (Nyaku et al., 2017). However, a trade-off between induced resistance and plant growth was often reported (Huot et al., 2014; Vyska et al., 2016). With the exception of tomato plants treated with the rhizosphere microbiome of maize, plants inoculated with microbiomes showed a higher plant fresh weight than non-inoculated plants. On the contrary, the plant growth of tomato plants was negatively affected by the maize microbiome, which coincided with a higher suppression of the nematodes. That raises the importance of balancing plant immunity and plant growth when managing rhizosphere microbiomes (Albrecht and Argueso, 2017; Ning et al., 2017). Prolonged effects of crop rotations on soil microbial communities are well documented (Smith et al., 2016; Ashworth et al., 2017; Benitez et al., 2017; Wubs and Bezemer, 2018). If the derived changes in microbial communities are associated with improved crop yield and yield stability, both in the presence and absence of biotic stress, then crop rotations and cover crops might be harnessed to manage soil microbiomes. This tool for sustainable agricultural intensification could be even more promising if the responsiveness of modern crops to beneficial microbiota was enhanced as a target of breeding programs. In addition, crop varieties could be selected that better support beneficial soil microbiota. However, any successful implementation in the near future requires a deeper understanding of the main taxa responsible for pathogen suppression and how different plant genotypes stimulate those taxa.

Author Contributions

HH and JH designed the research. AE and SA performed the research. HH and AE performed the analyses. HH, JH, and AE wrote the paper.

Funding

This study was funded by the German Research Foundation grant DFG HE6957/1-1. AE was funded by the German Egyptian Research Long-term Scholarship GERLS 57076387.

Conflict of Interest Statement

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

The reviewer JEP-R and handling Editor declared their shared affiliation.

Acknowledgments

We thank Elvira Woldt for excellent technical assistance, and Betre Tadesse for sharing the carrot disk culture collection of P. penetrans.

Supplementary Material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fmicb.2018.01133/full#supplementary-material

References

Adam, M., Westphal, A., Hallmann, J., and Heuer, H. (2014). Specific microbial attachment to root knot nematodes in suppressive soil. Appl. Environ. Microbiol. 80, 2679–2686. doi: 10.1128/AEM.03905-13

PubMed Abstract | CrossRef Full Text | Google Scholar

Ahkami, A. H., White, R. A., Handakumbura, P. P., and Jansson, C. (2017). Rhizosphere engineering: enhancing sustainable plant ecosystem productivity. Rhizosphere 3, 233–243. doi: 10.1016/j.rhisph.2017.04.012

CrossRef Full Text | Google Scholar

Ainsworth, E. A., and Gillespie, K. M. (2007). Estimation of total phenolic content and other oxidation substrates in plant tissues using Folin-Ciocalteu reagent. Nat. Protoc. 2, 875–877. doi: 10.1038/nprot.2007.102

PubMed Abstract | CrossRef Full Text | Google Scholar

Albrecht, T., and Argueso, C. T. (2017). Should i fight or should i grow now? the role of cytokinins in plant growth and immunity and in the growth-defence trade-off. Ann. Bot. 119, 725–735. doi: 10.1093/aob/mcw211

PubMed Abstract | CrossRef Full Text | Google Scholar

Ashworth, A. J., DeBruyn, J. M., Allen, F. L., Radosevich, M., and Owens, P. R. (2017). Microbial community structure is affected by cropping sequences and poultry litter under long-term no-tillage. Soil Biol. Biochem. 114, 210–219. doi: 10.1016/j.soilbio.2017.07.019

CrossRef Full Text | Google Scholar

Benitez, M. S., Osborne, S. L., and Lehman, R. M. (2017). Previous crop and rotation history effects on maize seedling health and associated rhizosphere microbiome. Sci. Rep. 7:15709. doi: 10.1038/s41598-017-15955-9

PubMed Abstract | CrossRef Full Text | Google Scholar

Bent, E., Loffredo, A., McKenry, M. V., Becker, J. O., and Borneman, J. (2008). Detection and investigation of soil biological activity against Meloidogyne incognita. J. Nematol. 40, 109–118.

PubMed Abstract | Google Scholar

Besset-Manzoni, Y., Rieusset, L., Joly, P., Comte, G., and Prigent-Combaret, C. (2018). Exploiting rhizosphere microbial cooperation for developing sustainable agriculture strategies. Environ. Sci. Pollut. Res. Int. doi: 10.1007/s11356-017-1152-2 [Epub ahead of print].

PubMed Abstract | CrossRef Full Text | Google Scholar

Bybd, D. W., Kirkpatrick, T., and Barker, K. R. (1983). An improved technique for clearing and staining plant tissues for detection of nematodes. J. Nematol. 15, 142–143.

PubMed Abstract | Google Scholar

Chauhan, P. S., Chaudhry, V., Mishra, S., and Nautiyal, C. S. (2011). Uncultured bacterial diversity in tropical maize (Zea mays L.) rhizosphere. J. Basic Microbiol. 51, 15–32. doi: 10.1002/jobm.201000171

PubMed Abstract | CrossRef Full Text | Google Scholar

Chialva, M., Salvioli di Fossalunga, A., Daghino, S., Ghignone, S., Bagnaresi, P., Chiapello, M., et al. (2018). Native soils with their microbiotas elicit a state of alert in tomato plants. New Phytol. doi: 10.1111/nph.15014 [Epub ahead of print]

PubMed Abstract | CrossRef Full Text | Google Scholar

Dababat, A. A., and Sikora, R. A. (2007). Induced resistance by the mutualistic endophyte, Fusarium oxysporum strain 162, toward Meloidogyne incognita on tomato. Biocontrol Sci. Technol. 17, 969–975. doi: 10.1080/09583150701582057

CrossRef Full Text | Google Scholar

Elhady, A., Giné, A., Topalovic, O., Jacquiod, S., Sørensen, S. J., Sorribas, F. J., et al. (2017). Microbiomes associated with infective stages of root-knot and lesion nematodes in soil. PLoS One 12:e0177145. doi: 10.1371/journal.pone.0177145

PubMed Abstract | CrossRef Full Text | Google Scholar

EPPO (2013). European and Mediterranean Plant Protection Organization diagnostics standard PM 7/119 (1) Nematode extraction. EPPO Bull. 43, 471–495. doi: 10.1111/epp.12077

CrossRef Full Text

Finkel, O. M., Castrillo, G., Herrera Paredes, S., Salas González, I., and Dangl, J. L. (2017). Understanding and exploiting plant beneficial microbes. Curr. Opin. Plant Biol. 38, 155–163. doi: 10.1016/j.pbi.2017.04.018

PubMed Abstract | CrossRef Full Text | Google Scholar

Haichar, F. e. Z., Santaella, C., Heulin, T., and Achouak, W. (2014). Root exudates mediated interactions belowground. Soil Biol. Biochem. 77, 69–80. doi: 10.1016/j.soilbio.2014.06.017

CrossRef Full Text | Google Scholar

Hamid, M. I., Hussain, M., Wu, Y., Zhang, X., Xiang, M., and Liu, X. (2017). Successive soybean-monoculture cropping assembles rhizosphere microbial communities for the soil suppression of soybean cyst nematode. FEMS Microbiol. Ecol. 93:fiw222. doi: 10.1093/femsec/fiw222

PubMed Abstract | CrossRef Full Text | Google Scholar

Huot, B., Yao, J., Montgomery, B. L., and He, S. Y. (2014). Growth-defense tradeoffs in plants: a balancing act to optimize fitness. Mol. Plant 7, 1267–1287. doi: 10.1093/mp/ssu049

PubMed Abstract | CrossRef Full Text | Google Scholar

Jacobs, A., Koch, H. J., and Märländer, B. (2018). Preceding crops influence agronomic efficiency in sugar beet cultivation. Agron. Sustain. Dev. 38:5. doi: 10.1007/s13593-017-0469-z

CrossRef Full Text | Google Scholar

Julien-Laferrière, A., Bulteau, L., Parrot, D., Marchetti-Spaccamela, A., Stougie, L., Vinga, S., et al. (2016). A combinatorial algorithm for microbial consortia synthetic design. Sci. Rep. 6:29182. doi: 10.1038/srep29182

PubMed Abstract | CrossRef Full Text | Google Scholar

Lapsansky, E. R., Milroy, A. M., Andales, M. J., and Vivanco, J. M. (2016). Soil memory as a potential mechanism for encouraging sustainable plant health and productivity. Curr. Opin. Biotechnol. 38, 137–142. doi: 10.1016/j.copbio.2016.01.014

PubMed Abstract | CrossRef Full Text | Google Scholar

Li, X., Rui, J., Mao, Y., Yannarell, A., and Mackie, R. (2014a). Dynamics of the bacterial community structure in the rhizosphere of a maize cultivar. Soil Biol. Biochem. 68, 392–401. doi: 10.1016/j.soilbio.2013.10.017

CrossRef Full Text | Google Scholar

Li, X., Rui, J., Xiong, J., Li, J., He, Z., Zhou, J., et al. (2014b). Functional potential of soil microbial communities in the maize rhizosphere. PLoS One 9:e112609. doi: 10.1371/journal.pone.0112609

PubMed Abstract | CrossRef Full Text | Google Scholar

Ma, D., Li, Y., Zhang, J., Wang, C., Qin, H., Ding, H., et al. (2016). Accumulation of phenolic compounds and expression profiles of phenolic acid biosynthesis-related genes in developing grains of white, purple, and red wheat. Front. Plant Sci. 7:528. doi: 10.3389/fpls.2016.00528

PubMed Abstract | CrossRef Full Text | Google Scholar

McSorley, R., Wang, K.-H., Kokalis-Burelle, N., and Church, G. (2006). Effects of soil type and steam on nematode biological control potential of the rhizosphere community. Nematropica 36, 197–214.

Google Scholar

Neal, A. L., Ahmad, S., Gordon-Weeks, R., and Ton, J. (2012). Benzoxazinoids in root exudates of maize attract Pseudomonas putida to the rhizosphere. PLoS One 7:e35498. doi: 10.1371/journal.pone.0035498

PubMed Abstract | CrossRef Full Text | Google Scholar

Ning, Y., Liu, W., and Wang, G.-L. (2017). Balancing immunity and yield in crop plants. Trends Plant Sci. 22, 1069–1079. doi: 10.1016/j.tplants.2017.09.010

PubMed Abstract | CrossRef Full Text | Google Scholar

Nyaku, S. T., Affokpon, A., Danquah, A., and Brentu, F. C. (2017). “Harnessing useful rhizosphere microorganisms for nematode control,” in Nematology – Concepts, Diagnosis and Control, eds M. M. Shah and M. Mahamood (London: InTech), 153–182. doi: 10.5772/intechopen.69164

CrossRef Full Text | Google Scholar

Ofek, M., Voronov-Goldman, M., Hadar, Y., and Minz, D. (2014). Host signature effect on plant root-associated microbiomes revealed through analyses of resident vs. active communities. Environ. Microbiol. 16, 2157–2167. doi: 10.1111/1462-2920.12228

PubMed Abstract | CrossRef Full Text | Google Scholar

Peiffer, J. A., Spor, A., Koren, O., Jin, Z., Tringe, S. G., Dangl, J. L., et al. (2013). Diversity and heritability of the maize rhizosphere microbiome under field conditions. Proc. Natl. Acad. Sci. U.S.A. 110, 6548–6553. doi: 10.1073/pnas.1302837110

PubMed Abstract | CrossRef Full Text | Google Scholar

Philippot, L., Raaijmakers, J. M., Lemanceau, P., and van der Putten, W. H. (2013). Going back to the roots: the microbial ecology of the rhizosphere. Nat. Rev. Microbiol. 11, 789–799. doi: 10.1038/nrmicro3109

PubMed Abstract | CrossRef Full Text | Google Scholar

Pieterse, C. M. J., Zamioudis, C., Berendsen, R. L., Weller, D. M., van Wees, S. C. M., and Bakker, P. A. H. M. (2014). Induced systemic resistance by beneficial microbes. Annu. Rev. Phytopathol. 52, 347–375. doi: 10.1146/annurev-phyto-082712-102340

PubMed Abstract | CrossRef Full Text | Google Scholar

Pyrowolakis, A., Westphal, A., Sikora, R. A., and Ole Becker, J. (2002). Identification of root-knot nematode suppressive soils. Appl. Soil Ecol. 19, 51–56. doi: 10.1016/S0929-1393(01)00170-6

PubMed Abstract | CrossRef Full Text | Google Scholar

Rashid, M. H., and Chung, Y. R. (2017). Induction of systemic resistance against insect herbivores in plants by beneficial soil microbes. Front. Plant Sci. 8:1816. doi: 10.3389/fpls.2017.01816

PubMed Abstract | CrossRef Full Text | Google Scholar

Sánchez-Cañizares, C., Jorrín, B., Poole, P. S., and Tkacz, A. (2017). Understanding the holobiont: the interdependence of plants and their microbiome. Curr. Opin. Microbiol. 38, 188–196. doi: 10.1016/j.mib.2017.07.001

PubMed Abstract | CrossRef Full Text | Google Scholar

Smith, C. R., Blair, P. L., Boyd, C., Cody, B., Hazel, A., Hedrick, A., et al. (2016). Microbial community responses to soil tillage and crop rotation in a corn/soybean agroecosystem. Ecol. Evol. 6, 8075–8084. doi: 10.1002/ece3.2553

PubMed Abstract | CrossRef Full Text | Google Scholar

Turner, T. R., Ramakrishnan, K., Walshaw, J., Heavens, D., Alston, M., Swarbreck, D., et al. (2013). Comparative metatranscriptomics reveals kingdom level changes in the rhizosphere microbiome of plants. ISME J. 7, 2248–2258. doi: 10.1038/ismej.2013.119

PubMed Abstract | CrossRef Full Text | Google Scholar

Umesh, K. C., Ferris, H., and Bayer, D. E. (1994). Competition between the plant-parasitic nematodes Pratylenchus neglectus and Meloidogyne chitwoodi. J. Nematol. 26, 286–295.

PubMed Abstract | Google Scholar

Venturi, V., and Keel, C. (2016). Signaling in the rhizosphere. Trends Plant Sci. 21, 187–198. doi: 10.1016/j.tplants.2016.01.005

PubMed Abstract | CrossRef Full Text | Google Scholar

Vyska, M., Cunniffe, N., and Gilligan, C. (2016). Trade-off between disease resistance and crop yield: a landscape-scale mathematical modelling perspective. J. R. Soc. Interface 13:20160451. doi: 10.1098/rsif.2016.0451

PubMed Abstract | CrossRef Full Text | Google Scholar

Wubs, E. R. J., and Bezemer, T. M. (2018). Temporal carry-over effects in sequential plant-soil feedbacks. Oikos 127, 220–229. doi: 10.1111/oik.04526

CrossRef Full Text | Google Scholar

Zhang, N., Yang, D., Wang, D., Miao, Y., Shao, J., Zhou, X., et al. (2015). Whole transcriptomic analysis of the plant-beneficial rhizobacterium Bacillus amyloliquefaciens SQR9 during enhanced biofilm formation regulated by maize root exudates. BMC Genomics 16:685. doi: 10.1186/s12864-015-1825-5

PubMed Abstract | CrossRef Full Text | Google Scholar

Zhu, Y., Shi, F., Tian, J., Liu, J., Chen, S., Xiang, M., et al. (2013). Effect of soybean monoculture on the bacterial communities associated with cysts of Heterodera glycines. J. Nematol. 45, 228–235.

PubMed Abstract | Google Scholar

Keywords: phytobiome, rhizosphere, microbiome, induced resistance, plant-parasitic nematodes

Citation: Elhady A, Adss S, Hallmann J and Heuer H (2018) Rhizosphere Microbiomes Modulated by Pre-crops Assisted Plants in Defense Against Plant-Parasitic Nematodes. Front. Microbiol. 9:1133. doi: 10.3389/fmicb.2018.01133

Received: 20 March 2018; Accepted: 14 May 2018;
Published: 04 June 2018.

Edited by:

Jesús Mercado-Blanco, Consejo Superior de Investigaciones Científicas (CSIC), Spain

Reviewed by:

Juan Emilio Palomares-Rius, Consejo Superior de Investigaciones Científicas (CSIC), Spain
Nuria Escudero, Universitat Politècnica de Catalunya, Spain

Copyright © 2018 Elhady, Adss, Hallmann and Heuer. This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) and the copyright owner are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.

*Correspondence: Holger Heuer, holger.heuer@julius-kuehn.de
