ORIGINAL RESEARCH article
Sec. Fungi and Their Interactions
Volume 9 - 2018 | https://doi.org/10.3389/fmicb.2018.01655
The Evolutionary Conserved γ-Core Motif Influences the Anti-Candida Activity of the Penicillium chrysogenum Antifungal Protein PAF
- 1Biocenter, Division of Molecular Biology, Innsbruck Medical University, Innsbruck, Austria
- 2Department of Medical Chemistry, Faculty of Medicine, University of Szeged, Szeged, Hungary
- 3Institute of Plant Biology, Biological Research Centre, Hungarian Academy of Sciences, Szeged, Hungary
- 4Department of Microbiology, Faculty of Science and Informatics, University of Szeged, Szeged, Hungary
- 5Division of Hygiene and Medical Microbiology, Innsbruck Medical University, Innsbruck, Austria
- 6Institute of Biochemistry, Biological Research Centre, Hungarian Academy of Sciences, Szeged, Hungary
- 7Department of Dermatology, Venereology and Allergy, Innsbruck Medical University, Innsbruck, Austria
- 8MTA-SZTE Biomimetic Systems Research Group, University of Szeged, Szeged, Hungary
Small, cysteine-rich and cationic antimicrobial proteins (AMPs) from filamentous ascomycetes represent ideal bio-molecules for the development of next-generation antifungal therapeutics. They are promising candidates to counteract resistance development and may complement or even replace current small molecule-based antibiotics in the future. In this study, we show that a 14 amino acid (aa) long peptide (Pγ) spanning the highly conserved γ-core motif of the Penicillium chrysogenum antifungal protein (PAF) has antifungal activity against the opportunistic human pathogenic yeast Candida albicans. By substituting specific aa we elevated the positive net charge and the hydrophilicity of Pγ and created the peptide variants Pγvar and Pγopt with 10-fold higher antifungal activity than Pγ. Similarly, the antifungal efficacy of the PAF protein could be significantly improved by exchanging the respective aa in the γ-core of the protein by creating the protein variants PAFγvar and PAFγopt. The designed peptides and proteins were investigated in detail for their physicochemical features and mode of action, and were tested for cytotoxicity on mammalian cells. This study proves for the first time the important role of the γ-core motif in the biological function of an AMP from ascomycetes. Furthermore, we provide a detailed phylogenetic analysis that proves the presence and conservation of the γ-core motif in all AMP classes from Eurotiomycetes. We emphasize the potential of this common protein motif for the design of short antifungal peptides and as a protein motif in which targeted aa substitutions enhance antimicrobial activity.
Fungal pathogens have a severe impact on public health. Among all opportunistic human pathogenic fungi, Candida species are the most common, whereby Candida albicans is the major representative (Brown et al., 2012). Candida spp. can cause life-threatening invasive bloodstream infections (fungemia) with mortality rates as high as 75%, but also superficial or mucosal infections (Brown et al., 2012; Duncan and O’Neil, 2013). Whereas fungemia mostly has a fatal outcome, superficial infections are not life-threatening, but appear with higher frequency affecting approx. 25% of the world population (Brown et al., 2012). Although superficial infections are mostly easy to cure, treatment may get more challenging in the future, since Candida species are known to have either intrinsic resistance or the potential of resistance formation to conventional antifungal drugs (Brown et al., 2012; Rautenbach et al., 2016; Sanglard, 2016). Some reports suggest that we are already on the brink of a “post-antibiotic era” as a consequence of the emerging number of resistant strains and limited number of effective antifungal agents (Kosikowska and Lesner, 2016; Kang et al., 2017). To overcome this problem, the development of new antifungal strategies is urgently needed. One possible solution to replace conventional antibiotics is offered by antimicrobial peptides and proteins (AMPs) that are produced, for example, by filamentous ascomycetes (Hegedüs and Marx, 2013; Garrigues et al., 2016; Tóth et al., 2016). One of the most extensively characterized AMPs from this class is the Penicillium chrysogenum antifungal protein (PAF), a 55 amino acid (aa) long, cysteine-rich, and cationic protein secreted by the β-lactam antibiotic producer P. chrysogenum. PAF shows potent growth inhibitory activity against numerous filamentous plant- and human-pathogenic fungi (Marx et al., 2008; Hegedüs et al., 2011), and only recently we also reported on its anti-Candida effect (Huber et al., 2018).
PAF consists of five antiparallel β-strands that are connected by four flexible loops and is stabilized to a compact β-structure by three intramolecular disulfide bonds (Figure 1A; Batta et al., 2009; Fizil et al., 2015). A 10 aa long sequence located in loop 1 at the N-terminus resembles the structural conserved gamma(γ)-core motif of cysteine-stabilized small proteins. The γ-core motif consists of the consensus aa sequence GXCX3-9C that can be found virtually in all classes of cysteine-stabilized AMPs from prokaryotes and eukaryotes (Yount and Yeaman, 2006). This motif can either be present in its dextromeric isoform (X1-3-GXC-X3-9-C) or in one of its levomeric isoforms (C-X3-9-CXG-X1-3 or C-X3-9-GXC-X1-3) (Yount and Yeaman, 2004; Yeaman and Yount, 2007). The γ-core is not only conserved in its aa sequence, but also in its structure. It consists of two antiparallel β-strands, connected by an interposed short turn region (Yount and Yeaman, 2004). This “core structure” can either function as a stand-alone molecule as in the case of antimicrobial protegrins, or it can be the scaffold for modular constructed proteins where β-sheets and/or α-helices are attached to the γ-core (Yount and Yeaman, 2004). Apart from AMPs this motif can also be found in a huge variety of host defense polypeptides such as thionins, venoms, toxins, and kinocidins (Yeaman and Yount, 2007). The observation that γ-core containing peptide classes exert direct antimicrobial function renders the γ-core a worthwhile subject for antimicrobial investigations. Indeed, this motif was already found to be an important functional determinant of antifungal plant defensins and deduced γ-core peptide fragments showed antifungal activity (Sagaram et al., 2011). Recent studies with the Neosartorya fischeri antifungal protein NFAP2 and the Penicillium digitatum antifungal protein AfpB, however, revealed that the dextromeric γ-core motif does not influence the growth inhibitory activity of these ascomycetous AMPs (Garrigues et al., 2017; Tóth et al., 2018).
FIGURE 1. Synthetic PAF γ-core peptides. (A) The primary structure of PAF with indicated β-strands (blue arrows) and disulfide bonds (dashed lines). The γ-core motif is highlighted in purple. (B) Pγ peptide spanning the γ-core motif of PAF in different modifications: red – Cys in reduced form (–SH), ox – cyclic peptide with closed disulfide bonds (S–S), prot – Cys with a protecting group (SAcm). The sulfur (S) atom of the Cys is indicated. The N- and C-termini of the Pγ peptides are acetylated (Ac) and amidated (NH2), respectively. (C) The reduced Pγ form and the derived peptide variants Pγvar and Pγopt. Amino acid substitutions are highlighted in green, the net charge (at pH 7, http://protcalc.sourceforge.net) and GRAVY (www.gravy-calculator.de) are indicated.
In this study, we report for the first time the significant influence of the dextromeric γ-core motif of the P. chrysogenum PAF on its mode of action. We show that a synthetic 14 aa long peptide fragment (Pγ) spanning the PAF γ-core motif exhibits in vitro antifungal activity against C. albicans. Specific aa exchanges that elevate the positive net charge and hydrophilicity of Pγ resulted in significantly improved antifungal activity of the respective peptide variants Pγvar and Pγopt. The same aa exchanges in the γ-core motif of the full-length protein comparably enhanced the antifungal efficacy of the respective PAF variants, PAFvar and PAFopt. The functionally improved peptide and protein variants were thoroughly characterized for their physicochemical properties, anti-Candida mode of action, and cytotoxic potential against mammalian cells in vitro. Since the evolutionary conserved γ-core motif is present in phylogenetically distinct AMP classes from Eurotiomycetes, our PAF-based results foster further investigations of the structure–function relation of related AMPs and promise the development of proteins and peptides with increased antimicrobial efficacy by rational design.
Materials and Methods
Peptides were synthesized on solid phase applying Fmoc chemistry and dicyclohexylcarbodiimide/1-hydroxy-benzotriazole (DCC/HOBt) coupling with a threefold excess of reagents. PL-Rink Resin (Varian, Inc.) or Rink-amide-MBHA resin (SENN Chemicals) was used as a solid support. In case of Pγ_prot, cysteines (Cys) were incorporated as Fmoc-Cys(Acm)-OH. After completion of the synthesis, the N-terminus of each peptide was acetylated. Peptides were detached from the resin with a 95:5 (v/v) trifluoroacetic acid (TFA)/water mixture containing 3% (w/v) dithiothreitol (DTT) at room temperature (RT) for 2.5 h. The resin was removed and the peptides were precipitated by the addition of ice cold diethyl ether.
To form Pγ_ox, sulfhydryl groups of Cys of 40 mg crude Pγ_red were oxidized to disulfide bonds by atmospheric oxygen in a 0.1 M ammonium acetate buffer (pH 7.5) applying intensive stirring in an open bottle at RT for 48 h.
Peptides were purified by preparative RP-HPLC using a C18 column with a solvent system of (A) 0.1% (v/v) TFA in water and (B) 80% (v/v) acetonitrile and 0.1% TFA (v/v) in water at a flow rate of 4.0 mL min-1. The absorbance was detected at 220 nm. The appropriate fractions were pooled and lyophilized.
Purity of the peptides was characterized by analytical RP-HPLC at a flow rate of 1.0 mL min-1. The identity of the peptides was verified by ESI-MS.
Strains and Growth Conditions
Fungal strains used in this study are listed in Supplementary Table S1 and composition of growth media is given in Supplementary Table S2. All P. chrysogenum shaking cultures were inoculated with 2 × 108 conidia, in 200 mL defined minimal medium (PcMM) for protein expression or complete medium (CM) before transformation, and grown at 25°C as described (Sonderegger et al., 2016). For conidial suspension generation from surface cultures, P. chrysogenum was grown on PcMM agar at 25°C. C. albicans was used as PAF-sensitive model organism and was cultivated on yeast extract peptone dextrose (YPD) agar at 37°C. For growth inhibition and susceptibility assays, C. albicans was grown in 20-fold diluted potato dextrose broth (PDB, Sigma-Aldrich) at 30°C, pH 5.5 (Huber et al., 2018).
Generation of Recombinant Proteins
PAF and its γ-core variants were generated and expressed as described earlier (Sonderegger et al., 2016). Oligonucleotides for PCR-based paf gene mutation are listed in Supplementary Table S3. In brief, for vector construction of pSK257pafT8Y S10K by site-directed mutagenesis the primer pairs M13/opafT8Y S10K_fw and opaf12/opafT8Y S10K_rev were applied on the plasmid pSK257paf for the first PCR reactions and T7var/opaf11 were then used to combine the resulting fragments. For the construction of pSK257pafT8KK9TS10KE13K the primer pairs opaf15/opafT8KK9TS10KE13K_fw, opaf14/opafT8KK9TS10KE13K_rev, and M13/opaf11 were used, respectively.
The correct vector assembly and nucleotide sequences were verified with Sanger sequencing (Eurofins Genomics, Germany) using opaf10 as a sequencing primer. After vector transfection into P. chrysogenumΔpaf and protein expression, the purification was performed as described before by cation exchange chromatography (Sonderegger et al., 2016). The purity of the proteins was checked by sodium dodecyl sulfate polyacrylamide gel electrophoresis (SDS–PAGE) with subsequent Coomassie or silver staining and the protein identity and correct processing were verified by ESI-MS at the Protein Micro-Analysis Facility (Medical University of Innsbruck) (Sonderegger et al., 2016).
Electronic Circular Dichroism (ECD) Spectroscopy
ECD spectroscopic measurements were performed in the far-UV wavelength range (185–260 nm) using a Jasco J-815 spectropolarimeter (JASCO Corporation). Protein samples, dissolved in pure H2O in 0.1 mg mL-1 concentrations, were measured in a 0.1 cm path length quartz cuvette. Initially, ECD spectra of samples were recorded at 25°C with a scan speed of 100 nm s-1. Then, the temperature was increased gradually up to 95°C at 1°C min-1 rate, using a Peltier thermoelectric controller (TE Technology). The system was allowed to equilibrate for 1 min before measurements were taken at each temperature point. Changes in the ellipticity at 228 nm (appointed by the spectra measured at 25°C) were recorded during gradual heating and then plotted as a function of temperature to provide thermal unfolding curves of the proteins. The unfolding curves were fitted with an inverse sigmoidal function of which inflexion point designated the melting temperature (Tm) of the native protein structures. ECD spectra were also recorded at 95°C, the final temperature of the thermal unfolding experiments, and then samples were allowed to cool and measured again after 5 min of equilibration at 25°C. The reported spectra are accumulations of 10 scans, from which the corresponding solvent spectrum, recorded similarly, was subtracted. Data are given in mdeg units. Deconvolution analysis of the resultant spectra was performed using the CDSSTR method (Sreerama and Woody, 2000).
Antifungal Activity Determination
The MIC of all protein and peptide variants was determined on C. albicans with broth microdilution assays in 96-well microtiter plates (Nunclon Delta, Thermo Fisher Scientific). From a fresh C. albicans overnight culture on YPD agar, cells were harvested with an inoculation loop and suspended in 0.05× PDB (Sigma-Aldrich) (Arendrup et al., 2016). The cell number was determined with a counting chamber (Bürker) and the cell number was adjusted to 104 mL-1. In each well, 103 cells were incubated with increasing concentrations of antifungal proteins or peptides in a final volume of 200 μL 0.05× PDB. The plates were incubated for 24 h at 30°C before the growth was determined by measuring the optical density (OD620nm) with a multi-mode microplate reader (FLUOstar Omega, BMG Labtech). The MIC was defined as the protein concentration that inhibited growth by ≥90% compared to the untreated control, which was referred as 100% growth.
Fungistatic or fungicidal activities were determined by incubating C. albicans (104 cells mL-1) in 0.05× PDB with proteins and peptides at 1× MIC and 2× MIC of at 30°C under continuous shaking (800 rpm) in a Thermomixer Comfort (Eppendorf). At defined time points, aliquots were taken and appropriate dilutions were plated on YPD agar in duplicates to promote growth of viable cells. Agar plates were incubated at 37°C for 24 h to count colony forming units (cfu) (Huber et al., 2018).
The antifungal activity against C. albicans biofilms was determined in 96-well microtiter plates (Nunclon Delta, Thermo Fisher Scientific). Cells (105) in 100 μL 0.05× PDB were distributed per well and plates were incubated at 37°C for up to 24 h to allow biofilm formation. After cell adherence, the microtiter plates were washed once with 0.05× PDB and the test substances were added in increasing concentrations in 100 μL 0.05× PDB per well. H2O2 served as a control for cell killing. The plates were further incubated at 30°C for 24 h. The wells were washed once with 0.05× PDB and 100 μL of FDA solution (40 μg mL-1 in 0.05× PDB) was added to the wells. Wells containing only FDA solution (40 μg mL-1 in 0.05× PDB) were used as blank background control. The plates were incubated for 1 h at 37°C in the dark before the fluorescence signal intensity was measured in a multi-mode microplate reader (FLUOstar Omega, BMG Labtech) with excitation and emission wavelengths of 485 and 520 nm. All experiments were prepared at least in duplicates and repeated at least twice.
To analyze changes in cell size and to assess kinetics of cell death of C. albicans upon antifungal treatment flow cytometry was applied. For both experiments, 104 cells mL-1 was incubated in 0.05× PDB with the desired AMP concentration for different time points. The incubation was performed in 1.5 mL reaction tubes at 30°C under continuous shaking at 800 rpm in a Thermomixer Comfort (Eppendorf). After incubation, the cells were centrifuged at 4°C with 3,000 ×g for 3 min. For cell size determination, the supernatant was removed and the cells were resuspended and fixed in PBS containing 3.7% (v/v) formaldehyde before changes in cell size were measured by plotting SSC against FSC. C. albicans that were incubated at 95°C for 120 min served as controls. Microscopic control-images were taken with a fluorescence microscope (Axioplan, Zeiss), equipped with a camera (Axiocam 503 mono, Zeiss) and excitation/emission filters (365/420 nm for blue fluorescence and 546/590 or 565/620 nm for red fluorescence, Zeiss). Image acquisition was performed with ZEN 2 microscope software (Zeiss, blue edition) and the cell area was measured with ImageJ 1.52d software (Schindelin et al., 2012).
For dead-cell staining, prior to fixation, the cells were incubated in the dark for 30 min at 4°C with 100 μL PBS containing 0.1 μL LIVE/DEADTM Fixable Far Red Dead Cell Stain (Thermo Fisher Scientific). The cells were then washed once in PBS and fixed in PBS containing 3.7% formaldehyde. Ethanol-inactivated dead C. albicans served as a positive staining control. The samples were then analyzed by FACS (FACSVerse Flow Cytometer, BD Biosciences), equipped with BD FACSuite software (v126.96.36.19930, BD Biosciences). Dead cells were detected at Excitation/Emission wavelength of 650/665 nm. Stained, live, and dead Candida cells were used as controls to discriminate populations and to set the gates.
Production of Reactive Oxygen Species (ROS)
For the detection of ROS generation in C. albicans a dichloro-dihydro-fluorescein diacetate (DCFH-DA, Sigma-Aldrich)-based fluorometric assay was applied, adapted from Han et al. (2016). Cells from an overnight culture of C. albicans, grown on YPD agar, were suspended in 0.05× PDB (Sigma-Aldrich) and the cell number was adjusted to 107 cells mL-1. DCFH-DA stock solution (100 mM in DMSO) was added to the cell suspension to give a final concentration of 100 μM. This cell suspension was pre-incubated for 30 min at 30°C protected from light. Serial dilutions of the test compounds were prepared in 0.05× PDB (Sigma-Aldrich) in 96-well microtiter plates (Nunclon Delta, Thermo Fisher Scientific) in a volume of 100 μL per well. H2O2 served as a positive control for ROS induction. After pre-incubation, the DCFH-DA loaded cells were added to the test compounds (100 μL per well) to give a final volume of 200 μL in each well and the 96-well plate was placed in a multi-mode microplate reader (FLUOstar Omega, BMG Labtech), set to 30°C incubation temperature. The fluorescence signal was recorded every 5 min over a time course of 4 h at excitation and emission wavelengths of 485 and 520 nm, respectively. Measurements were prepared in duplicates and assays were performed at least three times.
The hemolytic potential of the protein and peptide variants was tested on Columbia blood agar plates (VWR). Sterile filter discs (Ø6 mm) were placed on the agar plates and loaded with 20 μg (∼10 μL) of each protein and peptide. Sterile water and 20% Triton-X 100 served as negative and positive control, respectively. The plates where incubated for 24 h at 37°C before evaluation.
AMP toxicity was determined on HKC and HDF. Keratinocytes and fibroblasts were isolated and grown in CnT-07 (CellnTEC) or R10 (Supplementary Table S2), respectively, as described previously (Blunder et al., 2017). Fluorescence viability staining was performed on HKC and HDF cells grown on chambered cell culture slides (Falcon). 4 × 103 cells per well were seeded and grown at 37°C and 5% CO2 before AMPs were added at 30 μM for 24 h. Cells were washed with PBS and the fluorescent dyes PI (1 μg mL-1) and Hoechst 33342 (20 μg mL-1) were added for 10 min in the dark. The cells were washed three times with PBS and observed with a Zeiss Axioplan fluorescence microscope (Zeiss), equipped with an Axiocam 503 mono microscope camera (Zeiss), excitation/emission filters 365/420 nm for blue fluorescence, and 546/590 or 565/620 nm for red fluorescence. Image acquisition and editing were done with ZEN 2 (blue edition) microscope software (Zeiss) and GNU Image Manipulation Program (GIMP 2, version 2.8.10).
Screening for Presence of γ-Core Motifs in AMPs and Phylogenetic Analysis
All genomes from Eurotiomycetes available in MycoCosm portal (Grigoriev et al., 2014) of DOE Joint Genome Institute (JGI) were screened for the presence of γ-core motif-containing AMPs. Full-length sequence of P. chrysogenum PAF (Acc. No.: Q01701), Aspergillus giganteus AFP (Acc. No.: P17737), P. brevicompactum “bubble protein” (BP, Acc. No.: G5DC88), and N. fischeri NFAP2 (Acc. No.: A0A1D0CRT2) from the Universal Protein Resource database (UniProt Consortium, 2017) were used as templates for similarity searches applying the Basic Local Alignment Search Tool (BLAST) (Pevsner, 2009). The applied templates covered all recently known groups of AMPs (Garrigues et al., 2016; Tóth et al., 2016). From the same species or isolates only those hits were retained which differed at least in one aa in their sequence. The cleavage site of the signal sequence was predicted with SignalP 4.1 server (Nielsen, 2017). ClustalW multiple alignments were generated with the BioEdit program (Hall, 1999) and visualized with Jalview version 2.10.3b1 (Waterhouse et al., 2009). The grand average of hydropathy (GRAVY) value and total net charge of γ-cores were calculated with GRAVY Calculator1 and Protein Calculator v3.42 (The Scripps Research Institute) servers, respectively.
The alignment of the full-length proteins was generated with PRANK v. 140110 (Löytynoja and Goldman, 2010) with default settings for phylogenetic analysis. Phylogenetic information of indels were coded by using FastGap v. 1.2 (Borchsenius, 2009) implementing the simple gap coding algorithm. Maximum-likelihood analysis was performed with RAxML v. 8.2.10 (Stamatakis, 2014) under the PROTGAMMA model with WAG substitution matrix in 1000 through bootstrap replicates.
Data were evaluated and statistically analyzed using Microsoft Excel (2010, version 14.0.6023.1000) software (Microsoft Corporation). A two-sample Student’s t-test was applied to calculate the statistical significance of differences between two sets of data. P-values ≤ 0.05 were considered as significant (∗) and P-values ≤ 0.005 (∗∗) were considered as highly significant.
The Anti-Candida Activity of Synthetic PAF γ-Core Peptides
PAF contains a γ-core motif in a dextromeric isoform (GKCTKSKNEC) at its N-terminus, comprising aa 5–14 (Figure 1A). Thus, the γ-core is located in loop 1 that connects the first two β-strands of PAF and shows typical γ-core characteristics: a positive net charge (+1.9 at pH 7) and the participation of two Cys in two distinct disulfide bonds (Yount and Yeaman, 2004; Batta et al., 2009; Figure 1A).
We synthesized the 14 aa long peptide KYTGKCTKSKNECK spanning the γ-core motif of PAF and applied N-terminal acetylation and C-terminal amidation to (i) mimic the native protein backbone, (ii) to remove terminal charges, and (iii) to increase the stability against N- and C-terminal enzymatic degradation (Kim and Seong, 2001; Arnesen, 2011). Since the peptide fragment contains two Cys, we first tested to which extent the Cys in reduced or oxidized form influences the peptide function. Therefore, we synthesized three peptide variants: Pγ_red with reduced Cys having free sulfhydryl (–SH) groups, Pγ_ox with oxidized Cys forming an intramolecular disulfide bond, and Pγ_prot in which the protecting group Acm (Isidro-Llobet et al., 2009) were attached to both Cys to prevent post-synthetic oxidation of the sulfhydryl groups (Figure 1B). The correct peptide synthesis, Cys modification, and purity of the samples were verified by ESI-MS and RP-HPLC (Supplementary Figure S1). The antifungal activity of these three peptides was determined in broth microdilution assays on the opportunistic human pathogenic yeast C. albicans. All three peptides showed anti-Candida activity per se, whereby the MIC of Pγ_red was 10 μM and only twice as high as the MIC of PAF (5 μM). The MICs of Pγ_ox and Pγ_prot, however, were comparable (40 μM), but eight times higher than the PAF MIC. This indicated that Pγ_red was the most active peptide form. Based on this result we performed all further studies with the reduced peptide variant, which we termed Pγ for reasons of simplicity.
For plant derived AMPs, physicochemical properties were found to be important mediators of the antifungal activity (Sagaram et al., 2011). In silico analysis showed that Pγ mainly consisted of neutral and basic aa (Supplementary Table S4). Therefore, we substituted specific aa in Pγ to increase the number of basic aa, which elevated the positive net charge and reduced the GRAVY. Thereby, we created the peptide variants: Pγvar (KYTGKCYKKKNECK) and Pγopt (KYTGKCKTKKNKCK) (Figure 1C and Supplementary Table S4). MS and RP-HPLC proved the correct synthesis and the purity of both peptides (Supplementary Figure S2). ECD spectroscopy was performed to analyze solution structural properties of Pγ, Pγvar, or Pγopt. Expectedly, ECD spectroscopy indicated an unordered structure for all three peptides at RT, lacking any canonical secondary structural elements (Supplementary Figure S3).
The antifungal activity of these peptide variants was compared with that of Pγ and PAF on C. albicans. Pγvar had four times higher efficacy (MIC 2.5 μM) than Pγ (MIC 10 μM), and Pγopt (MIC 1.25 μM) was even eight times more effective than Pγ. Pγvar and Pγopt were two times and four times more effective than PAF, respectively (Table 1).
Finally, we questioned whether the aa sequence or the physicochemical features determine the activity of the peptides. Therefore, we synthesized the scrambled peptide analogs Pγ_scr (CTNKYSCKKGETKK), Pγvar_scr (TNGKKYKKKEYCCK), and Pγopt_scr (TCKKNKKKKYGKTC). These peptides were generated by randomly shifting the aa positions in Pγ, Pγvar, and Pγopt3, while keeping the overall physicochemical properties of the original peptides. The correct synthesis and the purity of the scrambled peptides were proved with MS and RP-HPLC (Supplementary Figure S4). Interestingly, all scrambled peptide variants had the same antifungal activity on C. albicans as Pγ, Pγvar, and Pγopt, respectively (data not shown).
These results indicate that the primary structure plays a subordinate role, as long as the physicochemical properties (positive net charge and hydrophilicity) are maintained.
Improvement of the Antifungal Activity of PAF by γ-Core Variation
In the next step, we exchanged the same aa in the γ-core of PAF as we did in Pγvar and Pγopt (Figure 1C) to study the impact of the physicochemical changes of this motif on the activity and structure of the full-length protein. To achieve our objective, we generated the following PAF variants: (i) PAFvar by substitution of threonine to tyrosine at position 8 and serine to lysine at position 10 (T8Y S10K); and (ii) PAFopt, which corresponded to PAFvar, with threonine to lysine at position 8 and the additional substitutions lysine to threonine at position 9 and glutamic acid to lysine at position 13 (T8K K9T S10K E13K). In silico analyses predicted the increase of the positive net charge and the hydrophilicity of the full-length protein after the specific aa exchanges (Table 2).

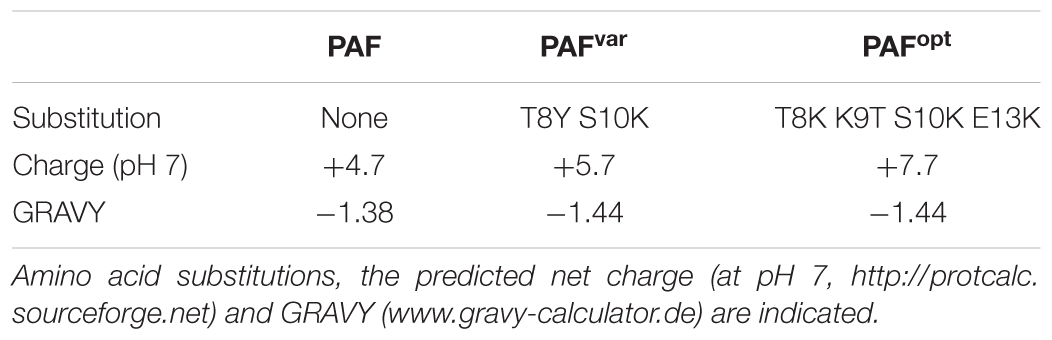

To generate the PAF protein variants PAFvar and PAFopt, site-directed mutagenesis was applied in the paf gene. The proteins were produced using the P. chrysogenum expression system as described earlier (Sonderegger et al., 2016). The purity of PAFvar and PAFopt was checked by SDS–PAGE and silver staining (data not shown), and the protein identity was proved by ESI-MS (Supplementary Figure S5). The single peaks of 6,345.98 (PAFvar) and 6,282.98 Da (PAFopt) confirmed the correctness of the aa exchanges and also proved the proper processing of the proteins and the formation of three intramolecular disulfide bonds in each protein variant (Supplementary Figure S5).
Antifungal susceptibility tests with C. albicans revealed the increased activity of both PAF variants: PAFvar and PAFopt exhibited the same MIC (1.3 μM), which corresponded to the MIC of Pγopt (Table 1) and was four times lower than that of PAF (MIC 5 μM).
These results corroborated that the γ-core motif plays a central role in the antifungal activity of PAF, which can be significantly improved with the increase in positive net charge and reduction of the GRAVY. However, our data show that the increment in the positive net charge from +5.7 of PAFvar to +7.7 of PAFopt could not further improve the anti-Candida efficacy of PAFopt. This indicates that other parts of the proteins may superimpose the physicochemical features and in consequence the function of the γ-core motif.
Structure and Thermal Stability of PAFvar and PAFopt
ECD spectroscopic measurements were performed to compare secondary structures of the generated proteins, PAFvar and PAFopt, with the native PAF (Figure 2A). The ECD spectrum of PAFopt recorded initially at 25°C (Figure 2C) was highly similar to that reported for PAF earlier (Fizil et al., 2015; Sonderegger et al., 2016), with contributions emerging from β-conformation (195, 210 nm) and disulfide bonds (228 nm). Direct comparison of spectra, however, revealed a slightly lower intensity of β-sheet contributions in the case of PAFopt compared to PAF. Deconvolution of spectra using the CDSSTR method (Sreerama and Woody, 2000) indicated a 19% decrease of β-sheet content in PAFopt (Supplementary Table S5). Thermal unfolding experiments followed by ECD further corroborated, that the native fold of PAF was slightly destabilized in PAFopt. As opposed to the melting temperature (Tm) measured earlier for PAF and other members of this protein family (Sonderegger et al., 2016; Tóth et al., 2016), the Tm of PAFopt was significantly lower (Tm = 61.4°C, Figure 2F). Furthermore, thermal unfolding of PAFopt was irreversible, while slow gradual structural reorganization was observed for PAF (Figures 2A,B). The spectra measured for PAFvar indicated that these aa exchanges severely affected the secondary structure of this protein variant. The presence of disulfide bonds was apparent, but the β-strands were largely disrupted (Figure 2B). Deconvolution of the experimental spectrum of PAFvar to determine contributions emerging from canonical secondary structures was not possible. The stability of this structure is, however, comparable to that of the PAF, as thermal unfolding of PAFvar was incomplete even at 95°C (Figure 2E) and almost complete structural reorganization took place directly after the annealing (Figure 2B). Since thermal unfolding of PAF and PAFvar was incomplete in the applied temperature range, Tm could not be determined explicitly for these two proteins (Figures 2D,E). In summary, the native structure of PAF is retained in PAFopt, but the incorporation of one threonine and three lysine residues rendered the overall structure more flexible, whereas significant secondary structural changes were observed for PAFvar (Supplementary Figure S6).
FIGURE 2. ECD spectra (top panels) and thermal unfolding curves (bottom panels) of PAF protein variants. (A, D) PAF [data taken from Sonderegger et al. (2016)], (B, E) PAFvar and (C, F) PAFopt. (A–C) Spectra in the 185–260 nm region were measured at 25 (black), 95 (red), and at 25°C directly (blue), 72 h (green), and 4 weeks (orange) after annealing. (F) PAFopt: Tm = 61.39°C, R2 = 0.9936.
Protein and Peptide Variants Have Candidacidal Activity
The determination of the MIC concentration is a well-established, reliable method to elucidate the growth reducing effect of an antifungal compound. A standard MIC assay, however, does not discriminate between fungistatic or fungicidal activity. To gain deeper insight into the antifungal mechanism of the generated protein and peptide variants, we compared them first for their fungicidal potential. In liquid culture C. albicans was exposed to 1× MIC and 2× MIC concentrations of each protein and peptide. After certain time points aliquots were taken and appropriate dilutions were spread on agar plates to allow colony formation of viable cells. The cfu were counted and compared to the untreated control, which was set to be 100%. The assays revealed a dose- and time-dependent fungicidal effect for all compounds (Supplementary Figure S7). When applied at 1× MIC for 2 h, PAF showed no detectable killing activity, whereas PAFvar killed 43 ± 1% and PAFopt 77 ± 2% of the Candida cells. The candidacidal effects were aggravated with higher protein concentrations. Exposure of C. albicans for 2 h to 2× MIC of PAF, PAFvar, and PAFopt killed 26 ± 6, 54 ± 5, and 96 ± 1% of the cells, respectively. The most potent candidacidal protein was PAFopt that killed 60 ± 10% of the cells within 10 min of exposure.
The peptides Pγ and Pγvar had no killing effects on C. albicans when applied at 1× MIC within 2 h, whereas 1× MIC of Pγopt destroyed 29 ± 10% of the cells. However, the killing efficacy increased with the application of 2× MIC of Pγ, Pγvar, and Pγopt to 31 ± 23, 50 ± 28, and 88 ± 8% after 2 h (Supplementary Figure S7).
Although the plating method is a simple and common tool to screen for fungicidal activities, it shows certain limitations. Depending on their mode of action, AMPs may still cause cell death beyond the exposure time and during plate-incubation, e.g., when AMPs are taken up and act inside the fungal cell, as it was shown to be the case with PAF (Oberparleiter et al., 2003; Sonderegger et al., 2017; Huber et al., 2018). To elucidate the AMPs candidacidal activities at an early stage and to compare their time and dose-dependent cell killing in more detail, fluorescence activated cell sorting (FACS) analysis with dead-cell staining was applied. To this end, C. albicans was exposed to 1× and 2× MIC of the respective AMPs for 10 min, stained with the dead-cell marker, and fixed with formaldehyde. With FACS analyses, 1.8 ± 1.2% dead cells were detected in the untreated control (Figure 3). PAF and PAFvar did not cause significant increase in this number after 10 min of exposure, neither when applied at 1× MIC nor at 2× MIC. PAFopt killed 4.8 ± 1% (P = 0.027) of the cells at 1× MIC and 10.1 ± 1.7% (P = 0.002) at 2× MIC within the same time. No significant cell-killing could be observed with the peptide Pγ at both concentrations tested. In contrast, the peptides Pγvar and Pγopt showed very similar and improved efficacy: at 1× MIC, Pγvar and Pγopt killed 13.2 ± 3.2% (P = 0.005) and 11.7 ± 0.3% (P < 0.001) of the cells, respectively. When applied at 2× MIC Pγvar killed 27.1 ± 5.6% (P = 0.002) and Pγopt killed 27.4 ± 1.3% (P < 0.001) of the C. albicans cells (Figure 3).

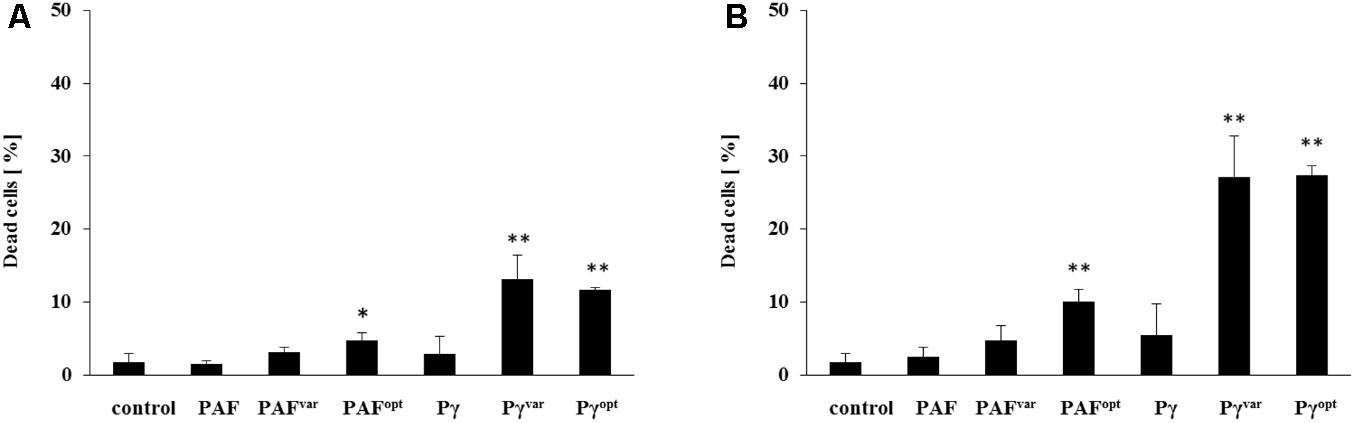

FIGURE 3. Early-stage candidacidal activities of AMPs. C. albicans was exposed for 10 min to (A) 1× MIC and (B) 2× MIC of AMPs and analyzed with dead-cell staining by FACS. Values represent mean ± SD; ∗P ≤ 0.05 and ∗∗P ≤ 0.005.
Next, we analyzed the potential of the AMPs to inhibit C. albicans biofilm formation. Low susceptibility of biofilms to antifungal agents is often a limiting factor in anti-Candida treatment. To this end, C. albicans cells were distributed in 96-well microtiter plates, allowed to settle down, and to develop biofilms for 1 and 24 h. Then, planktonic cells were washed off and AMPs were added to the biofilms for another 24 h in a concentration range of 0–40 μM. The biofilms were then quantified by adding FDA to the wells. Metabolically active cells convert non-fluorescent FDA into highly fluorescent fluorescein by intracellular enzymatic activity (Peeters et al., 2008). The resulting fluorescence signal intensity from AMP-treated biofilms was measured and compared to untreated conditions. The extinction of FDA fluorescence in 1 h old biofilms exposed to 10 μM PAFvar and 5 μM PAFopt indicated that both proteins exhibited potent anti-biofilm activity (Figure 4). In contrast, PAF only moderately reduced the metabolic activity of young biofilms when applied in concentrations up to 40 μM (Figure 4). Twenty-four-hour-old biofilms, however, were resistant against PAF, PAFvar, and PAFopt in the investigated concentration range (data not shown).
FIGURE 4. Anti-biofilm activities of AMPs. In 96-well microtiter plates C. albicans was allowed to establish a biofilm for (A,B) 1 h and (C) 24 h before 0–40 μM of (A) protein and (B,C) peptide variants were added. H2O2 (0–40 mM) served as a positive control. Values represent the mean of three replicates. Values represent mean ± SD.
The peptide Pγ exhibited activity on young biofilms at 40 μM, but had no impact on 24-h-old biofilms (Figure 4). Pγvar and Pγopt showed inhibitory activity on young biofilms at a concentration of 10 μM, respectively, and inhibited cell metabolism even in 24-h-old biofilms at 10 μM (Pγopt) and 20 μM (Pγvar) (Figure 4).
Candidacidal Activity Associates With Cell Shrinkage and ROS Formation
Cell shrinkage of C. albicans is a sign for cell death when exposed to AMPs (Lee et al., 2017). We therefore analyzed the changes in size of AMP-treated C. albicans cells by recording the FSC with flow cytometry. To this end, C. albicans cells were analyzed after 10 and 30 min of exposure to 1× MIC and 2× MIC of AMPs (Figure 5). Heat-killed and untreated C. albicans cells served as positive and negative controls, respectively (Supplementary Figure S8). The cell size of untreated cells slightly increased during incubation time, which pointed at proliferation by cell budding (Supplementary Figure S8). At 1× MIC the proteins PAFvar and PAFopt caused only a minor reduction in cell size, but when applied at 2× MIC cells size reduction was further increased with PAFopt by 21 ± 4% (P = 0.002) and 27 ± 10% (P = 0.011) after 10 and 30 min, respectively. Exposure to PAF and Pγ did not result in cell shrinkage, confirming the fungistatic character of these AMPs (compare Figure 3). Pγvar and Pγopt caused a very prominent decrease in the FSC value compared to the untreated cell population when applied at 2× MIC. Pγvar and Pγopt reduced the average cell size after a 10-min treatment by 28 ± 13 (P = 0.022) and 18 ± 10% (P = 0.041), respectively, and after 30 min the cell size was reduced by 48 ± 8 (P < 0.001) and 37 ± 12% (P = 0.007), respectively.

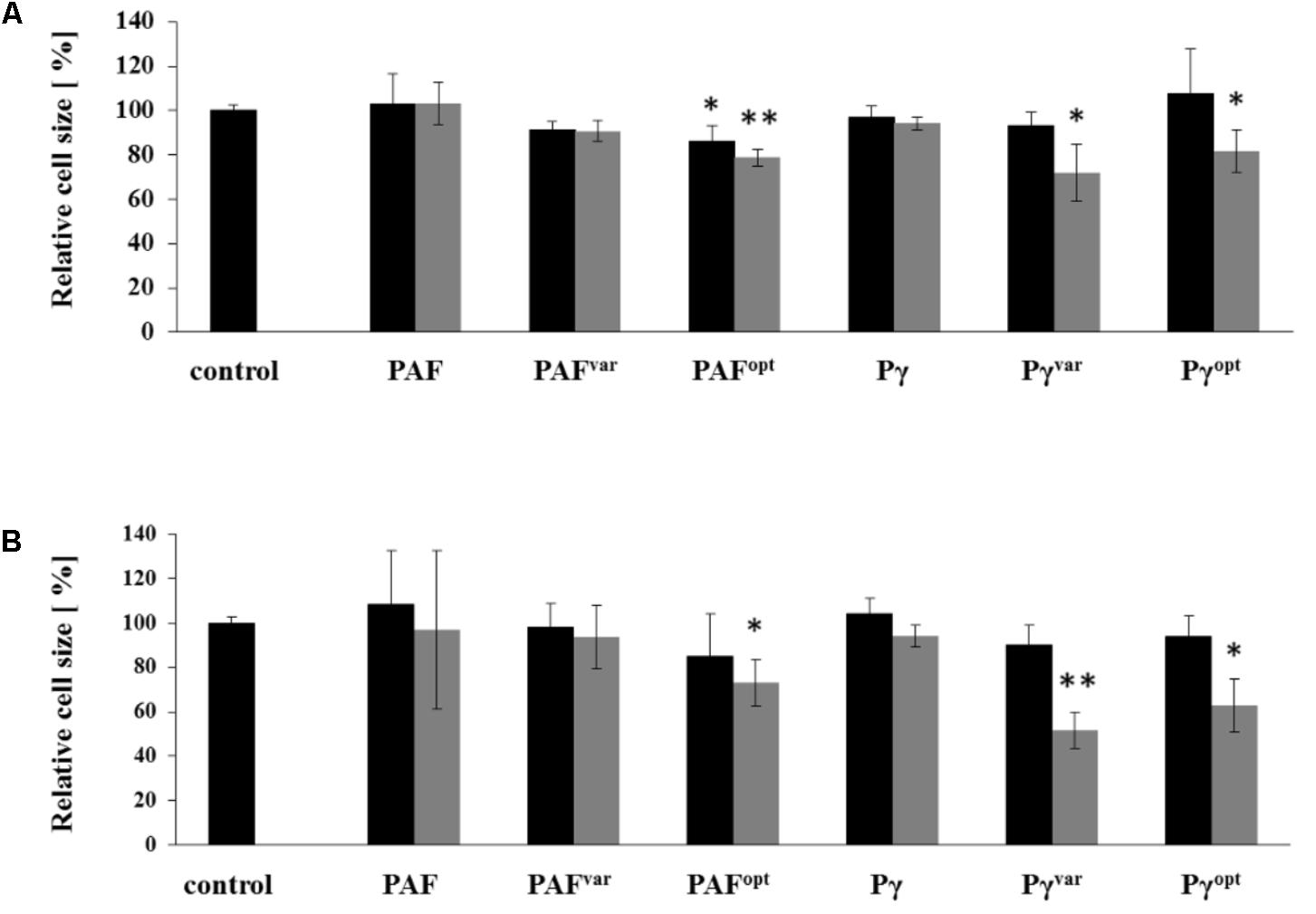

FIGURE 5. Cell size reduction by AMPs. C. albicans cells were treated for (A) 10 and (B) 30 min with 1× MIC (black bars) and 2× MIC (gray bars) and analyzed by flow cytometry. The diagram shows the change in FSC values compared to untreated control cells. Values represent mean ± SD; ∗P ≤ 0.05 and ∗∗P ≤ 0.005.
In previous studies, we could show that the activity of PAF in filamentous fungi is closely linked to the formation of ROS (Kaiserer et al., 2003; Marx et al., 2008). Since ROS production is an early marker for programmed cell death, we were also interested whether the investigated AMPs induce ROS in C. albicans. Therefore, C. albicans cells were loaded with DCFH-DA, which is converted intracellularly to the highly fluorescent DCF when oxidized in the presence of ROS (Chen et al., 2010). During exposure of the cells to 0–20 μM AMPs the DCF signal intensities were recorded in RFU every 5 min over a time-course of 4 h. The background RFU of 6,757 ± 117 was detected in C. albicans cells that were not exposed to AMPs, but loaded with DCFH-DA, diluted in 0.05× PDB (0.1% DMSO final concentration). The RFU value remained constant over the time of measurement. For all AMPs, we detected a time- and dose-dependent increase of ROS (Supplementary Figure S9) and ROS production was prevented by the addition of 1 mM of the antioxidant ascorbic acid to the highest concentration (20 μM) of each AMP (Supplementary Figure S10).
Significant differences in ROS induction between the AMPs were visible when applied at high concentrations and/or with long incubation times. After 30 min of exposure to 1.3 μM AMPs no significant ROS induction was apparent (Figure 6). After 60 min, 1.3 μM PAFopt induced a fluorescence signal of 26% (P = 0.04) above the background. After 4 h of incubation, significant ROS production was triggered by PAF, PAFvar, and PAFopt at 1.3 μM. PAF induced a DCF signal of 13,057 ± 612 (P < 0.001) RFU (Figure 6). The protein variants induced even more oxidative stress than PAF: PAFvar and PAFopt signals were 21% (P = 0.008) and 57% (P = 0.004) higher than the PAF signal, respectively. However, when the proteins were applied at 20 μM, PAFopt induced a fluorescence signal of 87% (P = 0.006) above the background signal after only 30 min and a signal of even 255% (P = 0.002) above the background after 60 min. Also, PAF induced a signal at 20 μM after 1 h [8,151 ± 94 (P = 0.027) RFU]. However, significant higher signals were triggered with PAFvar (+11%, P = 0.005) and PAFopt (+188%, P = 0.003), when compared to PAF. When applied for 4 h, this increase in ROS-specific signals could be even further elevated. While PAFvar increased the intensity signals by 26% (P = 0.025) above those evoked by PAF [22,116 ± 94 (P < 0.001) RFU], PAFopt dramatically increased ROS generation by 523% (P = 0.001) (Figure 6).

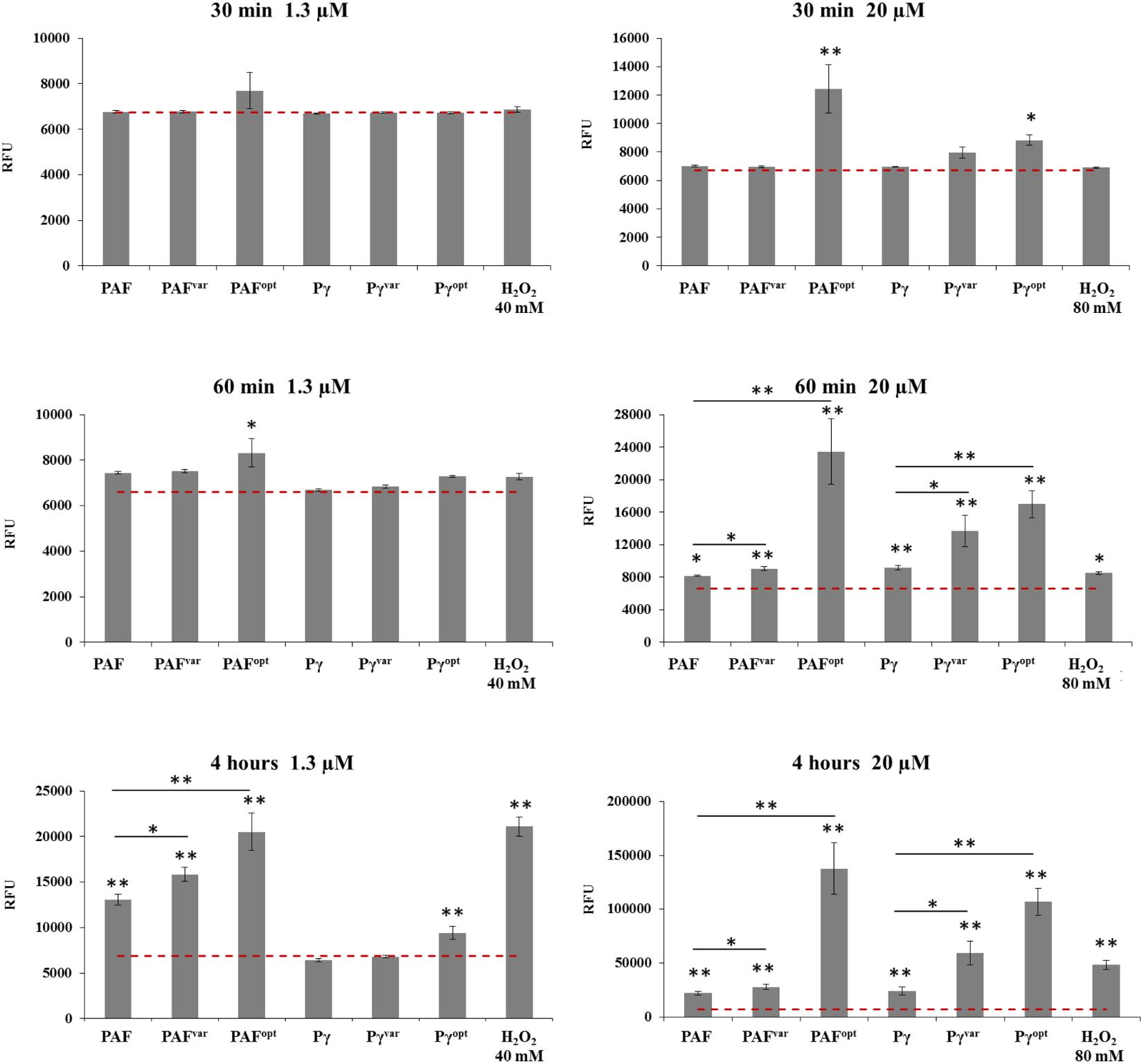

FIGURE 6. ROS production in C. albicans after 0.5, 1, and 4 h of AMP treatment. Cells were exposed to 1.3 and 20 μM AMP. The dotted red line indicates the background RFU signal of untreated cells (negative control). H2O2 was used at 40 and 80 mM as positive control. Values represent mean ± SD; ∗P ≤ 0.05 and ∗∗P ≤ 0.005.
Similar results were observed for the peptide variants. When applied at 1.3 μM, no significant ROS induction could be detected after 30 and 60 min. After 4 h 1.3 μM Pγopt increased ROS signals significantly 36% (P = 0.005) above the background. When peptides were applied at 20 μM Pγopt induced a significant signal of 31% (P = 0.015) above the background signal after 30 min. After 60 min, all peptides significantly increased the ROS levels. Whereby, compared to Pγ [9,158 ± 293 (P = 0.006) RFU], the signals caused by Pγvar (+50%, P = 0.016) and Pγopt (+85%, P = 0.001) were significantly higher. When 20 μM was applied for 4 h, Pγvar raised the ROS signals to 146% (P = 0.007) and Pγopt to 446% (P < 0.001) above the level induced by Pγ [24,025 ± 4072 (P = 0.002) RFU] (Figure 6).
Based on these observations we conclude that the AMPs are potent ROS-inducing molecules. The highest ROS levels were observed after 4 h in C. albicans treated with PAFopt and the synthetic peptide Pγopt (Figure 6), which showed to be the AMPs with the highest fungicidal activity (Figure 3 and Supplementary Figure S7).
This finding corroborates that the mode of action of the P. chrysogenum AMPs is closely linked with ROS production not only in filamentous fungi but also in yeast cells. Importantly, the γ-core motif per se triggers ROS production. The level of ROS generation, however, depends on the physicochemical features of this structural motif in the proteins and peptides.
Hemolysis and Cytotoxicity
Whenever a therapeutic application of a compound is considered it is crucial to rule out any detrimental side effects in the host such as hemolysis or cytotoxicity. Therefore, we first tested the AMPs for hemolytic activity against erythrocytes on blood agar. None of the investigated AMPs caused hemolysis at the concentration tested (20 μg per filter disc) (Supplementary Figure S11).

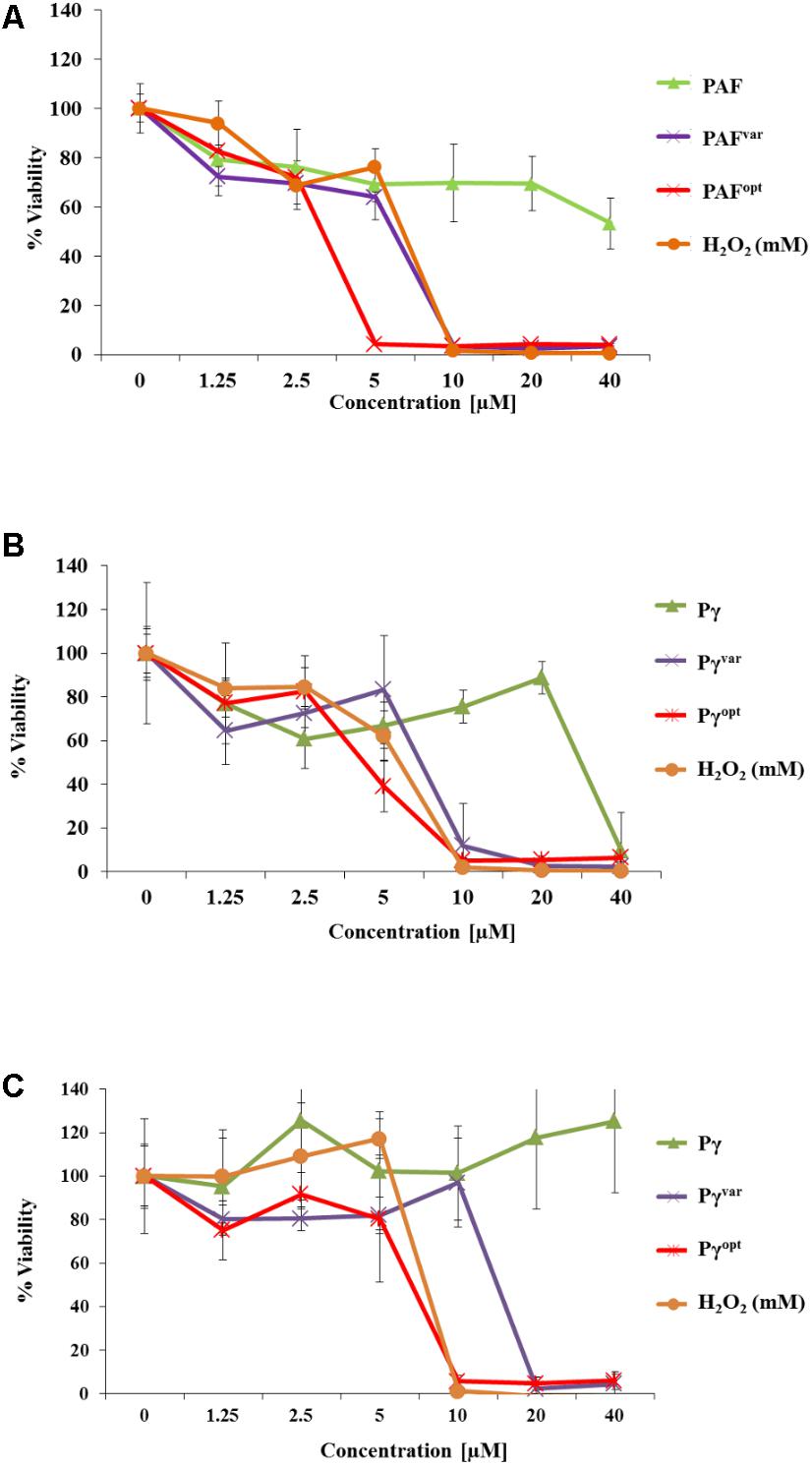

To further elucidate the cytotoxic potential, we performed in vitro viability staining of the human skin cells with PI after exposure to 30 μM of AMPs for 16 h. The nucleus-specific fluorescent stain Hoechst 33342 was used as counterstain. Fluorescence microscopy revealed no increase in PI-positive cells after AMP treatment at any condition tested (Supplementary Figure S12).
The γ-Core Motif Is a Phylogenetic Trait of Small, Cysteine-Rich, Cationic Proteins in Eurotiomycetes
Our study corroborates a major impact of the PAF γ-core on the antimicrobial action and suggests an evolutionary importance. We propose that AMPs are commonly present in the genome of Eurotiomycetes, and the γ-core motif is not restricted to the PAF-related proteins, but can be found in phylogenetically distinct, cysteine-rich AMPs (Paege et al., 2016). The MycoCosm portal (Grigoriev et al., 2014) contains 167 genomes of Eurotiomycetes representing 153 species. BLAST searches in this portal yielded 40 P. chrysogenum PAF-, 10 A. giganteus antifungal protein AFP-, 21 P. brevicompactum “BP”-, and only 2 N. fischeri NFAP2-related proteins. These are separated into four major clades with strong statistical support (bootstrap values ≥ 90) in the constructed phylogenetic tree (Figure 7). Within the PAF-clade, the proteins homolog to A. niger antifungal protein (AnAFP), P. digitatum AfpB, N. fischeri NFAP, and PAF form separated subclades (Figure 7). Similarly, two subclades of AFP-related proteins can be distinguished (Figure 7). The presence of AMPs is mainly restricted to aspergilli and penicilli, but a Monascus strain has a PAF and a Paecilomyces strain a PAF and a NFAP homolog (Supplementary Table S6). We did not find any protein with significant similarity to the applied template AMPs in the genome of Arthroderma, Blastomyces, Byssochlamys, Caliciopsis, Capronia, Cladophialophora, Coccidioides, Coccodinium, Cyphellophora, Endocarpon, Eurotium, Exophiala, Fonsecaea, Gymnascella, Histoplasma, Microsporum, Paracoccidioides, Phaeomoniella, Phialophora, Talaromyces, Thermoascus, Thermomyces, Trichophyton, and Uncinocarpus species. The position of the γ-core motif is conserved within the major clades. However, their aa composition varies. A dextromeric γ-core isoform is localized in PAF- and AFP-related proteins at the N-terminus, in NFAP2-related proteins at the C-terminus (Figure 8). Interestingly, BP homologs contain two levomeric γ-core motifs: a short one at the C-terminus and a long one in the middle of the protein (Figure 8). From the analysis of the physicochemical properties of the γ-core motifs, we conclude that all of them are hydrophilic, except for the short C-terminal hydrophobic γ-core motif of BP from Aspergillus amylovorus (Supplementary Table S6). AMPs from Eurotiomycetes show γ-core motifs with positive, negative, or almost neutral net charge. The proteins of the AnAFP subclade exhibit negatively charged γ-cores, those of the AFP clade and PAF subclade contain positively charged γ-cores, and those of the NFAP2 clade neutral γ-cores (Figure 8 and Supplementary Table S6).
FIGURE 7. Maximum-likelihood (ML) tree of putative AMPs from Eurotiomycetes. ML bootstrap values >50% are shown next to branches. The isolate names are given with the accession number of the respective AMP (listed in Supplementary Table S6). The net charge(s) (at pH 7.0) of the γ-core motif(s) are indicated: Blue discs with “+” indicate positive (≥ +0.8), red discs with “-” negative (≤ –0.9), and white discs the almost neutral (–0.2 to +0.3) γ-cores. After BP proteins the net charge of middle and the C-terminal γ-core is shown from left to right. Proteins belonging to PAF-, AFP, BP-, and NFAP2-clades are in green, lilac, blue, and yellow background, respectively.

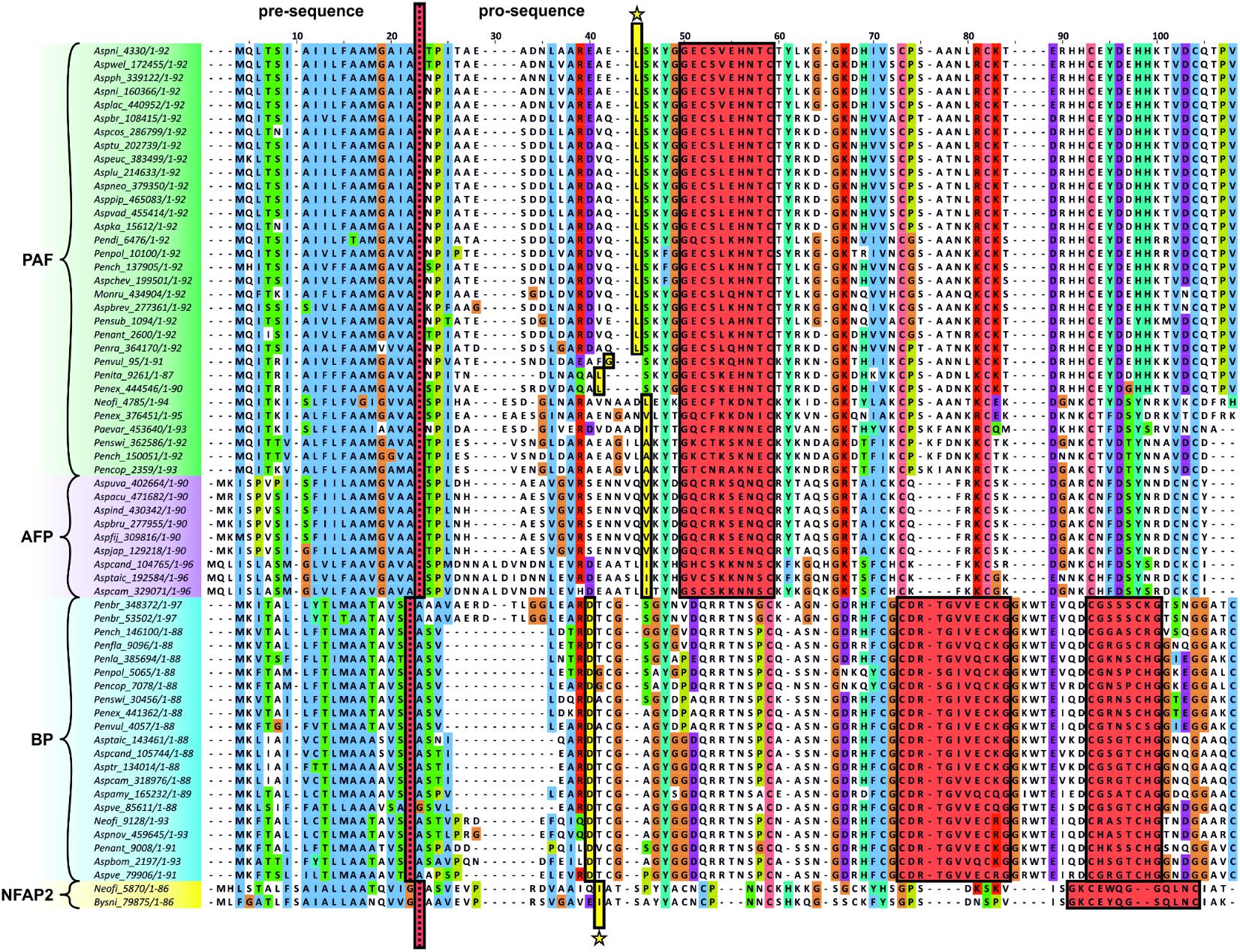

FIGURE 8. Clustal W multiple alignment of the putative AMPs from Eurotiomycetes. Dotted red line indicates the cleavage site of the predicted signal sequence. First amino acid of the mature protein is marked by an asterisk. The γ-core motifs are framed and highlighted in red. Abbreviation of the species name and the accession number of the respective AMP (listed in Supplementary Table S6) are indicated. The Clustal X default color scheme was applied (http://www.jalview.org/help/html/colourSchemes/clustal.html).
The conservation of the γ-core motif in proteins with antimicrobial activity over an evolutionary period of 2.6 billion years implicates a central functional role (Yount and Yeaman, 2006). The role of the γ-core motif of AMPs from ascomycetes is not understood, although this motif was assigned a common structural feature of the members of PAF- and AFP-clades before (Paege et al., 2016). Our very detailed screening and statistically well-supported phylogenetic analysis (bootstrap values ≥ 90 in Figure 7) revealed that the γ-core motif is not restricted to PAF and AFP homologs, but can also be found in BP- and NFAP2-related proteins (Figure 8). We showed for the first time that they are localized at conserved positions within a major clade suggesting its structural and/or functional importance. This hypothesis is strengthened by the observation that the γ-core determines the antifungal activity of the plant defensins MsDef1 and MtDef4 depending on the positive net charge (Sagaram et al., 2011). However, it has to be noted that the γ-core of Eurotiomycetes AMPs can be positively, negatively charged, or have an almost neutral charge (–0.2 – +0.3 at pH 7), which may influence their antifungal activity and their mode of action.
So far, no reports exist on antifungal active γ-core peptides from ascomycetes AMPs. This study is therefore the first on the synthetic peptide Pγ spanning the γ-core motif of PAF that shows significant activity against C. albicans at a MIC only twofold higher than the MIC of the full-length protein. This underlines the important role of the γ-core motif for the antifungal function of PAF, but additionally demonstrates that other protein motifs may contribute to full antifungal activity.
In PAF and in the closely related AfpB the positively charged γ-core is present in a dextromeric isoform at the N-terminus of the proteins. When the γ-core of AfpB was investigated the synthetic γ-core peptide was cyclized by stabilizing its structure with an intramolecular disulfide bond (Garrigues et al., 2017). Considering the observed antifungal inactivity of macrocyclic AfpB γ-core peptide and the observation that structural flexibility is an important activity determinant for antimicrobial peptides (Liu et al., 2013), we paid special attention to these aspects in the present study. We synthesized the PAF γ-core peptides with the Cys in three different chemical configurations and proved that Pγ_red containing reduced Cys exhibited the highest antifungal activity, whereas the peptides with oxidized or protected Cys (Pγ_ox and Pγ_prot, respectively) proved to be less active against C. albicans. The γ-core motif contributes to the formation of loop 1 in PAF allowing flexibility to some extent (Batta et al., 2009). Furthermore, the two Cys within the γ-core motif are not connected with each other but they participate in disulfide bonds with Cys of the neighboring β-strands (Fizil et al., 2015). The intramolecular disulfide bond in Pγ_ox resulted in a macrocyclic peptide structure with limited conformational flexibility compared to the parent linear peptide Pγ. The flexibility of Pγ_prot should correspond to that of Pγ_red due to the small size of the Acm protecting group (Isidro-Llobet et al., 2009). Nevertheless, its antifungal activity was less, which cannot be explained with reduced structural flexibility. Therefore, we hypothesize that the added acetamido groups disturbed the biological function of the peptide by impeding molecular interactions.
By varying the aa composition of the peptide Pγ to increase the positive net charge and hydrophilicity the antifungal activity of Pγvar and Pγopt could be significantly enhanced. Therefore, it seems plausible that the NFAP2-derived γ-core peptide did not possess antifungal activity since it was slightly negatively charged (-0.2) and more hydrophobic (GRAVY = -0.373) than the positively charged and highly hydrophilic Pγ (Tóth et al., 2018). The AfpB-derived γ-core peptide was positively charged (+1.1) with a GRAVY of -0.718 (Garrigues et al., 2017), though less charged and hydrophilic than Pγ. This could be a further explanation for its lack of antifungal activity in addition to its macrocyclic structure (Garrigues et al., 2017). Another well-studied example is the synthetic antifungal peptide PAF26. When the positive net charge was partially or fully neutralized by aa substitution, the antifungal activity of PAF26 decreased (Muñoz et al., 2007, 2013). It can be assumed that the physicochemical properties (such as positive net charge and hydrophilicity) together with the high structural flexibility regulate the attraction of γ-core peptides to the fungal cell membrane, which is more negatively charged than a human cell membrane. The attraction to the membrane does not per se imply a membrane targeted and/or membrane disruptive activity of the peptide (Wilmes et al., 2011), but may be an important first step that determines a more distinct mode of action (Kaiserer et al., 2003; Oberparleiter et al., 2003; Hegedüs et al., 2011; Sonderegger et al., 2017; Huber et al., 2018). When interacting with a potential target molecule the primary structure may be negligible for this kind of short, unstructured, and flexible peptides, as we could prove that the scrambled peptide variants showed the same antifungal activity as the parental peptides. This was found to be true also for NFAP2-derived synthetic peptides (Tóth et al., 2018).
Nowadays, the synthesis of small peptides resistant to the proteolytic degradation can be economic (Ciociola et al., 2016); nevertheless, the generation of highly active and stable full-length PAF variants provides certain advantages over short synthetic antifungal peptides. In the present study, we underlined the applicability of the previously developed P. chrysogenum based-expression system (Sonderegger et al., 2016) in the production of the full-length PAF γ-core variants PAFvar and PAFopt. The elevation of the hydrophilicity of PAF by altering the γ-core aa sequence similarly improved the antifungal activity of the protein as for the respective peptides. Interestingly, PAFvar and PAFopt have the same GRAVY and inhibited the growth of C. albicans at the same MIC, irrespectively of different net charges (PAFvar: +5.7; PAFopt: +7.7). This indicates that an increase in positive net charge to +7.7 did not further improve the antifungal activity of the protein in contrast to observation with the peptides Pγvar and Pγopt. The overall surface charge distribution of PAF is important for full antifungal activity. Distinct changes in the surface charge by aa exchanges are even relayed to distant protein regions (Sonderegger et al., 2017). Therefore, it is reasonable to assume that other parts/motifs of the protein superimpose the net charge of the γ-core in PAF. Interestingly, the ECD measurement of PAFopt revealed an altered and more flexible protein structure compared to PAF. Based on the observations that structural flexibility of distinct protein motifs can enhance the specific protein activity (Wallnoefer et al., 2010), we cannot exclude that the increased flexibility of PAFopt enhances antifungal activity, but this is attenuated by other protein parts. It may be worth to perform detailed NMR-based structural analyses of this protein variant, which may expand our knowledge about the mechanistic function of PAF.
By investigating the mode of action of the AMPs we could show that the improved protein and peptide variants act fungicidal on C. albicans, which is associated with cell shrinkage and ROS formation. In the filamentous fungus A. nidulans ROS-associated apoptosis induction by PAF was shown before (Leiter et al., 2005). In the present study, we observed for the first time that PAF and the derived AMPs elicit ROS in the yeast C. albicans, which points toward a similar mode of action on both fungal species. Notably, ROS (e.g., H2O2) has been associated with the induction of C. albicans filamentation, which represents a virulence attribute (Srinivasa et al., 2012; Su et al., 2018). None of the investigated AMPs triggered the formation of pseudohyphae or hyphae in C. albicans under the applied test conditions (Supplementary Figure S13).
Since ROS formation and cell shrinkage are also associated with apoptosis in yeast (Perrone et al., 2008; Munoz et al., 2012), we propose that PAF and the derived AMPs induce apoptosis in C. albicans. However, further experiments will be needed to confirm this assumption. It also has to be noted that the fluorescence probe DCFH-DA does not exclusively detect ROS, but can also be converted into DCF by reactive nitrogen species (RNS). It cannot be distinguished to which extend DCF is formed by ROS or RNS (Chen et al., 2010).
A rapid and increased fungicidal activity, which was the highest for Pγopt and PAFopt, is particularly important to counteract resistance development in target organisms (Duncan and O’Neil, 2013). For example, the formation of multi-drug resistance was recently observed in C. albicans, where a clinically isolated strain showed combined resistance against fluconazole, caspofungin, and amphotericin B (Sanglard, 2016). These three drugs represent the three major drug classes of currently applied antifungal therapeutics, namely azoles, echinocandins, and polyenes (Duncan and O’Neil, 2013). Besides the occurring drug resistance in C. albicans the biofilm forming ability has great medical relevance. Biofilm formation of C. albicans on medical devices like catheters, dentures, contact lenses, prosthetic joints, and cochlear implants poses a major problem as it can be the source for severe clinical infections (Giles et al., 2018). Furthermore, biofilm formation in the host, e.g., when colonizing the skin and mucosa, hamper effective drug delivery and might favor the development of drug resistance. We could show that the PAF-related antifungal proteins and peptides investigated in this study are able to impede early-stage biofilm formation, whereby the two peptides Pγvar and Pγopt showed potent inhibitory activity against mature (24 h old) biofilm. The decrease of drug efficacy during biofilm maturation was also observed for other peptide antifungals, which are trapped and/or inactivated by the extracellular matrix of mature biofilms (Duncan and O’Neil, 2013). The peptides Pγvar and Pγopt are therefore interesting candidates for further anti-biofilm investigations.
In general the treatment of skin or mucosa is easier to achieve than systemic treatment (Duncan and O’Neil, 2013), because systemic administration of peptides can be hampered by low bioavailability, poor serum stability, and the risk to cause immunological reactions (Yount and Yeaman, 2012). Another limiting factor is the potential of antimicrobial peptides to be cytotoxic toward mammalian cells (Kang et al., 2017). For example, the cationic character and the α-helical structure determine the membrane lytic activity of the 26 aa long peptide melittin, a major component of the bee venom. Attempts to disturb the α-helix conformation by aa substitutions resulted in a decreased cytotoxicity, but retention of minimum antimicrobial inhibitory concentrations (Jamasbi et al., 2016). The lack of a secondary structure of the synthetic γ-core peptides investigated in our study could explain their non-toxic and non-lytic character on mammalian cells in vitro. However, the potential of host damage of the PAF-derived AMPs has to be investigated further by in vivo test in the future.
In summary, we could show that the evolutionary conserved γ-core motif of PAF plays an important role for the fungicidal activity of this small, cysteine-rich, and cationic protein and that its efficacy can be significantly improved by changing the physicochemical properties of this central motif by aa substitution based on rational design. PAF-derived proteins and peptides promise high potential against C. albicans biofilm formation and might pave the way toward the development of novel compounds preferentially for topical application to treat skin and/or mucosal fungal infections.
The study with human keratinocytes and fibroblasts was carried out in accordance with the recommendations of the Ethics Committee of the Medical University of Innsbruck. The protocol was approved by the Ethics Committee of the Medical University of Innsbruck. All subjects gave written informed consent in accordance with the Declaration of Helsinki.
FM, CS, SD, GT, and DW designed the experiments, conceived, and supervised the study. GV and LG helped to design synthetic peptides, and GV synthesized and analyzed the peptides. CS prepared expression vectors and generated the recombinant proteins, analyzed the anti-Candida mode of action of proteins and peptides, performed cytotoxicity tests with proteins and peptides, and analyzed the data. LG and SK performed in silico phylogenetic analyses. CS and WP performed FACS-based experiments and analyzed the data. AB performed ECD spectroscopy and analyzed the data. All authors contributed to manuscript writing and to manuscript revision and approved the submitted version.
This study was financially supported by the Austrian Science Fund (FWF) and the Hungarian National Research, Development and Innovation Office (NKFIH) with the bilateral FWF-NKFIH cooperation project FWF I3132-B21 to FM and NKFIH ANN 122833 to LG; the NKFIH Postdoctoral Excellence Program PD 120808 to LG and the FWF project P 28039 to SD. Research of SK was financed by the Hungarian Scientific Research Fund (OTKA, PD 116609) and of AB by the János Bolyai Research Scholarship of the Hungarian Academy of Sciences. The research was also financed by the EU and co-financed by the European Regional Development Fund under the project GINOP-2.3.2-15-2016-00 014 to GT.
Conflict of Interest Statement
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
The reviewer JM–Á and handling editor declared their shared affiliation at time of review.
We thank Doris Bratschun-Khan and Katharina Schwabenbauer for their technical support.
The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fmicb.2018.01655/full#supplementary-material
Acm, acetamidomethyl; AMPs, antimicrobial peptides/proteins; DCF, 2′,7′-dichlorofluorescein; DCFH-DA, 2′,7′-dichlorodihydrofluorescein diacetate; ECD, electronic circular dichroism; ESI-MS, electrospray ionization mass spectrometry; FACS, fluorescence-assisted cell sorting; FDA, fluorescein diacetate; Fmoc, fluorenylmethyloxycarbonyl; FSC, forward scatter; GRAVY, grand average of hydropathy; HDF, primary human dermal fibroblasts; HKC, primary human keratinocytes; MIC, minimal inhibitory concentration; PAF, Penicillium chrysogenum antifungal protein; PI, propidium iodide; RFU, relative fluorescence units; ROS, reactive oxygen species; RP-HPLC, reversed phase high-performance liquid chromatography; SSC, side scatter.
- ^ http://www.gravy-calculator.de/
- ^ http://protcalc.sourceforge.net/
- ^ http://www.bioinformatics.org/sms2/shuffle_protein.html
Arendrup, M. C., Meletiadis, J., Mouton, J. W., Guinea, J., Cuenca-Estrella, M., Lagrou, K., et al. (2016). EUCAST technical note on isavuconazole breakpoints for Aspergillus, itraconazole breakpoints for Candida and updates for the antifungal susceptibility testing method documents. Clin. Microbiol. Infect. 22, 571.e1–571.e4. doi: 10.1016/j.cmi.2016.01.017
Batta, G., Barna, T., Gáspári, Z., Sándor, S., Kövér, K. E., Binder, U., et al. (2009). Functional aspects of the solution structure and dynamics of PAF - a highly-stable antifungal protein from Penicillium chrysogenum. FEBS J. 276, 2875–2890. doi: 10.1111/j.1742-4658.2009.07011.x
Blunder, S., Rühl, R., Moosbrugger-Martinz, V., Krimmel, C., Geisler, A., Zhu, H., et al. (2017). Alterations in epidermal eicosanoid metabolism contribute to inflammation and impaired late differentiation in FLG- mutated atopic dermatitis. J. Invest. Dermatol. 137, 706–715. doi: 10.1016/j.jid.2016.09.034
Borchsenius, F. (2009). FastGap, version 1.2. Available at: http://www.aubot.dk/FastGap_home.htm
Brown, G. D., Denning, D. W., Gow, N. A. R., Levitz, S. M., Netea, M. G., and White, T. C. (2012). Hidden killers: Human fungal infections. Sci. Transl. Med. 4:165rv13. doi: 10.1126/scitranslmed.3004404
Chen, X., Zhong, Z., Xu, Z., Chen, L., and Wang, Y. (2010). 2′,7′-Dichlorodihydrofluorescein as a fluorescent probe for reactive oxygen species measurement: Forty years of application and controversy. Free Radic. Res. 44, 587–604. doi: 10.3109/10715761003709802
Ciociola, T., Giovati, L., Conti, S., Magliani, W., Santinoli, C., and Polonelli, L. (2016). Natural and synthetic peptides with antifungal activity. Future Med. Chem. 8, 1413–1433. doi: 10.4155/fmc-2016-0035
Fizil,Á, Gáspári, Z., Barna, T., Marx, F., and Batta, G. (2015). “Invisible” conformers of an antifungal disulfide protein revealed by constrained cold and heat unfolding, CEST-NMR experiments, and molecular dynamics calculations. Chem. A Eur. J. 21, 5136–5144. doi: 10.1002/chem.201404879
Garrigues, S., Gandía, M., Borics, A., Marx, F., Manzanares, P., and Marcos, J. F. (2017). Mapping and identification of antifungal peptides in the putative antifungal protein AfpB from the filamentous fungus Penicillium digitatum. Front. Microbiol. 8:592. doi: 10.3389/fmicb.2017.00592
Garrigues, S., Gandía, M., and Marcos, J. F. (2016). Occurrence and function of fungal antifungal proteins: a case study of the citrus postharvest pathogen Penicillium digitatum. Appl. Microbiol. Biotechnol. 100, 2243–2256. doi: 10.1007/s00253-015-7110-3
Giles, C., Lamont-Friedrich, S. J., Michl, T. D., Griesser, H. J., and Coad, B. R. (2018). The importance of fungal pathogens and antifungal coatings in medical device infections. Biotechnol. Adv. 36, 264–280. doi: 10.1016/j.biotechadv.2017.11.010
Grigoriev, I. V., Nikitin, R., Haridas, S., Kuo, A., Ohm, R., Otillar, R., et al. (2014). MycoCosm portal: gearing up for 1000 fungal genomes. Nucleic Acids Res. 42, D699–D704. doi: 10.1093/nar/gkt1183
Han, J., Jyoti, M. A., Song, H. Y., and Jang, W. S. (2016). Antifungal activity and action mechanism of histatin 5-halocidin hybrid peptides against Candida ssp. PLoS One 11:e0150196. doi: 10.1371/journal.pone.0150196
Hegedüs, N., L.,É, Kovács, B., Tomori, V., Kwon, N. J., Emri, T., et al. (2011). The small molecular mass antifungal protein of Penicillium chrysogenum - a mechanism of action oriented review. J. Basic Microbiol. 51, 561–571. doi: 10.1002/jobm.201100041
Huber, A., Hajdu, D., Bratschun-Khan, D., Gáspári, Z., Varbanov, M., Philippot, S., et al. (2018). New antimicrobial potential and structural properties of PAFB: a cationic, cysteine-rich protein from Penicillium chrysogenum Q176. Sci. Rep. 8:1751.
Jamasbi, E., Mularski, A., and Separovic, F. (2016). Model membrane and cell studies of antimicrobial activity of melittin analogues. Curr. Top. Med. Chem. 16, 40–45. doi: 10.2174/1568026615666150703115919
Kaiserer, L., Oberparleiter, C., Weiler-Görz, R., Burgstaller, W., Leiter, E., and Marx, F. (2003). Characterization of the Penicillium chrysogenum antifungal protein PAF. Arch. Microbiol. 180, 204–210. doi: 10.1007/s00203-003-0578-8
Lee, H., Hwang, J.-S., and Lee, D. G. (2017). Scolopendin, an antimicrobial peptide from centipede, attenuates mitochondrial functions and triggers apoptosis in Candida albicans. Biochem. J. 474, 635–645. doi: 10.1042/BCJ20161039
Leiter,É, Szappanos, H., Oberparleiter, C., Kaiserer, L., Csernoch, L., and Pusztahelyi, T. (2005). Antifungal protein PAF severely affects the integrity of the plasma membrane of Aspergillus nidulans and induces an apoptosis-like phenotype. Antimicrob. Agents Chemother. 49, 2445–2453. doi: 10.1128/AAC.49.6.2445
Liu, L., Fang, Y., and Wu, J. (2013). Flexibility is a mechanical determinant of antimicrobial activity for amphipathic cationic α-helical antimicrobial peptides. Biochim. Biophys. Acta 1828, 2479–2486. doi: 10.1016/j.bbamem.2013.06.017
Marx, F., Binder, U., Leiter,É, and Pócsi, I. (2008). The Penicillium chrysogenum antifungal protein PAF, a promising tool for the development of new antifungal therapies and fungal cell biology studies. Cell. Mol. Life Sci. 65, 445–454. doi: 10.1007/s00018-007-7364-8
Muñoz, A., Harries, E., Contreras-Valenzuela, A., Carmona, L., Read, N. D., and Marcos, J. F. (2013). Two functional motifs define the interaction, internalization and toxicity of the cell-penetrating antifungal peptide PAF26 on fungal cells. PLoS One 8:e54813. doi: 10.1371/journal.pone.0054813
Muñoz, A., López-García, B., Pérez-Payá, E., and Marcos, J. F. (2007). Antimicrobial properties of derivatives of the cationic tryptophan-rich hexapeptide PAF26. Biochem. Biophys. Res. Commun. 354, 172–177. doi: 10.1016/j.bbrc.2006.12.173
Nielsen, H. (2017). “Predicting secretory proteins with SignalP,” in Protein Function Prediction. Methods in Molecular Biology, ed. D. Kihara (New York, NY: Humana Press), 59–73. doi: 10.1007/978-1-4939-7015-5_6
Oberparleiter, C., Kaiserer, L., Haas, H., Ladurner, P., Andratsch, M., and Marx, F. (2003). Active internalization of the Penicillium chrysogenum antifungal protein PAF in sensitive aspergilli. Antimicrob. Agents Chemother. 47, 3598–3601. doi: 10.1128/AAC.47.11.3598-3601.2003
Paege, N., Jung, S., Schäpe, P., Müller-Hagen, D., Ouedraogo, J.-P., Heiderich, C., et al. (2016). A transcriptome meta-analysis proposes novel biological roles for the antifungal protein AnAFP in Aspergillus niger. PLoS One 11:e0165755. doi: 10.1371/journal.pone.0165755
Peeters, E., Nelis, H. J., and Coenye, T. (2008). Comparison of multiple methods for quantification of microbial biofilms grown in microtiter plates. J. Microbiol. Methods 72, 157–165. doi: 10.1016/j.mimet.2007.11.010
Sagaram, U. S., Pandurangi, R., Kaur, J., Smith, T. J., and Shah, D. M. (2011). Structure-activity determinants in antifungal plant defensins MsDef1 and MtDef4 with different modes of action against Fusarium graminearum. PLoS One 6:e18550. doi: 10.1371/journal.pone.0018550
Schindelin, J., Arganda-Carreras, I., Frise, E., Kaynig, V., Longair, M., Pietzsch, T., et al. (2012). Fiji: an open-source platform for biological-image analysis. Nat. Methods 9, 676–682. doi: 10.1038/nmeth.2019
Sonderegger, C., Fizil,Á, Burtscher, L., Hajdu, D., Muñoz, A., Gáspári, Z., et al. (2017). D19S mutation of the cationic, cysteine-rich protein PAF: Novel insights into its structural dynamics, thermal unfolding and antifungal function. PLoS One 12:e0169920. doi: 10.1371/journal.pone.0169920
Sonderegger, C., Galgóczy, L., Garrigues, S., Fizil,Á, Borics, A., Manzanares, P., et al. (2016). A Penicillium chrysogenum-based expression system for the production of small, cysteine-rich antifungal proteins for structural and functional analyses. Microb. Cell Fact. 15:192. doi: 10.1186/s12934-016-0586-4
Sreerama, N., and Woody, R. W. (2000). Estimation of protein secondary structure from sircular dichroism spectra: comparison of CONTIN, SELCON, and CDSSTR methods with an expanded reference set. Anal. Biochem. 287, 252–260. doi: 10.1006/abio.2000.4880
Srinivasa, K., Kim, N.-R., Kim, J., Kim, M., Bae, J. Y., Jeong, W., et al. (2012). Characterization of a putative thioredoxin peroxidase prx1 of Candida albicans. Mol. Cells 33, 301–307. doi: 10.1007/s10059-012-2260-y
Tóth, L., Kele, Z., Borics, A., Nagy, L. G., Váradi, G., Virágh, M., et al. (2016). NFAP2, a novel cysteine-rich anti-yeast protein from Neosartorya fischeri NRRL 181: isolation and characterization. AMB Express 6:75. doi: 10.1186/s13568-016-0250-8
Tóth, L., Váradi, G., Borics, A., Batta, G., Kele, Z., Vendrinszky, Á, et al. (2018). Anti-candidal activity and functional mapping of recombinant and synthetic Neosartorya fischeri antifungal protein 2 (NFAP2). Front. Microbiol. 9:393. doi: 10.3389/fmicb.2018.00393
Wallnoefer, H. G., Lingott, T., Gutieìrrez, J. M., Merfort, I., and Liedl, K. R. (2010). Backbone flexibility controls the activity and specificity of a protein-protein interface: specificity in snake venom metalloproteases. J. Am. Chem. Soc 132, 10330–10337. doi: 10.1021/ja909908y
Waterhouse, A. M., Procter, J. B., Martin, D. M. A., Clamp, M., and Barton, G. J. (2009). Jalview Version 2-a multiple sequence alignment editor and analysis workbench. Bioinformatics 25, 1189–1191. doi: 10.1093/bioinformatics/btp033
Wilmes, M., Cammue, B. P. A., Sahl, H., and Thevissen, K. (2011). Antibiotic activities of host defense peptides?: more to it than lipid bilayer perturbation. Nat. Prod. Rep. 28, 1350–1358. doi: 10.1039/c1np00022e
Yount, N. Y., and Yeaman, M. R. (2006). Structural congruence among membrane-active host defense polypeptides of diverse phylogeny. Biochim. Biophys. Acta 1758, 1373–1386. doi: 10.1016/j.bbamem.2006.03.027
Keywords: Penicillium chrysogenum antifungal protein PAF, gamma(γ-) core, antimicrobial proteins, antimicrobial peptides, Candida albicans, biofilm, reactive oxygen species
Citation: Sonderegger C, Váradi G, Galgóczy L, Kocsubé S, Posch W, Borics A, Dubrac S, Tóth GK, Wilflingseder D and Marx F (2018) The Evolutionary Conserved γ-Core Motif Influences the Anti-Candida Activity of the Penicillium chrysogenum Antifungal Protein PAF. Front. Microbiol. 9:1655. doi: 10.3389/fmicb.2018.01655
Received: 08 May 2018; Accepted: 03 July 2018;
Published: 20 July 2018.
Edited by:Hector Mora Montes, Universidad de Guanajuato, Mexico
Reviewed by:Sascha Brunke, Leibniz-Institut für Naturstoff-Forschung und Infektionsbiologie – Hans Knöll Institut, Germany
José Ascención Martínez-Álvarez, Universidad de Guanajuato, Mexico
Copyright © 2018 Sonderegger, Váradi, Galgóczy, Kocsubé, Posch, Borics, Dubrac, Tóth, Wilflingseder and Marx. This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) and the copyright owner(s) are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.
*Correspondence: Florentine Marx, email@example.com
