WadD, a New Brucella Lipopolysaccharide Core Glycosyltransferase Identified by Genomic Search and Phenotypic Characterization
- 1Instituto de Salud Tropical, Instituto de Investigación Sanitaria de Navarra, and Departamento de Microbiología y Parasitología, Universidad de Navarra, Pamplona, Spain
- 2Unidad de Tecnología en Producción y Sanidad Animal, Centro de Investigación y Tecnología Agroalimentaria, Instituto Agroalimentario de Aragón – IA2 (CITA – Universidad de Zaragoza), Zaragoza, Spain
- 3Institut National de la Recherche Agronomique, Université François Rabelais de Tours, UMR 1282, Nouzilly, France
Brucellosis, an infectious disease caused by Brucella, is one of the most extended bacterial zoonosis in the world and an important cause of economic losses and human suffering. The lipopolysaccharide (LPS) of Brucella plays a major role in virulence as it impairs normal recognition by the innate immune system and delays the immune response. The LPS core is a branched structure involved in resistance to complement and polycationic peptides, and mutants in glycosyltransferases required for the synthesis of the lateral branch not linked to the O-polysaccharide (O-PS) are attenuated and have been proposed as vaccine candidates. For this reason, the complete understanding of the genes involved in the synthesis of this LPS section is of particular interest. The chemical structure of the Brucella LPS core suggests that, in addition to the already identified WadB and WadC glycosyltransferases, others could be implicated in the synthesis of this lateral branch. To clarify this point, we identified and constructed mutants in 11 ORFs encoding putative glycosyltransferases in B. abortus. Four of these ORFs, regulated by the virulence regulator MucR (involved in LPS synthesis) or the BvrR/BvrS system (implicated in the synthesis of surface components), were not required for the synthesis of a complete LPS neither for virulence or interaction with polycationic peptides and/or complement. Among the other seven ORFs, six seemed not to be required for the synthesis of the core LPS since the corresponding mutants kept the O-PS and reacted as the wild type with polyclonal sera. Interestingly, mutant in ORF BAB1_0953 (renamed wadD) lost reactivity against antibodies that recognize the core section while kept the O-PS. This suggests that WadD is a new glycosyltransferase adding one or more sugars to the core lateral branch. WadD mutants were more sensitive than the parental strain to components of the innate immune system and played a role in chronic stages of infection. These results corroborate and extend previous work indicating that the Brucella LPS core is a branched structure that constitutes a steric impairment preventing the elements of the innate immune system to fight against Brucella.
Members of the genus Brucella are the etiologic agents of brucellosis, a worldwide spread zoonosis that affects ruminants, camelids, swine, dogs, and several forms of marine and terrestrial wildlife and causes abortions, infertility, and the subsequent economic losses in livestock. Humans become infected via direct contact with affected animals and through consumption of unpasteurized dairy products, and develop a chronic and debilitating condition that requires prolonged antibiotic treatment, being lethal in 1–5% of untreated cases (Ariza, 1999). Because of its impact on animal production and Public Health, it is estimated that brucellosis imposes a heavy burden in the developing world (McDermott et al., 2013).
The genus includes several nominal species that show host preferences1. Those that have been known for a long time (often referred to as “classical” Brucella species) include B. abortus and B. melitensis (the brucellae that infect domestic ruminants), B. suis (infecting swine, reindeer, hares, and several species of wild rodents), B. canis (infecting dogs), B. ovis (not zoonotic and restricted to sheep), and B. neotomae (infecting the desert woodrat). Because of their early identification and their economic and public health importance, B. abortus, B. melitensis, and B. suis are the best-characterized members of the genus, and all of them produce smooth (S) glossy colonies, a morphology that reflects the existence of a lipopolysaccharide (LPS) carrying an O-polysaccharide (O-PS) linked to the core-lipid A section that anchors the molecule to the outer membrane (OM). These Brucella spp. behave as facultative intracellular parasites of professional and non-professional phagocytes, an ability that depends on a number of virulence factors, chiefly a type IV secretion system and a peculiar OM structure. Critical OM components such as the S-LPS, lipoproteins, and ornithine lipids differ in relevant molecular details from the homologous molecules that in other bacteria bear the pathogen-associated molecular patterns (PAMP) readily detected by innate immunity pattern recognition receptors (PRRs). Consequently, these brucellae induce comparatively low and delayed proinflammatory responses, which create a time window allowing the pathogen to traffic intracellularly in dendritic cells and macrophages to reach a safe niche before effective phagocyte activation takes place (Lapaque et al., 2005; Barquero-Calvo et al., 2007; Palacios-Chaves et al., 2011). In this regard, the Brucella S-LPS carries the most significant PAMP modifications and is thus a major virulence factor (Lapaque et al., 2005). Whereas the structure of the O-PS (a N-formylperosamine homopolymer) and its role in virulence in animal models and in the natural host have been known for a long time, the importance of the core and its structure have only recently been established.
The core of B. melitensis LPS (Figure 1) is a branched oligosaccharide built of lipid A-linked 3-deoxy-D-manno-2-octulosonic acid (Kdo), glucose, 2-amino-2,6-dideoxy-D-glucose (quinovosamine), mannose, and 2-amino-2-deoxy-D-glucose [glucosamine (GlcN)] (Iriarte et al., 2004; Conde-Álvarez et al., 2012; Kubler-Kielb and Vinogradov, 2013; Gil-Ramírez et al., 2014; Fontana et al., 2016). This structure accounts for the Brucella LPS core overlapping epitopes (Rojas et al., 1994) an inner one comprising the Kdo residues plus the glucose bridging KdoII with the O-PS and an outer epitope encompassing the mannose and GlcN residues (Iriarte et al., 2004; González et al., 2008; Fontana et al., 2016). This last epitope plays a critical role in the binding of monoclonal antibodies (MoAbs) such as A68/24G12/A08 and A08/24D08/G09 (Conde-Álvarez et al., 2012; Fontana et al., 2016).

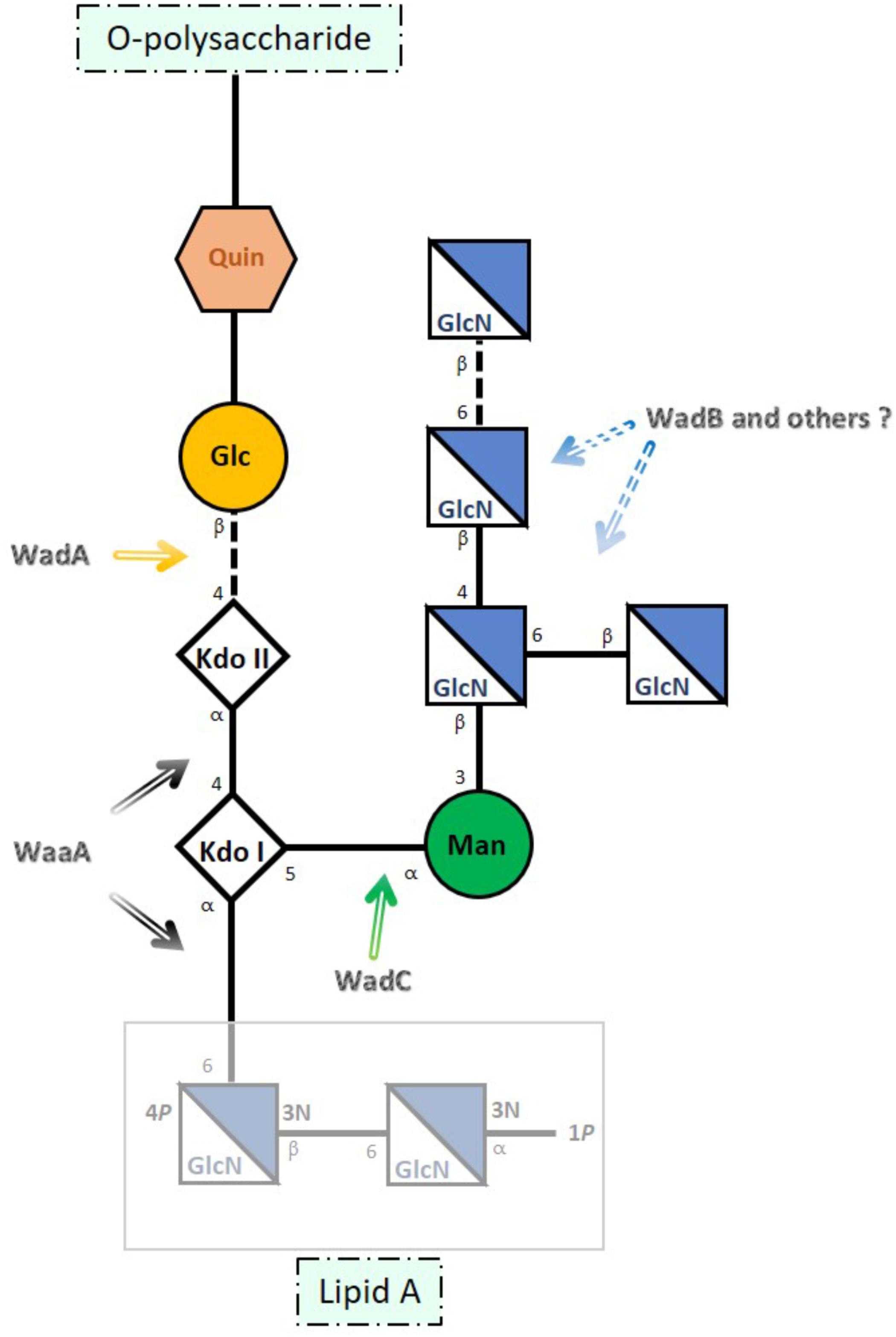

FIGURE 1. Schematic representation of Brucella melitensis LPS core. The site of action of the glycosyltransferases identified thus far is indicated with arrows. Kdo (3-deoxy-D-manno-octulosonic acid), Glc (glucose), Man (mannose), GlcN (glucosamine), and Quin (quinovosamine) [adapted from Fontana et al. (2016) and Gil-Ramírez et al. (2014)].
Accordingly, the reactivity with R-LPS-specific MoAbs strongly suggests that the structure elucidated for B. melitensis is conserved in the classical species (Bowden et al., 1995; Zygmunt et al., 2012). Moreover, availability of the corresponding structure of several mutants has also allowed assigning genes that upon mutation generate LPSs that lack [i.e., rough (R) LPS] or carry O-PS (Figure 1). Gene wadA corresponds to the enzyme linking KdoII and glucose, wadC to the mannosyltransferase acting on KdoI, and wadB to a glucosaminyltransferase involved in the assembly of the GlcN branch (González et al., 2008; Conde-Álvarez et al., 2012; Gil-Ramírez et al., 2014). These genes are highly conserved in the classical Brucella species (Monreal et al., 2003; Iriarte et al., 2004; González et al., 2008; Conde-Álvarez et al., 2012; Gil-Ramírez et al., 2014; Soler-Lloréns et al., 2016) and as expected, all Brucella genomes also carry a waaA homolog, the essential gene coding for the Kdo transferase of Gram-negative bacteria (Raetz and Whitfield, 2002; Iriarte et al., 2004). However, since most but not all glycosyltransferases involved in LPS synthesis are monofunctional (Raetz and Whitfield, 2002), it remains to be determined whether glucosaminyltransferases other than WadB are required for the synthesis of the GlcN branch.
Based on the complete structure of the core and the phenotype of mutants in wadB and wadC, it is postulated that the lack of acidic groups other than the two Kdo and lipid A phosphates and the mannose-GlcN branch account for the role of Brucella core in virulence both in cellular and animal models. By virtue of the density of amino groups and close position to the inner core and lipid A, the GlcN tetrasaccharide both neutralizes and sterically protects those inner anionic groups, thereby hampering binding of bactericidal peptides and PRRs such as the activators of the antibody-independent classical complement pathway and MD2, the TLR4 co-receptor. Accordingly, core defects bolster proinflammatory responses causing an activation of innate immunity earlier than that of the wild type, thereby generating attenuation (Conde-Álvarez et al., 2012; Gil-Ramírez et al., 2014; Soler-Lloréns et al., 2014; Fontana et al., 2016). Also, although both wadB and wadC mutants maintain an intact O-PS, attenuation in mice is more severe for the latter (Conde-Álvarez et al., 2012; Gil-Ramírez et al., 2014; Fontana et al., 2016) strongly suggesting a correlation between the extent of core damage and the intensity of the immunoactivation that brings about attenuation. A complete elucidation of the genetics of Brucella LPS core could confirm such a correlation and, since LPS core mutants represent a tool for developing a new generation of brucellosis vaccines (Conde-Álvarez et al., 2013; Zhao et al., 2017), also provide a graded array of possibilities. With these possibilities in mind, we investigated B. abortus 2308 genes annotated as glycosyltransferases for their possible involvement in LPS core synthesis and relevant biological effects.
Materials and Methods
Bacterial Strains and Growth Conditions
The bacterial strains and plasmids used in this study are listed in Supplementary Table S1. All bacteria were grown either on tryptic soy agar (TSA, Pronadisa) plates or in tryptic soy broth (TSB, Scharlau) or Mueller-Hinton broth (Becton Dickinson, Difco) at 37°C. Where indicated, growth media were supplemented with kanamycin (Km) at 50 mg/ml, nalidixic acid (Nal) at 25 mg/ml, ampicillin (Amp) at 100 mg/ml, and/or 5% sucrose. Bacterial growth rates were determined at 37°C in Mueller–Hinton broth (Becton Dickinson, Difco), using a Bioscreen C apparatus (Lab Systems). All strains were stored in skim milk at -80°C. Work with Brucella was performed at the Biosafety Level 3 (BSL-3) laboratory facilities of the “Centro de Investigación Médica Aplicada de la Universidad de Navarra” (CIMA) and “Centro de Investigación y Tecnología Agroalimentaria de Aragón” (CITA), Spain.
DNA Manipulations and Analyses
Sequence data were obtained from Kyoto Encyclopedia of Genes and Genomes (KEGG2). Searches for DNA and protein homologies between Brucella species and other α-proteobacteria such as Ochrobactrum, Rhizobium, or Agrobacterium were carried out using KEGG, Basic Local Alignment Sequence Tool (BLAST3), and Clustal Omega4 from the European Molecular Biology Laboratory – European Bioinformatics Institute (EMBL-EBI5). New glycosyltransferase identification, using B. abortus 2308 was supported by Carbohydrate-Active enZymes database (CAZy6). Primers were designed using Primer 3 input7 and synthesized by Sigma–Aldrich. Plasmid DNA was extracted with Qiaprep spin Miniprep (Qiagen GmbH). When needed, DNA was purified from agarose gels using Qiack Gel extraction kit (Qiagen) and sequenced by the Servicio de Secuenciación of CIMA.
Construction of Mutants
Open-reading frames (ORFs) BAB2_0133, BAB2_0135, BAB2_0105, and BAB1_1620 were mutagenized by in frame non-polar deletion in B. abortus 2308W (Supplementary Table S1).
For the construction of BaΔBAB2_0133 mutant, we first generated two PCR fragments: oligonucleotides BAB2_0133-F1 (5′-GCGTTGGACAAGTTGAGGTT-3′) and BAB2_0133-R2 (5′-CATAGCGGTCGGTTAAATGC-3′) were used to amplify a 572 base pairs (bp) fragment including codons 1–38 of BAB2_0133, as well as 458 bp upstream of the BAB2_0133 start codon. Oligonucleotides BAB2_0133-F3 (5′-GTATCGCCAGCCAATTTACGTCCGTATTGGAAGCCAAGAA-3′) and BAB2_0133-R4 (5′-CAGTAACAAAAGGCCGCTAT-3′) were used to amplify a 442 bp fragment including codons 299–326 of BAB2_0133 and 355 bp downstream of the BAB2_0133 stop codon. Both fragments were ligated by overlapping PCR using oligonucleotides F1 and R4 for amplification, and the complementary regions between R2 and F3 for overlapping. The resulting fragment, containing the BAB2_0133 deletion allele, was cloned into pCR2.1 (Invitrogen), to generate plasmid pMSB-01, sequenced to ensure the maintenance of the reading frame, subsequently subcloned into the BamHI and the XbaI sites of the suicide plasmid pJQK (Scupham and Triplett, 1997) and transformed into competent E. coli S17 λpir (Simon et al., 1983). The resulting suicide pJQK-derived plasmid was introduced into B. abortus 2308 by conjugation. The first recombination event (integration of the suicide vector in the chromosome) was selected by Nal and Km resistance, and the second recombination (excision of the mutator plasmid leading to construction of the mutant by allelic exchange) was selected by Nal and sucrose resistance and Km sensitivity. The resulting colonies were screened by PCR with primers F1 and R4 which amplified a fragment of 1014 bp in the mutant and 1794 bp in the sibling strain that keeps the wild-type gene. Primers BAB2_0133-F1 and BAB2_0133-R5 (5′-AAGACCCAGTAGTTAGCACT-3′) amplified a fragment of 919 bp only in the wild-type strain. The mutation generated results in the loss of the 80% of the ORF.
BaΔBAB2_0135 mutant was constructed following the same procedure and using oligonucleotides BAB2_0135-F1 (5′-TGGCGGCCGCTCTAGAACACCGGACTGCCTGATAA-3′) and BAB2_0135-R2 (5′-CGGGCAATTTCGGCATAG-3′) that amplified a 240 bp fragment including codons 1–40 of BAB2_0135, as well as 120 bp upstream of the BAB2_0135 start codon, and oligonucleotides BAB2_0135-F3 (5′-CTATGCCGAAATTGCCCGCCGGTTTGGAAATGCGGTCAA-3′) and BAB2_0135-R4 (5′-ATCCACTAGTTCTAGTTATGTAGCCGCCACCGTTT-3′) that amplified a 232 bp fragment including codons 441–478 of BAB2_0135 and 115 bp downstream of the BAB2_0135 stop codon. The resulting colonies were screened by PCR with primers F1 and R4 that amplified a fragment of 472 bp in the mutant and 1672 bp in the sibling strain that keeps the wild-type gene. Primers BAB2_0135-F1 and BAB2_0135-R5 (5′-CGATTGCCAGTCCCAGAAAG-3′) amplified a fragment of 628 bp only in the wild-type strain. The mutation generated results in the loss of the 84% of the ORF.
For the construction of BaΔBAB2_0105 mutant, oligonucleotides BAB2_0105-F1 (5′-GCGTGTTCTACAGCCATGAA-3′) and BAB2_0105-R2 (5′-CCGCCGAAATGTAGGAAGTG-3′) amplified a 198 bp fragment including codons 1–33 of BAB2_0105, as well as 99 bp upstream of the BAB2_0105 start codon. Oligonucleotides BAB2_0105-F3 (5′-CACTTCCTACATTTCGGCGGTATGTTGGATTGGGACGGGT-3′) and BAB2_0105-R4 (5′-GCCGAATATGACGCTTGCTA-3′) amplified a 154 bp fragment including codons 307–330 of BAB2_0105 and 79 bp downstream of the BAB2_0105 stop codon. The resulting colonies were screened by PCR with primers F1 and R4 which amplified a fragment of 352 bp in the mutant and 1171 bp in the sibling strain which keeps the wild-type gene. Primers BAB2_0105-F1 and BAB2_0105-R5 (5′-CAAAGACCGGATATTGCGGG-3′) amplified a fragment of 550 bp only in the wild-type strain. The mutation results in the loss of the 83% of the ORF.
BaΔBAB1_1620 mutant was constructed using oligonucleotides 1620-F1 (5′-GTACGCGGTCGTAGCTCAGT-3′) and 1620-R2 (5′-CTCAAACTGAGACGCCATGA-3′), that amplified a 475 bp fragment including codons 1–23 of BAB1_1620 as well as 406 bp upstream of the ORF start codon. Oligonucleotides 1620-F3 (5′-TCATGGCGTCTCAGTTTGAGATAGCCAACGTCACCAAAACA-3′) and 1620-R4 (5′-CTCTGCAATTCTTGCGATCA-3′) were used to amplify a 410 bp fragment including codons 241–261 of the BAB1_1620 ORF and 347 bp downstream of the BAB1_1620 stop codon. Both fragments were ligated, cloned into pCR2.1 to generate plasmid pYRI-16, and subcloned into the suicide pJQK (pYRI-17). After conjugation with B. abortus, the resulting colonies were screened by PCR with primers 1620-F1 and 1620-R4 which amplified a 885 bp fragment in the mutant and 1536 bp in the parental strain. The mutation generated results in the loss of the 83% of the BAB1_1620 ORF.
The rest of the ORFs were mutagenized by recombination and gene disruption using as suicide vectors pJQK or pSKoriT (Tibor et al., 2002) carrying an internal fragment of the ORF.
For the construction of Ba::pJQK-BAB1_0114 mutants, we generated a PCR fragment using oligonucleotides BAB1_0114-F1 (5′-TCAACAAATCGGCCAAGGAC-3′) and BAB1_0114-R2 (5′-GTCACGCGGTCAAACTGG-3′) which amplified a 481 bp fragment containing the region that codes for amino acids 248–407. The fragment was cloned into pCR2.1, to generate plasmid pMSB-17, sequenced and subcloned into the BamHI and the XbaI sites of the suicide plasmid pJQK to obtain pMSB-28, and then transformed into competent E. coli S17 and transferred into B. abortus 2308 by conjugation. The integration of the suicide vector and disruption of the target gene were selected by Nal and Km resistance and by PCR combining BAB1_0114-F3 (5′-CCTATATTCCCCAGGCCGTT-3′) with M13 Forward (5′-CTGGCCGTCGTTTTAC-3′) or with M13 Reverse (5′-CAGGAAACAGCTATGAC-3′). These last two primers hybridize in the suicide vector inserted in the chromosome. BAB1_0114-F3 and M13 Forward amplified a fragment of 881 bp only in the mutant strain. Following the same strategy, we constructed the rest of insertion mutants:
Mutant Ba::pSKoriT-BAB1_0417 was obtained using oligonucleotides BAB1_0417-F1 (5′-TGATCGACCATGGCTCGG-3′) and BAB1_0417-R2 (5′-TCAAGCCTGACCAGAAGCC-3′) which amplified a 295 bp fragment of BAB1_0417 (codon 37–134). The fragment was first cloned in pCR2.1 (pMSB-05), subcloned into the suicide plasmid pSKoriT (pMSB-06), and transferred into B. abortus 2308 by conjugation. Primers M13 Reverse and BAB1_0417-F3 (5′-CTGTTTCCCGACCAGCTTG-3′) amplified a fragment of 649 bp only in the mutant.
Oligonucleotides BAB2_0693-F1 (5′-CACTGCAAGCCGGTTACAAT-3′) and BAB2_0693-R2 (5′-TGCAACGAAATTCTGTCCGG-3′) were used for the construction of Ba::pJQK-BAB2_0693 mutant. F1 and R2 amplified a fragment of 416 bp (codons 249–386). We generated plasmid pMSB-16, subsequently subcloned into the suicide plasmid pJQK (pMSB-24), and conjugated into B. abortus 2308. Primers M13 Forward and BAB2_0693-F3 (5′-ACGAGCGCTATGATTTCGTC-3′) amplified a fragment of 684 bp only in the mutant.
For the construction of Ba::pJQK-BAB1_0932 mutants we used oligonucleotides BAB1_0932-F1 (5′-GCCGTCGTCCTGAATGTTAC-3′) and BAB1_0932-R2 (5′-GCCATTATCCAGTGCAGCC-3′) which amplified a 420 bp fragment of BAB1_0932 (codons 354–493). We generated plasmid pMSB-28, subsequently subcloned into the suicide plasmid pJQK (pMSB-29), and conjugated into B. abortus 2308. The resulting Nal–Km-resistant colonies were screened by PCR. Primers M13 Reverse and BAB1_0932-F3 (5′-GGCCGAGAATGGCTATATCA-3′) amplified a fragment of 915 bp only in the mutant.
Mutant Ba::pSKoriT-BAB1_0326 was obtained using oligonucleotides BAB1_0326-F1 (5′-GCACTCAACCGGCTCAATTG-3′) and BAB1_0326-R2 (5′-AGCACCGCATATTCAAAGGC-3′) which amplified a 368 bp fragment of BAB1_0326 (codons 261–383) that was cloned into pCR2.1 to obtain pMSB-07. The fragment was then subcloned into the suicide pSKoriT (pMSB-10), and conjugated into B. abortus 2308. The resulting Nal–Km-resistant colonies were screened by PCR. Primers M13 Reverse and BAB1_0326-F3 (5′-ATGTTGCCATGTCGCTGTTT-3′) amplified a fragment of 678 bp only in the mutant strain.
Construction of Ba::pJQK-BAB1_0607 mutants was carried out using oligonucleotides BAB1_0607-F1 (5′-GCCAATGTCGTTCTCTCCAA-3′) and BAB1_0607-R2 (5′-CTTGGTGTCAGCCCCTTTTC-3′) which amplified a 449 bp fragment of BAB1_0607 (codons 278–427). We generated the pCR2.1-derived plasmid pMSB-19, then subcloned into the suicide plasmid pJQK (pMSB-21), and conjugated into B. abortus 2308. Primers M13 Forward and BAB1_0607-F3 (5′-TTCTTTCCAATGAGCGCACC-3′) amplified a fragment of 800 bp only in the mutant.
We constructed two different mutants in ORF BAB1_0953 (wadD). The first, Ba::pSKoriT-BAB1_0953, carried the suicide vector inserted in the gene and was obtained with oligonucleotides BAB1_0953-F1 (5′-ACTTTTCGCCGAGCAACAAA-3′) and BAB1_0953-R2 (5′-AGGCACGGTTTCATAGACGA-3′) which amplified a 358 bp fragment of BAB1_0953 (codons 112–230). We generated plasmid pMSB-11, subsequently subcloned into the suicide plasmid pSKoriT (pMSB-12), and conjugated into B. abortus 2308. Primers M13 Forward and BAB1_0953-F3 (5′-GCTGGCTTCATGAAATCCGT-3′) amplified a fragment of 612 bp in mutant.
We also constructed a non-polar wadD mutant (BaΔwadD) by in frame deletion. Oligonucleotides wadD-F1 (5′-TCTATAATGAGAGGCGGCTTTT-3′) and wadD-R2 (5′-AGAAGTGCTGGTCCTGTTGT-3′) were used to amplify a 304 (bp) fragment including codons 1–50 of BAB1_0953, as well as 154 bp upstream of the BAB1_0953 start codon. Oligonucleotides wadD-F3 (5′-ACAACAGGACCAGCACTTCTATCCTCACCCTGCCATTCAA-3′) and wadD-R4 (5′-CTGGTACTAGACGCCCTGTT-3′) were used to amplify a 175 bp fragment including codons 281–324 of BAB1_0953 and 43 bp downstream of the BAB1_0953 stop codon. Both fragments were ligated by overlapping PCR using oligonucleotides F1 and R4 for amplification, and the complementary regions between R2 and F3 for overlapping. The resulting fragment, containing the BAB1_0953 deletion allele, was cloned directly into pJQK by the InFusion cloning system (Clontech) to generate pMSB-34. This suicide vector was sequenced to ensure the maintenance of the reading frame and transferred into B. abortus 2308 by conjugation. The resulting colonies were screened by PCR with primers F1 and R4 that amplified a fragment of 479 bp in the mutant and 1169 bp in the sibling strain which keeps the wild-type gene. Primers wadD-F1 and wadD-R5 (5′-AGGCACGGTTTCATAGACGA-3′) amplified a fragment of 844 bp only in the wild-type strain. The mutation generated results in the loss of the 71% of the ORF and the mutant was called BaΔwadD.
Complementation of wadD Mutants
For complementation experiments, we performed a stable insertion of the miniTn7 transposon into the chromosome of BaΔwadD (Choi and Schweizer, 2006). For this purpose, we first generated a PCR product using oligonucleotides Tn7-wadD-F1 (5′-CGGGCTGCAGGAATTGCGATTCCTTTGTGCCAGAT-3′) and Tn7-wadD-R2 (5′-GCTTCTCGAGGAATTATCATCGCCGCATTGAAGAC-3′), which amplified a 1771 bp fragment including codons 1–323 of BAB1_0953 together with 481 bp upstream of the ORF start codon including the putative wadD promoter and 318 bp downstream the ORF stop codon. This PCR product was cloned into the corresponding sites of the linearized pUC18 R6KT miniTn7T KmR vector (Llobet et al., 2009) to generate plasmid pMSB-44. The plasmid was sequenced to ensure the maintenance of the reading frame transformed into E. coli S17 and transferred to BaΔwadD mutant by tetra-parental conjugation between E. coli S17 (pMSB44), E. coli SM10 λpir (pTNS2), and E. coli HB101 (pRK2013). The conjugants harboring pMSB-44 were selected by plating the mating mixture onto TSA–Nal–Km plates that were incubated at 37°C for 4 days. To confirm that the transposon was inserted between genes glmS and recG (Choi and Schweizer, 2006), we performed PCR using different oligonucleotides: Tn7F (5′-TGGCTAAAGCAAACTCTTCATTT-3′) and Tn7R (5′-GCGGATTTGTCCTACTCAGG-3′) allowed to confirm that the Tn7 was inserted, oligonucleotides Glms_B (5′-GTCCTTATGGGAACGGACGT-3′) and PTn7-R (5′-CACAGCATAACTGGACTGATT-3′) confirmed that the transposon was inserted immediately after the gene glmS, and RecG-R (5′-TATATTCTGGCGAGCGATCC-3′) and PTn7-L (5′-ATTAGCTTACGACGCTACACCC-3′) confirmed that the transposon was inserted before the gene recG (Choi and Schweizer, 2006). The resulting strain was named BaΔwadD::Tn7-PwadD.
Crystal Violet Exclusion Test
To study if the mutants had smooth (complete LPS) or rough (O-PS-lacking LPS) phenotype, 5 ml of a crystal violet solution at 0.1 mg/ml in distilled water were used to cover isolated colonies on TSA plates for 20 s. Smooth colonies excluded crystal violet and looked white, whereas rough colonies captured crystal violet and looked violet.
LPS Extraction and Characterization
LPS was extracted by the proteinase-K sodium dodecyl sulfate (SDS) protocol (Dubray and Limet, 1987; Garin-Bastuji et al., 1990) with some modifications. Bacteria grown overnight in 10 ml of TSB were killed with 0.5% phenol during 3 days in agitation at 37°C. After that, samples were weighed and pipetted into small polycarbonate cap tubes and then suspended by ultrasounds in 2% SDS–60 mM Tris–HCl buffer (pH 6.8) at a concentration of 0.5 g (wet weight) of bacteria per 10 ml of buffer. Samples were then heated at 100°C for 10 min, and lysates were cooled to 55°C. This treatment was followed by digestion with 60 μl of proteinase-K at 2.5 mg/ml in HCl–Tris per ml of sample (Merck KGaA) for 3 h at 55°C, and overnight incubation at 20°C. Afterward, they were centrifuged at 20,000 × g for 30 min at room temperature, and the LPS was precipitated from the supernatant by addition of 3 volumes of methanol containing 1% sodium acetate-saturated methanol at -20°C. After 60 min, the precipitate was harvested by centrifugation at 5,000 × g for 15 min at 4°C and resuspended by sonication in 10 ml of distilled water. After a second methanol precipitation and centrifugation, the pellets were resuspended by sonication in 2–3 ml of 60 mM HCl–Tris (pH 6.8) and left at 37°C. Then samples were treated with 20 μl/ml of RNase and DNase stock solutions at 0.5 mg/ml in HCl–Tris (MP Biomedicals and Sigma–Aldrich, respectively) at 37°C for 30 min. Subsequently, the LPS was treated again with 5 μl/ml of proteinase K at 2.5 mg/ml in HCl–Tris, at 55°C for 3 h and then, at room temperature overnight. After a third methanol precipitation in the same conditions described above, the pellet containing LPS was recovered in 1 ml of distilled water and frozen at -20°C.
SDS–PAGE and Western Blots
Samples were mixed 1:1 with Sample buffer 2× (Bio-Rad), heated at 100°C for 10 min, and analyzed in Tris–HCl–glycine-12, 15, or 18% polyacrylamide gels (37.5:1 acrylamide/methylene–bisacrylamide ratio). Fifteen microliters of each sample were run at 30 mA constant current for 140 min. Finally, LPS molecules were revealed by the periodate-alkaline silver method (Tsai and Frasch, 1982).
For Western blot, gels were electro-transferred onto PVDF sheets (Whatman, Schleicher & Schuell, WESTRAN S.; 0.2 μm pore size) in a transfer buffer (pH 8.3) containing 0.025 M Tris, 0.192 M glycine, and 20% (vol/vol) methanol. Transfer was performed at a constant voltage of 8 V and 200 mA for 30 min in a Trans-Blot Semi-Dry Transfer Cell (Bio-Rad). Antibodies used were MoAbs A68/24D08/G09 and A68/24G12/A08, which recognize core epitopes (Bowden et al., 1995), and a polyclonal serum from a rabbit infected with B. melitensis 16 M and bled at day 45.
Enzyme-Linked Immunosorbent Assay (ELISA)
Enzyme-Linked Immunosorbent Assay using whole bacteria (sonicated cells) as the antigen were performed as described previously (Cloeckaert et al., 1993a). MoAbs used were directed against O-PS, R-LPS, and the OM lipoproteins Omp10, Omp16, and Omp19 (Cloeckaert et al., 1990, 1993a,b, 1998). The anti-R-LPS MoAbs used were A68/03F03/D05 (IgG2b), A68/10A06/B11 (IgM), A68/24D08/G09 (IgG1), and A68/24G12/A08 (IgG3). The MoAbs specific for the O-PS epitopes were 2E11 (IgG3; M epitope), 12G12 [IgG1; C (A = M) epitope], 07F09 [IgG1; C (A = M) epitope], 12B12 [IgG3; C (M > A) epitope], 18H08 [IgA; C/Y (A = M) epitope], 04F9 [IgG2a; C/Y (A > M) epitope], and 05D4 [IgG1; C/Y (A > M) epitope]. The MoAbs specific for OM lipoproteins were A68/08E07/B11 (Omp10; IgG2a), A68/04G01/C06 (Omp16; IgG2a), A76/08C03/G03 (Omp16; IgG2a), and A76/10D03/H02 (Omp19; IgG2b). All MoAbs were used as hybridoma supernatants in ELISA.
Sensitivity to Polycationic Bactericidal Peptides
The minimal inhibitory concentration (MIC) of polymyxin B and poly-L-ornithine (both from Sigma–Aldrich) were determined in Mueller–Hinton medium. Exponentially growing bacteria were adjusted to an OD equivalent to 1 of the McFarland scale, and exposed to serial dilutions of the bactericidal peptides. MICs were determined by technical duplicates after 2 days of incubation at 37°C. Experiments were performed in triplicate.
Sensitivity to the Bactericidal Action of Non-immune Serum
Exponentially growing bacteria were adjusted to 104 Colony Forming Units (CFU)/ml in saline and dispensed in duplicate in microtiter plates (30 μl/well) containing 60 μl of new-born bovine serum. After 90 min of incubation at 37°C with gentle agitation, complement action was blocked by adding brain heart infusion (BHI) broth (150 μl/well). After mixing the BHI broth with the bacterial suspension, 75 μl were plated by triplicate on TSA plates. Five days after incubation at 37°C, results were expressed as the percentage of CFU recovered with respect to control samples where new-born bovine serum was substituted by PBS. The experiment was repeated three different times.
Virulence in Mice
Seven-week-old female BALB/c mice (ENVIGO, Harlan) were lodged in cages in BSL-3 facilities with water and food ad libitum for 2, 8, or 12 weeks. Six groups of five mice each were inoculated with BaΔwadD or Ba-parental. Inocula were prepared in sterile PBS and each mouse was administered intraperitoneally approximately with 5 × 104 CFU in 0.1 ml. To assess the exact dose retrospectively, dilutions of each inoculum were plated by triplicate on TSA plates. Spleen CFUs in infected mice were counted at 2, 8, and 12 weeks after inoculation. The CFU counts were normalized by logarithmic transformation and the mean log CFU/spleen values and the standard deviations were calculated. The spleens were weighed and homogenized in 9 volumes of PBS and serial 10-fold dilutions were accomplished and plated by triplicate on TSA plates. After 5 days of incubation at 37°C the colonies were checked by crystal violet exclusion test and PCR.
Statistical significance for sensitivity to normal serum was evaluated with one-way ANOVA followed by Dunnett’s multiple comparisons test (∗∗∗∗p < 0.0001). For virulence analysis, statistical significance between the parental strain and the wadD mutant was evaluated using Student’s t-independent-samples test (∗p < 0.05).
Screening for Putative LPS Core Glycosyltransferases
A bioinformatic search in the Carbohydrate-Active Enzymes database CAZy8 revealed 23 ORFs in the genome of B. abortus 2308 (Supplementary Table S1) that could code for glycosyltransferases. We excluded from further analysis BAB1_0108-cgs, which is involved in cyclic glucan synthesis (Briones et al., 2001), BAB1_1786-mtgA and BAB1_1450-murG, both related to peptidoglycan synthesis, BAB1_1171-lpxB, probably implicated in lipid A formation (Iriarte et al., 2004), and BAB1_0553-wbkA, BAB1_0563-wbkE; BAB1_1000-wboA and BAB1_1000-wboB, four genes that belong to the O-PS synthesis route (McQuiston et al., 1999; Godfroid et al., 2000; González et al., 2008). Similarly, four ORFs correspond to those glycosyltransferases already known to be involved in the synthesis of the LPS core: BAB1_0639-wadA (Monreal et al., 2003), BAB1_0351-wadB (Gil-Ramírez et al., 2014), BAB1_1522-wadC (Conde-Álvarez et al., 2012), and BAB2_0209-waaA (Iriarte et al., 2004) (see the section “Introduction”). The remaining 11 ORFs are listed in Table 1, and data on their presence in other Brucella spp. and genetic location are in the Supplementary Material (Supplementary Table S2 and Supplementary Figure S1). Of these, seven (BAB1_0953, BAB2_0105, BAB2_0133, BAB2_0135, BAB1_1620, BAB1_0607, and BAB1_0932) were highly conserved in all Brucella spp., but four (BAB2_0693, BAB1_0417, BAB1_0114, and BAB1_0326) presented significant differences when compared to B. abortus sequences, mainly due to frameshifts generating shorter proteins (Supplementary Table S2). Perusal of the literature revealed some information on 4 of those 11 putative glycosyltransferases. Expression of BAB1_0326, BAB2_0133, and BAB2_0135 has been shown to be controlled by MucR, a general virulence regulator in Brucella (Caswell et al., 2013). However, although it has been reported that B. abortus and B. melitensis mucR mutants have a defective LPS core, the glycosyltransferases involved have not been identified (Caswell et al., 2013; Mirabella et al., 2013). Also, BAB1_1620 expression has been reported to be controlled by BvrR/BvrS, a master regulator of Brucella virulence that modulates OM homeostasis and undetermined aspects of LPS structure (Manterola et al., 2005; Viadas et al., 2010).
TABLE 1. ORF coding for B. abortus hypothetical glycosyltransferases, family to which they belong, predicted function, and the corresponding mutant LPS phenotype by Western blot analysis.
We first analyzed the MucR and BvrR/BvrS controlled ORFs for involvement in LPS synthesis. To this end, we constructed an insertion mutant in BAB1_0326 (since the downstream ORF is oriented in the opposite direction) as well as non-polar deletion mutants in BAB2_0133 and BAB2_0135 (both part of an operon), and BAB1_1620 (which, although isolated, is surrounded by genes implicated in the cell cycle). These four mutants maintained the S phenotype in the crystal violet assay, suggesting that they kept an intact O-PS. Then, SDS–proteinase-K LPSs were analyzed by SDS–PAGE and Western blot with both a polyclonal serum against S brucellae and anti-core MoAbs A68/24G12/A08 and A68/24D08/G09, using as controls LPS from B. abortus 2308W (Ba-parental), a B. abortus wadC mutant (BaΔwadC), and a R per mutant (BaΔper) (Martínez-Gómez et al., 2018). The LPS of the four mutants presented S and R fractions with migration profiles identical to those of Ba-parental LPS and reacted similarly with the serum and MoAbs (Supplementary Figure S2) strongly suggesting that the corresponding ORFs are not required for normal LPS synthesis. When we complemented these observations by inoculating BALB/c mice with BAB2_0133, BAB2_0135, and BAB1_1620 mutants, they produced CFU/spleen that did not differ from those of Ba-parental at weeks 2 (p = 0.99; 0.75 and 0.45, respectively) and 8 (p = 0.95; 0.99 and 0.99) after infection. Moreover, mutants in BAB2_0133 and BAB1_1620 behaved similarly to Ba-parental in polycationic peptide resistance, and the former also performed as Ba-parental in sensitivity to normal serum (Supplementary Figure S3). These results are consistent with the idea that the putative glycosyltransferases regulated by MucR or BvrR/BvrS are not involved in the synthesis of LPS or of other components implicated in virulence, at least under the conditions used in this study.
To investigate whether the remaining seven putative glycosyltransferases (BAB1_0953, BAB2_0105, BAB2_0693, BAB1_0607, BAB1_0114, BAB1_0932, and BAB1_0417) were required for LPS synthesis, we constructed B. abortus 2308W insertion mutants in each of them. All mutants were S by the crystal violet assay and the analysis of the extracted LPS showed S fractions with a migration profile like that of Ba-parental and reacted similarly with the anti S-Brucella polyclonal serum (Figure 2 and Supplementary Figure S4). Interestingly, although keeping the S fraction, mutant in BAB1_0953 lost reactivity in the R fraction, suggesting a defect in the core and/or lipid A epitope(s) recognized by polyclonal sera of infected animals (Rojas et al., 2001). Since this was not observed for the other mutants, we investigated further BAB1_0953 and the phenotype associated with its mutation.

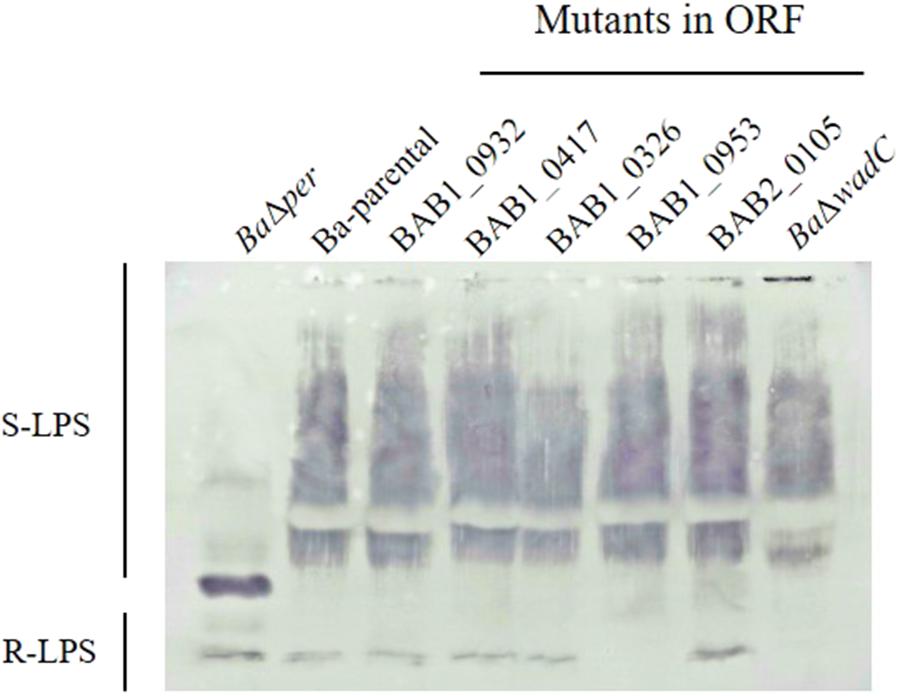

FIGURE 2. Mutation of B. abortus BAB1_0953 but not of other candidate for LPS glycosyltransferase genes abrogates reactivity of the R-LPS but not of the S-LPS fraction with antibodies from a B. melitensis-infected rabbit. BaΔper is a N-formyl-perosamine synthase mutant lacking the LPS O-PS, and BaΔwadC is a LPS mutant bearing O-PS but defective in the mannose-tetraglucosamine lateral branch of the core oligosaccharide (Figure 1).
BAB1_0953 Encodes WadD, a Previously Unidentified Glycosyltransferase Involved in the Synthesis of the LPS Core Lateral Branch
BAB1_0953 is an isolated gene and the adjacent ORFs are encoded in the complementary strand. Thus, it was very unlikely that a polar effect caused the LPS phenotype of the insertion mutant. However, to rule out such a possibility, we constructed a non-polar deletion mutant, hereafter named BaΔwadD following the nomenclature previously established for Brucella LPS core genes (Reeves et al., 1996; Gil-Ramírez et al., 2014). BaΔwadD LPS showed a migration profile similar to that of Ba-parental in the high molecular weight S-LPS fraction and an increased mobility in the R-LPS one. Western-blot analysis with a polyclonal serum showed that, while the former fraction kept the reactivity with this serum, the latter failed to react indicating a significant alteration of the core-lipid A epitopes. To assign the defect to the core oligosaccharide, we probed the LPS with MoAbs A68/24G12/A08 and A68/24D08/G09, the binding of which to the R-LPS requires an intact mannose-GlcN tetrasaccharide (Conde-Álvarez et al., 2012; Fontana et al., 2016). Both antibodies failed to react with the R-LPS fraction and this failure was reverted upon insertion of a complete wadD gene in the bacterial chromosome of the deletion mutant (BaΔwadD::Tn7-PwadD). Moreover, this complementation restored both the migration pattern of the R-LPS fraction to the level of the Ba-parental LPS and the reactivity with the polyclonal serum (Figure 3). An ELISA with several anti-core MoAbs and whole bacteria confirmed the core defect (Figure 4, upper panel).

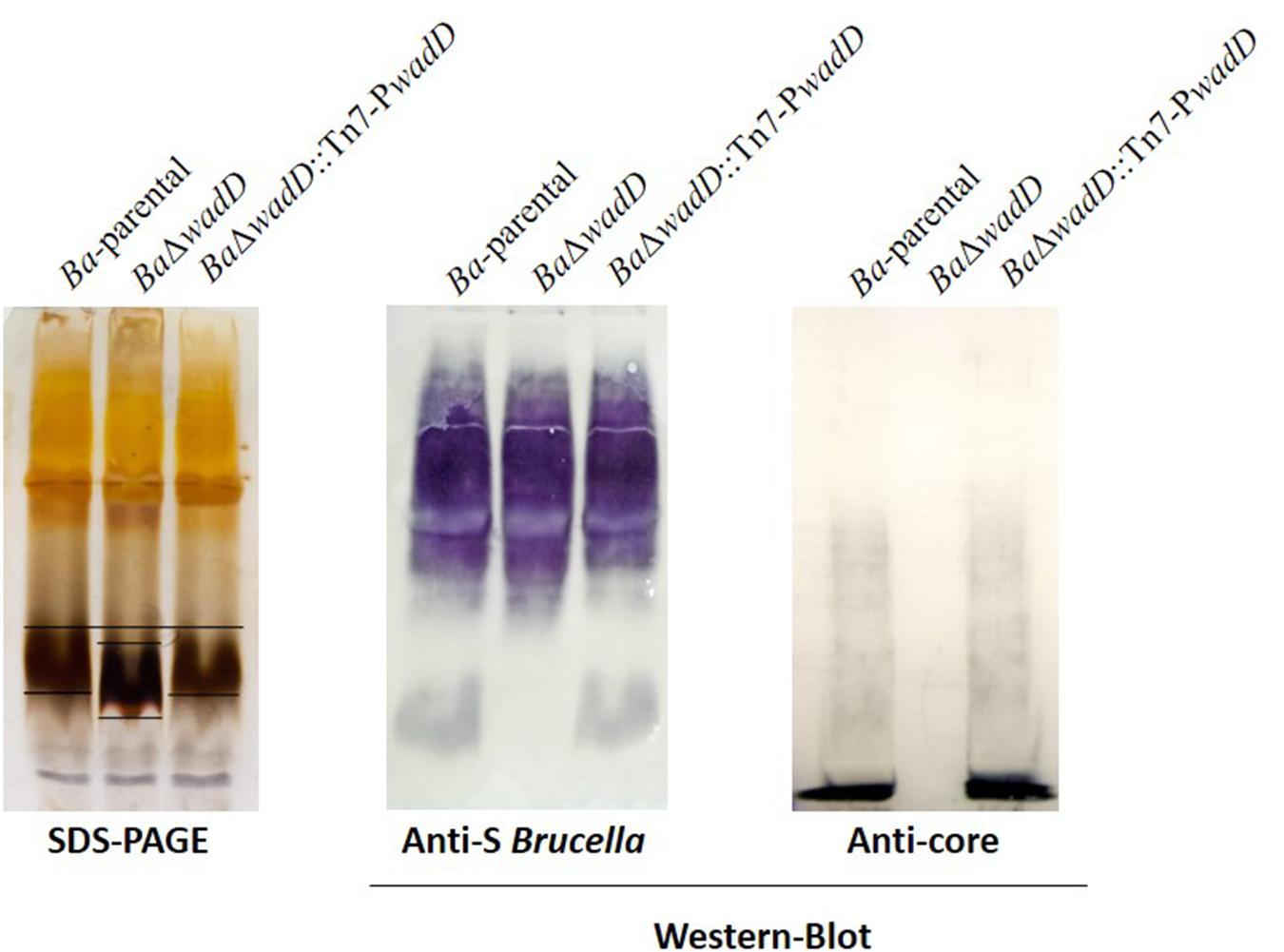

FIGURE 3. Mutation of wadD generates an LPS core defect. Left panel, SDS–PAGE electrophoresis and silver staining of SDS–proteinase K extracts; central panel, Western blot analysis of SDS–proteinase K extracts with a polyclonal serum of a B. melitensis-infected rabbit; right panel, Western blot analysis of SDS–proteinase K extracts with monoclonal anti-core antibody A68/24G12/A08.

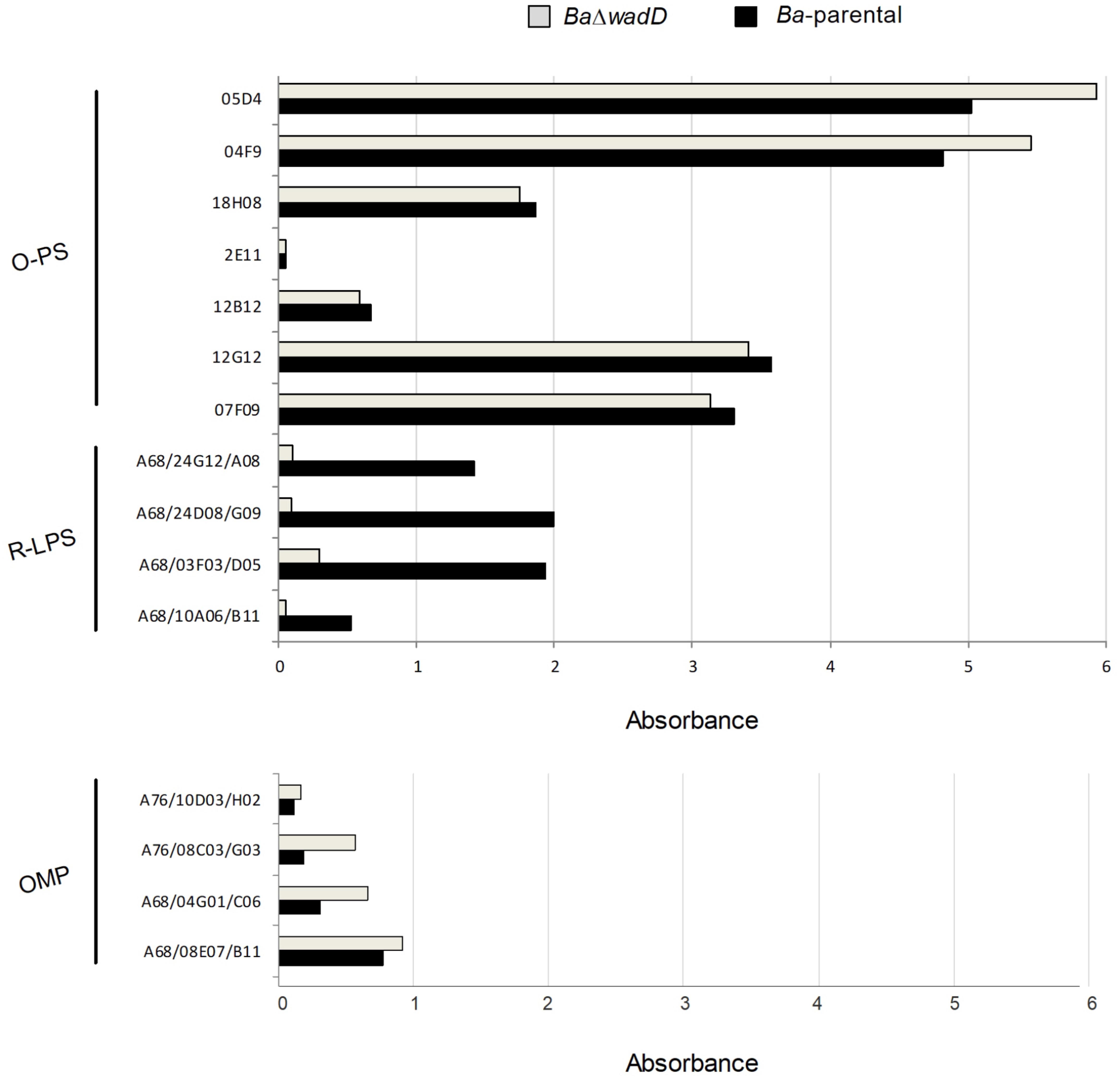

FIGURE 4. Outer membrane epitopes in BaΔwadD and Ba-parental. Upper panel, anti-O-PS and anti-R-LPS; lower panel, anti-OMP antibodies measured by ELISA test.
We only observed small but constant differences in reactivity of Ba-parental and BaΔwadD with anti-Outer Membrane Proteins (OMP) antibodies (Figure 4, lower panel). Although considering the limitations of the method used, this suggests that the presence of the O-PS and the defect in the core LPS could generate a steric hindrance that would allow the access of antibodies to the OMPs (Bowden et al., 1995) or the possibility that wadD mutation could affect the amount of LPS in the OM or how it is inserted in the bacterial surface.
Although as signaled above, the final confirmation would require a complete chemical analysis, all these results strongly suggest that wadD encodes a previously unidentified glycosyltransferase involved in the synthesis of the core lateral branch.
WadD Orthologs Are Present in all Brucella spp. but in a Recently Characterized Isolate From Amphibians
In silico analysis (Supplementary Figure S5) showed that wadD was highly conserved in the core brucellae including the “classical” spp. B. melitensis, B. suis (smooth LPS), and B. ovis and B. canis (rough LPS) and also in other “non-classical” smooth Brucella spp.: B. pinnipedialis, B. microti, B. ceti, and B. vulpis. We also analyzed the presence of wadD in the group of early-diverging brucellae that depart from the classical spp. and includes B. inopinata strain BO1, B. inopinata-like strain BO2, an isolated strain from native rodents in Australia (NF2653), and the Brucella spp. recently isolated from amphibians. These early-diverging Brucella produce an atypical LPS (Scholz et al., 2010; Tiller et al., 2010; Soler-Lloréns et al., 2016; Al Dahouk et al., 2017). Unexpectedly, wadD was present in all of them but absent in Brucella spp. B13-0095, one of the four Brucella strains isolated from frogs that have been completely sequenced (Soler-Lloréns et al., 2016). In contrast, this strain conserves wadB and wadC. Finally, WadD was 72 and 71% homologous to Ochrobactrum anthropi and O. intermedium orthologs, respectively, two species that also belong to the α-2 Proteobacteria subclass and are the closest genetic neighbors of Brucella.
Dysfunction of wadD Generates Increased Sensitivity to Cationic Peptides and Normal Serum
To test if the core defect displayed by BaΔwadD affected resistance to polycationic peptides, we used poly-L-ornithine, a mildly bactericidal cationic peptide and the two known core mutants BaΔwadB and BaΔwadC plus the parental strain as controls. The results (Figure 5A) showed that wadD dysfunction brought about a sensitivity similar to that of BaΔwadB but inferior to that of BaΔwadC. These differences in sensitivity were not due to growth defects because BaΔwadD had a growth rate similar to that of Ba-parental, and experiments with the highly bactericidal lipopeptide polymyxin B confirmed the role of wadD (BaΔwadD MIC = 0.094 μg/ml versus MIC = 2 μg/ml for both the mutant complemented with wild-type wadD and Ba-parental).

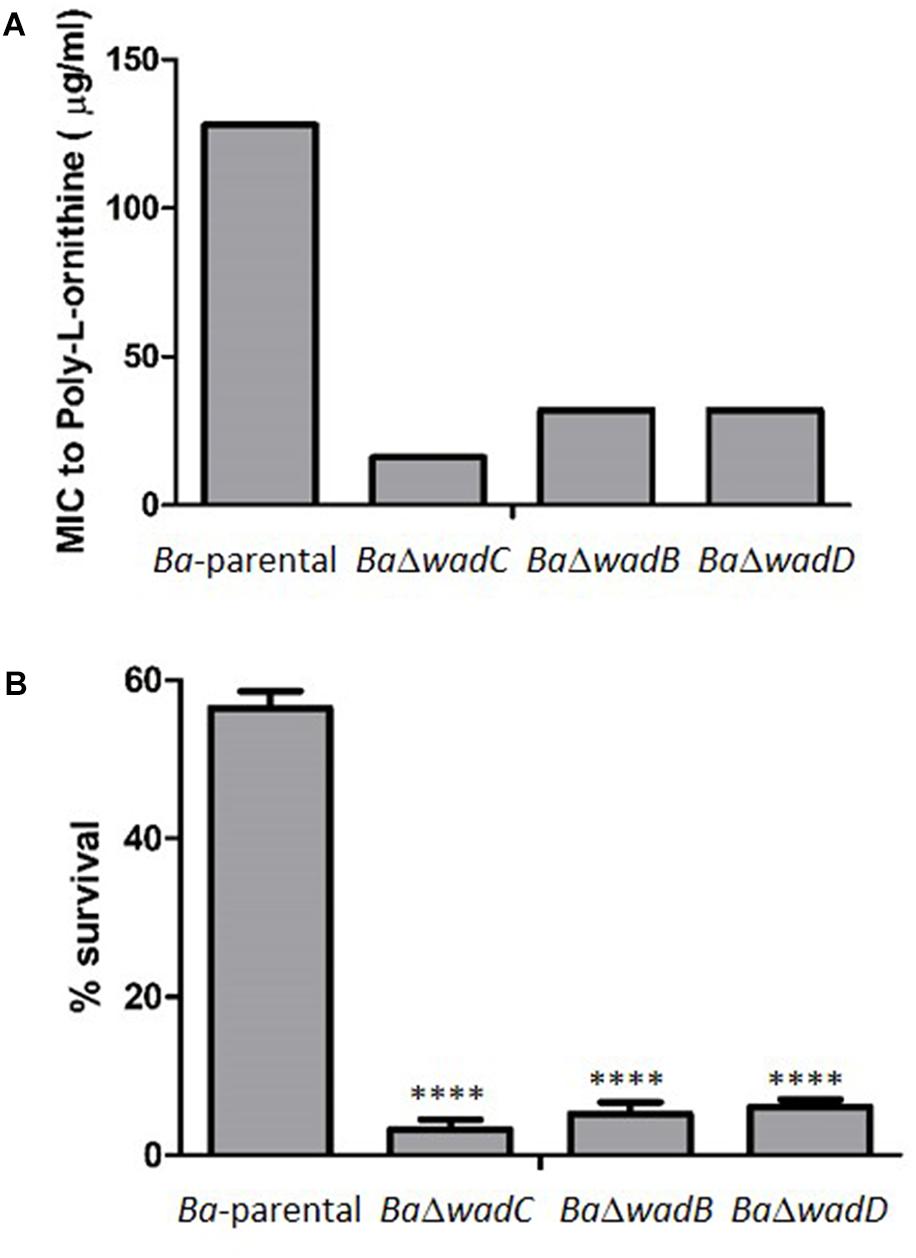

FIGURE 5. Dysfunction of wadD increases the sensitivity to poly-L-ornithine and non-immune sera. (A) Poly-L-ornithine MIC determined by the serial dilution method (results representative of three independent experiments in which Ba-parental, BaΔwadC, BaΔwadB, and BaΔwadD were assayed simultaneously). (B) Survival after incubation for 90 min in bovine non-immune serum (media ± standard error of technical triplicates). Means were compared by one-way ANOVA followed by Dunnett’s multiple comparisons test (∗∗∗∗p < 0.0001). Differences were significative between wadC and wadB mutants (p = 0.0023), between wadC and wadD mutants (p < 0.0001), but not between wadB and wadD mutants (p = 0.1958).
S brucellae are resistant to the bactericidal action of normal serum, a property associated with both the O-PS hindrance to inner OM targets such as OMPs and the PAMP modifications of the core that reduce binding of the complement activators of the antibody-independent classical pathway (Conde-Álvarez et al., 2012; Gil-Ramírez et al., 2014; Fontana et al., 2016). We compared the sensitivity to newborn bovine and ovine serum of Ba-parental and wadB, wadC, or wadD mutants and observed that the three core mutants were more sensitive than Ba-parental. The effect was more remarkable for mutant wadC than for wadD or wadB mutants (Figure 5B).
Dysfunction of wadD Generates Attenuation Detectable in the Chronic Phase in the Mouse Model
To analyze the role of wadD in virulence, we infected BALB/c mice (n = 5) with BaΔwadD or Ba-parental and compared the CFU/spleen at weeks 2, 8, and 12 (Figure 6). At weeks 8 and 12 post-infection, the CFU numbers of BaΔwadD were significantly lower than those of Ba-parental (p = 0.0003 and p = 0.0073, respectively), showing that wadD is required for full Brucella virulence in mice. This result is in line with previous observations with wadB and wadC mutants (Conde-Álvarez et al., 2012; Gil-Ramírez et al., 2014) and further confirms that an intact LPS core is necessary for virulence.
FIGURE 6. Mutants in wadD showed slight attenuation at late stage of infection. Spleen CFUs in infected BALB/c mice were counted at 2, 8, and 12 weeks after inoculation of 5 × 104 CFU. Means were compared by Student’s t independent-samples test (∗p < 0.05). For mice infected with the parental strain the counts were 6.25 ± 0.38, 6.98 ± 0.24, and 5.85 ± 0.32, respectively, and for mice infected with the wadD mutant 6.56 ± 0.22, 6.28 ± 0.54, and 5.17 ± 0.27.
In this work, we have analyzed the role of ORFs BAB1_0114, BAB1_0417, BAB2_0693, BAB1_0932, BAB1_0607, BAB2_0105, BAB1_1620, BAB2_0133, BAB2_0135, and BAB1_0326 annotated as glycosyltransferases in the B. abortus genome. Our results indicate that mutants in these ORFs react similarly to the parental strain in the S and R-LPS fractions and suggest that, in the studied conditions and with the available techniques, they seem not to be required for the synthesis of a complete LPS. Interestingly, the last three ORFs have been shown to be controlled by mucR, a regulator of Brucella virulence. Although it has been reported that B. abortus and B. melitensis mucR mutants have a defect in the core LPS (Caswell et al., 2013; Mirabella et al., 2013), the glycosyltransferases responsible for this defect have not been identified. In this work we have shown that mutation of the mucR-regulated putative glycosyltransferases BAB2_0133, BAB2_0135, and BAB1_0326 (Caswell et al., 2013) does not affect the synthesis of the core, at least in the growth conditions tested. Nevertheless, since the expression of these genes seems to be repressed by mucR (Caswell et al., 2013), a single mutation in the ORF could not be sufficient for the complete clarification of their role in LPS synthesis and further work would be required.
We have also analyzed in detail the role of the hypothetical glycosyltransferase BAB1_1620, as it is regulated by the master two-component regulator BvrR/BvrS that controls Brucella virulence and the expression of surface components. According to our results, this ORF is not required for the synthesis of a complete LPS and is not implicated in surface-dependent characteristics that confer resistance to polycationic peptides or in virulence in the mouse model.
More interestingly, we report the identification of wadD, a gene encoding a previously unidentified glycosyltransferase involved in the synthesis of the core section not linked to the O-PS and thus, corroborate and extend previous work indicating that the Brucella LPS core is a branched structure that constitutes a steric impairment preventing the elements of the innate immune system to fight against Brucella (Conde-Álvarez et al., 2012; Kubler-Kielb and Vinogradov, 2013; Gil-Ramírez et al., 2014; Fontana et al., 2016), and contribute to Brucella virulence.
The discovery of genes wadC and wadB, involved in the synthesis of the lateral branch not linked to the O-PS, was critical for the understanding of the structure and the role of the core section in virulence. It has been clearly demostrated that in a wadC mutant, the complete core lateral branch is absent because this mutant cannot incorporate the mannose residue that is the depart of the lateral branch and it links to the lipid A-core section (Conde-Álvarez et al., 2012; Fontana et al., 2016). In accordance, deletion of wadC results in higher sensitivity to polycationic peptides and complement, better recognition by the CD14–MD2–TLR4 receptor complex, maturation of dendritic cells, secretion of pro-inflammatory cytokines (including Th1-type cytokines IL-12 and IFN-γ), and attenuation in mice (Conde-Álvarez et al., 2012; Fontana et al., 2016). A wadB mutant is also more sensitive to elements of the innate immune system and shows attenuation in mice, although not to the levels of the wadC mutant (Gil-Ramírez et al., 2014). As we show here, disruption of wadD in B. abortus leads to a S strain with a core defect less severe than that of the wadC mutant, more sensitive to polycationic peptides and normal serum than the parental strain and attenuated in the murine model. Interestingly, its sensitivity to polycationic peptides is similar to that of the wadB mutant (Gil-Ramírez et al., 2014) and not as strong as that of the wadC mutant (Conde-Álvarez et al., 2012), that has lost the complete branch, and its role in virulence became apparent already at 8 weeks post-infection.
The resistance to polycationic peptides and the bactericidal action of normal serum of mutant wadD strongly suggest a role in thwarting some effectors of innate immunity and that this could be manifested in the early stages of infection. However, to observe these effects would depend on the virulence model used. Indeed, the results obtained in an in vitro test, where the bacteria are put directly in contact with the polycationic peptides or with the serum can not be completely extrapolated to all situations in the in vivo model where other factors apart from polycationic peptides and complement are clearly taking part during the infection process. Still, the mouse model is the only well-characterized laboratory model for Brucella virulence studies and requires that mice are inoculated by the IP route. By this route, bacteria are not in contact with polycationic peptides or serum proteins at the beginning of the infection process as they are taken up and transported to the spleen rapidly. Nevertheless, the attenuation observed for Brucella LPS core mutants is caused by an early activation of innate immunity, as we have proved before (Conde-Álvarez et al., 2012; Fontana et al., 2016).
Our results would be compatible with the loss of one or few glucosamine residues in the lateral branch of the wadD mutant, and with the fact that removal of these residues would cause an increase in overall negative charge of the remaining LPS inner section that will facilitate the binding of polycationic peptides.
According to chemical studies performed in B. melitensis, the core lateral branch contains a mannose and four glucosamines residues assambled as follows: β-D-GlcpN-(1 → 6)-β-D-GlcpN-(1 → 4)-[β-D-GlcpN-(1 → 6)]-β-D-GlcpN-(1 → 3)-α-D-Manp-(1 → 5) (Figure 1). Taking into account that wadC, wadB, and wadD are perfectly conserved in B. melitensis and B. abortus, and since WadC adds the mannose (Conde-Álvarez et al., 2012; Fontana et al., 2016), in all likelihood the four glucosamines should be added by WadB (Gil-Ramírez et al., 2014) and WadD. These glucosamines are bound to each other by β-(1 → 6), or β-(1 → 4) links, and the one bound to mannose by β-(1 → 3) is also linked to two glucosamine residues, both in β-(1 → 6) and β-(1 → 4). If WadB and WadD are the only glycosyltransferases involved in the assembly of the glucosamine tetrasaccharide and its binding to the mannose residue, one of them (or both) could be multi-fiunctional and thus able to add sugars in different linkage. Most glycosyltransferase enzymes involved in lipooligosaccharide (LOS) or LPS core biosynthesis are responsible for one type of sugar addition onto the growing chain (Raetz and Whitfield, 2002). However, some bacterial glycosyltransferase enzymes of the GT-2 family, to which WadD belongs, can be multi-functional and are characterized by the presence of tandems of two active domains (DXD) on one polypeptide, as is the case of Lgt3, responsible for the addition of three glucoses with different linkages [β-(1-3), β-(1-4), and β-(1-6)] onto the inner core of Moraxella catarrhalis LOS (Coutinho et al., 2003; Luke-Marshall et al., 2013). Interestingly, WadD from B. melitensis, B. abortus, and all the orthologs in the other Brucella spp. conserves two DXD domains, opening the door to the possibility of a bi-functional role for this glycosyltransferase (Supplementary Figure S5). This DXD domain is not present in WadB. Nevertheless, the understanding of the particular role of each glycosyltransferase in the linkage of the different glucosamines to form the pentasaccharide (glucosamine tetrasaccharide bound to mannose) would require the elucidation of the core chemical structure of wadB and wadD mutants.
Contrary to most of the genes encoding glycosyltransferases implicated in the synthesis of the LPS, that are clustered in the same or related regions of the Brucella genome (Vemulapalli et al., 2000; Monreal et al., 2003; Rajashekara et al., 2004, 2008; González et al., 2008), wadC, wadB, and wadD (BAB1_1522, BAB1_0351, and BAB1_0953, respectively), although all situated in chromosome I, are isolated and surrounded by other ORFs apparently not related to LPS synthesis. This, and the fact that some other genes involved in the synthesis of the core (manBcore and manCcore) are situated in chromosome II (Monreal et al., 2003; González et al., 2008), makes even more intriguing the identification of genes needed for the synthesis of Brucella core LPS and its lateral branch. Thus, although we think all glycosyltransferases have been identified, we can not rule out that other glycosyltransferases could be required for the assembly of the pentasaccharide that forms the core lateral branch.
In a chemical characterization of the core LPS previously performed in a B. melitensis strain different from the one used in our studies, a glucose residue was found linked to the mannose that is the depart of the lateral branch, and, if this were the case, a new glycosyltransferase could be needed (Kubler-Kielb and Vinogradov, 2013). However, it should be taken into account that the LPS extraction method and the B. melitensis biovar used for the determination of the core structure in this experiement were different from those used in our genetic and biochemical studies (Figure 1). It is important to notice that the chemical structure we discuss in Figure 1 has been elucidated in the same B. melitensis strain where the wadC gene was mutated (Fontana et al., 2016) and, in this case, no glucose residues were detected. The fact that, as discussed above, wadC, wadB, and wadD are perfectly conserved in B. melitensis, reinforces the interpretation of our results, and the idea that the glycosyltransferases encoded by the last two genes would be involved in the assembly of glucosamine residues.
Nevertheless, we should consider that, although the phenotype of wadC mutant in B. melitensis and B. abortus is similar (Conde-Álvarez et al., 2012; Fontana et al., 2016), previous results suggest that there could exist differences in the structure of the core in these two Brucella spp., since they react differently with MoAbs against core epitopes (González et al., 2008). Moreover, we have already seen that some of the studied ORFs (and discarded in our first screening since they reacted as the parental strain in the rough and smooth LPS fractions) present differences between B. abortus and B. melitensis (Supplementary Table S2). Thus, we could not discard them as the responsible for these differences. To understand the final role of wadB, wadC, and wadD, it would be necessary to analyze and compare the chemical structure of the core section in mutants in these genes in both spp.
Female BALB/c mice (ENVIGO, Harlan) were kept in cages with water and food ad libitum under P3 biosafety conditions in the facilities of CIMA (registration code ES31 2010000132) or CITA (registration code ES502970012005) 2 weeks before and during the experiments. The procedures were in accordance with the current European (directive 86/609/EEC) and Spanish (RD 53/2013) legislations, supervised by the Animal Welfare Committee of the University of Navarra or CITA, and authorized by “Gobierno de Navarra” (protocol number 134-14) or “Gobierno de Aragón” (protocol number R108/2009).
MI, RC-Á, IM, and MS-B conceived the study. MS-B, YG-R, AZ-R, EM-G, MM, PM, AC, and MZ carried out the experimental work. MI, IM, RC-Á, and MS-B wrote the paper. All authors participated in the presentation and discussion of the results.
This research was supported by the Institute for Tropical Health funders (Obra Social la CAIXA, “Fundaciones Caja Navarra” and “Roviralta, PROFAND, Ubesol, ACUNSA,” and “Artai”) and grants MINECO (AGL2014-58795-C4-1-R). MS-B is the recipient of a Ph.D. Fellowship funded by the “Asociación de Amigos de la Universidad de Navarra.” Work at CITA-Spain was also sustained by Grants from MINECO (AGL2008-04514-C03-03/GAN and AGL2014-58795-C4-3-R).
Conflict of Interest Statement
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
The authors thank A. Delgado-López for excellent technical assistance.
The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fmicb.2018.02293/full#supplementary-material
- ^ http://www.bacterio.net/-allnamesac.html
- ^ http://www.genome.jp/kegg/
- ^ http://blast.ncbi.nlm.nih.gov/Blast.cgi
- ^ http://www.ebi.ac.uk/Tools/msa/clustalo
- ^ http://www.ebi.ac.uk/
- ^ http://www.cazy.org
- ^ http://bioinfo.ut.ee/primer3-0.4.0/
- ^ http://www.cazy.org
Al Dahouk, S., Köhler, S., Occhialini, A., Jiménez de Bagüés, M. P., Hammerl, J. A., Eisenberg, T., et al. (2017). Brucella spp. of amphibians comprise genomically diverse motile strains competent for replication in macrophages and survival in mammalian hosts. Sci. Rep. 7:44420. doi: 10.1038/srep44420
Barquero-Calvo, E., Chaves-Olarte, E., Weiss, D. S., Guzmán-Verri, C., Chacón-Díaz, C., Rucavado, A., et al. (2007). Brucella abortus uses a stealthy strategy to avoid activation of the innate immune system during the onset of infection. PLoS One 2:e631. doi: 10.1371/journal.pone.0000631
Bowden, R., Cloeckaert, A., Zygmunt, M., Bernard, S., and Dubray, G. (1995). Surface exposure of outer membrane protein and lipopolysaccharide epitopes in Brucella species studied by enzyme-linked immunosorbent assay and flow cytometry. Infect. Immun. 63, 3945–3952.
Briones, G., Iñón de Iannino, N., Roset, M., Vigliocco, A., Paulo, P. S., and Ugalde, R. A. (2001). Brucella abortus cyclic beta-1,2-glucan mutants have reduced virulence in mice and are defective in intracellular replication in HeLa cells. Infect. Immun. 69, 4528–4535. doi: 10.1128/IAI.69.7.4528-4535.2001
Caswell, C. C., Elhassanny, A. E., Planchin, E. E., Roux, C. M., Weeks-Gorospe, J. N., Ficht, T. A., et al. (2013). Diverse genetic regulon of the virulence-associated transcriptional regulator MucR in Brucella abortus 2308. Infect. Immun. 81, 1040–1051. doi: 10.1128/IAI.01097-12
Cloeckaert, A., De Wergifosse, P., Dubray, G., and Limet, J. N. (1990). Identification of seven surface-exposed Brucella outer membrane proteins by use of monoclonal antibodies: immunogold labeling for electron microscopy and enzyme-linked immunosorbent assay. Infect. Immun. 58, 3980–3987.
Cloeckaert, A., Jacques, I., Bowden, R., Dubray, G., and Limet, J. N. (1993a). Monoclonal antibodies to Brucella rough lipopolysaccharide: characterization and evaluation of their protective effect against B. abortus. Res. Microbiol. Paris 144, 475–484. doi: 10.1016/0923-2508
Cloeckaert, A., Weynants, V., Godfroid, J., Verger, J.-M., Grayon, M., and Zygmunt, M. S. (1998). O-polysaccharide epitopic heterogeneity at the surface of Brucella spp. studied by enzyme-linked immunosorbent assay and flow cytometry. Clin. Diagn. Lab. Immunol. 5, 862–870.
Cloeckaert, A., Zygmunt, M. S., Dubray, G., and Limet, J. N. (1993b). Characterization of 0-polysaccharide specific monoclonal antibodies derived from mice infected with the rough Brucella melitensis strain B115. J. Gen. Microbiol. 139, 1551–1556. doi: 10.1099/00221287-139-7-1551
Conde-Álvarez, R., Arce-Gorvel, V., Gil-Ramírez, Y., Iriarte, M., Grilló, M. J., Gorvel, J. P., et al. (2013). Lipopolysaccharide as a target for brucellosis vaccine design. Microb. Pathog. 58, 29–34. doi: 10.1016/j.micpath.2012.11.011
Conde-Álvarez, R., Arce-Gorvel, V., Iriarte, M., Manček-Keber, M., Barquero-Calvo, E., Palacios-Chaves, L., et al. (2012). The lipopolysaccharide core of Brucella abortus acts as a shield against innate immunity recognition. PLoS Pathog. 8:e1002675. doi: 10.1371/journal.ppat.1002675
Coutinho, P. M., Deleury, E., Davies, G. J., and Henrissat, B. (2003). An evolving hierarchical family classification for glycosyltransferases. J. Mol. Biol. 328, 307–317. doi: 10.1016/S0022-2836(03)00307-3
Fontana, C., Conde-Álvarez, R., Ståhle, J., Holst, O., Iriarte, M., Zhao, Y., et al. (2016). Structural studies of lipopolysaccharide defective mutants from Brucella melitensis identify a core oligosaccharide critical in virulence. J. Biol. Chem. 291, 7727–7741. doi: 10.1074/jbc.M115.701540
Garin-Bastuji, B., Bowden, R. A., Dubray, G., and Limet, J. N. (1990). Sodium dodecyl sulfate-polyacrylamide gel electrophoresis and immunoblotting analysis of smooth-lipopolysaccharide heterogeneity among Brucella biovars related to A and M specificities. J. Clin. Microbiol. 28, 2169–2174.
Gil-Ramírez, Y., Conde-Álvarez, R., Palacios-Chaves, L., Zúñiga-Ripa, A., Grilló, M.-J., Arce-Gorvel, V., et al. (2014). The identification of wadB, a new glycosyltransferase gene, confirms the branched structure and the role in virulence of the lipopolysaccharide core of Brucella abortus. Microb. Pathog. 73, 53–59. doi: 10.1016/j.micpath.2014.06.002
Godfroid, F., Cloeckaert, A., Taminiau, B., Danese, I., Tibor, A., De Bolle, X., et al. (2000). Genetic organisation of the lipopolysaccharide O-antigen biosynthesis region of Brucella melitensis 16M (wbk). Res. Microbiol. 151, 655–668. doi: 10.1016/S0923-2508(00)90130-X
González, D., Grilló, M.-J. M., De Miguel, M. M.-J., Ali, T., Arce-Gorvel, V., Delrue, R. R.-M., et al. (2008). Brucellosis vaccines: assessment of Brucella melitensis lipopolysaccharide rough mutants defective in core and O-polysaccharide synthesis and export. PLoS One 3:e2760. doi: 10.1371/journal.pone.0002760
Iriarte, M., González, D., Delrue, R.-M., Monreal, D., Conde, R., López-Goñi, I., et al. (2004). “Brucella lipopolysaccharide: structure, biosynthesis and genetics,” in Brucella. Molecular and Cellular Biology (Wymondham: Horizon Bioscience), 159–192.
Kubler-Kielb, J., and Vinogradov, E. (2013). The study of the core part and non-repeating elements of the O-antigen of Brucella lipopolysaccharide. Carbohydr. Res. 366, 33–37. doi: 10.1016/j.carres.2012.11.004
Llobet, E., March, C., Giménez, P., and Bengoechea, J. A. (2009). Klebsiella pneumoniae OmpA confers resistance to antimicrobial peptides. Antimicrob. Agents Chemother. 53, 298–302. doi: 10.1128/AAC.00657-08
Luke-Marshall, N. R., Edwards, K. J., Sauberan, S., St Michael, F., Vinogradov, E. V., Cox, A. D., et al. (2013). Characterization of a trifunctional glucosyltransferase essential for Moraxella catarrhalis lipooligosaccharide assembly. Glycobiology 23, 1013–1021. doi: 10.1093/glycob/cwt042
Manterola, L., Moriyón, I., Moreno, E., Sola-Landa, A., Weiss, D. S., Koch, M. H. J., et al. (2005). The lipopolysaccharide of Brucella abortus BvrS/BvrR mutants contains lipid a modifications and has higher affinity for bactericidal cationic peptides. J. Bacteriol. 187, 5631–5639. doi: 10.1128/JB.187.16.5631-5639.2005
Martínez-Gómez, E., Ståhle, J., Gil-Ramírez, Y., Zúñiga-Ripa, A., Zaccheus, M., Moriyón, I., et al. (2018). Genomic insertion of a heterologous acetyltransferase generates a new lipopolysaccharide antigenic structure in Brucella abortus and Brucella melitensis. Front. Microbiol. 9:1092. doi: 10.3389/FMICB.2018.01092
McQuiston, J. R., Vemulapalli, R., Inzana, T. J., Schurig, G. G., Sriranganathan, N., Fritzinger, D., et al. (1999). Genetic characterization of a Tn5-disrupted glycosyltransferase gene homolog in Brucella abortus and its effect on lipopolysaccharide composition and virulence. Infect. Immun. 67, 3830–3835.
Mirabella, A., Terwagne, M., Zygmunt, M. S., Cloeckaert, A., De Bolle, X., and Letesson, J. J. (2013). Brucella melitensis MucR, an orthologue of Sinorhizobium meliloti MucR, is involved in resistance to oxidative, detergent, and saline stresses and cell envelope modifications. J. Bacteriol. 195, 453–65. doi: 10.1128/JB.01336-12
Monreal, D., Grilló, M. J., González, D., Marín, C. M., De Miguel, M. J., López-Goñi, I., et al. (2003). Characterization of Brucella abortus O-polysaccharide and core lipopolysaccharide mutants and demonstration that a complete core is required for rough vaccines to be efficient against Brucella abortus and Brucella ovis in the mouse mo. Infect. Immun. 71, 3261–3271. doi: 10.1128/iai.71.6.3261-3271.2003
Palacios-Chaves, L., Conde-Álvarez, R., Gil-Ramírez, Y., Zúñiga-Ripa, A., Barquero-Calvo, E., Chacón-Díaz, C., et al. (2011). Brucella abortus ornithine lipids are dispensable outer membrane components devoid of a marked pathogen-associated molecular pattern. PLoS One 6:e16030. doi: 10.1371/journal.pone.0016030
Rajashekara, G., Covert, J., Petersen, E., Eskra, L., and Splitter, G. (2008). Genomic island 2 of Brucella melitensis is a major virulence determinant: functional analyses of genomic islands. J. Bacteriol. 190, 6243–6252. doi: 10.1128/JB.00520-08
Rajashekara, G., Glasner, J. D., Glover, D. A., and Splitter, G. A. (2004). Comparative whole-genome hybridization reveals genomic islands in Brucella species. J. Bacteriol. 186, 5040–5051. doi: 10.1128/JB.186.15.5040-5051.2004
Reeves, P. R., Hobbs, M., Valvano, M. A., Skurnik, M., Whitfield, C., Coplin, D., et al. (1996). Bacterial polysaccharide synthesis and gene nomenclature. Trends Microbiol. 4, 495–503. doi: 10.1016/S0966-842X(97)82912-5
Rojas, N., Freer, E., Weintraub, A., Ramirez, M., Lind, S., and Moreno, E. (1994). Immunochemical identification of Brucella abortus lipopolysaccharide epitopes. 1, 206–213. doi: 10.1111/j.1439-0450.2001.00476.x
Rojas, N., Zamora, O., Cascante, J., Garita, D., and Moreno, E. (2001). Comparison of the antibody response in adult cattle against different epitopes of Brucella abortus lipopolysaccharide. J. Vet. Med. Ser. B 48, 623–629. doi: 10.1111/j.1439-0450.2001.00476.x
Scholz, H. C., Nockler, K., Gollner, C., Bahn, P., Vergnaud, G., Tomaso, H., et al. (2010). Brucella inopinata sp. nov., isolated from a breast implant infection. Int. J. Syst. Evol. Microbiol. 60, 801–808. doi: 10.1099/ijs.0.011148-0
Scupham, A. J., and Triplett, E. W. (1997). Isolation and characterization of the UDP-glucose 4-epimerase-encoding gene, galE, from Brucella abortus 2308. Gene 202, 53–59. doi: 10.1016/S0378-1119(97)00453-8
Simon, R., Priefer, U., and Pühler, A. (1983). A broad host range mobilization system for in vivo genetic engineering: transposon mutagenesis in gram negative bacteria. Biotechnology 1, 784–791. doi: 10.1038/nbt1183-784
Soler-Lloréns, P. F., Quance, C. R., Lawhon, S. D., Stuber, T. P., Edwards, J. F., Ficht, T. A., et al. (2016). A Brucella spp. isolate from a Pac-Man Frog (Ceratophrys ornata) reveals characteristics departing from classical Brucellae. Front. Cell. Infect. Microbiol. 6:116. doi: 10.3389/fcimb.2016.00116
Soler-Lloréns, P., Gil-Ramírez, Y., Zabalza-Baranguá, A., Iriarte, M., Conde-Álvarez, R., Zúñiga-Ripa, A., et al. (2014). Mutants in the lipopolysaccharide of Brucella ovis are attenuated and protect against B. ovis infection in mice. Vet. Res. 45:72. doi: 10.1186/s13567-014-0072-0
Tibor, A., Wansard, V., Bielartz, V., Delrue, R.-M., Danese, I., Michel, P., et al. (2002). Effect of omp10 or omp19 deletion on Brucella abortus outer membrane properties and virulence in mice. Infect. Immun. 70, 5540–5546. doi: 10.1128/IAI.70.10.5540-5546.2002
Tiller, R. V, Gee, J. E., Frace, M. A., Taylor, T. K., Setubal, J. C., Hoffmaster, A. R., et al. (2010). Characterization of novel Brucella strains originating from wild native rodent species in North Queensland, Australia. Appl. Environ. Microbiol. 76, 5837–5845. doi: 10.1128/AEM.00620-10
Vemulapalli, R., He, Y., Buccolo, L. S., Boyle, S. M., Sriranganathan, N., and Schurig, G. G. (2000). Complementation of Brucella abortus RB51 with a functional wboA gene results in O-antigen synthesis and enhanced vaccine efficacy but no change in rough phenotype and attenuation. Infect. Immun. 68, 3927–3932. doi: 10.1128/IAI.68.7.3927-3932.2000
Viadas, C., Rodríguez, M. C., Sangari, F. J., Gorvel, J.-P., García-Lobo, J. M., and López-Goñi, I. (2010). Transcriptome analysis of the Brucella abortus BvrR/BvrS two-component regulatory system. PLoS One 5:e10216. doi: 10.1371/journal.pone.0010216
Zhao, Y., Hanniffy, S., Arce-Gorvel, V., Conde-Alvarez, R., Oh, S., Moriyón, I., et al. (2017). Immunomodulatory properties of Brucella melitensis lipopolysaccharide determinants on mouse dendritic cells in vitro and in vivo. Virulence 9, 465–479. doi: 10.1080/21505594.2017.1386831
